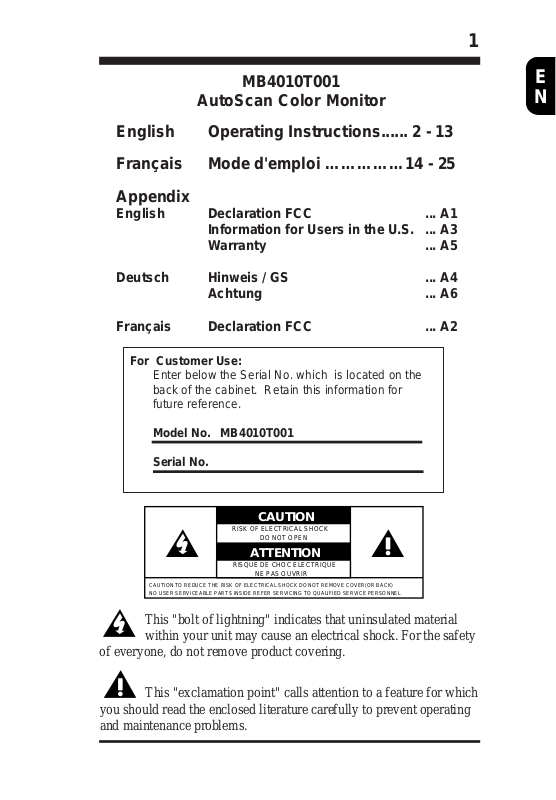

Philips MB4010 User Manual

1

MB4010T001

AutoScan Color Monitor

English Operating Instructions...... 2 - 13

Français Mode d'emploi ……………14 - 25
Appendix

English Declaration FCC ... A1

Information for Users in the U.S. ... A3

Warranty ... A5

Deutsch Hinweis / GS ... A4

Achtung ... A6

Français Declaration FCC ... A2

For Customer Use:

Enter below the Serial No. which is located on the
back of the cabinet. Retain this information for
future reference.

Model No. MB4010T001

Serial No.

E
N

CAUTION

RISK OF ELECTRICAL SHOCK

DO NOT OPEN

ATTENTION

RISQUE DE CHOC ELECTRIQUE

CAUTION TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT REMOVE COVER(OR BACK)
NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

NE PAS OUVRIR

This "bolt of lightning" indicates that uninsulated material
within your unit may cause an electrical shock. For the safety

of everyone, do not remove product covering.

This "exclamation point" calls attention to a feature for which
you should read the enclosed literature carefully to prevent operating
and maintenance problems.

E
N

2

Introduction

The colour monitor displays sharp and brilliant images of text and
graphics with a maximum resolution up to 1024x768 pixels. It is optimal
for Windows, spread sheets, and any other application.

This monitor automatically scans horizontal frequencies from 30KHz to
54KHz, and vertical frequencies from 50Hz to 110Hz. With
microprocessor based digital controlled circuit, the monitor can
automatically adjust itself to the video card’s scanning frequency and
displays an image with precise parameters you desire. The wide range
of scanning frequency supports variety of operating platforms, such as
IBM PC and compatibles, including Intel based platforms such as 386,
486, Pentium and Pentium Pro.

Feature Highlights

• Global Styling demonstrates a soft & smart image.

• Digital Control feature provides user-friendliness and ease-of-use

when operating the monitor.

• Anti-Glare and Anti-Static screen coating eliminate any bad effects

caused by the screen surface such as reflection of the room lights
and dust attraction.

• 85Hz refresh rate:

The maximum display resolution is 1024 x 768 pixels non-interlaced
mode. The recommanded optimum resolution up to 800 x 600 pixels
non-interlaced by maximum 85Hz refresh rate.

• Green Design including automatic power saving function (NUTEK)

and low emission MPRII compliance shows our commitment in
environmental care.

• DDC1/DDC2B allows communication between the monitor and PC

system for optimal video configuration.

3

Note: If you experienced your monitor display is changing from color
to mono, it's possible that you are using a non-VESA-DDC-standard
video card. Please consult with your local Philips dealer for more
information.

As an Energy Star Partner, MAGNAVOX, has determined that this
product meets the Energy Star guidelines for energy efficiency.

IBM, IBM PC and Power PC are registered trademarks of International
Business Machines Corporation.

E
N

4

E
N

Safety precautions and maintenance

◆ Disconnect the monitor from the mains supply if the monitor is not

to be used for an extended period of time.

◆ Do not attempt to remove the back cover, as you will be exposed to

a shock hazard. The back cover should only be removed by qualified
service personnel.

◆ Do not place objects on top of the monitor cabinet, which could fall

into vents or which could cover them and prevent proper cooling of
the monitor ’s electronic devices.

◆

Do not expose the monitor to rain or excessive moisture to avoid the
risk of shock or permanent damage to the set.

◆ Do not use alcohol or ammonia based liquid to clean the monitor. If

necessary, clean with a slightly damp cloth. Disconnect the monitor
from the mains supply before cleaning.

◆ Consult a service technician if the monitor does not operate normally

when operating instructions of this manual are followed.

Package

Your package includes the following items:

• The monitor

• Pedestal

• Power cord

• Interface cable (flying-in)

End of life disposal

Your new set contains materials which can be recycled and reused.
Specialized companies can recycle your product to increase the amount
of reusable materials and to minimize the amount of materials to be
disposed of.

Please inform yourself on local regulations on disposal of your old set.
