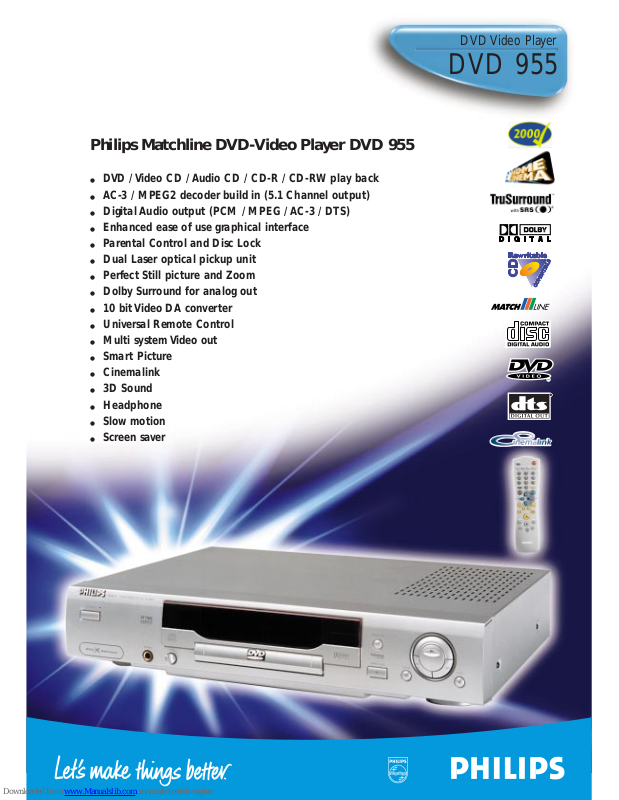

Philips Matchline DVD-Video Player DVD 955
● DVD / Video CD / Audio CD / CD-R / CD-RW play back
● AC-3 / MPEG2 decoder build in (5.1 Channel output)
● Digital Audio output (PCM / MPEG / AC-3 / DTS)
● Enhanced ease of use graphical interface
● Parental Control and Disc Lock
● Dual Laser optical pickup unit
● Perfect Still picture and Zoom
● Dolby Surround for analog out
● 10 bit Video DA converter
● Universal Remote Control
● Multi system Video out
● Smart Picture
● Cinemalink
● 3D Sound
● Headphone
● Slow motion
● Screen saver
DVD Video Player
DVD 955
Page 2
Dolby,AC-3,Pro Logic and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.The products and services described here will not necessarily become available in the market.This document contains preliminary information. Due to continuous improvements this specification is subject to change without notice.Printed in the Netherlands 01-99 3122 321 82832
TruSurround ©
Copyright 1998/1999 SRS Labs,Inc.All rights reserved
Technical Specifications DVD 955
Playback System
● DVD Video
● Video CD
● CD (CD-R and CD-RW)
Optical Read-out System
● Laser type Semiconductor AIGaAs
● Numerical Aperture 0.6 (D VD)
0.45 (VCD/CD)
● Wavelength 650 nm (DVD)
780 nm (VCD/CD)
DVD Disc Format
● Medium Optical disc
● Diameter 12 cm (8 cm)
● Playing time (12 cm)
one layer 2.15h
1
dual layer 4h
1
two side,single layer 4.30h
1
two side,dual layer 8h
1
TV Standard
PAL NTSC
50 Hz 60 Hz
● Number of lines 625 525
● Playback Multistandard (PAL/NTSC)
Video Format
● DA Converter 10 bits
● Signal handling Components
● Digital Compression MPEG2 for DVD
MPEG1 for VCD
DVD 50 Hz 60 Hz
● Hor. Resolution 720 pixels
2
720 pixels
2
● Vert. Resolution 576 lines 480 lines
VCD
● Hor. Resolution 352 pixels 352 pixels
● Vert. Resolution 288 lines 240 lines
Video Performance
● Video output 1 V
pp
into 75 Ohm
● S-Video Output Y: 1 V
pp
into 75 Ohm
C:0.300 Vppinto 75 Ohm
● RGB output 0.7 V
pp
into 75 Ohm
● Black Level Shift On/Off
● Video Shift Left/Right
Audio Format
● Digital MPEG/ Compressed Digital
DTS/AC-3
PCM 16,20,24 bit
fs,48,96 kHz
●
Analog Sound Stereo & Dolby Pro Logic
(VCD & downmix from multichannel sound)
Full decoding of multi-channel surround sound.
3D Sound for virtual 5.1 channel sound on2 speakers.
Audio Performance
● DA Converter 24 bits
● DVD f
s
96 kHz 4 Hz-44 kHz
fs48 kHz 4 Hz-22 kHz
● Video CD f
s
48 kHz 4 Hz-22 kHz
● CD f
s
44.1 kHz 4 Hz-20 kHz
Signal-Noise (1 kHz) 110 dB
Dynamic Range (1 kHz) 100 dB
Crosstalk (1 kHz) 115 dB
Distortion / Noise (1 kHz) 92 dB
Headphone 30 mW at 32 Ohm load
Headphone impedance 8-2k Ohm
Connections
SCART 2 Euroconnector
S-Video Output Mini DIN,4-pins
Video Output Cinch (yellow)
Audio L+R output Cinch (white/red)
Audio Front Left/Right Cinch (white/red)
Audio Surr.Left/Right Cinch (white/red)
Audio Centre Cinch (blue)
Audio Subwoofer Cinch (black)
Digital Output 1 coaxial,1 optical
IEC958 for CDDA/
LPCM
IEC1937 for MPEG1/2,
AC-3
DTS
Headphone 6.5 mm Jack
Power Supply
Power Inlet 100-240 V,50/60 Hz
Power usage 20 Watt
Power usage standby less than 5 Watt
Cabinet
Dimensions 435 x 88 x 315 mm
(W x H x D)
Weight 4 Kg
Package Contents
DVD-Video Player
Universal Remote Control
Power cable
User Manual
Euroconnector cable
Audio cable
Video cable
Carton
Languages English (front,top)
French (rear)
Spanish (right)
German (left)
General Functionality
Stop / Play / Pause
Fast Forward/Backward (3-speed)
Time Search
Step Forward/Backward (on Virtual jog/shuttle)
Slow (3-speed on Virtual jog/shuttle)
Title / Track Select
Skip Next / Skip Previous
Repeat (Chapter / Title / All) or (Track / All)
A-B Repeat
Shuffle
Scan
Enhanced (“One OSD”) menus
Perfect Still with digital multi-tap filter
Zoom (x1.33,x2, x4) with picture enhancement
Personal Color change
Cinemalink interconnection for plug&play
3D sound
Per speaker setting of Volume, Delay, Range
DVD Functionality
Multi-angle Selection
Audio Selection (1 out of max.8 languages)
Subtitles Selection (1 out of max.32 languages)
Aspect Ratio conversion
(16:9,4:3 Letterbox, 4:3 Pan Scan)
Parental Control and Disc lock
Disc Menu support (Title Menu and Root Menu)
Resume (5 discs) after stop / standby
Screen Saver (Dim 75% after 15 min.)
Programming Titles/chapters with Favourite
Selection
Video CD Functionality
Playback Control for VCD 2.0 discs
Disc lock
Resume (5 discs) after stop / standby
Screen Saver (Dim 75% after 15 min.)
Programming Tracks with Favourite Selection
Audio CD Functionality
Time Display (Total / Track / Remaining Track Time)
Full audio functionality with remote control
Programming with Favourite Track Selection
1 typical playing time for movie with 2 spoken
languages and 3 subtitle languages.
2 Equivalent to 500 lines on your TV
Philips Disc Systems
P.O.Box 80002
5600 JB Eindhoven
The Netherlands
http://www.sv.philips.com
