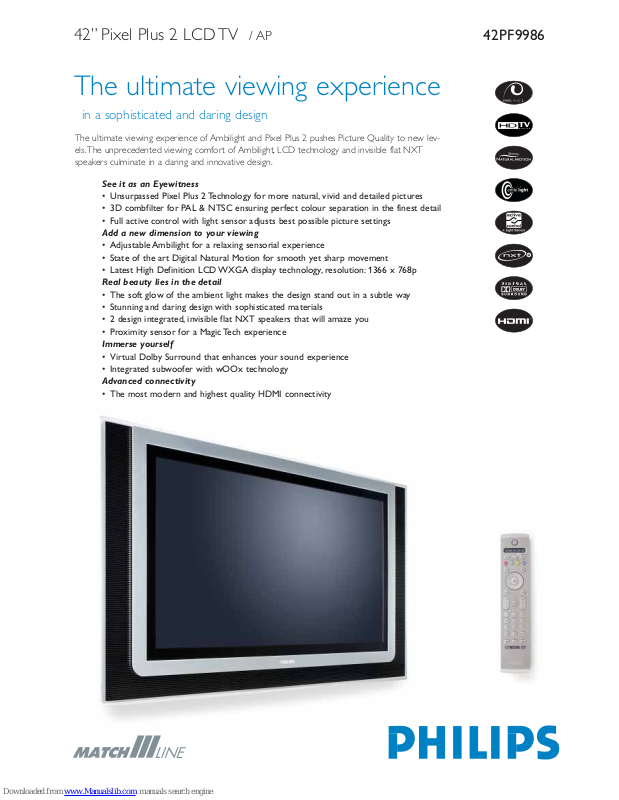

Page 1
The ultimate viewing experience
in a sophisticated and daring design
The ultimate viewing experience of Ambilight and Pixel Plus 2 pushes Picture Quality to new levels.The unprecedented viewing comfort of Ambilight, LCD technology and invisible flat NXT
speakers culminate in a daring and innovative design.
42” Pixel Plus 2 LCD TV / AP 42PF9986
See it as an Eyewitness
• Unsurpassed Pixel Plus 2 Technology for more natural, vivid and detailed pictures
• 3D combfilter for PAL & NTSC ensuring perfect colour separation in the finest detail
• Full active control with light sensor adjusts best possible picture settings
Add a new dimension to your viewing
• Adjustable Ambilight for a relaxing sensorial experience
• State of the art Digital Natural Motion for smooth yet sharp movement
• Latest High Definition LCD WXGA display technology,resolution: 1366 x 768p
Real beauty lies in the detail
• The soft glow of the ambient light makes the design stand out in a subtle way
• Stunning and daring design with sophisticated materials
•2 design integrated, invisible flat NXT speakers that will amaze you
•Proximity sensor for a Magic Tech experience
Immerse yourself
• Virtual Dolby Surround that enhances your sound experience
• Integrated subwoofer with wOOx technology
Advanced connectivity
• The most modern and highest quality HDMI connectivity
Page 2
• Screen Size: 42” (107 cm)
• Visible Screen Size: 107 cm
• Aspect ratio : Widescreen 16:9
• Display : LCD Active Matrix TFT
• Response time LCD : <12ms
• Resolution : WXGA - 1366 x 768p
• Brightness : 400 cd/m2
• Contrast Ratio : 500: 1
• Viewing Angles 176H/ 176V
• Anti Reflex Coated Screen
• Pixel Plus 2
•Movie Plus
•Progressive Scan
• Digital Natural Motion
• Jagged Line Suppression
• 3D Comb Filter for PAL & NTSC
• Digital Crystal Clear
• Active Control + Light Sensor
• Widescreen Plus
Ambilight
• Auto adaptive to video content
• Full multi colour range
• Dimming : manual or via Light Sensor
•Preset Modes :
- 6 presets of which 2 active adaptive
- 1 user definable preset
• Full operation in Stand by
• Efficient low energy lamps
Sound
• Sound Power : 3x 15 W RMS
• Virtual Dolby Surround
• NXT Monolith Speakers (L/R)
• Integrated subwoofer with wOOx
• Digital Signal Processing
• TV as Center Speaker Mode
Ease of Use
• Plug & Play
• 100 preset channels
• Auto Tuning & Channel Installation ATS
• Compass Graphical User Interface
• Backlit Top Controls with Proximity Sensor
• RC4302 for Philips VCR/DVD/DVD-R/SAT
(rc5 and rc6) AMP/TUNER/CD/CD-R
•6 Widescreen modes
• Subtitle and Heading Shift
• Auto Format / Auto Screen Fit (incl.WSSB)
• Full DualScreen with 2 tuners
• Picture Freeze / Replay / Mosaic
• Direct Program List
•6 Smart Picture Settings
•4 Smart Sound Settings
• Smart Clock / On & Sleep Timer (240mn)
• Smart Lock (Child lock + Parental Control)
Connections
• Side Connectors:
S-Video Y/C in
Video CVBS in (cinch)
Audio L/R in (cinch)
Headphones out (3,5mm jack)
• AV 1:Component Video in YPbPr (1,2, 3Fh),
Y/C and CVBS in, Audio L/R (cinch)
• AV 2:Component Video in YpbPr or RGB/HV
(1, 2, 3Fh auto ranging),Y/C and CVBS in,
Audio L/R (cinch)
• AV 3:HDMI (Digital Stream, SP DIF, DVI compatible),Audio L/R in (cinch)
• Monitor out CVBS (cinch),Audio L/R (cinch)
• Audio out L/R (cinch)
• Centre Channel in (cinch) for connection to
a Home Cinema system
• Subwoofer out (cinch)
Information
• 1200 page Hypertext with Habit Watch
•Program information Line
Reception
•Tuning system: PLL Digital Tuning
•Tuner: VHF, UHF,S-Channel, Hyperband
• Aerial Input: 75 Ohm Coaxial (IEC75)
• TV System : PAL/NTSC
• Video playback : PAL / NTSC
Supported Display Resolutions
Standard Resolution Refresh rate
VGA 640 x 480 60Hz
SVGA 800 x 600 60Hz
XGA 1024 x 768 60Hz
WXGA 1280 x 768 60Hz
Videoformats
640 x 480i@60Hz – 1Fh
640 x 480p@
60Hz – 2Fh
720 x 576i
@50Hz – 1Fh
720 x 576p@50Hz – 2Fh
1280 x 720p@60Hz – 3Fh
1920 x 1080i@50 & 60Hz – 2Fh
1920 x 1152i@50Hz – 2Fh
Miscellaneous
• Ambient temperature +5 --+ 40°C
• Mains: AC220 - 240 V +/-10 %
•Power consumption: normal operation 240W
Stand by <2W (tbc)
• Set Weight : ±35kg
•Weight Incl. Packaging :
±47kg
• Set Dimension (WxHxD):
1238x755x96mm
•Box Dimension (WxHxD):
1300x930x325mm
•Wall Mounting Brackets included
• Designer Table Top Stand (Optional)
• Designer Floor Stand (Optional)
Predecessor : —
Chassis : EMG Top
Introduction :Year 2004
Technical specifications
42PF9986/69
Product highlights
Flat, Slim,Wide
True Flat Multimedia TV which can be mounted on the
wall like a painting.
LCD Active Matrix TFT Panel
This new generation TFT panel technology offers superior picture quality with higher contrast levels, more
brightness & colour, a faster response time and a wide
viewing angle.This vibrant and sharp image will offer
you the utmost viewing experience.
PixelPlus 2
Pixel Plus is a digital picture processing feature which
improves the resolution of still and moving pictures.
Pixel Plus 2 technology does more than adding pixels,
it also makes the pixels better, resulting in the ultimate
sharpness and incredible picture depth every time from
every source. It does not only improve the resolution
but also the colour reproduction, resulting in the finest
colour details and superior brilliance.
Ambilight
The full colour Ambilight offers you relaxed viewing and
a unique ambiance via a soft glow of light on the wall
surrounding the TV. Research has proven that watching
television with adapted ambient lighting will improve
and relax TV viewing.The automatic adaptation of the
Ambilight colours with the images on the screen will
maximise the viewing experience.The light can also be
switched to fixed colours and different shades of white.
In standby mode the lights can be operated to any
colour and create a unique ambiance in the room.
Digital Natural Motion
Philips invented Digital Natural Motion to eliminate
juddering effects that are visible with moving picture
content. Digital Natural Motion estimates motion in the
picture and corrects juddering movements in both
broadcast and movie material (DVD).Smooth motion
reproduction and excellent sharpness are the result.
Full ActiveControl
Active Control automatically analyses, 50 times per second, the incoming signal and adjusts the key picture
settings on Sharpness, Digital Noise Reduction,Color
and Contrast.The ambient light sensor adjusts the settings according to the viewing conditions in the room.
Active Control thus offers the best possible picture settings any time, any source.
Virtual Dolby Surround
Dolby processing circuitry for an enhanced cinema surround sound effect without the need for rear speakers.
Invisible flat NXT SurfaceSound speakers
The ground breaking NXT SurfaceSound principle has
been further developed into the monolith speakertechnology.Whereby the outer surface of the TV cabinet is
the actual speaker membrane.The speakers are now
virtually invisible, bringing a stunning design, and a pure
an direct sound radiation.
Full Dual Screen
The ability to watch simultaneously two different channels, either two programs or any combination with
Teletext and/or NexTView. Includes Picture In Picture
(3 sizes, free positioning), 3PIP Mosaic, 8PIP Mosaic.
Date of issue 2004-02-25
Printed in ‘Country’ 2004-mm-dd
Specifications are subject to change without notice
Trademarks owned by Royal Philips Electronics
2004 © Royal Philips Electronics - All rights reserved
www.philips.com
42” Pixel Plus 2 LCD TV / AP

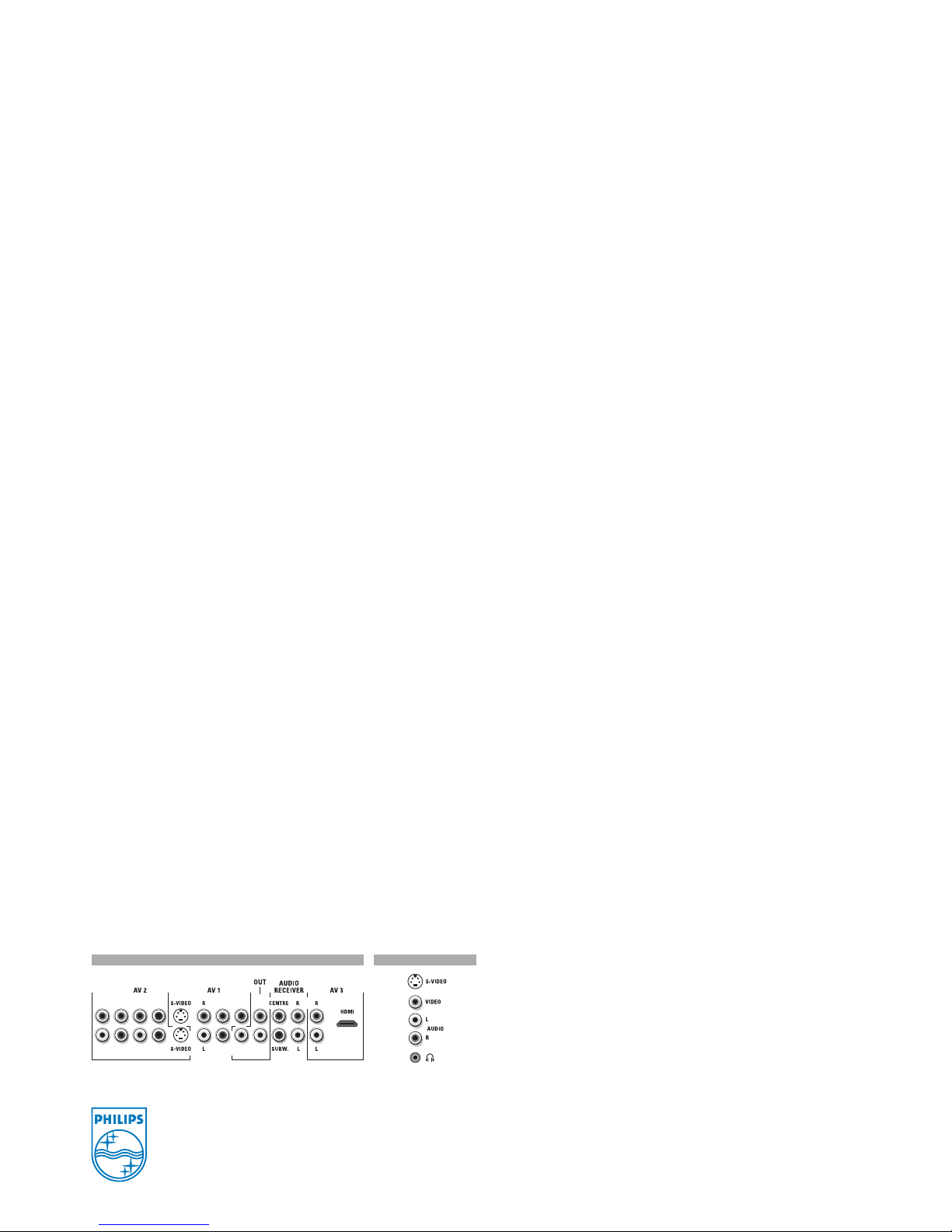

side/ bottom connectors
R Pr/R Y/G V
L
RLY
VIDEO
MONITOR
Pr
PbPb/B VIDEO H
connectors
