Page 1

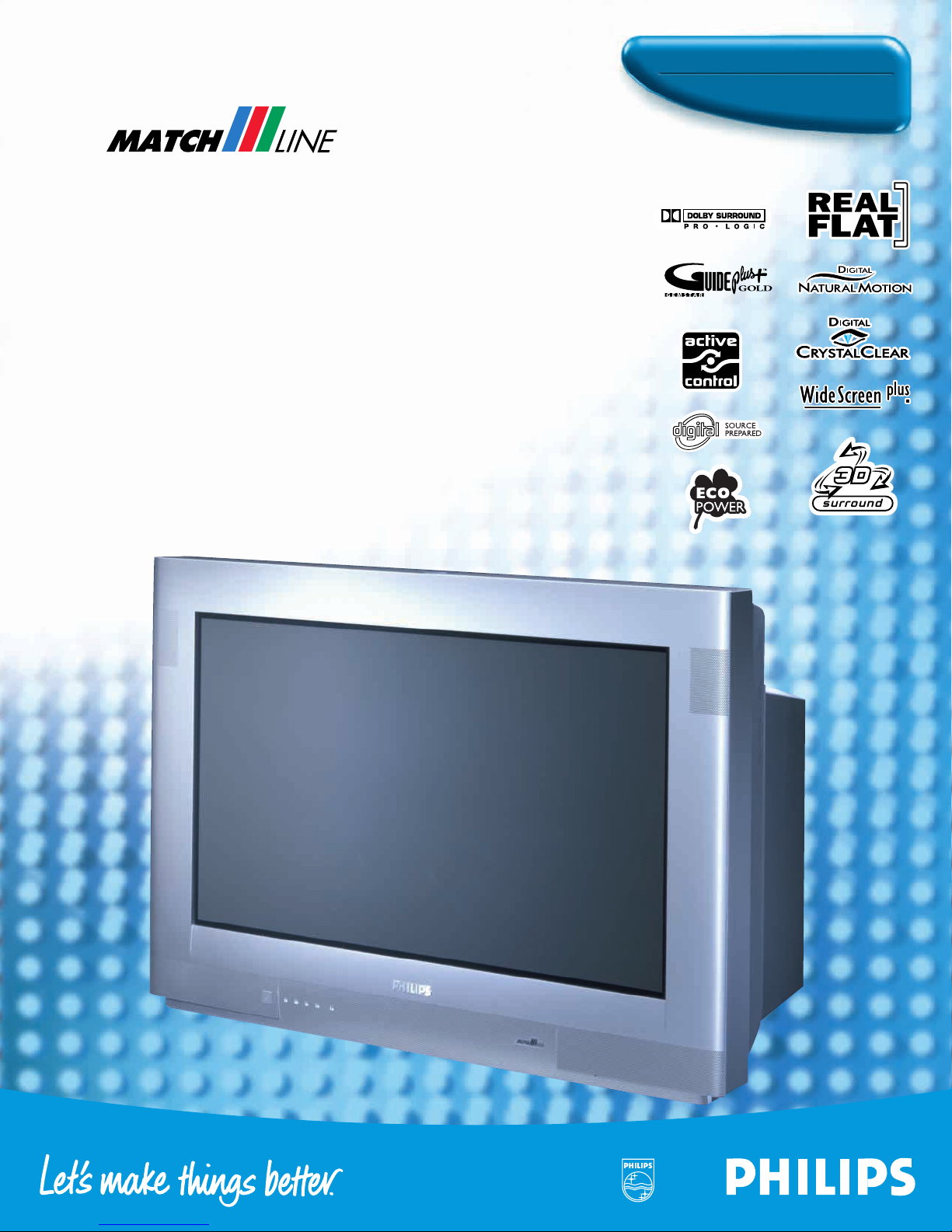

WideScreen Television
34PW9815
Product highlights
• Real Flat picture tube
• Progressive Scan with Digital Natural Motion
• Digital CrystalClear
• HD Component input
• Double window,Two-Tuner Multi PIP
• Auto Screen Fit and WideScreen plus
• 3D Surround (Dolby Pro-Logic capable)
• Guide Plus+
TM
GOLD
• Active control with ambient light sensor
• Graphical User Interface
• Zoom (16x)
Page 2
WideScreen Television
34PW9815
Technical specifications
Chassis
• Type: FL9a MG
• Visible screen size: 34" 86cm
• Picture tube: Real Flat 16:9
• Anti reflex and Anti static coating
• DAF CRT gun and Quadrupole deflection
• Image stability: 60Hz Progressive Scan Digital Natural Motion
• S-Video display
• Auto Picture control (5 modes)
- Soft,Natural, Rich, Personal, Multimedia
• Picture tilt control
• Brightness, contrast,tint, hue, sharpness,
color control
• Scan mode: Interlaced or Progressive
(with Digital Natural Motion).
Sound
• Sound system: 6 speaker HiFi stereo
• Output (total):
4x15W RMS (@10% THD)
(L,R,C,Subwoofer)
• BTSC stereo
• Frequency response:
20Hz - 20kHz, +1/-3dB (ampl.)
• Loudspeakers:
- 2 x Midrange 2x6"
- 2 x tweeter 12mm
- 1 x subwoofer 5"
- 1 x center speaker 2x6"
• Auto Sound control
- Movie, Speech, Music, Personal, Multimedia
• 'TV is center' setup (with ext. HiFi syst)
• Surround speakers not included
Operation
• Dynamic Graphical User Interface. Easy and
intuitive operation through feedforward and
backtracking display.
• Full menu control of all functions through
layered menus.
• Easy control of most used features through
daily menus
• Selection of 3 menu languages
• On screen status display for channels and
functions (OSD)
• Sleeptimer up to 180 minutes
• AutoLock™ to protect young children
from objectionable programming with
V-chip technology
• Favorite channel selection and Surf loop
• On screen menu display:
Picture menu, Sound menu, Channels menu,
Speakers menu, General settings menu,
Install menu, Source menu.
• Active control demo menu indicating real
time picture adjustments
• Closed Captioning
• Dealer Link: wireless communication for
installation and service.
Reception
• Tuning system: PLL
• Color transmission systems
Off-air: NTSC M
NTSC video play back
• Channel selections: 125 channels
• Aerial input: 75 Ohm (F-threaded)
Remote Control
• RC type: RC 2035
• High gloss cursor pad
• Transparent 'high gloss' buttons and
improved button 'click'
• Backlit keys
• System control for
- TV,VCR, Cable, Sat, HD, DVD, CD,AMP
• Universal codes for most available brands.
Direct code programming or automatic
search function
• Bi-color Led indicators
Connections
• Side
- S-Video in
- video CVBS-in (cinch)
- audio L/R-in (cinch) with automatic
mono switching
- headphone jack 3.5mm
• Rear Inputs:
- AV1:Audio L-R,Video CVBS + S-video
with auto selection and auto
image format detection
- AV2:Audio L-R,Video CVBS
- AV3:Audio L-R,Video CVBS + S-video
+ Y-Pb-Pr (1Fh for DVD) with auto
selection and auto image format detection
- AV4:Y-Pb-Pr and R/G/B/H/V input. 2Fh at
1080i and 480p, (with auto selection) for
HD devices. Incl Audio L-R.
• Rear Outputs:
- monitor out:Video CVBS + Audio L-R
- sound out: 2 audio-out L-R (cinch)
Constant/Variable level,1 surround sound
out (cinch), variable level
(speakers not included)
- IR shooter mini jack out. (Gemstar).
Miscellaneous
• Ambient temperature : +5/+45°C
• Mains :AC 110V ± 10%
• Power consumption: <220W; Stand-by, 1.6W
• Weight :166 lbs (excl.packaging)
• Dimensions (wxhxd): (excl.connections)
36.5x25x23 inches
• Carton weight: 196 lbs
• Carton dimensions (wxhxd): 41.5x30x30 in
UPC: 0 37849 89434 7
Product highlights
• 34"V Real Flat Widescreen picture tube. Undistorted
and reflection free picture. Quadrupole deflection and DAF
(Dynamic Astigmatic Focus) for excellent picture quality.
• 60Hz Progressive Scan doubles the number of visible
picture lines per field.A jitterfree and quiet picture with
astonishing sharpness.
• Digital Natural Motion offers razor-sharp reproduction
of movement and motion.The unique and highly advanced
processing calculates motion trajectories of moving picture
elements. It corrects jerky movement from both studio
programs or movie material. Additionally it has a very advanced
noise reduction. Smooth motion reproduction, excellent
sharpness and detail, and a brilliant, non-flickering picture.
• Digital CrystalClear with Dynamic Contrast, SVM, Comb
filter, 9-bit processing, luminance enhancements and color
enhancements (LTP2). Offers a crisp and natural picture from
any type or quality of source.
• Auto Screen Fit will display programs from any aspect ratio
(4:3 up to 21:9) full screen without apparent distortion.
• WideScreenplus line interpolation for enhanced
resolution and picture quality.The adaptive zoom will calculate
and insert extra picture lines where neccessary for a fully
filled and sharp picture.
• 2Fh input and full 1080i resolution display for
connection to high definition input.
• Dolby Pro Logic decoder (Full DSP) built in.Offers full
surround experience with minimum of installation.The
integrated center speaker gives best possible position for
dialog reproduction. Separate surround outputs.
• "Set is Center" reproduction option. All TV speakers play as
center. Dolby processed outputs for L, R and Surround via
conventional stereo amplifier.
• 3D Surround is based on Dolby Pro Logic signals and offers
Virtual rear speakers. Full surround experience without the
need to connect rear speakers. Includes the integrated
center speaker.
• Powerful 4x15W RMS amplifiers built in.Active
subwoofer with DBE (Dynamic Bass Enhancement) and full
digital sound processing. Powerful reproduction from 6 built
in speakers.
• Gemstar Guide Plus+ Gold electronic program guide.
High tech software automatically captures and downloads
advanced programming information for all television program
listings, plot descriptions, ratings, artist names, and program
length. Other features include one-touch record, one-touch
scheduling, direct-tune, sort by theme, and news guide.
• Multi PIP with second tuner, Double Window and Active
Mosaic. Single PIP (free positioning), 3 fold and 8 fold side
PIPs, 12 fold full screen Multi PIP. Active Mosaic lets you
navigate by cursor through the PIPs and makes the selected
image 'live'. Swap this selection to Main picture. Also offers
photofinish, freeze Main and freeze PIP. Replay lets you play
back the previous few seconds in a PIP screen: if you missed
the action, replay it as much as you want.
• Active Control. Continuous picture analysis and control of:
Automatic Digital Noise Reduction, Auto Sharpness,Auto
Color,Auto Dynamic Contrast, Ambient light sensor.
Automatically offers the best picture setting in three levels, off,
min, max. A demo menu shows you, based on the picture
content the real-time adjustments of 5 parameters.
• Auto Picture and Auto Sound modes. Easy setting via
direct RC keys
• Dynamic Graphical User Interface. Easy and intuitive
operation through feedforward and backtracking display. 8
Directional thumbpad cursor control. Full menu control of all
functions through layered menus. Easy control of most used
features through daily menus.
• Auto Surf list.Add your favorite channels and switch
through them with one button click.
• Zoom 16x (4x, 9x). Cursor movable zoom window
• Multi system and universal codes remote control.
High gloss transparent keys with backlighting.
Thumbpad cursor and matching color finish.
• Y-PbPr inputs for best DVD reproduction
• Three menu languages: English, French, Spanish
Supporting Features
• Digital Color Transient Improvement (CTI)
• Viewing modes: 4:3, Movie Expand 14:9 & 16:9(with scroll),
Subtitle zoom (with scroll),Wide Screen, Auto format including
auto screen fit: automatic perfect fit by adaptive zoom in both
directions
• Channel Memory
• Low power standby
• 60W RMS music output
• 3 mid range speakers, 2 dome tweeters,1bass reflex subwoofer
• Independent headphone volume control
Release date : april 2000
Predecessor(s) : --Date of issue : january 2000
Subject to modification without notice
RC 2035
Digital CrystalClear, Navitrack,AutoSound,
AutoPicture,AutoSurf,AutoLock, AutoMute,
Digital Natural Motion,Active Control are
trademarks of Philips Consumer
Electronics Company.
Manufactured under license from Dolby
Laboratories. "Dolby" and the double-D
symbol are trademarks of Dolby Laboratories.
VCR Plus+, PlusCode and Guide Plus+ are
trademarks of Gemstar Development
Corporation
INTERNET ADDRESS:
http://www.philipsusa.com
AV 3
AV 2
MONITOR
OUT
VARIABLE
LINE OUT
AV 4
VIDEO 2Fh
H
V
Pr
Pb
Y
IN
VIDEO
L AUDIO
R AUDIO
L AUDIO
R AUDIO
Pr
Pb
Y
S VIDEO
IR SHOOTER
AV 1
VIDEO
L AUDIO
R AUDIO
R
L
V
ANT / CABLE
S VIDEO
S VIDEO
BACK
SIDE
