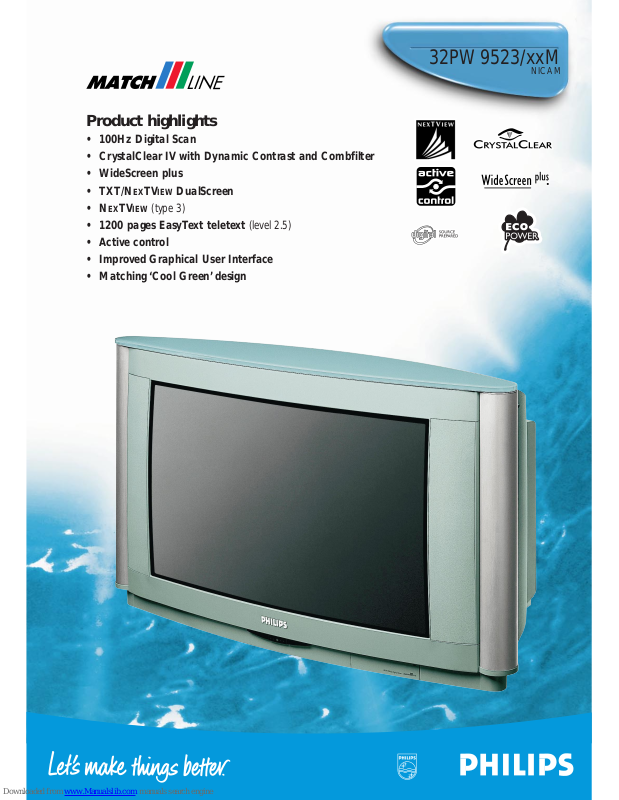

Page 1
Product highlights
• 100Hz Digital Scan
• CrystalClear IV with Dynamic Contrast and Combfilter
• WideScreen plus
• TXT/NEXTVIEW DualScreen
•NEXTVIEW (type 3)
• 1200 pages EasyText teletext (level 2.5)
• Active control
• Improved Graphical User Interface
• Matching ‘Cool Green’design
32PW9523/xxM
NICAM
Page 2
32PW9523/xxM
NICAM
Technical specifications
Chassis
• Type: FL6 designline MG
• Screen diameter: 32"82cm
• Visible screen size: 76cm
• Picture tube: Blackline-S Ultra Flat 16:9
• Image stability: 100Hz Digital Scan
• S-Video display
• Picture tilt control
• Smart Picture control (5 modes)
- Soft, Natural, Rich, Sport, Personal
• Brightness, contrast, tint, sharpness, colour
control
Sound
• Sound system: 3 speaker HiFi stereo
• Output (total): 80W music output
• NICAM stereo
• Frequency response:
20Hz-15kHz,+1/-3dB (ampl.)
• Loudspeakers:
- 2 x Squeeter 50x90mm
- 1x Subwoofer 4"
• Smart Sound control
- Movie, Speech, Music, Personal
• Balance, bass, treble control
Operation
• Easy menu driven installation and operation.
Direct acces menu’s and cursor control.
• Selection of 12 menu languages
• 100 preselections
• Multi-function RC handset controlling
- TV,VCR,Sat,DVD,Tuner,CD,CDR,Amp
• On screen status display on programmes and
functions (OSD)
• Sleeptimer up to 180 minutes
• Electronic lock for parental control
• Favourite programme selection
• Programme title display
(transmitted by TXT)
• On screen menu display:
- Picture Sound ,Features ,Headphone,
Program list,Timer Message Installation
Program name giving,Language and country
selection,Active control demo menu
indicating real time picture settings
• TXT/NexTView DualScreen
• Dealer message and demo modes
• Dealer Link; wireless communication for
installation and service.
Reception
• Tuning system: 100 fold PLL
• Colour transmission systems
Off-air: /05M, /12M, /19M, /58M:
PAL B/G/I + SECAM B/G/L/L'/D/K
A/V connections:incl NTSC video play back
• Channel selections: 120 channels
VHF, UHF,S-Channels,Hyperband
• Frequency range: (47.25-855.25MHz)
• Aerial input: 75 Ohm (Coax)
• VCR preselections: 0; 50-99
• Frequency / Channel selection
(Germany,Austria and Benelux only)
Teletext
• Easy text (level 2.5): fast access to preferred
pages and subcode page scroll
• Recept. standards: WST / TOP / FLOF
• Page memory: 1200 pages A.I.used for
- Habit watch, preferred page and subcode
page lists
- page look-up table
• Program independent subtitles
Remote Control
• RC type: RC 2033
• high gloss cursor pad
• transparent 'high gloss' buttons and improved
button 'click'
• matching TV colour
• system control for
- TV,VCR,Sat,DVD, CD, CDR,Tape,Tuner
• bi-color Led indicators
Connections
• Front
- S-Video in
- video CVBS-in (cinch)
- audio L/R-in (cinch) with automatic mono
switching
- headphone jack 3.5mm
• Rear
- Euro A/V connector blue
(RGB-in;CVBS-in/out) with auto image
format detection
- Euro A/V connector blue
(RGB-in;Y/C-in/out; CVBS-in/out) with
WYSIWYR select and image format
detection
- Euro A/V connector black (CVBS-in)
- 2 audio-out (cinch) Constant level
Miscellaneous
• Ambient temperature : +5/+45°C
• Mains :AC 220-240V ± 10%
• Power consumption:
<117W;Stand by:0,34W
Weight :50kg (excl. packaging)
• Dimensions (wxhxd): (excl. connections)
86.0x52.6x55.3cm (excl connections)
Product highlights
• 100 Hz Digital Scan offers a flickerfree picture.
• CrystalClear III with Dynamic Contrast
Scavem, and Comb fliter,offers a crisp and natural
picture.
• WideScreenplus line interpolation for
enhanced resolution and picture quality.
• Incredible Surround
For enhanced stereo effect
• nexTView Program Guide (type 3)
Direct access of program info of all programs
(1 week) and automatic programming of VCR.
Includes PageLink program guide from TXT
information
• Page link program guide Easy acces of program
info of selected channel
• TXT/NexTView DualScreen
picture + TXT or
picture + NexTView.
• 1200 Pages Easytext teletext (level 2.5)
• Active control,continuous signal analysis and
control
Automatic Digital Noise Reduction,Auto Sharpness,
auto screen fit Smart Controls.Automatically offers
the best picture setting in three levels,off, min,max.
• Improved graphical User Interface
• Active subwoofer and full digital sound
processing
• Matching ‘Cool Green’ stand (not inc luded)
Supporting Features
• Blackline-S Ultra Flat picture tube
• Digital Colour Transient Improvement (CTI)
• Picture freeze and strobe
• Viewing modes:4:3,Movie Expand 14:9 & 16:9(scroll),
Subtitle zoom (scroll),Wide Screen,Auto format including
auto screen fit:automatic perfect fit by continuous zoom
in both directions .
• EasyTune (auto store,ACI and ATS)
• Easy Link + Nextviewlink
• Low power standby
• 70W music output
• Dynamic Bass Enhancement
• Independent headphone volume control
Release date : Aug ‘98
Predecessor(s) : 32WP9523/xx
Date of issue : June ‘99
RC 2033
any picture format
auto bi-directional zoom
without visible distortion
Auto Screen Fit viewing
