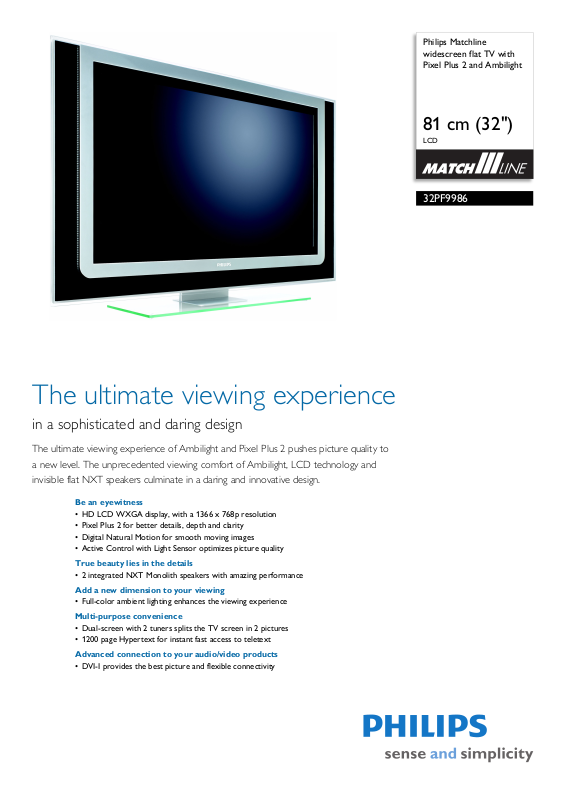

Page 1
Philips Matchline
widescreen flat TV with
Pixel Plus 2 and Ambilight
81 cm (32")
LCD
32PF9986
The ultimate viewing experience
in a sophisticated and daring design
The ultimate viewing experience of Ambilight and Pixel Plus 2 pushes picture quality to
a new level. The unprecedented viewing comfort of Ambilight, LCD technology and
invisible flat NXT speakers culminate in a daring and innovative design.
Be an eyewitness
• HD LCD WXGA display, with a 1366 x 768p resolution
• Pixel Plus 2 for better details, depth and clarity
• Digital Natural Motion for smooth moving images
• Active Control with Light Sensor optimizes picture quality
True beauty lies in the details
• 2 integrated NXT Monolith speakers with amazing performance
Add a new dimension to your viewing
• Full-color ambient lighting enhances the viewing experience
Multi-purpose convenience
• Dual-screen with 2 tuners splits the TV screen in 2 pictures
• 1200 page Hypertext for instant fast access to teletext
Advanced connection to your audio/video products
• DVI-I provides the best picture and flexible connectivity
Page 2
Widescreen flat TV with Pixel Plus 2 and Ambilight
81 cm (32") LCD
Highlights
32PF9986/12
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD
s
creen technology gives you widescreen HD
resolution of 1366 x 768p pixels. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors.
This vibrant and sharp image will provide you
with an enhanced viewing experience.
Pixel Plus 2
Pixel Plus 2 is a digital picture processing
te
chnology that improves the resolution of still
and moving pictures. It does more than adding
pixels, it also makes the pixels better, resulting
incredible sharpness and picture depth every
time and from any source. And it does not just
improve the resolution either, because you
also benefit from improved color
reproduction, resulting in the finest color
details and superior brilliance.
Digital Natural Motion
Philips invented Digital Natural Motion to
e
liminate juddering effects that are visible with
moving picture content. Digital Natural Motion
estimates motion in the picture and corrects
juddering movements in both broadcast and
recorded movie material (such as DVD). The
resulting smooth motion reproduction and
excellent sharpness take the viewing
experience to a higher level.
Active Control + Light Sensor
Active Control is a unique and intelligent way
o
f optimizing picture quality by measuring and
analyzing the incoming signal to automatically
adjust picture quality settings. Active Control
with Light Sensor uses a sensor to adjust the
picture brightness depending on the room light
conditions.
Flat NXT Monolith Speakers
The ground-breaking NXT surface sound
principle
monolith speaker technology It actually uses
the outer surface of the TV cabinet as the
speaker membrane. The speakers are now
virtually invisible, bringing a stunning design,
and a pure and direct sound radiation.
Ambilight
The full-color ambient lights offers you relaxed
viewi
glow on the walls surrounding the TV.
Research has shown that watching television
with adapted ambient lighting promotes more
relaxed TV viewing. the Ambilight colors
automatically adapt to the images on the
screen to add a new sensation to the viewing
experience. The light can also be switched to
fixed colors or various shades of white. In
standby mode, the lights can be operated to
any color and create a unique ambiance in the
room.
has been further developed into the
ng and a unique ambiance via a soft light
Full Dual Screen
Full Dual Screen allows you to divide your TV
s
creen into two halves, each displaying
independent pictures from TV, VCR, DVD or
teletext at the same time. Watch your favorite
program while others watch something else
without being disturbed as the audio for the
second screen is available via the headphone
output.
1200 page Hypertext
The teletext is a common system transmitted
b
y most broadcasters. The 1200 page smart
text feature gives you extremely fast access to
information when changing pages.
DVI-I Input
A DVI-I input connects the non-compressed
h
igh-bandwidth digital RGB signal from source
to screen. By eliminating the conversion of the
digital signals to analog, it delivers an
unblemished and noisefree image, that is clear
and flickerfree. The DVI input supports HDCP
copy protection that allows viewing of copy
protected programs from Digital Settop boxes,
DVD players and HD recorders. DVI-I is
future proof as it can be be connected to all
HDMI devices (a converter cable is required).
The DVI-I input also supports analog PC-VGA
signals.
Page 3
Widescreen flat TV with Pixel Plus 2 and Ambilight
81 cm (32") LCD
Specifications
32PF9986/12
Picture/Display
• Aspect ratio: 16:9
• Brightness: 450 cd/m²
• Contrast ratio (typical): 800:1
• Diagonal screen size: 32 inch / 80 cm
•Color cabinet: Pearl - Whit
•
Display screen type: LCD WXGA Active Matrix
TFT
Picture enhancement: Pixel Plus 2, Digital Crystal
•
Clear, Progr
Control + Light sensor, Digital Natural Motion,
Jagged Line Suppression, Movie Plus, Widescreen
Plus
• Screen enhancement: Anti-Reflection coated
re
sc
• Viewing angle (H / V): 170 / 170 degree
• Panel resolution: 1366 x 768p
• Response time (typical): 12 ms
essive scan, 3D Combfilter, Active
en
e Silver (11092)
Ambilight
• Ambilight Features: Auto adaptive to video
content, Full operation in stand-by
• Color Settings: Full Multi Color
• Dimming Function: Manual and via Light Sensor
• Preset modes: 2 Active Adaptive preset modes, 6
Preset mode
s an
d user preset
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
deo Formats
• Vi
olution Refresh rate
Res
640 x 480i 1Fh
640 x 480p 2Fh
720 x 576i 1Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh
Sound
• Sound Enhancement: Auto Volume Leveller, Digital
Signal Processing, Dynamic Bass Enhancement,
Graphic Equaliser, Smart Sound
• Sound System: Virtual Dolby Surround
• Output power (RMS): 3x15W
Loudspeakers
• Built-in speakers: 5
• Loudspeaker types: Flat NXT Monolith Speakers,
grated subwoofer
Inte
Convenience
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic Tuning
System (ATS), PLL Digital Tuning, Plug & Play
• Ease of Use: 9-channel smart
Top Controls, Controls with Proximity sensor, On
Screen Display, Program List, Smart Picture, Smart
Sound
• Electronic Program Guide: NexTView 3
• Remote control type: RC4302
• Teletext: 1200 page Hypertext
• Teletext enhancements: Habit Watch, Program
• Picture in Picture: Full dual screen (2 tuners),
• Remote Control: Multi-functional
• Screen Format Adjustments: 6
• Clock: Smart Clock
• Child Protection: Child Lock+Parental Control
• Connection Enhancement: Cinema link, Easy link
ion Line, Word Search
rmat
info
, Text dual screen
Mozaic
Auto Format, Subtitle and Heading Shift
surf
list, Backlighted
Wide
screen Modes,
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL, SECAM
• Video Playback: NTSC, PAL, SECAM
• Aerial Input: 75 ohm coaxial (IEC75)
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: Audio L/R, CVBS in/out, RGB, Y/C
• Ext 3 Scart: Audio L/R, CVBS in, CVBS in/out
• Ext 4: DVI-I
• Other connections: Analog audio Left/Right out,
Centre Spe
aker con
nection in, Subwoofer out
Power
• Power consumption: 145 W
• Standby power consumption: 1,3
• Mains power: AC 220 - 240 V +/- 10%
• Ambient temperature: 5 °C to 40 °C
Dimensions
• Product weight: 20 kg
• Weight incl. Packaging: 32 kg
Accessories
• Included accessories: DVI-I to VGA adapter, Table
top stand, VGA to YPbPr-Cinch cable, Wall
mounting bracket
• Optional accessories: 5 in one connection cable,
o
or stand, Table top Stand with Swivel
Fl
•
Issue date 2012-01-20
Version: 12.0.13
12 NC: 8670 000 20663
EAN: 87 10895 82040 0
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
