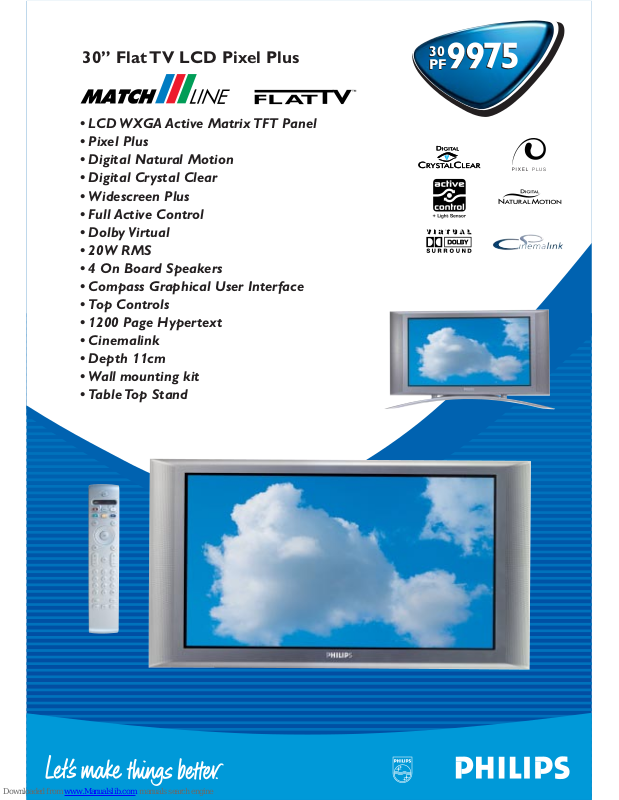

Page 1
30” Flat TV LCD Pixel Plus
• LCD WXGA Active Matrix TFT Panel
• Pixel Plus
• Digital Natural Motion
• Digital Crystal Clear
• Widescreen Plus
• Full Active Control
• Dolby Virtual
• 20W RMS
•4 On Board Speakers
• Compass Graphical User Interface
•Top Controls
• 1200 Page Hypertext
• Cinemalink
• Depth 11cm
•Wall mounting kit
•Table Top Stand
30
PF
9975
30
PF
9975
PLUS
Page 2
Technical specifications
• Screen Size: 30" (76 cm)
• Visible Screen Size: 75 cm (29,53”)
• Display : LCD WXGA Active Matrix TFT technology
• Resolution 1280x768 (x3) pixels
• Response time LCD : 16 ms
• Brightness: 450 cd/m
2
• Contrast Ratio: 350:1
• Viewing Angles 176h/176V
• Anti Reflex Coated Screen
• Pixel Plus
• Digital Natural Motion
•Progressive Scan
• Digital Crystal Clear
• Active Control + Light Sensor
• Widescreen Plus
• Picture Freeze
Sound
• Sound Power : 20 W RMS
40 W Music Power
• Dolby Virtual
•4 On Board Speakers
• Digital Signal Processing
• Separate Headphone Volume
Ease of Use Installation
• 100 preset channels
• Autostore
• Fine Tuning
• Sorting
•ATS / ACI
Ease of Use Utilisation
• Compass Graphical User Interface
•Top Controls
• RC 4301 (suitable for VCR/DVD/SAT/AUDIO/CD-R)
•Program List
• Smart Picture Control :
Soft, Natural, Rich, Multimedia,Personal
• Smart Sound Control :
Movie, Speech Music, Personal
•AVL
• Dual I-II
•6 Wide screen modes : 4:3, Zoom 14:9, Zoom 16:9
Subtitle Zoom, Super Zoom,Widescreen
• Subtitle and Heading shift
• Autoformat / Autoscreen fit (incl. WSSB)
• Smart Clock
• Sleep Timer (up to 180mn)
• Child Lock
Product highlights
Flat, Slim,Wide
True Flat Multimedia TV which can be hung on the wall like a
painting.
LCD Active Matrix TFT Panel
State of the art LCD screen technology enabling brilliant flicker
free picture with optimum brightness and superb colours. A thin
film transistor (TFT) is used to generate clear and crisp colours.
LCD allows screens to be thinner, so televisions lighter and more
energy efficient than ever before.
Pixel Plus
Uses the power of the Pixel Plus processor to increase the
number of lines and the number of pixels.The result is razor
sharp pictures with incredible detail and depth, every time from
any source.
Digital Natural Motion
Philips invented Digital Natural Motion to eliminate juddering
effects that are visible with moving picture content. Digital
Natural Motion estimates motion in the picture and corrects
juddering movements in both broadcast and movie material
(DVD). Smooth motion reproduction and excellent sharpness are
the result.
Digital CrystalClear
A unique package of picture innovations including Combfilter,
Dynamic Contrast, Color Enhancement and Luminance Transient
Processing. Digital Crystal Clear, using 10 bit processing, offers
30% more contrast, natural colors and a high level of detail.
Full Active Control
Active Control automatically analyses, 50 times per second, the
incoming signal and adjusts the key picture settings on
Sharpness, Digital Noise Reduction, Color, Contrast and Picture
Format.The ambient light sensor adjusts the settings according
to the viewing conditions in the room.Active Control thus offers
the best possible picture settings any time, any source.
Dolby Virtual
Dolby processing circuitry for an enhanced cinema surround
sound effect without the need for rear speakers.
Compass GUI
The new Compass graphical user interface provides for easy and
intuitive operation and installation through a dynamic display. Full
control of all functions through clearly layered menus. Built in help
function also provided.
Cinemalink AV System Control
Philips Cinemalink allows for plug-and-play installation and easy
operation via one Remote Control of a fully integrated Home
Cinema system set up of video and audio components. Control
of all components is done using the TV Remote Control and the TV
screen menu. Included is TV center mode.The cinema-Go RC
button will automatically activate all system peripherals in the
correct configuration.
1200 Page HyperText & Wordsearch
Advanced Teletext featuring based upon the new Compass GUI
with navigation functions Wordsearch and HyperText. In
HyperText select any word within the teletext magazine and
this system will find all other mentions of this word within
teletext for that channel.Wordsearch is similar but you have
the freedom to type in , using the remote control, a word of
your choosing.
30” Flat TV LCD
30
PF
9975
30
PF
9975
Connections
• S-Video Y/C (mini-DIN) in
• Video CVBS (cinch) in
• Audio-L/R (cinch) in
• Headphones(3.5mm jack) out
• Euro A/V Connector Ext1 (RGB in, CVBS in/out, I/R)
• Euro A/V Connector Ext2 (RGB in, S-Video in/out,
CVBS in/out,WYSIWYR, Easy and Cinemalink)
• Euro A/V Connector Ext3 ( CVBS in)
• Euro A/V Connector Ext4 ( CVBS in)
• Audio/Video Component Ext5 (cinch 2fh YPbPr and
Audio L/R in)
• Audio L/R out, constant level (cinch)
• Center channel input
•VGA (15pin sub-D)
Information
• 1200 page Text level 2.5 with Habit Watch
• Hypertext : instant search via word and page catching
•Word Search : Free format searching in teletext data
•Program Information Line
• NexTView Level 3 Program Guide
• Page Link Program Guide (based on Teletext)
• Easy Link : Preset download,W YSIWYR,
One Touch Record
• NexTView link
• Cinemalink AV System Control
• Zoom 16x
Reception
•Tuning system: PLL Digital Tuning
•Tuner :VHF, UHF, S-Channel, Hyperband (120 channels)
• Aerial input : 75 Ohm Coax (IEC75)
• TV System : See table
• Stereo system : See table
• Video playback : NTSC 4.43/3.58
Multi media modes
Standard Resolution Refresh rate
VGA 640 x 480 60 Hz
SVGA 800 x 600 56 Hz
XGA 1024 x 768 60 Hz
WXGA 1280 x 768 60 Hz
WXGA 1280 x 720 60, 50 Hz
Miscellaneous
• Ambient temperature +15 --+ 35°C
• Maximum operating altitude: 3500 m
• Mains: Auto Voltage AC 198V-264V, 50/60Hz
•Power consumption: 160 W normal operation
2W Stand by
•Weight : 18 kg
•Weight Incl. Packaging:
23 kg
• Set Dimensions (WxHxD) : 891 x 489 x 110 mm
•Box Dimension (WxHxD):
1000 x 660 x 250 mm
•
TV Colour: Precision Silver (10888)
•Wall mounting bracket included
• 10 m VGA cable optional
•Table top stand
•Arch stand optional
03/2003
2CS NICAM 2CS NICAM NICAM NICAM PAL PAL PAL SECAM SECAM SECAM
DK DK BG BG I LL’ BG DK I BG DK LL’
version
stereo
system
transmission
system
30PF9975 /12
••• •• • •• •• ••
Features and specifications subject to change without notice
The dream of the TV that can hang on the wall is now reality. The 30’’is the ultimate center piece for any Home Entertainment
setup. Based on latest LCD Technology, this TV gives great picture quality to complement the beautiful design. Philips latest
resolution technology of Pixel Plus is also included to enhance further the fantastic picture quality and the stereo sound quality is
also enhanced with Dolby Virtual to disperse sound evenly throughout the room. Common elements with the rest of the Philips
Flat Family are the sleek, slim lines and the ability to mount a table top or hang on the wall.
Predecessor : -Chassis : EMG Star
Introduction :Year 2003
