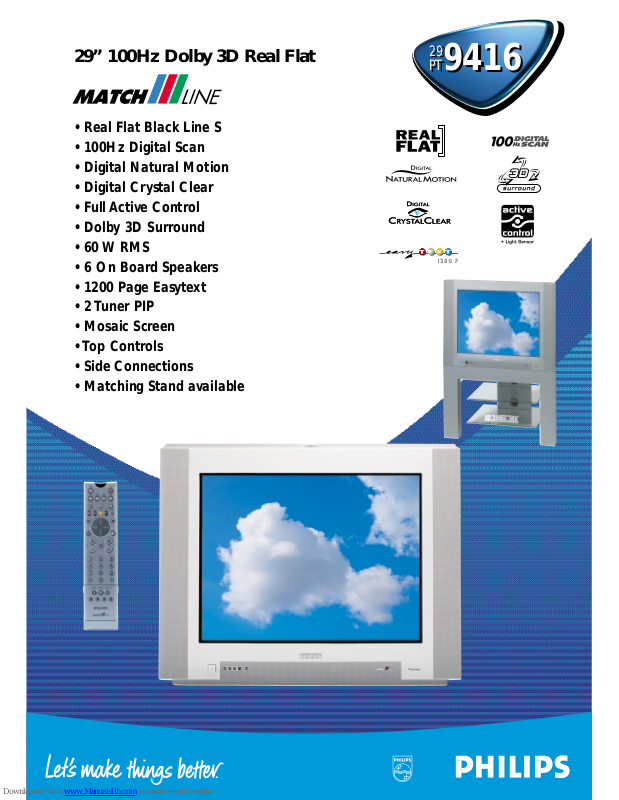

Page 1
29” 100Hz Dolby 3D Real Flat
• Real Flat Black Line S
• 100Hz Digital Scan
• Digital Natural Motion
• Digital Crystal Clear
• Full Active Control
• Dolby 3D Surround
• 60 W RMS
• 6 On Board Speakers
• 1200 Page Easytext
• 2 Tuner PIP
• Mosaic Screen
• T op Controls
• Side Connections
• Matching Stand available
29
PT9416
29
PT9416
Page 2
Technical specifications
• Screen Size : 29” (72 cm)
• Visible screen size : 68 cm
• Picture Tube:Real Flat Black Line S
• 100 Hz Digital Scan
• Digital Natural Motion
• Digital Crystal Clear
• Dynamic Auto Focus
• Active Control + Light Sensor
• Picture Freeze
Sound
• Sound Power:60 W RMS
120 W Music Power
• Dolby 3D Surround Sound
• 6 On Board Speakers
• Subwoofer
• Graphic Equalizer
• Digital Signal Processing
Ease of Use Installation
• 100 Preset channels
• Autostore
• Fine T uning
• Sorting
• Smart ATS and ACI
Ease of Use Utilisation
• Top Controls
• RC 2033 (suitable for VCR/DVD/SAT/AUDIO/CD-R)
• Program List
• Smart Picture Control : Soft,Natural, Rich,
Multimedia,Personal
• Smart Sound Control:Movie, Speech
Music, Personal
• AVL
• Dual I-II
• Smart Clock
• Sleep Timer
• 16:9 Compress
• 4:3 Expand (formatter)
• Child Lock
29” 100Hz Top Dolby 3D Real Flat
Connections
Side
• S-Video (Y/C) in
• CVBS Video in
• Audio L/R (cinch/RCA) in
• Headphone Jack 3,5 mm out Back
• Euro A/V connector Ext1 (RGB in, CVBS in/out)
• Euro A/V connector Ext2 (RGB in, S-Video
in/out,CVBS in/out)
• Euro A/V connector Ext3 (CVBS in)
• Stereo Audio out (cinch) Constant/Variable level
• Surround sound out (cinch)
• Surround sound out (clickfits)
Information
• 1200 Page Text level 2.5 with Habit Watch
• Program Information Line
• NexTView Level 3
• NexTView Link
• 2 T uner PIP
• Mosaic
• Replay
• Zoom 16x
Reception
• Tuning System:PLL digital tuning
• Tuner:VHF, UHF,S-Channel, Hyperband
• Aerial Input:75 ohm Coaxial
• TV System:See table
• Stereo System : See table
• Video Playback: NTSC 4.43/3.58
Miscellaneous
• Mains: AC 220-240V +/- 10%
• Power Consumption: 151W Normal Operation
0,34W Stand by
• Set W eight:53kg
• Weight Incl. Packaging : 58kg
• Set Dimension (WxHxD):755x590x501 mm
• Box Dimension (WxHxD) : 902x779x703
• TV Colour:Silver Shadow (10811)
Predecessor :29PT9415
Chassis :MG
Introduction :Year 2000
Features and specifications subject to change without notice
29
PT9416
29
PT9416
2CS NICAM 2CS NICAM NICAM NICAM PAL PAL PAL SECAM SECAM SECAM
DK DK BG BG I LL’ BG DK I BG DK LL’
version
stereo
system
transmission
system
29PT9416 /05
••• •• • •• •• ••
29PT9416 /12
••• •• • •• •• ••
29PT9416 /19
••• •• • •• •• ••
29PT9416 /58
••• •• • •• •• ••
Product highlights
Real Flat Blackline S
Philips TV picture tube with invar mask gives less deformation and therefore can provide 80% more contrast than
conventional picture tubes for brilliant colours and minimal
reflections,even when viewing in daylight.This Real Flat
tube is from the latest generation of tubes where the tube
face is trully Flat.The advantages of this lie in appearance,
wider viewing angle,and in br inging the picture nearer to
the front of the glass for less distortion
100Hz Digital Scan
Conventional Televisions scan the picture at 50 times per
second (50 Hertz).This Frequency can be detected by the
human eye in the form of a flickering picture.100 Hertz
sets scan the picture at 100 times per second eliminating
the overall area flicker.
Digital Natural Motion
Philips 100hz technology produces the most stable pictures free from flickering.In our top sets this is allied to
Natural Motion which solves the problem of objects juddering or losing shape when they move fast across the
screen.Movements become smooth and natural.
Digital CrystalClear
A unique package of picture innovations including combfilter,scavem,and dynamic contrast adjustment giving natural colours, high contrast and high level of details .In Digital
Crystal Clear the contrast is assessed 50 times per second
to optimise the picture further.
Full Active Control
The tv automatically analyses the incoming signal and
adjust the key picture parameters of noise,sharpness,
colour,contrast and format giving the best possible at all
times. In addition the tv has an ambient light sensor and
adjusts the picture according to how much light is in the
room.
Dolby 3D Surround
Using Dolby processing to create cinema surround without
cables or rear speakers.
1200 Page Easytext
Extremely fast access to many text pages and the ability
to scroll through subpages with no wait.
2 T uner PIP
Able to show a second picture in the main picture from
one of the other channels (picture in picture)
