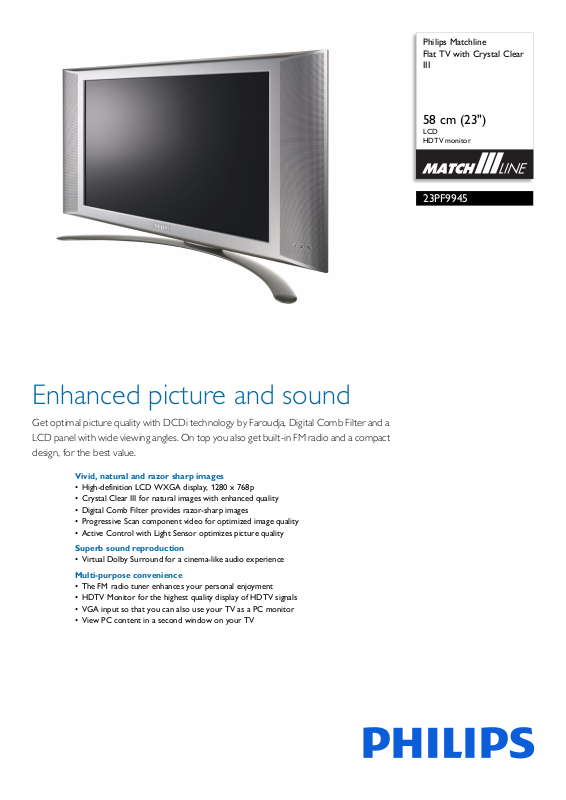

Page 1

Philips Matchline Flat TV with Crystal Clear III

58 cm (23")

LCD HDTV monitor

23PF9945

Enhanced picture and sound

Get optimal picture quality with DCDi technology by Faroudja, Digital Comb Filter and a LCD panel with wide viewing angles. On top you also get built-in FM radio and a compact design, for the best value.

Vivid, natural and razor sharp images

• High-definition LCD WXGA display, 1280 x 768p

• Crystal Clear III for natural images with enhanced quality

• Digital Comb Filter provides razor-sharp images

• Progressive Scan component video for optimized image quality

• Active Control with Light Sensor optimizes picture quality

Superb sound reproduction

• Virtual Dolby Surround for a cinema-like audio experience

Multi-purpose convenience

• The FM radio tuner enhances your personal enjoyment

• HDTV Monitor for the highest quality display of HDTV signals

• VGA input so that you can also use your TV as a PC monitor

• View PC content in a second window on your TV

Page 2

Flat TV with Crystal Clear III

58 cm (23") LCD, HDTV monitor

23PF9945/61

Specifications

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 450 cd/m²

• Contrast ratio (typical): 400:1

• Diagonal screen size: 23 inch / 58 cm

• Visible diagonal screen size: 58 cm

• Display screen type: LCD WXGA Active Matrix T

• Picture enhancement: 3D Combfilter, 3/2 - 2/2

tion pull down, Active Control + Light sensor,

mo Color Transient Improvement, Color Temperature Adjustment, Contrast Plus, Crystal Clear III, Jagged Line Suppression, Luminance Transient Improver, Progressive scan, Sharpness Adjustment

• Screen enhancement: Anti-Reflection coated

reen

• Viewing angle (H / V): 170 / 170 degree

• Panel resolution: 1280 x 768p

• Response time (typical): 25 ms

Supported Display Resolution

• Computer formats

Resolution Refresh rate 1024 x 768 60Hz 1280 x 768 60Hz 640 x 480 60, 72, 75, 85Hz 800 x 600 56, 60, 72, 75,85Hz

deo Formats

• Vi

Resolution Refresh rate 640 x 480i 1Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh 640 x 480p 2Fh

Sound

• Sound Enhancement: Ultra Bass

• Sound System: Mono, Nicam Stereo, Virtual Dolby

ound

Surr

• Total Sound Power (RMS): 20 W

Convenience

• Ease of Installation: Auto Program Naming,

Autostore, Fine Tuning, Plug & Play, Program Name, Sorting

• Ease of Use: 9-channel smart

Leveller (AVL), FM Radio, Graphical User Interface, Program List, Smart Picture, Smart

surf list, Auto Volume

Sound

• Remote control type: RCAU039

• Picture in Picture: Picture in graphics

• Remote Control: DVD, TV, Universal, VCR

• Screen Format Adjustments: Full screen, Subtitle Heading Shift, Superwide, Widescreen, Zoom

and 14:9, Zoom 16:9

• Clock: Wake up Clock, Sleep Timer

• VESA Mount: 100 x 100 mm

• Child Protection: Child Lock

Tuner/Reception/Transmission

• Tuner bands: FM, VHF, UHF, S-Channel,

Hyperband

• TV system: NTSC

•Video Playback: NTSC

• Aerial Input: 75 ohm coaxial (IEC75)

•Tuner Display: PLL

• Number of Preset Channels: 100

Connectivity

• Number of AV connections: 3

• Other connections: PC-in VGA + Audio L/R in,

a IEC75, FM Antenna, Audio constant level

Antenn out

• AV 1: CVI, CVBS in

• AV 2: S-Video Y/C, CVBS, Monitor out

• AV 3: YPbPr (2Fh)

• Front / Side connections: Audio in, CVBS in,

one Out, S-video in

Headph

Power

• Power consumption: 96 W Normal Operation

W W

• Standby power consumption: < 3 W

• Ambient temperature: 5 °C to 40 °C

• Power supply: AC 90-240

Dimensions

• Product weight: 11.2 kg

• Dimensions (with base) (W x H x D):

4 x 373 x 80 mm

Accessories

• Included accessories: Power cord, Registration

card, Remote Control, RF antenna cable, User Manual, Quick start guide

• AC/DC Adaptor/Charger: Multi-voltage

•

Highlights

LCD WXGA display, 1280 x 768p

This WXGA display with state-of-the-art LCD screen technology gives you HD resolution of 1280 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Crystal Clear III

Crystal Clear III combines a whole range of enhancements to provide a better picture. They include a 2D Comb filter, Dynamic contrast, Blue stretch and Green enhancement so that you always get the most natural looking colors.

Digital Comb Filter

A digital comb filter separates chrominance (color) from luminance (brightness) information in the video signal, and independently processes them to improve picture resolution while also minimizing distortion.

Progressive Scan

Progressive Scan doubles the vertical resolution of the image resulting in a noticeably sharper picture. Instead of sending a field comprising the odd lines to the screen first, followed by the field with the even lines, both fields are written at one time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.

Active Control + Light Sensor

Active Control is a unique and intelligent way of optimizing picture quality by measuring and analyzing the incoming signal to automatically adjust picture quality settings. Active Control with Light Sensor uses a sensor to adjust the picture brightness depending on the room light conditions.

Virtual Dolby Surround

Virtual Dolby Surround is a processing technology for enhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

FM-radio

A small FM radio is integrated into the headphone so you always have a music source with you.

Issue date 2014-02-06

Version: 1.0.2

12 NC: 8670 000 18258 EAN: 87 10895 78039 1

HDTV Monitor

HDTV is the latest and best television signal available. It produces picture quality more than twice that of traditional analog broadcasts. In order to effectively maximize the HDTV signal, a television must incorporate advanced signal input connectivity

VGA input

The TV set has a VGA input which is compatible with the display output signal from your PC. This means you can use the set both as a TV and PC Monitor at your convenience.

Picture in Graphics

Picture-in-Graphics is a small window in the main picture, allowing to watch data/graphics in your main TV screen. It provides the ability to simultaneously watch data/graphics and the TV.

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
