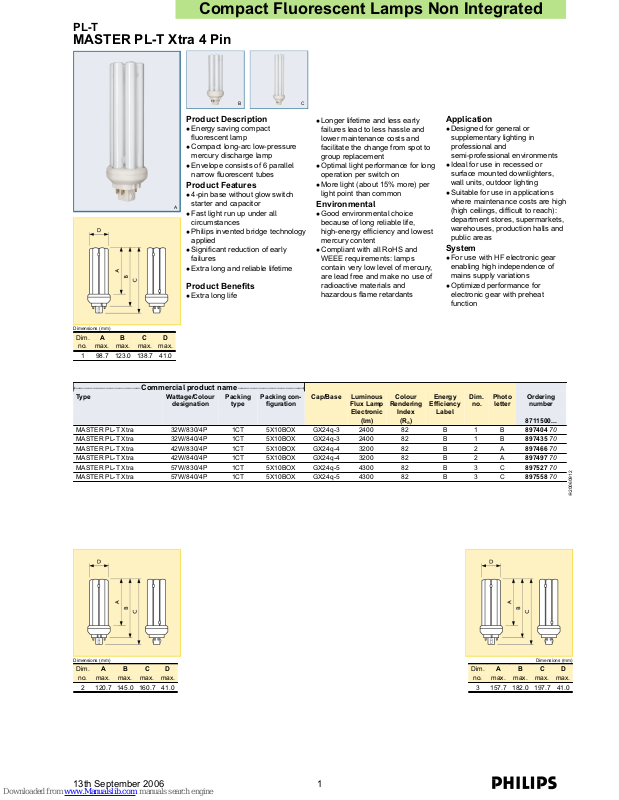

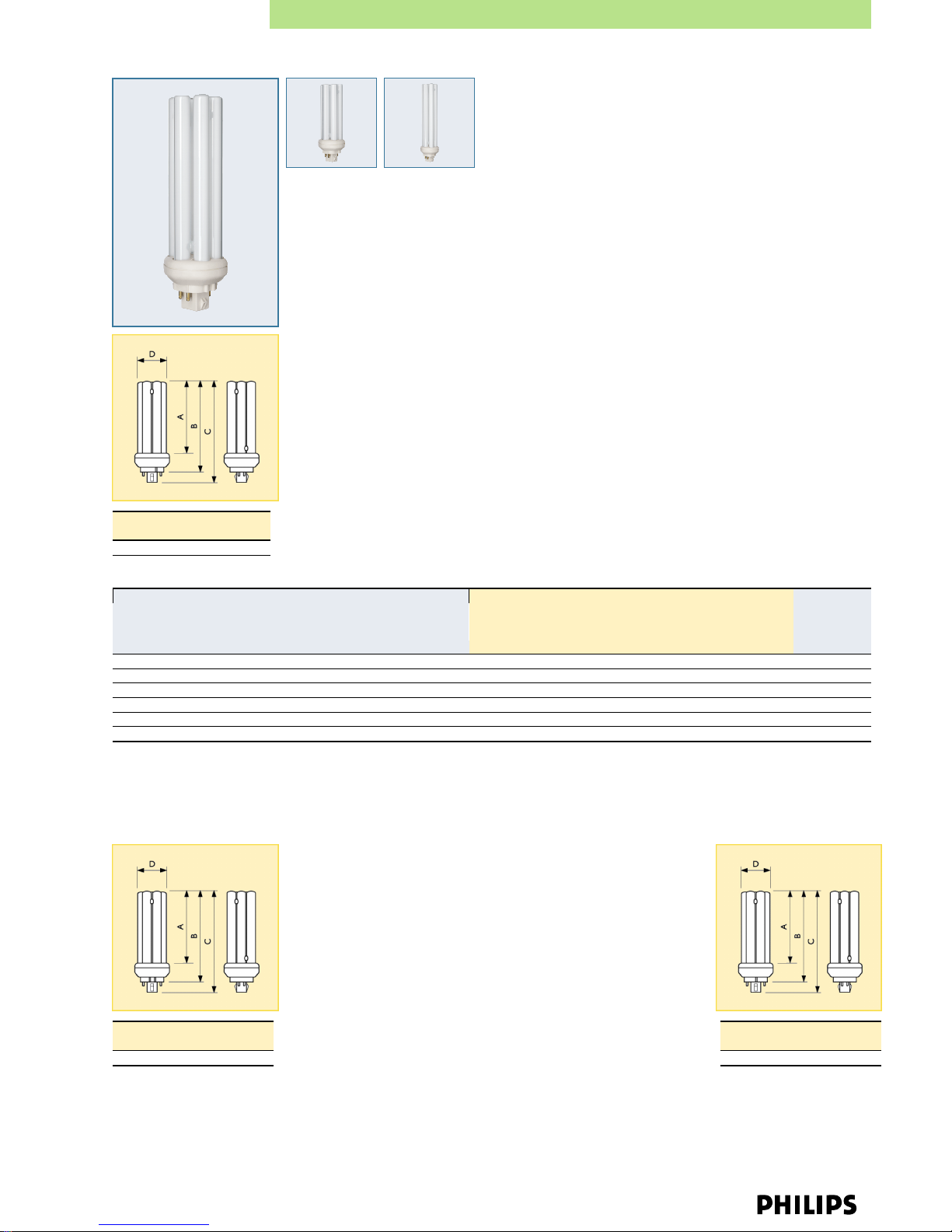

Page 1
PL-T
MASTER PL-T Xtra 4 Pin
Compact Fluorescent Lamps Non Integrated
A
B
C
Product Description
• Energy saving compact
fluorescent lamp
• Compact long-arc low-pressure
mercury discharge lamp
• Envelope consists of 6 parallel
narrow fluorescent tubes
Product Features
• 4-pin base without glow switch
starter and capacitor
• Fast light run up under all
circumstances
• Philips invented bridge technology
applied
• Significant reduction of early
failures
• Extra long and reliable lifetime
Product Benefits
• Extra long life
• Longer lifetime and less early
failures lead to less hassle and
lower maintenance costs and
facilitate the change from spot to
group replacement
• Optimal light performance for long
operation per switch on
• More light (about 15% more) per
light point than common
Environmental
• Good environmental choice
because of long reliable life,
high-energy efficiency and lowest
mercury content
• Compliant with all RoHS and
WEEE requirements: lamps
contain very low level of mercury,
are lead free and make no use of
radioactive materials and
hazardous flame retardants
Application
• Designed for general or
supplementary lighting in
professional and
semi-professional environments
• Ideal for use in recessed or
surface mounted downlighters,
wall units, outdoor lighting
• Suitable for use in applications
where maintenance costs are high
(high ceilings, difficult to reach):
department stores, supermarkets,
warehouses, production halls and
public areas
System
• For use with HF electronic gear
enabling high independence of
mains supply variations
• Optimized performance for
electronic gear with preheat
function
Dimensions (mm)
Dim. A B C D
no. max. max. max. max.
1 98.7 123.0 138.7 41.0
←−−−−−−−−−−−−−−Commercial product name−−−−−−−−−−−−−−→
Type Wattage/Colour
designation
Packing
type
Packing con-
figuration
Cap/Base Luminous
Flux Lamp
Electronic
Colour
Rendering
Index
Energy
Efficiency
Label
Dim.
no.
letter
Ordering
number
(lm) (Ra) 8711500...
MASTER PL-T Xtra 32W/830/4P 1CT 5X10BOX GX24q-3 2400 82 B 1 B 897404 70
MASTER PL-T Xtra 32W/840/4P 1CT 5X10BOX GX24q-3 2400 82 B 1 B 897435 70
MASTER PL-T Xtra 42W/830/4P 1CT 5X10BOX GX24q-4 3200 82 B 2 A 897466 70
MASTER PL-T Xtra 42W/840/4P 1CT 5X10BOX GX24q-4 3200 82 B 2 A 897497 70
MASTER PL-T Xtra 57W/830/4P 1CT 5X10BOX GX24q-5 4300 82 B 3 C 897527 70
MASTER PL-T Xtra 57W/840/4P 1CT 5X10BOX GX24q-5 4300 82 B 3 C 897558 70
✇20060912
Dimensions (mm)
Dim. A B C D
no. max. max. max. max.
2 120.7 145.0 160.7 41.0
Dimensions (mm)
Dim. A B C D
no. max. max. max. max.
3 157.7 182.0 197.7 41.0
13th September 2006 1

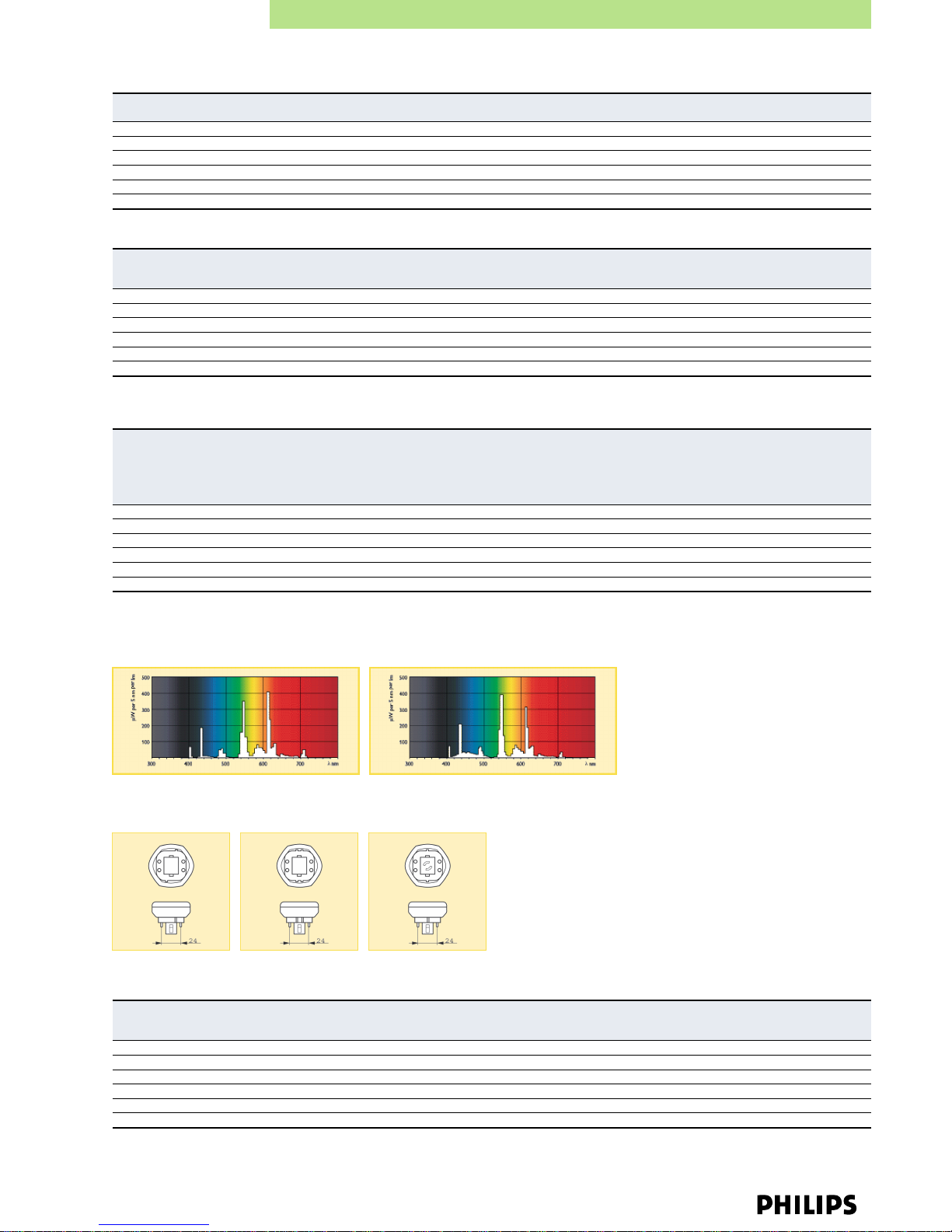

Page 2
PL-T
MASTER PL-T Xtra 4 Pin
Compact Fluorescent Lamps Non Integrated
Additional technical data
Product name Colour Temperature Lamp Wattage Electronic Lamp Voltage Electronic
(K) (W) (V)
MASTER PL-T Xtra 32W/830/4P 3000 32 101
MASTER PL-T Xtra 32W/840/4P 4000 32 101
MASTER PL-T Xtra 42W/830/4P 3000 43 135
MASTER PL-T Xtra 42W/840/4P 4000 43 135
MASTER PL-T Xtra 57W/830/4P 3000 56 175
MASTER PL-T Xtra 57W/840/4P 4000 56 175
Product name Lamp Current Electronic Luminous Efficacy Lamp
Electronic
Mercury (Hg) Content
(A) (lm/W) (mg)
MASTER PL-T Xtra 32W/830/4P 0.32 75 3
MASTER PL-T Xtra 32W/840/4P 0.32 75 3
MASTER PL-T Xtra 42W/830/4P 0.32 76 3
MASTER PL-T Xtra 42W/840/4P 0.32 76 3
MASTER PL-T Xtra 57W/830/4P 0.32 75 3
MASTER PL-T Xtra 57W/840/4P 0.32 75 3
Logistic data
Product name Pack-
ing
type
Packing type description
Packs
per
outer
box
Packing
configu-
ration
Quan-
tity per
pack
Pack-
ing
length
Pack-
ing
width
Pack-
ing
height
Gross
weight
per
piece
Net
weight
per
piece
(mm) (mm) (mm) (g) (g)
MASTER PL-T Xtra 32W/830/4P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 177 103.5 70
MASTER PL-T Xtra 32W/840/4P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 177 103.5 70
MASTER PL-T Xtra 42W/830/4P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 195 119.0 83
MASTER PL-T Xtra 42W/840/4P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 195 119.0 83
MASTER PL-T Xtra 57W/830/4P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 231 142.0 101
MASTER PL-T Xtra 57W/840/4P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 231 142.0 101
Spectral power distribution
Lightcolour 830 Lightcolour 840
Cap/Base
GX24q-3 GX24q-4 GX24q-5
Additional extended technical data
Product name Chromaticity
Coordinate X
Chromaticity
Coordinate Y
Colour Designation Dimmable Cap/Base
Information
MASTER PL-T Xtra 32W/830/4P 434 397 Warm White Yes 4P
MASTER PL-T Xtra 32W/840/4P 380 379 Cool White Yes 4P
MASTER PL-T Xtra 42W/830/4P 434 397 Warm White Yes 4P
MASTER PL-T Xtra 42W/840/4P 380 379 Cool White Yes 4P
MASTER PL-T Xtra 57W/830/4P 434 397 Warm White Yes 4P
MASTER PL-T Xtra 57W/840/4P 380 379 Cool White Yes 4P
13th September 2006 2
Page 3
PL-T
MASTER PL-T Xtra 4 Pin
Compact Fluorescent Lamps Non Integrated
Special data
Product name 10NC ILCOS Life to 10%
failures
Non-preheat
Electronic
Life to 10%
failures
Preheat
Electronic
(h) (h)
MASTER PL-T Xtra 32W/830/4P 9279 125 83000 FSM-32/30/1B-E-GX24q=3 6000 20000
MASTER PL-T Xtra 32W/840/4P 9279 125 84000 FSM-32/40/1B-E-GX24q=3 6000 20000
MASTER PL-T Xtra 42W/830/4P 9279 126 83000 FSM-42/30/1B-E-GX24q=4 6000 20000
MASTER PL-T Xtra 42W/840/4P 9279 126 84000 FSM-42/40/1B-E-GX24q=4 6000 20000
MASTER PL-T Xtra 57W/830/4P 9279 127 83000 FSM-57/30/1B-E-GX24q=5 6000 20000
MASTER PL-T Xtra 57W/840/4P 9279 127 84000 FSM-57/40/1B-E-GX24q=5 6000 20000
Product name Life to
50%
failures
Non-
preheat
Elec-
tronic
Life to
50%
failures
Preheat
Elec-
tronic
Lumen
Mainte-
nance
Elec-
tronic
2000h
Lumen
Mainte-
nance
Electronic
5000h
Lumen
Mainte-
nance
Elec-
tronic
10000h
Lumen
Mainte-
nance
Elec-
tronic
15000h
Additional Information Execu-
tion
(h) (h) (%) (%) (%) (%)
MASTER PL-T Xtra 32W/830/4P 9000 33000 92 87 81 80 Mercury Lifetime Guarantee /4P
MASTER PL-T Xtra 32W/840/4P 9000 30000 92 87 81 80 Mercury Lifetime Guarantee /4P
MASTER PL-T Xtra 42W/830/4P 9000 33000 92 87 81 80 Mercury Lifetime Guarantee /4P
MASTER PL-T Xtra 42W/840/4P 9000 33000 92 87 81 80 Mercury Lifetime Guarantee /4P
MASTER PL-T Xtra 57W/830/4P 9000 33000 92 87 81 80 Mercury Lifetime Guarantee /4P
MASTER PL-T Xtra 57W/840/4P 9000 33000 92 87 81 80 Mercury Lifetime Guarantee /4P
13th September 2006 3
