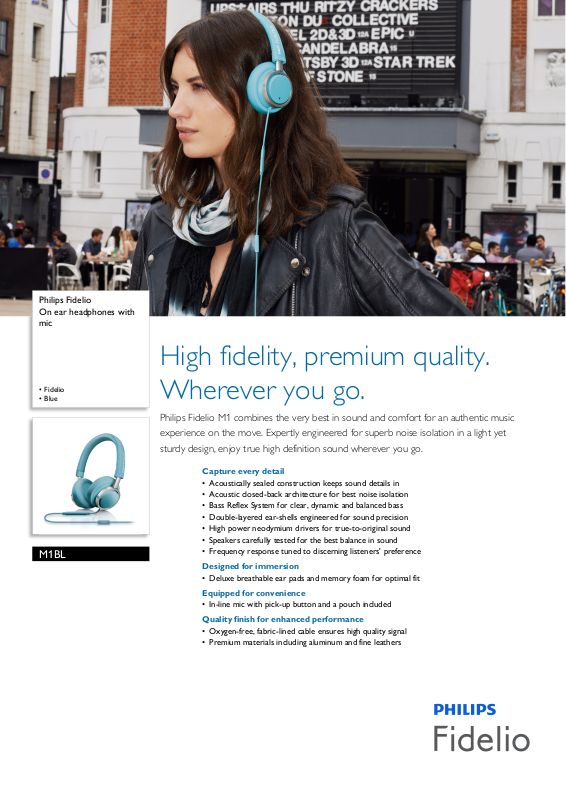

Page 1
Philips Fidelio
On ear headphones with
mic
High fidelity, premium quality.
• Fidelio
•Blue
M1BL
Wherever you go.
Philips Fidelio M1 combines the very best in sound and comfort for an authentic music
experience on the move. Expertly engineered for superb noise isolation in a light yet
sturdy design, enjoy true high definition sound wherever you go.
Capture every detail
• Acoustically sealed construction keeps sound details in
• Acoustic closed-back architecture for best noise isolation
• Bass Reflex System for clear, dynamic and balanced bass
• Double-layered ear-shells engineered for sound precision
• High power neodymium drivers for true-to-original sound
• Speakers carefully tested for the best balance in sound
• Frequency response tuned to discerning listeners' preference
Designed for immersion
• Deluxe breathable ear pads and memory foam for optimal fit
Equipped for convenience
• In-line mic with pick-up button and a pouch included
Quality finish for enhanced performance
• Oxygen-free, fabric-lined cable ensures high quality signal
• Premium materials including aluminum and fine leathers
Page 2
On ear headphones with mic
Fidelio Blue
Highlights
M1BL/00
Acoustic sealing
The acoustic seal is a specially designed ribbon
lock that's built into the internal chamber to
eliminate any unnecessary sound leakage and
preserve sound details. The result is excellent
bass extension.
Acoustics closed-back design
Acoustic closed-back architecture for best
noise isolation.
Bass Reflex System (BRS)
Working in conjunction with the acoustic seal
capture, it isolates every natural sound detail
and delivers precise and dynamic bass without
compromising on sound clarity.
Deluxe breathable ear pads
The materials used for the Fidelio M1 are
carefully selected to ensure long-wearing
comfort and enhanced sound performance.
Deluxe breathable ear pads with memory foam
are designed for optimal ergonomic fit. Not
only does the foam mould itself perfectly to the
shape of your ear, it also seals in bass sounds
while keeping out ambient noise. This is
designed with the outer cushion - using a
balanced proportion of fabric and protein
leather - to reduce ear surface pressure and
heat build-up, so that the M1 feels and sounds
excellent.
Double-layered ear-shells
The M1's double-layered ear-shells are
e
ngineered to reduce resonance and to
dampen vibration for genuinely precise and
clean sound so you hear every superb sound
detail. The solid, layered construction ensures
durability and comfort, making the M1 an ideal
music companion for a long time to come.
High power neodymium drivers
Each speaker driver is carefully hand picked,
tuned and tested before being paired to ensure
the most balanced natural sound. The 40mm
drivers utilize high power neodymium magnets
to deliver true high definition sound in a wide
dynamic range, reproducing even the most
minute details.
Mic, pick up button, pouch
In-line mic with pick-up button and a pouch
included.
Oxygen-free cable
The acoustic closed-back architecture features
a Bass Reflex System that comprises ear-shells
with strategically placed vents. These regulate
the air pressure within the internal chamber
providing the diaphragm with a controlled
environment for optimal acoustic response.
Oxygen-free, fabric-lined cable ensures high
quality signal.
Page 3
On ear headphones with mic
Fidelio Blue
Specifications
M1BL/00
Sound
• Frequency response: 15 - 24 000 Hz
•Impedance: 16 Ohm
• Sensitivity: 107 dB
• Speaker diameter: 40 mm
• Maximum power input: 150 mW
• Distortion: < 0.1% THD
• WBCV: 111 mV
Connectivity
• Cable Connection: Oxygen free cable (1.1m)
• Finishing of connector: Gold
• Compatible with:: iPhone®, BlackBerry®, HTC,
, MOTOROLA, NOKIA*, SAMSUNG*, SONY
LG
* Only for latest models. Extra connector available
through customer support for Sony Ericsson, older
models from NOKIA & SAMSUNG
• Cable Connection: one-sided
• Cable length: 1.1 m
Accessories
• Storage pouch
• Audio cable: with mic and pickup button
Outer Carton
• Outer carton (L x W x H): 17.9 x 17.8 x 21.9 cm
• Outer carton (L x W x H): 7 x 7 x 8.6 inch
• Nett weight: 0.4504 kg
• Nett weight: 0.993 lb
• Gross weight: 1.273 kg
• Gross weight: 2.807 lb
• Tare weight: 0.8226 kg
• Tare weight: 1.814 lb
• GTIN: 1 87 12581 69331 9
• Number of consumer packagings: 2
Product dimensions
• Product dimensions (W x H x D):
16.4 x 18 x 4.2 cm
• Product dimensions (W x H x D):
6.5 x 7.1 x 1.7 inch
• Weight: 0.166 kg
• Weight: 0.366 lb
Packaging dimensions
• Packaging dimensions (W x H x D):
16.8 x 20.2 x 8.3 cm
• Packaging dimensions (W x H x D):
6.6 x 8 x 3.3 inch
• Nett weight: 0.2252 kg
• Nett weight: 0.496 lb
• Gross weight: 0.5614 kg
• Gross weight: 1.238 lb
• Tare weight: 0.3362 kg
• Tare weight: 0.742 lb
• EAN: 87 12581 69331 2
• Type of shelf placement: Both
• Number of products included: 1
• Packaging type: Carton
•
Issue date 2013-08-18
Version: 3.0.4
12 NC: 8670 001 05012
EAN: 87 12581 69331 2
© 2013 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
