Housing, camera, and lens combinations are frequently used where protection against the environment is
required. In order to simplify and
reduce the installation process time,
the Philips Outdoor Cameras can be
used. They are supplied fully assembled with housing, camera, and a Varifocal lens, which allows the final Fieldof-view to be selected on-site. This
means that installation is simple. You
only have to connect the supply and
video cables and set the focus and the
unit is ready for use. A wall bracket is
also included in the package to enable
mounting of the unit.
The Outdoor Cameras are based on
the proven LTC 0330, LTC 0350,
LTC 0430, and LTC 0450 series of
cameras. These cameras are available
in standard and high resolution versions and color and monochrome and
are for use in CCIR and PAL areas.
The Vari-focal lens supplied is the
Passive, DC auto-iris lens
LTC 3364/30. This lens is chosen
because it covers most applications. By
including the lens, the stock holding for
the installer is reduced. Also, because
a Vari-focal lens is used, the Field-ofview can be selected on-site, allowing
optimum area coverage.
The modern compact housing is of a
proven design that provides good protection against the elements and hostile environments. It can be used in a
large variety of places such as shops,
offices, petrol stations, industrial environments, and travel and transport
areas, in fact any general indoor and
outdoor use.

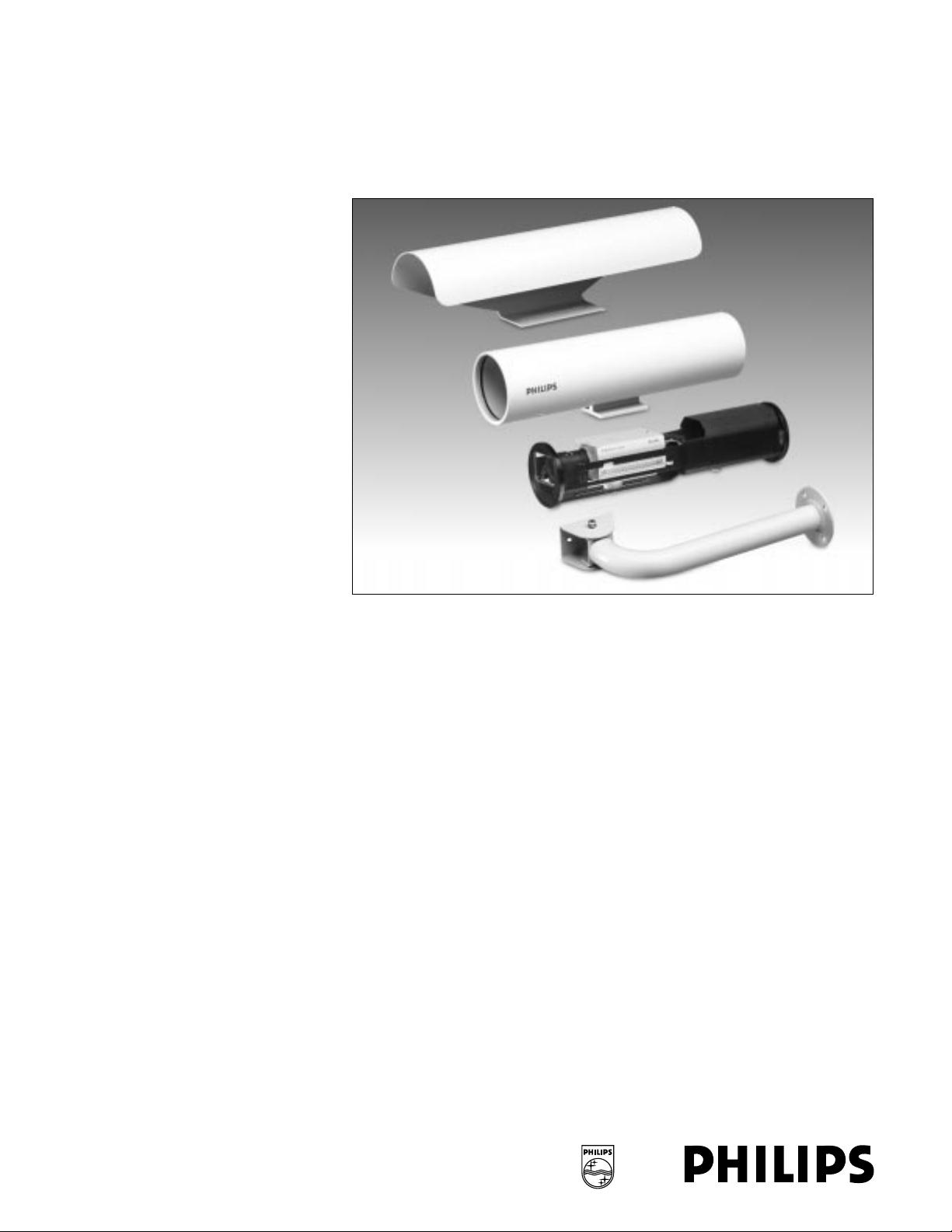

LTC 0033 - LTC 0045 Series
Outdoor Cameras
nn
Preassembled Units with
Housing, Camera, Lens,
and Bracket Included
nn
Range of Color and
Monochrome Units
nn
Choice of High
Performance Cameras
nn
Vari-focal Lenses Allow
Field-of-view To Be
Selected On-site
nn
Modern Compact Design
nn
Includes Mounting
Bracket and Sunshield
Philips
Communication
Security & Imaging
Page 2
9498 962 37212 99-50
Ó
1999 Philips Electronics N.V.
Printed In U.S.A.
Ó
1999 Philips Communication, Security & Imaging, Inc.
All Rights Reserved. Philips Òis a registered trademark of
Philips Electronics N.V.
Data subject to change without notice
SPECIFICATIONS
Range
Mode No. Camera type Description
LTC 0033/50 LTC 0330/11 B/W, CCIR Standard resolution
LTC 0035/50 LTC 0350/11 B/W, CCIR High resolution
LTC 0043/50 LTC 0430/11 Color, PAL Standard resolution
LTC 0045/50 LTC 0450/11 Color, PAL High resolution
Voltage: 230 VAC +10%.
Power Dissipation: 30 W.
Sensor: 1/3-inch.
Resolution:
LTC 0033 - 380 TVL.
LTC 0035 - 570 TVL.
LTC 0043 - 330 TVL.
LTC 0045 - 460 TVL.
Sensitivity (F1.4, -6dB):
LTC 0033 - 0.2 lux.
LTC 0035 - 0.14 lux.
LTC 0043 - 2.0 lux.
LTC 0045 - 2.0 lux.
Lens: LTC 3364/30.
Focal Length: 3.5 - 8 mm.
Field-of-view: 71° x 55° - 33° x 25°.
Iris Control Range: F1.4 - 90.
Iris Control: DC-iris.
Connections:
Mains: 4-pin connector.
Video: BNC-connector.
Mechanical
Construction: Aluminium alloy - die-cast housing with
internal heater. Sunshield included.
Finish: Light grey colored case.
Dimensions: 449 (L) x 97 (W) x 112 (H) mm
(17.7 x 3.8 x 4.45 in).
Weight: 3 kg (6.61 lb).
Mounting bracket: TC9212.
Sunshield: LTC 9383/00.
Environmental
Protection: IEC 529, IP 65.
Operating Temperature: -25 to +40 °C (-13 to +104
°F).
Storage Temperature: -40 to +70 °C (-40 to +158 °F).
Electromagnetic Compatibility
EMC requirements:
CE, 89/336/EEC.
Immunity: EN50130-4.
Emission: EN50081-1 Class B.
Safety: CE.
Delivery:
The Standard Delivery Includes:
CCTV camera with lens, mounted and adjusted, and fit-
ted in outdoor housing.
Sunshield.
Mounting bracket.
