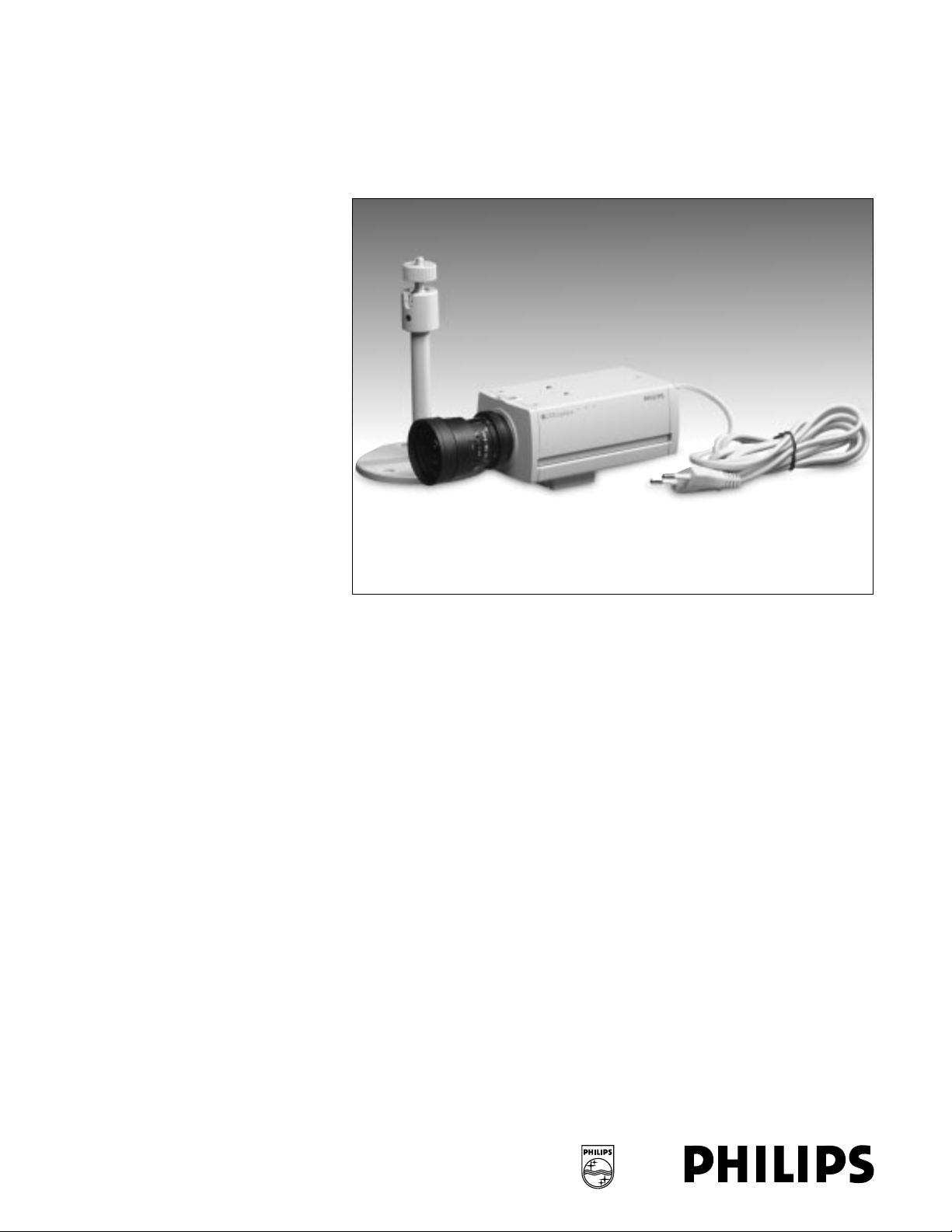

Combinations of cameras, lenses, and
power supplies are normally used
when installing indoor CCTV surveillance systems. In order to simplify and
reduce the installation process time,
Philips has made available a complete
kit which is comprised of a matched
camera and lens, together with a
mounting bracket and the necessary
power supply. This means that installation is simple. You only have to fit the
lens, connect the supply and video
cables, and set the focus and the unit is
ready for use.
The indoor cameras are based on the
proven LTC 0330, LTC0350, LTC 0430,
and LTC 0450 series of cameras.
These cameras are available in
standard and high resolution versions
and color and monochrome and are
for use in CCIR and PAL areas.
The Vari-focal lens supplied is the manual-iris lens LTC 3361/20. This lens is
chosen because it covers most applications. By including the lens, the stock
holding for the installer is reduced.
Also, because a Vari-focal lens is used,
the Field-of-view can be selected on
site, allowing optimum area coverage.
The assembly can be used in a large
variety of places such as shops, offices,
petrol stations, and industrial environments, in fact any general indoor use.
LTC 0033/30 - LTC 0045/30 Series
Indoor Camera Kits
nn
Preassembled Units with
Camera, Lens, Power
Supply, and Bracket
Included
nn
Range of Color and
Monochrome Units
nn
Choice of High
Performance Cameras
nn
Vari-focal Lenses Allow
Field-of-view To Be
Selected On-site
nn
Includes Mounting
Accessories for Easy
Installation
Philips
Communication
Security & Imaging
Page 2
9498 962 37112 99-50
Ó
1999 Philips Electronics N.V.
Printed In U.S.A.
Ó
1999 Philips Communication, Security & Imaging, Inc.
All Rights Reserved. Philips Òis a registered trademark of
Philips Electronics N.V.
Data subject to change without notice
SPECIFICATIONS
Range
Model No. Camera Type Description
LTC 0033/30 LTC 0330/51 B/W, CCIR Standard resolution
LTC 0035/30 LTC 0350/51 B/W, CCIR High resolution
LTC 0043/30 LTC 0430/51 Color, PAL Standard resolution
LTC 0045/30 LTC 0450/51 Color, PAL High resolution
Voltage: 85 - 264 VAC 50 Hz.
Power Dissipation: 3 W.
Sensor: 1/3-inch.
Resolution:
LTC 0033 - 380 TVL.
LTC 0035 - 570 TVL.
LTC 0043 - 330 TVL.
LTC 0045 - 460 TVL.
Sensitivity (F1.2, -6dB):
LTC 0033 - 0.15 lux.
LTC 0035 - 0.1 lux.
LTC 0043 - 1.5 lux.
LTC 0045 - 1.5 lux.
Lens: LTC 3361/20.
Focal Length: 2.8 - 6 mm.
Field-of-view: 89° x 69° - 44° x 34°.
Iris Control Range: F1.2 - close.
Iris Control: Manual-iris.
Connections:
Video Out: BNC internal on the camera
Power: Power lead with 2-pin Euro connector.
Mechanical
Camera Dimensions: 121 (L) x 68 (W) x 49 (H) mm
(4.76 x 2.68 x 1.93 in).
Weight: 0.49 kg (1.1 lb).
Mounting Bracket: LDH 6372/00.
Environmental
Operating Temperature: -20 to +50 °C (-4 to +122 °F).
Storage Temperature: -40 to +70 °C (-40 to +158 °F).
Electromagnetic Compatibility
EMC Requirements:
CE, Immunity and Emission.
Safety: CE.
Delivery:
The Standard Delivery Includes:
CCTV camera.
Lens mounted and adjusted.
Mounting bracket.
