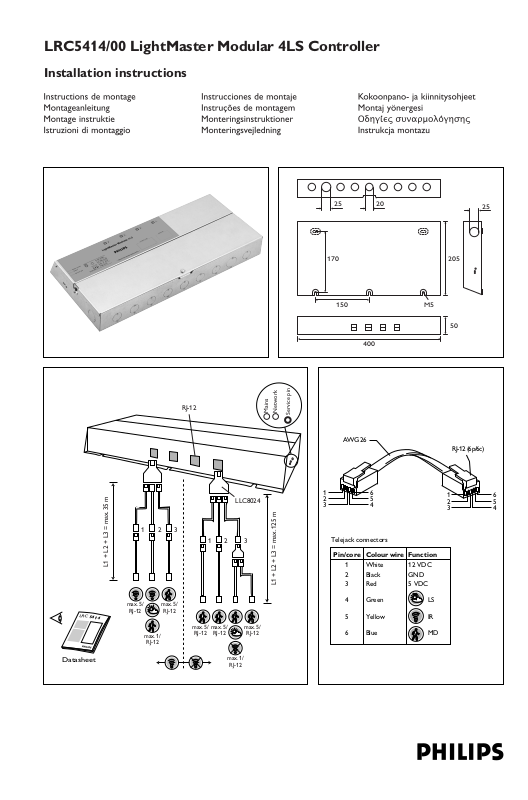

Philips LRC5414-00 installation Guide

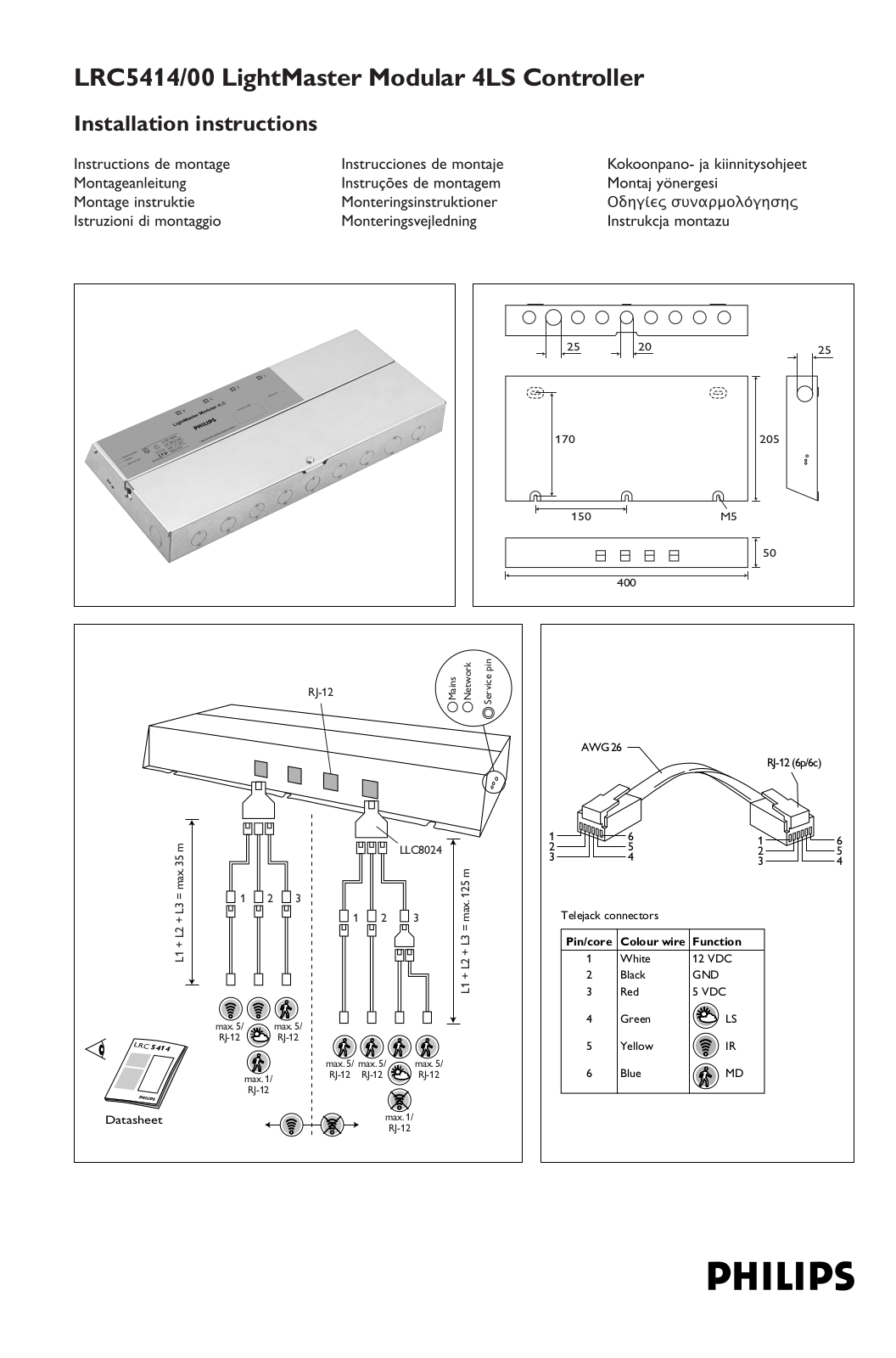

LRC5414/00 LightMaster Modular 4LS Controller

Installation instructions

RJ-12

Mains

Network

Service pin

25 20

170

AWG 26

25

205

M5150

50

400

RJ-12 (6p/6c)

LRC 5414

Datasheet

L1 + L2 + L3 = max. 35 m

123

max. 5/

RJ-12

max. 1/

RJ-12

max. 5/

RJ-12

12 3

max. 5/

max. 5/

RJ-12

RJ-12

LLC8024

max. 1/

RJ-12

max. 5/

RJ-12

L1 + L2 + L3 = max. 125 m

1
2
3

Telejack connectors

1

2

3

4

5

6

Colour wire

White

Black

Red

Green

Yellow

Blue

Pin/core

6
5
4

1
2
3

6
5
4

Function

12 VDC

GND

5 VDC

LS

IR

MD

9137 003 19603
11/2004
Printed in EU
Data subject to change

http://www.lightingcontrols.philips.com

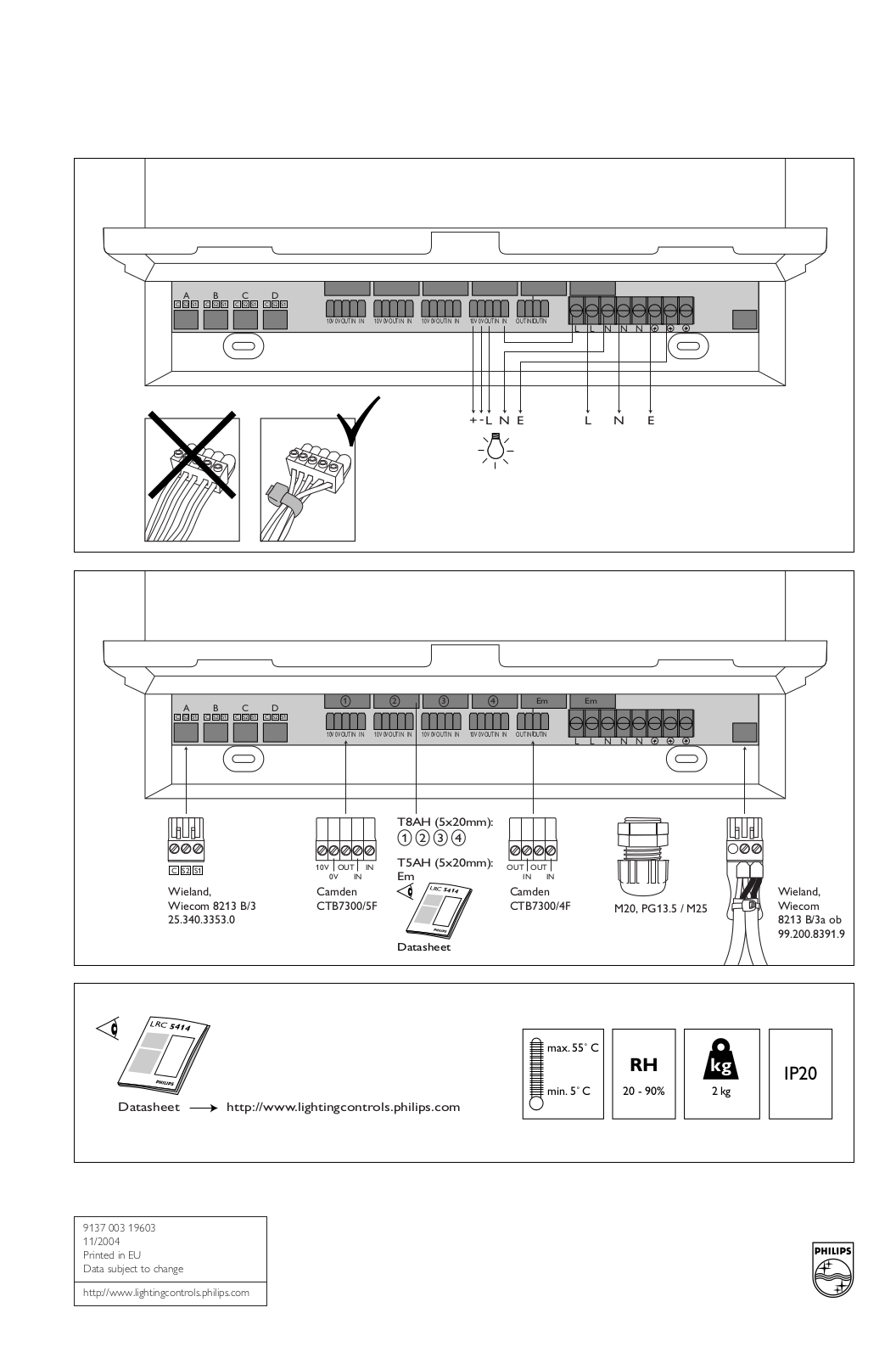

ABCD

CS2S1 CS2S1 CS2S1 CS2S1

10V 0VOUT IN IN 10V 0VOUT IN IN 10V 0VOUT IN IN 10V 0VOUT IN IN OUTIN OUTIN

+-LNE L N E

LLNNN

ABCD

CS2S1 CS2S1 CS2S1 CS2S1

1 2 3 4EmEm

10V 0VOUT IN IN 10V 0VOUT IN IN 10V 0VOUT IN IN 10V 0VOUT IN IN OUTIN OUTIN

T8AH (5x20mm):

1 2 3 4

CS2S1

Wieland,
Wiecom 8213 B/3

10V0VOUTININ OUTINOUT

Camden
CTB7300/5F

T5AH (5x20mm):
Em

LRC

25.340.3353.0

Datasheet

LRC 5414

Datasheet http://www.lightingcontrols.philips.com

LLNNN

5414

IN

Camden
CTB7300/4F

M20, PG13.5 / M25

Wieland,
Wiecom
8213 B/3a ob

99.200.8391.9

max. 55˚ C

min. 5˚ C

RH

20 - 90%

kg

2 kg

IP20
