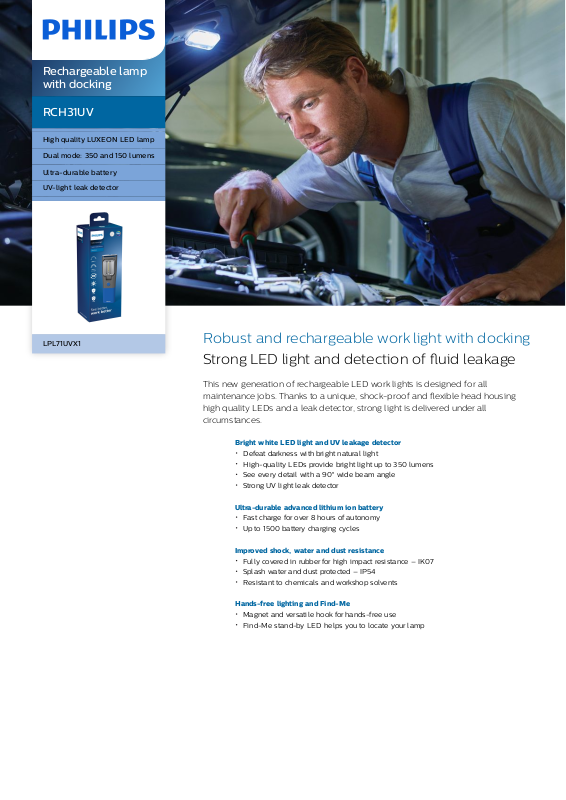

Page 1
Rechargeable lamp
with docking
RCH31UV
High quality LUXEON LE D lamp
Dual mode: 350 and 150 lumens
Ultra-durable battery
UV-light leak detector
LPL71UVX1
Robust and rechargeable work light with docking
Strong LED light and detection of fluid leakage
This new generation of rechargeable LED work lights is designed for all
maintenance jobs. Thanks to a unique, shock-proof and flexible head housing
high quality LEDs and a leak detector, strong light is delivered under all
circumstances.
Bright white LED light and UV leakage detector
Defeat darkness with bright natural light
High-quality LEDs provide bright light up to 350 lumens
See every detail with a 90° wide beam angle
Strong UV light leak detector
Ultra-durable advanced lithium ion battery
Fast charge for over 8 hours of autonomy
Up to 1500 battery charging cycles
Improved shock, water and dust resistance
Fully covered in rubber for high impact resistance – IK07
Splash water and dust protected – IP54
Resistant to chemicals and workshop solvents
Hands-free lighting and Find-Me
Magnet and versatile hook for hands-free use
Find-Me stand-by LED helps you to locate your lamp
Page 2
Rechargeable lamp with docking
LPL71UVX1
Highlights
Bright light defeats darkness
Equipped with high quality L ED s, the Phili ps
RCH31UV rechargeable lamp provides you with
an intense white light so you can defeat
darkness as you work. While the bright, wide
beam allows you to see clearly, the 6000
Kelvin natural light is also gentle on your eyes
to prevent fatigue.
Bright high-quality LED s
Equipped with high quality L ED s, the Phili ps
RCH31UV offers a useful dual power mode.
Boost mode gi ves you a powerful 350 lumens
light output, helping you spot even the
smallest of details. And if you’re using the
lamp for a long time, you can select eco mode
to preserve battery life. At a reduced 150 lumen
output you’ll still achieve a high quality bright
light for up to 8 hours.
90° wide beam angle
The Philips RCH31UV provides a wide beam
angle of 90°, li ghting up your entire work area.
This beam of white light provides just the right
amount of light, in just the right places, so you
can see every detail as you work.
Strong UV light leak detector
Not only does this LED inspection lamp have a
very strong main beam, it is also equipped
with a UV leak detector. This will help you to
easily spot leaks in ai r-conditioning systems
without requiring any additional tools. Simply
add leak detection fluid to the A/C system and
any leak will show up.
Fast charge for 8 hours light
It's frustrating when a battery dies halfway
through a job. After a complete charge i n less
than 2.5 hours, you get over 8 hours of
continuous use in eco mode. Which means
quality light for most of the working day.
5 x longer battery lifetime
When you buy a rechargeable tool, you want
to know the battery will last. The Philips
RCH31UV comes with an advanced battery that
lasts 5 x longer than traditional rechargeable
batteries. With 1500 charging cycles, i nstead of
the standard 300, this durable battery
significantly reduce replacement costs.
High impact resistance – IK07
Conforming to international impact resistance
standard IK07, the Philips RCH31UV has a
rubber cover that further protects an already
robust housing. Put simply, this inspection
lamp was designed to withstand the toughest
work environments. Because we know even the
most careful workers accidentally drop their
tools from time to time.
Water and dust protected
Phili ps RCH31UV conforms to international
splash water and dust resistance rating of IP54.
Built with rigorous manufacturing and multiple
sealing processes, your lamp is highly
resistant to splashed water and protected from
dust.
Resistant to chemicals
Highly resistant to most chemicals and
workshop solvents, your Phili ps RCH31UV is
built to survive in the toughest of workshop
environments.
Magnet and hook for hands-free
With the adjustable and retractable 360° hook,
you can hang this lamp anywhere you need to.
With a strong rear magnet, you can also easi ly
attach it to any metal surface, leaving both
your hands free to work. The Philips RCH31UV
also features a unique and innovative 90°
flippable light module ensuring 360°
illumination.
Find-Me to locate your lamp
Never lose your lamp again with our innovative
Find-Me function. One red LED keeps your
work light visible i n stand-by mode without
affecting battery autonomy.
Page 3
Rechargeable lamp with docking
LPL71UVX1
Specifications
Ordering information
Order entry: LPL71UVX1
Ordering code: 05289631
Electrical characteristics
Battery capacity: 3000 mAh
Power source: Li FePO4 battery 3000 mAh
Battery run time (boost): Up to 3.5 hours
Battery run time (eco): Up to 8 hours
Battery type: LFP battery
Plug type: AU (5V1A output, Micro USB)
Battery charging time: less than 2.5 hours
Wattage: 3W
Voltage: 5V (Plug output)
Light characteristics
Color temperature: 6000 K
Light output (pointer): UV
LED lifetime: 30000 hours
Beam angle: 90°
Light output (eco): 150 lumens
Light output: 350 lumens
Beam angle (pointer): N/A
Light intensity (Pointer): N/A
Outerpack information
Gross weight per piece: 2800 g
Height: 26.8 cm
Length: 25.4 cm
Width: 20.4 cm
Packaging Data
EAN1: 8719018052896
EAN3: 8719018052902
Packed product information
Height: 23.5 cm
Length: 7.7 cm
Pack Quantity / MOQ: 6
Weight with batteries: 400 g
Weight with cable: 480 g
Width: 9.3 cm
Size: Standard
Diameter: N/A
Weight without batteries: N/A
Weight without cable: N /A
Product description
Hook: 360 degrees retractable hook
Impact protection rating (IK): IK07
Ingress protection rati ng (IP): IP54
Magnet
Materials & finishing: Robust rubber
Orientable light: 90°Flippable lighting module
Resistant to: oil, grease, workshop solvents
Technology: LE D
UV leak detector
Range: RCH
Number of LED s: 6
Operating temperature: 0°C to 40°C
Pointing light: N/A
Headband: N/A
Marketing specifications
Product highlight: Rechargebale work lamp
Expected benefits: See better, Work better
© 20 20 Philips Lighting Holding B.V.
All Right s reser ved.
Specifications are subject to change
without notice. Trademarks are the
property of Philips Lig hting Holding
B.V. or their respective owne rs.
Issue date 202 0‑ 11‑06
Version: 2.0.1
12 NC: 8670 001 61114
