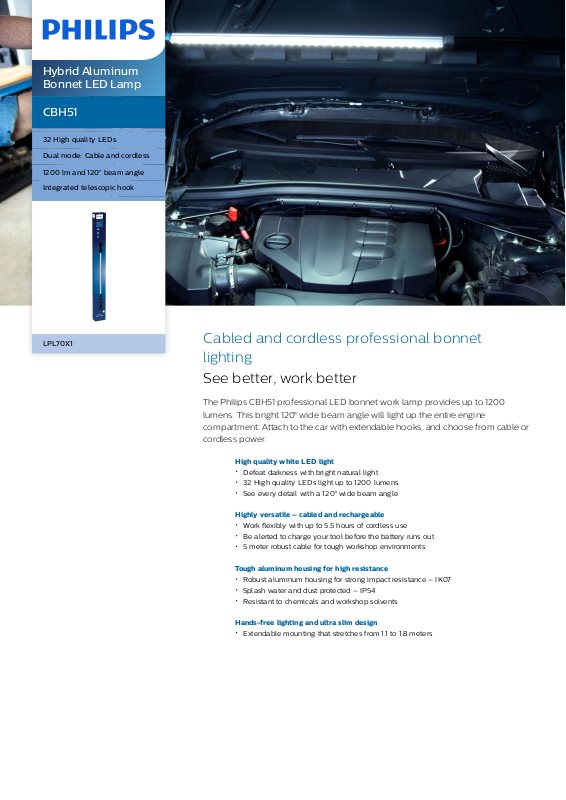

Page 1
Hybrid Aluminum
Bonnet LED Lamp
CBH51
32 High quality LEDs
Dual mode: Cable and cordless
1200 lm and 120° beam angle
Integrated telescopic hook
LPL70X1
Cabled and cordless professional bonnet
lighting
See better, work better
The Philips CBH51 professional LED bonnet work lamp provides up to 1200
lumens. This bright 120° wide beam angle will light up the entire engine
compartment. Attach to the car with extendable hooks, and choose from cable or
cordless power.
High quality white LED light
Defeat darkness with bright natural li ght
32 High quality LEDs light up to 1200 lumens
See every detail with a 120° wide beam angle
Highly versatile – cabled and rechargeable
Work flexibly with up to 5.5 hours of cordless use
Be alerted to charge your tool before the battery runs out
5 meter robust cable for tough workshop environments
Tough aluminum housing for high resistance
Robust aluminum housing for strong i mpact resistance – IK07
Splash water and dust protected – IP54
Resistant to chemicals and workshop solvents
Hands-free lighting and ultra slim design
Extendable mounting that stretches from 1.1 to 1.8 meters
Page 2
Hybrid Aluminum Bonnet LED Lamp
LPL70X1
Highlights
Bright light defeats darkness
Phili ps CBH51 LED hybrid professional bonnet
lamp features 32 powerful LE Ds, providing an
intense white light and a bright wide beam to
defeat darkness. Designed to give you clear
vision as you work, the 6000 Kelvin natural
white light is also gentle on your eyes to
prevent fatigue.
32 High quality LEDs
Equipped with 32 high quality white LE Ds, the
Phili ps CBH51 offers a useful dual power
mode. Boost mode gives you a powerful 1200
lumens li ght output, helping you spot even the
smallest of details. And if you’re usi ng the
lamp while unplugged for an extended period,
you can select eco mode to preserve battery
life. At a reduced 500 lumen output you’ll still
achieve a high quality bright light for up to 5.5
hours.
120° wide beam angle
The Philips CBH51 provides a wide beam
angle of 120°, perfect for illuminating your
entire work area. This wide, bright beam of
light allows you to see every little detail as you
work.
Long-life cordless battery
Need to move around your workshop as you
work? No problem. Simply remove the cable
from the Philips CBH51. The long-life battery
provides you with 5.5 hours of continuous
cordless use.
Battery status indicator
The Philips CBH51 is equipped with a battery
status indicator to inform you how long the
device can still function before the battery runs
down completely. Avoid the experience of
starting a job and suddenly having the li ght
turn off. In addition, when the lamp is charging,
the indicator shows the required time until full
charge.
5-meter robust cable
For extended periods of use, the Philips CBH51
is equipped with a long and robust 5-meter
cable, providing continuous lighting as you
work. Just like the lamp itself, the cable i s built
to survive tough workshop environments and
be resistant to different chemicals, such as
hydrocarbons.
Robust aluminum housing – IK07
Conforming to international impact resistance
standard IK07, the Philips CBH51 has a robust
aluminum housing designed to withstand the
toughest work environments. Because we know
even the most careful workers accidentally drop
their tools from time to time.
Water and dust protected
Phili ps CBH51 conforms to international splash
water and dust resistance rating of IP54. Built
with rigorous manufacturing and multiple
sealing processes, your lamp is highly
resistant to splashed water and protected from
dust.
Resistant to chemicals
Highly resistant to most chemicals and
workshop solvents, your Philips CBH51 is built
to survive in the toughest of workshop
environment.
Integrated telescopic mounting
The Philips CBH51 is supplied with fully
integrated telescopic mounting, which can be
stretched from 1.1 to 1.8 meters. The inside of
the hooks are covered with rubber so you don’t
need to worry about scratching the vehicle.
And for greater visibility, you can also turn the
lamp 360° while it remains held i n position by
the mounting hooks.
Page 3
Hybrid Aluminum Bonnet LED Lamp
LPL70X1
Specifications
Electrical characteristics
Battery capacity: 5200 mAh
Battery charging time: Less than 3 hours
Battery run time (boost): Up to 3 hours
Battery run time (eco): Up to 5.5 hours
Battery type: LFP battery
Charging cable type: Cable and Rechargeable
Plug type: AUS (8.4V 2A output)
Power source: Li FePO4 battery 2600 mAh
Voltage: 3.7V (Battery)
Wattage: 10W
Light characteristics
Beam angle: 120°
Beam angle (pointer): N A
Color temperature: 6000 K
LED lifetime: 10000 hours
Light intensity (boost): 1100 lux at 0.5m
Light intensity (eco): 550 lux at 0.5m
Light intensity (Pointer): NA
Light output (eco): 500 lumens
Light output (pointer): NA
Light output: 1200 lumens
Marketing specifications
Expected benefits: See better, Work better
Product highlight: Bonnet work lamp
Ordering information
Order entry: LPL70X1
Ordering code: 05287231
Outerpack information
Gross weight per piece: 11400 g
Height: 28.5 cm
Length: 119 cm
Width: 25 cm
Packaging Data
EAN1: 8719018052872
EAN3: 8719018052889
Packed product information
Cable length: 5 m
Diameter: NA
Height: 8.65 cm
Length: 115.6 cm
Pack Quantity / MOQ: 6
Size: Standard
Weight with batteries: 1300 g
Weight with cable: 1300 g
Weight without batteries: N A
Weight without cable: NA
Width: 6.2 cm
Product description
Headband: NA
Hook: 360° retractable hook
Impact protection rating (IK): IK07
Ingress protection rating (IP): IP54
Magnet: No
Materials & finishing: Aluminum plate
Number of LEDs: 32
Operating temperature: 0°C to 40°C
Orientable light: 360° flip
Pointing light: NA
Range: CBH
Resistant to: oil, grease, workshop solvents
Technology: LED
UV leak detector: No
© 20 20 Philips Lighting Holding B.V.
All Right s reserved.
Specifications are subject to change
without notice. Trademarks are the
property of Philips Lighting Holding
B.V. or their re spective owners.
Issue date 2020 ‑11‑0 6
Version: 2.0.1
12 NC: 8670 001 61113
www.phili ps.com
