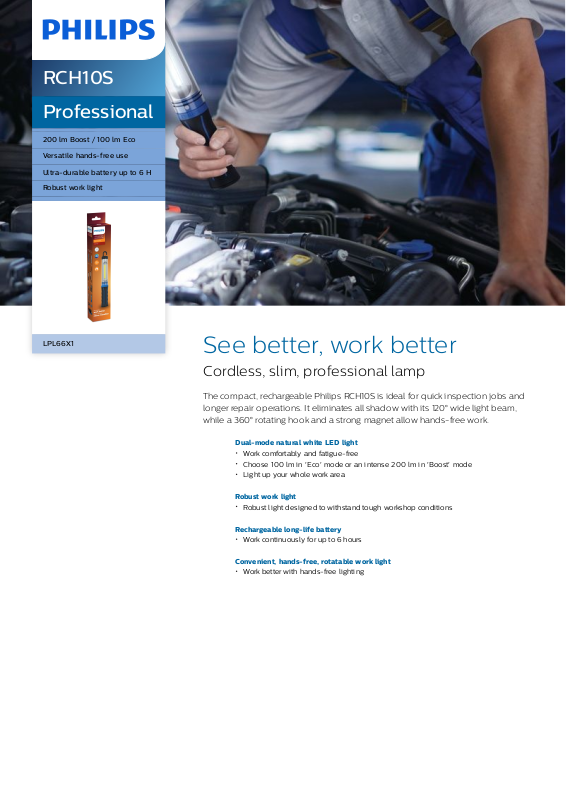

RCH10S
Professional
200 lm Boost / 100 lm Eco
Versatile hands-free use
Ultra-durable battery up to 6 H
Robust work light
LPL66X1
See better, work better
Cordless, slim, professional lamp
The compact, rechargeable Philips RCH10S is ideal for quick inspection jobs and
longer repair operations. It eliminates all shadow with its 120° wide light beam,
while a 360° rotating hook and a strong magnet allow hands-free work.
Dual-mode natural white LE D light
Work comfortably and fatigue-free
Choose 100 lm in 'Eco' mode or an intense 200 lm in 'Boost' mode
Light up your whole work area
Robust work light
Robust li ght designed to withstand tough workshop conditions
Rechargeable long-life battery
Work continuously for up to 6 hours
Convenient, hands-free, rotatable work light
Work better with hands-free lighting
Page 2
RCH10S
LPL66X1
Specifications Highlights
Ordering information
Order entry: LPL66X1
Ordering code: 05205631
Electrical characteristics
Battery capacity: 1500 mAh
Power source: Rechargeable battery
Wattage: 3 W
Voltage: 3.2 V
Battery run time (eco): Up to 6 hours
Battery type: LFP battery
Charging cable type: Rechargeable
Plug type: Plug+Micro USB
Battery charging time: Less than 3 hours
Battery run time (boost): Up to 3 hours
Light characteristics
Colour temperature: 6000 K
Light intensity (pointer): N/A
Light output: 150-300 lumen, 200 lumen
Light output (pointer): N/A
LED lifetime: 10,000 hours
Beam angle: 120°
Light output (eco): 100 lm
Beam angle (pointer): N/A
Outer pack information
Gross weight per piece: 2752 g
Height: 26.2 cm
Length: 35 cm
Width: 10.5 cm
Packaging Data
EAN1: 8719018052056
EAN3: 8719018052063
Packed product information
Height: 32 cm
Length: 6.5 cm
Pack Quantity / MOQ: 6
Weight with batteries: 235 g
Weight with cable: 247 g
Width: 4.5 cm
Size: Compact, Standard
Cable length: 50 cm Micro USB
Diameter: N/A
Weight without batteries: N/A
Weight without cable: 235 g
Product description
Hook: 360 degrees retractable hook
Impact protection rating (IK): IK07
Ingress protection rating (IP): IP54
Magnet
Materials and finishing: ABS plus rubber
coating
Orientable light: 360° pivoting base
Resistant to: grease, oil, workshop solvents
Technology: LED
Range: RCH
Hands-free options: Hook, Magnets
Number of LED s: 20 (COB)
Operating temperature: 0°C to 40°C
Pointing light: N/A
Headband: NO
UV leak detector: NO
Marketing specifications
Product highlight: Rechargeable work lamp
Expected benefits: See better, Work better
6000K natural white LED light
Phili ps RCH10S produces a 6000 K natural
white light that improves visual comfort and
reduces eye strain for fatigue-free working.
Bright dual-mode light
The main beam on the Phili ps RCH10S has
two output levels. For everyday use and
extended battery life, Eco mode provides you
with a bright 100-lumen output. Wi th Boost
mode, you get an i ntense 200 lumen but
shorter battery life. This flexibility allows you
to choose the right light for the job at hand.
Wide beam angle: up to 120°
The Philips RCH10S provides a versatile, wide
120° beam angle, perfect for li ghting up the
whole area in front of you.
Built to last
When you're busy working, it's easy to drop
and damage your equipment. That's why it's
important the tools you use are built to last.
The Philips RCH105 is water- and dust-
resistant (IP54 rating). It's also IK07-rated to
withstand i mpacts and drops from a hei ght of
up to 1.5 metres.
Up to 6 hours' battery life
The Philips RCH10S cordless LED lamp is
designed to be ready for action. Powered by a
high-energy Li-ion battery, the Philips
RCH10S is fully recharged within 3 hours,
ensuring maximum usage of the LED light.
Work for up to 6 hours in Eco mode or 3 hours
in Boost mode. The one-turn opening cap
makes it even easi er to recharge your Philips
RCH10S.
Easy-to-use inspection lamp
Hands-free lighting helps you work more
productively. Our Phili ps RCH10S comes with
a powerful magnet on the bottom as well as a
360° rotatable hook, leaving both your hands
free to get the job done.
© 20 22 Philips L ighting Holding B.V.
All Right s reser ved.
Specifications are subject to change
without notice. Trademarks are the
property of Philips L ighting Holding
B.V. or their respective owne rs.
Issue date 202 2‑0 3‑3 0
Version: 8.0.1
12 NC: 8670 001 63672
