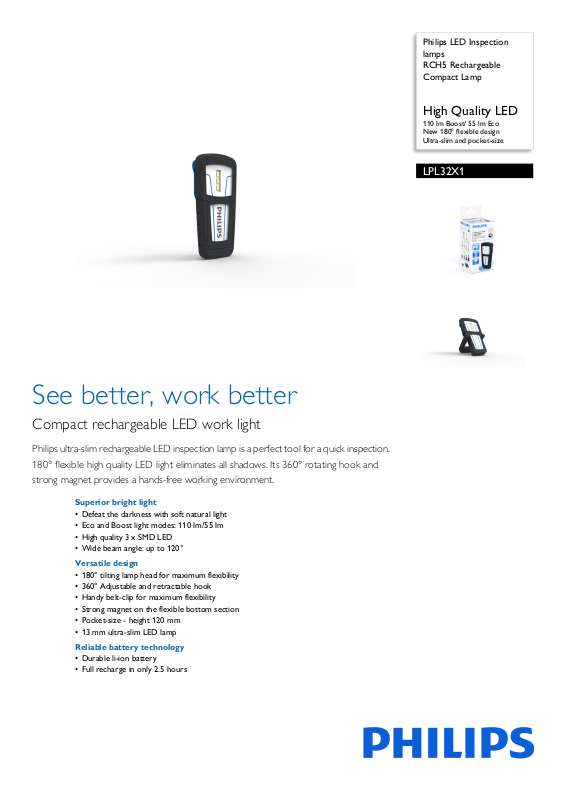

Page 1
Philips LED Inspection
lamps
RCH5 Rechargeable
Compact Lamp
High Quality LED
110 lm Boost/ 55 lm Eco
New 180° flexible design
Ultra-slim and pocket-size
LPL32X1
See better, work better
Compact rechargeable LED work light
Philips ultra-slim rechargeable LED inspection lamp is a perfect tool for a quick inspection.
180° flexible high quality LED light eliminates all shadows. Its 360° rotating hook and
strong magnet provides a hands-free working environment.
Superior bright light
• Defeat the darkness with soft natural light
• Eco and Boost light modes: 110 lm/55 lm
• High quality 3 x SMD LED
• Wide beam angle: up to 120°
Versatile design
• 180° tilting lamp head for maximum flexibility
• 360° Adjustable and retractable hook
• Handy belt-clip for maximum flexibility
• Strong magnet on the flexible bottom section
• Pocket-size - height 120 mm
• 13 mm ultra-slim LED lamp
Reliable battery technology
• Durable li-ion battery
• Full recharge in only 2.5 hours
Page 2
LPL32X1
RCH5 Rechargeable Compact Lamp
High Quality LED 110 lm Boost/ 55 lm Eco, New 180° flexible design, Ultra-slim and pocket-size
Highlights
180° tilting lamp head
The LED Inspection lamp RCH5 has a flexible
lamp head which tilts up to 180° to ensure that
you spot even the smallest details.
360° rotating hook
Dual light mode: 110 lm/55 lm
The white LEDs provide 110 lm of light output
in a Boost mode, as well as 55 lm of Eco mode
l
ight to ensure that you are not left in the dark
when trying to spot even the smallest details.
Durable li-ion battery
Handy belt-clip
Belt-clip on the back of Philips RCH5 ensures
your LED light
High autonomy
Boost mode - 2.5 h Normal mode - 5 h
High quality LED
Philips LED Inspection lamp RCH5 is designed
w
ith SMD LED technology, ensuring low
power consumption and bright long-lasting
light.
is always at hand.
The adjustable and retractable hook enables
you to hang this professional work light, leaving
both of your hands free for required work.
Defeat the darkness
Philips professional work lights feature
po
werful LEDs for an intense white light and a
wide bright beam to defeat darkness. Designed
to optimise clarity and vision, the 6500 K white
li
ght also improves visual comfort for fatigue-
free working.
Philips LED rechargeable lamp RCH5 is
powered by a high-energy lithium-ion battery,
which has no memory effect and provides up
to 300 charge cycles.
Fast charging
Philips compact LED lamp is designed to be at
your disposal whenever required. Powered by
high-energy li-ion battery, LED inspection lamp
RCH5 can be fully recharged in up to 2.5
hours, ensuring maximum usage of the LED
light.
Strong magnet
With the new strong magnet, you can attach
the tool to metal surfaces for hands-free
maintenance.
Ultra-slim
Thanks to its 13 mm ultra-slim design, LED
i
nspection lamp RCH5 will fit perfectly into
your pocket and is comfortable to hold.
Pocket-size
The pocket-size dimensions of the cordless
LED work lamp ensu
of the tool.
re the ultimate ergonomy
Page 3
LPL32X1
RCH5 Rechargeable Compact Lamp
High Quality LED 110 lm Boost/ 55 lm Eco, New 180° flexible design, Ultra-slim and pocket-size
Specifications
Ordering information
•Order entry: LPL32X1
• Ordering code: 39386631
Electrical characteristics
• Battery capacity: 1000 mAh
• Battery charging time: 2.5 hrs
• Battery run time: Up to 5 hours
• Battery type: Li-Ion
• Charging cable type: USB
• Plug type: EU
• Power source: Rechargeable
• Voltage: 100–240 V
• Wattage: 1.5 W
Light characteristics
• Beam angle: 120 degree
• Colour temperature: 6500 K
• LED lifetime: 50,000 hrs
• Light output: 110 lumen
• Light output (Eco): 55 lumen
Outer pack information
• Gross weight per piece: 1370 g
•Height: 18.5 cm
• Length: 16 cm
• Width: 14 cm
Packaging Data
• EAN1: 8727900393866
• EAN3: 8727900393873
Packed product information
•Height: 5.9 cm
• Length: 2.5 cm
• Pack Quantity / MOQ: 6
• Weight with batteries: 164 g
• Width: 12 cm
• Size: Compact
Product description
• Hook: 360° retractable hook
• Ingress protection rating (IP): IP20
• Magnet
• Materials and finishing: Electrical ch
•Number of LEDs: 3
• Operating Temperature: -10 to 50 °C
• Orientable light: 180° pivotable base
•Technology: LED
• Range: RCH
•
aracteristics
Issue date 2017-01-15
Version: 4.1.1
12 NC: 8670 001 27601
EAN: 87 27900 39386 6
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
