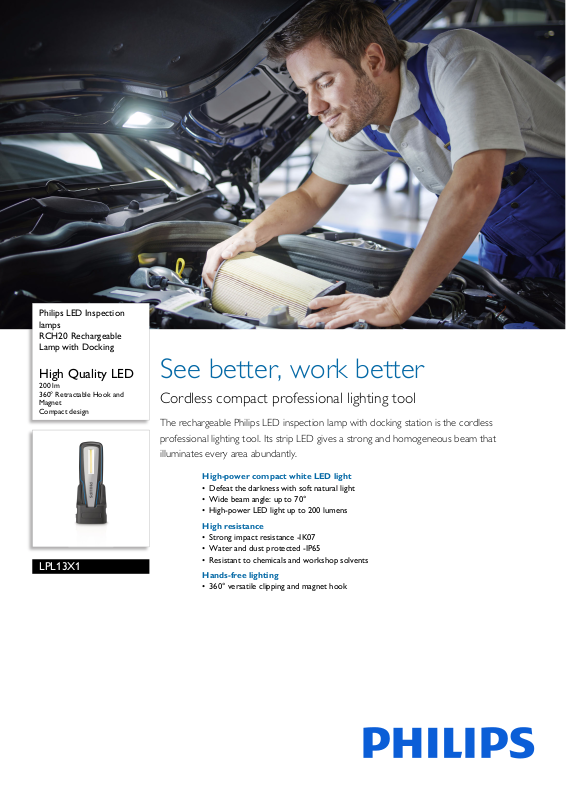

Page 1
Philips LED Inspection
lamps
RCH20 Rechargeable
Lamp with Docking
High Quality LED
200 lm
360° Retractable Hook and
Magnet
Compact design
LPL13X1
See better, work better
Cordless compact professional lighting tool
The rechargeable Philips LED inspection lamp with docking station is the cordless
professional lighting tool. Its strip LED gives a strong and homogeneous beam that
illuminates every area abundantly.
High-power compact white LED light
• Defeat the darkness with soft natural light
• Wide beam angle: up to 70°
• High-power LED light up to 200 lumens
High resistance
• Strong impact resistance -IK07
• Water and dust protected -IP65
• Resistant to chemicals and workshop solvents
Hands-free lighting
• 360° versatile clipping and magnet hook
Page 2
LPL13X1
RCH20 Rechargeable Lamp with Docking
High Quality LED 200 lm, 360° Retractable Hook and Magnet, Compact design
Specifications
Outer Carton
• Number of consumer packages: 6
• Outer carton (L x W x H): 26.9 x 16.5 x 12.1 cm
• Gross weight: 1.19 kg
• GTIN: 1 87 27900 38948 4
Ordering information
•Order entry: LPL13X1
• Ordering code: 38948731
Electrical characteristics
• Battery charging time: 4 hrs
• Battery run time: Up to 3 hours
• Battery type: Li-Ion
• Plug type: UK
• Power source: Rechargeable
• Voltage: 100–240 V
• Wattage: 2.4 W
Light characteristics
• Beam angle: 70 degree
• Colour temperature: 6000 K K
• LED lifetime: 10,000 hrs
• Light intensity (Boost): 350 lux at 0.5 m
• Light output: 200 lumen
Outer pack information
• Gross weight per piece: 2870 g
• Height: 17.3 cm
• Length: 28.9 cm
• Width: 26.9 cm
Packaging Data
• EAN1: 8727900389487
• EAN3: 8727900389470
Packed product information
•Height: 3.8 cm
• Length: 19 cm
• Pack Quantity / MOQ: 6
• Weight with batteries: 360 g
• Width: 6.3 cm
• Weight without batteries: 210 g
Product description
• Hook: Versatile clip hook
• Impact protection rating (IK): IK07
• Ingress protection rating (IP): IP65
• Magnet
• Materials and finishing: Robust rubber and
olycarbonate
p
•Number of LEDs: 1
• Operating Temperature: -10 to 40 °C
• Resistant to: grease, oil,
•Technology: LED
• Range: RCH
•
workshop solvents
Highlights
Wide beam angle
The wide beam angle of 70° will enable you to focus
on specific parts and to deliver the right amount of
light you need.
Water and dust protected -IP65
The LED inspection lamp is water resistant and
conforms to IP65.
Strong impact resistance -IK07
Strong impact resistance -IK07
Resistant to chemicals
As well as resisting knocks, the inspection lamp cases
are resistant to water, chemicals and workshop
solvents.
360° versatile clip and magnet
The adjustable, retractable, multi-angle hook allows
you to hang this professional lighting tool on any
surface, leaving both your hands free for the job.
High-power LED light
The high-power white LEDs provide 200 lumens of
light output to ensure that you are not left in the
dark when trying to spot even the smallest details.
Defeat the darkness
Philips professional workshop lamps feature
powerful LEDs for an intense white light and a bright
wide beam to defeat the darkness. Designed to
optimise clarity and vision, the 6000 K white light
also improves visual comfort for fatigue-free
working.
Issue date 2016-12-26
Version: 6.1.4
12 NC: 9237 956 30202
EAN: 87 27900 38948 7
© 2016 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
