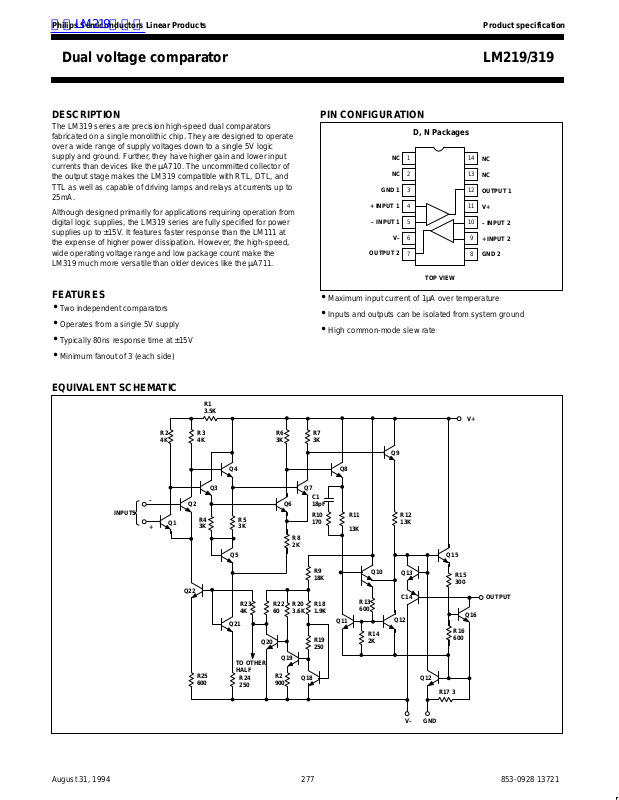

Philips Semiconductors Linear Products Product specification

LM219/319Dual voltage comparator

277

August 31, 1994 853-0928 13721

DESCRIPTION

The LM319 series are precision high-speed dual comparators
fabricated on a single monolithic chip. They are designed to operate
over a wide range of supply voltages down to a single 5V logic
supply and ground. Further, they have higher gain and lower input
currents than devices like the µA710. The uncommitted collector of
the output stage makes the LM319 compatible with RTL, DTL, and
TTL as well as capable of driving lamps and relays at currents up to
25mA.

Although designed primarily for applications requiring operation from
digital logic supplies, the LM319 series are fully specified for power
supplies up to ±15V. It features faster response than the LM1 11 at
the expense of higher power dissipation. However, the high-speed,
wide operating voltage range and low package count make the
LM319 much more versatile than older devices like the µA711.

FEATURES

•Two independent comparators

•Operates from a single 5V supply

•Typically 80ns response time at ±15V

•Minimum fanout of 3 (each side)

PIN CONFIGURATION

1

2

3

4

5

6

7 8

14

13

12

11

10

9

NC

NC

GND 1

+ INPUT 1

– INPUT 1

V–

OUTPUT 2

NC

OUTPUT 1

V+

– INPUT 2

+ INPUT 2

GND 2

TOP VIEW

D, N Packages

NC

•Maximum input current of 1µA over temperature

•Inputs and outputs can be isolated from system ground

•High common-mode slew rate

EQUIVALENT SCHEMATIC

Q1

R1

3.5K

R2
4K

R3
4K

R6
3K

Q4

Q3

Q2

–

+

INPUTS

R4
3K

R5
3K

Q6

R8
2K

Q22

Q5

R23
4K

R2260R20

3.6K

R9
18K

R18

1.9K

Q21

Q20

Q19

R19
250

Q18

R2
900

R24
250

R25
600

TO OTHER
HALF

R7
3K

Q9

Q8

Q7

C1
18pF

R10
170

R11
13K

R12
13K

Q15

Q10

Q13

R13
600

C14

Q12

R14
2K

Q11

Q16

R15
300

R16
600

Q12

R17 3

OUTPUT

V– GND

V+

查询LM219供应商

Philips Semiconductors Linear Products Product specification

LM219/319Dual voltage comparator

August 31, 1994

278

ORDERING INFORMATION

DESCRIPTION TEMPERATURE RANGE ORDER CODE DWG #

14-Pin Plastic Small Outline (SO) Package -25 to +85°C LM219D 0175D
14-Pin Plastic Small Outline (SO) Package 0 to +70°C LM319D 0175D
14-Pin Plastic Dual In-Line Package (DIP) 0 to +70°C LM319N 0405B

ABSOLUTE MAXIMUM RATINGS

SYMBOL PARAMETER RATING UNIT

V

S

Total supply voltage 36 V
Output to negative supply voltage 36 V
Ground to negative supply voltage 25 V
Ground to positive supply voltage 18 V
Differential input voltage ±5 V

V

IN

Input voltage

1

±15 V

Maximum power dissipation, TA=25°C (still-air)

2

N package 1420 mW
D package 1040 mW

Output short-circuit duration 10 s

T

A

Operating temperature range LM219

LM319

-25 to +85
0 to +70

°C

T

STG

Storage temperature range -65 to +150 °C

T

SOLD

Lead soldering temperature (10sec max) 300 °C

NOTES:

1. For supply voltages less than ±15V, the absolute maximum rating is equal to the supply voltage.

2. Derate above 25°C, at the following rates:
N package at 11.4mW/°C
D package at 8.3mW/°C

DC ELECTRICAL CHARACTERISTICS

VS=±15V, -25°C ≤ T

A

≤ 85°C for LM219, 0°C ≤ T

A

≤ 70°C for LM319, unless otherwise specified.

LM219 LM319

SYMBOL

PARAMETER

TEST CONDITIONS

Min Typ Max Min Typ Max

UNIT

RS≤5kΩ, TA=25°C 0.7 4.0 2.0 8.0

VOSInput offset voltage

1, 2

Over temp. 7 10

mV

TA=25°C 30 75 80 200

IOSInput offset current

1, 2

Over temp. 100 300

nA

I

B

Input bias current

1

TA=25°C 150 500 250 1000 nA

Over temp. 1000 1200 nA

A

V

Voltage gain TA=25°C 8 40 8 40 V/mV

VIN≤-10mV, I

OUT

=25mA, TA=25°C,

V+≥4.5V, V-=0

0.75 1.5 0.75 1.5

VOLSaturation voltage

VIN≤-10mV, I

OUT

=3.2mA 0.3 0.6 0.3 0.4

V

I

OH

Output leakage current V-=0V, VIN≥10mV

V

OUT

=35V, TA=25°C 0.2 10 0.2 10 µA

VS=±15V ±13 ±13

VINInput voltage range

V+=5V, V-=0V 1 3 1 3

V

V

ID

Differential input voltage ±5 ±5 V
I+ Positive supply current V+=5V, V-=0V, TA=25°C 4.3 4.3 mA
I+ Positive supply current VS=±15V, TA=25°C 8.0 12.5 8.0 12.5 mA
I- Negative supply current VS=±15V, TA=25°C 3.0 5.0 3.0 5.0 mA

NOTES:

1. V

OS

, IOS and IB specifications apply for a supply voltage range of VS=±15V down to a single 5V supply.

2. The offset voltages and offset currents given are the maximum values required to drive the output to within 1V of either supply with a 1mA
load. Thus these parameters define an error band and take into account the worst case effects of voltage gain and input impedance.

V

OL

Saturation voltage

V
