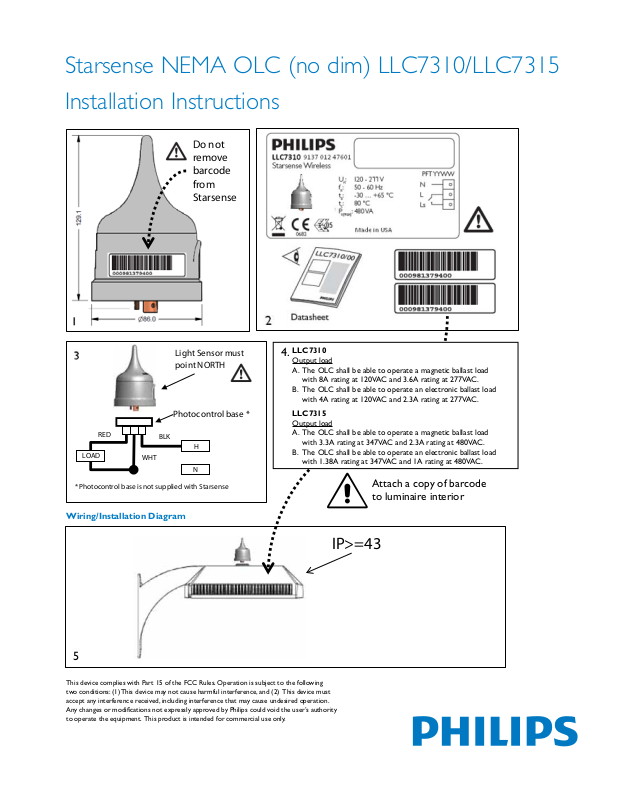

Starsense NEMA OLC (no dim) LLC7310/LLC7315

Installation Instructions

Do not
remove
barcode
from
Starsense

LLC7310

Light Sensor must
point NORTH

Photocontrol base *

RED

LOAD

* Photocontrol base is not supplied with Starsense

BLK

H

WHT

N

4.

Output load
A. The OLC shall be able to operate a magnetic ballast load
with 8A rating at 120VAC and 3.6A rating at 277VAC.
B. The OLC shall be able to operate an electronic ballast load
with 4A rating at 120VAC and 2.3A rating at 277VAC.

LLC7315

Output load
A. The OLC shall be able to operate a magnetic ballast load
with 3.3A rating at 347VAC and 2.3A rating at 480VAC.
B. The OLC shall be able to operate an electronic ballast load
with 1.38A rating at 347VAC and 1A rating at 480VAC.

Attach a copy of barcode
to luminaire interior

Wiring/Installation Diagram

5

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by Philips could void the user’s authority
to operate the equipment. This product is intended for commercial use only.

IP>=43

© 2012 Philips Lighting Electronics
All rights reserved.

Form No. PA-7480-B 9/12

Philips Lighting Electronics
10275 West Higgins Road
Rosemont, IL 60018
Tel: [phone] Fax: [phone]
Customer Support/Technical Service: 855-476-4306
www.philips.com/starsense-na
