Philips LLC7310 User Manual
Starsense NEMA INtellivolt OLC (no dim)
Installation Instructions (LLC7310/LLC7315)
Do not
remove
barcode
from
Starsense
Light Sensor must
point NORTH
Photocontrol base *
RED
LOAD
* Photocontrol base is not supplied with Starsense

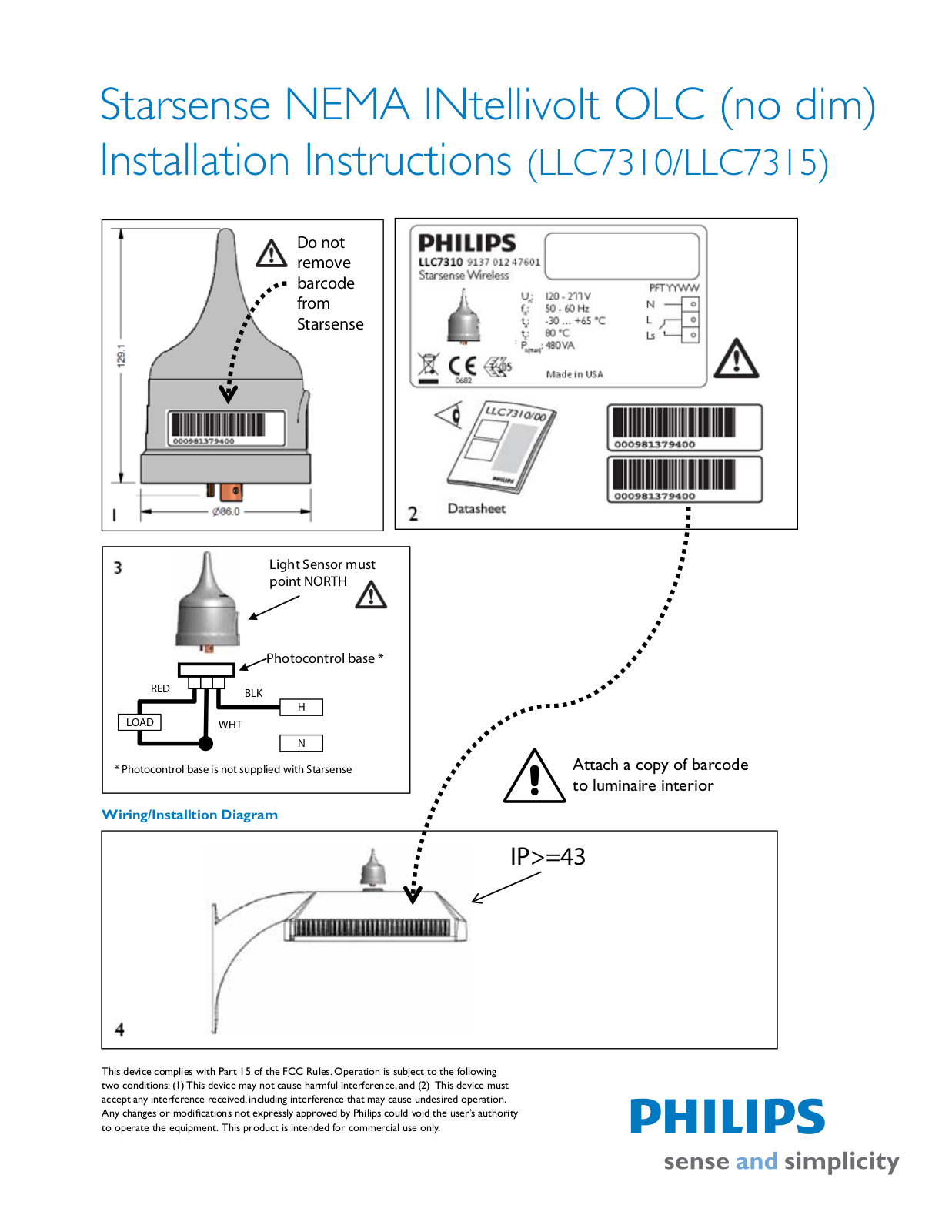

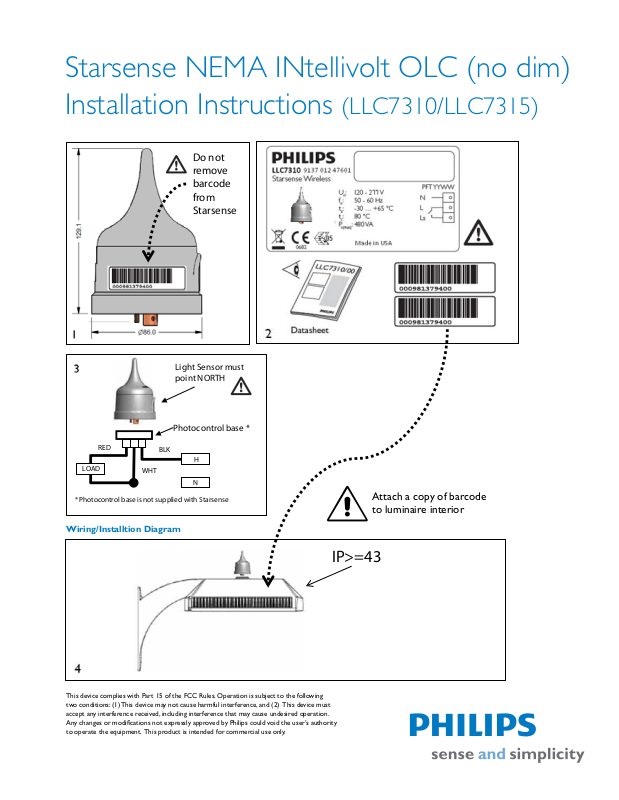

Wiring/Installtion Diagram
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by Philips could void the user’s authority
to operate the equipment. This product is intended for commercial use only.
BLK
H
WHT
N
Attach a copy of barcode
to luminaire interior
IP>=43

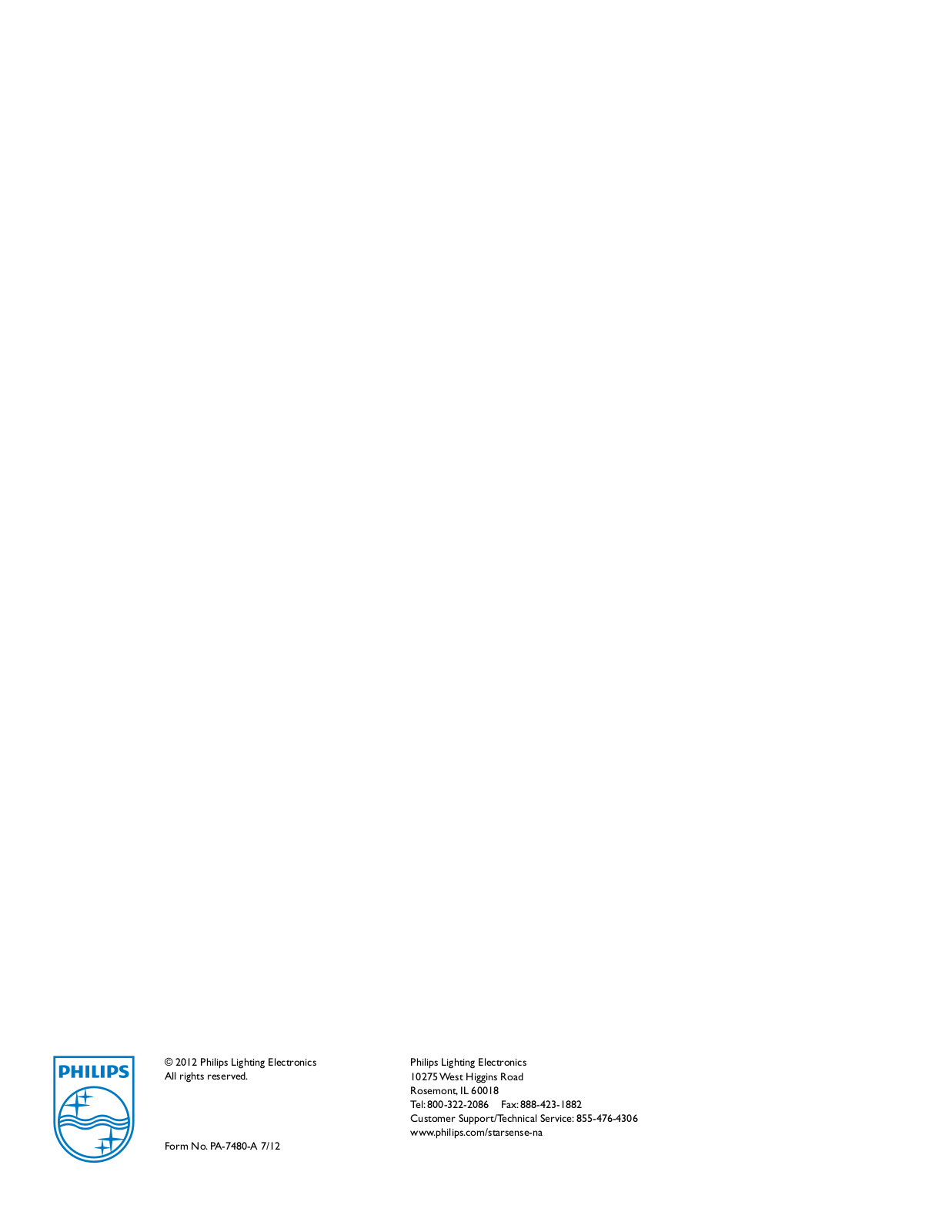

© 2012 Philips Lighting Electronics
All rights reserved.
Form No. PA-7480-A 7/12
Philips Lighting Electronics
10275 West Higgins Road
Rosemont, IL 60018
Tel: 800-322-2086 Fax: 888-423-1882
Customer Support/Technical Service: 855-476-4306
www.philips.com/starsense-na
