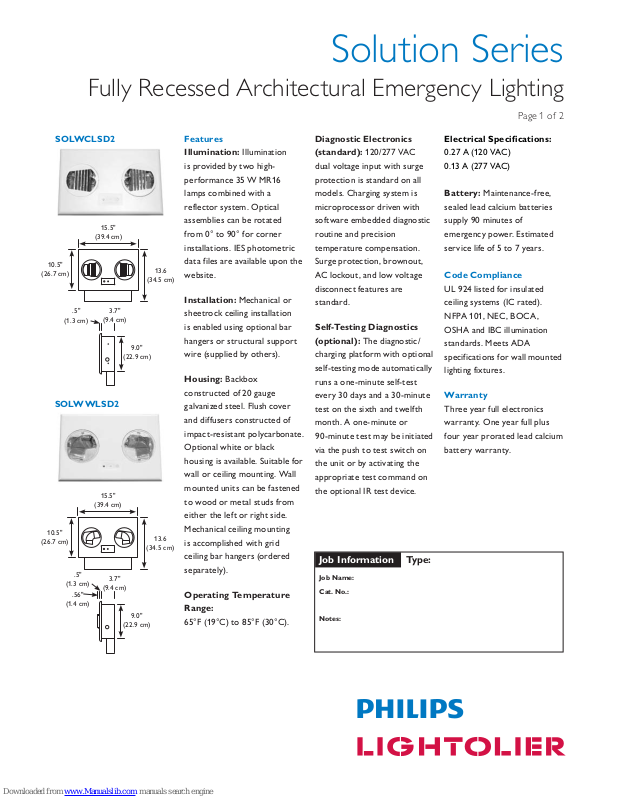

Solution Series
Fully Recessed Architectural Emergency Lighting
Page 1 of 2
SOLWCLSD2
10.5"
(26.7 cm)
.5"
(1.3 cm)
SOLWWLSD2
10.5"
(26.7 cm)
.5"
(1.3 cm)
.56"
(1.4 cm)
15.5"
(39.4 cm)
3.7"
(9.4 cm)
15.5"
(39.4 cm)
3.7"
(9.4 cm)
9.0"
(22.9 cm)
9.0"
(22.9 cm)
13.6
(34.5 cm)
13.6
(34.5 cm)
Features
Illumination: Illumination
is provided by two high-
performance 35 W MR16
lamps combined with a
reflector system. Optical
assemblies can be rotated
from 0° to 90° for corner
installations. IES photometric
data files are available upon the
website.
Installation: Mechanical or
sheetrock ceiling installation
is enabled using optional bar
hangers or structural support
wire (supplied by others).
Housing: Backbox
constructed of 20 gauge
galvanized steel. Flush cover
and diffusers constructed of
impact-resistant polycarbonate.
Optional white or black
housing is available. Suitable for
wall or ceiling mounting. Wall
mounted units can be fastened
to wood or metal studs from
either the left or right side.
Mechanical ceiling mounting
is accomplished with grid
ceiling bar hangers (ordered
separately).
Operating Temperature
Range:
65°F (19°C) to 85°F (30°C).
Diagnostic Electronics
(standard): 120/277 VAC
dual voltage input with surge
protection is standard on all
models. Charging system is
microprocessor driven with
software embedded diagnostic
routine and precision
temperature compensation.
Surge protection, brownout,
AC lockout, and low voltage
disconnect features are
standard.
Self-Testing Diagnostics
(optional): The diagnostic/
charging platform with optional
self-testing mode automatically
runs a one-minute self-test
every 30 days and a 30-minute
test on the sixth and twelfth
month. A one-minute or
90-minute test may be initiated
via the push to test switch on
the unit or by activating the
appropriate test command on
the optional IR test device.
Job Information Type:
Job Name:
Cat. No.:
Notes:
Electrical Specifications:
0.27 A (120 VAC)
0.13 A (277 VAC)
Battery: Maintenance-free,
sealed lead calcium batteries
supply 90 minutes of
emergency power. Estimated
service life of 5 to 7 years.
Code Compliance
UL 924 listed for insulated
ceiling systems (IC rated).
NFPA 101, NEC, BOCA,
OSHA and IBC illumination
standards. Meets ADA
specifications for wall mounted
lighting fixtures.
Warranty
Three year full electronics
warranty. One year full plus
four year prorated lead calcium
battery warranty.
Fully Recessed Architectural Emergency Lighting
Ordering Information
SOL
Series
SOL = Solution
Accessories (order as a separate item)
SDREMOTE = Infrared Remote Test Device
IBHK = Bar Hanger Kit for Mechanical Ceilings
T15TPTOOL = Tamperproof Screwdriver
WMLK = Wall Mount Lens Kit
CMLKIT = Ceiling Mount Lens Kit
CMLKITB = Ceiling Mount Lens Kit for Black Unit
RPLTSW = Remote Test Switch Kit for Single Gang Wall Box 120 VAC
Note
1) Some options impact UL listing. Consult factory for specifics.
2) 15 minute time delay.
Optics
Recessed Wall Mount Version, 7.5' AFF, Two Fixtures
Housing Color
W = White
B = Black
Mounting
WL = Wall Mount
CL = Ceiling Mount
Model Designator
SD2 = Diagnostic
Electronics
SD2
Solution Series
Page 2 of 2
Factory Installed Options
EX = Special Transformer (must specify voltage & frequency)
T = Self-Testing Diagnostics (non-audible)
TA = Audible Self-Testing Diagnostics
TD = Time Del ay
2
TP = Tamperproof
Ceiling version
before installation.
Wall version
before installation.
1
7.5 ft.
0.4
0.4
0.4
0.5
0.6
0.8
1.0
1.2
1.2
1.2
1.2
1.5
1.8
1.9
0.4
0.4
0.5
0.4
0.5
0.6
0.8
0.9
1.1
1.2
1.2
1.3
0.4
0.6
0.4
0.5
0.7
0.8
1.0
0.4
0.6
0.4
0.5
1.1
0.7
0.9
1.0
1.1
1.3
1.2
1.2
1.2
1.3
1.2
1.1
1.1
2.0
1.6
1.8
2.0
2.1
1.5
1.7
1.9
1.2
1.3
1.4
4 ft.
2.0
2.0
1.9
1.7
1.5
1.2
1.2
1.2
1.2
1.0
0.8
0.6
.05
0.4
0.4
0.4
0.4
0.3
0.3
0.3
0.3
0.3
0.3
2.2
2.1
2.0
1.8
1.6
1.4
1.2
1.2
1.2
1.1
0.9
0.8
0.6
0.5
0.4
0.4
0.4
0.4
0.4
2.1
2.0
1.9
1.8
1.6
1.4
1.3
1.2
1.2
1.2
1.0
0.9
0.7
0.6
0.5
1.5
1.5
1.5
1.4
1.3
1.2
1.2
1.1
1.2
1.1
1.0
0.7
0.4
0.7
0.6
0.5
0.4
0.3
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.3
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
40 ft.
Average initial footcandles at floor = 1.00 Minimum initial footcandles at floor = .3
Maximum initial footcandles at floor = 2 .2 Maximum to minimum ratio = 7.33
Recessed Ceiling Mount Version, 10' AFF, Two Fixtures
10 ft.
3.1
1.5
1.0
1.1
1.6
1.4
1.3
1.4
1.2
0.9
0.6
6 ft.
3.2
1.0
1.5
1.5
1.3
1.3
1.4
1.1
1.3
0.4
0.9
0.6
Average initial footcandles at floor = 1.07 Minimum initial footcandles at floor = .2
Maximum initial footcandles at floor = 4.8 Maximum to minimum ratio = 24.0 0
When using multiple fixtures, wall mounted versions can gener ate an average of 1 footcandle of emergency illumination over a 4’ x 40’ egress path, while ceiling mounted
versions can broadcast an average of 1 footcandle over a 6’ x 90’ egress path.
* The optics layout shown is intended to be used as reference only. Standard reflectances used were 80/50/20. Lightolier is not responsible for site specific conditions that
may alter the result s.
Philips Lightolier
e: lol.webmaster@philips.com
t: (508) 679-8131
w: www.lightolier.com
Solution Series May 1, 2012
Specifications are subject to change without notice.
© Koninklijke Philips Electronics N.V., 2012. All rights reserved.
0.2
0.2
0.3
0.4
0.3
0.2
0.2
0.2
0.3
0.2
0.2
0.2
0.6
0.9
1.3
1.4
1.3
1.4
1.6
1.1
1.0
0.4
0.3
0.6
0.9
1.3
1.4
1.3
1.3
0.4
1.5
1.5
1.1
1.0
90 ft.
Job Information Type:
2.0
2.2
2.0
2.0
1.5
1.5
1.5
3.2
1.5
2.9
