Lytespan
®
Track Lighting 8416

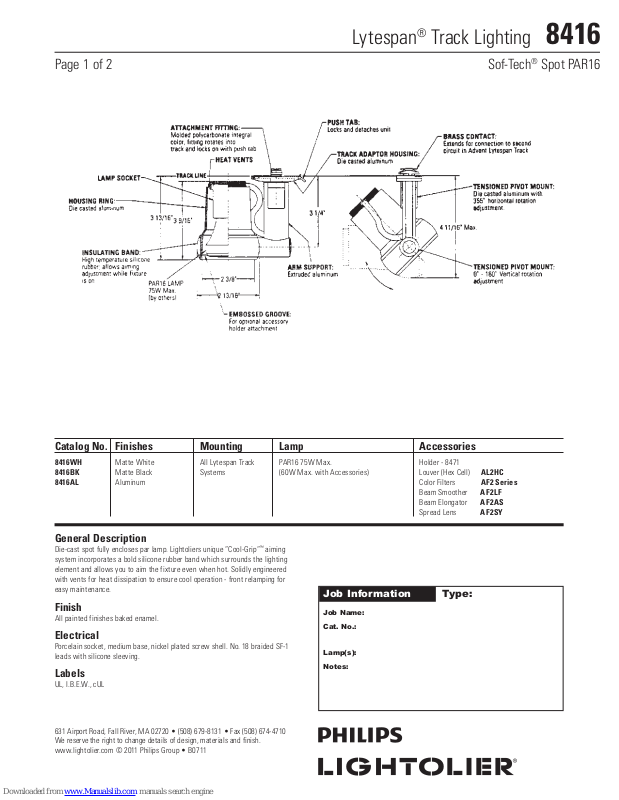

Page 1 of 2 Sof-Tech® Spot PAR16
Catalog No. Finishes Mounting Lamp Accessories
8416WH Matte White All Lytespan Track PAR16 75W Max. Holder - 8471
8416BK Matte Black Systems (60W Max. with Accessories) Louver (Hex Cell) AL2HC
8416AL Aluminum Color Filters AF2 Series
Beam Smoother AF2LF
Beam Elongator AF2AS
Spread Lens AF2SY
General Description
Die-cast spot fully encloses par lamp. Lightoliers unique ”Cool-Grip”™ aiming
system incorporates a bold silicone rubber band which surrounds the lighting
element and allows you to aim the fix ture even when hot. Solidly engineered
with vents for heat dissipation to ensure cool operation - front relamping for
easy maintenance.
Finish
All painted finishes baked enamel.
Job Information Type:
Job Name:
Cat. No.:
Electrical
Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1
leads with silicone sleeving.
Lamp(s):
Notes:
Labels
UL, I.B.E.W., cUL
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • B0711
Page 2
Lytespan
®
Track Lighting 8416
Page 2 of 2 Sof-Tech® Spot PAR16

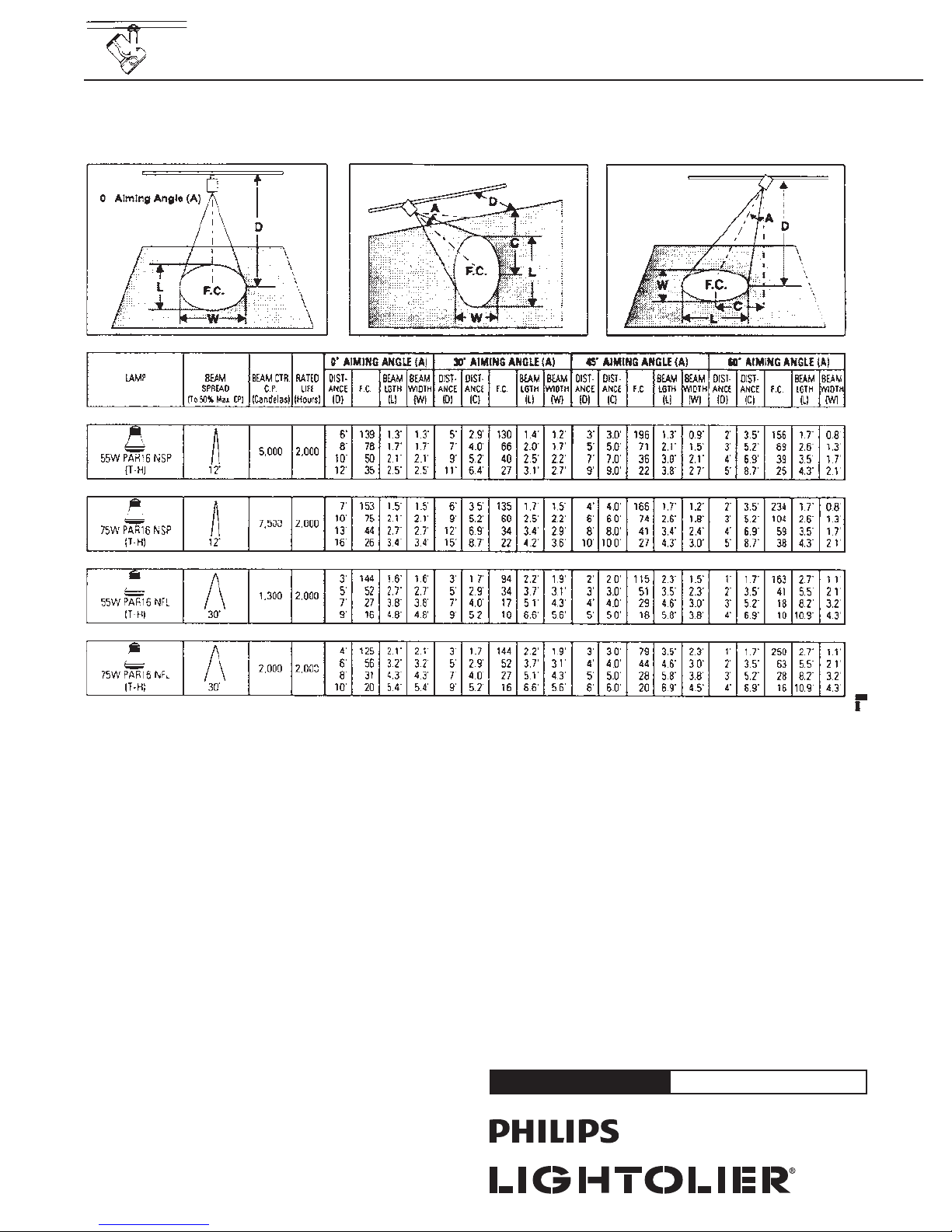

Lighting Data
(FC) is the initial footcandles at the center of the beam.
(L) and (W) are to the point that the candlepower drops to 50% of maximum.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • B0711
