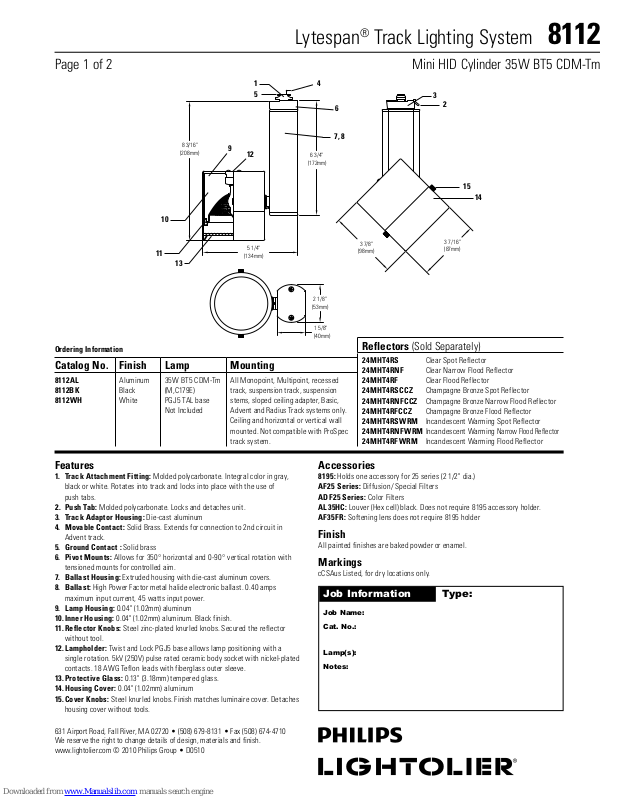

Lytespan
4
1
®
Track Lighting System 8112
Page 1 of 2 Mini HID Cylinder 35W BT5 CDM-Tm
5
Ordering Information
8 3/16"
(208mm)
10
11
13
9
12
5 1/4"
(134mm)
Catalog No. Finish Lamp Mounting
8112AL
8112BK
8112W H
Aluminum
Black
White
35W BT5 CDM-Tm
(M,C179E)
PGJ5 TAL base
Not Included
All Monopoint, Multipoint, recessed
track, suspension track, suspension
stems, sloped ceiling adapter, Basic,
Advent and Radius Track systems only.
Ceiling and horizontal or vertical wall
mounted. Not compatible with ProSpec
track system.
6 3/4"
(172mm)
2 1/8"
(53mm)
1 5/8"
(40mm)
3
6
7, 8
3 7/8"
(98mm)
2
3 7/16"
(87mm)
15
14
Reflectors (Sold Separately)
24MHT4RS Clear Spot Reflector
24MHT4RNF Clear Narrow Flood Reflector
24MHT4RF Clear Flood Reflector
24MHT4RSCCZ Champagne Bronze Spot Reflector
24MHT4RNFCCZ Champagne Bronze Narrow Flood Reflector
24MHT4RFCCZ Champagne Bronze Flood Reflector
24MHT4RSWRM Incandescent Warming Spot Reflector
24MHT4RNFWRM Incandescent Warming
24MHT4RFWRM Incandescent Warming Flood Reflector
Narrow Flood Reflector
Features
1. Track At tachment Fitting: Molded polycarbonate. Integral color in gray,
black or white. Rotates into track and locks into place with the use of
push tabs.
2. Push Tab: Molded polycarbonate. Locks and detaches unit.
3. Track Adaptor Housing: Die-cast aluminum
4. Movable Contact: Solid Brass. Extends for connection to 2nd circuit in
Advent track.
5. Ground Contact : Solid brass
6. Pivot Mounts: Allows for 350° horizontal and 0-90° vertical rotation with
tensioned mounts for controlled aim.
7. Ballast Housing: Extruded housing with die-cast aluminum covers.
8. Ballast: High Power Factor metal halide electronic ballast. 0.40 amps
maximum input current, 45 watts input power.
9. Lamp Housing: 0.04" (1.02mm) aluminum
10. Inner Housing: 0.04" (1.02mm) aluminum. Black finish.
11. Reflector Knobs: Steel zinc-plated knurled knobs. Secured the reflector
without tool.
12. Lampholder: Twist and Lock PGJ5 base allows lamp positioning with a
single rotation. 5kV (250V) pulse rated ceramic body socket with nickel-plated
contacts. 18 AWG Teflon leads with fiberglass outer sleeve.
13. Protective Glass: 0.13" (3.18mm) tempered glass.
14. Housing Cover: 0.04" (1.02mm) aluminum
15. Cover Knobs: Steel knurled knobs. Finish matches luminaire cover. Detaches
housing cover without tools.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • D0510
Accessories
8195: Holds one accessory for 25 series (2 1/2" dia.)
AF25 Series: Diffusion/ Special Filters
ADF25 Series: Color Filters
AL35HC: Louver (Hex cell) black. Does not require 8195 accessory holder.
AF35FR: Softening lens does not require 8195 holder
Finish
All painted finishes are baked powder or enamel.
Markings
cCSAus Listed, for dr y locations only.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lytespan
®
Track Lighting System 8112
Page 2 of 2 Mini HID Cylinder 35W BT5 CDM-Tm
Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical
L Beam length D Distance
W Beam Width A Aiming Angle
C Distance to center beam FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
Lamp data shown is typical. Consult lamp manufacturers for availability and performance.
CBCP = Center Beam Candle Power.
Beam Spread
Lamp
(To 50% CBCP) Life (Hrs.)
35W BT-5
10˚
24MHT4RS
35W BT-5
22˚
24MHT4RNF
CBCP
30214
9153
Rated
12,000
9,000
D FC L W
12 210 2.1 2.1
14 154 2.4 2.4
16 118 2.8 2.8
18 93 3.1 3.1
D FC L W
8 143 3.1 3.1
10 92 3.9 3.9
12 64 4.7 4.7
14 47 5.4 5.4
D C FC L W
10 5.8 196 2.3 2.0
12 6.9 136 2.8 2.4
14 8.1 100 3.3 2.8
16 9.2 77 3.7 3.2
D C FC L W
6 3.5 165 3.1 2.7
8 4.6 93 4.2 3.6
10 5.8 59 5.2 4.5
12 6.9 41 6.3 5.4
D C FC L W
4 6.9 236 2.9 1.4
5 8.7 151 3.6 1.7
6 10.4 105 4.3 2.1
7 12.1 77 5.0 2.4
D C FC L W
2 3.5 286 3.5 1.6
3 5.2 127 5.3 2.3
4 6.9 72 7.0 3.1
5 8.7 46 8.8 3.9
D C FC L W
6 6.0 297 2.1 1.5
7 7.0 218 2.5 1.7
8 8.0 167 2.8 2.0
9 9.0 132 3.2 2.2
D C FC L W
3 3.0 360 2.4 1.6
4 4.0 202 3.2 2.2
5 5.0 129 4.0 2.7
6 6.0 90 4.8 3.3
D FC L W
6 93 4.8 4.8
3344 9,000
35W BT-5
24MHT4RF 44°
Note: For Champagne Bronze (CCZ), multiply FC values by 0.64.
For Incandescent Warm (WRM), multiply FC values by 0.85.
7 68 5.7 5.7
8 52 6.5 6.5
9 41 7.3 7.3
D C FC L W
6 3.5 60 6.8 5.6
7 4.0 44 8.0 6.5
8 4.6 34 9.1 7.5
9 5.2 27 10.3 8.4
D C FC L W
1.5 2.6 186 9.5 2.4
2 3.5 105 12.7 3.2
3 5.2 46 19.0 4.8
4 6.9 26 25.3 6.5
D C FC L W
2 2.0 296 3.9 2.3
3 3.0 131 5.8 3.4
4 4.0 74 7.7 4.6
5 5.0 47 9.7 5.7
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • D0510
