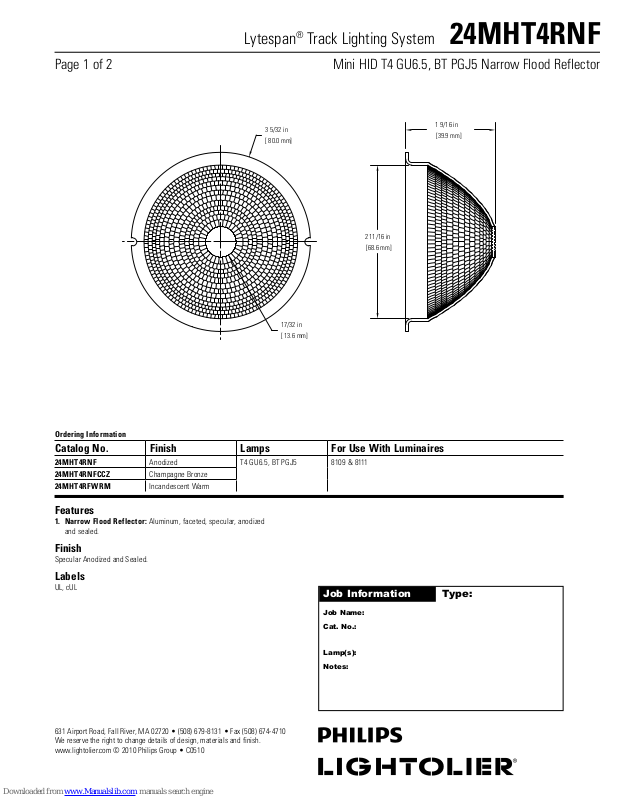

Lytespan
®
Track Lighting System 24MHT4RNF
Page 1 of 2 Mini HID T4 GU6.5, BT PGJ5 Narrow Flood Reflector
3 5/32 in
[ 80.0 mm]
17/32 in
[ 13.6 mm]
1 9/16 in
[39.9 mm]
2 11/16 in
[68.6 mm]
Orde ring Information
Catalog No. Finish Lamps For Use With Luminaires
24MHT4RNF
24MHT4RNFCCZ
24MHT4RFWRM
Anodized
Champagne Bronze
Incandescent Warm
T4 GU6.5, BT PGJ5 8109 & 8111
Features
1. Narrow Flood Reflector: Aluminum, faceted, specular, anodized
and sealed.
Finish
Specular Anodized and Sealed.
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0510
Lytespan
®
Track Lighting System 24MHT4RNF
Page 2 of 2 Mini HID T4 GU6.5, BT PGJ5 Narrow Flood Reflector
Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical
L Beam length D Distance
W Beam Width A Aiming Angle
C Distance to center beam FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
Lamp data shown is typical. Consult lamp
manufacturers for availability and performance.
CBCP = Center Beam Candle Power.
Beam Spread
Lamp
(To 50% CBCP) Life (Hrs.)
20W T4
8109
24MHT4RNF 23°
20W BT-5 5408 12,000
8111
24MHT4RNF 22°
35W BT-5 9153 9,000
8112
24MHT4RNF 22°
Note: For Champagne Bronze (CCZ), multiply FC values by 0.64.
For Incandescent Warm (WRM), multiply FC values by 0.85.
CBCP
4017
Rated
12,000
D FC L W
6 112 2.4 2.4
8 63 3.3 3.3
10 40 4.1 4.1
12 28 4.9 4.9
D FC L W
6 150 2.3 2.3
8 85 3.1 3.1
10 54 3.9 3.9
12 38 4.7 4.7
D FC L W
8 143 3.1 3.1
10 92 3.9 3.9
12 64 4.7 4.7
14 47 5.4 5.4
D FC C L W
6 3.5 72 3.3 2.8
8 4.6 41 4.4 3.8
10 5.8 26 5.5 4.7
12 6.9 18 6.6 5.6
D FC C L W
6 3.5 98 3.1 2.7
8 4.6 55 4.2 3.6
10 5.8 35 5.2 4.5
12 6.9 24 6.3 5.4
D C FC L W
6 3.5 165 3.1 2.7
8 4.6 93 4.2 3.6
10 5.8 59 5.2 4.5
12 6.9 41 6.3 5.4
D FC C L W
2 3.5 126 3.7 1.6
3 5.2 56 5.6 2.4
4 6.9 31 7.4 3.3
5 8.7 20 9.3 4.1
D FC C L W
2 3.5 169 3.5 1.6
3 5.2 75 5.3 2.3
4 6.9 42 7.0 3.1
5 8.7 27 8.8 3.9
D C FC L W
2 3.5 286 3.5 1.6
3 5.2 127 5.3 2.3
4 6.9 72 7.0 3.1
5 8.7 46 8.8 3.9
D FC C L W
3 3.0 158 2.5 1.7
4 4.0 89 3.4 2.3
5 5.0 57 4.2 2.9
6 6.0 39 5.1 3.5
D FC C L W
3 3.0 212 2.4 1.6
4 4.0 120 3.2 2.2
5 5.0 76 4.0 2.7
6 6.0 53 4.8 3.3
D C FC L W
3 3.0 360 2.4 1.6
4 4.0 202 3.2 2.2
5 5.0 129 4.0 2.7
6 6.0 90 4.8 3.3
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0510
