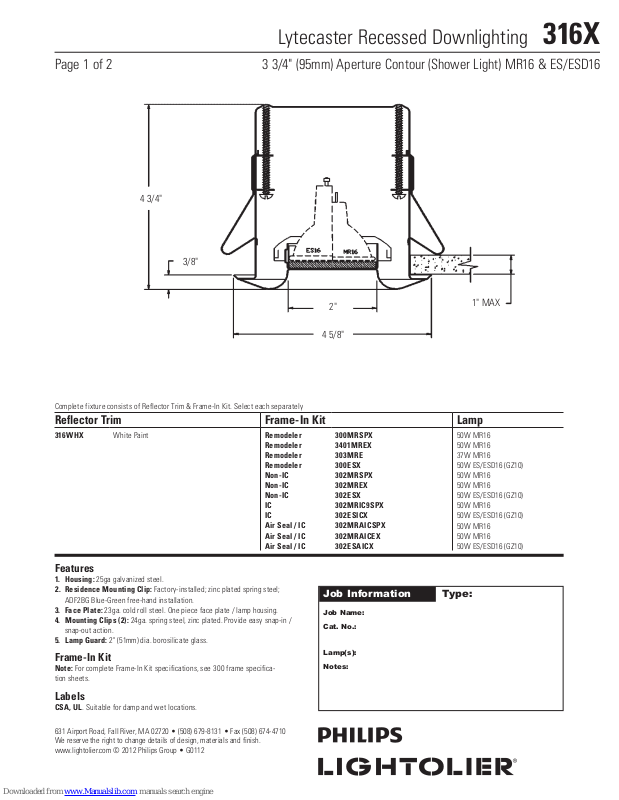

Lytecaster Recessed Downlighting 316X
Page 1 of 2 3 3/4" (95mm) Aperture Contour (Shower Light) MR16 & ES/ESD16
4 3/4"
3/8"
Complete fixture consists of Reflector Trim & Frame-In Kit. Select each separately
Reflector Trim
316WHX
White Paint
Frame-In Kit Lamp
Remodeler
Remodeler
Remodeler
Remodeler
Non-IC
Non-IC
Non-IC
IC
IC
Air Seal / IC
Air Seal / IC
Air Seal / IC
Features
1. Housing: 25ga galvanized steel.
2. Residence Mounting Clip: Factory-installed; zinc plated spring steel;
ADF2BG Blue-Green free-hand installation.
3. Face Plate: 23ga. cold roll steel. One piece face plate / lamp housing.
4. Mounting Clips (2): 24ga. spring steel, zinc plated. Provide easy snap-in /
snap-out action.
5. Lamp Guard: 2" (51mm) dia. borosilicate glass.
Frame-In Kit
Note: For complete Frame-In Kit specifications, see 300 frame specifica-
tion sheets.
2"
4 5/8"
300MRSPX
3401MREX
303MRE
300ESX
302MRSPX
302MREX
302ESX
302MRIC9SPX
302ESICX
302MRAICSPX
302MRAICEX
302ESAICX
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
1" MAX
50W MR16
50W MR16
37W MR16
50W ES/ESD16 (GZ10)
50W MR16
50W MR16
50W ES/ESD16 (GZ10)
50W MR16
50W ES/ESD16 (GZ10)
50W MR16
50W MR16
50W ES/ESD16 (GZ10)
Labels
CSA, UL. Suitable for damp and wet locations.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2012 Philips Group • G0112
Lytecaster Recessed Downlighting 316X
Page 2 of 2 3 3/4" (95mm) Aperture Contour (Shower Light) MR16 & ES/ESD16
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2012 Philips Group • G0112
