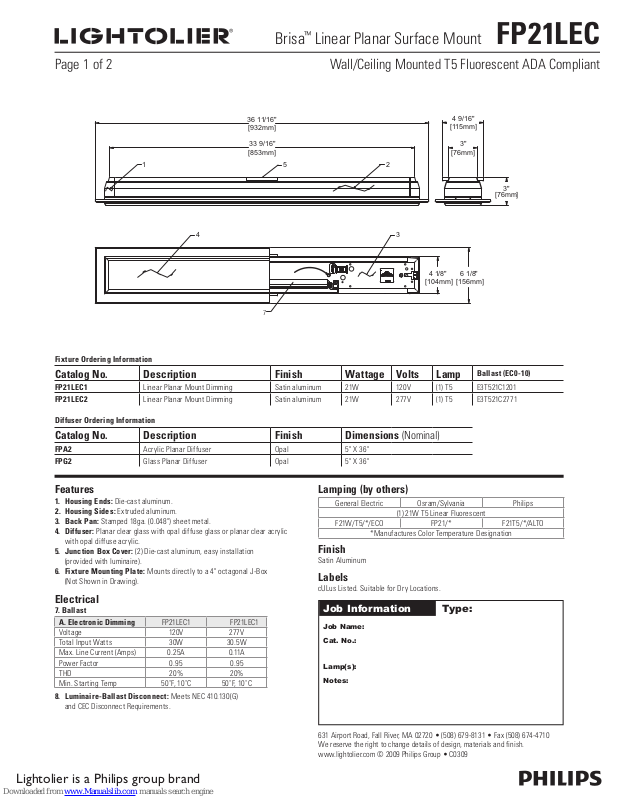

Philips Brisa FP21LEC, Lightolier Brisa FP21LEC Specification

™

4 9/16"

Brisa

Linear Planar Surface Mount FP21LEC

Page 1 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

1

Fixture Ordering Information

36 11/16"

[932mm]

33 9/16"

[853mm]

5

4 3

7

2

[115mm]

[76mm]

4 1/8"

[104mm]

Catalog No. Description Finish Wattage Volts Lamp

FP21LEC1

FP21LEC2

Linear Planar Mount Dimming Satin aluminum 21W 120V (1) T5 E3T521C1201

Linear Planar Mount Dimming Satin aluminum 21W 277V (1) T5 E3T521C2771

3"

6 1/8"

[156mm]

Ballast (EC0-10)

3"

[76mm]

Diffuser Ordering Information

Catalog No. Description Finish

FPA2

FPG2

Acrylic Planar Diffuser Opal 5" X 36"

Glass Planar Diffuser Opal 5" X 36"

Features

1. Housing Ends: Die-cast aluminum.

2. Housing Sides: Extruded aluminum.

3. Back Pan: Stamped 18ga. (0.048") sheet metal.

4. Diffuser: Planar clear glass with opal dif fuse glass or planar clear acrylic

with opal dif fuse acrylic.

5. Junction Box Cover: (2) Die-cast aluminum, easy installation

(provided with luminaire).

6. Fixture Mounting Plate: Mounts directly to a 4" octagonal J-Box

(Not Shown in Drawing).

Electrical

7. Ballast

A. Electronic Dimming

Voltage 120V 277V

Total Input Watts 30W 30.5W
Max. Line Current (Amps) 0.25A 0.11A
Power Factor 0.95 0.95
THD 20% 20%
Min. Starting Temp 50˚F, 10˚C 50˚F, 10˚C

8. Luminaire-Ballast Disconnect: Meets NEC 410.130(G)

and CEC Disconnect Requirements.

FP21LEC1 FP21LEC1

Dimensions (Nominal)

Lamping (by others)

General Electric Osram/Sylvania Philips

(1) 21W T5 Linear Fluorescent

F21W/T5/*/ECO FP21/* F21T5/*/ALTO

*Manufactures Color Temperature Designation

Finish

Satin Aluminum

Labels

cULus Listed. Suitable for Dry Locations.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):
Notes:

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2009 Philips Group • C0309

™

Brisa

Linear Planar Surface Mount FP21LEC

Page 2 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

FP21U / FPA2

75

150

225

300

DECOR ATIV E LUMINAIRE D ECORATIVE LUM INAIRE
CAT. # FP21U / FPA2 21W SYLVANIA T- 5 LAMPS.
LUMEN RATI NG = 1890 LMS. BA LLAST/ ADVANCE IC N-2S28

Candl epower Sum mary

Angle Along 22.5. 45 6 7.5 Across .

90°

0 280 28 0 28 0 280 280
5 281 2 79 278 279 278 27
15 271 270 269 272 271 77
25 25 3 253 255 258 257 118
35 226 228 233 2 38 23 8 14 6
45 193 197 206 213 213 15 8
55 154 161 172 178 179 152
65 110 118 129 136 137 125

60°

75 62 70 80 85 85 82
85 17 26 35 39 40 38
90 7 15 24 28 29
95 7 15 23 27 28 2 3
105 9 15 26 32 34 25
115 10 14 24 32 3 5 23
125 9 14 21 29 32 19
135 8 12 17 23 26 13
145 7 9 14 17 18 8
155 6 7 9 12 13 4
165 6 5 6 7 9 2
175 7 7 6 5 4 1

0°

30°

180 6 6 6 6 6

Outpu t

Lumens

Ceiling 80% 70% 5 0% 30% 10%
Wall 70 50 30 10 70 5 0 30 10 50 30 10 50 30 10 50 30 10 0

RCR Zonal C avity Met hod - Effec tive Floor Re flectan ce = 20%

0 .64 .6 4 .64 . 6 4 .62 . 62 .62 . 62 .58 .5 8 . 5 8 .54 .54 . 54 .50 .5 0 .50 .49

1 .58 .56 .53 . 51 .56 .54 .52 .50 .50 .49 .47 .47 .46 .44 .4 4 .43 .42 .40

2 .53 .48 .45 .41 .51 .47 .43 .40 .44 .41 .39 .41 .39 .37 . 39 .37 .35 .34

3 .48 .42 .38 .3 5 .46 .41 .37 . 34 . 39 .35 . 32 .3 6 .34 .31 .34 . 32 .30 .28

4 .44 .38 .33 . 29 .42 . 36 .32 . 29 . 34 .30 . 28 .3 2 .29 .2 6 .30 . 28 .25 .24

5 .40 .33 .28 . 24 .3 8 . 32 .27 .24 .30 .26 .23 .28 . 25 .22 .27 . 24 .21 .20

6 .37 .29 .25 . 21 .3 5 . 29 .24 .21 . 27 .23 . 20 .2 5 .22 .19 .24 .21 .19 .17

7 .34 .26 .22 .18 .33 .26 .21 .18 .24 .20 .17 . 23 .19 .17 .22 .19 .16 .15

Room C avity Rati o

8 .31 .24 .19 .16 .30 .23 .18 .15 .22 .18 .15 .21 .17 .14 .19 .16 .14 .13

9 .29 .21 .17 .13 .28 .21 .16 .13 .19 .16 .13 .18 .15 .12 .18 .14 .12 .11

10 .27 .19 .15 .12 .26 .19 .15 .12 .18 .14 .11 .17 .13 .11 .16 .13 .11 .10

Deter mined In Acc ordance Wi th Current I ES Published Pr ocedures

Zonal L umens and P ercenta ges

Zone Lumen s % Lam p %Luminaire

221 11.70 21. 28

0-3 0

367 19.43 35.32

0-4 0

676 35.82 65.11

0-6 0
0-9 0

921 48.77 88 .66

40- 90

554 29.34 53 .34

60- 90

244 12.95 23 .55

90-180

117 6.24 11.34
103 9 5 5.01 100.0 0

0-180

** Efc iency = 55.0% **

TESTED A CCORDING TO IE S PROCEDURE S. TEST DISTANCE E XCEEDS FIVE
TIMES T HE GREATEST LUM INOUS OPENIN G OF LUMINAIR E.

Coef ficient s of Utiliz ation

Luminai re Input Wat ts = 25.0

Cert ied Test Repo rt no.3651FR
Compu ted by LSI Pr ogram **TEST-L ITE**
SC(AL ONG) = 1.3, SC(ACR OSS) = 1.4

Prep ared For:

Light olier
Fall River, MA

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2009 Philips Group • C0309
