Philips 4A35, Lightolier 4A35 Specification

Architectural Decorative 4A35

Page 1 of 2 Pendalux Cirrus 35” Diameter Body 6-26/32/42 Triple Tube

7"

45ϒ
Max.

4

3

2

5

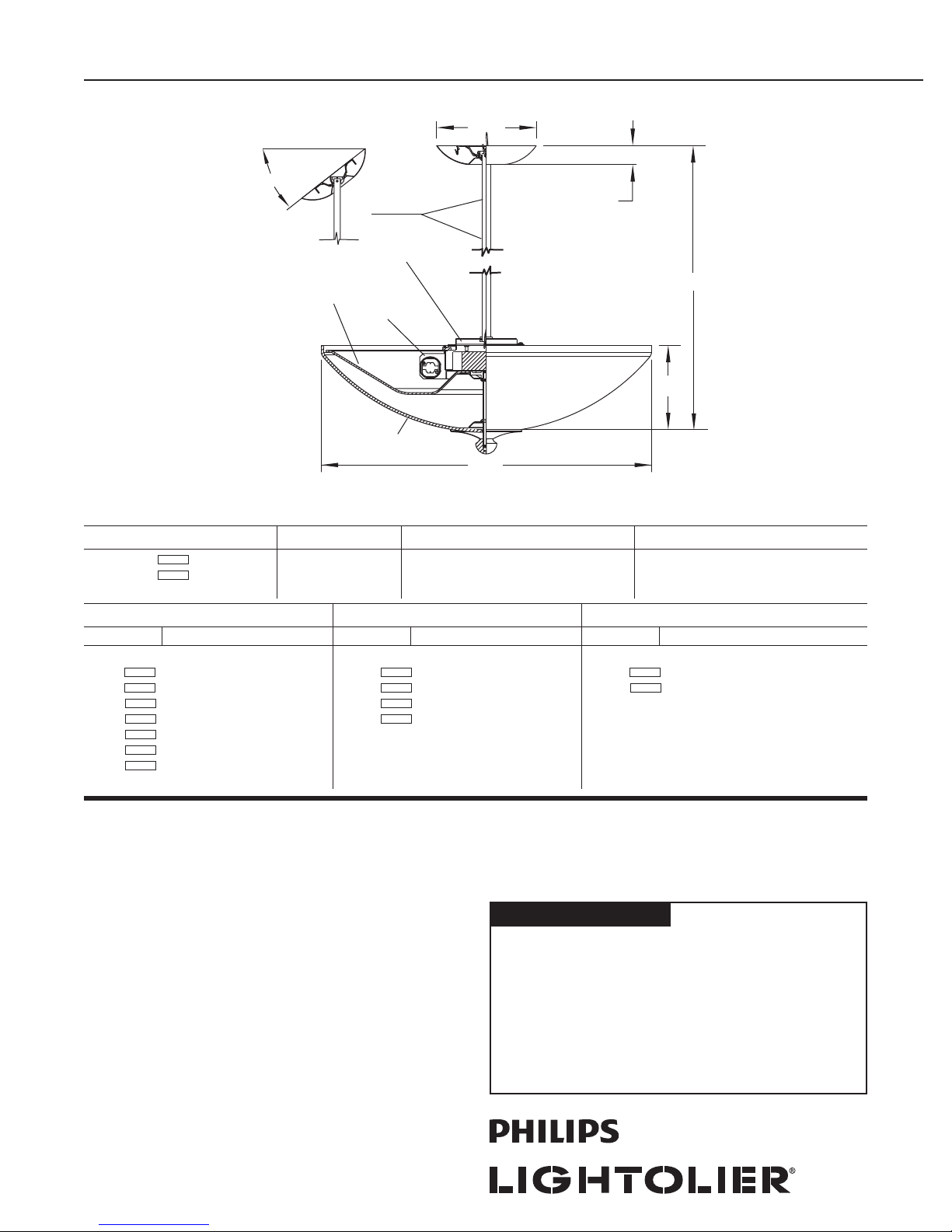

Note: Drawing above illustrates only one
of the suspension types available for this
luminaire. For other drawings, consult
individual Suspension Specification Sheet
numbers as noted in Suspension char t(s)
below.

Complete Luminaire consists of Body and Suspension: Order each separately.

1

35"

1 3/8"

Nominal OAL

7 1/2"

Body Cat. No. Finish Lamps Options

4A35642APBU
4A35642ASNU

Polished Brass
Satin Nickel

6-26 Triple Tube Compact Fluorescent
or 6-32 Triple Tube Compact Fluorescent
or 6-42 Triple Tube Compact Fluorescent

MX1 (26W, 120V only), E3 (347V), or EM

Add suffix to cat. no.

Single Swivel Stem Multiple Swivel Stem Suspension Extension Kits

Cat. No. Nominal OAL Cat. No. Nominal OAL Cat. No. Nominal OAL

Specify Finish as Suffix: PB or SN

4SB115 16 9/16”
4SB118 18” (close-to-ceiling)
4SB121 19 5/16”
4SB124 25 9/16”
4SB128 29 3/8”
4SB135 35”
4SB142 40 5/16”

See Specification Sheet(s) 4SB115, 4SB124

Specify Finish as Suffix: PB or SN

4SB224 25 9/16”
4SB22 8 29 3/8”
4SB23 5 35”
4SB242 40 5/16”

See Specification Sheet 4SB224.

Specify Finish as Suffix: PB or SN

4SX T48 48”
4SX T96 96”

Specifications

• Suspension Size: For optimum performance testing recommends OAL

(overall length) in proportion to the Body diameter or for close-to-ceiling
proportion length (see shaded cells). OAL is defined from bottom of dif fuser

to ceiling plane.

• Stem Wires: Equipped with 120” of leads with keyed connectors for quick

connection to Body wiring.

Options & Accessories

MX1 = Dimming Electronic Ballast, 26 Watt, 120V, only.

Replace Body Cat No. Suffix “U” with Suffix “MX1”.

E3 = 347V (Canada)

Replace Body Suf fix “U” with Suffix “E3”.

EM = Emergency Bat tery Pack

Add Suffix “EM” to Body Cat. No.
Multi-Level Switching: Prewired, consult wiring diagram.
Fusing: Consult Factor y
Finishes: PB = Polished Brass, SN = Satin Nickel

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2009 Philips Group • D0609

Architectural Decorative 4A35

Page 2 of 2 Pendalux Cirrus 35” Diameter Body 6-26/32/42 Triple Tube

Features

1. Diffusing Reflector: White translucent acrylic, 3/16” thick.

2. Inner Dirt Shield: White translucent acrylic, 1/8” thick.

3. Chassis: Steel, 20 gauge, semi-gloss white powder-coat finish.

4. Suspension: Swivel (central) stem, 5/8” steel tube. Canopy, 7” Dia.,

fastened internally, no exposed hardware. Permits installation on ceilings
with slope of up to 45˚. Complies with California Code.

5. Lampholder: Multi-wattage, 4-pin, will accept either GX24q-3 or GX24q- 4

lamp base.

Lamping (by others)

Compact Fluorescent: Triple Tube, 26, 32, or 42 Wat ts.
General Electric Osram/Sylvania Philips

26W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F26TBX/*/A/4P CF26DT/E/IN/* PL-T26W/*/4P
32W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F32TBX/*/A/4P CF32DT/E/IN/* PL-T32W/*/4P
42W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F42QBK/*/A/4P CF42DT/E/IN/* PL-T42W/*/4P

*Manufacturers’ color temperature designation.

Electrical

Ballast: Electronic, 2-Lamp HPF, Class P, Programmed Start. Universal Voltage

120/277V, Multi-Wattage 26/32/42W.

6 Lamp 26 Watt 32Watt 42Watt
Voltage 120V 277V 120V 277V 120V 277V
Total Input Watts 168 168 210 210 279 279
Max. Line Current (amps) 2.22 0.96 2.80 1.20 1.20 1.60
Power Factor >0.98 >0.98 >0.98 >0.98 >0.99 >0.99
Ballast Factor 1.02 1.02 0.96 0.96 0.95 0.95

THD<10% Minimum Starting Temperature: -5°F/-20°C

Mounting

Mounts directly to 4” outlet box, using crossbar hanger, supplied.

Labels

cULus listed suitable for damp locations.

Application Data

35 Inch Diameter
36’ x 36’ x 11’ Space
Luminaire Spacing: 12’ x 12’
Susp. Dist. 35”

6 Lamps 26W 32W 42W
TTT TTT TTT
Illum. (FC) 33 44 58

Maint.

Lum. 8/1 8/1 9/1

Ratio

Watts/ 1.15 1.42 1.94

Sq. Ft.

Reflectances: 80% Ceiling, 50% Walls, 20% Floor.
Light Loss Factor = .75 (.88 BF x .85)
FC (footcandles) at 30” work plane.

CERTIFIED TEST REPORT NO. 4A35642A

COMPUTED BY LSI PROGRAM **TEST-LITE**

LIGHTOLIER INDIRECT/DIRECT PENDANT FIXTURE

CAT. #4A353642APBU, 35” DIFFUSER

6-42W T/E SYLVANIA LAMPS. LUMEN RATING = 3200 LMS.

3-ADVANCE BALLAST #ICF-2S42-M2-LD, 120 VAC

ANGLE MEAN CP LUMENS
0 655
5 653 62
10 645
15 632 179

20 613

25 591 273
30 566
35 534 334
40 493
45 451 349
50 406
55 361 324
60 315
65 268 267

70 226

75 184 196
80 146
85 110 124
90 90

ZONE LUMENS % LAMP %LUMINAIRE
0-30 514 2.68 3.29

DATE: DEC. 14, 2000
PREPARED FOR:
LIGHTOLIER, FALL RIVER, MA

TESTED ACCORDING TO IES PROCEDURES. TEST DISTANCE EXCEEDS FIVE

TIMES THE GREATEST LUMINOUS OPENING OF LUMINAIRE.

COEFFICIENTS OF UTILIZATION ZONAL CAVITY METHOD

%EFFECTIVE FLOOR CAVITY REFLECTANCE = .20

0-40 848 4.42 5.42
0-60 1520 7.92 9.72
0-90 2107 10.98 13.47
40-90 1259 6.56 8.05
60-90 587 3.06 3.75
90-180 13538 70.51 86.53
0-180 15646 81.49 100.00
** EFFICIENCY = 81.5% **

CANDLEPOWER SUMMARY

ANGLE MEAN CP LUMENS
90 90
95 280 422
100 896
105 1385 1435

110 1760

115 2112 2095
120 2458
125 2759 2453
130 2960
135 3096 2391
140 3197
145 3262 2045
150 3303
155 3356 1548

160 3367

165 3147 882
170 2778
175 2734 268
180 2972

ZONAL LUMENS AND PERCENTAGES

80 70 50 30 10

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1 .69 .66 .64 .61 .58 .55 .45 .43 .42 .30 .29 .28 .16 .16 .15 .08

2 .60 .56 .52 .53 .49 .46 .39 .36 .34 .26 .24 .23 .14 .13 .13 .07

3 .53 .48 .43 .47 .42 .38 .34 .31 .29 .23 .21 .20 .12 .11 .11 .06

4 .47 .41 .36 .41 .36 .32 .30 .27 .24 .20 .18 .17 .11 .10 .09 .05

5 .41 .35 .31 .37 .31 .27 .27 .23 .21 .18 .16 .14 .10 .09 .08 .04

6 .37 .31 .26 .33 .27 .23 .24 .21 .18 .16 .14 .12 .09 .08 .07 .04

7 .33 .27 .23 .29 .24 .20 .22 .18 .15 .15 .12 .11 .08 .07 .06 .03

ROOM CAVITY RATIO

8 .30 .24 .20 .26 .21 .18 .19 .16 .13 .13 .11 .09 .07 .06 .06 .03

9 .27 .21 .17 .24 .19 .15 .18 .14 .12 .12 .10 .08 .07 .05 .05 .02

10 .24 .19 .15 .22 .17 .14 .16 .13 .10 .11 .09 .07 .06 .05 .04 .02

DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2009 Philips Group • D0609
