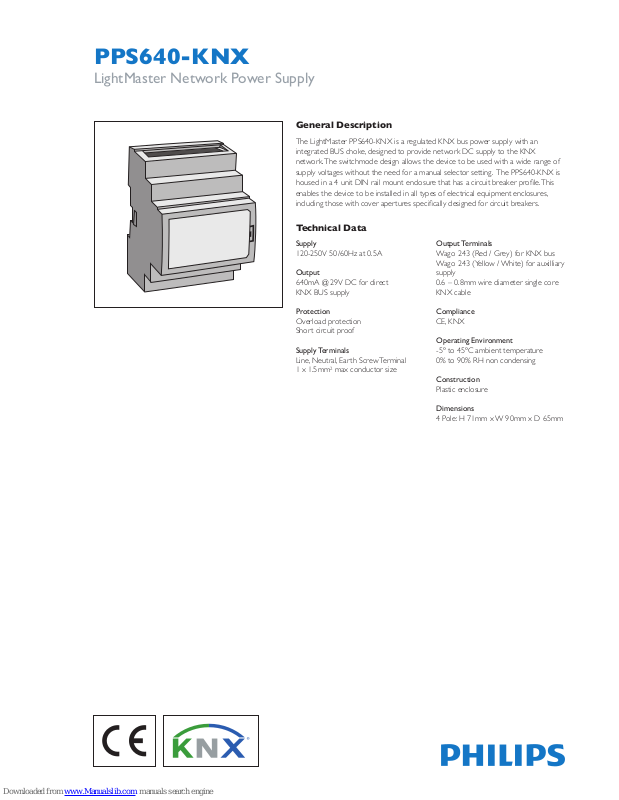

Philips LightMaster PPS640-KNX Datasheet

General Description

The LightMaster PPS640-KNX is a regulated KNX bus power supply with an
integrated BUS choke, designed to provide network DC supply to the KNX
network. The switchmode design allows the device to be used with a wide range of
supply voltages without the need for a manual selector setting. The PPS640-KNX is

housed in a 4 unit DIN rail mount enclosure that has a circuit breaker prole. This

enables the device to be installed in all types of electrical equipment enclosures,

including those with cover apertures specically designed for circuit breakers.

Technical Data

Supply

120-250V 50/60Hz at 0.5A

Output

640mA @ 29V DC for direct
KNX BUS supply

Protection

Overload protection
Short circuit proof

Supply Terminals

Line, Neutral, Earth Screw Terminal
1 x 1.5mm2 max conductor size

Output Terminals

Wago 243 (Red / Grey) for KNX bus
Wago 243 (Yellow / White) for auxilliary
supply

0.6 – 0.8mm wire diameter single core
KNX cable

Compliance

CE, KNX

Operating Environment

-5º to 45ºC ambient temperature
0% to 90% RH non condensing

Construction

Plastic enclosure

Dimensions

4 Pole: H 71mm x W 90mm x D 65mm

PPS640-KNX

LightMaster Network Power Supply

www.philips.com/knx • [e-mail]

Specications subject to change without notice.
© Not to be reproduced without permission.
Unit 6, 691 Gardeners Road Mascot 2020 Australia.
ABN 33 097 246 921

For further information contact:

PPS640-KNX Data Sheet Rev B February 2012
