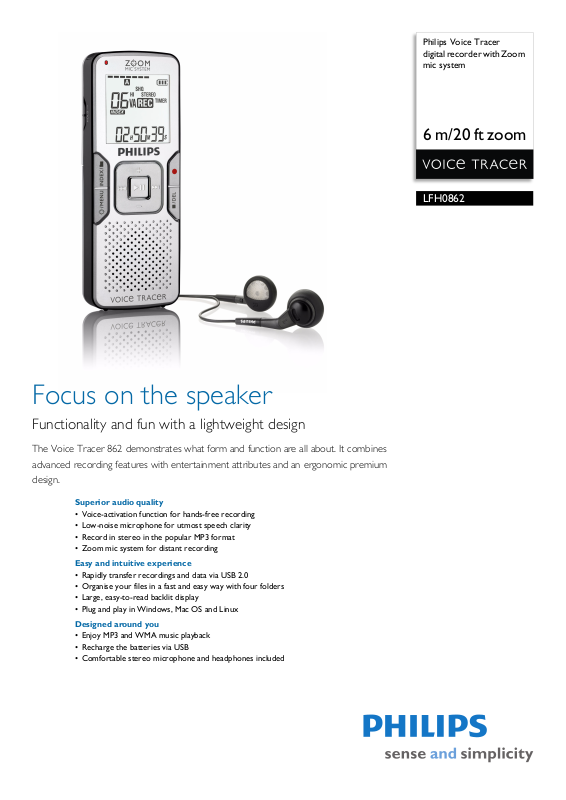

Philips Voice Tracer
digital recorder with Zoom
mic system
6 m/20 ft zoom
LFH0862
Focus on the speaker
Functionality and fun with a lightweight design
The Voice Tracer 862 demonstrates what form and function are all about. It combines
advanced recording features with entertainment attributes and an ergonomic premium
design.
Superior audio quality
• Voice-activation function for hands-free recording
• Low-noise microphone for utmost speech clarity
• Record in stereo in the popular MP3 format
• Zoom mic system for distant recording
Easy and intuitive experience
• Rapidly transfer recordings and data via USB 2.0
• Organise your files in a fast and easy way with four folders
• Large, easy-to-read backlit display
• Plug and play in Windows, Mac OS and Linux
Designed around you
• Enjoy MP3 and WMA music playback
• Recharge the batteries via USB
• Comfortable stereo microphone and headphones included
Page 2
Digital recorder with Zoom mic system
6 m/20 ft zoom
Highlights
LFH0862/00
Low-noise microphone
The signal–to-noise (S/N) ratio of the highsensitivity microphone is far better than those
of standard microphones. Recording sensitivity
is increased (picks up more voice signal)
without compromising sound quality.
Zoom mic system
Large backlit display
The large graphical display lets you view all
important file information at a glance, even in
poor lighting conditions, thanks to the backlit
display.
Recharge the batteries via USB
Easy file organisation
The Digital Voice Tracer supports up to 99
recordings in each of four available folders to
organise your files in a fast and easy way.
Rapidly transfer recordings
The innovative unidirectional zoom
microphone is capable of capturing voices from
far away and suppresses surrounding noise at
the same time. It allows you to switch between
three different recording modes, by adjusting
to different recording ranges.
Plug and play
Your VoiceTracer just works - Plug and Play in
Windows, Mac OS and Linux.
Help protect the environment by simply
recharging the batteries of your device using
USB instead of buying new batteries.
Enjoy MP3 and WMA music
Store your music collection and downloaded
songs on your Voice Tracer. Playback of WMA
and MP3 music formats is supported.
Thanks to the fast data transfer of a hi-speed
2.0 USB connection, transferring recordings to
your PC is up to 40 time s faster com pared with
the original USB standard.
Stereo microphone included
The cushy headphones and the innovative
stereo microphone are included in the box.
Page 3
Digital recorder with Zoom mic system
6 m/20 ft zoom
Specifications
LFH0862/00
Connectivity
• Headphones: 3.5 mm
• Microphone: 3.5 mm
•Line-in
•USB: High-speed USB 2.0
Display
•Type: LCD
• Diagonal screen size: 39 mm/1.5 in.
• Backlight: white
Storage media
• Built-in memory capacity: 4 GB
• Built-in memory type: NAND Flash
• Mass storage class compliant
Audio recording
• Recording formats: MPEG1 layer 3 (MP3)
• Built-in microphone: high-sensitivity, low-noise
rophone, stereo
mic
• Recording modes: SHQ (MP3/stereo), HQ (MP3/
ereo), SP (MP3/mono), LP (MP3/mono), SLP
st
(MP3/mono)
• Bit rate: 16, 32, 48, 64, 192 kbps
• Recording time: 572 hours (SLP), 286 (LP), 190
urs (SP), 143 hours (HQ), 47 hours (SHQ)
ho
• Sample rate: 44.1 kHz (SHQ), 22 kHz (HQ), 16
kHz (SP/LP/SLP)
Sound
• Speaker type: built-in round dynamic speaker
• Speaker diameter: 30 mm
• Speaker output power: 110 mW
• Frequency response: 50–12,000 Hz
• Signal to noise ratio: > 60 dB
Convenience
• Voice volume indicator
• Instant one-touch recording
• Voice-activated recording
•Keypad lock
• Firmware upgradeable
• Optimised for lectures
Power
• Battery type: AAA/LR03 Alkaline, Philips AAA NiMH LFH9154
• Number of batteries: 2
• Rechargeable: yes, via USB
• Battery lifetime: up to 50
mode
•Batteries included
hours in SLP recording
System requirements
• Operating system: Linux, Mac OS X, Windows 7/
Vista/XP/2000
• Free USB port
Green specifications
• Lead-free soldered product
Accessories
•USB cable
• Stereo clip-on microphone
• Stereo headphones
• Neckstrap
• 2 x AAA batteries
•User manual
Design and finishing
• Colour(s): silver shadow/black (recorder)
Music playback
• Compression format: MP3, WMA
• MP3 bit rates: 8–320 kbps
• WMA bit rates: 48–320 kbps (44 kHz), 64–192 (48
kHz), ster
• Digital rights management: not supported
• Equalizer settings: Clas
eo
sical, Jazz, Pop, Rock
Product dimensions
• Product dimensions (W x H x D):
3.9 x 10.7 x 1.8 cm
• Product dimensions (W x H x D):
1.5 x 4.2 x 0.7 inch
• Weight: 0.058 kg
• Weight: 0.128 lb
•
Issue date 2013-01-10
Version: 4.3.8
12 NC: 8735 086 20011
UPC: 0 37849 99024 7
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
