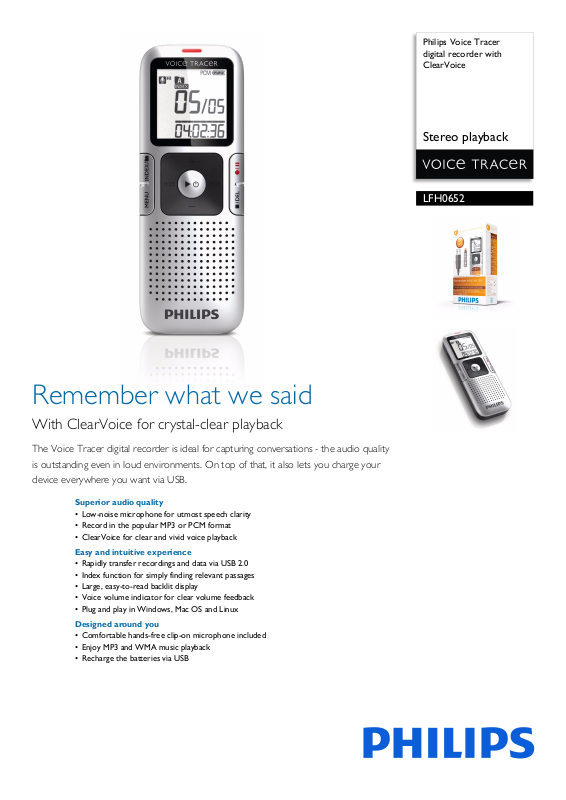

Page 1
Philips Voice Tracer
digital recorder with
ClearVoice
Stereo playback
LFH0652
Remember what we said
With ClearVoice for crystal-clear playback
The Voice Tracer digital recorder is ideal for capturing conversations - the audio quality
is outstanding even in loud environments. On top of that, it also lets you charge your
device everywhere you want via USB.
Superior audio quality
• Low-noise microphone for utmost speech clarity
• Record in the popular MP3 or PCM format
• ClearVoice for clear and vivid voice playback
Easy and intuitive experience
• Rapidly transfer recordings and data via USB 2.0
• Index function for simply finding relevant passages
• Large, easy-to-read backlit display
• Voice volume indicator for clear volume feedback
• Plug and play in Windows, Mac OS and Linux
Designed around you
• Comfortable hands-free clip-on microphone included
• Enjoy MP3 and WMA music playback
• Recharge the batteries via USB
Page 2
Digital recorder with ClearVoice
Stereo playback
Highlights
LFH0652/27
Low-noise microphone
The signal–to-noise (S/N) ratio of the highsensitivity microphone is far better than those
of standard microphones. Recording sensitivity
is increased (picks up more voice signal)
without compromising sound quality.
ClearVoice
Recording with good audio quality at lectures
or presentations can be a challenge. Especially
if you do not sit in the front row, the voice of
the speaker may be to quiet too record in
acceptable quality. The ClearVoice feature
adjusts quiet passages dynamically, thus
improving the intelligibility of quieter voices.
Plug and play
Your VoiceTracer just works - Plug and Play in
Windows, Mac OS and Linux.
Voice volume indicator
Voice volume indicator for clear volume
feedback. The innovative voice volume
indicator directly shows you the sound input
volume on the display.
Large backlit display
Recharge the batteries via USB
Help protect the environment by simply
recharging the batteries of your device using
USB instead of buying new batteries.
Enjoy MP3 and WMA music
Store your music collection and downloaded
songs on your Voice Tracer. Playback of WMA
and MP3 music formats is supported.
Clip-on microphone included
Record in MP3 or PCM
Recordings can be taken in the popular MP3 or
th
e high quality PCM format. The PCM format
offers outstanding audio CD like recording
quality and therefore makes listening to your
audio files a pleasure.
The large graphical display lets you view all
important file information at a glance, thanks to
the backlit display even in poor lighting
conditions.
The innovative hands-free microphone is
included in the box.
Page 3
Digital recorder with ClearVoice
Stereo playback
Specifications
LFH0652/27
Connectivity
• Headphones: 3.5 mm
• Microphone: 3.5 mm
•USB: High-speed USB 2.0
Display
•Type: LCD
• Diagonal screen size: 34.5
• Backlight: white
mm/1.4 in.
Storage media
• Built-in memory capacity: 2 GB
• Buit-in memory type: NAND Flash
• Mass storage class compliant
Audio recording
• Recording formats: MPEG1 layer 3 (MP3), PCM
(WAV)
• Built-in microphone: high-sensitivity, low-noise
rophone, mono
mic
• Recording modes: PCM (WAV/mono), SHQ (MP3/
mono), HQ (MP3/mono), SP (MP3/mono
(MP3/mono), SLP (MP3/mono)
• Bit rate: 8, 32, 48, 64, 192, 705 kbps
• Recording time: 566 hours (SLP), 142 (LP), 95
urs (SP), 70 hours (HQ), 24 hours (SHQ), 6.5
ho
hours (PCM)
• Sample rate: 44.1 kHz (PCM/SHQ), 22 kHz (HQ),
kHz (SP/LP/SLP)
16
), LP
Sound
• Speaker type: built-in round dynamic speaker
• Speaker diameter: 23 mm
• Speaker output power: 110 mW
• Sound enhancement: ClearVoice
• Frequency response: 250-2000 Hz (SLP), 60-3500
P), 60-5500 Hz (SP), 60-7000 Hz (HQ), 60-
Hz (L
16000 Hz (SHQ), 60-20000 Hz (PCM)
• Signal-to-noise ratio: > 60 dB
Music playback
• Compression format: MP3, WMA
• MP3 bit rates: 8–320 kbps
• WMA bit rates: 48–320 kbps (44 kHz), 64–192 (48
reo
kHz), ste
• Digital rights management: not supported
• Equalizer settings: Classical, Jazz, Pop
Convenience
• Voice volume indicator
• Instant one-touch recording
• Voice-activated recording
•Keypad lock
• Firmware upgradeable
• Optimized for conversations
Power
• Battery type: AAA/LR03 Alkaline, Philips AAA NiMH LFH9154
• Number of batteries: 1
• Rechargeable: yes, via USB
• Battery lifetime: up to 22
mode
• Battery included: rechargeable
hours in SLP recording
System requirements
• Operating system: Linux, Mac OS X, Windows 7/
Vista/XP/2000
• Free USB port
Accessories
•USB cable
• Stereo clip-on microphone
• Stereo headphones
•Quick start guide
• 1 × AAA rechargeable battery
Design and finishing
• Color(s): warm aluminum/black silk
Product dimensions
• Product dimensions (W x H x D):
3.8 x 10.5 x 1.64 cm
• Product dimensions (W x H x D):
1.5 x 4.1 x 0.6 inch
• Weight: 0.044 kg
• Weight: 0.097 lb
•
Issue date 2014-03-14
Version: 5.1.5
12 NC: 8670 000 67078
UPC: 6 09585 19205 8
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
