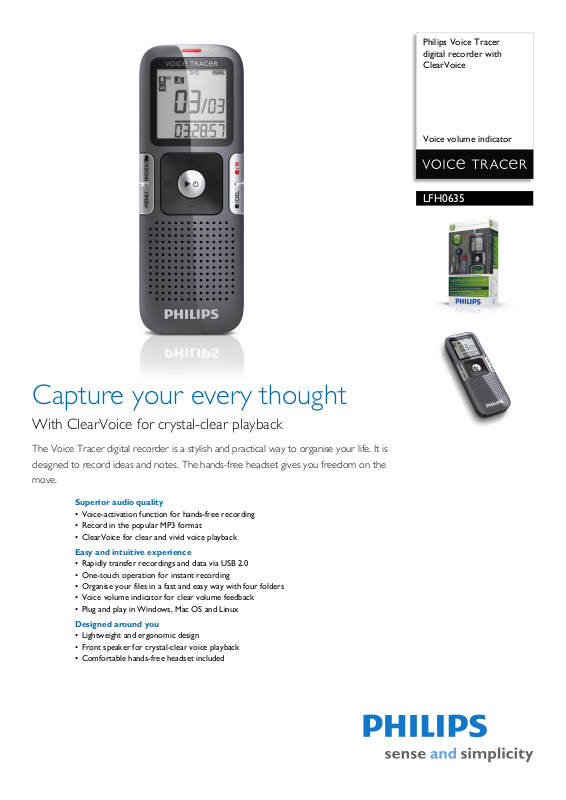

Page 1
Philips Voice Tracer
digital recorder with
ClearVoice
Voice volume indicator
LFH0635
Capture your every thought
With ClearVoice for crystal-clear playback
The Voice Tracer digital recorder is a stylish and practical way to organise your life. It is
designed to record ideas and notes. The hands-free headset gives you freedom on the
move.
Superior audio quality
• Voice-activation function for hands-free recording
• Record in the popular MP3 format
• ClearVoice for clear and vivid voice playback
Easy and intuitive experience
• Rapidly transfer recordings and data via USB 2.0
•One-touch operation for instant recording
• Organise your files in a fast and easy way with four folders
• Voice volume indicator for clear volume feedback
• Plug and play in Windows, Mac OS and Linux
Designed around you
• Lightweight and ergonomic design
• Front speaker for crystal-clear voice playback
• Comfortable hands-free headset included
Page 2
Digital recorder with ClearVoice
Voice volume indicator
Highlights
LFH0635/00
ClearVoice
Recording with good audio quality at lectures
or presentations can be a challenge. Especially
if you do not sit in the front row, the voice of
the speaker may be to quiet too record in
acceptable quality. The ClearVoice feature
adjusts quiet passages dynamically, thus
improving the intelligibility of quieter voices.
MP3 recording
Voice volume indicator
Voice volume indicator for clear volume
feedback. The innovative voice volume
indicator directly shows you the sound input
volume on the display.
Ergonomic and lightweight
Small and lightweight, you'll hardly notice it's
w
ith you. Pop it in your pocket or bag and take
it anywhere. The durable casing and attractive,
ergonomic design will make you want to carry
it everywhere you go.
Crystal-clear voice playback
Easy file organisation
The Digital Voice Tracer supports up to 99
recordings in each of four available folders to
organise your files in a fast and easy way.
Hands-free headset included
The MP3 format is the common audio format
for consumer audio storage, as well as a de
facto standard encoding for the transfer and
playback of recordings.
Plug and play
Your VoiceTracer just works - Plug and Play in
Windows, Mac OS and Linux.
The hands-free headset is ideal for using on the
move with its tie clip that keeps the
microphone always in the perfect position.
Rapidly transfer recordings
The more powerful front speaker offers a
potent, rich and crystal clear sound
experience.
One-touch operation
Thanks to the fast data transfer of a hi-speed
2.0 USB connection, transferring recordings to
your PC is up to 40 time s faster com pared with
the original USB standard.
Press and hold the record button for a
moment to switch the Voice Tracer on and
start recording instantly.
Page 3
Digital recorder with ClearVoice
Voice volume indicator
Specifications
LFH0635/00
Connectivity
• Headphones: 3.5 mm
• Microphone: 3.5 mm
•USB: High-speed USB 2.0
Display
•Type: LCD
• Diagonal screen size: 34.5
• Backlight: No
mm/1.4 in.
Storage media
• Built-in memory capacity: 2 GB
• Built-in memory type: NAND Flash
• Mass storage class compliant
Audio recording
• Recording formats: MPEG1 layer 3 (MP3)
• Built-in microphone: mono
• Recording modes: HQ (MP3/mono), SP (MP3/
mono), LP (MP3/mono), SLP (MP3
• Bit rate: 8, 32, 48, 64 kbps
• Recording time: 22 days (SL
(SP), 2.7 days (HQ)
• Sample rate: 22 kHz (HQ), 16 kHz (SP/LP/SLP)
/mono)
P), 5.5 days (LP), 4 days
Sound
• Speaker type: built-in round dynamic speaker
• Speaker diameter: 23 mm
• Speaker output power: 110 mW
• Sound enhancement: ClearVoice
• Frequency response: 250-2000 Hz (SLP), 60-3500
60-5500 Hz (SP), 60-7000 Hz (HQ)
Hz (LP),
Convenience
• Voice volume indicator
• Instant one-touch recording
• Voice-activated recording
•Keypad lock
• Firmware upgradeable
• Variable playback speed
• Optimised for notes
Power
• Battery type: AAA/LR03 Alkaline
• Number of batteries: 1
• Rechargeable: No
• Battery lifetime: up to 22
mode
•Battery included
hours in SLP recording
System requirements
• Operating system: Linux, Mac OS X, Windows 7/
Vista/XP/2000
• Free USB port
Accessories
• Hands-free headset
•USB cable
• 1 × AAA battery
•Quick start guide
Design and finishing
• Colour(s): titanium silver
Product dimensions
• Product dimensions (W x H x D):
3.8 x 10.5 x 1.64 cm
• Product dimensions (W x H x D):
1.5 x 4.1 x 0.6 inch
• Weight: 0.044 kg
• Weight: 0.097 lb
•
Issue date 2013-01-10
Version: 2.1.6
12 NC: 8735 063 50011
UPC: 6 09585 21336 4
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
