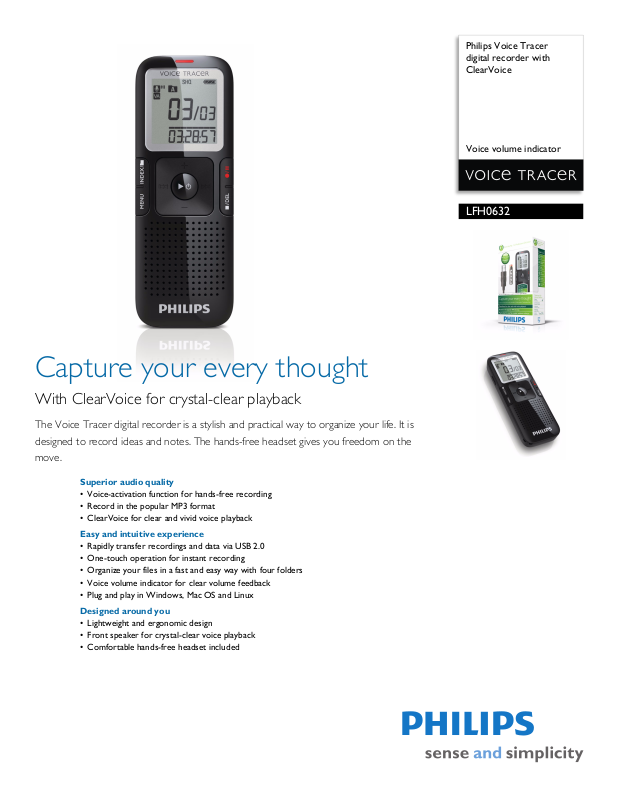

Page 1
Philips Voice Tracer
digital recorder with
ClearVoice
Voice volume indicator
LFH0632
Capture your every thought
With ClearVoice for crystal-clear playback
The Voice Tracer digital recorder is a stylish and practical way to organize your life. It is
designed to record ideas and notes. The hands-free headset gives you freedom on the
move.
Superior audio quality
• Voice-activation function for hands-free recording
• Record in the popular MP3 format
• ClearVoice for clear and vivid voice playback
Easy and intuitive experience
• Rapidly transfer recordings and data via USB 2.0
• One-touch operation for instant recording
• Organize your files in a fast and easy way with four folders
• Voice volume indicator for clear volume feedback
• Plug and play in Windows, Mac OS and Linux
Designed around you
• Lightweight and ergonomic design
• Front speaker for crystal-clear voice playback
• Comfortable hands-free headset included
Page 2
Digital recorder with ClearVoice
Voice volume indicator
Highlights
LFH0632/27
ClearVoice
Recording with good audio quality at lectures or
presentations can be a challenge. Especially if
you do not sit in the front row, the voice of the
speaker may be to quiet too record in
acceptable quality. The ClearVoice feature
adjusts quiet passages dynamically, thus
improving the intelligibility of quieter voices.
MP3 recording
Voice volume indicator
Voice volume indicator for clear volume
feedback. The innovative voice volume indicator
directly shows you the sound input volume on
the display.
Ergonomic and lightweight
Small and lightweight, you'll hardly notice it's
w
ith you. Pop it in your pocket or bag and take
it anywhere. The durable casing and attractive,
ergonomic design will make you want to carry it
everywhere you go.
Crystal-clear voice playback
Easy file organisation
The Digital Voice Tracer supports up to 99
recordings in each of four available folders to
organize your files in a fast and easy way.
Hands-free headset included
The MP3 format is the common audio format
for consumer audio storage, as well as a de facto
standard encoding for the transfer and playback
of recordings.
Plug and play
Your VoiceTracer just works - Plug and Play in
Windows, Mac OS and Linux.
The hands-free headset is ideal for using on the
move with its tie clip that keeps the microphone
always in the perfect position.
Rapidly transfer recordings
The more powerful front speaker offers a
potent, rich and crystal clear sound experience.
One-touch operation
Thanks to the fast data transfer of a hi-speed 2.0
USB connection, transfering recordings to your
PC is up to 40 times faster compared with the
original USB standard.
Press and hold the record button for a moment
to switch the Voice Tracer on and start
recording instantly.
Page 3
Digital recorder with ClearVoice
Voice volume indicator
Specifications
LFH0632/27
Connectivity
• Headphones: 3.5 mm
• Microphone: 3.5 mm
• USB: High-speed USB 2.0
Display
•Type: LCD
• Diagonal screen size: 34.5 mm/1.4 in.
• Backlight: no
Storage media
• Built-in memory capacity: 1 GB
• Buit-in memory type: NAND Flash
• Mass storage class compliant
Audio recording
• Recording formats: MPEG1 layer 3 (MP3)
• Built-in microphone: mono
• Recording modes: HQ (MP3/mono), SP (MP3/
mono), LP (MP3/mono), SL
• Bit rate: 8, 32, 48, 64 kbps
• Recording time: 277 hours (SLP), 70 hours (LP), 46
urs (SP), 35 hours (HQ)
ho
• Sample rate: 22 kHz (HQ), 16 kHz (SP/LP/SLP)
P (MP3/mono)
Sound
• Speaker type: built-in round dynamic speaker
• Speaker diameter: 23 mm
• Speaker output power: 110 mW
• Sound enhancement: ClearVoice
• Frequency response: 250-2000 Hz (SLP), 60-3500
(LP), 60-5500 Hz (SP), 60-7000 Hz (HQ)
Hz
Convenience
• Voice volume indicator
• Instant one-touch recording
• Voice-activated recording
•Keypad lock
• Firmware upgradeable
• Variable playback speed
• Optimized for notes
Power
• Battery type: AAA/LR03 Alkaline
• Number of batteries: 1
• Rechargeable: no
• Battery lifetime: up to 22 hours in SLP recording
mode
•Battery included
System requirements
• Operating system: Linux, Mac OS X, Windows 7/
Vista/XP/2000
• Free USB port
Accessories
•Hands-free headset
•USB cable
• 1 × AAA battery
• Quick start guide
Design and finishing
• Color(s): piano black/black silk
Product dimensions
• Product dimensions (W x H x D):
3.8 x 10.5 x 1.64 cm
• Product dimensions (W x H x D):
1.5 x 4.1 x 0.6 inch
• Weight: 0.044 kg
• Weight: 0.097 lb
•
Issue date 2012-06-04
Version: 5.1.5
12 NC: 8670 000 67074
UPC: 6 09585 19201 0
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
