Page 1

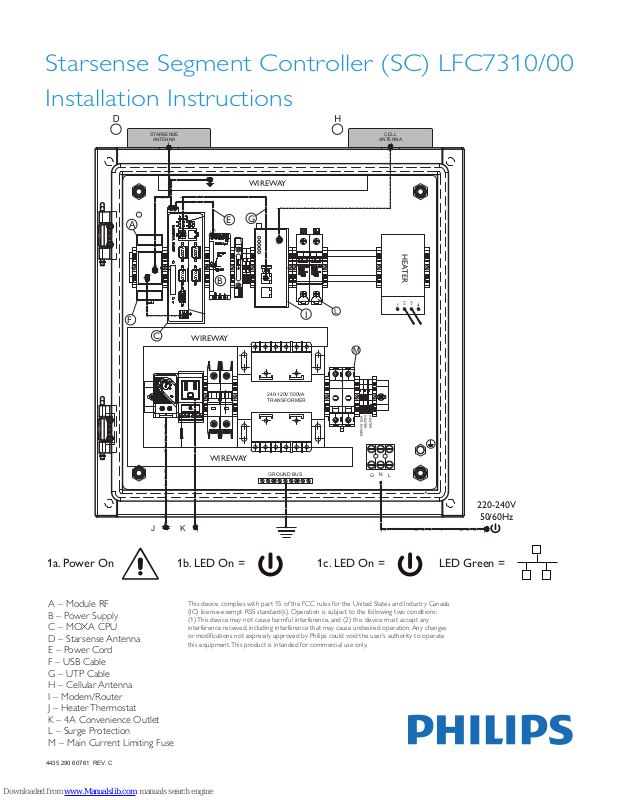

Starsense Segment Controller (SC) LFC7310/00
Installation Instructions
STARSENSE
ANTENNA
WIREWAY
G
A
E
CELL
ANTENNA
HEATER
B
L
F
C
WIREWAY
240-120V 500VA
TRANSFORMER
I
M
HEATER
HEATER
HTR. POWER
WIREWAY
GROUND BUS
N
L
G
220-240V
50/60Hz
J K
1a. Power On 1b. LED On = 1c. LED On = LED Green =
A – Module RF
B – Power Supply
C – MOXA CPU
D – Starsense Antenna
E – Power Cord
F – USB Cable
G – UTP Cable
H – Cellular Antenna
I – Modem/Router
J – Heater Thermostat
K – 4A Convenience Outlet
L – Surge Protection
M – Main Current Limiting Fuse
This device complies with part 15 of the FCC r ules for the United States and Industry Canada
(IC) license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. Any changes
or modifications not expressly approved by Philips could void the user’s authority to operate
this equipment. This product is intended for commercial use only.
4435 290 60761 REV. C
Page 2

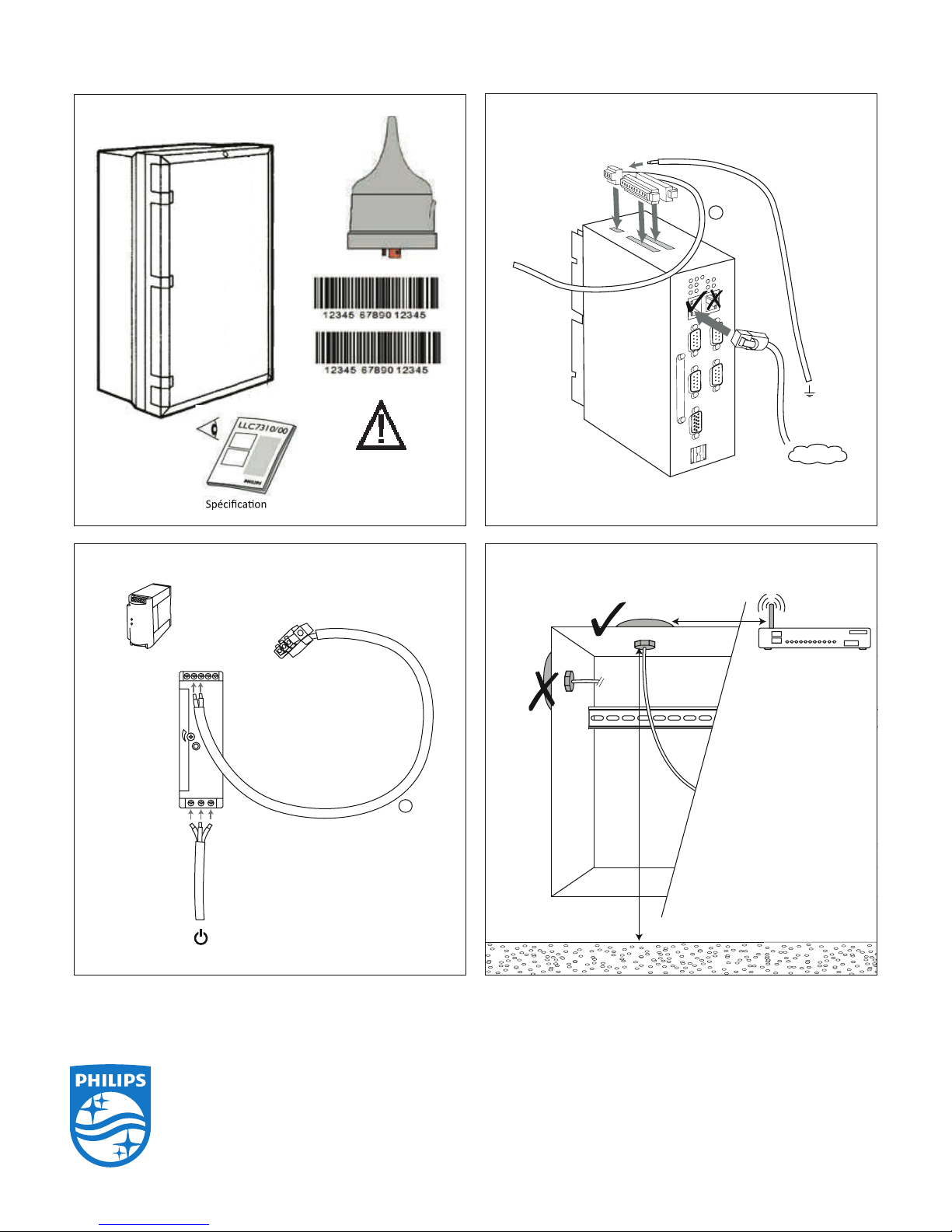

Installation Instructions
3x
E
LAN2
LAN1
TCP/IP
> 0.5 m
-V = black
+V = red
120V
50/60 Hz
© 2014 Philips Lighting Electronics
All rights reserved.
Form No. PA-7470-A 03/14
E
Philips Lighting Electronics
10275 West Higgins Road
Rosemont, IL 60018
Tel: 800-322-2086 Fax: 888-423-1882
Customer Support/Technical Ser vice: 800-372-3331
www.philips.com/starsense-na
> 0.5 m
