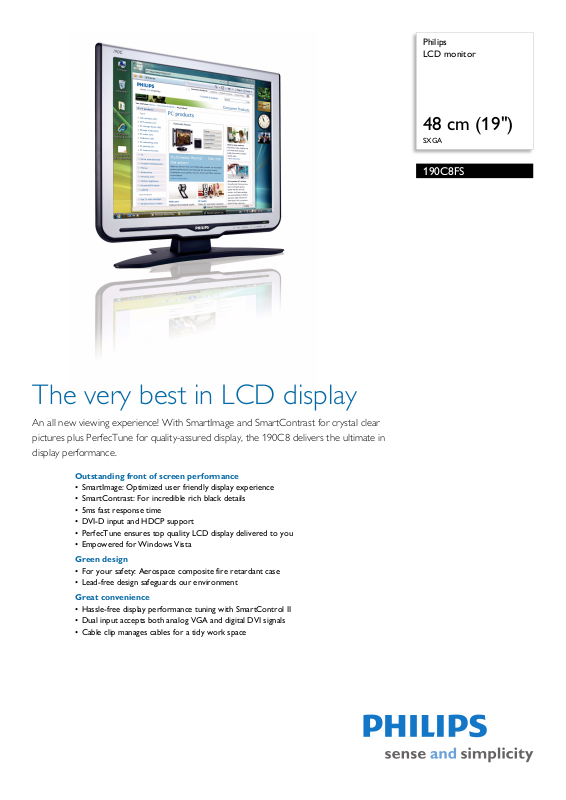

Page 1
Philips
LCD monitor
48 cm (19")
SXGA
190C8FS
The very best in LCD display
An all new viewing experience! With SmartImage and SmartContrast for crystal clear
pictures plus PerfecTune for quality-assured display, the 190C8 delivers the ultimate in
display performance.
Outstanding front of screen performance
• SmartImage: Optimized user friendly display experience
• SmartContrast: For incredible rich black details
• 5ms fast response time
• DVI-D input and HDCP support
• PerfecTune ensures top quality LCD display delivered to you
• Empowered for Windows Vista
Green design
• For your safety: Aerospace composite fire retardant case
• Lead-free design safeguards our environment
Great convenience
• Hassle-free display performance tuning with SmartControl II
• Dual input accepts both analog VGA and digital DVI signals
• Cable clip manages cables for a tidy work space
Page 2
LCD monitor
48 cm (19") SXGA
Highlights
190C8FS/00
SmartImage
SmartImage is an exclusive leading edge Philips
te
chnology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Image, Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
SmartContrast
SmartContrast is a Philips te
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
5ms on/off response time
On-Off response time is the period required
for a liqui
d crystal cell to go from active (black)
chnology that
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
better: Lower response time means faster
transitions and, therefore, results in fewer
visible image artifacts in the display of
transition of texts and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
HDCP ready
High-Bandwidth Digital Content Protection
(HDCP) is a
is incorporated into the DVI connector. It
helps stop unauthorized duplication of
copyrighted content. HDCP allows you to play
protected content media such as movies and
concerts. It checks the signal to prevent piracy,
allowing only legal copies of content to display.
PerfecTune
PerfectTune is industry-leading, proprietary
Phili
ps testing and algorithm technology for
monitor adjustment and fine tuning, an
extensive process that ensures ultimate display
performance in compliance with a standard
four-times more stringent than Microsoft's
Vista requirements from each and every
monitor that leaves the factory - not just a few
review samples. Only Philips goes to these
copyright protection system that
lengths to deliver this exacting level of color
accuracy and display quality in every new
monitor.
Flame retardant cabinet
PC/ABS plastic composite is the industry's best
an
d toughest flame-retardant casing material;
and is a space-age compound deployed in the
aerospace and automotive industries as well as
in fire detectors that is compliant with most
stringent fire safety standards.
SmartControl II
SmartControl II is monitor-based software
w
ith an easy-to-use on-screen graphic
interface that guides you through fine-tuning
resolution, color calibration and other display
settings including brightness, contrast, clock &
phase, position, RGB, white point and - on
models with onboard speakers - volume
adjustments.
Dual input
Dual input provides connectors to
accommoda
digital DVI signals.
te input of both analog VGA and
Page 3
LCD monitor
48 cm (19") SXGA
Specifications
190C8FS/00
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 19"/ 48 cm
• Effective viewing area: 376.3 x 301.1 mm
• Pixel pitch: 0.294 x 0.294 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 800:1
• SmartContrast ratio (dynamic): 3000:1
• Display colors: 16.7 M
• Viewing angle: 160º (H) / 160º (V), @ C/R > 10
• Response time (typical): 5 ms
• Maximum Resolution: 1280 x 1024 @ 75 Hz
• Optimum resolution: 1280 x 1024 @ 60 Hz
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
• Picture enhancement: SmartImage
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D
• Sync Input: Composite Sync,
on Green
Separate Sync, Sync
Convenience
• User convenience: On-screen Display,
SmartControl II
• Monitor Controls: SmartImage
Brightness Control (Up/Down), Menu (OK),
Power On/Off
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC/CI, sRGB,
, Input, Auto (Back),
ench, German, Italian,
n lock compatible
ws 98/ME/2000/XP/Vista
Windo
• Regulatory approvals: CE Mark, EMC,
FCC-B, UL, CSA, SEMKO, TCO '99, TÜV/GS,
TÜV Ergo
• Tilt: -2° to 20°
Energy Star,
Accessories
• Included accessories: AC Power Cord, VGA cable
• User Manual
Dimensions
•Box dimensions (W x H x D):
538 x 534 x 194 mm
• Box dimensions in inch (W x H x D):
.2 x 21 x 7.6 inch
21
• Set dimensions with stand (W x H x D):
2 x 420 x 201 mm
44
•Set dimensions with st
17.4 x 16.5 x 7.9 inch
• MTBF: 50,000 hrs
• Relative humidity: 20% - 60%
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 5.3 kg
• Product weight (+stand) (lb): 11.7 lb
• Weight incl. Packaging: 7.2
• Weight incl. Packaging (lb): 15.9
and in inch (W x H x D):
kg
Power
• Complies with: Energy Star
•Consumption (On mode):
•Consumption (Off Mo
• Power LED indicator: Operation - green, Stand by/
eep - Amber
sl
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
< 36W (Typical)
de): < 1 W
Issue date 2012-01-20
Version: 1.0.7
12 NC: 8670 000 25621
EAN: 87 12581 30430 0
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
