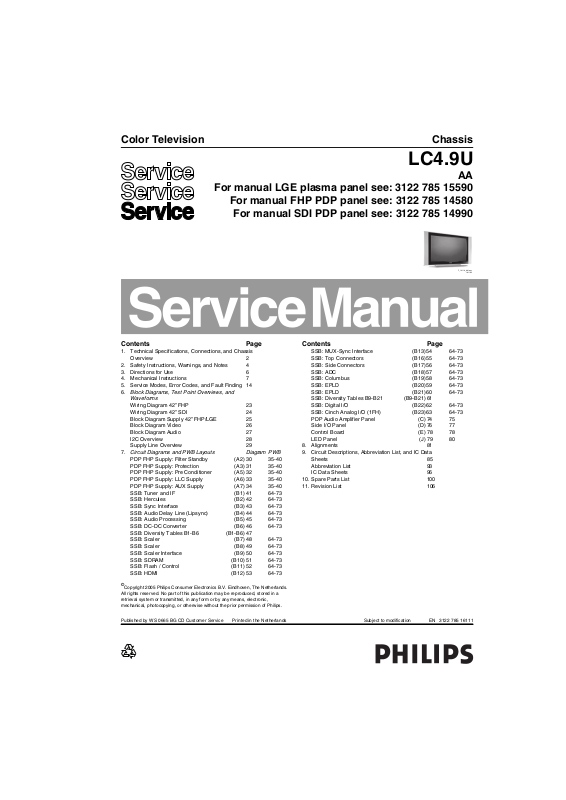

Philips LC4.9U Schematic

Color Television Chassis

LC4.9U

AA

For manual LGE plasma panel see: 3122 785 15590

For manual FHP PDP panel see: 3122 785 14580

For manual SDI PDP panel see: 3122 785 14990

F_16110_001.eps

101105

Contents Page Contents Page

1. Technical Specifications, Connections, and Chassis
Overview 2

2. Safety Instructions, Warnings, and Notes 4

3. Directions for Use 6

4. Mechanical Instructions 7

5. Service Modes, Error Codes, and Fault Finding 14

6. Block Diagrams, Test Point Overviews, and

Waveforms

Wiring Diagram 42” FHP 23
Wiring Diagram 42” SDI 24
Block Diagram Supply 42” FHP/LGE 25
Block Diagram Video 26
Block Diagram Audio 27
I2C Overview 28
Supply Line Overview 29

7. Circuit Diagrams and PWB Layouts Diagram PWB
PDP FHP Supply: Filter Standby (A2) 30 35-40
PDP FHP Supply: Protection (A3) 31 35-40
PDP FHP Supply: Pre Conditioner (A5) 32 35-40
PDP FHP Supply: LLC Supply (A6) 33 35-40
PDP FHP Supply: AUX Supply (A7) 34 35-40
SSB: Tuner and IF (B1) 41 64-73
SSB: Hercules (B2) 42 64-73
SSB: Sync Interface (B3) 43 64-73
SSB: Audio Delay Line (Lipsync) (B4)44 64-73
SSB: Audio Processing (B5) 45 64-73
SSB: DC-DC Converter (B6) 46 64-73
SSB: Diversity Tables B1-B6 (B1-B6) 47
SSB: Scaler (B7) 48 64-73
SSB: Scaler (B8) 49 64-73
SSB: Scaler Interface (B9) 50 64-73
SSB: SDRAM (B10) 51 64-73
SSB: Flash / Control (B11) 52 64-73
SSB: HDMI (B12) 53 64-73

©

Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.

SSB: MUX-Sync Interface (B13) 54 64-73
SSB: Top Connectors (B16) 55 64-73
SSB: Side Connectors (B17) 56 64-73
SSB: ADC (B18) 57 64-73
SSB: Columbus (B19) 58 64-73
SSB: EPLD (B20) 59 64-73
SSB: EPLD (B21) 60 64-73
SSB: Diversity Tables B9-B21 (B9-B21) 61
SSB: Digital I/O (B22) 62 64-73
SSB: Cinch Analog I/O (1FH) (B23) 63 64-73
PDP Audio Amplifier Panel (C) 74 75
Side I/O Panel (D) 76 77
Control Board (E) 78 78
LED Panel (J) 79 80

8. Alignments 81

9. Circuit Descriptions, Abbreviation List, and IC Data
Sheets 85
Abbreviation List 93
IC Data Sheets 96

10. Spare Parts List 100

11. Revision List 106

Published by WS 0665 BG CD Customer Service Printed in the Netherlands Subject to modification EN 3122 785 16111

EN 2 LC4.9U AA1.

Technical Specifications, Connections, and Chassis Overview

1. Technical Specifications, Connections, and Chassis Overview

Index of this chapter:

1.1 Technical Specifications

1.2 Connection Overview

1.3 Chassis Overview

Notes:

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

1.1 Technical Specifications

1.1.1 Vision

Display type : Plasma
Screen size : 42” (107 cm), 16:9
Resolution (HxV pixels) : 42 inch: 852 x 480
Contrast ratio :

- 42PF7320 /28 : 10,000:1
Light output (cd/m
Viewing angle (HxV degrees) : 160x160
Tuning system : PLL
TV Colour systems : PAL N, PAL M

Video playback : PAL B/G; PAL

Supported computer formats : VGA (640x480)

Supported video formats : 640x480i - 1fH

Presets/channels : 125 presets
Tuner bands : VHF

2

) : 1000

:NTSC

: NTSC M/N 3.58, 4.43

: SVGA (800x600)
: XVGA (1024x768)

: 720x576i - 1fH
: 640x480p - 2fH
: 720x576p - 2fH
: 852x480p - 2fH
: 1280x720 - 3fH
: 1920x1080i - 2fH

: UHF
: S-band
: Hyperband

1.2 Connection Overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.

1.2.1 Side I/O connections

AudioS-Video Video

LR

E_14710_005.eps

210404

Figure 1-1 Side I/O connections

S-Video (Hosiden): Video Y/C - In

1 -Ground Y Gnd H
2 -Ground C Gnd H
3 - Video Y 1 V
4 - Video C 0.3 V

Cinch: Video CVBS - In, Audio - In

Ye -Video CVBS 1 V
Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

Mini Jack: Audio Head phone - Out

Bk - Head phone 32 - 600 ohm / 10 mW ot

1.2.2 Rear Connections

/ 75 ohm j

PP

/ 75 ohm j

PP

/ 75 ohm jq

PP

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

1.1.2 Sound

Sound systems : Virtual Dolby

Surround
:Stereo
: SAP

Maximum power (W

) : 2 x 15

RMS

1.1.3 Miscellaneous

Power supply:

- Mains voltage (V

) : 100 - 250

AC

- Mains frequency (Hz) : 50 - 60

Ambient conditions:

- Temperature range (°C) : +5 to +40

- Maximum humidity : 90% R.H.

Power consumption

- Normal operation (W) : ≈ 220

- Stand-by (W) : < 2

Dimensions (WxHxD cm) : 42 inch: 124x68x12.6

Weight (kg) : 42 inch: 42

F_15270_071.eps

060705

Figure 1-2 Rear I/O

Aerial - In

- - IEC-type (EU) Coax, 75 ohm D

Cinch: Video CVBS - In, Audio - In

Ye -Video CVBS 1 V
Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

/ 75 ohm jq

PP

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

Cinch: Video CVBS - Out, Audio - Out

Ye -Video CVBS 1 V
Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

/ 75 ohm kq

PP

/10 kohm kq

RMS

/ 10 kohm kq

RMS

Cinch: CVI-1 Video YPbPr - In

Gn - Video Y 1 V
Bu -Video Pb 0.7 V
Rd - Video Pr 0.7 V

/ 75 ohm jq

PP

/ 75 ohm jq

PP

/ 75 ohm jq

PP

Cinch: CVI-1 Audio - In

Rd - Audio - R 0.5 V
Wh - Audio - L 0.5 V

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

Technical Specifications, Connections, and Chassis Overview

EN 3LC4.9U AA 1.

Cinch: PC Audio - In

Rd - Audio - R 0.5 V
Wh - Audio - L 0.5 V

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

S-Video (Hosiden): Video Y/C - In

1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
4 - Video C 0.3 V

Service connector (ComPair)

1 - SDA-S I
2 - SCL-S I

/ 75 ohm j

PP

P / 75 ohm j

PP

2

C Data (0 - 5 V) jk

2

C Clock (0 - 5 V) j

3 - Ground Gnd H

Service connector (UART)

1 - UART_TX Transmit k
2 - Ground Gnd H
3 - UART_RX Receive j

HDMI/PC-D: Digital Video, Digital Audio - In

19

18 2

1

E_06532_017.eps

250505

Figure 1-3 HDMI (type A) connector

1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H

9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

PC VGA/DVI-2: Video 2fH RGB/YPbPr - In

1

5

6

11

10

15

E_06532_002.eps

050404

Figure 1-4 VGA Connector

1 - Video Red/Pr 0.7 V
2 - Video Green/Y 0.7 V
3 - Video Blue/Pb 0.7 V
4-n.c.

/ 75 ohm j

PP

/ 75 ohm j

PP

/ 75 ohm j

PP

5 - Ground Gnd H
6 - Ground Red Gnd H
7 - Ground Green Gnd H
8 - Ground Blue Gnd H
9-+5V

+5 V j

DC

10 - Ground Sync Gnd H
11 - n.c.
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j

1.3 Chassis Overview

PLASMA
DISPLAY PANEL

LOUDSPEAKER
COMPARTMENT

SMALL SIGNAL

B

BOARD

KEYBOARD CONTROL

E

PANEL

Figure 1-5 CBA locations

PDP AUDIO

AMPLIFIER PANEL

POWER SUPPLY

PANEL

LOUDSPEAKER

COMPARTMENT

IR & LED PANEL

SIDE I/O PANEL

F_15430_057.eps

C

A

J

D

260705

EN 4 LC4.9U AA2.

Safety Instructions, Warnings, and Notes

2. Safety Instructions, Warnings, and Notes

Index of this chapter:

2.1 Safety Instructions

2.2 Warnings

2.3 Notes

2.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains (AC Power) via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the Mains (AC Power) lead for
external damage.

• Check the strain relief of the Mains (AC Power) cord for
proper function.

• Check the electrical DC resistance between the Mains (AC
Power) plug and the secondary side (only for sets that have
a Mains (AC Power) isolated power supply):

1. Unplug the Mains (AC Power) cord and connect a wire

between the two pins of the Mains (AC Power) plug.

2. Set the Mains (AC Power) switch to the "on" position

(keep the Mains (AC Power) cord unplugged!).

3. Measure the resistance value between the pins of the

Mains (AC Power) plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 Mohm and 12 Mohm.

4. Switch "off" the set, and remove the wire between the

two pins of the Mains (AC Power) plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

2.3 Notes

2.3.1 General

• Measure the voltages and waveforms with regard to the

chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode (see chapter 5) with a colour bar
signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated
otherwise) and picture carrier at 475.25 MHz for PAL, or

61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages

with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

• The semiconductors indicated in the circuit diagram and in
the parts lists, are interchangeable per position with the
semiconductors in the unit, irrespective of the type
indication on these semiconductors.

2.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 kohm).

• Resistor values with no multiplier may be indicated with
either an "E" or an "R" (e.g. 220E or 220R indicates 220
ohm).

• All capacitor values are given in micro-farads (µ= x10
nano-farads (n= x10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An "asterisk" (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed in the Spare Parts
List. Therefore, always check this list when there is any
doubt.

-9

), or pico-farads (p= x10

-12

-6

),

).

2.2 Warnings

• All ICs and many other semiconductors are susceptible to

electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential. Available
ESD protection equipment:
– Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable and earth cable) 4822
310 10671.

– Wristband tester 4822 344 13999.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched "on".

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

2.3.3 Rework on BGA (Ball Grid Array) ICs

General

Although (LF)BGA assembly yields are very high, there may
still be a requirement for component rework. By rework, we
mean the process of removing the component from the PWB
and replacing it with a new component. If an (LF)BGA is
removed from a PWB, the solder balls of the component are
deformed drastically so the removed (LF)BGA has to be
discarded.

Device Removal

As is the case with any component that, is being removed, it is
essential when removing an (LF)BGA, that the board, tracks,
solder lands, or surrounding components are not damaged. To
remove an (LF)BGA, the board must be uniformly heated to a
temperature close to the reflow soldering temperature.
A uniform temperature reduces the risk of warping the PWB. To
do this, we recommend that the board is heated until it is certain
that all the joints are molten. Then carefully pull the component
off the board with a vacuum nozzle. For the appropriate
temperature profiles, see the IC data sheet.

Area Preparation

When the component has been removed, the vacant IC area
must be cleaned before replacing the (LF)BGA.
Removing an IC often leaves varying amounts of solder on the
mounting lands. This excessive solder can be removed with
either a solder sucker or solder wick. The remaining flux can be
removed with a brush and cleaning agent.

Safety Instructions, Warnings, and Notes

EN 5LC4.9U AA 2.

After the board is properly cleaned and inspected, apply flux on
the solder lands and on the connection balls of the (LF)BGA.
Note: Do not apply solder paste, as this has been shown to
result in problems during re-soldering.

Device Replacement

The last step in the repair process is to solder the new
component on the board. Ideally, the (LF)BGA should be
aligned under a microscope or magnifying glass. If this is not
possible, try to align the (LF)BGA with any board markers.
So as not to damage neighbouring components, it may be
necessary to reduce some temperatures and times.

More Information

For more information on how to handle BGA devices, visit this
URL: www.atyourservice.ce.philips.com (needs subscription,
not available for all regions). After login, select “Magazine”,
then go to “Repair Downloads”. Here you will find Information
on how to deal with BGA-ICs.

2.3.4 Lead-free Solder

Philips CE is producing lead-free sets (PBF) from 1.1.2005
onwards.

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 5 and 6 refer to the production year, digits
7 and 8 refer to production week (in example below it is 1991
week 18).

To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

• Use only original spare-parts listed in the Service-Manuals.
Not listed standard material (commodities) has to be
purchased at external companies.

• Special information for lead-free BGA ICs: these ICs will be
delivered in so-called "dry-packaging" to protect the IC
against moisture. This packaging may only be opened
shortly before it is used (soldered). Otherwise the body of
the IC gets "wet" inside and during the heating time the
structure of the IC will be destroyed due to high (steam-)
pressure inside the body. If the packaging was opened
before usage, the IC has to be heated up for some hours
(around 90°C) for drying (think of ESD-protection!).
Do not re-use BGAs at all!

• For sets produced before 1.1.2005, containing leaded
soldering tin and components, all needed spare parts will
be available till the end of the service period. For the repair
of such sets nothing changes.

In case of doubt whether the board is lead-free or not (or with
mixed technologies), you can use the following method:

• Always use the highest temperature to solder, when using
SAC305 (see also instructions below).

• De-solder thoroughly (clean solder joints to avoid the
mixing of two alloys).

E_06532_024.eps

230205

Figure 2-1 Serial number example

Regardless of the special lead-free logo (which is not always
indicated), one must treat all sets from this date onwards
according to the rules as described below.

P

b

Figure 2-2 Lead-free logo

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin Philips SAC305 with order
code 0622 149 00106. If lead-free solder paste is required,
please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilise the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilised at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.

Caution: For BGA-ICs, you must use the correct temperature
profile, which is coupled to the 12NC. For an overview of these
profiles, visit the website www.atyourservice.ce.philips.com
(needs subscription, but is not available for all regions).
You will find this and more technical information within the
"Magazine", chapter "Repair Downloads".
For additional questions please contact your local repair help
desk.

2.3.5 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.
While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be
dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

EN 6 LC4.9U AA3.

3. Directions for Use

You can download this information from the following websites:

http://www.philips.com/support
http://www.p4c.philips.com

Directions for Use

4. Mechanical Instructions

Mechanical Instructions

EN 7LC4.9U AA 4.

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assy/Panel Removal

4.4 Set Re-assembly

4.1 Cable Dressing

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

• Follow the disassembling instructions in described order.

4.2 Service Positions

For easy servicing of this set, there are a few possibilities
created:

• The buffers from the packaging (see figure "Rear cover").

• Foam bars (created for service).

• Aluminium service stands (created for Service).

4.2.1 Foam Bars

E_06532_018.eps

Figure 4-2 Foam bars

The foam bars (order code 3122 785 90580 for two pieces) can
be used for all types and sizes of Flat TVs. By laying the TV

Figure 4-1 Cable dressing

170504

face down on the (ESD protective) foam bars, a stable situation
is created to perform measurements and alignments.
By placing a mirror under the TV, you can monitor the screen.

4.2.2 Aluminium Stands

E_06532_019.eps

170504

Figure 4-3 Aluminium stands (drawing of MkI)

The aluminium stands (order code 3122 785 90480) can be
mounted with the back cover removed or still left on. So, the
stand can be used to store products or to do measurements. It
is also very suitable to perform duration tests without taking
much space, without having the risk of overheating, or the risk
of products falling. The stands can be mounted and removed

F_15430_043.eps

080605

EN 8 LC4.9U AA4.

quick and easy with use of the delivered screws that can be
tightened and loosened manually without the use of tools. See
figure above.

Note: Only use the delivered screws to mount the monitor to
the stands.

4.3 Assy/Panel Removal

4.3.1 Metal Rear Cover

Mechanical Instructions

Caution: Disconnect the Mains/AC Power cord before you
remove the rear cover!

1. Place the TV set upside down on a table top, using the
foam bars (see part "Foam Bars").
Caution: do not put pressure on the display, but let the
monitor lean on the speakers or the Front cover.

2. Remove all T10 screws around the edges of the metal rear
cover: “parker” screws around the outer rim, “tapping”
screws around the connector plate.

3. Remove the four "mushrooms" from the rear cover.

4. Lift the metal rear cover from the set. Make sure that wires
and flat foils are not damaged.

4.3.2 Speaker Compartment Cover

After removing the metal rear cover, you gain access to the
Speaker Compartment covers.

1. Remove all T10 screws [1] around the outer rim of the
cover (see Figure “Speaker compartment cover removal”).

2. Remove the T10 screws [2] on top of the inner rim,
including the one which secures the grounding clamp (3,
see Figure “Grounding clamp”).

3. Now, remove the plastic cable fixation noose (4, see Figure
“Cable fixation noose”).

4. After removal of all the screws, slightly push the top of the
cover inwards. This will lift the outer rim slightly up so you
can take the cover out.

3

Figure 4-5 Grounding clamp

F_15430_046.eps

100605

1

2

F_15430_045.eps

Figure 4-4 Speaker compartment cover removal

100605

4

Figure 4-6 Cable fixation noose

F_15430_047.eps

100605

Mechanical Instructions

EN 9LC4.9U AA 4.

4.3.3 Side I/O Panel

After removal of the Speaker Compartment Covers, this panel
is accessible.

1. Disconnect the cable (1) from the panel.

2. Remove the T10 mounting screws [2] that hold the assy.

3. Remove the panel from its bracket [3], by pushing against
the front side of the side I/O cinch connectors.

1 3

2

F_15430_048.eps

100605

4.3.4 LED Panel

1

2

Figure 4-8 LED panel

1. Remove the fixation screws (1) and take the panel out of its
brackets.

2. Disconnect the cable (2) from the panel.

4.3.5 Keyboard Control Panel

F_15420_036.eps

070605

Figure 4-7 Side I/O panel removal

When it is defective, replace the whole unit.

2

1

3

F_15420_037.eps

Figure 4-9 Keyboard control panel

1. Remove the panel (1) from its three brackets (2).

2. Disconnect the cable (3) from the panel.

070605

EN 10 LC4.9U AA4.

Mechanical Instructions

4.3.6 SSB Cover Shield

1

2

Figure 4-10 SSB cover shield

4.3.7 Small Signal Board

3

2

1

3

F_15420_040.eps

070605

F_15430_049.eps

100605

1. Remove the two fixation screws (1) that secure the SSB
board on the lower part of the SSB shielding, see Figure
“SSB”.

2. Remove the SSB.

4.3.8 Power Supply Panel

Figure 4-12 SSB

3 3

F_15270_075.eps

Figure 4-11 DVI-I connector and rear I/O panel screws

1. Very cautiously disconnect the LVDS cable (1) from the
SSB panel (see Figure “SSB board cover shield”). Notice
that this cable is very fragile.

2. Remove all other cables (2) from the SSB board (see
Figure “SSB board cover shield”), including the grounding
cable.

3. Remove the fixation screws (3), see Figure “SSB board
cover shield” and remove the SSB shield with the SSB
board inside, and the rear I/O panel still attached to it.

4. Remove the fixation screws (1) from the DVI-I connector
and from the rear panel, see Figure “DVI-I connector and
rear panel screws”, and remove the rear I/O panel from the
SSB board.

5. Remove the upper part of the shield from the SSB panel,
by unhooking it from its brackets. Be careful not to damage
the LVDS connector on the SSB board, see Figure “SSB
board cover shield”.

260505

1

2

F_15430_050.eps

Figure 4-13 Power supply panel

1. Disconnect all cables (1) from the panel.

2. Remove the fixation screws (2) from the panel.

3. Take the panel out of its brackets.

100605

4.3.9 Class D Audio Amplifier Panel

3

1

2

Figure 4-14 Class D audio amplifier panel

1. Disconnect all cables (1) from the panel.

2. Pinch the plastic fixation clamps (2) firmly between your
fingers, and pull the panel upwards.

3. Take the panel out of its brackets (3).

Mechanical Instructions

F_15430_051.eps

100605

EN 11LC4.9U AA 4.

EN 12 LC4.9U AA4.

Mechanical Instructions

4.3.10 Plasma Display Panel / Glass Plate

1. Remove the T20 display panel mounting screws [1].

2. Remove the T10 screws [2] from the mounting frame.

3. Unplug all cable(s):
– LVDS cable at SSB side (fragile connector!).
– SSB supply cables at the Main Supply board.
– Mains cable at the Main Supply board.
– Side I/O cable at SSB side (fragile connector!).

1

– Cable at LED panel.
– Keyboard cable at SSB side.
– Audio Amplifier supply cable at the Main Supply board.
– Loudspeaker cables (incl. ferrites) at the Audio panel.

4. Lift the metal frame (together with all PWBs) from the
display panel (see figure “Frame lift”).

5. After removal of the frame, lift the PDP from the set.

2

2

1

2

2

Figure 4-15 Display panel removal

F_15400_121.eps

200505

Figure 4-16 Frame lift

F_15400_120.eps

200505

4.3.11 PDP Glass Plate

In order to remove/exchange the PDP glass plate:

1. Remove the PDP as described earlier.

2. Remove the T10 screws [1] from the mounting frame.

3. After removal of the frame, you can lift the glass plate from
the set.

Mechanical Instructions

1

EN 13LC4.9U AA 4.

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Notes:

• While re-assembling, make sure that all cables are placed
and connected in their original positions. See Figure "Cable
dressing". Be careful with the fragile LVDS cable.

• For a complete description of the Plasma panel, see the
LGE plasma panel Service Manual (12nc is listed on the
front page).

Figure 4-17 Glass plate removal

F_15400_119.eps

200505

EN 14 LC4.9U AA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Problems and Solving Tips Related to CSM

5.4 Service Tools

5.5 Error Codes

5.6 The Blinking LED Procedure

5.7 Fault Finding and Repair Tips

5.1 Test Points

This chassis is equipped with test points in the service printing.
In the schematics test points are identified with a rectangle box
around Fxxx or Ixxx.
Perform measurements under the following conditions:

• Television set in Service Default Alignment Mode.

• Video input: Colour bar signal.

• Audio input: 3 kHz left channel, 1 kHz right channel.

5.2 Service Modes

Service Default mode (SDM) and Service Alignment Mode
(SAM) offers several features for the service technician, while
the Customer Service Mode (CSM) is used for communication
between the call centre and the customer.

This chassis also offers the option of using ComPair, a
hardware interface between a computer and the TV chassis. It
offers the possibilities of structured troubleshooting, error code
reading, and software version read-out for all chassis.
Minimum requirements for ComPair: a Pentium processor, a
Windows OS, and a CD-ROM drive (see also paragraph
"ComPair").

How to Enter

To enter SDM, use one of the following methods:

• Press the following key sequence on the remote control
transmitter: “062596” directly followed by the MENU button
(do not allow the display to time out between entries while
keying the sequence).

• Short "Service" jumpers on the TV board during cold start
and apply mains (see Figure "Service jumpers"). Then
press the mains button (remove the short after start-up).
Caution: Entering SDM by shorting "Service" jumpers will
override the +8V-protection. Do this only for a short period.
When doing this, the service-technician must know exactly
what he is doing, as it could damage the television set.

• Or via ComPair.

1

F_15270_053.eps

180505

Figure 5-1 Service jumpers

5.2.1 Service Default Mode (SDM)

Purpose

• To create a predefined setting for measurements to be
made.

• To override software protections.

• To start the blinking LED procedure.

• To inspect the error buffer.

• To check the life timer.

Specifications

• Tuning frequency: 61.25 MHz.

• Colour system: NTSC.

• All picture settings at 50% (brightness, colour contrast,
hue).

• Bass, treble, and balance at 50 %; volume at 25 %.

• All service-unfriendly modes (if present) are disabled. The
service unfriendly modes are:
– Timer / Sleep timer.
– Child / parental lock.
–Blue mute.
– Hotel / hospital mode.
– Auto shut off (when no “IDENT” video signal is

received for 15 minutes).
– Skipping of non-favourite presets / channels.
– Auto-storage of personal presets.
– Auto user menu time-out.
– Auto Volume Levelling (AVL).

After entering SDM, the following screen is visible, with SDM in
the upper right corner of the screen to indicate that the
television is in Service Default Mode.

00035 LC4XAP1 1.14/S4XGNV 1.17 SDM
ERR 0 0 0 0 0
OP 000 057 140 032 120 128 000

F_15430_058.eps

260705

Figure 5-2 SDM menu

Service Modes, Error Codes, and Fault Finding

EN 15LC4.9U AA 5.

How to Navigate

Use one of the following methods:

• When you press the MENU button on the remote control,
the set will switch on the normal user menu in the SDM
mode.

• On the TV, press and hold the VOLUME DOWN and press
the CHANNEL DOWN for a few seconds, to switch from
SDM to SAM and reverse.

How to Exit

Switch the set to STANDBY by pressing the mains button on
the remote control transmitter or the television set.
If you turn the television set off by removing the mains (i.e.,
unplugging the television) without using the mains button, the
television set will remain in SDM when mains is re-applied, and
the error buffer is not cleared.

5.2.2 Service Alignment Mode (SAM)

Purpose

• To change option settings.

• To display / clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, Error codes, and Option settings display.

• Error buffer clearing.

• Option settings.

• AKB switching.

• Software alignments (Tuner, White Tone, Geometry &
Audio).

• NVM Editor.

• ComPair Mode switching.

How to Enter

To enter SAM, use one of the following methods:

• Press the following key sequence on the remote control
transmitter: “062596" directly followed by the OSD/
STATUS/INFO(I+) button (do not allow the display to time
out between entries while keying the sequence).

• Or via ComPair.

After entering SAM, the following screen is visible, with SAM in
the upper right corner of the screen to indicate that the
television is in Service Alignment Mode.

00035 LC4XAP1 1.14/S4XGNV 1.17 SAM
ERR 0 0 0 0 0

OP 000 057 140 032 120 128 000

. Clear Clear ?
. Options
. Tuner
. White Tone
. Audio
. NVM Editor
. SC NVM Editor

. ComPair Mode On

Figure 5-3 SAM menu

F_15430_059.eps

080605

Menu Explanation

1. LLLLL. This represents the run timer. The run timer counts
normal operation hours, but does not count standby hours.

2. AAABCD-X.Y. This is the software identification of the
main microprocessor:
– A= the project name (LC04.x).
– B= the region: E= Europe, A= Asia Pacific, U= NAFTA,

L= LATAM.

– C= the software diversity:

• Europe: T= 1 page TXT, F= Full TXT, V= Voice
control.

• LATAM and NAFTA: N= Stereo non-dBx, S=
Stereo dBx.

• Asian Pacific: T= TXT, N= non-TXT, C= NTSC.

• ALL regions: M= mono, D= DVD, Q= Mk2.

– D= the language cluster number.
– X= the main software version number (updated with a

major change that is incompatible with previous
versions).

– Y= the sub software version number (updated with a

minor change that is compatible with previous
versions).

3. EEEEE-F.GG. This is the software identification of the
Scaler:
– EEEEEE= the scaler sw cluster
– F= the main sw version no.
– GG= the sub-version no.

4. SAM. Indication of the Service Alignment Mode.

5. Error Buffer. Shows all errors detected since the last time
the buffer was erased. Five errors possible.

6. Option Bytes. Used to set the option bytes. See “Options”
in the Alignments section for a detailed description. Seven
codes are possible.

7. Clear. Erases the contents of the error buffer. Select the
CLEAR menu item and press the MENU RIGHT key. The
content of the error buffer is cleared.

8. Options. Used to set the option bits. See “Options” in the
Alignments section for a detailed description.

9. Tuner. Used to align the tuner. See “Tuner” in the
Alignments section for a detailed description.

10. White Tone. Used to align the white tone. See “White
Tone” in the Alignments section for a detailed description.

11. Audio. No audio alignment is necessary for this television
set.

12. NVM Editor. Can be used to change the NVM data in the
television set. See table “NVM data” further on.

13. SC NVM Editor. Can be used to edit Scaler NVM.

14. ComPaIr. Can be used to switch on the television to In
System Programming (ISP) mode, for software uploading
via ComPair.
Caution: When this mode is selected without ComPair
connected, the TV will be blocked. Remove the AC power
to reset the TV.

How to Navigate

• In SAM, select menu items with the MENU UP/DOWN keys
on the remote control transmitter. The selected item will be
highlighted. When not all menu items fit on the screen, use
the MENU UP/DOWN keys to display the next / previous
menu items.

• With the MENU LEFT/RIGHT keys, it is possible to:
– Activate the selected menu item.
– Change the value of the selected menu item.
– Activate the selected submenu.

• In SAM, when you press the MENU button twice, the set
will switch to the normal user menus (with the SAM mode
still active in the background). To return to the SAM menu
press the MENU or STATUS/EXIT button.

• When you press the MENU key in while in a submenu, you
will return to the previous menu.

EN 16 LC4.9U AA5.

Service Modes, Error Codes, and Fault Finding

How to Store SAM Settings

To store the settings changed in SAM mode, leave the top level
SAM menu by using the POWER button on the remote control
transmitter or the television set.

How to Exit

Switch the set to STANDBY by pressing the mains button on
the remote control transmitter or the television set.
If you turn the television set “off” by removing the mains (i.e.,
unplugging the television) without using the mains button, the
television set will remain in SAM when mains is re-applied, and
the error buffer is not cleared.

5.2.3 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and
information on the TV’s operation settings. The call centre can
instruct the customer (by telephone) to enter CSM in order to
identify the status of the set. This helps the call centre to
diagnose problems and failures in the TV set before making a
service call.
The CSM is a read-only mode; therefore, modifications are not
possible in this mode.

How to Enter

To enter CSM, press the following key sequence on the remote
control transmitter: “123654” (do not allow the display to time
out between entries while keying the sequence).

Upon entering the Customer Service Mode, the following
screen will appear:

1 00035 LC4XAP1 1.14/S4XGNV 1.17 CSM
2 CODES 0 0 0 0 0

3 OP 000 057 140 032 120 128 000
4
5
6 NOT TUNED
7 PAL
8 STEREO
9 CO 50 CL 50 BR 50
0 AVL Off

8. Displays the detected Audio (e.g. stereo/mono).

9. Displays the picture setting information.

10. Displays the sound setting information.

How to Exit

To exit CSM, use one of the following methods:

• Press the MENU, STATUS/EXIT, or POWER button on the
remote control transmitter.

• Press the POWER button on the television set.

5.3 Problems and Solving Tips Related to CSM

5.3.1 Picture Problems

Note: The problems described below are all related to the TV

settings. The procedures used to change the value (or status)
of the different settings are described.

Picture too Dark or too Bright

If:

• The picture improves when you press the AUTO PICTURE
button on the remote control transmitter, or

• The picture improves when you enter the Customer
Service Mode,

Then:

1. Press the AUTO PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWN keys
to highlight the PICTURE sub menu.

4. Press the MENU LEFT/RIGHT keys to enter the PICTURE
sub menu.

5. Use the MENU UP/DOWN keys (if necessary) to select
BRIGHTNESS.

6. Press the MENU LEFT/RIGHT keys to increase or
decrease the BRIGHTNESS value.

7. Use the MENU UP/DOWN keys to select PICTURE.

8. Press the MENU LEFT/RIGHT keys to increase or
decrease the PICTURE value.

9. Press the MENU button on the remote control transmitter
twice to exit the user menu.

10. The new PERSONAL preference values are automatically
stored.

F_15430_060.eps

080605

Figure 5-4 CSM menu

Menu Explanation

1. Indication of the decimal value of the operation hours
counter, Software identification of the main microprocessor
(see "Service Default or Alignment Mode" for an
explanation), and the service mode (CSM = Customer
Service Mode).

2. Displays the last five errors detected in the error code
buffer.

3. Displays the option bytes.

4. Displays the type number version of the set.

5. Reserved item for P3C call centres (AKBS stands for
Advanced Knowledge Base System).

6. Indicates the television is receiving an "IDENT" signal on
the selected source. If no "IDENT" signal is detected, the
display will read "NOT TUNED"

7. Displays the detected Colour system (e.g. PAL/NTSC).

White Line around Picture Elements and Text

If:

The picture improves after you have pressed the AUTO
PICTURE button on the remote control transmitter,

Then:

1. Press the AUTO PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWN keys
to highlight the PICTURE sub menu.

4. Press the MENU LEFT/RIGHT keys to enter the PICTURE
sub menu.

5. Use the MENU UP/DOWN keys to select SHARPNESS.

6. Press the MENU LEFT key to decrease the SHARPNESS
value.

7. Press the MENU button on the remote control transmitter
twice to exit the user menu.

8. The new PERSONAL preference value is automatically
stored.

Service Modes, Error Codes, and Fault Finding

EN 17LC4.9U AA 5.

Snowy Picture

Check CSM line 6. If this line reads “Not Tuned”, check the
following:

• Antenna not connected. Connect the antenna.

• No antenna signal or bad antenna signal. Connect a proper
antenna signal.

• The tuner is faulty (in this case line 2, the Error Buffer line,
will contain error number 10). Check the tuner and replace/
repair the tuner if necessary.

Black and White Picture

If:

• The picture improves after you have pressed the AUTO
PICTURE button on the remote control transmitter,

Then:

1. Press the AUTO PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWN keys
to highlight the PICTURE sub menu.

4. Press the MENU LEFT/RIGHT keys to enter the PICTURE
sub menu.

5. Use the MENU UP/DOWN keys to select COLOR.

6. Press the MENU RIGHT key to increase the COLOR value.

7. Press the MENU button on the remote control transmitter
twice to exit the user menu.

8. The new PERSONAL preference value is automatically
stored.

Menu Text not Sharp Enough

If:

• The picture improves after you have pressed the AUTO
PICTURE button on the remote control transmitter,

Then:

1. Press the AUTO PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWN keys
to highlight the PICTURE sub menu.

4. Press the MENU LEFT/RIGHT keys to enter the PICTURE
sub menu.

5. Use the MENU UP/DOWN keys to select PICTURE.

6. Press the MENU LEFT key to decrease the PICTURE
value.

7. Press the MENU button on the remote control transmitter
twice to exit the user menu.

8. The new PERSONAL preference value is automatically
stored.

You do not have to know anything about I

2

C commands

yourself because ComPair takes care of this.

3. ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the
microprocessor is working) and all repair information is
directly available. When ComPair is installed together with
the Force/SearchMan electronic manual of the defective
chassis, schematics and PWBs are only a mouse click
away.

Specifications

ComPair consists of a Windows based fault finding program
and an interface box between PC and the (defective) product.
The ComPair interface box is connected to the PC via a serial
(or RS-232) cable.
For this chassis, the ComPair interface box and the TV
communicate via a bi-directional service cable via the service
connector(s).

The ComPair fault finding program is able to determine the
problem of the defective television. ComPair can gather
diagnostic information in two ways:

• Automatically (by communicating with the television):
ComPair can automatically read out the contents of the
entire error buffer. Diagnosis is done on I
ComPair can access the I
ComPair can send and receive I

2

C/UART bus of the television.

2

2

C/UART level.

C/UART commands to
the micro controller of the television. In this way, it is
possible for ComPair to communicate (read and write) to
devices on the I

2

C/UART buses of the TV-set.

• Manually (by asking questions to you): Automatic
diagnosis is only possible if the micro controller of the
television is working correctly and only to a certain extent.
When this is not the case, ComPair will guide you through
the fault finding tree by asking you questions (e.g. Does the

screen give a picture? Click on the correct answer: YES /
NO) and showing you examples (e.g. Measure test-point I7
and click on the correct oscillogram you see on the
oscilloscope). You can answer by clicking on a link (e.g.
text or a waveform picture) that will bring you to the next

step in the fault finding process.

By a combination of automatic diagnostics and an interactive
question / answer procedure, ComPair will enable you to find
most problems in a fast and effective way.

How to Connect

This is described in the chassis fault finding database in
ComPair.

Caution: It is compulsory to connect the TV to the PC as
shown in the picture below (with the ComPair interface in
between), as the ComPair interface acts as a level shifter. If
one connects the TV directly to the PC (via UART), ICs will be
blown!

TO

UART SERVICE

CONNECTOR

TO
I2C SERVICE
CONNECTOR

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a service tool for Philips
Consumer Electronics products. ComPair is a further
development on the European DST (service remote control),
which allows faster and more accurate diagnostics. ComPair
has three big advantages:

1. ComPair helps you to quickly get an understanding on how
to repair the chassis in a short time by guiding you
systematically through the repair procedures.

2. ComPair allows very detailed diagnostics (on I
is therefore capable of accurately indicating problem areas.

2

C level) and

PC VCR I2CPower

9V DC

E_06532_021.eps

Figure 5-5 ComPair interface connection

180804

EN 18 LC4.9U AA5.

Service Modes, Error Codes, and Fault Finding

How to Order

ComPair order codes (US):

• ComPair Software: ST4191.

• ComPair Interface Box: 4822 727 21631.

• AC Adapter: T405-ND.

• ComPair Quick Start Guide: ST4190.

• ComPair interface extension cable: 3139 131 03791.

• ComPair UART interface cable: 3122 785 90630.

Note: If you encounter any problems, contact your local
support desk.

5.4.2 LVDS Tool

Introduction

This service tool (also called “ComPair Assistant 1“) may help
you to identify, in case the TV does not show any picture,
whether the Small Signal Board (SSB) or the display of a Flat
TV is defective.
Furthermore it is possible to program EPLDs with this tool
(Byteblaster). Read the user manual for an explanation of this
feature.

Since 2004, the LVDS output connectors in our Flat TV models
are standardised (with some exceptions). With the two
delivered LVDS interface cables (31p and 20p) you can cover
most chassis (in special cases, an extra cable will be offered).

When operating, the tool will show a small (scaled) picture on
a VGA monitor. Due to a limited memory capacity, it is not
possible to increase the size when processing high-resolution
LVDS signals (>= 1280x768). Generally this tool is intended to
determine if the SSB is working or not. Thus to determine if
LVDS, RGB, and sync signals are okay.

How to Connect

Connections are explained in the user manual, which is
delivered with the tool.

Note: To use the LVDS tool, you must have ComPair release
2004-1 (or later) on your PC (engine version >= 2.2.05).
For every TV type number and screen size, one must choose
the proper settings via ComPair. The ComPair file will be
updated regularly with new introduced chassis information.

5.5 Error Codes

The error code buffer contains all errors detected since the last
time the buffer was erased. The buffer is written from left to
right. When an error occurs that is not yet in the error code
buffer, it is displayed at the left side and all other errors shift one
position to the right.

5.5.1 How to Read the Error Buffer

You can read the error buffer in 3 ways:

• On screen via the SAM (if you have a picture).

Examples:

– ERROR: 0 0 0 0 0 : No errors detected
– ERROR: 6 0 0 0 0 : Error code 6 is the last and only

detected error

– ERROR: 9 6 0 0 0 : Error code 6 was detected first and

error code 9 is the last detected (newest) error

• Via the blinking LED procedure (when you have no
picture). See “The Blinking LED Procedure”.

•Via ComPair.

5.5.2 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu:
– To enter SAM, press the following key sequence on the

remote control transmitter: “062596” directly followed
by the OSD/STATUS button (do not allow the display
to time out between entries while keying the
sequence).

– Make sure the menu item CLEAR is highlighted. Use

the MENU UP/DOWN buttons, if necessary.

– Press the MENU RIGHT button to clear the error

buffer. The text on the right side of the “CLEAR” line will
change from “CLEAR?” to “CLEARED”

• If the contents of the error buffer have not changed for 50
hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the
television set, the error buffer is not reset.

How to Order

• LVDS tool (incl. two LVDS cables: 31p and 20p):
3122 785 90671.

• Service Manual LVDS tool:
3122 785 00810.

Service Modes, Error Codes, and Fault Finding

EN 19LC4.9U AA 5.

5.5.3 Error Codes

In case of non-intermittent faults, write down the errors present
in the error buffer and clear the error buffer before you begin
the repair. This ensures that old error codes are no longer
present.
If possible, check the entire contents of the error buffer. In
some situations, an error code is only the result of another error
and not the actual cause of the problem (for example, a fault in
the protection detection circuitry can also lead to a protection).

Table 5-1 Error code overview

Error Device Error Description Check Item Diagram

0 Not applicable No Error
1 Not applicable Mis-match of TV

2 Not applicable - - ­3 Not applicable - - ­4 Genesis Scaler

Flash-ROM

5 Scaler supply

7752

6 Not applicable General I

7ADC I
8 Scaler EEPROM I

9 Hercules

EEPROM

10 Tuner I2C error while

11 Columbus I

12 Not applicable - - ­13 HDMI Panellink

Receiver/
Decoder

14 Scaler SDRAM Read-write error

15 Not applicable - - ­16 EPLD I2C error while

17 Digital Module

(only on Digital
sets)

18 Not applicable - - -

Hercules SW and
Scaler SW

2

I

C error while
communicating with
the Genesis Scaler
and/or Flash-ROM
is faulty/empty

+5V protection 7752 B6

2

2

C error 7L04 B18

2

C error while
communicating with
the Scaler
EEPROM

2

C error while

I
communicating with
the Hercules
EEPROM (NVM for
TV).
Remark: when the
Hercules EEPROM
is defective, the
Hercules should
operate with its
default values.

communicating with
the PLL tuner

2

C error while
communicating with
the 2D/3D
combfilter
Columbus

2

C error while

I
communicating with
the iBoard HDMI
Panellink Receiver/
Decoder (only in
NAFTA and AP
sets)

with the Scaler
SDRAM

communicating with
EPLD

I2C error while
communicating with
the Digital Module
(only on Digital
sets)

--

7801

7B01

C error 1102, 7L04, 7M00 B1 + B18

7C01 B11

7207 B2

1102, F102, F104,
F107

7M00 B19

7D03 B12

7B01 B10

7N02 B20 +

Digital Module
(only on Digital
sets)

B7 + B8

B10

+ B19

B1

(only in
NAFTA
and AP
sets)

B21

5.6 The Blinking LED Procedure

Using this procedure, you can make the contents of the error
buffer visible via the front LED. This is especially useful when
there is no picture.

When the SDM is entered, the front LED will blink the contents
of the error-buffer:

• The LED blinks with as many pulses as the error code
number, followed by a time period of 1.5 seconds, in which
the LED is “off”.

• Then this sequence is repeated.

Any RC5 command terminates this sequence.

Example of error buffer: 12 9 6 0 0
After entering SDM, the following occurs:

• 1 long blink of 5 seconds to start the sequence,

• 12 short blinks followed by a pause of 1.5 seconds,

• 9 short blinks followed by a pause of 1.5 seconds,

• 6 short blinks followed by a pause of 1.5 seconds,

• 1 long blink of 1.5 seconds to finish the sequence,

• The sequence starts again with 12 short blinks.

5.7 Fault Finding and Repair Tips

Notes:

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

5.7.1 NVM Editor

In some cases, it can be handy if one directly can change the
NVM contents. This can be done with the “NVM Editor” in SAM
mode. With this option, single bytes can be changed.

Caution:

• Do not change the NVM settings without
understanding the function of each setting, because
incorrect NVM settings may seriously hamper the
correct functioning of the TV set!

• Do not change the Scaler NVM settings, as this will
hamper the DVI functionality of the TV set!

• Always note down the existing NVM settings, before
changing the settings. This will enable you to return to the
original settings, if the new settings turn out to be incorrect.

Table 5-2 NVM editor overview

Hex Dec Description

.ADR 0x000A 10 Existing value
.VAL 0x0000 0 New value
.Store Store?

EN 20 LC4.9U AA5.

Table 5-3 NVM Default values (option bit settings through NVM Editor in SAM Mode)

Byte Nr. Bit Feature/Mode Description 42PF7320/28

Byte 0
174(dec)

0 QSS (LSB) Mode of quasi split sound amplifier 0
1 FMI Connection of output of QSS amplifier 0
2 HCO EHT tracking mode 0
3 HP2 Synchronization of OSD/Text display 1
4 FSL Forced slicing level for vertical sync 1
5 TFR DC transfer ratio of luminance signal 1
6 OSVE Black current measuring in overscan 0
7 MVK (MSB) (For Future Usage, as defined by software) 0

Total Dec Values 56
Total Hex Values 38

Service Modes, Error Codes, and Fault Finding

Byte 1
175(dec)

Byte 2
176(dec)

Byte 3
177(dec)

0 PSE PSE 0
1OPC OPC 0
2PRIS PRIS 0
3 CONTINUOUS FACTORY Continuous factory mode 1
4 WHITE PATTERN ON Last colour pattern status in factory mode 0
5 SDM MODE Service default mode on/off 0
6 SAM MODE Service Align mode on/off 0
7 SVMA Scavem On / Off 0

Total Dec Values 8
Total Hex Values 08

0 MUTE STATUS Mute status 0
1 TUNER AUTO MODE Auto mode 1
2 CABLE MODE Cable/Antenna mode 0
3 LAST POWER MODE Last power status of the set 1
4 CHILD LOCK MODE Child lock enabled 0
5 SURF MODE Surf mode on/off 0
6 FACTORY MODE Factory mode on 1
7 PSNS For PAL colour enhancement in ES4 1

Total Dec Values 202
Total Hex Values CA

0 RADIO/TV MODE Radio mode or TV mode 0
1 WAKE-UP MODE WAKE-UP MODE 0
2 HOTEL MODE TV in Hotel mode 0
3 HOTEL KBD LOCK Keyboard locked 0
4HBL HBL 0
5 BLS Blue stretch mode 1
6SL SL 0
7 CFA0 Comb filter On/Off 0

Total Dec Values 32
Total Hex Values 20

Byte 4
178(dec)

0 Signal Strength Signal Strength Switch in MK2 0
1LPG LPG 0
2 DVD TRAY LOCK Lock/Unlock DVD tray 0
3 SCRSAVER MODE Screen saver mode 1
4 BKS Black Stretch Mode 1
5 BSD Black Stretch Depth 1
6 CRA0 Coring on SVM 1
7 PIP QSS PIP QSS 0

Total Dec Values 120
Total Hex Values 78

Service Modes, Error Codes, and Fault Finding

Byte Nr. Bit Feature/Mode Description 42PF7320/28

Byte 5
179(dec)

0 FFI Fast Filter 0
1 NNR No red reduction during blue stretch 1
2 MUS NTSC matrix 1
3 GAM Gamma control 1
4 CBS Control sequence of beam current limiting 0
5 LLB Low level of beam current limiter 0
6 DSA Dynamic skin tone angle area 1
7 DSK Dynamic skin tone angle on/ off 0

Total Dec Values 78
Total Hex Values 4E

EN 21LC4.9U AA 5.

Byte 6
180(dec)

Byte 7
181(dec)

5.7.2 Load Default NVM Values

In case a blank NVM is placed or when the NVM content is
corrupted, default values can be downloaded into the NVM.
(For empty NVM replacement, short the SDM with a jumper
and apply the mains voltage. Remember to remove the jumper
after the reload is completed). After the default values are
downloaded, it will be possible to start up and to start aligning
the TV set. This is no longer initiated automatically; to initiate
the download the following action has to be performed:

1. Switch “off” the TV set by disconnecting the AC Power
plug.

2. Short circuit the SDM jumpers (keep short-circuited).

3. Press P+ or Ch+ on the local keyboard (and keep it
pressed).

4. Switch on the TV set via the AC Power plug.

5. Keep pressing the P+/Ch+ button until the set has started
up and the SDM is shown.

Alternative method:

1. Go to SAM.

2. Select NVM Editor (not SC NVM Editor).

3. Select ADR (address) to 1 (dec).

4. Change the VAL (value) to 170 (dec).

5. Store the value.

6. Disconnect the mains plug and wait for a few seconds.

7. Reconnect the mains plug and wait until the set goes into
its standby mode (red LED lights up).

8. Restart the set.

0 LTI status LTI last status 0
1 Inc_Life_Time Inc_Life_Time 0
2 PC_Mode PC_Mode 0
3 HD_Mode HD_Mode 0
4 Tact_Switch Tact_Switch 0
5 Set_In_Special_Stby Set_In_Special_Stby 0
6 Hotel_OSDDisplay Hotel_OSDDisplay 0
7 Hotel_MonitorOut Hotel_MonitorOut 0

Total Dec Values 0
Total Hex Values 00

0 Hotel_IconMode Hotel_IconMode 0
1DBE DBE 1
2SD SD 0
3 Set_in_PC_Sleep_Mode Set_in_PC_Sleep_Mode 0
4 Reserved Reserved 0
5 Reserved Reserved 0
6 Reserved Reserved 0
7 Reserved Reserved 0

Total Dec Values 2
Total Hex Values 02

5.7.3 Tuner and IF

No Picture in RF Mode, but there is a Noise Raster

1. Check whether picture is present in AV. If not, go to Video
processing troubleshooting section.

2. If present, check if the Option settings are correct.

3. Check if all the supply voltages are present (3.3/5/8/12/33
V).

4. Check if the I

5. Manually store a known channel and check if there is IF
output at Tuner pin 11.

6. Check the tuning DC voltage at pin 2 of the Tuner. The DC
voltage should vary according to the frequency/channel
being chosen.

7. If the tuning voltage is OK, check the tuner output, pin 11.

8. If it has no output, the Tuner may have a defect. Change
the Tuner.

Required System is not Selected Correctly

Check whether a Service jumper (#4204 & 4205, 0805 size) is
present. If yes, remove it.

5.7.4 Video Processing

No Power

1. Check +12 V and 3V3 at position 1J02.

2. If no supply, check the connector 1J02.

3. If it is correct, check the power supply board.

Power Supply is Correct, but no Green LED

1. Check if the connectors 1K00 are properly inserted.

2. If they are inserted correctly, check if the 3V3 is present.

2

C lines are working correctly (3.3 V).

EN 22 LC4.9U AA5.

No Picture Display (blank screen with correct sound output)

1. Check whether the user menu is visible.

2. If the user menu is OK, activate teletext mode.

3. If teletext is OK, the problem is in the ADC (B18) &
Columbus 3D combfilter (B19), if present (depending on
model, see also paragraph “Teletext Path” in chapter 9).

4. If the user menu is not visible, check if the LCD panel
backlight is ON.

5. If the backlight is OFF, the problem is in the power supply
board or LCD panel. Also check pin 12 (LAMP_ON_OFF)
of 1J02. It should be HIGH during normal operation.

Note: For fault finding purposes, it is important to know the
following: in Pixel Plus and Digital Crystal Clear models, which
have an ADC (B18) and Columbus 3D combfilter (B19), the
digital input of the scaler is used for the digital video path
(Hercules output), whereas the analogue RGB input (analogue
input of the scaler) is only used for teletext. This means that no
mixed mode (video plus teletext simultaneously) is possible. If
there is sound and teletext, but no video and user menu (blank
screen), the digital path (Hercules - ADC - Columbus - Scaler)
is faulty. If there is sound but no teletext, the back-end part
(Scaler - LCD panel) is faulty. In Crystal Clear models, which
do not have an ADC and Columbus, the RGB path (analogue
input of scaler) is used for both video and teletext.

Service Modes, Error Codes, and Fault Finding

No TV, but PC is Present

1. Check if Hsync_SDTV and Vsync_SDTV are present at pin
1 & pin13 of 7E03.

2. If they are present, check teletext output.

3. If there is no teletext output, the IC TDA150xx may be
defect.

5.7.5 Power Supply

In case the power supply does not work, check (apart from the
obvious fuse-check) if the oscillators in IC7001 (in TV sets with
37 inch screens) or in IC7001 and IC7U01 (in TV sets with 42
inch screens) are working. If not, replace the ICs.

Block Diagrams, Test Point Overviews, and Waveforms

6. Block Diagrams, Test Point Overviews, and Waveforms

Wiring Diagram 42” FHP

WIRING 42” FHP

EN 23LC4.9U AA 6.

8736

AUDIO AMPLIFIER

C

9P

2P3

1736

1M52

RIGHT

SPEAKER

CN32

8P13

8199

PDP POWER SUPPLY

A

B

0311

SSB

0308

2P3

8900

9P

8150

31P

1P07

LVD S

CONNECTOR

8735

3P

11P

1J01

8202

9P

DISPLAY

1M03

10P

10P

1J00

8103

8146

9P

1J04

1M46

11P

3P4

1M10

0323

10P

1K00

1002

6P

7PP

8152

2P3

1735

8102

8120

7P

1M02

INVERTERINVERTER

8323

10P

8P13

C561

LEFT

SPEAKER

CN22

CONTROL BOARD

E

1M01

3P

8101

AC INLET

1107

3P

UART

1101

3P

Compair

Tu ne r

1K04

1K02

11P

3P

8136

LED PANEL

J

6P

0345

D

11P

SIDE I/O

1M36

F_15451_001.eps

151205

Block Diagrams, Test Point Overviews, and Waveforms

Wiring Diagram 42” SDI

WIRING 42” SDI

EN 24LC4.9U AA 6.

8736

AUDIO AMPLIFIER

C

9P

2P3

17361735

1M52

RIGHT

SPEAKER

8735

CN07

2P3

10P

CN06

8P

7P

1M02

PDP POWER SUPPLY

4P

1K00

CN308

2P3

P5

10P

P6

4P

1M03

10P

1M46

11P

1M02

7P

8103

8199

8900

8150

8146

8152

8102

INVERTERINVERTER

LEFT

SPEAKER

8P

P1

CONTROL BOARD

E

1M01

3P

8101

AC INLET

B

SSB

31P
1J04

31P

LVDS

CONNECTOR

11P

1J01

(1M46)

10P

1J00

(1M03)

1107

UART

9P

1J04

1103

3P

Tuner

1101

3P

3P

Compair

1K00

1K04

1K02

6P

11P

3P

8120

8136

LED PANEL

J

6P

0345

D

11P

SIDE I/O

1M36

F_15430_052.eps

281105

Block Diagrams, Test Point Overviews, and Waveforms

Block Diagram Supply 42” FHP/LGE

SUPPLY42” FHP

FILTERS STANDBY

A2

0308

2

1

MAINS
INPUT

95-264Vac

400V_HOT

A5

I508

400V_HOT

PROTECTIONS

A3

+5V_INT_SW

- 2.5 Vref -

+5V_INT_SW

3304

1

K

7304

A
3

1400

T6.3A

4

R

7500
TNY256P

EN|UV

SOURCE

3324

2

5401
5005
5402

MAINS
FILTER

6511

6510

3507
3035
3026

5

DRAIN

2

6501

1M05

1
2

IBO SUPPLY

(RES)

- VS PROTECTION -

3308

70-90V

3300

3301

2V5

3306

3102

3307

6502

6513

6512

3506

6506

7
6

5
4

+T

F500

2

I510

4
1

HOT GROUND

7308 3+4

1

2

5500

6312

6313

12

RELAY CONTROL

ACTIVATING

6

7
8

9

3501

7501
TCET1102

2143

COLD GROUND

SUPPLY_ON

6503

6504

6505

1
K

7502

A
3

34

1450

ACTIVATING

DELAY

2

R

- VA PROTECTION - - VCC PROTECTION - - 12V PROTECTION -

VA

3311

3312

2V5

A2

A2

3313

3317

VSAGO

VCEGO

+8V6

11
10

A6

F503

3505

3503

7308 1+2

9
8

6325

3451

3450

+T

+T

12

34

1460

3509

3508

2505

5503

6507

A7

I514

13

14

7375
7376

CONTROL

+5V_INT_SW

7352
7351

I905

VCEGO

+5V_INT_SW

7341
7004
7348

LATCH

+5V_INT_SW

7326
7327

UNDERVOLTAGE

PROTECTION

6507

6321

6322

+9V_STBY

3373

VSA

3349

3328

8V6

3452

-T
3036

-T

I504

F502

7461

7540

IN OUT

COM

3321

2V5

VSA_CONTROL

100-230VAC1

100-230VAC2

25V_HOT

+9V_STBY

+5V_STBY_SW

+5V_INT_SW

+3V3_STBY_SWVCC

I517

VCC

3320

3103

3322

3323

VCC_GO

LATCH

POK

+3V3_STBY_SW

A2
A6
A3
A3

7333 3+4

7
6

5
4

A7

A7

A6

EN 25LC4.9U AA 6.

PRECONDITIONER

A5

5600

VCC

VRA
VRS
VCEGO
VSAGO

0311

1
2
3
4
5
6
7
8
9

6600
GBU8J

F608

400V_HOT

TO CN11

PDP DISPLAY

6605

6606

F601

3608 3606

3609

3603

3604

3605

3679
3682

I618

3651

16

1246

3666

3671

3104

3660

3661

3659

7608

3663

I620

14

3610

2663

7650
MC33368P

7
6
3

5

ZCDET
CS
FB

MULT

7610

GATE

VCC

6661

5612

12

11

I613

6611

3675

F610

7661
MC34063D

6

VCC

SWE

1

SWC

7

IS

8

DCOL

3641

7640

F600

2

5

I625

5660

3677

400V_HOT

SW25V_HOT

6665

F609

7641
7642

6642

2664

BIAS

2662

- DC_PROT -

POK

+12V

3358

3302

7333 1+2

6333

3333

1

2

6334

2V5

3392

3393

3334

3335

7363
7366-1

7391
7366-4

11
10

9
8

+5V_INT_SW

BUFFER

+5V_STBY_SW

STANDBY

6340

13

6341

14

IAK

SUPPLY_ON

3361

7362

3340

3364

6362

3359

6364

A6

STANDBY

POWER_OK

DC_PROT

6365

+5V_INT_SW

3388

RES

1M03

3389

7389

10

1
2
3
4
5
6
7
8
9

A7

A6

+12V_OVP

TO 1M03(1J00)

B16

PDP DISPLAY

LLC SUPPLY

A6

25V_HOT

AUX SUPPLY

A7

7090
7091
7092

PROTECTION

SOFTSTART

CONTROL

CURRENT

PROTECTION

+30V

70-90V

3090
3092

&

7013

3089

3081

- CONTROL -

7001
MC34067P

15

VCC

14

OA

3

OSCCC

6

10

EAO

FI

8

lp

12

OB

7

ln

1260

T2A

1110

T5A

I105

1200

T2A

VCC_GO

A6

I220

+5V_INT_SW

7093
LM317T

IN OUT

COM

6002

3675

5260

I101

7110

3107÷3109

I213

I208

7202

6202

3095

3096

3097

F003

F004

7112
TEA1507P

CONTROL

1

VCC

3

CTRL

7200

3202

POK

F001

6111

3082

5001

4

2

DRAIN

ISENCE

DRIVER

3206

3209

3203

3050

GND

DEM

3084

SW25V_HOT

7007
7020

HIGH

6

SIDE

DRIVE

7

7008
7021

LOW

10

SIDE

DRIVE

9

12

7117

8

5

6

2

3113

4

6111

I214

3214

VA

7050

I200

SEQUENCE
DISCHARGE

400V_HOT

I038

I057

I083

7260
L4973V3.3

REGULATOR

7

VCC

8

VFB

3116 3117

I106

6113

2114

7212
TEA1507P

CONTROL

3

CTRL

4

DEMAG

1

VCC

GND

6211

6142

VS

6050

2053

7005

7006

HOT GROUND

OUT

3118

3115

DRAIN

DRIVE

6213

I202

2

3

5121

8

6

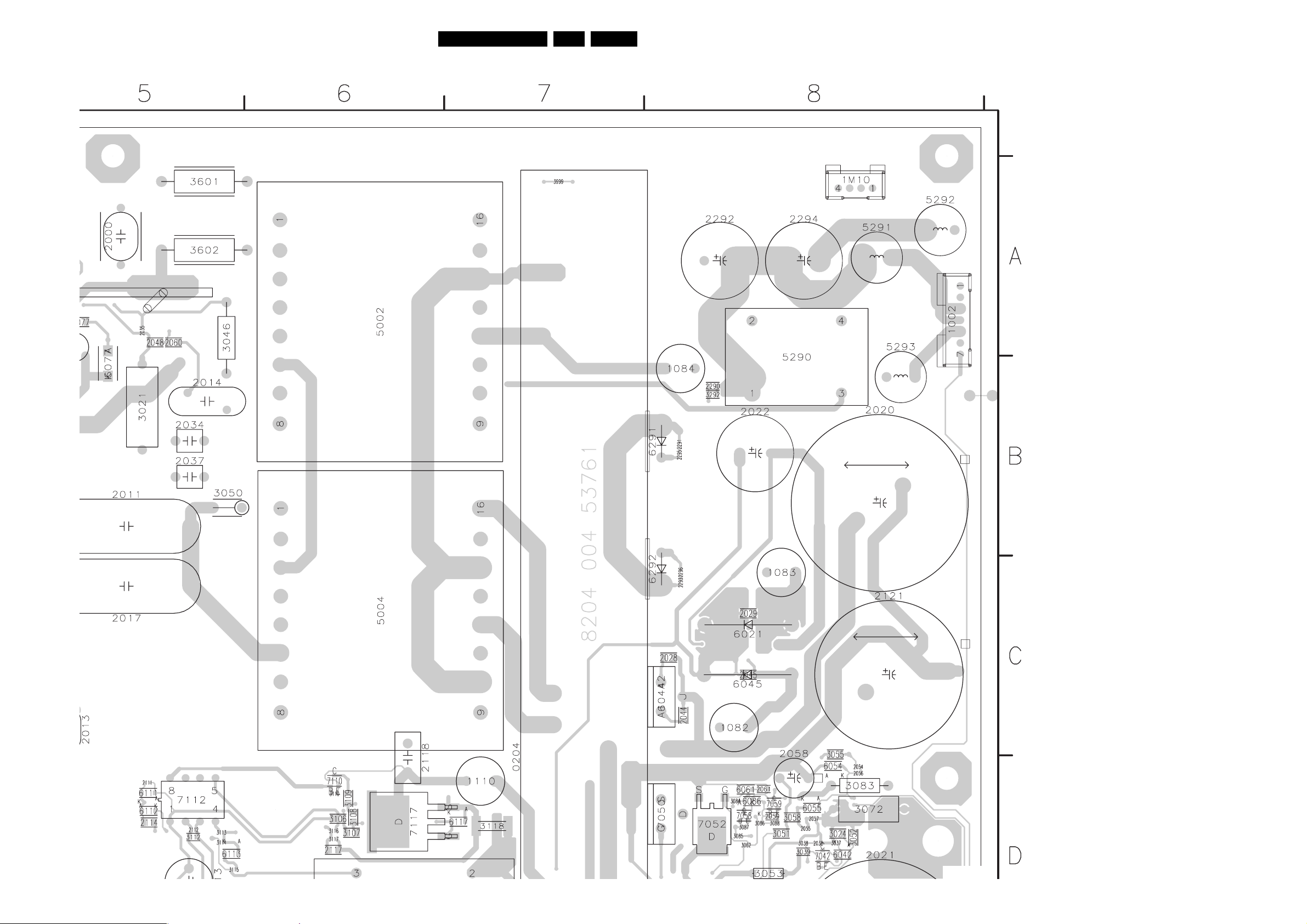

7052

7003
TCET1102

2143

5002

16

14

F005

3

12
11

6

10

9

5004

16

14

3

12
9

6

10

11

7002
TCET1102

2143

COLD GROUND

- +12V-SUPPLY -

5268

3269

- VA-SUPPLY -

+5V_INT_SW

7120
TCET1102

2143

- VCC-SUPPLY -

I236

7217

3149

3218

3213

3220

3053

+T

I201

3268

6133

3111

5220

1

4
5

7

3

+5V_INT_SW

LATCH

1084

T1.0A

6044

1082

T2.5A

1083

T2.5A

6029

7121
7130

14

13

12

11

8

14

7220
TCET1102

2

F293

F294

+12V

+8V6

VCC

+12V

VA

VCC

VS

VA

VCC

VCC

VA

VCC

F_16040_022.eps

240206

1002

1M10

1M46

0323

0342

0352

7

6
5

4
3

PDP AUDIO

2
1

1
2

AMBI LIGHT

3
4

IBO ZAPPER

1
2
3

TO (1J01)

5
6
7
8
9

10

1
3
4
5

TO CN23

6

PDP DISPLAY

8
9

10

1
3
4

TO CN42

PDP DISPLAY

5
7

1
4

TO CN52

5

PDP DISPLAY

7

TO 1M02

C

TO 1M10

AL

OR 1301

K3

1M46

B16

SSB

(RES)

(RES)

A3

6291

6642

7042

3039

7010
7011

VRA

VSA_CONTROL

6226

5229

3228

7502

A3

22942294

F016

3037

6042

VRS
FEEDBACK

6230

F116

1
K

2

R

A
3

5290

VS

2045

6045

2029

6021

3022
3080

6012

2269

2121

+30V

3111

VA
Adj.

3229

2021

3072

3057

3224

5293

5291

5292

VSND_POS

GND_SND

VSND_NEG

A2

A3

5225

7230

IN OUT

COM

DC_PROT

70-90V

VTUN

+30V

VRS

+12V

VCC

+8V6

VB

A2

VA

+5V_STBY_SW

VS

VTUN

+9V_STBY

Block Diagrams, Test Point Overviews, and Waveforms

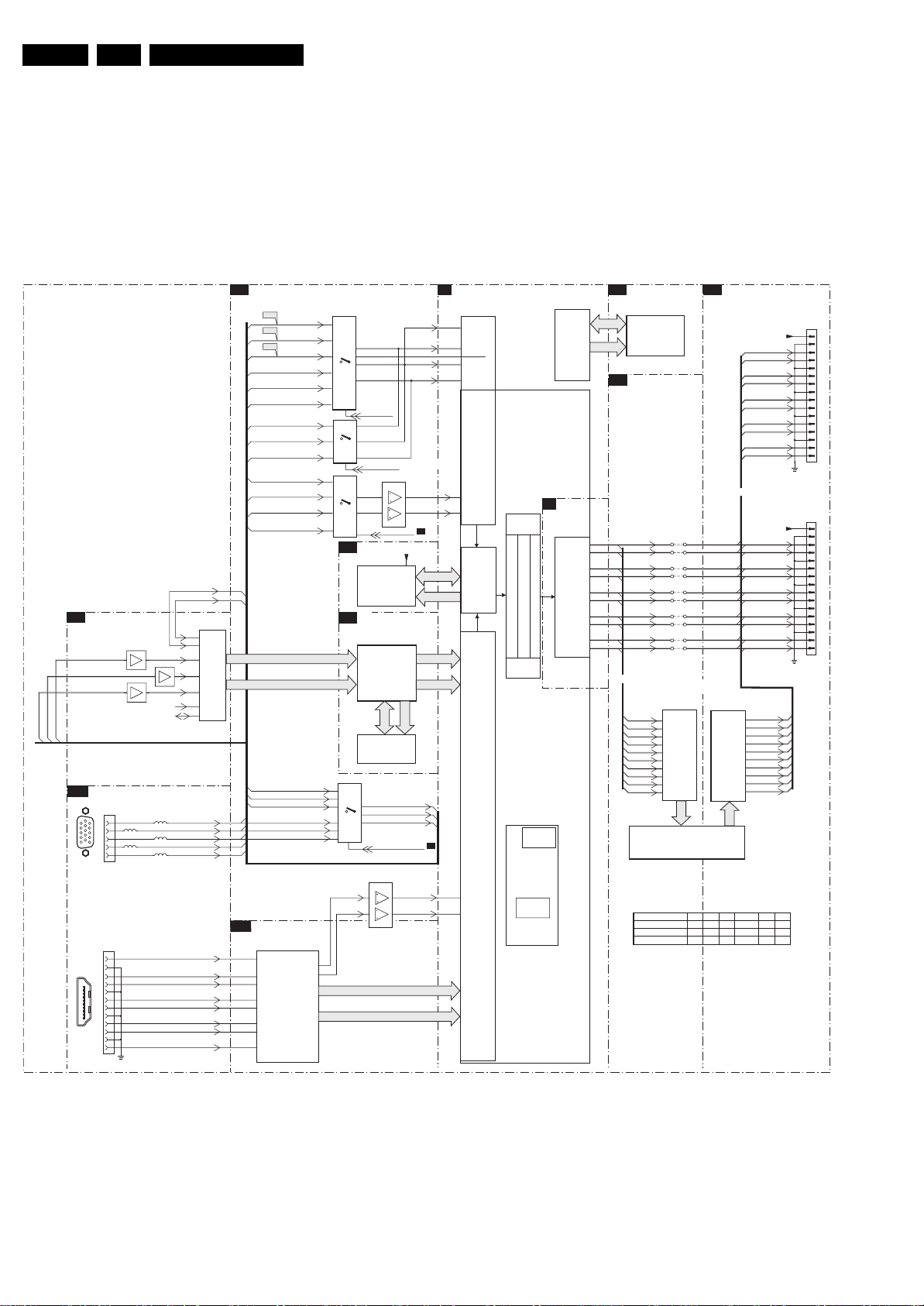

Block Diagram Video

VIDEO

TUNER & VIF

B1

RF

B23

VIDEO

S-VHS

VIDEO

D

IN

OUT

VIDEO

+5SW_a

1102
UV1318SD

CINCH ANALOGUE IO

IN

Pr

Y

Pb

+VTUN

67

TUNER

4

5

SCL

SDA

SEL_IF_SDM

B2

1R02

1

3

5

4

2

1R07

1R06

SIDE AV

1002

IN

1001

1

3

5

SVHS

4

2

1

9

IF-TER

11

CVI_P

CVI_Y_IN

CVI_Pb_IN

Y

C

r_IN

1M36

7101

B17

B17

2

4

2106

6104

FRONT_

7R12

EF

4R68

4R70

4R69

SIDE

B17

CONNECTIONS

1K04

2

FRONT_YCVBS_IN

4

1104

7

2

8

3

3104

1106

2

SC2_Y_IN

Y_CVBS_IN

SC2_C_IN

FRONT_C_IN

SC2_CVBS_MON_OUT

SC1_CV1_DMMI_R_Pr_IN

SC1_CV1_DMMI_G_Y_IN

SC1_CV1_DMMI_B_Pb_IN

FRONT_C_IN

VIF1

VIF2

RF_AGC

SIF1

7

SIF2

8

2

1

12

13

7R57

B2

24

25

31

29

30

14

15

B23

B23

HERCULES

7217
TDA15021H

AC

DC

SC2_AV3_Y_IN

4R64

4R12

B7

SC2_OUT_SW

AGC

Detect

QSS Mixer
AM Demod.

SC2_AV3_C_IN

CVBS_COMB

SC2_

7219

14

Sound
Traps

Y_IN_1

B13

B13

B13

EN 26LC4.9U AA 6.

MUX-SYNC INTERFACE

B13

7208

RO

85

G_OSD

Vertical &
East-West
Geometry

Sync Sep

H-OSC
H-Shift
H-Drive

CVBS/Y

YIN

B_OSD

B22

RO

GO

BO

Fast Blanking

VDRB

HOUT

DIGITAL IO

10

5

1

PC-VGA/

CVI-2

GO

86

BO

87

B3

VSYNC

22

HOUT

67

B18

7L01

7L02

1Q01

1

15

5Q06

2
3

6

5Q21

13

11

14

CVBS1

c

cvbs/y

HERCULES

Dig. 2H/4H

Combfilter

Yint

Y Delay Adj.

Chroma

Uint

PAL/NTSC/

SECAM

Decoder &

Vint

Baseband

Delay

RGB/Pr Pb Insert

INSSW3

R/Pr-3

G/Y3

B/Pb-3

77 78 79 80

N.C.

SC1_FBL_IN_1

SC1_G_CVI_Y_IN

SC1_R_CVI_Pr_IN

SC1_B_CVI_Pb_IN

B13

B13

B13

SAT

SCAVEM

on text

YUV Interface

YOUT

74 75 76 70 71 72

Video

Switch

+

Control

QSS/FM

AM

59

7206

EF

64

51

52

58

13

48

12

9

55

43

UOUT

Skin Tone

U/V Tint

Saturation

Peaking

SCAVEM

U/V Delay

VOUT

RGB Matrix

Blue & Black

Strech

Gamma Corr.

R_OSD

YUV

YUV in/out

H/V

VIN

UIN

N.C.

INTF_V_OUT

INTF_U_OUT

INTF_Y_OUT

EF

7209

7210

EF

SYNC INTERFACE

7436-2

7436-1

HISTO­GRAM

EF

EF

7L03

5Q01

5Q11

5Q23

43

31

EF

SCL

SDA

Vsync_SDTV

Hsync_SDTV

GINA|YINA

EF

7L04

MST9883C
30
31

54

43

48

56
57

RINA|Pr

BINA|Pb

H_PC
V_PC

A/D

CONV.

FE00

FE01

FE02

SC1_R_CVI_Pr_IN

B13

SC1_G_CVI_Y_IN

B13

SC1_B_CVI_Pb_IN

B13

BINA|Pb

B22

GINA|YINA

B22

B13

RINA|Pr

B22

Vsync_SDTV

B3

B22

B13

B22

Hsync_SDTV

B3

COL_Di(1-7)

COL_YA(1-7)

SC1_CV1_DMMI_R_Pr_IN

B23

SC1_CV1_DMMI_G_Y_IN

B23

SC1_CV1_DMMI_B_Pb_IN

B23

B13
B13
B13

B13
B13

R_SDTV

G_SDTV

B_SDTV

V_PC

H_PC

GINA|YINA

RINA|Pr

BINA|Pb

27

3

7

25

1

5

11

15

1

1

2

12

13

13

12

7E01

7E02

7E03

B10

B19

7E00

1
3

2
5

H_HDMI

V_HDMI

R_PR-ADC

17

G_Y-ADC

14

B_PB-ADC

11

9

12

14

2

19

15

5

14

1

10,11

SDRAM

7B01
K4D263238F

SDRAM

1Mx32x4

COLUMBUS

(Dig. PAL/NTC Comb)

7M00
T6TU5XBG

COLUMBUS

DIGITAL COMB

FILTER

7M01
MSM56V16

DRAM

512Kx16x2

SC1_R_CVI_Pr_IN

14

SC1_G_CVI_Y_IN

15

SC1_B_CVI_Pb_IN

4

RGB|CVI_HDA_SEL

9

7E05

5

1

PC_HD_DET

7604

SD_HD_SEL

+2V5_DDR

COL_A

HDMI_VHS

8

HDMI_VVS

4

8

4

95

COL_D

AVSY NC

AHSYNC

SOG

R_PR+

G_Y+

B_PB+

B7

B7

FSDATA

FSADDR

COL_Do(1-7)

COL_YB(1-7)

B7

B7

B2,B13
B2,B13
B2,B13

SCALER

7801
GM1501

C3

D2

C2

B2

L3

L4

C14

B14

ANALOG

INPUT
PORT

FRAME

STORE

CONTROL

SCALER

GRAPHIC

ZOOM

OUT BLENDER

OSD CONTROLLER

VIDEO
ZOOM

UART

INTERFACE

EXTERNAL

ROM

INTERFACE

SCALER

B9

AE16
AF16

AE15
AF15

DISPLAY

AE14

TIMING

GEN.

AF14

AF12
AF11

BRIGHTNESS/CONTRAST/HUE/SAT

AF13
AE12

B11

OCMDATA

OCMADDR

NVM_WP_SCALER

B20

OR

FLASH/CONTROL

7C00
MX29LV040QC

FLASH

ROM

512Kx8

7C01
M24C32

SCL_IO

6

EEPOM

SDA_IO

5

4Kx8

7

EPLD

TXB0­TXB0+

TXB1­TXB1+

TXB2­TXB2+

TXB3­TXB3+

TXBC­TXBC+

TXB0+
TXB0­TXB1+
TXB1­TXB2+
TXB2­TXB3+
TXB3­TXBC+
TXBC-

7N02
EP1C12F256C8N

4N03
4N01

4N07
4N05

4N11
4N09

4N15
4N13

4N19
4N17

7N04
THC63LVDF84B

LVD S

INTERFACE

RECEIVER

PROCESSOR

Only for sets with

RGB

EPLD

PIXEL+

B21

PIXEL PLUS

EPLD

LVD S An
LVD S Ap

LVD S Bn
LVD S Bp

LVD S Cn
LVD S Cp

LVD S Dn
LVD S Dp

LVDSCLKn
LVDSCLKp

7P02
THC63LVDM83R

LVD S
TRANS­MITTER

RGB

OR

LVDS_VCC

LVD S A­LVD S A+

LVD S B­LVD S B+

LVD S C­LVD S C+

LVD S D­LVD S D+

LVDSCLK­LVDSCLK+

LVDS_VCC

LVD S A­LVD S A+

LVD S B­LVD S B+

LVD S C­LVD S C+

LVD S D­LVD S D+

LVD S CL K­LVD S CL K+

LVD S An
LVD S Ap
LVD S Bn
LVD S Bp
LVD S Cn
LVD S Cp
LVD S Dn

LVD S Dp
LVDSCLKn
LVDSCLKp

1P07

1P06

1
11
12
13
14
15
16
17
18
19
20
24

TO DISPLAY (LC4.8 LC4.9)TO DISPLAY (LC4.3)

25
26
21
22

1
11
10
12
14
13
15
19
18
20
27
26
28
22
21
23

1

19

HDMI/PC-D

HDMI

B12

7D03

1Q03

1
2
3
4
5
6
7
8

18 2

9
10
11
12

RX2+

RX2-

RX1+

RX1-

RX0+

RX0-

RXC+

RXC-

SII9993CTG100

97

96
92

91
87

86
84

83

HDMI

PANELLINK

RECEIVER

33
34

HDMI_Y(0-7)

HDMI_CbCr(1-7)

DVI/HDMI

INPUT
PORT

MICRO

CONTROLLER

INTERNAL

RAM

SD_HD_SEL H H H H H H
PC_HD_DET H H H H L H

RGB|CVI_HDA_SEL L H L L L L

HDPCSide-AVEXT2EXT1TV

F_15420_049.eps

251005

Block Diagrams, Test Point Overviews, and Waveforms

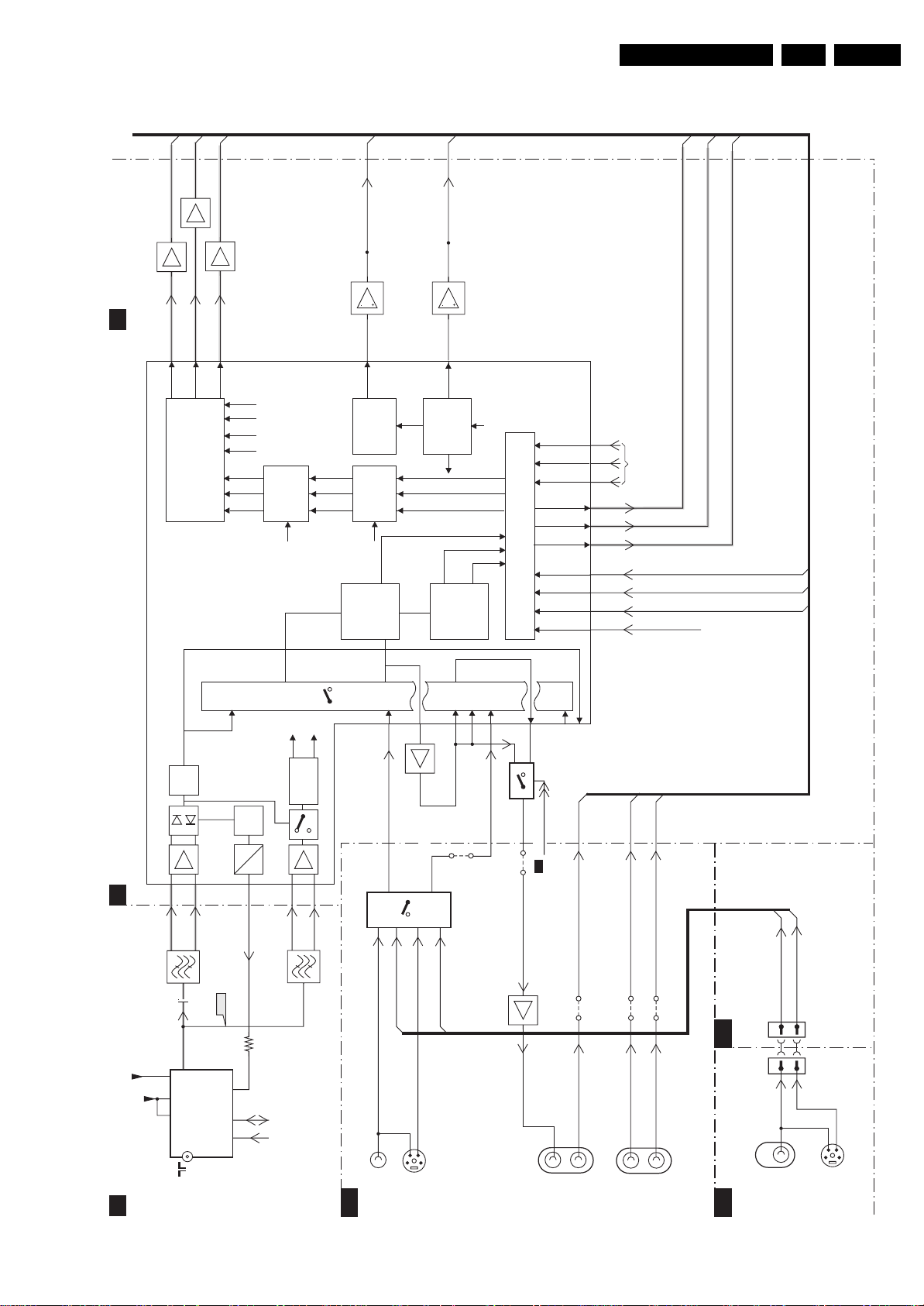

Block Diagram Audio

AUDIO

TUNER & IF

B1

1102
UV1316E/A I H-4

RF IN

RF OUT

Only on

DVB Sets

CINCH ANALOGUE

B23

1R06

CVI-1
AUDIO
IN L/R

1R03

AV

AUDIO

IN L/R

PC

AUDIO

IN L/R

1Q03

1

18 2

19

HDMI

SIDE AV

D

AUDIO

L/R IN

1302

1
3
4
6
7

9
10
12

TUNER

4

5

SCL

SDA

SC1_COMP_AV1_L_IN

SC1_COMP_AV1_R_IN

AV3 _L

AV3 _R

L_FRONT_IN

R_FRONT_IN

IFOUT

B22

3Q30

3Q31

F108

11

SEL_IF_SDM

B2

SC2_L_IN

SC2_R_IN

DIGITAL IO

AV3_LEFT

AV3_RIGHT

RX2+

RX2-

RX1+

RX1-

RX0+

RX0-

RXC+

RXC-

IF-TER

1M36

2106

7101

B12

7D03
SII9993CT

97
96
92
91
87
86
84
83

B17

1K04

66

88

4110

6104

HDMI

HDMI
PANELINK
RECEIVER

2

3

16

14

1106

7D05

12
13

2
1

SIDE CONNECTORS

7

8

SC1_COMP_AV1_L_IN

SC1_COMP_AV1_R_IN

SC2_L_IN

SC2_R_IN

AudioIN2L

15

AudioIN2R

14

10,11

AV3_HDMI-AUDIO_SEL

FRONT_L_IN

FRONT_R_IN

SIF1

SIF2

HERCULES

B2

7217
TDA15021H

29

30

33

34

35

56

57

53

54

B7

49

50

AD Conv.

Std Stereo

Decoder

AUDIO

SELECT

ADC/DAC

QSS Mixer

AM Demod.

AM

QSS/FM

I2S

Processor

AUDIO

CONTROL

Vol/Treb/

Bass

Features

DACs

EN 27LC4.9U AA 6.

60

61

62

63

36

37

4212

AUDOUTLSL

4211

AUDOUTLSR

SC1_L_RF_OUT

SC1_R_RF_OUT

B16

OUT_MUTE

N.C.

AUDIO PROCESSING

B5

4618

4619

SOUND-ENABLE_1

B5

7601
TS482ID

2

6

OUT_MUTE

3

6

OUT_MUTE

POR_AUDIO

8

7202

MUTE

AUDIO-L

AUDIO-R

POR_AUDIO

PROTECT_AUD

7602
74HC08PW

2

&

1

&

5
9

&

10
12

&

13

TO PDP

SUPPLY

1

7

7606

SOUND_ENABLE

POWER_DOWN
EXT_MUTE

3628

3629

SC2_L_MON_OUT

SC2_R_MON_OUT

B16

1J00

8

MUTE

SC2_L

SC2_R

(1M52)

+5V

C

1J04

1M52

11

33

88

99

77

B17

B2

B23

B16

B2

AUDIO AMPLIFIER

(CLASS-D)

SOUND-ENABLE

PROT-AUDIOSUPPLY

SIDE
CONNECTORS

HP_LOUT

HP_ROUT

N.C.

CINCH ANALOGUE

AUDIO-R

AUDIO-L

POR

D

1M36

1K04

10 10

11 11

77

7700
LM393PT

3

5

7706-7710

SIDE I/O

SOUND L-HEADPHONE-OUT

SOUND R-HEADPHONE-OUT

DETECT

1

17

7

SOUND
ENABLE

7715-7717

AUDIO

SUPPLY

PROT,CIRCUIT

SC2_L_MON_OUT

SC2_R_MON_OUT

7701
TDA8925ST

CLASS_D

AMPLIFIER

1

4

DC-PROT

6702

6705

11

7

-19-16V

+19-16V

-19-16V

5702

5700

1M02

1010

1

2
7
5

6

2

3
5

1735

1736

TO 1M02

A

PDP

SUPPLY

1R07

1

3

RIGHT

SPEAKER

1

3

LEFT

SPEAKER

HEADPHONE

AUDI O

OUT L/R

CONTROL

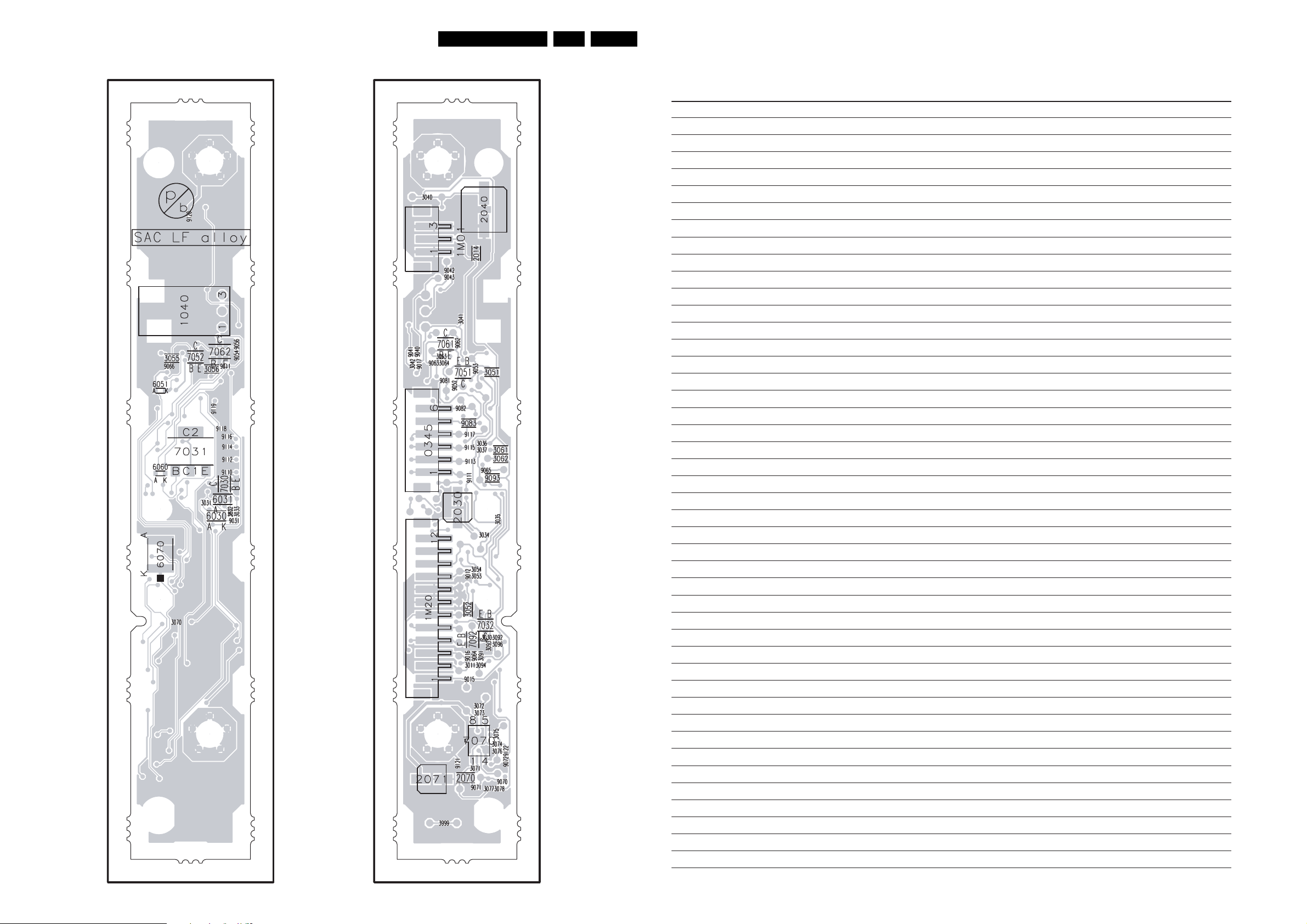

CONTROL BOARD

E

LED PANEL

J

1040

2

GND

OUT

+5V2-STBY

7052

+5V2-STBY

3

VS

1

6070

7051

Channel+

Channel-

Menu

Volume+

Volume-

Power

6050

6051

Green

Red

7062

3063

1703
1704
1705
1702
1701
1706

3051

KEYBOARD

RC

LIGHT-SENSOR

3061

+5V2-STBY

LED1

LED2

B17

1M01

22

0345

33

11

22

55

44

66

SIDE CONNECTORS

1K02

(1M01)

1K00

+3V3STBY

LED_SEL

PC-TV-LED

SYNC INTERFACE

B3

7430

3431

6F00

3432

RES

KEYBOARD

LIGHT_SENSOR

+3v3STBY

+5VSW

ITV_IR_SW_RESET

HERCULES

B2

7217
TDA15021H

120

HERCULES

IR

97

115

123

107

114

116

119

102

111
122

127

10

11

SEL_IF_SDM

4022

SERVICE

SDM

STATUS_1
STATUS_2

EXT_MUTE

SOUND-ENABLE

SC_STANDBY

AV2_DMMI_SW

1202

B3

B3

B5

B5

B15

B1

B15B6

DC-DC CONVERTER

B6

PANEL-PWR-CTL

B8

SC_STANDBY

B2

+12VSW

7755

5756 5754

3758

3755

+3V3STBY

3759

7756

7754

3750

7758

LVDS_VCC

PAN_VCC

+3V3SW

F_15451_002.eps

291105

Block Diagrams, Test Point Overviews, and Waveforms

I2C Overview

EN 28LC4.9U AA 6.

I²C

B2

HERCULUS

7217
TDA15021H

HERCULES

SET

PROCESSOR

109

108

NVM_WP_HERC

104

+3V3STBY

3233

3232

+3V3STBY

3249

56

7207

M24C16

EEPROM

7

NVM

ERR

9

SDA

SCL

ERR

SCALER

B8

6

N1 N2

7801

GM1501H

SCALER

ERR

4

ADDRESS

DATA

ADDRESS

DATA

SCALER

B7

M1

M2

3818

P3

P4

NVM_WP_SCALER

AF5

+3V3IO

3838

AF7

AD6

+3V3SW

OCMADDR

3837

3817

OCMDATA

JTAG_TDI_SDA

JTAG_CLK_SCL

FSADDR

FSDATA

TUNER & IF

B1

3102

(5108)

54

UV1318S

TUNER

UART_TX

UART_RX

FLASH / CONTROL

B11

7

3101

(5107)

1102

ERR

10

3122

3123

SDA_IO

SCL_IO

56

7C01

M24C32

EEPROM

ERR

8

7C00

MX29LV040

FLASH ROM

B10

1802

2

1

JTAG

I2C

3125

+3V3STBY

3120

SDRAM

K4D263238F

3124

SDA

SCL

SERVICE

CONNECTOR

COMPAIR

3121

SERVICE

CONNECTOR

7B01

SDRAM

ERR

14

1101

1
2
3

1107

1
2
3

UART

SCALER INTERFACE

B9

COLUMBUS

B19

7A00
PCA9515ADP

3

2

4A01

4A00

FOR

PDP ONLY

3M14

A15

7M00

T6TU5XBG

COLUMBUS

CTRL

ERR

6

7

RES

11

3M15

B15

SDA_DMA_BUS1_DISP

SDA_DMA_BUS1_DISP

B18

B21

ADC

7L07

+3V3SWB

EPLD

1P07

(1G50)

31

30

TO

DISPLAY

7L06

B12

+3V3SWB

3L36

HDMI

3D05

75 74

7D03

SII9993CT

HDMI

PANELLINK

RECEIVER

ERR

13

3L37

3D06

3L19

57

7L04

MST9883C

ANALOG

INTERFACE

ERR

76

77

56

M24C02

EEPROM

7

7D00

256x8

3L20

3D07

56

+3V3SW

3D08

7D02

7D01

+3V3SW

DIGITAL IO

B22

DOC_SDA

DOC_SCL

1Q03

16

15

HDMI

CONNECTOR

EPLD

B20

4N21

4N22

T2 R2

7N02

18 2

EP1C12F256C8N

EPLD

BANK 4

ERR

16

1

19

3N47

3N46

+3V3SW

1N02

1
2

SDA

3
4

SCL

FOR

DEVELOPMENT

USE ONLY

112

113

ERR

IBO ZAPPER

CINCH ANALOGUE IO (1FH)

B23

SW_I2C_SDA

SW_I2C_SCL

17

1R03

K5

1500

1

1

2

2

(Only For DVB Sets)

ANALOG BACKEND

3513

I2C_TV_SDA

3512

I2C_TV_SCL

K6

FRONT END

3607

I2C_TDA_SDA

I2C_TDA_SCL

3605

98

1600

TD1316L

TUNER

DIGITAL

+5V

3626

3632

3633

56

7602

M24C256

EEPROM

3627

3630

3631

43

TDA10046

COFDM

CHANNEL DECODER

3625

7600

86

I2C_local_SDA

I2C_local_SCL

3629

K1

MOJO

3147

3146

98

PNX8316HS

7100

MOJO

3144

3143

76

185

3207

WP

+5V

3206

+5V

3625

MEMORY

K2

3209

56

7203

M24C64

7

EEPROM

3210

MEMORY

K7

3701

30 31

ST70700

PCMCIA

CONTROLLER

7700

3700

DIGITAL IO

B22

5

1

VGA

CONNECTOR

1Q01

10

15

12

6

15

11

EEPROM

5

7Q25

M24C02

256x8

SDA_VGA

SCL_VGA

6

F_15270_083.eps

170106

Block Diagrams, Test Point Overviews, and Waveforms

Supply Line Overview

SUPPLY LINE OVERVIEW

SUPPLY
PANEL
(PSU)

1M46

1M03

1M02(1002)

TOP CONNECTORS

B16

1J02

1
2
3
4
5
6
7
8
9
10
11
12

RES

1J01

(1M46)

1
2
3

N.C

.

1J07

4
5

N.C

.

6

1J08

7
8

N.C

.

9
10

N.C

.

4J01

11

1J00

(1M03)

1
2

N.C

.

3
4
5
6

N.C

.

7
8
9

N.C

.

10

TO 1M02

C

AUDI O

AMPLIFIER

MFD SUPPY

POWER_DOWN
STANDBY
BACKLIGHT_CTRL
LAMP_ON_OFF

UFD SUPPY

+12VUFD

+5V_UFD

UFD CONTROL

BACKLIGHT_CTRL

LAMP_ON_OFF

FAN_SPEED

STANDBY
PROTECT_AUD

POWER_UP_OK

5J03

VP

+3V3STBY

+12VUNREG

+5V_UFD

1J03

EN 29LC4.9U AA 6.

1M36

7

0345

5

D

J

SIDE I/0

+5VSW

LED PANEL

+5V2-STBY

F_15430_054.eps

301105

TUNER & IF

B1

5753
5754

5733

5700

+5VSW

+5VSW_a

+5VSW_b

+3V3STBY

+3V3STBY

+1V8_A

+1V8_B

HERCULES

+5VSW

+8VSW_TV

+3V3STBY

+3V3SW

+5VSW

+5VSWI

+5VD

+3V3SW

+3V3STBY

+5VSW

+5V

+12VUNREG

+12VSW

+8VSW_TV

+5VSWI

6735

+VTUN

+5VSW

5737

(Only LCD)

PAN+VCC

LVDS_VCC

(Only UFD)

+5V

+3V3STBY

+3V3SW

B8

B8

B6

B8

B8

B6

B16

B16

B6

B6

B8

B8

B6

B6

B22

B6

B6

B6

B6

B2

B4,B9,B13,
B14,B19

B1,B2,B3,
B15,B17

B21

B1,B2,B3,
B5,B9,B17

B3,B5,B7,
B8,B9,B11
B12,B13,
B19,B20,
B21

B6

1

N.C.

B16

B16

B6

B6

B6

B5,B6,B9

B16

B6

B6

B6

B6

B16

B6

B16

B16

B16

N.C.

+5VSW

5102

5103

+3V3STBY

HERCULES

B2

+3V3STBY

3265

7215

3264

3263

7217

3262

+5VSW

+8VSW_TV

SYNC INTERFACE

B3

+3V3STBY

+3V3SW

+5VSW

AUDIO DELAY LINE (RESERVED)

B4

+5VSWI

5501

AUDIO PROCESSING

B5

+3V3SW

+3V3STBY

+5VSW

(Only UFD)

+5V

DC-DC CONVERTER

B6

+12VUNREG

7738

5738

7752

5752

5730

7754

7710

5712

IN OUT

COM

7708

IN OUT

COM

SC_STANDBY

Converter

7730

6708

5709

+5V

5704

+3V3STBY

7216-1

7216-2

IN OUT

COM

DC/DC

PWR
REG

5757

PANEL-PWR-CTL

7758

SCALER

B7

+1V8_CORE

+2V5_DDR

+3V3SW

+3V3_IO

+3V3_PLL

SCALER

B8

+3V3SW

5900

5901

5902

5903

5904

5905

5906

5907

7900

IN OUT

COM

7901

IN OUT

COM

SCALER INTERFACE

B9

+3V3SW

+3V3STBY

+5VSWI

+5V

SDRAM

B10

+2V5_DDR

3B01

FLASH / CONTROL

B11

+3V3_IO

+3V3SW

HDMI (Not for EUR Sets)

B12

+3V3SW

+5VHDMI

MUX-SYNC INTERFACE

B13

+3V3SW

+5VSWI

DIGITAL IO (Only for EUR Sets)

B14

+5VSWI

6F00

6F01

3F20

1F00

1

DVI

SCART ANALOGUE IO (Only for EUR Sets)

B15

+5VSW

5908

5909

5910

5911

5F03

+1V8_CORE

+2V5_DDR

+3V3SW

+3V3_IO

+3V3_PLL

+3V3SW

3V3_PLL

3V3_ADC

3V3_DVI

3V3_IO

3V3_LBADC

3V3_LVDSA

3V3_LVDSB

3V3_LVDS

+2V5_DDR

+1V8

+1V8_ADC

+1V8_DV1

+1V8_CORE

+3V3SW

+3V3STBY

+5VSWI

+5V

+2V5_DDR

FSVREF

+3V3_IO

+3V3SW

+3V3SW

+5VHDMI

+3V3SW

+5VSWI

+5VSWI

DDC_5V

DVI_5V

+5VSW

1M02

PSU

B16

B19

B6

B7

B7,
B11,B20

B6

B6

B7,B10

B6

B7

B8

B6

B6

HDMI

VGA

B6

B6

SIDE CONNECTORS

B17

+3V3STBY

5K00

+5VSW

5K01

ADC

B18

+5VSWIA

7K05

IN OUT

COM

COLUMBUS

B19

+3V3SW

5M03

+5VSWI

5M04

EPLD

B20

+3V3SW

+3V3-IO

EPLD

B21

+3V3SW

5P01

7P01

IN OUT

COM

LVDS_VCC

DIGITAL IO (Not for EUR Sets)

B22

1Q03
18

1870

9

10

+5VSWI

B23

+5VSW

C

1M02

1

2

5
6

6Q16

3Q16

3Q17

5Q16

3Q18

CINCH ANALOGUE (Not for EUR Sets)

AUDIO AMPLIFIER

5708

5714

5701

7702

5705

5709

+3V3STBY_1

+5VSW_1

5P02

5P03

+3V3STBY

+5VSW

+5VSWIA

+3V3SWB

+3V3SW

+3V3SWA

+5VSWI

+5VSWIA

+3V3SW

+3V3-IO

+3V3SW

+3V3-IO

1V5

1V5-PLL

1V5-INT

LVDS_VCC

+5VSW

DDC_5V

+5VSWI

+5VSW

-19-16V

-19-16VS1

-19-16VS2

VDDOPAMP

+19-16V

+19-16VS1

+19-16VS2

1K00

1K04

1K04

B17

0345

5

J

1M36

7

D

1K00

B17

B18

B12

Circuit Diagrams and PWB Layouts

EN 30LC4.9U AA 7.

7. Circuit Diagrams and PWB Layouts

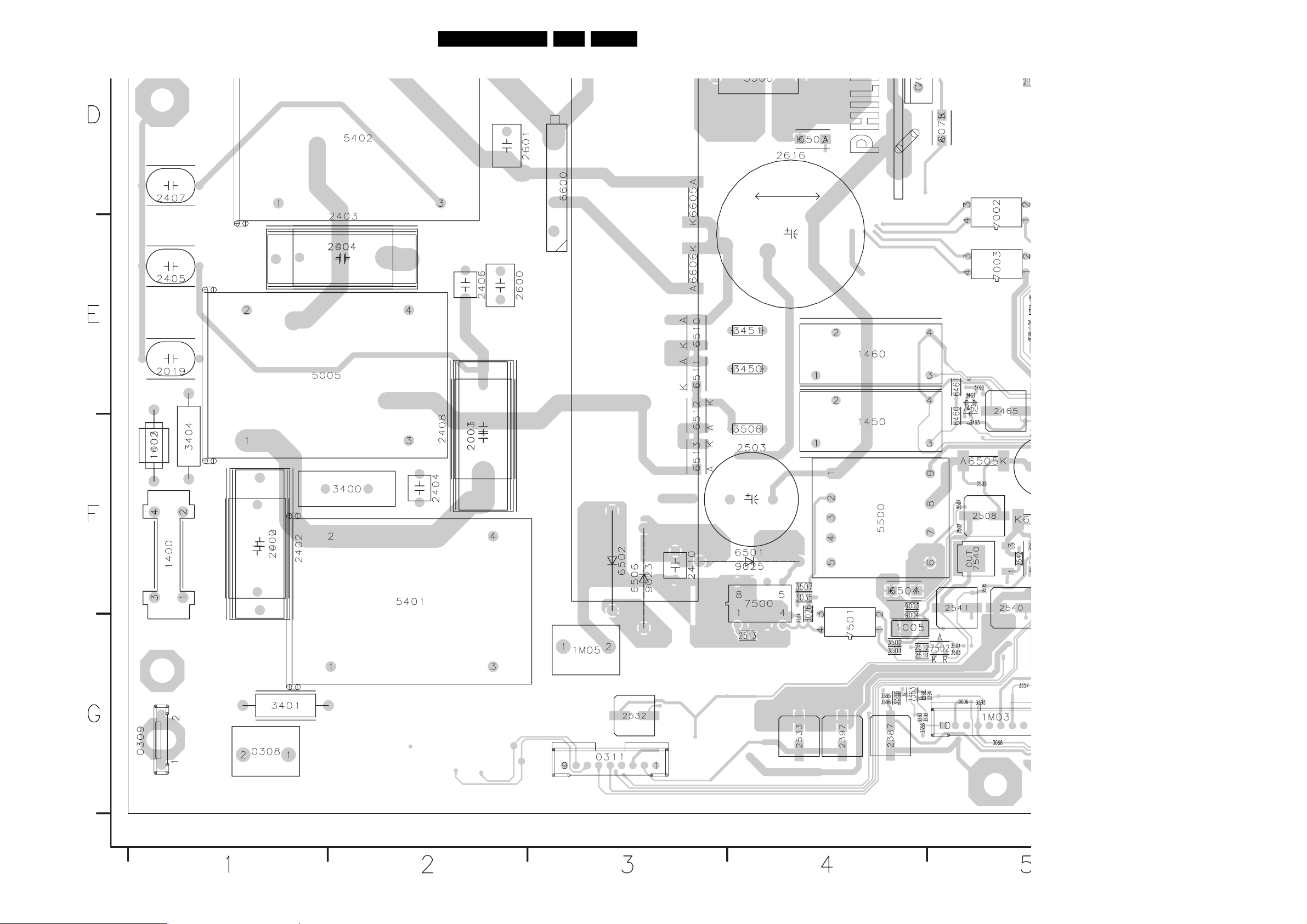

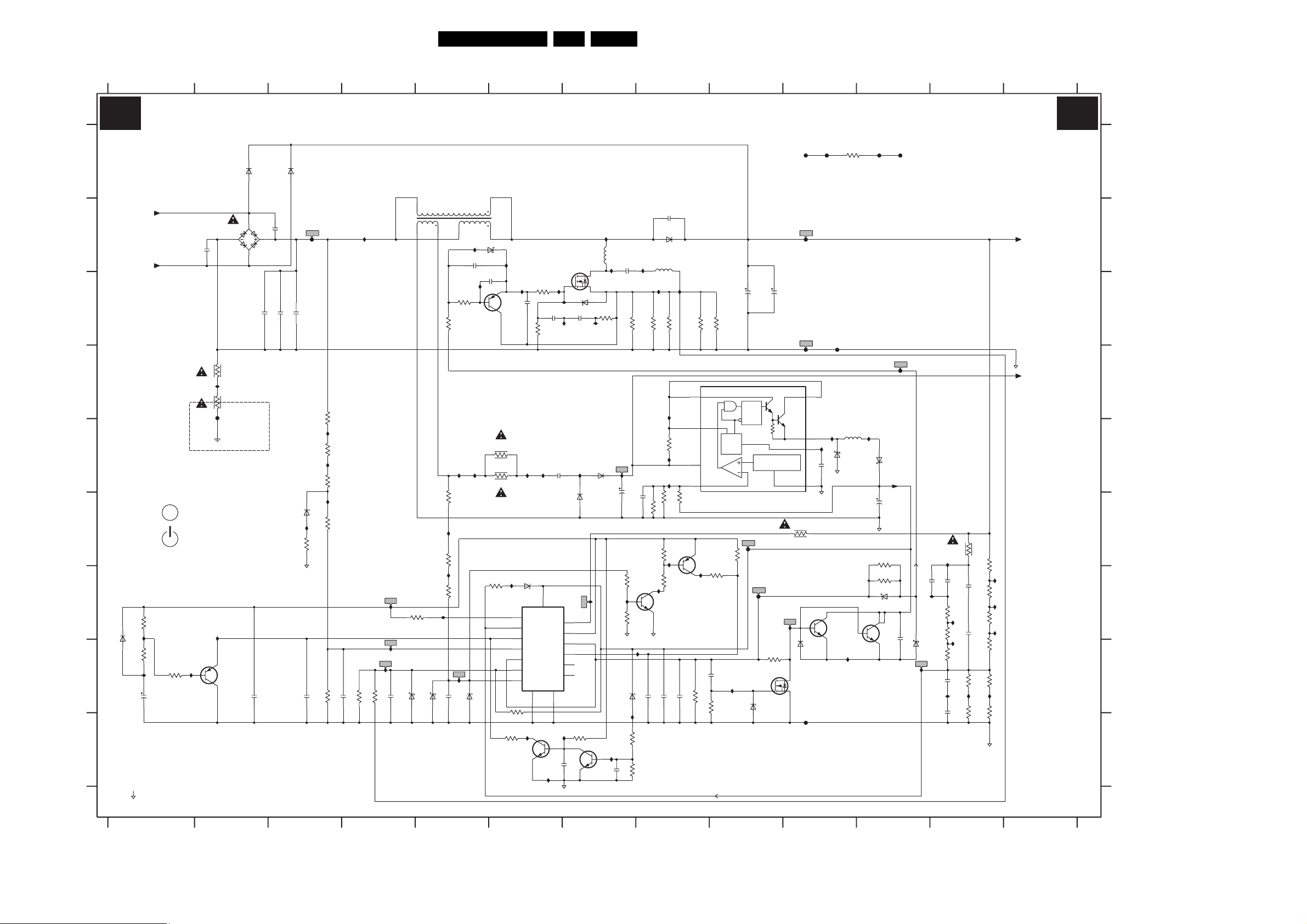

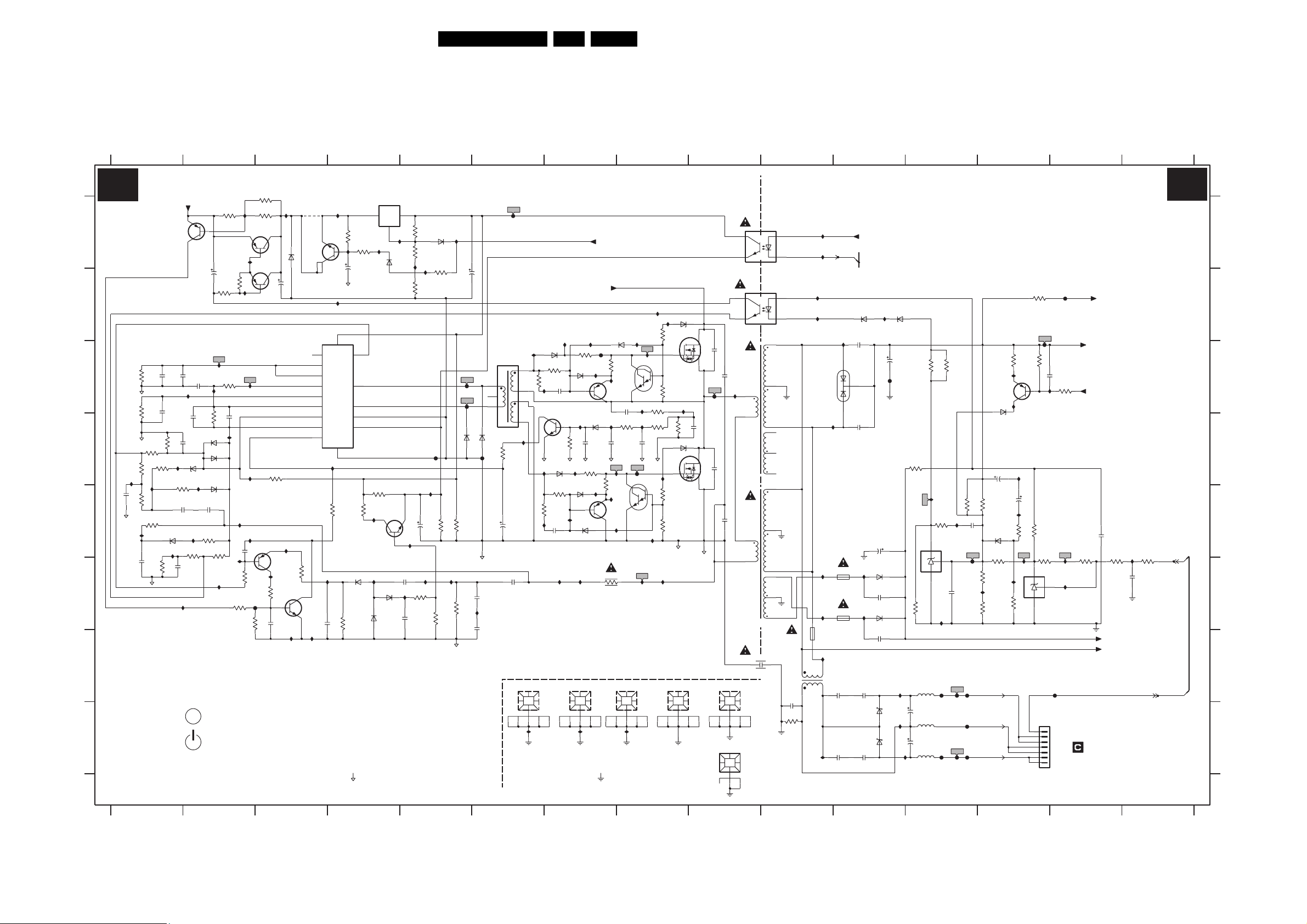

PDP FHP Supply: Filter Standby

1 234567

A2 A2

FILTER STANDBY

I405

MAINS

I400

A

B

MAINS
INPUT

95-264Vac

0308

2

1

B2P-VA-BF

AC3

F401

F402

F406

F403

F404

F407

3401

F405

T6,3AH/250V

1M0

VR37

F408

F409

1400

19181

F410

2400

470n

2402

470n

I401

2002

1003

V_NOM

1402

3404

220R

500V

DSP-501N

AC2 AC5

V

470n

3400

2322595

495

ERC12

5401

12

3

4

DMF28

2404

47p

1000V

AC2

2003

AC3

FILTER

I402

470n

2001

470n

2408

I403

250V

2405

470p

12

470n

34

47p

250V

470p

2019

COLD

GROUND

5005

DMF28

2406

1000V

I521

5402

1

2

2403

470n

2004

AC3

250V

2407

470p

470n

2401

I404

470n

3

4

DMF28

I520

C

I502

GROUND

1M05

1
2

B2P-VA-BF

SECOND STBY

6512

BYG10

TO

IBO SUPPLY

I503

6513

BYG10

GROUND

GROUND

D

400V_HOT

400V_HOT

6510

BYG10

I501

6511

BYG10

STANDBY SUPPLY

E

F

G

H

MEASURED DC-VOLTAGES

I

3104 313 6128.1

5500

GROUND

I506

6

7

8

9

COLD

220p

14

7502
TS2431

2507

A

50V

6504

RS1G

I507

100p

SS34

F504

I512

3501

1

K

R

3

25V_HOT

NORMAL . . .

STANDBY (. . .)

CONTROL

3507

3035

3026

2504

HEATSINK

0203

123

+T

600V

10R

3506

232266293

I504

680K

I524

680K

I525

I508

680K

8

50V

7

1n0

6
3
2

I509

2513

25V

100n

1

S5
S4
S3
S2
S1

HEATSINK

0201

234

2505

7500

EN|UV

BP

TNY256P

3509

12R

I518

I505

6503

3508

PR02

10R

35V1m0

F500

2503

F501

4

D

5

1

RS1G

5

4

3

2

47u 400V

I510

1000V

RES

2410

47p

1

BS16421-00

6501

9025

BZT03-C

I511

9023

6506

BZT03-C

I523

6502

BZT03-C

7501

TCET1102(G)

32

HOT

GROUND

1 23456789

I522

2509

6505

1K0

I513

I418

2502

220p

1005

750mAF

9003
9004

50V

3502

470R

100n

2511

16V

2

16V

2512

100n

2508

2510

F505

I514

F502

100u 16V

1m0 16V

1%

4K7

3503

8910

I408

I409

F507

B9B-PH-K

T2A/250V

EMC HOLE

3451

+T

10R

232266293

600V

I412

2K2

3460

0311

9
8
7

PDP (DISPLAY)

6
5
4
3
2
1

19382

2540

10K

3461

TO

CN11

100u 16V

0309

0-106451-1

6507

SS34

1450

12

34

SDT-SS-109DM

I407

F503

1%

4K7

3505

33K

3504

I406

9028

5503

22u

+3V3_STBY_SW

EMC HOLE

1404

3450

AC5

+T

10R

232266293

600V

1460

12

34

SDT-SS-109DM

I519

PFCGO

F508

VSAGO
VCEGO
VRS
VRA

F513

F510

F512

GROUND

F509

F511

F506

1004

VCC

1405

GROUND

10 11 12

11 12

3452

-T
1R0

6W7

B57464

B57464

6461

I411

6460

3036

-T

BAS316

BAS316

7460

BC817-25W

1R0

3463

I410

6W7

10K

3467

I413

16V

2465

100u

10K

3465

I414

10K

RELAY CONTROL

9401

7461

BC869

1u0

2534

VCC

LD1117DT33C

S1D

6508

I527

32

100n

2542

COM

1

I526

I517

OUTIN

7540

2541

16V100u

2533

I415

3469

3470

7465
BC857BW

4K7

10K

3471

1K0

3472

1K0

16V

100u

I416

F412

2532

13

AC3

100-230VAC2

100-230VAC1

6471

BAS316

I417

F411

6470

BAS316

7470
BC817-25W

SUPPLY_ON

+9V_STBY_SW

+9V_STBY

+5V_INT_SW

+3V3_STBY_SW

16V

100u

+5V_STBY_SW

13

HOT

GROUND

COLD

GROUND

E_16040_031.eps

271005

A

B

C

D

E

F

G

H

I

0201 I4
0203 I3
0308 B1
0309 I10
0311 F10
1003 A3
1004 G9
1005 E7
1400 B1
1402 A3
1404 I8
1405 I9
1450 A8
1460 A9
1M05 D4
2001 B4
2002 B2
2003 B3
2004 B5
2019 C4
2400 B2
2401 B5
2402 B2
2403 B5
2404 B3
2405 C4
2406 B4
2407 C5
2408 B4
2410 G5
2465 C11
2502 E7
2503 F5
2504 G3
2505 F4
2507 E6
2508 F7
2509 F7
2510 F7
2511 I7
2512 I7
2513 G4
2532 H12
2533 I11
2534 H11
2540 I10
2541 I11
2542 I10
3026 G3
3035 F3
3036 A11
3400 B2
3401 B1
3404 A3
3450 A9
3451 A10
3452 A11
3460 D10
3461 D10
3463 D11
3465 D11
3467 C11
3469 D12
3470 D12
3471 G12
3472 H12
3501 H7
3502 H7
3503 I7
3504 I8
3505 H8
3506 E4
3507 F3
3508 E5
3509 E5
5005 B4
5401 B3
5402 B5
5500 F6
5503 F8
6460 C10
6461 C10
6470 D12
6471 C12
6501 G6
6502 H5
6503 E5
6504 E6
6505 F7
6506 G6
6507 H10
6508 H10
6510 E3
6511 E3
6512 E4
6513 E5
7460 D10
7461 G11

7465 C12
7470 D12
7500 G4
7501 H6
7502 I6
7540 I11
9003 F7
9004 F7
9023 G5
9025 G5
9028 E8
9401 G11
F401 A1
F402 B1
F403 B1
F404 B1
F405 B1
F406 B1
F407 B1
F408 B1
F409 B1
F410 B1
F411 D12
F412 E12
F500 F5
F501 G5
F502 E7
F503 F8
F504 F7
F505 F7
F506 G9
F507 F9
F508 G9
F509 G9
F510 G9
F511 G9
F512 G9
F513 G9
I400 A3
I401 A2
I402 B4
I403 B4
I404 B5
I405 A6
I406 A8
I407 C8
I408 A9
I409 A9
I410 A11
I411 C10
I412 D10
I413 C11
I414 D11
I415 D12
I416 D12
I417 C12
I418 E7
I501 E3
I502 E4
I503 E5
I504 E4
I505 E6
I506 E6
I507 F6
I508 F4
I509 G4
I510 G5
I511 G6
I512 H6
I513 H7
I514 I7
I517 H11
I518 E5
I519 F9
I520 A6
I521 A5
I522 E7
I523 G6
I524 F4
I525 F4
I526 H11
I527 H10

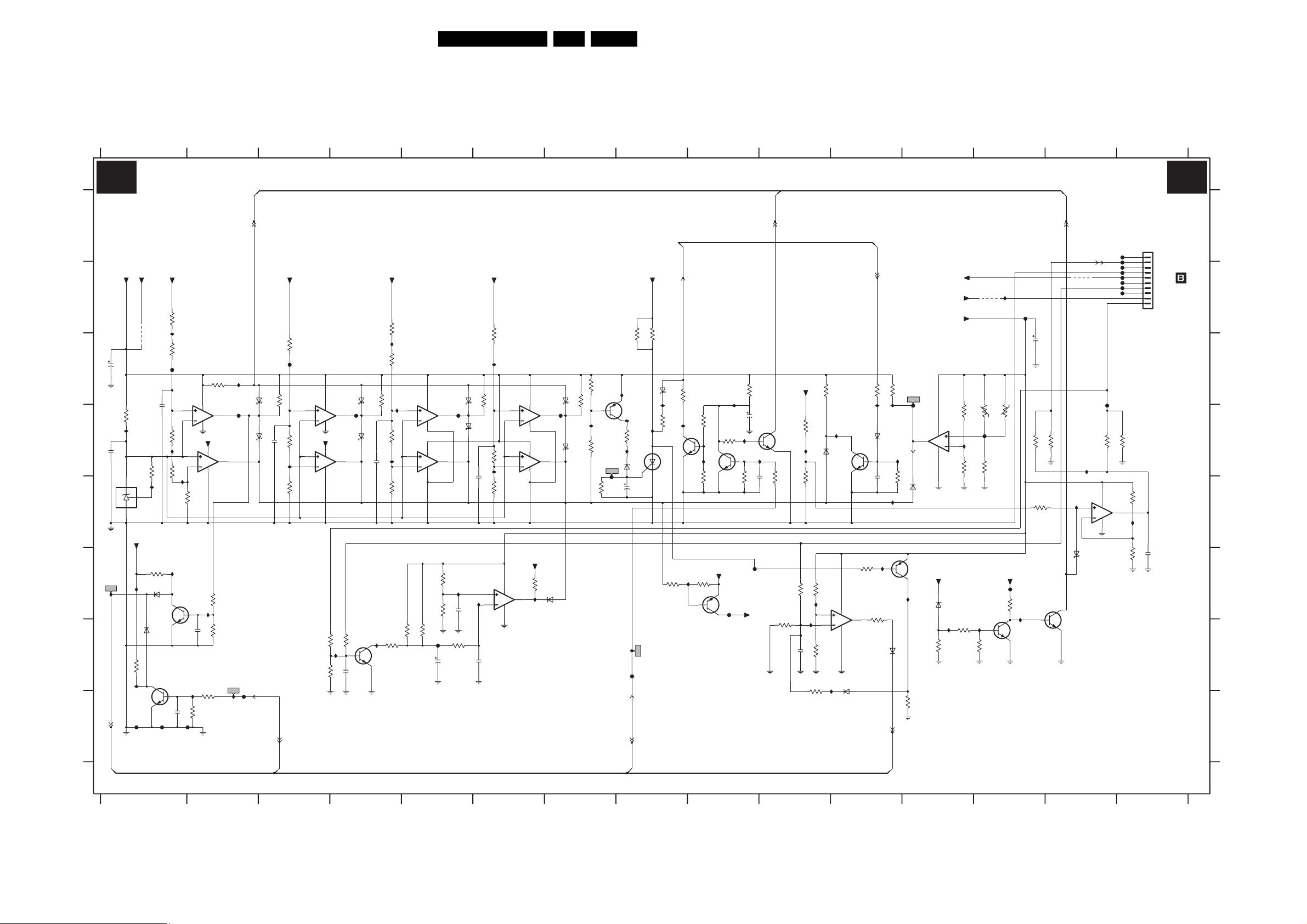

PDP FHP Supply: Protection

1M03 A15
2304 D1
2305 D1
2306 D3
2322 D4
2324 E6
2343 E8
2350 D9
2352 E9

2364 E11
2366 F15
2376 G2
2377 G10
2381 H1
2385 F5
2386 G4
2387 G5
2388 G6

2397 C13
2398 C1
3068 F10
3074 G10
3102 E1
3103 C4
3300 B1
3301 C1
3304 D1

3306 D1
3307 E1
3308 C2
3311 C3
3312 C3
3313 D3
3317 E3
3320 B4
3321 C4

Circuit Diagrams and PWB Layouts

3322 D4
3323 E4
3324 D1
3325 G12
3326 G12
3327 G13
3328 F13
3332 C6
3333 C6

3334 D6
3335 E6
3340 C7
3341 C7
3342 D7
3343 E7
3344 D8
3345 C8
3346 C8

3347 D8
3348 C8
3349 C9
3350 D9
3351 D9
3352 E9
3353 E10
3354 E9
3355 D13

3356 D14
3357 D14
3358 C11
3359 C11
3360 D10
3361 C10
3362 D15
3363 E10
3364 E11

3366 D12
3367 D12
3368 D13
3369 D13
3370 D13
3373 F1
3374 F2
3376 G2
3377 G1

3378 E13
3380 H2
3381 H2
3383 E15
3384 F15
3386 G4
3388 F8
3389 F9
3390 G5

3391 F11
3392 G3
3393 G4
3394 G3
3395 G5
3396 G5
3397 F5
3398 F5
3399 F6

3806 G10
3807 H12
3808 G10
3809 F10
3811 F11
6312 C2
6313 D2
6321 C4
6322 D4

6325 F12
6333 C5
6334 D5
6335 G11
6340 C7
6341 D7
6344 D8
6347 C8
6362 D10

EN 31LC4.9U AA 7.

6364 D11
6365 E12
6366 G11
6367 F7
6375 F1
6376 G1
6378 F14
7004 D8
7304 E1

7308-1 D4
7308-2 D4
7308-3 D2
7308-4 D2
7326 G13
7327 G14
7330-1 D6
7330-2 D6
7330-3 D5

7330-4 D5
7341 C8
7348 D8
7351 D10
7352 D9
7362 D11
7363 G4
7366-1 F6
7366-2 E14

7366-3 D12
7366-4 F11
7375 F1
7376 H1
7389 F9
7391 F12
9005 C1
9006 B13
9020 B14

F311 G5
F312 G9
F318 G8
F319 H2
F320 H1
F322 H2
F323 H1 I320 D10
F325 D13
F326 D2

F327 D4
F328 D5
F329 D7
F330 C1
F335 C12
F343 D7
F368 C3
F370 A14
F371 B15

F372 B14
F374 B15
F375 B14
F376 B15
F377 B14
F378 B15
F379 B13
F381 F13
F390 F9

F937 D14
I301 G4
I302 C2
I303 F1
I304 D1
I305 F1
I306 E1
I307 E1
I308 F2

I310 G1
I311 G2
I313 C1
I316 D3
I318 C8
I319 D8

I321 D11
I322 D4

I323 D12
I325 G12
I326 G13
I327 F13
I330 D4
I332 C6
I335 D6
I339 E11
I341 D7

I344 D8
I345 D8
I347 D8
I348 D8
I349 C9
I350 D9
I351 D9
I352 D10
I363 D11

I364 D11
I367 D11
I379 E14
I380 E15
I381 F10
I382 F1
I383 D1
I384 C4
I385 F5

I386 F6
I387 F6
I389 F9
I390 B13
I392 F11
I393 G4
I905 G8
I906 G2
I935 F12

I936 D14
I939 G10
I942 G11

1 2345678

A3 A3

A

B

C

D

E

F

G

H

PROTECTION

70-90V

+5V_STBY_SW

+5V_INT_SW

1%

3300

220K

I313

9005

RES

1%

3301

2398

I305

2304

16V10u

3304

I304

50V

1n0

1

K

A

3

2.5 Vref

1K0

(2V5)

2V5

7304

TS2431

R2

+9V_STBY

I382

6376

4K7

3377

I310

7376

BC847BW

F320

F330

16V

2305

100n

3306

I383

1K0

3324

3102

I306

VSA

CONTROL

I303

3373

4K7

6375

7375

BAS316

BAS316

0V7(0V)

2381

F323

220K

7

61

1%

10K

1%

1K0

I307

3307

BC847BW

16V

100n

F322

VS

PROTEC-

TION

3

12

+5V_INT_SW

3

5

4

1%

12K

I308

16V100n

2376

I311

3380

47K

47K

3381

3308

1K0

7308-4
LM339P

12

3374

(0V6)

3376

7308-3
LM339P

2

47K

0V7

47K

(0V3)

POK

5V(0V3)

LATCH

5V1(4V2)

6321

6322

3321

BAT54 COL

BAT54 COL

2322

VCC

VCC

PROTEC-

TION

1%

10K

3320

I384

1%

1K0

3103

1K0

7

I330

61

1%

3K9

3322

5

16V

I322

4

100n

1%

10K

3323

3

7330-4

F328

LM339P

12

3

7330-3
LM339P

2

12

VA

VA

PROTEC-

TION

1%1%

3311

220K

3312

BAT54 COL

2306

BAT54 COL

16V

100n

1K0

3313

I316

3317

F368

3

7308-2

11

LM339P

10

7K5

9

8

1%

7K5

+5V_INT_SW

3

12

12

7308-1
LM339P

13

F327

14

I302

6312

5V

F326

6313

IAK

6333

3333

BAT54 COL

6334

BAT54 COL

2324

BUFFER

+12V

3332

I332

1K0

I335

100n 16V

3334

3335

1%

68K

1%

10K

1%

15K

12V

PROTEC-

TION

3

11

10

3

9

8

7330-2
LM339P

12

7330-1
LM339P

12

LATCH

10K

33413342

1K0

3340

6340

BAT54 COL

13

F329

I341

BAT54 COL

10K

3343

F343

1K0

2343

6341

14

I318

7341

BC857BW

I344

3344

I345

6344

1K0

3346

3345

I319

1K0

7004

BZX384-C3V3

50V

2u2

+5V_STBY_SW

1K0

6347

3348

BAT54 COL

I347

3347

330R

I348

7348

BC847BW

P0102BL

+5V_INT_SW

I389

47K

I385

16V10n

47K

3398 3397

2385

3396

3395

3386

100R

100K

F311

2387

3390

1K0

100u 16V

I393

47K

3394

I906

F319

VSAGO

2386

7363
BC847BW

10n

I301

47K

47K

3392

3393

I386

2388

4

3

2

11

10n

7366-1
LM324

5K6

3399

6367

I387

1

BAS316

F318

3388

1K0

I905

VCEGO

9 1011121314

2397

3355

3378

POK

9020

STANDBY

16V100u

2K7

3357

100R

I379

10K

6378

7327
BC847BW

330R

I350

4K7

3350

7352

4K7

3354

+5V_INT_SW

3389

1K0

VCEGO

I349

3351

10K
BC847BW

7389

BC857BW

F312

3349

2350

I351

3352

1K0

16V

100u

I352

10K

2352

F390

+12V_OVP

16V

100n

VCC_GO

7351
BC847BW

3353

3074

10K

15K

+9V_STBY_SW

3360

I320

3363

10K

3068

I939

100n

2377

4K7

3361

1K2

I321

6362

BAS316

1K0

STANDBY

27K

3809

I381

12

13

10K

3808

I942

3806

470R

4

11

6335

BAS316

7366-4
LM324

7362
BC847BW

3391

10K

14

0V(0V)

DC_PROT

3358

I367

6364

2364

I392

3811

100R

2K2

BAS316

100n 16V

3359

I363

I339

6366

DCPROT

5K6

I364

1K0

3364

6365

BAS316

3807

F335

7366-3
LM324

7391
BC857BW

I935

10K

8

+9V_STBY_SW

+5V_STBY_SW

4

11

BAS316

+8V6

6325

I325

3325

470R

VCC

3366

10

9

3367

BZX384-C6V8

3326

4K7

I390

9006

F379

232267191

+T

120R

10K

3368

3370

470R

+T

F325

I323

10K

1K0

3369

+5V_INT_SW

F381

10K

3328

I326

3327

I327

7326
BC847BW

10K

15

1M03

F370

F371

F372

F374

F375

F376

F377

F378

POWER_OK

F937

2K7

3356

3362

560R

I936

10K

3383

4

7366-2

5

LM324

6

7

3384

I380

10K

2366

11

BAT54 COL

8V6 UNDER VOLTAGE

PROTECTION

1
2
3
4
5
6
7
8
9
10

4V(0V1)

16V

100n

TO

1J00

SSB

A

B

C

D

E

F

G

H

VSA_CONTROL

3104 313 6128.1

1 23456789101112

VSAGO

VCEGO

SUPPLY_ON

13

14 15

E_16040_032.eps

271005

Circuit Diagrams and PWB Layouts

EN 32LC4.9U AA 7.

PDP FHP Supply: Pre Conditioner

1

A5 A5

PRECONDITIONER

A

2600

S3J

6605

1000V

F601

1n0

1u

RES

RES

2605

2603

3609

3603

3604

6601

BZX384-C39

3605

I647

3607

220K

10V

3651

2655

1u0

I603

470K

I650

470K

I651

470K

I637

470K

I621

3652

1M0

I618

I619

22K

2K2

2651

3612

10n 16V

3666

100R

2666

50V

6652

4n7

S3J

6606

100-230VAC2

B

1000V

2601

100-230VAC1

1n0

C

D

3602

I602

3601

F602

3

6600

GBU8J

1

2

4M7

RES

4M7

RES

COLD GROUND

4

2604

E

MEASURED DC-VOLTAGES

NORMAL . . .

F

STANDBY ( . . . )

G

10K

3654

I663

6654

BAS316

1K8

3656

H

I615

2654

3655

1K0

47u 16V

I617

I633

BC857BW

7654

100n

2656

I

HOT GROUND

3104 313 6066.1

345612

5

5600

BS42228-02

16

1

2

4

614

I605

6608

SS14

2612

1n0

50V

2602

I654

2n2

3606

100R

12R

3608

RES

I631

I610

3660

270R

I653

PRECONDITIONER

3661

270R

I652

3659

220R

I616

I620

50V

2653

BAT54 COL

680p

6653

BZX384-C8V2

SS14

6651

6789

PRECONDITIONER

2611

220p

I634

I606

BC369

50V

7608

2613

1n0

3611

3662

NFR25

1R0
3663

I632

NFR25

1R0

CONTROL

I649

6602

3623

1K0

BZX384-C15

7650

MC33368P

2

CONTROL

RD

3

FB

4

COMP

5

MULT

9

LEB

6

CS

7

ZCDET

AGND PGND

8

3667

10K

I664

3693

2K2

7656

BC847BW

3610

I611

VCC

I604

BZG03-C18
2677

2n2

I612

6660

16

1

11

13

14

15

3692

10K

1n0

6609

I635

BYG22D

BYG22D

I622

7655

BC847BW

6661

3686

5612

15R

I608

2610

1n8

3614

32V

(0V)

I613

50V

2664

100u

47K

3617

I643

33K

3618

6666

I667

3690

I668

1n0

2691

3691

7610

STW26NM50

I607

3R3

I601

2614

2n2

I655

1K0

2663

1u0 50V

12

LINE

VREF

GATE

FC

NC1

NC2

10

I665

2690

I666

789

I614

2W

0R27

2661

I623

2665

PDZ8.2-B

3K9

8K2

BYV29X-500

I630

2W

3615

1n0

3678

7601
BC847BW

50V

470p

5601

I639

0R27

3676

47K

3619

3613

I644

2672

6611

3620

3675

I641

2000V

2W

0R27

MC34063AD

1R0

I656

4K7

3677

3K3

I645

10K

2608

100n

I609

2R2

3621

7661

DCOL8

IS7

6

VCC

CIN_NEG5

47K

7602

BC857BW

I646

2640

50V

1K0

3639

1n0

3640

3616

12K

3622

50V

470p

330R

2616

2R2

IPK

OSC

F609

3665

270K

I624

6643

220u 400V

QRS

F610

BZX384-C18

400V220u

2617

REFERENCE
REGULATOR

3641

470R

7640

G

BSN20

10

F996

F997

3999

1K0

F600

F604

F605

SWC 1

5660

I638

I625

SWE 2

TIMC 3

GND 4

3668

1K0

NFR25H

6641

D

S

BAS316

F606

I642

2660

6663

470p

15V(1V8)

7641

BC817-25W

220u

SL04

I626

10 11 12 13

11 12 13234

F999

F998

400V_HOT

F608

SW25V_HOT

I640

6665

SL04

BIAS

25V1m0

2662

1K0

3673

500V

10n

330K

I657

330K

I658

330K

16V

100n

16V

100n

2676

2673

3664

3669

NFR25H

3679

150K

I659

10n

3680

220K

I660

3681

220K

500V

I661

10n

3682

220K

1%

1K0

120K

3104

I662

I648

1%

10K

3671

120K

7642

3643

220R

3642

220R
6640

SS14

BCP56

2642

I627

500V

2675

2674

10n

I628

3683

6642

3684

SS14

3685

I629

2671

I636

2670

50V

1n0

5V

(0V)

E_16040_033.eps

271005

A

B

C

D

E

F

G

H

I

2600 B3
2601 B2
2602 C6
2603 C3
2604 C2
2605 C3
2608 H8
2610 B7
2611 B8
2612 B5
2613 C6
2614 C6
2616 C9
2617 C9
2640 H8
2642 G11
2651 H3
2653 H5
2654 H1
2655 H3
2656 H2
2660 E10
2661 F8
2662 F11
2663 E6
2664 E7
2665 H8
2666 H4
2670 H12
2671 H12
2672 H8
2673 G12
2674 G12
2675 G11
2676 G12
2677 C7
2690 I6
2691 I7
3104 H12
3601 D2
3602 D2
3603 E3
3604 E3
3605 F3
3606 C5
3607 F3
3608 C5
3609 D3
3610 C6
3611 C6
3612 H4
3613 G8
3614 C7
3615 C8
3616 G9
3617 G7
3618 G7
3619 F8
3620 C8
3621 C8
3622 C9
3623 G6
3639 H8
3640 H8
3641 H9
3642 G11
3643 F11
3651 H3
3652 G5
3654 G1
3655 H1
3656 H1
3659 G5
3660 F5
3661 F5
3662 E6
3663 E6
3664 H12
3665 F9
3666 H4
3667 H6
3668 F10
3669 H12
3671 H12
3673 F12
3675 E8
3676 F8
3677 F8
3678 F8
3679 F12
3680 G12
3681 G12
3682 H12
3683 G12
3684 G12
3685 H12
3686 C7

3690 I7
3691 I7
3692 I7
3693 I6
3999 A10
5600 A5
5601 B8
5612 B7
5660 E10
6600 B2
6601 F3
6602 G6
6605 A3
6606 A2
6608 B6
6609 C7
6611 B8
6640 G11
6641 H10
6642 H11
6643 H9
6651 H5
6652 H4
6653 H5
6654 G1
6660 F7
6661 E7
6663 E10
6665 E11
6666 H7
7601 G8
7602 F8
7608 C6
7610 B7
7640 H9
7641 G10
7642 G11
7650 G6
7654 H2
7655 I7
7656 I6
7661 D8
F600 B10
F601 B3
F602 D2
F604 C10
F605 D10
F606 I10
F608 D11
F609 F9
F610 G9
F996 A10
F997 A10
F998 A11
F999 A11
I601 C7
I602 D2
I603 B4
I604 B7
I605 B5
I606 C6
I607 C6
I608 B7
I609 C8
I610 E5
I611 E6
I612 E7
I613 E7
I614 B8
I615 H1
I616 G5
I617 G2
I618 H4
I619 H4
I620 H5
I621 G4
I622 G7
I623 H8
I624 H9
I625 G10
I626 H10
I627 F12
I628 G11
I629 H11
I630 C8
I631 E5
I632 E6
I633 H1
I634 B6
I635 C7
I636 H12
I637 F3
I638 E10
I639 D8
I640 E11
I641 E8
I642 E10

I643 G7
I644 G8
I645 G8
I646 G8
I647 F3
I648 H12
I649 G6
I650 E3
I651 E3
I652 G5
I653 F5
I654 C5
I655 C7
I656 E8
I657 G12
I658 H12
I659 G12
I660 G12
I661 G12
I662 H12
I663 G1
I664 I6
I665 I7
I666 I6
I667 I7
I668 I7

PDP FHP Supply: LLC Supply

U13 E9
U14 E6
0204 H9
1000 G6
1001 G7
1002 H14
1006 G8

1082 F11

1083 F11
1084 G10
2000 G9
2005 C1
2006 C2
2007 F1
2008 F3
2009 E51008 G9
2010 F51009 G8
2011 E9

2012 D9
2013 C9
2014 F6
2015 F5
2016 E6
2017 C9
2018 C1
2020 C11
2022 E11
2023 E14

2024 E12
2025 E13
2026 F3
2027 E2
2028 C11
2029 G11
2030 F12
2031 F15
2032 D2
2033 D1

2034 E1
2035 F1
2036 D2
2037 E2
2038 C13
2039 D7
2040 D7
2041 D8
2042 D9
2043 D13

2044 D11
2045 F11
2046 C8
2047 E1
2048 F6
2049 C1
2052 B3
2053 B5
2060 F6
2062 A4

Circuit Diagrams and PWB Layouts

3021 F5

3001 E6
3002 C6
3003 C1
3004 C1
3005 C2
3006 D2
3007 E2
3008 E2
3009 F1
3010 E4

3011 E5
3012 F3
3013 F4
3014 C7
3015 C7
3016 C7
3017 D7
3018 D7
3019 E7
3020 F5

3032 F14
3033 D8

3022 C12

3034 F13

3023 E12

3037 C13

3024 E13

3038 C13

3025 F13

3039 C14 3065 E4

3027 F2

3040 E13

3028 F13
3029 E13

3041 F13

3030 F12

3042 D1

3031 F13

3043 D1 3070 E5

2070 E7
2071 C7
2090 B2
2290 H10
2291 G11
2292 H11
2293 H11
2294 H11
2295 G11
2296 H11

3044 D1
3045 E2
3046 E1
3047 E2
3048 D1
3049 D3
3050 F7
3052 E12
3054 D6
3056 E4

3057 D12
3059 D8
3060 C8
3061 D8
3064 F3

3066 F2
3067 F5
3069 E1

3071 F2
3072 B13
3073 D7
3075 B8
3076 C8
3077 E8
3078 E8
3080 C12
3081 A4
3082 B5

3089 A4
3090 A2
3091 B2
3092 A3
3093 B2
3094 A3
3095 A5
3096 A5
3097 B5
3098 F15

EN 33LC4.9U AA 7.

6034 D2

3100 F14
3292 H10
5001 C6
5002 C9
5004 E9
5290 G10
5291 H12
5292 H12
5293 G12
6002 A4

6018 C8

6003 A3

6019 E7

6004 D6

6021 F11 F016 B13

6005 D5

6023 E13

6006 D7

6027 C7

6007 C7
6008 D7

6028 E7

6009 F4

6029 B11
6031 D2

6010 F4

6032 D2

6011 F4 F007 F3

6033 E1

6012 B11

6035 D2
6042 C13
6044 C11
6045 F11
6075 B8
6077 D8
6095 A5
6291 H11
6292 H11

7001 B3
7002 B9
7003 A9
7005 B8
7006 E8
7007 C7
7008 E7
7009 E4
7010 E12
7011 F13

7012 D7
7013 A3
7017 F3
7018 F3
7020 C8
7021 D8
7042 C13
7090 A2
7091 A3
7092 A3

7093 A4
9007 A3
F001 A6
F002 C7
F003 C5
F004 C5
F005 C9
F006 D8

F008 D5

F009 D6
F014 E12

F017 C11
F040 B14
F290 H12
F292 H12
F293 G12
F294 H12
F295 H12

F296 G13
F297 H12
F298 H12
I001 A2
I002 A3
I003 A5
I004 A5
I005 B2
I006 B4
I007 C2

I008 C2
I009 C2
I010 D2
I011 D1
I012 D4
I013 D2
I014 E1
I015 D2
I016 E2
I017 E2

I018 E2
I019 E1
I020 E3
I021 E1
I022 F2
I023 F3
I024 F3
I025 F2
I026 F1
I027 C2

I028 G3
I029 G3
I030 E5
I031 E4
I032 E5
I033 F4
I034 F5
I035 F5
I036 F5
I037 C8

I038 C8
I039 D6
I041 B8
I042 B7
I043 B7
I044 B8
I045 C6
I046 C7
I047 D7
I048 D7

I049 D8
I050 D8
I051 E7
I052 D7
I053 E7
I054 E7
I055 E8
I056 A2
I057 D7
I059 E8

I060 A10
I061 A10
I062 B10
I063 B10
I064 B8
I065 C9
I066 C8
I067 C8
I070 B11
I071 F10

I072 D11
I073 F10
I074 F11
I075 C13
I077 F11
I078 C13
I079 C13
I080 G10
I081 F7
I082 F7

I083 F8
I084 F8
I085 E12
I088 E13
I089 E12
I090 E13
I091 E14
I092 F13
I093 F12
I094 F12

I095 H6
I096 H7
I098 H8
I282 D1
I283 F14
I284 E15
I285 A4
I286 A4
I287 A4
I288 B5

I289 A5
I290 G11
I291 H11
I292 H10
I293 H11
I294 D13
I295 D6
I296 F6
I297 E7
I298 C7

I299 B11

A6

A

B

C

D

E

F

G

H

3104 313 6128.1

2047

GND4

3003

3004

GND4

3042

I282

100n

3069

I019

2035

12

LLC SUPPLY

I001

19V3

(24V)

I056

7091

1K0

3093

I005

I027

25V

22n

I010

I013

SOFTSTART

I016

I018

15n

2027

I022

10K

3066

F007

3071

47K

3027

3094

1K0

3092

1K0

7092

BC807-25W

18V6

(0V)

BC857BW

2052

3049

12K

CONTROL

16V

BC857BW

7017

I023

10K

3064

50V

47K

2026

2n2

25V_HOT

BC857BW

7090

VS-CONTROLLER

50V

2049

2018

100p

100K

GND4

15K

3043

4K7

470R

470R

3046

5M6

VR25

50V

1n0

2005

3044

1K0

I014

BZX384-C47
I021

3009

GND4

3048

6033

1K0

100p

50V

4K7

I011

47p

2007

I009

2033

BZX384-C5V6

3045

1K0

2034

1000V

100n

I026

MEASURED DC-VOLTAGES

1

18V(22V5)

3090

100R

2090

4u7 35V

3091

1K0

I007

50V

100p

2006

3005

I008

27K

50V

1n0

25V

10K

3006

22n

16V

I015

BZX384-C5V6

2037

47p

3047

150K

6034

BAS316

6035

BAS316

6032

2036

3007

4K7

I025

6031

2032

I017

3008

16V

100n

1K0

NORMAL . .

STANDBY ( . . . )

2345 14

34

BIAS SUPPLY

7093

LM317T

I002

9007

BCP56

6003

BZX384-C33

35V

1m0

CONTROL

9

1

2

3

16

6

11

I020

4K7

3012

7018

BC847BW

I029

I028

7013

7001
MC34067P

EN|UA

OSCC

OSCR

OSCCC

OS

EAO

8

Ip

7

In

SOST

I012

I024 I033

2008

18V6

(22V1)

I285

10K

3089

3081

I286 I287

1K0

2062

2u2 50V

GND4

I006

15

VCC

VREF

14

OA

12

OB

13

PGND

10

FI

GND

4

1K0

3056

3065

CURRENT

PROTECTION

6011

BAS316

50V

10K

3013

10n

16V2(4V7)

IN OUT

32

ADJ

1

15V9

I003

6002

I004

BAS316

5

3010

15K

330R

7009

BC847BW

I031

I032

2015

10n

50V

6009

I035

BAS316

2010

6010

BAS316

HOT GROUND

3095

3096

3097

50V

10n

2009

3020

56K

470R

5K6

I288

820R

I036

5

678910

11 12 13

14 15

A6

F001

5V1(4V2)

2

2

2290

3292

560R

3

5290

1

1084

I060

I061

I062

I063

STTH2003C

I071

I073

F1A/250V

I080

4

2

I292

6044

I072

T2,5A/250V

19382

T2,5A/250V

19382

19370

BD15403

2291

470p 50V

2293

470p

LATCH

I070

1

1082

1083

50V

BZX384-C6V8

2028

220p

3

2

2044

220p

+5V_INT_SW

6029

200V

200V

2022

1m0

I077

6045

BY328/20

2045

220p

I074

6021

BY328/20

2029

220p

2295

470p

6291

6292

2296

470p

I299

BZX384-C5V6

2020

50V

200V

200V

STPS745F

STPS745F

6012

86V(6V)

3m3 100V

F017

I290

2292

I291

2294

I293

3057

100R

3030

35V(4V)

1m0

1m0

35V(4V)

18K

5293

22u

5291

22u

5292

22u

A

F040

3022

680R

3080

680R

7042

PMST5401

6042

BZX384-C47

3072

4K7

F016

10K

3037

3038

100K

I075

I079

2038

I078

50V

1n0

3039

1M0

Vs_unsw

70-90V

VS

VTUN

B

C

D

34V(4V)

I294

2043

50V 1u0

1u0

I085

1

K

A
3

3023

47K

7010
TS2431

R2

I094

2V5

2030

I089

(0V6)

16V

100n

3052

2024

F014

150K

3n3
50V

I093

3024

3025

3034

150K

6023

BAS316

3028

7K5

1K8

220R

50V

I088

3040

1%

I092

3041

I090

7011

TS2431

33K

2025

100K

3029

K

A

VRS

FEEDBACK

4K7

I091

3031

1%

10K

1

I283

R2

3

3100

1K0

E

2023

100n

1V9(0V7)

3098

VRS

1K0

3032

I284

10K

1%

1%

10n

2031

F

+30V

VB

G

F293

F297

F298

F294

VSND_POS

F292

GND_SND

F290

VSND_NEG

F295

F296

1002

7

TO 1MO2

6
5
4
3
2

PDP AUDIO

1

DC_PROT

E_16040_034.eps

271005

H

15

2013

F005

2012

12

4

7003

TCET1102(G)

3

4

7002

TCET1102(G)

2000V

330p330p

1600V

2017

15n

I065

2000V

1600V

2011

15n

BS42315-02

EMC HOLE

1008

HEATSINK

0204

9

3

5002

3

6

BS42315-02

5004

3

6

470p

3

BAS316

6095

3082

I289

2053

1K0

22u 35V

SW25V_HOT

400V_HOT

I064

I041

6075

BZG03-C270

7005

1M0

3075

STP15NK50ZFP

3076

100K

3060

I066

220K

3059

18K

3061

2042

6077

BZG03-C270

7006

STP15NK50ZFP

1M0

100K

GND3

EMC HOLE

1006

330p

100p

I055

56K

I049

3077

3078

I084I082 I083

8 10111213

6027

BAS316

3073

I052

6028

BAS316

EMC HOLE

I096

DRIVE

I043

3014

F002

33R

I046

DRIVE

6006

I048

BAS316

2n2

1M0

2039

GND4

GND4

3017

33R

3018

I051

6019

BAS316

1001

COLD GROUND

I044

6018

BAS316

10R

3015

BC517

I037

BC327-25

7007

2046

33p

I047 I050

3033

180K

27p

2040

GND4

I057

F006

7021

10R

BC517

I059

BC327-25

7008

I054

3050

3R9

NFR25

EMC HOLE

1009

I098

I038

7020

I067

2041

HIGH SIDE

I042

6007

I045

5001

S13932-04

F003

4

3

F004

2

6005

6004

BAS316

F008

I030

3011

2u2 50V

3067

BAS316

F009

3054

470R

10K

3070

560R

GND4

I034

2060

6R8

3021

15K

PR02

2048

GND4

50V2u2

2016

2014

1n5

220n

I296

220n

HOT

BAS316

3016

6

1K0

3002

470R

2071

7

I298

1n0

9

LOW SIDE

10

I295

U14 U13

2000V

EMC HOLE

1000

I095

7012

BC847BW

GND4

GND4 GND4

6008

I039

BAS316

3019

1K0

470R

3001

I053

2070

I297

1n0

I081

COLD

67

2000

250V

1

1

16

14

12
11

10

9

16

14

12
11

10

9

10n 50V

Circuit Diagrams and PWB Layouts

EN 34LC4.9U AA 7.

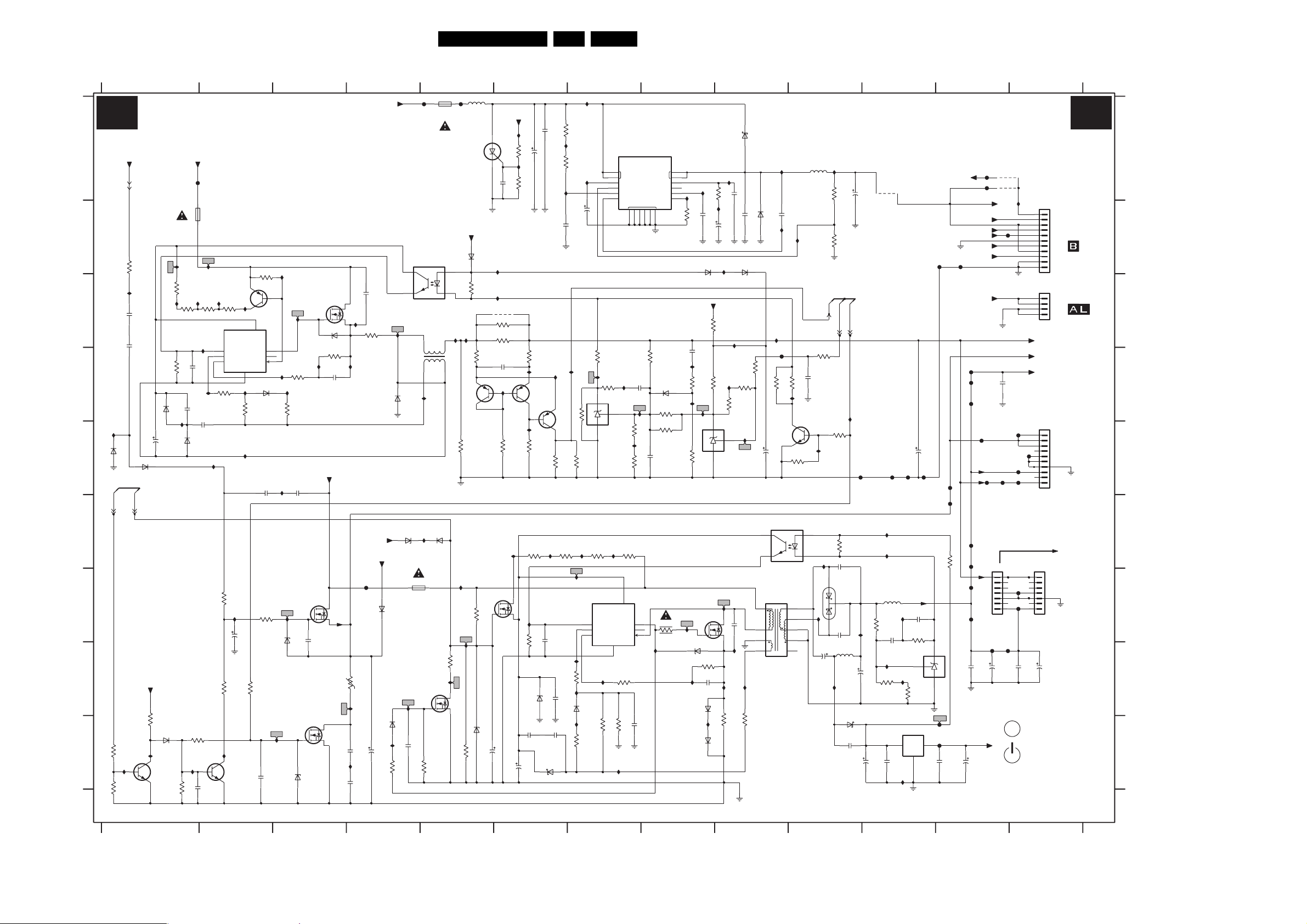

PDP FHP Supply: AUX Supply

1

2

AUX SUPPLY

A7 A7

A

VB

B

10K

3055

SFR16

I158

C

2054

2056

50V

220p

220p

D

I159

BAS321

2113

6055

BAS321

VCC_GO

6054

E

POK

F

G

SEQUENCE
DISCHARGE

H

I

5V2(0V)

3085

3087

47K

I225

47K

+5V_INT_SW

3084

I207

7058

BC847BW

6111

10K

6086

BAS316

25V

220u

70-90V

F110

1110

19382

T5A/250V

3112

BAS316

I113

3088

2K7

3107

2K7

1K0

2112

2111

6112

104V(0V)

I203

47K

50V

220p

BAS316

3086

47K

2059

2114

220n

I101

3110

1K0

7110

PMST5401

I162I163

3108

3109

2K7

7112
TEA1507P

SMPS CONTROL

CONTROL

CTRL
DEM
ISENSE

3113

470K

1M0

3058

I161

2058

1K0

3083

I204

7059
PMST5550

GND

2

I116

3114

I114

250V

1u0

Φ

I147

DRIVER

3062

1

VCC

HVS

DRAIN

560K

6113

BAS316

2055

1n5

3051

1K0

2061

8K2

50V

0V1(8V)

I202

16V

100n

2K7

I109

3
4
5

50V

1n0

I115

I160

16V

100n

I105

3106

I164

3456789101112

1260

5260

MP200
39812

FROM

5121

BD21232

21

34

6206

BAS316

0V

(0V5)

3202

7202

BSN20

100K

F265

BT151X-500R

+5V_INT_SW

6133

1

2

3111

I249

I111

4K7

3143

I210

I213

47R

I208

6205

3205

100u

10K

3138

1

6

BC857BS

7140-1

3200

100K

6260

BAS316

I246

I135

RES

1%

220R

RES

BSH114

220K

BZX384-C18

2205

+12V_OVP

2260

9002

3145

0R51

3146

0R51

2W 1%

2138

1u0 10V

I156

2

3140

7200

50V

2u2

I103

10K

3262

2262

1K0

I104

1K0

I157

2261

3139

4

3

PMST5401

3141

50V

1m0

1%

RES

220R

I153

7140-2
BC857BS

1%

75K

RES

7142

220n

I173

10K

3263

I139

I142

2270

2n7

2263

I155

I154

3150

RES

1%

RES

1K0

3148

3142

I172

3261

1u0

3260

RES

RES

RES

5

RES

1%

RES

75K

+12V-SUPPLY

7
8
16

V5.1

12

VFB

1

OSC

9

BOOT

25V

47u

1K8

3120

I124

I121

3121

47K

7121

1

TS2431

K

2V5

R

2

A

(0V3)

3

1M0

1%

VA

RES

5K6

Adj.

L4973V3.3

456

3n3

3126

I131

3132

11V5(0V7)

I168

I167

I166

3206

I212

3212

2215

470p

2210

47u 16V

3207

2K7

2K7

I215

1K0

6062

2212

BZX384-C18

470p

6211

SS14

2051

2211

16V

220n

100n

I214

3
4
5

I218

120K

3214

I221

6213

BAS316

I223

33K

3213

3208

2K7

7212

TEA1507P

Φ

SMPS CONTROL

CONTROL

CTRL
DEM
ISENSE

GND
2

I217

3215

270K

DRIVER

3219

I224

1
VCC

DRAIN

1K0

3216

3209

2K7

HVS

10K

2219

7260

Φ

REGULATOR

GND

131415

3122

2123

50V

I127

2K2

2126

220R

6
7
8

10p

35V(4V)

2
3

OUTVCC

11

COMP

18

SYNC

I141

17

SS

10

INH

I140

1K0

2264

3265

BZX384-C5V6

63V

2122

1%

75K

6123

BAS316

3124

7K5
3125

7K5

16V

100n

1u0

I120

18K

3123

I126

I128

1%

TS2431

1%

33K

3128

VCC-SUPPLY

I216

I169

3149

4R7

NFR25

G

6216

BZX384-C18

I219

I245

470n

6201

3133

3130

7130

K

A

3

7217

PSMN070

3217

10K

2217

330n
16V

6269

6270

3264

2266

I247

+30V

1

R

I236

D

S

BYG10

BYG10

I133

100R

12K

3218

I130

560R

4u7

I174

3101

2

I240

6268

SS14

330p

2265

4n7

2267

6267

SB540

6114

BZX384-C6V8

I123

1%

3147

10K

3131

10K

1%

1%

1K0

I132

2133

4

7220

TCET1102(G)

3

1

1600V

2218

4

3n3

5

78

I209

0R051

3220

BS29238-00

I148

33R

5220

5268

I175

100u

3063

1K0

10n

I129

I233

STPS20L40CFP

I238

2229

470u

16V

3269

3268

3

IAKS

3135

47K

3229

2223

100p

2222

100p

I170

12V6(ON)

2K7

1K0

VRA

I122

560R

50V

6225

50V

5229

220u

2225

6230

SS34

2232

100p

2m2

2269

VSA_CONTROL

3V3

(8V4)

F125

10V4(0V7)

50V

2230

9009

F126

I230

I231

5225

4u7

I234

1%

12K

3224

2226

I235

100n 16V

I237

25V

2V5(0V3)

3225

2m2

10K

1%

13

16V

1u0

2234

470u

I243

+9V_STBY_SW

+9V_STBY

+5V_STBY_SW

F124

F122

F102

F130

F131

100V

2121

2200u

F127

F128

F119

F120

F134

3228

150R

F135

VCC

2227

100p

50V

3226

10K

TS2431

R

2

I171

1%

1K0

3210

7230

L4940P

OUTIN

COM

2

F136

F140

1

7227

K

2228

A

3

F116

F114

1u0

2231

RES

2235

I138

2268

220n

I134

I136

I152

F111

2274

3079

680R

3134

680R

I125

7134
BC847BW

3136

22u 50V

47K

14

13

12

11

+30V

F260

PROTECTION

7120

64V (0V5)

I107

6120

+30V

BZX384-C5V6

S3J

87V

6202

I222

3203

4

3

BYW29EX-200

6204

T2A/250V

19382

I220

BAS316

2203

1K0

TCET1102(G)

I108

I211

1200

16V

100n

3204

I102

7117

PSMN035

I106

6117

3116

1K0

220K

I110

BZX384-C18

3117

10K

2117

330n

16V

6
7
8

I112

I117

3115

1000V1n0

2118

I248

3118

0R051

I118

Vs_unsw

70-90V

I165

2057

1n5

VA

I200

6050

105V
(0V)

2050

BZX384-C18

IRFR18N15D

6061

87V

(0V5)

50V

22n

7052

BZX384-C18

7050
PSMN035

I244

3053

I201

2214

2213

VS

10R

+T

4n7

4n7

F113

600V

232266293

2021

6142

(0V5)

3m3 100V

F115

9000

F264

9001

+12V

VTUN

VCC

+8V6

+12V

2273

F118

F133

F129

0342

VA

1
2

NC

3

NC

4
5

NC

6
7

VCC

B7B-PH-K

F139

F138

16V

6.3V

2236

10u

10u

MEASURED DC-VOLTAGES

+8V6

16V

47u

3104 313 6128.1

123

4

5

6

7

8

91011

12

13

I137

1M46

F380

B11B-PH-K

1M10

B4B-PH-K

VA

VS

VCC

100n

0323

F121

F123

F132

F106

B10P-VH

0352

VA

1
2

F107

3
4
5

F137

6
7

B7B-PH-K

16V10u

6.3V10u
2237

2233

NORMAL . . .

STANDBY (. . . )

13

VCC

11
10
9
8
7
6
5
4
3
2
1

1
2
3
4

10
9
8
7

NC

6
5
4
3

VCC

2

NC

1

NC
NC

NC

TO

1J01

SSB

TO

1M10

AMBI LIGHT

TO

VS

CN23
PDP

(DISPLAY)

VA

TO

CN42

PDP

(DISPLAY)

TO
CN52
PDP

(DISPLAY)

E_16040_035.eps

271005

0323 E13
0342 G12
0352 G13
1110 B1
1200 G4
1260 A5
1M10 C13
1M46 B13
2021 I4
2050 G3
2051 H6
2054 C1
2055 E2

A

2056 C1
2057 E3
2058 G2
2059 I1
2061 I2
2111 D1
2112 D1
2113 E1
2114 E2
2117 D3
2118 C4
2121 E11
2122 D8
2123 D7
2126 E8

B

2133 E9
2138 D6
2203 I4
2205 I5
2210 I6
2211 I6
2212 G6
2213 I4
2214 I4
2215 I6
2217 H8
2218 G9
2219 I7

C

2222 G10
2223 F10
2225 H10
2226 G11
2227 G11
2228 H12
2229 H10
2230 I10
2231 I12
2232 I10
2233 H13
2234 I11

D

2235 I12
2236 H12
2237 H13
2260 A6
2261 A6
2262 A6
2263 B6
2264 B8
2265 A9
2266 B8
2267 B9
2268 B9
2269 A10

E

2270 B7
2273 D12
2274 D10
3051 G2
3053 H3
3055 B1
3058 G2
3062 H2
3063 D10
3079 D9
3083 H2
3084 I1
3085 I1

F

3086 I1
3087 I1
3088 I1
3101 D9
3106 C1
3107 C1
3108 C2
3109 C2
3110 C2
3111 C5
3112 D1
3113 D2
3114 D2

G

3115 D3
3116 D3
3117 D3
3118 C4
3120 D7
3121 D7
3122 D8
3123 D8
3124 D8
3125 E8
3126 E7
3128 E8

H

3130 D8
3131 D9
3132 E7
3133 C8
3134 D10
3135 E10
3136 E10
3138 D5
3139 D6
3140 E6
3141 E6
3142 E6
3143 E5

I

3145 C6
3146 C6
3147 D9
3148 E7
3149 G8
3150 D7
3151 B10
3152 B11
3153 B11
3154 C11
3155 C11

3156 B11
3157 D11
3158 D11
3200 G5
3202 H5
3203 I4
3204 I5
3205 I5
3206 F6
3207 F6
3208 F7
3209 F7
3210 H11
3212 G6
3213 I7
3214 H7
3215 I7
3216 H7
3217 H8
3218 I9
3219 I7
3220 I9
3224 G11
3225 H11
3226 G11
3228 F12
3229 F10
3260 A6
3261 A6
3262 A6
3263 A6
3264 A9
3265 B8
3268 B10
3269 A10
5121 C5
5220 G9
5225 G11
5229 H10
5260 A5
5268 A10
6050 G3
6054 E1
6055 E1
6061 I3
6062 H6
6086 I1
6111 D1
6112 E1
6113 D2
6114 B9
6117 C3
6120 D4
6123 D8
6133 B5
6142 G4
6201 B8
6202 I4
6204 F4
6205 I5
6206 F5
6211 I6
6213 H7
6216 H8
6225 G10
6230 I10
6260 A5
6267 B9
6268 A9
6269 H8
6270 I8
6271 B10
7050 G3
7052 I3
7058 I1
7059 I2
7060-1 B11
7060-2 B11
7061 C11
7110 C2
7112 C2
7117 C3
7120 B5
7121 D7
7130 E8
7134 D10
7140-1 D5
7140-2 D6
7142 D6
7200 G6
7202 H5
7212 G7
7217 G8
7220 F9
7227 H12
7230 I11
7260 A8
9000 A12
9001 A12
9002 C6
9009 A11
F102 D12
F106 E13
F107 G13
F110 A1
F111 D9
F113 G4
F114 I12
F115 A12
F116 I12
F118 E12
F119 E12
F120 F12
F121 E13
F122 B12
F123 E13
F124 B12
F125 E10
F126 E11
F127 E11
F128 E11
F129 E12
F130 D12
F131 D12
F132 E13
F133 E12
F134 F12
F135 F12

F136 G12
F137 G13
F138 H12
F139 H12
F140 G12
F260 A5
F264 A12
F265 A5
F380 B13
I101 B2
I102 B3
I103 A7
I104 A6
I105 B1
I106 C3
I107 C4
I108 D4
I109 C2
I110 D3
I111 C5
I112 D3
I113 D1
I114 E2
I115 D2
I116 D2
I117 D3
I118 D4
I120 D8
I121 D7
I122 D10
I123 D9
I124 D7
I125 D9
I126 D8
I127 D7
I128 D8
I129 E10
I130 A9
I131 E7
I132 E9
I133 B9
I134 B10
I135 C6
I136 B10
I137 B13
I138 A9
I139 A7
I140 B8
I141 A8
I142 A6
I147 C2
I148 H9
I152 C9
I153 D6
I154 D6
I155 D6
I156 D6
I157 E6
I158 C1
I159 E1
I160 E2
I161 G2
I162 C2
I163 C1
I164 C1
I165 E3
I166 F6
I167 F7
I168 F7
I169 H8
I170 H10
I171 H11
I172 A6
I173 A6
I174 D9
I175 A10
I176 B10
I177 B11
I178 B11
I179 B11
I180 B11
I181 C11
I200 G3
I201 H3
I202 I3
I203 I1
I204 I2
I207 I1
I208 H5
I209 H9
I210 G5
I211 F5
I212 F6
I213 G5
I214 G7
I215 G6
I216 G8
I217 H7
I218 H7
I219 H8
I220 H4
I221 H7
I222 I4
I223 I7
I224 I7
I225 I1
I230 F11
I231 F11
I233 F10
I234 G11
I235 G11
I236 G9
I237 H11
I238 G10
I240 H9
I243 I11
I244 I3
I245 I8
I246 B6
I247 B9
I248 C4
I249 C5

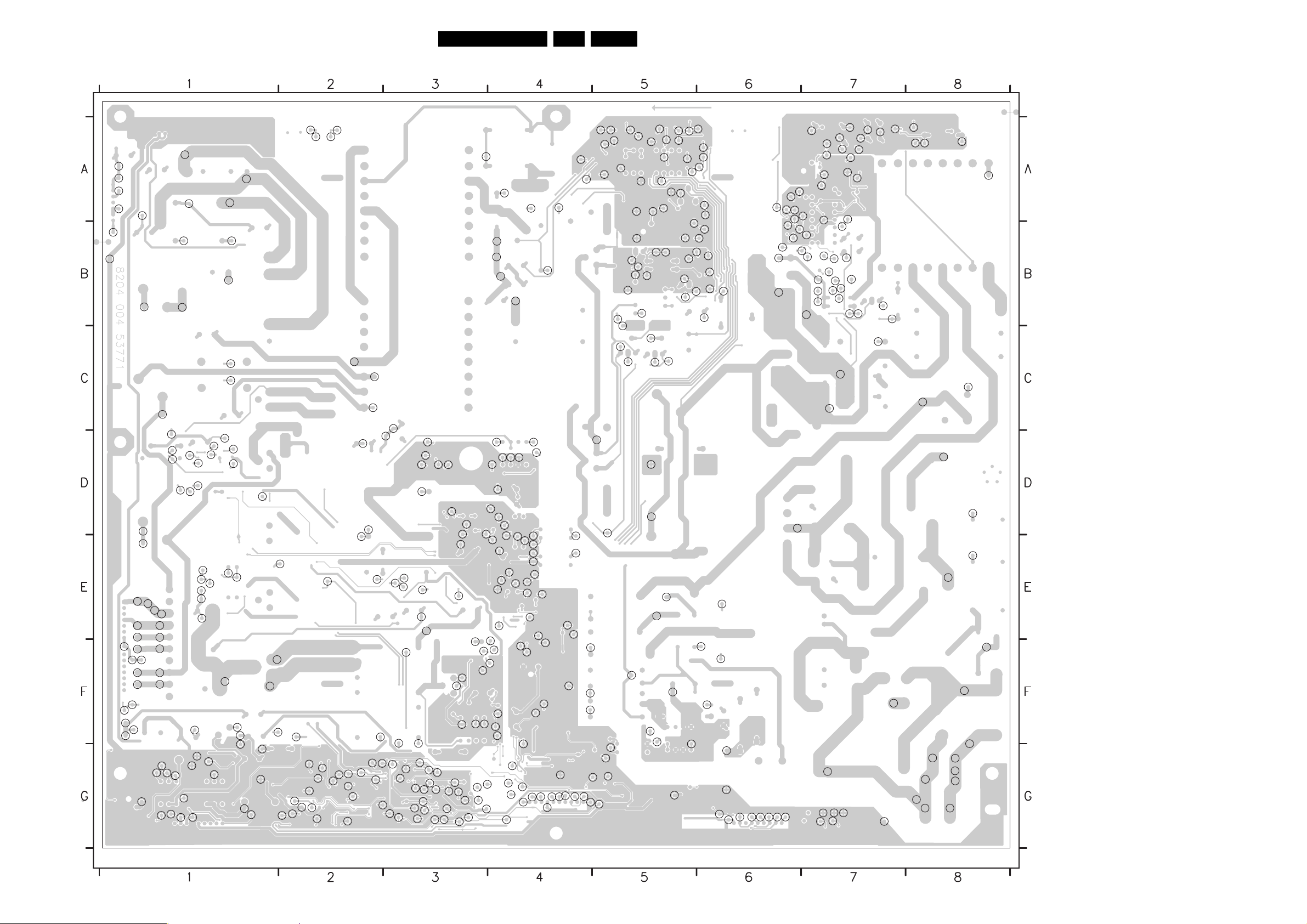

Circuit Diagrams and PWB Layouts

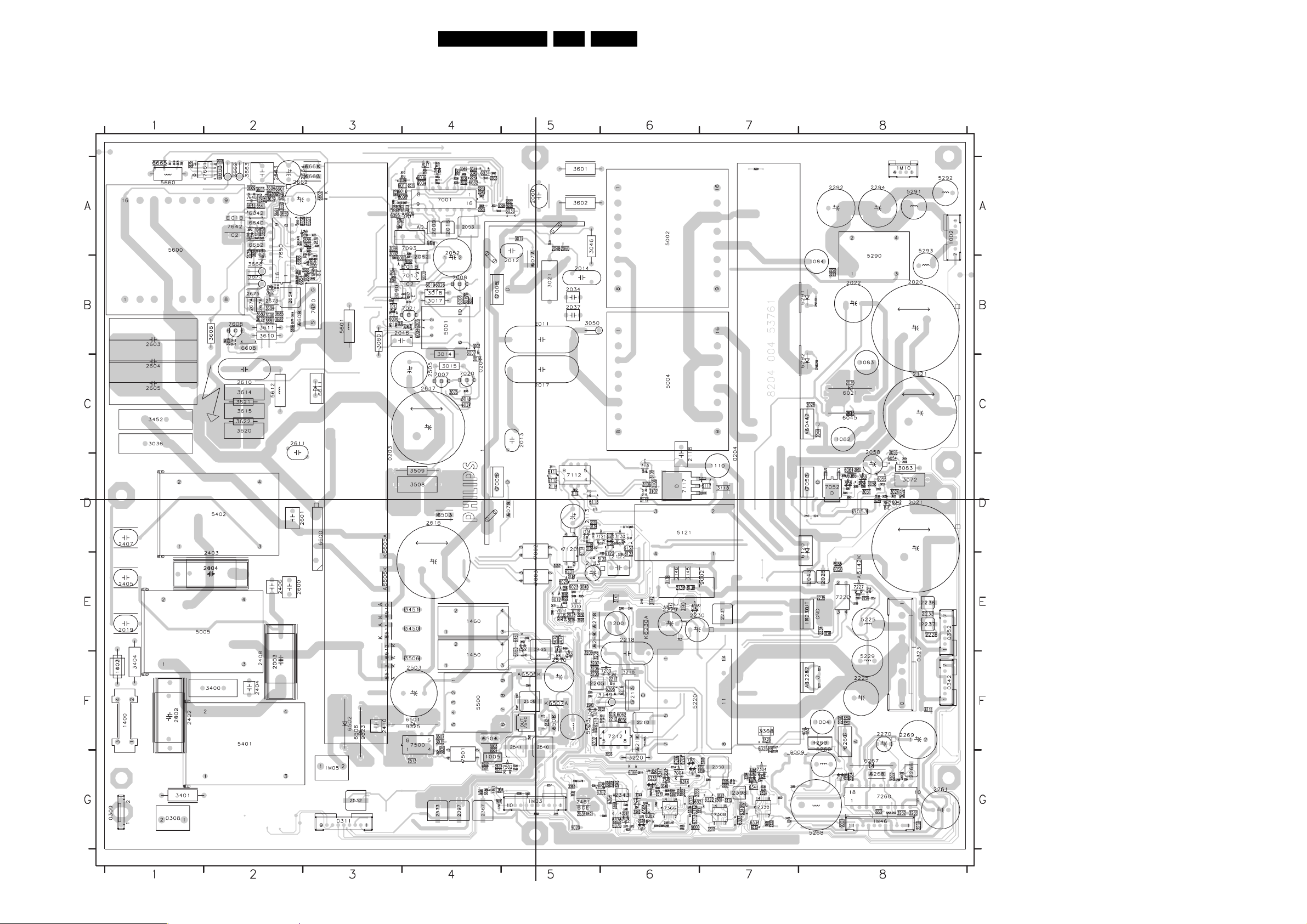

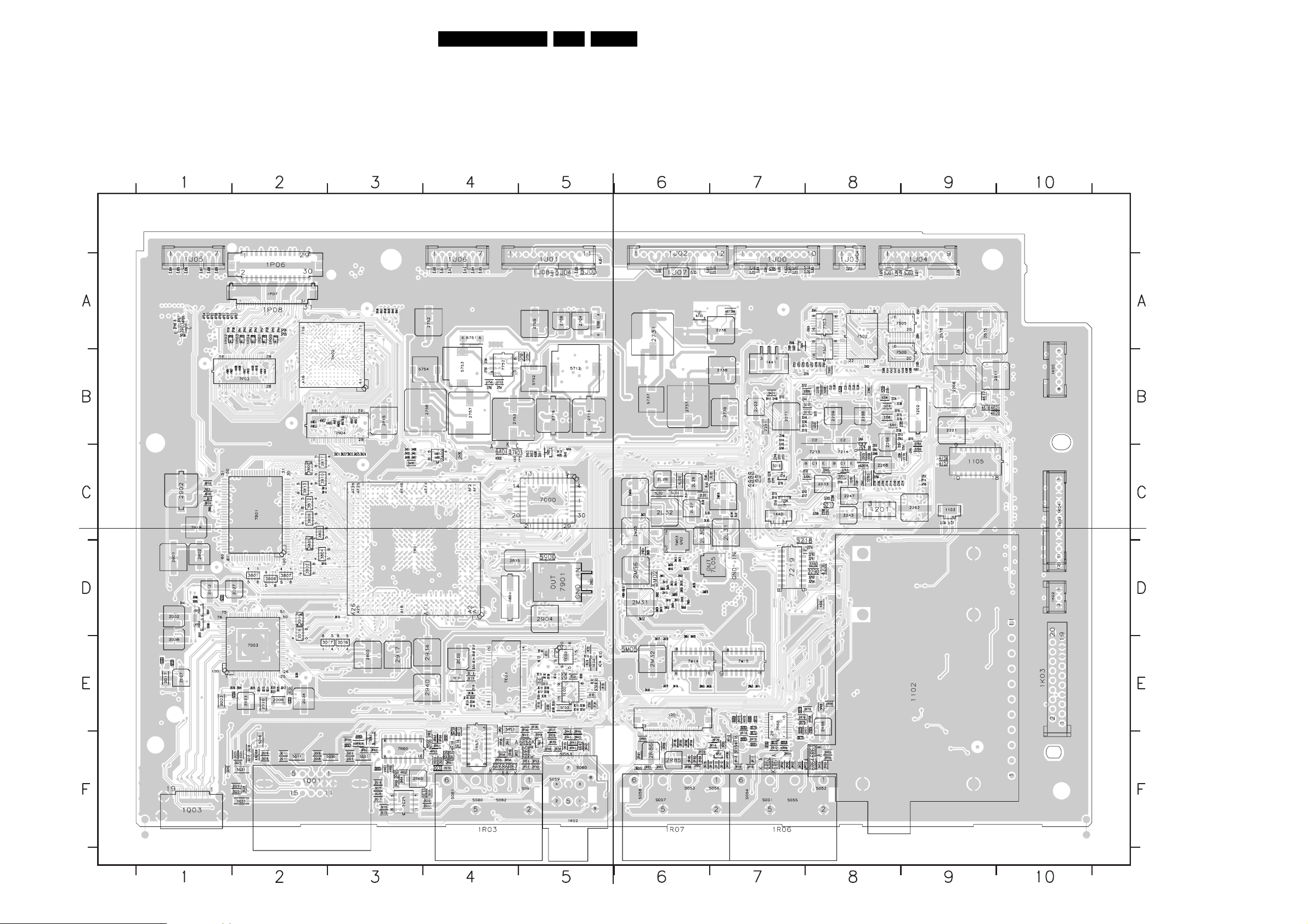

Layout PDP FHP Supply (Overview Top Side)

0201 B4

0323 F8

1005 G4

1260 F8

1M05 G3

2003 E2

2009 A4

2015 A4

0203 D3

0342 F8
0352 E8
1002 A8
1003 F1
1004 F8

1082 C8
1083 B8
1084 A8
1110 D6
1200 E6

0204 D7
0308 G1
0309 G1
0311 G3

Part 1

F_16040_036a.eps

3104 303 5016.1

1400 F1
1402 F1
1450 F4
1460 E4
1M03 G5

1M10 A8

2004 E2
2005 A4
2006 A4
2007 A5
2008 A4

2010 A3
2011 B5
2012 A5
2013 C5
2014 B5

1M46 G8
2000 A5
2001 E2
2002 G1

Part 3

F_16040_036c.eps

2016 A4
2017 C5
2018 A4
2019 E1
2020 B8

2021 D8
2022 B8
2023 E5
2024 E5
2025 E8
2026 A4

2027 A4
2028 C8
2029 C8
2030 E5
2031 E5
2032 A4

2033 A4
2034 B5
2035 A5
2036 A4
2037 B5
2038 D8

2039 B3
2040 B3
2041 B3
2042 B4
2043 E8
2044 C8

2045 C8
2046 B3
2047 A4
2048 A5
2049 A4
2050 E8

2051 F6
2052 B4
2053 A4
2054 D8
2055 D8
2056 D8

2057 D8
2058 C8
2059 D8
2060 A5
2061 D8
2062 A4

2070 B4
2071 B4
2090 B3
2111 D5
2112 D5
2113 D5

2114 D5
2117 D6
2118 C6
2121 C8
2122 E6
2123 D5

EN 35LC4.9U AA 7.

2126 D6

2211 F6
2212 F6
2213 D8
2214 D8
2215 F6
2217 F6

2218 E6
2219 F5
2222 F8
2223 F8
2225 F8
2226 E8

2133 E5
2138 E6
2203 F5
2205 F5
2210 F6

Part 2

F_16040_036b.eps

2227 E8

2233 E8
2234 E8
2235 E8
2236 E8
2237 E8
2260 F8

2261 G8
2262 G8
2263 G8
2264 G8
2265 G8
2266 G8

2228 E8
2229 E6
2230 E6
2231 E7
2232 E6

Part 4

F_16040_036d.eps

2267 G8
2268 G8
2269 F8
2270 G8
2273 G8
2274 D6

2290 B8
2291 B8
2292 A8
2293 C8
2294 A8
2295 B8

2296 C8
2304 G7
2305 G7
2306 G7
2322 G7
2324 G7

2343 G6
2350 G7
2352 G6
2364 G6
2366 G6
2376 G6

2377 G6
2381 G6
2385 G6
2386 G4
2387 G4
2388 G6

2397 G4

2404 F2

2398 G7

2405 E1

2400 G1

2406 E2

2401 E1

2407 D1

2402 G1

2408 E2

2403 E1

2410 F3

E_16040_036.eps

281005

2465 E5
2502 F5
2503 F4
2504 G4
2505 B3
2507 F5
2508 F5
2509 F5
2510 F5
2511 G4
2512 G4
2513 G4
2532 G3
2533 G4
2534 G5
2540 G5
2541 G5
2542 F5
2600 E2
2601 D2
2602 B2
2603 B1
2604 C1
2605 C1
2608 A2
2610 C2
2611 D2
2612 B2
2613 B2
2614 B2
2616 D4
2617 C4
2640 A2
2642 A2
2651 A2
2653 A2
2654 B2
2655 A3
2656 B3
2660 A2
2661 A1
2662 A3
2663 A2
2664 A2
2665 B3
2666 A2
2670 A3
2671 A3
2672 A2
2673 B2
2674 B2
2675 B2
2676 B2
2677 B2
2690 B3
2691 B3
3001 B4
3002 B4
3003 A4
3004 A4
3005 A4
3006 A4
3007 A4
3008 A5
3009 A5
3010 A4
3011 A4
3012 A4
3013 A4
3014 C4
3015 C4
3016 C4
3017 B4
3018 B4
3019 B4
3020 A3
3021 B5
3022 E5
3023 E5
3024 D8
3025 E5
3026 G4
3027 A4
3028 E5
3029 E5
3030 E5
3031 E5
3032 E5
3033 B3
3034 E5
3035 F4
3036 D1
3037 D8
3038 D8
3039 D8
3040 E5
3041 E5
3042 A4
3043 A4
3044 A4
3045 A4
3046 A5
3047 A4
3048 A4
3049 A3
3050 B5
3051 D8
3052 D8
3053 D8
3054 B3
3055 C8

3056 A3
3057 E5
3058 D8
3059 B4
3060 B3
3061 B4
3062 D8
3063 D6
3064 A4
3065 A4
3066 A4
3067 A4
3068 G5
3069 A4
3070 A4
3071 A4
3072 D8
3073 B3
3074 G6
3075 C4
3076 C4
3077 A5
3078 B4
3079 D5
3080 E5
3081 B4
3082 B3
3083 D8
3084 D8
3085 D8
3086 D8
3087 D8
3088 D8
3089 A4
3090 A3
3091 B3
3092 A3
3093 B3
3094 A3
3095 A4
3096 A4
3097 A4
3098 E5
3100 E5
3101 D6
3102 G7
3103 G7
3104 A3
3106 D6
3107 D6
3108 D6
3109 D6
3110 D6
3111 E5
3112 D5
3113 D5
3114 D5
3115 D5
3116 D6
3117 D6
3118 D7
3120 D5
3121 D5
3122 E6
3123 E6
3124 D6
3125 D6
3126 E6
3128 E6
3130 D5
3131 D6
3132 E5
3133 E5
3134 D5
3135 D5
3136 D5
3138 E6
3139 E6
3140 E6
3141 E6
3142 E6
3143 E6
3145 E6
3146 E6
3147 D6
3148 E6
3149 F5
3150 D5
3200 F5
3202 F6
3203 G6
3204 F5
3205 F5
3206 F5
3207 F5
3208 F5
3209 F5
3210 E8
3212 F6
3213 F6
3214 F6
3215 F6
3216 F6
3217 F6
3218 F6
3219 F5
3220 G6
3224 E8
3225 E8
3226 E8
3228 E8

3229 E8
3260 F8
3261 F8
3262 G8
3263 G8
3264 G8
3265 G8
3268 G8
3269 G7
3292 B8
3300 E6
3301 E6
3304 G7
3306 G7
3307 G7
3308 G6
3311 F8
3312 G7
3313 G7
3317 G7
3320 G7
3321 G7
3322 G7
3323 G7
3324 G7
3325 F7
3326 G7
3327 F7
3328 G8
3332 G7
3333 G7
3334 G7
3335 G7
3340 G7
3341 G6
3342 G6
3343 G6
3344 G6
3345 G6
3346 G6
3347 G6
3348 G6
3349 G7
3350 G7
3351 G7
3352 G6
3353 G6
3354 G6
3355 G5
3356 G4
3357 G5
3358 G6
3359 G6
3360 G5
3361 G5
3362 G4
3363 G5
3364 G6
3366 G7
3367 G6
3368 F7
3369 G6
3370 F7
3373 G6
3374 G6
3376 G6
3377 G6
3378 G5
3380 G6
3381 G6
3383 G6
3384 G6
3386 G4
3388 G7
3389 G7
3390 G6
3391 G6
3392 G4
3393 G5
3394 G5
3395 G4
3396 G4
3397 G6
3398 G6
3399 G6
3400 F2
3401 G1
3404 E1
3450 E4
3451 E4
3452 C1
3460 E5
3461 E5
3463 F5
3465 F5
3467 F5
3469 E5
3470 F5
3471 G5
3472 G5
3501 G4
3502 G4
3503 G5
3504 G5
3505 F5
3506 E4
3507 F4
3508 D4
3509 D4
3601 A5
3602 A5

3603 A2
3604 A2
3605 A2
3606 B2
3607 A2
3608 B2
3609 A2
3610 B2
3611 B2
3612 A2
3613 B2
3614 C2
3615 C2
3616 B2
3617 A2
3618 A2
3619 B2
3620 C2
3621 C2
3622 C2
3623 A3
3639 A2
3640 A2
3641 A2
3642 A2
3643 A2
3651 A2
3652 B2
3654 B2
3655 A3
3656 B2
3659 A2
3660 A2
3661 A2
3662 A2
3663 A2
3664 A3
3665 B2
3666 A2
3667 A2
3668 B2
3669 A3
3671 A3
3673 B2
3675 A1
3676 A1
3677 A1
3678 A1
3679 B2
3680 B2
3681 B2
3682 B2
3683 B2
3684 B2
3685 B2
3686 B2
3690 B3
3691 B3
3692 B3
3693 A2
3806 G6
3807 G6
3808 G6
3809 G6
3811 G6
3999 A7
5001 B4
5002 A5
5004 C5
5005 E1
5121 D6
5220 E7
5225 E8
5229 E8
5260 G8
5268 G8
5290 A8
5291 A8
5292 A8
5293 A8
5401 F3
5402 D2
5500 F4
5503 F5
5600 B2
5601 B3
5612 C2
5660 A1
6002 A4
6003 B4
6004 B4
6005 B4
6006 B3
6007 C4
6008 B4
6009 A4
6010 A4
6011 A3
6012 E5
6018 C4
6019 B4
6021 C8
6023 E5
6027 C4
6028 B4
6029 E5
6031 A4
6032 A4
6033 A5
6034 A4
6035 A4

6042 D8
6044 C8
6045 C8
6050 E8
6054 D8
6055 D8
6061 D8
6062 F6
6075 D5
6077 B5
6086 D8
6095 A3
6111 D5
6112 D5
6113 D5
6114 E5
6117 D7
6120 D8
6123 D6
6133 D6
6142 E8
6201 E5
6202 F5
6204 G6
6205 F6
6206 G6
6211 F6
6213 F5
6216 F6
6225 F8
6230 E6
6260 F8
6267 G8
6268 G8
6269 E5
6270 E5
6291 B8
6292 B8
6312 G6
6313 G7
6321 G6
6322 G7
6325 F7
6333 G7
6334 G7
6335 G6
6340 G7
6341 G7
6344 G6
6347 G6
6362 G5
6364 G6
6365 G6
6366 G6
6367 G6
6375 G6
6376 G6
6378 G6
6460 F5
6461 E5
6470 E5
6471 E5
6501 F3
6502 F3
6503 D4
6504 F4
6505 F5
6506 F3
6507 F5
6508 F5
6510 E3
6511 E3
6512 E3
6513 F3
6600 E3
6601 A2
6602 A3
6605 D3
6606 E3
6608 B2
6609 B2
6611 C3
6640 A2
6641 A2
6642 A2
6643 A2
6651 A3
6652 A2
6653 A2
6654 B2
6660 A3
6661 A3
6663 A2
6665 A1
6666 B2
7001 A4
7002 D5
7003 E5
7004 G6
7005 D5
7006 B5
7007 C4
7008 B4
7009 A3
7010 E5
7011 E5
7012 B3
7013 B4
7017 A4
7018 A4
7020 C4

7021 B4
7042 D8
7050 D8
7052 D8
7058 D8
7059 D8
7090 A3
7091 B3
7092 B4
7093 A3
7110 D6
7112 D5
7117 D6
7120 D5
7121 D6
7130 D6
7134 D5
7140 E7
7142 E6
7200 F6
7202 F5
7212 G6
7217 F6
7220 E8
7227 E8
7230 E8
7260 G8
7304 G7
7308 G7
7326 F8
7327 G8
7330 G7
7341 G6
7348 G6
7351 G6
7352 G6
7362 G5
7363 G4
7366 G6
7375 G6
7376 G6
7389 G7
7391 G6
7460 E5
7461 G5
7465 F5
7470 E5
7500 G4
7501 G4
7502 G5
7540 F5
7601 B2
7602 B2
7608 B2
7610 B3
7640 A2
7641 A2
7642 A2
7650 A2
7654 A3
7655 B3
7656 B3
7661 A2
9000 G6
9001 G8
9002 E7
9003 F4
9004 G4
9005 G6
9006 G5
9007 B4
9009 G7
9020 G5
9023 F3
9025 F3
9028 G6
9401 G5

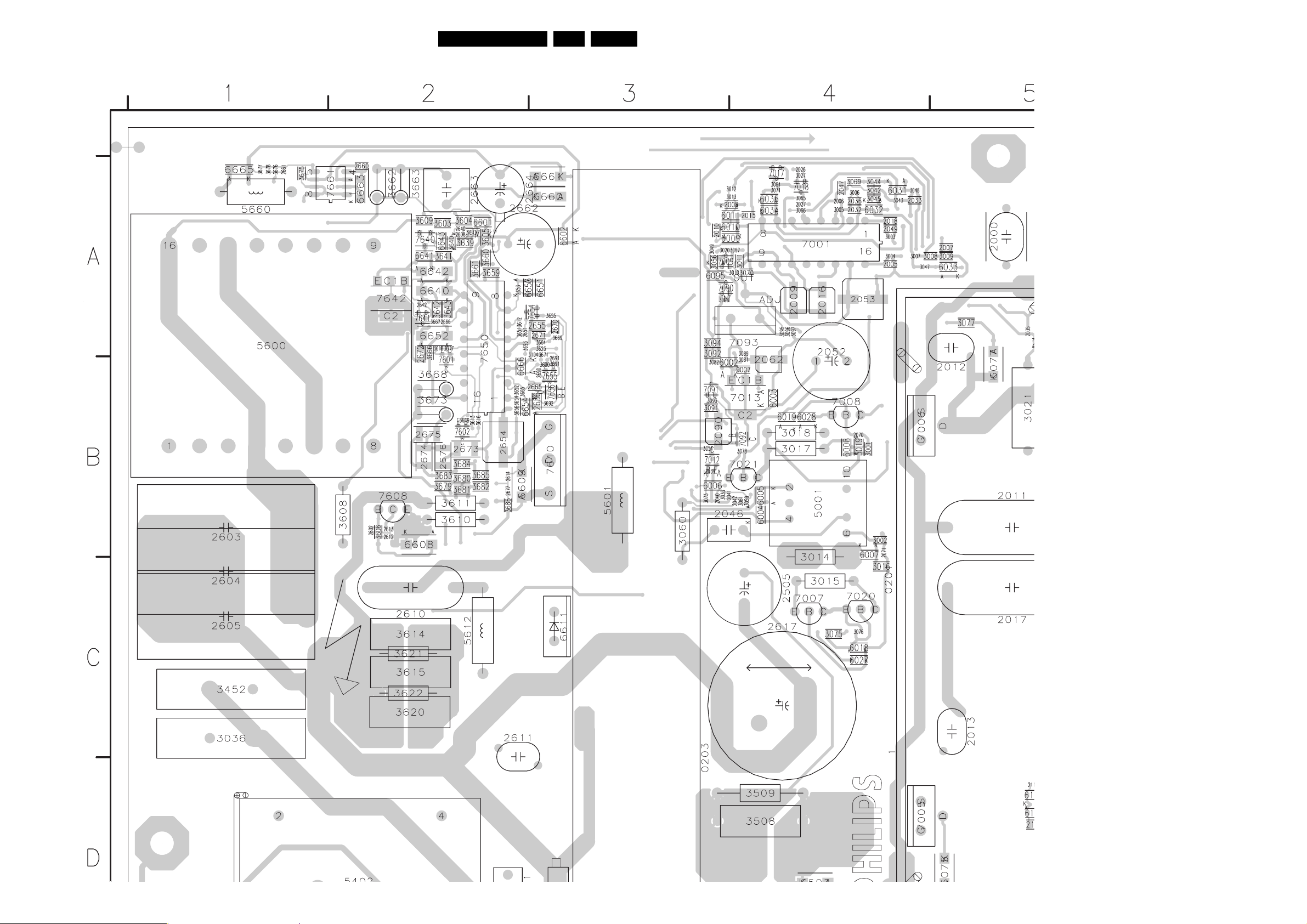

Circuit Diagrams and PWB Layouts

Layout PDP FHP Supply (Part 1 Top Side)

EN 36LC4.9U AA 7.

Part 1

E_16040_036a.eps

161205

Circuit Diagrams and PWB Layouts

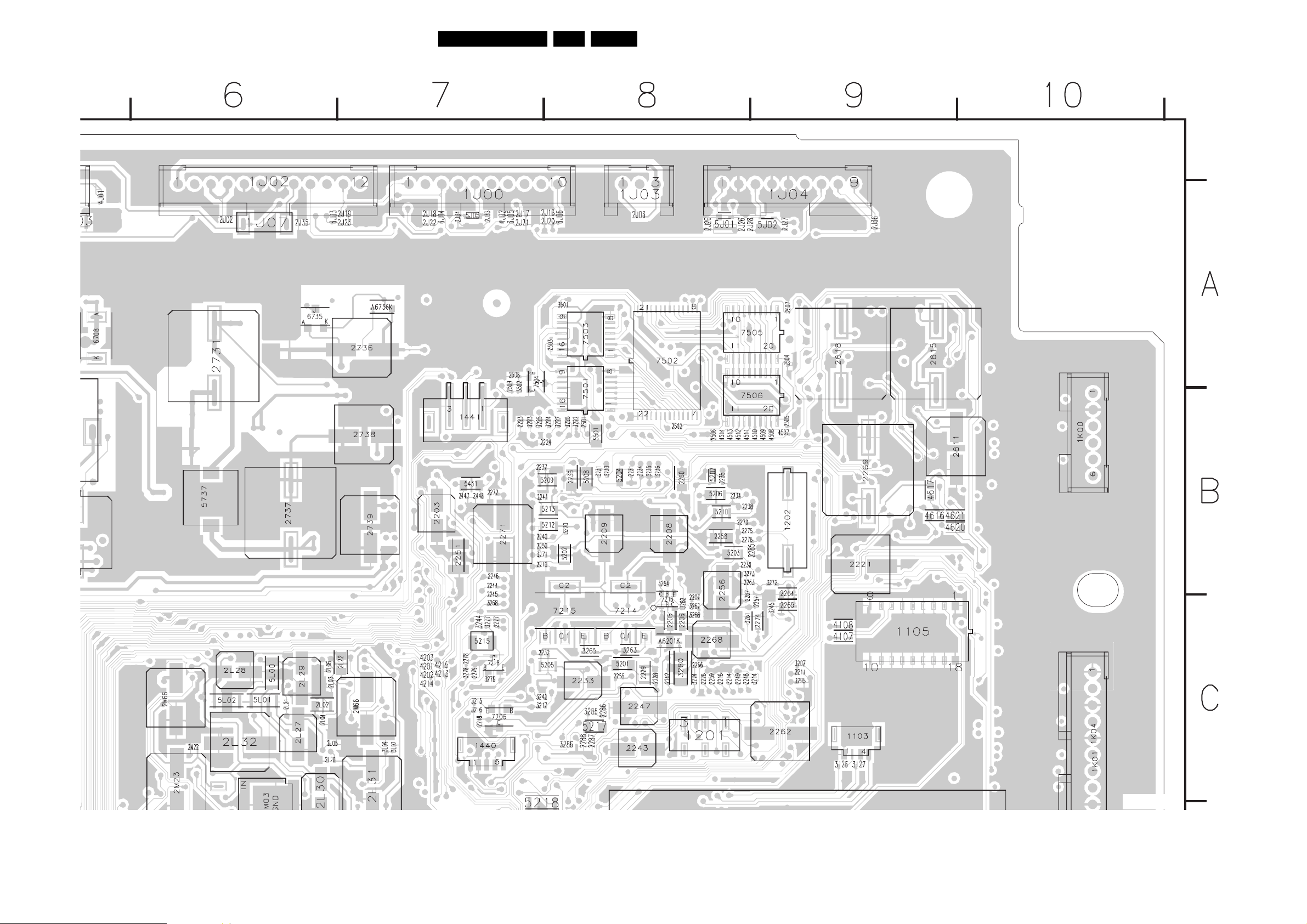

Layout PDP FHP Supply (Part 2 Top Side)

Part 2

EN 37LC4.9U AA 7.

E_16040_036b.eps

161205

Circuit Diagrams and PWB Layouts

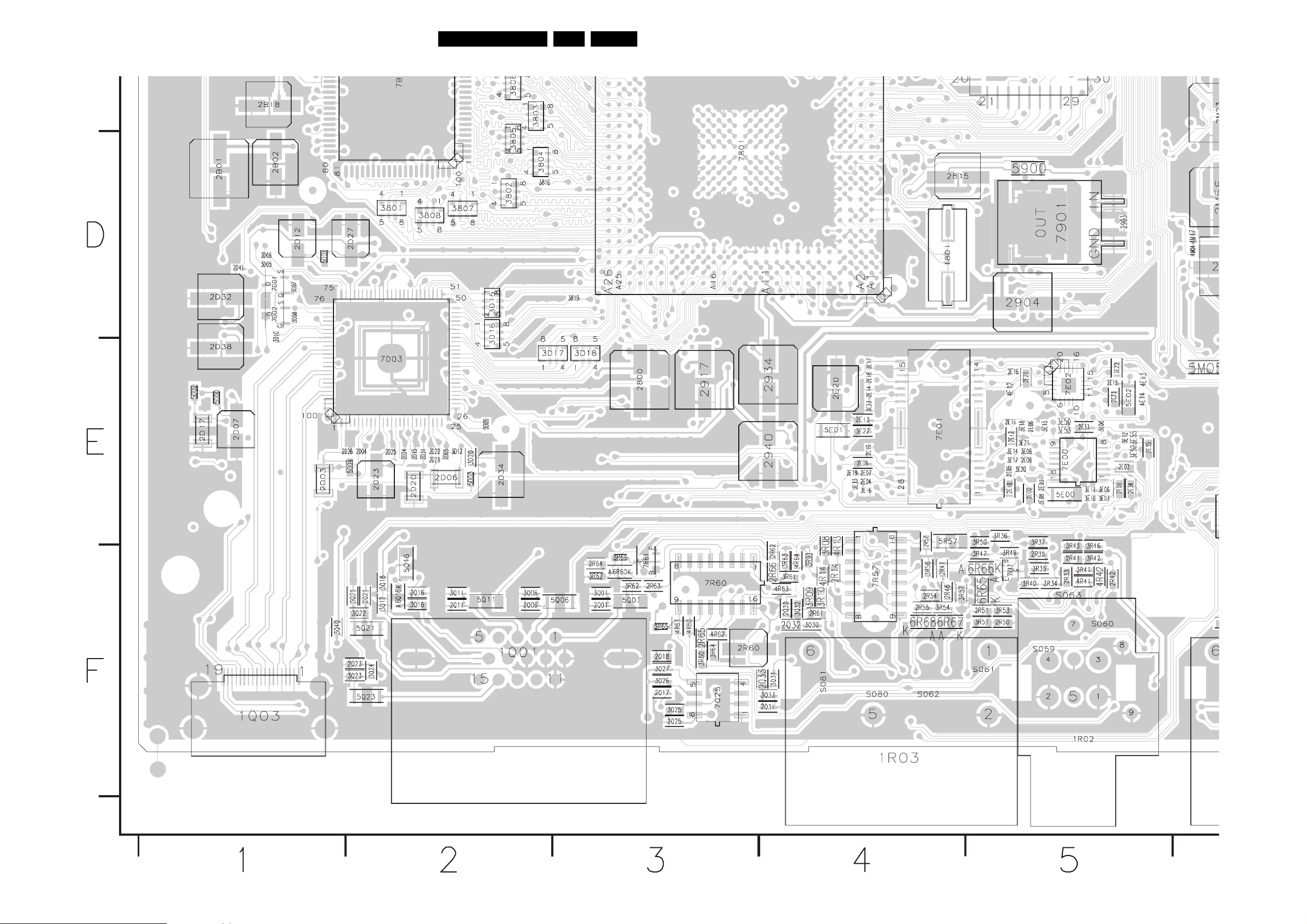

Layout PDP FHP Supply (Part 3 Top Side)

EN 38LC4.9U AA 7.

Part 3

E_16040_036c.eps

161205

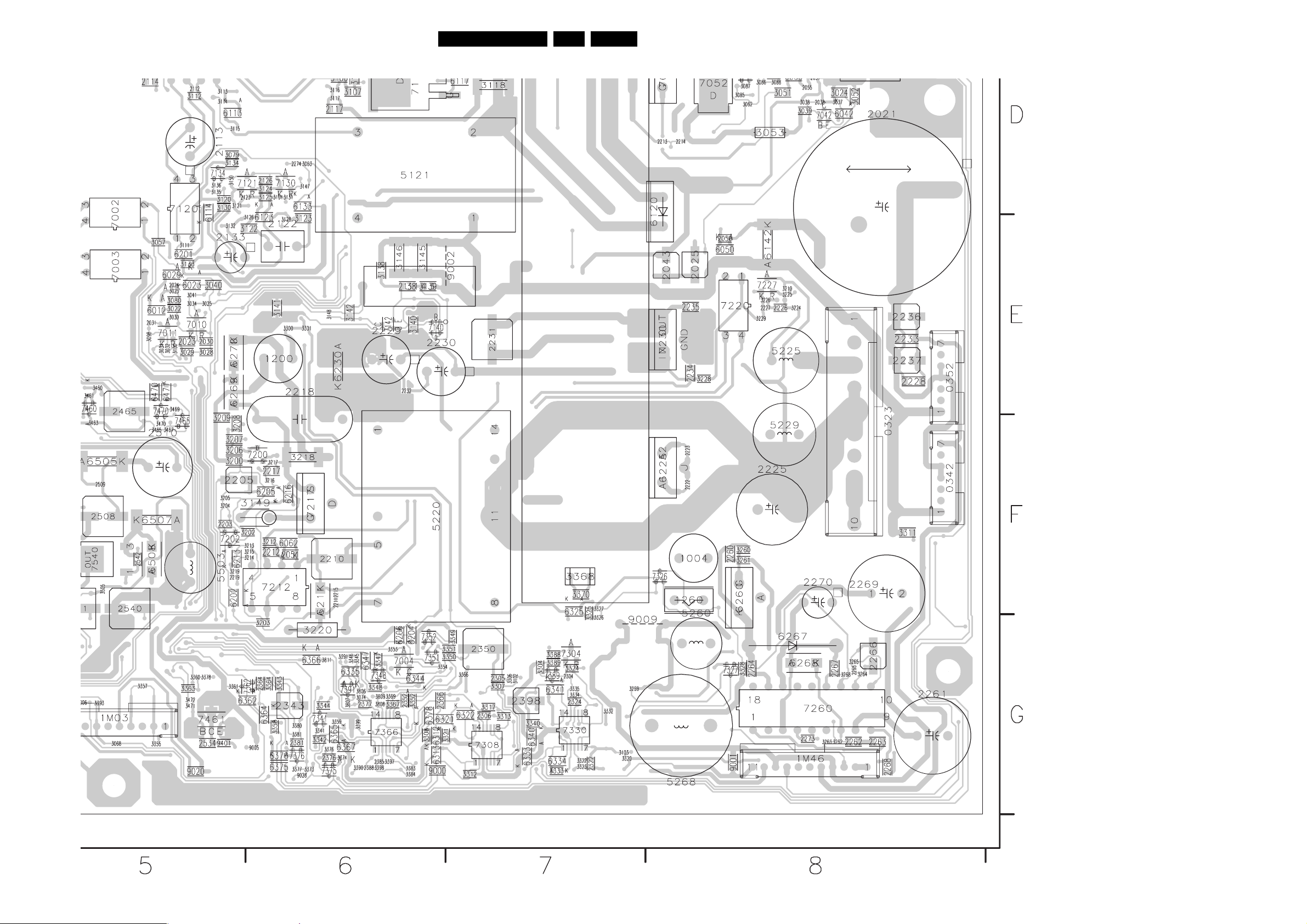

Circuit Diagrams and PWB Layouts

Layout PDP FHP Supply (Part 4 Top Side)

EN 39LC4.9U AA 7.

Part 4

E_16040_036d.eps

161205

Circuit Diagrams and PWB Layouts

Layout PDP FHP Supply (Bottom View)

EN 40LC4.9U AA 7.

3104 303 5016.1

E_16040_037.eps

271005

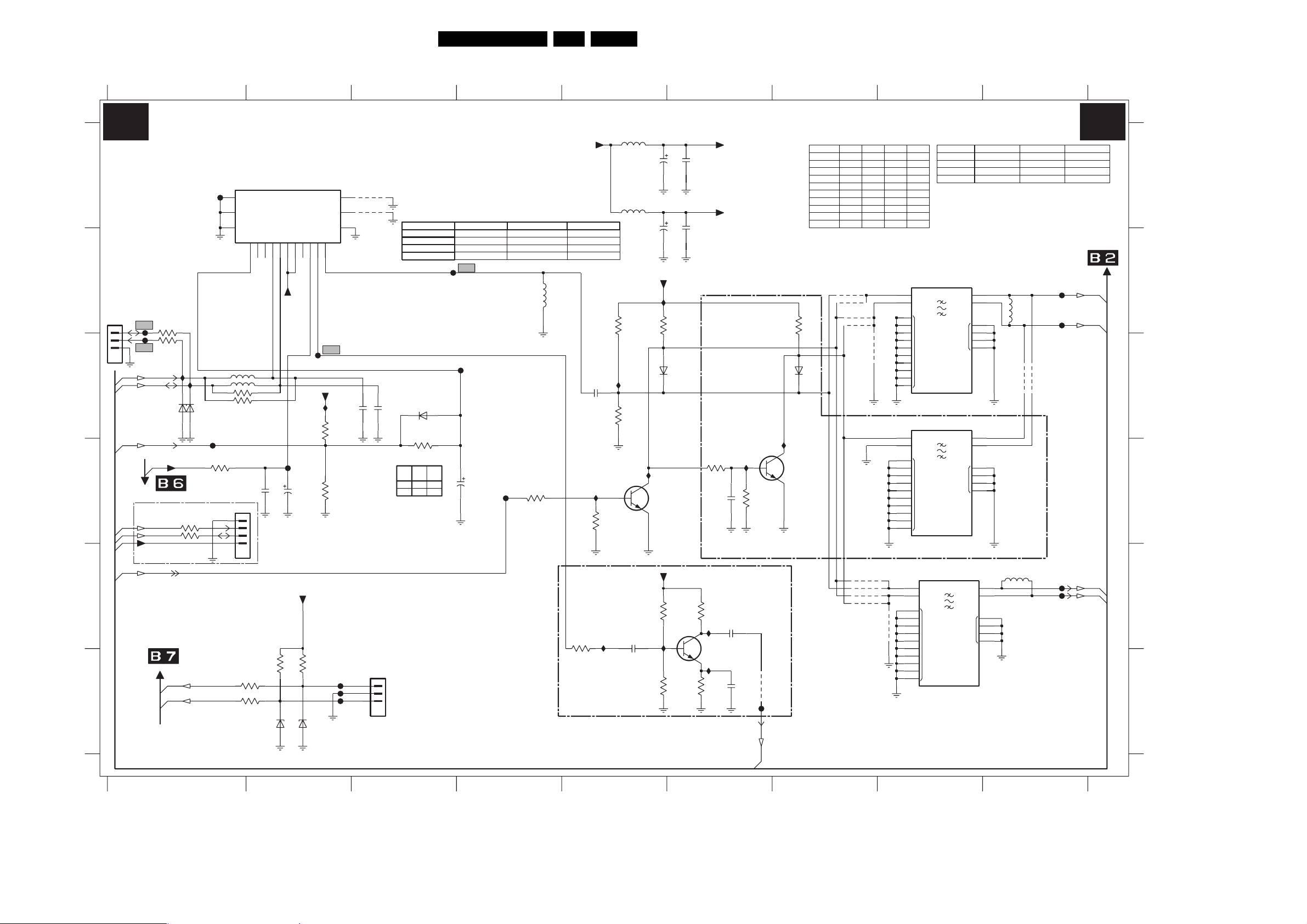

SSB: Tuner and IF

Circuit Diagrams and PWB Layouts

EN 41LC4.9U AA 7.

1

23

5

647

89

TUNER & IF

B1 B1

+5VSW

A

B

C

D

E

F

SERVICE

COMPAIR

1101

1
2
3

45

3124

F102

100R

3125

F104

100R

SCL

SDA

6101

BZX384-C6V8

RF_AGC

3126

SCL

SDA

3127

+3V3STBY

SEL_IF_SDM

FROM SCALER

I112

3139 123 6145.1

1

UV1318ST/AIH-MK3

+VTUN

For ITV Only

F101

5107

I113

5108
3102
3101

6102

BZX384-C6V8

F106

3105

1K0

100R
100R

UART_TX

UART_RX

1102

12

13

14

1V7

1103
1
2
3
4

56

3122 100R

TU

AGC1AS

2

3

NC

5V3

RES
RES
100R
100R

100R3123

6106

4115

2104

22p

F115
F116
F117

RES

4116

RES

SERVICE

UART

1107

*

EUROPE
CHINA
AP(PAL)
NA/LA/AP(NTSC) -

F105

2105
22p

45

1
2
3

BAS316

Non-

*

3104
6103 -

6103

3104

10K

EU
0R

EU
10K
Yes

*

*

TUNER

SDA

NC16NC2

SCL

4

5

2V6

2V6

5VSW_a

F107

2107
47n

3120
10K

BZX384-C6V8

33V

ADC

10

95V7

8

0V

NC

7V1

5V3

5VSW_a

2108
2u2
50V

+3V3STBY

3121

10K

6107

BZX384-C6V8

IFOUT

11

0V

F103

I101

3103
10K

3106
RES

15

16

17

23

STANDARD SD2
UV1318S/AI H N3
UV1318SI/AI C H3 ­UV1316E/A I H4
UV1338/A F SH4

F108

2109

22u

16V

IDTV SD2

IF-TER

F109

4

-

3111

22K

UR1316S/A I H3UV1318SD/A CPHN 3
UR1316S/A I H3
UR1316S/A I H3
UR1336/A F I S H3

5101
390n

FM RADIO SD2

2106

10n

I104

3115

5102

I111

3112
18K

6u8

5103

6u8

3107

6K8

I103

3109
2K2

7101
BC847BW

0V

2110

1n0

5VSW_b

I105

0V

+5VSW

I107

2101

100u

16V

2113

100u

16V

I102

3108
2K2

6104

1SS356

3116
100K

3118
150K

FOR FM RADIO ONLY

5

2102
10n

2103
10n

3113

22K

3117
820R

I108

7103
BFS20

I109

3119
560R

2114

1u0

6

5VSW_a

5VSW_b

FOR I93 ONLY

2111

1n0

2112
1n0

I106

47K

3114

SSIF

4114

F114

EU

AP

CHINA

*

Y

4102 EUROPE
4103

4110
4111
4113
4107
4108

3110

2K2

--

-­Y
Y
Y

--

-- --

--

4102

*

4103

*

4104
4105

--

Y

--

Y

--

Y

--

Y
Y

Y

--

-­Y

Y

--

Y

--

Y

2
3

*

*

4106

6105

1SS356

4109
4110
4111
4112

1105

*
*

I110

7102
BC847BW

OFWK3955L

*

EUROPE & AP
PAL-MULTI
ONLY

4113

789

1
4
5
6
9
10
13
14
15
18

2
3

1
4
5
6
9
10
13
14
15
18

2
3

1
4
5
6
9
10
13
14
15
18

NAFTA

Y

--

--

-­Y

--

--

--

I1
I2

GND

*

I1
I2

GND

1104

OFWK3953L

38M9

38M

1106

OFWK9656L

I
ISWI

GND

40M4

*

AP

NAFTA

*

O1
O2

NC

O1
O2

NC

*

7
8

11
12
16
17

O1
O2

NC

1104
OFWK3953L
OFWK7265L
OFWK3956L4104
OFWM1967L4106

7
8

11
12
16
17

5106

7
8

11
12
16
17

5105
RES

*

RES

OFWK9355LCHINA

*

4107

1105

4108

--

--

--

VIF1

VIF2

SIF1

SIF2

F_16040_001.eps

F110

F111

F112

F113

1106
OFWK9656L
OFWK9361L
OFWK9352L

--

241105

A

B

C

D

E

F

1101 B1
1102 A1
1103 D1
1104 B8
1105 C8
1106 E8
1107 F3
2101 A6
2102 A6
2103 A6
2104 C2
2105 C3
2106 C5
2107 D2
2108 D2
2109 D4
2110 E5
2111 E6
2112 F6
2113 A6
2114 D6
3101 C1
3102 C1
3103 C2
3104 C3
3105 D1
3106 D2
3107 B5
3108 B6
3109 C5
3110 B7
3111 D4
3112 D5
3113 D6
3114 D6
3115 E5
3116 E6
3117 E6
3118 F6
3119 F6
3120 F2
3121 F2
3122 F1
3123 F1
3124 B1
3125 C1
3126 D1
3127 D1
4102 B7
4103 B7
4104 B7
4105 B7
4106 C7
4107 C9
4108 C9
4109 E7
4110 E7
4111 E7
4112 E7
4113 E8
4114 F6
4115 A3
4116 A3
5101 B4
5102 A5
5103 A5
5105 B9
5106 E9
5107 C1
5108 C1
6101 C1
6102 C1
6103 C3
6104 C6
6105 C7
6106 F2
6107 F2

7101 D5
7102 D7
7103 E6
F101 B1
F102 B1
F103 C2
F104 C1
F105 C3
F106 D1
F107 D2
F108 A4
F109 D4
F110 B9
F111 B9
F112 E9
F113 E9
F114 F7
F115 F3
F116 F3
F117 F3
I101 C2
I102 B6
I103 C5
I104 D5
I105 D5
I106 D6
I107 E5
I108 E6
I109 F6
I110 D7
I111 E5
I112 C1
I113 C1

Circuit Diagrams and PWB Layouts

EN 42LC4.9U AA 7.

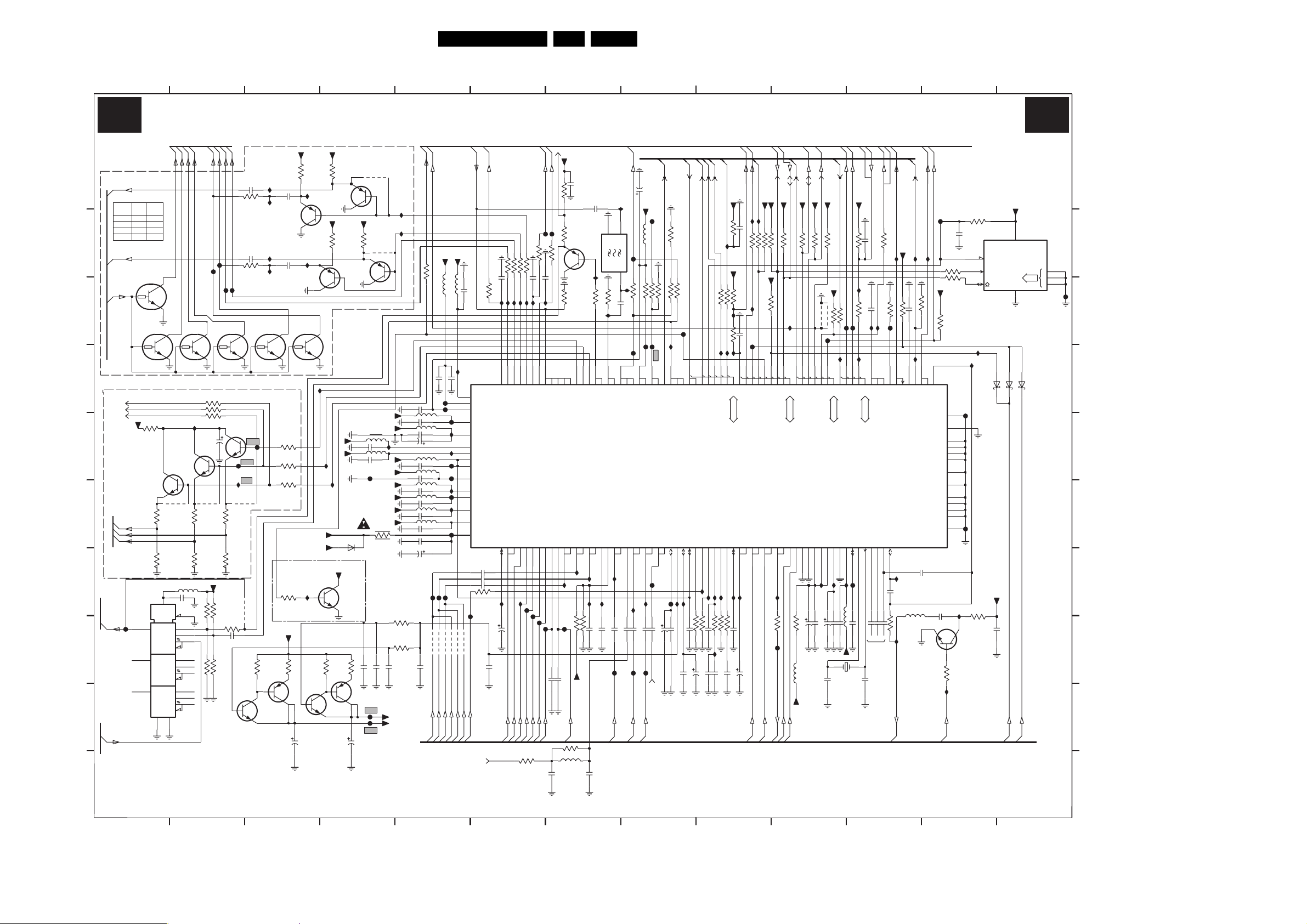

SSB: Hercules

12

1

2

3

34 5 6

4

5

6

7

7

8

8 9 10 11 12 13

9

10

11

12

HERCULES

B2 B2

B15 / B23

B15

B15

+8VSW_TV

AUDIO PROCESSING

A

A

B

B

C

C

D

D

E

E

F

F

G

G

SC2_CVBS_MON_OUT

H

H

I

I

J

J

AUDOUTLSR

B5

HETV

MTV

(15W)

(5W)

SC1_L

SC2_L

SC2_R

820R

10K

820R

10K

3250

3255
0R

3258
330R

16

VDD

MDX

8

3V9

3V9

7209
BC847BW

7208

BC847BW

4207
RES

5218

2291

G4

1

2
4X1
4X2

VEEVSS

7

SC1_R

RES

6

13
12
11

1
2

10

3
5
9

3V9

7202-1
PUMH7

3228
3244
3289

I246

RES

Const_R_OUT

F201

2203
10u
16V

4208
RES

3256

0R

3259
330R

+5VSW

RES

RES

3291

RES

3294

3293

Const_L_OUT

SC2_L_MON_OUT

SC2_R_MON_OUT

F202

F203

F204

7202-2
PUMH7

RES
RES

RES

7210
BC847BW

3257

0R

3260
330R

150R3282

3292

2290 4u7

RES

2V5

7216-2
BC847BS

3203

5K6

3202

5K6

3206

5K6

3205

5K6

B5

AUDOUTLSL

7201-1 PUMH7

OUT_MUTE

B5

0V

7201-2 PUMH7

RESERVED

INTF_V_OUT
INTF_Y_OUT

INTF_U_OUT

+5VSW

100R

R_SDTV

B13

B_SDTV

B13

G_SDTV

B13

7219
RES

F210

B15/B23

B7

LCD-TV LC04SD2 MULTIPLE 12NC :- 3139_123_61401_01 / 61441_01
LCD-TV LC04SD2 SINGLE 12NC :- 3139_123_61411_01 / 61451_01

14

15

4

SC2_OUT_SW

2280
3201

2281
3204

Const_L_OUT
Const_R_OUT

3V9

7203-1
PUMH7

F220

F221

I218

4209

RES

4206

3262
22K

2V1

5

I289

4u7

2201 1u0

100R

I290

7204-2

BC857BS

I292

4u7
100R

2202

I293

3V9

3251

100R

3252

100R

3253

100R

ES10.3B RESET (RESERVED)

3254

1K0

+3V3STBY

3263
3R9

7214
BCP69-25

1

3

1V9

4

CELL 12NC :- 8239_125_11402

3139 123 6145.1

1 8 9 10 11

1

234 56

2

3

1u0

3

2

I294

7205-2

BC857BS

7203-2

PUMH7

+8VSW_TV

I242

2V8

7216-1
BC847BS

2

4

2208

1u0

*

3202

I291

+5VSW

3264
22K

50V

+8VSW_TV

7204-1

BC857BS

+8VSW_TV

3205

3V9

I243

I247

I248

+1V8_B

2V

1

6

1V9

1

*

3203

+8VSW_TV

*

BC857BS

+1V8_A

+1V8_B

6201

BAS321

7211
BC847BW

3265

3R9

2V7

7205-1

GND

5206
2234 220n
5207

RES

2205

3

7215
BCP69-25

2

4

2209

4

4211

*

3206

4212

+3V3STBY

+5VSW

220n2235

+1V8_B

+1V8_A

+3V3STBY

+3V3STBY

+3V3STBY

+1V8_A

3280

1R0

2u22206

F230

F231

16V10u

I201

I202

2230
5204
2231
5205

GND1

2232
2233

I221

5208

5209
2237F227
5210

2238
5211

2239 100n
5212

2240 220n
5213

2241

2243

3266 5K6

3267

2207
220n

+1V8_A
+1V8_B

5K6

2258 10u

B1

B15/B23

SEL_IF_SDM

AV2_DMMI_SW

+5VSW

100R

5201

3296

100n

2228

100n

220n

F224

100n

I220

10u 16V

I222

F225

220n2236

F226

220n

I223

220n

F228

I224

220n

F229

100n2242

16V10u

F233

F234

F232

4203

4202

4201

SC1_G_CVI_Y_IN

SC1_B_CVI_Pb_IN

SC1_R_CVI_Pr_IN

B13

B13

B13

5

B1

B1

SSIF

RF_AGC

MAIN_OUTR

MAIN_OUTL

+5VSW

680R

5202

2210 220n

3207

10u

I219

RES

7217

2229

82

VP3

47

F222

VP2

15

F223

VP1

110

VDDP_3.3

69

VDDCOMB

3

VDDC4

124

VDDC3

100

VDDC2

117

VDDC1

96

VDDADC_1.8

4

VDDA3_3.3

94

VDDA2_3.3

88

VDDA1

93

VDDA_1.8

45

VCC8V

8V

100n

2244

100n2245

2246

100n
100R

3268

F235

4215

4213

4214

2285
100n

SC1_CVI_DMMI_G_Y_IN

SC1_CVI_DMMI_B_Pb_IN

SC1_FBL_IN_1

SC1_CVI_DMMI_R_Pr_IN

B15/B23

B15/B23

B15/B23

B15/B23

CVBS_COMB

100R3210

100R

100R

100R

10n2211

3208

3211

3209

2214

I285

I288

I203

I283

I284

I204

2V4

6061363733

31

62

63

AGCOUT

AUDOUTLSL

AUDOUTLSR

AUDOUTHPL

AUDOUTHPR

Φ

VIDEO

SIGNAL

AGC2SIF

AUDIOIN2L

AUDIOIN2R

AUDIOIN3L

SSIF

53545657495034

46

I227

I254

2u2

50V

F236

2247

FRONT_L_IN

SC2_L_IN_1

AudioIN2L

AudioIN2R

SC2_R_IN_1

B15/B23

B15/B23

B12/B14

B12/B14

3286

6

+5VSW

B15

B15

3216 330R

SC1_L_RF_OUT

CVBS_COMB

SC1_R_RF_OUT

F206

F205

3215

2V2

100R

100R

*EMC

3212

3213

1n02216

1n0

*EMC

I205

0V

AVL

SSIF

SWO

REFO

AUDOUTSL

AUDOUTSR

PROCESSOR

AUDIOIN5L

AUDIOIN5RBBCLIN

AUDIOIN3R

AUDIOIN4L

AUDIOIN4R

80

35

I255

F240

F239

F237

F238

2248

2249

RES

RES

FRONT_R_IN

SC1_COMP_AV1_L_IN

B17

B17

B15/B23

B15/B23

3285

5217

100R

RES

2288

RES

100n

2218

2219

RES

2

1201

SFSKA

330R

4M5

GND

RES

1V6

I244

7206
BC857B

1K0

100K

3214

680R

3217

3218

I207

44

8578

87

86

BO

RO

GO

PIP

YIN3

G

I256

I257

I230

RES

1n0

2250

3271

+3V3STBY

0R

2287

RES

7

7

CVBSO

PRIN3

83

I228

10u2251 25V

DVBO

BLKIN

84

59

100n2252

F241

SC2_AV3_C_IN

B15/B23

REFIN

PBIN3

79

RES

3270

SC1_COMP_AV1_R_IN

B15

100u

I206

SC1_CVBS_RF_OUT

1

I

F209

O

3

100R

I208

RES

3219

2220

F208

43

21

IFVO

DVBO

FMRO

FMRO

C2C4CVBS2

C3

525558

I258

I229

100n2253

2286 100n

F242

SC1_CVBS_IN

B15/B23

B3

16V

2221

+5VSW

HOUT

F250

RES

3290

5203

SANDCASTLE

RES

RES

RES

RES

47K3220

3287

3288

3283

I209

I298

F207

67

48

66

AVL

CSY

EWD

IFVO

HOUT

FBISO

HERCULES

TDA15021H/N1A11

CVBS3

CVBS4

DECBG

Y4

Y2

Y3

5164201438

F248

F244

I231

16V

I232

10u

100n

100n

2255 100n

2254

2256

2257

F243

CVBS_COMB

SC2_Y_IN_1

B15/B23

3284

F212

SVO

CVBSI

DECDIG

DECSDEM

I233

100n

2259

B4

I2SDI1

106

O

I2SDI1

DECV1V8

EHTO

32

118

100K3295

10u2260

2262 10u

B4

B4

I2SCLK

I2SDO1

105

104

I2SDO1

INSSW3

77

27

I259

I234

39K

6n8

2263

3281

10V

50V

470n

2264

B5

EXT_MUTE

100R3222

3V2

I210

103

102

I2SWS

I2SCLK

I2SDO2

IREF

PH1LF

PH2LF

17

16

I235

I236

1K0

3272 4K7

3273

I262

10V2265

1u0

B15/B17

IR

+3V3STBY

4K7

I297

3225

10R

I211

3223

100R

I278

3227

I277

97

INT0

P0<0:5>

PLLIFRSECPLL

41

19

I237

220n

2267

3274 390R

100n

2266

9

B7

B7

B17

TV_IRQ

PC-TV-LED

TV_SC_COM

100p

I274

I275

100R

2223

3226

3230 10K

+3V3STBY

4K7

3224

I212

RES

1u0

F211

2224

3V1

0V

126

107

98

99

T0

INT2

INT1

SIFIN1

DVBAGC

SIFAGC

422930

1V9

I226

50V2268

2u2

SIF1

B1

+3V3STBY

3K3

2K2

3231

3232

3229 4K7

3V2

127

128

T1

RX

SIFIN2

DVBIN1

1V9

SIF2

B1

+3V3STBY

TX

DVBIN2

B15/

B8

B8

B5

SCL

+3V3STBY

+3V3STBY

SDA

SOUND_ENABLE

4K7

3234

3233 3K3

+3V3STBY

I273

3V2

108

109

112

111

SCL

SDA

PWM0

TPWM

P1<0:7>

VGUARD

VIFIN1

SWIO

VIFIN2

VREF_NEG_HPL+HPR

86957

24

25

13

1V9

1V9

I264

100R

3275

3276 75R

1m0

F245

5214

DMMI_RGB_SW

VIF1

VIF2

+3V3STBY

B15/B23

B1

B1

B23

B23

B15/

B17

+3V3STBY

+3V3STBY

LIGHT_SENSOR

4K7

4K73236

SW_I2C_SDA

SW_I2C_SCL

3235

+3V3STBY

RES

100R

RES

RES

4205

4204

FOR SERVICE

3237

3238

F213

3V2

0V

I213

114

122

123

115

113

PWM4

PWM3

PWM2

PWM1

P2<0:5>

VREF_POS_HPR

VREF_POS_LSL

VREF_POS_LSR+HPR

VREFAD

VREF_NEG_LSL+HPL

918990

I238

I239

16V

470u 16V

100u

220n

100n

2271

2273

2272

2269

2270 100n

+3V3STBY

1202

RES

24M576

2275 8p2

B15

B15

B17

+3V3STBY

STATUS_1

STATUS_2

1n0

2225

3240 1K0 1%

I241

100R

F215

F214

3239

0V

0V

I225

116

119

120

ADC1

ADC0

ADC2

ADC3

P3<0:3>

VREFAD_NEG

VREFAD_POS

VSC

XTALIN

XTALOUT

11

26

10

1V4

1V4

I240

F246

150n

5216

2274

8p22276

B8

B6/B15/ B23

SC_STANDBY

KEYBOARD

3241 100R

2226 3n3

I215

I214

F216

39

QSSO

AMOUT

AUDEEM

UIN

YIN

VIN

72

70

RES

RES

RES

2283

2284

2282

RES

RES

B9

10K3242

657175

SVM

YSYNC

73

2277 100n

1K5

3277

B3/B18

B18

B3

VSYNC

INTF_V_OUT

INTF_U_OUT

+3V3STBY

I272

I270

I271

RES

220K

3245

2293

3243 4K7

POWER_DOWN_BOLTON_P50

I216

23

22

76

VOUT

VDRB

VDRA

UOUT

INSSW2

VSSCOMB

VSSC1|P

VSSADC

2292

I265

100n

2278

5215

47u

I266

INTF_Y_OUT

B18

SWO1

VSSP2

VSSC4
VSSC3
VSSC2

VSSA1

GNDIF

11810

B3/B15/B17/B23

F218

ITV_IR_SW_RESET

NVM_WP_HERC

3247
3248

+3V3STBY

4K7

3246

74

YOUT

1

68

2

125

101
121

95

12

92

GNDA

81

GND3

40

GND2

18

GND1

28

F249

27p

BC847BW

0V

3279

100R

I268

Y_NOTCH

B7

12 13

12

I267

1n0

2227

100R

F247

7218

2V9

100R

I217

8V

7207
M24C16-WMN6

3V2

7
6

5

2V8

I269

GND1

3278

68K

4K73249

WC

SCL

+3V3STBY

(2Kx8)

EEPROM

BAT54 COL

6205

6204 BAT54 COL

+8VSW_TV

100n

2279

POWER_DOWN

B6/B7

13

3V2

84

Φ

0

ADR

1
2SDA

F219

6206

RES

POWER-DOWN_BOLT-ON

B15/B23

F_16040_002.eps

241105

13

1201 B7

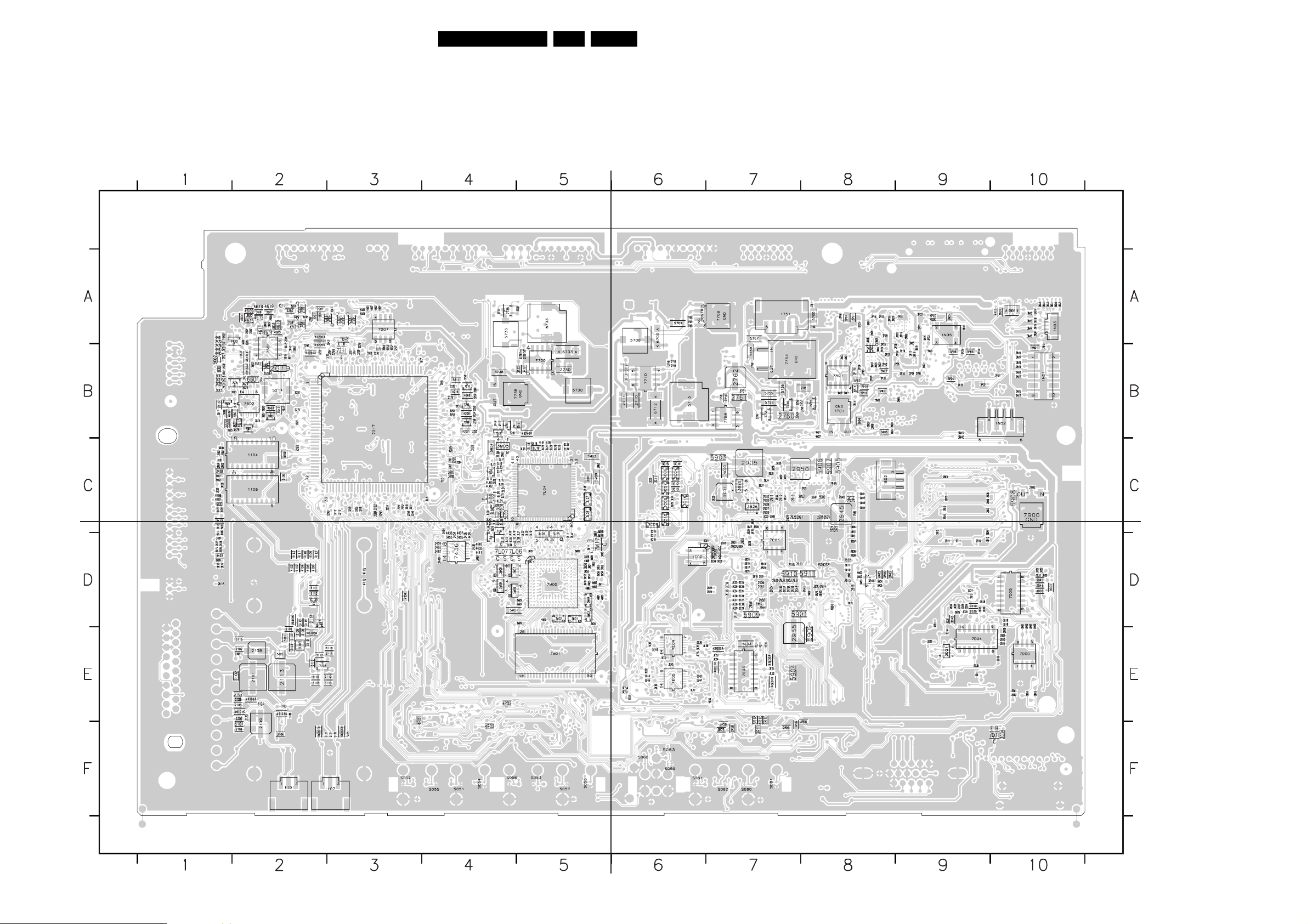

1202 G10
2201 A3
2202 B3
2203 D2
2205 G4
2206 G4
2207 F5
2208 G4
2209 G4
2210 B5
2211 B6
2214 B6

A

A

2216 B6
2218 A7
2219 A7
2220 B7
2221 A7
2223 B8
2224 C8
2225 B10
2226 C10

B

B

2227 B11
2228 C5

C

C

D

D

E

E

F

F

G

G

H

H

I

I

J

J

2229 C5
2230 D5
2231 D5
2232 D5
2233 D5
2234 E4
2235 E4
2236 D5
2237 D5
2238 E5
2239 E5
2240 E5
2241 E5
2242 E5
2243 E5
2244 E5
2245 E5
2246 F5
2247 F6
2248 G6
2249 G6
2250 F7
2251 F7
2252 F7
2253 F7
2254 F7
2255 F7
2256 F8
2257 F8
2258 G5
2259 G8
2260 F8
2262 G8
2263 F8
2264 G8
2265 G8
2266 G8
2267 F8
2268 G8
2269 F9
2270 F9
2271 F9
2272 F9
2273 F10
2274 F10
2275 G9
2276 G10
2277 F10
2278 F11
2279 F11
2280 A3
2281 B3
2282 F10
2283 F10
2284 F10
2285 F6
2286 F7
2287 H7
2288 H6
2290 F3
2291 F2
2292 E11
2293 C10
3201 A3
3202 A4
3203 A4
3204 B3
3205 B4
3206 B4
3207 B6
3208 B6
3209 B6
3210 B6
3211 B6
3212 B6
3213 B6
3214 B7

1
2
3

3215 B6
3216 A6
3217 B7
3218 B7
3219 B7
3220 B7
3222 B8
3223 B8
3224 B8
3225 B8
3226 B9
3227 C8
3228 D2
3229 C9
3230 B9
3231 B9
3232 B9
3233 B9
3234 B9
3235 B9
3236 B9
3237 C9
3238 C10
3239 C10
3240 B10
3241 B10
3242 C10
3243 C10
3244 D2
3245 C10
3246 C11
3247 B11
3248 B11
3249 A11
3250 D2
3251 D3
3252 D3
3253 D3
3254 F3
3255 E2
3256 E2
3257 E3
3258 E2
3259 E2
3260 E3
3262 F3
3263 F3
3264 F4
3265 F4
3266 F4
3267 F4
3268 F5
3270 F7
3271 F7
3272 F8
3273 F8
3274 F8
3275 F9
3276 F9
3277 F10
3278 F11
3279 G11
3280 E4
3281 F8
3282 F3
3283 B8
3284 B8
3285 G6
3286 H6
3287 B7
3288 C8
3289 D2
3290 B8
3291 F2
3292 F2
3293 G2
3294 G2
3295 F8
3296 B5
4201 F5
4202 F5
4203 F5
4204 C9
4205 C9
4206 F3
4207 E2
4208 E2
4209 E3
4211 A4
4212 B4
4213 F5
4214 F5
4215 F5
5201 B5
5202 B5
5203 B7
5204 D5
5205 D5
5206 D4
5207 D4
5208 D5

5209 D5
5210 D5
5211 E5
5212 E5
5213 E5
5214 G9
5215 F10
5216 F10
5217 H7
5218 F2
6201 E4
6204 C11
6205 C11
6206 C12
7201-1 B1
7201-2 C2
7202-1 C2
7202-2 C3
7203-1 C3
7203-2 C3
7204-1 A4
7204-2 A3
7205-1 B4
7205-2 B4
7206 B6
7207 B11
7208 D2
7209 D2
7210 D3
7211 F4
7214 G3
7215 G4
7216-1 G3
7216-2 G3
7217 C6
7218 F11
7219 F2
F201 B2
F202 B2
F203 B3
F204 B3
F205 B6
F206 B6
F207 C7
F208 C7
F209 B7
F210 F2
F211 C9
F212 C8
F213 C10
F214 C10
F215 C10
F216 C10
F218 A11
F219 B12
F220 D3
F221 D3
F222 D5
F223 D5
F224 D5
F225 D5
F226 D5
F227 D4
F228 E5
F229 E5
F230 G4
F231 G4
F232 F5
F233 F5
F234 F5
F235 F5
F236 F6
F237 F6
F238 F6
F239 F6
F240 F6
F241 G7
F242 G7
F243 G7
F244 F8
F245 F9
F246 F10
F247 D11
F248 F8
F249 E11
F250 A7
I201 A5
I202 B5
I203 B6
I204 B6
I205 B6
I206 A7
I207 C7
I208 B7
I209 C8
I210 C8
I211 B8
I212 B9
I213 C10
I214 C10
I215 C10

I216 C1
I217 C11
I218 D3
I219 C5
I220 D5
I221 D5
I222 D5
I223 D5
I224 E5
I225 C10
I226 F8
I227 F6
I228 F7
I229 F7
I230 F7
I231 F7
I232 F8
I233 F8
I234 F8
I235 F8
I236 F8
I237 F8
I238 F9
I239 F9
I240 G11
I241 B10
I242 F4
I243 C4
I244 B7
I246 D2
I247 D4
I248 D4
I254 F6
I255 F6
I256 E7
I257 E7
I258 E7
I259 F8
I262 F8
I264 F9
I265 F10
I266 F10
I267 F11
I268 G11
I269 C11
I270 B11
I271 B10
I272 B10
I273 C9
I274 A9
I275 A9
I277 C8
I278 C8
I283 B6
I284 B6
I285 B6
I288 B6
I289 A3
I290 A3
I291 A4
I292 B3
I293 B3
I294 B3
I297 B8
I298 C7

0

SSB: Sync Interface

Circuit Diagrams and PWB Layouts

EN 43LC4.9U AA 7.

1

2

3

4

5

6

7

8

9

SYNC INTERFACE

B3 B3

3431
1K0

7430
PDTC114ET

+3V3SW

7436-3

+5VSW

3V1

14

7

6430

BZX384-C2V7

I453

6431

1N4148

I430

6

3432

9

RES

3463

RES

+3V3SW

14

7

7436-4
74LVC14APW

8

ITV_IR_SW_RESET

3459

H_1FH

100R

HOUT

VSYNC

3451

4K7

I443

+3V3STBY

I440

3453

100R

3455

100R

7436-1

74LVC14APW

1

3

4436

RES

+3V3SW

14

7

4437

RES

+3V3SW

7436-2

74LVC14APW

14

7

3454

2

100R

Hsync_SDTV

B

3456

4

100R

SC1_CVBS_RF_OUT

&

Vsync_SDTV

I449
I450

1440
1
2
3
4
5

67

BM05B-SRSS-TBT

C

I454

+3V3STBY

0V

A A

TO SIDE CONNECTORS

B

LED_SEL

C

74LVC14APW

COL_HREF

D D

H_DELAY

4438

RES

4440

3458

100R

5

1440 D9
1441 E9
2447 E8
2448 E9
2449 E4
3431 A3
3432 B3
3451 A5
3453 B6
3454 B7
3455 C6
3456 C7
3458 D2
3459 D4
3461 E2
3462 E4
3463 C4
4436 A6
4437 B6
4438 D2
4439 E2
4440 D2
4441 E2
5431 E8
6430 A3
6431 B3
7430 B3
7436-1 A6
7436-2 C7
7436-3 D3
7436-4 D4
7436-5 E4
7436-6 E3
I430 B3
I440 C6
I443 B5
I449 D8
I450 D8
I451 E9
I452 E9
I453 B3
I454 B2

E

3139 123 6145.1

1

COL_VA

Vsync_SDTV

4439

RES

4441

2

3461

100R

+3V3SW

7436-6
74LVC14APW

14

13

12

7

+3V3SW

7436-5

74LVC14APW

11

2449

100n

14

7

3462

10

V_1FH

100R

+12VSW

2447
10p

5431

I451

2448

10p

+5V

1441

1
2
3

I452

B3B-PH-SM4-TBT(LF)

45

E

FOR ITV ONLY

3

4

5

6

7

8

F_16040_003.eps

9

251005

Circuit Diagrams and PWB Layouts

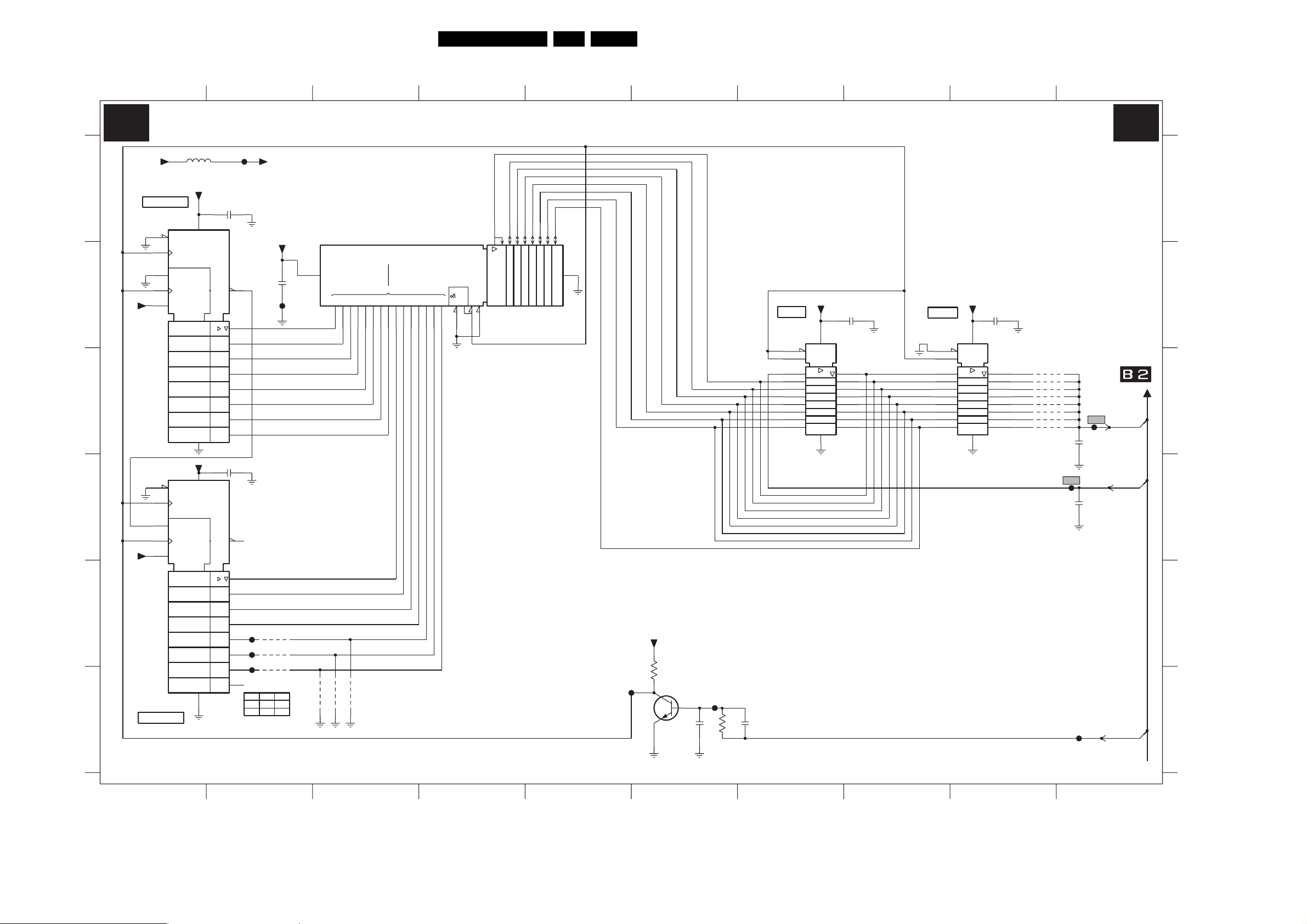

SSB: Audio Delay Line (Lipsync)

EN 44LC4.9U AA 7.

2

3

4

5

6

7

8

9

AUDIO DELAY LINE (LIPSYNC)

B4 B4

2D 3

2503

2D 3

F501

+5VD

100n2501

7502

5V3

2V6

2V6

2V6

2V6

2V6

2V6

2V6

*

4504

CY62256LL-70ZC

RAM

32kx8

0

24252612

21

23

RES

RES

4506

4505

0

32k-1

A

11

10

987654321

4

5

3

8910

6

7

2EN

12

13

14

2C1

222827

+5VD

2502

9

5V3

15

1

2

3

4

5

6

7

100n

5V3

15

1

2

3

4

5

6

7

100n

F502

2V6

2V6

2V6

2V6

2V6

2V6

2V6

9

I503

4501

I504

4502

I505

*

4503
4504

4503

PDP

LCD

N
YN

*

Y

4

4

2V5

2V5

2V5

11121315161718

A

A,1D

G2

20

2V5

2V5

2V5

2V5

2V5

19

2V3

14

+5VD

2505

100n

20

5V3

1

EN

11

C1

4507

2

1D

3
4
5
6
7
8
9

19
18
17
16
15
14
13
12

10

4508
4509
4510
4511
4512
4513
4514

RES
RES
RES
RES
RES
RES
RES

F504

2V6

F505

2506
330p

2507
470p

I501

2V3

+5VD

3501
470R

7504

BC847BW

0V2

I502

2508

82p

3502
47K

2V3

2509
82p

LATCH

7505

74HC573PW

1
11

2V6

2
3
4
5
6
7
8
9

5V3

EN
C1

1D

+5VD

2504

100n

20

2V3

19
18
17
16
15
14
13
12

10

LATCH

7506

74HC573PW

A

B

C

D

E

F

+5VSWI

COUNTER

+5VD

+5VD

COUNTER

7501
M74HC590T

14

EN3

13

2V3

12

11

2V3

10

CT=0

5V3

EN3

13

12

5V3

11

2V3

10

CT=0

5V3

7503
M74HC590T

C2

G1

1+

C2

G1

1+

5501 1u0

+5VD

VCC

CTR8

(CT=255)Z4

GND

+5VD

1614

VCC

CTR8

(CT=255)Z4

GND

16

8

8

F503

101

2501 A2
2502 B2
2503 D2
2504 B8
2505 B9
2506 C10
2507 D10
2508 F6
2509 F7
3501 E6

A

3502 F6
4501 E2
4502 E2
4503 F2
4504 F3
4505 F3
4506 F3
4507 C9
4508 C9
4509 C9
4510 C9
4511 C9

B

4512 C9
4513 C9
4514 C9
5501 A1
7501 A1
7502 A3
7503 F1
7504 F6
7505 B7
7506 B8
F501 A2
F502 B2

C

F503 C10

I2SDI1

F504 D10
F505 F10
I501 F5
I502 F6
I503 E2
I504 E2

I2SDO1

I505 E2

D

E

F

I2SCLK

3139 123 6145.1

23 7

45

61 8

F_16040_004.eps

9

10

251005

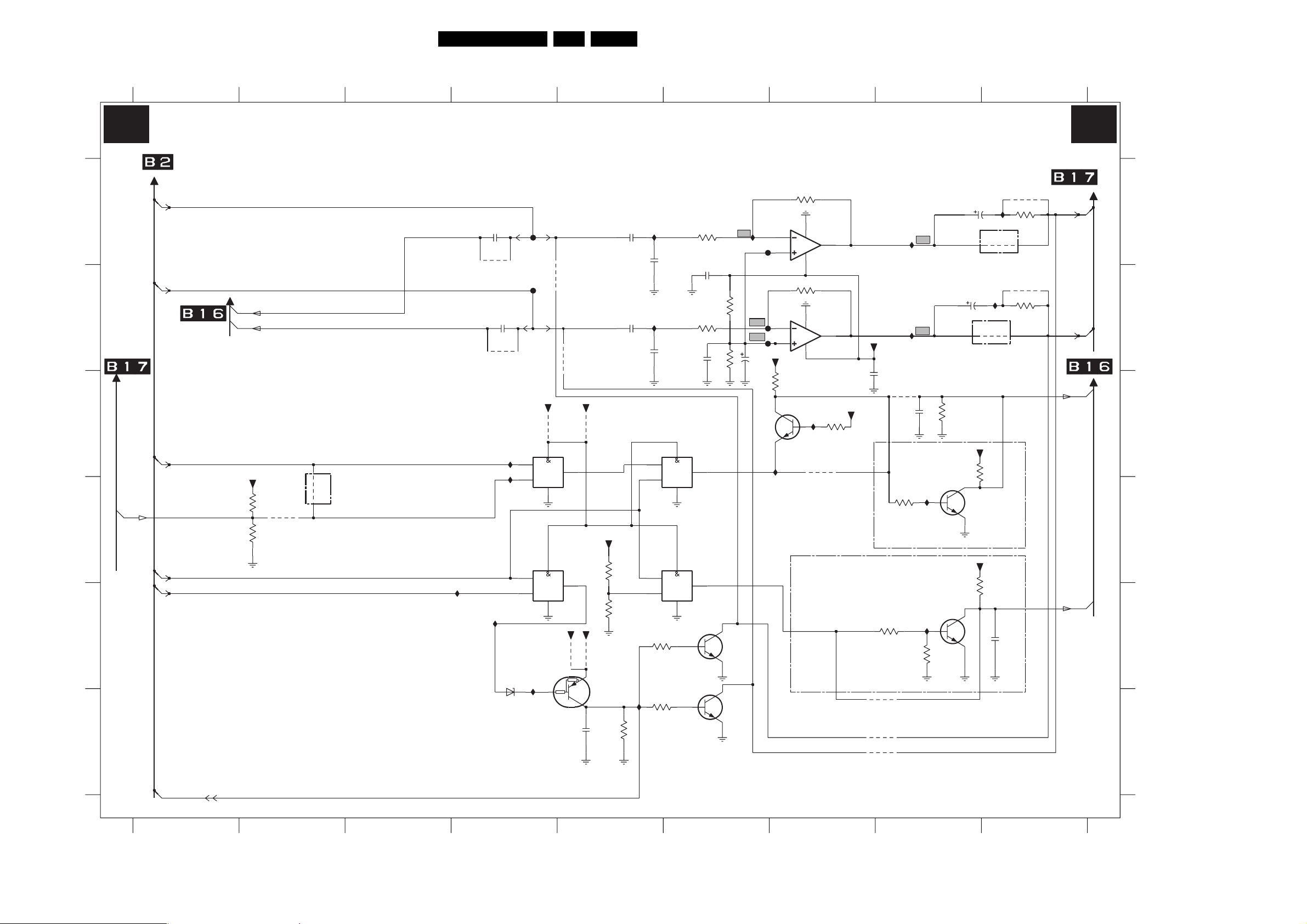

SSB: Audio Processing

Circuit Diagrams and PWB Layouts

EN 45LC4.9U AA 7.

123456

789

AUDIO PROCESSING

B5 B5

FROM HERCULES

A

B

C

D

E

F

3139 123 6145.1

AUDOUTLSL

AUDOUTLSR

SOUND_ENABLE

HP_DET_R_DC

POWER_DOWN

EXT_MUTE

OUT_MUTE

+5VSW

3626
10K

3627

22K

AUDIO-L

AUDIO-R

4613

ITV ONLY

4601
RES

I613

2616

2u2

4618

RES

2617

2u2

4619

RES

7602-1

74HC08PW

I606

I607

I614

6601

BZX384-C3V3

F601

F602

1

2

9

10

7605
PDTA143ET

+3V3SW

4616

14

7

14

7

I615

5V

4611

RES

RES

4612

+3V3STBY

3

7602-3

74HC08PW

8

+5V

RES

4621

2619

47u

4617

3V3

+5VSW

4620

5V2

RES

3605

I608

2603

1u0

2608

1u0

+5V

3628
RES

3629

RES

I617

0V

3623

47K

I610

7602-2
74HC08PW

4

5

12

13

3630

470R

3631

470R

HPIC_LIN

2604

470p

HPIC_RIN

2609

470p

14

7

14

74HC08PW

7

2610
1u0

7602-4

3604

22K

2605

1u0

3609

22K

6

11

3610

100K

3611

100K

0V

I618

0V

7606-1
BC847BS

7606-2
BC847BS

F603

F604

F605

2611
100u

16V

3625

3K3

I612

2V6

2
2V6

3

3612 22K

2V6
6
2V6
5

+5VSW

3V4

22K

7601-1

4

TS482IDT

2V6

8

5V3

7601-2
TS482IDT

2V6

84

5V3

I611

3V2

7607

BC847BW

4606

RESERVED FOR UFD

1

7

3615

10K

+3V3SW

HPIC_LOUT

HPIC_ROUT

+5VSW

2614

100n

RESERVED FOR UFD

3620

10K

4603

4614

RES

4615

RES

4602

3619

10K

I602

I603

3.2 TO 4.3V

I616

3621

RES

2613

1u0
10V

7604

BC847BW

I619

BC847BW

3618

7603

2615

470u 16V

**

2618

16V470u

**

SOUND_ENABLE_1

22K

+3V3STBY

3617

+3V3STBY

3616

I604

I605

4605
RES

1K0

1K0

4604

RES

2612
1u0
10V

4609

3632

39R

4610

3633

39R

HP_LOUT

HP_ROUT

POR_AUDIO

F_16040_005.eps

251005

A

B

C

D

E

F

2603 A5
2604 A6
2605 B6
2608 B5
2609 B6
2610 B6
2611 B6
2612 E9
2613 C8
2614 B8
2615 A8
2616 A4
2617 B4
2618 B8
2619 F5
3604 A6
3605 A7
3609 B6
3610 B6
3611 B6
3612 B7
3615 C7
3616 E9
3617 C9
3618 C8
3619 D8
3620 E8
3621 E8
3623 F5
3625 C6
3626 D2
3627 D2
3628 D5
3629 E5
3630 E5
3631 F5
3632 A9
3633 B9
4601 D2
4602 C8
4603 F8
4604 A9
4605 B9
4606 C7
4609 A9
4610 B9
4611 B4
4612 B4
4613 D2
4614 F8
4615 F8
4616 C4
4617 C5
4618 A4
4619 B4
4620 E5
4621 E5
6601 E4
7601-1 A7
7601-2 B7
7602-1 C4
7602-2 C5
7602-3 D5
7602-4 D6
7603 E8
7604 D8
7605 E4
7606-1 E6
7606-2 F6
7607 C7
F601 A4
F602 B4
F603 A6
F604 B6
F605 B6

I602 A8
I603 B8
I604 A9
I605 B9
I606 C4
I607 C4
I608 A5
I610 B5
I611 C7
I612 C6
I613 E3
I614 E4
I615 E4
I616 E8
I617 F5
I618 A6
I619 D8

1

23456

789

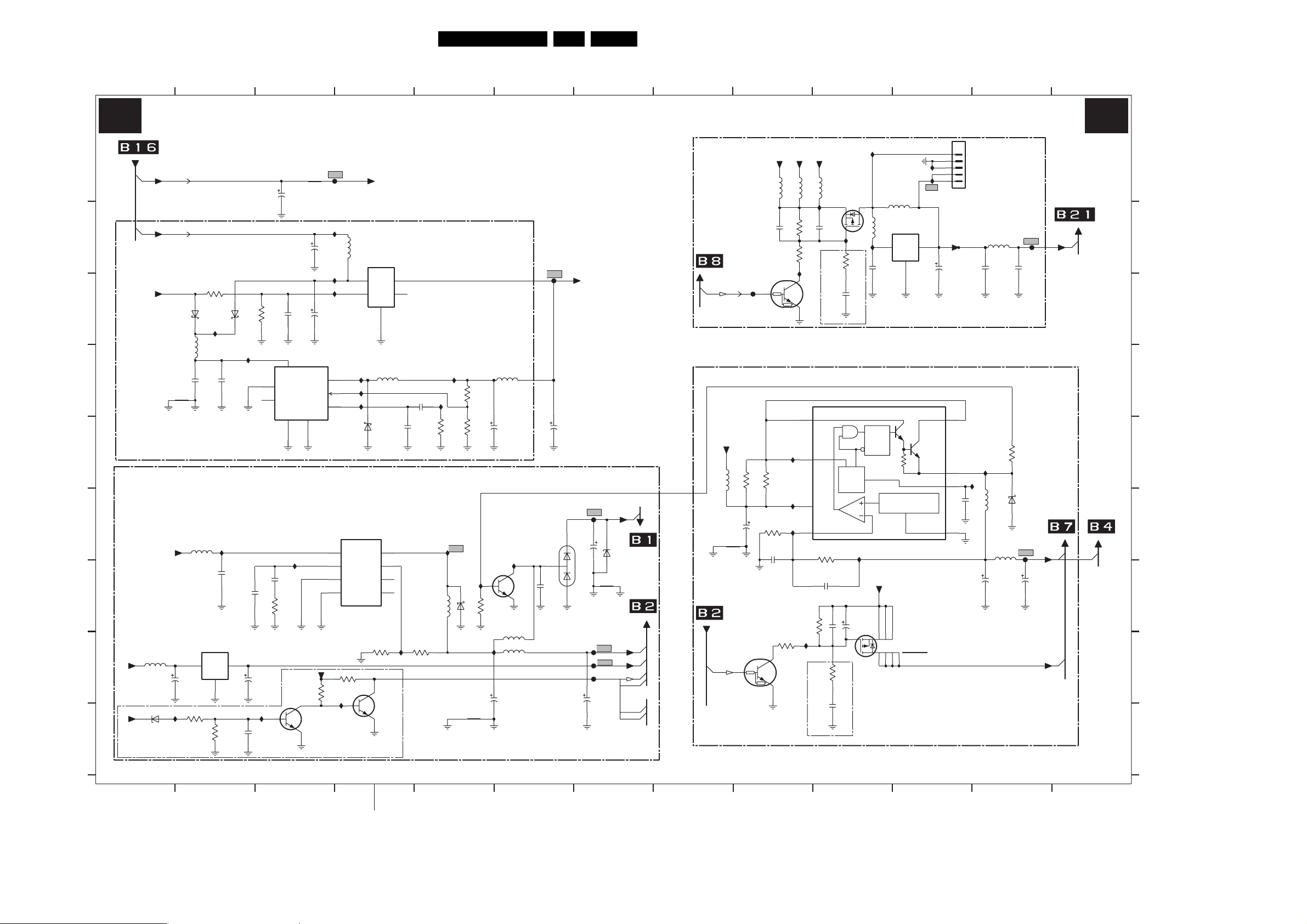

SSB: DC-DC Converter

Circuit Diagrams and PWB Layouts

EN 46LC4.9U AA 7.

1234 56

7

8 9 10 11 12 13

DC-DC CONVERTER

B6 B6

FROM TOP CONNECTORS

A

B

+12VUNREG

C

D

E

FOR UFD ONLY

SUPPLY TO TUNER & HERCULES

F

G

+12VSW

H

+12VUNREG

BZX384-C8V2

I

FOR UFD ONLY

3139 123 6145.1

1 8 9 10 11 12 13

+12VUNREG

+5V

+12VSW

5738

6740

I740

SUP_GND2

5730

10u

SUP_GND1

1

2738

16V47u

3740

1K5

6708
SS24

I710

5709
10u

2710
10u

SUP_GND2

COM

10K3708

2711
10u

I731

2730

10u

25V

SUP_GND1

OUTIN

2

3741
1K5

6709
SS14

I711

SUP_GND2

2733
220p

SUP_GND1

7738

L78M08CDT

3

2739

2741
220n

3709
6K8

3

2

NC

SUP_GND2

16V47u

I741

2704

16V10u

2708
RES

7710
L5973D

8

INH

SYNC

GND GND_HS

7

I705

2734
22n

3736
4K7

SUP_GND1

+3V3STBY

VREFVCC

Φ

9

SUP_GND2

7741
BC847BW

2706

10u 16V

2709

NC

6

OUT

FB

COMP

SUP_GND1

3742
15K

F701

I706

I709

I708

16V47u

1

5

4

7730
L5970D

8

VCC

COMP4FB

3

INH

7

GND

SUP_GND1

3743

22K

I742

+12VSW

5704

7708
LF33CPT

1

2

CTRL NC

I712

I714

I715

SS36

SUP_GND2

OUT

SYNC

VREF

1K0 1%

OUTIN

COM

3

5712

33u

6712

1

5

2

6

3732

7742
BC847BW

5

4

NC

2714
220p

SUP_GND2

3733

I732

2715

22n

I716

3716
4K7

SUP_GND2

5733
220u

3K3
1%

I713

SUP_GND2

I733

6733

SS14

SUP_GND1

3712
5K6

1%

3713
3K3
1%

7735

BC817-25

I734

3735

1K0

SUP_GND1

I736

SUP_GND1

5713

10u

2713

16V

470u

SUP_GND2

SUP_GND1

5735

1m0

5737

10u

2731

16V470u

I735

SUP_GND1

234 56

F710

BAV99

2735
470p

470u

6735

+3V3STBY

2716

16V

2736

35V

SUP_GND1

SUP_GND1

5V2

8V

F736

22u

F737

F738

F743

2737

32V9

+VTUN

TO TUNER CELL

6736
BZX384-C33

TO HERCULES CELL

+5VSW

+8VSW_TV

POWER_DOWN

B5

16V470u

B7
B16

7

FOR LCD ONLY

FROM SCALER

PANEL-PWR-CTL

7755
PDTC114ET

(0V)

F755

0V6

SUPPLY TO SCALER

+12VSW

3751

5752

1R0

10u

2753

470u 16V

GND

SUP_GND3

SUP_GND3

FROM HERCULES

SC_STANDBY

3V1

+5VSWI

3753

1K0

2754

RES

0V

3752
1R0

+3V3STBY

5758
RES

2749
10u

3758
15K

I760

I751

I752

I753

1%

3759

1K0

7756

PDTC114ET

+12VSW

5755
RES

I756

3755

10K

8

7

11V7

6

11V7

5

1V2

3750

22K

I748

FOR UFD ONLY

5756

SI2301BDS-T1-E3

11V5

2751
100n

FOR UFD ONLY

7752
MC34063AD

DCOL

IS

VCC

CIN_NEG

3754

3K3 1%

2755

4n7

2750

I747

2u2

7754

3761

100R

2761
1u0
25V

2

1

6V8

3760

100R

2760

1u0

25V

IPK

OSC

2762
22u

I757

SS = 4V9

5757

3

7753

5759

L4940D2T12

RES

I759

13

OUTIN

COM

2759

RES

RES

2

SRQ

REFERENCE

REGULATOR

I754

+3V3STBY

3V2

16V

123

567

7758

SI9433BDY-T1-E3
SI4433DY

8

3V2

4

I750

I749

PAN_VCC

1751
RES

2752

47u

16V

1SWC

11V7

2SWE

3TIMC

SUP_GND3

4GND

SUP_GND3

67

5
4
3
2
1

I758

2756
470p

SUP_GND3

I755

5700

2700
RES

5753
220u

SUP_GND3

5754

10u

2757

470u 16V

F700

2701

100p

3734

2K2

6751

SS14

TO SCALER CELL

F754

5V4

2758

470u 16V

+3V3SW

TO EPLD

LVDS_VCC

11V5

+5VSWI

TO LIPSYNC

F_16040_006.eps

251005

A

B

C

D

E

F

G

H

I

1751 A10
2700 B11
2701 B11
2704 A3
2706 B4
2708 C3
2709 B4
2710 C2
2711 C3
2713 D5
2714 D4
2715 C5
2716 D6
2730 E3
2731 G6
2733 E3
2734 E3
2735 E6
2736 E6
2737 G7
2738 F2
2739 F3
2741 G3
2749 B9
2750 F9
2751 B9
2752 B10
2753 E8
2754 E8
2755 E9
2756 D11
2757 E11
2758 E11
2759 B10
2760 B9
2761 G9
2762 F9
3708 B2
3709 C3
3712 C5
3713 D5
3716 D5
3732 F4
3733 F4
3734 D11
3735 F5
3736 F3
3740 G2
3741 G2
3742 G4
3743 F4
3750 F9
3751 D8
3752 D8
3753 E8
3754 E9
3755 B9
3758 B8
3759 F9
3760 B9
3761 F9
5700 B11
5704 B4
5709 C2
5712 C4
5713 C6
5730 E2
5733 F5
5735 F6
5737 F6
5738 F2
5752 D8
5753 E11
5754 E11
5755 A9
5756 A9
5757 A10
5758 A9
5759 B10
6708 C2
6709 B3
6712 D4
6733 F5
6735 E6
6736 E7
6740 G2
6751 E11

7708 B4
7710 C3
7730 E4
7735 E5
7738 F3
7741 G3
7742 G4
7752 C9
7753 B10
7754 A9
7755 B8
7756 F8
7758 F10
F700 B11
F701 A4
F710 B6
F736 E6
F737 F7
F738 F7
F743 F6
F754 E1
F755 B8
I705 E3
I706 B4
I708 B4
I709 B4
I710 C2
I711 C3
I712 C4
I713 C5
I714 C4
I715 C4
I716 C5
I731 E3
I732 F4
I733 E5
I734 E5
I735 E6
I736 F5
I740 G2
I741 G3
I742 G4
I747 B9
I748 F9
I749 A1
I750 A10
I751 D9
I752 E9
I753 E9
I754 E9
I755 D11
I756 A9
I757 A9
I758 D11
I759 B9
I760 B9

1

0

SSB: Diversity Tables B1-B6

TUNER & IF

B1

Circuit Diagrams and PWB Layouts

HERCULES

B2

EN 47LC4.9U AA 7.

SYNC INTERFACE

B3

AUDIO WITHOUT AMPLIFIER

B5

DC DC CONVERTER

B6

Item

AP - non China

Europe

NAFTA/LT

1102
1102
1102
1102
1102
1104
1104
1104
1104
1105
1106
1106
1106
3101
3102
3104
3104
3107
3108
3109
3110
3111
3112
3113
3114
4102
4103
4104
4106
4107
4108
4110
4111
4113
5101
5101
5102
5102
5107
5107
5108
5108
6103
6105
7101
7102

V

V

VV

VV

VV

VV
VV V
VV V

VV
VVVV
VV VVV
VV VVV
VV VVV

VV VVV
VV VVV

VVVVV

VV

VV VV

VV VVV

VV
VVV
VV VVV

VVVV V

V

V

VV

VV VVV

AP - DVB

V

VV

V

V

VV

VV

Europe - DVB

China

V

TUN V+U PLL IEC BGDKM B
TUN V+U PLL IEC BGHIL B
TUNER UV1338/A F S H-4
TUNER UV1316E/A I H-4
TUNER UV1318SD/A CP H N-4
FIL SAW SM 38MHZ9 OFWK3953L R

V

FIL SAW SM 38MHZ OFWM3956L R
FIL SAW SM 45MHZ75 OFWM1967L R
FIL SAW SM 38MHZ9 OFWK7265L R

V

FIL SAW SM 38MHZ OFWK3955L R
FIL SAW SM 38MHZ9 OFWK9656L R

V

FIL SAW SM 38MHZ OFWK9352L R
FIL SAW SM 38MHZ9 OFWK9361L R
RST SM 0603 100R PM5 COL
RST SM 0603 100R PM5 COL
RST SM 0603 10K PM5COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 6K8 PM5 COL
RST SM 0603 2K2 PM5 COL
RST SM 0603 2K2 PM5 COL

V

RST SM 0603 2K2 PM5 COL
RST SM 0603 22K PM5 COL
RST SM 0603 18K PM5 COL

V

RST SM 0603 22K PM5 COL

V

RST SM 0603 47K PM5 COL
RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL
FXDIND SM 0805 0U39 PM10 COL R
FXDIND SM 0805 0U68 PM10 COL R
FXDIND SM 0805 12U PM10 COL R

V

FXDIND SM 1008 6U8 PM5 COL R
FXDIND 0603 100MHZ 600R COL R
RST SM 0603 100R PM5 COL
FXDIND 0603 100MHZ 600R COL R
RST SM 0603 100R PM5 COL
DIO SIG SM BAS316 (COL) R

V

DIO SIG SM 1SS356 (RHM0) R
TRA SIG SM BC847BW (COL) R
TRA SIG SM BC847BW (COL) R

V

Description

Item

LC4.3A AB (DVB-T)

LC4.3E AB/LC4.8E AB/LC4.9E AB (DVB-T)

LC4.3U/L

LC4.3E/LC4.8E/LC4.9E

LC4.3E W/O 3D COMB FILTER

LC4.3A - CHINA

VV VVVV

2203
2229
2244
2245
2246
2255
2286
2289
2289
2290
2291
2292
3250
3251
3252
3253
3255
3256
3257
3258
3259
3260
3270 RST SM 0402 10K PM5 COL
3282
3285
3286
3291
3292
3292
3293
3294
3295
3296
4206
4213
4214
4215
5218
6206
7208
7209
7210
7217
7217
7219

V
VV VV
VV VV
VV VV
VVVV VV
VVVV VV
V

VV VV
VV V

VVVV VV
VVVV VV
V

V
V
VV V
VV VVVV
VV

VV
VV
VV
VV V
VV

VV VV V
VV V

V

V
V VVVV
V VVVV
V VVVV
V VVVV
V VVVV
V VVVV
V VVVV
V VVVV
V VVVV
V VVVV

V

VV

VVVV

V VVVV
V VVVV
V VVVV

VV

LC4.3A - AP (non-China)

ELCAP SM 16V 10U PM20 COL R
CER2 0805 X5R 6V3 10U PM10 R
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0805 Y5V 10V 4U7 P8020 R
RST SM 0603 150R PM5 COL
CER2 0805 Y5V 10V 4U7 P8020 R
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 1K PM5 COL
RST SM 0402 1K PM5 COL
RST SM 0402 1K PM5 COL

RST SM 0603 150R PM5 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 100R PM5 COL
RST SM 0402 47K PM5 COL
RST SM 0402 12K PM5 COL
RST SM 0402 47K PM5 COL
RST SM 0402 47K PM5 COL
RST SM 0402 47K PM5 COL
RST SM 0402 100K PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0805 JUMP. 0R05 COL R
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
IND FXD 1206 EMI 100MHZ 120R R
DIO SIG SM BAT54 SOD323 COL R
TRA SIG SM BC847BW (COL) R
TRA SIG SM BC847BW (COL) R
TRA SIG SM BC847BW (COL) R
IC SM TDA15011H/N1BD0 (PHSE) Y
IC SM TDA15021H/N1B91 (PHSE) Y
IC SM 74HC4053D (PHSE) R

Description

Item

26/32PFxxxx - AP/NAFTA/LT

VVV

2449
3432

VVV

3458

VVV

3459

VVV

3461

VVV

3462
4436
4437

VVV

4440

VVV

4441

VVV

6430
6431

VVV

7436

VVV

EU & AP DVB sets

LC4.3E/LC4.9x/LC4.8x/LC4.3A-China

26PF4310/10

V

V
V

Description

CER2 0402 Y5V 16V 100N COL
RST SM 0402 2K7 PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
DIO REG SM PDZ2.4B (PHSE) R
DIO SIG SM 1N4148WS (VISH) R
IC SM 74LVC14APW (PHSE) R

Item

2612
2613
2616
2617
3615
3616
3617
3618
3619
3620
3623
3625
3627
3628
3629
3630
3630
3631
3631
3632
3633
4601
4602
4603
4606
4609
4610
4611
4612
4613
4614
4615
4616
4617
4618
4619
4620
4621
7603
7604
7607

26/32PF

37/42/50PF

V

CER2 0603 Y5V 10V 1U COL

V

CER2 0603 Y5V 10V 1U COL

V

CER2 0603 X5R 6V3 2U2 PM10 R

V

CER2 0603 X5R 6V3 2U2 PM10 R

V

RST SM 0402 10K PM5 COL

V

RST SM 0402 1K PM5 COL

V

RST SM 0402 1K PM5 COL

V

RST SM 0402 22K PM5 COL

V

RST SM 0402 10K PM5 COL

V

RST SM 0402 10K PM5 COL

V

RST SM 0402 47K PM5 COL

V

RST SM 0402 3K3 PM5 COL

V

RST SM 0402 22K PM5 COL

V

RST SM 0402 10K PM5 COL

V

RST SM 0402 22K PM5 COL

V

RST SM 0402 330R PM5 COL

V

RST SM 0402 470R PM5 COL

V

RST SM 0402 330R PM5 COL

V

RST SM 0402 470R PM5 COL

V

RST SM 0402 RC31 39R PM5 R

V

RST SM 0402 RC31 39R PM5 R

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

TRA SIG SM BC847BW (COL) R

V

TRA SIG SM BC847BW (COL) R
TRA SIG SM BC847BW (COL) R

V

Description

Item

26/32PF LCD

2701

VV V

2706

VVVV

2709

VVVV

2710

VVVV

2711

VVVV

2713

VVVV

2714

VVVV

2715

VVVV

2741

VVVV

2751

VV V

2752

VV V

2760

VV V

2761

VVVV

3708

VVVV

3709

VVVV

3712

VVVV

3713

VVVV

3716

VVVV

3740

VVVV

3741

VVVV

3742

VVVV

3743

VVVV

3755

VV V

3758

VV V

3760

VV V

3761

VVVV

5700

VV V

5704

VVVV

5709

VVVV

5712

VVVV

5713

VVVV

5756

VV V

5757

VV V

6708

VVVV

6709

VVVV

6712

VVVV

6740

VVVV

7708

VVVV

7710

VVVV

7741

VVVV

7742

VVVV

7754

VV V

7755

VV V

37/42PF LCD

42/50PF PDP

DVB PDP 42PF

DVB LCD 37PF

CER1 0402 NP0 50V 100P COL
ELCAP SM 16V 10U PM20 COL R
ELCAP SM 16V 47U PM20 COL R
CER2 1210 Y5V 25V 10U P8020 R
CER2 1210 Y5V 25V 10U P8020 R
ELCAP SM SEV 16V 470U PM20 R
CER2 0402 X7R 50V 220P COL
CER2 0402 X7R 16V 22N PM10 R
CER2 0603 X7R 10V 220N COL
CER2 0402 Y5V 16V 100N COL
ELCAP SM 16V 47U PM20 COL R
CER2 1206 X7R 25V 1U PM10 R
CER2 1206 X7R 25V 1U PM10 R
RST SM 0402 10K PM5 COL
RST SM 0402 6K8 PM5 COL
RST SM 0603 RC22H 5K6 PM1 R
RST SM 0603 RC22H 3K3 PM1 R
RST SM 0402 4K7 PM5 COL
RST SM 0402 1K5 PM5 COL
RST SM 0402 1K5 PM5 COL
RST SM 0402 15K PM5 COL
RST SM 0402 22K PM5 COL
RST SM 0402 10K PM5 COL
RST SM 0402 15K PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
IND FXD 1206 EMI 100MHZ 120R R
IND FXD SM 1206 10U PM20 R
IND FXD SM 7032 10U PM20 R
IND FXD SM 12565 33U PM20 R
INDFXD SM 10145 10U PM20 R
IND FXD 1206 EMI 100MHZ 120R R
IND FXD 1206 EMI 100MHZ 120R R
DIO REC SS24 COL R
DIO REC SS14 COL R
DIO REC SS36 COL R
DIO REG SM PDZ8.2B (PHSE) R
IC SM LF33CPT (ST00) R
IC SM E-L5973D (ST00) R
TRA SIG SM BC847BW (COL) R
TRA SIG SM BC847BW (COL) R
FET POW SM SI2301BDS-E3(VISH)R
TRA SIG SM PDTC114ET (COL) R

Description

F_15270_069.eps

230505

Circuit Diagrams and PWB Layouts

EN 48LC4.9U AA 7.

SSB: Scaler

22R3809-4 4 5

36

22R3809-2 2 7
22R3809-1 1 8

22R
27
36

22R3810-3

22R3810-4 4 5

22R45

22R3811-3 3 6

22R3811-2 2 7
1 8 22R3811-1

183812-1 22R

22R3812-3 3 6
45

22R3812-2 2 7

18

22R3813-1
27

22R3813-2

22R36

22R3813-4 4 5

22R

22R

7

TO SDRAM

FSADDR(3)
FSADDR(2)
FSADDR(1)
FSADDR(0)

FSADDR(8)
FSADDR(7)
FSADDR(6)
FSADDR(5)

FSADDR(4)

FSADDR(9)
FSADDR(11)
FSADDR(10)

FSDQM(0)
FSDQM(1)
FSDQM(2)
FSDQM(3)

FSWE
FSCAS
FSRAS
FSCKE

FSBKSEL(0)
FSBKSEL(1)

FSCLK-

FSCLK+

FSDQS

TO SCALER INTRF

TO FLASH CONTROL

TO HDMI

TO EPLD

TO HDMI

AV3_HDMI-AUDIO_SEL

7

8

FROM DIGITAL-IO

(CINCH)

RESERVED

FROM ANALOG-IO

(CINCH)

TO FLASH / CONTROL

TO FLASH / CONTROL

TO EPLD

HOT_PLUG

TO DIGITAL-IO

(SCART)

9

+3V3_PLL

F802

2815

22u

16V

OCMADDR(0)
OCMADDR(1)
OCMADDR(2)
OCMADDR(3)
OCMADDR(4)
OCMADDR(5)
OCMADDR(6)
OCMADDR(7)
OCMADDR(8)
OCMADDR(9)

OCMDATA(0)
OCMDATA(1)
OCMDATA(2)
OCMDATA(3)
OCMDATA(4)
OCMDATA(5)
OCMDATA(6)
OCMDATA(7)

HDMI_HOTPLUG_RESET

PIXEL+_RESET

(RESERVED FOR CINCH ONLY)

CVI_VGA_SEL

3831 100R

POWER_UP_OK

3833 10R

100R3832

PDP_GO_UP

89

2816 2819

2817

100n

100n

+3V3_PLL

2823

22p

36

3825-3

27

3825-2

183825-1
36

3826-3
3826-1 1 8

453825-4

3826-2 2

453826-4

+3V3_IO

3830

RES

I819

VS_ON

I820
I821

SD_HD_SEL

10 11

2818

100n

100n

J3

F4

H3

VDDA33_RPLL

VDDA33_SDDS

VDDA33_DDDS

G3

TCLK

VSSA33_SDDS

VSSA33_DDDSH4VSSA33_FPLL

VSSA33_RPLL

H2

F3

J2

AA1

OCMADDR0

AA2

OCMADDR1

AA3

OCMADDR2

Y1

OCMADDR3

Y2

OCMADDR4

Y3

OCMADDR5

W1

OCMADDR6

W2

OCMADDR7|GPIO_18

W3

OCMADDR8|GPIO_G11_B0

V1

OCMADDR9|GPIO_G11_B1

AD4

OCMDATA0

AF3

OCMDATA1

AE3
AD3

OCMDATA3

AF2

OCMDATA4

AE2

OCMDATA5

AD2

OCMDATA6

AF1

OCMDATA7

AE1

OCMDATA8|GPIO_G10_B0

AD1

OCMDATA9|GPIO_G10_B1

I802

AC1

OCMDATA10|GPIO_G10_B2

AC2

OCMDATA11|GPIO_G10_B3

I803

AC3

OCMDATA12|GPIO_G10_B4

AB1
AB2
AB3

AD23

GPIO_G04_B0|DOBLU2

AD24

GPIO_G04_B1|DOBLU3

AE24

GPIO_G04_B2|DOBLU4

AF24

GPIO_G04_B3|DOBLU5

AF25

GPIO_G04_B4|DOBLU6

AF26

GPIO_G04_B5|DOBLU7

AE25

GPIO_G04_B6|DOBLU8

AE26

GPIO_G04_B7|DOBLU9

NC

AD21

GPIO_G05_B0|DOGRN2

AD22

GPIO_G05_B3|DOGRN5

AC18

GPIO_G06_B0|DORED2

AD18

GPIO_G06_B1|DORED3

AE18

GPIO_G06_B2|DORED4

AF18

GPIO_G06_B3|DORED5

AE8

GPIO_G07_B0|DERED2

AF8

GPIO_G07_B1|DERED3

AC9

GPIO_G07_B2|DERED4

AD9

GPIO_G07_B3|DERED5

AE9

GPIO_G07_B4|DERED6

AF9

GPIO_G07_B5|DERED7

AD10

GPIO_G07_B6|DERED8

AE10

GPIO_G07_B7|DERED9

OCMDATA13|GPIO_G10_B5
OCMDATA14|GPIO_G10_B6
OCMDATA15|GPIO_G10_B7

7

10K

10

7801-11

H1

G1

GM1501-LF-BD

CLK-SYN

VDDA33_FPLL

GM1501-LF-BD

GM1501-LF-BD

OCM_DATA

GM1501-LF-BD

J1

VDDD33_SDDS

ACS_RSET_HD

VSSD33_DDDSG2VSSD33_PLL

VSSD33_SDDS

K4

J4

7801-4

OCM-ADR

OCMADDR10|GPIO_G11_B2
OCMADDR11|GPIO_G11_B3
OCMADDR12|GPIO_G11_B4
OCMADDR13|GPIO_G11_B5
OCMADDR14|GPIO_G11_B6
OCMADDR15|GPIO_G11_B7

OCMADDR16|GPIO_19
OCMADDR17|GPIO_20
OCMADDR18|GPIO_21
OCMADDR19|GPIO_22

7801-5

OCM_TIMER1|PWM3|GPIO_13

OCM_UDI|GPIO_27OCMDATA2

OCM_UDO|GPIO_26

OCM_INT1|GPIO_30

OCM_INT2|GPI_10

OCM_CS0_|GPIO_23
OCM_CS1_|GPIO_24
OCM_CS2_|GPIO_25

ROM_CS_|GPI_9

7801-9

GPIO

GPIO_G08_B0|JTAG_CLK|DORED0

GPIO_G08_B1|JTAG_MODE|DORED1

GPIO_G08_B2|JTAG_TDI|DOGRN0

GPIO_G08_B3|DVS|DOGRN1

GPIO_G08_B4|JTAG_TDO|DOBLU0

GPIO_G08_B5|JTAG_RESET|DOBLU1

GPIO_G09_B0|DERED0
GPIO_G09_B1|DERED1
GPIO_G09_B2|DEGRN0
GPIO_G09_B3|DEGRN1

11 12

2820
100n

F2

VDDD33_PLL

XTAL

OCM_WE_

OCM_RE_

GPIO_14|DHS

GPIO_15|DVS

GPIO_16|DEN

G4

K2

V2
V3
V4
U1
U2
U3
U4
T1
T2
T3

D25

M2

M1

L2

L1

R3

R2

T4

P1

P2

R1

VDDD33_DDDS

GPIO_G09_B4|DEBLU0
GPIO_G09_B5|DEBLU1

12

2821
100n

I801

3824
3K3

I804

I805

V-CHIP_INT

I806
I807
I808

AD6

AE6
AF6
AE7
AF7

AD8

AE4

AF4
AC5
AD5

AE5

AF5

AF17

AD16

AD7

2822
100n

+3V3_PLL

2824
22p

1801
14M31818
SMD-49

(RESERVED)

3828 10K

I809

3834 10K

NC

I810

I822

3836 10K

SC2|AV2_SIDE_SW

TO ANALOG-IO

(SCART)

13

OCMADDR(10)
OCMADDR(11)
OCMADDR(12)
OCMADDR(13)
OCMADDR(14)
OCMADDR(15)
OCMADDR(16)
OCMADDR(17)
OCMADDR(18)
OCMADDR(19)

TO SCALER INTRF

BU_LHT_ADJ1

UART_RX

UART_TX

POWER_DOWN

#OCM_WE

#OCM_RE

10K3827

10K3829

+3V3SW

#ROM_CS

JTAG_CLK_SCL

10K3835

JTAG_TDI_SDA

RGB|CVI_HDA_SEL

TV_SC_COM

TV_IRQ

NVM_WP_SCALER

SC2_OUT_SW

Y_NOTCH

/

(CINCH)

13

+3V3_IO

3837

3838

10K

10K

PC_HD_SEL

TO HERCULES

14

TO TUNER

TO DC-DC CONVERTER

FOR SW TESTING

F803
F804

+3V3_IO

14

1

B7 B7

+2V5_DDR

A

B

C

D

E

100u16V

FROM SDRAM

FROM SDRAM

TO COLUMBUS

SCALER

F800

2800

2801
100n

I813

#RESET

FSVREF

FSDATA(0)
FSDATA(1)
FSDATA(2)
FSDATA(29)

FSDATA(26)
FSDATA(7)
FSDATA(25)
FSDATA(24)

FSDATA(21)
FSDATA(11)
FSDATA(10)
FSDATA(19)

FSDATA(14)
FSDATA(18)
FSDATA(16)
FSDATA(15)

FSDATA(17)
FSDATA(20)
FSDATA(12)
FSDATA(13)

FSDATA(23)
FSDATA(22)
FSDATA(9)
FSDATA(8)

FSDATA(5)
FSDATA(6)
FSDATA(4)
FSDATA(3)

FSDATA(30)
FSDATA(31)
FSDATA(27)
FSDATA(28)

2803

2802

100n

100n

3801-4 22R45
3801-3 22R3
3801-2
3801-1 22R1

3802-4 4 5

3802-2 2 7
3802-1 22R18

363803-3 22R
273803-2 22R
183803-1 22R

1822R3804-1
27
36
45

453805-4 22R
36

183805-1 22R

3622R3806-3

3806-4

3807-3 22R36
3807-2 22R27

18

3807-1 22R

27
36

1822R3808-1

F

3820 10K

COL_DE

V_1FH

H_1FH

G

H

FROM SYNC INTERFACE

COL_YB(1:8)

COL_Do(1:7)

FROM HDMI

COL_YB(1)
COL_YB(2)
COL_YB(3)
COL_YB(4)
COL_YB(5)
COL_YB(6)
COL_YB(7)
COL_YB(8)

COL_Do(1)
COL_Do(2)
COL_Do(3)
COL_Do(4)
COL_Do(5)
COL_Do(6)
COL_Do(7)

HDMI_CbCr(0)
HDMI_CbCr(1)
HDMI_CbCr(2)
HDMI_CbCr(3)
HDMI_CbCr(4)
HDMI_CbCr(5)
HDMI_CbCr(6)
HDMI_CbCr(7)

FROM MUX-SYNC INTF

2804
100n

2805
100n

6

22R27

8

22R
22R3802-3 3 6
22R

22R453803-4

22R3804-2
22R3804-3
22R3804-4

22R3805-3
22R3805-2 2 7

822R3806-1 1

22R3806-2 2 7

22R45

22R3807-4 4 5

22R3808-2
22R3808-3
22R3808-4 4 5

COL_Do(8)_INV

2

2807

2806

100n

100n

FSDATAU0
FSDATAU1
FSDATAU2

FSDATAU29

FSDATAU26

FSDATAU7
FSDATAU25
FSDATAU24

FSDATAU21
FSDATAU11
FSDATAU10
FSDATAU19

FSDATAU14
FSDATAU18
FSDATAU16
FSDATAU15

FSDATAU17
FSDATAU20
FSDATAU12
FSDATAU13

FSDATAU23
FSDATAU22

FSDATAU9

FSDATAU8

FSDATAU5

FSDATAU6

FSDATAU4

FSDATAU3

FSDATAU30
FSDATAU31
FSDATAU27
FSDATAU28

+3V3SW

3819
RES

I800

I816

2808
100n

3800

10K

2813
100n

FSDATAU0
FSDATAU1
FSDATAU2
FSDATAU3
FSDATAU4
FSDATAU5
FSDATAU6
FSDATAU7
FSDATAU8
FSDATAU9
FSDATAU10
FSDATAU11
FSDATAU12
FSDATAU13
FSDATAU14
FSDATAU15
FSDATAU16
FSDATAU17
FSDATAU18
FSDATAU19
FSDATAU20
FSDATAU21
FSDATAU22
FSDATAU23
FSDATAU24
FSDATAU25
FSDATAU26
FSDATAU27
FSDATAU28
FSDATAU29
FSDATAU30
FSDATAU31

34

2810
100n

2811
100n

+2V5_DDR

K1

M3
M4

R4

J24
K26

W25
W24

E24
E25
E26
G26
G24
H26
H24
J25
T26
R25
P24
P26
N24
N26
M25
L24
L25
M26
M24
N25
N23
P25
R26
R24
K24
J26
H25
G23
G25
F24
F25
F26

I812

I818

I815

2812
100n

AA23

AB23

AC23

RESET_

IR0|GPIO_29
IR1|GPIO_28

EXTCLK|GPI_02

FSVREF1
FSVREFVSS1

FSVREF2
FSVREFVSS2

FSDATA0
FSDATA1
FSDATA2
FSDATA3
FSDATA4
FSDATA5
FSDATA6
FSDATA7
FSDATA8
FSDATA9
FSDATA10
FSDATA11
FSDATA12
FSDATA13
FSDATA14
FSDATA15
FSDATA16
FSDATA17
FSDATA18
FSDATA19
FSDATA20
FSDATA21
FSDATA22
FSDATA23
FSDATA24
FSDATA25
FSDATA26
FSDATA27
FSDATA28
FSDATA29
FSDATA30
FSDATA31

B17

VCLAMP|GPIO_31

D20

VDV|VSOG|GPIO07

B20

VODD|HSOUT|GPIO_06

C20

VVS|GPIO_05

D19

VHS_CSYNC|GPIO_04

A23

VGRN0|GPIO_G02_B0

C22

VGRN1|GPIO_G02_B1

B22

VGRN2|GPIO_G02_B2

A22

VGRN3|GPIO_G02_B3

D21

VGRN4|GPIO_G02_B4

C21

VGRN5|GPIO_G02_B5

B21

VGRN6|GPIO_G02_B6

A21

VGRN7|GPIO_G02_B7

C19

VRED0|GPIO_G01_B0

B19

VRED1|GPIO_G01_B1

A19

VRED2|GPIO_G01_B2

D18

VRED3|GPIO_G01_B3

C18

VRED4|GPIO_G01_B4

B18

VRED5|GPIO_G01_B5

A18

VRED6|GPIO_G01_B6

C17

VRED7|GPIO_G01_B7

B25

VBLU0|GPIO_G03_B0

A25

VBLU1|GPIO_G03_B1

D24

VBLU2|GPIO_G03_B2

C24

VBLU3|GPIO_G03_B3

B24

VBLU4|GPIO_G03_B4

A24

VBLU5|GPIO_G03_B5

C23

VBLU6|GPIO_G03_B6

B23

VBLU7|GPIO_G03_B7

Y23

W23

T23

V23

R23

GM1501-LF-BD

7801-12

SYSTEM

VSSA18_DLL

K25

7801-6

GM1501-LF-BD

VIDEO

3840

2809
100n

2814
100n

22R

F801

3839

100R

+2V5_DDR

J23

L23

P23

H23

M23

FS_2.5FS_2.5

MSTR_SCL|GPI_03

MSTR_SDA|GPI_04

SVCLK|GPI_0

SVHSYNC|GPIO_02

SVVSYNC|GPIO_01

SVODD|GPIO_00

SVDV|VCOAST|GPIO_03
SVDATA7|GPIO_G00_B7
SVDATA6|GPIO_G00_B6
SVDATA5|GPIO_G00_B5
SVDATA4|GPIO_G00_B4
SVDATA3|GPIO_G00_B3
SVDATA2|GPIO_G00_B2
SVDATA1|GPIO_G00_B1
SVDATA0|GPIO_G00_B0

VCLK|GPI_01

+1V8_CORE

F23

K23

E23

VDDA18_DLL

FSADDR0
FSADDR1
FSADDR2
FSADDR3
FSADDR4
FSADDR5
FSADDR6
FSADDR7
FSADDR8

FSADDR9
FSADDR10
FSADDR11

FSBKSEL0
FSBKSEL1

FSDQM0
FSDQM1
FSDQM2
FSDQM3

FSCKE

FSWE

FSCAS

FSRAS

FSCLKn

FSCLKp

FSDQS

D16

C14

B14

A14

A17
D14
A15
B15
C15
D15
A16
B16
C16

A20

5

AD25
AD26
AC24
AC25
AB26
AA24
AA25
AA26
Y24
AB25
AC26
AB24

Y25
Y26

T25
U25
U26
T24

W26

V26

V25

V24

U23

U24

L26

P4
P3

I817

FSADDRU0
FSADDRU1
FSADDRU2
FSADDRU3
FSADDRU4
FSADDRU5
FSADDRU6
FSADDRU7
FSADDRU8

FSADDRU9
FSADDRU10
FSADDRU11

FSBKSELU0
FSBKSELU1

FSDQMU0
FSDQMU1
FSDQMU2
FSDQMU3

3823

RES

HDMI_VHS

HDMI_VVS

FSADDRU3
FSADDRU2
FSADDRU1
FSADDRU0

FSADDRU8
FSADDRU7
FSADDRU6
FSADDRU5

FSADDRU4
FSADDRU9
FSADDRU11
FSADDRU10

FSDQMU0
FSDQMU1
FSDQMU2
FSDQMU3

FSWEU
FSCASU

FSCKEU

FSRASU

FSWEU

FSCKEU

FSCASU

FSBKSELU0
FSBKSELU1

FSRASU

10K3817

3818 10K

FROM MUX-SYNC INTF

HDMI_VCLK

100R3822

4801

HDMI_VDV
HDMI_Y(7)
HDMI_Y(6)
HDMI_Y(5)
HDMI_Y(4)
HDMI_Y(3)
HDMI_Y(2)
HDMI_Y(1)
HDMI_Y(0)

COL_CLKASB

COL_CLKASA

6

3809-3 22R

3810-1 1 8
3810-2 22R

3811-4

3812-4 22R

3813-3

3814
3815

3816 22R

SCL_IO

SDA_IO

+3V3SW

FROM COLUMBUS

FROM HDMI

3139 123 6145.1

1

24

3

5

6

B3B-PH-SM4-TBT(LF)

(RES)

1802

I811

45

3
2
1

TO MUX-SYNC INTF

TO FLASH / CONTROL

3841
10K

COL_RST

TO COLUMBUS

F_16040_007.eps

251005

1801 B12
1802 G14
2800 A1
2801 A1
2802 A1
2803 A1
2804 A2
2805 A2
2806 A2
2807 A2
2808 A2
2809 A3
2810 A3

A

2811 A3
2812 A3
2813 B2 I805 E12
2814 B3
2815 A9
2816 A9
2817 A10
2818 A10
2819 A10
2820 A12
2821 A12

B

2822 A12
2823 A10
2824 A12
3800 B3
3801-1 C1
3801-2 C1
3801-3 C1
3801-4 C1
3802-1 C1
3802-2 C1
3802-3 C1
3802-4 C1

C

3803-1 D1
3803-2 D1
3803-3 C1
3803-4 C1
3804-1 D1
3804-2 D1
3804-3 D1
3804-4 D1
3805-1 D1
3805-2 D1
3805-3 D1
3805-4 D1

D

3806-1 D1
3806-2 E1
3806-3 E1
3806-4 E1
3807-1 E1
3807-2 E1
3807-3 E1
3807-4 E1
3808-1 E1
3808-2 E1
3808-3 E1

E

3808-4 E1
3809-1 B6
3809-2 B6
3809-3 B6
3809-4 B6
3810-1 B6
3810-2 B6
3810-3 B6
3810-4 B6
3811-1 C6
3811-2 C6
3811-3 C6

F

3811-4 C6
3812-1 C6
3812-2 C6
3812-3 C6
3812-4 C6
3813-1 C6
3813-2 D6
3813-3 D6
3813-4 D6
3814 D6
3815 D6
3816 D6

G

3817 D6
3818 E6
3819 F2
3820 F1
3822 G5
3823 F5
3824 B12
3825-1 F9
3825-2 F9
3825-3 F9
3825-4 F9

H

3826-1 F9
3826-2 F9
3826-3 F9
3826-4 F9
3827 F13
3828 F13
3829 F13
3830 H10
3831 I9
3832 I9
3833 I9
3834 G13

I

3835 G13
3836 G13
3837 G14
3838 G14
3839 G3
3840 I3
3841 H14
4801 H5
7801-11 A11

7801-12 A4
7801-4 C11
7801-5 E11
7801-6 F4
7801-9 G11
F800 A1
F801 B3
F802 A9
F803 G14
F804 G14
I800 G2
I801 B12
I802 F10
I803 F10
I804 E12

I806 F12
I807 F12
I808 F12
I809 G12
I810 G12
I811 G14
I812 F3
I813 A1
I815 G3
I816 G2
I817 H5
I818 F3
I819 I10
I820 I10
I821 I10
I822 G12

SSB: Scaler

Circuit Diagrams and PWB Layouts

EN 49LC4.9U AA 7.

1234 56

B8

SUPPLY FOR SCALER

A

+3V3SW

B

C

+3V3SW

D

2900
100n

E

+3V3SW

I901

F

G

H

I

3139 123 6145.1

2903
100n

1 8 9 10 11 12 13

SCALER

5900

5901

5902

5903

5904

5905

5906

5907

7900

LF25CDT

13

OUTIN

COM

2

7901

LD1086D2T18

32

OUTIN

COM

1

+3V3_PLL

+3V3_ADC

+3V3_DVI

+3V3_IO

F900

+3V3_LBADC

+3V3_LVDSA

+3V3_LVDSB

+3V3_LVDS

I900

2901

1n0

+1V8

I902

2904

16V47u

234 56

2902

16V470u

5908

5909

5910

5911

+2V5_DDR

+1V8_ADC

+1V8_DVI

+1V8_CORE

+3V3_IO

F901

2905
100u

16V

I905

TO DIGITAL-IO (SCART ONLY)

2907

2906 2914

100n

100n

+3V3_IO +1V8_CORE

K15

K14

K13

K12

B13

A13

SCL_DVI
SDA_DVI

RXC+IN
RXC-IN

RX0+IN
RX0-IN

RX1+IN
RX1-IN

RX2+IN
RX2-IN

FAN_SPEED

HD_FILTER

2908
100n

AC8

AC10

D_GND

L10

L12

3900 3K3

AC6

L13

AC4

L14

AB4

IO_3.3

L15

I904

2909 2910
100n

100n

Y4

W4

D23

AA4

L17

M10

M11

M12

2930
100n

AC16

C26

C25

2911
100n

D22

D17

M13

M14

M15

M16

F903

2931
100n

GM1501-LF-BD

OEXTR

PWM0|GPIO_10

PWM1|GPIO_11

2912
100n

N10

M17

2932
100n

7801-7

CTRL

7

+1V8_CORE

2913
100n

100n

7801-13

GM1501-LF-BD

2915
100n

2916
100n

U17

U16

U11

SUPPLY

D_GND D_GND

P11

P12

P13

P14

P15

P16

P17

R10

N11

N12

N13

N14

2933
100n

N4
N3

A6
B6

A8
B8

A9
B9

A10
B10

B11

PPWR|GPIO_08

PBIAS|GPIO_09

DCLK|GPIO_17

PWM2|GPIO_12

N15

N16

N17

P10

+1V8_DVI

7801-2

D6D8D9

D10

GM1501-LF-BD

DVI_1.8 DVI_3.3

DVI_SCL|GPI_07
DVI_SDA|GPI_08

RXCp
RXCn

RX0p
RX0n

RX1p
RX1n

RX2p
RX2n

REXT

DVI_GND

A7

A11B5B7

I906

FROM DC-DC CONVERTER

PANEL-PWR-CTL

A26

B26

AC7

NC

I903

D26

R11

+3V3_DVI

C10

C11

DVI

C7

D7

D11

ADC

TO COLUMBUS HERCULES

LAMP_ON_OFF

BU_LHT_ADJ2

(RES)

TO TOP CONN.

7

F902

2917
100u

16V

L16

T11

T16

T17

U10

CORE_1.8

R13

R14

R15

R16

R12

C6C8C9

TO MUX-SYNC INTERFACE

&

8 9 10 11 12

2941
100n

F909

2955

22u 16V

NC

NC

NC

7801-3

GM1501-LF-BD

C12

LBADC_IN1

B12

LBADC_IN2

A12

LBADC_IN3

D12

LBADC_RETURN

+3V3_LVDS

F905

+3V3_LVDSA

F906

F907

L11

R17

2918
100n

K17

T10

F904

2934

K16

T12

16V47u

2919
100n

K10

K11

T13

T14

AVSYNC

AHSYNC

SOG

R_PR+
R_PR-

G_Y+
G_Y-

B_PB+
B_PB-

T15

2935
100n

SCL
SDA

U12

2920
100n

U13

U14

2936
100n

U15

2921
100n

AD15

2937
100n

+3V3STBY

2922
100n

2938
100n

3901

RES

2923
100n

3902

RES

2939
100n

3903

2924
100n

2953
100n

2925
100n

KEYBOARD

2954
100n

100R

100R3904

2926
100n

4900

AD19

LVDSA_GND_1

AC19

LVDSA_GND_2

AC20

LVDSA_GND_3

AC13

LVDSB_GND_1

AC14

LVDSB_GND_2

AC15

LVDSB_GND_3

AD17

VSSD33_LVDS

F908

L3

AVSYNC

L4

AHSYNC

N2

VGA_SCL|GPI_05

N1

VGA_SDA|GPI_06

C3

SOG

D2

REDp

D1

REDn

C2

GREENp

C1

GREENn

B2

BLUEp

B1

BLUEn

2929

2928

2927

100n

100n

RES

100n

2942
100n

7801-10

GM1501-LF-BD

DISPLAY PWR

VDDD33_LVDS

LVDSA_3.3_3

LVDSA_3.3_2

LVDSA_3.3_1

LVDSB_3.3_3

LVDSB_3.3_2

LVDSB_3.3_1

+1V8_ADC

A3

A4

ADC_1.8

ADC_AGND ADC_DGND

C4

D4

7801-1

GM1501-LF-BD

ANA-IN

E1E2E4

F910

+3V3_ADC

2940

47u 16V

B3

ADC_3.3

A5

B4

(RES)

(RES)

AE17

AC22

AC21

AD20

AC12

AD13

AD12

A2D3E3

7801-14

GM1501-LF-BD

NC

A1

C5

D5

+3V3_LBADC

ADC

LBADC_GND

2945

22u

+3V3_LVDSB

2950

2956
100n

NCNC

C13D13

LBADC_33

16V

16V22u

2957
100n

AC17

2946
100n

2951
100n

13

B8

NC

K3

NC

F1

NC

2949
100n

2948
100n

F_16040_008.eps

251005

2958
100n

2947
100n

2952
100n

2959
100n

A

B

C

D

E

F

G

H

I

2900 C2
2901 C2
2902 C3
2903 E2
2904 E3
2905 A4
2906 A4
2907 A5
2908 A5
2909 A5
2910 A5
2911 A6
2912 A6
2913 A6
2914 A6
2915 A6
2916 A7
2917 A7
2918 A7
2919 A8
2920 A8
2921 A8
2922 A8
2923 A9
2924 A9
2925 A9
2926 A9
2927 A9
2928 A10
2929 A10
2930 C5
2931 C6
2932 C6
2933 C6
2934 C8
2935 C8
2936 C8
2937 C8
2938 C8
2939 C9
2940 B10
2941 B10
2942 C10
2945 D11
2946 D11
2947 D11
2948 D12
2949 D12
2950 D11
2951 D11
2952 D12
2953 E9
2954 E9
2955 E10
2956 E11
2957 E11
2958 E11
2959 E12
3900 F5
3901 E8
3902 E9
3903 F9
3904 F9
4900 B9
5900 A2
5901 B2
5902 B2
5903 B2
5904 B2
5905 B2
5906 C2
5907 C2
5908 C3
5909 D3
5910 E3
5911 E3
7801-1 F10
7801-10 C10
7801-13 B6
7801-14 A11
7801-2 C7
7801-3 B11
7801-7 F6

7900 C2
7901 D2
F900 B2
F901 A4
F902 A7
F903 C5
F904 C8
F905 D11
F906 D11
F907 D11
F908 E9
F909 E10
F910 G10
I900 C2
I901 E2
I902 E2
I903 G7
I904 F5
I905 C4
I906 E6

SSB: Scaler Interface

Circuit Diagrams and PWB Layouts

EN 50LC4.9U AA 7.

A

B

C

B9

SCALER INTERFACE

7801-8

GM1501-LF-BD

ACp|GPIO_G06_B6|DORED8
ACn|GPIO_G06_B7|DORED9

A3p|GPIO_G06_B4|DORED6
A3n|GPIO_G06_B5|DORED7

A2p|GPIO_G05_B1|DOGRN3
A2n|GPIO_G05_B2|DOGRN4

A1p|GPIO_G05_B4|DOGRN6
A1n|GPIO_G05_B5|DOGRN7

A0p|GPIO_G05_B6|DOGRN8
A0n|GPIO_G05_B7|DOGRN9

SHIELD5|DEBLU5

SHIELD4|DEBLU2
SHIELD3|DEGRN5
SHIELD2|DEGRN4
SHIELD1|DEGRN3
SHIELD0|DEGRN2

BCp|DEGRN8
BCn|DEGRN9

B3p|DEGRN6
B3n|DEGRN7

B2p|DEBLU3
B2n|DEBLU4

B1p|DEBLU6
B1n|DEBLU7

B0p|DEBLU8
B0n|DEBLU9

LVDS

AE20
AF20

AE19
AF19

AE21
AF21

AE22
AF22

AE23
AF23

AD14
AE13
AE11
AD11
AC11
AF10

AE12
AF13

AF11
AF12

AF14
AE14

AF15
AE15

AF16
AE16

NC

3

4

5

6

712

8

9

2A00 D3
2A01 E2

B9

2A02 E2
2A03 B7
2A12 E6
2A13 D8
3A00 E2
3A01 E2

TO SCALER

3A02 B5
3A03 B6
3A04 B6
3A05 B6

A

3A06 B7
3A07 D2

TXBC+

TXBC-

TXB3+

TXB3-

TXB2+

TXB2-

TXB1+

TXB1-

TXB0+

TXB0-

TO EPLD

BU_LHT_ADJ1

3A02

1K0

IA07

3A03

SI2301DS-T1

RESERVED

4A02

RES

RES

1

7A01

4A03

RES
+5VSWI

3

2

3A04

1K0

3A05

RES

IA06

BACKLIGHT CONTROL

5V PWM

5V DC 3V3 PWM
3A03
3A05
3A04
7A01

3A06 0R
2A03

3A06

10K

390R

390R

-

-

1K

1K
Y

Y

-4A03

­10K
1u -

-

IA00

2A03
1u0

3V3 DC

-

-

-

-

Y
10K
1u

FROM EPLD

IA05

-

-

-

-

Y

0R

BACKLIGHT_DIM

TO TOP CONNECTORS

BACKLIGHT_CTRL

B

C

3A08 D2
3A10 E6
3A11 D7
3A13 D8
3A14 D9
4A00 E3
4A01 E3
4A02 A6
4A03 C6
4A04 E4
4A05 E6
4A06 E8
5A00 D3
6A01 E9
7801-8 A2
7A00 D4
7A01 B6
7A02 E6
7A03 E8
IA00 B7
IA03 E6
IA05 A8
IA06 B7
IA07 A6
IA08 D3
IA09 E3

D

TO EPLD

E

3139 123 6145.1

SDA_DMA_BUS1_DISP

SCL_DMA_BUS1_DISP

1

FOR PDP ONLY

+3V3SW

3A08

3A07

10K

10K

2A02

2A01

100p

100p

2

3A00

68R

3A01

68R

IA08

IA09

NC

2A13
100n

+3V3STBY

7A03

BC847BW

4A06

8

3A13

10K

+5V

6A01

3A14

4K7

BZX384-C3V9

STANDBY

F_16040_009.eps

251005

D

E

+3V3SW

2A00

100n

1

NC

3

5A00

8
PCA9515ADP

VCC

GND

4

RES

4A00
4A01

RES

SCL0

7A00

4A04

(PDP)

4

SDA_IO

SCL_IO

BUF_ENABLE

FROM HERCULES

SC_STANDBY

5

3SDA06SDA1

27 SCL1

5EN

FOR UFD ONLY

BC847BW

IA03

3A10

10K

2A12
10n

6

7A02

4A05

+3V3STBY

3A11

4K7

79

SSB: SDRAM

Circuit Diagrams and PWB Layouts

EN 51LC4.9U AA 7.

1

2

3

45

6

7

8

SDRAM

B10 B10

+2V5_DDR

2B02

A

B

C

D

E

2B01
47u
16V

47u

6.3V

2B03
100n

TO/FROM SCALER

2B04

FSRAS
FSCAS
FSWE

FSCLK+
FSCLK­FSCKE

FSDQM(0)
FSDQM(1)
FSDQM(2)
FSDQM(3)

FSBKSEL(0)
FSBKSEL(1)

FSADDR(0)
FSADDR(1)
FSADDR(2)
FSADDR(3)
FSADDR(4)
FSADDR(5)
FSADDR(6)
FSADDR(7)
FSADDR(8)
FSADDR(9)
FSADDR(10)
FSADDR(11)

2B05

100n100n

2B06
100n

FSVREF

100n

+2V5_DDR

3B03 150R

IB03
IB02

2B08 2B15

2B09

100n

100n

3B01

10K
1%

FB01

3B02

10K
1%

K4D263238F-UC50

1%

2B102B07

7B01

28
27
26
25

55
54
53

23
56
24
57

29
30

31
32
33
34
47
48
49
50
51
45
36
37

38
39
40
41
42
43

93
52

2B11

2B12

100n

100n100n

2B18

16V 22u

2B17

100n

5816

1535659629581422

VREF

CS
RAS
CAS
WE

CK
CK

CKE

0
1

DM

2
3

0

BA

1

0
1
2
3
4
5

A

6
7
8
9
10
11

NC

RFU
MCL

VSS VSSQ

SDRAM

1M X 32 X 4

466685

2B13
100n

5967737986

VDDQVDD

Φ

5

11196270768292

2B14
100n

+2V5_DDR

100n

NC

0
1
2
3
4
5
6

D

7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22

D

23
24
25
26
27
28
29
30
31

DQS

99

100

2B16

100n

FSDATA(0)

FSDATA(1)

FSDATA(2)

FSDATA(3)

FSDATA(4)

44
87
88
89
90
91

97
98

1
3
4
6

7
60
61
63
64
68
69
71
72

9
10
12
13
17
18
20
21
74
75
77
78
80
81
83
84

94

FSDATA(5)

FSDATA(6)

FSDATA(7)

FSDATA(8)

FSDATA(9)

FSDATA(10)

FSDATA(11)

FSDATA(12)

FSDATA(13)

FSDATA(14)

FSDATA(15)

FSDATA(16)

FSDATA(17)

FSDATA(18)

FSDATA(19)

FSDATA(20)

FSDATA(21)

FSDATA(22)

FSDATA(23)

FSDATA(24)

FSDATA(25)

FSDATA(26)

FSDATA(27)

TO/FROM SCALER

A

B

C

D

E

2B01 A1
2B02 A1
2B03 A1
2B04 A2
2B05 A2
2B06 A2
2B07 A2
2B08 A3
2B09 A3
2B10 A3
2B11 A4
2B12 A4
2B13 A4
2B14 A4
2B15 A5
2B16 A5
2B17 B4
2B18 A4
3B01 A3
3B02 B3
3B03 C3
7B01 B3
FB01 B3
IB02 C2
IB03 C2

F

3139 123 6145.1

23

FSDATA(28)

FSDATA(29)

FSDATA(30)

FSDATA(31)

FSDQS

F_16040_010.eps

541

7

86

251005

F

SSB: Flash / Control

Circuit Diagrams and PWB Layouts

EN 52LC4.9U AA 7.

1

B11 B11

A

B

C

TO SCALER

OCMADDR(0)
OCMADDR(1)
OCMADDR(2)
OCMADDR(3)
OCMADDR(4)
OCMADDR(5)
OCMADDR(6)
OCMADDR(7)
OCMADDR(8)
OCMADDR(9)
OCMADDR(10)
OCMADDR(11)
OCMADDR(12)
OCMADDR(13)
OCMADDR(14)
OCMADDR(15)
OCMADDR(16)
OCMADDR(17)
OCMADDR(18)

#OCM_RE
#OCM_WE
#ROM_CS

FLASH / CONTROL

+3V3_IO

5C00

FC00

M29W040B-55K1

7C00

12
11
10
9
8
7
6
5
27
26
23
25
4
28
29
3
2
30
1

24
31
22

0

512Kx8

1

[FLASH]

2
3
4
5
6
7
8
9

A
10
11
12
13
14
15
16
17
18

OE
WE
CE

3216

ROM

0

512K-1

DQ

0

7

34

2C00

100n

2C01

16V10u

13
14
15
17
18
19
20
21

OCMDATA(0:7)

OCMDATA(0)
OCMDATA(1)
OCMDATA(2)
OCMDATA(3)
OCMDATA(4)
OCMDATA(5)
OCMDATA(6)
OCMDATA(7)

TO SCALER

OCMADDR(0:19)

OCMADDR(0)
OCMADDR(1)
OCMADDR(2)
OCMADDR(3)

OCMADDR(4)
OCMADDR(5)
OCMADDR(6)
OCMADDR(7)

OCMADDR(8)
OCMADDR(9)
OCMADDR(10)
OCMADDR(11)

OCMADDR(12)
OCMADDR(15)
OCMADDR(16)
OCMADDR(18)

OCMADDR(17)
OCMADDR(14)
OCMADDR(13)
OCMADDR(19)

562

3C06-1 10K1

3C06-3 10K36
3C06-4 10K4

3C08-2 10K
3C08-1 10K18

3C08-4 10K

3C09-2 2 7

3C09-4 4 5 10K

3C10-1 10K18
3C10-2 10K
3C10-3 10K3

8

273C06-2 10K

5

8

10K3C07-1 1
10K3C07-2 2 7

4 5 10K3C07-4

27

363C08-3 10K
45

18

27

10K3C07-3 3 6

10K3C09-1
10K
10K3C09-3 3 6

6

10K453C10-4

+3V3_IO

10K

10K

10K

10K

36

18

3C04-4 4 5

3C04-3

3C05 10K

3C16-4

3C04-1

3C04-2 2 7

3C11
3C12
3C13
3C14
3C15

+3V3_IO

10K

3C17

3C16-3

45

FC06

36

FC07

3C19
RES

RES
RES
RES
RES
RES

10K

FC08

3C20
RES

8

3C16-2

3C16-1

1

27

FC09

3C21

RES

7

D

MR

+3V3SW

3V2

5

VCC

SUB

2

7C02

PST596J

VOUT

GND

3

4

3V2

FC05

3C02

1K0

3C03

RES

#RESET

TO SCALER

&

TO HDMI

&

TO COLUMBUS

E

NVM_WP_SCALER

SCL_IO

SDA_IO

+3V3SW

0V

3V2

3V2

3C00
10K

FC01

FC02

FC03

+3V3SW

2C02

100n

3V2

8

M24C32-WMN6

7C01

2C03

100n

Φ

WC

SCL

(4Kx8)

EEPROM

4

ADR

1C00

1

0

2

1

3

2SDA

2
4

SKQR

For Software
Development
only - (RES)

FC04

1
3

3C01

10K

1

0V

7

6

5

3C18

10K

FC10

A

B

C

D

E

1C00 E4
2C00 A3
2C01 A3
2C02 E2
2C03 E5
3C00 E2
3C01 E5
3C02 E6
3C03 E6
3C04-1 A6
3C04-2 A6
3C04-3 A6
3C04-4 A6
3C05 A6
3C06-1 B5
3C06-2 B5
3C06-3 B5
3C06-4 B5
3C07-1 B5
3C07-2 B5
3C07-3 B5
3C07-4 B5
3C08-1 B5
3C08-2 B5
3C08-3 C5
3C08-4 C5
3C09-1 C5
3C09-2 C5
3C09-3 C5
3C09-4 C5
3C10-1 C5
3C10-2 C5
3C10-3 C5
3C10-4 C5
3C11 A6
3C12 A6
3C13 A6
3C14 B6
3C15 B6
3C16-1 B7
3C16-2 B7
3C16-3 B6
3C16-4 B6
3C17 B6
3C18 B7
3C19 C6
3C20 C7
3C21 C7
5C00 A3
7C00 A2
7C01 E3
7C02 E5
FC00 A3
FC01 E2
FC02 E2
FC03 E2
FC04 E4
FC05 E6
FC06 C6
FC07 C6
FC08 C7
FC09 B7
FC10 B7

3139 123 6145.1

1

2

3

4

5

F_16040_011.eps

251005

67

SSB: HDMI

2D00 A3
2D01 C2
2D02 C3
2D03 F4
2D04 F4
2D05 F4

2D06 F4
2D07 A5
2D08 B5
2D09 B5
2D10 B5
2D11 B5

2D12 A5
2D13 B5
2D14 B5
2D15 B5
2D16 B5
2D17 A6

2D18 B6
2D19 B6
2D20 A7
2D21 B6
2D22 B6
2D23 A7

Circuit Diagrams and PWB Layouts

2D24 B7
2D25 B7
2D26 B7
2D27 A8
2D28 B8
2D29 B8

2D30 B8
2D31 B8
2D32 E11
2D33 E11
2D34 E12
2D35 E12

2D36 G11
2D37 H11
2D38 G12
2D39 G12
2D40 G12
2D41 H13

2D44 F14
2D45 G14
3D00 A2
3D01 A3
3D02 A3
3D03 C2

3D04 C2
3D05 C4
3D06 C4
3D07 D4
3D08 D4
3D09 C5 3D18-3 D11

3D10 C5
3D11 F4
3D12 F4
3D15-1 B11
3D15-2 B11
3D15-3 C11

3D15-4 C11
3D16-1 C11
3D16-2 C11
3D16-3 C11
3D16-4 C11
3D17-1 C11

3D17-2 D11
3D17-3 D11
3D17-4 D11
3D18-1 D11
3D18-2 D11

EN 53LC4.9U AA 7.

3D18-4 D11
3D19 E12
3D20 E12
3D21-1 G9
3D21-2 G9
3D21-3 F9

3D21-4 F9
3D22 G9
3D23 G9
3D24 G11
3D25 H11
3D26 G12

3D27 H13
3D30 F14
3D31 F14
3D32 G14
3D33 G14
3D34 H11

3D35 H12
4D00 F13
4D01 F13
5D00 A5
5D01 A6
5D02 A6

5D03 A7
5D04 A7
7D00 A2
7D01 D3
7D02 D4
7D03 C5

7D04 E11
7D05 F13
FD00 B3
FD01 C2
FD02 C2
FD03 C2

FD04 D2
FD05 G2
FD06 G2
FD07 A5
FD08 A6
FD09 A6

FD10 A6
FD11 A7
FD12 F9
FD13 E11
FD14 E12
FD15 F10

FD16 E13
FD17 H7
ID00 C3
ID01 D3
ID02 D4
ID03 D4

ID04 F5
ID05 F5
ID06 F5
ID07 G5
ID08 G10
ID09 G11

ID10 G12
ID11 G12
ID12 H12
ID13 H12
ID14 H12
ID15 F13

ID16 E13
ID17 E13
ID18 F14
ID19 G14
ID20 F14
ID21 G14

ID22 F4

12345678910

B12 B12

FROM SCALER

A

B

C

D

E

F

G

H

SCL_IO

SDA_IO

TO MUX-SYNC INTF

H_HDMI

V_HDMI

HDMI

7D00

M24C02-WMN6

1
2
3

FROM DIGITAL-IO (CINCH ONLY)

DOC_SDA

DOC_SCL

+5VHDMI

84

Φ

(256x8)

EEPROM

FD05

FD06

FD01

FD02

FD03

SCL

3D03

3D04

0

ADR

1
2SDA

RXC-

RXC+

RX0-

RX0+

RX1-

RX1+

RX2-

RX2+

COMP

PLLIN

FD07

2D12

2D13

2D14

2D15

2D16

858890

AGND

+3V3SW

5D01

22u

6.3V

100n

1n0

1n0

1n0

95

+3V3SW

5D02

5D03

FD08

174064

98

94

2D17

2D19 1n0

VCCAVCC

164165

FD10

FD09

2D20

80

PVCC1

99

2D21

2D22

23

Φ

PVCC2

HDMI

PANELLINK

RECEIVER

79

22

FD17

10u

100n

1n0

10u

100n2D18

PLLIN

100

GND PGND OGND

DACGND

2

DACGNDR

5

+3V3SW

FD11

COMP

11411

DACVCC

DACGNDG

DACGNDB

13

10

2D23

2D24

2D25

2D26

6

DACVCCR

+3V3SW

5D04

22u

2D27

6.3V

2D28

100n

1n0

2D29

1n0

2D30 1n0

2D31 1n0

475667

21

OVCC1

DACVCCB

DACVCCG

2845576678

100n

1n0

RSVDL

RSVDO

ANRPR

ANGY

ANBPB

SPDIF

ODCK

GND_HS

101

22u

6.3V

Q

SDO

3

NC

4

NC

18
73

19
20

70

0

69

1

68

2

63

3

62

4

61

5

60

6

59

7

58

8

55

9

54

10

53

11

52

12

51

13

50

14

49

15

48

16

44

17

43

18

42

19

39

20

38

21

37

22

36

23

7

12

NC

15

29

SPDIF

FD12

(NC)

30

31

WS

32

SCK

35

DE

46

71

INT

NC

45

3D21-3

27

3D21-2 33R

18

3D21-1 33R

3D23 33R

33R3D21-4

33R36

33R3D22

FD15

ID08

+3V3SW

5D00

22u

2D07

3D00

3D01

4K7

4K7

FD00

7

WC

6

5

0R

ID00

0R

2D02

2D01

1n0

10n

FD04

3D02
4K7

ID01

7D01

BSN20

2D00
100n

+3V3SW

3D05
100R

7D02

BSN20

2D03 10u

2D04 10n

2D06 10u

FROM

FLASH/CONTROL

#RESET

+3V3SW

+3V3SW
3D06
100R

3D07

4K7

+3V3SW

ID02

ID03

3D11

100R

47n2D05

ID22

3D12

3K9

3D08
4K7

2D08

100n

2D09

2D10

2D11 1n0

3D10

390R

7D03

SII9993CTG100

72

3D09

27

33R

26

74

75

77

76

83

84

86

87

91

92

96

97

ID04

9

ID05

8

ID06

24

25

ID07

81

33

34

6.3V

1n0

1n0

828993

RESET

MCLKIN

MCLKOUT

CSCL

CSDA

DSCL

DSDA

RXC-

RXC+

RX0-

RX0+

RX1-

RX1+

RX2-

RX2+

RSET

COMP

PLLIN

PLLOUT

EXT-RES

HSYNC

VSYNC

11 12 13 14 15

TO SCALER

18

3D15-1 33R

27

3D15-2 33R

36

3D15-3 33R

3D16-11 8

27

3D16-3 33R

36

45

3D16-4 33R

3D17-11 8 33R

27

363D17-3 33R

3D17-4

18

3D18-22 7

3D18-33 6

3D18-44 5

7D04
UDA1334BT/N2

1

BCK

2

WS

3

DATAI

6

SYSCLK

8

MUTE

9

DEEM

10

PCS

14

VOL

2D36
1u0

ID09

3D24
220R

3D25

100R

3D34
100K

33R453D15-4

33R

33R3D16-2

33R3D17-2

33R45

33R3D18-1

33R

33R

33R

+3V3SW

2D32

FD13

6.3V47u

2D33

100n

13

VDDA4VDDD

DIGITAL

INTERFACE

DE-EMPHASIS

INTERPOLATION

FILTER

NOISE SHAPER

VSSA5VSSD

15

2D37
10n

3D19

1R0

FD14

DAC

47u

DAC

2D38

3D20
1R0

2D34

47u

2D35

100n

VREF-DAC

12

ID10

6.3V

6.3V

SFOR0

SFOR1

VOR

2D39

100n

ID12
ID13

ID14

AUDIO DAC

11

7

16

HDMI_Y(0)

HDMI_Y(1)

HDMI_Y(2)

HDMI_Y(3)

HDMI_Y(4)

HDMI_Y(5)

HDMI_Y(6)

HDMI_Y(7)

HDMI_CbCr(0)

HDMI_CbCr(1)

HDMI_CbCr(2)

HDMI_CbCr(3)

HDMI_CbCr(4)

HDMI_CbCr(5)

HDMI_CbCr(6)

HDMI_CbCr(7)

ID15

2D40

1u0

10V

ID11

3D26
220R

3D27

100R

3D35
100K

HDMI_Y(0:7)

HDMI_CbCr(0:7)

ID17

FD16

ID16

FOR SET WO AV3

HEF4053B

6

13

1V6

12

0V

11

0V

1

1V7

2

0V 1V7

10

3

NC

5

NC

9

2D41
10n

7D05

4D00
4D01

+3V3SW

16

VDD

MDX

G4

1
2
4X1
4X2

VEE VSS

7

3V3

+3V3SW

3D31

3D30

RES

RES

ID20

2D44

14

1V7

15

8

3D32
RES

4

ID21

1u0

2D45

1u0

3D33
RES

NC

TO DIGITAL-IO (CINCH ONLY)

AV3_LEFT

AV3_HDMI-AUDIO_SEL

AV3_RIGHT

TO HERCULES

AudioIN2R

ID18

AudioIN2L

ID19

HDMI_VDV

HDMI_VCLK

A

B

C

D

E

F

G

H

3139 123 6145.1

15

23

FROM SCALER

F_16040_012.eps

251005

4

1089 12

13

1476 11

15

Circuit Diagrams and PWB Layouts

SSB: MUX-Sync Interface

EN 54LC4.9U AA 7.

1234 56

B13 B13

MUX-SYNC INTERFACE

7

A

FROM HERCULES

B

C

D

E

F

SYNC INTERFACE

G

H

(SCART)

FROM ANALOG-IO

SC1_CVI_DMMI_R_Pr_IN
SC1_CVI_DMMI_G_Y_IN
SC1_CVI_DMMI_B_Pb_IN

RINA|Pr

GINA|YINA

BINA|Pb

FROM DIGITAL-IO

(SCART)

FROM DIGITAL-IO

(SCART)

/

R_SDTV
G_SDTV
B_SDTV

(CINCH)

/

/

(CINCH)

Hsync_SDTV
H_PC

Vsync_SDTV
V_PC

(CINCH)

FE00
FE01
FE02

3E31 100R

100R3E32

100R3E33
100R3E34

2E00
2E01
2E02

BZX384-C2V7

BZX384-C2V7

3E00
3E01
3E02 56R

4u7
4u7
4u7

2E33 4u7

4u72E34

2E35 4u7

4E10

IE09

IE10

6E00

BZX384-C2V7

IE11

IE12

6E02

BZX384-C2V7

56R
56R

RES

6E01

6E03

IE13
IE14
IE15

IE18

+5VSWI

47K3E51

47K

3E50

3E52 47K

IE16

47K

47K3E53

3E55

3E54 47K

7E03

CD74HC4053M96

6

13
12
11

1
2
10

3
5
9

SD_HD_SEL

3V2

47K

3E06

+3V3SW

VDD

MDX

G4

1
2
4X1
4X2

VEE VSS

7

47K

16

4E11

RES

3E07

5E03

8

3E08 47K

2E31

14

15

100n

4

+5VSWI

47K3E09
47K3E10
47K3E11

FROM ADC

COL_Di(8)

5E00

7E00

ADG733BRU

12

13

2

1

5

3

3E37

22R

RESERVED

IE00

16

VDD

Φ

EN
A0
A1
A2

S1A

D1

S1B

S2A

D2

S2B

S3A

D3

S3B

VSS

GND

8

7

7E04-5

74LVC14APW

11

2E03

100n

6
11
10

9

14

15

4

RES

RES

4E13

4E12

3E35

100R

3E36

100R

14

COL_Di(8)_INV

7

TO HERCULES

10K3E12

RGB|CVI_HDA_SEL

FE03

SC1_R_CVI_Pr_IN

SC1_G_CVI_Y_IN

SC1_B_CVI_Pb_IN

RES

4E14

7E04-1

74LVC14APW

1

7E04-3

74LVC14APW

5

10

+3V3SW

14

7

COL_Do(8)

3E13 330R
3E14 330R

FROM SCALER

3V2

IE19

IE21

TO SCALER

2

14

6

7

3E49
22R

330R3E15

SD_HD_SEL

HD_FILTER

0V

3

9

13

3E16
330R

4E03

IE03

2E32

100n

7E04-2
74LVC14APW

14

4

7

7E04-4
74LVC14APW

14

8

7

7E04-6
74LVC14APW

14

12

7

3E19

56R

3E20

56R

3E21

56R

3E22

100K

3E17
330R

RES

3V2

3E39

100R

3E38

100R

IE28

8 9 10 11 12 13

IE08

5V4

13

VDD

SPST

SWITCH

NC

S1

D1

S2

D2

S3

D3

S4

D4

GND_HS

470R

39R
22R

39R
22R

39R
22R

7E05-2

7E05-4

7E05-6

2E15

100n

Φ

21

IE32

IE34

14

7

14

7

14

7

NC

IN1

IN2

IN3

IN4

GND

3

100n2E24

2E25 100n

100n2E26

100n2E27

2E28 100n

2E29 100n

100n

2E30

2E36

100n

4

8

12

0V

IE25

2E04
2E05
2E06

3E18
330R

I_PC_HD_SEL

2E08

4u7
2E07
33p

2E10

IE26

4u7
2E09
33p

2E12

4u7
2E11
33p

2E14

2E13

33p

1u0

IE27

AHSYNC

IE24

AVSYNC

COL_Do(8)_INV

1u0
1u0
1u0

IE37

IE35
IE36

3E23
820R

IE01

IE02

FE04

IE20

IE22

IE23

IE04

FE05

TO SCALER

9

DISABLE

23

THROUGH

22

MUXSEL

26

GSR1

25

RINA|YINA

27

RINB|YINB

2

GSG1

1

GINA|UINA

3

GINB|UINB

6

GSB1

5

BINA|VINA

7

BINB|VINB

20

RFC

21

VFC

PC_HD_SEL

+5VSWI

5E01

181512

VCC

GND

16

131019

FE06

Φ

24

VCC

NC1

NC2

NC3

ROUT|YOUT

GOUT|UOUT

BOUT|VOUT

GND_HS

29

30

FROM HDMI

I_PC_HD_SEL

2E16
2E17
2E18
2E19

FE07

V_HDMI

H_HDMI

100n
100n
100n
100n

47u2E20

6.3V

7E01

SM5301BS-G

4

8

28

17

R-PR-ADC

14

G-Y-ADC

11

B-PB-ADC

3E41

100R

3E42

100R

3E43

100R

+5VSWI

4u7

2E21

4u7

2E22

4u7

2E23

2E37 15p
2E38 15p

15p2E39

7E05-1

74LVC14APW

1

7E05-3

74LVC14APW

5

7E05-5

74LVC14APW

11

IE05

IE06

IE07

FE09

FE10
FE11

FE12

FE13

+3V3SW

14

7

14

IE17
IE29
IE30

14

7

7

5E02

16
18
20

2
0V6

1
2V7
14
0V8
15

12

0V4
11
2V7
4

5

3E24

3E25
3E26

3E27
3E28

3E29
3E30

74LVC14APW

2

3

74LVC14APW

9

6

74LVC14APW

13

10

7E02
ADG781BCP

6
8

10

19

FE08

17

3V3

9

7

IE33

3E44

100R

3E45

100R

3E46

100R

PC_HD_SEL

3V2

TO SCALER

SOG

R_PR+

R_PR-

G_Y+

G_Y-

B_PB+

B_PB-

IE31

(NC)

HDMI_VVS

HDMI_VHS

I

3139 123 6145.1

1

234 56

7

8 9 10 11 12 13

TO SCALER

F_16040_013.eps

231105

A

B

C

D

E

F

G

H

I

2E00 C3
2E01 C3
2E02 C3
2E03 B5
2E04 A7
2E05 B7
2E06 B7
2E07 C7
2E08 C8
2E09 C7
2E10 C8
2E11 D7
2E12 D8
2E13 D7
2E14 D8
2E15 A11
2E16 B9
2E17 B9
2E18 B9
2E19 B9
2E20 B9
2E21 A10
2E22 B10
2E23 B10
2E24 C11
2E25 C11
2E26 C11
2E27 C11
2E28 C11
2E29 D11
2E30 D11
2E31 E4
2E32 E7
2E33 C3
2E34 C3
2E35 D3
2E36 E11
2E37 B10
2E38 B10
2E39 B10
3E00 A3
3E01 A3
3E02 A3
3E06 B4
3E07 B4
3E08 B4
3E09 C4
3E10 C4
3E11 C4
3E12 C5
3E13 B6
3E14 B6
3E15 B6
3E16 B7
3E17 B7
3E18 B7
3E19 C7
3E20 C7
3E21 D7
3E22 D7
3E23 D8
3E24 C10
3E25 C10
3E26 C10
3E27 C10
3E28 C10
3E29 D10
3E30 D10
3E31 E2
3E32 F2
3E33 F2
3E34 F2
3E35 E5
3E36 F5
3E37 G5
3E38 F7
3E39 E7
3E41 E9
3E42 F9
3E43 G9
3E44 E11
3E45 F11
3E46 G11
3E49 G6

3E50 B3
3E51 B3
3E52 B4
3E53 D3
3E54 D3
3E55 D4
4E03 B7
4E10 E3
4E11 G4
4E12 D5
4E13 D5
4E14 D5
5E00 B5
5E01 B8
5E02 A10
5E03 E4
6E00 F3
6E01 F3
6E02 F3
6E03 F3
7E00 B5
7E01 B9
7E02 A11
7E03 E4
7E04-1 E6
7E04-2 E7
7E04-3 F6
7E04-4 F7
7E04-5 G5
7E04-6 G7
7E05-1 E1
7E05-2 E11
7E05-3 F10
7E05-4 F11
7E05-5 G10
7E05-6 G11
FE00 B2
FE01 B2
FE02 B2
FE03 C6
FE04 B8
FE05 D8
FE06 B9
FE07 D9
FE08 B11
FE09 C10
FE10 C10
FE11 C10
FE12 C10
FE13 D10
IE00 B5
IE01 B8
IE02 B8
IE03 D7
IE04 D8
IE05 A10
IE06 B10
IE07 B10
IE08 A11
IE09 E3
IE10 E3
IE11 F3
IE12 F3
IE13 C3
IE14 C3
IE15 C3
IE16 C3
IE17 A10
IE18 D3
IE19 C6
IE20 C8
IE21 D6
IE22 C8
IE23 D8
IE24 F7
IE25 C7
IE26 C7
IE27 E7
IE28 G7
IE29 A10
IE30 A10
IE31 E12
IE32 C11
IE33 C11
IE34 C11
IE35 A8
IE36 B8
IE37 B8

0

SSB: Top Connectors

Circuit Diagrams and PWB Layouts

EN 55LC4.9U AA 7.

12

B16 B16

TOP CONNECTORS

34567

8

FOR UFD ONLY

A

B

C

D

E

(1M03)
1J00

1

IJ01

2
3
4
5
6
7
8
9

10

UFD CONTROL

(1M46)

1J01

1
2
3
4
5
6
7
8

9
10
11

UFD SUPPLY

1J02

TO/FROM PSU

(SUPPLY FOR LCD)

B12P-PH-K-S(LF)

1J03

B3B-PH-K-S(LF)

3
2
1

(+18V / +24V)

TO/FROM 1003 OF

CLASS-D AUDIO AMP

POR

IJ02
IJ03
IJ04

TEMP_SENSOR (NC)
IJ05

IJ06

NC

IJ07

FJ00

FJ01

(NC)

FJ02

5V(NC)

FJ03
FJ04

+33V_TUN(NC)

FJ05

NC

1

GND_AUDIO

2
3
4
5
6
7
8

9
10
11
12

FJ08

FJ09

GND_AUDIO

(NC)

LAMP_ON_OFF_1

STANDBY_1

POWER_UP_OK_1

1J07

+12V_UFD

3A T

1J08

+5V_UFD

4J01

1n0

2J31

VP

FJ06

FJ07

IJ08
IJ09
IJ10
IJ11

VP

GND_AUDIO

2J03
1n0

RES

4J02

1n02J30

RES

2J16

5J04

3V2

5J03

POWER_DOWN

1n02J02

100p

2J35 1n0

2J18

5J05

RES

3J06

RES

2J33

+3V3STBY

3J05 68R
3J03 68R

100p

2J17 1n0

2J19

PROTECT_AUD

RES

RES

2J20

+12VUNREG

POWER_UP_OK

RES

2J34

TO DC-DC CONVERTER

+5V

11V6

BACKLIGHT_CTRL

100p

2J22

100p

2J23

100p2J21

LAMP_ON_OFF

68R3J04

FROM SCALER INTERFACE

FAN_SPEED

IJ12

FROM SCALER INTERFACE

STANDBY

IJ13

3V1

3V2

FROM SCALER

FROM SCALER

FROM SCALER

PROTECT_AUD

FROM AUDIO

FROM EPLD

AUDIO-L

AUDIO-R

SOUND_ENABLE_1

3V3

POR_AUDIO

3V3

B_LT_PWM
G_LT_PWM
R_LT_PWM

B_RT_PWM
G_RT_PWM
R_RT_PWM

B_LB_PWM
G_LB_PWM
R_LB_PWM

B_RB_PWM
G_RB_PWM
R_RB_PWM

2J26
100p

5J01

2J27

100p

2J04 100p

100p

2J10

5J02

2J05 100p

100p2J11

100p2J06

100p

2J12

2J07 100p

100p2J13

2J29
100p

2J28
100p

RESERVED

FJ10

FJ12

AUDIO-SW (NC)

FJ13
FJ14

2J36
1n0

FJ15
FJ16
FJ17

FJ18
FJ19
FJ20

100p2J08

2J09 100p

FJ21
FJ22
FJ23

FJ24
FJ25
FJ26

100p2J15

2J14 100p

(1M52)

FJ11

B9B-PH-K-S(LF)

B7B-PH-K-S(LF)

B7B-PH-K-S(LF)

1J04

1J05

1J06

1
2
3
4
5
6
7
8
9

TO/FROM 1002 OF

1
2
3
4
5
6
7

AMBIENT LIGHT

1
2
3
4
5
6
7

AMBIENT LIGHT

3139 123 6145.1

1J00 A1
1J01 B1
1J02 D1
1J03 E1
1J04 A8
1J05 C8
1J06 D8
1J07 B2
1J08 C2
2J02 E2
2J03 E2
2J04 C6
2J05 C7
2J06 C7

A

2J07 C7
2J08 C7
2J09 C7
2J10 E6
2J11 E7
2J12 E7
2J13 E7
2J14 E7
2J15 E7
2J16 B2
2J17 E3
2J18 E2

CLASS-D AUDIO AMPLIFIER

B

2J19 E3
2J20 B3
2J21 E3
2J22 E3
2J23 E3
2J26 B6
2J27 B7
2J28 B7
2J29 B7
2J30 E2

(TOP)

C

2J31 C2
2J33 B2
2J34 B3
2J35 E2
2J36 B7
3J03 E3
3J04 E3
3J05 D3
3J06 B3
4J01 C2
4J02 B2
5J01 A7
5J02 A7

D

5J03 D2
5J04 C2

(BOTTOM)

5J05 A3
FJ00 B1
FJ01 B1
FJ02 C1
FJ03 C1
FJ04 C1
FJ05 C1
FJ06 D2
FJ07 D2
FJ08 E1
FJ09 E2

E

FJ10 A7
FJ11 A8
FJ12 A7
FJ13 B7
FJ14 B7
FJ15 C7
FJ16 C7

F_16040_014.eps

251005

FJ17 C7
FJ18 C7

FJ19 C7
FJ20 C7
FJ21 D7
FJ22 D7
FJ23 D7
FJ24 D7
FJ25 D7
FJ26 D7
IJ01 A1
IJ02 A1
IJ03 A1
IJ04 A1
IJ05 A1
IJ06 A1
IJ07 A1
IJ08 D2
IJ09 D2
IJ10 D2
IJ11 E2
IJ12 A4
IJ13 E4

123

4

5

6

78

SSB: Side Connectors

Circuit Diagrams and PWB Layouts

EN 56LC4.9U AA 7.

1

23

2

3

4

4

57

5

67

6

8

8

SIDE CONNECTORS

B17

RES

100p

2K25

100p

2K26

4K01

4K03

4K04

4K05

100p

2K27

RES

100p

2K28

IK00

IK01
IK02

IK03

PC-TV-LED_1
+3V3STBY_1

LED_SEL_1

IR_1

LIGHT_SENSOR_1

TOP/SIDE KEYBOARD

FK08

FK09

2K18

100p

A

A

B

B

FOR DISC/ ARCH CABINET

1K03

20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

RESERVED

4K06
4K07

+3V3STBY_1

+3V3STBY_1

RES

+5VSW_1

LIGHT_SENSOR_1

IR_1

PC-TV-LED_1
LED_SEL_1

ITV_IR_SW_RESET

KEYBOARD

+3V3STBY

LED_SEL

PC-TV-LED

IR

LIGHT_SENSOR

2K01

1n0

100p

2K21

100p

2K22

100p

3K11

5K00 1u0

5K02 1u0

3K12

3K13

100p

2K23

2K24

68R

68R

68R

2K00

1n0

IK16

/

3K00

C

C

D

TO/FROM 1304
OF SIDE I/O

(1M06)

1K01

1K04

1
2
3
4
5
6
7

E

E

F F

F

8

9
10
11

1

FK00

FK02
FK03
FK04

FK05

FK06
FK07

FK10

FRONT_Y_CVBS_IN_1

FRONT_C_IN_1

FRONT_L_IN_1
+5VSW_1
FRONT_R_IN_1

HP_LOUT_1

HP_DET_R_DC_1

HP_ROUT_1

3V3

3V3

4K02

RES

2
3

FK01

4
5
6
7
8
9
10
11
12

100R
2K02
10p

3K01

100R

2K04
10p

3K02

10K
2K06
100p

5K01

1u0

2K19

1n0

3K05

10K

2K10
100p

3K07

*

39R

2K13

**

100p

3K08

68R
2K15
100p

3K09

*

39R

2K16

*

100p

2K20

1n0

IK17

*

2K03
10p

2K05
10p

2K07

100p

IK18

2K11

100p

2K14
100p

2K17
100p

3K03
15K

3K06
15K

2K08

+5VSW

2K12

2u2

3139 123 6145.1

2u2

FRONT_Y_CVBS_IN

FRONT_C_IN

UFDRES

*

2K13

10p
10p

2K14

10p

2K16
2K17

10p

3K07

10R
10R

3K09

HP_LOUT

HP_DET_R_DC

HP_ROUT

FRONT_L_IN

/

/

KEYBOARD

FRONT_R_IN

B17

TO/FROM 1540 OF

IR/ LED

1K00

(1M21)

6
5
4
3
2
1

B6B-PH-K

FK11

(1M01)

1K02
1
2
3

B3B-PH-K-S(LF)

F_16040_015.eps

251005

A

A

B

B

C

C

DD

D

E

E

F

1K00 A8
1K01 D1
1K02 E8
1K03 A1
1K04 D1
2K00 B7
2K01 B6
2K02 C3
2K03 C3
2K04 D3
2K05 D3
2K06 D3
2K07 D3
2K08 D4
2K10 E3
2K11 E3
2K12 E4
2K13 F3
2K14 E3
2K15 F3
2K16 F3
2K17 F3
2K18 E8
2K19 E3
2K20 E3
2K21 B6
2K22 B6
2K23 B6
2K24 B6
2K25 B7
2K26 B7
2K27 B7
2K28 B7
3K00 C3
3K01 C3
3K02 D3
3K03 D3
3K05 E3
3K06 E3
3K07 E3
3K08 F3
3K09 F3
3K11 A7
3K12 A7
3K13 B7
4K01 A7
4K02 F2
4K03 A7
4K04 A7
4K05 A7
4K06 B1
4K07 B1
5K00 A7
5K01 D3
5K02 A7
FK00 E1
FK01 E1
FK02 E1
FK03 E1
FK04 E1
FK05 E1
FK06 E1
FK07 E1
FK08 E8
FK09 E8
FK10 E1
FK11 B8
IK00 A8
IK01 A8
IK02 A8
IK03 B8
IK16 A7
IK17 D3
IK18 E3

1

2

2

3

3

4

45

5

6788

6

7

SSB: ADC

B18

A

TO HERCULES

B

C

FROM SYNC INTERFACE

D

E

FROM HERCULES

F

3139 123 6145.1

Circuit Diagrams and PWB Layouts

13

ADC

+5VSWIA

4L03

3L12

1K0

2L36
RES

IL05

3L06

IL04

+5VSWIA

0R

INTF_V_OUT

CVBS_COMB

INTF_Y_OUT

Hsync_SDTV
Vsync_SDTV

INTF_U_OUT

SDA

SCL

RES

IL06

2

7L05

LD1117DT33

32

OUTIN

COM

1

+5VSWIA

3L01
RES

3L00

1K0

2L35
RES

3L07
RES

BC847BW

3L09
RES

+5VSWIA

3L13
RES

1V5

3L15
RES

7L02

3L11

150R

3

1V5

3L03
RES

3L10

330R

5V4

7L03
BC847BW

0V9

+3V3SWB

3L36
3K3

2

BSN20

1

3L16

0R

+3V3SWB

IL16

2L30

5V4

7L01
BC847BW

0V9

2L38

5L03 10u

2L37
68p

3

3V3

16V10u

4L04

RES

RES

5L04

0H

3L17
150R

+3V3SWB

3L04

0R

3L35

220R

2

1

+3V3SWB

3L38

0R

IL09

3L37
3K3

7L077L06
BSN20

3L05
150R

2L39

82p

3L33

220R

RES

4L00

2L17

47n

3L08

RES

4L01

3L19

4L05

+5VSWIA

3L39

RES

7L08

RES

RES

+3V3SWB

IL17

2L18 82n

150R
150R3L20

4

5L00

3L21 2K2

2L15

3L23

3L24

2L20

2L21 100n

3L18 2K7

2L19 8n2

3L34

0R

IL07

2K23L22

RES

2L31
100u
16V

2L29

IL08

RES

2K2

100n

EN 57LC4.9U AA 7.

567

+3V3SWB

+3V3SWB

8

9

2L02 A7
2L03 A7
2L04 A7
2L05 A8
2L06 A8

A

2L07 B7
2L08 B7
2L09 B7
2L10 B8
2L11 B8
2L13 C4
2L15 D4
2L17 E3
2L18 D4
2L19 E4
2L20 D4
2L21 D4
2L22 B5

5L01

IL18

5L02

IL19

2L02
10u

2L07
10u

2L03
100n

2L08
100n

2L04
100n

2L09
100n

2L05
100n

2L10
100n

2L06
100n

2L11
100n

2L27

10u 16V

2L33 2L34
100n

100n

2L28

B18

16V10u

2L23 B5

2L23
100n

2L24
100n

B

2L24 B5
2L26 C4
2L27 A8

2L22
10u

10u16V

2L28 B9
2L29 B4
2L30 A3

2L26

9883(MSTAR)

47n2L13

220n

2L32
100u
16V

7L04

AD9985KSTZ

IL01

54

IL02

48

IL03

43

30

31

49

38

29

58

37

33

57
56

55

3942454651

RAIN

GAIN

BAIN

HSYNC

VSYNC

SOGIN

CLAMP

COAST

REF_BYPASS

MIDSCV

FILT

SDA
SCL

A0

1

59621122236978

52

VD VDD PVD

ANALOG INTERFACE FOR

FLAT PANEL DISPLAY

20212425283236

Φ

GND

404144

475053606163681080

COL_Di(8)

79

262734

GREEN

DATACK

SOGOUT

35

RED

BLUE

HSOUT

VSOUT

22R3L31

2K2

22R

22R

22R

22R

COL_CLKASA

COL_HREF

COL_Di(1)
COL_Di(2)
COL_Di(3)
COL_Di(4)
COL_Di(5)
COL_Di(6)
COL_Di(7)

COL_YA(1)
COL_YA(2)
COL_YA(3)
COL_YA(4)
COL_YA(5)
COL_YA(6)
COL_YA(7)
COL_YA(8)

TO SCALER

IL10
IL11
IL12

IL13

9

IL14

8

IL15

7
6
5
4
3
2

3L25-1
3L25-2 22R4L02
3L25-3 22R
3L25-4 22R
3L26-1 22R
3L26-2
3L26-3 22R

3L27-4
3L27-3 22R
3L27-2 22R
3L27-1
3L28-4 22R
3L28-3 22R
3L28-2 22R
3L28-1 22R

3L30 22R

3L32

77

0

76

1

75

2

74

3

73

4

72

5

71

6

70

7

0
1
2
3
4
5
6
7

19

0

18

1

17

2

16

3

15

4

14

5

13

6

12

7

67

66

64

65

TO COLUMBUS

COL_Di(1:7)

COL_YA(1:8)

COL_CLKASA

COL_HREF

COL_VACOL_VA

SYNC INTF

C

D

E

2L31 E4
2L32 E5
2L33 B8
2L34 B8
2L35 B2
2L36 E1
2L37 C3
2L38 C3
2L39 C3
3L00 B2
3L01 B2
3L03 B2
3L04 B3
3L05 B3
3L06 C1
3L07 C2
3L08 C3
3L09 C2
3L10 C2
3L11 C2
3L12 D1
3L13 D2
3L15 E2
3L16 E3
3L17 E3
3L18 D4
3L19 F3
3L20 F3
3L21 C4
3L22 C4
3L23 D4
3L24 D4
3L25-1 C7
3L25-2 C7
3L25-3 C7
3L25-4 C7
3L26-1 C7
3L26-2 C7
3L26-3 C7
3L27-1 D7

CLAMP_ADC

F

3L27-2 D7
3L27-3 D7
3L27-4 C7
3L28-1 D7
3L28-2 D7
3L28-3 D7

F_16040_016.eps

251005

3L28-4 D7
3L30 E7

3L31 E7
3L32 E7
3L33 B3
3L34 C4
3L35 E3
3L36 E2
3L37 E3
3L38 C3
3L39 C4
4L00 D3
4L01 D3
4L02 C1
4L03 C1
4L04 B3
4L05 B4
5L00 A4
5L01 A5
5L02 A6
5L03 C3
5L04 C3
7L01 B3
7L02 C2
7L03 E2
7L04 C5
7L05 A2
7L06 F2
7L07 F3
7L08 C3
IL01 C5
IL02 C5
IL03 C5
IL04 B2
IL05 C1
IL06 E1
IL07 C4
IL08 C4
IL09 E3
IL10 C7
IL11 C7
IL12 C7
IL13 C7
IL14 C7
IL15 D7
IL16 A3
IL17 B4
IL18 A5
IL19 A6

1

2

3

456789

SSB: Columbus

Circuit Diagrams and PWB Layouts

EN 58LC4.9U AA 7.

1234 56

B19

A

+3V3SW

+5VSWI

B

C

D

E

F

+3V3SWA

G

H

J

FROM FLASH/
CONTROL

I

3139 123 6145.1

1 8 9 10 11 12 13

COLUMBUS

5M03

2M65
100n

5M04

3M05-2 2 7

FM01
FM02
FM03
FM04
FM05

+3V3SWA

470R3M05-1 1 8
470R

36

470R3M05-3
470R3M05-4

45

5M02

FROM SCALER

#RESET

3M53
3M54

3M55
3M57
3M59

100n2M00

100u

47R

47R
47R
47R
47R

3M58
10K

3V2

2M66

16V

5V3

2M67
100n

100n

2M02 100n

2M01

COL_RST

+3V3SWA

10K

10K

3M52

3M56

+3V3SWA

+5VSWIA

100n2M03

10K

3M50

3M51
10K

3M12

2M68
100u
16V

FROM ADC

2M04 100n

2M33
3M10

4M06

4M17

4M04

4M05

100n2M05

4M16

RES

RES

RES
100p

RES

100n2M06

4K73M11

COL_DQM
COL_RAS
COL_CAS
COL_CLK
COL_WE

COL_A0
COL_A1
COL_A2
COL_A3
COL_A4
COL_A5
COL_A6
COL_A7
COL_A8
COL_A9
COL_A10
COL_A11

COL_CLKASA

COL_YA(1:8)

COL_VA

COL_HREF

COL_Di(1:7)

2M07 100n

2M08 100n

G15

H15

H14

G14

A7

D15
F15
E15
E14
F14

A8
F1
H3

B8

3M13

4K7

COL_YA(1)
COL_YA(2)
COL_YA(3)
COL_YA(4)
COL_YA(5)
COL_YA(6)
COL_YA(7)
COL_YA(8)

COL_Di(8)_INV

100n

2M10

2M09 100n

7M00-2

COLUMBUS

RESET

CLKSEL

CLKEXT

A0IIC

656SEL

TCK
TDI

TDO
TMS
TRST

TST1
TST2
TST3

BISTEN

100u2M31

16V

COL_Di(1)
COL_Di(2)
COL_Di(3)
COL_Di(4)
COL_Di(5)
COL_Di(6)
COL_Di(7)

C4

C12

B2

C3

+3V3SWA

3M79

4M00
4M01
4M02
4M03

22R

0R

0R

22R3M90

P13

N14

N11

COLUMBUS_CTRL

C10N4N12

3K3

IM03
IM04
IM06
IM07

IM08

100n

2M11

VSS

N13P2P14

3M87

L14

DQM

K15

RAS_

K14

CAS_

J14

CLK

J15

WE_

P6

A0

R6

A1

P5

A2

R5

A3

R1

A4

R2

A5

R3

A6

P3

A7

R4

A8

P4

A9

R7

A10

P7

A11

H1 G1

CLKASA

B13 A1

WEA / DAVA

B7

YA0 / Di9

B9

YA1

A9

YA2

B10

YA3

A10

YA4

B11

YA5

A11

YA6

B12

YA7

A12

YA8

A13

VA

A14

HREF

A2

UVA0 / Di0

B3

UVA1 / Di1

A3

UVA2 / Di2

B4

UVA3 / Di3

A4

UVA4 / Di4

B5

UVA5 / Di5

A5

UVA6 / Di6

B6

UVA7 / Di7

A6

UVA8 / Di8

2M12 100n

C8C7D3

J3

F13

J13

B14E3F3

7M17
RES

3M00
RES

3M89

3M26

3M27

N3

N8

G3

M3

L13

G13

VDDS

C13

D13C9M13

C5

C6

+3V3SWA

0R

656

Decod

K3

N6

N9

E13

C11

H13

VDDC

K13L3N5N7N10R9R11

3M86
RES

COLUMBUS_IO

MUX

MUX

100n

2M13

Memory

Interface

3D Comb

100n

2M14

AVD

AVS

SNDA

SNCL

SNRST

SDA

SCL

NC_2
NC_3

SWAN 3D

100n2M15

Noise Reduct

MUX

656

Encod

100n2M16

100n2M17

N1

P1

C14

D14

C15

A15

B15

D4
N2

234 56

7

7M00-1

COLUMBUS

DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16

CLKASB

WEB / DAVB

YB0 / Do9

UVB0 / Do0
UVB1 / Do1
UVB2 / Do2
UVB3 / Do3
UVB4 / Do4
UVB5 / Do5
UVB6 / Do6
UVB7 / Do7
UVB8 / Do8

100n2M19

2M18 100n

5M01

IM11

3M78 1K0

3M14 100R

7

DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9

YB1
YB2
YB3
YB4
YB5
YB6
YB7
YB8

4M08

4M09

100u

2M56

100R3M15

M2
M1

K2
K1

H2

16V

P12
R12
P11
P10
R10

R13
R14
R15
P15

N15
M14
M15

G2

E2

E1

D2

D1

C2

C1

B1

L2
L1

J2
J1

L15

F2

IM01

P9
P8
R8

100n2M20

+3V3SWA

2M24

8 9 10 11 12 13

+3V3SWA

5M05

2M27

2M28

100n

100n

1

25

7

133844

VDD

21

0

22

1

23

2

24

3

27

4

VCC

VCC

16

16

5
6
7
8
9
10

A11

CKE
CS
RAS
CAS
WE

GND

GND

0

A

512K-1

CLK

VSS

26

7M14-1
74HCT221D

13

8

7M15-1
74HCT221D

8

50

4

13

4

28
29
30
31
32
20

19

35

4K73M16

34
18
17
16
15

4M10

+5VSWIA

1
2

3

R

14

CX

15

CX|RX

+5VSWIA

1
2

3

R

14

CX

15

CX|RX

VDDQ

Φ

DRAM

512K X 16 X 2

MSM56V16160F-7T3

VSSQ

4

104147

+5VSWIA

3M69

10K

2M61

1n0

CLAMP_ADC

TO ADC

2M29

2M30

100n

100n

7M01

33

NC

37

2

1

3

2

5

3

6

4

8

5

9

6

11

7

12

D

8

39

9

40

10

42

11

43

12

45

13

46

14

48

15

49

16

36

U

DQM

14

L

+5VSWIA

7M14-2

16

R
CX
CX|RX

VCC

GND

74HCT221D

8

9
10

11
6
7

3M01-1

27

3M01-2

36
45

3M01-4

18
27
36
45
45

3M03-4

36

3M03-3

27

8 68R

1

3M03-1

45
36
27

3M04-1

3M88 22R

IM10

RES

3M28

3M06-2 22R
3M06-3

3M07-2
3M07-3

3M29

3M08-4 4 5 22R
3M09-1

3M09-3 3 6

COL_Do(8)

3V2

2u2

2M21

8

27

5

RES

27

27

7M03
LF15ABDT

3

OUT IN

COM

2

100n

FROM HERCULES

SDA

SCL

68R18
68R
68R3M01-3
68R

68R3M02-1
68R3M02-2
68R3M02-3
68R3M02-4
68R
68R
68R3M03-2

68R3M04-4
68R3M04-3
68R3M04-2
68R18

COL_CLKASB

IM00

22R3M06-1 1

22R36
22R3M06-4 4 5
22R3M07-1 1 8
22R27
22R36
22R3M07-4 4

22R3M08-1 1 8
22R3M08-2
22R363M08-3

22R18
22R3M09-2
22R

IM09

1

1V5

2M22

100n

TO SCALER

COL_DE

COL_YB(1)
COL_YB(2)
COL_YB(3)
COL_YB(4)
COL_YB(5)
COL_YB(6)
COL_YB(7)
COL_YB(8)

COL_Do(1)
COL_Do(2)
COL_Do(3)
COL_Do(4)
COL_Do(5)
COL_Do(6)
COL_Do(7)

5M00

2M23
100u

16V

COL_DQ1
COL_DQ2
COL_DQ3
COL_DQ4
COL_DQ5
COL_DQ6
COL_DQ7
COL_DQ8
COL_DQ9

COL_DQ10

COL_DQ11

COL_DQ12
COL_DQ13
COL_DQ14
COL_DQ15
COL_DQ16

TO/FROM SYNC INTERFACE

+3V3SWA

Hsync_SDTV

2M32
100u
16V

COL_A0
COL_A1
COL_A2
COL_A3
COL_A4
COL_A5
COL_A6
COL_A7
COL_A8
COL_A9
COL_A10

COL_A11

+3V3SWA

COL_CLK

COL_RAS
COL_CAS
COL_WE

+5VSWIA

+5VSWIA

3M68
15K

2M60
1n0

3M71
2K7

2M62
1n0

2M25
100n

2M26
100n

B19

COL_DQ1
COL_DQ2

COL_DQ3

COL_DQ4
COL_DQ5
COL_DQ6
COL_DQ7
COL_DQ8
COL_DQ9

COL_DQ10
COL_DQ11

COL_DQ12

COL_DQ13

COL_DQ14

COL_DQ15

COL_DQ16

COL_DQM

5

H_DELAY

12

F_16040_017.eps

251005

A

B

C

D

E

F

G

H

I

J

2M00 E2
2M01 E2
2M02 E3
2M03 E3
2M04 E3
2M05 E3
2M06 E3
2M07 E3
2M08 E3
2M09 E4
2M10 E4
2M11 E5
2M12 E5
2M13 E6
2M14 E6
2M15 E6
2M16 E6
2M17 E6
2M18 E7
2M19 E7
2M20 E7
2M21 E7
2M22 E8
2M23 E8
2M24 F7
2M25 A9
2M26 A10
2M27 A10
2M28 A10
2M29 A11
2M30 A11
2M31 E4
2M32 A9
2M33 F3
2M56 E7
2M60 F9
2M61 F11
2M62 G9
2M65 A2
2M66 A2
2M67 B3
2M68 B3
3M00 A4
3M01-1 B7
3M01-2 B7
3M01-3 B7
3M01-4 B7
3M02-1 B7
3M02-2 B7
3M02-3 B7
3M02-4 B7
3M03-1 B7
3M03-2 B7
3M03-3 B7
3M03-4 B7
3M04-1 C7
3M04-2 C7
3M04-3 C7
3M04-4 C7
3M05 B2
3M05 B2
3M05 B2
3M05 B2
3M06-1 C7
3M06-2 C7
3M06-3 C7
3M06-4 C7
3M07-1 C7
3M07-2 D7
3M07-3 D7
3M07-4 D7
3M08-1 D7
3M08-2 D7
3M08-3 D7
3M08-4 D7
3M09-1 D7
3M09-2 D7
3M09-3 E7
3M10 F3
3M11 F3
3M12 G3
3M13 H3
3M14 G7
3M15 G7
3M16 C9
3M26 C4
3M27 D4
3M28 C7
3M29 D7
3M50 G3
3M51 G3
3M52 G3

3M53 G2
3M54 G2
3M55 G2
3M56 G2
3M57 G2
3M58 G2
3M59 G2
3M68 E9
3M69 E11
3M71 F9
3M78 F7
3M79 A5
3M86 A6
3M87 A5
3M88 C8
3M89 C5
3M90 E4
4M00 B5
4M01 B5
4M02 B5
4M03 B5
4M04 F3
4M05 F3
4M06 F3
4M08 F7
4M09 F7
4M10 D10
4M16 F3
4M17 F3
5M00 E8
5M01 F7
5M02 E2
5M03 A2
5M04 A2
5M05 A10
7M00-1 A7
7M00-2 F4
7M01 B11
7M03 E8
7M14-1 E1
7M14-2 E11
7M15-1 F10
7M17 A4
FM01 G2
FM02 G2
FM03 G2
FM04 G2
FM05 G2
IM00 C8
IM01 E7
IM03 C5
IM04 C5
IM06 C5
IM07 C5
IM08 D5
IM09 E8
IM10 C8
IM11 F7

0

SSB: EPLD

1

1234 56

B20

A

A

B

B

+3V3-IO

C

C

D

D

E

TO SCALER
INTERFACE

F

F

G

G

H

H

I

I

3139 123 6145.1

100n

2N02

IN08

TO EPLD

LVDSAp

FOR NON-

PIXEL+ SETS

FN26

TXB0+

TXB0-

TXB1+

TXB1-

TXB2+

TXB2-

TXB3+

TXB3-

TXBC+

TXBC-

1 8 9 10 11 12 13

1

Circuit Diagrams and PWB Layouts

3

EPLD

+3V3-IO

100n2N01

26

DATA

33K

2N03 1u0

3N07

33K

3N10

IN09

LVDSAn

4N04

4N02

FN27

4N03

4N01

3

VCC

Φ

SCD

GND

7N03-2
BC847BS

LVDSBp

4N06

FN28

4N05

7

DCLK

4

5

LVDSBn

4N08

FN29

4N07

7N01

EPCS4SI8

8

CS_

ASDI

LVDSCp

4N10

FN30

4N09

+3V3-IO

10K

10K

3N02

3N01

1

IN01

IN02

5

IN04

10K

6

IN06

3N08

3

1n02N04

4

LVDSCn

LVDSDp

4N12

FN31

FN32

4N11

234 56

2

4N14

4N13

2

LVDSDn

FN33

4N16

4N15

7N03-1
BC847BS

1

LVDSCLKp

4N18

FN34

4N17

+3V3-IO

10K3N03

3N04 10K

IN03

IN05

LVDSCLKn

4N20

FN35

4N19

3N22 100R

3N24 100R

38

3N05 10K

IN10

100R3N21

100R3N23

100R3N25

10K3N06

4

7N02-1
EP1C12F256C8

Φ

CONTROL

H2

DATA0

K4

DCLK

G4

CSO
ASDO

J3

0

J2

MSEL

FN01

3N09
1K0

IN11

FN25

3N26
4K7

IN07

1

K13

CONF_DONE

J13

STATUS

H3

CONFIG

J4

CE

3N11

47R

LVDS IN

5N02

IN14

31

40

48

VCC

INTERFACE

8

14

21

+3V3SW

5N03

56

LVDSVCC

Φ

LCD PANEL

RECEIVER

GNDLVDSGND PLLGND

4

28

+3V3SW

2N05

100n

2N06 100n

10

RA+

9

RA-

12

RB+

11 38

RB-

16

RC+

15

RC-

20

RD+

19

RD-

18

RCLK+

17

RCLK-

25

PDWN

26

CLKOUT

4

2N09

100n

13

364452

SCAN

TDO

TCK

TMS

CEO

CLK

IN13

TDI

+3V3SW

PLLVCC

22

5

+3V3-IO

H14
H15

J14
J15K3

H4
G1

0

H1

1

G16

2

H16

3

IN12

5N04

2N07 100n

2N08

7N04

THC63LVDF84B

23

0
1
2
3

RA

4
5
6

0
1
2
3

RB

4
5
6

0
1
2

RC

3
4
5
6

0
1
2

RD

3
4
5
6

24

5

10K3N12

27
29
30
32
33
35
37

39
43
45
46
47
51

53
54
55

34
41
42
49
50

100n

1
3
5
6

7

2

+3V3-IO

10K3N13

CLK_REF

10K3N19

FN03

FN11

FN12

FN13

FN14
FN15
FN16

FN17

10K

3N14

FN02

47R

3N20

3

1N05
14M31818

R_IN(0)
R_IN(1)
R_IN(2)
R_IN(3)
R_IN(4)
R_IN(5)
G_IN(0)

G_IN(1)
G_IN(2)
G_IN(3)
G_IN(4)
G_IN(5)
B_IN(0)
B_IN(1)

B_IN(2)
B_IN(3)
B_IN(4)
B_IN(5)
HS_IN
VS_IN
DE_IN

R_IN(6)
R_IN(7)
G_IN(6)
G_IN(7)
B_IN(6)
B_IN(7)

PARITY_IN

62

+3V3-IO

5N05

OC

4

2

R_IN(1)

R_IN(2)
R_IN(0)

R_IN(5)
R_IN(7)

G_IN(1)
G_IN(0)
G_IN(3)
G_IN(7)
R_IN(3)
R_IN(4)
G_IN(2)
G_IN(6)
G_IN(4)

2N10
100n

1

EN 59LC4.9U AA 7.

7

7

3N15 47R
3N16
3N17
3N18

3N27
47R

7N02-2
EP1C12F256C8

N4

IO_40

P3

IO_39

P2

IO_38

R1

IO_37

L4

IO_36

K5

IO_35

N3

IO_34

M4

IO_33

L5

IO_32

M3

IO_31

N2

IO_30

M2

IO_29

N1

IO_28

M1

IO_27

L2

IO_26

L1

IO_25

K1

IO_24

L3

IO_23

K2

IO_22

J1

IO_21

7

7

47R
47R
47R

BANK 1

RES

2N11

Φ

RES

RES

2N13

2N12

CLKUSR

INIT_DONE

8

8 9 10 11 12 13

9

10

11

12

+3V3-IO

FOR DEBUGGING

2N15
100p

FN08

FN10

1N01

RES

1
2
3
4
5
6
7
8
9
10

RES

2N14

FN04

FN05

FN06

FN07

5N01

FN09

+3V3SW

IO_20
IO_19
IO_18
IO_17
IO_16
IO_15
IO_14
IO_13
IO_12
IO_11
IO_10

IO_9
IO_8
IO_7
IO_6
IO_5
IO_4
IO_3
IO_2
IO_1

H5
F1
G2
E1
F2
G3
F3
D1
E2
D2
E3
F5
E4
D3
F4
G5
B1
C2
C3
D4

B_IN(7)
B_IN(0)

G_IN(5)

B_IN(4)

R_IN(6)

B_IN(6)
B_IN(1)

PARITY_IN

DE_IN

B_IN(5)

VS_IN

B_IN(3)

HS_IN

B_IN(2)

TO SCALER

B21

+3V3-IO

3N28
180R

9

SDA_IO

SCL_IO

LVDS_PWR_DWN

6N01

TLMG3100

FN18

FN19

PIXEL+_RESET

IN19

LED_OUT

4N21

4N22

FN20

10

R9

T9
P9
N9

M9

IN15
IN16
IN17
IN18

3N29

100R

3N30 100R
3N31
3N32

3N34
3N35
3N36 100R
3N37
3N38
3N39 100R
3N40
3N41

3N43
3N44
3N45

3N46

3N47

7N02-5
EP1C12F256C8

R2

IO_41
IO_42
IO_43
IO_44
IO_45
IO_46
IO_47
IO_48
IO_49
IO_50
IO_51
IO_52
IO_53
IO_54
IO_55
IO_56
IO_57
IO_58
IO_59
IO_60
IO_61
IO_62
IO_63
IO_64

BANK 4

T2
R3
P4
R4
T4
R5
P5
M5
M6
N5
N6
P6
R6
M7
T6
R7
P7
N7
R8
T8
M8
N8
P8

100R

100R

Φ

IO_65
IO_66
IO_67
IO_68
IO_69
IO_70
IO_71
IO_72
IO_73
IO_74
IO_75
IO_76
IO_77
IO_78
IO_79
IO_80
IO_81
IO_82
IO_83
IO_84
IO_85
IO_86
IO_87
IO_88

M10

R10
T11
N10
P10
R11
P11
N11
N12

M11
M12

P12
R12
T13
R13
R14
P13
T15
R15

116

1N02

B4B-PH-SM4-TBT(LF)

1
2
3
4

56

BACKLIGHT_DIM

2N16

100p

B_LT_PWM
G_LT_PWM

100R

R_LT_PWM

100R
100R3N33

B_RT_PWM
G_RT_PWM

100R

R_RT_PWM

100R

B_LB_PWM
G_LB_PWM

100R

R_LB_PWM

100R

B_RB_PWM
G_RB_PWM

100R

R_RB_PWM

100R
100R3N42

FN21
100R
100R
100R

100p

100p

2N18

2N17

12

B20

FOR DEVELOPMENT
USE ONLY

TO SCALER INTERFACE

TO TOP CONN.

FN22

FN23

FN24

100p

100p

BM05B-SRSS-TBT

2N20

2N19

F_16040_018.eps

13

13

1N03

7

RES

1
2
3
4
5

6

251005

A

A

B

B

C

C

D

D

E

EE

F

F

G

G

H

H

I

I

1N01 A9
1N02 D11
1N03 F12
1N05 D5
2N01 A2
2N02 C1
2N03 C2
2N04 C2
2N05 D4
2N06 D4
2N07 D5
2N08 D5
2N09 D5
2N10 D6
2N11 B7
2N12 B7
2N13 B7
2N14 B7
2N15 B8
2N16 E11
2N17 F11
2N18 F11
2N19 F11
2N20 F11
3N01 A3
3N02 A3
3N03 A3
3N04 A3
3N05 A3
3N06 A3
3N07 C2
3N08 C2
3N09 B4
3N10 C2
3N11 C4
3N12 A5
3N13 A5
3N14 A5
3N15 B6
3N16 B6
3N17 B6
3N18 B6
3N19 C5
3N20 C5
3N21 E3
3N22 E3
3N23 E3
3N24 F3
3N25 F3
3N26 D4
3N27 D6
3N28 F8
3N29 E11
3N30 E11
3N31 E11
3N32 E11
3N33 E11
3N34 E11
3N35 E11
3N36 E11
3N37 E11
3N38 F11
3N39 F11
3N40 F11
3N41 F11
3N42 F11
3N43 F11
3N44 F11
3N45 F11
3N46 D10
3N47 D10
4N01 D2
4N02 D2
4N03 D2
4N04 D2
4N05 D2
4N06 D2
4N07 D2
4N08 D2
4N09 D2
4N10 D2
4N11 D2
4N12 D2

4N13 D2
4N14 D2
4N15 D3
4N16 D3
4N17 D3
4N18 D3
4N19 D3
4N20 D3
4N21 D9
4N22 D9
5N01 A8
5N02 D4
5N03 D4
5N04 D5
5N05 C6
6N01 F9
7N01 A2
7N02-1 A4
7N02-2 D7
7N02-5 D1
7N03-1 C3
7N03-2 C2
7N04 D5
FN01 B4
FN02 B6
FN03 C5
FN04 A8
FN05 B8
FN06 B8
FN07 B8
FN08 B8
FN09 B8
FN10 B8
FN11 D5
FN12 E5
FN13 E5
FN14 F5
FN15 F5
FN16 F5
FN17 G5
FN18 D9
FN19 D9
FN20 F9
FN21 F11
FN22 F11
FN23 F11
FN24 F12
FN25 F4
FN26 D2
FN27 D2
FN28 D2
FN29 D2
FN30 D2
FN31 D2
FN32 D2
FN33 D3
FN34 D3
FN35 D3
IN01 B3
IN02 B3
IN03 B3
IN04 B3
IN05 B3
IN06 C2
IN07 D4
IN08 C2
IN09 C2
IN10 B3
IN11 B4
IN12 C5
IN13 D5
IN14 D4
IN15 D11
IN16 D11
IN17 D11
IN18 D11
IN19 F9

0

SSB: EPLD

1234 56

B21

A

B

C

D

E

F

G

H

I

+3V3SW

FP01

2P15

100u
16V

PARITY_OUT
HS_OUT
VS_OUT
DE_OUT
B(5)
B(4)

B(6)

B(3)
B(2)
G(4)
G(5)
B(1)
B(7)
B(0)
CLK_OUT
G(7)

3139 123 6145.1

1 8 9 10 11 12 13

EPLD

7P01

LF15ABDT

13

OUTIN

COM

2P16

2

100n

N13
P14
P15
R16
N15
N16
K12
K14
L12
N14
M13
M14
L13
M15
M16
L14
L15
L16
K16
K15
J16
H12

FP03

2P17
2u2

LVDS OUT

7N02-4
EP1C12F256C8

IO_89
IO_90
IO_91
IO_92
IO_93
IO_94
IO_95
IO_96
IO_97
IO_98
IO_99
IO_100
IO_101
IO_102
IO_103
IO_104
IO_105
IO_106
IO_107
IO_108
IO_109
IO_110

Φ

BANK 3

234 56

Circuit Diagrams and PWB Layouts

5P01

2P05 100n

2P26 100n

R(1)

R(2)

R(5)

R(3)

2P06

+1V5-PLL

2P27

B20

R(7)

R(4)
G(3)

100n2P07

100n

100n

100n

2P28

(H=NORMAL)
LVDS_PWR_DWN

CLK_OUT

R(0)
R(1)
R(2)
R(3)
R(4)
R(5)
G(0)

G(1)
G(2)
G(3)
G(4)
G(5)
B(0)
B(1)

B(2)
B(3)
B(4)
B(5)
HS_OUT
VS_OUT
DE_OUT

R(6)
R(7)
G(6)
G(7)
B(6)
B(7)
PARITY_OUT

+1V5

IO_111
IO_112
IO_113
IO_114
IO_115
IO_116
IO_117
IO_118
IO_119
IO_120
IO_121
IO_122
IO_123
IO_124
IO_125
IO_126
IO_127
IO_128
IO_129
IO_130
IO_131

5P02

5P03

G14
G13
G15

F16
F14
F13
F15
E16

E15
D16
D15

E14

F12

E13
D14
H13
G12

B16
C15
C14
D13

2P01 2u2

2u22P18

2u2

2P22

100n

2P02

100n2P19

100n

2P23

100n

2P03

100n

100n2P24

2P20

FP04

2P25

G(6)
G(2)
G(1)

G(0)

R(6)
R(0)

2P04 100n

100n

2P21

100n

100n

2P08

100n

2P29

100n2P09

FP05

2P30 100n

2P10 100n

FP06

FP07

FP08

FP09

FP10

FP11
FP12
FP13

FP14

FP02

100n2P11

+1V5-INT

+3V3-IO

3P01
4K7

2P12 100n

100n2P14

100n2P13

3P03 47R

+3V3-IO

2P31 100n

2P33

100n

EN 60LC4.9U AA 7.

7

EAGLE INTERFACE

7N02-3

B15
A15
B14
C13
B13
A13
B12
C12
E12
E11
E9
D12
D11
C11

N.C.

B11
A11
B10
C10
D10
A9
B9
D9
C9
E10
C8

100n2P32

1
32
17
31

51
52
54
55
56
3
4

6
7
11
12
14
15
19

20
22
23
24
27
28
30

50
2
8
10
16
18
25

EP1C12F256C8

RS
PDWN
R|F

CLKIN

0

TA

6

0

TB

6

0

TC

6

0

TD

6

IO_132
IO_133
IO_134
IO_135
IO_136
IO_137
IO_138
IO_139
IO_140
IO_141
IO_142
IO_143
IO_144
IO_145
IO_146
IO_147
IO_148
IO_149
IO_150
IO_151
IO_152
IO_153
IO_154
IO_155
IO_156

9

VCC

5

Φ

BANK 2

LVDS TRANSMITTER

+3V3SW

5P04

100n2P34

26

LVDS VCC PLL VCC

GND LVDS GND PLL GND

533643

132129

44

49

IO_157
IO_158
IO_159
IO_160
IO_161
IO_162
IO_163
IO_164
IO_165
IO_166
IO_167
IO_168
IO_169
IO_170
IO_171
IO_172
IO_173
IO_174
IO_175
IO_176
IO_177
IO_178
IO_179

DEV_OE

DEV_CLR

5P05

D8

E8
A8

B8
D7
C7

B7

A6

E7

B6
C6
D6
D5

E6

E5
C5

B5

A4

B4
C4

B3

A2

B2

5P06

7P02
THC63LVDM83R

+

TCLK

-

+

TA

-

+

TB

-

+

TC

-

+

TD

-

33

35 34

2P35

39

40

47

48

45

46

41

42

37

38

N.C.

100n

LVDSCLKp

LVDSCLKn

LVDSAp

LVDSAn

LVDSBp

LVDSBn

LVDSCp

LVDSCn

LVDSDp

LVDSDn

8 9 10 11 12 13

7N02-6

+3V3-IO

+1V5-INT

+1V5-PLL

FROM EPLD

1

1

1P01
4

DLW21S

DLW21S

1P02
4

DLW21S

1P03 1 1
4

DLW21S

1P04
4

DLW21S

1

1P05
4

C1
G6
P1
A14
F10
F7
A3
P16
K11
C16
T3
L7
L10
T14

A7
A10
G8
G10
H7
H9
J8
J10
K7
K9
T7
T10

H6
H11

2

2P36

2P37

3

2

2P38

2P39

3

2

2P40

2P41

3

2

2P42

2P43

3

2

2P44

2P45

3

EP1C12F256C8

Φ

POWER

BANK1

BANK2

VCCIO

BANK3

BANK4

VCCINT

VCCA

GNDA

GNDG

LVDSCLK+

LVDSCLK-

LVDSA+

LVDSA-

LVDSB+

LVDSB-

LVDSC+

LVDSC-

LVDSD+

LVDSD-

PLL1
PLL2

FROM SCALER INTERFACE

10p

10p

10p

10p

10p

10p

10p

10p

10p

10p

A1

A16

A5

A12

F6
F8
F9

F11

G7
G9

G11

H8

H10

GND

J7

J9
K6
K8

K10

L6

L8

L9

L11

T1
T5

T12
T16

J6

PLL1

J11

PLL2

J5

PLL1

J12

PLL2

FOR UFD ONLY

SDA_DMA_BUS1_DISP
SCL_DMA_BUS1_DISP

LVDSD+
LVDSD-

LVDSCLK+
LVDSCLK-

LVDSC+
LVDSC-

LVDSB+
LVDSB-

LVDSA+
LVDSA-

+3V3STBY

LAMP_ON_OFF

+3V3SW

+3V3SW

+3V3SW

+3V3SW

+3V3SW

3P07

10K

3P05 100R
3P04

3P06
4P09

FOR MFD ONLY

*

4P01
4P02

4000

RES

100R

RES

4P10

4P03
4P04
4P05
4P06
4P07
4P08

4K7

7P03

BC847BW

2P46
10n

26"/32"

16X9

-

YES

+3V3SW

SC_STANDBY

FROM HERCULES

LVDS_VCC

23"

15X9

-

-

LVDS_OPT

FP15

FP16

FP17

4P01

*

4P02

*

4P12

FROM DC-DC CONVERTER

FOR LCD ONLY

(RESET)

LVDS_VCC

4P11

LVDS_OPT

CTRL_DISP2
CTRL_DISP1

(NC)
(NC)

NC

VDISP_2

VDISP2

FI-WE31P-HFE-E1500

1P06

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

32

31

0-1453230-3

(1G50)

1P07

3233
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

1P01 D8
1P02 E8
1P03 F8

A

B

C

D

E

F

G

H

I

1P04 F8
1P05 G8
1P06 A11
1P07 D11
1P08 D12
2P01 B3
2P02 B3
2P03 B3
2P04 B4
2P05 B4
2P06 B4
2P07 B4
2P08 B4
2P09 B4
2P10 B4
2P11 B5
2P12 B5
2P13 B5
2P14 B5
2P15 B1
2P16 B2
2P17 B2
2P18 B3
2P19 B3
2P20 B3
2P21 B4
2P22 C3
2P23 C3
2P24 C3
2P25 C4
2P26 C4
2P27 C4
2P28 C4
2P29 C4
2P30 C4
2P31 C5
2P32 D5
2P33 D5
2P34 D6
2P35 D7
2P36 D8
2P37 D8
2P38 E8
2P39 E8
2P40 F8
2P41 F8
2P42 F8
2P43 F8
2P44 G8
2P45 G8
2P46 F10
3P01 D5
3P03 E5
3P04 D10
3P05 D10
3P06 F10
3P07 F9
4000 D10
4P01 F11
4P02 F11
4P03 F10
4P04 F10
4P05 F10
4P06 F10
4P07 F10
4P08 F10
4P09 F10
4P10 D10
4P11 F11
4P12 F11
5P01 A3
5P02 B3
5P03 C3
5P04 D6
5P05 D6
5P06 D7
7N02-3 A6
7N02-4 D2
7N02-6 A8

B21

TO LCD PANEL (TIMING CONTROL)

1P08

33

32

31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5

TO PLASMA PANEL (TIMING CONTROL)

4
3
2
1

FI-TWE31P-VF-E1400

F_16040_019.eps

231105

7P01 B2
7P02 D7
7P03 F10
FP01 A1
FP02 A5
FP03 B2
FP04 B4
FP05 C4
FP06 D5
FP07 E5
FP08 E5
FP09 E5
FP10 F5
FP11 F5
FP12 F5
FP13 F5
FP14 F5
FP15 D11
FP16 D11
FP17 E1

1

7

SSB: Diversity Tables B9-B21

+

+

R

R

R

R

R

R

R

R

R

R

R

Y

R

R

MUX-SYNC INTERFACE

B9

Item

LC4.3x

LC4.8x

LC4.9x

V
VV
VV

VV

V

V

VV
VV
VV
VV

VV

V
V

VV

VV
VV

V
V
V

V
V

V

V

V

V

V

2A00
2A01
2A02
2A03
2A12
2A13
3A00
3A01
3A02
3A06
3A06
3A07
3A07 RST SM 0402 68R PM5 COL
3A08
3A10
3A11
3A13
3A14
4A03
4A04
4A05
4A06
5A00
6A01
7A00
7A02
7A03

Description

CER2 0603 X7R 16V 100N COL
CER1 0402 NP0 50V 100P COL
CER1 0402 NP0 50V 100P COL
CER2 0603 Y5V 10V 1U COL
CER2 0402 X7R 16V 10N COL
CER2 0402 Y5V 16V 100N COL
RST SM 0402 68R PM5 COL
RST SM 0402 68R PM5 COL
RST SM 0402 1K PM5 COL
RST SM 0603 10K PM5COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0402 10K PM5 COL

RST SM 0402 10K PM5 COL
RST SM 0402 10K PM5 COL
RST SM 0402 10K PM5 COL
RST SM 0402 10K PM5 COL
RST SM 0402 560R PM5 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
FXDIND 0805 100MHZ 30R COL R
DIO REG SM BZX384-C3V9 COL R
IC SM PCA9515ADP (PHSE) R
TRA SIG SM BC847BW (COL) R
TRA SIG SM BC847BW (COL) R

Circuit Diagrams and PWB Layouts

MUX-SYNC INTERFACE

B13

Teletext)

ITEM

2E00

VV

2E01

VV

2E02

VV

2E04

VV

2E05

VV

2E06

VV

3E06

VV

3E07

VV

3E08

VV

3E13

VV

3E14

VV

3E15

VV

3E16

VV

3E17

VV

3E18

VV

AP/EU/AP-DVB (with Teletext)

EU-DVB (with Teletext)

DESCRIPTION

NAFTA/LT & China (non-

CER2 0603 X5R 6V3 4U7 PM10 R
CER2 0603 X5R 6V3 4U7 PM10 R
CER2 0603 X5R 6V3 4U7 PM10 R
CER2 0402 X5R 6V3 1U PM20 R
CER2 0402 X5R 6V3 1U PM20 R
CER2 0402 X5R 6V3 1U PM20 R
RST SM 0402 47K PM5 COL
RST SM 0402 47K PM5 COL
RST SM 0402 47K PM5 COL
RST SM 0402 330R PM5 COL
RST SM 0402 330R PM5 COL
RST SM 0402 330R PM5 COL
RST SM 0402 330R PM5 COL
RST SM 0402 330R PM5 COL
RST SM 0402 330R PM5 COL

ANALOG I/O SCART

B15

Item

26/32PF

DVB.T 26/32PF

VV

1G01
1G01

VV

1G02
1G02
1G03
2G29
2G30
2G31
2G32
2G33
2G34
2G35
2G36
2G37
2G38
2G39
2G40
2G41
2G43
2G45
2G46
2G63
2G64
2G65
2G65
2G66
2G66
3G63
3G64
3G65
3G66
3G67
3G68
3G69
3G70
3G71
3G72
3G73
3G75
3G76
3G77
3G79
3G81
3G83
3G84
3G86
3G88
3G89
3G92
3G93
3G94
3G95
4G09
4G11
4G12
4G13
4G14
4G15
4G16
4G17
4G18
4G19
4G22
5G01
6G02
7G07
7G08
7G09

VV
VV
VV
VV

VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV

VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV

VV
VV
VV
VV
VV
VV
VV
VV
VV
VV

VV

VV

VV

VV

VV

VV

37/42PF

DVB.T 37/42PF

SOC EURO H 21P F BK R-GRND B

VV

SOC EURO H 21P F SHD R-GRND Y
SOC EURO H 21P F BK R-GRND B

VV

SOC EURO H 21P F SHD R-GRND Y
CON H 32P F 0.50 SM FPC 0.3 R
ELCAP SM 16V 10U PM20 COL R
CER2 0603 X7R 16V 100N COL
CER2 0603 X7R 16V 100N COL

V

CER2 0603 Y5V 25V 100N COL
CER2 0603 Y5V 16V 220N COL
ELCAP SM 16V 10U PM20 COL R
CER2 0603 Y5V 25V 100N COL
CER2 0603 Y5V 10V 1U COL
RST SM 0603 330R PM5 COL
CER2 0603 Y5V 10V 1U COL
CER2 0603 Y5V 10V 1U COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 330R PM5 COL
CER2 0603 X7R 50V 1N COL
CER2 0603 X7R 50V 1N COL
CER2 0603 X7R 50V 1N COL
CER2 0603 X5R 6V3 2U2 PM10 R
CER2 0603 X5R 6V3 2U2 PM10 R
CER2 0603 X5R 6V3 4U7 PM10 R
CER2 0603 X5R 6V3 4U7 PM10 R
CER2 0603 X5R 6V3 4U7 PM10 R
CER2 0603 X5R 6V3 4U7 PM10 R
RST SM 0603 10K PM5COL
RST SM 0603 10K PM5COL
RST SM 0603 10K PM5COL

V

RST SM 0603 150R PM5 COL
RST SM 0603 15K PM5 COL
RST SM 0603 15K PM5 COL
RST SM 0603 47K PM5 COL
RST SM 0603 47K PM5 COL
RST SM 0603 560R PM5 COL
RST SM 0603 10K PM5COL
RST SM 0603 47K PM5 COL
RST SM 0603 100R PM5 COL
RST SM 0603 100R PM5 COL
RST SM 0603 47K PM5 COL
RST SM 0603 47K PM5 COL
RST SM 0603 47K PM5 COL
RST SM 0603 100R PM5 COL
RST SM 0603 100R PM5 COL
RST SM 0603 47K PM5 COL
RST SM 0603 75R PM5 COL
RST SM 0603 47K PM5 COL
RST SM 0603 47K PM5 COL
RST SM 0603 47K PM5 COL
RST SM 0603 47K PM5 COL
RST SM 0603 47K PM5 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0603 JUMP. 0R05 COL
FXDIND 0603 100MHZ 120R COL R
DIO SIG SM BAS316 (COL) R
IC SM 74HC4053D (PHSE) R
TRA SIG SM BC847B (COL) R
IC SM ADG734BRUZ (ANA0) R

Description

EN 61LC4.9U AA 7.

SIDE CONNECTORS

B16

Item

LC4.3x - CINCH

1J00
1J01
1J02
1J03
1J07
1J08
2J31
3J03
3J04
4J01
5J04

B17

Item

1K00
1K01
1K03
1K04
2K15
3K08
4K02
4K06
5K01

B18

Item

3L38
4L05
5L04

LC4.3E - SCART

VV
VV

VV V
VV V

SIDE CONNECTORS

LC4.3x - ME5 styling

LC4.3x - Arch Styling

VVV
V

V

VV
VV
VV

VV

V

VV V

ADC

non-DVB sets with 3D Comb Filter

DVB sets with 3D Comb Filter

RST SM 0402 JUMP. 0R05 COL

V

RST SM 0402 JUMP. 0R05 COL

V

RST SM 0603 JUMP. 0R05 COL

V

LC4.9x - PDP

LC4.8x - LCD

VV
VV

VV
VV
VV

VV
VV

LC4.8x - LCD

LC4.9x - PDP

CON V 6P M 2.00 PH B
CON V 12P M 2.00 PH B
CON V 20P F 1.25 FFC 0.3 B
CON V 11P M 2.00 PH B
CER1 0402 NP0 50V 100P COL
RST SM 0402 68R PM5 COL
RST SM 0603 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
FXDIND SM 0603 1U PM10 COL R

Description

Description

CON V 10P M 2.00 PH B
CON V 11P M 2.00 PH B
CON V 12P M 2.00 PH B
CON V 3P M 2.00 PH B
FUSE SM T 3A 125V UL R
FUSE SM F 630MA 50V UL R
CER1 0402 NP0 50V 100P COL
RST SM 0402 68R PM5 COL
RST SM 0402 68R PM5 COL
RST SM 0402 JUMP. 0R05 COL
IND FXD 1206 EMI 100MHZ 120R R

Description

B20 B21

Item

1N02
1N05
1P06
1P07
2N01
2N02
2N03
2N04
2N05
2N06
2N07
2N08
2N09
2N10
2N11
2N12
2N13
2N14
2N15
2N16
2P01
2P02
2P03
2P04
2P05
2P06
2P07
2P08
2P09
2P10
2P11
2P12
2P13
2P14
2P15
2P16
2P17
2P18
2P19
2P20
2P21
2P22
2P23
2P24
2P25
2P26
2P27
2P28
2P29
2P30
2P31
2P32
2P33
2P34
2P35
3N01
3N02
3N03
3N04
3N05
3N06
3N07
3N08
3N09
3N10
3N11
3N12
3N13
3N14
3N15
3N16

PIXEL PLUS&

+LEXIP htiw 3.4CL

+LEXIP non 3.4CL

VV V
VV V

VV

VVV
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V

+LEXIP non 9.4CL/8.4CL

L
E
X

IP h

t
i

w

82/0237FP24

9.
4
CL/8

.4C

L

Description

CON V 4P M 2.00 SM PH R
OSC XTL SM 14M31818 15P OC R
CON V 30P M 1.25 SM 1453230 R
CON H 31P F 1.25 SM FI-WE R
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 X5R 6V3 1U PM20 R
CER2 0402 X7R 50V 1N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER1 0402 NP0 50V 100P COL
CER1 0402 NP0 50V 100P COL
CER1 0402 NP0 50V 100P COL
CER1 0402 NP0 50V 100P COL
CER1 0402 NP0 50V 100P COL
CER1 0402 NP0 50V 100P COL
CER2 0603 X5R 6V3 2U2 PM10 R
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
ELCAP SM 16V 100U PM20 COL R
CER2 0402 Y5V 16V 100N COL
CER2 0603 X5R 6V3 2U2 PM10 R
CER2 0603 X5R 6V3 2U2 PM10 R
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0603 X5R 6V3 2U2 PM10 R
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
CER2 0402 Y5V 16V 100N COL
RST SM 0402 10K PM5 COL
RST SM 0402 10K PM5 COL
RST SM 0402 10K PM5 COL
RST SM 0402 10K PM5 COL
RST SM 0402 10K PM5 COL
RST SM 0402 10K PM5 COL
RST SM 0603 33K PM5 COL
RST SM 0402 10K PM5 COL
RST SM 0402 1K PM5 COL
RST SM 0402 33K PM5 COL
RST SM 0402 47R PM5 COL
RST SM 0402 10K PM5 COL
RST SM 0402 10K PM5 COL
RST SM 0402 10K PM5 COL
RST SM 0402 47R PM5 COL
RST SM 0402 47R PM5 COL

+LEXIP non 9.4CL/8.4CL

LEXIP htiw 9.4CL/8.4CL

+

+LEXIP non 3.4CL

LEXIP

82/0237FP24

htiw

3
.

4C

Item

3N17
3N18
3N19
3N20
3N21
3N22
3N23
3N24
3N25
3N26
3N27
3N28
3N29
3N30
3N31
3N32
3N33
3N34
3N35
3N46
3N47
3P01
3P03
3P04
3P04
3P05
3P05
4N01
4N02
4N03
4N04
4N05
4N06
4N07
4N08
4N09
4N10
4N11
4N12
4N13
4N14
4N15
4N16
4N17
4N18
4N19
4N20
4N21
4N22
4P01 RST SM 0402 JUMP. 0R05 COL
4P02 RST SM 0402 JUMP. 0R05 COL
4P07
5N01
5N02
5N03
5N04
5N05
5P01
5P02
5P03
5P04
5P05
5P06
6N01
7N01
7N02
7N03
7N04
7P01
7P02

L

VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V

VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV
VV

VV V
VV V

VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V
VV V

RST SM 0402 47R PM5 COL
RST SM 0402 47R PM5 COL
RST SM 0402 10K PM5 COL
RST SM 0402 47R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 4K7 PM5 COL
RST SM 0402 47R PM5 COL
RST SM 0603 180R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 100R PM5 COL
RST SM 0402 4K7 PM5 COL
RST SM 0402 47R PM5 COL
RST SM 0402 100R PM5 COL

V

RST SM 0402 JUMP. 0R05 COL

V

RST SM 0402 100R PM5 COL

V

RST SM 0402 JUMP. 0R05 COL

V

RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL
RST SM 0402 JUMP. 0R05 COL

RST SM 0402 JUMP. 0R05 COL

V

FXDIND 0805 100MHZ 30R COL
FXDIND 0805 100MHZ 30R COL
FXDIND 0805 100MHZ 30R COL
FXDIND 0805 100MHZ 30R COL
FXDIND 0805 100MHZ 30R COL
FXDIND 0805 100MHZ 30R COL
FXDIND 0805 100MHZ 30R COL
FXDIND 0805 100MHZ 30R COL
FXDIND 0805 100MHZ 30R COL
FXDIND 0805 100MHZ 30R COL
FXDIND 0805 100MHZ 30R COL
LED VS SM TLMG3100 (VISH) R
IC SM EPCS4SI8N (ALT0) R
IC SM EP1C12F256C8N (ALT0)
TRA SIG SM BC847BS (PHSE) R
IC SM THC63LVDF84B (THIN)
IC SM LF15ABDT (ST00) R
IC SM THC63LVDM83R (THIN)

Description

F_15270_070.eps

240505

SSB: Digital I/O

Circuit Diagrams and PWB Layouts

EN 62LC4.9U AA 7.

B22

AV3: VGA + 2fHYPbPr

A

VGA Connector

1285-15S-064-98F

B

C

D

FROM CINCH ANALOG

E

F

3139 123 6145.1

DIGITAL IO

1Q01

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

1617

7Q25

M24C02-WMN6

1
2
3

PC AUDIO IN

FQ05

SDA_VGA

SCL_VGA

330p

DDC_5V

IQ25

84

Φ

(256x8)

EEPROM

0

ADR

1
2 SDA

FQ30

AV3_L

FQ31

AV3_R

2Q25

100n

2Q182Q17
330p

WC

SCL

S080

S081

FQ01
FQ02
FQ03
FQ04

FQ06

FQ07
FQ08
FQ09
FQ10

21

3Q16
150R

3Q17

1K0

7

6

5

FQ25

2Q16
100n

IQ03

IQ01

3Q25

10K

3Q30

3Q31

6Q16

BAS316

3Q18

10K

IQ02

DDC_5V

3Q26
10K

10K

10K

5Q16

2Q30
180p

2Q31
180p

3Q27
10K

DDC_5V

+5VSWI

2Q32 2u2

3Q32

15K

2Q33

3Q33

15K

2u2

5Q21

5Q23

IQ30

IQ31

2Q01
RES

2Q06
RES

2Q11
RES

3Q21

2K2

3Q23

2K2

AV3_LEFT

AV3_RIGHT

3Q01
75R

3Q06
75R

3Q11
75R

3Q22

220R

3Q24

220R

543

5Q01

5Q06

5Q11

TO HDMI

2Q21
100p

2Q23
100p

HDMI - (NAFTA & AP ONLY)

1Q03

DC1R019JDA

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

HDMI CONNECTOR

16
17
18
19

2021
2223

FQ40

FQ41

FQ42
FQ43

FQ44
FQ45

FQ46
FQ47

FQ48

NC (CEC)

FQ49
FQ50

FQ51
FQ52

BC847BW

76

7Q01

3Q40 1K0

3Q34

2K2

IQ23

IQ21

RX2+

RX2-

RX1+

RX1-

RX0+

RX0-

RXC+

RXC-

DOC_SCL
DOC_SDA

+5VHDMI

HDMI_HOTPLUG_RESET

RINA|Pr

GINA|YINA

BINA|Pb

H_PC

V_PC

TO HDMI

F_16040_020.eps

98

B22

TO PCHD-MUX

B13

B13

B13

B13

B13

TO SCALER

251005

A

B

C

D

E

F

1Q01 A1
1Q03 E6
1R03-2 E1
2Q01 A4
2Q06 B4
2Q11 B4
2Q16 A2
2Q17 B1
2Q18 B2
2Q21 C5
2Q23 D5
2Q25 C2
2Q30 E3
2Q31 E3
2Q32 E3
2Q33 E3
3Q01 A5
3Q06 B5
3Q11 B5
3Q16 A2
3Q17 A2
3Q18 A3
3Q21 C4
3Q22 C5
3Q23 D4
3Q24 D5
3Q25 D2
3Q26 D3
3Q27 D3
3Q28 D4
3Q29 D4
3Q30 E2
3Q31 E2
3Q32 E3
3Q33 E3
3Q34 F7
3Q40 F7
5Q01 A5
5Q06 A5
5Q11 B5
5Q16 A3
5Q21 C4
5Q23 D4
6Q16 A3
7Q01 F7
7Q25 D1
FQ01 A2
FQ02 A2
FQ03 A2
FQ04 A2
FQ05 A1
FQ06 A2
FQ07 B2
FQ08 B2
FQ09 B2
FQ10 B2
FQ25 D2
FQ30 E1
FQ31 E1
FQ32 E1
FQ40 E6
FQ41 E6
FQ42 E6
FQ43 E6
FQ44 E6
FQ45 E6
FQ46 E6
FQ47 E6
FQ48 F6
FQ49 F6
FQ50 F6
FQ51 F6
FQ52 F6
IQ01 A2
IQ02 A3
IQ03 A2
IQ21 D8

IQ23 C8
IQ25 C1
IQ28 D8
IQ29 D8
IQ30 E4
IQ31 E4
S080 E2
S081 E2

1

98765432

SSB: Cinch Analog I/O (1FH)

12

CINCH ANALOGUE IO (1FH)

B23

S057

1R07

A

2

4

6

5

1

3

MSD-244V-90 NIDIP (765A) LF

B

C

D

1R06

2

4

6

FR85

5

1

3

MSD-244V-91 NIDIP (765A) LF

MSP-801V1-02-01-A NI LF(PHT)

5

6

G

1R02-2

8

7

1R02-3

GND

9

H

1R03

MSD-244V-01 NIDIP (765A) LF

TO CINCH DIGITAL

3139 123 6145.1

1

FR84

FR83

IR04

FR46

2

4

6

5

1

3

FR28

FR16

FR22

1R02-1

4R41

IR40

AV3_L

AV3_R

FQ32

3R28
75R

S053

3R16
75R

S054

3R22
75R

S055

2R13

RES

S056

6R61

BZX384-C3V9

6R62

BZX384-C3V9

BZX384-C3V9

4R42

RES

S063

FR47

2R46

3R57
75R

RES

S058

IR28

3R29

100R

IR16

3R17

100R

IR22

3R23

100R

FR06

3R07

RES

3R06
RES

FR00

S051

FR03

S052

6R64

6R63

BZX384-C3V9

1

FR41

3

4

2

FR42

3R41

75R

FR40

2R47

1u0

FR50

6R65

BZX384-C3V9

6R67

6R66

BZX384-C3V9

BZX384-C3V9

6R68

2345

Circuit Diagrams and PWB Layouts

34567 14

150R

7R12

IR50

IR54

IR48

3R19

RES

3R13
1K0

2R00

180p

2R04
180p

+5VSW

IR00

IR02

3R35

10R

3R40
75R

2R84
RES

2R83
RES

3R53
15K

3R56
15K

3R88

3R87

4R06

RES

+5VSW

150R

IR06

3R14

RES

3R20

1K0

3R15
RES

3R02

15K

3R05

15K

IR34

3R49

1K0

7R47
BC857BW

0R

3R92

0R

3R93

AV1:CVBS+YPbPr+Audio L/R

AV1_CVBS_IN

BC847BW

3R12

68R

3R00

10K

3R03

10K

AV2: SVHS+CVBS+Audio L/R

3R34

FR34

0R

2R33
RES

S059

3R42

10R

2R42
RES

S060

+5VSW

3R47

100K

IR47

3R50

56K

3R51

10K

2R50
180p

S061

3R54

FR54

10K

2R55
180p

S062

BZX384-C3V9

2R01

2u2

2R03

2u2

2R35

4u7

2R41

4u7

2R51

2u2

2R54

2u2

IR01

IR03

2R82

330p

2R81

330p

IR51

IR55

+5VSW

3R90
220K

3R89
220K

+5VSW

3R36
47K

IR82

3R37
47K

3R46
47K

IR18

3R43
47K

2R85

SC2_L_MON_OUT

16V10u

2R86

SC2_R_MON_OUT

16V10u

SC1_CVBS_IN

SC2_CVBS_MON_OUT

4R12

SC1_COMP_AV1_L_IN

SC1_COMP_AV1_R_IN

CVI_Pr_IN

SC2_C_IN

SC2_Y_IN

SC2_L_IN

SC2_R_IN

SC2_L

SC2_R

CVI_Pb_IN

EN 63LC4.9U AA 7.

8910

TO HERCULES

+5VSW

2R60

16V

10u

SC2_L_IN

AV2_DMMI_SW
DMMI_RGB_SW

SC2_R_IN

CVI_Pr_IN
CVI_Pb_IN
CVI_Y_INCVI_Y_IN

SC1_FBL_IN_1

DMMI_RGB_SW

TO MUX-SYNC INTF

SC1_CVI_DMMI_R_Pr_IN

4R01

SW_I2C_SDA
SW_I2C_SCL
POWER-DOWN_BOLT-ON

FROM SIDE CONNECTOR

FRONT_C_IN

FROM SCALER

SC2_C_IN

SC2|AV2_SIDE_SW

FRONT_Y_CVBS_IN

SC2_Y_IN

AV2_DMMI_SW

DMMI_CVBS_IN

IR20

IR24

DMMI_R_IN

DMMI_L_IN

+5VSW

2R58

4u7

+5VSW

2R59

4u7

DMMI_L_IN

DMMI_R_IN

DMMI_CVBS_IN

4R68

3R08 150R

4R13

3R58
47K

IR21

3R77
47K

IR25

3R96
47K

2R15 4u7

3R98
47K

39K

3R60

+5VSW

39K

3R61

3R64

3R63

3R62
RES

RESERVED FOR SET WITH DMMI ONLY

+5VSW

+5VSW

4u72R14

4R14

+5VSW

4R15

47K

SC2_AV3_Y_IN

5R68

3R75

100R

2R71

DMMI_R_Pr_IN

3R09
47K

IR83

CD74HC4053M96

3R10
47K

3R11
47K

3R18
47K

47K

3R68
10K

1u02R70

100R3R76

1u0

7R57

6

13
12
11

1
2
10

3
5
9

IR69

3R69
47K

3R78
47K

G4

1
2
4X1
4X2

VEE VSS

7

4R16

2R65 2u2
4R60
4R61

2R66 2u2

2R62 100n
2R63

3R70
47K

IR67

IR68

IR66

IR65

IR64

3R79
47K

16

VDD

MDX

8

10K3R65

100n

2R68

2R69

10u

100n

16V

1

2

NC

3

4

10

9

8

7

+5VSW

5R57

2R57
100n

SC2_AV3_C_IN

14

SC2_AV3_Y_IN

15

4

SPDT

SWITCH

IN1

S1A

D1

S1B

IN2

S2A

D2

S2B

GND VSS

6

VDD

4R69

4R70

678910

11 12 13

2R61
100n

7R68
ADG734BRU

16

Φ

IN3

S3A

D3

S3B

IN4

S4A

D4

S4B

NC

5

TO HERCULES

7R60

CD74HC4053M96

VDD

6

G4

13

1

12

2

11

4X1
4X2

1
2

10

3
5
9

VEE VSS

7

4R62
4R63
4R64

11

IR63

12

IR62

13

IR61

14

20

IR60

19

IR59

18

IR58

17

15

B2

11

16

MDX

2R72
1u0

4

8

B2

B2

B2

B2

B2

B17
B2

3R66
47K

14

3R67

15

47K

3R72

3R71

47K

47K

3R80

100R

IR81

3R81

100R

3R82

3R83

47K

47K

2R79 1n0

DMMI_FBL_IN
SC2_L_MON_OUT

SC2_R_MON_OUT

SC2_CVBS_MON_OUT

IR

ITV_IR_SW_RESET

HP_DET_R_DC
SC_STANDBY

12

2R64
220n

3R73
47K

3R84
47K

6R60

BAS316

2R73

2R74 1u0

2R75 1u0

RESERVED FOR DMMI

3R74
47K

1u0

3R85
47K

3R94 75R

7R61
BC847B

3R91
560R

SC1_CVI_DMMI_G_Y_IN

SC1_CVI_DMMI_B_Pb_IN

SC2_Y_IN_1

SC2_L_IN_1

SC2_R_IN_1

TO MUX-SYNC INTF

4R02

4R03

RESERVED FOR DMMI

FR09
FR08
FR07

FR10

FR11

1n0

2R78

+3V3STBY

1n0

2R80

FR12

FR13

FR14

FR15
FR17
FR18

FR19

FR20

FR21

FR23
FR24

FR25
FR26
FR27

FR29

DMMI_B_Pb_IN

DMMI_G_Y_IN

75R3R95

3R86 75R

13 14

B23

TO HERCULES

1R01

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

NC

22
23

NC

24

NC

25

DMMI CONNECTOR (V1.1)

26
27
28
29
30
31
32

34

33

AF732L-N2G1A

F_16040_021.eps

251005

A

B

C

D

E

F

G

H

I

1R01 F14
1R02-1 F1
1R02-2 G1
1R02-3 H1
1R03-1 H1
1R06-1 E1
1R06-2 D1
1R07-1 A1
1R07-2 A1
2R00 E3
2R01 E4
2R03 E4
2R04 E3
2R13 D2
2R14 H9
2R15 I8
2R33 G3
2R35 G4
2R41 H4
2R42 G3
2R46 H2
2R47 H2
2R50 I3
2R51 I4
2R54 I4
2R55 I3
2R57 H10
2R58 H8
2R59 I8
2R60 A10
2R61 A11
2R62 B10
2R63 B10
2R64 A12
2R65 A10
2R66 A10
2R68 C10
2R69 C10
2R70 D9
2R71 E9
2R72 E11
2R73 D12
2R74 D12
2R75 E12
2R78 H13
2R79 F12
2R80 I13
2R81 A4
2R82 A4
2R83 A3
2R84 A3
2R85 A5
2R86 A5
3R00 E2
3R02 E3
3R03 E2
3R05 E3
3R06 D2
3R07 C2
3R08 F8
3R09 G9
3R10 H9
3R11 I9
3R12 D3
3R13 D3
3R14 D3
3R15 D3
3R16 B2
3R17 B2
3R18 I9
3R19 D3
3R20 D3
3R22 C2
3R23 C2
3R28 B2
3R29 A2
3R34 G3
3R35 G3
3R36 F4
3R37 G4
3R40 G3
3R41 G2
3R42 G3
3R43 H4
3R46 G4
3R47 H2
3R49 H3
3R50 H2
3R51 I2
3R53 I3
3R54 I2
3R56 I3
3R57 H1
3R58 G8
3R60 A9
3R61 A9
3R62 B9
3R63 B9
3R64 B9
3R65 A10
3R66 A12
3R67 A12
3R68 C9
3R69 C10
3R70 C10
3R71 C11
3R72 C12
3R73 C12
3R74 C12
3R75 D9
3R76 E9
3R77 H8
3R78 E10
3R79 E10
3R80 D12
3R81 E12
3R82 E11
3R83 E12
3R84 E12
3R85 E12
3R86 I13
3R87 A3
3R88 A3
3R89 A4
3R90 A4
3R91 A13
3R92 A2
3R93 A2
3R94 I13
3R95 I13
3R96 I8
3R98 I8
4R01 E7
4R02 D13
4R03 E13
4R06 C3
4R12 D4
4R13 G8
4R14 H9

4R15 I9
4R16 I10
4R41 G1
4R42 H2
4R60 A10
4R61 A10
4R62 B11
4R63 B11
4R64 C11
4R68 E8
4R69 F10
4R70 F10
5R57 G10
5R68 C9
6R60 A12
6R61 E1
6R62 F2
6R63 F2
6R64 E2
6R65 I2
6R66 I2
6R67 I2
6R68 I2
7R12 D3
7R47 H3
7R57 H10
7R60 A11
7R61 A13
7R68 C11
FR00 E2
FR03 E2
FR06 C2
FR07 F14
FR08 F14
FR09 F14
FR10 F14
FR11 F14
FR12 F14
FR13 G14
FR14 G14
FR15 G14
FR16 B1
FR17 G14
FR18 G14
FR19 G14
FR20 G14
FR21 G14
FR22 C1
FR23 H14
FR24 H14
FR25 H14
FR26 H14
FR27 H14
FR28 A1
FR29 H14
FR34 G2
FR40 H2
FR41 G2
FR42 G2
FR46 I1
FR47 H2
FR50 I2
FR54 I2
FR83 A1
FR84 A1
FR85 E1
IR00 E3
IR01 E4
IR02 E3
IR03 E4
IR04 A1
IR06 C3
IR16 B2
IR18 H4
IR20 H7
IR21 H8
IR22 C2
IR24 I7
IR25 H8
IR28 A2
IR34 G3
IR40 G1
IR47 H2
IR48 H3
IR50 I3
IR51 I4
IR54 I3
IR55 I4
IR58 E11
IR59 E11
IR60 D11
IR61 D11
IR62 D11
IR63 D11
IR64 E10
IR65 E10
IR66 D10
IR67 D10
IR68 D10
IR69 C9
IR81 E12
IR82 G4
IR83 G9
S051 E2
S052 E2
S053 B1
S054 B1
S055 C1
S056 D1
S057 A1
S058 A1
S059 G2
S060 G2
S061 I2
S062 I2
S063 H1

Circuit Diagrams and PWB Layouts

Layout Small Signal Board (Top Side Overview)

1101 F2

2106 E2

2252 C3

2609 A2

2733 B5

2806 C8

2823 D7

2919 D7

2936 D7

1104 C2

2107 E2
2108 E2
2109 F2
2110 E2
2111 E3
2112 E3
2113 E2
2114 D2
2201 A2
2202 A2
2219 C3
2220 C3
2225 B3
2227 B3
2239 B4

2253 C3
2254 C3
2273 B4
2280 A2
2281 A2
2282 C4
2283 C4
2284 C4
2292 C4
2293 C2
2449 D4
2603 A2
2604 A2
2605 B2
2608 A2

1106 C2
1107 F3
1751 A7
1802 C8
1C00 D6
1N01 B10
1N02 B10
1N03 A10
1N05 A9
2101 E2
2102 E2
2103 E2
2104 F2
2105 E2

3139 123 6144.1

2610 B2
2612 B2
2613 B1
2614 A2
2616 A2
2617 A2
2619 B2
2700 A8
2701 A8
2708 A6
2710 B6
2711 B6
2714 B6
2715 B6
2730 B5

2734 B5
2735 A4
2741 B5
2749 B8
2750 B7
2751 B8
2759 B7
2760 B7
2761 B7
2762 B7
2801 C8
2802 C8
2803 C8
2804 C8
2805 C8

2807 D8
2808 D8
2809 D8
2810 D8
2811 D8
2812 D8
2813 C8
2814 D8
2816 D7
2817 D7
2818 D7
2819 D7
2820 D7
2821 D7
2822 D7

2824 D7
2900 C10
2905 C7
2906 C7
2907 C7
2908 C7
2909 C7
2910 C7
2911 C7
2912 C7
2913 C7
2914 D8
2915 D8
2916 D8
2918 D7

2920 D8
2921 D8
2922 D8
2923 C8
2924 C8
2925 C8
2926 C8
2927 C7
2928 C7
2929 C7
2930 D7
2931 D7
2932 D7
2933 D7
2935 D7

2955 E7

2937 D7

2956 D7

2938 D7

2957 D7

2939 D7

2958 D7

2941 D8

2959 D7

2942 D7

2A03 D8

2945 C8

2B03 C9

2946 C8

2B04 C9

2947 C8

2B06 C9

2948 C8

2B07 C9

2949 C8

2B08 C9

2950 C7

2B09 D9

2951 C8

2B10 D9

2952 C8

2B11 D9

2953 D7

2B12 D9

2954 D7

2B13 C9

Part 1

F_16040_039a.eps

F_16040_039c.eps

2B14 D9
2B15 C9
2B16 C9
2C00 C7
2C01 C7
2C02 C7
2C03 D7
2D00 D10
2D01 E10
2D02 E10
2D08 E10
2D09 E10
2D10 E10
2D11 E10
2D13 D9
2D14 E9

2D16 E10
2D18 D10
2D19 D10
2D28 D9
2D29 D9
2D30 D9
2D33 D9
2D35 E9
2D36 D9
2D37 D9
2D39 D9
2D40 D9
2D44 D10
2D45 D10
2E24 D7
2E25 D7

Part 3

2E26 D7
2E27 D7
2E28 D7
2E29 D7
2E30 D7
2E31 E7
2E32 E6
2E36 E6
2E37 D7
2E38 D7
2E39 D7
2K00 B1
2K01 B1
2K02 C1
2K03 C1
2K04 C1

2K05 C1
2K06 C1
2K07 C1
2K08 C1
2K10 C1
2K11 D1
2K12 C1
2K13 D1
2K14 D1
2K15 D1
2K16 D1
2K17 D1
2K18 D1
2K19 C1
2K20 C1
2K21 B1

2K22 B1
2K23 B1
2K24 B1
2K25 A1
2K26 B1
2K27 B1
2K28 B1
2L07 C5
2L08 C5
2L09 C5
2L10 D5
2L11 D5
2L13 D4
2L15 C4
2L17 C4
2L18 C5

2L19 C5
2L23 C5
2L24 C5
2L26 C4
2L33 C5
2L34 D5
2L35 C4
2L36 C4
2L37 C4
2L38 C4
2L39 C4
2M24 D5
2M25 D5
2M26 D5
2M65 C5
2M67 C4

2N01 B8
2N02 B8
2N03 B8
2N04 A8
2N05 B9
2N06 B8
2N07 B8
2N08 B8
2N09 B8
2N10 A9
2N11 B10
2N12 B10
2N13 B10
2N14 B10
2N15 B10
2N16 A8

2N17 A10
2N18 A10
2N19 A10
2N20 A10
2P01 A8
2P02 A9
2P03 A9
2P04 B9
2P05 A8
2P06 B9
2P07 B8
2P08 B9
2P09 A8
2P10 A9
2P11 A9
2P12 B8

EN 64LC4.9U AA 7.

2P13 B8
2P14 A8
2P16 A8
2P17 B8
2P18 B8
2P19 B9
2P20 B8
2P21 B8
2P22 B8
2P23 A8
2P24 B9
2P25 A9
2P26 B8
2P27 B8
2P28 B9
2P29 B9

2P30 B8
2P31 B10
2P32 B9
2P33 B9
2P34 B9
2P35 B9
2R15 E7
2R58 F7
2R59 F7
3101 F2
3102 E2
3103 E2
3104 F2
3105 E2
3106 E2
3107 E2

3108 E2
3109 E2
3110 E2
3111 D2
3112 D2
3113 D2
3114 D2
3115 E2
3116 E2
3117 E2
3118 E2
3119 E3
3120 F3
3121 F3
3122 F2
3123 F3

3124 E2
3125 E2
3201 A3
3202 A2
3203 A2
3204 A2
3205 A2
3206 A2
3208 C3
3209 C3
3210 C3
3211 C3
3212 C3
3213 C3
3218 C3
3219 C3

3220 B2
3228 C4
3229 B2
3232 B3
3233 B3
3237 B3
3238 B3
3239 B3
3240 A3
3241 B3
3243 A3
3246 B2
3247 B3
3248 B3
3249 B3
3250 B4

3251 B4
3252 B4
3253 B4
3254 B3
3255 B4
3256 B4
3257 B4
3258 B4
3259 B4
3260 B4
3275 B2
3276 B2
3283 C3
3284 C3
3287 C4
3288 C4

3289 C4
3290 C3
3296 B3
3431 B2
3432 B2
3451 C4
3453 D4
3454 D4
3455 D4
3456 D4
3458 D4
3459 D4
3461 D4
3462 D4
3463 D4
3604 A2

3605 A2

3628 B2

3741 B4
3609 A2
3610 B2
3611 B2
3612 B2
3615 B2
3616 B2
3617 B1
3618 B1
3619 B2
3620 B2
3621 B2
3623 B2
3625 B1
3626 B2
3627 B2

3629 B2
3630 B2
3631 B2
3632 A2
3633 A2
3708 A6
3709 A6
3712 B6
3713 B6
3716 B6
3732 B5
3733 B5
3735 A5
3736 B5
3740 B4

3742 B4

3743 B4

3750 B7

3755 B7

3758 B8

3759 B7

3760 B7

3761 B7

3800 C7

3817 C7

3818 C7

3820 D8

3822 D8

3823 D8

3824 D7

3825 C7
3826 C7
3827 C7
3828 D7
3829 C7
3830 C7
3831 C7
3832 C7
3833 C7
3834 C7
3835 C7
3836 C7
3837 C7
3838 C7
3839 D8
3840 D8

Part 2

F_16040_039b.eps

Part 4

F_16040_039d.eps

3841 C8
3900 C8
3901 D7
3902 D7
3903 D7
3904 D7
3A02 D8
3A03 D8
3A04 D8
3A05 D8
3A06 D8
3C00 C7
3C01 D7
3C02 D7
3C03 D7
3C04 C6

3C05 C6
3C06 C6
3C07 C6
3C08 C6
3C09 C6
3C10 C6
3C11 C6
3C12 C6
3C13 C6
3C14 C6
3C15 C6
3C16 C6
3C17 D6
3C18 D6
3C19 C6
3C20 C6

3C21 C6
3D00 D10
3D01 D10
3D02 D10
3D03 E10
3D04 E10
3D11 E9
3D19 D9
3D21 E9
3D22 E9
3D23 D9
3D24 D9
3D25 D9
3D26 D9
3D27 D9
3D30 D10

3D31 D10
3D32 D10
3D33 D10
3D34 D9
3D35 D9
3E01 E6
3E02 E6
3E24 D7
3E25 D7
3E26 D7
3E27 D7
3E28 D7
3E29 D7
3E30 D7
3E31 E7
3E32 E7

3E33 E7
3E34 E7
3E35 E6
3E36 E6
3E37 E6
3E38 E6
3E39 E6
3E41 E6
3E42 E6
3E43 E6
3E44 E6
3E45 E6
3E46 E6
3E49 E6
3E51 E6
3E54 E6

3K00 C1
3K01 C1
3K02 C1
3K03 C1
3K05 C1
3K06 D1
3K07 D1
3K08 D1
3K09 D1
3K11 A1
3K12 B1
3K13 B1
3L00 C4
3L01 C4
3L03 C4
3L04 D4

F_16040_039.eps

3L05 D4
3L06 C4
3L08 C4
3L10 C4
3L11 C4
3L12 C4
3L13 C4
3L15 C4
3L16 C4
3L17 C4
3L18 C5
3L19 D4
3L20 D4
3L21 C5
3L22 C5
3L23 C5

211105

3L24 C5
3L25 D5
3L26 D5
3L27 C5
3L28 C5
3L30 D5
3L31 D5
3L32 D5
3L33 D4
3L34 C4
3L35 C4
3L36 D5
3L37 D4
3L38 C4
3L39 C4
3M00 D5

3M01 D5
3M02 D5
3M03 D5
3M04 D5
3M05 C4
3M06 D4
3M07 D4
3M08 D4
3M09 D4
3M10 D5
3M11 D5
3M14 D5
3M15 D5
3M27 D5
3M29 D5
3M50 D5
3M51 D5
3M52 D5
3M53 D5
3M54 D5
3M55 D5
3M56 D5
3M57 D5
3M58 D5
3M59 D5
3M78 D5
3M79 D5
3M86 C5
3M87 D5
3N01 B8
3N02 B8
3N03 B8
3N04 B8
3N05 A9
3N06 A9
3N07 B8
3N08 A8
3N09 A8
3N10 B8
3N11 B8
3N12 B9
3N13 B9
3N14 A9
3N15 B10
3N16 B10
3N17 B10
3N18 B10
3N19 B9
3N20 B9
3N26 B8
3N27 B9
3N28 A10
3N29 A8
3N30 A10
3N31 A10
3N32 A10
3N33 A10
3N34 A10
3N35 A10
3N42 A10
3N43 A10
3N44 A10
3N45 A10
3N46 B9
3N47 B9
3P01 A8
3P03 A9
3Q34 F10
3R11 F7
3R18 E7
3R58 F7
3R77 F7
3R96 F7
3R98 F8
4000 A9
4102 D2
4103 D2
4104 D2
4105 D2
4106 D2
4109 D2
4110 D2
4111 D2
4112 D2
4113 D2
4114 E3
4115 D3
4116 D3
4204 D3
4207 B4
4208 B4
4209 B4
4211 A2
4212 A2
4436 D4
4437 D4
4438 D4
4439 D4
4440 D4
4441 D4
4501 A3
4502 A3
4503 A3
4504 A3
4505 A3
4506 A3
4601 B2
4602 B1
4603 B2
4604 A2
4605 A2
4606 B1
4609 A2
4610 A2
4611 A2
4612 A2
4613 B2
4614 A2
4615 A2
4618 A2
4619 A2
4801 D8
4A02 D8
4A03 D8
4D00 D10
4D01 D10
4E03 E7
4E10 E7
4E11 E7
4K01 A1
4K02 D1

4K03 B1
4K04 A1
4K05 B1
4K06 C1
4K07 C1
4L00 C5
4L01 C5
4L02 C4
4L03 C4
4L04 C4
4L05 C4
4M00 D5
4M01 D5
4M02 D5
4M03 D5
4M05 D5
4M06 D5
4M08 D5
4M09 D5
4M10 D5
4N21 B8
4N22 B8
4P10 A9
4P11 A10
4R01 E3
4R02 E4
4R03 F4
4R15 E7
5101 E2
5102 E2
5103 E2
5105 C2
5106 C2
5107 E2
5108 E2
5211 B4
5214 B2
5216 B4
5700 A8
5704 A6
5709 A6
5713 B6
5730 B5
5733 A5
5735 A4
5738 B4
5755 B7
5756 B7
5757 A7
5758 B7
5759 B7
5901 D7
5902 E8
5903 C7
5904 E7
5905 C8
5906 C8
5907 C8
5908 C10
5909 D7
5910 D7
5911 D8
5C00 C7
5E03 E7
5K00 B1
5K01 C1
5K02 B1
5L03 C4
5L04 C4
5M00 C5
5M01 D4
5M03 C5
5M04 C4
5N01 B10
5N02 B8
5N03 B8
5N04 B8
5N05 A9
5P01 A8
5P02 B8
5P03 B8
5P04 B9
5P05 B9
5P06 B9
6101 E2
6102 E2
6103 E2
6104 D2
6105 E2
6106 F3
6107 F2
6204 B2
6205 B2
6206 A2
6430 B2
6431 B2
6601 B2
6709 A6
6712 B6
6733 B5
6740 B5
6E00 E7
6E01 E7
6E02 E7
6E03 E7
6N01 A10
7101 D2
7102 D2
7103 E2
7201 A3
7202 A3
7203 A3
7204 A2
7205 A2
7207 A3
7208 B4
7209 B4
7210 B4
7211 B3
7217 B3
7430 A2
7436 D4
7601 B2
7602 B2
7603 B2
7604 B1
7605 B2
7606 B2
7607 B2
7708 A7
7710 B6

7730 B5
7735 A4
7738 B4
7741 B4
7742 B4
7753 B7
7754 B7
7755 B8
7756 B7
7758 B7
7900 C10
7A01 D8
7C01 D7
7C02 D7
7D00 E10
7D04 E9
7D05 D10
7E03 E7
7E04 E6
7E05 E6
7L01 D4
7L02 C4
7L03 C4
7L04 C5
7L06 D4
7L07 D4
7L08 C4
7M00 D5
7M01 E5
7M17 D5
7N01 B8
7N03 B8
7P01 B8
7Q01 F10

Circuit Diagrams and PWB Layouts

Layout Small Signal Board (Top Side Part 1)

EN 65LC4.9U AA 7.

Part 1

F_16040_039a.eps

211105

Circuit Diagrams and PWB Layouts

Layout Small Signal Board (Top Side Part 2)

EN 66LC4.9U AA 7.

Part 2

F_16040_039b.eps

211105

Circuit Diagrams and PWB Layouts

Layout Small Signal Board (Top Side Part 3)

EN 67LC4.9U AA 7.

Part 3

F_16040_039c.eps

211105

Circuit Diagrams and PWB Layouts

Layout Small Signal Board (Top Side Part 4)

EN 68LC4.9U AA 7.

Part 4

F_16040_039d.eps

211105

Circuit Diagrams and PWB Layouts

Layout Small Signal Board (Bottom Side Overview)

1102 E9

1J06 A4

1P07 A2

2209 B8

2232 C8

2247 C8

2265 C9

2285 B9

2507 A9

2738 B7

1103 C9

1J07 A6
1J08 A5
1K00 B10
1K01 C10
1K02 D10
1K03 E10
1K04 C10
1P01 A2
1P02 A1
1P03 A2
1P04 A2
1P05 A2
1P06 A2

1P08 A2
1Q01 F2
1Q03 F1
1R01 E6
1R02 F5
1R03 F4
1R06 F7
1R07 F6
2203 B7
2205 C8
2206 C8
2207 C8
2208 B8

1105 C9
1201 C8
1202 B9
1440 C7
1441 B7
1801 D4
1J00 A7
1J01 A5
1J02 A6
1J03 A8
1J04 A9
1J05 A1

3139 123 6144.1

2210 B7

2233 C8

2248 C8
2211 C9
2214 C8
2216 C8
2218 C7
2221 B9
2223 B7
2224 B8
2226 C8
2228 C8
2229 C8
2230 B8
2231 B8

2234 B8
2235 B8
2236 B8
2237 B7
2238 B8
2240 B7
2241 B7
2242 C8
2243 C8
2244 B7
2245 B7
2246 B7

2249 C8

2250 B7

2251 B7

2255 C8

2256 B8

2257 C9

2258 B8

2259 C8

2260 B8

2262 C9

2263 B8

2264 B9

2266 C8
2267 C8
2268 C8
2269 B9
2270 B8
2271 B7
2272 B7
2274 C9
2275 B8
2276 B8
2277 C7
2278 C7
2279 C7

Part 1

F_16040_040a.eps

2286 C8

2508 A7

2287 C8

2509 A7

2288 C8

2611 B9

2290 D8

2615 A9

2291 D8

2618 A9

2447 B7

2704 A5

2448 B7

2706 A5

2501 B8

2709 A5

2502 B8

2713 B5

2503 A8

2716 B5

2504 A9

2731 A6

2505 B9

2736 A7

2506 B8

2737 B6

F_16040_040c.eps

2739 B7
2752 A4
2753 B4
2754 B4
2755 B4
2756 B4
2757 B4
2758 B4
2800 E3
2815 D4
2901 C1
2902 C1
2903 D5

Part 3

2904 D5
2917 E3
2934 E4
2940 E4
2A00 C4
2A01 C3
2A02 C3
2A12 C5
2A13 C5
2B01 D1
2B02 D1
2B05 C1
2B17 C1
2B18 C1

2D03 E1
2D04 E2
2D05 E2
2D06 E2
2D07 E1
2D12 D1
2D15 E2
2D17 E1
2D20 E2
2D21 E2
2D22 E2
2D23 E2
2D24 E2
2D25 E2

2D26 E2
2D27 D2
2D31 E2
2D32 D1
2D34 E2
2D38 E1
2D41 D1
2E00 E5
2E01 E5
2E02 E5
2E03 E5
2E04 E4
2E05 E5
2E06 E5

2E07 E4
2E08 E4
2E09 E5
2E10 E5
2E11 E5
2E12 E5
2E13 E4
2E14 E4
2E15 E5
2E16 E5
2E17 E4
2E18 E4
2E19 E4
2E20 E4

2E21 E5
2E22 E5
2E23 E5
2E33 E5
2E34 E5
2E35 E5
2J02 A6
2J03 A8
2J04 A1
2J05 A1
2J06 A1
2J07 A1
2J08 A1
2J09 A1

2J10 A4
2J11 A4
2J12 A4
2J13 A4
2J14 A4
2J15 A4
2J16 A8
2J17 A7
2J18 A7
2J19 A7
2J20 A8
2J21 A7
2J22 A7
2J23 A7

2J26 A8
2J27 A9
2J28 A8
2J29 A8
2J30 A5
2J31 A5
2J33 A7
2J34 A7
2J35 A6
2J36 A9
2L02 C6
2L03 C6
2L04 C6
2L05 C6

2L06 C6
2L20 C6
2L21 C6
2L22 C7
2L27 C6
2L28 C6
2L29 C6
2L30 C6
2L31 C7
2L32 C6
2M00 D6
2M01 D6
2M02 D6
2M03 D6

EN 69LC4.9U AA 7.

2M04 D6
2M05 D6
2M06 D6
2M07 D6
2M08 D6
2M09 D6
2M10 D6
2M11 D6
2M12 D6
2M13 D6
2M14 D6
2M15 D6
2M16 D6
2M17 D6

2M18 D6
2M19 D6
2M20 D6
2M21 D6
2M22 C6
2M23 C6
2M27 E6
2M28 E6
2M29 E6
2M30 E6
2M31 D6
2M32 E6
2M33 D6
2M56 D6

2M60 E6
2M61 E6
2M62 E7
2M66 C6
2M68 C7
2P15 B3
2P36 A2
2P37 A2
2P38 A2
2P39 A1
2P40 A2
2P41 A2
2P42 A2
2P43 A2

2P44 A2
2P45 A2
2P46 A1
2Q01 F3
2Q06 F2
2Q11 F2
2Q16 F2
2Q17 F3
2Q18 F3
2Q21 F2
2Q23 F2
2Q25 F3
2Q30 F4
2Q31 F4

2Q32 F4

2R50 F5
2R51 F5
2R54 F4
2R55 F4
2R57 E4
2R60 F3
2R61 F4
2R62 F4
2R63 F3
2R64 F3
2R65 F3
2R66 F4
2R68 E8
2R69 E8

2R70 E8
2R71 E8
2R72 F7
2R73 E7
2R74 F7
2R75 F7
2R78 F6
2R79 F7
2R80 F6
2R81 F6
2R82 F6
2R83 F6
2R84 F6
2R85 F6

2Q33 F4
2R00 F7
2R01 F7
2R03 F8
2R04 F8
2R13 F7
2R14 F4
2R33 F5
2R35 F5
2R41 F5
2R42 F5
2R46 F4
2R47 F4

Part 2

F_16040_040b.eps

2R86 F6
3126 C9
3127 C9
3207 C9
3214 C9
3215 C7
3216 C7
3217 C7
3222 B8
3223 B7
3224 B8
3225 B7
3226 B8
3227 B8

3230 B8
3231 B8
3234 B8
3235 B8
3236 B8
3242 C7
3244 C7
3245 C9
3262 C8
3263 C8
3264 B8
3265 C8
3266 C8
3267 C8

3268 C7

3291 D8
3292 D8
3293 D8
3294 D8
3295 C9
3501 A8
3502 A7
3734 B4
3751 B5
3752 B5
3753 B4
3754 B4
3801 D2
3802 D2

3803 C2
3804 D2
3805 D2
3806 C2
3807 D2
3808 D2
3809 C2
3810 C2
3811 C2
3812 C2
3813 C2
3814 C2
3815 C2
3816 D2

3270 B8
3271 B7
3272 B9
3273 B8
3274 C8
3277 C7
3278 C7
3279 C7
3280 C8
3281 C8
3282 D8
3285 C8
3286 C8

F_16040_040d.eps

3819 D3
3A00 C3
3A01 C3
3A07 C3
3A08 C3
3A10 C5
3A11 C5
3A13 C5
3A14 C4
3B01 C1
3B02 C1
3B03 C1
3D05 D1
3D06 D1

Part 4

3D07 D1
3D08 D1
3D09 E2
3D10 D1
3D12 E2
3D15 D2
3D16 D2
3D17 E3
3D18 E3
3D20 E2
3E00 E5
3E06 E5
3E07 E5
3E08 E5

3E09 E5
3E10 E5
3E11 E5
3E12 E5
3E13 E4
3E14 E5
3E15 E5
3E16 E4
3E17 E5
3E18 E5
3E19 E4
3E20 E5
3E21 E5
3E22 E4

3E23 E4
3E50 E5
3E52 E5
3E53 E5
3E55 E5
3J03 A6
3J04 A7
3J05 A7
3J06 A8
3L07 C7
3L09 C7
3M12 D6
3M13 D6
3M16 E6

3M26 D6
3M28 D6
3M68 E6
3M69 E6
3M71 E7
3M88 D6
3M89 D6
3M90 D6
3N21 C3
3N22 C3
3N23 C3
3N24 C3
3N25 C3
3N36 A3

3N37 A3
3N38 A3
3N39 A3
3N40 A3
3N41 A3
3P04 A2
3P05 A2
3P06 A1
3P07 A1
3Q01 F3
3Q06 F2
3Q11 F2
3Q16 F2
3Q17 F2

3Q18 F2

3R02 F7

3Q21 F2

3R03 F8

3Q22 F2

3R05 F8

3Q23 F2

3R06 F7

3Q24 F2

3R07 F7

3Q25 F3

3R08 F4

3Q26 F3

3R09 F4

3Q27 F3

3R10 F4

3Q30 F4

3R12 F7

3Q31 F4

3R13 F7

3Q32 F4

3R14 F7

3Q33 F4

3R15 F7

3Q40 F1

3R16 F7

3R00 F7

3R17 F7

F_16040_040.eps

211105

3R19 F7
3R20 F7
3R22 F7
3R23 F7
3R28 F6
3R29 F6
3R34 F5
3R35 F5
3R36 E5
3R37 E5
3R40 F5
3R41 F5
3R42 F5
3R43 F5

3R46 F5
3R47 F5
3R49 F5
3R50 E5
3R51 F5
3R53 F5
3R54 F4
3R56 F4
3R57 F4
3R60 F3
3R61 F4
3R62 F3
3R63 F4
3R64 F3
3R65 F3
3R66 F3
3R67 F3
3R68 F7
3R69 E8
3R70 E7
3R71 F7
3R72 F7
3R73 E7
3R74 E7
3R75 F7
3R76 E7
3R78 E7
3R79 E7
3R80 E7
3R81 F7
3R82 F7
3R83 F7
3R84 E7
3R85 E7
3R86 F6
3R87 F6
3R88 F6
3R89 F6
3R90 F6
3R91 F4
3R92 F6
3R93 F6
3R94 F6
3R95 F6
4107 C9
4108 C9
4201 C7
4202 C7
4203 C7
4205 D8
4206 D8
4213 C7
4214 C7
4215 C7
4507 B9
4508 B9
4509 B9
4510 B9
4511 B8
4512 B8
4513 B8
4514 B8
4616 B9
4617 B9
4620 B9
4621 B9
4900 C4
4A00 C4
4A01 C4
4A04 C5
4A05 C5
4A06 C5
4E12 E5
4E13 E5
4E14 E5
4J01 A5
4J02 A7
4M04 D6
4M16 D6
4M17 D6
4N01 B2
4N02 B1
4N03 B2
4N04 B1
4N05 B3
4N06 B2
4N07 B2
4N08 B2
4N09 B3
4N10 B2
4N11 B3
4N12 B2
4N13 B3
4N14 B2
4N15 B3
4N16 B2
4N17 B3
4N18 B2
4N19 B3
4N20 B2
4P01 A1
4P02 A2
4P03 A1
4P04 A1
4P05 A1
4P06 A1
4P07 A1
4P08 A1
4P09 A1
4P12 A2
4R06 F7
4R12 F7
4R13 F4
4R14 F4
4R16 F7
4R41 F5
4R42 F5
4R60 F3
4R61 F3
4R62 F3
4R63 F4
4R64 F4

4R68 E8
4R69 F7
4R70 E7
5201 C8
5202 B8
5203 B8
5204 B8
5205 C8
5206 B8
5207 B8
5208 B8
5209 B8
5210 B8
5212 B8
5213 B8
5215 C7
5217 C8
5218 D7
5431 B7
5501 B8
5712 B5
5737 B6
5752 B5
5753 B4
5754 B4
5900 D5
5A00 C3
5D00 E1
5D01 D1
5D02 E1
5D03 E2
5D04 E2
5E00 E5
5E01 E4
5E02 E5
5J01 A8
5J02 A9
5J03 A5
5J04 A5
5J05 A7
5L00 C6
5L01 C6
5L02 C6
5M02 D6
5M05 E6
5Q01 F3
5Q06 F3
5Q11 F2
5Q16 F2
5Q21 F2
5Q23 F2
5R57 E4
5R68 E8
6201 C8
6708 A5
6735 A6
6736 A7
6751 A4
6A01 C4
6Q16 F2
6R60 F3
6R61 F7
6R62 F7
6R63 F8
6R64 F8
6R65 F5
6R66 F5
6R67 F4
6R68 F4
7206 C7
7214 C8
7215 C8
7216 C8
7218 C7
7219 D7
7501 B8
7502 A8
7503 A8
7504 A7
7505 A9
7506 B9
7752 B4
7801 D3
7901 D5
7A00 C4
7A02 C5
7A03 C4
7B01 C2
7C00 C5
7D01 D1
7D02 D1
7D03 E2
7E00 E5
7E01 E4
7E02 E5
7L05 D7
7M03 D6
7M14 E6
7M15 E7
7N02 B3
7N04 B3
7P02 B2
7P03 A1
7Q25 F3
7R12 F7
7R47 F5
7R57 F4
7R60 F3
7R61 F3
7R68 E7

Circuit Diagrams and PWB Layouts

Layout Small Signal Board (Bottom Side Part 1)

EN 70LC4.9U AA 7.

Part 1

F_16040_040a.eps

211105

Circuit Diagrams and PWB Layouts

Layout Small Signal Board (Bottom Side Part 2)

EN 71LC4.9U AA 7.

Part 2

F_16040_040b.eps

211105

Circuit Diagrams and PWB Layouts

Layout Small Signal Board (Bottom Side Part 3)

EN 72LC4.9U AA 7.

Part 3

F_16040_040c.eps

211105

Circuit Diagrams and PWB Layouts

Layout Small Signal Board (Bottom Side Part 4)

EN 73LC4.9U AA 7.

Part 4

F_16040_040d.eps

211105

PDP Audio Amplifier Panel

0001 A15

1736 A13
1738 G13
1M02 A13
1M06 A14
1M52 E14
2700 A3
2701 B10
2702 H11
2703 A7
2704 A7

2705 B10
2706 A3
2707 C5
2708 F9
2709 A6
2710 A7
2711 A2
2712 A10
2713 A4
2714 G14
2715 A10
2716 A10

2717 A8
2718 B5
2719 A4
2720 B5
2721 B6
2722 B4
2723 B8
2724 H10
2725 H10
2726 B4
2727 C9
2728 H10

2729 H10
2731 C91735 C12
2732 C10
2733 G9
2736 D10
2737 D10
2739 D6
2740 F11
2741 E6
2742 G11
2743 E5
2744 E3

1234

Circuit Diagrams and PWB Layouts

2745 B7
2746 C7
2747 C2
2748 C2
2749 C3
2750 G9
2751 F4
2752 G5
2754 D15

2756 G7
2757 G7

2758 G5
2759 G11
2760 G6
2761 G1
2762 G2
2763 H5
2764 E8
2766 H11
2767 H11
2768 H5
2770 A15
2771 H6

2772 G2
2773 G3
2774 G3
2775 H5
2776 A6
2778 E9
2779 E8
2780 A10
2782 F8
2783 G8
2788 H8
2789 D10

2790 G15
2791 D14
2793 H1
2794 H3
2795 H3
2796 H3
2797 H4
2798 H4
2799 H9
3700 A2
3701 A10
3702 C2

EN 74LC4.9U AA 7.

3703 A2
3704 A10
3705 A5
3706 A4
3707 A8
3708 A10
3709 A3
3710 B8
3711 B9
3712 B3
3713 C13
3714 B4

3715 B8
3716 C10
3717 C5
3718 C2
3719 C2
3720 D10
3721 C3
3722 A3
3723 A3
3724 C2

3726 D4

3727 D6
3728 D4
3729 D2
3730 D1
3731 D3
3732 E4
3733 E6
3734 E4
3735 F5
3736 F3
3737 F3
3738 F5

3739 F9
3740 F15
3741 G10
3742 G14
3743 G5
3744 G5
3745 G11
3746 G13
3747 G5
3748 G152755 G2
3749 G5
3750 G2

3751 H13
3752 H14
3753 H11
3754 G4
3755 H5
3756 H5
3757 G3
3758 G2
3759 G7
3760 E2
3761 H11
3762 H9

3763 H7
3764 A10
3765 D10
3766 H10
3767 H9
3768 G10
3769 H8
3770 H2
3771 H3
3772 H2
3773 H23725 D2
3774 H2

3775 H9
3776 H9
3777 D3
3778 D10
3999 A15
5700 A10
5701 D14
5702 C10
5704 G9
5705 A7
5706 G10
5708 C7

5709 E9
5714 H8
6700 D13
6702 D5
6703 E3
6704 G13
6705 H13
7700-1 C4
7700-2 A4
7701 A7
7702 C14
7705 D5

5 6 7 8 9 10 11 12 13 14 15

7706 D3
7707 D2
7708 E6
7709 E5
7710 E4
7711 F5
7712 G6
7713 G6
7714 F8
7715 G15
7716 G14
7717 H14

7718-1 G2
7718-2 G4
7719-1 H6
7719-2 H6
7720 H15
9700 E12
9701 E12
9702 E12
9703 E13
9704 G12
9705 H12
9706 G7

9707 H7
9708 H7
9709 G14
F700 A12
F701 A12
F702 A11
F703 B13
F704 A13
F705 B13
F706 B12
F707 C12
F708 C12

F709 C11
F710 E13
F711 E14
F712 E13
F713 D15
F714 F13
F715 F13
F716 F13
F717 F13
F718 F13
F719 G12
F720 G12

F721 G12
F722 H8
F723 H8
F724 H6
F725 G7
F726 A7
F727 A5
F728 B6
F729 C5
F730 D6
F731 B8
F733 H4

F734 A15
F735 A14
F740 A12
F741 A12
F742 A13
F743 B13
F744 C7
F745 C12
F747 E8
F748 G3
F749 G12
F750 G7

I700 G13
I701 H13
I702 G11
I703 A2
I704 A3
I705 A3
I706 A4
I707 C3
I708 D4
I709 D5
I710 A4
I711 G10

I712 A9
I713 C2
I714 C2
I715 A8
I716 A10
I717 D2
I718 A8
I719 A10
I720 B8
I721 B4
I722 C9
I723 B4

I724 B9
I725 C8
I726 B10
I727 D10
I728 G9
I729 D13
I730 D3
I731 G7
I732 D14
I733 D10
I734 D3
I735 H7

I736 D2
I737 D2
I738 D3
I739 D4
I740 E4
I741 G11
I742 E3
I743 F3
I744 F5
I745 F6
I746 F9
I747 G10

I748 G15
I749 G1
I750 G3
I751 G14
I752 G5
I753 G5
I754 G5
I755 G2
I756 G4
I757 G5
I758 H11
I759 H5

I760 H14
I761 H4
I762 H9
I763 H5
I764 H3
I765 H15
I766 G1
I767 H3
I768 H10
I769 H11
I770 H3
I771 H1

I772 H2
I773 H10
I774 G10
I775 C9
I776 B10
I777 A11

C C

PDP AUDIO AMPLIFIER

AUDIO-L

A

B

AUDIO-R

C

D

SOUND-ENABLE

C (4x)

POR

DC-PROT

DC

AUDIO-C

I766

E

F

G

H

3104 313 6056.4

1

2761

2793

120p

VDD2

VSS2

2757

2704

13

BOOT1

BOOT2

10

F725

2K2

OUT1

DIAG

OUT2

3759

2K2

100n

F750

25V

470u

2745

220n
2746

470u 25V

-19-16VS1

+19-16VS2

-19-16VS2

-19-16VS2

5705

+19-16V

2710

-19-16VS1

220n

6

7

3

12

11

9706

I731

9707

F731

-19-16V

I720

2764

7714

TDA8925ST

1
2
4

9

15

17
16
14

F722

2717

2723

I725

2782

220n

SW1
REL1
EN1

STAB

POWERUP

SW2
REL2
EN2

2783

220n

2788

25V 470u

I715

3707

39K

1u0

3710

39K

1u0

F747

100V22u

5

VDD1

CLASS-D

AMPLIFIER

VSS1

8

F723

2779

Φ

5714

I718

3715

5R6

220n

VDD2

VSS2

3769

13

BOOT1

OUT1

DIAG

BOOT2

OUT2

10

-19-16VS2

3775

120K

5R6

+19-16VS1

+19-16VS1

I724

I775

2778

12

11

2799

470p

25V470u

3776

I712

5709

2708

220n

6

7

3

18K

2727

560p

2731

560p

5700

33u

3764

100K

I726

3711

5R6

I776

+19-16VS1

-19-16VS1

I722

5702

33u

3765

100K

+19-16V

-19-16VS2

I746

3739

39K

1u0

2750

I747

1u0

2733

3768

I728

39K

5704

I711

33u

2724

3767

100K

2725

3762

22R

I762

I719

I733

5706

33u

I773

2712

2780

3708

2701

560p

2705

560p

2732

2789

3720

+19-16VS2

470n

I768

470n

3704

I777

100K

470n

I716

470n

47R

47R

3701

470n

I727

470n

47R

47R

3778

I774

+19-16VS2

2729

470n

2728

2715

+19-16VS1

-19-16VS1

3716

100K

2736

3741

5R6

3766

100K

15n

470n

470n

2716

2737

I702

15n

15n

2740

560p

2742

I741

560p

3745

100K

2759

470n

2766

470n

2767

I758

2702

470n

3753

I769

22R

3761

100K

F709

+19-16VS2

-19-16VS2

15n

C (4x)

DC

DC-PROT

C (4x)

DC

AUDIO-C

AUDIO-L

AUDIO-R

PROT-AUDIOSUPLLY
SOUND-ENABLE
POR

PROT-AUDIOSUPLLY

C (4x)

DC

F721

C (4x)

DC

SW1
REL1
EN1

STAB

POWERUP

SW2
REL2
EN2

I735

F726

220n

2703

5

VDD1

Φ

CLASS-D

AMPLIFIER

VSS1

8

F744

5708

1

2756

22u 100V

-19-16VS2

3763

9708

3n9

+19-16VS1

I742

1

3737

I743

3757

2719

470n

I710

2713

I706

4n7

3706

3K9

I721

2722

470n

2726

4n7

3714

3K9

I739

3

7710
BC847BW

2

47K

3754

470R

I756

5

6

8K2

2798

560p

2797

560p

5

6

7700-2
LM393PT

84

I723

7700-1
LM393PT

3732

22K

7718-2

LM833D

I761

84

3

2

3728

15K

BC857BW

7

F733

84

3726

15K

I708

I740

3734

7711

2751

VDDOPAMP

7

2718

1

6702

BZX384-C39

22K

2743

2

3

47u 25V

2752

120p

3749

10K

2775

39n

-19-16VS1

100n

F729

100n

2707

I709

1

3

1

2

1n0

3735

1

I744

3743

I752 I753

3K3

2758

I757

1u0

2763

220p

2768

470n
3755

3K9

I763

I759

3756

8K2

F727

3705

3717

7709
BC847BW

270K

3747

3709

4K7

3722

2711

2755

100n

2772

100n

120K

I705

3723

I704

2744

2796

470n
3771

470R

2n7

2700

I707

2749

I730

3777

I734

100n

2773

1u0

2794

1u0

3K9

3n9

1K0

3

7706
BC847BW

2

6703

2706

3712

4K7

3731

1K0

BZX384-C3V3

3736

47K

I750

2774

1u0

-19-16VS2

+19-16VS2

I770

I764

1u0

3721

470R

1

I738

I767

2795

220p

8K2

3703

I703

3700

560R

3719

2747

1u0

3725

3

2

47K

47K

3

7707
BC847BW

2

3774

100K

3729

120K

I714

1n5

2748

3724

1K0

I717

47K

84

7718-1

1

LM833D

3770

10K

8K2

3702

I713

3718

560R

+19-16VS1

I736

I737

3730

1

22K

22K

3760

VDDOPAMP

I749

3750

330R

I755

2762

1u0

1u0

22K

3758

3773

-19-16VS2

I772

3K3

3772

I771

2K2

2K2

3

7705
BC847BW

2

+19-16VS1

3738

100K

47K

I754

2

3

VDDOPAMP

100V22u

2721

2720

BC857BW

2

1

3744

100K

84

+19-16VS1

-19-16VS1

3727

7708

7719-1

100n

10K

1

3

7712
BC847BW

2

2760

100n

1

LM393PT

2771

100n

2739

3

F728

100n

-19-16VS2

6

5

2776

22u 100V

7701

TDA8925ST

-6V7

-19-16V

F730

-19-16VS1

5K6

2741

3733

-19-16VS1

I745

3

7713

BC847BW

2

F724

LM393PT

7719-2

84

2709

220n

1
2
4

9

15

17
16
14

220p

7

F707

F720

9704

9705

F700

F701F702

F745

F708

F719F748

2 3 4 5 6 7 8 9 10 11 12 13

F740

F741

B3B-PH-K

-19-16V

+19-16V

F706

1735

3
2
1

B3B-PH-K

+19-16V

9700

9701

9702

F717

1738

F749

B3B-PH-K

TO

CENTER

SPEAKER

-19-16V

1736

3
2
1

F742

F704

F743

1V2

TO

RIGHT

SPEAKER

9703

F710

F712

F716

F718

+19-16V

3
2
1

TO

LEFT

SPEAKER

1
2

F703

3
4

F705

5
6
7

B7B-PH-K

I729

F715

I700

I701

1M02

3713

6700

F714

6704

3746

3751

6705

3K3

2791

BZX384-C15

F711

4V7
0V3

0V

BZX384-C10

3742

100K

2K2

2K2

3752

10K

BZX384-C10

F735

1M06
1
2
3
4
5
6
7

B7B-EH-A

7702
BC847BW

1

220n

B9B-PH-K

1M52

2714

3

2

1
2
3
4
5
6
7
8
9

I751

9709

100u 16V

TO 1M02

PDP

SUPPLY

I732

5701

TO 1M52

BP2.x / FTP2.x

1

I760

14 15

SSB

3

7716
BC847BW

2

2

BC847BW

3999

1K0

I748

7717

2754

1

2770

10n

OR

F713

22u 100V

OR

3740

100K

1

3

I765

F734

0001

1

GND screw

TO

SDI

SUPPLY

VDDOPAMP

TO 1J04

SSB

LC4.x

3

7715
BC847BW

2

3748

100K

3

1

7720
BC847BW

2

F_15430_055.eps

2790

100n

140605

A

B

C

D

E

F

G

H

Circuit Diagrams and PWB Layouts

EN 75LC4.9U AA 7.

Layout PDP Audio Amplifier Panel (Top Side)

3104 313 6056.4

F_15400_062.eps

090505

0001 C1
1735 E1
1736 E1
1738 B1
1M02 C1
1M06 C1
1M52 B1
2704 D1
2714 C1
2715 E1
2720 D1
2728 B1
2736 E1
2746 D1
2751 B1
2754 C1
2756 A1
2764 A1
2766 B1
2776 D1
2778 A1
2788 A1
3753 B1
3762 A1
5700 E1
5702 E1
5704 A1
5705 D1
5706 A1
5708 D1
5709 B1
5714 A1
7701 D1
7714 A1
9704 B1
9705 B1
9708 A1
9715 E1
9716 B1
9721 A1
9723 B1
9724 A1
9725 A1
9726 C1
9727 A1
9728 B1
9730 B1
9731 A1
9732 A1
9733 A1
9734 A1
9735 B1
9739 D1
9740 D1
9741 E1
9742 D1
9744 D1
9745 D1
9747 E1
9749 A1
9774 A1
9797 C1
9798 B1
9799 B1
9801 C1
9804 C1
9805 C1
9810 C1
9811 C1

Layout PDP Audio Amplifier Panel (Bottom Side)

2700 D1
2701 D1
2702 B1
2703 E1
2705 D1
2706 D1
2707 C1
2708 A1
2709 E1
2710 E1
2711 D1
2712 E1
2713 D1
2716 E1
2717 D1
2718 C1
2719 C1
2721 E1
2722 C1
2723 D1
2724 B1
2725 B1
2726 C1
2727 E1
2729 B1
2731 E1
2732 E1
2733 A1
2737 E1
2739 E1
2740 A1
2741 E1
2742 A1
2743 B1
2744 B1
2745 D1
2747 C1
2748 C1
2749 C1
2750 A1
2752 A1
2755 A1
2757 A1
2758 A1
2759 B1
2760 A1
2761 A1
2762 A1
2763 A1
2767 B1
2768 A1
2770 B1
2771 A1
2772 A1
2773 A1
2774 A1
2775 A1
2779 A1
2780 E1
2782 A1
2783 A1
2789 E1
2790 D1
2791 C1
2793 A1
2794 A1
2795 A1
2796 A1
2797 A1
2798 A1
2799 A1
3700 C1
3701 E1
3702 C1
3703 D1
3704 E1
3705 D1
3706 D1
3707 D1
3708 E1
3709 C1
3710 D1
3711 D1
3712 C1
3713 C1
3714 C1
3715 D1
3716 E1
3717 D1
3718 C1
3719 C1
3720 E1
3721 C1
3722 D1
3723 D1
3724 B1
3725 B1
3726 E1
3727 E1
3728 E1
3729 B1
3730 B1
3731 B1
3732 B1
3733 E1
3734 B1
3735 B1
3736 C1
3737 B1
3738 B1
3739 A1

3104 313 6056.4

9800

F_15400_063.eps

090505

3740 C1
3741 A1
3742 C1
3743 A1
3744 A1
3745 B1
3746 C1
3747 A1
3748 D1
3749 A1
3750 A1
3751 D1
3752 D1
3754 A1
3755 A1
3756 A1
3757 A1
3758 A1
3759 A1
3760 B1
3761 B1
3763 A1
3764 E1
3765 E1
3766 A1
3767 A1
3768 A1
3769 A1
3770 A1
3771 A1
3772 A1
3773 A1
3774 A1
3775 A1
3776 A1
3777 B1
3778 E1
3999 A1
5701 C1
6700 C1
6702 E1
6703 B1
6704 C1
6705 D1
7700 C1
7702 C1
7705 E1
7706 B1
7707 B1
7708 B1
7709 B1
7710 B1
7711 B1
7712 B1
7713 B1
7715 C1
7716 C1
7717 D1
7718 A1
7719 A1
7720 D1
9700 C1
9701 C1
9702 B1
9703 C1
9706 A1
9707 A1
9709 C1
9710 D1
9711 E1
9712 D1
9713 D1
9748 D1
9757 D1
9758 D1
9759 D1
9760 D1
9761 D1
9762 D1
9763 D1
9764 D1
9765 D1
9766 D1
9768 D1
9770 D1
9775 A1
9776 A1
9777 A1
9778 A1
9779 A1
9780 A1
9781 A1
9782 A1
9783 A1
9784 A1
9785 A1
9786 A1
9787 A1
9788 A1
9789 A1
9790 C1
9792 A1
9793 A1
9795 D1
9796 B1
9800 B1
9801 C1
9802 B1
9803 C1
9806 B1
9807 C1

9808 C1
9809 C1
9812 C1
9813 C1
9814 C1

Circuit Diagrams and PWB Layouts

EN 76LC4.9U AA 7.

Side I/O Panel

123456789

JAGUAR ONLY

SIDE I/O

D D

F001

A

B

C

D

E

F

3104 313 6008.4

C

2010

2008

1101

1102

1106

GND_AUD

1108

GND_AUD

22n

GNDB

22n

GNDB

1109

1111

1110

2

1001

1002-1

YELLOW

1002-2

WHITE

1002-3

RED

1010

Y / CVBS

134

5

F003

1

2

F004

GND_AUD

9004

645

I001

9005

978

I003

F007

5
4
2

F008

F009

3
7

F019

8
1

GNDB

F002

F005

F006

GNDB

123456

I009

I002

I010

GNDB

GNDB

GNDB

6000

6002

6003

6004

6005

6006

6007

PDZ6.8-B
I004

PDZ6.8-B

PDZ6.8-B

PDZ6.8-B

PDZ6.8-B

GND_AUD

PDZ6.8-B

PDZ6.8-B

GND_AUD

6010

PDZ6.8-B

I014

6008

I013

PDZ6.8-B

6009

6001

6011

PDZ6.8-B

GNDB

PDZ6.8-B

GNDB

PDZ6.8-B

3004

2004

2006

I007

I005

75R

680p

680p

75R

3000

F020

3010

GND_AUD

3013

GND_AUD

33K

33K

9011

9010

9009

9008

3009

1K0

3012

1K0

2005

2007

I008

I006

100p

100p

3020

3016

10K

GNDB

10K

3011

2011

2009

3K9

10n

GNDB

10n

GNDBGNDB

TO 1H01

VIPER

2K2

3008

2003

RES

F025

1u0

9003

1H01

OR

1M60

1
2
3
4

56

F022

F021

F023

F024

F012

F014

F016

5000

1050

DLW31S

F013

1112

1005

F015

F017

56

1
2
3
4

USB

CONNECTOR

TO 1M36

1M36

GNDB

1M37

1
2
3
4
5
6
7
8
9
10
11

B11B-PH-SM3-TBT

1
2
3
4
5
6
7
8
9
10
11

13

12

SSB EMGT

OR

TO 1M36

SCART 3

OR

TO 1M36

SSB JAGUAR

F010

3999

150R

F011

I011

9006

F018

GNDB

9007

I012

GND_AUD

789

EMGT

F_15420_008.eps

030605

A

B

C

D

E

F

1001 B2
1002-1 B1
1002-2 C1
1002-3 D1
1005 A8
1010 E1
1050 A7
1101 A3
1102 B3
1106 C3
1108 D3
1109 E3
1110 F3
1111 E3
1112 A7
1H01 A6
1M36 B8
1M37 B8
2003 C5
2004 C3
2005 C4
2006 D3
2007 D4
2008 F2
2009 F5
2010 E2
2011 E5
3000 A4
3004 B3
3008 C5
3009 C4
3010 C4
3011 C5
3012 D4
3013 D4
3016 F5
3020 E5
3999 F9
5000 A7
6000 A3
6001 A3
6002 B3
6003 B3
6004 C3
6005 C3
6006 D3
6007 D3
6008 F3
6009 F3
6010 E3
6011 F3
9003 C6
9004 C2
9005 D2
9006 F7
9007 F8
9008 F4
9009 F4
9010 E4
9011 E4
F001 A2

F002 A2
F003 B2
F004 C2
F005 C2
F006 D2
F007 E2
F008 E2
F009 E2
F010 F8
F011 F9
F012 A6
F013 A7
F014 A6
F015 A7
F016 A6
F017 A7
F018 F7
F019 F2
F020 B4
F021 C6
F022 C6
F023 C6
F024 E6
F025 E6
I001 C2
I002 C3
I003 D2
I004 A3
I005 F4
I006 F4
I007 E4
I008 E4
I009 B3
I010 D3
I011 F7
I012 F8
I013 F3
I014 E3

Circuit Diagrams and PWB Layouts

EN 77LC4.9U AA 7.

Layout Side I/O Panel (Top Side)

1001 B1
1002 A1
1005 A1
1010 A1
1050 A1
1H01 A1
1M36 B1
1M37 B1
5000 A1

Layout Side I/O Panel (Bottom Side)

2003 A1
2004 A1
2005 A1
2006 A1
2007 A1
2008 A1
2009 A1
2010 A1
2011 A1
3000 B1
3004 B1
3008 A1
3009 A1
3010 A1
3011 A1
3012 A1
3013 A1
3016 A1
3020 A1
3999 B1
6000 B1
6001 B1
6002 B1
6003 B1
6004 A1
6005 A1
6006 A1
6007 A1
6008 A1
6009 A1
6010 A1
6011 A1
9003 A1
9004 A1
9005 A1
9006 A1
9007 B1
9008 A1
9009 A1
9010 A1
9011 A1

3104 313 6008.4

F_15420_009.eps

060605

3104 313 6008.4

F_15420_010.eps

060605

Circuit Diagrams and PWB Layouts

EN 78LC4.9U AA 7.

Control Board

1702 A1
1703 A2

E E

A

1701

VOLUME+

B

I100

1704 A2
1705 A1
1706 A3

1M01 A4
3002 C2
3003 C2

1

3004 C1
3005 C1
3006 C1

3007 C1
3008 C1
3009 C2

23

CONTROL BOARD

SKQNAB

1702

VOLUME-

SKQNAB

1705

MENU

I102

1704

SKQNAB

I103I101 I104

SKQNAB

CHANNEL-

3999 C4
9001 C3
9002 C1

1703

SKQNAB

CHANNEL+

9003 C21701 A1
F001 A4
F002 A4

F003 C4
F004 C4
I006 C1

KEYBOARD

1706

ON / OFF

I105

I007 C1
I008 C1
I009 C2

SKQNAB

F002

I010 C2
I100 B1
I101 B1

F001

4

1M01

I102 B1
I103 B2
I104 B2

LED PANEL

1
2
3

SSB LC4.x

TO 1M01

EXTERNALS

To 1M01

OR

TO 1K02

OR

Layout Control Board

I105 B3

A

B

3006

*

C

9002

*

D

3104 313 6129.1

3005

3007

*

*

3004

*

I008 I009I007I006

3008

*

3003

3009

132

3002

I010

9003

*

9001

F003

3999

10K

F004

C

*

*

D

F_16040_042.eps

231105

4

3104 313 6129.1

F_16040_043.eps

231105

Circuit Diagrams and PWB Layouts

EN 79LC4.9U AA 7.

LED Panel

12345678910

11 12 13 14

LED PANEL

J J

A

B

C

D

E

F

G

H

3104 313 6074.3

123456

TO 1M20

SSB

JL2.x / LC4.x

OR

TO 1M20

EXTERNALS

FTx2.x / Bx2.x

TO 1M01

CONTROL

BOARD

TO 0345

TOP CONTROL

I010

COM-SND

STATUS-POWER

1
2
3
4
5
6
7
8

9
10
11
12

13

1

2

3

+8V

1M01

45

3094

1M20

14

+5V2-STBY

10K

9093

3091

9110
9112
9114
9116
9118
9119

I093

10K

F010

F011

F012

F015

F017

F013

F086

9082

+8V

+5V2-STBY

2014

F083

I012

F089

I094

10K

3093

F014

F016

F018

F021

9083

0345

1
2
3
4
5
6

78

3092

I011

+5V2-STBY

10K

7092
BC847BW

3096

F084

10K

9111
9113
9115
9117

3030

7032
BC847BW

3011

100R

100n

I013

9081

+5V2-STBY

4K7

I039

9015

KEYBOARD

COM-SND

9016

9017

9012

LED1

LIGHT-SENSOR

LED2

KEYBOARD

LIGHT-SENSOR

KEYBOARD

BLACKLIGHT-TC

LED1
LED2

RC

RC

"LED DIMMING"

9031

6030

BAS316

6031

BAS316

I047

I033

3031

100K
3032

180K

I040

2030

3063

I064

LED1

I048

3033

1K0

10u 16V

"GREEN"

"BLUE" or

+8V

+5V2-STBY

3062

3061

330R

I062

7062

BC857B

6060

(RES)

9063

I061

7061

3064

100R

(RES)

3056

BC847BW

10K

I038

BC857BW
7030

3034

1K0

10K

STATUS-POWER

560R

9011

I095

I063

SML512BC4T

3035

I037

LED1

9064

9065

9062

(RES)

9056

+5V2-STBY

4K7

3036

I049

BCP53
7031

I054

+5V2-STBY

2R2

3037

9066

LED1

2R2

BLACKLIGHT-TC

3053

LED2

I051

10K

3054

I052

100R

7052
BC847BW

"RED"

+5V2-STBY

3051

330R

(RES)

OPT_LED

9053

7051
BC847BW

10K

3055

TSOP34836YA1

3052

12

6051

1040

+8V

560R

I053

SML512BC4T

I065

9052

VS

OUT

GND

9054

9041

9040

RC

+5V2-STBY

I046

3040

330R

I044

9043

6K8

2040

3042

3041

100u 16V

I045

10K

I043

I042

9042

I041

"IR RECEIVER"

78910

EMC HOLE

9120

LIGHT-SENSOR

9122

3078

11 12 13 14

00020001

EMC HOLE

9121

I071

2M2

+5V2-STBY

9070

6070

9072

9071

TEMD5000

F038

2

I075

3

4M7

3070

3999

10K

2070

470n

3071

4M7

84

I073

2071

LM358P
7070-1

+8V

10u 16V

F039

1

"LIGHT SENSOR"

I026

3074

+8V

10K

84

3077

5

6

I074

1K0

3K3

3072

7070-2
LM358P

3073

3K3

I076

7

I072

3075

4K7

LIGHT-SENSOR

3K3

3076

F_15420_014.eps

030605

A

B

C

D

E

F

G

H

0001 A10
0002 A11
0345 D2
1040 F9
1M01 C2
1M20 A2
2014 C4
2030 G5
2040 F9
2070 F12
2071 G12
3011 A4
3030 G4
3031 G5
3032 G5
3033 G5
3034 G6
3035 G6
3036 G7
3037 G7
3040 F9
3041 G9
3042 F9
3051 B8
3052 B8
3053 C8
3054 C8
3055 C8
3056 D6
3061 B6
3062 B6
3063 D5
3064 D5
3070 G11
3071 F12
3072 G13
3073 G13
3074 F13
3075 F14
3076 G14
3077 G12
3078 G11
3091 G2
3092 F2
3093 F3
3094 F2
3096 G3
3999 B12
6030 G4
6031 G4
6051 C8
6060 C6
6070 G11
7030 G6
7031 G7
7032 G4
7051 C8
7052 D8
7061 D6
7062 C6
7070-1 F12
7070-2 G13
7092 F2
9011 C6
9012 B4
9015 A4
9016 A4
9017 A4
9031 G4
9040 G9
9041 F9
9042 G9
9043 F9
9052 C9
9053 C8
9054 D9
9056 D7
9062 D7
9063 D6
9064 B7
9065 B7
9066 D7
9070 F11
9071 F11
9072 G11
9081 E4
9082 E3
9083 D3
9093 G2
9110 D2
9111 D4
9112 D2
9113 D4
9114 E2
9115 E4
9116 E2
9117 E4
9118 E2

9119 E2
9120 B10
9121 B11
9122 F11
F010 A3
F011 A3
F012 A3
F013 B3
F014 B3
F015 A3
F016 B3
F017 B3
F018 B2
F021 C3
F038 B12
F039 B12
F083 D3
F084 D3
F086 E3
F089 E3
I010 F2
I011 G2
I012 E3
I013 E4
I026 F12
I033 G4
I037 G7
I038 G6
I039 G4
I040 G5
I041 G9
I042 G9
I043 F9
I044 F9
I045 F9
I046 E9
I047 G4
I048 G5
I049 G7
I051 D8
I052 C8
I053 B9
I054 D7
I061 D6
I062 C6
I063 D7
I064 D5
I065 C9
I071 F11
I072 F14
I073 G12
I074 G12
I075 F12
I076 F13
I093 F2
I094 F3
I095 C6

Layout LED Panel

Circuit Diagrams and PWB Layouts

1040 -­3031 -­3032 -­3033 -­3055 -­3056 -­3070 -­6030 -­6031 -­6051 -­6060 -­6070 -­7030 -­7031 -­7052 -­7062 -­9011 -­9031 -­9054 -­9056 -­9066 -­9110 -­9112 -­9114 -­9116 -­9118 -­9119 -­9120 --

0345 -­1M01 -­1M20 -­2014 -­2030 -­2040 -­2070 -­2071 -­3011 -­3030 -­3034 -­3035 -­3036 -­3037 -­3040 -­3041 -­3042 -­3051 -­3052 -­3053 -­3054 -­3061 -­3062 -­3063 -­3064 -­3071 -­3072 -­3073 -­3074 -­3075 -­3076 -­3077 -­3078 -­3091 -­3092 -­3093 -­3094 -­3096 -­3999 -­7032 -­7051 -­7061 -­7070 -­7092 -­9012 -­9015 -­9016 -­9017 -­9040 -­9041 -­9042 -­9043 -­9052 -­9053 -­9062 -­9063 -­9064 -­9065 -­9070 -­9071 -­9072 -­9081 -­9082 -­9083 -­9093 -­9111 -­9113 -­9115 -­9117 -­9121 -­9122 --

EN 80LC4.9U AA 7.

Personal Notes:

3104 313 6074.3

F_15420_015.eps

060605

3104 313 6074.3

F_15420_016.eps

060605

E_06532_012.eps

131004

8. Alignments

Index of this chapter:

8.1 General Alignment Conditions

8.2 Hardware Alignments

8.3 Software Alignments

Note: Figures below can deviate slightly from the actual
situation, due to the different set executions.

General: The Service Default Mode (SDM) and Service
Alignment Mode (SAM) are described in chapter 5. Menu
navigation is done with the Cursor Up, Down, Left or Right keys
of the remote control transmitter.

8.1 General Alignment Conditions

Perform all electrical adjustments under the following
conditions:
Mains voltage and frequency: 100-240 V / 50/60 Hz.
Allow the set to warm up for approximately 10 minutes.
Test probe: Ri > 10 MΩ; Ci < 2.5 pF.

8.2 Hardware Alignments

Alignments

EN 81LC4.9U AA 8.

There are no hardware alignments foreseen for the plasma-TV.

8.3 Software Alignments

With the software alignments of the Service Alignment Mode
(SAM) the geometry, white tone and tuner (IF) can be aligned.
To store the data: Use the RC button Menu to switch to the
main menu and next, switch to ‘Stand-by’ mode.

EN 82 LC4.9U AA8.

8.3.1 SAM Menu

Alignments

00035 LC4XAP1 1.14/S4XGNV 1.17 SDM

ERR 0 0 0 0 0

OP 000 057 140 032 120 128 000

00035 LC4XAP1 1.14/S4XGNV 1.17 SAM

ERR 0 0 0 0 0

OP 000 057 140 032 120 128 000

. Clear Clear ?

. Options
. Tuner
. White Tone
. Audio
. NVM Editor
. SC NVM Editor

. Test Pattern

. ComPair Mode On

1 00035 LC4XAP1 1.14/S4XGNV 1.17 CSM

2 CODES 0 0 0 0 0
3 OP 000 057 140 032 120 128 000

4

5
6 NOT TUNED

7 PAL

8 STEREO

9 CO 50 CL 50 BR 50
0 AVL Off

SAM SAM

. OP1 0 . Delta Cool Red -3
. OP2 57 . Delta Cool Green -1

. OP3 140 . Delta Cool Blue 5

. OP4 32

. OP5 120

. OP6 128

. OP7 0

SAM SAM

. IFPLL 32 . Normal Red 32

. AGC 30 . Normal Green 35

. AGCL' 255 . Normal Blue 41

SAM SAM

. Cool . Delta Warm Red 2

. Normal . Delta Warm Green -3

. Warm . Delta Warm Blue -13

SAM

. QSS Off
. FMI On

. NICAM Alignment 63

. Lip Sync Off

. DBE Off

8.3.2 Tuner Adjustment

AGC (RF AGC Take Over Point)

• Activate the SAM menu.

• Go to the sub-menu Tuner.

• Select the AGC sub-menu.

• Adjust the AGC value to AGC = 27.

• Adjust the AGC L’ value to AGC L’ = 27 (Europe only).

• Adjust the IFPLL value to IFPLL = 32 (Europe only).

• Switch the set to standby to store the data.

SAM

.ADR 0x0000 0

.VAL 0x0000 0

.Store Store ?

SAM

.ADR 0x0000 0

.VAL 0x0000 0

.Store Store ?

Figure 8-1 Overview SAM menu.

F_15430_061.eps

260705

Alignments

EN 83LC4.9U AA 8.

8.3.3 ADC Gain and Grey Scale Alignment

The table below shows a number of NVM settings used for
each model of TV set. Be sure to use the correct editor in the
SAM menu (NVM Editor or SC NVM Editor), because the first
one is used for the Hercules NVM, and the second one for the
SCALER (SC) part of the TV set. For further important NVM
settings, see also the other NVM tables elsewhere in this
manual.

Caution:

• Do not change the NVM settings without

understanding the function of each setting, because
incorrect NVM settings may seriously hamper the
correct functioning of the TV set!

• Do not change the Scaler NVM settings, as this will
hamper the DVI functionality of the TV set!

• Always note down the existing NVM settings, before
changing the settings. This will enable you to return to the
original settings, if the new settings turn out to be incorrect.

Table 8-1 ADC gain and grey scale alignment

SDTV ADC Gain settings: Use the NVM Editor in SAM to set these values in

Setting

NVM_ADC_GAIN_R 006 145
NVM_ADC_GAIN_G 007 185
NVM_ADC_GAIN_B 008 165

SDTV Greyscale settings: Use the SC NVM Editor in SAM to set these values

Setting

ADC_RED_OFFSET2 338 080
ADC_GRN_OFFSET
2
ADC_BLU_OFFSET2 340 080
ADC_RED_GAIN 341 154
ADC_GRN_GAIN 343 154
ADC_BLU_GAIN 345 154

Setting

ADC_RED_OFFSET2 325 080
ADC_GRN_OFFSET
2
ADC_BLU_OFFSET2 327 080
ADC_RED_GAIN 328 154
ADC_GRN_GAIN 330 154
ADC_BLU_GAIN 332 154

Setting

ADC_RED_OFFSET2 351 064
ADC_GRN_OFFSET
2
ADC_BLU_OFFSET2 353 064
ADC_RED_GAIN 354 159
ADC_GRN_GAIN 356 144
ADC_BLU_GAIN 358 147

the Hercules NVM

Hercules NVM Address

(decimal value)

in the Scaler NVM

Scaler NVM Address

(decimal value)

339 080

PC Greyscale settings

Scaler NVM Address

(decimal value)

326 080

HD Greyscale settings

Scaler NVM Address

(decimal value)

352 082

This model is with ADC &

Columbus 3D Combfilter

This model is with ADC &

Columbus 3D Combfilter

This model is with ADC &

Columbus 3D Combfilter

This model is with ADC &

Columbus 3D Combfilter

42PF7320/28

42PF7320/28

42PF7320/28

42PF7320/28

8.3.4 Sound

• No adjustments needed for sound.

8.3.5 Options

Options OP1...OP7 in the SAM menu can be used for quickly
restoring 64 features or settings of the HERCULES part of the
TV set to their original default factory values (8 groups of 8
features/settings each). When the decimal value of one option
byte OP1...OP7 is changed (see the first table below) then a
group of 8 bits, representing 8 HERCULES options or features,
is changed as well (see the second table below for a detailed
description of the features or settings that are changed).
The second table shows which option byte (OP1...OP7)
represents which group of 8 option bits. Each bit (0...7)
switches a particular HERCULES feature or setting ON or OFF,
depending on its value (1 or 0).
It is also possible to change the features or settings mentioned
in the second table directly at bit level, by means of the NVM
Editor in the SAM menu. In the NVM Editor, first the correct
NVM address (ADR) has to be entered, then the correct value
(VAL, 1 or 0) for each bit (see second table), and finally the
settings have to be stored (STORE). For quickly restoring the
HERCULES part of the TV set to its original factory settings,
however, it is more convenient to simply enter the default
factory settings OP1...OP7 that are given in the first table
below. How to do this, is described in the next paragraph.

How to Change an Option Byte

As has been explained above, an Option byte (OP) represents
a number of different HERCULES options. Changing these
bytes directly makes it possible to set all HERCULES options
very fast. All options are controlled via seven option bytes.
Select the option byte (OP1.. OP7) with the Menu Up/ Down
keys, and enter the new (decimal) value. For the correct
Factory Default settings, see the first table below. For more
detailed information, see the second table.

Leaving the Option submenu saves the changes in the Option
Byte settings. Some changes will only take effect after the set
has been switched “off” and “on” with the AC power switch (cold
start).

Table 8-2 Option codes OP1...OP7

Option table for quickly restoring the HERCULES to its

Options (can be changed only via the SAM

Factory Default settings

Model number 42PF7320/28

OP1 128
OP2 5
OP3 77
OP4 226
OP5 252
OP6 90
OP7 16

menu)

Total decimal value for each op-

tion per model number

How to Change Options at Bit Level

If you wish to know which features or settings of the
HERCULES are changed via OP1...OP7, or if you want to
change each option or feature bit by bit, use the more detailed
table below.
Note: the table below contains only part of the NVM settings
that can be changed. A second range of settings and features
can be found in Chapter 5 of this manual, in table NVM Default
values. The settings mentioned there can only be changed via
the NVM editor. For further settings, see also the table “ADC
Gain and Grey scale alignment” elsewhere in this manual.

EN 84 LC4.9U AA8.

Table 8-3 Option codes in detail, at bit level

Alignments

Option byte & bit table for restoring the TV set to its original Factory Default settings via the NVM Editor in the SAM menu

OP1 Description of feature/option to be switched ON or OFF

bit 7 (msb) OP_PHILIPS_TUNER 1
bit 6 OP_FM_RADIO 0
bit 5 OP_LNA 0
bit 4 OP_ATS // for EU 0
bit 3 OP_ACI 0
bit 2 OP_UK_PNP 0
bit 1 OP_VIRGIN_MODE 0
bit 0 (lsb) OP_CHINA 0

OP2

bit 7 (msb) OP_HE8340 0
bit 6 OP_IBEX 0
bit 5 OP_CHANNEL_NAMING 0
bit 4 OP_LTI (Lum Transcient Improvmt) 0
bit 3 OP_TILT 0
bit 2 OP_FINE_TUNING 1
bit 1 OP_PIP_PHILIPS_TUNER 0
bit 0 (lsb) OP_HUE 1

OP3

bit 7 (msb) OP_EW_FUNCTION 0
bit 6 OP_PIXEL_PLUS 0
bit 5 OP_PIP_SPLITTER // temp 0
bit 4 OP_SPLITTER // temp 0
bit 3 OP_VIRTUAL_DOLBY 1
bit 2 OP_WIDE_SCREEN 1
bit 1 OP_WSSB 0
bit 0 (lsb) OP_OP_ME5 // OP_ME5 - 5/6 local buttons implementation 1

OP4

bit 7 (msb) OP_LIP_SYNC 1
bit 6 OP_HD 1
bit 5 OP_ULTRA_BASS 1
bit 4 OP_DELTA_VOLUME 0
bit 3 OP_TAIWAN_KOREA 0
bit 2 OP_VOLUME_LIMITER 0
bit 1 OP_STEREO_DBX 1
bit 0 (lsb) OP_STEREO_NICAM_2CS 0

OP5

bit 7 (msb) OP_AV1 1
bit 6 OP_AV2 1
bit 5 OP_AV3 1
bit 4 OP_CVI 1
bit 3 OP_SVHS2 1
bit 2 OP_SVHS3 1
bit 1 OP_HOTEL_MODE 0
bit 0 (lsb) OP_SIMPLY_FACTORY=OP_BTSC_AVSTEREO 0

OP6

bit 7 (msb) OP_PERSONAL_ZAPPING 0
bit 6 OP_SMART_SURF 1
bit 5 OP_FMTRAP 0
bit 4 OP_COMBFILTER 1
bit 3 OP_ACTIVE_CONTROL 1
bit 2 OP_VIDEO_TEXT 0
bit 1 OP_LIGHT_SENSOR 1
bit 0 (lsb) OP_TWIN_TEXT 0

OP7

bit 7 (msb) OP_TIME_WIN1 0
bit 6 OP_DVB_USB = OP_MALAY 0
bit 5 OP_AMBILIGHT 0
bit 4 OP_COLUMBUS 1
bit 3 OP_DUMMY6 0
bit 2 OP_DUMMY7 0
bit 1 OP_WEST_EU 0
bit 0 (lsb) OP_MULTI_STANDARD_EUR 0

Total DEC Value 128
Total HEX Value 80

Total DEC Value 5
Total HEX Value 05

Total DEC Value 77
Total HEX Value 4D

Total DEC Value 226
Total HEX Value E2

Total DEC Value 252
Total HEX Value FC

Total DEC Value 90
Total HEX Value 5A

Total DEC Value 16
Total HEX Value 10

Model number 42PF7320/28

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9. Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 85LC4.9U AA 9.

Index of this chapter:

9.1 Introduction

9.2 Block Diagram

9.3 Input/Output

9.4 Tuner and IF

9.5 Video: TV Part (Diagrams B1, B2, and B3)

9.6 Columbus

9.7 Video: Scaler Part (Diagram B7, B8 and B9)

9.8 Audio Processing

9.9 Control

9.10 Abbreviation List

9.11 IC Data Sheets

9.1 Introduction

The “LC4.9 Plasma TV” is a global plasma TV for the year

2005. It is the successor of the “LC4.7” and has a screen size

of 42 inch or 50 inch (in 16:9 ratio). It has a new styling, called
Entry+ 05. Globally, there are three different picture qualities
available, depending on the model: Pixel Plus (used in the
models discussed in this manual), Digital Crystal Clear, and

9.2 Block Diagram

SDRAM

Crystal Clear. The block diagram below (Figure “Block
diagram”) shows the Pixel Plus architecture; the architectures
of the other models are shown in the block diagram on the next
page (Figure “Block diagram of the internal building blocks”).

The architecture consists of a TV and Scaler panel, an EPLD
(only in the Pixel Plus model), an I/O panel, a Side I/O and
Local Keyboard panel and a Power Supply panel.
The functions for video/audio processing, microprocessor (µP),
and CC/Teletext (TXT) decoder are all combined in one IC
(TDA150xx, item 7217), the so-called third generation Ultimate
One Chip (UOC-III) or “Hercules”. This chip has the following
features:

• Control, small signal, mono/stereo, and extensive Audio/
Video switching in one IC.

• Upgrade with digital sound & video processing.

• Alignment free IF, including SECAM-L/L1 and AM.

• FM sound 4.5/5.5/6.0/6.5, no traps/bandpass filters.

• Full multi-standard colour decoder.

• One Xtal reference for all functions (microprocessor, RCP,
TXT/CC, RDS, colour decoder, and stereo sound
processor).

NVM

FLASH

DDR

TUNER

IF

A/D

601 INTERF. 601 INTERF.

AD9945

HDMI

SCART/

CINCH

I/O

ComPair

CVBS

Y

C

INTERNAL LIP SYNC CKT

NVM

HERCULES

AMPLIFIER

TO

AUDI O

AMP

AUDI O

CVBS,U,V

Figure 9-1 Block Diagram

The PLL tuner UV1316E/1318SD/TEDE9 delivers the IF­signal, via audio & video SAW-filters, to the Video Signal
Processor and FLASH embedded TEXT/Control/Graphics
Micro Controller TDA120x1 (item 7011, also called Hercules).
This IC has the following functions:

• Analogue Video Processing

• Sound Demodulation

• Audio Interfaces and switching

• Volume and tone control for loudspeakers

• Reflection and delay for loudspeaker channels

• Micro Controller

• Data Capture

•Display

The Hercules has one input for the internal CVBS signal and a
video switch with 3 external CVBS inputs and a CVBS output.
All CVBS inputs can be used as Y-input for Y/C signals.
However, only 2 Y/C sources can be selected because the
circuit has 2 chroma inputs. It is possible to add an additional
CVBS(Y)/C input (CVBS/YX and CX) when the YUV interface
and the RGB/YPRPB input are not needed. There are two rear

COLUM-

BUS

601 INTERFACE

LCD

PANEL

LVDSRx

F_15270_007.eps

200505

SM5301

DVI-IHDMIDMMIHP

SCALER

DVI TMDS

LVDSRx

EPLD

analogue video inputs: AV is for SVHS in and video (CVBS) in,
and CVI-1 is meant for RGB/YUV in). The rear VIDEO OUT
cinch connector can be used for monitoring purposes:
WYSIWYR (What you see is what you record).
Depending on the model of the TV set, the Hercules delivers its
RGB signals either directly to the Scaler IC or indirectly, via a
Columbus chip (for 2D/3D comb filtering and spatial/temporal
noise reduction, for its description: see further down in this
text). The EPLD, which is present in the Pixel Plus models
discussed in this manual, provides additional sharpening to the
picture. For a general outline, see the table and the block
diagrams below, in which the architectures of the various
models are given, together with their electronic building blocks.

EN 86 LC4.9U AA9.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

Table 9-1 Models and picture quality

Model Picture quality

42PF7320/28 Pixel Plus

N.a. Digital Crystal Clear
N.a. Crystal Clear

CVBS
Pb, Pr

ADC

COLUMBUS SCALER EPLD

ADC

COLUMBUS SCALER

SCALER

F_15270_008.eps

DIGITAL

CRYSTAL CLEAR

HERCULESPIXEL PLUS

HERCULES

HERCULESCRYSTAL CLEAR

CVBS

Pb, Pr

R, G, B

Figure 9-2 Block diagram of the internal building blocks

The Genesis GM1501 Malibu Scaler IC can receive two video
input signals: SDTV (directly from Hercules or via Columbus),
DVI (from an external DVI source), or PC (from external
computer).
After the video processing, the digital data is sent via a Low
Voltage Differential Signalling bus to the LCD panel. LVDS is
used to improve data speed and to reduce EMI significantly.
There are two I

2

C lines and two interrupt and communication
lines (TV_IRQ and TV_SC_COM) for the Scaler control. The
Scaler communicates with the Hercules as a slave device. To
avoid buffer overflow at the Scaler side, the TV_SC_COM line
provides the necessary hardware flow control. To allow bi­directional communication, the Scaler can initiate a service
interrupt-request to the Hercules via the TV_IRQ line.

The Hercules, and EEPROM are supplied with 3.3 V, which is
also present during STANDBY.
The EEPROM, or NVM (Non Volatile Memory) is used to store
the settings.

The sound part is built up around the Hercules. The Source
Selection, Decoding and Processing are all done by the
Hercules.

Power supply input are several DC voltages coming from a
supply panel.

LVDS

LVDS

LVDS

240505

9.4.1 Video IF Amplifier

The IF-filter is integrated in a SAW (Surface Acoustic Wave)
filter. One for filtering IF-video (1104, in some models: 1105)
and one for IF-audio (1106). The type of these filters depends
on the standard(s) that has/have to be received.

The output of the tuner is controlled via an IF-amplifier with
AGC-control. This is a voltage feedback from pin 31 of the
Hercules to pin 1 of the tuner. The AGC-detector operates on
top sync and top white level. AGC take-over point is adjusted
via the service alignment mode ’Tuner' - 'AGC’. If there is too
much noise in the picture, then it could be that the AGC setting
is wrong. The AGC-setting could also be mis-aligned if the
picture deforms with perfect signal; the IF-amplifier amplifies
too much.

9.3 Input/Output

The I/O is divided over two parts: Rear I/O and Side I/O. The
rear has two AV inputs with CVBS, Y/C and YUV, a PC (VGA)
input, and an HDMI input. The side has a CVBS and Y/C
(SVHS) input.
The selection of the external I/O's is controlled by the Hercules.

AV1 / CVI-1: The input of AV1 / CVI-1 is CVBS + YUV + L/R.
AV2: The input of AV2 is Y/C + CVBS + L/R.

PC-VGA/CVI-2: This input is directly going to the Scaler IC.

See paragraph “Video: Scaler Part”.

HDMI in / PC-D: This input is directly going to the Scaler IC.
See paragraph “Video: Scaler Part”.

9.4 Tuner and IF

A Philips UV1316E/1318SD/TEDE9 Tuner is used in the TV
board. The SIF signals are decoded by the Hercules. Tuning is
done via I

2

C.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.5 Video: TV Part (Diagrams B1, B2, and B3)

EF

SYNC INTERFACE

B3

7208

7209

EF

EF

7210

RO

BO

GO

85

86

87

Vsync_SDTV

2

7436-2

1

22

Hsync_SDTV

4

7436-1

3

67

EN 87LC4.9U AA 9.

270505

F_15270_080.eps

HERCULES

7217

B2

+VTUN

TUNER & VIF

B1

VIDEO

TDA15021H

+5SW_a

1102

RO

RGB Matrix

CVBS1

Traps

Sound

24

VIF1

7

1104

2

2106

IF-TER

11

67

UX1318ST

IN

RF

GO

Blue & Black

25

VIF2

8

BO

Strech

Gamma Corr.

HERCULES

F108

3104

1

5

TUNER

4

AGC

AC

31

RF_AGC

Video

Detect

B_OSD

G_OSD

R_OSD

+

Switch

DC

Fast Blanking

U/V Tint

Skin Tone

Saturation

SAT

c

Control

QSS/FM

QSS Mixer

29

SIF1

7

1106

2

SDA

SCL

VDRB

YUV

Peaking

SCAVEM

Dig. 2H/4H

AM

AM Demod.

30

SIF2
8

7R57

CINCH ANALOGUE IO

B23

Vertical &

East-West

SCAVEM

U/V Delay

on text

Yint

Combfilter

Y Delay Adj.

cvbs/y

SC2_AV3_C_IN

2

SC2_Y_IN

1R02

VIDEO

Geometry

59

14

1

S_IN

_Y_CVB

FRONT

IN

YUV in/out

Chroma

64

EF

7206

12

SC2_C_IN

3

1

5

S-VHS

H-OSC

Sync Sep

H/V

Uint

PAL/NTSC/

SC2_AV3_Y_IN

15

13

FRONT_C_IN

4

2

HOUT

H-Shift

SECAM

51

S_COMB

CVB

H-Drive

Vint

Delay

Baseband

Decoder &

52

58

SC2_Y_IN_1

4R64

CVBS/Y

YUV Interface

RGB/Pr Pb Insert

55

48

12

13

9

7G19

14

SC2_OUT_SW

B7

4R12

SC2_CVBS_MON_OUT

EF

7R12

1R07

OUT

VIDEO

YIN

UIN

VIN

VOUT

UOUT

YOUT

B/Pb-3

G/Y3

R/Pr-3

INSSW3

43

B13

SC1_CV1_DMMI_R_Pr_IN

4R68

CVI_Pr_IN

Pr

N.C.

74 75 76 70 71 72

77 78 79 80

N.C.

B13

SC1_CV1_DMMI_G_Y_IN

SC1_CV1_DMMI_B_Pb_IN

4R70

4R69

CVI_Y_IN

1R06

Y

CVI_Pb_IN

Pb

INTF_V_OUT

I_Y_IN

I_Pr_IN

B13

INTF_Y_OUT

INTF_U_OUT

SC1_B_CVI_Pb_IN

SC1_G_CV

SC1_R_CV

SC1_FBL_IN_1

SIDE

B17

SIDE AV

D

B23

B23

FRONT_C_IN

CONNECTIONS

FRONT_YCVBS_IN

244

1K01

2

1304

(1M06)

C

Y/CVBS

1060

1080

B13

B13

B13

3

4

2

1

SVHS

5

Figure 9-3 Block diagram video processing

EN 88 LC4.9U AA9.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

The video processing is completely handled by the Hercules

• IF demodulator.

• Chrominance decoder

• Sync separator.

• Horizontal & vertical drive.

• RGB processing.

• CVBS and SVHS source select.

It has also built-in features like:

•CTI.

• Black stretch.

• Blue stretch.

• White stretch.

• Slow start up.

• Dynamic skin tone correction etc.

Further, it also incorporates sound IF traps and filters, and
requires only one crystal for all systems.

9.6 Columbus

9.6.1 Introduction

The Columbus is a combination of:

•A 2D/3D Comb filter for both PAL and NTSC, and

•A spatial/temporal noise reduction system for both

colour and luminance signals.

The Columbus 3D Comb filter uses digitised CVBS, U, and V
(or C) signals and can be used with or without an external 16
MBit SDRAM. Without external 16Mbit SDRAM, 3D comb
filtering and temporal noise reduction are not possible.

The noise reduction part of the Columbus is controlled by the
FBX software using the SNERT interface. The 2D/3D Comb
filter part is controlled by the Main software using the I

9.6.2 2D/3D Comb Filter

Introduction

The “3D Comb filter Columbus” is a combined 2D/3D Comb
filter function that is part of the Columbus chip (circuit diagram
B19, item 7M00). It is a comb filter for both PAL and NTSC.

The 3D Comb filter is used to separate chroma and luminance
components out of a CVBS signal. It is of no use when the
CVBS signal is a SECAM signal (SECAM signals cannot be
combed) The Columbus chip can be used with or without 16
Mbit external SDRAM (circuit diagram B10, item 7B01). When
an external SDRAM is connected to the IC, the Comb filter
function can work in combined 2D/3D processing (depending
on the detected pixel based motion). When no external
SDRAM is connected, only 2D Comb filtering is possible.

The Columbus can comb the following standard signals:

• PAL B, PAL G, PAL H, PAL I, PAL D, PAL K: Colour

standard PAL, Colour carrier at 4.43 MHz, field frequency:
50 Hz

• PAL M: Colour standard PAL, Colour carrier at 3.58 MHz,

field frequency: 60 Hz

• PAL N: Colour standard PAL, Colour carrier at 3.58 MHz,

field frequency: 50 Hz

• NTSC M: Colour standard NTSC, Colour carrier at 3.58

MHz, field frequency: 60 Hz

For NTSC signals, the PAL delay line must always be
bypassed.

The following signals CANNOT be combed:

• Double Window signals or Multi PIP. For these signals,

only one part or even no part of the signal is in relation with
the burst. The part that is not in relation with the burst can
become very blurred when combed by the Columbus

2

C bus.

Comb filter. Such a signal must be bypassed. Notch mode
is not even an option since e.g. in double window, one part
can be a PAL signal while the other part is NTSC or
SECAM.

• In cases where a SECAM signal is presented to the
Columbus Comb filter; both the luminance and UV path
must be bypassed. The PAL delay line inside the
Columbus cannot be used for SECAM signals so it must
also be bypassed. The luminance path must have
luminance at its input instead of CVBS. A chroma delay line
outside Columbus must be used for SECAM signals.
Reason for this: the Columbus PAL delay line halves the
output of the chroma signals in case of SECAM.

• Y/C, YPbPr, and RGB signals do not have to be combed.
So both the luminance and UV path must be bypassed.
The PAL delay line will also be bypassed.

• In cases where the Columbus Comb filter does not receive
a CVBS signal with burst at the right place according to the
standard (this includes black and white signals without
burst), phase correction results become unpredictable and
the Comb filter must be set in bypass (= luminance path
bypassed, UV path bypassed, PAL delay line bypassed)

• VCR signals cannot be combed and must be processed in
notch mode, or bypassed.

Columbus Modes

The several modes of the Columbus 3D Comb filter are:

• Bypass mode.

• Band-Pass-Notch mode.

• 2D Comb filter modes.
– Simple median.
– Median.

• Field Comb filter mode.

• Frame Comb filter mode.

Bypass Mode

The 3D Comb filter can be set in bypass mode. In this mode,
the CVBS, U and V signals are just bypassed to the output.

Band-Pass-Notch Mode

This is a mode where no Comb filtering is applied. A “Band
Pass Filter” is used to filter the chroma information out of the
CVBS signal. A “Notch Filter” is used to subtract the sub carrier
out of the CVBS in order to make a luminance signal without
chroma sub carrier.
In terms of cross colour and cross luminance, this mode has
the worst performance of all. It is only used on these signals
where no comb filtering can be applied (non-standard signals
and most VCR signals for example).

2D Comb Filter Modes

A Comb filter does an action on a current pixel and a delayed
pixel. When the delayed pixel is a line-delayed pixel, we talk
about a “Spatial or 2D Comb Filter” (for NTSC the delay must
be 1 line, for PAL it must be 2 lines).
Spatial or 2D Comb filters show problems on vertical colour
transients and on single coloured lines. For these situations,
extra hardware is added in the Columbus chip to avoid these
kinds of problems. However even with these extra measures,
there are still situations where the 2D Comb filter does not
perform optimally (diagonal resolution and single lines with
equal luminance content). In order to restrict the working area
of the 2D Comb filter to the frequencies where the sub carrier
is present, a horizontal band pass filter always precedes a 2D
Comb filter.
When a 2D Comb filter has no extra hardware to avoid
problems at vertical colour transients (or this extra hardware is
switched “off”), the Comb filter is called a “simple median filter”.
When there is extra hardware to avoid these kinds of problems,
the filter is called a “median filter”.

Field Comb Filter Mode

A Comb filter does an action on a current pixel and a delayed
pixel. When the delayed pixel is a field-delayed pixel, we talk

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 89LC4.9U AA 9.

about a “Field Comb Filter”. Field Comb filters are only for PAL
of commercial interest.
Field Comb filters show also problems on vertical colour
transients and on motion. For the vertical transients, a hanging
dots detector has been added, however the performance on
vertical transients of the field Comb filter, even with this
hanging dots detector, is worse than the performance of the 2D
Comb filter. On motion, the field Comb filter performs very
badly. A motion detector must detect the pixels where there is
motion and on these pixels, the Comb filter must be forced back
to 2D Comb filter mode. This switching back is not
implemented with a hard switch, but with a motion controlled
fader. When there is a lot of motion, the fader will take a lot of
the 2D Comb filter output, when there is less motion, more field­combed signal will be taken.
A field Comb filter is also called a “vertical-temporal filter”
because it filters in the vertical and temporal direction.

Frame Comb Filter Mode

A Comb filter does an action on a current pixel and a delayed
pixel. When the delay is a frame, we talk about a “Frame Comb
Filter”. For NTSC we need a delay of one frame, for PAL
however the delay must be two frames.
Frame Comb filters have the best performance, but just like the
Field Comb filter, they perform very badly on motion. A motion
detector will have to detect motion and on these motion pixels,
2D Comb filtering will have to be applied. A frame Comb filter
is a pure “temporal filter”.
The Columbus needs an external memory connected to it,
before it can do a temporal or vertical-temporal Comb filter
action. When no external memory is connected, field or frame
Comb filtering is impossible.

Block Diagram

In the next block diagram, two main parts of the Columbus 2D/
3D Comb filter can be seen:

• The upper part is what is called the luminance Comb filter.
It tries to make an as clean as possible luminance signal
out of the CVBS signal at the input.

• The lower part receives U and V signals (sequentially) that
are normally only band pass filtered in front of the 3D Comb
filter. It filters all left over luminance signals out of it, in order
to make an as clean as possible U and V signal.

The offset block receives the motion dependant 2D/3D Comb
filtered signal as input. The black level of the luminance signal
is restored and the result is output. The black level restoration
is corrected continuously. However, on VCR signals, this
restoration can become unstable. Therefore, on VCR signals,
a fixed black level restoration value must be forced.

A horizontal dynamic peaking can be done on the luminance
signal. This peaking is adaptive in order not to amplify any
cross luminance distortion. It detects where there could be left
over sub carrier in the luminance signal and reduces the
peaking over there. The detection of the left over cross
luminance is different depending on the pre-filter or post-filter
mode.
The amount of peaking and coring can be chosen. The peaking
algorithm behind it is a simplified copy of the luminance
peaking of picnic. After the peaking block, the signal is output
as clean luminance.

The bypass switches have the obvious purpose of bypassing
the input signal, in case no Comb filtering is wanted.

A PAL delay line is added in the UV path. This is done because
a delay line in front of the 3D Comb filter does need an extra
vertical filter action on the UV signals. This vertical filtering
deteriorates the vertical transient performance for colours. The
Columbus Comb filter cannot undo this. However, this
reduction in performance can be omitted by putting the PAL
delay line after the 3D Comb filter block.
For PAL signals, the PAL delay line in front of the Columbus 3D
Comb filter is bypassed and the Columbus delay line is
switched “on”. In cases where the delay line in front of
Columbus cannot be bypassed, the Columbus PAL delay line
is bypassed.
For NTSC signals, the PAL delay line is bypassed as usual.

CVBS-IN

UV-IN

LUMINANCE

COMB FILTER

FIELD/FRAME

DELAY

UV

COMB FILTER

OFFSET

(EXTERNAL SDRAM)

HORIZONTAL

DYN

PEAKING

PAL

DELAY

LINE

E_14600_043.eps

230304

Figure 9-4 Columbus 2D/3D Comb Filter block diagram

The Comb filter has two inputs. One is the CVBS where clean
luminance (Y) will be extracted from; the other one is UV where
a clean U and V signal will be extracted. Both input signals are
digital signals.

The field or frame delay is used for the Field and Frame Comb
filter mode. An external memory connected to the Columbus IC
provides this delay.

Phase correction is done at the inputs of both the Comb filter
blocks. There is a phase correction for spatial filtering (called
the spatial phase corrector) and a separate phase correction
on the signals used for temporal (Frame or Field) Comb filtering
(called the temporal phase corrector).

Y-OUT

UV-OUT

EN 90 LC4.9U AA9.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.6.3 Noise Reduction and Noise Estimator

The noise reduction function is a sophisticated successor of the
noise reduction module from the PICNIC-chip, also known as
“LIMERIC”.

Besides the noise reduction part, the Columbus noise
reduction module also comprises a noise estimator. This noise
estimator (the LORE-noise estimator) is a new design with the
ambition of more accuracy and with less control complexity
than the existing noise estimators.

MUX-SYNC INTERFACE

B13

F624

R_SDTV

B3

F625

G_SDTV

B3

F626

B_SDTV

B3

SC1_R_CVI_Pr_IN

B13

SC1_G_CVI_Y_IN

B13

SC1_B_CVI_Pb_IN

B13

BINA|Pb

B14

GINA|YINA

B14

RINA|Pr

B14

Vsync_SDTV

B3

V_PC

B14

H_PC

B14

Hsync_SDTV

B3

Vsync_SDTV

Hsync_SDTV

ADC

B18

7L01

DIGITAL IO

1Q01

1

15

2
3

13

11

14

1Q03

1

2

3
4
5
6
7

8

9
10
11
12

5Q06

5Q21

EF

7L02

EF

INTF_V_OUT

INTF_U_OUT

INTF_Y_OUT

B2

B2

B2

B22

10

5

1

6

PC-VGA/

CVI-2

1

18 2

19

HDMI/PC-D

5Q01

5Q11

5Q23

7L04

MST9883C
30
31

54

7L03

EF

43

48

56

SCL

57

SDA

BINA|Pb

GINA|YINA

RINA|Pr

V_PC
H_PC

RX2+

RX2-

RX1+

RX1-

RX0+

RX0-

RXC+

RXC-

A/D

CONV.

B13

B13

COL_Di(1-7)

COL_YA(1-7)

SC1_CV1_DMMI_R_Pr_IN

B23

SC1_CV1_DMMI_G_Y_IN

B23

SC1_CV1_DMMI_B_Pb_IN

B23

B13

B13
B13

B13
B13

HDMI

B12

7D03
SII9993CTG100

RXC+IN
RXC-IN
HOTPLUG

HDMI

PANELLINK

RECEIVER

BINA|Pb

GINA|YINA

RINA|Pr

9.7 Video: Scaler Part (Diagram B7, B8 and B9)

The Genesis gm1501 Scaler is a dual channel graphics and
video processing IC for LCD and plasma monitors and
televisions incorporating Picture in Picture, up to SXGA output
resolutions. The Scaler controls the display processing in an
LCD or plasma TV, e.g. like the deflection circuit in a CRT­based TV. It controls all the view modes (e.g. like "zooming"
and "shifting"). Features like PC (VGA) or HD inputs, are also
handled by this part.

SCALER

B7

7401

7E01

27

3

R-PR-ADC

17

7

14

25

11

1

5

I_PC_HD_SEL

9

7E02

12

11

15

14

2

1

PC_HD_SEL

19

7E03

1

15

2

14

12

13

10,11

SDRAM

B10

7B010
K4D263238F

COLUMBUS

B19

(Dig. PAL/NTC Comb)

7M00
T6TU5XBG

7M01
MSM56V16

7E00

13

1

3

14

15

5

4

2

12

9

H_HDMI

5

V_HDMI

1

33

34

G-Y-ADC

B-PB-ADC

7604

5

1

SD_HD_SEL

+2V5_DDR

SDRAM

1Mx32x4

COLUMBUS

DIGITAL COMB

FILTER

COL_A

DRAM

512Kx16x2

SC1_R_CVI_Pr_IN

SC1_G_CVI_Y_IN

SC1_B_CVI_Pb_IN

RGB|CVI_HDA_SEL

7E05

8

4

HDMI_Y(0-7)

HDMI_CbCr(1-7)

R_PR+

B_PB+

AVSYNC

8

AHSYNC

4

95

COL_D

HDMI_VHS

HDMI_VVS

SOG

G_Y+

PC_HD_DET

B7

FS DATA

FSADDR

COL_Do(1-7)

COL_YB(1-7)

B7

B2,B13

B2,B13
B2,B13

GM1501

C3

D2

C2

B2

ANALOG

INPUT
PORT

L3

L4

C14

B14

FRAME
STORE

CONTROL

DVI/HDMI

INPUT
PORT

GRAPHIC

SCALER

ZOOM

OUT BLENDER

OSD CONTROLLER

BRIGHTNESS/CONTRAST/HUE/SAT

VIDEO
ZOOM

UART

INTERFACE

MICRO

CONTROLLER

INTERNAL

RAM

B9

EXTERNAL

ROM

INTERFACE

SCALER

DISPLAY

TIMING

GEN.

FLASH/CONTROL

B11

7C00
MX29LV040QC

OCMDATA

OCMADDR

AE16
AF16

AE15
AF15

AE14
AF14

AF12
AF11

AF13
AE12

FLASH

ROM

512Kx8

EPLD

B20

4N03

TXB0-

4N01

TXB0+

4N07

TXB1-

4N05

TXB1+

4N11

TXB2-

4N09

TXB2+

4N15

TXB3-

4N13

TXB3+

4N19

TXBC-

4N17

TXBC+

OR

7N04
THC63LVDF84B

TXB0+
TXB0-

LVD S

TXB1+

INTERFACE

TXB1-

RECEIVER

TXB2+
TXB2­TXB3+

TXB3­TXBC+

TXBC-

7N02
EP1C12F256C8N

PROCESSOR

SD_HD_SEL H H H H H H

PC_HD_DET H H H H L H

RGB|CVI_HDA_SEL L H L L L L

B21

Only for sets with

PIXEL PLUS

RGB

EPLD

PIXEL+

EPLD

LVDSAn
LVDSAp

LVDSBn
LVDSBp

LVDSCn
LVDSCp

LVDSDn
LVDSDp

LVDSCLKn

LVDSCLKp

7P02
THC63LVDM83R

LVD S

TRANS-

MITTER

RGB

OR

LVDS_VCC

LVDSCLK-

LVDSCLK+

LVDS_VCC

LVDSCLK-

LVDSCLK+

LVDSAn
LVDSAp

LVDSBn

LVDSBp
LVDSCn
LVDSCp

LVDSDn
LVDSDp

LVDSCLKn

LVDSCLKp

LVDSA­LVDSA+

LVDSB­LVDSB+

LVDSC­LVDSC+

LVDSD-

LVDSD+

LVDSA­LVDSA+

LVDSB­LVDSB+

LVDSC­LVDSC+

LVDSD­LVDSD+

1P07

1P06

HDPCSide-AVEXT2EXT1TV

F_15430_062.eps

1
11

12

13
14
15

16

17
18

19
20
24

25

26
21

22

1

11

10
12
14
13
15

19
18
20
27
26
28
22
21
23

260705

TO PLASMA PANELTO LCD PANEL

Figure 9-5 Block diagram scaler part

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 91LC4.9U AA 9.

9.7.1 Teletext Path

In Pixel Plus and Digital Crystal Clear models, which have an
ADC (B18) and Columbus 3D combfilter (B19), the digital input
of the scaler is used for the digital video signal (Columbus
output), whereas the analogue RGB input of the scaler is used
for teletext. This means that no mixed mode (video plus teletext
simultaneously) is possible. In Crystal Clear models, which do
not have an ADC and Columbus, the analogue RGB input of
scaler is used for both video and teletext (generated by the
Hercules). The digital input of the Scaler is not used in Crystal
Clear TV sets. See also the block diagrams at the beginning of
this chapter. When fault finding, checking the teletext path may
be useful: if there is sound and teletext, but no video and user
menu (blank screen), the digital path (Hercules - ADC ­Columbus - Scaler) is faulty. If there is sound but no teletext,
the back-end part (Scaler - LCD panel) is faulty.

9.7.2 Features

The Scaler provides several key IC functions:

• Scaling.

• Auto-configuration/ Auto-Detection.

• Various Input Ports:
– Analog RGB.
– Video Graphics.

• Integrated LVDS Transmitter.

• On-chip Micro-controller

9.7.3 Inputs

Analog RGB

The RGB input is fed to pins B2, C2 and D2 of the Scaler IC
(Genesis GM1501, item 7801, see circuit diagram B8). This
input consists of either the Hercules RGB output or the RGB/
YpbPr input of the VGA connector. The Scaler can switch
between the two signals via the PC_HD_SEL signal and
selection IC SM5301 (see circuit diagram B13).

PC (VGA) Input

The VGA input is processed by the VGA block of the Scaler.
The Scaler supports pixel frequencies up to 165MHz.
YpbPr format is also supported via the VGA interface and
covers a resolution of 480p/560p/720p/1080i.

9.7.4 Output

The Display Output Port provides data and control signals that
permit the Scaler to connect to a variety of display devices
using a TTL or LVDS interface. The output interface is
configurable for single or dual wide TTL/LVDS in 18, 24 or 30­bit RGB pixels format. All display data and timing signals are
synchronous with the DCLK output clock. The integrated LVDS
transmitter is programmable to allow the data and control
signals to be mapped into any sequence depending on the
specified receiver format.

9.8 Audio Processing

Hercules

AUDIO-LSL

SIF

SIF Input

FM

SSIF Input

AUDIO-IN5L
AUDIO-IN5R

AUDIO-IN3L
AUDIO-IN3R

AUDIOI-N4L
AUDIO-IN4R

AUDIO-IN2L
AUDIO-IN2R

Is used on the DMMI

=> No SCART2/AV2 for

Bolt-on

I2S

HDMI DAC

PC_HDMI_AUD_SEL

(From Scaler,

GPIO_G07_B0)

PC in

Tuner

AV1 in

*AP/USA/Latam

SCART1 in

*Europe only

AV2 in

*AP/USA/Latam

SCART2 in

*Europe only

Side in

*All region

HEF4053

3X SPDT

Figure 9-6 Block diagram audio processing

The audio decoding is done entirely via the Hercules. The IF
output from the Tuner is fed directly to either the Video-IF or the
Sound-IF input depending on the type of concept chosen.
There are mainly two types of decoder in the Hercules, an
analogue decoder that decodes only Mono, regardless of any
standards, and a digital decoder (or DEMDEC) that can decode
both Mono as well as Stereo, again regardless of any
standards.

In this chassis, the analogue decoder is used in two cases:

• It is used for AM Sound demodulation in the Europe
SECAM LL’ transmission.

• It is used for all FM demodulation in AV-Stereo sets.

9.8.1 Diversity

The diversity for the Audio decoding can be broken up into two
main concepts:

• The Quasi Split Sound concept used in Europe and some
AP sets.

• The Inter Carrier concept, used in NAFTA and LATAM.

The UOC-III family makes no difference anymore between
QSS- and Intercarrier IF, nearly all types are software­switchable between the two SAW-filter constructions.

Simple data settings are required for the set to determine
whether it is using the Inter Carrier or the QSS concept. These
settings are done via the “QSS” and “FMI” bit found in SAM
mode. Due to the diversity involved, the data for the 2 bits are
placed in the NVM location and it is required to write once
during start-up.

On top of that, it can be further broken down into various
systems depending on the region. The systems or region
chosen, will in turn affect the type of sound standard that is/are
allowed to be decoded.

• For the case of Europe, the standard consists of BG/DK/I/
LL’ for a Multi-System set. There are also versions of
Eastern Europe and Western Europe set and the standard
for decoding will be BG/DK and I/DK respectively. FM
Radio (not applicable for the models discussed in this
manual) is a feature diversity for some Europe TV sets.
The same version can have either FM Radio or not,
independent of the system (e.g. sets with BG/DK/I/LL’ can
have or not have FM radio).

• For the case of NAFTA and LATAM, there is only one
transmission standard, which is the M standard. The
diversity then will be based on whether it has a dBx noise
reduction or a Non-dBx (no dBx noise reduction).

AUDIO-LSR

AUDIO-OUTHPL

AUDIO-OUTHPR

AUDIO-OUTSL

AUDIO-OUTSR

P0.0/I2SDO1

P0.0/I2SDI1

P0.3/I2SCLK

105

103

For iTV only

106

2x

Amplifier

Constant Level Out

*Europe only

Amplifier

Monitor out

* Not available

SCART2 out

*Europe only

SCART1 out

*Europe only

Lip Sync

Circuit

2x Stereo

Speaker

Headphone

E_14490_061.eps

121104

EN 92 LC4.9U AA9.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

• For the case of AP, the standard consists of BG/DK/I/M for
a Multi-System set. The diversity here will then depend on
the region. AP China can have a Multi-System and I/DK
version. For India, it might only be BG standard.

9.8.2 Functionality

The features available in the Hercules are as follows:

• Treble and Bass Control.

• Surround Sound Effect that includes:
– Incredible Stereo.
– Incredible Mono.
– 3D Sound (not for AV Stereo).
– TruSurround (not for AV Stereo).
– Virtual Dolby Surround, VDS422 (not for AV Stereo).
– Virtual Dolby Surround, VDS423 (not for AV Stereo).
– Dolby Pro-Logic (not for AV Stereo).

• Bass Feature that includes:
– Dynamic Ultra-Bass.
– Dynamic Bass Enhancement.
– BBE (not for AV Stereo).

• Auto-Volume Leveller.

• 5 Band Equalizer.

• Loudness Control.

All the features stated are available for the Full Stereo versions
and limited features for the AV Stereo

9.8.3 Audio Amplifier

IIC BUS1

Tuner

IIC BUS 2

NVM

78 DDC_SDA_VGA

77 DDC_SCL_VGA

82 GPIO1

81 GPIO0

90 GPIO7

111

GPIO23

+3V3STBY

92
NVRAM
_SCL

103 106 107 108

HIGH or
LOW
level input

NVM_WP

83
GPIO2

5 6 7

ROM_DATA0-7

Flash ROM

93
NVRAM
_SDA

SCL

HREC

RST

Sel IF/
SDM

Status1

Light
Sense

P50_LINE_ITV_IR_SW

ComPair

Sound

Amp

Sound_Enable

127

111

P1.4

P2.0

114
P2.3

116
ADC1

115
ADC0

HERCULES SCALER

123
P2.5

97

102

122

INT0

P0.4

P2.4

RC

MUX

EXT_MUTE

TV_IR

Standby

NVM

NVM_WP

104
P0.2

SDA 109

SCL 108

INT1 98

P1.1 99

ADC3 120

126

128

INT2

P1.5

POWER
DOWN

TV_IRQ

TV_SC_COM

Keyboard

POWER_DOWN

SDA

Figure 9-7 Micro Controller block diagram

9.9.3 Basic Specification

The Micro Controller operates at the following supply voltages:

• +3.3 V

• +1.8 V

•I

at pins 4, 88, 94, and 109.

DC

at pins 93, 96, and 117.

DC

2

C pull up supply: +3.3VDC.

9.9.4 Pin Configuration and Functionality

72

71

GPROBE for Debug
or ComPair(Scaler)

1407
1406
1405

187193194
85

(GPIO4)

88

(GPIO5)

89

(GPIO6)

68

(PBIAS)

67

(PPWR)

99

(PWM1)

98

(GPIO11/

PWM0)

ROM_ADD0-17

PC_DET

SD_PCHD_SEL

PC_HD_SEL

LAMP_ON_OFF

PANEL_PWR_CTL

HD_FILTER

BACK_LIGHT_ADJ1

E_14490_062.eps

+3V3STBY

160904

The audio amplifier part is very straightforward. It uses two
integrated TDA8931T power amplifiers for the L and R
channels; each amplifier IC is able to deliver a maximum output
of 20 W

continuously in a 4-6 ohm speaker without needing

RMS

a heatsink.
The operating supply for the amplifier may range from 12 V to
32 V; in the LC04x TV set, depending on the model, supply
voltages of 18 V (for the 5 W / 8 ohm version) or 24 V (for the
15 W / 4 ohm version) are used.
Muting is done via the SOUND_ENABLE line connected to pins
7 of both amplifier-ICs, which comes from the Hercules.

9.8.4 Audio: Lip Sync

No Lip Sync adjustments are necessary in this model.

9.9 Control

9.9.1 Hercules

The System Board has two main micro-controllers on board.
These are:

• On-chip x86 micro-controller (OCM) from Genesis LCD or
plasma TV/Monitor Controller.

• On-chip 80C51 micro-controller from Philips
Semiconductor UOCIII (Hercules) series.

Each micro-controller has it own I
internal devices.
The Hercules is integrated with the Video and Audio Processor.
For dynamic data storage, such as SMART PICTURE and
SMART SOUND settings, an external NVM IC is being used.
Another feature includes an optional Teletext/Closed Caption
decoder with the possibility of different page storage depending
on the Hercules type number.

9.9.2 Block Diagram

The block diagram of the Micro Controller application is shown
below.

2

C bus which hosts its own

The ports of the Micro Controller can be configured as follows:

• A normal input port.

• An input ADC port.

• An output Open Drain port.

• An output Push-Pull port.

• An output PWM port.

• Input/Output Port

The following table shows the ports used for the LC04 control:

Table 9-2 Micro Controller ports overview

Pin Name Description Configuration

97 INT0/ P0.5 IR INT0
98 P1.0/ INT1 TV_IRQ INT2
99 P1.1/ T0 TV_SC_COM P1.1
102 P0.4/ I2SWS EXT_MUTE P0.4
103 P0.3/ I2SCLK Lip Sync I2SCLK
104 P0.2/ I2SDO2 NVM_WP P0.2
105 P0.1/ I2SDO1 Lip Sync I2SDO1
106 P0.0/ I2SDI/O Lip Sync I2SDI/O
107 P1.3/ T1 PC-TV_LED P1.3
108 P1.6/ SCL SCL SCL
109 P1.7/ SDA SDA SDA
111 P2.0/ TPWM SOUND_ENABLE P2.0
112 P2.1/ PWM0 (for future use) ­113 P2.2/ PWM1 (for future use) ­114 P2.3/ PWM2 SEL_IF P2.3
115 P3.0/ ADC0 Light Sensor - SDM ADC0
116 P3.1/ ADC1 STATUS_1 ADC1
119 P3.2/ ADC2 STATUS_2 ADC2
120 P3.3/ ADC3 KEYBOARD ADC3
122 P2.4/ PWM3 STANDBY P2.4
123 P2.5/ PWM4 (for future use) ­126 P1.2/ INT2 (for future use) ­127 P1.4/ RX HERC_RESET ­128 P1.5/ TX POWER_DOWN P1.5

The description of each functional pin is explained below:

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 93LC4.9U AA 9.

• LED. This signal is used as an indication for the Standby,
Remote and Error Indicator. Region diversity:
– During protection mode, the LED blinks and the set is

in standby mode.
– During error conditions it blinks at a predefined rate.
– After receiving a valid RC-5 or local keyboard

command it flashes once.
– For sets with error message indication, the LED blinks

when message is active and the set is in standby

mode.

• SCL. This is the clock wire of the two-wire single master bi­directional I

• SDA. This is the data wire of the two-wire single master bi­directional I

2

C bus.

2

C bus.

• STANDBY. The Hercules generates this signal. This can
enable the power supply in normal operation and disable it
during Standby. It is of logic “high” (3.3 V) under normal
operation and “low” (0 V) during Standby.

• IR. This input pin is connected to an RC5 remote control
receiver.

• SEL-IF. This is an output pin to switch the Video SAW filter
between M system and other systems.
– 0: NTSC M (default)
– 1: PAL B/G, DK, I, L

• NVM_WP. The global protection line is used to enable and
disable write protection to the NVM. When write to the NVM
is required, pin 7 of the NVM must be pulled to logic ‘0’ first
(via Write_Protect of the micro-controller pin) before a write
is performed. Otherwise pin 7 of NVM must always be at
logic “1”
– 0: Disabled
– 1: Enabled (default)

• SOUND_ENABLE. This pin is used to MUTE the audio
amplifier. It is configured as push pull.

• STATUS_1. This signal is used to read the status of the
SCART 1 input.

• STATUS_2. This signal is used to read the status of the
SCART 2 input.

• HERC_RESET. This pin is used to switch the +1.8V
supply.

• POWER_DOWN. The power supply generates this signal.
Logic “high” (3.3 V) under normal operation of the TV and
goes “low” (0 V) when the Mains input voltage supply goes
below 70 V

.

AC

• KEYBOARD. Following are the Keyboard functions and
the step values (8 bit) for it.

Table 9-3 Local keyboard values

Function

Voltage
(V

DC

)

Step values
(8 bit)

NAFTA Standby 0 0 - 6
Ch + 0.43 7 - 33
Exit Factory (Ch- and Vol-) 0.69 34 - 53
Ch - 0.93 54 - 73
Menu (Vol - and Vol +) 1.19 74 - 96
Vol - 1.49 97 - 121
DVD Eject (not applicable) 1.8 122 - 147
Vol + 2.12 148 - 169

• TV_IRQ. This signal is the interrupt from the Scaler IC.

• TV_SC_COM. This signal is used for the communication
with the Scaler IC.

• EXT_MUTE. This signal is used to reduce the Switch-off
plop.

9.10 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV), 6
= play 16:9 format, 12 = play 4:3

format
1080i 1080 visible lines, interlaced
1080p 1080 visible lines, progressive scan
2CS 2 Carrier Sound (or 2 Channel Stereo)
480i 480 visible lines, interlaced
480p 480 visible lines, progressive scan
ACI Automatic Channel Installation:

algorithm that installs TV channels

directly from a cable network by

means of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control; Control

signal used to tune and lock to the

correct frequency
AGC Automatic gain control (feedback)

signal to the tuner. This circuit ensures

a constant output amplitude

regardless of the input amplitude
AM Amplitude Modulation; A "data

encoding to a carrier" method, such

that the carrier amplitude is

proportional to the data value
AP or A/P Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASD Automatic Standard Detection
AV External Audio Video
B-SC1-IN Blue SCART1/EXT1 in
B-SC2-IN Blue SCART2/EXT2 in
B-TXT Blue TeleteXT
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz. B= VHF-

band, G= UHF-band
BOCMA Bimos one Chip Mid-end Architecture:

video and chroma decoder
C-FRONT Chrominance front input
CBA Circuit Board Assembly (also called

PCB or PWB)
CL Constant Level: audio output to

connect with an external amplifier
CLUT Colour Look-Up Table
COLUMBUS COLour LUMinance Baseband

Universal Subsystem. IC performing

noise reduction and 2D/3D comb

filtering
ComPair Computer aided rePair. A tool for

diagnosing a TV through a PC

controlled interface
CSM Customer Service Mode
CVBS Composite Video and Blanking Signal;

A single video signal that contains

luminance, colour, and timing

information
CVBS-EXT CVBS signal from external source

(VCR, VCD, etc.)
CVBS-INT CVBS signal from internal Tuner
CVBS-MON CVBS monitor signal
CVBS-TER-OUT CVBS TERrestrial OUTput signal
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra

low frequency amplification
DFU Directions For Use: Owner's manual
DNR Dynamic Noise Reduction / Digital

Noise Reduction; Noise reduction

feature of the set
DRAM Dynamic RAM; dynamically refreshed

RAM
DSP Digital Signal Processing
DST Dealer Service Tool; Special remote

control designed for dealers to enter

EN 94 LC4.9U AA9.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

e.g. service mode (a DST-emulator is
available in ComPair)

DTS Digital Theatre System; A multi-

DVD Digital Versatile Disc
EEPROM Electrically Erasable and

EPLD Erasable Programmable Logic Device
EPG Electronic Program Guide: system

EU Europe
EXT EXTernal (source), entering the set by

FBL Fast BLanking; DC signal

FBL-SC1-IN Fast blanking signal for SCART1 in
FBL-SC2-IN Fast blanking signal for SCART2 in
FBL-TXT Fast Blanking Teletext
FM Field Memory; A memory chip that is

FMR Radio receiver that can receive the FM

FRC Frame Rate Converter
FRONT-C Front input chrominance (SVHS)
FRONT-DETECT Control line for detection of

FRONT-Y_CVBS Front input luminance or CVBS

G-SC1-IN Green SCART1/EXT1 in
G-SC2-IN Green SCART2/EXT2 in
G-TXT Green teletext
H H_sync to the module
HA Horizontal Acquisition; horizontal sync

HD High Definition
HP HeadPhone
I Monochrome TV system. Sound

2

I

C Integrated IC bus

2

I

S Integrated IC Sound bus
IC Integrated Circuit
IF Intermediate Frequency
Interlaced Scan mode where two fields are used

IR Infra Red
IRQ Interrupt ReQuest
Last Status The settings last chosen by the

LATAM LATin AMerica
LC04 Philips chassis name for LCD TV 2004

LCD Liquid Crystal Display
LED Light Emitting Diode; A semiconductor

LINE-DRIVE Horizontal (line) deflection drive signal

channel surround sound format,
similar to Dolby Digital

Programmable Read Only Memory

used by broadcasters to transmit TV
guide information (= NexTView)

SCART or by cinches (jacks)

accompanying RGB signals. To blank
the video signal when it is returning
from the right side of the screen to the
left side. The video level is brought
down below the black video level

capable of storing one or more TV
picture fields / Frequency Modulation;
A technique that sends data as
frequency variations of a carrier signal

Band 87.5 - 108 MHz

headphone insertion, Service Mode
jumper, power failure detection

(SVHS)

pulse

carrier distance is 6.0 MHz. VHF- and
UHF-band

to form one frame. Each field contains
half the number of the total amount of
lines. The fields are written in "pairs",
causing line flicker.

customer and read and stored in RAM
or in the NVM. They are called at start­up of the set to configure it according
to the customer's preferences

project

diode that emits light when a current is
passed through it

(for the Line transistor)

L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LS LoudSpeaker
LVDS Low Voltage Differential Signalling,

data transmission system for high

speed and low EMI communication.
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz. M= 525

lines @ 60 Hz, N= 625 lines @ 50 Hz
MOSFET Metal Oxide Semiconductor Field

Effect Transistor
MPEG Motion Pictures Experts Group. An

ISO/IEC body that has given its name

to an image compressing scheme for

moving video
MSP Multi-standard Sound Processor: ITT

sound decoder
MUTE MUTE Line
NC Not Connected
NICAM Near Instantaneously Companded

Audio Multiplexing; This is a digital

sound system, mainly used in Europe
NTSC National Television Standard

Committee. Colour system used

mainly in North America and Japan.

Colour carrier NTSC M/N = 3.579545

MHz, NTSC 4.43 = 4.433619 MHz

(this is a VCR norm, it is not

transmitted off-air)
NVM Non Volatile Memory; IC containing

data such as alignment values, preset

stations
O/C Open Circuit
ON/OFF LED On/Off control signal for the LED
OSD On Screen Display
PAL Phase Alternating Line. Colour system

used mainly in Western Europe

(colour carrier = 4.433619 MHz) and

South America (colour carrier PAL M =

3.575612 MHz and PAL N = 3.582056

MHz)
PC Personal Computer
PCB Printed Circuit Board (or PWB)
PIG Picture In Graphic
PIP Picture In Picture
PLL Phase Locked Loop. Used, for

example, in FST tuning systems. The

customer can directly provide the

desired frequency
Progressive Scan Scan mode where all scan lines are

displayed in one frame at the same

time, creating a double vertical

resolution.
PWB Printed Wiring Board (also called PCB

or CBA)
RAM Random Access Memory
RC Remote Control transmitter
RC5 or 6 Remote Control system 5 or 6, the

signal from the remote control receiver
RGB Red, Green, and Blue colour space;

The primary colour signals for TV. By

mixing levels of R, G, and B, all colours

(Y/C) are reproduced
RGBHV Red, Green, Blue, Horizontal sync,

and Vertical sync
ROM Read Only Memory
SAM Service Alignment Mode
SC SandCastle: two-level pulse derived

from sync signals
SC-IN SCART in
SC-OUT SCART out
S/C Short Circuit
SCART Syndicat des Constructeurs

d'Appareils Radiorécepteurs et

Circuit Descriptions, Abbreviation List, and IC Data Sheets

Téléviseurs; This is a 21-pin connector
used in EU, that carries various audio,
video, and control signals (it is also

called Péritel connector)
SCL Serial CLock Signal on I
SD Standard Definition
SDA Serial DAta Signal on I
SDRAM Synchronous DRAM
SECAM SÉquence Couleur Avec Mémoire;

Colour system mainly used in France

and East Europe. The chroma is FM

modulated and the R-Y and B-Y

signals are transmitted line

sequentially. Colour carriers=

4.406250 MHz and 4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switched Mode Power Supply
SND SouND
SOPS Self Oscillating Power Supply
S/PDIF Sony Philips Digital InterFace; This is

a consumer interface used to transfer

digital audio
SRAM Static RAM
STBY STandBY
SVHS Super Video Home System
SW Software or Subwoofer or Switch
THD Total Harmonic Distortion
TXT Teletext; TXT is a digital addition to

analogue TV signals that contain

textual and graphical information (25

rows x 40 columns). The information is

transmitted within the first 25 lines

during the Vertical Blank Interval (VBI)
µP Microprocessor
VA Vertical Acquisition
VL Variable Level out: processed audio

output towards external amplifier
VCR Video Cassette Recorder
VGA Video Graphics Array; 640x480 (4:3)
WD Watch Dog
WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
XTAL Quartz crystal
Y Luminance signal
Y/C Y consists of luminance signal,

blanking level and sync; C consists of

chroma (colour) signal
YPbPr This is a scaled version of the YUV

colour space. Y= Luminance, Pb/Pr=

Colour difference signals B-Y and R-Y,

other amplitudes w.r.t. to YUV
YUV Colour space used by the NTSC and

PAL video systems. Y is the luminance

and U/V are the colour difference

signals

2

C bus

2

C bus

EN 95LC4.9U AA 9.

EN 96 LC4.9U AA9.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.11 IC Data Sheets

This section shows the internal block diagrams and pin layouts
of ICs that are drawn as "black boxes" in the electrical diagrams
(with the exception of "memory" and "logic" ICs).

9.11.1 Diagram B2, Type TDA15021H (IC7217, Hercules)

Block Diagram

kcolB

VD/NIFIS

NIB

/OVFI/OBVD

ORMF

ORMF/OBVD

TUOC

GA

NIFIV

I

/OVS/OVF
ISBVC
CNYSY

2

C

Y/2SBV

3Y/3SBV

C

C/2

3

C

4

C

/OSBVC

PIP

V

4Y/4SBVC

n

2

H

Pin Configuration

1

P1.5/TX

2

P1.4/RX

3

P1.2/INT2

4

VSSC3

5

VDDC3

P2.5/PWM4

6

P2.4/PWM3

7
8

VSSC1/P

P3.3/ADC3

9

10

P3.2/ADC2

DECV1V8

11

VDDC1(1.8)

12

P3.1/ADC1

13

P3.0/ADC0

14

P2.3/PWM2

15

P2.2/PWM1

16
17

P2.1/PWM0

18

P2.0/PMW

VDDP(3.3V)

19

20

P1.7/SDA

P1.6/SCL

21
22

P1.3/T1

P0.0/I2SDI1

23

P0.1/I2SDO1

24

P0.2/I2SDO2

25

P0.3/I2SCLK

26

P0.4/I2SWS

27

VSSC2

28
29

VDDC2
P1.1/T0

30

P1.O/INT1

31

32

INT0/P0.5

secorp VT ”oerets-VA“ eht fo margaid

FISS

TUOMA/OSSQ

OFER

HCTIWS

FI DNUOS SSQ

CGA

EXIM SSQ

R

ROTALUDOMED MA

CFA/CGA/FI NOISIV

.DOMED LLP

PART DNUOS

YALED PUORG

.PMA OEDIV

C

HCTIWS OEDIV
.TNEDI OEDI

SRETLIF OEDIV

Y

YS V/H

.PES CN

V/H

LLP + .CSO-H

d

POOL

TFIHS-H

EVIRD-

TUOH

RSL+LSL_GEN_FERV

LSL_SOP_FERV

)V3.3(3ADDV

4

4CDDV

2PSSV

C
SS

V

521

721

321

421

621

821

LLP DNUOS

SISAHPMEED

REDOCED

LATIGID

H4/H2

RETLIF BMOC

.JDA YALED Y

V

LACITRE

TSEW-TSAE &

YRTEMOEG

VIRD-V

E

R

LPH+RSL_SOP_FERV

P
H+LPH_

RPH_SOP_FERV

G
E

TU

N

NILATX

_FERV

OL
A

TX

121

221

021

91

811

1

PSD oidua htiw ros

TUO/NI HCNIC/TRACS

TCEL

A

ES OIDU

CAD/CDA

MA

CSTN/MACES/LAP

FER

OTH

E

LB

P/R

DWE

OIWS/DRAUGV

GIDCED
1
A
SS

V

411

711

511

611

DNAB-ESAB

ENIL YALED

TRESNI

PY/BGR

RPB

E

Y

CAFRETNI VU

o

Y

iY

oUoV

Y/G

P/B

R

B

FL1HP

FL2HP

1
P
V

211

311

B

LB

1OWS

Y/G

DWE/LVA

LLPCES

G

1DNG

BRDV

B
C
E
D

111

701

801

011

90
1

Pin configuration “stereo” and “AV-stereo” versions with Audio DSP

QFP-128 0.8 mm pitch “face down version”

4

3

3

3

)

c

8.

d
a

1(

SSV

c
d
aD

D
V

9

24

0

7

5

8

6

3

3

)V3.3

)
V

8.
1(

(
2ADDV

A
DD

V

1

3

4

3

3

4

)

.

A

S

G

OB

D

V3.

DN

E

A

O

F

N

P

3

E

_DAFERV

_DA

(1A

G

R
V

F

D

E

D

R

V

V

7

84

54

34

64

44

4

3DNG

3P

OR

N

NIL

OG

I
K

V

L

C

B

B

35

0

45

25

15

94

5

)2

)1OWS(TUO

3WSSNI

3-

3-

3-

P/B

-

R

Y/

B

WSNI(

P

/

G

R

T
U
O

V

U

S2I

P/

B

ARDV

601

55

T
U
O
Y

L

µ REDOCED TXETELET DNA ROSSECORP-

ID

YUV IN/OUT

iUiV

P/R

R

)xC()xY/xSBVC(

1N

2
N

IF

IFIV

CSV

IV

301

401

501

758595

65

)X-Y/SBVC/2-Y
C
N
Y
SY

/

G(NIY

TUO-SL

TUO-PH

R

RL

LORTNOC OIDUA

EMULOV

SSAB/ELBBERT

SERUTAEF

sCAD

ATIG

GNIKAEP

YTICOLEV NACS

NOITALUDOM

ALED V/U

Y

TNIT V/U

2NIF

1N
I

FIS/1N

I
S/2NIBVD

FIDNG

I

FERI

BVD

101

001

201

16

06

)2-

)

b

b

X

m

-

moc

B

ocS

C

P

/

/B(

2-

DD

S

R

V

NIU

V

P/R(NIV

MEVACS

TXET NO

ENOT NIKS

NOITARUTAS

TU
O

OTHE

CG
A

9

79

8

9

9

26

4

36

6

TUO

Y

M

S

V

C

S

/OS

H

I
BF

SDR

GNISSECORP LANGIS L

SERUTAEF

B

.NOC

CCC

IRB

XIRTAM BGR

TS EULB

TAS

AVL/SWO/SSIF/
REFIN/REFOUT

96
95

AUDIOIN5L

94

AUDIOIN5R
AUDOUTSL

93

92

AUDOUTSR

91

DECSDEM
AMOUT/QSSO/AUDEEM

90

89

GND2

PLLIF

88
87

SIFAGC/DVBAGC
DVBO//IFVO/FMRO

86
85

DVBO/FMRO

84

VCC8V

83

AGC2SIF

82

VP2

SVO/IFOUT/CVBSI

81
80

AUDIOIN4L
AUDIOIN4R

79
78

CVBS4/Y4

77

C4

76

AUDIOIN2L/SSIF
AUDIOIN2R

75
74

CVBS2/Y2

AUDIOIN3L

73
72

AUDIOIN3R

CVBS3/Y3

71
70

C2/C3

69

AUDOUTLSL

68

AUDOUTLSR

67

AUDOUTHPL

66

AUDOUTHPR

65

CVBSO/PIP

LORTNOC BGR

TRESNI TXET/DSO

NTHGIRB/RTNOC

.JDA .P-ETIHW

HCTER
HCTERTS KCALB

LORTNOC AMMAG

RCBGRL

S

MV

E_14490_063.eps

sO/I

OR
OG

OB

NILCB
NIKLB

240505

Figure 9-8 Internal block diagram and pin configuration

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.11.2 Diagram B19, Type T6TU5XB (IC7M00, Columbus)

Figure 1 Package outline (top view)

123456789101112131415

WEB/

A

B

DAVB

YB8 VSS

UVA0

/Di0

UVA2

/Di2

UVA1

/Di1

UVA4

/Di4

UVA3

/Di3

UVA6

/Di6

UVA5

/Di5

UVA8

/Di8

UVA7

/Di7

SEL656 T ST1 YA2 YA4 YA6 YA8 VA HREF SDA

YA 0

BISTEN YA1 YA3 YA5 YA7

/Di9

WEA/

DAVA

VSS SCL

EN 97LC4.9U AA 9.

A

B

YB7 YB6 VSS VDDS VSS VSS VDDC VDDC VSS VSS VDDC VDDS VSS SNDA SNRST

C

YB5 YB4 VDDC N.C. VSS SNCL TCK

D

YB3 YB2 VSS VDDC TMS TDO

E

TST2 YB1 VSS VSS TRST TDI

F

G

H

K

L

M

N

P

R

CLKASB

CLKASA

UVB7

J

UVB5

UVB3

UVB1

YB0

VDDS

/Do9

UVB8/

UVB6/

/Do7

UVB4/

/Do5

UVB2

/Do3

UVB0

/Do1

AVD N.C. VDDS VSS VSS VDDC VSS VDDS VDDC VSS VDDS VSS VSS VDDS DQ13

AVS VSS A7 A9 A2 A0 A11 DQ7 DQ6 DQ4 DQ3 DQ1 VDDS VSS DQ12

A4 A5 A6 A8 A3 A1 A10 DQ8 VSS DQ5 VSS DQ2 DQ9 DQ10 DQ11

TST3

Do8

VSS VSS CLK W EN

Do6

VDDC

Do4

VSS VDDS DQM DQ16

/Do2

VDDS VSS DQ14 DQ15

/Do0

COLUMBUS

TOP-VIEW

PPA Version 2.7

VDDS A0ICC RESET

VDDC

VSS CASN RASN

123456789101112131415

CLK
EXT

C

D

E

F

G

CLKSEL

H

J

K

L

M

N

P

R

E_14600_059.eps

200804

Figure 9-9 Pin configuration

EN 98 LC4.9U AA9.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.11.3 Diagram B7+B8+B9, Type GM1501 (IC7401, Genesis)

Block Diagram

14.318 MHz
Crystal

Reference

DVI-Compliant

DDC2Bi

DVI

Analog RGB

DDC2Bi

analog

8/16/24 bit

video

(4:4:4/4:2:2/

CCIR656)

8/16 bit video

4:2:2/CCIR656

Input

Input

Generation

Ultra-Reliable

Pin Configuration

A

B

C

D

E

ADC_AGNDADC_AGND ADC_3.3 ADC_AGND

F

G

H

J

K

L

M

N

P

R

T

U

V

W

Y

AA

AB

AC

AD

OCMDATA9OCMDATA6OCMDATA3OCMDATA0

AE

OCMDATA8OCMDATA5OCMDATA2

AF

OCMDATA7OCMDATA4OCMDATA1

ADC_3.3 ADC_1.8 ADC_1.8

NC

BLUE- BLU E+

GREEN- GREEN+ SOG

RED- RED+

VDDD33_

NC

VDDA33_

VSSD33_

FPLL

VDDD33_

VSSA33_

SDDS

VDDD33_

VSSA33_

DDDS

RESETn

RSET_HD

OCM_INT2 OCM_INT1 AVSYNC AHSYNC

OCM_UDO OCM_UDI IR0 IR1

VGA_SDA VGA_SCL DVI_SDA DVI_SCL

OCM_CS1n OCM_CS2nMSTR_SDA MSTR_SCL

ROM_CSn OCM_REn OCM_WEn EXTCLK

OCMADDR17OCMADDR18OCMADDR

OCMADDR13OCMADDR14OCMADDR15OCMADDR

OCMADDR9OCMADDR10OCMADDR11OCMADDR

OCMADDR6OCMADDR7OCMADDR

OCMADDR3OCMADDR4OCMADDR

OCMADDR0OCMADDR1OCMADDR

OCMDATA13 OCMDATA14 OCMDATA15

OCMDATA10 OCMDATA11 OCMDATA12

12345678910111213

Parallel

2-wire

Serial I/F

Clock

JTAG

Interface

GPIO

X186

Micro-

controller

Internal

RAM

ROM

IF/external

micro

External

ROM I/F

Internal

ROM

Infra-red Rx Low

ndwid

Ba th

A

DC

DVI Rx

Triple ADC

and PLL

Test Pattern

Generator

ADC_3.3


Capture

Measure

ment

ADC_DGND


Capture

and

Measure

ment

and

Graphics

Shrink

Filter

Frame

Store

Control

Motion
Adapt.

Video

Shrink

3:2/2:2

Filter

detection

DDR SDRAM

I/F

ADC_DGND

RXC+ DVI_GND RX0+ RX1+ RX2+ DVI_GND LBADC_IN3 D_GND

DVI_GND RX C- DVI_GND RX0- RX1- RX2- REXT LBADC_IN2 D_GND

Graphics

Zoom

Filter

OSD

Controller

Color Table

RAMs

Video
Zoom

Filter

ADC_AGND NC DVI_3.3 DVI_GND DVI_3.3 DVI_3.3 DVI_3.3 DVI_3.3 LBADC_IN1 LBADC_33

ADC_3.3 ADC_AGND NC DVI_1.8 DVI_GND DVI_1.8 DVI_1.8 DVI_1.8 DVI_GND

VSSA33_

PLL

PLL

SDDS

DDDS

ACS_

VDDA33_

RPLL

TCLK XTAL

VDDA33_

VSSA33_

SDDS

VDDA33_

VSSD33_

DDDS

VSSD33_

NC

OCM_CS0n

19

RPLL

FPLL

SDDS

DDDS

16

12

IO_3.3

8

IO_3.3

5

IO_3.3

2

IO_3.3

IO_3.3

GPIO_G09_ B0

DERED0)

(

GPIO_G09_ B1

DERED1)

(

GPIO_G09_ B2

(

DEGRN0)

GPIO_G09_ B3

DEGRN1)

(

GPIO_G09_ B4

(DEBLU0)

GPIO_G09_ B5

(DEBLU1)

IO_3.3 DCLK IO_3.3

GPIO_G08_ B0

(DORED0)

GPIO_G08_ B1

(DORED1)

GPIO_G08_ B2

(DOGRN0)

DEN

GPIO_G08_ B3

(DOGRN1)

GPIO_G08_ B4

(DOBLU0)

GPIO_G08_ B5

DOBLU1)

(

GPIO_G07_ B0

(DERED2)

GPIO_G07_ B1

(DERED3)

GPIO_G07_ B2

(

DERED4)

GPIO_G07_ B3

(DERED5)

GPIO_G07_ B4

(DERED6)

GPIO_G07_ B5

(DERED7)

Pulse Width

Modulator

TTL/

LVDS

Tx

Display
Timing
Generator

TM

Output

Blender

RealColor

LBADC_

RETURN

LBADC_GND

CORE_1.8 CORE_1.8 D_GND D_GND

D_GND CORE_1.8 D_GND D_GND

D_GND D_GND D_GND D_GND

D_GND D_GND D_GND D_GND

D_GND D_GND D_GND D_GND

D_GND D_GND D_GND D_GND

D_GND CORE_1.8 D_GND D_GND

CORE_1.8 CORE_1.8 D_GND D_GND

IO_3.3

GPIO_G07_ B6

(

DERED8)

GPIO_G07_ B7

DERED9)

(

SHIELD[0]
(DEGRN2)

SHIELD[1]
(DEGRN3)

SHIELD[2]
(DEGRN4)

SHIELD[3]
(DEGRN5)

B3+

(DEGRN6)

LVDSB_GND

LVDSB_3.3

LVDSB_3.3 LVDSB_3.3

BC+

SHIELD[4]

(DEGRN8)

(DEBLU2)

B3-

(DEGRN7)

BC-

(DEGRN9)

E_14490_099.eps

Panel Data

241204

/Control

Figure 9-10 Internal block diagram and pin configuration

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.11.4 Diagram B12, Type S9993CT (IC7D03, HDMI Panellink), Reserved

Block Diagram

INT

RESET#

DSDA

DSCL

R_EXT

RXC±

RX0±

RX1±

RX2±

I2C

Slave

HDCP

Keys

EEPROM

PanelLink

TMDS

TM

Digital

Core

Registers

----------------

Configuration

Logic Block

HDCP

Decryption

Engine

XOR
Mask

control
signals

control
signals

Mode

Control

I2C

Slave

Aux Data

Logic
Block

Audio

Data

Decode

Logic
Block

Video

Color

Space

Converter

Up/Down
Sampling

30

MCLK

Gen

Video

DAC

EN 99LC4.9U AA 9.

CSDA

CSCL

MCLKOUT

MCLKIN

SCK

WS

SD0

SPDIF

DE

HSYNC

VSYNC

ODCK

24

Q[23:0]

AnGY
AnRPr
AnBPb

Pin Configuration

Q1549

Q1450

Q13

51

Q12

52

Q11

53

Q10

54

Q9

55

OVCC

56

OGND

57

Q8

58

Q7

59

Q6

60

Q5

61

Q4

62

63

Q3

64

VCC

65

GND

66

OGND

67

OVCC

68

Q2

69

Q1

Q0

70

71

INT

RESET#

RSVDL

CSCL

CSDA

72

73

74

75

77

76

DSCL

DSDA

SETR

OMPC

OGN D28

SPD I F29

SD O30

WS31

SC K32

HSYNC33

VSYNC34

DE35

Q2138

Q20

39

TQFP

RX0+ 87

AGND 88

Q2336

Q2237

91

90

RX1-

RX1+ 92

AVCC 89

AG ND

RX2- 96

AVCC 95

AG ND 94

AVCC 93

MCLKOUT26

MCLKIN27

N/C25

PLLIN

24

PVCC2

23

PGND222

OVCC21

RSVDO20

RSVDO19

RSVDL18

VCC17

GND16

AnBPb15

DACVCCB14

DACGNDB13

AnGY12

DACVCCG11

DACGNDG10

RSET9

COMP8

AnRPr7

DACVCCR6

DACGNDR5

N/C4

N/C

3

2

DACGND

DACVCC1

100

99

VC C

GND

RX2+ 97

AG ND 98

E_14620_149.eps

170305

VC C40

GND41

Q1942

Q1843

Q1744

OGN D45

ODC K46

OVC C47

Q1648

SiI 9993

100-Pin

(Top View)

84

81

79

OGN D 78

PVCC180PGND1

EXT _ RE S

85

RX0- 86

RXC- 8 3

RXC+

AG ND

AVCC 82

Figure 9-11 Internal block diagram and pin configuration

EN 100 LC4.9U AA10.

10. Spare Parts List

Spare Parts List

Sets Listed

8670 000 22814 42PF7320/28

Set Level

Various

1004h 9322 226 37682 PDP S42SD-YD07
1012 3104 328 39571 LED panel LC04SD2
1062 2422 549 00148 Socket 3p m
1102 3139 267 15982 ASSY SSB 42PF7320/28
1116 3104 328 40501 Side I/O Assy 42"/50"
1174 3104 328 40312 Audio-Stdby Assy
8102 3104 311 07241 Cable 7p/1000/7p
8103 3104 311 06511 Cable 10p/280/10p
8120 3104 311 07421 Cable 6p/680/6p
8136 3104 311 10733 Cable 11p/1000/11p
8146 3104 311 08621 Cable 11p/220/11p
8150 3104 311 08831 Cable 31p/300/31p
8152 3104 311 09921 Cable 9p/680/9p
8321 3104 311 08731 Cable POSI/100/POSI
8900 3104 311 07911 Cable ring/180/ring

Small Signal Board [B]

e Software (see Philips Service Website)

7050 uP Hercules Downloadable file
7051 Scaler Genesis Downloadable file
7052 ELPD Downloadable file
7053 Hercules NVM Downloadable file
7054 Genesis NVM Downloadable file
7055 DCC VGA Downloadable file
7056 DCC HDMI Downloadable file

Various

1101 2422 025 18749 Connector 3p m
1102 3139 147 21461 Tuner UV1338/A F S H-4
1104 2422 549 44377 Filter 45.75MHz
1107 2422 025 18749 Connector 3p m
1202 2422 543 01414 Xtal 24.576MHz
1801 2422 543 01133 Xtal 14.32MHz 20pF
1J00 2422 025 10771 Connector 10p m
1J01 2422 025 10655 Connector 11p m
1J04 2422 025 10769 Connector 9p m
1J07 2422 086 11081 Fuse T3A 125V
1J08 4822 051 10008 Jumper 1206
1K00 2422 025 08149 Connector 6p m
1K02 2422 025 10768 Connector 3p m
1K04 2422 025 10655 Connector 11p m
1N05 2722 171 08825 Xtal 14.31818Mhz 15pF
1P01 2422 549 45325 Bead 67Ω at 100MHz
1P02 2422 549 45325 Bead 67Ω at 100MHz
1P03 2422 549 45325 Bead 67Ω at 100MHz
1P04 2422 549 45325 Bead 67Ω at 100MHz
1P05 2422 549 45325 Bead 67Ω at 100MHz
1P07 2422 025 18427 Connector 31p f
1Q01 2422 025 18477 Socket sub-D 15p f h
1Q03 2422 033 00505 Socket HDMI 19p f
1R02 2422 033 00533 Socket Combi 2p f
1R03 2422 026 05652 Socket Cinch 4p f WhRd
1R06 2422 026 05705 Socket Cinch 4p f
1R07 2422 026 05704 Socket Cinch 4p f

g

2101 4822 124 12095 100µF 20% 16V
2102 5322 126 11583 10nF 10% 50V 0603
2103 5322 126 11583 10nF 10% 50V 0603
2104 4822 122 33761 22pF 5% 50V
2105 4822 122 33761 22pF 5% 50V
2106 5322 126 11583 10nF 10% 50V 0603
2107 3198 024 44730 47nF 50V 0603
2109 5322 124 41945 22µF 20% 35V
2113 4822 124 12095 100µF 20% 16V
2207 2020 552 96718 220nF 10% 6.3V 0402
2208 4822 124 12084 1µF 20% 50V
2210 2020 552 96718 220nF 10% 6.3V 0402
2211 2020 552 96628 10nF 10% 16V 0402
2214 2020 552 96618 1nF 10% 50V 0402
2216 2020 552 96618 1nF 10% 50V 0402
2218 3198 035 71040 100nF 10% 16V 0402
2221 4822 124 12095 100µF 20% 16V

2223 2238 869 15101 100pF 5% 50V 0402
2225 2020 552 96618 1nF 10% 50V 0402
2226 3198 035 03320 3.3nF 5% 50V 0402
2227 2020 552 96618 1nF 10% 50V 0402
2228 3198 035 71040 100nF 10% 16V 0402
2229 2020 552 96637 10µF 10% 6.3V 0805
2230 3198 035 71040 100nF 10% 16V 0402
2231 2020 552 96718 220nF 10% 6.3V 0402
2232 3198 035 71040 100nF 10% 16V 0402
2233 4822 124 23002 10µF 16V
2234 2020 552 96718 220nF 10% 6.3V 0402
2235 2020 552 96718 220nF 10% 6.3V 0402
2237 2020 552 96718 220nF 10% 6.3V 0402
2238 2020 552 96718 220nF 10% 6.3V 0402
2239 3198 035 71040 100nF 10% 16V 0402
2241 2020 552 96718 220nF 10% 6.3V 0402
2242 3198 035 71040 100nF 10% 16V 0402
2243 4822 124 23002 10µF 16V
2250 2020 552 96618 1nF 10% 50V 0402
2251 2020 552 96656 10µF 20% 25V 1210
2252 3198 035 71040 100nF 10% 16V 0402
2253 3198 035 71040 100nF 10% 16V 0402
2254 3198 035 71040 100nF 10% 16V 0402
2255 3198 035 71040 100nF 10% 16V 0402
2256 4822 124 23002 10µF 16V
2257 3198 035 71040 100nF 10% 16V 0402
2258 2020 552 96637 10µF 10% 6.3V 0805
2259 3198 035 71040 100nF 10% 16V 0402
2262 4822 124 12082 10µF 20% 50V
2263 3198 035 26820 6.8nF 10% 16V 0402
2264 3198 017 44740 470nF 10V 0603
2265 3198 017 41050 1µF 10V 0603
2266 3198 035 71040 100nF 10% 16V 0402
2267 2020 552 96718 220nF 10% 6.3V 0402
2269 2022 031 00373 470µF 20% 16V
2270 3198 035 71040 100nF 10% 16V 0402
2271 4822 124 12095 100µF 20% 16V
2272 3198 035 71040 100nF 10% 16V 0402
2273 2020 552 96718 220nF 10% 6.3V 0402
2274 3198 017 31540 150nF 10V 0603
2277 3198 035 71040 100nF 10% 16V 0402
2280 2020 552 00027 4.7µF 2% 6.3V 0603
2281 2020 552 00027 4.7µF 2% 6.3V 0603
2285 3198 035 71040 100nF 10% 16V 0402
2286 3198 035 71040 100nF 10% 16V 0402
2449 3198 035 71040 100nF 10% 16V 0402
2501 3198 035 71040 100nF 10% 16V 0402
2502 3198 035 71040 100nF 10% 16V 0402
2503 3198 035 71040 100nF 10% 16V 0402
2504 3198 035 71040 100nF 10% 16V 0402
2505 3198 035 71040 100nF 10% 16V 0402
2506 3198 035 03310 330pF 5% 50V 0402
2507 3198 035 04710 470pF 50V 0402
2508 2238 869 15829 82pF 5% 50V 0402
2509 2238 869 15829 82pF 5% 50V 0402
2603 2020 552 96834 1µF 20% 6.3V 0402
2604 3198 035 04710 470pF 50V 0402
2605 2020 552 96834 1µF 20% 6.3V 0402
2608 2020 552 96834 1µF 20% 6.3V 0402
2609 3198 035 04710 470pF 50V 0402
2610 2020 552 96834 1µF 20% 6.3V 0402
2611 4822 124 12095 100µF 20% 16V
2612 3198 017 41050 1µF 10V 0603
2614 3198 035 71040 100nF 10% 16V 0402
2615 2022 031 00373 470µF 20% 16V
2618 2022 031 00373 470µF 20% 16V
2704 4822 124 23002 10µF 16V
2706 4822 124 23002 10µF 16V
2709 4822 124 80151 47µF 16V
2710 2020 552 96656 10µF 20% 25V 1210
2711 2020 552 96656 10µF 20% 25V 1210
2713 2020 012 00028 470µF 20% 16V
2714 3198 035 02210 220pF 5% 50V 0402
2715 2020 552 96455 22nF 10% 16V 0402
2716 2020 012 00028 470µF 20% 16V
2730 2020 552 96656 10µF 20% 25V 1210
2731 2022 031 00373 470µF 20% 16V
2733 3198 035 02210 220pF 5% 50V 0402
2734 2238 787 15641 22nF 5% 16V 0402
2735 3198 035 04710 470pF 50V 0402
2736 2022 031 00308 22µF 20% 35V
2737 2022 031 00373 470µF 20% 16V
2738 4822 124 80151 47µF 16V
2739 4822 124 80151 47µF 16V
2741 4822 126 13879 220nF +80-20% 16V
2750 2020 552 00183 2.2µF 10% 6.3V 0603
2753 2022 031 00373 470µF 20% 16V
2755 3198 035 14720 4.7nF 5% 25V 0402
2756 3198 035 04710 470pF 50V 0402

2757 2022 031 00373 470µF 20% 16V
2758 2022 031 00373 470µF 20% 16V
2761 2020 552 96671 1µF 10% 25V
2762 4822 124 23237 22µF 6.3V
2800 2020 021 91557 100µF 20% 16V
2801 3198 035 71040 100nF 10% 16V 0402
2802 3198 035 71040 100nF 10% 16V 0402
2803 3198 035 71040 100nF 10% 16V 0402
2804 3198 035 71040 100nF 10% 16V 0402
2805 3198 035 71040 100nF 10% 16V 0402
2806 3198 035 71040 100nF 10% 16V 0402
2807 3198 035 71040 100nF 10% 16V 0402
2808 3198 035 71040 100nF 10% 16V 0402
2809 3198 035 71040 100nF 10% 16V 0402
2810 3198 035 71040 100nF 10% 16V 0402
2811 3198 035 71040 100nF 10% 16V 0402
2812 3198 035 71040 100nF 10% 16V 0402
2813 3198 035 71040 100nF 10% 16V 0402
2814 3198 035 71040 100nF 10% 16V 0402
2815 5322 124 41945 22µF 20% 35V
2816 3198 035 71040 100nF 10% 16V 0402
2817 3198 035 71040 100nF 10% 16V 0402
2818 3198 035 71040 100nF 10% 16V 0402
2819 3198 035 71040 100nF 10% 16V 0402
2820 3198 035 71040 100nF 10% 16V 0402
2821 3198 035 71040 100nF 10% 16V 0402
2822 3198 035 71040 100nF 10% 16V 0402
2823 4822 126 14519 22pF 5% 50V 0402
2824 4822 126 14519 22pF 5% 50V 0402
2900 3198 035 71040 100nF 10% 16V 0402
2901 2020 552 96618 1nF 10% 50V 0402
2902 2020 021 00046 470µF 20% 16V
2903 3198 035 71040 100nF 10% 16V 0402
2904 4822 124 80151 47µF 16V
2905 2020 021 91557 100µF 20% 16V
2906 3198 035 71040 100nF 10% 16V 0402
2907 3198 035 71040 100nF 10% 16V 0402
2908 3198 035 71040 100nF 10% 16V 0402
2909 3198 035 71040 100nF 10% 16V 0402
2910 3198 035 71040 100nF 10% 16V 0402
2911 3198 035 71040 100nF 10% 16V 0402
2912 3198 035 71040 100nF 10% 16V 0402
2913 3198 035 71040 100nF 10% 16V 0402
2914 3198 035 71040 100nF 10% 16V 0402
2915 3198 035 71040 100nF 10% 16V 0402
2916 3198 035 71040 100nF 10% 16V 0402
2917 2020 021 91557 100µF 20% 16V
2918 3198 035 71040 100nF 10% 16V 0402
2919 3198 035 71040 100nF 10% 16V 0402
2920 3198 035 71040 100nF 10% 16V 0402
2921 3198 035 71040 100nF 10% 16V 0402
2922 3198 035 71040 100nF 10% 16V 0402
2923 3198 035 71040 100nF 10% 16V 0402
2924 3198 035 71040 100nF 10% 16V 0402
2925 3198 035 71040 100nF 10% 16V 0402
2926 3198 035 71040 100nF 10% 16V 0402
2927 3198 035 71040 100nF 10% 16V 0402
2928 3198 035 71040 100nF 10% 16V 0402
2929 3198 035 71040 100nF 10% 16V 0402
2930 3198 035 71040 100nF 10% 16V 0402
2931 3198 035 71040 100nF 10% 16V 0402
2932 3198 035 71040 100nF 10% 16V 0402
2933 3198 035 71040 100nF 10% 16V 0402
2934 4822 124 80151 47µF 16V
2935 3198 035 71040 100nF 10% 16V 0402
2936 3198 035 71040 100nF 10% 16V 0402
2937 3198 035 71040 100nF 10% 16V 0402
2938 3198 035 71040 100nF 10% 16V 0402
2939 3198 035 71040 100nF 10% 16V 0402
2940 4822 124 80151 47µF 16V
2941 3198 035 71040 100nF 10% 16V 0402
2942 3198 035 71040 100nF 10% 16V 0402
2945 5322 124 41945 22µF 20% 35V
2946 3198 035 71040 100nF 10% 16V 0402
2947 3198 035 71040 100nF 10% 16V 0402
2948 3198 035 71040 100nF 10% 16V 0402
2949 3198 035 71040 100nF 10% 16V 0402
2950 5322 124 41945 22µF 20% 35V
2951 3198 035 71040 100nF 10% 16V 0402
2952 3198 035 71040 100nF 10% 16V 0402
2953 3198 035 71040 100nF 10% 16V 0402
2954 3198 035 71040 100nF 10% 16V 0402
2955 5322 124 41945 22µF 20% 35V
2956 3198 035 71040 100nF 10% 16V 0402
2957 3198 035 71040 100nF 10% 16V 0402
2958 3198 035 71040 100nF 10% 16V 0402
2959 3198 035 71040 100nF 10% 16V 0402
2A01 2238 869 15101 100pF 5% 50V 0402
2A02 2238 869 15101 100pF 5% 50V 0402
