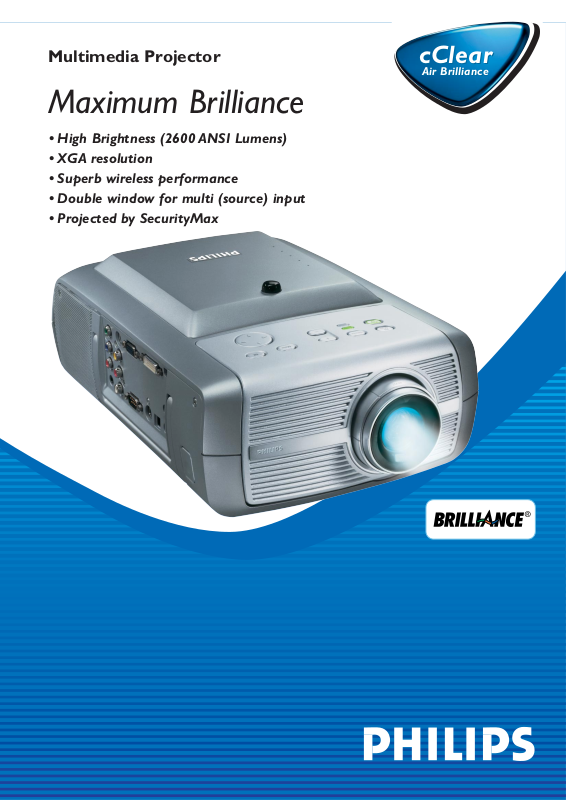

Page 1
Multimedia Projector
cClear
Air Brilliance
cClear
Air Brilliance
• High Brightness (2600 ANSI Lumens)
• XGA resolution
• Superb wireless performance
• Double window for multi (source) input
• Projected by SecurityMax
Maximum Brilliance
Page 2
LC4746 cClear Air Brilliance
LCD
3x 0.79" high-temperature poly-silicon active matrix LCD’s
Resolution XGA
Brightness 2600 ANSI lumens
dimmed 2000 ANSI lumens
Lamp 200 W Philips UHP
Avarage life time 2000 hours
Contrast 400:1
Fan noise 33 dB (30 dB in whisper mode)
Loudspeaker powerful 6 W speaker
Lens F/1.75 - 2.1 ; f = 26.7 - 31.8 mm
1.2x Manual Zoom; Manual Focus
Projection distance 1,0 - 10 m (image diagonal 30.3" - 303")
Input signals
Video NTSC 3.58, 4.43 ;PAL B,G,D,H,I,N,M ; SECAM
S-video/S-VHS (Y/C)
Component video input RGB-Y, YCbCr,YPbPr (480i,480p,576p,720p, 1080i)
Computer PC and MAC compatible, Multi scan VGA-SXGA
Horizontal scan rate: 15 - 108 kHz
Vertical refresh rate:50 - 120 Hz
Bandwidth: 140 MHz
Plug and play Display Data Channel DDC 1/2B
Compatibility Microsoft
®
Windows®95/98/ME/2000/XP compatible
Output signals
Audio Audio out
Input connectors
Video 3x RCA for Component in R/Pr/Cr,G/Y,B/Pb/Cb
1x 4 pin mini DIN Y/C for S-Video
1x RCA for CVBS Video
Computer 1x 15p D-sub for Data in
1x DVI-I (digital+ analogue)
Audio
Video 2x RCA for Audio L/R
Data 2x Audio in - 1/2 (3.5 mm jack) + USB-audio (see I/O)
Output connectors
Audio 1x Audio out - (3.5 mm jack)
I/O connectors 1x USB (type B) for Mouse,Audio, SecurityMax, ProjectorMax
1x PS/2 (mini Din)
1x RS232c for external control of projector
Features YourLogo
Double window for multi(source) input
SecurityMax
ProjectorMax
Philips Air system for silent operation
SmartSet™ automatic image quality optimisation
SmartSave™ auto-standby mode to increase effective lamp usage
Colour Tracking™
Keystone correction H:+/- 20 degrees,V: +/- 40 degrees, Digital Zoom and -Freeze
Digital Zoom (16X) and -Freeze
Kensington lock
Dimensions 235 x 335 x 121 mm (9.2"x13.2"x4.7")
Net weight 4.1 kg; 9.0 lbs
Power consumption
Operating voltage 100 - 240V, 50/60 Hz
Operation 255 W
Standby 2 W
Temperature range
Operational +5 to +35 °C (+41 to +95 °F)
Storage -25 to +70 °C (-13 to +158 °F)
Package wireless module build in *
Compact laser remote control
Power cord
Combined VGA-USB cable (1.5 m)
DVI cable (1.5 m)
Audio/Video cable (2 m)
S-video cable (2 m)
Monitor Y-cable
Scart adapter (scart to RCA audio/video)*
DVI-VGA adapter
Lenscap
Softbag
CD-ROM User Guide (UK, D,F, E,PT, NL, I,C).
QSC incl.Wireless QSQ
Warranty card + envelopes
Optional accessories 200 W replacement lamp (LCA3123/00)
Ceiling mount (LCA2211/00)
VGA extension cable, 15 meters (LCA5300/00)
Executions LC4746/17 USA version
LC4746/40 RoW version
LC4746/45 UK version
LC4746/48 China version
* : Compliant with Microsoft Win98, 2000,Me, XP,NT (IEEE802.11b compliant wireless LAN card)
3122 435 96391 03/07
*Check with your Philips dealer and/or warranly card for more details.
cClear Air Brilliance
www.ce.philips.com
technical specifications
Image diagonal size
(16:9)
Projection distance
Tele zoom Wide zoom
[inch]
40
60
70
80
100
150
200
250
[metres]
1,0
1,5
1,8
2,0
2,5
3,8
5,1
6,4
[inch]
62
94
109
125
156
234
312
390
[metres]
1,6
2,4
2,8
3,2
4,0
5,9
7,9
9,9
[inch]
52
78
91
104
130
195
260
325
[metres]
1,3
2,0
2,3
2,6
3,3
5,0
6,6
8,3
*
For optional* accessories please contact your dealer.
*
8 11 10 96 7
1 2 3 4 5
*
*
1
2
3
4
5
6
7
8
9
10
11
