Philips LC4.6L AA Schematic

Colour Television Chassis

LC4.6L

AA

E_14710_000.eps

240604

Contents Page Contents Page

1. Technical Specifications, Connections, and Chassis
Overview 2

2. Safety Instructions, Warnings, and Notes 4

3. Directions for Use 5

4. Mechanical Instructions 6

5. Service Modes, Error Codes, and Fault Finding 8

6. Block Diagrams, Testpoint Overviews, and

Waveforms

Wiring Diagram 15
Block Diagram Supply and Standby58+ 16
Testpoint Overview Supply and Standby 17
Block Diagram Tuner, Hercules and Audio 18
Block Diagram Scaler and Supply 19
Testpoint Overview SSB (Top Side) 20
I2C IC Overview 21
Supply Voltage Overview 22

7. Circuit Diagrams and PWB Layouts Diagram PWB
SSB: Tuner and VIF (A1) 23 40-49
SSB: Histogram and Hercules (A2) 24 40-49
SSB: Histogram and Hercules (A3) 25 40-49
SSB: Audio Delay line (Lipsync) (A4) 26 40-49
SSB: Audio Amplifier (A5) 27 40-49
SSB: TV Supply (A6) 28 40-49
SSB: Scaler (A7) 29 40-49
SSB: Scaler Supply (A8) 30 40-49
SSB: Scaler Interface (A9) 31 40-49
SSB: SDRAM (A10) 32 40-49
SSB: Flash / Control (A11) 33 40-49

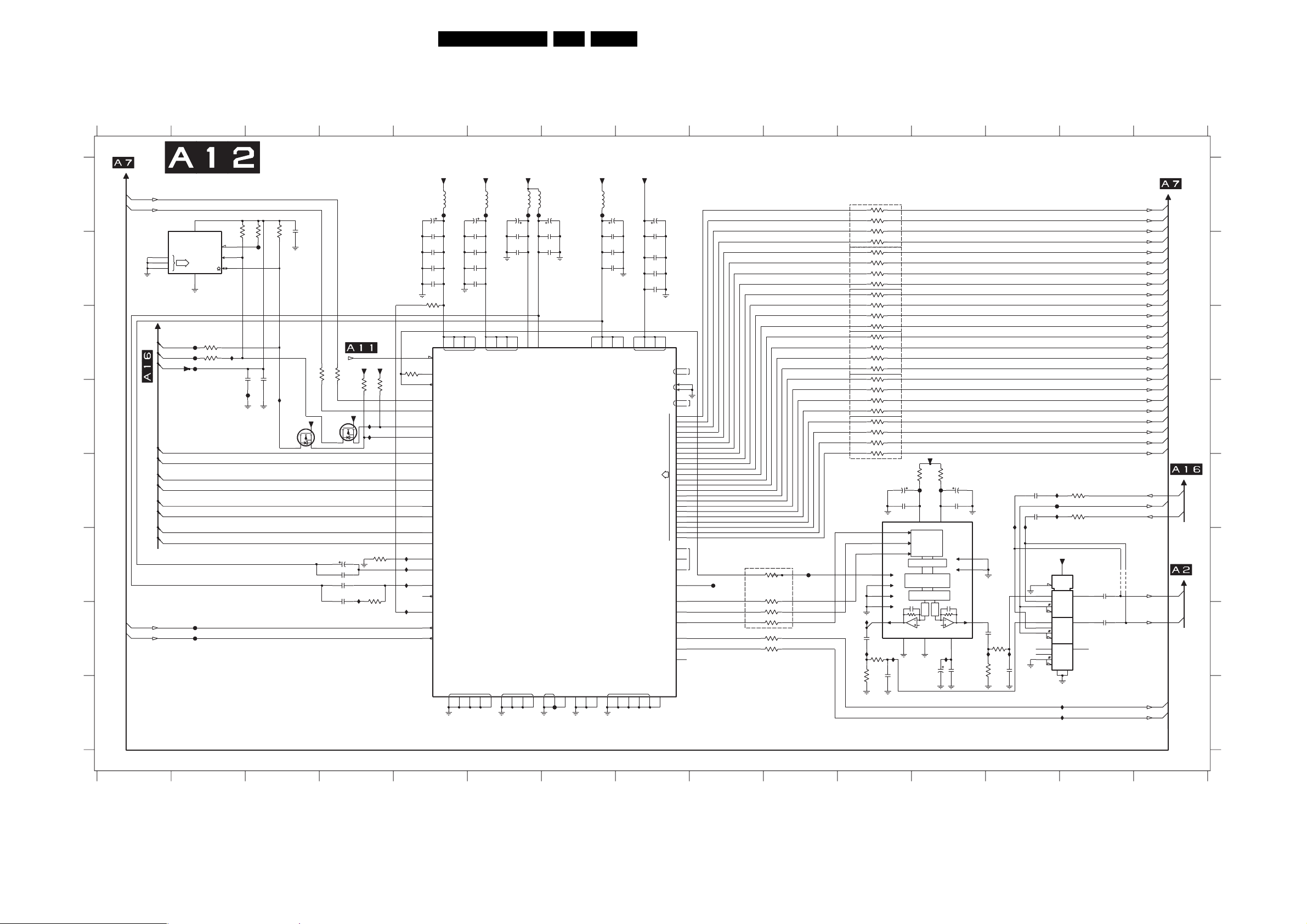

SSB: HDMI (A12) 34 40-49
SSB: PCHD MUX (A13) 35 40-49
SSB: Supply (A14) 36 40-49
SSB: DC-DC Converter (A15) 37 40-49
SSB: PCHD IO (A16) 38 40-49
SSB: Cinch IO (A17) 39 40-49

©

Copyright 2004 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.

PSU (30-32”): Mains Filter and Standby (AS1) 50 52-55
Power Supply Unit (30-32”): Supply (AS2) 51 52-55
Side I/O Panel (D) 56 57-59
Top Control Panel (E) 58 59
LED and Switch Panel (J) 60 61
LCD Standby Audio Panel: Connections (SA1) 62 65-67
LCD Standby Audio Panel: Standby (SA2) 63 65-67
LCD Standby Audio Panel: Audio (SA3) 64 65-67

8. Alignments 69

9. Circuit Descriptions, Abbreviation List, and IC Data
Sheets 73
Abbreviation List 78
IC Data Sheets 80

10. Spare Parts List 83

11. Revision List 90

Published by WO 0472 Service PaCE Printed in the Netherlands Subject to modification EN 3122 785 15180

EN 2 LC4.6L AA1.

Technical Specifications, Connections, and Chassis Overview

1. Technical Specifications, Connections, and Chassis Overview

Index of this chapter:

1.1 Technical Specifications

1.2 Connections

1.3 Chassis Overview

Note: Figures below can deviate slightly from the actual
situation, due to the different set executions.

1.1 Technical Specifications

1.1.1 Vision

Display type : LCD-IPS
Screen size : 30” (76 cm), 15:9
Resolution (HxV pixels) : 1280x768
Contrast ratio : 800:1 (AUO)
Light output (cd/m
Viewing angle (HxV degrees) : 170x170
Tuning system : PLL
TV Colour systems : NTSC M

Video playback : NTSC

Supported computer formats : VGA-60/67/72/75Hz

Supported video formats : 640x480p - 2fH
Channel selections : 100 presets

1.1.2 Sound

Sound systems : AV-stereo

Maximum power (W

2

) : 600 (AUO)

: PAL M/N
: SECAM D/K

: PAL

: SVGA-56/60/72/75Hz
: XVGA-60/70/75Hz

: UVSH

:BTSC dBx

) : 2 x 15

RMS

1.2 Connections

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.

1.2.1 Rear I/O Connections

AudioS-Video Video

LR

E_14710_005.eps

210404

Figure 1-1 Rear I/O connections (part 1)

(PDP)

(PDP)

19
18 2

Figure 1-2 Rear connections (part 2)

SIDE SVHS: Y/C - In

1 -Ground Y Gnd H
2 -Ground C Gnd H
3 -Video Y 1 V
4 -Video C 0.3 V

SIDE Cinch: CVBS - In, Audio - In

Rd - Audio R 0.5 V
Wh - Audio L 0.5 V
Ye - Video CVBS 1 V

1

5

10

6

1

15

11

/ 75 ohm j

PP

/ 75 ohm j

PP

/ 10kohm jq

RMS

/ 10kohm jq

RMS

/ 75 ohm jq

PP

(LCD)

E_14710_059.eps

260704

1.1.3 Miscellaneous

Power supply:

- AC Power voltage (V

) : 100 - 240

AC

- AC Power frequency (Hz) : 50/60

Ambient conditions:

- Temperature range : +5 to +40 °C

- Maximum humidity : 90% R.H.

Power consumption

- Normal operation (W) : 135

- Stand-by (W) : < 3

Dimensions (WxHxD) in cm : 89.1x48.9x11.0

Weight (kg) : 18

SIDE Mini Jack: Audio Head phone - Out

Bk - Head phone 32 - 600 ohm / 10 mW ot

AV3 HDMI: Digital Video - In, Digital Audio - In

19

18 2

1

E_06532_017.eps

050404

Figure 1-3 HDMI (type A) connector

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

Technical Specifications, Connections, and Chassis Overview

EN 3LC4.6L AA 1.

AV3 Cinch: Audio - In

Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

AV3 VGA: Video 2fH RGB - In

1

5

6

11

10

15

E_06532_002.eps

050404

Figure 1-4 VGA Connector

1 -Video Red 0.7 V
2 -Video Green 0.7 V
3 -Video Blue 0.7 V
4-n.c.

/ 75 ohm j

PP

/ 75 ohm j

PP

/ 75 ohm j

PP

5 -Ground Gnd H
6 -Ground Red Gnd H
7 -Ground

Green Gnd H

8 -Ground Blue Gnd H
9 - +5V_DC +5 V
10 - Gnd Sync Gnd H

j

DC

11 - n.c.
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j

AV2 Mini Jack: Video 1fH CVBS - In, Audio - In

1 - Audio R 0.5 V

/ 10 kohm jq

RMS

2 - Gnd CVBS Gnd H
3 - Video CVBS 1 V
4 - Audio L 0.5 V

/ 75 ohm jq

PP

/ 10 kohm jq

RMS

AV2 SVHS: Video 1fH Y/C - In

1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
4 - Video C 0.3 V

/ 75 ohm j

PP

/ 75 ohm j

PP

Monitor Out Mini Jack: Video CVBS - Out, Audio - Out

1 - Audio R 0.5 V
2 - Gnd CVBS Gnd H
3 - Video CVBS 1 V
4 - Audio L 0.5 V

/ 10 kohm kq

RMS

/ 75 ohm kq

PP

/ 10 kohm kq

RMS

AV1 Cinch: Video 1fH CVBS/YPbPr - In, Audio - In

Rd - Video Pr 0.7 V
Rd - Audio R 0.5 V
Wh - Video Pb 0.7 V
Wh - Audio L 0.5 V
Gn - Video Y 1 V
Ye - Video CVBS 1 V

/ 75 ohm jq

PP

/ 10 kohm jq

RMS

/ 75 ohm jq

PP

/ 10 kohm jq

RMS

/ 75 ohm jq

PP

/ 75 ohm jq

PP

Aerial - In

- - F-type Coax, 75 ohm D

Service connector 1 (UART)

1 - UART_TX Transmit data k
2 - Ground Gnd H
3 - UART_RX Receive data j

Service connector 2 (ComPair)

1 - SDA-S I
2 - SCL-S I

2

C Data (0 - 5 V) jk

2

C Clock (0 - 5 V) j

3 - Ground Gnd H

1.3 Chassis Overview

LCD PANEL

LED + SWITCH PANEL

J

SIDE I/O PANEL

D

Figure 1-5 PWB locations

TOP CONTROL PANEL

LCD STANDBY / AUDIO

LCD SUPPLY

SMALL SIGNAL BOARD

3D COMB FILTER
(ONLY FOR NTSC SETS)

E_14710_001.eps

E

SA

AS

A

CB

271204

EN 4 LC4.6L AA2.

Safety Instructions, Warnings, and Notes

2. Safety Instructions, Warnings, and Notes

Index of this chapter:

2.1 Safety Instructions

2.2 Warnings

2.3 Notes

2.1 Safety Instructions

Safety regulations require that during a repair:

• Connect the set to the AC Power via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the AC Power lead for external
damage.

• Check the strain relief of the AC Power cord for proper
function.

• Check the electrical DC resistance between the AC Power
plug and the secondary side (only for sets which have a AC
Power isolated power supply):

1. Unplug the AC Power cord and connect a wire

between the two pins of the AC Power plug.

2. Set the AC Power switch to the "on" position (keep the

AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

AC Power plug and the metal shielding of the tuner or
the aerial connection on the set. The reading should be
between 4.5 Mohm and 12 Mohm.

4. Switch "off" the set, and remove the wire between the

two pins of the AC Power plug.

• Check the cabinet for defects, to avoid touching of any
inner parts by the customer.

2.2 Warnings

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential. Available
ESD protection equipment:
– Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable and earth cable) 4822
310 10671.

– Wristband tester 4822 344 13999.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched "on".

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

2.3 Notes

2.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the

Service Default Mode (see chapter 5) with a colour bar
signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated
otherwise) and picture carrier at 475.25 MHz for PAL, or

61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages

with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

• The semiconductors indicated in the circuit diagram and in
the parts lists, are interchangeable per position with the
semiconductors in the unit, irrespective of the type
indication on these semiconductors.

• Manufactured under license from Dolby Laboratories.
“Dolby” and the “double-D symbol”, are trademarks of
Dolby Laboratories.

2.3.2 Schematic Notes

• All resistor values are in ohms and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 kohm).

• Resistor values with no multiplier may be indicated with
either an "E" or an "R" (e.g. 220E or 220R indicates 220
ohm).

• All capacitor values are given in micro-farads (µ= x10
nano-farads (n= x10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An "asterisk" (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed in the Spare Parts
list. Therefore, always check this list when there is any
doubt.

2.3.3 Rework on BGA (Ball Grid Array) ICs

General

Although (LF)BGA assembly yields are very high, there may
still be a requirement for component rework. By rework, we
mean the process of removing the component from the PWB
and replacing it with a new component. If an (LF)BGA is
removed from a PWB, the solder balls of the component are
deformed drastically so the removed (LF)BGA has to be
discarded.

Device Removal

As is the case with any component that, it is essential when
removing an (LF)BGA, the board, tracks, solder lands, or
surrounding components are not damaged. To remove an
(LF)BGA, the board must be uniformly heated to a temperature
close to the reflow soldering temperature. A uniform
temperature reduces the chance of warping the PWB.
To do this, we recommend that the board is heated until it is
certain that all the joints are molten. Then carefully pull the
component off the board with a vacuum nozzle. For the
appropriate temperature profiles, see the IC data sheet.

Area Preparation

When the component has been removed, the vacant IC area
must be cleaned before replacing the (LF)BGA.
Removing an IC often leaves varying amounts of solder on the
mounting lands. This excessive solder can be removed with
either a solder sucker or solder wick. The remaining flux can be
removed with a brush and cleaning agent.
After the board is properly cleaned and inspected, apply flux on
the solder lands and on the connection balls of the (LF)BGA.
Note: Do not apply solder paste, as this has shown to result in
problems during re-soldering.

-9

), or pico-farads (p= x10

-12

-6

),

).

Directions for Use

EN 5LC4.6L AA 3.

Device Replacement

The last step in the repair process is to solder the new
component on the board. Ideally, the (LF)BGA should be
aligned under a microscope or magnifying glass. If this is not
possible, try to align the (LF)BGA with any board markers.
So as not to damage neighbouring components, it may be
necessary to reduce some temperatures and times.

More Information

For more information on how to handle BGA devices, visit this
URL: www.atyourservice.ce.philips.com
not available for all regions). After login, select “Magazine”,
then go to “Workshop Information”. Here you will find
Information on how to deal with BGA-ICs.

2.3.4 Lead Free Solder

Philips CE is going to produce lead-free sets (PBF) from

1.1.2005 onwards.

(needs subscription,

P

b

Figure 2-1 Lead-free logo

This sign normally has a diameter of 6 mm, but if there is less
space on a board also 3 mm is possible.

Regardless of this logo (is not always present), one must treat
all sets from this date onwards according to the following rules.

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin Philips SAC305 with order
code 0622 149 00106. If lead-free solder paste is required,
please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able
– To reach at least a solder-tip temperature of 400°C.
– To stabilise the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature around 360°C

- 380°C is reached and stabilised at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of

tips will rise drastically and flux-fluid will be destroyed. To
avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If not to avoid, clean carefully the
solder-joint from old tin and re-solder with new tin.

• Use only original spare-parts listed in the Service-Manuals.
Not listed standard material (commodities) has to be
purchased at external companies.

• Special information for lead-free BGA ICs: these ICs will be
delivered in so-called "dry-packaging" to protect the IC
against moisture. This packaging may only be opened
short before it is used (soldered). Otherwise the body of the
IC gets "wet" inside and during the heating time the
structure of the IC will be destroyed due to high (steam­)pressure inside the body. If the packaging was opened
before usage, the IC has to be heated up for some hours
(around 90°C) for drying (think of ESD-protection!).
Do not re-use BGAs at all!

• For sets produced before 1.1.2005, containing leaded
soldering tin and components, all needed spare parts will
be available till the end of the service period. For the repair
of such sets nothing changes.

In case of doubt whether the board is lead-free or not (or with
mixed technologies), you can use the following method:

• Always use the highest temperature to solder, when using
SAC305 (see also instructions below).

• De-solder thoroughly (clean solder joints to avoid mix of
two alloys).

Caution: For BGA-ICs, you must use the correct temperature­profile, which is coupled to the 12NC. For an overview of these
profiles, visit the website www.atyourservice.ce.philips.com
(needs subscription, but is not available for all regions)
You will find this and more technical information within the
"Magazine", chapter "Workshop information".
For additional questions please contact your local repair help
desk.

2.3.5 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.
While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be
dangerous in themselves, they can cause unexpected
reactions - reactions that are best avoided. Before reaching
into a powered TV set, it is best to test the high voltage
insulation. It is easy to do, and is a good service precaution.

3. Directions for Use

You can download this information from the following web
sites:

http://www.philips.com/support
http://www.p4c.philips.com

EN 6 LC4.6L AA4.

Mechanical Instructions

4. Mechanical Instructions

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assy/Panel Removal

4.4 Set Re-assembly

4.1 Cable Dressing

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

• Follow the disassemble instructions in described order.

4.2 Service Positions

For easy servicing of this set, there are a few possibilities
created:

• The buffers from the packaging (see figure "Rear cover").

• Foam bars (created for service).

• Aluminium service stands (created for Service).

4.2.1 Foam Bars

E_06532_018.eps

Figure 4-2 Foam bars

The foam bars (order code 3122 785 90580 for two pieces) can
be used for all types and sizes of Flat TVs. By laying the TV
face down on the (ESD protective) foam bars, a stable situation
is created to perform measurements and alignments.
By placing a mirror under the TV, you can monitor the screen.

Figure 4-1 Cable dressing

170504

E_14710_011.eps

020804

4.2.2 Aluminium Stands

E_06532_019.eps

170504

Figure 4-3 Aluminium stands (drawing of MkI)

The aluminium stands (order code 3122 785 90480) can be
mounted with the back cover removed or still left on. So, the
stand can be used to store products or to do measurements. It
is also very suitable to perform duration tests without taking
much space, without having the risk of overheating, or the risk
of products falling. The stands can be mounted and removed
quick and easy with use of the delivered screws that can be
tightened and loosened manually without the use of tools. See
figure above.

Note: Only use the delivered screws to mount the monitor to
the stands.

Mechanical Instructions

EN 7LC4.6L AA 4.

4.3 Assy/Panel Removal

4.3.1 Rear Cover

Warning: Disconnect the mains power cord before you remove

the rear cover.

1. Remove the screws, which secure the rear cover. The
screws are located at the top, bottom, left and right sides;
next to the Side/IO and Rear connections. There are also
three deeper located screws next to the stands.

2. Lift the rear cover from the cabinet. Make sure that wires
and flat foils are not damaged during cover removal.

4.3.2 Side I/O Panel

1. Disconnect the cable from the panel.

2. To replace the complete bracket, remove the two fixation
screws on either side of the panel.

3. Release the two fixation clamps and lift the panel out of the
bracket.

4.3.3 LED/Switch Panel

1. Remove the two fixation screws.

2. Disconnect the cable from the rear of the panel.

4.3.4 Top Control Panel

4. Release the plastic cable clips (4) on the shielding and
disconnect all cables from the SSB.
Note: Be careful with the fragile LVDS connector on the
SSB.

5. Now, completely remove the SSB (together with all the
shieldings) from the set. Once the SSB is out, remove the
fixation screws (5) from the shielding.

6. Remove the shielding, it hinges at the left side (acc. photo).

7. Remove the fixation screws that hold the panel(s), and take
out the panel(s).

Notes:

• Pay special attention to the EMC foam on the SSB
shielding. Replace in initial positions during re-assembly.

• Insulate the tuner pins, so they cannot touch the shielding
(see also figure “SDM Service jumper” in Chapter 5).

4.3.6 LCD Supply Panel

1. Disconnect all cables from the panel.

2. Remove the fixation screws and take out the panel.

4.3.7 LCD Stand-by/Audio Panel

1. Disconnect all cables from the panel.

2. Remove the fixation screws and take out the panel.

4.3.8 LCD Panel

1. Remove the two fixation screws.

2. Release the two fixation clamps and lift the panel out of the
bracket.

4.3.5 Small Signal Panel (SSB) and Side I/O Panel

2

(PDP)

(PDP)

19

18 2

1

5

10

6

1

15

11

3

1

Figure 4-4 SSB Connector plate

5

4

E_14710_003.eps

Figure 4-5 Shielding of the SSB

1. Remove the middle fixation screw (1) from the bottom side
of the connector plate (as this holds the SSB bracket).
Note: Sometimes it is easier to loosen the complete
connector plate and remove it together with the SSB.

2. Remove all connector fixation screws (2) from the front
side of the connector plate.

3. Remove the two female screw locks (3) of the VGA
connector.

210404

(LCD)

E_14710_060.eps

030804

1

2

4

4

3

2

1

Figure 4-6 LCD panel disassembly

1. Remove the T10 screws (1) from the mounting frame.

2. Remove all mounting LCD panel T20 screws (2).

3. Important: Unplug the LVDS connector (3) at the LCD
panel. Be careful, as this is a very fragile connector!

4. Unplug the following connectors (4).
– LCD back light (disconnect at the LCD side)
– Loudspeaker (easiest to disconnect at the speaker and

to release the cable holders a little.
– Top Control cable (disconnect at SSB side).
– Cable between LED/Switch panel and SSB.

5. Lift the metal frame (together with all PWBs) from the LCD
panel.

6. After removal of the frame, you can lift the LCD display
from the set.

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Notes:

• While re-assembling, make sure that all cables are placed
and connected in their original position. See figure "Wire
dressing".

• Pay special attention not to damage the EMC foams at the
SSB shielding. Check that EMC foams are put correctly in
place.

4

4

E_14710_061.eps

030804

EN 8 LC4.6L AA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Problems and Solving Tips Related to CSM

5.4 ComPair

5.5 Error Codes

5.6 The Blinking LED Procedure

5.7 Fault Finding and Repair Tips

5.1 Test Points

This chassis is equipped with test points in the service printing.
In the schematics test points are identified with a rectangle box
around Fxxx or Ixxx. These test points are specifically
mentioned in the service manual as “half moons” with a dot in
the centre.
Perform measurements under the following conditions:

• Television set in Service Default Alignment Mode.

• Video input: Colour bar signal.

• Audio input: 3 kHz left channel, 1 kHz right channel.

5.2 Service Modes

Service Default mode (SDM) and Service Alignment Mode
(SAM) offers several features for the service technician, while
the Customer Service Mode (CSM) is used for communication
between the call centre and the customer.

This chassis also offers the option of using ComPair, a
hardware interface between a computer and the TV chassis. It
offers the abilities of structured troubleshooting, error code
reading, and software version read-out for all chassis.
Minimum requirements for ComPair: a Pentium processor, a
Windows OS, and a CD-ROM drive (see also paragraph
"ComPair").

How to enter

To enter SDM, use one of the following methods:

• Press the following key sequence on the remote control
transmitter: “062596” directly followed by the MENU button
(do not allow the OSD display to time out between entries
while keying the sequence).

• Short SDM jumper (item 4022, see Figure "Service
jumper") on the TV board and apply AC Power. Remove
the short after start-up.
Caution: Entering SDM by shorting "Service" jumpers will
override the software protections. Do this only for a short
period. When doing this, the service-technician must

know exactly what he is doing, as it could damage the
television set.

SDM

I2C UART

E_14710_062.eps

260804

5.2.1 Service Default Mode (SDM)

Purpose

• To create a predefined setting for measurements to be
made.

• To override software protections.

• To start the blinking LED procedure.

• To inspect the error buffer.

• To check the life timer.

Specifications

Table 5-1 SDM default settings

Region Freq. (MHz) Default system

Europe, AP-PAL/Multi 475.25 PAL B/G

NAFTA, AP-NTSC, LATAM 61.25 (ch. 3) NTSC M

• All picture settings at 50% (brightness, colour , contrast).

• Bass, treble and balance at 50%; volume at 25%.

• All service-unfriendly modes (if present) are disabled. The
service unfriendly modes are:
– Timer / Sleep timer.
– Child / parental lock.
–Blue mute.
– Hotel / hospital mode.
– Auto shut off (when no “IDENT” video signal is

received for 15 minutes).
– Skipping of non-favourite presets / channels.
– Auto-storage of personal presets.
– Auto user menu time-out.
– Auto Volume Levelling (AVL).

Figure 5-1 SDM Service jumper

After entering SDM, the following screen is visible, with SDM in
the upper right corner of the screen to indicate that the
television is in Service Default Alignment Mode.

00022 LC42EP1 2.03/S42GV1 2.02 SDM
ERR 0 0 0 0 0
OP 000 057 140 032 120 128 000

E_14710_006.eps

240604

Figure 5-2 SDM menu (example from LC4.2E)

How to navigate

When you press the MENU button on the remote control, the
set will switch on the normal user menu in the SDM mode.

How to exit

Switch the set to STANDBY by pressing the POWER button on
the remote control transmitter.

Service Modes, Error Codes, and Fault Finding

EN 9LC4.6L AA 5.

If you turn the television set off by removing the mains (i.e.,
unplugging the television) or by using the POWER button on
the TV set, the television set will remain in SDM when mains is
re-applied, and the error buffer is not cleared.

5.2.2 Service Alignment Mode (SAM)

Purpose

• To change option settings.

• To display / clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, Error codes, and Option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (Tuner, White Tone, Geometry, and
Audio).

• NVM Editor.

• ComPair Mode switching.

How to enter

Press the following key sequence on the remote control
transmitter: “062596" directly followed by the OSD/STATUS/
INFO button (do not allow the OSD display to time out between
entries while keying the sequence).

After entering SAM, the following screen is visible, with SAM in
the upper right corner of the screen to indicate that the
television is in Service Alignment Mode.

00022 LC42EP1 2.03/S42GV1 2.02 SAM
ERR 0 0 0 0 0

OP 000 057 140 032 120 128 000

. Clear Clear ?
. Options
. Tuner
. White Tone
. Audio
. NVM Editor
. SC NVM Editor
. Test Pattern
. ComPair Mode On

E_14710_007.eps

240604

– YY= the sub software version number (updated with a

minor change that is compatible with previous

versions).
– EEEEEE= the Scaler SW cluster
– F= the Scaler SW version no.
– GG= the sub-version no.

3. SAM. Indication of the Service Alignment Mode.

4. Error Buffer (ERR). Shows all errors detected since the
last time the buffer was erased. Five errors possible.

5. Option Bytes (OP). Shows all option settings. See
“Options” in the Alignments section for a detailed
description. Seven codes are available.

6. Clear. Erases the contents of the error buffer. Select the
CLEAR menu item and press the CURSOR RIGHT key.
The content of the error buffer is cleared.

7. Options. Used to set the option bits. See “Options” in the
Alignments section for a detailed description.

8. Tuner. Used to align the tuner. See “Tuner” in the
Alignments section for a detailed description.

9. White Tone. Used to align the white tone. See “White
Tone” in the Alignments section for a detailed description.

10. Audio. No audio alignment is necessary for this television
set.

11. NVM Editor. Can be used to change the NVM data in the
television set.

12. SC NVM Editor. Can be used to edit Scaler NVM.

13. Test Pattern. For future use.

14. ComPair. Can be used to switch the television to “In
System Programming” (ISP) mode, for software uploading
via ComPair.
Caution: When this mode is selected without ComPair
connected, the TV will be blocked. Remove the AC power
to reset the TV.

How to navigate

• In SAM, select menu items with the CURSOR UP/DOWN
keys on the remote control transmitter. The selected item
will be highlighted. When not all menu items fit on the
screen, use the CURSOR UP/DOWN keys to display the
next / previous menu items.

• With the CURSOR LEFT/RIGHT keys, it is possible to:
– Activate the selected menu item.
– Change the value of the selected menu item.
– Activate the selected submenu.

• In SAM, when you press the MENU button twice, the set
will switch to the normal user menus (with the SAM mode
still active in the background). To return to the SAM menu
press the MENU button again.

• When you press the MENU key in while in a submenu, you
will return to the previous menu.

Figure 5-3 SAM menu (example from LC4.2E)

Menu explanation

1. LLLLL. This represents the run timer. The run timer counts
normal operation hours (including “on/off” switching), but
does not count stand-by hours.

2. AAAABCD-X.YY/EEEEEE_F.GG. This is the software
identification of the Main/Scaler microprocessor:
– A= the chassis name.
– B= the region: E= Europe, A= Asia Pacific, U= NAFTA,

L= LATAM.

– C= the software diversity:

• Europe: T= 1 pg TXT, F= Full TXT, V= Voice ctrl.

• LATAM and NAFTA: N= Stereo non-dBx,
S= Stereo dBx.

• Asian Pacific: T= TXT, N= non-TXT, C= NTSC.

• ALL regions: M= mono, D= DVD, Q= Mk2.

– D= the language cluster number.
– X= the Main software version number (updated with a

major change that is incompatible with previous
versions).

How to store SAM settings

To store the settings changed in SAM mode, leave the top level
SAM menu by using the POWER button on the remote control
transmitter or the television set.

How to exit

Switch the set to STANDBY by pressing the POWER button on
the remote control transmitter or on the television set.

5.2.3 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and
information on the TV’s operation settings. The call centre can
instruct the customer (by telephone) to enter CSM in order to
identify the status of the set. This helps the call centre to
diagnose problems and failures in the TV set before making a
service call.
The CSM is a read-only mode; therefore, modifications are not
possible in this mode.

EN 10 LC4.6L AA5.

Service Modes, Error Codes, and Fault Finding

How to enter

To enter CSM, press the following key sequence on the remote
control transmitter: “123654” (do not allow the OSD display to
time out between entries while keying the sequence).

Upon entering the Customer Service Mode, the following
screen will appear:

1 00022 LC42EP1 2.03/S42GV1 2.02 CSM
2 CODES 0 0 0 0 0
3 OP 000 057 140 032 120 128 000
4
5
6 NOT TUNED
7 PAL
8 STEREO
9 CO 50 CL 50 BR 50
0 AVL Off

E_14710_008.eps

240604

Figure 5-4 CSM menu (example from LC4.2E)

Menu explanation

1. Indication of the decimal value of the operation hours
counter, Main/Scaler software version (see "Service
Alignment Mode" for an explanation), and service mode
(CSM= Customer Service Mode).

2. Displays the last five errors detected in the error code
buffer.

3. Displays the option bytes.

4. Displays the type number version of the set (option).

5. Reserved.

6. Indicates the television is receiving an "IDENT" signal on
the selected source. If no "IDENT" signal is detected, the
display will read "NOT TUNED"

7. Displays the detected Colour system (e.g. PAL/NTSC).

8. Displays the detected Audio (e.g. stereo/mono).

9. Displays the picture setting information.

10. Displays the sound setting information.

How to exit

To exit CSM, use one of the following methods:

• Press the MENU, STATUS (or EXIT/INFO/[i+]), or POWER
button on the remote control transmitter.

• Press the POWER button on the television set.

5.3 Problems and Solving Tips Related to CSM

5.3.1 Picture Problems

Note: The problems described below are all related to the TV

settings. The procedures used to change the value (or status)
of the different settings are described.

Picture too dark or too bright

If:

• The picture improves when you press the AUTO PICTURE
button on the remote control transmitter, or

• The picture improves when you enter the Customer
Service Mode,

Then:

1. Press the AUTO PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.

3. In the normal user menu, use the CURSOR UP/DOWN
keys to highlight the PICTURE sub menu.

4. Press the CURSOR LEFT/RIGHT keys to enter the
PICTURE sub menu.

5. Use the CURSOR UP/DOWN keys (if necessary) to select
BRIGHTNESS.

6. Press the CURSOR LEFT/RIGHT keys to increase or
decrease the BRIGHTNESS value.

7. Use the CURSOR UP/DOWN keys to select PICTURE.

8. Press the CURSOR LEFT/RIGHT keys to increase or
decrease the PICTURE value.

9. Press the MENU button on the remote control transmitter
twice to exit the user menu.

10. The new PERSONAL preference values are automatically
stored.

White line around picture elements and text

If:

The picture improves after you have pressed the AUTO
PICTURE button on the remote control transmitter,

Then:

1. Press the AUTO PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.

3. In the normal user menu, use the CURSOR UP/DOWN
keys to highlight the PICTURE sub menu.

4. Press the CURSOR LEFT/RIGHT keys to enter the
PICTURE sub menu.

5. Use the CURSOR UP/DOWN keys to select
SHARPNESS.

6. Press the CURSOR LEFT key to decrease the
SHARPNESS value.

7. Press the MENU button on the remote control transmitter
twice to exit the user menu.

8. The new PERSONAL preference value is automatically
stored.

Snowy picture

Check CSM line 6. If this line reads “Not Tuned”, check the
following:

• Antenna not connected. Connect the antenna.

• No antenna signal or bad antenna signal. Connect a proper
antenna signal.

• The tuner is faulty (in this case line 2, the Error Buffer line,
will contain error number 10). Check the tuner and replace/
repair the tuner if necessary.

Black and white picture

If:

• The picture improves after you have pressed the AUTO
PICTURE button on the remote control transmitter,

Then:

1. Press the AUTO PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.

3. In the normal user menu, use the CURSOR UP/DOWN
keys to highlight the PICTURE sub menu.

4. Press the CURSOR LEFT/RIGHT keys to enter the
PICTURE sub menu.

5. Use the CURSOR UP/DOWN keys to select COLOR.

6. Press the CURSOR RIGHT key to increase the COLOR
value.

Service Modes, Error Codes, and Fault Finding

EN 11LC4.6L AA 5.

7. Press the MENU button on the remote control transmitter
twice to exit the user menu.

8. The new PERSONAL preference value is automatically
stored.

Menu text not sharp enough

If:

• The picture improves after you have pressed the AUTO
PICTURE button on the remote control transmitter,

Then:

1. Press the AUTO PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.

3. In the normal user menu, use the CURSOR UP/DOWN
keys to highlight the PICTURE sub menu.

4. Press the CURSOR LEFT/RIGHT keys to enter the
PICTURE sub menu.

5. Use the CURSOR UP/DOWN keys to select PICTURE.

6. Press the CURSOR LEFT key to decrease the PICTURE
value.

7. Press the MENU button on the remote control transmitter
twice to exit the user menu.

8. The new PERSONAL preference value is automatically
stored.

5.4 ComPair

5.4.1 Introduction

ComPair (Computer Aided Repair) is a service tool for Philips
Consumer Electronics products. ComPair is a further
development on the European DST (service remote control),
which allows faster and more accurate diagnostics. ComPair
has three big advantages:

• ComPair helps you to quickly get an understanding on how
to repair the chassis in a short time by guiding you
systematically through the repair procedures.

• ComPair allows very detailed diagnostics (on I
is therefore capable of accurately indicating problem areas.
You do not have to know anything about I
yourself because ComPair takes care of this.

• ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the
microprocessor is working) and all repair information is
directly available. When ComPair is installed together with
the Force/SearchMan electronic manual of the defective
chassis, schematics and PWBs are only a mouse click
away.

5.4.2 Specifications

ComPair consists of a Windows based fault finding program
and an interface box between PC and the (defective) product.
The ComPair interface box is connected to the PC via a serial
(or RS-232) cable.
For this chassis, the ComPair interface box and the TV
communicate via a bi-directional service cable via the service
connector(s).

The ComPair fault finding program is able to determine the
problem of the defective television. ComPair can gather
diagnostic information in two ways:

• Automatic (by communication with the television): ComPair
can automatically read out the contents of the entire error
buffer. Diagnosis is done on I
access the I
send and receive I

2

C/UART bus of the television. ComPair can

2

C/UART commands to the micro

controller of the television. In this way, it is possible for

2

C/UART level. ComPair can

2

C level) and

2

C commands

ComPair to communicate (read and write) to devices on

2

the I

C/UART buses of the TV-set.

• Manually (by asking questions to you): Automatic
diagnosis is only possible if the micro controller of the
television is working correctly and only to a certain extend.
When this is not the case, ComPair will guide you through
the fault finding tree by asking you questions (e.g. Does the

screen give a picture? Click on the correct answer: YES /
NO) and showing you examples (e.g. Measure test-point I7
and click on the correct oscillogram you see on the
oscilloscope). You can answer by clicking on a link (e.g.

text or a waveform picture) that will bring you to the next
step in the fault finding process.

By a combination of automatic diagnostics and an interactive
question / answer procedure, ComPair will enable you to find
most problems in a fast and effective way.

Beside fault finding, ComPair provides some additional
features like:

• Up- or downloading of pre-sets.

• Managing of pre-set lists.

• Emulation of the (European) Dealer Service Tool (DST).

• If both ComPair and Force/SearchMan (Electronic Service
Manual) are installed, all the schematics and the PWBs of
the set are available by clicking on the appropriate
hyperlink.

Example: Measure the DC-voltage on capacitor C2568
(Schematic/Panel) at the Mono-carrier.

– Click on the “Panel” hyperlink to automatically show

the PWB with a highlighted capacitor C2568.

– Click on the “Schematic” hyperlink to automatically

show the position of the highlighted capacitor.

5.4.3 How To Connect

This is described in the chassis fault finding database in
ComPair.

TO

UART SERVICE

CONNECTOR

PC VCR I2CPower

I2C SERVICE
CONNECTOR

9V DC

E_06532_021.eps

180804

TO

Figure 5-5 ComPair interface connection

5.4.4 How To Order

ComPair order codes (EU/AP/LATAM):

• Starter kit ComPair32/SearchMan32 software and
ComPair interface (excl. transformer): 3122 785 90450.

• ComPair interface (excluding transformer): 4822 727

21631.

• Starter kit ComPair32 software (registration version): 3122
785 60040.

• Starter kit SearchMan32 software: 3122 785 60050.

• ComPair32 CD (update): 3122 785 60070 (year 2002),
3122 785 60110 (year 2003 onwards).

• SearchMan32 CD (update): 3122 785 60080 (year 2002),
3122 785 60120 (year 2003), 3122 785 60130 (year 2004).

• ComPair firmware upgrade IC: 3122 785 90510.

• Transformer (non-UK): 4822 727 21632.

• Transformer UK: 4822 727 21633.

• ComPair interface cable: 3122 785 90004.

• ComPair interface extension cable: 3139 131 03791.

• ComPair UART interface cable: 3122 785 90630

Note: If you encounter any problems, contact your local
support desk.

EN 12 LC4.6L AA5.

Service Modes, Error Codes, and Fault Finding

5.5 Error Codes

The error code buffer contains all errors detected since the last
time the buffer was erased. The buffer is written from left to
right. When an error occurs that is not yet in the error code
buffer, it is displayed at the left side and all other errors shift one
position to the right.

5.5.1 How To Read The Error Buffer

You can read the error buffer in 3 ways:

• On screen via the SAM (if you have a picture).
Examples:
– ERROR: 0 0 0 0 0: No errors detected
– ERROR: 6 0 0 0 0: Error code 6 is the last and only

detected error

– ERROR: 9 6 0 0 0: Error code 6 was detected first and

error code 9 is the last detected (newest) error

• Via the blinking LED procedure (when you have no
picture). See “The Blinking LED Procedure”.

•Via ComPair.

5.5.2 How To Clear The Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu:
– To enter SAM, press the following key sequence on the

remote control transmitter: “062596” directly followed
by the OSD/STATUS button (do not allow the OSD
display to time out between entries while keying the
sequence).

– Make sure the menu item CLEAR is highlighted. Use

the CURSOR UP/DOWN buttons, if necessary.

– Press the CURSOR RIGHT button to clear the error

buffer. The text on the right side of the “CLEAR” line will
change from “CLEAR?” to “CLEARED”

• If an error does not re-occur within 50 hours it is deleted
from the error buffer.

5.5.3 Error Codes

In case of non-intermittent faults, write down the errors present
in the error buffer and clear the error buffer before you begin
the repair. This ensures that old error codes are no longer
present.
If possible, check the entire contents of the error buffer. In
some situations, an error code is only the result of another error
and not the actual cause of the problem (for example, a fault in
the protection detection circuitry can also lead to a protection).

Table 5-2 Error code overview

Error Device Error description Check item Diagram

0 Not applicable - - -

1 Not applicable - - -

2 Not applicable - - -

3 Not applicable - - -

4 GM1501

Scaler

Flash-ROM

5 Not applicable +5V protection 7930 A6

6 I2C bus General I2C error 7011, 3088, 3096 A2

7 Not applicable - - -

8M24C32 I2C error while

9M24C16 I2C error while

10 Tuner I2C error while

11 Not applicable - - -

12 Not applicable - - -

13 Not applicable - - -

14 K4D263238M Read-write error

15 TDA9178T/N1 I

16 TDA9178T/N1 I2C error while

2

I

C error while
communicating with
the Genesis Scaler
and/or Flash-ROM
is faulty/empty

communicating with
the Scaler EEPROM

communicating with
the EEPROM

communicating with
the PLL tuner

with the Scaler
SDRAM

2

C error while
communicating with
Histogram

communicating with
EPLD on Pixel Plus
panel

7401

7530

7531 A11

7099 A2

1302, 3302, 3303, 3327 A1

7501 A10

7560 A3

7560 A3

5.6 The Blinking LED Procedure

Using this procedure, you can make the contents of the error
buffer visible via the front LED. This is especially useful when
there is no picture.

When the SDM is entered, the front LED will blink the contents
of the error-buffer:

• The LED blinks with as many pulses as the error code
number, followed by a time period of 1.5 seconds, in which
the LED is “off”.

• Then this sequence is repeated.

Any RC5 command terminates this sequence.

Example of error buffer: 12 9 6 0 0
After entering SDM, the following occurs:

• 1 long blink of 5 seconds to start the sequence,

• 12 short blinks followed by a pause of 1.5 seconds,

• 9 short blinks followed by a pause of 1.5 seconds,

• 6 short blinks followed by a pause of 1.5 seconds,

• 1 long blink of 1.5 seconds to finish the sequence,

• The sequence starts again at 12 short blinks.

A7

A11

Service Modes, Error Codes, and Fault Finding

EN 13LC4.6L AA 5.

5.7 Fault Finding and Repair Tips

Notes:

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

5.7.1 NVM Editor

In some cases, it can be handy if one directly can change the
NVM contents. This can be done with the “NVM Editor” in SAM
mode. With this option, single bytes can be changed.

Table 5-3 NVM editor overview

Hex Dec Description

.ADR 0x000A 10 Existing value

.VAL 0x0000 0 New value

.Store Store ?

5.7.2 Load default NVM values

In case a blank NVM is placed or when the NVM content is
corrupted, default values can be downloaded into the NVM.
After the default values are downloaded it will be possible to
start up and to start aligning the TV set. This is no longer
initiated automatically; to initiate the download the following
action has to be performed:

1. Switch “off” the TV set via the AC Power switch.

2. Short circuit the SDM jumpers (keep short-circuited).

3. Press P+ or Ch+ on the local keyboard (and keep it
pressed).

4. Switch on the TV set via the AC Power switch.

5. When the set has started, the P+/Ch+ button can be
released and the short circuit of the SDM jumpers can be
removed.

6. The red LED will be on continuously to indicate that the
download is initiated (normally when SDM is activated the
red LED will start with the Blinking LED sequence).

7. Wait +/- 30 s (time needed to download default values to
the NVM).

No picture display

1. Check the RGB signal.

2. If it is present, check 3-IC7016 (NE555).

3. If it has output, the problem is in SCALER part.

4. Otherwise, check H-out on pin 2 of NE555. If the input
signal of pin2 is present, but no output, the IC is defect.

Note:

• If the H-out (pin 67) doesn’t have signal or the level is low,
check the output of NE555 (pin 3) during start up.

• If the H-out (pin 67) has a signal (or has a signal for a very
short time), change IC7016 (NE555).

No TV but PC is present

1. Check if HSYNC and VSYNC are present at pin 3 of 7017
and 7015.

2. If they are present, check RGB output.

3. If there is no RGB output, the IC TDA120xx can be defect.

5.7.5 Power Supply

This power supply contains two fuses. One is near the AC
Power (mains) inlet connector 1308 and the other is near
connector 1307.

1. Check with power supply in “off” state by means of ohmic
measurement.

2. Fuse 1400 may open in case of severe lightning strikes
and/or failures in the power supply.

3. Fuses 1401 may open in case of a problem with the Stand­by Supply. Replacement of the fuse is needed, but not
before the cause of the overload conditions is resolved.

5.7.3 Tuner and IF

No Picture in RF mode

1. Check whether picture is present in AV. If not, go to Video
processing troubleshooting section.

2. If present, check that the Option settings are correct.

3. Check that all supply voltages are present.

4. Check if I

5. Manually store a known channel and check if there is IF
output at Tuner pin 11.

6. Feed in 105 dBuV at Tuner pin 11 and check whether there
is RGB output from Video Processing IC. If yes, Tuner may
be defect. Replace Tuner.

Required system is not selected correctly

1. Check whether a Service jumper (#4022, 0805 size) is
present. If yes, remove it.

5.7.4 Video Processing

No power

1. Check +12 V and 3V3 at position 1910.

2. If no supply, check the connector 1910.

3. If it is correct, check the power supply board.

Power supply is correct but no green LED

1. Check if connectors 1005 and 1601 are properly inserted.

2. If yes, check if the 3V3 is present.

2

C lines are working correctly (3.3V).

EN 14 LC4.6L AA5.

Personal Notes:

Service Modes, Error Codes, and Fault Finding

E_06532_012.eps

131004

Block Diagrams, Testpoint Overviews, and Waveforms

6. Block Diagrams, Testpoint Overviews, and Waveforms

Wiring Diagram

15LC4.6L AA 6.

WIRING DIAGRAM

Lspeak

posilock

Right

Speaker

8735

LPL

AUO

AUO

8313

8312

8317

8315

Standby Supply/Audio

SA

2P3

2P3

7P

1MO2

16P

1313

1736

1735

16P

1312

0345

3P

9P

1739

10P

12P

1317

1315

1309

Top Control Panel

E

4P

1304

3P

LVDS CONNECTOR

8350

1M46

11P

1306

1307

1305

1M03

2P

4P

3P

10P

8302

8304

8309

8303

8736

8305

8307

8306

MF Supply

AS

4P

1304

3P

1309

7P

1M02

Lspeak

posilock

Left

Speaker

J

LED/SWITCH

0320

10P

8346

8352

11P

1M46 (1251)

31P

8345

1G51 (1450)

10P

1MO3 (1403)

9P

1M52 (1752)

CB

LC04 SSB

A

8336

LPL

10P

8320

Side I/O

D

11P

0936

1004

7P

1M02 (1702)

3P 3P

1408

1301

4P

1735

11P

1M36(1336)

3P

1M01(1402)

10P

1M20(1320)

Mains
outlet

8308

4P

1307

2P

1306

3P

1305

1308

2P

E_14710_092.eps

281204

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram Supply and Standby58+

SUPPLY + STANDBY

MAINS FILTER + STANDBY

AS1

AS2

SUPPLY

16LC4.6L AA 6.

HOT COLD

3057

7002
TCET1102

SA1

CONNECTIONS

1308

MAINS IN

EUR: 198 - 264V~
CHINA: 160 - 270V~
US: 108 - 132V~
APmulti: 90 - 175V~

3000

7007

5001

7020

10

F003

14

F004

12

10

11

4

2

7100
7101
7105

14

13

7008,
7021, 7022

CONTROL

6150

HIGH
SIDE

DRIVE

LOW
SIDE

DRIVE

I130

6151

6153

60786079

2003

STU16NB501

I038

STU16NB501

I057

7102

3155

7005

F005

7006

3V MAX
1V MAX STBY

3108

5040

2011

PRINTED
COMPONENT

COLD

HOT

5

3

2

1

5105

5002

8

7

9

10

11

12

3

5

13

14

15

16

HOT COLD

5500

4

1

3

2

1

2

5110

6

7

8

10

7501
TCET1102

4

7150
TCET1102

3

DC_PROT

5027

3

5028

3

5025

3

5026

3

1007

T5A

7507
7506
7512

6504

3509

5103

3128

OVERVOLTAGE
PROTECTION

3158

DC_PROT

6044
STPS20L45CT

1

2

6045
STPS20L45CT

2

1

6021
STPS20H100CT

1

2

6025

2

STPS20H100CT

1

2291

6291

6293

2293

STANDBY

7511

6140

6505

6107

I138

2513

6122

PROT_AUDIOSUPPLY

3030

5239

5291

5292

I198

5506

7531

+5V2

+5V2-RELAY-IO2

2038

2021

3022

7010
TL431ACD

F297

VSND_POS

GND_SND

F298

VSND_NEG

5507

STANDBY: LOW = ON
HIGH = STBY

F016

+12V

F025

+24V

3052

3024

3026

VS Voltage
Adj.

DC_PROT

+5V2-RELAY-IO2

+12V_A

F136

STANDBY

F109

7508

OR

9110

I104

VTUN

+11V

+12V

+8V6

7131

+5V2

+5V_SW

POR

1304

1M02

1304

4

4

3

3

2

2

1

1

7

6

TO 1M02

5

SA3

4

AUDIO

3

2

1

SA1

+12V_A

+12V_+24V

CONNECTIONS

PROT_AUDIOSUPPLY

STANDBY

SEE ALSO
BLOCK DIAGRAM
SUPPLY LINE

1M03

9

8

CONNECTIONS

7

1M46

1

TO 1403

A9

2

3

4

TO 1251

5

A15

6

CONNECTIONS

7

8

9

10

11

E_14710_033.eps

231204

VCC

CONTROL

OVER

VOLTAGE

BIAS SUPPLY

15

OA

OB

FI

5401
5402

2

1

1400

T3.15AH

5403

MAINS
FILTER

EUR, CHINA 1X MAINS FILTER + HORMONIC COIL
US, AP 2X MAINS FILTER + IR INRUSH CURRENT

6506
DF06M

1450

2

3

4

1

HOT

COLD

+

-

2503

1401

T1AE

6807
GBJ6J

-

7805
7806

VOLTAGE
DOUBLER

(for 110V only)

US DOUBLER
AP AUTO DOUBLER
WITH TRIAC

3810

+

3101

6155

6154

2815

2816

1307

1305

1306

1

2

3

4

25V_HOT

400V_HOT

7001
MC34067P

1

OSCC

3007

7
7017
7018

SOFT

START

+

CURRENT

PROTECTION

STANDBY

SA2

1305

1

1

2

2

3

3

1306

F194

1

1

2

2

1307

1

2

3

4

THYRISTOR
7505/7509/7560

400V_HOT

+5V2-RELAY-IO2

ERROR

11

SOST

7004
7009

PROTECTION

OVERVOLTAGE PROTECTION

STANDBY

Block Diagrams, Testpoint Overviews, and Waveforms

Testpoint Overview Supply and Standby

17LC4.6L AA 6.

SA

I130

T

5V / div DC

5µs / div

F109 = 5V2
F124 = 263V
F125 = 5V1
F135 = 8V9
F136 = 12V5

3104 313 6010.4

1

I776

3

7700

I711

10

I722

18

I778

23

25

I711

200mV / div DC

2ms / div

I138 = 5V2
I198 = 13V9

I722

200mV / div DC

2ms / div

I776

10V / div DC

2us / div

COLD HOT

I778

20V / div AC

2us / div

F297

1M02

AS

7102

I130

G

D
S

432121
7501 7150

5500

6104

6140

1

2506

10

I198

11

I138

5

F109

4

F136

3

F135

1

5

6

1306

F124

1

5002

6025

A2

J

A1

6021

A2

J

A1

18

2

F125

1305

1

3

16

43

COLD

HOT

1M46

7001

116

89

14

12

1

F003

F004

F298

176-5

6045

7006

7005

A2

F016

J

A1

6044

A2

J

A1

S

F005

D

I057

G

S

D

I038

G

F025

6

8

F003

5V / div DC

5µs / div

F004

5V / div DC

5µs / div

F005 F016 = 12V6

500mV / div AC

5µs / div

3104 313 6009.4

I038

50V / div DC

5µs / div

I057

5V / div DC

5µs / div

F025 = 24V4
F297 = 19V2
F298 = -19V2

E_14710_057.eps

271204

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram Tuner, Hercules and Audio

TUNER + VIF

A 3

A1

TV

A 3

A17

SVHS

AV2

VIDEO

AV1

MON.
OUT

D

SVHS

CVBS

L

R

2

SCL
SDA

L

R

Y

U

V

COMPAIR

1301

REAR IO CINCH

1175

SIDE I/O

34

5

FRONT_DETECT

1302

VIDEO

L
R

VIDEO

L
R

1

+5VSW

2
1
3

C

Y

8

5

2

9

6

3

Y/CVBS

+VTUN

9

51

F306

11

3311

RF_AGC

6,7

4

2321

4230

AV1_CVBS_IN

SC1

_COMP_AV1_LR_IN

SC1_COMP_AV1_G_Y_CVBS_IN

SC1_COMP_B_U_IN

SC1_COMP_R_V_IN

SC2_CVBS_MON_OUT

SC2_LR_MON_OUT

0936 1336

4

C

L

R

4

2

2

6

6

8

8

7

7

10

10

11

11

1328

4327

2

7

4331

SVHS_C_IN

AV5_C_IN

SVHS _AV2_Y_CVBS_IN

A6

3

SVHS_C_IN

SVHS_LR_IN

HP_LROUT

HP_DET_IN

TV SUPPLY

+12VSW

8

3D COMB

N.C.

VIF2

VIF1

5930

A2

7011 - IF
TDA15011H

25

24

31

30

29

1004

3

8

9

3011

3058

3931

HERCULES

CVBS_COMB

7930

8

7

OSC

VCC

6

7920

5920

13

18LC4.6L AA 6.

EF

2

4

3

# = NE555 TIMER

7017#

8

VCC

6

THR

7

DISC

CTRL

5

I722

18

6

10

I711

SOUND_
ENABLE

POR_CLASSD

+3V3STBY

40

1

11

7014

7012

7015#

3347

6

7

2042

TR

RES

OUT

2047

7700
TDA7490

STBY­MUTE

EF

EF

+5VSW

8

VCC

THR

DISC

CTRL

5

+5VSW

2

4

3

-16V-19V

-16V-19V

7701 : 7707

SOUND

ENABLE

AUD_SUP

R_SDTV

G_SDTV

B_SDTV

2

TR

4

RES

H_CS_SDTV

OUT

3

I354

2021

SANDCASTLE

V_SDTV

I357

I357

1V / div DC

5ms / div

+16 +19V

24 22

PWM

OSC

PWM

24

+16V+19V

PROT1

HP_LOUT

HP_ROUT

7708

3707

7710

23

3

I778

I776

A13

A13

A13

I354

1V / div DC

20us / div

A13

A13

5702

3717

5701

3718

+16V+19V

E_14710_089.eps

1735

1

3

1736

1

3

231204

R

15W/
8R

L

15W/
8R

H/V

CVBS/Y-X

SAND
CASTLE

SDA

SCL

15

7377-A

7376-A

7376-B
7377-B

CON BRI

RGB Matrix

Blue & Black

Gamma Corr.

R_OSD

SAT

SCAVEM

on Text

C-X

A2

4590

1:1

1:1

7372

Stretch

B_OSD

G_OSD

cvbs/y

Sync Sep

H-OSC
H-Shift

H-Drive

Vertical & East-

West Geometry

7561
7563

PROC.

A5

PROTECT_AUDIO

A9

SOUND_ENABLE

POR-AUDIO

AUDIO_R

AUDIO_L

A

AUDOUTLSR

SOUND_ENABLE

A2

POWER_DOWN

A6

EXT_MUTE

A2

RO

GO

BO

Fast Blanking

HOUT

FB/SC

VDRA

VDRB

SC

SANDCASTLE

AUDIO
AMPLIFIER

AUDIO_R

N.C.

AUDIO_L

N.C.

SL

UDOUTL

OUT_MUTE

3753

3752

85

86

87

A3

7018

3021

67

66

7019

3058

23

22

3010

C

1752

1739

3

3

2

2

4

4

5

5

1

1

6

6

7

7

8

8

9

9

7713

7714

7013

HISTOGRAM

2020

7016#

8

VCC

6

THR

TR

RES

7

DISC

OUT

CTRL

5

2028

2051

2022

3346

2034

PDP AUDIO

AUDIO_R

AUDIO_L

-16V-19V+16V+19V

NC

PROT

77

67

2

SOUND_ENABLE

POR_AUDIO

+3V3STBY

7706

14

12
13

Sound
Tr a p s

AGC

Detect

QSS Mixer/

AM Demod.

SC1_CVBS_IN

SV

HS_AV2_Y_CVBS_IN

SC2_Y_IN

SVHS_C_IN

SC2_C_IN

CVBS-COMB

SC1_COMP_R_V_IN

SC1_COMP_AV1_G_Y_CVBS_IN

SC1_COMP_B_U_IN

SC2_LR_IN

SC1_COMP_AV1_LR_IN

SC2_LR_MON_OUT

SVHS_LR_IN

36

HP_LROUT

45

HP_DET_IN

1

Q

S

2

R

3

5931

F913

6930

F915

F912

6910

+8VSW_TV

4

REF

5

2

2931

3910

7910

2921

6911

+5VSW

+VTUN

CVBS1

QSS/FM

AM

CVBS/Y-X

C-X

55

58

51

59

52

64

5010
2055

Y_NOTCH

A7

A4

7585

A2

A5

A5

A1

SSIF(Tuner FM) 33

SC1_COMP_AV1_LR_IN

SVHS_LR_IN

SC2_LR_IN

AudioIN2LR

2

A1

SC2_LR_MON_OUT

SC1_LR_RF_OUT

N.C.

N.C.

Const_LR_OUT

Input

sw.

cvbs/y

Dig. 2H/4H

INA..D

Combfilter

Y Delay Adj.

c

CS1A..D

Output

sw.

H/V

+

cvbs

SC1_FBL_IN

N.C.

7004

AUDIO DELAY LINE (LIPSYNC)

COUNTER COUNTER

HERCULES

34,35

49,50

56,57

53,54

+12VSW

7011 - SOUND

QSS/FM

Std Stereo

Audio Select

ADC/DAC

7x

AD Conv

Decoder

Y

int

Chroma

PA L / N T SC /

SECAM
Decoder &
Baseband

Delay

G/Y3

R/Pr-3

INSSW3

78 79 8077 74 75 76

7562

13

2561

2

7x

RAM

I2SDI1

I2SCLK

I2SDO

I2S Proc

36,37

U

int

V

int

RGB/YPRPB Insert

YUV Interface

B/Pb-3

UOUT

YOU T

VOUT

68

Pix Improvement

20

7560

TDA9178T

7x8x

Vo l/T reb /

7370

2

Audio

Control

Bass

Featu res

DACs

(Histogram)

"D" F.F. "D" F.F.

8x

RGB Matrix

Blue & Black

Gamma Corr.

Skin Tone

Saturation

U/V Delay

VIN

70

9

8x

Stretch

U/V Tint

YUV

Pea king

SCAVEM

YUV IN/OUT

UIN

YIN

71 72

161719

75847583758275817580

61

60

62,63

7371

1

14

11

8x 8x

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram Scaler and Supply

19LC4.6L AA 6.

HERCULES

A2

FOR AUDIO LIPSYNC

A4
A4
A4

A2

KEYBOARD

A3

LIGHT-SENSOR-SDM

IR

A3

STATUS _2

A17

STATUS _1

A17

A3

P50_LINE_ITV_IR_SW

NC

P50

A17

+3V3STBY

+3V3STBY

+5VSW

A16

PC-IN

HDMI-IN

PC-AUDIO-IN

LED PANEL

J

7107

RECEIVER

6127

ON/OFF
SWITCH

7001,7003

PCHD-IO

15

DDC_5V

1

4

RC

7120

2

1101

4

5

6

1511

GREEN

+1V8_A

+1V8_B

7070

7693

1

3

4

6

7

9

10

12

13

15

16

18

19

RED

7

1

2

3

I2SCLK
I2SD01

I2SDI1

7075

100,117,118,124

4,5,7,9,88,90,94

HS

PC_HD_DET+
VS

BLU_PB
GRN_Y
RED_PR

6

8

DDC
NVM

3690

6103
2

3

103
105
106

12

0

115

97

119

116

123

3,93,96

127

14

15,69,82

5

7103

7105

LIGHT-SENSOR-IN

7011

u-Processor

HERCULES

IC

P1.4

DECDIG

RX2+

RX2-

RX1+

RX1-

RX0+

RX0-

RXC+

RXC-

CEC

SCL_IO

SDA_IO

+5V_HDMI

PC_AUDIO_L

PC_AUDIO_R

GREEN-LED

+5V-STBY-SW

+9V-STBY-SW

114

111

107

108

109

104

102

99

98

122

126

128

10

11

RES

RES

N.C.

RED-LED

RC-IN

+8V6

+9V-STBY

SDM PINS

4022

SEL_IF

SOUND_ENABLE

PC-TV-LED

56

7099

7

NVM_WP

POWER_DOWN_P50

POWER_DOWN

1001

TV_SC_COM

SC-STANDBY

2007

2006

+5VSWI

0320

1

2

3

4

5

6

7

8

9

10

NV
2k x 8

EXT_MUTE

TV_IRQ

UART_ TX

UART_ RX

SCL

SDA

3783

M

6073

A12

A3

0320

1

2

3

4

5

6

7

8

9

10

DOC_SCL

DOC_SDA

+5VHDMI

A1

A5

A3

A7

A7

A5

A7

A7

A5

A3

A6

6075

HDMI

TMDS input data pair

SCL_IO

SDA_IO

A11

#RESET

65

DDC

8

NVM

PC_AUDIO_L

PC_AUDIO_R

HISTOGRAM

7579

N.C.

3066

+8V6

+3V3 STBY

+5V2

+5V2_RELAIS_IO2

PCHD-MUX

A13

PC_HD_DET+

PC_HD_DET-

BLU_PB

GRN_Y

RED_PR

UART_ TX

UART_ RX

7808

74

75

72

77

76

shifter

7801

3579

+3V3STBY

6565

+5VSW

PC-TV-LEDLED-RED

LIGHT-SENSOR-SDM

HS

VS

+3V3STBY

PANEL-LINK

RECEIVER

IR

A2

HDMI

A2

A2

A7

A2

A2

A2

A7

A7

A7

A7

A7

H_CS_SDTV

V_SDTV

HS

VS

SD_HD_SEL

PC_HD_DET-

PC_HD_DET+

R_SDTV

G_SDTV

B_SDTV

RED_PR

GRN_Y

BLU_PB

HD_FILTER

SD_HD_SEL

PC_HD_SEL

4

KEYBOARD

7607 L H PIN
SD_HD_SEL SDTV HDTV 22
PC_HD_SEL ENABLE DISABLE 9

7605

13

1

12

2

9,11

F624

F625

F626

7809

Audio

DAC

E

5x

CHANNEL +
CHANNEL­VOLUME+
VOLUME­MENU / OK

A2

1402

2

7604

14

1

15

5

7604-5

11 10

7607

27

3

17

7

14

25

11

1

5

21

9

22

7604-6

13 12

7606

1

2

15

14

11

12

9, 17, 19

+3V3STBY

1416

7810

1

13

2

12

10,11

PC_HDMI-AUDIO_SEL

TOP CONTROL

HERCULES

KEYBOARD_IO2

3415

23 4

69 8

6604

6605

F613

F615

F617

Q [23:0] 24-BIT PIXEL DATA BUS

14

15

KEYBOARD

PC_HD_DET

PC_HD_SEL

A7

AudioIN2L

AudioIN2R

0345

2

H_CS

V

R_PR+

G_Y+

B_PB+

3614

3616

3618

SCALER

A7

A7

SOG

2614

R_PR-

2616

G_Y-

2618

B_PB-

SDRAM

A10

7501

ADDRESS

SDRAM

1Mx32x4

DATA

PC_HD_DETA13

POWER_DOWN

A6

TV_SC_COM

A2

Y_NOTCH

A2

+3V3_PLL

A2

2488

1401

2487

A14

A2

PROTECT_AUDIO

+12VSW

5952

STANDBY

A5

A7

SCALER INTERFACE (SUPPLY)

A9

1403

BLACKLIGHT_CTRL

1

2

3

4

TO IM03

5

6

7

8

9

10

N.C.

N.C.

+5V2_RELAIS_IO2

N.C.

SA1

A11

7532

ANALOG

INPUT
PORT

FRAME
STORE

INTERFACE

INPUT
PORT

GPIO_G07_B7

GPIO_G09_B1

OCM_INT1

GPI_G09_B3

GPIO_16

XTAL

TCLK

SUPPLY

7952

8

7

VCC

3951//52

2953

D

S

G

7887

FLASH CONTROL

+3

+3V3STBY

5

VCC

4

RESET

GND

2,3

RESET

DDR

DVI

Q

S

R

OSC

REF

5

6

+5VSWI

7416

BU_LIGHT_ADJ1

POR

LAMP_ON_OFF

SC_STANDBY

7401

GM1601

SXGA

DISPLAY

CONTROLLER

GRAPHIC

ZOOM

OUT BLENDER

OSD CONTROLLER

VIDEO
ZOOM

UART

INTERFACE

MICRO-

CONTROLLER

80186

INTERNAL

ROM &

RAM

+3V3STBY

1

2

3

4

2956

3954

A7

A7

A7

A7

A2

MSTR_SCL

BRIGHTNESS/CONTRAST/HUE/SAT

F954

2957

EXT.

FLASH

MSTR_SDA

ROM

GPIO_G09_B4

INTER-

FA CE

DISPLAY

TIMING

GEN

OCM_OD0

OCM_OD1

VGA_SCL

VGA_S DA

GPIO_G09_B4

GPIO_G07_B0

GPIO_G07_B5

GPIO_G09_B0

PPWR

PWM1

PBIAS

OCM_TIMER1

+1V8

7995

32

5953

1

6951

PANEL-PWR-CTL

+5VSWI

I996

2996

A15

1251

3

4

TO IM46

SA1

7

9

+5V2_RELAIS_IO2

A3

7531

NVM

4k x 8

NVM-WP

5996

5997

5998

A7

7

ADDRESS

DATA

SCALER INTERFACE (LVDS)

A9

TXB0-

TXB0+
TXB1-

TXB1+
TXB2-

TXB2+
TXBC-

TXBC+

TXB3-

TXB3+

PC_HDMI-AUDIO_SEL

PAN EL - PW R - CT L

+1V8_ADC

+1V8_DVI

+1V8_CORE

+3V3STBY

+12VSW

7955

DC-DC CONVERTER

3251

5251

5252

+5V

6262

6259

5258

5

6

7530

FLASH

ROM

UART_ TX

UART_ RX

TV_IRQ

SD_HD_SEL

PC_HD_SEL

HD_FILTER

LAMP_ON-OFF

BU_LIGHT_ADJ1

13

3955

3958

5257

7262

SUPPLY

5262

8

7260

12

SCL_IO

SDA_IO

SDA_DMA_BUS1_DISP

SCL

SDA

7992

2

5957

7954

1

5

SCL_DMA_BUS1_DISP

A16

A16

A2

A2

A2

A12

A13

A13

A14

A13

A6

A6

5994

I992

2994

F960

2960

+8V6
+12 UNREG
+12VSW

+5V2

5267 5268

6257

3267

3268

E_14760_003.eps

LVDSA-

LVD S A+
LVDSB-

LVD S B+
LVDSC-

LVDSC+
LVDSK-

LVD S K+
LVDSD-

LVDSD+

1

3

2

+2V5_DDR

N.C.

1304

PAN _V C C

+3V3STBY

281204

1450

1

12

13

15

16

18

19

21

22

24

25

30

31

A1

A9

TO LCD PANEL

SERVICE

UART F OR

Block Diagrams, Testpoint Overviews, and Waveforms

Testpoint Overview SSB (Top Side)

F002 C3
F003 F2
F004 D5
F005 D5
F006 E5
F007 C4
F008 C3
F009 C4
F010 C3
F011 C3
F012 B3
F013 D4

F014 D4
F018 D5
F019 C5
F020 E4
F021 C5
F022 B4
F023 C4
F024 C2
F025 C2
F026 D1
F027 C1
F028 E3

F029 D4
F030 D4
F031 D4
F032 D4
F033 E5
F034 D4
F035 E5
F036 D5
F037 B3
F038 E5
F039 C2
F040 E5

F041 C4
F042 D5
F043 D4
F044 D5
F045 E5
F046 D4
F047 D4
F048 C1
F049 E4
F050 D5
F051 E4
F052 E4

F053 E4
F058 E5
F060 C5
F061 E5
F062 E5
F063 D5
F067 E5
F068 D5
F069 D5
F071 C5
F072 C1
F073 A5

3139 123 5867.2

F075 C4
F076 C4
F077 C1
F078 C1
F079 C1
F080 C1
F081 D1
F082 D1
F083 D1
F087 C3
F088 D3
F089 D3

F090 D4
F093 D2
F094 D5
F095 E5
F096 E5
F099 B4
F150 F10
F151 F10
F152 F10
F153 F10
F154 F10
F155 F10

F156 F10
F157 F10
F158 F10
F159 E9
F160 F10
F161 F10
F162 F10
F163 F7
F164 F8
F165 F9
F166 F9
F167 F9

F168 F8
F169 F7
F170 F7
F171 F8
F172 F8
F173 F8
F174 F8
F175 F4
F176 F8
F177 F3
F178 F8
F179 F4

F181 F4
F182 F4
F183 F5
F184 F6
F190 E4
F220 F6
F221 F6
F222 F5
F223 F5
F224 F5
F225 F5
F226 F6

F227 F6
F228 F7
F229 F7
F230 F6
F251 A10
F252 A10
F253 A9
F254 A10
F255 A10
F257 A9
F258 A8
F259 B6

20LC4.6L AA 6.

F260 C10
F300 C3
F301 E4
F302 E2
F303 F2
F305 E3
F306 E2
F306 E2
F307 D2
F308 F2
F309 C4
F310 D3

F311 D3
F313 F2
F314 F3
F315 F3
F316 D3
F318 D3
F319 C3
F401 D6
F402 A7
F403 A7
F404 A7
F405 A7

F406 A7
F407 A7
F408 A7
F409 A7
F410 B7
F411 C10
F412 C10
F413 C10
F414 D10
F415 D10
F416 D10
F417 B7

F418 D10
F419 B9
F420 D1
F421 D1
F422 C5
F423 C5
F424 C5
F434 B7
F436 B7
F437 B7
F447 C7
F451 D7

F461 B8
F463 D7
F465 D6
F466 D7
F470 C7
F478 B8
F482 B7
F486 C7
F501 B9
F530 B6
F531 C7
F532 C7

F533 C7
F534 C6
F535 C6
F536 B6
F537 B6
F538 B6
F539 B6
F540 B7
F541 B7
F580 A4
F584 C4
F585 A4

F586 A4
F587 B4
F588 B4
F590 A3
F602 D7
F603 E7
F604 D6
F605 D6
F606 D7
F607 D6
F608 E7
F612 D7

F613 D7
F614 D7
F615 D7
F616 D6
F620 D6
F624 C6
F625 D6
F626 E6
F701 D3
F702 B3
F705 B2
F706 B1

F707 B2
F708 A2
F710 E5
F711 B2
F712 B2
F713 B2
F714 A2
F716 B3
F717 C3
F718 C3
F719 C2
F720 C2

F721 A2
F722 A2
F723 A3
F724 A3
F725 A3
F726 A3
F727 A4
F728 A4
F729 A2
F801 E9
F802 D9
F803 E9
F804 D9
F805 E8
F806 D7
F807 D7
F808 D8
F809 D9
F810 E8
F811 D8
F820 E9
F821 E9
F822 E9
F823 E9
F824 E9
F826 D8
F827 D8
F870 A7
F871 A7
F872 A8
F873 A7
F874 A7
F912 A4
F913 A5
F915 B4
F954 B7
F955 B8
F988 C7
I001 C5
I002 C3
I003 C3
I005 C4
I006 B3
I007 C3
I008 C5
I009 C3
I010 C3
I011 C3
I012 D3
I013 C5
I015 E2
I016 C5
I018 C3
I019 C3
I020 C3
I022 C3
I023 C5
I024 C5
I025 D4
I026 D4
I028 D4
I030 C4
I032 D4
I033 D4
I034 D4
I036 C5
I037 D4
I039 C5
I042 C5
I044 C5
I051 D5
I052 D5
I054 D5
I055 D5
I056 D5
I057 D5
I058 D5

I059 D4
I060 B3
I061 D5
I063 E4
I064 C5
I065 C5
I067 B4
I068 B4
I069 D5
I071 C5
I072 D5
I073 D4
I074 D4
I075 E2
I076 C5
I078 D5
I079 C5
I080 C5
I081 D5
I082 D5
I086 E1
I087 E1
I088 E1
I089 E1
I090 E1
I091 E1
I092 E1
I093 E1
I094 E1
I150 F8
I151 E8
I152 F8
I153 F9
I154 F9
I158 F9
I159 F9
I175 F6
I176 F5
I177 F6
I178 F6
I179 F6
I181 F7
I182 F4
I183 F6
I184 F5
I186 F7
I187 F7
I194 F5
I195 F5
I196 F5
I197 F5
I198 E4
I199 E4
I200 E4
I201 E4
I202 F4
I204 F6
I205 E3
I206 E4
I207 F6
I208 F4
I209 E4
I210 E3
I211 F6
I212 F4
I213 F5
I214 F4
I215 F3
I216 F4
I217 F4
I218 F4
I219 F4
I220 F4
I221 F4
I222 F4
I223 F3
I224 F3

I251 A10
I252 A9
I253 B10
I254 B10
I255 B10
I256 D10
I257 E10
I258 E10
I259 E10
I260 C10
I261 A10
I262 A10
I263 A10
I264 A10
I304 F2
I313 E3
I317 D3
I318 D3
I319 D2
I320 E2
I321 E3
I322 D3
I324 E3
I325 D3
I348 B4
I349 B4
I350 B5
I351 B4
I352 B5
I353 B5
I354 B5
I355 B5
I356 B5
I357 B5
I358 B5
I359 B5
I360 E2
I361 B5
I371 D4
I386 D5
I387 D5
I388 D3
I423 C7
I424 C7
I425 C7
I426 C6
I427 D8
I428 D8
I429 C8
I436 C8
I437 A6
I438 C7
I439 C6
I440 B6
I441 C6
I442 D7
I443 C7
I444 D8
I445 C8
I446 D7
I449 C6
I450 C6
I451 C6
I452 B6
I453 C6
I454 B6
I455 B6
I456 C7
I457 B6
I458 B7
I459 B7
I460 B7
I502 B9
I503 B9
I607 E6
I608 E6
I618 E7

I619 D7
I620 D6
I621 D7
I622 D7
I623 D7
I624 E7
I625 D7
I626 D7
I627 D6
I628 E6
I629 D7
I630 D7
I631 E7
I632 D7
I633 D7
I634 E7
I635 D7
I636 E7
I637 E7
I638 D7
I639 E7
I682 F8
I683 F8
I684 F8
I685 F8
I701 D2
I702 D2
I703 B3
I704 D2
I705 D2
I706 D2
I707 C2
I709 B3
I710 D2
I711 D2
I712 B2
I713 C3
I714 D3
I715 D3
I716 D2
I717 D2
I718 B3
I719 B3
I721 C2
I724 B3
I725 B3
I726 C2
I727 C2
I728 D2
I729 A3
I730 C4
I731 B4
I735 B2
I736 B2
I737 B2
I738 A1
I739 D2
I740 C3
I741 C3
I742 B3
I802 E9
I803 D9
I815 E8
I816 D8
I819 D9
I822 D9
I823 D9
I824 E9
I825 E8
I826 D9
I827 D8
I828 D8
I834 E9
I836 D8
I838 D8
I840 E8
I841 D8

I842 D8
I844 D8
I847 E8
I848 D9
I860 A5
I861 A5
I862 A5
I863 A4
I864 A4
I865 A4
I866 A4
I867 B7
I868 A4
I869 A4
I870 A6
I871 A6
I872 B7
I901 B5
I902 A5
I903 A5
I904 A4
I905 A5
I906 B5
I907 A5
I908 A4
I951 A8
I952 A9
I953 A9
I954 A9
I955 A9
I956 B7
I957 B7
I959 B8
I960 A9
I961 B7
I962 B8
I963 A7
I964 B8
I992 B9
I995 D8
I996 C9

F302 F626 F701 F702

1V / div DC

20us / div

1V / div DC

20us / div

F306

200mV / div AC

20us / div

F613

200mV / div DC

20us / div

F615F303

200mV / div DC

20us / div

F624 F625

500mV / div DC

20us / div

500mV / div DC

20us / div

500mV / div DC

20us / div

20mV / div AC

1ms / div

20mV / div AC

1ms / div

I354

1V / div DC

20us / div

I357

1V / div DC

5ms / div

I631

200mV / div DC

20us / div

I904

2V / div DC

5us / div

F011 1V9
F012 1V9
F912 33V7
F913 8V
F915 5V3
F954 5V4

E_14710_087.eps

071004

Block Diagrams, Testpoint Overviews, and Waveforms

I2C IC Overview

I2C BUS INTERCONNECTION DIAGRAM

HERCULES

A2

7011

TDA15011H

SET

PROCESSOR

PART OF

VIDEO-

PROCESSER

(HERCULES)

109

108

+3V3STBY

3096 3088

SDA

SCL

+3V3STBY

ERR

6

56

A1

TUNER IF

F303

F302

3302

3303

54

21LC4.6L AA 6.

A3

HISTOGRAM

14 11

A7

SCALER

+3V3STBY

3429 3428

N1 N2

HERCULES

3064

3071

CBA2

1004

6

7

3D COMB

N.C.

104

ERR

6

VGA CONNECTOR

10

5

1

6

A16

NVM_WP

PCHD-IO

3097

7

7099

M24C16

EEPROM

(NVM)

ERR

9

1302

UV1338/A

TUNER

ERR

10

For

ComPair

only

1301

1

2

3

7560

TDA9178T

HISTOGRAM

ERR

15

7401
GM1501
SCALER

ERR

4

P3

SDA_IO

SCL_IO

P4

NVM_WPP

A11

1687

3789

9

15

SDA_VGA

12

11

15

SCL_VGA

6692 5691

3697 3696

56

DDC_5V

3787

3786

UART_RX

UART_TX

M1

M2

ADDRESS

DATA

+3V3STBY

3433 3432

56

7531

M24C32

EEPROM

ERR

8

FLASH/CONTROL

7530

MX29LV040Q

FLASH

ROM

512kx8

ERR

4

SDA_IO

SCL_IO

HDMI CONNECTOR

1

18 2

19

1688

18

16

15

9

3590

DOC_SDA

DOC_SCL

7693

M24C02

EEPROM

256x8

A12

HDMI

+5V_HDMI+5V_HDMI

3832

3828

3809

WC

3810

7

EEPROM

5

7801

M24C02

256x8

3808

6

+3V3_STBY

7807

BSN20

+3V3_STBY

7806

BSN20

+3V3STBY

3822 3823

76

PANEL LINK

77

7808

SII9993CT

HDMI

RECEIVER

ERR

13

SDRAM

A10

7501

ADDRESS

DATA

3824

75

3825

74

SDA_IO

SCL_IO

K4D263238F

SDRAM
IMx32x4

ERR

14

E_14710_093.eps

271204

Block Diagrams, Testpoint Overviews, and Waveforms

Supply Voltage Overview

AS1

1308

1

2

MAIN FILTER
STANDBY

AC

DC

AC

DC

VOLTAGE
DOUBLER

SA3

1M02

SA1

1M03

1306

1

2

HOT
COLD

1305

1

25V_HOT

400V_HOT

AUDIO OUTPUT AMPLIFIER

5,6

+16V +19V

1,2

-16V -19V

7

CONNECTIONS

1

2

3

4

5

6

7

8

9

10

STANDBY SUPPLY

SA2

1306

1

2

1305

1

SUPPLY

AS2

+

CONTROL

DCPROT

DIM_CONTROL (N.C.)

POR

ON/OFF (N.C.)

+5V_SW (N.C.)

N.C.

STANDBY

PROT_AUDIO_SUPPLY

+5V2_RELAIS_IO2

N.C.

HOT COLD

CONTROL

CONTROL

5711

5707

5723

22LC4.6L AA 6.

CONNECTIONS

VTUN

+11V

+12V

+12V_A

+8V6

+5V2

+5V_SW

SCREEN

LCD

SA1

1M46

1

2

N.C.

N.C.

STANDBY

+12V_A

9007

9004 9005

STANDBY

3

4

5

6

7

8

9

10

11

+8V6

+12V

+5V_SW

+5V2

VTUN

+12V

+5V2_RELAIS_IO2

1304

3,4

1,2

+12V_24V

1312

1313

TO

1317

1315

+5V2_RELAIS_IO2

7511

6504

6140

+

5507

7131

6107

7931

CONTROL

PROT_OVV

PROT_AUDIOSUPPLY

+12V

+24V

+16V +19V

-16V -19V

-V f1

-V f11

-V f21

Vm

Vp

N.C.

1304

1M02

3,4

1,2

7

5,6

1,2

6044

6045

6021

6025

6291

6293

7713

7712

DC_PROT

VSND_POS

VSND_NEG

DC-DC CONVERTER

A15

1251

1

2

3

+8V6

4

+12V

5

N.C.

6

7

+5V2

8

N.C.

9

+12V

10

N.C.

11

N.C.

A6

A14

+3V3STBY

+12VSW

PANEL_PWR_CTL

5252

TV-SUPPLY

+12VSW

+12VSW

SUPPLY

A7

7992

7995

5258

5930

5920

5952

5956

6262

5262

6259

7930
MC34063AD

SUPPLY

IC

7920
L78M08CDT

7952

SUPPLY

IC

CONTROL

3251

5251

7262

SUPPLY

IC

7260

26

6930

31

+3V3STBY

+3V3_PLL

5984

+3V3_ADC

5985

+3V3_DVI

5986

+3V3_IO

5987

+3V3_LBADC

5988

+3V3_LVDSA

5989

+3V3_LVDSB

5990

+3V3_LVDS

5991

+2V5_DDR +2V5_DDR

5994

+1V8

+1V8_ADC

5996

+1V8_DVI

5997

+1V8_CORE

5998

5953 5954

26

6951

D

S

7954

G

7955

18

51

5931 5932

5910

3910

7910

5957

+8V6

+5V2

+12VSW

+12VUNREG

52685267

6267

F915

F912

6910

6911

-/C33

F913

+5VSWI +5VSWI

PAN_VCC PAN_VCC

+8V6

+5V2

+12VSW

+3V3STBY

+5V2_RELAIS_IO2

+12VSW

+5VSW

+VTUN

+8VSW_TV+8VSW_TV

+3V3STBY

+3V3_PLL

+3V3_ADC

+3V3_DVI

+3V3_IO

+3V3_LBADC

+3V3_LVDSA

+3V3_LVDSB

+3V3_LVDS

+1V8_ADC

+1V8_DVI

+1V8_CORE

+12VSW

A14

A13
A12
A11

A14

A15

A15

A8, A11

A10

A13
A16

A15

A6

A6

+3V3STBY

A15

+3V3STBY

A15

+8VSW_TV

A6

A6

A15

A6

+3V3STBY

A15

A15

+12VSW

A15

A6

A15

+3V3STBY

A15

+5V2_RELAIS_IO2

A3

+3V3STBY

A15

+3V3_DVI

A14

+3V3_PLL

A14

+3V3_LBADC

A14

+1V8_CORE

A14

+3V3_IO

A14

+3V3_LVDSB

A14

+2V5_DDR

A14

+3V3_LVDSA

A14

+3V3_LVDS

A14

FSVREF

A10

+1V8_DVI

A14

+1V8_ADC

A14

+3V3_ADC

A14

+5VSW

+VTUN

+5VSW

+8V6

+5VSW

+5V2

+5VSW

+5V2

A3

A3
A5

A3

A6

A9
A7
A5
A3
A2
A1

A3

A17

A4
A3
A2
A1

A1

A2

A7
A8

A7
A8

A7
A8

A7

A7
A8

A7
A8

A7
A8

A7
A8

A7
A8

A7
A8

A7
A8

A7
A8

A9

A9

TUNER IF

A1

A2

7011

HERCULES

A3

5560

A4

5580

A5

5720

A7

+5VSW

+VTUN

+3V3STBY

HERCULES

4
88
109

14

127

6005

HISTOGRAM

+8V6

+5VSW

+3V3STBY

7562

31

+8VSW_2

AUDIO DELAY LINE (LIPSYNC)

+5VD

AUDIO AMPLIFIER (PARTLY USED)

AUDIO_SUP

+3V3STBY

+5V2_RELAIS_IO2

SCALER

+3V3STBY

+3V3_DVI

+3V3_PLL

+3V3_LBADC

+1V8_CORE

+3V3_IO

+3V3_LVDSB

+2V5_DDR

+3V3_LVDSA

+3V3_LVDS

FSVREF

+1V8_DVI

+1V8_ADC

+3V3_ADC

7001

CONTROL

7003

CONTROL

3374

5067

+3V3STBY

+1V8_A

F011

+1V8_B

F012

+8VSW_TV

TO 45 - 7011

+5VSW

+3V3STBY

+5V2

+5V2_RELAIS_IO2

SCALER

A8

SUPPLY

+3V3_DVI

+3V3_PLL

+3V3_LBADC

+1V8_CORE

+3V3_IO

+3V3_LVDSB

+2V5_DDR

+3V3_LVDSA

+3V3_LVDS

FSVREF

+1V8_DVI

+1V8_ADC

+3V3_ADC

1320

1004

SWITCH PANEL

J

0320

5100

6

7

8

9

10

+5V2_RELAIS_IO2

1

10

3D COMB

+3V3STBY

1101
1
2

3

ON

ON / OFF

SWITCH

N.C.

+8V6

4

5

6

A9

A5

A15

+3V3STBY

A15

A14

+5V2_RELAIS_IO2

A3

PAN_VCC

A14

+2V5_DDR

A14

FSVREF

A7

A8

+3V3STBY

A15

+3V3_IO

A14

+3V3STBY

A15

+5VHDMI

+3V3STBY

A15

A14

A14

+5VSWI

+5VSWI

+5VSWI

VGA

CONN.

HDMI

CONN.

SCALER INTERFACE

A9

SC_STANDBY

A2

5874

SDRAM

A10

3501

3502

FLASH/CONTROL

A11

HDMI

A12

PCHD-MUX

A13

PCHD-IO

A16

1687

3791 3790

10

3789

9

1688

18

3793

29

+3V3STBY

+5VSWI

7887

-12V_2CD

CONNECTOR

+2V5_DDR

FSVREF

+3V3STBY

+3V3_IO

+3V3STBY

+5VHDMI

+3V3STBY

+5VSWI

+5VSWI

6692

BACKLIGHT_CTRL

(N.C.)

PROTECT_AUDIO

A5

+5V2_RELAIS_IO2

A9

LVD S

5691

LIGHT_ON

FAN_SPEED

STANDBY

POWER_OK

1458

1

2

3

4

DCC_5V

+5VHDMI

POR

1403

1

N.C.

2

3

N.C.

4

5

N.C.

6

N.C.

7

8

9

10

N.C.

LCD
DISPLAY

(LVDS
CONNECTOR)

+3V3STBY

+8VSW_TV

6

7

8

9

10

CINCH IO

A17

+5VSW

A6

+5VSW

3190

+5VSW

+5VSW_1

E_14710_094.eps

281204

Circuit Diagrams and PWB Layouts

7. Circuit Diagrams and PWB Layouts

SSB: Tuner and VIF

123456789

23LC4.6L AA 7.

A

F301

B

COMPAIR

1301

1
2
3

A2

C

A2

BZX384-C6V8 BZX384-C6V8

A2

A2

D

E

F

3139 123 5867.2

TUNER + VIF

1302

*

TRACK

FILTER

PAL / SECAM
NTSC / LATAM

MIX-OSC

IF AMP

1302
UR1336/A F S H-3

*

RF
TV

PRE-FIL

TRACK
FILTER

GAIN
CTRL

PRE-AMP

RF
FM

12

MT

13 14

3AS

4339

2302
22p

3327

1K0

2307

47n

5304

10K

6329

BZX384-C6V8

5V3

SCL

4

2u2 50V

33053304

10K

SCL

SDA

6331

RF_AGC

SEL_IF

SCL
SDA

2 TU|FM

+3V3STBY

NC

F302

F303

6330

F311

F309

NC1

1V7

6

1AGC

3302 100R

1305
1
2
3
4

56

For ITV Only

UART

1681

1
2
3

NC2

8

NC

VCC7

5V3

7V1

9VT

100R3303

+VTUN

F307

+3V3STBY

F313

F315

F314

6328

FM No FM
UR1318
UR1338

IFOUT

FM-IFOUT 10

AGC

DET

PLL

2V6

2V6

5SDA

2303

22p

2308

FOR TESTING DURING DR STAGE :
PIN1=TX, PIN2=GND,PIN3=RX

3328

3329

BZX384-C6V8

100R

100R

UV1318
UV1338

MT

UART_TX

UART_RX

11

15

I304
F308

0V

F305

0V

4312
RES

FROM SCALER

A7

A7

F306

For FM Radio Only

4313

3313

2313

*

F302 F303

1V / div DC

20us / div

1n0

2314
100n

+5VSW

I313

2311

IF-TER

3314

35V22u

100K

3315
150K

1V / div DC

20us / div

3316
820R

I318

7316
BFS20

I317

3317
560R

+5VSW

6310

BAS316

6311

RES
3311

10K

4340

2318

1n0

2317

1n0

F306

200mV / div AC

20us / div

5309

12u

2309

3309

10K

4318

1301 B1
1302 A1
1305 D1
1328-A B8

A

B

C

D

E

F

1328-B C8
1329-A D8
1329-B D8
1330-A E8
1330-B E8
1681 F2
2302 C2
2303 C3
2307 D2
2308 D2
2309 B5
2311 B5
2313 E4
2314 D4
2317 E5
2318 D5
2321 C6
2324 C7
3302 C1
3303 C1
3304 F2
3305 F2
3309 A5
3311 C5
3313 E4
3314 D5
3315 E5
3316 D5
3317 E5
3319 D6
3320 D6
3321 C6
3322 C6
3323 C6
3324 C7
3325 D7
3326 D7
3327 D2
3328 F3
3329 F3
4312 D3
4313 D4
4318 D5
4327 B7
4328 C7
4329 C7
4330 C7
4331 C7
4332 E7
4333 E7
4334 E7
4335 E7
4336 E7
4337 C9
4338 C9
4339 C2
4340 C5
5304 E2
5309 A5
5321 C6
5324 B7
5339 C9
5340 E9
6310 B5
6311 B5
6323 C6
6324 C7
6328 F2
6329 F2
6330 C1
6331 C1
7316 E5
7320 D6
7325 D7
F300 E9
F301 B1
F302 C1
F303 C1
F305 A3
F306 A4
F307 D2
F308 C3

EU AP CHINA NAFTA

4327

YY Y

4328

--

4329

--

4331

Y

4333

YYYYY
4334
4336

--

4337

--

4338

--

4339

--

16V470u

5324
6u8

I324

2324

1SS356

3325

22K

7325

BC847BW

I325

3326

47K

10n

3324

2K2

6324

I322

5321
390n

3319
27K

I319

3320

18K

2321

10n

3321
2K2

7320
BC847BW

I321

3322

6K8

3323

6323

1SS356

I320

2K2

4327

4328

4329

4330

4331

-­Y

--

-----­Y

--

--

--

--

Y

--

--

--

--

--

Y

--

Y

--

--

Y

--

--

1328-A
OFWK3953L

2

3

1328-B
OFWK3953L

1

1329-A OFWK3955L

2

3

1329-B
OFWK3955L

1

NAFTA OFWM1967L

9

101314

131415 111216

1328
OFWK3953LEUROPE
OFWK7265LAP
OFWK3956LCHINA

7

8

NCMT

15 111216

18456

7

8

NCMT

18456910

RESERVE

4332

4333

4334

4335

4336

EUROPE & AP
PAL-MUTLI
ONLY

1330-A
OFWK9656L

2

3

1330-B
OFWK9656L

910131415 111216

1

7

8

NCMT

18456

RES

820n
5339

17

17

RES

5340

17

OFWK9355L

4338

4337

F318

F319

F310

1329

--

--

-- --

VIF2

VIF1

SIF2

SIF1

SSIF

1330
OFWK9656L
OFWK9361L
OFWK9352L

F316

F300

E_14710_063.eps

A2

A2

A2

A2

A2

100804

F309 D1
F310 F9
F311 D1
F313 F2
F314 F2
F315 F2
F316 E9
F318 E9
F319 E9
I304 C3
I313 E4
I317 E5
I318 D5
I319 D6
I320 D6
I321 C6
I322 D7
I324 C7
I325 D7

123456789

SSB: Histogram and Hercules

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

HISTOGRAM & HERCULES

A

B

C

D

E

F

G

H

I

J

K

L

3139 123 5867.2

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

KEYBOARD

A7

To 0345 of

TOP CONTROL

SC_STANDBY

A3

P50_LINE_ITV_IR_SW

+3V3STBY

A17

P50

POWER-DOWN_BOLT-ON

A3

POWER_DOWN

A5

7005
BSH103

+3V3STBY

3

5

7002-2
BC847BS

4

1002

1
2
3
4
5

67

For ITV only

BM05B-SRSS-TBT

(1M06)

(1M36)

1036

1336

1
2
3
4
5
6
7
8

9
10
11

To 0936 of SIDE I/O

B11B-PH-K

14

13

(RES)

3004
22K

1
2
3
4
5
6
7
8
9
10
11
12

BCP69-25

1402

B3B-PH-K

3056 4K7

F052

+1V8_B

I003

7003

FRONT-Y_CVBS-IN

HEADPH-L

F048

HEADPH-R

(1M01)
1
2
3

7070
BSH103

3003
3R9

2024

100u 16V

F072

F077

FRONT-C-IN

F078

L-FRONT-IN

FRONT_DETECT

F079

F080

F081

F082

F083

F421

2064
RES

2

2069
10p

2079
10p

2087
10p

2088
10p

2092
10p

2094
10p

2097
10p

2096 2095
10p

Circuit Diagrams and PWB Layouts

HERC_RESET

DMMI_RGB_SW

5003

+5VSW

VSYNC
VIF1

VIF2

SIF1
SIF2
RF_AGC

SSIF

SC1_COMP_AV1_L_IN
SC1_COMP_AV1_R_IN
SC1_L_RF_OUT

SC1_R_RF_OUT

SC1_CVBS_RF_OUT

SC2_CVBS_MON_OUT

SVHS_L_IN

SVHS_R_IN

SC2_Y_IN
SC2_C_IN
SC1_CVBS_IN

SC2_L_IN
SC2_R_IN

SVHS_AV2_Y_CVBS_IN
SVHS_C_IN
SC2_L_MON_OUT
SC2_R_MON_OUT

F038
F040
F050
F045
F042
F044

+3V3STBY

3077

4K7

4K7

3073

15K

6p8

2006

6p82007

2009 1u0

10V

2043

100n

2008

470n
10V

6n82010

F046
F047
F051

F053

F049

AUDIO PROCESSING

A5

OUT_MUTE

Const_L_OUT
Const_R_OUT

SC1_FBL_IN
SC1_COMP_R_V_IN
SC1_COMP_AV1_G_Y_CVBS_IN
SC1_COMP_B_U_IN

F420

100R3070

2000
2u2

6

1

3067

10R

3068

68R

3069

22K

3072

68R

3023

22K

3024

10R

3027

10R

3025

10R

KEYBOARD_IO2

7075

PDTC114ET

I006

3089
150K

3000 5K6

3005 5K6

3002
22K

7002-1
BC847BS

2059
10p

EU ONLY
2080
10p

10p

2081

F027
2090
10p

10p

2091

F024
2093
10p

F026
2098
10p

F025

10p

3415

10R

2070

1u0

BAT54 COL6075

6074

BAT54 COL
BAT54 COL6073

6076 BAT54 COL

6001

BAS316

2054

22n

220n

2001

2999

3001

3R9

7001
BCP69-25

F011

+1V8_A
+1V8_B

F012

2012

16V100u

SC1_CVBS_RF_OUT

H_CS_SDTV

V_SDTV

SVHS_AV2_Y_CVBS_IN

AVS_C_IN

NAFTA ONLY

SVHS_C_IN

4023

4085

2036

SVHS_L_IN

1u0

47K

HP_DET_IN

4086

2037

SVHS_R_IN

1u0

47K

3037 3038

HP_LOUT

HP_DET_R_DC

HP_ROUT

F009

I007

10u

A3
A1

A1

A1
A1
A1

A1

A17
A17
A17

A17

A17

A2

A17

A17

A17

A5

A17
A17
A17
A17

A17

A17
A17
A17
A17
A2
A17

A5

A17
A17

A5

A5

A17
A17
A17
A17
A17
A17

3079

3078

4K7

4K7

POWER_DOWN_BOLTON_P50

3357

1K0

2068

220n

1001 24M576

F004

1K03059

3007 4K7

2060

100n

10u

2061

16V

47K3008

100R3371

3372 100R

2388 2387

2065

33p

RES

1009

I

GND

4M5

SC1_R_RF_OUT

SC1_L_RF_OUT

F036
F030
F031

F034
F032

F043

F035
F029
F028

F037
F039

7370-1
PUMH7

I002
F010
I018
I019

F087

I005

F006

F008

O

RES

PUMH7

+1V8_B

2072
220n

+1V8_A

5060

2071 100u

16V

2005 100n

2382

16V

2011

220n

1K03010

RES

4062

3053

3060

3065 680R
2359 10n

2370 1u0

2371

33p

2066

RES

7370-2

5070

F007

+3V3STBY

3394

75R

470u

100R3006

150n2063

39K

1u0

+3V3STBY

5001
1m0

I020

F002
I022
F088

F089

I388

*EMC *EMC

2373

2372

1n0

1n0

3074
100K

7371-1
PUMH7

3080

1K5
1%

2073

1n03075

+3V3STBY

2004

220n

I009

F003

I011

I010

VIF1
VIF2

SIF1
SIF2

I012

2082

SSIF

10u 50V

2395
100n

SC2_L_MON_OUT

I001

3081
100R

5002

1
2
3

6
7
8
9
10
11

13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

1n0

I025

I026

2375 2374

I063
F013

3374

10R

2396

10u

16V

PUMH7

A17

A17

A3

STATUS_1

STATUS_2

F041

F033

LIGHT-SENSOR-SDM

+1V8_B

5071

220n2074

126

127

128

P1.5/TX

P1.4/RX

P1.2/INT2

VSSP2
VSSC4
VDDC4

VDDA3(3.3V)
VREF_POS_LSL
VREF_NEG_LSL+LSR
VREF_POS_LSR+HPL
VREF_NEG_HPL+HPR
VREF_POS_HPR

XTALIN
XTALOUT
VSSA1
VGUARD/SWIO
DECDIG
VP1
PH2LF
PH1LF
GND1
SECPLL
DECBG
AVL/EWD

VDRB

VDRA

VIFIN1

VIFIN2

VSC

IREF

GNDIF
DVBIN1/SIFIN1
DVBIN2/SIFIN2
AGCOUT

EHTO

AVL/SWO/

AUDIOIN5R

SSIF/REFIN

AUDIOIN5L

33

3435363738

3370

680R

2358

2357

100n

2356

2u2 50V

+8VSW_TV

6005

BAS321

7372-17371-2
PUMH7

SC2_R_MON_OUT

+3V3STBY

4K73082

I030

124

125

VSSC3

VDDC3

AUDOUTSL

AUDOUTSR

3n3

100n

3358

A1

SEL_IF

4022

121

122

123

VSSC1/P

P2.4/PWM3

P2.5/PWM4

GND2

DECSDEM

AMOUT/QSSO/AUDEEM

3944041424344

I371

I028

+5VSW

7372-2

PUMH7

+3V3STBY

SW-I2C-SCL

FOR SERVICE

3083 4K7

100R3084

I015

STATUS_1

STATUS_2

118

11912120

115

116

117

DECV1V8

P3.1/ADC1

P3.2/ADC2

P3.3/ADC3

VDDC1(1.8)

TDA 15021H

DVBO/FMRO

PLLIF

SIFAGC/DVBAGC

DVBO//IFVO/FMRO

VCC8V

464748

45

390R

4002

2355 2u2 50V

3359

100R

5004

Const_L_OUT

Const_R_OUT

+3V3STBY

4K73085

SW-I2C-SDA

112

113

114

P3.0/ADC0

P2.1/PWM0

P2.2/PWM1

P2.3/PWM2

7011

VP2

SVO/IFOUT/CVBS1

AGC2SIF

AUDIOIN4L

495505152

I033

I032

2083 1u0

F014

2013
100n

A4

A3

+3V3STBY

PC-TV-LED

3K33096

SOUND_ENABLE

3087

110

111

107

108

109

P1.6/SCL

P1.7/SDA

P2.0/PMW

VDDP(3.3V)

AUDIOIN4R

CVBS4/Y4

C4

AUDIOIN2L

53545556575859

AudioIN2L

AudioIN2R

A12

A12

100n2015

100K

3009

2016 100n

2014 100n

SVHS_L_IN

SVHS_R_IN

SC1_CVBS_IN

24LC4.6L AA 7.

+3V3STBY

10K

3K3

2K23086

3088

F023

104

105

106

102

103

P1.3/T1

P0.0/I2SDI1

P0.2/I2SD02

P0.3/I2SCLK

P0.1/12SD01

AUDIOIN2R

AUDIOIN3R

CVBS2/Y2

CVBS3Y3

AUDIOIN3L

I034

I037

100n

100n2018

2017

SC2_L_IN

SVHS_C_IN

SC2_R_IN

SVHS_AV2_Y_CVBS_IN

A4

I2SDI1

979899

100

101

VSSC2

VDDC2

P1.1/T0

P1.0/INT1

VDDadc(1.8)

P0.4/I2SWS

VDDA2(3.3V)

VDDA(1.8V)

VREFAD_POS

VREFAD_NEG

VDDA1(3.3V)

VOUT(SWO1)

UOUT(INSW-S)

IN(G/Y-2/CVBS/Y-X)

UIN(B/Pb-2)

VIN(R/Pr-2/C-X)

FBISO/CSY

C2/C3

AUDOUTHPL

AUDOUTLSL

AUDOUTHPR

AUDOUTLSR

6061626364

100R

100R3390

3391

3013 100R

+3V3STBY

5072

220n2076

3094

INT0/P0.5

VSSadc

GNDA

VREFAD

BO
GO

RO
BLKIN
BCLIN

VP3

GND3

B/Pb-3

G/Y-3

/Pr-3

INSSW3

YOUT

YSYNC

VDDcomb
VSScomb

HOUT

SVM

CVBSO/PIP

CVBS-COMB

1u0

2397 1u0

2398

100R

3393 100R

3392

SC2_L_MON_OUT

SC2_R_MON_OUT

A4

I2SDO1

10R

F019

96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65

F005

4007

SC2_C_IN

CVBS-COMB

5370

5371

I013

I008

3028

MAIN_OUTR

MAIN_OUTL

4006

COUT-COMB

A4

A5

I2SCLK

EXT_MUTE

100K

4005

SC2_Y_IN

3057

100R

3389
100R

I065

+1V8_A

F020

220n2378

220n2084

4004

YOUT-COMB

A7

+3V3STBY

TV_SC_COM

I064

F021

2394 100n

I061

I054

I057

2023

100n
2002

16V 10u

I073

I074

3092
4K7

I039

3091
100R

2077

BC857BS

A7

TV_IRQ

5372

2380

2381

100n

7377-A

BC857BS

7376-A

A7,A3,A1

A7,A3,A1

SCL

SDA

1u0

100u16V

I036

2052
3054

2032 100n

2030 100n

2029 100n
2027 100n
2026 100n
2025

5005

+8VSW_TV

+8VSW_TV

RC_IN

50072041

220n

A3

+3V3STBY

IR

3093
4K7

2078 100p

SDA
SCL

NVM_WP

I016

3051

3050

3049 100R

4008

+3V3STBY

5008

I023

+3V3STBY

I024

10K3048

2044 220n

I044

RES
RES

100n2031

100R3035

100n

3380

*

3382

*

10u

2033

I051

3011

+5VSW

AUDIO PROCESSING

+8VSW_TV

BC857BS

+8VSW_TV

BC857BS

YOUT-COMB
COUT-COMB

3071

CVBS-COMB

+3V3STBY

2035

5006

3381

7377-B

3383

7376-B

1001 D5

3068 G3
3069 H3
3070 B3
3071 I12
3072 H3
3073 C5
3074 H6
3075 B5
3077 B5
3078 B5
3079 B5
3080 A7
3081 B7
3082 B7
3083 B8
3084 B8
3085 A8
3086 B9
3087 B9
3088 B9
3089 C3
3091 B11
3092 B11
3093 A11
3094 C9
3096 B8
3097 A13
3098 F14
3357 C5
3358 G7
3359 G8
3360 H17
3361 H17
3362 H17
3363 I17
3364 I17
3365 I17
3366 H15
3367 I15
3368 I15
3369 J15
3370 F7
3371 G5
3372 G5
3373 J15
3374 H7
3378 H13
3380 F11
3381 G12
3382 G11
3383 H12
3386 G13
3389 B10
3390 G9
3391 G9
3392 G9
3393 G10
3394 C6
3415 A3
4002 G8
4004 H10
4005 H10
4006 H10
4007 H10
4008 B11
4022 A8
4023 H3
4062 E6
4085 H3
4086 I3
4360 J14
4361 J14
4362 J14
4363 J14
5001 C6
5002 C7
5003 E4
5004 H8
5005 E11
5006 D12
5007 C11
5008 C11
5010 E12
5060 C6
5070 A6
5071 B7
5072 B9
5360 I14
5370 C10
5371 C10
5372 C11
6001 C3
6005 H7
6073 C3
6074 C3
6075 B3
6076 C3
7001 E3
7002-1 F3
7002-2 F2
7003 E2
7004 F14
7005 C2
7011 D8
7012 B15
7013 B15
7014 B16
7070 C3
7075 B3
7099 A13
7360 I16
7370-1 J5
7370-2 J6
7371-1 J6
7371-2 J7
7372-1 J7
7372-2 J8
7376-A H11
7376-B H12
7377-A G11
7377-B G12
F002 E6
F003 C6
F004 D5
F005 F10
F006 B6
F007 A6
F008 C6
F009 B4
F010 D6
F011 F3
F012 F3
F013 H7
F014 H8
F019 C10
F020 C10
F021 C11
F022 A12
F023 B9
F024 I3
F025 J3
F026 J3
F027 I3
F028 I5
F029 I5
F030 I5
F031 I5
F032 I5
F033 B7
F034 I5
F035 I5
F036 I5
F037 I5
F038 J4
F039 J5
F040 K4
F041 B7
F042 K4
F043 I5
F044 K4
F045 K4
F046 F5
F047 G5
F048 I2
F049 G5

F050 K4
F051 G5
F052 B2
F053 G5
F072 G2
F077 G2
F078 H3
F079 I2
F080 I2
F081 I2
F082 J2
F083 J2
F087 E6
F088 E6
F089 E6
F090 I12
F093 I13
F094 J12
F095 I12
F096 I12
F099 B14
F420 A3
F421 B3
F422 B14
F423 B15
F424 F15
I001 A7
I002 D6
I003 D2
I005 B6
I006 C3
I007 C4
I008 D10
I009 C7
I010 D6
I011 C6
I012 F7
I013 D10
I015 C8
I016 B11
I018 D6
I019 D6
I020 E6
I022 E6
I023 C11
I024 C11
I025 G7
I026 G7
I028 G8
I030 B7
I032 F8
I033 F8
I034 F9
I036 D11
I037 F9
I039 B11
I042 C12
I044 D12
I051 E12
I052 H16
I054 E10
I055 H17
I056 I15
I057 E10
I058 H17
I059 I12
I060 J12
I061 E10
I063 G7
I064 C10
I065 C10
I073 G11
I074 H11
I079 H14
I080 H14
I081 H14
I371 F7
I386 I16
I387 J16
I388 F6

1002 F2
1004 I13
1009 G5
1036 H2
1336 H2
1402 A2
2000 D3
2001 E3
2002 F10

4K73097

7099
M24C16-WMN6

7

WC

EEPROM

6

SCL

5

No 3D 3DItem

4004 - Yes
4005 Yes ­4006 - Yes
4007 Yes -

4002 Yes -

3009 Yes -

2083 - Yes

SC1_COMP_AV1_G_Y_CVBS_IN_1

47u5010

27p

2055

3040

68K
2056

100n

2376

AUDOUTLSR

1u0

3386

100R

2377

AUDOUTLSL

1u0

+3V3STBY

UAB11-932214725682

84

Φ

(2Kx8)

ADR

SC1_COMP_B_U_IN_1

SC1_COMP_R_V_IN_1

SC1_FBL_IN_1

BC847BW

+5VSW

F099

1

0

2

1

3

2SDA

7004

3098

100R

A5

A5

BC847BW

F422

3019
100R

7012

3380

3381
3382

3383

F423

3052
0R

3014
RES

*

10u

HETV
(15W)

5K6

5K6
5K6

5K6

7013
BC847BW

2040

16V

F424

MTV
(5W)

10K

10K
10K

10K

7014
BC847BW

3015

0R

3016
RES

3017

0R

3018
RES

INTF_V_OUT
INTF_U_OUT
INTF_Y_OUT

INTF_Y_IN
INTF_U_IN
INTF_V_IN

Y_NOTCH

HOUT

SANDCASTLE

R_SDTV
G_SDTV

B_SDTV

A13
A13
A13

TO HISTOGRAM

A3
A3
A3

A3
A3
A3

TO HISTOGRAM

A7

A3
A3

F022

2099

1n0

100R

100R

I042

25V

+5VSW

220n

1K8

+8VSW_TV

*

2392

1u0

DMMI - IFH YPbPr {RES}

*

2386

3378

Const_L_OUT

100R

1u0

I079

I080

I081

3366 100R

A1

SDA

A1

SCL

1004

+8VSW_TV

11 12

F090

10

I059

9

F093

8

TO 1801

7

F096

100R

F095

100R3064

F094

I060

2053

1n0

CB

6
5

3D COMB

4
3
2
1

4360

3367 100R

+5VSW

5360

I056

2367

2360

100n

16V10u

3368 100R

DMMI_FBL_IN

3373

3369 100R

2363

2368

1u0

10K

1u0

DMMI_RGB_SW

DMMI_R_V_IN

4363

4362

4361

7360

ADG734BRU

16

VDD

Φ

SPDT

SWITCH

1

IN1

IN3

2

S1A

S3A

3

D1

D3

4

S1B

S3B

10

IN2

IN4

9

S2A

S4A

8

D2

D4

7

S2B

S4B

NC

GND VSS

5

6

I052

11

12

13

14

20

19

18

17

15

2366
1u0

47K

47K

47K

3360

3361

47K

3365 47K

3364

3363 47K

I386

I387

2365

1u0

47K

47K

47K

3362

3033

3031

3012

I055

I058

47K3055

47K

47K3034

3036

DMMI_G_Y_IN
2361

1u0

DMMI_B_U_IN
2364

1u0

E_14710_064.eps

120804

2004 C7

A

2005 D6
2006 D5
2007 D5
2008 E5
2009 E5
2010 E5
2011 E6
2012 F3
2013 H8
2014 G8
2015 G9
2016 G9
2017 G9
2018 G9

B

2023 E10
2024 F2
2025 E11
2026 E11
2027 E11
2029 E11
2030 E11
2031 E11
2032 E11
2033 D12
2035 D12
2036 H3
2037 I3

C

2038 E4
2040 C15
2041 D11
2043 E4
2044 D11
2052 D11
2053 J12
2054 C3
2055 E13
2056 F13
2059 G3
2060 E5
2061 E5

D

2063 F6
2064 D3
2065 G5
2066 G6
2068 C5
2069 G3
2070 B3
2071 D6
2072 B6
2073 B7
2074 C7
2076 B9
2077 C11
2078 B11

E

2079 H3
2080 H3
2081 H3
2082 F7
2083 G8
2084 D10
2087 H3
2088 I3
2090 I3
2091 I3
2092 I3
2093 J3
2094 J3

F

2095 J3
2096 J3
2097 J3
2098 J3
2099 A12
2355 G8
2356 G7
2357 G7
2358 G7
2359 F6
2360 I15
2361 I17
2363 J15

G

2364 J17
2365 J17
2366 J16
2367 I15
2368 K15
2370 G6
2371 G6
2372 G6
2373 G6
2374 G7
2375 G7
2376 F13
2377 G13
2378 C10

H

2380 C11
2381 D11
2382 D6
2386 H12
2387 G6
2388 G6
2392 G12
2394 C11
2395 H7
2396 H7
2397 G9
2398 G10
3000 D3

I

3001 E3
3002 E3
3003 E2
3004 E2
3005 D3
3006 D6
3007 E5
3008 E5
3009 G8
3010 E6
3011 E12
3012 H17
3013 I9

J

3014 D15
3015 C16
3016 D16
3017 C16
3018 D16
3019 B15
3023 I3
3024 I3
3025 J3
3027 J3
3028 F10
3031 H17
3033 H17
3034 I17

K

3035 E11
3036 I17
3037 I3
3038 H3
3040 E13
3048 D11
3049 B12
3050 B12
3051 B12
3052 C15
3053 E6
3054 D11
3055 I17

L

3056 B2
3057 B10
3059 E5
3060 F6
3064 I12
3065 F6
3067 G3

SSB: Histogram and Hercules

1234567891011

HISTOGRAM & HERCULES

DMMI (RES)

A

B

C

D

E

TO 0320 OF

SWITCH (LCD)

TO 1320 OF

EMC

F

3139 123 5867.2

1008

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

TO 1XXX OF DMMI BD

25
26
27
28
29
30
31
32

3334

SFV32R-2STE1

1320

1

2

3

4

5

6

7

MAIN

8

9

OR

10

PDP

F076

I067

POWER-DOWN_BOLT-ON

I068

F058

CVBS_IN

I069

F067

1n02086

2089 1n0

2085 1n0

(1M20)

I094
I086
I087
I088
I089
I090

I091
I092
I093

FROM DC-DC CONVERTER

4009
4010

F060

F061

F062
F063

IR_IN

F068

IR_OUT

F069
F071

I075

F073

F075

LED_RED
RC_IN
LIGHT_SENSOR

+5V2

+5V2-RELAIS-IO2

SC2_CVBS_MON_OUT

+3V3STBY

SC1_CVBS_RF_OUT

P50_LINE_ITV_IR_SW

A15

A15

1234567891011

Circuit Diagrams and PWB Layouts

HISTOGRAM

"560" ~ "569"

SW-I2C-SDA
SW-I2C-SCL

SC2_R_IN

SC2_L_IN

SVHS_AV2_Y_CVBS_IN

SC2_Y_IN

DMMI_B_U_IN

DMMI_G_Y_IN

DMMI_R_V_IN

DMMI_FBL_IN

Const_L_OUT

Const_R_OUT

IR

4011

RC_IN

4012

H_CS_SDTV

V_SDTV

SC_STANDBY

SC1_L_RF_OUT

SC1_R_RF_OUT

4017
4018

4019
4020

RES
RES

+8V6

25662565
RESRES

INTF_U_OUT

A2

INTF_V_OUT

A2

SCL

A2

SDA

A2

INTF_V_IN

A2

INTF_U_IN

A2

INTF_Y_IN

A2

INTF_Y_OUT

A2

A2

SANDCASTLE

3066B10P-PH-K-S

5066 1u0

3026 68R

5067 1u0

3570

7562

+12VSW +8VSW_2

2
10
12
13
23
24
8
9

I071

11
14

I072

16
17
19
21

I078

22

I076

7563
PMBT2369

RES

3567

220R

68R

2057
2058 10p

2045
2046 10p

2048

68R3063

2049

2067
2062 10p

5560

2564

TDA9178T/N1

Φ


IMPROVEMENT

UIN
VIN

SDA

VOUT
UOUT
YOUT
SOUT
CF

1K0

4n7

2563

3566

5

7561-2
BC847BPN

10p

STBY-LED

10p

PDTC114ET

10p

10p2003

10p

10p2050

10p

L7808CD2T

13

OUTIN

COM

7560

VCC

YIN

ADR

VEE

3569

SCSCL

2

20
15

1
3
4
5

6
7

18

6563

BZX384-C2V7

2K2

2

BC847BPN

1K03579

+3V3STBY

+5VSW

7561-1

25V10u

DECDIG

ADEXT1
ADEXT2
ADEXT3

3565

1K8

4

3

+5VSW

7579

100u

2561

16V

2562

I082

100n

3562

3561

100K

3564

1K2

3563

1K0

6

3568

1

I360

1K8

+3V3STBY

6565

BZX384-C3V3

LIGHT-SENSOR-SDM

F018

2560

100n

3560

100K

PC-TV-LED

100K

6564

IR

25LC4.6L AA 7.

TO HERCULES

A2

RES

A2

A2

+5VSW

A2

A2

3340

22K

HOUT

VSYNC

3020

1K0 10K

I349

7018
BC847B

4015
RES

2020

100p

3022

3039

6020

BAS316

68K

I350

3347
820R

I352

I351

3021

2K7

2051

3n3

2042

3n3

7016

THR6

COMP

DISC7

7015
NE555D

6THR

COMP

7DISC

+5VSW

GND

GND

47u

8NE555D
VCC

FF

1

8
VCC

COMP

FF

1

2019

16V

CTRL 5

TR 2

RES 4

OUT 3

RES 4

1008 A1
1320 E1
2003 F4
2019 A8
2020 A7
2021 C9

A

B

C

D

E

F

2022 C10
2028 B9
2034 B9
2042 D8
2045 E4
2046 E4
2047 B11
2048 F4
2049 F4
2050 F4
2051 B8
2057 E4
2058 E4
2062 F4
2067 F4
2085 D1
2086 D1
2089 D1
2560 B5
2561 B5
2562 B5
2563 D4
2564 A4
2565 F2
2566 F3
3020 A7
3021 A8
3022 A7
3026 F3
3029 B11
3030 C10
3032 C10
3039 A7
3058 C9
3063 F3
3066 E3
3340 A6
3342 B9
3343 B9
3344 D9
3345 C11
3346 A9
3347 C7
3348 D9
3349 C10
3560 C6
3561 C5
3562 C5
3563 D5
3564 D5
3565 D4
3566 D4
3567 E4
3568 E5
3569 D5
3570 D3
3579 E5
4009 B2
4010 B2
4011 C2
4012 C2
4015 D7
4016 D11
4017 E2
4018 E2
4019 E2
4020 E2
5066 E3
5067 F3
5560 A4
6020 A7
6021 C10
6563 D5
6564 D6
6565 E5
7015 C8
7016 A8

SANDCASTLE

3346

56K

7017

2034

3n3

3348

3058

470R

I355

4K7

NE555D

6THR

7DISC

I348

2028

10n

3342

15K

3343

4K7

I353

5CTRL

2021

2TR

3OUT

10n

3344

1K0

I354

COMPCOMP

3030 3032

100K

3349

1K8

GND

I359

8
VCC

COMP

FF

1

7019
BC847B

220K

2022

220p

I357

1V / div DC

5ms / div

5CTRL

2TR

4RES

3OUT

6021

BAS316

I357

I358

4016

I356

3029

RES

1K0

3345

H_CS_SDTV

I354

1V / div DC

20us / div

A2

2047

10n

V_SDTV

A2

4K7

A2

E_14710_065.eps

281204

7017 A9
7018 B7
7019 C10
7560 B5
7561-1 E5
7561-2 E4
7562 A5
7563 D4
7579 E5
F018 A6
F058 B1
F060 B1
F061 B1
F062 B1
F063 B1
F067 C1
F068 C1
F069 C1
F071 C1
F073 C1
F075 C1
F076 A2
I067 A1
I068 A1
I069 B1
I071 C4
I072 C4
I075 C1
I076 C4
I078 C4
I082 C5
I086 E1
I087 E1
I088 E1
I089 E1
I090 F1
I091 F1
I092 F1
I093 F1
I094 E1
I348 A9
I349 A7
I350 B7
I351 A8
I352 C7
I353 C9
I354 D9
I355 A9
I356 B11
I357 C11
I358 B11
I359 C10
I360 E5

SSB: Audio Delay line (Lipsync)

123456789

AUDIO DELAY LINE (LIPSYNC)

2580

100n

4

2D 3

2581 100n

4

2D 3

F580

9

5V3

15

1

2

3

4

5

6

7

5V3

9

15

1

2

3

4

5

6

7

A

B

C

D

E

+5VSW

+5VD

+5VD

COUNTER

COUNTER

7580
M74HC590T

14

EN3

13

C2

2V3

12

G1

11

1+

2V3

10

CT=0

5V3

14

EN3

13

C2

12

G1

5V3

11

1+

2V3

10

CT=0

5V3

7581
M74HC590T

5580 1u0

+5VD

VCC

CTR8

(CT=255)Z4

GND

+5VD

16

VCC

CTR8

(CT=255)Z4

GND

16

8

8

Circuit Diagrams and PWB Layouts

+5VD

7582

(1)

5V3

2V6

2V6

2V6

2V6

2V6

2V6

2V6

4583

CY62256LL-70ZC

RAM

32kx8

0

24252612

21

23

(1) NOT USED

(1)

(1)

4585

4584

0

32k-1

A

345

10

987654321

789

6

2582
100n

F590

2V6

2V6

2V6

2V6

2V6

2V6

2V6

+5VD

4580

4581

4582

26LC4.6L AA 7.

2580 A1
2581 C1
2582 A2
2583 B7
2584 B8
2585 E6
2586 E6
2587 C9
2588 C9
3580 E5
3581 E6
4580 E2
4581 E2
4582 E2
4583 E2

2V5

11121315161718

A

A,1D

2EN

12

14

13

11

10

222827

2C1

G2

20

2V3

19

14

DFF

1
11

2
3
4
5
6
7
8
9

5V3

EN
C1

1D

+5VD

20

10

2584

100n

19
18
17
16
15
14
13
12

(1) NOT USED

4586
4587
4588
4589
4590
4591
4592
4593

(1)
(1)
(1)
(1)

(1)
(1)
(1)

2V6

F587

2587
330p

I2SDI1

A2

2V3

DFF

7583

74HC573PW

1
11

2V6

2
3
4
5
6
7
8
9

EN
C1

1D

5V3

+5VD

2583

100n

20

2V3

19
18
17
16
15
14
13
12

10

7584

74HC573PW

2V5

2V5

2V5

2V5

2V5

2V5

2V5

A

B

4584 E2
4585 E2
4586 B9
4587 B9
4588 B9
4589 B9
4590 C9
4591 C9
4592 C9
4593 C9
5580 A1
7580 A1
7581 E1
7582 A2
7583 B6
7584 B8
7585 E5
F580 A1
F584 E9
F585 E5
F586 E6
F587 C9
F588 C9
F590 B2

C

2588
470p

I2SDO1

A2

F588

D

+5VD

3580

470R

F585

2V3

7585

BC847BW

0V2

F586

2586

82p

3581

47K

2585

82p

F584

I2SCLK

E

A2

3139 123 5867.2

E_14710_066.eps

050804

123456789

SSB: Audio Amplifier

1234567891011

A

B

C

D

E

F

G

3139 123 5867.2

(INTERNAL AUDIO)
HETV AUDIO SUPPLY

(1M02)

1702

NC

1

NC

2
3

N.C.

4
5
6
7

B7B-EH-A

(EXTERNAL AUDIO)
HE-TV AUDIO CONN.

TO 1739 OF
AUDIO (LCD)

SA3

1752

1
2
3
4
5

NC

6

NC
7
8
9

TO SCALER INTERFACE

Circuit Diagrams and PWB Layouts

AUDIO AMPLIFIER

FROM HERCULES

A2

A2

A2

2747 2748

100p

2749

100p 100p

A2

A2

A2
A2

A2

A15

A2

1K0

7713

BC847BW

#

3704

SC2_L_MON_OUT

SC2_R_MON_OUT

AUDOUTLSR

5721

3752

150R

100p

5722

3753

150R

2750

SC_STANDBY

HP_DET_IN

AUDOUTLSL
HP_DET_R_DC

SOUND_ENABLE

POWER_DOWN

EXT_MUTE

3724

10K

3702

##

I729

P-GND

F719
F720

VSD_POS

F721
F722

TO 1320 OF

OR

EMC

F723
F724
F725

F726
F727
F728

from DC-DC Conv

4720

5720

2720

10p

PDP

AUDIO-L

AUDIO-R

PROTECT_AUDIO

SOUND-ENABLE
POR-AUDIO

+3V3STBY

1K0

3701

7714

BC847BW

A15

+5V2

AUD-SUP

F729

+3V3STBY

3723

F701

F702

I730

I731

+5V2-RELAIS-IO2

3703

10K

For ITV Only

I705

2704

1u0

2706

1u0

**
**

4715

##

4714

4708
4709

4716

3728

3708

I706

33K

I707

3709

33K

74HC08PW

74HC08PW

74HC08PW

#

74HC08PW

#

3729

7706-1

1

2

7706-2

4

5

7706-3

9

10

7706-4

12

13

3710

33K

3712

10K

14

7

14

7

14

7

14

7

I701

2702

1u0

3705
10K

2705 1u0

2708

1u0
3713
10K

+3V3STBY

3

6

8

11

#

3702
3704
3728
3729
4714
4715
4716----

HPIC_LIN

4701

4702

HPIC_RIN

3739

I704

INTERNAL AUDIO
(NOT FOR HETV)

7702-2
BC847BS

+3V3STBY

3719

10K

I715

4703

For ITV

7703-1

HETV

6K8

5K6
3K3

MTV

10K

1K

-

-

-

No
Yes
Yes

LCD PDP

2K2

470R

2K2
3K9
Yes Yes

+3V3STBY

2743

1u0

22K

2744

1u0

3745

100K
3743

22K

AUD-SUP

I739

3722

8K2

I714

I717

BC847BS

ITV MTV

**

4706

YES NO
4707 YES NO
4708 NO YES
4709 YES NO

3741

100K

F716

F717

3714

8K2

3717
10K

BC847BS

+3V3STBY

3748

27LC4.6L AA 7.

F718

3715

1K8

I716

7702-1

I740

7703-2
BC847BS

AUD-SUP

10K

I742

I741

1701
1703
2702
2708
4701
4702
7708

7740-1
TS482IDT

2

3

5

6

I709

3747

10K

3746
10K

3750
6K8

ITV MTV
YES
YESNONO

NONOYES

YES
YESNONO

NO YES

3740

22K

84

8

4

3742

22K

2712

1u0

+3V3STBY

3725

10K

AUD-SUP

+3V3STBY

3749

10K

3706

10K

YES

+3V3STBY

7740-2
TS482IDT

I712

3726

8K2

I713

2703

*

3714
3726

10u

2 X 3W 2 X 5W

1

HPIC_LOUT

7

4705

2741
470p
*EMC

I718

1K8

3727

6K8

3751

16V

6701

For LCD BZX384-2V7
For PDP BZX384-6V2

8K2

12K
12K

8K2

I702

470p

2718

1u0

3744

10K

RES

3720

10K

HPIC_ROUT HPIC_ROUT

RES

4704

I703

*EMC*EMC
27392740
470p

2716

I719

2742

I728

2746

PDTA143ET

* AV BUNDLE

10u

16V

470p

*EMC

10V

1u0

AUD-SUP

7710

7707

TDA1517ATW

3

IN1+

18

IN2-

I710

17 1

MODE

I711

5

SVRR

16V

2709

100u

SGND 1 2

1701

+T

4R8

7006

TDA7297D

BRIDGE

AMPLIFIER

7

1

IN

14

2

9

STBY

8

MUTE

SGND

13

3716

470R

4710

4711

3721

470R

I721

3707

RES

15 16

VP1 VP2

Φ

POWER

AMPLIFIER

PGND

114

10 21

P-GND

AUD-SUP

Φ

PW_GND

1

101120

P-GND

7708-2
BC847BS

OUT1A
OUT1B

OUT2A
OUT2B

6

VCC

OUT1

OUT2

5

2701

100n

NC

HS

15

NC

+

-

+

-

P-GND

8
9

12
13

2
6

7
14
19
20

P-GND

3

4
12
17
18

2

5

19

16

3

4

2719

2

100n

P-GND

F711

F712

F713

F714

HPIC_LOUT

16V

2714

2713

100n

470u

P-GND

5736

DLW5BS

5735

DLW5BS

6

7708-1
BC847BS

1

7708

HETV MTV

BC847BS PUMH7

3716

4710

3721

4711

1701 D8
1702 A1
1735 E11
1752 C1
2701 B9
2702 A5
2703 E7
2704 A3
2705 A5
2706 A3
2707 A10
2708 B5

I726

2707

470u

I724

I725

2715

470u 16V

16V

**

**

4706

I727

4707

3711

3718

39R

39R

2710
470p

2711
470p

FROM HERCULES

A2

HP_ROUT

A2

HP_LOUT

A

B

C

D

1735

2R2

3736

I736

2736

*EMC

*EMC

1n0

2R2

F710

3737

I737

2737

*EMC

*EMC

F705
F706
F707
F708

R+

4

B4B-PH-K

2R2

1n0

OUT_MUTE

R

3
2

L

1

HP_LOUT

HP_ROUT

N.C.

8 OHMS/5W

A2

A2

A2

E

F

R­L+
L-

*EMC

2R2

3738

I738

1n0

2738

*EMC

12

43

12

3735

I735

2735

*EMC

1n0

*EMC

43

G

E_14710_067.eps

081004

2709 C8
2710 A11
2711 B11
2712 C6
2713 D9
2714 D9
2715 B10
2716 C7
2718 D7
2719 D9
2720 B2
2735 F10
2736 F10
2737 F10
2738 F11
2739 B7
2740 B7
2741 C7
2742 E7
2743 A6
2744 A6
2746 E7
2747 B2
2748 B3
2749 C2
2750 C3
3701 F1
3702 G2
3703 A4
3704 G2
3705 A5
3706 E6
3707 G8
3708 A4
3709 A4
3710 A4
3711 A11
3712 B4
3713 B5
3714 C6
3715 C6
3716 F8
3717 C6
3718 B11
3719 C5
3720 C7
3721 F8
3722 C6
3723 F2
3724 F2
3725 D6
3726 D7
3727 E7
3728 G4
3729 G4
3735 E10
3736 E10
3737 E10
3738 E11
3739 A5
3740 A6
3741 A6
3742 B6
3743 B6
3744 E7
3745 B6
3746 E6
3747 D6
3748 E6
3749 D6
3750 E6
3751 E7
3752 B3
3753 C3
4701 A5
4702 B5
4703 D5
4704 B7
4705 B7
4706 A11
4707 B11
4708 E3

4709 E3
4710 F8
4711 F8
4714 G3
4715 F3
4716 F4
4720 B2
5720 B2
5721 B2
5722 C2
5735 E9
5736 E9
6701 G7
7006 D8
7702-1 D6
7702-2 C5
7703-1 E5
7703-2 D6
7706-1 E4
7706-2 E4
7706-3 F4
7706-4 F4
7707 B8
7708-1 F9
7708-2 G8
7710 F8
7713 F2
7714 G2
7740-1 A6
7740-2 B7
F701 A3
F702 B3
F705 E10
F706 E10
F707 E10
F708 E10
F710 G10
F711 E9
F712 E9
F713 E9
F714 E9
F716 A6
F717 A6
F718 B6
F719 B1
F720 B1
F721 B1
F722 B1
F723 C1
F724 C1
F725 C1
F726 C1
F727 C1
F728 C1
F729 B2
I701 A5
I702 B7
I703 B7
I704 A5
I705 A4
I706 A4
I707 A4
I709 C6
I710 C8
I711 C8
I712 C7
I713 E7
I714 D6
I715 D5
I716 D6
I717 D6
I718 D7
I719 D7
I721 G8
I724 A10
I725 B10
I726 A11
I727 B11
I728 E7
I729 D3
I730 E3
I731 E3
I735 F10
I736 F10
I737 F10
I738 F11
I739 C6
I740 D6
I741 E6
I742 E6

4567

8 9 10 11

SSB: TV Supply

A

B

C

D

Circuit Diagrams and PWB Layouts

28LC4.6L AA 7.

123456789

TV-SUPPLY

A

7930
MC34063AD

+12VSW

5930

10u

I902

SUP_GND

2930

8

DCOL

DCOL

QRS

I901

11V7

3930

3931

1R0

1R0

11V8

I903

SUP_GND

1K0

3932

1%

2932

RES

16V470u

1V2

3K3

VCC

3933

2934

4n7

7
IS

6

5

1%

IS

VCC

CIN_NEG

IPK

OSC

REFERENCE
REGULATOR

SWC

TIMC

GND

1

SWC

2SWE

SWE

3

TIMC

4

GND

11V7

5V5

I905

2931

470p

SUP_GND

SUP_GND

0V7

470u 16V

SUP_GND

I904

2V / div DC

5us / div

I904

5931
220u

SUP_GND

2933

6930
SS14

3910

2K2

I906

5910

1m0

I907

5932

10u

2935

6910

BAV99

B

5V3

F915

16V470u

33V7
F912

2911

35V22u

6911

BZX384-C33

+5VSW

C

+VTUN

D

2910 D8
2911 D9
2920 E4
2921 E5
2930 C3
2931 B6
2932 C4
2933 C7
2934 C4
2935 C8
3910 B7
3911 D7
3930 B3
3931 B4
3932 C4
3933 C4
5910 D8
5920 E3
5930 C3
5931 B7
5932 C8
6910 D8
6911 D9
6930 C7
7910 D7
7920 E4
7930 A5
F912 D9
F913 E9
F915 C9
I901 B4
I902 C3
I903 C4
I904 B7
I905 B6
I906 C7
I907 D8
I908 D7

E

3139 123 5867.2

+12VSW

5920

7920

L78M08CDT

13

OUTIN

2920

16V47u

COM

2

2921

I908

3911

1K0

16V47u

7910
BC817-25

TUN_GND

2910
470p

TUN_GND

TUN_GND

8V

F913

+8VSW_TV

E_14710_068.eps

E

100804

123456789

SSB: Scaler

12345678910111213141516

Circuit Diagrams and PWB Layouts

29LC4.6L AA 7.

A

TO HERCULES

B

C

D

E

F

G

H

I

J

K

L

3139 123 5867.2

SCALER

+3V3_LVDS

AE17

LVDSA_3.3

VDDD33_LVDS

D_GND

D_GND

D_GND

P10

P17

R17

FSVREF

D_GND

L17

J24

W25

FSVREF

FSVREF

LVDSB_GND

AC13

+1V8_DVI+3V3_LBADC +2V5_DDR

D6D7D8

DVI_1.8

DVI_1.8

LVDSB_GND

LVDSB_GND

AC14

AC15

D9

D10

C11

DVI_1.8

DVI_1.8

VSSA33A_LVDS

VSSA33A_LVDS

VSSA33A_LVDS

AD19

AC19

AC20

+3V3_DVI +1V8_ADC +3V3_ADC +3V3_PLL+3V3_LVDSA

C10

C9

DVI_3.3

DVI_3.3

DVI_3.3

VSSD33_LVDS

AD17

C6C7C8

DVI_3.3

DVI_3.3

FSVREFVSS

K26

W24

A3

A4

ADC_1.8

ADC_1.8

FSVREFVSS

ADC_DGND

B4

D4

B3

A2

D3

ADC_3.3

ADC_3.3

ADC_AGND

ADC_AGND

ADC_DGND

A5

E2

E3

ADC_3.3

ADC_3.3

ADC_AGND

ADC_AGND

E1

E4

C4

F2

F4

G1

VDDA33_PLL

VDDA33_RPLL

ADC_AGND

DVI_GND

A7

B7

H1

H3

J3

J1

VDDA33_FPLL

VDDA33_SDDS

VDDA33_SDDS

VDDA33_DDDS

VDDA33_DDDS

GPIO_G08_B5/JTAG_RESET

GPIO_G08_B1/JTAG_MODE

DVI_GND

DVI_GND

DVI_GND

DVI_GND

DVI_GND

B5

A11

D11

FSDATA0

FSDATA1
FSDATA2
FSDATA3
FSDATA4
FSDATA5

FSDATA6

FSDATA7

FSDATA8

FSDATA9

FSDATA10
FSDATA11
FSDATA12
FSDATA13
FSDATA14
FSDATA15
FSDATA16
FSDATA17
FSDATA18
FSDATA19
FSDATA20
FSDATA21
FSDATA22
FSDATA23
FSDATA24
FSDATA25
FSDATA26
FSDATA27
FSDATA28
FSDATA29
FSDATA30
FSDATA31

FSADDR0
FSADDR1
FSADDR2
FSADDR3
FSADDR4
FSADDR5
FSADDR6
FSADDR7
FSADDR8
FSADDR9

FSADDR10

FSADDR11

FSCLKp
FSCLKn
FSDQS

FSDQMU0
FSDQMU1
FSDQMU2
FSDQMU3

/FSWEU
/FSCASU
/FSRASU

FSCKEU
FSBKSELU0
FSBKSELU1

GPIO_G06_B0
GPIO_G06_B1
GPIO_G06_B2
GPIO_G06_B3

GPIO_G05_B0
GPIO_G05_B3

GPIO_G04_B0
GPIO_G04_B1
GPIO_G04_B2
GPIO_G04_B3
GPIO_G04_B4
GPIO_G04_B5
GPIO_G04_B6
GPIO_G04_B7

GPIO_G07_B0
GPIO_G07_B1
GPIO_G07_B2
GPIO_G07_B3
GPIO_G07_B4
GPIO_G07_B5
GPIO_G07_B6
GPIO_G07_B7

LVDS_SHIELD(0)
LVDS_SHIELD(1)
LVDS_SHIELD(2)
LVDS_SHIELD(3)

LVDS_SHIELD(4)
LVDS_SHIELD(5)

GPIO_14
GPIO_15
GPIO_16

GPIO_G08_B4/JTAG_TDO

GPIO_G08_B3

GPIO_G08_B2/JTAG_TDI

GPIO_G08_B0/JTAG_CLK

GPIO_G09_B5
GPIO_G09_B4
GPIO_G09_B3
GPIO_G09_B2
GPIO_G09_B1
GPIO_G09_B0

NO_CONNECT

OEXTR

D_GND

DVI_GND

LBADC_GND

VSSA33_RPLL

VSSA33_PLL

VSSA33_FPLL

VSSA33_SDDS

F3

H2

H4

G2

D13

A3+

A3-

AC+

AC-

AE21

A2+

A2-

A1+

A1-

A0+

A0-

AE11

B3+
B3­BC+
BC-

B2+
B2­B1+
B1­B0+
B0-

DCLK

PPWR
PBIAS

VSSA33_SDDS

VSSA33_DDDS

VSSA33_DDDS

J4

J2

K4

E24
E25
E26
G26
G24
H26
H24
J25
T26
R25
P24
P26
N24
N26
M25
L24
L25
M26
M24
N25
N23
P25
R26
R24
K24
J26
H25
G23
G25
F24
F25
F26

AD25
AD26
AC24
AC25
AB26
AA24
AA25
AA26
Y24
AB25
AC26
AB24

U24
U23
L26

T25
U25
U26
T24
V26
V25
V24
W26
Y25
Y26

AC18
AD18
AE18
AF18
AE19
AF19
AE20
AF20

AD21
AD22

AF21
AE22
AF22
AE23
AF23

AD23
AD24
AE24
AF24
AF25
AF26
AE25
AE26

AE8
AF8
AC9
AD9
AE9
AF9
AD10
AE10

AF10
AC11
AD11

AF11
AF12
AE12
AF13

AE13
AD14
AF14
AE14
AF15
AE15
AF16
AE16

AC7
AF17
AD16
AD7

AD8
AF7
AE7
AF6
AE6
AD6
AF5
AE5
AD5
AC5
AF4
AE4

A26
B26
AC17
AC16
AD15

FSADDRU0
FSADDRU1
FSADDRU2
FSADDRU3
FSADDRU4
FSADDRU5
FSADDRU6
FSADDRU7
FSADDRU8

FSADDRU9
FSADDRU10
FSADDRU11

NC
NC
NC
NC

F402
F403
F404
F405

NC
NC

F406
F407
F408
F409
F410
F417

I438

3438-1 1 8

3438-2
I458
I459

I423

3K3

3423

FSDATAU0
FSDATAU1
FSDATAU2
FSDATAU3
FSDATAU4
FSDATAU5
FSDATAU6
FSDATAU7
FSDATAU8

FSDATAU9
FSDATAU10
FSDATAU11
FSDATAU12
FSDATAU13
FSDATAU14
FSDATAU15
FSDATAU16
FSDATAU17
FSDATAU18
FSDATAU19
FSDATAU20
FSDATAU21
FSDATAU22
FSDATAU23
FSDATAU24
FSDATAU25
FSDATAU26
FSDATAU27
FSDATAU28
FSDATAU29
FSDATAU30
FSDATAU31

FSDQMU0
FSDQMU1
FSDQMU2
FSDQMU3

FSBKSELU0
FSBKSELU1

(NC)
(NC)
(NC)
(NC)

(NC)
(NC)
(NC)
(NC)
(NC)
(NC)

45

FSDATAU0
FSDATAU1
FSDATAU2
FSDATAU29

FSDATAU26
FSDATAU7
FSDATAU25
FSDATAU24

FSDATAU21
FSDATAU11
FSDATAU10
FSDATAU19

FSDATAU14
FSDATAU18
FSDATAU16
FSDATAU15

FSDATAU17
FSDATAU20
FSDATAU12
FSDATAU13

FSDATAU23
FSDATAU22
FSDATAU9

FSDATAU5
FSDATAU6
FSDATAU4
FSDATAU3

FSDATAU30
FSDATAU31
FSDATAU27
FSDATAU28

FSDQMU0
FSDQMU1
FSDQMU2
FSDQMU3

FSWEU
FSCASU
FSRASU
FSCKEU

FSWEU
FSCASU
FSRASU

FSBKSELU0

FSCKEU

FSBKSELU1

+3V3_IO

3449

RES

PC_HDMI-AUDIO_SEL

PIXEL+_SYNC

PIXEL+_RESET

PDP_GO_UP

SD_HD_SEL

POWER_OK_UP

10R3448

HOT_PLUG

Y_NOTCH

10K

10K27
10K3438-4
10K3438-3 3 6

TV_SC_COM

DMMI_HD_SEL

PC_HD_DET
PC_HD_SEL

PANEL-PWR-CTL

LAMP_ON-OFF

VS_ON

TXB3+

TXB3­TXBC+
TXBC-

TXB2+

TXB2­TXB1+

TXB1­TXB0+

TXB0-

NVM-WP

TV_IRQ

8

3401-1 1

3402-1 22R
3402-2
3402-3 22R
3402-4 22R

3404-4 22R
3404-3 22R
3404-2 22R
3404-1 22R

3406-1 22R18
3406-2 22R27
3406-3 3 6
3406-4 4 5

3407-1 22R1

3408-1 22R18
3408-2 22R
3408-3 22R
3408-4 22R

3412-3
3412-4 22R
3412-2

3413-2 2 7
3413-3 22R36
3413-4 22R

3447 22R

A12

A13

A16

A2

A11
A2
A2
A13
A13
A13

A14

36

18

36
45

45

45
36
27
18

27
36
45

3422

45

45

TO PCHD-MUX

TO HDMI

TO PCHD-IO

TO FLASH CONTROL

22R
22R3401-2 2 7
22R3401-3
22R3401-4 4 5

22R27

22R3403-4
22R3403-3 3 6
22R3403-2 2 7

8

22R3403-1 1

8

22R3405-1 1
22R3405-2 2 7
22R3405-3 3 6
22R3405-4 4 5

22R
22R

22R3407-4 4 5
22R3407-3 3 6
22R3407-2 2 7

8

22R

22R3412-1 1 8
22R36

22R27

8

22R3413-1 1
22R

22R3414

TO HERCULES / HISTOGRAM

TO PCHD-MUX

FSDATA0
FSDATA1
FSDATA2

FSDATA29

FSDATA26

FSDATA7
FSDATA25
FSDATA24

FSDATA21
FSDATA11
FSDATA10
FSDATA19

FSDATA14
FSDATA18
FSDATA16
FSDATA15

FSDATA17
FSDATA20
FSDATA12
FSDATA13

FSDATA23
FSDATA22

FSDATA9

FSDATA8

FSDATA5

FSDATA6

FSDATA4

FSDATA3

FSDATA30
FSDATA31
FSDATA27
FSDATA28

FSCLK+

FSCLK­FSDQS

FSDQM0
FSDQM1
FSDQM2
FSDQM3

FSWE
FSCAS
FSRAS
FSCKE

FSBKSEL0
FSBKSEL1

TO SCALER INTERFACE

JTAG_TDI_SDA

JTAG_CLK_SCL

TO SUPPLY

FROM SDRAM

A10
A10
A10
A10

A10
A10
A10
A10

A10
A10
A10
A10

A10
A10
A10
A10

A10
A10
A10
A10

A10
A10
A10
A10

A10
A10
A10
A10

A10
A10
A10
A10

A10
A10
A10

A10
A10
A10
A10

A10
A10
A10
A10

A10
A10

A9
A9
A9
A9

A9

A9
A9
A9
A9

A9
A9
A9
A9
A9
A9

A9

FSADDRU3FSDATAU8
FSADDRU2
FSADDRU1
FSADDRU0

FSADDRU8
FSADDRU7
FSADDRU6
FSADDRU5

FSADDRU4
FSADDRU9
FSADDRU11
FSADDRU10

+3V3_IO

F405

500mV / div DC

20us / div

3437 3436
10K

10K

JTAG_TDI_SDA

18

3409-1 22R

27

3409-2 22R

36

3409-3 22R

45

22R3409-4

8

45

I460

F436
F437

B3B-PH-SM3-TBT

For SW testing use

22R3410-1 1

22R

22R

22R
22R3411-4

1408

(RES)

3410-2 22R27
3410-3 3 6
3410-4 22R45

3411-1 1 8
3411-2 22R27
3411-3 3 6

FSADDR3
FSADDR2
FSADDR1
FSADDR0

FSADDR8
FSADDR7
FSADDR6
FSADDR5

FSADDR4

FSADDR9
FSADDR11
FSADDR10

3
2
1

A10
A10
A10
A10

A10
A10
A10
A10

A10
A10
A10
A10

E_14710_069.eps

100804

TO SCALER INTERFACE

A2
A2

A2

TO 1409 SCALER INTERFACE

+3V3STBY

3428 3429

10K

SCL
SDA

TO SCALER INTERFACE A9

KEYBOARD

TO HDMI

FROM SUPPLY

TO FLASH CONTROL

RESERVED TO PCHD-IO

A16
A16
A16
A16
A16
A16
A16
A16
A16
A16

FROM/TO PCHD-MUX

A13
A13
A13
A13
A13
A13

10K

A13

A13
A13

+3V3_PLL

FROM HDMI

A12
A12
A12
A12
A12
A12
A12
A12

A12
A12
A12
A12
A12
A12
A12
A12

A12
A12
A12
A12
A12
A12
A12
A12

A12

A12
A12
A12

A9
A9

4446

RES

A13

TO PCHD-MUX

FROM PCHD-IO

A16
A16

A11

A11
A11

A11
A11
A11

OCMADDR19
OCMADDR18
OCMADDR17
OCMADDR16
OCMADDR15
OCMADDR14
OCMADDR13
OCMADDR12
OCMADDR11
OCMADDR10
OCMADDR9
OCMADDR8
OCMADDR7
OCMADDR6
OCMADDR5
OCMADDR4
OCMADDR3
OCMADDR2
OCMADDR1
OCMADDR0

OCMDATA7
OCMDATA6
OCMDATA5
OCMDATA4
OCMDATA3
OCMDATA2
OCMDATA1
OCMDATA0

SCL_DVI
SDA_DVI
RX0+IN
RX0-IN
RX1+IN
RX1-IN
RX2+IN
RX2-IN
RXC+IN
RXC-IN

+3V3_DVI

B_PB­B_PB+
G_Y­G_Y+
R_PR­R_PR+
SOG

H_CS
V

22p2488 SMD-49

HDMI_VRED0
HDMI_VRED1
HDMI_VRED2
HDMI_VRED3
HDMI_VRED4
HDMI_VRED5
HDMI_VRED6
HDMI_VRED7

HDMI_VGRN0
HDMI_VGRN1
HDMI_VGRN2
HDMI_VGRN3
HDMI_VGRN4
HDMI_VGRN5
HDMI_VGRN6
HDMI_VGRN7

HDMI_VBLU0
HDMI_VBLU1
HDMI_VBLU2
HDMI_VBLU3
HDMI_VBLU4
HDMI_VBLU5
HDMI_VBLU6
HDMI_VBLU7

HDMI_VCLK

HDMI_VVS
HDMI_VHS
HDMI_VDV

FAN_SPEED1
BU_LHT_ADJ2
BU_LHT_ADJ1

2490

2491 2492

100n 100n

HD_FILTER

UART_TX
UART_RX

#RESET

SCL_IO
SDA_IO

#OCM_WE
#OCM_RE
#ROM_CS

POWER_DOWN

150R 1%

3425

1401

3426

100n

+3V3STBY

+3V3STBY

3424

14M31818

10K3443

LBADC3
TEMP_SENSOR

3442-4 4 5
3442-1
3442-2
3442-3 3 6

PIP_CLK

3441-2
3441-1
3441-3 3 6
3441-4 4 5

3439-3 3
3439-2
3439-1
3440-3
3440-1 1 8
3439-4 4 5
3440-2 2 7
3440-4

I424

100R

10K

22p2487

3K3

(RES)
(RES)

PIP_DATA0
PIP_DATA1
PIP_DATA2
PIP_DATA3
PIP_DATA4
PIP_DATA5

(RESERVE)

PIP_DATA6
PIP_DATA7

18
27

(RESERVE)

3432 10K

V-CHIP_INT

10K

27
18

10K
2
18

36

45

+1V8_CORE +3V3_IO

7401

GM1601

N4

DVI_SCL

N3

DVI_SDA

A8

RX0+

B8

RX0-

A9

RX1+

B9

RX1-

A10

RX2+

B10

RX2-

A6

RXC+

B6

RXC-

D5

NO_CONNECT

C5

I446

NO_CONNECT

3446

B11

REXT

1%

B1

BLUE-

B2

BLUE+

C1

GREEN-

C2

GREEN+

D1

RED-

D2

RED+

C3

SOG

A1

NO_CONNECT

N2

VGA_SCL

N1

VGA_SDA

L4

AHSYNC

L3

AVSYNC

I425

R4

EXTCLK

G4

XTAL

G3

TCLK

F1

NO_CONNECT

K3

NO_CONNECT

I426

K2

ACS_RSET_HD

C19

VRED0

B19

VRED1

A19

VRED2

D18

VRED3

C18

VRED4

B18

VRED5

A18

VRED6

C17

VRED7

A23

VGRN0

C22

VGRN1

B22

VGRN2

A22

VGRN3

D21

VGRN4

C21

VGRN5

B21

VGRN6

A21

VGRN7

B25

VBLU0

A25

VBLU1

D24

VBLU2

C24

VBLU3

B24

VBLU4

A24

VBLU5

C23

VBLU6

B23

VBLU7

A20

VCLK

B20

VODD

C20

VVS

D19

VHS_CSYNC

D20

VDV

B17

I443

VCLAMP

C26

PWM0

C25

PWM1

D26

I427

PWM2

D25

I429

OCM_TIMER1

A12

LBADC_IN3

B12

LBADC_IN2

C12

LBADC_IN1

D12

LBADC_RETURN

C16

SVDATA0

B16

SVDATA1

A16

SVDATA2

D15

SVDATA3

C15

SVDATA4

B15

SVDATA5

A15

SVDATA6

D14

SVDATA7

I442

A17

SVDV

A14

10K

SVODD

B14

SVVSYNC

C14

SVHSYNC

D16

SVCLK

M1

OCM_UD0

M2

OCM_UD1

K1

/RESET

M4

IR1

M3

IR0

P4

MSTR_SCL

P3

MSTR_SDA

10K3433

R3

/OCM_WE

R2

/OCM_RE

R1

/ROM_CS

L1

/OCM_INT2

I449

L2

/OCM_INT1

P2

I441

/OCM_CS2

I450

P1

/OCM_CS1

I451

T4

/OCM_CS0

T3

OCMADDR19

T2

OCMADDR18

T1

OCMADDR17

U4

OCMADDR16

U3

OCMADDR15

U2

OCMADDR14

U1

OCMADDR13

V4

OCMADDR12

V3

OCMADDR11

V2

OCMADDR10

V1

OCMADDR9

W3

OCMADDR8

W2

OCMADDR7

W1

OCMADDR6

Y3

OCMADDR5

Y2

OCMADDR4

Y1

OCMADDR3

AA3

OCMADDR2

AA2

OCMADDR1

AA1

OCMADDR0

I452

6

AB3

OCMDATA15

I453

AB2

7

OCMDATA14

AB1

I439

OCMDATA13

I454

AC3

OCMDATA12

I455

AC2

OCMDATA11

I456

AC1

OCMDATA10

AD1

I440

OCMDATA9

I457

AE1

OCMDATA8

10K

AF1

OCMDATA7

AD2

OCMDATA6

AE2

OCMDATA5

AF2

OCMDATA4

AD3

OCMDATA3

AE3

OCMDATA2

AF3

OCMDATA1

AD4

OCMDATA0

K17

U17

CORE_1.8

D_GND

A13

U11

CORE_1.8

D_GND

L15

U14

L16

T16

CORE_1.8

CORE_1.8

CORE_1.8

D_GND

D_GND

D_GND

P15

M15

L11

T17

CORE_1.8

D_GND

U15

R15

K10

K16

CORE_1.8

CORE_1.8

CORE_1.8

D_GND

D_GND

D_GND

N11

M11

T11

U16

CORE_1.8

D_GND

R11

U10

CORE_1.8

CORE_1.8

D_GND

D_GND

P16

N17

K11

K23

CORE_1.8

D_GND

R10

N10

D17

IO_3.3

VDDA18_DLL

D_GND

D_GND

D_GND

D_GND

L12

K12

M13

D22

D23

M12

AC4

IO_3.3

IO_3.3

D_GND

D_GND

N12

AC6

P12

AC8

IO_3.3

D_GND

T12

AC10

IO_3.3

D_GND

U12

IO_3.3

IO_3.3

D_GND

D_GND

L13

AA4

N13

W4

IO_3.3

D_GND

R13

AB4

IO_3.3

D_GND

L10

Y4

IO_3.3

D_GND

T13

C13

IO_3.3

LBACD_33

D_GND

D_GND

T10

K14

V23

D_GND

L14

H23

D_GND

N14

J23

FS_2.5

D_GND

P14

M23

FS_2.5

D_GND

B13

L23

P23

FS_2.5

FS_2.5

FS_2.5

D_GND

VSSA18_DLL

K25

T23

T14

F23

AA23

AB23

E23

Y23

AC23

W23

FS_2.5

FS_2.5

FS_2.5

FS_2.5

FS_2.5

FS_2.5

FS_2.5

SCALER

D_GND

D_GND

D_GND

D_GND

D_GND

D_GND

D_GND

T15

K15

R16

N15

N16

M16

+3V3_LVDSB

R23

FS_2.5

D_GND

D_GND

K13

P13

R12

AC12

LVDSB_3.3

D_GND

D_GND

U13

AD12

AD13

LVDSB_3.3

D_GND

R14

M14

AD20

LVDSB_3.3

LVDSA_3.3

D_GND

D_GND

D_GND

P11

M10

AC21

AC22

LVDSA_3.3

D_GND

M17

12345678910111213141516

1401 C3
1408 J15
2487 C3
2488 C2
2490 G2
2491 G3
2492 G3
3401-1 A13
3401-2 A13

A

3401-3 A13
3401-4 A13
3402-1 B13
3402-2 B13
3402-3 B13
3402-4 B13
3403-1 B13
3403-2 B13
3403-3 B13
3403-4 B13
3404-1 C13

B

3404-2 B13
3404-3 B13
3404-4 B13
3405-1 C13
3405-2 C13
3405-3 C13
3405-4 C13
3406-1 C13
3406-2 C13
3406-3 C13
3406-4 C13
3407-1 D13

C

3407-2 D13
3407-3 C13
3407-4 C13
3408-1 D13
3408-2 D13
3408-3 D13
3408-4 D13
3409-1 C15
3409-2 C15
3409-3 C15
3409-4 C15
3410-1 D15

D

3410-2 D15
3410-3 D15
3410-4 D15
3411-1 D15
3411-2 D15
3411-3 D15
3411-4 D15
3412-1 E13
3412-2 E13
3412-3 E13
3412-4 E13

E

3413-1 E13
3413-2 E13
3413-3 E13
3413-4 E13
3414 E13
3422 D13
3423 K11
3424 B3
3425 C3
3426 D3
3428 C2
3429 C2

F

3432 H3
3433 H3
3436 J15
3437 J14
3438-1 J12
3438-2 J12
3438-3 J12
3438-4 J12
3439-1 K3
3439-2 K3
3439-3 K3
3439-4 K3

G

3440-1 K3
3440-2 K3
3440-3 K3
3440-4 K3
3441-1 I3
3441-2 I3
3441-3 I3
3441-4 I3
3442-1 G3
3442-2 H3
3442-3 H3

H

3442-4 G3
3443 F3
3446 B3
3447 E13
3448 H12
3449 G12
4446 G2
7401 A4
F402 H12
F403 I12
F404 I12
F405 I12

I

F406 I12
F407 I12
F408 I12
F409 I12
F410 I12
F417 I12
F436 J15
F437 J15
I423 K11
I424 B3
I425 C4
I426 C4

J

I427 F4
I429 F4
I438 J11
I439 K4
I440 K4
I441 I4
I442 G4
I443 F4
I446 B4
I449 I4
I450 I4

K

I451 I4
I452 K4
I453 K4
I454 K4
I455 K4
I456 K4
I457 K4
I458 J11
I459 J11
I460 J15

L

SSB: Scaler Supply

2401 B1
2402 B1
2403 B2
2404 B2

2405 B2
2406 B2
2407 B2
2408 B3

2409 B3
2410 B3
2411 B3
2412 B3

123456789

Circuit Diagrams and PWB Layouts

2413 B4
2414 B4
2415 B4
2416 B4

2417 B1
2418 B1
2419 B2
2420 B2

2421 B2
2422 B2
2423 B3
2424 B3

SCALER SUPPLY

2425 B3
2426 B3
2427 B3
2428 B4

2429 B4
2430 B4
2431 B4
2432 B5

2433 B5
2434 A4
2435 A4
2436 A4

2437 A5
2438 A5
2439 A5
2440 A5

2441 A5
2442 A6
2443 A6
2444 A6

30LC4.6L AA 7.

2445 A6
2446 A6
2447 B5
2448 B6

2449 B6
2450 B6
2451 A2
2452 A3

2453 A3
2454 A3
2455 A3
2456 A3

2461 B6
2462 B7
2463 B5
2464 B5

2465 A1
2466 A1
2467 A2
2468 A2

2469 A2
2470 B5
2471 B6
2472 B6

2473 B6
2474 B6
2475 B6
2476 B7

2477 B7
2478 A7
2479 A8
2480 A8

2481 A8
2482 A8
2483 A9
2484 A9

2485 A9
2486 A7
2495 B7
2496 B8

F401 B1
F419 B1
F434 A4
F447 B5

F451 A2
F461 B6
F463 B5
F465 A1

F466 A1
F470 B5
F478 A7
F482 A9

F486 A7

A

B

C

+3V3_ADC

2465

22u

16V

+2V5_DDR

2417

47u

16V

+1V8_CORE

F465

F466

F419

2401

47u 16V 16V47u

2466

2418

47u 16V

2402

100n100n

2403
100n

24682467
100n

2419
100n

2404
100n

2469
100n

2420
100n

2405
100n

+3V3_DVI

F451

2451

47u 16V

2421

100n100n

2406 2407

100n100n

2452
100n

24232422

2408

2453

100n100n

100n100n

2454
100n100n

24252424

24102409

2455
100n

100n100n

100n100n

2456

100n

24272426

24122411

+3V3_IO

2428
100n100n

100n100n

2434 2435

47u

47u 16V16V

2429 2430
100n

24142413

100n

2415
100n100n

2436
100n

2431 2432

2416

100n

2437

100n100n

100n

+1V8_ADC

2438
100n100n

2433

2463
100n 100n

100n

2464

24402439

+3V3_PLL

+1V8_DVI

100n100n

F470

2470

22u 16V

2447
100n

24422441

100n

2448

2443
100n100n

24722471

100n100n

2444
100n

2473
100n100n

24502449
100n

2445
100n

2474
100n

FSVREF

2446
100n

100n

F461F447F401 F463

2461
100n

+3V3_LVDS

2486

100n

2477

24762475
100n

100n

2462
100n

F486

2478

16V22u

+3V3_LBADC

47u

F478F434

2495

16V

+3V3_LVDSA

2480

2479

100n100n

2496
100n

2481

+3V3_LVDSB

F482

2482

22u 100n

24842483

100n100n

2485
100n16V

A

B

C

3139 123 5867.2

123456789

E_14710_070.eps

060804

SSB: Scaler Interface

123456789101112

A

B

C

D

E

F

G

H

Circuit Diagrams and PWB Layouts

SCALER INTERFACE

FOR PDP ONLY

4871
4872

+3V3STBY

2872

5872

100n

7872
PCA9515DP

SDA_IO

A7

SCL_IO

A7

BUF_ENABLE

TXB3+

A7

TXB3-

A7

TXBC+

A7

TXBC-

A7

TXB2+

A7

TXB2-

A7

TXB1+

A7

TXB1-

A7

TXB0+

A7

TXB0-

A7

8

VCC

SDA03SDA16

SCL02

EN5

DLW21S

DLW21S

DLW21S

DLW21S

DLW21S

SCL1 7

NC

GND

4

3

1860

2

3

1861

2

3

1862

32

1863

2

3

1864

2

1

NC

4

2860

2861

1

4

2862

2863

4

2864

2865

11

4

2866

1

4

2868 10p

2869 10p

1

3871

SDA_DMA_BUS1_DISP

68R

3870

SCL_DMA_BUS1_DISP

68R

10p

10p

10p

10p

10p

10p

10p

10p2867

FOR LCD ONLY

2870
10p 10p

PAN_VCC

F872

2871

LVDSD+
LVDSD-

LVDSCLK+
LVDSCLK-

LVDSC+
LVDSC-

LVDSB+
LVDSB-

LVDSA+
LVDSA-

(NC)
(NC)
(NC)

5874

2874
10p

F870

F871

F874

CTRL_DISP3
CTRL_DISP2

CTRL_DISP1

(NC)

VDISP_2

(NC)

VDISP2

F873

+12V_LCD

2875
10p

(1G50)

1450

32

33

31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

FI-WE31P-HF-E1500

TO SCALER

PIXEL+_SYNC
PIXEL+_RESET
SCL_IO

SDA_IO

BU_LHT_ADJ2

BU_LHT_ADJ1

LAMP_ON-OFF

POR

LVDS CONNECTOR

FAN_SPEED1

POWER_OK_UP

31LC4.6L AA 7.

+5VSWI

+3V3STBY

PROVISION FOR
PIXEL+ MODULE

F411

F412

F413
F414
F415

F416

F418

S9B-PH-SM3-TB-A

FOR LCD ONLY

RES

4428

3427

RES

3416

1K0

SI2301DS-T1

FROM HERCULES

SC_STANDBY

A2

+5V2_RELAIS_IO2

BUF_ENABLE

I428

1409

2494
RES

7416

9
8
7
6
5
4
3
2
1

4427
RES

3418

390R

1

+3V3STBY

4888

(PDP)

(RES)

+5VSWI

3

3887

10K

4887

RES

2

+5VSWI

I870

2884

10n

3460
RES

3886

10K

I436

I444

4445
RES

3444

10K

3417
1K0

7887
BC847BW

I871

I445

2493

1u0

BU_LIGHT_ADJ2

I437

4444

(NC)

BU_LIGHT_ADJ1

3877 68R

3883 68R

2883

2877

10p

10p

FOR PDP ONLY

I872

2882
10p

I867

5882

2885
10p

3876 68R

2876

3879

2878
10n

1u0

68R3885

2887
10p

2886

10u

68R

2880
10p

2889
10p

2879
10n10n

2881
10n

FROM AUDIO
AMPLIFIER

POWER_OK

BACKLIGHT_CTRL

LIGHT_ON

FAN_SPEED

STANDBY

PROTECT_AUDIO

I860
I861
I862
I863
I864

NC
I865

I866
I869
I868

1403

1403 D12
1409 A7
1450 D5
1860 D3
1861 D3
1862 E3
1863 F3
1864 F3
2493 C9
2494 C7
2860 D3

A

2861 D3
2862 D3
2863 D3
2864 E3
2865 E3
2866 E3
2867 F3
2868 F3
2869 F3
2870 C4
2871 C5

B

2872 B3
2874 G4
2875 G5
2876 C10
2877 E9
2878 D10
2879 C11
2880 E10
2881 D11
2882 F9
2883 E9
2884 E8

C

2885 F9
2886 F10
2887 E10
2889 F10
3416 C7
3417 C8
3418 C7
3427 C7
3444 C8
3460 C8

G

D

E

F

H

3870 C4
3871 B4
3876 C10
3877 D9
3879 D10
3883 E9
3885 F9
3886 D8
3887 E7
4427 C7
4428 C7
4444 C9
4445 C8
4871 B3
4872 B3
4887 E7
4888 E7
5872 B3
5874 G5
5882 F9
7416 C7
7872 B2
7887 E8
F411 A7
F412 B7
F413 B7
F414 B7
F415 B7
F416 B7
F418 B7
F870 B5
F871 C5
F872 G4
F873 F5
F874 E5
I428 C7
I436 C8
I437 C9
I444 C8
I445 C9
I860 D12
I861 D12
I862 D12
I863 D12
I864 D12
I865 E12
I866 E12
I867 F9
I868 E12
I869 E12
I870 E8
I871 E8
I872 F9

(LCD)

1

SA1

2
3
4
5

OR

6
7
8
9
10

TO 1M03 OF SUPPLY

TO CN9005 OF SUB SUPPLY (PDP)

3139 123 5867.2

123456789101112

E_14710_071.eps

120804

SSB: SDRAM

A

B

C

D

E

+2V5_DDR

2501
47u

Circuit Diagrams and PWB Layouts

32LC4.6L AA 7.

12345678

SDRAM

2502
47u

2503

2508

100n100n

25052504

FSCLK+

A7

FSCLK-

A7

FSRAS

A7

FSCAS

A7

FSWE

A7

FSCLK+

A7

FSCLK-

A7

FSCKE

A7

FSDQM0

A7

FSDQM1

A7

FSDQM2

A7

FSDQM3

A7

FSBKSEL0

A7

FSBKSEL1

A7

FSADDR0

A7

FSADDR1

A7

FSADDR2

A7

FSADDR3

A7

FSADDR4

A7

FSADDR5

A7

FSADDR6

A7

FSADDR7

A7

FSADDR8

A7

FSADDR9

A7

FSADDR10

A7

FSADDR11

A7

25072506

100n

100n100n

+2V5_DDR

I503

3503

150R

1%

I502

2509

100n 100n

3501

10K
1%

F501

3502

10K
1%

K4D263238M-QC50

FSVREF

FSVREF

100n

7501

28

26
25

55
54
53

23
56
24
57

29
30

31
32
33
34
47
48
49
50
51
45
36
37

38
39
40
41
42
43

93
52

25112510

100n100n

2526

22u16V

2517

100n

5816

15356596295814225967

VREF

CS
RAS
CAS
WE

CKE

0
1
2
3

0
1

0
1
2
3
4
5
6
7
8
9
10
11

NC

RFU
MCL

CK
CK

DM

BA

1M X 32 X 4

A

VSS VSSQ

466685

25132512

Φ

SDRAM

5

11

VDDQVDD

19

6270768292

100n100n

+2V5_DDR

737986

D

D

99

NC

DQS

25152514
100n

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

100

2516
100n

TO/FROM SCALER

FSDATA0

FSDATA1

FSDATA2

FSDATA3

FSDATA4

44
87
8827
89
90
91

97
98

1
3
4
6

7
60
61
63
64
68
69
71
72

9
10
12
13
17
18
20
21
74
75
77
78
80
81
83
84

94

FSDATA5

FSDATA6

FSDATA7

FSDATA8

FSDATA9

FSDATA10

FSDATA11

FSDATA12

FSDATA13

FSDATA14

FSDATA15

FSDATA16

FSDATA17

FSDATA18

FSDATA19

FSDATA20

FSDATA21

FSDATA22

FSDATA23

FSDATA24

FSDATA25

FSDATA26

FSDATA27

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A

B

C

D

E

2501 A1
2502 A1
2503 A1
2504 A1
2505 A2
2506 A2
2507 A2
2508 A3
2509 A3
2510 A3
2511 A3
2512 A4
2513 A4
2514 A4
2515 A5
2516 A5
2517 B4
2526 A4
3501 A3
3502 B3
3503 B2
7501 B3
F501 B3
I502 B2
I503 B2

F

3139 123 5867.2

A7

A7

A7

A7

E_14710_072.eps

100804

FSDQS

A7

FSDATA28

FSDATA29

FSDATA30

FSDATA31

12345678

F

SSB: Flash / Control

A

TO SCALER

B

C

D

E

Circuit Diagrams and PWB Layouts

33LC4.6L AA 7.

1234567

1530 C7

A

B

C

D

E

1532 E4
2530 A3
2531 E2
2532 E4
2533 A3
3531 E2
3532 E4
3533 E6
3534 E6
3536 B7
3538-1 C5
3538-2 C5
3538-3 C5
3538-4 C5
3539-1 C5
3539-2 C5
3539-3 C5
3539-4 C5
3540-1 B6
3540-2 B6
3540-3 B6
3540-4 B6
3541 D6
3542 D6
3543 D7
3544-1 B5
3544-2 B5
3544-3 C5
3544-4 C5
3545-1 B5
3545-2 B5
3545-3 B5
3545-4 B5
3546-1 B5
3546-2 B5
3546-3 B5
3546-4 B5
3547-1 A5
3547-2 A5
3547-3 A6
3547-4 A6
3548 A6
3549 B6
3550 A6
3551 B6
3552 A6
3553 A6
5530 A2
7530 A2
7531 E3
7532 E5
F530 A2
F531 E2
F532 E2
F533 E2
F534 E4
F535 E5
F536 C7
F537 C6
F538 C6
F539 C6
F540 C7
F541 C7

A7
A7
A7
A7
A7
A7
A7
A7
A7
A7
A7
A7
A7
A7
A7
A7
A7
A7
A7

A7
A7
A7

A7

A7

OCMADDR0
OCMADDR1
OCMADDR2
OCMADDR3
OCMADDR4
OCMADDR5
OCMADDR6
OCMADDR7
OCMADDR8
OCMADDR9
OCMADDR10
OCMADDR11
OCMADDR12
OCMADDR13
OCMADDR14
OCMADDR15
OCMADDR16
OCMADDR17
OCMADDR18

#OCM_RE
#OCM_WE
#ROM_CS

+3V3STBY

NVM-WP

SCL_IO

SDA_IO

FLASH / CONTROL

3531
10K

F531

F532

F533

7530

12
11
10
9
8
7
6
5
27
26
23
25
4
28
29
3
2
30
1

24
31
22

7

6

5

M29W040B-55K1

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

OE
WE
CE

2531

100n

WC

SCL

+3V3_IO

5530

F530

3216

ROM

512Kx8

[FLASH]

0

A

512K-1

DQ

+3V3STBY

8

M24C32-WMN6T

Φ

(4Kx8)

EEPROM

4

ADR

+3V3_IO

10K

10K

10K

10K

6

3

18

45

2533

3547-2 2 7

100n
2530

16V10u

OCMADDR0

A7 RES

OCMADDR1

A7

OCMADDR2

A7

OCMADDR3

A7

OCMADDR4

A7

OCMADDR5

A7

OCMADDR6

A7

OCMADDR7

A7

OCMADDR8

A7

OCMADDR9

A7

OCMADDR10

A7

OCMADDR11

13

0

14
15
17
18
19
20
21

7

7531

1

0

2

1

3

2SDA

OCMDATA0
OCMDATA1
OCMDATA2
OCMDATA3
OCMDATA4
OCMDATA5
OCMDATA6
OCMDATA7

A7
A7
A7
A7
A7
A7
A7
A7

SKQR

For Software
Development
only - (RES)

A7

A7
A7
A7
A7

A7
A7
A7
A7

1532

OCMADDR12
OCMADDR15
OCMADDR16
OCMADDR18

OCMADDR17
OCMADDR14
OCMADDR13
OCMADDR19

F534

2532
100n

3532

10K

3546-4 10K
3546-3 10K
3546-2 10K
3546-1 10K

3544-2 10K
3544-1 10K
3544-3 10K
3544-4 10K

3539-1 10K1
3539-2 10K
3539-3 10K
3539-4 10K

1

MR

45
36
27
18

45

27
18
36
45

27
36
45

+3V3STBY

5

7532
NE56610-27

VCC

SUB

2

3

VOUT

GND

8

4

3547-1

10K3545-4
10K3545-3 3 6
10K3545-2 2 7
10K3545-1 1 8

10K3538-1 1 8
10K3538-2 2 7
10K3538-3 3 6
10K3538-4 4 5

F535

3547-4

3547-3

3534
1K0

#RESET

3533
RES

3548 10K

3540-1

18

F539

Item LCD 30" PQP 42"

3549
3551
3552
3553
3550

3550
3553
3552
3551
3549

+3V3_IO

3540-3

TO SCALER

A7

A12A7

TO HDMI

RES
RES
RES
RES

3540-4

45

36

F537

F538

3541
RES RES RES

1K 1K
1K RES
1K 1K
1K 1K
1K 1K

10K

3540-2

27

F536

F541

35433542

AUO 30"

RES
RES
RES

1K
1K

3536
10K

F540

1530

1
2

B2B-PH-SM3-TBT

FOR TESTING USE

(RES)

3139 123 5867.2

1234567

E_14710_073.eps

060804

SSB: HDMI

2803 A6
2806 A8
2807 B6
2808 B8
2809 A7

A

B

C

D

E

F

G

H

2810 A5
2811 B6
2812 A3
2813 A7
2814 B7

2815 B8
2816 B5
2817 B6
2818 A6
2819 B7

2820 B7
2821 B8
2822 B5
2823 B5
2824 B6

Circuit Diagrams and PWB Layouts

2825 B7
2826 B7
2827 B8
2828 B5
2829 B6

2830 B6
2832 C3
2833 E11
2834 E12
2835 E11

2836 E12
2837 F4
2838 F4
2839 F4
2840 F4

2841 G11
2842 G13
2843 G12
2844 G12
2845 G11

2846 G13
2847 E13
2848 E13
2849 C2
2850 F14

2851 G14
3801-1 A11
3801-2 A11
3801-3 A11
3801-4 B11

3802-1 B11
3802-2 B11
3802-3 B11
3802-4 B11
3803-1 B11

3803-2 B11
3803-3 C11
3803-4 C11
3804-1 C11
3804-2 C11

3804-3 C11
3804-4 C11
3805-1 C11
3805-2 D11
3805-3 D11

3805-4 D11
3806-1 D11
3806-2 D11
3806-3 D11
3806-4 D11

34LC4.6L AA 7.

3807 G9
3808 A2
3809 A3
3810 A3
3813-1 G9

3813-2 G9
3813-3 F9
3813-4 F9
3815 G11
3816 G11

3817 G12
3819 G13
3821 C5
3822 C4
3823 C4

3824 C4
3825 C4
3826 E12
3827 E12
3828 C2

3830 G9
3831 F4
3832 C2
3834 F4
3835 B5

3836 E14
3838 E14
4836 F14
4838 F14
5801 A6

5802 A5
5803 A7
5804 A6
5805 A7
7801 A2

7806 D4
7807 D3
7808 C5
7809 E11
7810 F13

F801 A6
F802 A5
F803 A7
F804 A6
F805 A7

F806 G2
F807 G2
F808 H7
F809 B3
F810 F10

F811 E13
F820 C2
F821 C2
F822 C2
F823 F9

F824 D2
F826 E12
F827 E12
I802 C2
I803 D3

I815 G11
I816 G11
I819 G13
I822 D4
I823 D4

I824 F5
I825 F5
I826 G5
I827 H14
I828 H14

I834 F5
I836 E13
I838 E13
I840 F4
I841 G11

I842 G12
I844 G12
I847 E13
I848 E13

123456789101112131415

HDMI

FROM SCALER

A7

A7

A7

A7

SCL_IO

SDA_IO

7801

M24C02-WMN6

1
2
3

RESERVED FOR HDMI CONNECTION

HDMI_VHS

HDMI_VVS

8

Φ

(256x8)

EEPROM

0

ADR

1
2 SDA

4

F821

DOC_SDA

F820

DOC_SCL

+5VHDMI

+5VHDMI

RXC-

RXC+

RX0-

RX0+

RX1-

RX1+

RX2-

RX2+

COMP

PLLIN

F806

F807

F822

3832

3828

3808

3809

4K7

4K7

F809

7

WC

6

SCL

5

0R

I802

0R

2849

10n

F824

28123810
100n

4K7

FROM FLASH/CONTROL

#RESET

2832
1n0

3824
100R 100R

I803

+3V3STBY

BSN20

7807

7806

BSN20

2837 10u

2838 10n

2840 10u

3825

+3V3STBY

16V

47n2839

+3V3STBY+3V3STBY

3822

3823

4K7

4K7

I823

I822

3834

100R

I840

3831

3K9

SII9993CT100

3821

33R

I834

I824

I825

I826

+3V3STBY

5802

F802 F801

2810

2816

100n

1n0

2828

1n0

2823 2829

1n0

3835

390R

7808

828993

72

RESET

27

MCLKIN

26

MCLKOUT

74

CSCL

75

CSDA

77

DSCL

76

DSDA

83

RXC-

84

RXC+

86

RX0-

87

RX0+

91

RX1-

92

RX1+

96

RX2-

97

RX2+

9

RSET

8

COMP

24

PLLIN

25

PLLOUT

81

EXT-RES

33

HSYNC

34

VSYNC

8588909498

22u 6.3V22u 6.3V

AGND

+3V3STBY

5801

2803

2807

100n
2811

1n0

2817

1n0

1n0

95

+3V3STBY

5805

5804

F804 F805

2818

2813

16V

2824

100n
2830

1n0

PLLIN

174064

VCCAVCC

GND PGND OGND

164165

100

80

23

PVCC2

PVCC1

PANELLINK

RECEIVER

99

100n
2825

1n0

HDMI

79

16V10u 10u

F808

Φ

DACGND

2

22

DACGNDR

5

+3V3STBY

F803

COMP

1

DACVCC

DACGNDG

10

5803

10u 16V

6

DACVCCR

DACGNDB

13

2809

28142819

100n
28202822

1n0

2826

1n0

28

14

11

DACVCCG

45

+3V3STBY

214756

DACVCCB

576678

OVCC1

2806

2808

100n

2815

2821

2827

TO SCALER

18

33R3801-1

27

6.3V22u

1n0

1n0

1n0

67

3

NC

NC

4

18

RSVDL

73

19

RSVDO

20

NC

70

0

69

1

68

2

63

3

62

4

61

5

60

6

59

7

58

8

55

9

54

10

53

Q

11

52

12

51

13

50

14

49

15

48

16

44

17

43

18

42

19

39

20

38

21

37

22

36

23

7

ANRPR

12

NC

ANGY

ANBPB

SPDIF

ODCK

GND_HS

101

SDO

SCK

15

29

SPDIF
(NC)

30

31

WS

32

35

DE

46

71

INT

NC

F823

3813-4 4 5

3813-3

36

3813-2 33R

27

18

3813-1 33R

F810

33R

33R

33R3830

33R3807

3801-2 33R

36

3801-3 33R

45

3801-4 33R

1833R3802-1

3802-2 33R27

3802-3 33R36

3802-4 33R45

18

3803-1 33R

27

3803-2 33R

36

3803-3 33R

45

3803-4 33R

3804-1 1 8

3804-2 2 7

3804-4 33R45

3804-3

3805-2 2 7

3805-3 33R

3805-4 33R

I841

2841

10V1u0

I816

3816
220K

33R

33R

33R36

18

33R3805-1

33R

36

45

33R3806-1 1 8

7

33R3806-2 2

36

33R3806-3

45

33R3806-4

7809

UDA1334BT/N2

1

BCK

2

WS

3

DATAI

6

SYSCLK

8

MUTE

9

DEEM

10

PCS

14

VOL

I815

3815

100R

2845
100n

+3V3STBY

3826

2833

F826

6.3V47u

2835

100n

13

VDDA4VDDD

DIGITAL

INTERFACE

DE-EMPHASIS

INTERPOLATION

FILTER

NOISE SHAPER

VSSD

VSSA

15

6.3V

3827

1R0

1R0

2843

DAC

5

F827

47u

DAC

VREF-DAC

I844

2834

6.3V

47u

2836

100n

11

SFOR0

7

SFOR1

16

VOR

2842

1u0

3817
220K

3819

I842

100R

2846
100n

12

2844
100n

2847

I836

3836

10K

F811

1u0

2848

I838

3838

7810

+3V3STBY

16

VDD

MDX

G4

1
2
4X1
4X2

VEE VSS

7

I827

I828

10K

14

15

NC

4

8

1u0

I848

I847

HEF4053B

6

13
12
11

1
2

10V

10

3

NC

I819

5

NC

9

HDMI_VBLU0

HDMI_VBLU1

HDMI_VBLU2

HDMI_VBLU3

HDMI_VBLU4

HDMI_VBLU5

HDMI_VBLU6

HDMI_VBLU7

HDMI_VGRN0

HDMI_VGRN1

HDMI_VGRN2

HDMI_VGRN3

HDMI_VGRN4

HDMI_VGRN5

HDMI_VGRN6

HDMI_VGRN7

HDMI_VRED0

HDMI_VRED1

HDMI_VRED2

HDMI_VRED3

HDMI_VRED4

HDMI_VRED5

HDMI_VRED6

HDMI_VRED7

PC_AUDIO_L

PC_HDMI-AUDIO_SEL

PC_AUDIO_R

4836

4838

2850

1u0

2851

1u0

HDMI_VDV

HDMI_VCLK

AudioIN2L

AudioIN2R

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

A7

FROM PCHD-IO

A16

A7

A16

TO HERCULES

A2

A2

A7

A7

A

B

C

D

E

F

G

H

3139 123 5867.2

123456789101112131415

E_14710_074.eps

060804

SSB: PCHD MUX

123456789101112

A

B

C

D

E

F

G

H

3139 123 5867.2

123456789101112

PCHD-MUX

FROM PCHD-IO

RED_PR

GRN_Y

BLU_PB

DIGITAL INTERFACE

FROM HERCULES / HISTOGRAM

R_SDTV
G_SDTV
B_SDTV

HS

H_CS_SDTV

VS

V_SDTV

PC_HD_DET-

PC_HD_DET+

Circuit Diagrams and PWB Layouts

DMMI

+5VSWI

DMMI

+3V3STBY 5605

6635

BZX384-C2V7

500mV / div DC

74HC4053D

6

13
12
11

1
2
10

3
5
9

SD_HD_SEL

2621

2622

2623

F624
F625
F626

3638

100R

3639

100R

F613

200mV / div DC

20us / div

3621
22K

1u0

1u0

1u0

3622
22K

330R3641
330R

3642
3643 330R

I627

I628

6638

BZX384-C2V7

F615

200mV / div DC

20us / div

3623
22K

3624
22K

330R

3634

100R

3635

100R

6639

BZX384-C2V7

3625
22K

3626
22K

3645

36463644

330R 330R

I639

6634

BZX384-C2V7

F624 F625

500mV / div DC

20us / div

7605

20us / div

(RESERVED)

DMMI_R_V_IN

DMMI_G_Y_IN

DMMI_B_U_IN

4601
4602
4603

470n

2624

470n

2625

470n

2626

4610
4611

16

VDD

MDX

G4

1
2
4X1
4X2

VEE VSS

78

RES
RES

14

15

4

F626

500mV / div DC

20us / div

2627

2628

2629

3609

100R

1u0

1u0

1u0

2606

3607

100R

3608

100R

74LVC14APW

11

A7

I631

200mV / div DC

+5VSWI

3627

100n

7604-5

PC_HD_SEL

20us / div

22K22K

14

7

36293628
22K

3630

3631

3632

7604-1

74LVC14APW

7604-3

74LVC14APW

5

10

BAS316

6605

BAS316

22K

22K

22K

I621

I622

I623

I624

I625

I626

+3V3STBY

14

7

14

7

6604

3610

22K

I629

35LC4.6L AA 7.

I619

2601

100n

12

S1A

13

S1B

2

S2A

1

S2B

5

S3A

3

S3B

VSS

3

2

9

6

7604-6

74LVC14APW

13

4609

+5VSWI

VDD

Φ

7

GND

14

14

14

5601

7601

16

ADG733BRU

EN

A0
A1
A2

D1

D2

D3

8

2605

100n

7604-2
74LVC14APW

41

7

7604-4
74LVC14APW

8

7

12

7

RES

6

3601 10K
11
10

9

14

15

4

3605

100R

3606

100R

3633

100R

PC_HD_DET

SD_HD_SEL

F602

H_CS

F603

F604

V

DMMI_HD_SEL

2630
2631
2632

4608

4607

RES

SD_HD_SEL

TO SCALER

1u0
1u0
1u0

33p

PC_HD_SEL

36192619
820R

I608

I607

F605

I630

+5VSWI

F606

6
8
10

19

17

9

7

5636

7606
ADG781BCP

SPST

SWITCH

NC

IN1

IN2

IN3

IN4

GND

3

4604
4605
4606

9

23

22

26

25

27

2

1

3

6

5

7

20

21

I638

13

VDD

Φ

GND_HS

21

RES
RES
RES

+5VSWI

5607

18

VCC

DISABLE

THROUGH

MUXSEL

GSR1

RINA|YINA

RINB|YINB

GSG1

GINA|UINA

GINB|UINB

GSB1

BINA|VINA

BINB|VINB

RFC

VFC

GND

161310

2636

100n

16
18

NC

20

S1

D1

14

S2

15

D2

12

S3

11

D3

S4

D4

R-PR-ADC
G-Y-ADC
B-PB-ADC

F607

151224

VCC

Φ

ROUT|YOUT

GOUT|UOUT

BOUT|VOUT

GND_HS

19

2

1

4

5

29

NC1

NC2

NC3

30

F608

2633

2634

2635

2607
2608
2609
2610
2611 47u

7607

SM5301BS-G

4

8

28

17

14

11

1u0

1u0

1u0

100n
100n
100n
100n

6.3V

R-PR-ADC

G-Y-ADC

B-PB-ADC

F620

I635

I636

2620

1u0

I637

3612

3613
3614

3615
3616

3617
3618

3620

100K

22R
22R

22R
22R

22R
22R

I632

I633

I634

2612 10n470R

2614 10n

2618

2601 A7
2605 E7
2606 E5
2607 D10
2608 D10
2609 D10
2610 D10
2611 D10
2612 E11
2613 E11

A

B

C

D

SOG

F612

F613

10n2613

10n2615
10n2616

10n2617
10n

F614

F615
F616

I631
I618

R_PR+

R_PR-

G_Y+

G_Y-

B_PB+

B_PB-

E

F

I620

HD_FILTER

G

H

E_14710_075.eps

281204

2614 E11
2615 F11
2616 F11
2617 F11
2618 F11
2619 F8
2620 G11
2621 B3
2622 B3
2623 C3
2624 D4
2625 D4
2626 D4
2627 A5
2628 B5
2629 B5
2630 C8
2631 D8
2632 D8
2633 B10
2634 B10
2635 B10
2636 A10
3601 B7
3605 E7
3606 F7
3607 E5
3608 E5
3609 F5
3610 G6
3612 E11
3613 E11
3614 E11
3615 F11
3616 F11
3617 F11
3618 F11
3619 F8
3620 G11
3621 B3
3622 C3
3623 B3
3624 C3
3625 B3
3626 C3
3627 A5
3628 A6
3629 A6
3630 A6
3631 B6
3632 B6
3633 F7
3634 E3
3635 E3
3638 E2
3639 E2
3641 D3
3642 D3
3643 D3
3644 D3
3645 D3
3646 D4
4601 D5
4602 D5
4603 D5
4604 D9
4605 D9
4606 D9
4607 E8
4608 D8
4609 G7
4610 D5
4611 D5
5601 A7
5605 E4
5607 D9
5636 A9
6604 F6
6605 G6
6634 F4
6635 F4
6638 F3
6639 F3
7601 A7
7604-1 E6
7604-2 E7
7604-3 E6
7604-4 E7
7604-5 F6
7604-6 F7
7605 E4

7606 A9
7607 D10
F602 B7
F603 E8
F604 F8
F605 E9
F606 B9
F607 D10
F608 G10
F612 E12
F613 E12
F614 E12
F615 F12
F616 F12
F620 G10
F624 D2
F625 D2
F626 D2
I607 E9
I608 D9
I618 F12
I619 A7
I620 G12
I621 B6
I622 B6
I623 B6
I624 B6
I625 C6
I626 C6
I627 E3
I628 E3
I629 F6
I630 F9
I631 F12
I632 E11
I633 F11
I634 F11
I635 E10
I636 E11
I637 E11
I638 A9
I639 E4

SSB: Supply

Circuit Diagrams and PWB Layouts

36LC4.6L AA 7.

123456789

A

B

C

D

E

F

3139 123 5867.2

FROM SCALER

+12VSW

SUPPLY

NOT FOR PDP

PROVISION FOR 1.5A 5V

1951

1
2
3
4
5

RES

PANEL-PWR-CTL

5952

10u

I962

I963

I964

I951

1R0

I952

2953

16V470u

SUPP_GNDGND

SUPP_GND

+5VSWI

2962

F955

39523951

3953

1K0

2954

RES

1R0

+3V3STBY

5960

RES

10n

11V7

1%

(0V)
0V6

I953

11V7

1V2

5955

*

RES

3955

10K

8

6

5

+12VSW

7952
MC34063AD

DCOL

IS7

VCC

CIN_NEG

3954

3K3

1%

2955

4n7

5956

*

I956

2961

10n

3958

*

15K

7955
PDTC114ET

2

1

OSC

I954

I961

IPK

SS = 4V9

3

7954

SI2301DS-T1

5959

*

RES

5957

I957

*

QRS

REFERENCE
REGULATOR

7953

L4940D2T12

*

I959

13

OUTIN

COM

2959
RES

SWC

SWE 2

TIMC 3

GND 4

*

1

11V7

SUPP_GND

SUPP_GND

RES

2

I955

I960

2956

470p

SUPP_GND

5953
220u

SUPP_GND

5954

10u

2957

16V470u

2960

SS14

PAN_VCC

16V470u

6951

F954

2958

16V470u

"951"~"979"

+5VSWI

SUPPLY FOR SCALER

ITEM

2959
3958
5954
5955
5956
5957
7953

13"

---

1K

---

YES

---

YES

---

>15"

100N

15K

YES

---

YES

---

L4940D2T12

+3V3STBY

100n

+3V3STBY

I995

2995
100n

7992

LF25CDT

13

COM

7995

LD1086D2T18

32

COM

1951 A1
2953 E1
2954 F2
2955 F2
2956 E4

A

B

2957 F4
2958 F5
2959 B4
2960 B5
2961 B3
2962 B2
2992 C7
2993 C8
2994 C8
2995 E7
2996 E8
3951 E2
3952 E2
3953 F2
3954 F2
3955 B2
3958 C3
5952 E1
5953 E4
5954 F4
5955 B2
5956 B3

+3V3STBY

5984

5985

5986

5987

5988

5989

5990

5991

F988

+3V3_PLL

+3V3_ADC

+3V3_DVI

+3V3_IO

+3V3_LBADC

+3V3_LVDSA

+3V3_LVDSB

+3V3_LVDS

5957 B3
5959 A3
5960 B2
5984 A9

C

5985 A9
5986 A9
5987 A9
5988 B9
5989 B9

OUTIN

2

I992

29932992

2994

470u 16V1n0

5994

+2V5_DDR

5990 B9
5991 B9
5994 C9
5996 D9
5997 E9
5998 E9
6951 E5
7952 D2
7953 A4
7954 B3

+1V8

D

7955 C3
7992 C7

E

7995 D7
F954 F5
F955 C2
F988 B9
I951 E2
I952 E1
I953 F2
I954 F3
I955 E4
I956 B3

5996

OUTIN

1

I996

47u

2996

16V

5997

5998

+1V8_ADC

+1V8_DVI

+1V8_CORE

I957 B3
I959 A4

"980"~"999"

I960 E4
I961 B3
I962 A1
I963 A1
I964 A1
I992 C8
I995 E7
I996 E8

F

E_14710_076.eps

060804

1

23456789

SSB: DC-DC Converter

12345678

Circuit Diagrams and PWB Layouts

37LC4.6L AA 7.

SA1

A

TO 1M46 OF SUPPLY (LCD)

B

C

D

3139 123 5867.2

SUPPLY

OR

TO CN9005 OF SUB SUPPLY (PDP)

for ITV only

DC-DC CONVERTER

1251 A1
1252 B1
2251 A2
2252 A2

+12VUNREG

3251

1R0

RES

2251

10p

I264

+12V

+5V

2252

10p

5251

5252

10p
(PDP)

+8V6

(PDP)

4255

2254

16V10u

2253

10u 16V

52572255

(LCD)

I251

+12VUNREG

+5V2_RELAIS_IO2

+5V2

5258
(LCD)

F258

TO/FROM 1M20 OF HERCULES

A3
A3

+12VSW

I261

6270
BZX384-C8V2

3270
2K2

I262

3271

2271
10n820R

1251

1
2
3
4
5
6
7
8

9
10
11

1252

1

2

3

F251

F252 4251
F253

NC

F254
F255

NC

F257

NC

+9V_STBY_PDP

+3V3STBY

I263

7271
BC847BW

3273

3274
22K220K

F259

7272
BC847BW

POWER_DOWN

A

A2
A5
A7

B

2253 A3
2254 A2
2255 B2
2261 C4
2262 C4
2263 D3
2264 D4
2265 D5
2266 D5
2268 D7
2269 D7
2271 B6
3251 A2
3259 C2
3260 C3
3266 D5
3267 D6
3268 D6
3270 A6
3271 B6
3273 A7
3274 A7
4251 A2

I258 D5
I259 D5
I260 D7
I261 A6
I262 A6
I263 A6
I264 A2

4255 B2

5259
(PDP)

3259 22613260
10K

6259
SS14

6K8

I253

RES

I252

2262
47u 16V

1

2

7260

LF33CPT

OUTIN

CTRL NC

COM

3

5

4

NC

F260

+3V3STBY

C

5251 A2
5252 A2
5257 B3
5258 B3
5259 B3
5262 C3
5267 D6
5268 D7
6259 C3
6262 C3
6267 D6
6270 A6
7260 B4
7262 C4
7271 B7
7272 A7
F251 A1
F252 A1
F253 A1
F254 A1
F255 A1
F257 A1
F258 A4
F259 A7
F260 B7
I251 B3
I252 B4
I253 C4

+12VUNREG

6262

SS24

I254

5262

10u

2263

10u

SupplyGnd

2264
10u

SupplyGnd

SupplyGnd

7262
L5973D

NC

3

2

I255

8

Φ

INH

SYNC

GND GND_HS

7

SupplyGnd

SupplyGnd

VREFVCC

COMP

9

NC

6

OUT

2268

5268

10u

16V

2269

16V

470u470u

D

I256

1

I257

5

FB

4

I258

2265
220p

SupplyGnd

I259

2266
22n

3266
4K7

5267

6267
SS36

SupplyGnd

33u

3267
5K6

1%

3268
3K3

1%

I260

SupplyGnd

I254 C3

SupplyGnd

SupplyGnd

E_14710_077.eps

130804

I255 C4
I256 D5
I257 D5

12345678

SSB: PCHD IO

AV3: VGA + 2fHYPbPr

A

B

C

D

E

LPR6520-J920G

PC AUDIO IN

F

3139 123 5867.2

Circuit Diagrams and PWB Layouts

38LC4.6L AA 7.

123456789

PCHD-IO

TO PCHD-MUX

1687

1
2
3
4
5
6
7
8

9
10
11

VGA Connector

12
13
14
15

1617

788624-1

1686

F163

SDA_VGA

SCL_VGA

2784

1

3

F165

2

F168
F169
F170

3789

F171

150R

3791

F172

1K0

F173

F174
F176
F178

DDC_5V

I685

2683
100n

2693

100n

84

2785
330p330p

7693
M24C02-WMN6

Φ

(256x8)

1
2
3

F166

F167

EEPROM

0

ADR

1
2SDA

SCL

S698

S699

WC

I684

3698

6692

BAS316

3790

10K

F164

7

6

5

150R

150R3699

I683I682

3693

10K

5691

2698
100p

3700

47K

DDC_5V

+5VSWI

DDC_5V

2699
100p

3696
10K

3781

47K

3697
10K

I158

I159

3787 1R0

PC_AUDIO_L

PC_AUDIO_R

1R03786

TO HDMI

3785

100R

5682

5681

3792

1K0

3682

3688

5689

3691
75R

5688

3692
75R

5690

3695
75R

3694

220R

2K2

3690

220R

2K2

2688

2682

100p

100p

HDMI - (NAFTA & AP ONLY)

1688

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

HDMI CONNECTOR

17
18
19

DC1

F162

F150

F151
F152

F153
F154

F155
F156

F157

F158
F159

F160
F161

23

1691

14

ACM

23

1693

14

ACM

1K03793

I150

I151

I152

I153

I154

14

1690

23

ACM

23

1692

14

ACM

RED_PR

GRN_Y

BLU_PB

PC_HD_DET+

HS

VS

UART_RX

UART_TX

RX2+

RX1+

RX0+

RXC+

DOC_SCL

DOC_SDA

+5VHDMI

TO SCALER

A7

A7

RX2-

RX1-

RX0-

RXC-

CEC

E_14710_078.eps

A13

A

A13

A13

B

A13

A13

C

A13

D

TO HDMI

E

F

100804

1686 E1
1687 A1
1688 E6
1690 E8
1691 E7
1692 E8
1693 E7
2682 D6
2683 B2
2688 C6
2693 C2
2698 E3
2699 E4
2784 B1
2785 B2
3682 C6
3688 D6
3690 C6
3691 A6
3692 A6
3693 D3
3694 C6
3695 B6
3696 D4
3697 D4
3698 E2
3699 E2
3700 E3
3781 E4
3785 B5
3786 D4
3787 D4
3789 A2
3790 A3
3791 A2
3792 C6
3793 F7
5681 C5
5682 C5
5688 A6
5689 A6
5690 B6
5691 A3
6692 A3
7693 D2
F150 E6
F151 E6
F152 E6
F153 E6
F154 E6
F155 E6
F156 E6
F157 F6
F158 F6
F159 F6
F160 F6
F161 F6
F162 E6
F163 A1
F164 D3
F165 E1
F166 E2
F167 E2
F168 A2
F169 A2
F170 A2
F171 A2
F172 A2
F173 B2
F174 B2
F176 B2
F178 B2
I150 B8
I151 C8
I152 C8
I153 D8

I154 D8
I158 E4
I159 E4
I682 A2
I683 A3
I684 A2
I685 D2
S698 E2
S699 E2

123456789

SSB: Cinch IO

1 2 3 4 5 6 7 8 9

Circuit Diagrams and PWB Layouts

39LC4.6L AA 7.

A

B

C

D

MONITOR OUT: CVBS + Audio L/R

E

LGY6509-0100F

F

3139 123 5867.2

CINCH-IO

5

1183

4
3
2
1

LAP5100-1411F

6

SVHS

1182

LGY6509-0100F

MINI

JACK

AV2: SVHS+CVBS+Audio L/R

1177

MINI

JACK

2
3
4
1

F184

F222

F227

F226

S191

S192

S193

F230

3222

F223

F224

F225

I177

4175

75R

3223

75R

4178

2201

2u2

AV2_C_IN
AV2_Y_IN

I178

F228

F229

3194

68R

I195

3196

1K0

3199

150R

3200

150R

F220

F221

S185

+5VSW_1

S195

3201

100K

3202

100K

3231

150R

3233

150R

7138

BC847B

S194

+5VSW_1

I181

I186

+5VSW_1

3193

12K

I194

2193
330p

2195
330p

3189

33R

3221

220R

3204

100R

2231
330p

2233
330p

3247

150R

3248

150R

3235

150R

3236

150R

I179

4191

2191

2u2

3195

47K

3191
33R

3220

330R

3232
47K

3234
47K

I196

3197
220K

I197

3198
220K

2232

2234

4223

4224

2225

100n

I175

+5VSW_1

3203

1K0

7201
BC857BW

I183

1u0

I187

1u0

SC2_CVBS_MON_OUT

SC2_L_MON_OUT

SC2_R_MON_OUT

4226

+5VSW_1

BC847BW

3243

4223
4224
4226
4230
4176
4177

+5VSW_1

I198

7240

10K

3D NO 3D

Y

--

--

--

-­Y

SET WITH 3D COMBFILTER

3225

7225

100K

BC847BW

2227

100n

3240

82K

3242

1K0

7241

BC847BW

-­Y
Y
Y
Y

--

I223

3246

I201

6240

I221

27K

3227
4K7

I219

2240

BAS316

2241

1u0

3245

10K

+5VSW_1

3226
100K

I220

220n

3241

I222

4K7

3244

I224

STATUS_2

+5VSW_1

3229
100K

3230
100K

I202

2228

100n

I200

7228
BC847BW

3228
4K7

AV1:CVBS+YPbPr+Audio L/R

I176

4

1175-2

5

6

1175-1

7

8

9

1

2

3

47K

LPR6520-K030G

LPR6520-K030G

I199

7227
BC847BW

S182

S184

S181

F179

F177

F175

2238

100n

F182

F183

F181

3192

75R

S177 S179S175

10n

3182

150R

3184

150R

3181

330R

I205

2179

3188

3179

75R

3178
75R

3175
75R

10K

+5VSW_1

2190

10u 16V

3238

330R

I207I206

I182

2182
330p

I184

2184
330p

AV1_CVBS_IN

3180

330R

3177

330R

3176

330R

3237

150R

3239

150R

3190

7226
BC847BW

I208

47R

3183

47K

3185
47K

3187

10K

F190

+5VSW_1

2183

1u0

2185

1u0

4176

4177

+5VSW

3186

4K7

4230

I212

I213

I214

I215

I216

I217

SC1_COMP_AV1_G_Y_CVBS_IN

I218

SC1_CVBS_IN

I204

I209

I210

I211

SC1_COMP_AV1_L_IN

SC1_COMP_AV1_R_IN

SC2_Y_IN

AVS_C_IN

STATUS_1

SVHS_C_IN

SC2_C_IN

SC2_L_IN

SC2_R_IN

SC1_CVBS_IN

SC1_CVBS_RF_OUT

SC1_COMP_B_U_IN

SC1_COMP_R_V_IN

E_14710_079.eps

050804

A

B

C

D

E

F

1175-1 E6
1175-2 C6
1177 E1
1182 C1
1183 A1
2179 B7
2182 C7
2183 C8
2184 D7
2185 D8
2190 A7
2191 E3
2193 F2
2195 F2
2201 B2
2225 B3
2227 B5
2228 B6
2231 C2
2232 C3
2233 D2
2234 C3
2238 B7
2240 D5
2241 D5
3175 F7
3176 F7
3177 E7
3178 F7
3179 E7
3180 E7
3181 D7
3182 C7
3183 C8
3184 D7
3185 D8
3186 B8
3187 B8
3188 B7
3189 A2
3190 A8
3191 A3
3192 D7
3193 E2
3194 E2
3195 E3
3196 E2
3197 F3
3198 F3
3199 E2
3200 F2
3201 B2
3202 C2
3203 B3
3204 B2
3220 A3
3221 A2
3222 C1
3223 A2
3225 A4
3226 B4
3227 B5
3228 B6
3229 A6
3230 B6
3231 C2
3232 C3
3233 C2
3234 D3
3235 C3
3236 C3
3237 C7

3238 B7
3239 D7
3240 D5
3241 D5
3242 D5
3243 E4
3244 E5
3245 E5
3246 E5
3247 E3
3248 F3
4175 A1
4176 D8
4177 D8
4178 B2
4191 E3
4223 A3
4224 A3
4226 B4
4230 B9
6240 D5
7138 E2
7201 B3
7225 A5
7226 B8
7227 B6
7228 A6
7240 D4
7241 E5
F175 F7
F177 E7
F179 E7
F181 D7
F182 C7
F183 D7
F184 A1
F190 A8
F220 A2
F221 A2
F222 E1
F223 E1
F224 E1
F225 F1
F226 A1
F227 C1
F228 C2
F229 C2
F230 B1
I175 B3
I176 C6
I177 A2
I178 B2
I179 B3
I181 C2
I182 C7
I183 C3
I184 D7
I186 C2
I187 C3
I194 E2
I195 E2
I196 E3
I197 F3
I198 B4
I199 B7
I200 B6
I201 B5
I202 B6
I204 A9
I205 B7
I206 B7
I207 B7

I208 B8
I209 B9
I210 B9
I211 C9
I212 C8
I213 D8
I214 D8
I215 D8
I216 E8
I217 E8
I218 F8
I219 D5
I220 D4
I221 D5
I222 D5
I223 E5
I224 E5
S175 F7
S177 F7
S179 E7
S181 D6
S182 C6
S184 D6
S185 C2
S191 E1
S192 F1
S193 F1
S194 B2
S195 A2

1 2 3 4 5 6 7 8 9

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Top Side Overview)

1004 D5

2000 C3

2023 D5

2046 E2

2065 E3

2084 C5

2183 F4

2308 E2

2368 D5
1009 E4
1301 F2
1328 D3
1329 C3
1330 D3
1408 B7
1409 C10
1530 B7
1532 C6
1681 F3
1690 F10
1691 F10
1692 F9
1693 F9
1701 D2
1951 A7

2001 C3
2003 E2
2004 C3
2005 C3
2010 C3
2011 C3
2013 D4
2014 D4
2015 D4
2016 D4
2017 D4
2018 D4
2019 A4
2020 B4
2021 B5
2022 B5

2025 D5
2026 D5
2028 B4
2029 D5
2030 C5
2031 C5
2032 C5
2033 C5
2034 B5
2036 C1
2037 D1
2041 C5
2042 B5
2043 C3
2044 C5
2045 E2

2047 B5
2048 E2
2049 E2
2050 E2
2051 B4
2052 C5
2053 D5
2054 B3
2055 C5
2056 C5
2057 E2
2058 E2
2059 C1
2060 C3
2062 E2
2064 C3

2066 E4

2085 B4
2086 B4
2087 C1
2088 C1
2090 C1
2091 D1
2092 D1
2093 D1
2094 D1
2095 D1
2096 D1
2097 D1
2098 D1
2099 C4
2179 E4
2182 F4

2184 F5
2185 F5
2190 E4
2227 E4
2228 E4
2238 E3
2251 A10
2252 A10
2253 A10
2254 A10
2255 A9
2261 B10
2271 A10
2302 E2
2303 E2
2307 E2

2067 E2
2068 C3
2069 C1
2070 C4
2072 C4
2073 B4
2074 C4
2076 C4
2077 C5
2078 C5
2079 C1
2080 C1
2081 C1
2082 D3
2083 D4

Part 1

E_14710_080a.eps

2309 E2
2311 F2
2313 D3
2314 D3
2317 D3
2318 D3
2321 E2
2324 E3
2358 D4
2359 D3
2361 D5
2363 D5
2364 D5
2365 D5
2366 D5
2367 D5

2406 C7

2370 D4

2407 C7

2371 D4

2408 C7

2372 D4

2409 C7

2373 D4

2410 C7

2374 D4

2411 C7

2378 C5

2412 C7

2381 C5

2413 C7

2387 D4

2414 C7

2388 D3

2415 C7

2394 C5

2416 C7

2395 D4

2419 C8

2397 D5

2420 C7

2398 D5

2421 C7

2403 C7

2422 C7

2404 C7

2423 C8

2405 C7

2424 C8

Part 3

E_14710_080c.eps

2425 C8
2426 C8
2427 C8
2428 C8
2429 C8
2430 C8
2431 B8
2432 C8
2433 C8
2436 C7
2437 C7
2438 C7
2439 C7
2440 C7
2441 C7
2442 C7
2443 C7

2444 C7
2445 B7
2446 C8
2447 C7
2448 C7
2449 C7
2450 C7
2452 D7
2453 D7
2454 D7
2455 D7
2456 D7
2461 C7
2462 C8
2463 D7
2464 D7
2466 D7

2467 D7
2468 C7
2469 C7
2471 C6
2472 C6
2473 C6
2474 C7
2475 C7
2476 C6
2477 C7
2479 B7
2480 B7
2481 C7
2483 C7
2484 B7
2485 B7
2486 B7

2487 C6
2488 C6
2490 D7
2491 D7
2492 C7
2493 C8
2494 D8
2496 D7
2503 B9
2504 C9
2505 C8
2506 C9
2507 C8
2508 C9
2509 C9
2510 C9
2511 B9

2512 C9
2513 C9
2514 C9
2515 C9
2516 B9
2517 B9
2526 B9
2531 C7
2532 C6
2533 B6
2566 E2
2580 A3
2581 B3
2582 B4
2583 A3
2584 A4
2585 A4

2586 A4
2587 A4
2588 A3
2601 D7
2607 D6
2608 D7
2609 D7
2610 E7
2612 D7
2613 D7
2614 D7
2615 D7
2616 D7
2617 E7
2618 E7
2619 D7
2620 D6

2621 E7
2622 E7
2623 E7
2624 D6
2627 D7
2628 E7
2629 E7
2630 D7
2631 D7
2632 D7
2633 E7
2634 D7
2635 D7
2636 D7
2701 D2
2702 D2
2703 C2

2704 D2
2705 D2
2706 C2
2707 C2
2710 C2
2711 C2
2712 B3
2713 B2
2714 A2
2715 C2
2716 D2
2718 B3
2719 B2
2720 A2
2735 B2
2736 B2
2737 B2

40LC4.6L AA 7.

2738 A2
2739 D2
2740 D2
2741 B2
2742 B2
2743 C3
2744 C3
2746 B2
2747 A3
2748 A3
2749 A3
2750 A3
2811 E8
2812 D9
2815 D9
2816 D9
2817 D8

2821 E8
2822 D9
2823 D9
2827 D8
2828 D9
2829 D8
2832 E9
2835 D8
2836 D8
2840 E8
2841 D8
2842 D8
2844 D8
2845 D8
2846 D8
2847 E8
2848 D8

2849 E9
2850 D8
2851 D8
2872 B8
2876 A6
2877 A6
2878 A6
2879 A6
2880 A6
2881 A6
2883 A6
2884 A6
2885 A7
2886 A6
2887 A6
2889 A6
2910 A5

2959 B8
2961 B7
2962 B8
2992 B9
2993 B9
2995 D9
3000 C3
3005 C3
3006 C3
3008 C3
3009 D4
3010 C3
3012 D5
3013 D5
3020 B4
3021 B4
3022 B5

3023 D1

3040 C5

3072 C1
3024 D1
3025 D1
3026 E2
3027 D1
3028 D5
3029 B5
3030 B5
3031 D5
3032 B5
3033 D5
3034 D5
3035 C5
3036 D5
3037 D1
3038 C1
3039 B4

3048 C5
3054 C5
3055 D5
3056 B4
3057 C5
3058 B5
3059 C3
3063 E2
3064 E5
3065 D3
3066 E2
3067 C1
3068 C1
3069 C1
3070 B4
3071 E5

3073 C3

3074 D4

3075 B4

3077 B4

3078 C4

3079 C4

3080 C4

3081 C4

3082 B4

3083 B4

3084 E2

3088 C4

3089 B3

3091 C5

3092 B5

3093 C5

3094 C5
3096 C4
3097 C5
3098 C5
3175 F5
3176 F4
3177 F3
3178 F3
3179 F4
3180 F4
3182 F4
3183 F4
3184 F5
3185 F5
3186 E4
3187 F4
3188 E4

Part 2

E_14710_080b.eps

3190 E4

3274 A10
3302 E2
3303 E2
3304 F2
3305 F3
3309 F2
3311 F2
3313 E3
3314 D3
3315 E3
3316 D3
3317 D3
3319 E2
3320 D2
3321 E2
3322 E3
3323 E3

3324 E3
3325 D3
3326 D3
3327 E2
3328 F3
3329 F3
3340 B4
3342 B4
3343 B4
3344 B5
3345 B5
3346 B5
3347 B5
3348 B5
3349 B5
3357 B3
3358 D4

3225 E4
3226 E4
3227 E4
3228 E4
3229 E4
3230 E4
3237 F4
3238 E3
3239 F5
3242 F4
3251 A10
3259 B10
3260 B10
3270 A10
3271 A10
3273 A10

Part 4

E_14710_080d.eps

3360 D5
3361 D5
3362 D5
3363 D5
3365 D5
3366 C5
3367 C5
3368 D5
3369 D5
3370 D3
3373 D5
3389 C5
3390 D4
3391 D4
3392 D5
3393 D5
3394 C3

3415 D1
3416 C8
3417 C8
3418 B7
3422 C8
3423 C7
3424 C7
3425 C7
3426 C6
3427 C8
3428 C6
3429 C6
3432 C7
3433 C7
3436 B7
3437 B7
3438 B7

3439 C6
3440 B6
3442 D7
3443 D7
3444 C8
3446 D7
3448 C7
3449 C7
3460 B7
3501 B9
3502 B9
3503 B9
3531 C7
3532 C6
3533 C6
3534 C6
3536 B7

3538 A6
3539 B6
3540 B6
3541 B6
3542 B6
3543 B6
3544 B6
3545 A6
3546 A6
3547 A6
3548 A6
3549 A6
3550 A6
3551 A6
3552 A6
3553 A6
3579 E2

3580 A4
3581 A4
3601 D7
3612 D7
3613 D7
3614 D7
3615 D7
3616 D7
3617 E7
3618 E7
3619 D7
3620 D6
3625 E7
3626 E7
3627 E7
3628 E7
3629 D7

3630 D7
3631 E7
3632 E7
3633 E7
3641 D6
3642 D6
3643 E6
3644 E6
3645 D6
3646 D6
3703 D2
3705 D2
3706 C3
3707 C2
3708 D2
3709 C2
3710 D2

3711 C2
3714 B3
3715 B3
3716 C2
3717 D2
3718 C2
3719 D2
3720 D2
3721 C2
3722 D2
3725 D2
3726 B3
3727 B3
3728 B4
3735 B2
3736 B2
3737 B2

3738 A2
3739 B3
3740 B3
3741 C3
3742 B3
3743 C3
3744 D2
3745 C3
3746 C3
3747 C3
3748 C3
3749 C3
3750 C3
3751 D2
3752 A3
3753 A3
3790 F8

3791 F8
3793 F10
3808 E9
3809 D9
3810 E9
3815 D8
3816 D8
3817 D8
3819 D9
3822 D9
3823 D9
3827 D8
3828 E9
3832 E9
3836 E8
3838 E8
3876 A6
3877 A6
3879 A6
3883 A6
3885 A6
3886 A6
3887 A6
3910 A4
3911 A4
3955 B7
3958 B7
4002 D4
4004 D4
4005 D4
4006 D4
4007 D4
4008 C5
4011 D5
4012 D5
4015 B5
4016 B5
4017 E2
4018 E2
4019 E2
4020 E2
4022 E2
4023 E3
4085 C2
4086 D2
4176 F4
4230 E3
4251 A10
4255 A9
4312 E3
4313 E3
4318 D3
4327 D3
4328 D3
4329 E2
4330 D2
4331 D2
4332 E3
4333 E3
4334 E3
4335 E3
4336 E3
4337 D3
4338 D3
4339 F2
4340 F2
4360 D5
4361 D5
4362 C5
4363 C5
4427 C8
4428 C8
4444 C8
4445 C8
4446 C7
4580 B4
4581 B4
4582 B4
4583 B4
4584 B4
4585 B4
4586 A4
4587 A4
4588 A4
4589 A4
4590 A4
4591 A4
4592 A4
4593 A4
4601 D7
4602 D7
4603 D7
4604 D6
4605 E6
4606 E6
4607 E6
4608 E7
4701 D2
4702 D2
4703 C1
4704 D2
4705 D2
4706 C2
4707 C2
4708 C4
4709 B4
4710 C2
4711 C2
4716 B4
4720 A1
4836 E8
4838 D8
4871 B8
4872 B8
4887 A6
4888 B8
5001 C3
5002 C3
5007 C5
5008 C5
5010 C5
5060 C3
5066 E2
5067 E2
5070 B4
5071 C4
5251 A9

5252 A10
5257 A9
5258 A9
5259 A9
5304 F3
5309 E2
5321 E2
5324 E3
5339 D3
5340 D3
5360 C5
5370 C5
5371 C5
5372 C5
5580 A4
5601 D7
5607 D6
5720 A2
5721 A3
5722 A3
5735 B1
5736 B1
5803 E8
5872 B8
5910 A5
5920 A5
5932 B4
5955 B7
5956 B7
5957 B8
5959 B8
5960 B7
5984 C6
5985 D6
5986 C7
5987 C7
5988 C7
5989 C7
5990 C7
5991 B7
5994 B9
5996 D7
5997 C7
5998 C7
6001 B3
6020 B4
6021 B5
6073 B4
6074 B4
6075 B4
6076 B4
6259 B10
6262 B10
6270 A10
6310 F2
6311 F2
6323 E2
6324 E2
6328 F2
6329 F3
6330 F2
6331 F2
6565 E2
6910 A4
6911 A4
7004 C5
7005 C3
7011 C4
7015 B5
7016 B4
7017 B5
7018 B4
7019 B5
7070 B3
7075 B4
7099 B4
7225 E4
7226 F4
7227 E4
7228 E4
7260 B10
7271 A10
7272 A10
7316 D3
7320 D2
7325 D2
7360 D5
7416 B7
7531 C7
7532 C6
7579 E2
7580 B3
7581 B4
7582 B3
7583 A3
7584 A4
7585 A4
7601 D7
7606 D7
7607 D6
7702 D2
7703 C3
7707 D2
7708 C2
7740 C3
7801 D9
7806 D9
7807 D9
7809 D8
7810 D9
7872 B8
7887 A6
7910 A4
7920 B5
7953 A8
7954 B7
7955 B7
7992 B9
7995 D9
S175 F4
S177 F3
S179 F4
S181 F4
S182 F4
S184 F5
S185 F6
S191 F5

S192 F5
S193 F5
S194 F6
S195 F6
S698 F9
S699 F9

3139 123 5867.2

E_14710_080.eps

060804

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Top Side Part 1)

Part 1

41LC4.6L AA 7.

E_14710_080a.eps

151104

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Top Side Part 2)

42LC4.6L AA 7.

Part 2

E_14710_080b.eps

151104

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Top Side Part 3)

43LC4.6L AA 7.

Part 3

E_14710_080c.eps

151104

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Top Side Part 4)

44LC4.6L AA 7.

Part 4

E_14710_080d.eps

151104

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Bottom Side Overview)

1001 C7

2002 D6

2071 C8

2241 F7

2375 D7

2434 B4

2561 D6

2688 F3

2809 E2

2834 D3
1002 E6
1008 D6
1036 C9
1305 E7
1401 C5
1450 A4
1860 A4
1861 A4
1862 A4
1863 A4
1864 A4

2006 C7
2007 C7
2008 C7
2009 C7
2012 A8
2024 B8
2027 D7
2035 C7
2040 C6
2061 D7
2063 D7

2089 D6
2191 F6
2193 F6
2195 F6
2201 F5
2225 F5
2231 F4
2232 F4
2233 F4
2234 F4
2240 F7

2262 A1
2263 D1
2264 D1
2265 E1
2266 E1
2268 C1
2269 B1
2355 D7
2356 D7
2357 D7
2360 C6

2376 B7
2377 B7
2380 C6
2382 C8
2386 B7
2392 B7
2396 D7
2401 D5
2402 C5
2417 B3
2418 B3

2435 D4
2451 D4
2465 D5
2470 D5
2478 B4
2482 B4
2495 D4
2501 C2
2502 C2
2530 B5
2560 D7

2562 D6
2563 C6
2564 D7
2565 A9
2605 E4
2606 D4
2611 D5
2625 E5
2626 E5
2682 F3
2683 F3

2693 F3
2698 F2
2699 F2
2708 B7
2709 D9
2784 F2
2785 F2
2803 E2
2806 E3
2807 E2
2808 E3

2810 D2
2813 E3
2814 E3
2818 D2
2819 E3
2820 E2
2824 D2
2825 E3
2826 E2
2830 D2
2833 D2

2837 E2

2838 E2

2839 E3

2843 D2

2860 A4

2861 A4

2862 A4

2863 A4

2864 A4

2865 A4

2866 A4

2867 A4
2868 A4
2869 A4
2870 A4
2871 A4
2874 A4
2875 A4
2882 A5
2911 A7
2920 B6
2921 B6
2930 A6

2931 B6
2932 B6
2933 A6
2934 A6
2935 C7
2953 B3
2954 A3
2955 A2
2956 A2
2957 B2
2958 A3
2960 B4

2994 B2
2996 C2
2999 C8
3001 B7
3002 B7
3003 B7
3004 B7
3007 C7
3011 C6
3014 C6
3015 C6
3016 C6

3017 C6
3018 C6
3019 C6
3049 C6
3050 C6
3051 C6
3052 C6
3053 D7
3060 D7
3085 C7
3086 C7
3087 C7

3181 F7
3189 F5
3191 F5
3192 F7
3193 F6
3194 F6
3195 F6
3196 F6
3197 F6
3198 F6
3199 F6
3200 F6

3201 F5
3202 F5
3203 F5
3204 F5
3220 F5
3221 F5
3222 F5
3223 F5
3231 F4
3232 F4
3233 F4
3234 F4

3235 F4
3236 F4
3240 F7
3241 F7
3243 F8
3244 F8
3245 F8
3246 F8
3247 F6
3248 F6
3266 E1
3267 E1

45LC4.6L AA 7.

3268 E1
3359 D7
3364 D6
3371 E7
3372 E7
3374 D7
3378 B7
3380 B7
3381 B7
3382 B7
3383 B7
3386 B7

3401 C2
3402 C3
3403 C3
3404 C3
3405 C3
3406 C3
3407 C3
3408 C2
3409 B3
3410 B3
3411 B3
3412 C3

3413 C3
3414 B3
3441 C5
3447 B3
3560 C6
3561 C6
3562 C6
3563 C7
3564 C7
3565 C6
3566 C6
3567 C7

3568 C7
3569 C7
3570 C7
3605 E4
3606 D4
3607 E4
3608 E4
3609 D4
3610 D4
3621 D3
3622 D3
3623 D4

3624 E4
3634 E4
3635 E4
3638 D5
3639 E5
3682 F3
3688 F3
3690 F3
3691 F3
3692 F3
3693 F3
3694 F3

3695 F4
3696 F3
3697 F3
3698 F2
3699 F2
3700 F2
3701 A8
3702 A8
3704 A8
3712 B7
3713 B7
3723 A8

3724 A8
3729 B6
3781 F2
3785 F3
3786 F2
3787 F2
3789 F3
3792 F3
3801 D3
3802 D3
3803 D3
3804 D3

3805 D3
3806 D3
3807 D3
3813 D3
3821 E3
3824 D2
3825 D2
3826 D2
3830 D3
3831 E3
3834 E2
3835 D2

3870 A4
3871 A4
3930 B6
3931 B6
3932 B6
3933 A6
3951 A3
3952 A3
3953 A3
3954 A2
4009 D6
4010 D6

4062 D7
4175 F5
4177 F7
4178 F5
4191 F6
4223 F5
4224 F5
4226 F5
4609 E4
4610 E4
4611 E5
4714 A8

4715 B7
5003 C7
5004 D7
5005 D6
5006 C6
5072 C7
5262 B1
5267 D1
5268 C1
5530 B5
5560 D7
5605 D5

5636 D4
5681 F3
5682 F3
5688 F4
5689 F4
5690 F4
5691 F3
5801 E2
5802 D2
5804 D2
5805 E3
5874 A4

5882 A5
5930 B6
5931 B7
5952 A3
5953 A2
5954 B3
6005 D7
6240 F7
6267 D1
6563 C7
6564 C6
6604 D4

6605 D4
6634 E4
6635 E4
6638 D5
6639 E4
6692 F3
6701 B7
6930 B6
6951 A2
7001 A7
7002 B7
7003 B7

7006 B9
7012 C6
7013 C6
7014 C6
7139 F6
7201 F5
7240 F8
7241 F8
7262 E1
7370 E7
7371 E6
7372 E6

7376 B7
7377 B7
7401 C4
7501 C2
7530 A5
7560 C6
7561 C7
7562 D7
7563 C6
7604 E4
7605 E5
7693 F2

7706 B7
7710 B7
7713 A8
7714 A8
7808 D2
7930 B6
7952 A2

Part 1

E_14710_081a.eps

Part 3

E_14710_081c.eps

Part 2

E_14710_081b.eps

Part 4

E_14710_081d.eps

3139 123 5867.2

E_14710_081.eps

060804

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Bottom Side Part 1)

46LC4.6L AA 7.

Part 1

Part 1

E_14710_081a.eps

151104

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Bottom Side Part 2)

47LC4.6L AA 7.

Part 2

E_14710_081b.eps

060804

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Bottom Side Part 3)

48LC4.6L AA 7.

Part 3

E_14710_081c.eps

060804

Circuit Diagrams and PWB Layouts

Layout Small Signal Panel (Bottom Side Part 4)

49LC4.6L AA 7.

Part 4

E_14710_081d.eps

060804

Circuit Diagrams and PWB Layouts

50LC4.6L AA 7.

PSU (30-32”): Mains Filter and Standby

1234567

8

9 10111213

MAINS FILTER + STANDBY

AS1 AS1

A

MAINS FILTER

5403

1

B

MAINS INPUT

95-264Vac

C

D

E

F

G

3104 313 6009.5

F410

F411

F414

F413

T3.15AH 250V(EUR)
T5AH 250V(AP)
T5AH 250V(US)

4M7

F419

3402

3403

GND screw

1306

1
2

TO 1306

AUDIO-STANDBY

1400

PTF/65

I429

1

2400

F417

4M7

I419

4M7

1000

F424
F425

F426

GNDHOT

F412

2
1

1308

3401

F415 F416

F418

470n

3400

T1AE 250V

1401

PTF/65

I410

23

14

V

DMF3547HB60

1403

500V
1402

500V

5401

2404

47p

I431

F427

3405

220R

F428

2401

2407

GND screw

290V (303V)

470n

I430

1

I411

I416

220p

I455

3404

220R

1001

12345678

4

2

3

5402

23

14

DMF3547HB60

I412

2406

47p

9003

I432

1011

HEATSINK

9001

I442

3451

1R

9005

GNDHOT

3450

6506

DF06M

I812

2803

56n

I421

400V_HOT

47n

2808

9812

7806

I422

5804

2815

33u

330u

9813

9811

I420

AVS10CB

100n

100n

I824

I826

4R7

9814

2816

2810

I825

2809

3805

288V (0)

3101

1K0

9808

330u

6155

BYG10

I418

6154

I417

BYG10

1307

1

I414

2
3
4

B4P-VH

3810

F422

25V_HOT

F423

12K

I811

2408

I415

I444

I445

2503

100n

I413

HOT

1450

COLD

G5PA-1-5VDC

6809

6461

BAS316

I424

6460

I456

BAS316

4V8 (0V)

10u

F420

1305

123

TO 1305

AUDIO-STANDBY

F421

B3B-EH-A

1N5062

3800

I814

6808

1N5062

3806

I816

I815

I828

22K

3807

3804

I820

1R

I813

2804

9810

4

7805

AVS1ACP08

1M0

470R

9806

20K

I426

I427

VDD

76

MODE

VM

23

OSIN

OSOUT

VSS

1

I428

2802

100p

56n

NC

VG

GBJ6J

2806

47u 50V

I810

6807

I817

I423

3803

58

390R

I425

91K

3802

COLD

9 10111213

TO 1307

AUDIO-STANDBY

E_14710_037.eps

230604

I411 C4

1000 D2

I412 C5

1001 D4

I413 C8

1011 E5

I414 B13

1305 F7

I415 C6

1306 F2

I416 C4

1307 B13

I417 B13

1308 C1

I418 C12

1400 C2

I419 D2

1401 F3

I420 D12

1402 D3

I421 E11

1403 D3

A

B

C

D

E

F

G

1450 C8
2400 C2
2401 C4
2404 C3
2406 C5
2407 C4
2408 C6
2503 E6
2802 E10
2803 C11
2804 C10
2806 F10
2808 E11
2809 E12
2810 D12
2815 C11
2816 D12
3101 C12
3400 C3
3401 C1
3402 C2
3403 D2
3404 D4
3405 D3
3450 B6
3451 C6
3800 E9
3802 E10
3803 E11
3804 E9
3805 E12
3806 E9
3807 E9
3810 B10
5401 C3
5402 C5
5403 B5
5804 E11
6154 C12
6155 C12
6460 E8
6461 D8
6506 E6
6807 C10
6808 E9
6809 D9
7805 D10
7806 E11
9001 C5
9003 C5
9005 C6
9806 E9
9808 C12
9810 D10
9811 D12
9812 E11
9813 C12
9814 C12
F410 B2
F411 B2
F412 C1
F413 C1
F414 C2
F415 C1
F416 C2
F417 C2
F418 C1
F419 C2
F420 F7
F421 F8
F422 B10
F423 B10
F424 F2
F425 F2
F426 F2
F427 F3
F428 F4
I410 C3

I422 E11
I423 E10
I424 E7
I425 E10
I426 E10
I427 E10
I428 E10
I429 D2
I430 D4
I431 D3
I432 D5
I442 B6
I444 B6
I445 C6
I455 D4
I456 E7
I810 B10
I811 B11
I812 B11
I813 C10
I814 E9
I815 E9
I816 E9
I817 C11
I820 F9
I824 E12
I825 E12
I826 E12
I828 E9

Circuit Diagrams and PWB Layouts

Power Supply Unit (30-32”): Supply

1 23456789101112 13

SUPPLY

AS2

A

B

C

D

E

F

G

3067

100R

I143

BAS316

6020

H

I

3104 313 6009.5

25V_HOT

20V4 (0V)

6081

VS-CONTROLLER

I103

3002

39K

100p

100u

3043

100p

2035

2034

100p

27K

100p

2009

2005

2K7

3048

I104

10R

3008

I021

330R

470R

3010

3011

2040

560p

3003

100K

3004

3009

3K3
2007

470n

16

6009

I142

PDZ-18B

I141

2010

123

BZX384-C22

2004

I009

630

RES

6001

BAS316

I028

470R

200p

2006

3007

630

1n

10K

3000

4R7

2002

470u

I006

I007

I008

25

3006

I010

400V_HOT

I029

6022

BZX384-C4V7

3005

33K

10K

3058

5M6

I025

I096

5017

7001
MC34067P

I027

6

7

11

288V(0V)

3050

820K

SOFTSTART

CONTROL

I018

15n

2027

RES

I022

10K

3066

F007

3027

I135

10n

3047

2019

EN|UA9

OSCC1

OSCR2

OSCCC3

OS16

EAO

I+8

I-

SOST

50

ERROR

I105

I023

100K

47R

I134

BC857BW

7017

3064

2026

BAS316

3053

680K

10K

BAS316

6082

9009

6051

RES

I020

50

2n2

I097

6080

BYG22D

9008

CONTROL

VCC UVLO/

ENABLE

VARIABLE

FREQUENCY

OSCILLATOR

ONE-SHOT

2.5V CLAMP

2050

15K

3012

7018

BC847BW

3068

2K2
I136

3056

I133

220R

2046

51LC4.6L AA 7.

BIAS SUPPLY

6079

BYG22D

RES

5.0 V

REFERENCE

SOFT-START

GND

4

I012

3065

68K

1n0

3061

CURRENT

PROTECTION

I024

16

470n

2008

3013

BC857BW

I137

3070

1K

3071

6006

BAS316

47n

I095

VREF UVLO

STEERING

FLIP-FLOP

FAULT DET/

LATCH

100K

6011

BAS316

10K

I139

7009

I138

10K

1n0

2048

BAS316

6077

BYG22D

I033

6010

2077

I132

6017

15

VCC

BAS316

2n2

2047

10n

22V(0V)

2003

2015

10n

3075

1K

I098

I011

1m0

50

VREF

OA 14

OB 12

PGND 13

FI 10

3045

I140

7004

BC847BW

3055

220R

RES

2018

22R

3033

3

5002

1600

F023

F300

BS51312-01

2000

470p

COLD

7002

11V3 (0V)

14

I063

2

10V2 (0V)

7030

BC847BW

5027

I116

5028

I117

10

11

12

13

14

15

16

I123

COLD

I073

I076

2290

10n 50

3292

560R

I070

0V (0V)

1n0

3

I072

5025

5026

I077

I124

GND_SND

HEATSINK

I062

I005

470n

2039

2028

50V

6044

STPS20L45CT

2044

50V

1n0

6045

STPS20L45CT

I074

3

3

I080

1007

I292

1009

10K 3031

47K

3032

2

1

2

13

F027

2029

F012

50V

1n0

2

6021

STPS20H100CT

2045

50V

2

1n0

6025

STPS20H100CT

250V

T5A

19372

2291

470p

50

6291

STPS8H100FP

6293

STPS8H100FP

2293

50

470p

1010

HEATSINK

COLD GROUND

F021

2020

F024

I290

I291

I293

3999

DC_PROT

A2

2m2 25

F028

F017

F025

1

2022

1

2292

2294

HEATSINK

1K0

2021

1012

2023

+12V

I119

3037

5

K1

NC

15K

10n

470n

RES

RES

3023

15K

R

I094

F293

F294

6030

BAS316

3051

4K7

I089

13V4

7010

TL431ACD

8

2030

DC_PROT

F292

F290

F295

+24V

+12V

+12V

A2

3049

I016

3054

2024

220n

F014

16

100n

Vs

Voltage

Adj.

F001

F010

F006

16

F022

3057

220R

F016

2031

2m2

33K

3052

9010

3022

680R

I120

2038

4m7 16V

4m716V

I085

4

2A367

18K

3030

5293

33u

F297

2m2

5291

VSND_POS

GND_SND

33u

F298

2m2

VSND_NEG

5292

33u

HOT

I099

5016

6005

BAT54 COL

2016

3046

470p

I100

5010

2064

470p

1m

HIGH SIDE

3014

I038

100R

2072

1n0

I046

2065

2n2

6002

BAS316

2071

1n0

I051

400V_HOT

DRIVE

F002

47R

3015

6013

I037

BC857BW
7007

I004

LOW SIDE

3017

3018

I059

BC857BW

7008

I055

F018

STP15NK50ZFP

SML4744

I294

9024

DRIVE

7006

100R

STP15NK50ZFP

I057

47R

6012

SML4744

c002

7005

I101

I064

2061

I042

2n2

I003

6007

BAS316

2n2

2060

6003

3035

BAS316

I107

5001

4

3

I108

2

S13932-04

BAT54 COL

6004

F009

3K3

I045

3016

6027

BAS316

3K3

6

3029

I109

3K3

7

I039

2062

9

2n2

6008

10

BAS316

3028

3K3

3020

3K3
3019

3K3

I052

6028

BAS316

I145

9025

F299

I001

I002

3100

10R

5007

5008

5005

I111

2000V

2013

1n5

5004

I110

F005

FLM 1/6W

5013

I113

I112

2000V

1n5

2012

5041

TCET1102

F029

1600

10n

2017

89

7

6

5

5040

3

I114

2

1

10n

2011

GND3

I034

22R

22R

3021

I081

2014

2n2

2000V

F003

5V / div DC

5µs / div

F004

5V / div DC

5µs / div

F005 F016 = 12V6

500mV / div AC

5µs / div

I038

50V / div DC

5µs / div

I057

5V / div DC

5µs / div

F025 = 24V4
F297 = 19V2
F298 = -19V2

HOT GROUND

I084

c001

HOT

6078

1R0

BYG22D

9004

5009

2063

5

100n

5015

F003

F004

F008

16 100n

I106

I036

3001

100R

6015

BAS316

I296

6014

BZX384-C22

I295

10K

3089

I131

4K7

3059

2K2

33K

3044

470R

BC847BW

I017

2037

3024

1%

3025

F296

7031

3042

12K

470n

24V4 (0V)

2051

220n
2052

220n
2053

220n

2033

220n

33K

MRS25 1%

6023

BAS316

1K8

I093

470R

3034

1%

3026

B7B-EH-A

1M02

1304

1

2

3

4

B3P-VH

I013

3036

470n

2036

100K

I014

1K0

I015

3039

ONLY FOR

32" SHARP

2041

220n
2042

220n
2043

220n
2025

220n

I088

8K2

3040

I092

RES

33K

3041

9002

7

TO 1M02

6
5
4
3
2

AUDIO - STBY

1

VH

TO 1304

CONNECTION

TO 1309

1309

1
2
3

AUDIO - STBY

E_14710_038.eps

456789101112 13

6054

BZX384-C10

I121

230604

2032

3038

+24V

I122

3043 D1

1007 G10

3044 A13

1009 H10

3045 G5

1010 H11

3046 F6

1012 H11

3047 H3

1304 H13

3048 D2

1309 I13

3049 A12

1M02 H13

3050 E3

2000 E9

3051 B12

2002 A2

3052 C12

2003 A5

3053 E3

2004 C2

3054 C12

2005 D2

A

B

C

D

4n7

RES

E

33K

RES

F

G

H

I

2006 C2
2007 E1
2008 G4
2009 D1
2010 H1
2011 E9
2012 E8
2013 C8
2014 F6
2015 F5
2016 E6
2017 C9
2018 F5
2019 H2
2020 C11
2021 C11
2022 E11
2023 A12
2024 E12
2025 E13
2026 G3
2027 F3
2028 B10
2029 D11
2030 F12
2031 B12
2032 E13
2033 E13
2034 C1
2035 C2
2036 A13
2037 B13
2038 D11
2039 B10
2040 C1
2041 D13
2042 D13
2043 D13
2044 C10
2045 E11
2046 I4
2047 I5
2048 I4
2050 E3
2051 D13
2052 D13
2053 D13
2060 C7
2061 B7
2062 D7
2063 C6
2064 D6
2065 D7
2071 E7
2072 C7
2077 H4
2290 G10
2291 G11
2292 G11
2293 H11
2294 H11
3000 A2
3001 F5
3002 C1
3003 C1
3004 D1
3005 C2
3006 D2
3007 E2
3008 E2
3009 E1
3010 H2
3011 H2
3012 F3
3013 G4
3014 C7
3015 C8
3016 C7
3017 D8
3018 E8
3019 E7
3020 E7
3021 G6
3022 C11
3023 E12
3024 E13
3025 F13
3026 G13
3027 G3
3028 E7
3029 C7
3030 F11
3031 A11
3032 B10
3033 A5
3034 F13
3035 C7
3036 A13
3037 C12
3038 E13
3039 A13
3040 E13
3041 F13
3042 B13

3055 I5
3056 I3
3057 A12
3058 E2
3059 A13
3061 E4
3064 F3
3065 E4
3066 F3
3067 G1
3068 G4
3070 H4
3071 H4
3075 G5
3089 H6
3100 A9
3292 G10
3999 A11
5001 C6
5002 D9
5004 D8
5005 C9
5007 B8
5008 B8
5009 B5
5010 A6
5013 E8
5015 C6
5016 D6
5017 A3
5025 D10
5026 D10
5027 B10
5028 C10
5040 D9
5041 E8
5291 G11
5292 H11
5293 G11
6001 D2
6002 D7
6003 C7
6004 D6
6005 D6
6006 I4
6007 C7
6008 D7
6009 H1
6010 G4
6011 F4
6012 E8
6013 C8
6014 H6
6015 G6
6017 I5
6020 H1
6021 D11
6022 H2
6023 E13
6025 E11
6027 C7
6028 E7
6030 A12
6044 B10
6045 C10
6051 H3
6054 A13
6077 A5
6078 A6
6079 A4
6080 A4
6081 A2
6082 A3
6291 G11
6293 G11
7001 C3
7002 A9
7004 H5
7005 C8
7006 D8
7007 C8
7008 E8
7009 G4
7010 F12
7017 F3
7018 F3
7030 A10
7031 B13
9002 G13
9004 B5
9008 A4
9009 A3
9010 C11
9024 D8
9025 E8
F001 H12
F002 C8
F003 C6
F004 D6
F005 D8
F006 I12
F007 F3
F008 D6
F009 D6

F010 H12
F012 D11
F014 F12
F016 B11
F017 D11
F018 A8
F021 A11
F022 A12
F023 F9
F024 D11
F025 D11
F027 D11
F028 C11
F029 C9
F290 G12
F292 G12
F293 G12
F294 H12
F295 H12
F296 G13
F297 G12
F298 H12
F299 A8
F300 F9
I001 B8
I002 B8
I003 C7
I004 D8
I005 A10
I006 B2
I007 C2
I008 C2
I009 C2
I010 D2
I011 I5
I012 D4
I013 A13
I014 A13
I015 A13
I016 A12
I017 B13
I018 E3
I020 F3
I021 E1
I022 F3
I023 F3
I024 F4
I025 F2
I027 C3
I028 G2
I029 G2
I033 F5
I034 F6
I036 F5
I037 C8
I038 C8
I039 D7
I042 C7
I045 C7
I046 C8
I051 E8
I052 D7
I055 E8
I057 D8
I059 E8
I062 A10
I063 A10
I064 B7
I070 B10
I072 C10
I073 D10
I074 D10
I076 D10
I077 E10
I080 F10
I081 F7
I084 F9
I085 E12
I088 E13
I089 E12
I092 F13
I093 F13
I094 G12
I095 A4
I096 A3
I097 A3
I098 A5
I099 A6
I100 A6
I101 A6
I103 C1
I104 D2
I105 E3
I106 E6
I107 C6
I108 D6
I109 C7
I110 D8
I111 C8
I112 E8
I113 E8
I114 D9
I116 C10
I117 C10
I119 C12
I120 C12
I121 E13
I122 F13
I123 F10
I124 G10
I131 I5
I132 I4
I133 I4
I134 I3
I135 G3
I136 H4

I137 G4
I138 H4
I139 G4
I140 G5
I141 H1
I142 H1
I143 G1
I145 E7
I290 G11
I291 G11
I292 H10
I293 H11
I294 C8
I295 H6
I296 G6
c001 G9
c002 E8

Circuit Diagrams and PWB Layouts

Layout Power Supply Unit (30-32 Inch) (Top Side)

1000 A1
1001 A3
1007 B10
1009 B9
1010 C9
1011 C3
1012 A9

1304 A10
1305 A3
1306 A4
1307 A5
1308 C1
1309 A8
1400 C1

1401 A4
1402 A2
1403 B1
1450 A3
1M02 B10
2000 A7
2002 A7

2003 A6
2004 A6
2005 A6
2010 A7
2011 B7
2012 C7
2013 C6

2014 A7
2017 B6
2020 C8
2021 C8
2022 A8
2038 A9
2292 A10

2294 C10
2400 C2
2401 B1
2404 B1
2406 A3
2407 A3
2408 B3

2503 A4
2803 B3
2804 B4
2806 B4
2809 C4
2810 C4
2815 A3

2816 A5
3000 A5
3014 B6
3015 C5
3017 C7
3018 C7
3026 A9

3033 A6
3050 A5
3053 A5
3058 A5
3400 C2
3401 C2
3402 A1

3403 A1
3404 A2
3405 B1
3450 A2
3451 A3
3800 A4
3805 C4

3807 B4
3810 A4
5001 B6
5002 A7
5004 C6
5005 C6
5007 B6

52LC4.6L AA 7.

5008 C5
5009 B7
5010 B6
5013 C7
5015 A6
5016 A6
5017 A5

5025 B9
5026 A9
5027 C9
5028 C9
5040 B6
5041 C7
5291 B10

5292 C10
5293 B10
5401 B2
5402 A1
5403 A3
5804 B4
6021 B9

6025 B10
6044 C10
6045 C10
6291 A9
6293 A10
6506 A4
6807 C3

6808 A4
6809 A4
7001 A6
7002 A8
7005 C6
7006 C7
7805 B4

7806 C4
9001 A3
9003 A3
9004 A7
9005 B3
9006 C10
9007 A8

9010 A10
9011 A8
9012 C8
9013 B8
9014 B1
9016 A7
9017 A5

9018 A6
9019 A6
9020 B7
9021 A6
9022 C3
9023 C3
9024 C6

9025 B7
9026 C8
9027 B9
9028 B9
9031 A9
9032 A9
9033 A9

9034 A10
9035 B8
9036 B9
9037 B8
9038 A9
9039 A9
9040 B9

9041 B9
9042 B10
9043 B10
9044 C9
9045 C9
9046 C9
9047 C10

9080 A7
9081 C2
9086 B10
9087 B9
9088 A10
9090 A10
9091 A9

9092 A7
9093 A7
9098 B3
9808 B5
9811 B5
9812 B4
9813 B5

9814 A5

3104 313 6009.4

E_14710_039.eps

080604

Circuit Diagrams and PWB Layouts

Layout Power Supply Unit (30-32 Inch) (Overview Bottom Side)

2006 A5
2007 A6
2008 A5
2009 A5
2015 A5
2016 A5

E_14710_040a.eps

2018 A5
2019 A5
2023 B1
2024 B1
2025 A1
2026 A6

Part 1

2027 A6
2028 C2
2029 B2
2030 B1
2031 A1
2032 A1

2033 A1
2034 A5
2035 A5
2036 C1
2037 C1
2039 B1

2040 A5
2041 A1
2042 A1
2043 A1
2044 C1
2045 B1

2046 A4
2047 A5
2048 A5
2050 A5
2051 A1
2052 A1

2053 A1
2060 C6
2061 B5
2062 C5
2063 A5
2064 A5

2065 C4
2071 C4
2072 C5
2077 A4
2290 B3
2291 A2

2293 A1
2802 B7
2808 C7
3001 A4
3002 A5
3003 A5

3004 A5
3005 A5
3006 A5
3007 A6
3008 A6
3009 A6

3010 A4
3011 A5
3012 A5
3013 A5
3016 C6
3019 C4

3020 C4
3021 A4
3022 B1
3023 B1
3024 A1
3025 B1

3027 A6
3028 C4
3029 C6
3030 B1
3031 B1
3032 B1

3034 B1
3035 C6
3036 C1
3037 A1
3038 B1
3039 C1

53LC4.6L AA 7.

3040 B1
3041 B1
3042 C1
3043 A5
3044 C1
3045 A5

3046 A4
3047 A4
3048 A5
3049 C1
3051 C1
3052 A1

3054 C1
3055 A4
3056 A4
3057 A1
3059 C1
3061 A5

3064 A5
3065 A6
3066 A5
3067 A4
3068 A4
3070 A4

3071 A4
3075 A4
3089 A4
3100 A4
3101 A6
3292 B3

3802 B7
3803 B6
3804 B7
3806 B7
3999 B8
6001 A5

6002 C4
6003 C6
6004 A5
6005 A5
6006 A5
6007 B6

6008 C5
6009 A4
6010 A5
6011 A5
6012 B4
6013 C5

6014 A4
6015 A4
6017 A5
6020 A4
6022 A5
6023 A1

6027 C6
6028 C4
6030 C1
6051 A4
6054 C1
6077 A5

6078 B5
6079 A5
6080 A6
6081 A4
6082 A6
6154 A6

6155 A6
6460 A8
6461 A8
7004 A4
7007 C5
7008 C5

7009 A4
7010 A1
7017 A5
7018 A6
7030 B1
7031 C1

9002 B1
9008 A6
9009 A6
9030 A1
9085 B1
9806 B7

9810 B7

3104 313 6009.4

Part 2

E_14710_040b.eps

E_14710_040.eps

080604

Circuit Diagrams and PWB Layouts

Layout Power Supply Unit (30-32 Inch) (Part 1 Bottom Side)

Part 1

54LC4.6L AA 7.

E_14710_040a.eps

080604

Circuit Diagrams and PWB Layouts

Layout Power Supply Unit (30-32 Inch) (Part 2 Bottom Side)

55LC4.6L AA 7.

Part 2

E_14710_040b.eps

080604

Side I/O Panel

Circuit Diagrams and PWB Layouts

56LC4.6L AA 7.

SIDE I/O

5

SVHS IN

YKF51-5564

0900

YKC21-5617

0901-A

CVBS

1

0901-B

YKC21-5617

4

LEFT

Audio_in_gnd

0901-C

YKC21-5617

7

RIGHT

Audio_in_gnd

2

4

3

1

C

Y/CVBS

(YELLOW)

2

(WHITE)

5

6

8

9

21

(RED)

4901

Audio_in_gnd

1005

1004

1003

3

1006

3906

1K

3908

75R

1K

1007

3904

456

75R

3902

3903

100R

3905

1K

47K

3907

Audio_in_gnd

47K

3909

3901

100R

220n

3n3

Audio_in_gnd

3n3

2902

*

220n

2903

2904

2901

*

I119

Headph_gnd

Y-CVBS-FRONT-IN

C-FRONT-IN

L-FRONT-IN

FRONT-DETECT

R-FRONT-IN

HEADPH-L

HEADPH-R

Headph_gnd

4902

0936

1

2

3

4

5

6

7

8

9

10

11

Audio_in_gnd

EH-B

I120

FROM

1S36

OF

B1

4903

DD

FROM

1336

OF

A2

LC04

A

B

C

D

0900-A B1
0901-A B1
0901-B C2
0901-C C2
0902 E2
0936 A5
1000 F2
1001 F3
1002 E3
1003 D3
1004 C3
1005 B3
1006 B3
1007 A4
2901 A4
2902 B4
2903 C4
2904 D4
2905 F5
2906 F4
3901 A4
3902 A4
3903 A4
3904 B4
3905 B4
3906 C3
3907 C4
3908 D4
3909 D4
3910 E5
3911 F5
3912 F4
4901 B2
4902 A6
4903 C6

YKB21-5101A

8204.000 6393.5

1234

0902

HEADPHONE

Headph_gnd

* RESERVED

5

4

2

3

7

8

1

Headph_gnd

Headph_gnd

Headph_gnd

Audio_in_gnd

1002

Headph_gnd

1000

1001

Headph_gnd

Audio_in_gnd

HP-DETECT

10K

Headph_gnd

LEFT

RIGHT

3912

Headph_gnd

10n

Audio_in_gnd

2906

Headph_gnd

3910

3K9

10K

3911

10n

2905

Headph_gnd

5

E_14710_043.eps

6

E

F

210704

Circuit Diagrams and PWB Layouts

57LC4.6L AA 7.

Layout Side I/O Panel (Top Side)

0900 B1
0901 A1
0902 A1
0936 A1
3902 B1
3904 B1
3905 B1
3906 A1
3908 A1
3910 A1
3911 A1
3912 A1

Layout Side I/O Panel (Bottom Side)

0900 B1
0901 A1
0902 A1
0936 A1
2901 B1
2902 B1
2903 A1
2904 A1
2905 A1
2906 A1
3901 B1
3902 B1
3903 B1
3904 B1
3905 B1
3906 A1
3907 A1
3908 A1
3909 A1
3910 A1
3911 A1
3912 A1
4901 B1
4902 A1
4903 A1

3104 303 3649.5

E_14710_041.eps

080604

3104 303 3649.5

E_14710_042.eps

080604

Top Control Panel

Circuit Diagrams and PWB Layouts

58LC4.6L AA 7.

A

B

0345 A4
1701 D1
1702 D1
1703 D3

1704 D3
1705 D2
3001 E1
3002 E1

3003 E1
3004 E1
3005 E2
3006 E2

3007 E2
3008 D2
3009 E3
3010 D3

3011 E3
3012 C3
3013 C3
3999 D4

6005 E2
9001 D2
9002 E3
9003 D3

9004 E3
9005 C3
9006 C3
F701 D4

F702 D4
I701 C3
I702 D3
I703 D3

I704 D2
I705 E3
I706 E3
I707 E2

I708 E1
I709 E1
I710 A3

1 234

TOP CONTROL

E E

0345

1

I710

2

3

TO

1Y45

I/02

GND_KEYBOARD

KEYBOARD

GND_KEYBOARD

TO

1402

OR OR

A2

LC04

(LCD)

TO

1345

EMC

LC04

(PDP)

Personal Notes:

A

B

C

D

E

VOLUME -

I709

3001

390R

*

1701

3002

3K3

VOLUME +

3003

*

200R

1702

3004

1K5

I704

MENU

I707I708 I706

*

2K

1K5

3006

3007

3005

1705

**

3K3

9001

3008

270R

6005

I703

*

CHANNEL -

3009

1PS76SB10

*

3013

9006

I701

560R

*

3012

9003

3010

560R

1704

9005

I702

*

CHANNEL +

I705

390R

1703

**

1K1

9002

3011

620R

9004

F701

3999

F702

1K

* FOR SAA56XX

C

D

E

8204 000 6604.3

1 234

E_14710_044.eps

210704

E_06532_012.eps

131004

Circuit Diagrams and PWB Layouts

Layout Top Control Panel (Top Side)

0345 1701 1702 1703 1704 1705

3104 303 3851.3

59LC4.6L AA 7.

E_14710_045.eps

080604

Layout Top Control Panel (Bottom Side)

3001
3002

3003
3004

3005
3006

3007
3008

3009
3010

3104 303 3851.3

3011
3012

3013
3999

6005
9001

9002
9003

9004
9005

9006

E_14710_046.eps

080604

LED and Switch Panel

Circuit Diagrams and PWB Layouts

60LC4.6L AA 7.

J

A

B

FROM

1320

A3

C

D

E

F

(LCD)

OR

TO

1345

EMC

LC04

(PDP)

8204 000 6676.1

12345678 9

LED PANEL DISPLAY

1

2

3

4

5

6

CTRL

CIRCUIT

BAND
PA SS

0317

ICONN

95009

TSOP2236

INP

AGC

E_14710_052.eps

7107

PIN

210704

3107

470R

+5V_STBY_SW

0320

1

6101

I102

3101

150R

BZX384-C3V9

5100

100MHZ

F102

F103

F104

F105

F101

F108

F109

F112

+8V6

+5V_STBY_SW

1101

14

2

36

4101

5

2

3

4

5

6

7

8

9

10

GREEN_LED

RED_LED

RC_IN

LIGHT_SENSOR_IN

F106

F107

+5V_STBY_SW

+9V_STBY_SW

+9V_STBY

PH-S

I103

ON / OFF

3102

7103

100K

BC857BW

6103-A

GREEN

+8V6

3103

F110

220R

I104

21

TLMV3100

7105

BC857BW

I105

RED

F111

3105

3

6103-B

330R

4

TLMV3100

3104

6105

I107

3106

4107

100K

I106

BZX384-C3V9

150R

+5V_STBY_SW

100R

3109

10K

3108

2107

I109

4108

I111

I112

100u

4109

SWITCH

F121 F122

10u

0222

SHIELDING 3.3

3122

1K

3120

4K7

3121

4K7

7120-B

LM358D

7

I120

8

4

3123

10K

I123

5

6

2120

3124

1K

3125

7120-A

LM358D

1

I125

3K3

8

4

3126

470K
2126

220n

I126

3

2

6127

I127

3127

TEMD5000

470K

1234567

IR_TX

IR_RX

F115

F116

F119

F120

DEM

I113

4111 4110

LED_DISPLAY

GREEN_LED

RED_LED

2

VS

1

OUT

3

GND

3128

1K0

89

A

B

C

D

E

F

0222 E2
0317 A9
0320 B1
1101 D3
2107 C7
2120 E5
2126 F6
3101 C4
3102 B4
3103 C5
3104 B6
3105 C5
3106 D6
3107 B5
3108 B7
3109 B7
3120 E4
3121 F4
3122 F3
3123 F4
3124 F5
3125 F5
3126 F6
3127 F6
3128 E8
4101 C3
4107 B6
4108 C8
4109 C8
4110 C8
4111 C8
5100 C2
6101 C4
6103-A D5
6103-B D5
6105 C6
6127 F6
7103 B5
7105 C5
7107 C9
7120-A E5
7120-B E4
F101 C2
F102 C2
F103 C2
F104 C2
F105 C2
F106 C1
F107 C1
F108 C2
F109 D2
F110 C5
F111 C6
F112 D2
F115 A9
F116 A9
F119 B9
F120 B9
F121 E8
F122 E9
I102 C4
I103 C4
I104 C5
I105 C5
I106 C6
I107 C6
I109 B7
I111 C7
I112 C8
I113 C8
I120 F4
I123 F5
I125 F5
I126 F6
I127 E6

Circuit Diagrams and PWB Layouts

61LC4.6L AA 7.

Layout LED and Switch Panel (Top Side)

3104 303 3924.1

E_14710_053.eps

140604

0317 A1
0320 A1
1101 A1
2107 A1
2120 A1
6103 A1
6127 A1
7107 A1

Layout LED and Switch Panel (Bottom Side)

3104 303 3924.1

E_14710_054.eps

140604

0317 A1
1101 A1
2126 A1
3101 A1
3102 A1
3103 A1
3104 A1
3105 A1
3106 A1
3107 A1
3108 A1
3109 A1
3120 A1
3121 A1
3122 A1
3123 A1
3124 A1
3125 A1
3126 A1
3127 A1
3128 A1
4101 A1
4107 A1
4108 A1
4109 A1
4110 A1
4111 A1
5100 A1
6101 A1
6105 A1
7103 A1
7105 A1
7107 A1
7120 A1

Circuit Diagrams and PWB Layouts

LCD Standby Audio Panel: Connections

1234

CONNECTIONS

A

B

C

D

E

TO

DISPLAY

PH-B

GND screw

1314

1

2

3

4

5

6

7

8

9

10

0001

1

GND-SSP

GND-SSP

TO

DISPLAY

1315

1

2

3

4

5

6

7

8

9

10

PH-B

TO

DISPLAY

1316

1
2
3
4
5
6
7
8

9
10
11
12

B12P-PH-K

GND-SSP

TO

DISPLAY

1317

1
2
3
4
5
6
7
8
9
10
11
12

B12P-PH-K

1318

1
2
3
4
5
6

B6B-PH-K

GND-SSP

62LC4.6L AA 7.

56

+5V_SW

9008

9002

F137

RES

+5V_SW

RES

9009

DIM_CONTROL

F138

RES

9003

GND-SSP

DIM_CONTROL

9V_STBY_SW

ON_OFF

SA1 (3x)

GND-SSP

SA1

ON_OFF

SA1 (3x)

+5V2-RELAY-IO2

+8V6
+12V

+5V_SW

GND-SSP

F114

VTUN

+12V

9V_STBY

DIM_CONTROL
SA1

ON_OFF
SA1 (3x)
DIM_CONTROL

SA1

POR
SA2

F115

ON_OFF

SA1 (3x)

GND-SSP

+5V_SW

9113

STANDBY
SA2
PROT_AUDIOSUPPLY

SA2

F121

F139

TO 1M03

F131

F109

+5V2

9001

GND-SSP

F136

F117

F135

F111

F113

F122

F132

1

2

3

4

5

6

7

8

9

10

OR

1M46

B11B-PH-K

78910

TO

DISPLAY

1313
16
15
14
13

PH-B

12

11
10

9
8
7
6
5
4
3
2
1

440091-7

1M03

SSB EMG

SSB JAGUARTO 1M03

1
2
3
4

TO 1M46 SSB EMG

5
6
7
8

TO 1M46 SSB JAGUAR

9
10
11

F104

F105

F106

F107

F119

GND-SSP

OR

F102

F120

TO

DISPLAY

1312

16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

440091-7

TO 1303

LCD SUPPLY

TO 1320

LCD SUPPLY

42"

9004

5018

68u

RES

9010

9005

5019

68u

RES

9011

42"

1303

1
2
3
4

B4P-VH

1320

1
2
3

B3P-VH

F103

GND-SSP

3190

GND-SSP

1K2

F110

9006

3191

+24V_2

9007

1K2

1M10

B4B-PH-K

1304
1
2

3

4

B4P-VH

LCD SUPPLY

1309

1
2
3

B3P-VH

1K2

3192

TO

1
2

3
4

AMBI LIGHT

F101

9018

TO 1304

A2

30"/37"/42"

F112

GND-SSP

+12V_+24V

F108

TO 1304

AS1

LC04

TO 1309

A2

LCD SUPPLY

30"/37"/42"

TO 1309

AS2

LC04

+12V_A

A

B

C

D

E

0001 E1
1303 A9
1304 B9
1309 D9
1312 A8
1313 A7
1314 B1
1315 B2
1316 A3
1317 A4
1318 A5
1320 B9
1M03 B7
1M10 A9
1M46 D7
3190 D9
3191 D9
3192 D9
5018 C8
5019 D8
9001 E6
9002 B5
9003 B5
9004 C8
9005 D8
9006 C9
9007 C9
9008 A5
9009 A5
9010 C8
9011 D8
9018 B10
9113 B6
F101 B10
F102 A8
F103 A9
F104 A7
F105 A7
F106 A7
F107 B7
F108 B10
F109 E6
F110 B9
F111 B6
F112 D10
F113 B6
F114 E6
F115 B6
F117 E6
F119 B7
F120 C8
F121 B6
F122 C6
F131 D6
F132 E6
F135 D6
F136 D6
F137 A5
F138 B5
F139 C6

8204 000 8314.5

123456

78

E_14620_132.eps

281204

910

Circuit Diagrams and PWB Layouts

LCD Standby Audio Panel: Standby

12345678

STANDBY

A

COLD GROUND

HOT GROUND

B

C

D

E

F

G

H

8204 000 8314.5

1301

HEATSINK

1

6103

BYV27-200

I140

10u

RES

5106

9111

I513

5102

I147

I153

3106

I162

3107

390R 390R

I169

390R

I177

3110 3109

390R

I181

3112

390R

6114

BYV27-200

12345678910

2

GNDHOT

I122

2101

3111

2102

I172

2163

I190

TO 1306

AS1

LC04

2n2

I131

1K

3103

I136

2103

2105

2111

47n

3105

100p 100p

3102

GNDHOT

3145

4K7

I173

220R

I144

1K

GNDHOT

2144

2110

2162

2159

2124

1K5

I142

25V 100u

100u25V

TO 1306

A1

LCD SUPPLY

30"/37"/42"

I110

BZX384-C33

6117

BZX384-C33

I134

RES

4M7

3101

470p

I141

I143

RES

470p

1M0

3138

GNDHOT

1u

6142

BAT54 COL

I174

1u

6108

BAT54 COL

10u

3147

50V

GNDHOT

9023
6118

RES

9020

RES

3117

6104

BZX384-C27

6106

22K

TO 1307

AS1

LC04

1306

1
2

B2P-VA-BF-BK

9021

6119

I111

BZX384-C33

3104

47R

2145

I145

6144

GNDHOT

3125

I166

PDZ-20B

3100

LCD SUPPLY

F124

F123

RES

I130

47R

I135

7101

BC817-25W

470p

1K0

3152

BAS316

15R

3126

7100

BC857BW

I185

100R

1307

1
2
3
4

B4P-VH

TO 1307

A1

30"/37"/42"

63LC4.6L AA 7.

9101112 13

Caution: Both and symbols can indicate a HOT ground in this schematic!!

3516

4K7

+12V_A

6130

BZX384-C12

3161

12K

3171

100R

50V1u0

2160

0V7 (0V6)

33K

3132

5508

RES15u

9112

6149

I161

3141

I168

2154

GND-SSP

+5V2-RELAY-IO2

RES

10K

3534

I192

RES

2K2

RES

3535

I510

PMSTA42

7131
STP16NF06FP

I112

GND-SSP

33K

3513

GND-SSP

BZX384-C5V6

470R

15n

3176

GND-SSP

GND-SSPGND-SSPGND-SSP

6132

I104

3135

2535

2512

7512

GND-SSP

10K

GND-SSP

3536

PDZ6.8-B

GND-SSP

3172

33K

330R

10n

RES

220u 25V

+5V2

10K

RES

I189

7508
BC847BW

RES

7140
BC847BW

5504

33u

RES

5501

GNDHOT

6105

BZX384-C15

6115

BAT54 COL

3160

1K0

2112

10n

I155

BC857BW

10K

I167

F127

GND

(289V)
275V

5505

9022

3148

I156

7105

3127

5K6

6150

BZG03-C200

F128

F130

I100

I113

I119

7102
STP6NK60Z

I146

47R

GNDHOT

3149

2123

100n

3150

10K

F129

2107

10u

2108

10u

2152

10n

I132

100R

3108

I154

6116

3146

6151

BZX384-C33

I133

5108

I199

4R7

6147

GNDHOT

BZX384-C5V6

I175

47R

I180

I191

GNDHOT

5104

SML4736-6V8

F100

I183 I184

3155

10K

2150

25V220u

I171

6156

I118

I124

5105

GNDHOT

2153

BAS316

5500

5

3

2

110

2506

470p

GND-SSP

6n8

32

GND-SSP

3156

I186

1K0

14

22K

3157

6153

BZG03-C200

GND

3140

3153

3159

6148

2140

11V5 (12V)

GND-SSP
3511

68K

22K 22K

6133

BAS316

BC847BW

GND-SSP

47R

11V7 (11V7)

BAS316

I163

50V10u

3142

I108

7532

5506

12K

GND-SSP

I509

2511

11V9 (11V8)
I103

3512

6134

I126

+12V

I512

5507

15u

220u 25V

470R

BAS316

GND-SSP

6508

3537

2538

I197

BZX384-C9V1

3K3

10n

10V2m2

GND-SSP

3999

1K0

3515

100K

I159

6125

3137

2539

3538

6511

BZX384-C12

7511

BST82

SB340

I127

+12Vstby

100K

1u0

2534

100R

3175

+11V

F134

I107

I125

1u0

10K

GND-SSP

3509

2K2

100V

22u

GND-SSP

I128

2118

GND-SSP

I149

6122

9019

F133

251m

3113

2109

2149

RES

5115

22R

GND-SSP

PDZ-3.9B

I160

1u

I170

1u

34V (34V)

I508

2510

VTUN

6504

1n0

I105

470R

5103

Prot-OVV

BYV27

2507

100p

5112

6140

BYV95C

GND-SSP

I501

I502

I102

I129

I198

2141

I137

3124

33R

SA2

6113

BYW29EX-200

2143

2n2

+11V

470n

2513

2n2

6107

STPS8H100

6505

SB360

I158

3123

I164
I165

6120

I176

6121

GND-SSP

2508

I138

10R

BAS316

BAS316

I101

2129

10u

5110

3122

6

I114

7

I120

8

I123

GND-SSP

7501

TCET1102

3128

I157

4R7

14

I503

3114

220R

GND-SSP

3158

47R

7150

TCET1102

32 9110

GND-SSP

COLD GROUNDHOT GROUND

+12V

8V9 (8V8)

2131

GND-SSP

I116

3539

470R

I511

2515

GND-SSPGND-SSP

22n

3134

1K0

I148

6531

3517

22K

2n2

+8V6

2132

100u 25V

I106

6532

BAS316

BC847BW

5V3 (5V3)

7531
BSP030

BZX384-C15

GND-SSP GND-SSP

SA2

Prot-OVV

PROT_AUDIOSUPPLY

SA1

SA1

POR

+5V2

3528

7506

GND-SSP

2533

4K7

0V (0V)

I109

+5V_SW

25V100u

I115

2536

GND-SSP

+5V2

3560

6K8

3506

470R

1311

HEATSINK

1

2

GND-SSP

+5V2-RELAY-IO2

4K7

3532

3529

100R

10n

GND-SSP

+5V2-RELAY-IO2

5V3 (5V3)

BC847BW

7507

I117

BC847BW

1K5

3533

GND-SSP

7560
BC817-25W

0V8 (0V8)

I152

3K9

3561

GND-SSP

6540

BAT54 COL

I504

3541

3544

220R

I179

7509

GND-SSP GND-SSP

I139

11 12 13

+5V2

3562

3510

220R

2K2

I121

3530

GND-SSP

4R7

I150

2544

10n

I182

3542

6562

+5V2

22K

2537

F125

F126

I151

BZX384-C22

GND-SSP

I505

10K

2540

GND-SSP

3531

15K

2n2

GND-SSP

1305

B3B-EH-A

TO 1305

A1

LCD SUPPLY

30"/37"/42"

BC847BW

2K2

3540

GND-SSP

I178

BC857BW
7505

10n

1310

HEATSINK

1

2

GND-SSP

STANDBY

0V2 (0V2)

TO 1305

AS1

LC04

1
2
3

6510

PDZ2.7-B

I507

10K

3507

7510

I506

15K

3508

GND-SSP

GND-SSP

E_14620_133.eps

281204

2509

SA1

3508 F13
3509 A7
3510 F12
3511 B9
3512 C9
3513 D10
3515 B8
3516 A9
3517 A11
3528 C11
3529 C12
3530 D13
3531 C13
3532 C12
3533 D12
3534 H9
3535 H9
3536 H10
3537 H9
3538 F8
3539 H10
3540 G13
3541 G12
3542 H13
3544 G12
3560 E12
3561 F12
3562 E12
3999 H8
5102 D1
5103 E7
5104 C5
5105 C5
5106 D1
5108 D5
5110 B6
5112 D7
5115 D8
5500 B6
5501 B4
5504 B4
5505 B4
5506 E9
5507 B9
5508 E9
6103 C1
6104 D3
6105 C4
6106 F3
6107 E7
6108 F3
6113 C7
6114 G2
6115 D4
6116 F4
6117 C3
6118 B3
6119 B3
6120 G7
6121 G7
6122 E7
6125 C8
6130 B10
6132 C10
6133 C9
6134 C9
6140 D7
6142 F3
6144 D3
6147 D5
6148 F8
6149 F9
6150 G4
6151 G5
6153 H6
6156 H5
6504 A7
6505 E7
6508 G9
6510 E13
6511 A8
6531 F10
6532 C11
6540 F12
6562 E13
7100 F4
7101 D4
7102 C4
7105 E4
7131 B10
7140 F10
7150 H6
7501 F6
7505 G13
7506 C11
7507 C12
7508 H10
7509 G12
7510 F13
7511 A8
7512 A10
7531 E11
7532 D9
7560 E12
9019 A8
9020 C3

9021 B3
9022 B4
9023 B3
9110 H10
9111 D1
9112 E9
F100 D5
F123 B4
F124 B4
F125 D13
F126 E13
F127 H4
F128 H4
F129 H4
F130 H4
F133 H8
F134 H8
I100 B4
I101 A6
I102 A7
I103 C9
I104 B10
I105 B7
I106 C11
I107 C8
I108 C9
I109 C11
I110 C3
I111 C3
I112 C10
I113 B4
I114 B6
I115 C12
I116 C10
I117 C12
I118 C5
I119 C4
I120 C6
I121 C13
I122 C2
I123 C6
I124 C5
I125 D8
I126 D9
I127 C8
I128 D7
I129 D7
I130 C4
I131 C2
I132 C4
I133 C5
I134 D3
I135 D3
I136 D2
I137 E7
I138 E7
I139 E12
I140 C1
I141 D3
I142 D2
I143 D3
I144 D2
I145 D3
I146 D4
I147 E2
I148 E10
I149 E7
I150 E13
I151 E13
I152 E12
I153 E1
I154 E4
I155 E4
I156 E4
I157 F6
I158 F7
I159 F8
I160 F8
I161 F9
I162 E2
I163 F9
I164 F7
I165 F7
I166 F3
I167 F4
I168 F9
I169 F2
I170 G8
I171 F5
I172 F2
I173 F2
I174 F3
I175 F5
I176 G7
I177 F2
I178 G13
I179 G12
I180 G5
I181 G2
I182 G13
I183 G5
I184 G6
I185 F3
I186 G6
I189 H10
I190 G2

I191 G5
I192 H9
I197 C9
I198 D7
I199 D5
I501 F7
I502 F7
I503 F6
I504 F12
I505 F13
I506 F13
I507 F13
I508 A8
I509 A9
I510 A10
I511 A10
I512 H9
I513 D1

1301 B2
1305 D13
1306 B3
1307 H4
1310 A13
1311 A12
2101 C2
2102 F2
2103 D2
2105 D2
2107 A4
2108 B4
2109 F7
2110 F2

A

2111 E2
2112 D4
2118 D7
2123 E4
2124 H2
2129 B6
2131 C10
2132 C11
2140 F8
2141 D7
2143 D7
2144 F2

B

2145 D3
2149 G7
2150 G5
2152 B4
2153 F5
2154 G10
2159 D2
2160 C9
2162 D2
2163 F2
2506 C6

C

2507 B7
2508 C7
2509 F13
2510 E8
2511 B9
2512 E10
2513 E7
2515 B10
2533 F11
2534 E8
2535 D10
2536 D12

D

2537 D13
2538 H9
2539 E8
2540 H13
2544 G13
3100 F3
3101 D3
3102 D2
3103 D2
3104 D3
3105 D2
3106 E1

E

3107 F1
3108 D4
3109 F1
3110 F1
3111 D2
3112 G1
3113 E7
3114 F6
3117 D3
3122 B6
3123 F7

F

3124 F7
3125 E3
3126 E4
3127 F4
3128 F6

2n2

3132 D9
3134 C10
3135 C10
3137 D8
3138 D3
3140 C8
3141 F10

G

3142 F9
3145 G2
3146 F4
3147 H3
3148 E4
3149 E4
3150 D4
3152 D3
3153 C8
3155 G5
3156 G6
3157 H5

H

3158 G6
3159 E8
3160 D4
3161 C10
3171 C9
3172 C10
3175 F8
3176 G10
3506 G12
3507 F13

Circuit Diagrams and PWB Layouts

64LC4.6L AA 7.

LCD Standby Audio Panel: Audio

0044 F13
0045 B2
1735 F2
1736 G2
1737 F7
1738 F7
1739 F5
1M02 A9
2702 C4
2704 C3

2705 A7
2706 B4
2707 C4
2708 A3
2709 D6
2710 D6
2711 E2
2712 D5
2713 B7
2714 E4

2715 F4
2716 E4
2717 G4
2718 E3
2719 F5
2720 B3
2721 C2
2722 D2
2723 F8
2725 F6

2726 E3
2727 E3
2728 E3
2729 F3
2741 F12
2743 F13
2753 E13
2754 D11
2755 D11
2756 E11

123R45678910

2758 G9
2759 F8
2762 E13
2764 B3
2766 A4
2768 E5
2769 D5
2777 D2
2778 C5
2779 E3

AUDIO

SA3

SA3

AUDIO-L

AUDIO-R

A

B

C

D

E

F

15W/8

15W/8

G

F711

F712

0045

HEATSINK

1

2

-Vf1

56K

3723

3722

68K

-Vf11

-16V-19V

100u

2777

2788

+16V+19V

I725

3726

3724

220R

-18V

1735

1
2
3

B3B-PH-K

1736

1
2

L

3

B3B-PH-K

F722

F738

F710

F708

I767

F721

I770

F739

5708

5707

I756

220n

220R

4K7

2721

2722

2711

1n

PLT09H

PLT09H

I777

2790

5730

5731

2780 E5
2781 D5
2782 D12
2783 C7
2784 D13
2785 B13
2786 B4
2787 C5
2788 D2
2789 D2

3721

F713

470p

I726

470p

I757

2789

I779

100u

I754

-Vf11

220n

2779

2790 E2
2791 C7
2792 C8
2793 D13
2794 C9
2795 D12
2796 C10
2797 D8
2798 E8
2799 D13

3701 E6
3702 B6
3703 A6
3704 B6
3705 C3
3706 E6
3707 D6
3708 E6
3709 F5
3710 E4

3711 D5

3713 D7
3714 C6
3715 B6
3716 B6
3717 F4
3718 G4
3720 F7
3721 B2

3722 C2
3723 C2
3724 F2
3725 E3
3726 F2
3727 F5
3729 G9
3730 F7
3741 F12
3743 F4

3744 G12
3746 C6
3747 C6
3748 C5

3750 G3
3751 G8
3752 B8
3753 G8
3754 C8

3755 B10
3756 F4
3757 G3
3758 C10
3759 D8
3760 E8
3761 A12
3762 B12
3763 B12
3764 C12

3765 C12
3766 B143712 E3
3767 B12
3768 A13
3790 C4
3791 C3
3792 B3
3793 B4
3794 D11
3795 C5

3796 E11
3797 C5
3798 D6
5701 F4
5702 F3
5703 B5
5704 F7
5705 F6
5707 D2
5708 E2

5711 D5
5712 D5
5720 F9
5722 D13
5723 D133749 A7
5730 F2
5731 G2
5732 G8
6701 C6
6702 B12

6703 C12
6704 B6
6710 D8
6711 E8
7700 C5
7701 B7
7702 E11
7703 C7
7704 B5
7705 B6

7706 C6
7707 C5
7708 C13
7709 C13
7710 B13
7711 B13
7712 D9
7713 E9
7714 C5
7715-1 C9

7715-2 C11
9717 B5
9718 B13
F708 F2
F710 G2
F711 A2
F712 A2
F713 C3
F714 B5
F718 D10

F720 G8
F721 G2
F722 F2
F731 G8
F736 G7
F737 G6
F738 F2
F739 G2
F741 F8
F742 B9

F743 B9
F744 B9
F745 A9
F747 F5
F748 G5
F749 G6
F751 F6
I700 E6
I701 E6
I702 A6

I703 B6
I704 A6
I705 D6
I706 D5
I707 D5
I708 F12
I709 E4
I710 F5
I711 C4
I712 A5

I713 E4
I714 C8
I715 A7
I716 E3
I717 B5
I718 B5
I719 E3
I720 C8
I721 C3
I722 B3

I723 B9
I724 D3
I725 E2
I726 C3
I727 B5
I728 C9
I729 C5
I730 F7
I731 B11
I732 B6

I733 C10
I734 F12
I735 D8
I736 E8
I737 C6
I738 C6
I739 B6
I740 D9
I741 E9
I742 C12

I743 C12
I744 D5
I745 B4
I746 E13
I747 D11
I748 B3
I749 C3
I750 B12
I751 A12
I752 E13

I753 B3
I754 E3
I755 F4
I756 C2
I757 D2
I758 E11
I759 E11
I760 C5
I761 F8
I762 D11

I763 C6
I764 C13
I765 D13
I766 F9
I767 F2
I768 G3
I769 F3
I770 G2
I771 G3
I772 F8

I773 F9
I774 F9
I776 E4
I777 D2
I778 E3
I779 E3
I780 E13
I781 C13
I782 C13
I783 B3

I784 B3
I785 B4
I786 B4
I787 C4
I788 C7
I790 F3
I791 B12
I792 B13
I793 B13
I794 B12

I795 F6
I796 C12
I797 C12
I798 E5
I799 E4

11 12 13 14

SA3

SA3 (3x)

-Vf11

-Vf1

2u2

2766

2708

220n

2u2

2764

I753

I783

I722

2704

1n

3791

2K7

FEED4

19

FEED3

17

NC

20

-VCC3

24

+VCC2

22

I724

2726

33n

I778

220n

2727

1n

I769

12

43

I768

12

43

2720

10K

68u

I771

220n

3792

I784

I748

8R2

3705

I721
I749

IN2 18

VREG 25

G=2.5

PRE-AMP2

INTERGR 2

PWM

STAGE2

BOOT221

OUT223

T215

I716

22K

3725

330p

2728

10K

3712

I719

5702

I790

680n

2729

2K2

3750

2718

3757

I745

2786

2707

-VCC1 1

3756

3743

3717

100K

I785

22n

100n

I787

-5V 16

+5V 12

GND 13

PRE-AMP1

INTERGR 1

STAGE2

OSC

OSC8

T111

I713

22K

330p

3710

2716

I799

22p

2K2

2K2

68u

2706

I711

OUT13

I776

5701

100n

3793

STBY-MUTE

G=2.5

PWM

BOOT15

2714

33n

2715

I786

CURREF

1n

10K

IN1 10

FEED1

FEED2

-VCC2

+VCC1

5703

30R

2702

1n

3790

2K7

TDA7490

I709

I755

7700

I798

TO 1M52

SSB EMG

OR

3718

100K

2717

680n

TO 1M52

2K2

PROT1

I712

I727

9717

I717

7704

BC847B

7707

220n

1739

470R

100u

2778

2780

I710

220R

3709

2781

4u7

220n

220R

F747

F748

2787

1u0

220n

3797

I718

5712

5711

2769

I760

220K

3795

I744

7714
BC847BW

100u

F714

BC847B

3748

I729

6

7

I706

9

I707

3711

14

120K

2

4

2712

2768

-Vf1

2719

1n

3727

-18V

-Vf1

1
2
3
4
5
6
7
8
9

B9B-PH-K

3704

10K

7705

I732

I738

120K

+16V+19V

2710

470p

+16V+19V

-16V-19V

5705

F751

F749

3715

47K

BC857B

I700

3714

I705

I795

3703

I704

33K

BAS316

6704

3702

I703

10K

BC847B

I739

3716

47K

7706

I737

3747

47K

47K

3746

39K

2709

470p

68K

3707

3706

56K

3708

2725

100p

6701

3798

4K7

F737

3749

2705

I702

470R

470n
2713

470n

7701

BC847B

7703

BC847B

I788

BAS316

I763

15K

1K2

3713

I701

10K

3701

F736

SSB JAGUAR

PROT1

PROT1

SA3

SA3

POR-CLASSD

SOUND-ENABLE

SA3

SA3

AUDIO-L

AUDIO-R

AUDIO-SW

PROT_AUDIOSUPPLY

SA3

SA3

SA3

SA3

SOUND-ENABLE

SA3

POR-CLASSD

SA3

SA3

DCPROT

AUDIO-SW

I715

2783

22u 16V

3720

220R
3730

I730

220R

1737

5704

B2B-PH-K

1738

B3B-PH-K

15W/8

CENTERWOOFER

LCD SUPPLY 42"

LCD SUPPLY 30"/37"

2791

I714

1u0

+16V+19V

-16V-19V

2723

1n

1
2

I772

3

3
2

F741

2

1

F720 F731

TO 1M02

AS2

LC04

TO 1M02

A4

OR

TO 1M02

A2

3752

330R

2792

1u0

I735

I736

I761

2759

PLT09H

5732

I720

3754

3759

BZX384-C15

BZX384-C15

3760

1n

4

1

SA3

3768

100K

-Vf21

7711
BC847B

3766

100K

7708
BC847B

220n

220n

SA3

PROT_AUDIOSUPPLY

-Vf21

-16V-19V

+16V+19V

DCPROT

F745

I751

1M02

7
6
5
4
3
2
1

B7B-EH-A

3

2

22K

3K3

220n

2797

220n

2798

6711 6710

3K3

I766

2K2

3751

3753

F742

+16V+19V

F743

F744

-16V-19V

I723

Vp

7715-1

8

LM833D

1

4

Vm

7712
BC847B

I740

Vp

Vm

I741

BC857B

7713

I774

5720

I773

3729

100K

2K2

2758

PROT1

2794

68u

3755

470R

I733

2796

I728

1u0

1u0

3758

680n

Vp

7715-2

8

LM833D

5

6

4

8K2

Vm

2755

F718

1n

3796

2K7

I758

2756

470p

+16V+19V

I731

7

-16V-19V

2u2

2754

I762

10K

3794

I747

7702

TDA7482

9

I759

5

10

I750

11

+VCCS

IN

FEEDCAP

STBY|MUTE

I708

3761

10R

3764

10R

-VCCS

PRE

3741

3744

100K

8

7

10K

2741

22p

I794

I796

+VCC

FREQGNDS

6702

I791

3762

3763

I797

6703

I743I742

13

14 -VCC1 15

-VCC

PWM

NC

6

I734

BZX384-C10

3767

100K

2K2

2K2

3765

100K

BZX384-C10

2782

220n

2795

220n

BOOT 3

BOOTD

4

I792

2785

I782

2793

-VCC2

16V

100u

100u

1OUT

2

12 VREG

9718

2784

-Vf21

7710
BC847B

I764

I765

220n

1

7709
BC847B

2799

I752

2743

I793

I781

5723

5722

100u

2762

I780

2753

I746

33n

HEATSINK0044

2

A

B

C

D

E

F

G

SA3

8204 000 8313.5

12345678910

11 12 13 14

E_14620_134.eps

281204

Circuit Diagrams and PWB Layouts

65LC4.6L AA 7.

Layout LCD Standby Audio Panel (Top Side)

3104 313 6010.5

E_14620_135.eps

020704

0001 G4
0044 D1
0045 E1
1301 B1
1303 E4
1304 D4
1305 A3
1306 A1
1307 A2
1309 D4
1310 A3
1311 B4
1312 F4
1313 G4
1314 G4
1315 F4
1316 G4
1317 F4
1318 F4
1320 E4
1735 G1
1736 G1
1737 G3
1738 G2
1739 F3
1M02 G3
1M03 A4
1M10 D4
1M46 A4
2101 B2
2102 B1
2107 A1
2108 A1
2111 A1
2118 B3
2124 B2
2132 A4
2140 C3
2143 B3
2150 A2
2152 D2
2160 B4
2163 B1
2506 B2
2507 D3
2508 D3
2510 D4
2511 D4
2512 C4
2513 C4
2533 A4
2717 F1
2729 G2
2758 E3
2768 F1
2769 F1
2778 E1
2783 G1
2785 E3
2788 F2
2790 E2
2793 E3
2799 E3
3101 B1
3102 B1
3103 B2
3108 C2
3111 B1
3155 A2
3190 E3
3191 E3
3192 E3
3509 D4
3711 F1
3713 F3
3747 E1
5018 E4
5019 E4
5102 B2
5103 C4
5104 C2
5108 C1
5110 C3
5112 C3
5115 B3
5500 C3
5501 A1
5504 A1
5505 B1
5506 C4

5507 D4
5508 C4
5701 F2
5702 F2
5704 E2
5707 G2
5708 G3
5711 F1
5712 E1
5720 E2
5722 E3
5723 E3
5730 G2
5731 G1
5732 G3
6103 B2
6107 C4
6113 B3
6114 B2
6125 A3
6140 C3
6504 D3
6505 C4
7102 C1
7131 B4
7150 A2
7501 B2
7700 F2
7702 E3
9001 A4
9004 E4
9005 E4
9006 E4
9007 E4
9010 E4
9011 E4
9018 D4
9022 A1
9050 G4
9051 G4
9052 F4
9053 B1
9054 B1
9055 C2
9056 A4
9057 A3
9058 A4
9059 B4
9060 A3
9061 A4
9062 A4
9063 A4
9064 A3
9065 A4
9066 A4
9067 C4
9068 C4
9069 A4
9070 A4
9071 F4
9072 F4
9073 F4
9112 C4
9113 A4
9721 G2
9722 G3
9723 G1
9724 F1
9725 E3
9726 D2
9727 D3
9728 E2
9729 D2
9730 E1
9731 F3
9732 G3
9733 G3
9734 F1
9735 F3
9736 F1
9738 F3
9739 F2
9740 E1
9741 E1
9742 E1
9743 G3
9744 F3
9745 G3

Layout LCD Standby Audio Panel (Overview Bottom Side)

2103 B4

2149 B2

2538 A1

2710 F3

2722 G3

2756 E3

2786 F4

3104 C4

3123 B2

3140 B1

3155 A3
2105 B4
2109 B2
2110 B4
2112 C4
2123 C4
2129 C2
2131 A1
2141 C2
2144 A4
2145 C3

2153 B3
2154 A2
2159 B3
2162 B3
2509 A2
2515 B1
2534 A2
2535 A1
2536 B2
2537 A1

2539 A2
2540 A2
2544 A2
2702 F4
2704 F3
2705 G2
2706 F3
2707 F3
2708 F3
2709 G3

2711 G3
2712 F4
2713 G2
2714 F4
2715 F4
2716 F3
2718 F3
2719 F4
2720 F3
2721 G3

2723 E3
2725 F2
2726 G3
2727 G3
2728 F3
2741 D3
2743 E3
2753 D3
2754 E2
2755 E3

2759 E3
2762 E2
2764 F2
2766 F2
2777 F3
2779 F3
2780 F4
2781 F4
2782 E2
2784 E3

2787 E3
2789 F3
2791 F2
2792 D2
2794 D2
2795 E3
2796 D2
2797 D2
2798 D3
3100 A3

3105 B4
3106 B4
3107 B4
3109 B4
3110 B3
3112 B3
3113 B2
3114 B3
3117 C4
3122 C2

3124 B3
3125 A3
3126 A3
3127 B3
3128 B3
3132 B1
3134 A1
3135 A1
3137 B2
3138 C4

3141 A2
3142 C2
3145 B3
3146 B3
3147 B3
3148 C4
3149 C4
3150 C4
3152 C3
3153 B1

3156 A3

3157 A3

3158 A2

3159 B2

3160 C4

3161 B1

3171 B1

3172 A1

3175 C2

3176 A2

3190 E1
3191 E1
3192 E1
3506 A2
3507 A2
3508 A2
3509 D1
3510 A2
3511 B1
3512 B1
3513 B1

Part 1

E_14620_136a.eps

E_14620_136b.eps

3104 313 6010.5

3515 B1
3516 B1
3517 B1
3528 A1
3529 B2
3530 A1
3531 A1
3532 A2
3533 B2
3534 A1
3535 A1

Part 2

3536 A1

3701 F2

3537 A1

3702 G2

3538 A2

3703 G2

3539 A1

3704 G2

3540 A2

3705 F3

3541 A2

3706 G3

3542 A2

3707 F3

3544 A2

3708 F3

3560 A2

3709 F4

3561 A3

3710 F3

3562 A3

3711 E4

E_14620_136.eps

131004

3712 F4
3713 F2
3714 E4
3715 E3
3716 G2
3717 G4
3718 G4
3720 E3
3721 F3
3722 G3
3723 G3

3724 G3
3725 F3
3726 G3
3727 F4
3729 G3
3730 E3
3741 D3
3743 G3
3744 E3
3746 G2
3747 E4
3748 F4
3749 E3
3750 G4
3751 G3
3752 D2
3753 G3
3754 D2
3755 D2
3756 G3
3757 G4
3758 D3
3759 D2
3760 D3
3761 F2
3762 F2
3763 E2
3764 F2
3765 E2
3766 F2
3767 E2
3768 F2
3790 F4
3791 F3
3792 F3
3793 F4
3794 E3
3795 E3
3796 E3
3797 E3
3798 G2
3999 D2
5105 C3
5106 B3
5703 F4
5705 F2
6104 C4
6105 C4
6106 A3
6108 B3
6115 C4
6116 B3
6117 B4
6118 C4
6119 C4
6120 A2
6121 B2
6122 B2
6130 B1
6132 B1
6133 B1
6134 B1
6142 B3
6144 C3
6147 C3
6148 B2
6149 A2
6150 A3
6151 A3
6153 A3
6156 A3
6508 A1
6510 A2
6511 B1
6531 A2
6532 A1
6540 A2
6562 A3
6701 G2
6702 E2
6703 F3
6704 G2
6710 D2
6711 D3
7100 A3
7101 C4
7105 B4
7140 A2
7505 A2
7506 B1
7507 A2
7508 A1
7509 A2
7510 A2
7511 B1
7512 B1
7531 A2
7532 B1
7560 A3
7701 G2
7703 G2

7704 E4
7705 E4
7706 E3
7707 E4
7708 F2
7709 F2
7710 F2
7711 F2
7712 D2
7713 D3
7714 E3
7715 D2
9002 F1
9003 F1
9008 F1
9009 F1
9019 B1
9020 B4
9021 C4
9023 C4
9074 A2
9110 A1
9111 B3
9717 E4
9718 E2
9737 F4

Circuit Diagrams and PWB Layouts

Layout LCD Standby Audio Panel (Part 1 Bottom Side)

66LC4.6L AA 7.

Part 1

E_14620_136a.eps

131004

Circuit Diagrams and PWB Layouts

Layout LCD Standby Audio Panel (Part 2 Bottom Side)

67LC4.6L AA 7.

Part 2

E_14620_136b.eps

131004

Personal Notes:

Circuit Diagrams and PWB Layouts

68LC4.6L AA 7.

E_06532_013.eps

131004

8. Alignments

Alignments

EN 69LC4.6L 8.

Index of this chapter:

8.1 General Alignment Conditions

8.2 Hardware Alignments

8.3 Software Alignments

Note: The Service Default Mode (SDM) and Service Alignment
Mode (SAM) are described in chapter 5. Menu navigation is
done with the CURSOR UP, DOWN, LEFT or RIGHT keys of
the remote control transmitter.

8.1 General Alignment Conditions

Perform all electrical adjustments under the following
conditions:

• Power supply voltage (depends on region):
– AP-NTSC: 120 V
– AP-PAL-multi: 120 - 230 V
– EU: 230 V

AC

– LATAM-NTSC: 120 - 230 V
– US: 120 V

AC

• Connect the set to the AC Power via an isolation
transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to chassis
ground (with the exception of the voltages on the primary
side of the power supply).
Caution: It is not allowed to use heatsinks as ground.

• Test probe: Ri > 10 Mohm, Ci < 20 pF.

• Use an isolated trimmer/screwdriver to perform
alignments.

8.1.1 Initial Settings

Perform all electrical adjustments with the following initial
settings:

1. To avoid the working of the lightsensor, set "Active Control"
to "Off" (via the "Active Control" button on the RC).

2. Set "Smart Picture" to "Natural" or “Soft” (via the "Smart
Picture" button on the RC).

8.1.2 Alignment Sequence

or 230 VAC / 50 Hz (± 10%).

AC

/ 50 Hz (± 10%).

AC

/ 50 Hz (± 10%).

/ 50 Hz (± 10%).

AC

/ 60 Hz (± 10%).

To store the data: Use the RC button MENU to switch to the
main menu and then switch to STAND-BY mode.

For the next alignments, supply the following test signals via a
video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal
strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a
signal strength of at least 1 mV and a frequency of 61.25
MHz (channel 3).

• LATAM models: an NTSC M or PAL M TV-signal with a
signal strength of at least 1 mV and a frequency of 61.25
MHz (channel 3).

8.3.1 SAM Menu

00022 LC42EP1 2.03/S42GV1 2.02 SDM

ERR 0 0 0 0 0

OP 000 057 140 032 120 128 000

00022 LC42EP1 2.03/S42GV1 2.02 SAM
ERR 0 0 0 0 0

OP 000 057 140 032 120 128 000

. Clear Clear ?

. Options
. Tuner
. White Tone
. Audio
. NVM Editor
. SC NVM Editor

. Test Pattern

. ComPair Mode On

1 00022 LC42EP1 2.03/S42GV1 2.02 CSM

2 CODES 0 0 0 0 0
3 OP 000 057 140 032 120 128 000

4

5
6 NOT TUNED

7 PAL

8 STEREO

9 CO 50 CL 50 BR 50
0 AVL Off

SAM SAM

. OP1 0 . Delta Cool Red -3
. OP2 57 . Delta Cool Green -1

. OP3 140 . Delta Cool Blue 5

. OP4 32

. OP5 120

. OP6 128

. OP7 0

SAM SAM

. IFPLL 32 . Normal Red 32

. AGC 30 . Normal Green 35

. AGCL' 255 . Normal Blue 41

SAM SAM

. Cool . Delta Warm Red 2

. Normal . Delta Warm Green -3

. Warm . Delta Warm Blue -13

SAM

. QSS Off
. FMI On

. NICAM Alignment 63

. Lip Sync Off

. DBE Off

SAM

.ADR 0x0000 0

.VAL 0x0000 0

.Store Store ?

• First, set the correct options:
– In SAM, select OPTIONS,
– Fill in the option settings according to the set sticker

(see also paragraph "Option Settings"),

– Store the OPTIONS by switching the set to STAND-

BY.

• Warming up (>15 minutes).

• White-D alignment.

8.2 Hardware Alignments

8.2.1 Backlight Voltage Alignment

Switch the set "on" and measure the voltage between pin 3 (or

4) of connector 1304 (on MF panel) and ground. Align R3026

until this voltage is 12.2 V

+/- 0.1 V.

DC

Caution: This voltage must be aligned very precisely (within
1%): when it is too high, it can destroy the inverters. When it is
too low, the backlight will not start up.

8.3 Software Alignments

With the software alignments of the Service Alignment Mode
(SAM), Options can be set and the WHITE TONE, TUNER (IF)
and AUDIO settings can be aligned.

SAM

.ADR 0x0000 0

.VAL 0x0000 0

.Store Store ?

Figure 8-1 Overview SAM menu (example from EU set).

8.3.2 White Tone

Method 1 (with colour analyser):

1. Supply a 100% white uniformity test signal (100 IRE white)
to the tuner.

2. Enter SAM menu (colour features are switched “off”
automatically).

3. Do NOT change the SMART PICTURE, ACTIVE
CONTROL, and CONTRAST+ settings to prevent
activating of Green Enhancement, Blue Stretch, and Black
Stretch.

Offset values in NVM are used for HD-, HDMI-, and VGA mode,
therefore only the settings in TV mode need to be set.

E_14710_009.eps

240604

EN 70 LC4.6L8.

Alignments

Make the following settings in the normal user menu, when the
television is in TV Mode:

Table 8-1 User menu settings for White Tone alignment

LCD (AUO) LCD (LPL) Plasma (SDI)

CONTRAST 99

BRIGHTNESS 42 (EU)

44 (US)

COLOR/SAT. 50 (AP+LA+US)

Go to WHITE TONE in SAM and set NORMAL GREEN to:

Table 8-2 Service menu settings for White Tone alignment

LCD (AUO) LCD (LPL) Plasma (SDI)

NORMAL GREEN 200 180

1. Measure with a calibrated (phosphor- independent) colour
analyser (e.g. Minolta CA-200) in the centre of the screen
(use a contact less analyser, e.g. Minolta CA-210, to align
the LCD TV). The analyser may not touch the screen, and
the measurement must be done in a dark environment.
Note: The colour analyser must be calibrated for the LCD
or Plasma panel in question. See the manual of the colour
analyser for the procedure on how to perform this
calibration.

2. Leave the value with the lowest output on the initial value.

3. Align the NORMAL white points, by lowering the other two
colours, to the right x-y coordinates (see table "White Tone
alignment values").
Note: To prevent clipping of the colour, these values must
only be lowered!

Table 8-3 White Tone alignment values

NORMAL colour temp. (all regions)

X 0.289

Y 0.299

Only the values for NORMAL are aligned with X, Y values. The
delta values for COOL and WARM are given below.

Table 8-4 Fixed delta values

Screen Type Colour temp. RED GREEN BLUE

LCD (AUO) DELTA COOL -3 -12 +10

DELTA WARM +5 -5 -20

LCD (LPL) DELTA COOL -8 -12 +3

DELTA WARM +2 -10 -21

Plasma DELTA COOL -6 -10 +5

DELTA WARM +4 -5 -19

After the alignment is finished, switch the set to STANDBY, in
order to store the alignments.
Note: When disconnecting the power before doing this, the
settings will not be stored.

Method 2 (without colour analyser):

If you do not have a colour analyser, you can use the default
values. These values are based on the average values in
production.

• Set the values for the NORMAL colour temperature. Given
in the table “Average statistical values for NORMAL” from
production.

46 46 (AP+EU)

48 (US+LA)

60 (EU)

• Set the delta values for the COOL and WARM mode. See
table: “Fixed delta values.”

After the alignment is finished, switch the set to STANDBY, in
order to store the alignments.
Note: When disconnecting the power before doing this, the
settings will not be stored.

Table 8-5 Average statistical values for “NORMAL”

Display type Colour Temp. RED GREEN BLUE

LCD (AUO) NORMAL 165 182 200

LCD (LPL) NORMAL 200 195 190

Plasma 37“ (SDI) NORMAL 174 180 178

Plasma 42” (SDI) NORMAL 173 180 172

Note: Values are valid for all regions

8.3.3 Tuner Adjustment

AGC (RF AGC Take Over Point)

Set pattern generator (e.g. PM5580) with colour bar pattern
and connect to aerial input with RF signal amplitude -10mV and
set frequency for NTSC to 61.25 MHz (channel 3).

• Activate the SAM-menu. Go to the sub-menu TUNER,
select the sub-menu option AFC WINDOW and adjust the
value to “100 kHz”.

• Select the AGC sub-menu.

• Connect a DC multi-meter to test point F306 or pin1 of the
tuner.

• Adjust the AGC until the voltage at pin 1 of the tuner is

3.3 V +0.5 / -1.0.

• The value can be increased or decreased by pressing the
RIGHT/LEFT cursor button on the RC.

• Switch the set to STAND-BY to store the data.

8.3.4 Grey Scale Adjustment

SDTV Grey Scale Adjustment

Equipment and setting

• E.g. Fluke 54200 or Philips PM5580.

• 100% “8-step grey scale” pattern.

Alignment Method

• Switch with the RC to TV mode,

• Press the MUTE button on RC,

• Set SMART PICTURE to SOFT mode,

• Activate the auto colour function by pressing key­sequence:
INFO - MUTE - MUTE - MUTE - INFO - MENU - INFO.

Expected Results

• Visual check if the 8 Grey levels are correct.

Analog PC Grey Scale Adjustment

Equipment and setting

• Quantum Data 802B.

• PC input signal, with 64 levels Grey scale pattern,
1024x768 @ 60Hz (Format= 81:DMT1060, Pattern=
123:Grey 64).

• PC input at D-sub VGA connector.

Alignment Method

• Switch with the RC to PC mode.

• Press the MUTE button on RC.

• Set BRIGHTNESS and CONTRAST to nominal “50”.

• Activate the auto colour function by pressing key­sequence:
INFO - MUTE - MUTE - MUTE - INFO - MENU - INFO.

Expected Results

• Visual check if the 64 Grey levels are correct.

HD Grey Scale Adjustment

Equipment and setting

• Quantum Data 802B.

• HD input signal, Top half 100% colour bar and bottom half
Grey scale pattern,1920x1080i@60Hz YPbPr (Format=
1080i30, Pattern= HDBar100).

• HD input at D-sub VGA connector.

Alignment Method

• Switch with the RC to HD mode.

• Press the MUTE button on RC.

• Activate the auto colour function by pressing key­sequence:
INFO - MUTE - MUTE - MUTE - INFO - MENU - INFO.

Expected Results

• Visual check if Colour bar tint and Grey scale is correct.

8.3.5 Sound

No adjustments needed for sound.

Alignments

EN 71LC4.6L 8.

8.3.6 Options

Options are used to control the presence/absence of certain
features and hardware.
See for an overview, the table on the next page.

How to change an Option Byte

An Option Byte represents a number of different options.
Changing these bytes directly makes it possible to set all
options very fast. All options are controlled via seven option
bytes. Select the option byte (OP1.. OP7) with the cursor UP/
DOWN keys, and enter the new value.

Leaving the OPTION sub menu saves the changes in the
Option Byte settings. Some changes will only take effect after
the set has been switched “off” and “on” with the AC power
switch (cold start).

EN 72 LC4.6L8.

Alignments

Table 8-6 Option codes (general overview for all regions and displays)

/78

Bit (DEC) Option Description

7 (128) OP_PHILIPS_TUNER Philips Tuner available 1 1 1111

6 (64)OP_FM_RADIO FM Radio available 000000

5 (32)OP_LNA Low Noise Amplifier available 000000

4 (16)OP_ATS Auto Tuning System 000010

3 (8)OP_ACI ACI 000010

2 (4)OP_UK_PNP After virgin = English + Great Britain 000000

1 (2)OP_VIRGIN_MODE Activate Plug & Play menu at start-up 000000

0 (1)OP_CHINA AP-PAL tuning algorithm for China 000100

OP1: 128 128 128 129 152 128

7 (128)OP_SMART_SOUND Four smart sound settings 111111

6 (64)OP_UI_GREEN UI for Magnavox sets (NAFTA) 000000

5 (32)OP_CHANNEL_NAMINGNaming of channel feature available 111101

4 (16)OP_LTI Histogr. algorithm available (TDA9178) 111111

3 (8)OP_TILT Picture Rotation available 000000

2 (4)OP_FINE_TUNING Fine Tuning algorithm available 111111

1 (2) OP_PIP_PHILIPS_TUNER PIP Philips tuner 0 0 0000

0 (1)OP_HUE Tint for NTSC transmission 110001

OP2: 181 181 180 180 148 181

7 (128) OP_EW_FUNCTION Geometry adj. for Large screen sets 0 0 0000

6 (64)OP_2TUNER_PIP Double Tuner for PIP available 000000

5 (32)OP_PIP_SPLITTER Not used 000000

4 (16)OP_SPLITTER Not used 000000

3 (8)OP_VIRTUAL_DOLBY Virtual Dolby Effect 111111

2 (4)OP_WIDE_SCREEN 16:9 sets 111111

1 (2)OP_WSSB Wide Screen Signalling Bit detection 001010

0 (1)OP_ECO_SUBWOOFERSub woofer available 000000

OP3: 12 12 14 12 14 12

7 (128)OP_LIP_SYNC Lip Synchronisation Circuit available 000000Not for LCD

6 (64)OP_NOTUSED2 Not used 000000

5 (32)OP_ULTRA_BASS Ultra Bass Boost available 000000

4 (16)OP_DELTA_VOLUME Delta Volume feature available 000010EU only

3 (8)OP_NOTUSED3 Not used 000000

2 (4)OP_NOTUSED4 Not used 000000

1 (2)OP_STEREO_DBX Stereo DBX for NTSC available 100001NTSC only

0 (1)OP_STEREO_NICAM_2CSStereo NICAM 2CS available 001010

OP4: 2010172

7 (128)OP_AV1 External Source 1 available 111111

6 (64)OP_AV2 External Source 2 available 111111

5 (32)OP_AV3 External Source 3 (Side AV) available 111111

4 (16)OP_CVI Component Video In available 111101Not for EU

3 (8)OP_SVHS2 Super Video Home System 2 available 100000

2 (4)OP_SVHS3 Super Video Home System 3 available 100000

1 (2)OP_HOTEL_MODE LATAM specific simplified Hotel Mode 000000

0 (1)OP_NOTUSED Not used 000000

OP5: 252 240 240 240 224 240

7 (128)OP_PERSONAL_ZAPPINGZapping of channels feature available 000000

6 (64)OP_SMART_SURF Surf List available 100000

5 (32)OP_FMTRAP FM trap available 000000

4 (16)OP_COMBFILTER comb filter available 111111In Hercules

3 (8)OP_ACTIVE_CONTROLAuto Picture Impr. feature available 111111

2 (4)OP_SMART_LOCK Toggle Child Lock & Lock Chan. enabled 111111

1 (2)OP_LIGHT_SENSOR Light Sensor enabled 111111

0 (1)OP_TWIN_TEXT 2 txt pages on screen available 001110

OP6: 94 30 31 31 31 30

7 (128)OP_TIME_WIN1 1= 5 s, 0= 2 s (Europe fixed 1.2 s) 110101

5, 6 not used 000000

4 (16)OP_3DCOMB 3D comb filter available 010001NTSC only

AP-PAL

3 (8) OP_COLOR_SYSTEM_AP 1: Auto, PAL 4.43, NTSC 4.43, NTSC 3.58, SECAM

2 (4) OP_SOUND_SYSTEM_AP_1 000: BG 001: BG / DK 010: I / DK 011: BG / I / DK

1 (2) OP_SOUND_SYSTEM_AP_2 0 0 0000

0 (1) OP_SOUND_SYSTEM_AP_3 0 0 0000

EUROPE

3 (8)OP_DUMMY6 Not used 000000

2 (4)OP_DUMMY7 Not used 000000

1 (2)OP_WEST_EU West Europe Set (0 - East Europe Set) by default "on"000010

0 (1)OP_MULTI_STANDARD_EURFor Europe multi standard set 000010

LATAM

3 (8)OP_DUMMY6 Not used 000000

2 (4) OP_DUMMY7 000000

1 (2) OP_SYSTEM_LT_1 00: NTSC-M, 01: NTSC-M, PAL-M, 10: NTSC-M, PAL-

0 (1) OP_SYSTEM_LT_2 000000

NAFTA & AP-NTSC

3 (8)OP_DUMMY6 Not used 000000

2 (4)OP_DUMMY7 Not used 000000

1 (2)OP_DUMMY8 Not used 000000

0 (1)OP_DUMMY9 Not used 000000

OP7: 128 148 12 132 3 144

0: OFF- Auto, PAL 4.43, NTSC 4.43, NTSC 3.58

100: BG / I / DK / M

M, PAL-N, 11: NTSC-M, PAL-M, PAL-N, PAL-BG

(LATAM)

/61 (AP-

001000

011100

000000

NTSC)

/69,79,98

(AP-PAL)

/93

(China)

/10, /12

(Europe)

/17, /37

(NAFTA) Remarks

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9. Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 73LC4.6L 9.

Index of this chapter:

9.1 Introduction

9.2 Block Diagram

9.3 Power Supply LCD

9.4 Input/Output

9.5 Tuner and IF (diagram A1)

9.6 Video: TV Part (diagrams A1, A2, and A3)

9.7 Video: Scaler Part (diagram A7 and A13)

9.8 Audio Processing

9.9 Control

9.10 Abbreviation List

9.11 IC Data Sheets

Note:

•Only new (not recently published) circuits are described
here. For the other circuit descriptions, see a.o. the A02,
FTL13, and FTL2.1 Service Manuals.

• Figures can deviate slightly from the actual situation, due
to different set executions.

• For a good understanding of the following circuit
descriptions, please use the wiring, block and circuit
diagrams. Where necessary, you will find a separate
drawing for clarification.

9.1 Introduction

The LC4.x is a global chassis for the year 2004. Its architecture
is based upon the LC03 chassis (LC4.6 is LCD, LC4.7 is PDP)
and covers a screen size of 30 inch with a new styling called
“Entry”. This chassis has the following (new) features:

• Audio: The sound processor is part of the UOC processor
(called “Hercules”).

• Video: Enhanced video features, video drivers, Active
Control and multiple PIP.

The architecture consists of a TV and Scaler panel, I/O panel,
Side I/O and Local Keyboard panel and Power Supply panel.

The functions for video/audio processing, microprocessor (uP),
and CC/Teletext (TXT) decoder are all combined in one IC
(TDA120xx, item 7011), the so-called third generation Ultimate
One Chip (UOC-III) or “Hercules”. This chip has the following
features:

• Control, small signal, mono/stereo, and extensive Audio/
Video switching in one IC.

• Upgrade with digital sound & video processing.

• Alignment free IF.

• FM sound, no traps/bandpass filters.

• Full multi-standard colour decoder.

• One Xtal reference for all functions (microprocessor, RCP,
TXT/CC, RDS, colour decoder, and stereo sound
processor).

9.2 Block Diagram

ANALOGUE TV SCALER

Tuner

TV/FM

3DYC

uPCxxx

(Option)

2

I

C

Hercules-

Compair

(Service)

HM

Link

(RJ12)

AC Mains

Input

NVM

CTI/LTI/Hist.

(VDP + STEREO)

LIP

SYNC

AV1 AV2 Side

TV/IOs

(SCART/Cinch)

TDA9178

YUV

Interface

HERCULES

Embedded

Flash

I2S

Const
Audio

Out

Audio

Amp

Power Supply Unit

DMMI

(Multi-media

Interface)

RGB
& HV

Speakers

& HP

DMMI

MUX

INPUT

MUX

PC

Audio

NVM

Analogue

Input

RGBHV/

YPbPr

VGA

INPUT

FLASH

GM1501

(SCALER)

SDRAM

DVI

Input

DVI-D

INPUT

Option: Choose one

24-bit

Input

HDMI

Processor

HDMI

INPUT

LVDS

Compair

(UART)

DISPLAY

PANEL

Figure 9-1 Block Diagram

Cinch-to-VGA

Adapter

(YPbPr- HD)

DVI-to-HDMI

Adapter

E_14490_058.eps

190804

EN 74 LC4.6L9.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

The PLL tuner delivers the IF-signal, via audio & video SAW­filters, to the Video Signal Processor with FLASH embedded
TEXT/Control/Graphics m-Controller (TCG m-Controller) and
US Closed Caption decoder. TDA120x1 (item 7011, also called
Hercules). This IC has the following functions:

• Analogue Video Processing.

• Sound Demodulation.

• Audio Interfaces and switching.

• Volume and tone control for loudspeakers.

• Reflection and delay for loudspeaker channels.

• Micro Controller.

• Data Capture.

• Display.

The Hercules has one input for the internal CVBS signal and a
video switch with 3 external CVBS inputs and a CVBS output.
All CVBS inputs can be used as Y-input for Y/C signals.
However, only 2 Y/C sources can be selected because the
circuit has 2 chroma inputs. It is possible to add an additional
CVBS(Y)/C input (CVBS/YX and CX) when the YUV interface
and the RGB/YPRPB input are not needed. The I/O is divided
over two parts: Rear I/O and Side I/O. The rear has two AV
inputs with CVBS, Y/C and YUV, a PC (VGA) input, and an
HDMI input. The side has a CVBS and Y/C (SVHS) input.
The video part delivers the RGB signals to the Scaler IC.

The Genesis GM1501 Malibu Scaler IC can receive different
video input signals: SDTV (from Hercules), DVI/HDMI (from
external DVI/HDMI source), or PC (VGA) (from external
computer).

After the video processing, the digital data is send via a Low
Voltage Differential Signalling bus to the LCD panel. LVDS is
used to improve data speed and to reduce EMI significantly.

There are two I
lines (TV_IRQ and TV_SC_COM) for the Scaler control. The
Scaler communicates with the Hercules as a slave device. To
avoid buffer overflow at the Scaler side, the TV_SC_COM line
provides the necessary hardware flow control. To allow bi­directional communication, the Scaler can initiate a service
interrupt-request to the Hercules via the TV_IRQ line.

The Hercules, and EEPROM are supplied with 3.3 V, which is
also present during STANDBY.

The EEPROMs, or NVMs (Non Volatile Memory) are used to
store the settings.

The sound part is built up around the Hercules. The Source
Selection, Decoding and Processing are all done by the
Hercules.

2

C lines and two interrupt and communication

PC (VGA) in: This input is directly going to the Scaler IC. See
paragraph “Video: Scaler Part”.

HDMI in: This input is directly going to the Scaler IC. See
paragraph “Video: Scaler Part”.

9.5 Tuner and IF (diagram A1)

A Philips UV13xx Tuner is used in the TV board. The SIF
signals are decoded by the Hercules. Tuning is done via I

9.5.1 Video IF amplifier

The IF-filter is integrated in a SAW (Surface Acoustic Wave)
filter. One for filtering IF-video (1328) and one for IF-audio
(1330). The type of these filters is depending of the standard(s)
that has to be received.

The output of the tuner is controlled via an IF-amplifier with
AGC-control. This is a voltage feedback from pin 31 of the
Hercules to pin 1 of the tuner. The AGC-detector operates on
top sync and top white level. AGC take-over point is adjusted
via the service alignment mode "Tuner” - “AGC". If there is too
much noise in the picture, then it could be that the AGC setting
is wrong. The AGC-setting could also be mis-aligned if the
picture deforms with perfect signal; the IF-amplifier amplifies
too much.

9.6 Video: TV Part (diagrams A1, A2, and A3)

The video processing is completely handled by the Hercules:

• IF demodulator.

• Chrominance decoder

• Sync separator.

• Horizontal & vertical drive.

• RGB processing.

• CVBS and SVHS source select.

It has also build in features like:

•CTI.

• Black stretch.

• Blue stretch.

• White stretch.

• Slow start up.

• Dynamic skin tone correction etc.

Further, it also incorporates sound IF traps and filters, and
requires only one crystal for all systems.

9.6.1 Histogram (YUV picture improvement) IC

2

C.

Power supply input are several DC voltages coming from a
supply panel.

9.3 Power Supply LCD

See the FTL2.1 manual for a detailed description.

9.4 Input/Output

The I/O is divided over two parts: Rear I/O and Side I/O. The
rear has two AV inputs with CVBS, Y/C and YUV, a PC (VGA)
input, and an HDMI input. The side has a CVBS and Y/C
(SVHS) input.
The selection of the external I/O's is controlled by the Hercules.

AV1: The input of AV1 is CVBS + YUV + L/R.
AV2: The input of AV2 is Y/C + CVBS + L/R.

The demodulated video-signal can be checked on pins 74, 75,
and 76 of IC7011 and is fed to pins 70, 71, and 72. In this path,
the Histogram IC TDA9171 is inserted.
This TDA9178 can control various picture improvements:

• Histogram processing.

• Colour transient improvement.

• Luminance transient improvement.

• Black and white stretch.

• Skin tone correction.

• Green enhancement.

• Blue stretch.

• Smart peaking.

• Video dependent coring.

• Colour dependent stretching.

Since the TDA9171 is connected to the Hercules, picture
improvement works only for signals that are routed through the
Hercules and not for signals directly connected to the Scaler.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 75LC4.6L 9.

9.7 Video: Scaler Part (diagram A7 and A13)

The Genesis GM1501 Scaler is a dual channel graphics and
video processing IC for LCD monitors and televisions
incorporating Picture in Picture, up to SXGA output resolutions.
The Scaler controls the display processing in an LCD TV, e.g.
like the deflection circuit in a CRT-based TV. It controls all the
view modes (e.g. like "zooming" and "shifting"). Features like
PC (VGA) or HD inputs, are also handled by this part.

9.7.1 Features

The Scaler provides several key IC functions:

• Scaling.

• Auto-configuration/ Auto-Detection.

• Various Input Ports:
– Analog RGB.
– Video Graphics.

• Integrated LVDS Transmitter.

• On-chip Micro-controller.

9.7.2 Inputs

Analog RGB

The RGB input is fed to pins B2, C2 and D2. This input consists
of either the Hercules RGB output or the RGB/YPbPr input of
the VGA connector. The Scaler can switch between the two
signals via the PC_HD_SEL signal and selection IC SM5301.

PC (VGA) input

The VGA input is processed by the VGA block of the Scaler.
The Scaler supports pixel frequencies up to 165 MHz.
YPbPr format is also supported via the VGA interface and
covers resolutions of: 480p/560p/720p/1080i.

HDMI input

HDMI input signals are fed to the HDMI Panellink Receiver
(item 7808 on diagram A12). This IC consists of a flexible audio
and video interface.
The video part delivers RGB/YPbPr output, that directly is fed
to the Scaler.
The audio part delivers a 2-channel I2S digital audio signal that
is fed to the audio DAC (item 7809). After DA conversion, the
signals are fed to the Hercules.
Note: For more information about the HDMI signals see the
A02 Service Manual.

9.7.3 Output

The Display Output Port provides data and control signals that
permit the Scaler to connect to a variety of display devices
using a TTL or LVDS interface. The output interface is
configurable for single or dual wide TTL/LVDS in 18, 24 or 30­bit RGB pixels format. All display data and timing signals are
synchronous with the DCLK output clock. The integrated LVDS
transmitter is programmable to allow the data and control
signals to be mapped into any sequence depending on the
specified receiver format.

9.8 Audio Processing

Hercules

AUDIO-LSL

SIF

SIF Input

FM

SSIF Input

AUDIO-IN5L
AUDIO-IN5R

AUDIO-IN3L
AUDIO-IN3R

AUDIOI-N4L
AUDIO-IN4R

AUDIO-IN2L
AUDIO-IN2R

Is used on the DMMI

=> No SCART2/AV2 for

Bolt-on

I2S

HDMI DAC

PC_HDMI_AUD_SEL

(From Scaler,

GPIO_G07_B0)

Tuner

AV1 in

*AP/USA/Latam

SCART1 in

*Europe only

AV2 in

*AP/USA/Latam

SCART2 in

*Europe only

Side in

*All region

PC in

HEF4053

3X SPDT

Figure 9-2 Block diagram audio processing

The audio decoding is done entirely via the Hercules. The IF
output from the Tuner is fed directly to either the Video-IF or the
Sound-IF input depending on the type of concept chosen.
There are mainly two types of decoder in the Hercules, an
analogue decoder that decodes only Mono, regardless of any
standards, and a digital decoder (or DEMDEC) that can decode
both Mono and Stereo, again regardless of any standards.

In this chassis, the analogue decoder is used in two cases:

• It is used for AM Sound demodulation in the Europe
SECAM LL’ transmission.

• It is used for all FM demodulation in AV-Stereo sets.

9.8.1 Diversity

The diversity for the Audio decoding can be broken up into two
main concepts:

• The Quasi Split Sound concept used in Europe and some
AP sets.

• The Inter Carrier concept, used in NAFTA and LATAM.

The UOC-III family makes no difference any more between
QSS- and Intercarrier IF, nearly all types are software­switchable between the two SAW-filter constructions.

Simple data settings are required for the set to determine
whether it is using the Inter Carrier or the QSS concept. These
settings are done via the “QSS” and “FMI” bit found in SAM
mode. Due to the diversity involved, the data for the 2 bits are
being placed in the NVM location and it is required to write once
during start-up.

On top of that, it can be further broken down into various
systems depending on the region. The systems or region
chosen, will in turn affect the type of sound standard that is/are
allowed to be decoded.

• For Europe, the standard consists of BG/DK/I/LL’ for a
Multi-System set. There are also versions for Eastern
Europe and Western Europe and the standard for decoding
will be BG/DK and I/DK respectively. FM Radio is a feature
diversity for the Europe. The same version can have either
FM Radio or not, independent of the system (e.g. sets with
BG/DK/I/LL’ can have or not have FM radio).

• For NAFTA and LATAM, there is only one transmission
standard, which is the M standard. The diversity then will
be based on whether it has a dBx noise reduction or a Non­dBx (no dBx noise reduction).

• For AP, the standard consists of BG/DK/I/M for a Multi­System set. The diversity here will depend on the region.

AUDIO-LSR

AUDIO-OUTHPL

AUDIO-OUTHPR

AUDIO-OUTSL
AUDIO-OUTSR

P0.0/I2SDO1

P0.0/I2SDI1

P0.3/I2SCLK

106

105

103

For iTV only

2x

Amplifier

Constant Level Out

*Europe only

Amplifier

Monitor out

* Not available

SCART2 out

*Europe only

SCART1 out

*Europe only

Lip Sync

Circuit

2x Stereo

Speaker

Headphone

E_14490_061.eps

121104

EN 76 LC4.6L9.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

AP China can have a Multi-System and I/DK version. For
India, it might only be BG standard.

9.8.2 Functionality

The features available in the Hercules are as follows:

• Treble and Bass Control.

• Surround Sound Effect that includes:
– Incredible Stereo.
– Incredible Mono.
– 3D Sound (not for AV Stereo).
– TruSurround (not for AV Stereo).
– Virtual Dolby Surround, VDS422 (not for AV Stereo).
– Virtual Dolby Surround, VDS423 (not for AV Stereo).
– Dolby Pro-Logic (not for AV Stereo).

• Bass Feature that includes:
– Dynamic Ultra-Bass.
– Dynamic Bass Enhancement.
– BBE (not for AV Stereo).

• Auto-Volume Leveller.

• 5 Band Equalizer.

• Loudness Control.

All the features stated are available for the Full Stereo versions
and limited features for the AV Stereo.

9.8.3 Audio Amplifier Panel (diagram SA3)

Introduction

This panel contains the audio filters and amplifiers necessary
for driving the speakers.
The audio inputs come from the SSB (via connector 1739).
The PSU delivers the positive and negative supply voltage of
16 V

.

DC

After being filtered and amplified, the signals go to the speaker
section, where the full range speakers are driven (load
impedance is 8 ohm).

Amplifier

The amplifier is an integrated class-D amplifier (TDA7490). It
combines a good performance with a high efficiency, resulting
in a big reduction in heat generation.

Principle

Audio-power-amplifier systems have traditionally used linear
amplifiers, which are well known for being inefficient. In fact, a
linear Class AB amplifier is designed to act as a variable
resistor network between the power supply and the load. The
transistors operate in their linear region, and the voltage that is
dropped across the transistors (in their role as variable
resistors) is lost as heat, particularly in the output transistors.
Class D amplifiers were developed as a way to increase the
efficiency of audio-power-amplifier systems.

The Class D amplifier works by varying the duty cycle of a
Pulse Width Modulated (PWM) signal.
By comparing the input voltage to a triangle wave, the amplifier
increases duty cycle to increase output voltage, and decreases
duty cycle to decrease output voltage.
The output transistors of a Class D amplifier switch from 'full off'
to 'full on' (saturated) and then back again, spending very little
time in the linear region in between. Therefore, very little power
is lost to heat. If the transistors have a low 'on' resistance
(RDS(ON)), little voltage is dropped across them, further
reducing losses.
A Low Pass Filter at the output passes only the average of the
output wave, which is an amplified version of the input signal.
In order to keep the distortion low, negative feedback is applied
(via R3723/3708).

The advantage of Class D is increased efficiency (= less heat
dissipation). Class D amplifiers can drive the same output
power as a Class AB amplifier using less supply current.
The disadvantage is the large output filter that drives up cost
and size. The main reason for this filter is that the switching

waveform results in maximum current flow. This causes more
loss in the load, which causes lower efficiency. An LC filter with
a cut-off frequency less than the Class D switching frequency,
allows the switching current to flow through the filter instead of
the load. The filter is less lossy than the speaker, which causes
less power dissipated at high output power and increases
efficiency in most cases.

Mute

A mute switch (item 7701) is provided at pin 6. This switch is
controlled by the SOUND_ENABLE line from the Hercules
(mute during operation).

Protections

Because of the symmetrical supply, a DC-blocking capacitor,
between the amplifier and the speaker, is not necessary.
However, it is still necessary to protect the speaker for DC
voltages. Therefore, the following protections are therefore
implemented:

• Via R3765 and R3767, each stabilised supply voltage line
is checked on deviations.

• Via R3718 and 3717, each amplifier output is checked for
DC-voltage.

9.8.4 Audio: Lip Sync (Optional)

A “lip sync” circuit with an audio delay can be added (not for all
models/regions), in order to synchronise with video delay due
to the complexity of the display processing. This video delay is
significant, due to memory based processing. For instance, the
“frame rate conversion” cause a delay of two frames, while the
LCD panel response also cause a delay.

The circuit is a (16 bit) FIFO based digital delay. E.g.: the
memory size required for a 80 ms delay (with a data clock of

1.024 MHz) can be calculated with: Memory size = delay time

* f_clk. This gives: 80 ms * 1.024 MHz = 81920 bits.

To calculate the memory size for a 16 bits mode I2S digital
audio stream we must use the following data:

• f_s = 32 kHz, 16 bits, stereo

• Data clock = 32 kHz * 16 * 2 = 1.024 MHz

• Memory size for 1 ms delay = 1 ms * 1.024 MHz = 1024 bits
= 1 kbit

So, the delay time of 80 ms can be built with five steps of 16
ms, which is close to the frame rate. Therefore, a 128 kbit
SRAM (16 x 8) is chosen.

Note that above described calculation is just an example,
values in the set can deviate.

9.9 Control

9.9.1 Hercules

The System Board has two main micro-controllers on board.
These are:

• On-chip x86 micro-controller (OCM) from Genesis LCD TV/
Monitor Controller.

• On-chip 80C51 micro-controller from Philips
Semiconductors UOCIII (Hercules) series.

Each micro-controller has it own I
internal devices.
The Hercules is integrated with the Video and Audio Processor.
For dynamic data storage, such as SMART PICTURE and
SMART SOUND settings, an external NVM IC is being used.
Another feature includes an optional Teletext/Closed Caption
decoder with the possibility of different page storage depending
on the Hercules type number.

2

C bus which host its own

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 77LC4.6L 9.

The Micro Controller ranges in ROM from 128 kB with no TXT­decoder to 128 kB with a 10 page Teletext or with Closed
Caption.

9.9.2 Block Diagram

The block diagram of the Micro Controller application is shown
below.

IIC BUS1

Tuner

IIC BUS 2

NVM

NVM_WP

93
NVRAM
_SDA

SDA

SCL

78 DDC_SDA_VGA

77 DDC_SCL_VGA

82 GPIO1

81 GPIO0

90 GPIO7

111

GPIO23

+3V3STBY

92
NVRAM
_SCL

103 106 107 108

HIGH or
LOW
level input

83
GPIO2

5 6 7

HREC

RST

Sel IF/
SDM

Status1

Light
Sense

P50_LINE_ITV_IR_SW

Sound

Amp

Sound_Enable

127

111

P1.4

P2.0

114
P2.3

116
ADC1

115
ADC0

HERCULES SCALER

123
P2.5

97

102

INT0

P0.4

RC

MUX

EXT_MUTE

TV_IR

ComPair

NVM

NVM_WP

104
P0.2

SDA 109

SCL 108

TV_IRQ

INT1 98

TV_SC_COM

P1.1 99

ADC3 120

122

128

P2.4

P1.5

Standby

POWER
DOWN

Keyboard

POWER_DOWN

126
INT2

Figure 9-3 Micro Controller block diagram

9.9.3 Basic Specification

The Micro Controller operates at the following supply voltages:

• +3.3 V

• +1.8 V

•I

at pins 4, 88, 94, and 109.

DC

at pins 93, 96, and 117.

DC

2

C pull up supply: +3.3 VDC.

9.9.4 Pin Configuration and Functionality

The ports of the Micro Controller can be configured as follows:

• A normal input port.

• An input ADC port.

• An output Open Drain port.

• An output Push-Pull port.

• An output PWM port.

• Input/Output Port

The following table shows the ports used for the L04 control:

Table 9-1 Micro Controller ports overview

Pin Name Description Configuration

97 INT0/ P0.5 IR INT0

98 P1.0/ INT1 TV_IRQ INT2

99 P1.1/ T0 TV_SC_COM P1.1

102 P0.4/ I2SWS EXT_MUTE P0.4

103 P0.3/ I2SCLK Lip Sync I2SCLK

104 P0.2/ I2SDO2 NVM_WP P0.2

105 P0.1/ I2SDO1 Lip Sync I2SDO1

106 P0.0/ I2SDI/O Lip Sync I2SDI/O

107 P1.3/ T1 PC-TV_LED P1.3

108 P1.6/ SCL SCL SCL

109 P1.7/ SDA SDA SDA

111 P2.0/ TPWM SOUND_ENABLE P2.0

112 P2.1/ PWM0 (for future use) -

113 P2.2/ PWM1 (for future use) -

114 P2.3/ PWM2 SEL_IF P2.3

115 P3.0/ ADC0 Light Sensor - SDM ADC0

116 P3.1/ ADC1 STATUS_1 ADC1

119 P3.2/ ADC2 STATUS_2 ADC2

120 P3.3/ ADC3 KEYBOARD ADC3

122 P2.4/ PWM3 STANDBY P2.4

72

71

ROM_DATA0-7

Flash ROM

GPROBE for Debug
or ComPair(Scaler)

1407
1406
1405

187193194
85

(GPIO4)

88

(GPIO5)

89

(GPIO6)

68

(PBIAS)

67

(PPWR)

99

(PWM1)

98

(GPIO11/

PWM0)

ROM_ADD0-17

PC_DET

SD_PCHD_SEL

PC_HD_SEL

LAMP_ON_OFF

PANEL_PWR_CTL

HD_FILTER

BACK_LIGHT_ADJ1

E_14490_062.eps

+3V3STBY

Pin Name Description Configuration

123 P2.5/ PWM4 (for future use) -

126 P1.2/ INT2 (for future use) -

127 P1.4/ RX HERC_RESET -

128 P1.5/ TX POWER_DOWN P1.5

The description of each functional pin is explained below:

• LED. This signal is used to drive the LED for Stand-by,
Remote, and Error Indication:
– During protection mode, the LED blinks and the set is

in Stand-by mode.
– During error conditions it blinks at a predefined rate.
– After receiving a valid RC or local keyboard command

it flashes once.
– For sets with error message indication, the LED blinks

when message is active and the set is in Stand-by

mode.

• SCL. This is the clock wire of the two-wire single master bi­directional I

• SDA. This is the data wire of the two-wire single master bi­directional I

160904

• STANDBY. The Hercules generates this signal. This can
enable the power supply in normal operation and disable it

2

C bus.

2

C bus.

during Stand-by. It is of logic “high” (3.3 V) under normal
operation and “low” (0 V) during Stand-by.

• IR. This input pin is connected to an RC5 remote control
receiver.

• SEL-IF. This is an output pin to switch the Video SAW filter
between M system and other systems.
– 0: NTSC M (default).
– 1: PAL B/G, DK, I, L.

• NVM_WP. The global protection line is used to enable and
disable write protection to the NVM. When write to the NVM
is required, pin 7 of the NVM must be pulled to logic “0" first
(via Write_Protect of the micro-controller pin) before a write
is performed. Otherwise pin 7 of NVM must always be at
logic “1”
– 0: Disabled.
– 1: Enabled (default).

• SOUND_ENABLE. This pin is use to MUTE the audio
amplifier. It is configured as push pull.

• STATUS_1. This signal is used to read the status of the
SCART 1 input (EU only).

• STATUS_2. This signal is used to read the status of the
SCART 2 input (EU only).

• HERC_RESET. This pin is use to switch the +1.8 V supply.

• POWER_DOWN. The power supply generates this signal.
Logic “high” (3.3 V) under normal operation of the TV and
goes “low” (0 V) when the Mains input voltage supply goes
below 70 V

.

AC

• KEYBOARD. Following are the Keyboard functions and
the step values (8 bit) for it.

Table 9-2 Local keyboard values

Function

Voltage
(V

DC

)

Step values
(8 bit)

P+ / Ch+ 0.43 7 - 33

P- / Ch- 0.93 54 - 73

Menu (Vol - and Vol +) 1.19 74 - 96

Vol - 1.49 97 - 121

Vol + 2.12 148 - 169

• TV_IRQ. This signal is the interrupt from the Scaler IC.

• TV_SC_COM. This signal is used for the communication
with the Scaler IC.

• EXT_MUTE. This signal is used to reduce the switch “off”
plop.

EN 78 LC4.6L9.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.10 Abbreviation List

1080i 1080 visible lines, interlaced
1080p 1080 visible lines, progressive scan
2CS 2 Carrier Sound
2DNR Spatial (2D) Noise Reduction
3DNR Temporal (3D) Noise Reduction
480i 480 visible lines, interlaced
480p 480 visible lines, progressive scan
AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to
remove horizontal black bars; keeping
up the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels
directly from a cable network by

means of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
AUO Acer Unipack Optronics
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASD Automatic Standard Detection
AV Audio Video
B-SC1-IN Blue SCART1 in
B-SC2-IN Blue SCART2 in
B-TXT Blue teletext
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BTSC Broadcast Television System

Committee
C-FRONT Chrominance front input
CBA Circuit Board Assembly (or PWB)
CL Constant Level: audio output to

connect with an external amplifier
CLUT Colour Look Up Table
ComPair Computer aided rePair
CSM Customer Service Mode
CVBS Composite Video Blanking and

Synchronisation
CVBS-EXT CVBS signal from external source

(VCR, VCD, etc.)
CVBS-INT CVBS signal from Tuner
CVBS-MON CVBS monitor signal
CVBS-TER-OUT CVBS terrestrial out
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra

low frequency amplification
DFU Directions For Use: owner's manual
DNR Dynamic Noise Reduction
DRAM Dynamic RAM
DSP Digital Signal Processing
DST Dealer Service Tool: special

(European) remote control designed

for service technicians
DTS Digital Theatre Sound
DVD Digital Versatile Disc
DVI Digital Visual Interface
DW Double Window
ED Enhanced Definition: 480p, 576p
EEPROM Electrically Erasable and

Programmable Read Only Memory
EU EUrope
EXT EXTernal (source), entering the set by

SCART or by cinches (jacks)
FBL Fast Blanking: DC signal

accompanying RGB signals
FBL-SC1-IN Fast blanking signal for SCART1 in

FBL-SC2-IN Fast blanking signal for SCART2 in
FBL-TXT Fast Blanking Teletext
FLASH FLASH memory
FM Field Memory / Frequency Modulation
FMR FM Radio
FRC Frame Rate Converter
FRONT-C Front input chrominance (SVHS)
FRONT-DETECT Front input detection
FRONT-Y_CVBS Front input luminance or CVBS

(SVHS)
FTV Flat TeleVision
G-SC1-IN Green SCART1 in
G-SC2-IN Green SCART2 in
G-TXT Green teletext
H H_sync to the module
HD High Definition: 720p, 1080i, 1080p
HDMI High Definition Multimedia Interface,

digital audio and video interface
HP Head Phone
I Monochrome TV system. Sound

carrier distance is 6.0 MHz
I2C Integrated IC bus
I2S Integrated IC Sound bus
IC Integrated Circuit
IF Intermediate Frequency
Interlaced Scan mode where two fields are used

to form one frame. Each field contains

half the number of the total amount of

lines. The fields are written in "pairs",

causing line flicker.
IR Infra Red
IRQ Interrupt ReQuest
Last Status The settings last chosen by the

customer and read and stored in RAM

or in the NVM. They are called at start-

up of the set to configure it according

the customers wishes
LATAM LATin AMerica
LC04 Philips chassis name for LCD TV 2004

project
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LPL LG Philips LCD
LS Loud Speaker
LVDS Low Voltage Differential Signalling,

data transmission system for high

speed and low EMI communication.
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz
MOSFET Metal Oxide Semiconductor Field

Effect Transistor
MPEG Motion Pictures Experts Group
MSP Multi-standard Sound Processor: ITT

sound decoder
MUTE MUTE Line
NAFTA North American Free Trade

Association: Trade agreement

between Canada, USA and Mexico
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, used mainly in Europe.
NTSC National Television Standard

Committee. Colour system used

mainly in North America and Japan.

Colour carrier NTSC M/N = 3.579545

MHz, NTSC 4.43 = 4.433619 MHz

(this is a VCR norm, it is not

transmitted off-air)
NVM Non Volatile Memory: IC containing

TV related data (for example, options)
O/C Open Circuit

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 79LC4.6L 9.

ON/OFF LED On/Off control signal for the LED
OSD On Screen Display
PAL Phase Alternating Line. Colour system

used mainly in Western Europe
(colour carrier = 4.433619 MHz) and
South America (colour carrier PAL M =

3.575612 MHz and PAL N = 3.582056

MHz)
PC Personal Computer
PCB Printed Circuit Board (or PWB)
PDP Plasma Display Panel
PIG Picture In Graphic
PIP Picture In Picture
PLL Phase Locked Loop. Used, for

example, in FST tuning systems. The

customer can directly provide the

desired frequency
Progressive Scan Scan mode where all scan lines are

displayed in one frame at the same

time, creating a double vertical

resolution.
PWB Printed Wiring Board (or PCB)
RAM Random Access Memory
RC Remote Control transmitter
RC5 (6) Remote Control system 5 (6), the

signal from the remote control receiver
RGB Red, Green, and Blue. The primary

colour signals for TV. By mixing levels

of R, G, and B, all colours (Y/C) are

reproduced.
RGBHV Red, Green, Blue, Horizontal sync,

and Vertical sync
ROM Read Only Memory
SAM Service Alignment Mode
SC SandCastle: two-level pulse derived

from sync signals
SC1-OUT SCART output of the MSP audio IC
SC2-B-IN SCART2 Blue in
SC2-C-IN SCART2 chrominance in
SC2-OUT SCART output of the MSP audio IC
S/C Short Circuit
SCL Clock signal on I2C bus
SD Standard Definition: 480i, 576i
SDA Data signal on I2C bus
SDI Samsung Display Industry
SDM Service Default Mode
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Memoire.

Colour system used mainly in France

and Eastern Europe. Colour carriers =

4.406250 MHz and 4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switch Mode Power Supply
SND SouND
SNDL-SC1-IN Sound left SCART1 in
SNDL-SC1-OUT Sound left SCART1 out
SNDL-SC2-IN Sound left SCART2 in
SNDL-SC2-OUT Sound left SCART2 out
SNDR-SC1-IN Sound right SCART1 in
SNDR-SC1-OUT Sound right SCART1 out
SNDR-SC2-IN Sound right SCART2 out
SNDR-SC2-OUT Sound right SCART2 out
SNDS-VL-OUT Surround sound left variable level out
SNDS-VR-OUT Surround sound right variable level out
SOPS Self Oscillating Power Supply
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
STBY Stand-by
SVHS Super Video Home System
SW Sub Woofer / SoftWare
THD Total Harmonic Distortion
TXT TeleteXT
uP Microprocessor
VL Variable Level out: processed audio

output toward external amplifier

VCR Video Cassette Recorder
VGA Video Graphics Array
WD Watch Dog
WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
XTAL Quartz crystal
YPbPr Component video (Y= Luminance, Pb/

Pr= Colour difference signals B-Y and

R-Y, other amplitudes w.r.t. to YUV)
Y/C Video related signals: Y consists of

luminance signal, blanking level and

sync; C consists of colour signal.
Y-OUT Luminance-signal
YUV Baseband component video (Y=

Luminance, U/V= Colour difference

signals)

EN 80 LC4.6L9.

9.11 IC Data Sheets

This section shows the internal block diagrams and pin layouts
of ICs that are drawn as "black boxes" in the electrical diagrams
(with the exception of "memory" and "logic" ICs).

9.11.1 Diagram A2, Type TDA12029H (IC7011)

Circuit Descriptions, Abbreviation List, and IC Data Sheets

kcolB

TUOMA/OSSQ

HCTIWS

VD/NIFIS

NIB

/OVFI/OBVD

ORMF

ORMF/OBVD

TUOC

GA

NIFIV

I

/OVS/OVF
ISBVC
CNYSY

2

C

Y/2SBV

3Y/3SBV

C

C/2

3

C

4Y/4SBVC

4

C

/OSBVC

PIP

FI DNUOS SSQ

CGA

EXIM SS

R

Q

ROTALUDOMED MA

CFA/CGA/FI NOISIV

.DOMED LLP

PART DNUOS

YALED PUORG

.PMA OEDIV

HCTIWS OEDIV

.TNEDI OEDI

V

SRETLIF OEDIV

YS V/H

.PES CN

LLP + .CSO-H

d

n

2

POOL

TFIHS-H

EVIRD-

H

secorp VT ”oerets-VA“ eht fo margaid

FISS

OFER

LLP DNUOS

SISAHPMEED

REDOCED

C

Y

V/H

TUOH

LATIGID

H4/H2

RETLIF BMOC

.JDA YALED Y

V

LACITRE

TSEW-TSAE &

YRTEMOEG

VIRD-V

E

PSD oidua htiw ros

M

A

CSTN/MACES/LAP

FER

OTH

E

LB

Y/G

P/R

P/B

R

DWE

Pin configuration “stereo” and “AV-stereo” versions with Audio DSP

R

LPH+RSL_SOP_FERV

RSL+LSL_GEN_FERV

P
H+LPH_

RPH_SOP_FERV

P1.5/TX

P1.4/RX

P1.2/INT2

VSSC3

VDDC3
P2.5/PWM4
P2.4/PWM3

VSSC1/P
P3.3/ADC3
P3.2/ADC2

DECV1V8

VDDC1(1.8)

P3.1/ADC1

P3.0/ADC0
P2.3/PWM2
P2.2/PWM1

P2.1/PWM0

P2.0/PMW

VDDP(3.3V)

P1.7/SDA

P1.6/SCL

P1.3/T1

P0.0/I2SDI1

P0.1/I2SDO1

P0.2/I2SDO2

P0.3/I2SCLK

P0.4/I2SWS

VSSC2
VDDC2

P1.1/T0

P1.O/INT1

INT0/P0.5

LSL_SOP_FERV

)V3.3(3ADDV

G
E

4

4CDDV

2PSSV

C
SS

V
721

621

821

1

2

3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

20

21
22
23
24
25
26
27

28
29
30
31

32

QFP-128 0.8 mm pitch “face down version”

4

3

3

3

)V3.3

)

c

8.

d
a

1(

SSV

c

(

d

2ADDV

aD
D

V

N
_FERV

221

121

521

321

421

9

0

7

5

8

6

3

4

3

3

3

3
)

A

S

G

D

V

DN

E

A

O

8.
F

N

P

1(

E

_DAFERV

_DA

G

R

A

V

DD

F
E

V

R
V

OIWS/DRAUGV

TU

GIDCED

1

NILATX

OL
A

TX

021

91

811

1

24

34

1
4

)

.

OB

OG

V3.
3

(1A

D
D
V

FL2HP
A
SS

1
P

V

V

311

411

711

511

611

7

84

54

64

44

4

3DNG

3P

OR

N

NIL

I
K

V

L

C

B

B

TUO/NI HCNIC/TRACS

TCELES OIDUA

CAD/CDA

DNAB-ESAB

ENIL YALED

PY/BGR

RPB

E

Y

CAFRETNI VU

o

Y

iY

oUoV

B

LB

1OWS

DWE/LVA

LLPCES

G

FL1HP

1DNG

B
C
E
D

111

211

801

011

90
1

35

0

25

15

94

5

)1OWS(TUO

3WSSNI

3-

3-

3-

R

Y/

B

P

P/B

/

G

R

V

TRESNI

BRDV

701

)2

­WSNI(

T
U
O
U

Y/G

45

B

ARDV

601

S2I

iUiV

P/

B

1N
IF
IV

501

55

T

C

U

N
Y

O

SY

Y

L

µ REDOCED TXETELET DNA ROSSECORP-

ID

YUV IN/OUT

P/R

R

)xC()xY/xSBVC(

2
N

IFIV

CSV

301

401

85

75

65

)2-

)X-Y/SBVC/2-Y

B

P

/B(

NIU

/
G(NIY

TUO-SL

TUO-PH

R

RL

LORTNOC OIDUA

EMULOV

SSAB/ELBBERT

SERUTAEF

sCAD

ATIG

GNIKAEP

YTICOLEV NACS

NOITALUDOM

ALED V/U

Y

ENOT NIKS

TNIT V/U

NOITARUTAS

2NIF

1N
I

FIS/1N

I
S/2NIBVD

FIDNG

I

FERI

BVD

9

201

101

001

9

16

06

95

)

b

b

X

m

-

moc

ocS

C

/
2-

DD

S

R

V

V

P/R(NIV

MEVACS

TXET NO

.NOC

IRB

TAS

TU
O

OTHE

CG
A

79

8
9

96

95
94
93

92
91
90

89

88
87
86
85

84
83
82

81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65

26

4

36

6

TUO

Y

M

S

V

C

S

/OS

H

I
BF

SDR

GNISSECORP LANGIS L

SERUTAEF

B

CCC

XIRTAM BGR

TS EULB

AVL/SWO/SSIF/
REFIN/REFOUT

AUDIOIN5L
AUDIOIN5R
AUDOUTSL

AUDOUTSR

DECSDEM

AMOUT/QSSO/AUDEEM

GND2
PLLIF

SIFAGC/DVBAGC
DVBO//IFVO/FMRO

DVBO/FMRO

VCC8V

AGC2SIF
VP2

SVO/IFOUT/CVBSI

AUDIOIN4L
AUDIOIN4R
CVBS4/Y4
C4
AUDIOIN2L/SSIF
AUDIOIN2R

CVBS2/Y2

AUDIOIN3L

AUDIOIN3R

CVBS3/Y3

C2/C3
AUDOUTLSL

AUDOUTLSR

AUDOUTHPL

AUDOUTHPR
CVBSO/PIP

LORTNOC BGR

TRESNI TXET/DSO

NTHGIRB/RTNOC

.JDA .P-ETIHW

HCTER
HCTERTS KCALB

LORTNOC AMMAG

RCBGRL

S

MV

E_14490_063.eps

sO/I

OR

OG

OB

NILCB
NIKLB

160804

Figure 9-4 Internal Block Diagram and Pin Configuration

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.11.2 Diagram A7, Type GM1501 (IC7401)

EN 81LC4.6L 9.

Block Diagram

2-wire

Serial I/F

14.318 MHz
Crystal

Reference

DVI-Compliant

DDC2Bi

DVI

Analog RGB

DDC2Bi

analog

8/16/24 bit

video

(4:4:4/4:2:2/

CCIR656)

8/16 bit video

4:2:2/CCIR656

Input

Input

Clock

Generation

Ultra-Reliable

DVI Rx

Triple ADC

and PLL

Test Pattern

Generator

Pin Configuration

A

NC

ADC_3.3 ADC_1.8 ADC_1.8

B

BLUE- BLUE+

C

GREEN- GREEN+ SOG

D

RED- RED+

E

ADC_AGNDADC_AGND ADC_3.3 ADC_AGND

F

G

H

J

K

L

M

N

P

R

T

U

V

W

Y

AA

AB

AC

AD

AE

AF

VDDD33_

NC

PLL

VDDA33_

VSSD33_

FPLL

PLL

VDDD33_

VSSA33_

SDDS

SDDS

VDDD33_

VSSA33_

DDDS

DDDS

ACS_

RESETn

RSET_HD

OCM_INT2 OCM_INT1 AVSYNC AHSYNC

OCM_UDO OCM_UDI IR0 IR1

VGA_SDA VGA_SCL DVI_SDA DVI_SCL

OCM_CS1n OCM_CS2nMSTR_SDA MSTR_SCL

ROM_CSn OCM_REn OCM_W En EXTCLK

OCMADDR17OCMADDR18OCMADDR

OCMADDR13OCMADDR14OCMADDR15OCMADDR

OCMADDR9OCMADDR10OCMADDR11OCMADDR

OCMADDR6OCMADDR7OCMADDR

OCMADDR3OCMADDR4OCMADDR

OCMADDR0OCMADDR1OCMADDR

OCMDATA13 OCMDATA14 OCMDATA15

OCMDATA10 OCMDATA11 OCMDATA12

OCMDATA9OCMDATA6OCMDATA3OCMDATA0

OCMDATA8OCMDATA5OCMDATA2

OCMDATA7OCMDATA4OCMDATA1

12345678910111213

Parallel

ROM

JTAG

Interface

ADC_3.3

GPIO

ADC_DGND

X186

Micro-

controller

Internal

RAM


Capture

and

Measure

ment


Capture

and

Measure

ment

ADC_DGND

DVI_GND RXC- DVI_GND RX0- RX1- RX2- REXT LBADC_IN2 D_GND

IF/external

micro

Video

Shrink

Filter

External
ROM I/F

Internal

ROM

Graphics

Shrink

Filter

detection

Motion

Adapt.

3:2/2:2

Infra-red Rx Low

Frame

Store

Control

DDR SDRAM

I/F

ndwidDCBa th

Graphics

Zoom
Filter

OSD

Controller

Color Table

RAMs

Video
Zoom
Filter

A

Output

Blender

Pulse Width

Modulator

Display
Timing
Generator

RealColor

RXC+ DVI_GND RX0+ RX1+ RX2+ DVI_GND LBADC_IN3 D_GND

ADC_AGND NC DVI_3.3 DVI_GND DVI_3.3 DVI_3.3 DVI_3.3 DVI_3.3 LBADC_IN1 LBADC_33

ADC_3.3 ADC_AGND NC DVI_1.8 DVI_GND DVI_1.8 DVI_1.8 DVI_1.8 DVI_GND

VSSA33_

VDDA33_

RPLL

RPLL

TCLK XTAL

VDDA33_

VSSA33_

SDDS

FPLL

VDDA33_

VSSD33_

DDDS

SDDS

VSSD33_

NC

DDDS

CORE_1.8 CORE_1.8 D_GND D_GND

D_GND CORE_1.8 D_GND D_GND

D_GND D_GND D_GND D_GND

D_GND D_GND D_GND D_GND

D_GND D_GND D_GND D_GND

D_GND D_GND D_GND D_GND

19

OCM_CS0n

16

D_GND CORE_1.8 D_GND D_GND

CORE_1.8 CORE_1.8 D_GND D_GND

12

IO_3.3

8

IO_3.3

5

IO_3.3

2

IO_3.3

IO_3.3

GPIO_G09_ B0

DERED0

(

GPIO_G09_ B1

DERED1

(

GPIO_G09_ B2

(

DEGRN0

GPIO_G09_ B3

DEGRN1

(

GPIO_G09_ B4

)

(

DEBLU0

GPIO_G09_ B5

)

(

DEBLU1

IO_3.3 DCLK IO_3.3

)

GPIO_G08_ B0

)

GPIO_G08_ B1

)

GPIO_G08_ B2

)

(

DORED0

(

DORED1

(

DOGRN0

)

GPIO_G08_ B3

)

(

DOGRN1

GPIO_G08_ B4

)

(

DOBLU0

DEN

GPIO_G08_ B5

DOBLU1

(

GPIO_G07_ B0

)

(

DERED2

GPIO_G07_ B1

)

(

DERED3

GPIO_G07_ B2

(

DERED4

GPIO_G07_ B3

)

(

DERED5

GPIO_G07_ B4

)

(

DERED6

GPIO_G07_ B5

)

(

DERED7

IO_3.3

)

GPIO_G07_ B6

)

DERED8

(

GPIO_G07_ B7

)

DERED9

(

SHIELD[0]

)

(DEGRN2)

)

)

SHIELD[1]
(DEGRN3)

SHIELD[2]
(DEGRN4)

SHIELD[3]
(DEGRN5)

B3+

(DEGRN6)

TTL/

LVDS

Tx

TM

LBADC_

LBADC_GND

RETURN

LVDSB_GND

LVDSB_3.3

LVDSB_3.3 LVDSB_3.3

BC+

SHIELD[4]

(DEGRN8)

(DEBLU2)

B3-

(DEGRN7)

BC-

(DEGRN9)

E_14490_099.eps

241204

Panel Data

/Control

Figure 9-5 Internal Block Diagram and Pin Configuration

EN 82 LC4.6L9.

9.11.3 Diagram A12, Type SiI9993CT (IC7808)

BLOCK DIAGRAM

RESET#

DSDA

DSCL

R_EXT

RXC±

RX0±

RX1±

RX2±

I2C

Slave

HDCP

Keys

EEPROM

PanelLink

TMDS

TM

Digital

Core

Circuit Descriptions, Abbreviation List, and IC Data Sheets

INT

Registers

----------------

I2C

Slave

Configuration

Logic Block

Aux Data

HDCP

Decryption

Engine

Logic

Block

MCLK

Gen

Audio

Data

XOR

Mask

control
signals

control

signals

Mode

Control

Decode

Logic
Block

Video

Color

Space

Converter

Up/Down

Sampling

24

Video

30

DAC

CSDA

CSCL

MCLKOUT

MCLKIN

SCK

WS

SD0

SPDIF

DE

HSYNC

VSYNC

ODCK

Q[23:0]

AnGY
AnRPr
AnBPb

PIN CONFIGURATION

ODC K46

OVC C47

Q1648

Q1549

Q1450

Q13

51

Q12

52

Q11

53

Q10

54

Q9

55

OVCC

56

OGND

57

Q8

58

Q7

59

Q6

60

Q5

61

Q4

62

63

Q3

64

VCC

65

GND

66

OGND

67

OVCC

68

Q2

69

Q1

Q0

70

71

INT

CSCL

CSDA

72

73

74

75

76

79

77

RESET#

RSVDL

SETR

OMPC

OG ND28

SP DI F29

SD O30

WS31

SC K32

HSYNC33

VSYNC34

DE35

VC C40

GND41

Q1942

Q1843

Q1744

OG ND45

SiI 9993

100-Pin

TQFP

(Top View)

81

85

84

Q2336

Q2237

Q2138

Q20

39

90

91

MCLKOUT26

MCLKIN27

100

99

N/C25

PLLIN

24

PVCC2

23

PGND222

OVCC21

RSVDO20

RSVDO19

RSVDL18

VCC17

GND16

AnBPb15

DACVCCB14

DACGNDB13

AnGY12

DACVCCG11

DACGNDG10

RSET9

COMP8

AnRPr7

DACVCCR6

DACGNDR5

N/C4

N/C

3

2 DACGND

DACVCC1

RX0- 86

DSCL

DSDA

OG ND 78

RXC- 83

AVCC 82

PVCC180PGND1

EX T _ R E S

RX0+ 87

RXC+

AG ND

RX1-

RX1+ 92

AVCC 89

AG ND

AGND 88

AVCC 95

AG ND 9 4

AVCC 93

GND

RX2- 96

RX2+ 97

AG ND 9 8

Figure 9-6 Internal Block Diagram and Pin Configuration

VC C

E_14620_149.eps

090804

10. Spare Parts List

Spare Parts List

EN 83LC4.6L 10.

Set Level

Various

1004h 9322 206 49682 LCD T296XW01 (AUO)
1072 3104 328 34781 LED/Switch assy
1114 3104 328 32821 Top Control assy
1116 3104 328 26371 Side I/O assy LCD
8302 3104 311 04731 Cable 7p/560/7p
8303 3104 311 06511 Cable 10p/280/10p
8304 3104 311 08271 Cable 4p/340/4p
8305 3104 311 08411 Cable 3p/340/3p
8306 3104 311 08351 Cable 2p3/340/2p3
8307 3104 311 08371 Cable 4p/340/4p
8309 3104 311 08301 Cable 3p/340/3p
8315 3104 311 06511 Cable 10p/280/10p
8317 3104 311 03611 Cable 12p/280/12p
8320 3104 311 06091 Cable 10p/680/10p
8346 3104 311 07001 Cable 11p/400/11p
8350 3104 311 08611 Cable 31p/120/20p
8352 3104 311 06811 Cable 9p/340/9p
8735 3104 311 07501 Cable 2p3/560/2p
8736 3104 311 07541 Cable 2p3/1200/2p

b

5213 3104 308 78531 Loudspeaker 8Ω 18W
5214 3104 308 78531 Loudspeaker 8Ω 18W

Small Signal Board [A]

Various

0300 2422 486 80938 Socket 32p f PLCC
1001 2422 543 01414 Xtal 24.576MHz
1004 2422 025 15773 Connector 10p f
1175 2422 026 05385 Socket CINCH 6p f
1177 2422 026 05553 Socket phone 1p f
1182 2422 026 05553 Socket phone 1p f
1183 2422 026 05428 Connector 4p f
1251 2422 025 10655 Connector 11p m
1301 2422 025 18749 Connector 3p m
1302 3139 147 21461 Tuner UV1338/A F S H-4
1320 2422 025 10771 Connector 10p m
1328 2422 549 44377 Filter 45.75MHz
1336 2422 025 10655 Connector 11p m
1401 2422 543 01133 Xtal 14.32MHz 20pF
1402 2422 025 10768 Connector 3p m
1403 2422 025 10771 Connector 10p m
1450 2422 025 18427 Connector 31p f
1681 2422 025 16835 Connector 3p m
1686 2422 026 04754 Connector cinch 2p f
1687 2422 025 18477 Socket sub-D 15p f h
1688 2422 033 00504 Socket HDMI 19p f
1690 2422 549 00146 Line filter 20V 3A
1691 2422 549 00146 Line filter 20V 3A
1692 2422 549 00146 Line filter 20V 3A
1693 2422 549 00146 Line filter 20V 3A
1752 2422 025 10769 Connector 9p m
1860 2422 549 45325 Bead 67Ω at 100MHz
1861 2422 549 45325 Bead 67Ω at 100MHz
1862 2422 549 45325 Bead 67Ω at 100MHz
1863 2422 549 45325 Bead 67Ω at 100MHz
1864 2422 549 45325 Bead 67Ω at 100MHz
8308 3104 311 07691 Cable 2p3/280/Inlet

g

2000 2020 552 00035 2.2µF 6.3V 10% 0603
2001 2020 552 96718 220nF 10% 6.3V 0402
2002 4822 124 23002 10µF 16V
2003 2238 869 15109 10pF 5% 50V 0402
2004 2020 552 96718 220nF 10% 6.3V 0402
2005 3198 035 71040 100nF 10% 16V 0402
2006 3198 034 06880 6.8pF 1% 50V 0402
2007 3198 034 06880 6.8pF 1% 50V 0402
2008 2020 552 00124 470nF 10% 10V 0603
2009 2020 552 96807 1µF 10% 10V 0603
2010 3198 035 26820 6.8nF 10% 16V 0402
2011 2020 552 96718 220nF 10% 6.3V 0402
2012 4822 124 12095 100µF 20% 16V
2013 3198 035 71040 100nF 10% 16V 0402
2014 3198 035 71040 100nF 10% 16V 0402
2015 3198 035 71040 100nF 10% 16V 0402
2016 3198 035 71040 100nF 10% 16V 0402
2017 3198 035 71040 100nF 10% 16V 0402

2018 3198 035 71040 100nF 10% 16V 0402
2019 4822 124 80151 47µF 16V
2020 2238 869 15101 100pF 5% 50V 0402
2021 2020 552 96628 10nF 10% 16V 0402
2022 3198 035 02210 220pF 5% 50V 0402
2023 3198 035 71040 100nF 10% 16V 0402
2024 4822 124 12095 100µF 20% 16V
2025 3198 035 71040 100nF 10% 16V 0402
2026 3198 035 71040 100nF 10% 16V 0402
2027 3198 035 71040 100nF 10% 16V 0402
2028 2020 552 96628 10nF 10% 16V 0402
2029 3198 035 71040 100nF 10% 16V 0402
2030 3198 035 71040 100nF 10% 16V 0402
2031 3198 035 71040 100nF 10% 16V 0402
2032 3198 035 71040 100nF 10% 16V 0402
2033 2020 552 96718 220nF 10% 6.3V 0402
2034 2020 552 00002 3.3nF 2% 50V 0805
2035 2020 552 96656 10µF 20% 25V 1210
2036 2020 552 96807 1µF 10% 10V 0603
2037 2020 552 96807 1µF 10% 10V 0603
2040 4822 124 23002 10µF 16V
2041 2020 552 96718 220nF 10% 6.3V 0402
2042 2020 552 00002 3.3nF 2% 50V 0805
2043 3198 035 71040 100nF 10% 16V 0402
2044 2020 552 96718 220nF 10% 6.3V 0402
2045 2238 869 15109 10pF 5% 50V 0402
2046 2238 869 15109 10pF 5% 50V 0402
2047 2020 552 96628 10nF 10% 16V 0402
2048 2238 869 15109 10pF 5% 50V 0402
2049 2238 869 15109 10pF 5% 50V 0402
2050 2238 869 15109 10pF 5% 50V 0402
2051 2020 552 00002 3.3nF 2% 50V 0805
2053 2020 552 96618 1nF 10% 50V 0402
2054 2020 552 96455 22nF 10% 16V 0402
2057 2238 869 15109 10pF 5% 50V 0402
2058 2238 869 15109 10pF 5% 50V 0402
2059 2238 869 15109 10pF 5% 50V 0402
2060 3198 035 71040 100nF 10% 16V 0402
2061 4822 124 23002 10µF 16V
2062 2238 869 15109 10pF 5% 50V 0402
2063 3198 017 31540 150nF 10V 0603
2067 2238 869 15109 10pF 5% 50V 0402
2068 2020 552 96718 220nF 10% 6.3V 0402
2069 2238 869 15109 10pF 5% 50V 0402
2071 4822 124 12095 100µF 20% 16V
2072 4822 126 14076 220nF +80/-20% 25V
2073 2020 552 96618 1nF 10% 50V 0402
2074 2020 552 96718 220nF 10% 6.3V 0402
2076 2020 552 96718 220nF 10% 6.3V 0402
2077 2020 552 96834 1µF 20% 6.3V 0402
2078 2238 869 15101 100pF 5% 50V 0402
2079 2238 869 15109 10pF 5% 50V 0402
2080 2238 869 15109 10pF 5% 50V 0402
2081 2238 869 15109 10pF 5% 50V 0402
2082 2020 552 96618 1nF 10% 50V 0402
2083 2020 552 96834 1µF 20% 6.3V 0402
2084 2020 552 96718 220nF 10% 6.3V 0402
2085 2020 552 96618 1nF 10% 50V 0402
2086 2020 552 96618 1nF 10% 50V 0402
2087 2238 869 15109 10pF 5% 50V 0402
2088 2238 869 15109 10pF 5% 50V 0402
2089 2020 552 96618 1nF 10% 50V 0402
2090 2238 869 15109 10pF 5% 50V 0402
2091 2238 869 15109 10pF 5% 50V 0402
2092 2238 869 15109 10pF 5% 50V 0402
2093 2238 869 15109 10pF 5% 50V 0402
2094 2238 869 15109 10pF 5% 50V 0402
2095 2238 869 15109 10pF 5% 50V 0402
2096 2238 869 15109 10pF 5% 50V 0402
2097 2238 869 15109 10pF 5% 50V 0402
2098 2238 869 15109 10pF 5% 50V 0402
2099 2020 552 96618 1nF 10% 50V 0402
2182 4822 126 14241 330pF 0603 50V
2183 3198 017 41050 1µF 10V 0603
2184 4822 126 14241 330pF 0603 50V
2185 3198 017 41050 1µF 10V 0603
2190 4822 124 23002 10µF 16V
2191 2020 552 00027 4.7µF 2% 6.3V 0603
2193 4822 126 14241 330pF 0603 50V
2195 4822 126 14241 330pF 0603 50V
2201 4822 126 14491 2.2µF 10V 0805
2225 2238 586 59812 100nF 20% 50V 0603
2231 4822 126 14241 330pF 0603 50V
2232 3198 017 41050 1µF 10V 0603
2233 4822 126 14241 330pF 0603 50V
2234 3198 017 41050 1µF 10V 0603
2251 2238 869 15109 10pF 5% 50V 0402
2252 2238 869 15109 10pF 5% 50V 0402
2253 4822 124 23002 10µF 16V

2254 4822 124 23002 10µF 16V
2262 4822 124 80151 47µF 16V
2263 2020 552 96656 10µF 20% 25V 1210
2264 2020 552 96656 10µF 20% 25V 1210
2265 3198 035 02210 220pF 5% 50V 0402
2266 2020 552 96455 22nF 10% 16V 0402
2268 2020 012 00028 470µF 20% 16V
2269 2020 012 00028 470µF 20% 16V
2271 2020 552 96437 100nF 10% 10V 0402
2302 4822 122 33761 22pF 5% 50V
2303 4822 122 33761 22pF 5% 50V
2307 3198 024 44730 47nF 50V 0603
2309 2022 031 00373 470µF 20% 16V
2311 3198 030 72290 22µF 20% 35V
2321 5322 126 11583 10nF 10% 50V 0603
2357 3198 035 71040 100nF 10% 16V 0402
2358 3198 035 03320 3.3nF 5% 50V 0402
2359 2020 552 96628 10nF 10% 16V 0402
2370 2020 552 96834 1µF 20% 6.3V 0402
2371 2020 552 96834 1µF 20% 6.3V 0402
2372 2020 552 96618 1nF 10% 50V 0402
2373 2020 552 96618 1nF 10% 50V 0402
2374 3198 035 71040 100nF 10% 16V 0402
2375 4822 124 12082 10µF 20% 50V
2376 3198 017 41050 1µF 10V 0603
2377 3198 017 41050 1µF 10V 0603
2378 2020 552 96718 220nF 10% 6.3V 0402
2380 4822 124 12095 100µF 20% 16V
2381 3198 035 71040 100nF 10% 16V 0402
2382 2022 031 00373 470µF 20% 16V
2386 3198 017 41050 1µF 10V 0603
2387 4822 126 14324 33pF 5% 50V 0402
2388 4822 126 14324 33pF 5% 50V 0402
2392 3198 017 41050 1µF 10V 0603
2394 3198 035 71040 100nF 10% 16V 0402
2395 3198 035 71040 100nF 10% 16V 0402
2396 4822 124 23002 10µF 16V
2397 2020 552 96834 1µF 20% 6.3V 0402
2398 2020 552 96834 1µF 20% 6.3V 0402
2401 4822 124 80151 47µF 16V
2402 4822 124 80151 47µF 16V
2403 3198 035 71040 100nF 10% 16V 0402
2404 3198 035 71040 100nF 10% 16V 0402
2405 3198 035 71040 100nF 10% 16V 0402
2406 3198 035 71040 100nF 10% 16V 0402
2407 3198 035 71040 100nF 10% 16V 0402
2408 3198 035 71040 100nF 10% 16V 0402
2409 3198 035 71040 100nF 10% 16V 0402
2410 3198 035 71040 100nF 10% 16V 0402
2411 3198 035 71040 100nF 10% 16V 0402
2412 3198 035 71040 100nF 10% 16V 0402
2413 3198 035 71040 100nF 10% 16V 0402
2414 3198 035 71040 100nF 10% 16V 0402
2415 3198 035 71040 100nF 10% 16V 0402
2416 3198 035 71040 100nF 10% 16V 0402
2417 4822 124 80151 47µF 16V
2418 4822 124 80151 47µF 16V
2419 3198 035 71040 100nF 10% 16V 0402
2420 3198 035 71040 100nF 10% 16V 0402
2421 3198 035 71040 100nF 10% 16V 0402
2422 3198 035 71040 100nF 10% 16V 0402
2423 3198 035 71040 100nF 10% 16V 0402
2424 3198 035 71040 100nF 10% 16V 0402
2425 3198 035 71040 100nF 10% 16V 0402
2426 3198 035 71040 100nF 10% 16V 0402
2427 3198 035 71040 100nF 10% 16V 0402
2428 3198 035 71040 100nF 10% 16V 0402
2429 3198 035 71040 100nF 10% 16V 0402
2430 3198 035 71040 100nF 10% 16V 0402
2431 3198 035 71040 100nF 10% 16V 0402
2432 3198 035 71040 100nF 10% 16V 0402
2433 3198 035 71040 100nF 10% 16V 0402
2434 4822 124 80151 47µF 16V
2435 4822 124 80151 47µF 16V
2436 3198 035 71040 100nF 10% 16V 0402
2437 3198 035 71040 100nF 10% 16V 0402
2438 3198 035 71040 100nF 10% 16V 0402
2439 3198 035 71040 100nF 10% 16V 0402
2440 3198 035 71040 100nF 10% 16V 0402
2441 3198 035 71040 100nF 10% 16V 0402
2442 3198 035 71040 100nF 10% 16V 0402
2443 3198 035 71040 100nF 10% 16V 0402
2444 3198 035 71040 100nF 10% 16V 0402
2445 3198 035 71040 100nF 10% 16V 0402
2446 3198 035 71040 100nF 10% 16V 0402
2447 3198 035 71040 100nF 10% 16V 0402
2448 3198 035 71040 100nF 10% 16V 0402
2449 3198 035 71040 100nF 10% 16V 0402
2450 3198 035 71040 100nF 10% 16V 0402

EN 84 LC4.6L10.

Spare Parts List

2451 4822 124 80151 47µF 16V
2452 3198 035 71040 100nF 10% 16V 0402
2453 3198 035 71040 100nF 10% 16V 0402
2454 3198 035 71040 100nF 10% 16V 0402
2455 3198 035 71040 100nF 10% 16V 0402
2456 3198 035 71040 100nF 10% 16V 0402
2461 3198 035 71040 100nF 10% 16V 0402
2462 3198 035 71040 100nF 10% 16V 0402
2463 3198 035 71040 100nF 10% 16V 0402
2464 3198 035 71040 100nF 10% 16V 0402
2465 5322 124 41945 22µF 20% 35V
2466 3198 035 71040 100nF 10% 16V 0402
2467 3198 035 71040 100nF 10% 16V 0402
2468 3198 035 71040 100nF 10% 16V 0402
2469 3198 035 71040 100nF 10% 16V 0402
2470 5322 124 41945 22µF 20% 35V
2471 3198 035 71040 100nF 10% 16V 0402
2472 3198 035 71040 100nF 10% 16V 0402
2473 3198 035 71040 100nF 10% 16V 0402
2474 3198 035 71040 100nF 10% 16V 0402
2475 3198 035 71040 100nF 10% 16V 0402
2476 3198 035 71040 100nF 10% 16V 0402
2477 3198 035 71040 100nF 10% 16V 0402
2478 5322 124 41945 22µF 20% 35V
2479 3198 035 71040 100nF 10% 16V 0402
2480 3198 035 71040 100nF 10% 16V 0402
2481 3198 035 71040 100nF 10% 16V 0402
2482 5322 124 41945 22µF 20% 35V
2483 3198 035 71040 100nF 10% 16V 0402
2484 3198 035 71040 100nF 10% 16V 0402
2485 3198 035 71040 100nF 10% 16V 0402
2486 3198 035 71040 100nF 10% 16V 0402
2487 4822 126 14519 22pF 5% 50V 0402
2488 4822 126 14519 22pF 5% 50V 0402
2490 2238 586 59812 100nF 20% 50V 0603
2491 2238 586 59812 100nF 20% 50V 0603
2492 2238 586 59812 100nF 20% 50V 0603
2493 2020 552 96807 1µF 10% 10V 0603
2495 4822 124 80151 47µF 16V
2496 3198 035 71040 100nF 10% 16V 0402
2501 4822 124 80151 47µF 16V
2502 4822 124 11131 47µF 6.3V
2503 3198 035 71040 100nF 10% 16V 0402
2504 3198 035 71040 100nF 10% 16V 0402
2505 3198 035 71040 100nF 10% 16V 0402
2506 3198 035 71040 100nF 10% 16V 0402
2507 3198 035 71040 100nF 10% 16V 0402
2508 3198 035 71040 100nF 10% 16V 0402
2509 3198 035 71040 100nF 10% 16V 0402
2510 3198 035 71040 100nF 10% 16V 0402
2511 3198 035 71040 100nF 10% 16V 0402
2512 3198 035 71040 100nF 10% 16V 0402
2513 3198 035 71040 100nF 10% 16V 0402
2514 3198 035 71040 100nF 10% 16V 0402
2515 3198 035 71040 100nF 10% 16V 0402
2516 3198 035 71040 100nF 10% 16V 0402
2517 3198 035 71040 100nF 10% 16V 0402
2526 5322 124 41945 22µF 20% 35V
2530 4822 124 23002 10µF 16V
2531 3198 035 71040 100nF 10% 16V 0402
2532 3198 035 71040 100nF 10% 16V 0402
2533 3198 035 71040 100nF 10% 16V 0402
2560 3198 035 71040 100nF 10% 16V 0402
2561 4822 124 12095 100µF 20% 16V
2562 3198 035 71040 100nF 10% 16V 0402
2563 3198 035 14720 4.7nF 5% 25V 0402
2564 2020 552 96656 10µF 20% 25V 1210
2580 3198 035 71040 100nF 10% 16V 0402
2581 3198 035 71040 100nF 10% 16V 0402
2582 3198 035 71040 100nF 10% 16V 0402
2583 3198 035 71040 100nF 10% 16V 0402
2584 3198 035 71040 100nF 10% 16V 0402
2585 2238 869 75829 82pF 5% 50V 0402
2586 2238 869 75829 82pF 5% 50V 0402
2587 3198 035 03310 330pF 5% 50V 0402
2588 3198 035 04710 470pF 50V 0402
2605 3198 035 71040 100nF 10% 16V 0402
2606 3198 035 71040 100nF 10% 16V 0402
2607 3198 035 71040 100nF 10% 16V 0402
2608 3198 035 71040 100nF 10% 16V 0402
2609 3198 035 71040 100nF 10% 16V 0402
2610 3198 035 71040 100nF 10% 16V 0402
2611 4822 124 11131 47µF 6.3V
2612 2020 552 96628 10nF 10% 16V 0402
2613 2020 552 96628 10nF 10% 16V 0402
2614 2020 552 96628 10nF 10% 16V 0402
2615 2020 552 96628 10nF 10% 16V 0402
2616 2020 552 96628 10nF 10% 16V 0402
2617 2020 552 96628 10nF 10% 16V 0402
2618 2020 552 96628 10nF 10% 16V 0402
2619 4822 126 14324 33pF 5% 50V 0402
2620 2020 552 96807 1µF 10% 10V 0603
2621 2020 552 96834 1µF 20% 6.3V 0402
2622 2020 552 96834 1µF 20% 6.3V 0402

2623 2020 552 96834 1µF 20% 6.3V 0402
2624 3198 017 44740 470nF 10V 0603
2625 3198 017 44740 470nF 10V 0603
2626 3198 017 44740 470nF 10V 0603
2630 2020 552 96834 1µF 20% 6.3V 0402
2631 2020 552 96834 1µF 20% 6.3V 0402
2632 2020 552 96834 1µF 20% 6.3V 0402
2633 2020 552 96834 1µF 20% 6.3V 0402
2634 2020 552 96834 1µF 20% 6.3V 0402
2635 2020 552 96834 1µF 20% 6.3V 0402
2636 3198 035 71040 100nF 10% 16V 0402
2682 2020 552 94427 100pF 5% 50V
2683 2020 552 94427 100pF 5% 50V
2688 2020 552 94427 100pF 5% 50V
2693 2238 586 59812 100nF 20% 50V 0603
2698 2020 552 94427 100pF 5% 50V
2699 2020 552 94427 100pF 5% 50V
2702 2020 552 96834 1µF 20% 6.3V 0402
2707 2020 021 00097 470µF 20% 16V
2708 2020 552 96834 1µF 20% 6.3V 0402
2710 3198 035 04710 470pF 50V 0402
2711 3198 035 04710 470pF 50V 0402
2713 2238 586 59812 100nF 20% 50V 0603
2714 2020 012 00028 470µF 20% 16V
2715 2020 021 00097 470µF 20% 16V
2719 2238 586 59812 100nF 20% 50V 0603
2720 2238 869 15109 10pF 5% 50V 0402
2743 2020 552 96834 1µF 20% 6.3V 0402
2744 2020 552 96834 1µF 20% 6.3V 0402
2747 2238 869 15101 100pF 5% 50V 0402
2748 2238 869 15101 100pF 5% 50V 0402
2749 2238 869 15101 100pF 5% 50V 0402
2750 2238 869 15101 100pF 5% 50V 0402
2784 4822 126 14241 330pF 0603 50V
2785 4822 126 14241 330pF 0603 50V
2803 4822 124 23237 22µF 6.3V
2806 4822 124 23237 22µF 6.3V
2807 3198 035 71040 100nF 10% 16V 0402
2808 3198 035 71040 100nF 10% 16V 0402
2809 4822 124 23002 10µF 16V
2810 4822 124 23237 22µF 6.3V
2811 2020 552 96618 1nF 10% 50V 0402
2812 3198 035 71040 100nF 10% 16V 0402
2813 4822 124 23002 10µF 16V
2814 3198 035 71040 100nF 10% 16V 0402
2815 2020 552 96618 1nF 10% 50V 0402
2816 3198 035 71040 100nF 10% 16V 0402
2817 2020 552 96618 1nF 10% 50V 0402
2818 4822 124 23002 10µF 16V
2819 3198 035 71040 100nF 10% 16V 0402
2820 2020 552 96618 1nF 10% 50V 0402
2821 2020 552 96618 1nF 10% 50V 0402
2822 2020 552 96618 1nF 10% 50V 0402
2823 2020 552 96618 1nF 10% 50V 0402
2824 3198 035 71040 100nF 10% 16V 0402
2825 2020 552 96618 1nF 10% 50V 0402
2826 2020 552 96618 1nF 10% 50V 0402
2827 2020 552 96618 1nF 10% 50V 0402
2828 2020 552 96618 1nF 10% 50V 0402
2829 2020 552 96618 1nF 10% 50V 0402
2830 2020 552 96618 1nF 10% 50V 0402
2832 2020 552 96618 1nF 10% 50V 0402
2833 4822 124 11131 47µF 6.3V
2834 4822 124 11131 47µF 6.3V
2835 3198 035 71040 100nF 10% 16V 0402
2836 3198 035 71040 100nF 10% 16V 0402
2837 4822 124 23002 10µF 16V
2838 2020 552 96628 10nF 10% 16V 0402
2839 3198 035 74730 47nF 5% 16V 0402
2840 2020 552 96637 10µF 10% 6.3V 0805
2841 3198 017 41050 1µF 10V 0603
2842 3198 017 41050 1µF 10V 0603
2843 4822 124 11131 47µF 6.3V
2844 3198 035 71040 100nF 10% 16V 0402
2845 3198 035 71040 100nF 10% 16V 0402
2846 3198 035 71040 100nF 10% 16V 0402
2847 3198 017 41050 1µF 10V 0603
2848 3198 017 41050 1µF 10V 0603
2849 2020 552 96628 10nF 10% 16V 0402
2860 2238 869 15109 10pF 5% 50V 0402
2861 2238 869 15109 10pF 5% 50V 0402
2862 2238 869 15109 10pF 5% 50V 0402
2863 2238 869 15109 10pF 5% 50V 0402
2864 2238 869 15109 10pF 5% 50V 0402
2865 2238 869 15109 10pF 5% 50V 0402
2866 2238 869 15109 10pF 5% 50V 0402
2867 2238 869 15109 10pF 5% 50V 0402
2868 2238 869 15109 10pF 5% 50V 0402
2869 2238 869 15109 10pF 5% 50V 0402
2874 2238 869 15109 10pF 5% 50V 0402
2875 2238 869 15109 10pF 5% 50V 0402
2876 2020 552 96628 10nF 10% 16V 0402
2877 2238 869 15109 10pF 5% 50V 0402
2878 2020 552 96628 10nF 10% 16V 0402

2879 2020 552 96628 10nF 10% 16V 0402
2880 2238 869 15109 10pF 5% 50V 0402
2881 2020 552 96628 10nF 10% 16V 0402
2883 2238 869 15109 10pF 5% 50V 0402
2884 2020 552 96628 10nF 10% 16V 0402
2887 2238 869 15109 10pF 5% 50V 0402
2910 3198 035 04710 470pF 50V 0402
2911 3198 030 72290 22µF 20% 35V
2920 4822 124 80151 47µF 16V
2921 4822 124 80151 47µF 16V
2930 2022 031 00373 470µF 20% 16V
2931 3198 035 04710 470pF 50V 0402
2933 2022 031 00373 470µF 20% 16V
2934 2020 552 96793 4.7nF 10% 50V 0402
2935 2022 031 00373 470µF 20% 16V
2953 2022 031 00373 470µF 20% 16V
2955 3198 035 14720 4.7nF 5% 25V 0402
2956 3198 035 02210 220pF 5% 50V 0402
2957 2022 031 00373 470µF 20% 16V
2958 2020 021 00097 470µF 20% 16V
2960 2020 012 00028 470µF 20% 16V
2961 3198 035 71030 10nF 16V 0402
2992 3198 035 71040 100nF 10% 16V 0402
2993 2020 552 96618 1nF 10% 50V 0402
2994 2022 031 00373 470µF 20% 16V
2995 3198 035 71040 100nF 10% 16V 0402
2996 4822 124 80151 47µF 16V
2999 2020 552 96637 10µF 10% 6.3V 0805

f

3000 3198 031 05620 5.6kΩ 5% 0.01W 0402
3001 2322 702 70398 3.9Ω 5% 0603
3002 4822 117 13601 22kΩ 5% 0402
3003 2322 702 70398 3.9Ω 5% 0603
3004 4822 117 13601 22kΩ 5% 0402
3005 3198 031 05620 5.6kΩ 5% 0.01W 0402
3006 4822 117 13545 100Ω 1% 0402
3007 3198 031 04720 4.7kΩ 5% 0402
3008 3198 031 04730 47Ω 5% 0402
3010 4822 117 13548 1kΩ 5% 0402
3011 4822 117 13543 470Ω 5% 0402
3013 4822 117 13545 100Ω 1% 0402
3015 4822 117 13605 Jumper 0402
3017 4822 117 13605 Jumper 0402
3019 4822 117 13545 100Ω 1% 0402
3020 4822 117 13548 1kΩ 5% 0402
3021 2322 706 72702 2.7kΩ 1% 0402
3022 4822 117 13606 10kΩ 5% 0.01W 0402
3023 4822 117 13601 22kΩ 5% 0402
3024 3198 031 01090 10Ω 5% 0.01W 0402
3025 3198 031 01090 10Ω 5% 0.01W 0402
3026 3198 031 06890 68Ω 5% 0402
3027 3198 031 01090 10Ω 5% 0.01W 0402
3028 4822 117 11297 100kΩ 5% 0.1W
3029 4822 117 13548 1kΩ 5% 0402
3030 4822 117 11297 100kΩ 5% 0.1W
3032 3198 031 02240 220kΩ 5% 0.1W 0402
3035 4822 117 13545 100Ω 1% 0402
3037 3198 031 04730 47Ω 5% 0402
3038 3198 031 04730 47Ω 5% 0402
3039 3198 031 06830 68kΩ 5% 0.01W 0402
3048 4822 117 13606 10kΩ 5% 0.01W 0402
3049 4822 117 13545 100Ω 1% 0402
3050 4822 117 13545 100Ω 1% 0402
3051 4822 117 13545 100Ω 1% 0402
3052 4822 117 13605 Jumper 0402
3057 4822 117 13545 100Ω 1% 0402
3058 4822 117 13543 470Ω 5% 0402
3059 4822 117 13548 1kΩ 5% 0402
3060 3198 031 03930 39kΩ 5% 0402
3063 3198 031 06890 68Ω 5% 0402
3064 4822 117 13545 100Ω 1% 0402
3065 3198 031 06810 680Ω 5% 0.01W 0402
3066 3198 031 06890 68Ω 5% 0402
3067 3198 031 01090 10Ω 5% 0.01W 0402
3068 3198 031 06890 68Ω 5% 0402
3069 4822 117 13601 22kΩ 5% 0402
3070 4822 117 13545 100Ω 1% 0402
3071 4822 117 13545 100Ω 1% 0402
3072 3198 031 06890 68Ω 5% 0402
3073 3198 031 01530 15kΩ 5% 0.01W 0402
3074 4822 117 11297 100kΩ 5% 0.1W
3075 3198 031 04720 4.7kΩ 5% 0402
3077 3198 031 04720 4.7kΩ 5% 0402
3078 3198 031 04720 4.7kΩ 5% 0402
3079 3198 031 04720 4.7kΩ 5% 0402
3080 5322 117 13034 1.5kΩ 1% 0.063W 0603
3081 4822 117 13545 100Ω 1% 0402
3082 3198 031 04720 4.7kΩ 5% 0402
3083 3198 031 04720 4.7kΩ 5% 0402
3084 4822 117 13545 100Ω 1% 0402
3085 3198 031 04720 4.7kΩ 5% 0402

Spare Parts List

EN 85LC4.6L 10.

3086 4822 117 13602 2.2kΩ 5% 0.01W 0402
3087 4822 117 13606 10kΩ 5% 0.01W 0402
3088 3198 031 03320 3.3kΩ 5% 0402
3089 3198 031 01540 150kΩ 5% 0402
3091 4822 117 13545 100Ω 1% 0402
3092 3198 031 04720 4.7kΩ 5% 0402
3093 3198 031 04720 4.7kΩ 5% 0402
3094 3198 031 01090 10Ω 5% 0.01W 0402
3096 3198 031 03320 3.3kΩ 5% 0402
3097 3198 031 04720 4.7kΩ 5% 0402
3175 4822 051 30759 75Ω 5% 0.062W
3176 4822 051 30331 330Ω 5% 0.062W
3177 4822 051 30331 330Ω 5% 0.062W
3178 4822 051 30759 75Ω 5% 0.062W
3179 4822 051 30759 75Ω 5% 0.062W
3180 4822 051 30331 330Ω 5% 0.062W
3181 4822 051 30331 330Ω 5% 0.062W
3182 4822 051 30151 150Ω 5% 0.062W
3183 4822 117 12925 47kΩ 1% 0.063W 0603
3184 4822 051 30151 150Ω 5% 0.062W
3185 4822 117 12925 47kΩ 1% 0.063W 0603
3189 4822 051 30339 33Ω 5% 0.062W
3190 4822 117 12971 15Ω 5% 0603 0.62W
3191 4822 051 30759 75Ω 5% 0.062W
3192 4822 051 30759 75Ω 5% 0.062W
3193 4822 051 30223 22kΩ 5% 0.062W
3194 4822 051 30689 68Ω 5% 0.063W 0603
3195 4822 051 30683 68kΩ 5% 0.062W
3196 4822 051 30102 1kΩ 5% 0.062W
3197 4822 117 12891 220kΩ 1%
3198 4822 117 12891 220kΩ 1%
3199 4822 051 30151 150Ω 5% 0.062W
3200 4822 051 30151 150Ω 5% 0.062W
3201 4822 117 13632 100kΩ 1% 0603 0.62W
3202 4822 117 13632 100kΩ 1% 0603 0.62W
3203 4822 051 30102 1kΩ 5% 0.062W
3204 4822 051 30101 100Ω 5% 0.062W
3220 4822 051 30331 330Ω 5% 0.062W
3221 4822 051 30221 220Ω 5% 0.062W
3222 4822 051 30759 75Ω 5% 0.062W
3223 4822 051 30759 75Ω 5% 0.062W
3231 4822 051 30151 150Ω 5% 0.062W
3232 4822 117 12925 47kΩ 1% 0.063W 0603
3233 4822 051 30151 150Ω 5% 0.062W
3234 4822 117 12925 47kΩ 1% 0.063W 0603
3235 4822 051 30223 22kΩ 5% 0.062W
3236 4822 051 30223 22kΩ 5% 0.062W
3237 4822 051 30223 22kΩ 5% 0.062W
3239 4822 051 30223 22kΩ 5% 0.062W
3247 4822 051 30151 150Ω 5% 0.062W
3248 4822 051 30151 150Ω 5% 0.062W
3251 4822 117 11151 1Ω 5%
3259 4822 117 13606 10kΩ 5% 0.01W 0402
3260 3198 031 06820 6.8kΩ 5% 0.01W 0402
3266 3198 031 04720 4.7kΩ 5% 0402
3267 5322 117 13031 5.6kΩ 1% 0.063W 0603
3268 2322 704 63302 3.3kΩ 1% 0603
3270 3198 031 01520 1.2kΩ 5% 0.01W 0402
3271 3198 031 01520 1.2kΩ 5% 0.01W 0402
3273 3198 031 01530 15kΩ 5% 0.01W 0402
3274 4822 117 13601 22kΩ 5% 0402
3302 4822 051 30101 100Ω 5% 0.062W
3303 4822 051 30101 100Ω 5% 0.062W
3304 4822 117 13606 10kΩ 5% 0.01W 0402
3305 4822 117 13606 10kΩ 5% 0.01W 0402
3309 4822 117 13606 10kΩ 5% 0.01W 0402
3327 4822 117 13548 1kΩ 5% 0402
3328 4822 117 13545 100Ω 1% 0402
3329 4822 117 13545 100Ω 1% 0402
3340 4822 117 13601 22kΩ 5% 0402
3342 3198 031 01530 15kΩ 5% 0.01W 0402
3343 3198 031 04720 4.7kΩ 5% 0402
3344 4822 117 13548 1kΩ 5% 0402
3345 3198 031 04720 4.7kΩ 5% 0402
3346 2322 706 75603 56kΩ 1% 0402
3347 3198 031 08210 820Ω 5% 0.5W
3348 3198 031 04720 4.7kΩ 5% 0402
3349 3198 031 01220 1.2kΩ 5% 0.01W 0402
3357 4822 117 13548 1kΩ 5% 0402
3358 4822 117 13545 100Ω 1% 0402
3359 3198 031 03910 390Ω 1% 0402
3370 3198 031 06810 680Ω 5% 0.01W 0402
3371 4822 117 13545 100Ω 1% 0402
3372 4822 117 13545 100Ω 1% 0402
3374 5322 117 11726 10Ω 5%
3378 4822 117 13545 100Ω 1% 0402
3380 4822 117 13548 1kΩ 5% 0402
3381 4822 117 13548 1kΩ 5% 0402
3382 4822 117 13548 1kΩ 5% 0402
3383 4822 117 13548 1kΩ 5% 0402
3386 4822 117 13545 100Ω 1% 0402
3389 4822 117 13545 100Ω 1% 0402
3390 4822 117 13545 100Ω 1% 0402
3391 4822 117 13545 100Ω 1% 0402

3392 4822 117 13545 100Ω 1% 0402
3393 4822 117 13545 100Ω 1% 0402
3394 3198 031 07590 75Ω 5% 0402
3401 2350 035 10229 4 x 22Ω 5% 1206
3402 2350 035 10229 4 x 22Ω 5% 1206
3403 2350 035 10229 4 x 22Ω 5% 1206
3404 2350 035 10229 4 x 22Ω 5% 1206
3405 2350 035 10229 4 x 22Ω 5% 1206
3406 2350 035 10229 4 x 22Ω 5% 1206
3407 2350 035 10229 4 x 22Ω 5% 1206
3408 2350 035 10229 4 x 22Ω 5% 1206
3409 2350 035 10229 4 x 22Ω 5% 1206
3410 2350 035 10229 4 x 22Ω 5% 1206
3411 2350 035 10229 4 x 22Ω 5% 1206
3412 2350 035 10229 4 x 22Ω 5% 1206
3413 2350 035 10229 4 x 22Ω 5% 1206
3414 3198 031 02290 22Ω 5% 0.1W 0402
3415 3198 031 01090 10Ω 5% 0.01W 0402
3416 4822 117 13548 1kΩ 5% 0402
3417 4822 117 13548 1kΩ 5% 0402
3418 3198 031 03910 390Ω 1% 0402
3422 3198 031 02290 22Ω 5% 0.1W 0402
3423 3198 031 03320 3.3kΩ 5% 0402
3424 2322 704 61501 150Ω 1% 0603
3425 4822 117 13606 10kΩ 5% 0.01W 0402
3426 3198 031 03320 3.3kΩ 5% 0402
3428 4822 117 13606 10kΩ 5% 0.01W 0402
3429 4822 117 13606 10kΩ 5% 0.01W 0402
3432 4822 117 13606 10kΩ 5% 0.01W 0402
3433 4822 117 13606 10kΩ 5% 0.01W 0402
3436 4822 117 13606 10kΩ 5% 0.01W 0402
3437 4822 117 13606 10kΩ 5% 0.01W 0402
3438 3198 031 11030 4 x 10kΩ 5% 1206
3439 3198 031 11030 4 x 10kΩ 5% 1206
3440 3198 031 11030 4 x 10kΩ 5% 1206
3441 3198 031 11030 4 x 10kΩ 5% 1206
3442 3198 031 11030 4 x 10kΩ 5% 1206
3443 4822 117 13606 10kΩ 5% 0.01W 0402
3444 4822 051 30103 10kΩ 5% 0.062W
3446 2322 704 61001 100Ω 1% 0603
3447 3198 031 02290 22Ω 5% 0.1W 0402
3448 3198 031 01090 10Ω 5% 0.01W 0402
3501 4822 117 12706 10kΩ 1% 0.063W 0603
3502 4822 117 12706 10kΩ 1% 0.063W 0603
3503 2322 704 61501 150Ω 1% 0603
3531 4822 117 13606 10kΩ 5% 0.01W 0402
3532 4822 117 13606 10kΩ 5% 0.01W 0402
3534 4822 117 13548 1kΩ 5% 0402
3536 4822 117 13606 10kΩ 5% 0.01W 0402
3538 3198 031 11030 4 x 10kΩ 5% 1206
3539 3198 031 11030 4 x 10kΩ 5% 1206
3540 3198 031 11030 4 x 10kΩ 5% 1206
3544 3198 031 11030 4 x 10kΩ 5% 1206
3545 3198 031 11030 4 x 10kΩ 5% 1206
3546 3198 031 11030 4 x 10kΩ 5% 1206
3547 3198 031 11030 4 x 10kΩ 5% 1206
3548 4822 117 13606 10kΩ 5% 0.01W 0402
3550 4822 051 30102 1kΩ 5% 0.062W
3553 4822 051 30102 1kΩ 5% 0.062W
3560 4822 117 11297 100kΩ 5% 0.1W
3561 4822 117 11297 100kΩ 5% 0.1W
3562 4822 117 11297 100kΩ 5% 0.1W
3563 4822 117 13548 1kΩ 5% 0402
3564 3198 031 01220 1.2kΩ 5% 0.01W 0402
3565 3198 031 01820 1.8kΩ 5% 0.01W 0402
3566 4822 117 13548 1kΩ 5% 0402
3567 4822 117 13596 220Ω 5% 0.01W 0402
3568 3198 031 01820 1.8kΩ 5% 0.01W 0402
3569 4822 117 13602 2.2kΩ 5% 0.01W 0402
3579 4822 117 13548 1kΩ 5% 0402
3580 4822 117 13543 470Ω 5% 0402
3581 3198 031 04730 47Ω 5% 0402
3605 4822 117 13545 100Ω 1% 0402
3606 4822 117 13545 100Ω 1% 0402
3607 4822 117 13545 100Ω 1% 0402
3608 4822 117 13545 100Ω 1% 0402
3609 4822 117 13545 100Ω 1% 0402
3610 4822 117 13601 22kΩ 5% 0402
3612 4822 117 13543 470Ω 5% 0402
3613 3198 031 02290 22Ω 5% 0.1W 0402
3614 3198 031 02290 22Ω 5% 0.1W 0402
3615 3198 031 02290 22Ω 5% 0.1W 0402
3616 3198 031 02290 22Ω 5% 0.1W 0402
3617 3198 031 02290 22Ω 5% 0.1W 0402
3618 3198 031 02290 22Ω 5% 0.1W 0402
3619 3198 031 08210 820Ω 5% 0.5W
3620 4822 117 13632 100kΩ 1% 0603 0.62W
3621 4822 117 13601 22kΩ 5% 0402
3622 4822 117 13601 22kΩ 5% 0402
3623 4822 117 13601 22kΩ 5% 0402
3624 4822 117 13601 22kΩ 5% 0402
3625 4822 117 13601 22kΩ 5% 0402
3626 4822 117 13601 22kΩ 5% 0402
3633 4822 117 13545 100Ω 1% 0402

3634 4822 117 13545 100Ω 1% 0402
3635 4822 117 13545 100Ω 1% 0402
3638 4822 117 13545 100Ω 1% 0402
3639 4822 117 13545 100Ω 1% 0402
3641 4822 117 13597 330Ω 5% 0402 0.01W
3642 4822 117 13597 330Ω 5% 0402 0.01W
3643 4822 117 13597 330Ω 5% 0402 0.01W
3644 4822 117 13597 330Ω 5% 0402 0.01W
3645 4822 117 13597 330Ω 5% 0402 0.01W
3646 4822 117 13597 330Ω 5% 0402 0.01W
3682 4822 051 30222 2.2kΩ 5% 0.062W
3688 4822 051 30222 2.2kΩ 5% 0.062W
3690 4822 051 30221 220Ω 5% 0.062W
3691 4822 051 30759 75Ω 5% 0.062W
3692 4822 051 30759 75Ω 5% 0.062W
3693 4822 051 30103 10kΩ 5% 0.062W
3694 4822 051 30221 220Ω 5% 0.062W
3695 4822 051 30759 75Ω 5% 0.062W
3696 4822 051 30103 10kΩ 5% 0.062W
3697 4822 051 30103 10kΩ 5% 0.062W
3698 4822 051 30223 22kΩ 5% 0.062W
3699 4822 051 30223 22kΩ 5% 0.062W
3700 4822 117 12925 47kΩ 1% 0.063W 0603
3701 4822 117 13548 1kΩ 5% 0402
3702 4822 117 13602 2.2kΩ 5% 0.01W 0402
3703 4822 117 13606 10kΩ 5% 0.01W 0402
3704 4822 117 13543 470Ω 5% 0402
3705 4822 117 13606 10kΩ 5% 0.01W 0402
3711 3198 031 03390 33Ω 1% 0402
3712 4822 117 13606 10kΩ 5% 0.01W 0402
3713 4822 117 13606 10kΩ 5% 0.01W 0402
3716 4822 117 13543 470Ω 5% 0402
3718 3198 031 03390 33Ω 1% 0402
3721 4822 117 13543 470Ω 5% 0402
3723 4822 117 13548 1kΩ 5% 0402
3724 4822 117 13606 10kΩ 5% 0.01W 0402
3728 4822 117 13602 2.2kΩ 5% 0.01W 0402
3729 3198 031 03920 3.9kΩ 5% 0402
3739 4822 117 13601 22kΩ 5% 0402
3740 4822 117 13601 22kΩ 5% 0402
3741 4822 117 11297 100kΩ 5% 0.1W
3742 4822 117 13601 22kΩ 5% 0402
3743 4822 117 13601 22kΩ 5% 0402
3745 4822 117 11297 100kΩ 5% 0.1W
3752 3198 031 01510 150Ω 5% 0.01W 0402
3753 3198 031 01510 150Ω 5% 0.01W 0402
3781 4822 117 12925 47kΩ 1% 0.063W 0603
3785 4822 051 30101 100Ω 5% 0.062W
3786 3198 021 31080 1Ω 5% 0603
3787 3198 021 31080 1Ω 5% 0603
3789 4822 051 30151 150Ω 5% 0.062W
3790 4822 051 30103 10kΩ 5% 0.062W
3791 4822 051 30102 1kΩ 5% 0.062W
3792 4822 051 30102 1kΩ 5% 0.062W
3793 4822 051 30102 1kΩ 5% 0.062W
3801 3198 031 13390 4X 33Ω 5% 1206
3802 3198 031 13390 4X 33Ω 5% 1206
3803 3198 031 13390 4X 33Ω 5% 1206
3804 3198 031 13390 4X 33Ω 5% 1206
3805 3198 031 13390 4X 33Ω 5% 1206
3806 3198 031 13390 4X 33Ω 5% 1206
3807 3198 031 03390 33Ω 1% 0402
3808 3198 031 04720 4.7kΩ 5% 0402
3809 3198 031 04720 4.7kΩ 5% 0402
3810 3198 031 04720 4.7kΩ 5% 0402
3813 3198 031 13390 4X 33Ω 5% 1206
3815 4822 117 13545 100Ω 1% 0402
3819 4822 117 13545 100Ω 1% 0402
3821 3198 031 03390 33Ω 1% 0402
3822 3198 031 04720 4.7kΩ 5% 0402
3823 3198 031 04720 4.7kΩ 5% 0402
3824 4822 117 13545 100Ω 1% 0402
3825 4822 117 13545 100Ω 1% 0402
3826 3198 021 31080 1Ω 5% 0603
3827 3198 021 31080 1Ω 5% 0603
3828 4822 117 13605 Jumper 0402
3830 3198 031 03390 33Ω 1% 0402
3831 3198 031 03920 3.9kΩ 5% 0402
3832 4822 117 13605 Jumper 0402
3834 4822 117 13545 100Ω 1% 0402
3835 3198 031 03910 390Ω 1% 0402
3836 4822 117 13606 10kΩ 5% 0.01W 0402
3838 4822 117 13606 10kΩ 5% 0.01W 0402
3876 3198 031 06890 68Ω 5% 0402
3877 3198 031 06890 68Ω 5% 0402
3879 3198 031 06890 68Ω 5% 0402
3883 3198 031 06890 68Ω 5% 0402
3886 4822 117 13606 10kΩ 5% 0.01W 0402
3887 4822 117 13606 10kΩ 5% 0.01W 0402
3910 4822 117 13602 2.2kΩ 5% 0.01W 0402
3911 4822 117 13548 1kΩ 5% 0402
3930 3198 021 31080 1Ω 5% 0603
3931 3198 021 31080 1Ω 5% 0603
3932 2322 704 61002 1kΩ 1%

EN 86 LC4.6L10.

Spare Parts List

3933 2322 704 63302 3.3kΩ 1% 0603
3951 3198 021 31080 1Ω 5% 0603
3952 3198 021 31080 1Ω 5% 0603
3953 2322 704 61002 1kΩ 1%
3954 2322 704 63302 3.3kΩ 1% 0603
3955 4822 117 13606 10kΩ 5% 0.01W 0402
3958 3198 031 01530 15kΩ 5% 0.01W 0402
4002 4822 117 13605 Jumper 0402
4005 4822 117 13605 Jumper 0402
4007 4822 117 13605 Jumper 0402
4008 4822 117 13605 Jumper 0402
4017 4822 117 13605 Jumper 0402
4018 4822 117 13605 Jumper 0402
4062 4822 117 13605 Jumper 0402
4360 4822 117 13605 Jumper 0402
4361 4822 117 13605 Jumper 0402
4362 4822 117 13605 Jumper 0402
4363 4822 117 13605 Jumper 0402
4580 4822 117 13605 Jumper 0402
4581 4822 117 13605 Jumper 0402
4583 4822 117 13605 Jumper 0402
4590 4822 117 13605 Jumper 0402
4601 4822 117 13605 Jumper 0402
4602 4822 117 13605 Jumper 0402
4603 4822 117 13605 Jumper 0402
4608 4822 117 13605 Jumper 0402
4714 4822 117 13605 Jumper 0402

b

5001 2422 536 00667 1000µF 20% 7032
5002 4822 157 11716 Bead 30Ω at 100MHz
5003 4822 157 11716 Bead 30Ω at 100MHz
5004 4822 157 11716 Bead 30Ω at 100MHz
5005 4822 157 11716 Bead 30Ω at 100MHz
5006 4822 157 11716 Bead 30Ω at 100MHz
5007 4822 157 11716 Bead 30Ω at 100MHz
5008 4822 157 11716 Bead 30Ω at 100MHz
5060 4822 157 11716 Bead 30Ω at 100MHz
5070 4822 157 11716 Bead 30Ω at 100MHz
5071 2422 549 42896 Bead 120Ω 100MHz
5072 2422 549 42896 Bead 120Ω 100MHz
5251 2422 549 45333 Bead 120Ω 100MHz
5252 2422 549 45333 Bead 120Ω 100MHz
5257 2422 549 45333 Bead 120Ω 100MHz
5258 2422 549 45333 Bead 120Ω 100MHz
5262 2422 535 94134 10µH 20% 0805
5267 2422 536 00339 33µ 20%
5268 2422 535 94995 10µF 20% 10145
5304 4822 157 11499 Bead 60Ω at 100MHz
5321 3198 018 33970 0.39µF 10% 0805
5370 4822 157 11716 Bead 30Ω at 100MHz
5371 4822 157 11716 Bead 30Ω at 100MHz
5372 4822 157 11716 Bead 30Ω at 100MHz
5530 2422 549 45333 Bead 120Ω 100MHz
5560 4822 157 11716 Bead 30Ω at 100MHz
5580 3198 018 31080 1µF 10% 0805
5605 2422 549 45333 Bead 120Ω 100MHz
5607 2422 549 45333 Bead 120Ω 100MHz
5636 2422 549 45333 Bead 120Ω 100MHz
5681 2422 549 45333 Bead 120Ω 100MHz
5682 2422 549 45333 Bead 120Ω 100MHz
5688 2422 549 45333 Bead 120Ω 100MHz
5689 2422 549 45333 Bead 120Ω 100MHz
5690 2422 549 45333 Bead 120Ω 100MHz
5691 2422 549 45333 Bead 120Ω 100MHz
5720 4822 157 11716 Bead 30Ω at 100MHz
5721 4822 157 11716 Bead 30Ω at 100MHz
5722 4822 157 11716 Bead 30Ω at 100MHz
5801 2422 549 42896 Bead 120Ω 100MHz
5802 2422 549 42896 Bead 120Ω 100MHz
5803 2422 549 42896 Bead 120Ω 100MHz
5804 2422 549 42896 Bead 120Ω 100MHz
5805 2422 549 42896 Bead 120Ω 100MHz
5874 2422 549 45333 Bead 120Ω 100MHz
5910 2422 536 00667 1000µF 20% 7032
5920 2422 549 45333 Bead 120Ω 100MHz
5930 2422 535 94134 10µH 20% 0805
5931 2422 536 00689 220µF 20%
5932 2422 535 94134 10µH 20% 0805
5952 2422 535 94134 10µH 20% 0805
5953 2422 536 00689 220µF 20%
5954 2422 535 94134 10µH 20% 0805
5956 2422 549 45333 Bead 120Ω 100MHz
5957 2422 549 45333 Bead 120Ω 100MHz
5984 2422 549 45333 Bead 120Ω 100MHz
5985 2422 549 45333 Bead 120Ω 100MHz
5986 2422 549 45333 Bead 120Ω 100MHz
5987 2422 549 45333 Bead 120Ω 100MHz
5988 2422 549 45333 Bead 120Ω 100MHz
5989 2422 549 45333 Bead 120Ω 100MHz
5990 2422 549 45333 Bead 120Ω 100MHz
5991 2422 549 45333 Bead 120Ω 100MHz

5994 2422 549 45333 Bead 120Ω 100MHz
5996 2422 549 45333 Bead 120Ω 100MHz
5997 2422 549 45333 Bead 120Ω 100MHz
5998 2422 549 45333 Bead 120Ω 100MHz

d

6001 4822 130 11397 BAS316
6005 9340 553 52115 BAS321
6020 4822 130 11397 BAS316
6021 4822 130 11397 BAS316
6073 4822 130 80622 BAT54
6259 9322 128 70685 SMSS14
6262 3198 010 10720 SS24
6267 3198 010 10730 SS36
6270 4822 130 10837 UDZS8.2B
6328 4822 130 11416 PDZ6.8B
6329 4822 130 11416 PDZ6.8B
6330 4822 130 11416 PDZ6.8B
6331 4822 130 11416 PDZ6.8B
6563 9322 102 64685 UDZ2.7B
6565 4822 130 10838 UDZ3.3B
6604 4822 130 11397 BAS316
6605 4822 130 11397 BAS316
6634 9322 102 64685 UDZ2.7B
6635 9322 102 64685 UDZ2.7B
6638 9322 102 64685 UDZ2.7B
6639 9322 102 64685 UDZ2.7B
6692 4822 130 11397 BAS316
6701 9322 102 64685 UDZ2.7B
6910 5322 130 34337 BAV99
6911 9340 548 71115 PDZ33B
6930 9322 128 70685 SMSS14
6951 9322 128 70685 SMSS14

ce

7001 9339 693 90135 BCP69-25
7002 9340 425 20115 BC847BS
7003 9339 693 90135 BCP69-25
7005 9340 547 13215 BSH103
7011 For SW see item 7050
7012 3198 010 42310 BC847BW
7013 3198 010 42310 BC847BW
7014 3198 010 42310 BC847BW
7015 9322 208 05668 SM NE555D
7016 9322 208 05668 SM NE555D
7017 9322 208 05668 SM NE555D
7018 5322 130 60159 BC846B
7019 5322 130 60159 BC846B
7050 3104 317 08691 SW (See Prod. Survey)
7051 3104 317 08711 SW (See Prod. Survey)
7054 3104 317 06681 SW (See Prod. Survey)
7055 3104 317 07151 SW (See Prod. Survey)
7070 9340 547 13215 BSH103
7099 9322 214 45668 M24C16-WMN6P
7139 5322 130 42755 BC847C
7201 3198 010 42320 BC857BW
7260 9322 139 16668 LF33CPT
7262 9322 202 34668 L5973D
7271 3198 010 42310 BC847BW
7272 3198 010 42310 BC847BW
7370 9340 550 49115 PUMH7
7371 9340 550 49115 PUMH7
7372 9340 550 49115 PUMH7
7376 9340 425 10115 BC857BS
7377 9340 425 10115 BC857BS
7401 9322 200 07671 GM1501-LF-BD
7416 9322 157 51685 SI12301DS
7501 9322 214 42671 K4D263238F-QC50
7530 For SW see item 7051
7531 9322 206 23668 M24C32-WMN6P
7532 9322 215 39685 PST596JN
7560 9352 334 10118 TDA9178T/N1
7561 9340 425 30115 BC847BPN
7562 9322 199 24668 L7808CD2T
7563 4822 209 73852 PMBT2369
7579 4822 130 11155 PDTC114ET
7580 9322 199 16668 M74HC590T
7581 9322 199 16668 M74HC590T
7582 9322 208 98668 M68AF031AM70N6
7583 9351 870 00118 74HC573PW
7584 9351 870 00118 74HC573PW
7585 3198 010 42310 BC847BW
7604 9352 607 39118 74LVC14APW
7605 4822 209 60792 74HC4053D
7606 9322 199 56668 ADG781BCP
7607 9322 199 80668 SM5301BS-G
7693 For SW see item 7054
7706 9351 742 70118 74HC08PW
7708 9340 425 20115 BC847BS
7710 9340 310 50215 PDTA143ET

7713 3198 010 42310 BC847BW
7714 3198 010 42310 BC847BW
7740 9322 183 05668 TS482ID
7801 For SW see item 7055
7806 9965 000 04199 BSN20
7807 9965 000 04199 BSN20
7808 9322 199 35671 SII9993CTG100
7809 9352 703 94118 UDA1334BT/N2
7810 3198 010 70350 74HCT4053D
7887 3198 010 42310 BC847BW
7910 4822 130 42804 BC817-25
7920 9322 163 24668 L78M08CDT
7930 5322 209 90529 MC34063AD
7952 5322 209 90529 MC34063AD
7954 9322 157 51685 SI12301DS
7955 4822 130 11155 PDTC114ET
7992 9322 142 88668 LF25CDT
7995 9322 189 19668 LD1086D2T18

LCD supply 30"-32" [AS]

Various

1007h 4822 071 55002 Fuse T5A 250V
1304 2422 025 10647 Connector 4p m
1305 4822 267 10735 Connector 3p

h 2422 025 16374 Connector 2p m

1306
1307 2422 025 10647 Connector 4p m

h 4822 265 20723 Connector 2p

1308
1309 2422 025 11143 Connector 3p m

h 2422 086 00208 Fuse 4A T 250V

1400
1402 4822 252 60151 Surge protect
1410 4822 265 11253 Fuse holder
1411 4822 265 11253 Fuse holder

h 2422 132 07411 Relay 1p 5V 5A

1450
1M02 2422 025 11244 Connector 7p m

g

2000h 2252 811 95022 1.5nF 20% 250V
2002 4822 124 11767 470µF 20% 25V
2003 4822 124 80061 1000µF 20% 25V
2007 4822 126 14583 470nF 10% 16V 0805
2008 4822 126 14583 470nF 10% 16V 0805
2009 2238 867 18101 100pF 1% 50V 0603
2010 4822 124 40207 100µF 20% 25V
2011 2222 375 24153 15nF 5% 1kV
2012 4822 126 14138 680pF 10% 2kV
2013 4822 126 14138 680pF 10% 2kV

h 4822 126 13451 2.2nF 10% 2kV

2014
2015 5322 126 11583 10nF 10% 50V 0603
2016 2238 586 59812 100nF 20% 50V 0603
2017 2222 375 24153 15nF 5% 1kV
2019 5322 126 11583 10nF 10% 50V 0603
2020 4822 124 12285 2200µF 20% 16V
2021 4822 124 12285 2200µF 20% 16V
2022 2020 021 00039 1800µF 20% 35V
2023 4822 126 14583 470nF 10% 16V 0805
2024 2020 552 96326 220nF 10% 16V
2025 2020 552 96683 220nF 10% 50V
2026 4822 126 14238 2.2nF 50V 0603
2028 5322 126 11578 1nF 10% 50V 0603
2029 5322 126 11578 1nF 10% 50V 0603
2033 2020 552 96683 220nF 10% 50V
2034 2238 867 18101 100pF 1% 50V 0603
2035 2238 867 18101 100pF 1% 50V 0603
2038 2020 021 00039 1800µF 20% 35V
2039 4822 126 14583 470nF 10% 16V 0805
2040 4822 126 14249 560pF 10% 50V 0603
2041 2020 552 96683 220nF 10% 50V
2042 2020 552 96683 220nF 10% 50V
2043 2020 552 96683 220nF 10% 50V
2044 5322 126 11578 1nF 10% 50V 0603
2045 5322 126 11578 1nF 10% 50V 0603
2046 3198 017 34730 47nF 16V 0603
2047 5322 126 11583 10nF 10% 50V 0603
2048 5322 126 11578 1nF 10% 50V 0603
2050 5322 126 11578 1nF 10% 50V 0603
2051 2020 552 96683 220nF 10% 50V
2052 2020 552 96683 220nF 10% 50V
2053 2020 552 96683 220nF 10% 50V
2060 4822 126 14238 2.2nF 50V 0603
2061 4822 126 14238 2.2nF 50V 0603
2062 4822 126 14238 2.2nF 50V 0603
2063 4822 126 13881 470pF 5% 50V
2064 4822 126 13881 470pF 5% 50V
2065 4822 126 14238 2.2nF 50V 0603
2071 5322 126 11578 1nF 10% 50V 0603
2072 5322 126 11578 1nF 10% 50V 0603
2077 4822 126 14238 2.2nF 50V 0603
2290 5322 126 11583 10nF 10% 50V 0603

Spare Parts List

EN 87LC4.6L 10.

2291 4822 126 13881 470pF 5% 50V
2292 4822 124 12417 2200µF 20% 25V
2293 4822 126 13881 470pF 5% 50V
2294 4822 124 12417 2200µF 20% 25V
2401

h 2222 338 22474 470nF 20% 275V

2407

h 2252 811 95017 470pF 10% 250V

2815 2020 024 90748 820µF 20% 250V
2816 2020 024 00002 820µF 20% 250V

f

3000h 4822 052 10478 4.7Ω 5% 0.33W
3001 4822 051 30101 100Ω 5% 0.062W
3002 4822 051 30393 39kΩ 5% 0.062W
3003 4822 117 13632 100kΩ 1% 0603 0.62W
3004 4822 051 30273 27kΩ 5% 0.062W
3005 4822 051 30333 33kΩ 5% 0.062W
3006 4822 051 30103 10kΩ 5% 0.062W
3007 4822 051 30103 10kΩ 5% 0.062W
3008 4822 051 30331 330Ω 5% 0.062W
3009 4822 051 30332 3.3Ω 5% 0.062W
3010 4822 051 30471 47Ω 5% 0.062W
3011 4822 051 30471 47Ω 5% 0.062W
3012 4822 051 30153 15kΩ 5% 0.062W
3013 4822 051 30103 10kΩ 5% 0.062W

h 4822 052 10101 100Ω 5% 0.33W

3014

h 4822 052 10479 47Ω 5% 0.33W

3015
3016 4822 051 30332 3.3Ω 5% 0.062W

h 4822 052 10101 100Ω 5% 0.33W

3017
3018

h 4822 052 10479 47Ω 5% 0.33W

3019 4822 051 30332 3.3Ω 5% 0.062W
3020 4822 051 30332 3.3Ω 5% 0.062W
3022 4822 051 30681 680Ω 5% 0.062W
3023 4822 051 30153 15kΩ 5% 0.062W
3025 3198 021 31820 1.8kΩ 5% 0.062W 0603
3026 2120 368 90118 Potm. lin. 470Ω hor.
3027 4822 117 13632 100kΩ 1% 0603 0.62W
3028 4822 051 30332 3.3Ω 5% 0.062W
3029 4822 051 30332 3.3Ω 5% 0.062W
3030 4822 051 30183 18kΩ 5% 0.062W
3031 4822 051 30103 10kΩ 5% 0.062W
3032 4822 051 30103 10kΩ 5% 0.062W

h 4822 052 11108 1Ω 5% 0.5W

3033
3034 4822 051 30102 1kΩ 5% 0.062W
3035 4822 051 30332 3.3Ω 5% 0.062W
3040 5322 117 13056 8.2kΩ 1% 0.063W 0603
3041 4822 051 30333 33kΩ 5% 0.062W
3043 4822 051 30109 10Ω 5% 0.062W
3047 4822 051 30479 47Ω 5% 0.062W
3048 4822 051 30272 2.7kΩ 5% 0.062W
3050 4822 050 28204 820kΩ 1% 0.6W
3052 2322 704 67502 7.5kΩ 1% 0.5W
3053 4822 050 26804 680kΩ 1% 0.6W
3055 4822 051 30221 220Ω 5% 0.062W
3056 4822 117 12968 820Ω 5% 0.62W
3057 4822 051 30221 220Ω 5% 0.062W
3061 4822 051 30683 68kΩ 5% 0.062W
3064 4822 051 30103 10kΩ 5% 0.062W
3065 4822 117 13632 100kΩ 1% 0603 0.62W
3066 4822 051 30103 10kΩ 5% 0.062W
3067 4822 051 30101 100Ω 5% 0.062W
3068 4822 051 30222 2.2kΩ 5% 0.062W
3070 4822 051 30102 1kΩ 5% 0.062W
3071 4822 051 30103 10kΩ 5% 0.062W
3075 4822 051 30102 1kΩ 5% 0.062W
3089 4822 051 30103 10kΩ 5% 0.062W
3100 4822 051 30102 1kΩ 5% 0.062W
3101 4822 051 30102 1kΩ 5% 0.062W
3292 4822 051 30561 560Ω 5% 0.062W

h 2122 550 00158 VDR 1mA 612V

3400

h 4822 053 21475 4.7MΩ 5% 0.5W

3401
3402

h 4822 053 21475 4.7MΩ 5% 0.5W
h 4822 053 21475 4.7MΩ 5% 0.5W

3403
3404 4822 116 83872 220Ω 5% 0.5W
3999 4822 051 30683 68kΩ 5% 0.062W

b

5001 2422 531 02444 Transformer S13932-04Y
5002

h 3104 308 21231 Transf. 2652.0001A

5005 4822 526 10704 Bead 50 Ω at 100MHz
5007 4822 526 10704 Bead 50 Ω at 100MHz
5008 4822 526 10704 Bead 50 Ω at 100MHz
5009 4822 157 11411 Bead 80Ω at 100MHz
5010 4822 157 11411 Bead 80Ω at 100MHz
5013 4822 526 10704 Bead 50 Ω at 100MHz
5015 4822 157 11411 Bead 80Ω at 100MHz
5016 4822 157 11411 Bead 80Ω at 100MHz
5017 4822 526 10704 Bead 50 Ω at 100MHz
5025 4822 526 10704 Bead 50 Ω at 100MHz
5026 4822 526 10704 Bead 50 Ω at 100MHz
5027 4822 526 10704 Bead 50 Ω at 100MHz

5028 4822 526 10704 Bead 50 Ω at 100MHz
5040 4822 157 11411 Bead 80Ω at 100MHz
5291 2422 536 00776 33µH 10%
5292 2422 536 00776 33µH 10%
5293 2422 536 00776 33µH 10%
5401

h 2422 549 43563 Filt. 23MHz 3A DMF3520
h 2422 549 43563 Filt. 23MHz 3A DMF3520

5402

d

6002 4822 130 11397 BAS316
6003 4822 130 11397 BAS316
6004 4822 130 80622 BAT54
6005 4822 130 80622 BAT54
6006 4822 130 11397 BAS316
6007 4822 130 11397 BAS316
6008 4822 130 11397 BAS316
6009 4822 130 11152 UDZ18B
6010 4822 130 11397 BAS316
6011 4822 130 11397 BAS316
6012 9322 208 80685 BZG05C15
6013 9322 208 80685 BZG05C15
6014 9340 548 67115 PDZ22B
6015 4822 130 11397 BAS316
6017 4822 130 11397 BAS316
6020 4822 130 11397 BAS316
6021 9322 206 26687 STPS20H100CT
6022 4822 130 11148 UDZ4.7B
6023 4822 130 11397 BAS316
6025 9322 206 26687 STPS20H100CT
6027 4822 130 11397 BAS316
6028 4822 130 11397 BAS316
6044 9322 207 11687 STPS20L45CT
6045 9322 207 11687 STPS20L45CT
6051 4822 130 11397 BAS316
6077 9322 202 55685 BYG22D
6078 9322 202 55685 BYG22D
6079 9322 202 55685 BYG22D
6080 9322 202 55685 BYG22D
6081 9340 548 67115 PDZ22B
6154 9322 099 61685 BYG10J
6155 9322 099 61685 BYG10J
6291 4822 130 11572 STPS8H100F
6293 4822 130 11572 STPS8H100F
6460 4822 130 11397 BAS316
6461 4822 130 11397 BAS316
6506

h 4822 130 83147 DF06M
h 9322 199 74682 GBJ6J-B15

6807

ce

7001 9322 108 21682 MC34067P

h 9322 149 04682 TCET1102

7002
7004 3198 010 42310 BC847BW
7005 9322 192 18687 STP15NK50ZFP
7006 9322 192 18687 STP15NK50ZFP
7007 3198 010 42320 BC857BW
7008 3198 010 42320 BC857BW
7009 3198 010 42320 BC857BW
7010 9322 125 09668 TL431AID
7017 3198 010 42320 BC857BW
7018 3198 010 42310 BC847BW
7030 3198 010 42310 BC847BW

Side I/O Assy [D]

Various

0900 2422 026 05133 Connector SVHS 4p f
0901 4822 267 10975 Soc. Cinch f YeWhRd
0902 4822 267 31014 Soc. head phone
0936 2422 025 12485 Connector 11p m
1100 3139 188 52541 Side I/O Panel
1900 2422 026 05133 Connector SVHS 4p f
1901 4822 267 10975 Soc. Cinch f YeWhRd
1902 4822 267 31014 Soc. head phone
1936 2422 025 12485 Connector 11p m
8936 3104 311 06121 Cable 11p/560/11p

g

2903 5322 122 32531 100pF 5% 50V
2904 5322 122 32531 100pF 5% 50V
2905 4822 122 33177 10nF 20% 50V
2905 5322 122 32654 22nF 10% 63V 0805
2906 4822 122 33177 10nF 20% 50V
2906 5322 122 32654 22nF 10% 63V 0805

f

3901 4822 117 11373 100Ω 1% 0805
3902 4822 116 52201 75Ω 5% 0.5W
3903 4822 117 11373 100Ω 1% 0805
3904 4822 116 52201 75Ω 5% 0.5W
3905 4822 050 11002 1kΩ 1% 0.4W
3906 4822 050 11002 1kΩ 1% 0.4W
3908 4822 050 11002 1kΩ 1% 0.4W
3910 4822 116 52276 3.9Ω 5% 0.5W
3911 4822 050 21003 10kΩ 1% 0.6W
3912 4822 050 21003 10kΩ 1% 0.6W
4901 4822 051 20008 Jumper 0805
4903 4822 051 20008 Jumper 0805

Top Control [E]

Various

0345 4822 267 10459 Connector 3p
1014 3104 328 25451 Top control LCD
1701 2422 128 02778 Tact switch
1702 2422 128 02778 Tact switch
1703 2422 128 02778 Tact switch
1704 2422 128 02778 Tact switch
1705 2422 128 02778 Tact switch
8345 3104 311 07211 Cable 3P/560/3P

f

3001 4822 051 20391 390Ω 5% 0.1W
3003 4822 117 13528 200Ω 1% 0.125W 0805
3005 4822 117 11951 2kΩ 1% 0.1W
3009 4822 117 11534 1.1kΩ 1% 0.1W
3011 4822 117 10845 620Ω 1% 0.1W
3999 4822 051 20471 470Ω 5% 0.1W
9001 4822 051 20008 Jumper 0805
9003 4822 051 20008 Jumper 0805
9005 4822 051 20008 Jumper 0805
9006 4822 051 20008 Jumper 0805

LED + Switch [J]

Various

0320 2422 025 16545 Connector 10p m
1101 2422 128 03123 Switch 2p 2pos 30V

g

2107 4822 124 12095 100µF 20% 16V
2120 3198 030 71090 10µF 20% 35V
2126 4822 126 14583 470nF 10% 16V 0805

f

3101 4822 051 30151 150Ω 5% 0.062W
3103 4822 051 30331 330Ω 5% 0.062W
3105 4822 051 30681 680Ω 5% 0.062W
3106 4822 051 30151 150Ω 5% 0.062W
3107 4822 051 30471 47Ω 5% 0.062W
3108 4822 051 30103 10kΩ 5% 0.062W
3109 4822 051 30101 100Ω 5% 0.062W
3120 4822 051 30472 4.7Ω 5% 0.062W
3121 4822 051 30103 10kΩ 5% 0.062W
3122 4822 051 30332 3.3Ω 5% 0.062W
3123 4822 051 30332 3.3Ω 5% 0.062W
3124 4822 051 30102 1kΩ 5% 0.062W
3126 2322 702 60335 3.3MΩ 5% 0603
3127 2322 702 60335 3.3MΩ 5% 0603
3128 4822 051 30472 4.7Ω 5% 0.062W
4101 4822 051 30008 Jumper 0603
4107 4822 051 30008 Jumper 0603
4108 4822 051 30008 Jumper 0603
4111 4822 051 30008 Jumper 0603

b

5100 2422 549 43769 Bead 30Ω at 100MHz

d

6101 4822 130 11564 UDZ3.9B
6103 4822 130 83915 TLMV3100
6105 4822 130 11564 UDZ3.9B
6127 9322 140 63685 TEMD5000

EN 88 LC4.6L10.

Spare Parts List

ce

7103 3198 010 42320 BC857BW
7105 3198 010 42320 BC857BW
7107 9322 206 81667 TSOP34836YA1
7120 5322 209 82941 LM358D

LCD Stand-by / Audio [SA]

Various

1304 2422 025 10647 Connector 4p m
1305 4822 267 10735 Connector 3p
1306 2422 025 16374 Connector 2p m
1307 2422 025 10647 Connector 4p m
1309 2422 025 11143 Connector 3p m
1312 2422 025 18166 Connector 16p m
1313 2422 025 18166 Connector 16p m
1315 2422 025 10771 Connector 10p m
1317 2422 025 10772 Connector 12p m
1735 2422 025 10768 Connector 3p m
1735 4822 267 10918 Connector 3p
1736 2422 025 10768 Connector 3p m
1739 2422 025 10769 Connector 9p m
1M02 2422 025 11244 Connector 7p m
1M03 2422 025 10771 Connector 10p m
1M10 2422 025 09406 Connector 4p m
1M46 2422 025 10655 Connector 11p m

g

2101 4822 121 51598 2.2nF 5% 400V
2102 4822 124 40207 100µF 20% 25V
2103 2020 552 94427 100pF 5% 50V
2105 2020 552 94427 100pF 5% 50V
2107 2020 024 90718 10µF 20% 450V
2108 2020 024 90718 10µF 20% 450V
2109 2022 552 05679 1µF 10% 16V 0805
2110 2022 552 05679 1µF 10% 16V 0805
2111 4822 121 43526 47nF 5% 250V
2112 5322 126 11583 10nF 10% 50V 0603
2123 2238 586 59812 100nF 20% 50V 0603
2124 4822 124 40248 10µF 20% 63V
2129 5322 126 11578 1nF 10% 50V 0603
2131 2238 586 15641 22nF 10% 50V 0603
2132 4822 124 40207 100µF 20% 25V
2140 4822 124 40248 10µF 20% 63V
2141 4822 126 14583 470nF 10% 16V 0805
2144 2022 552 05679 1µF 10% 16V 0805
2145 4822 126 13881 470pF 5% 50V
2149 2022 552 05679 1µF 10% 16V 0805
2150 4822 124 12379 220µF 25V
2152 4822 121 70162 10nF 5% 400V
2153 5322 126 11582 6.8nF 10% 63V
2154 3198 017 31530 15nF 20% 50V 0603
2160 4822 124 21913 1µF 20% 63V
2163 4822 124 40207 100µF 20% 25V

h 2252 811 95017 470pF 10% 250V

2506
2507 4822 126 13682 100pF 5% 1kV
2508 4822 124 40764 22µF 100V
2510 2020 021 91668 2200µF 20% 10V
2511 4822 124 12379 220µF 25V
2513 4822 126 10206 2.2nF 10% 500V
2515 4822 126 14238 2.2nF 50V 0603
2533 4822 124 40207 100µF 20% 25V
2534 2022 552 05679 1µF 10% 16V 0805
2535 5322 126 11583 10nF 10% 50V 0603
2536 5322 126 11583 10nF 10% 50V 0603
2537 4822 126 14238 2.2nF 50V 0603
2538 5322 126 11583 10nF 10% 50V 0603
2539 2022 552 05679 1µF 10% 16V 0805
2540 5322 126 11583 10nF 10% 50V 0603
2544 5322 126 11583 10nF 10% 50V 0603
2701 4822 124 12379 220µF 25V
2702 5322 126 11578 1nF 10% 50V 0603
2704 5322 126 11578 1nF 10% 50V 0603
2705 2020 552 96684 470nF 10% 25V 0805
2706 2222 580 15649 100nF 10% 50V 0805
2707 4822 126 14585 100nF 10% 0805 50V
2708 2020 552 96326 220nF 10% 16V
2709 4822 126 13881 470pF 5% 50V
2710 4822 126 13881 470pF 5% 50V
2711 5322 126 11578 1nF 10% 50V 0603
2712 2020 552 96683 220nF 10% 50V
2713 2020 552 96684 470nF 10% 25V 0805
2714 3198 017 33330 33nF 20% 16V 0603
2715 5322 126 11578 1nF 10% 50V 0603
2716 4822 126 14241 330pF 0603 50V
2717 5322 121 42498 680nF 5% 63V
2718 4822 122 33761 22pF 5% 50V

2719 5322 126 11578 1nF 10% 50V 0603
2720 2020 552 96326 220nF 10% 16V
2721 4822 126 13881 470pF 5% 50V
2722 4822 126 13881 470pF 5% 50V
2725 2020 552 94427 100pF 5% 50V
2726 3198 017 33330 33nF 20% 16V 0603
2727 5322 126 11578 1nF 10% 50V 0603
2728 4822 126 14241 330pF 0603 50V
2729 5322 121 42498 680nF 5% 63V
2764 4822 126 14491 2.2µF 10V 0805
2766 4822 126 14491 2.2µF 10V 0805
2768 4822 124 40255 100µF 20% 63V
2769 4822 124 40255 100µF 20% 63V
2777 2020 552 96683 220nF 10% 50V
2778 4822 124 40769 4.7µF 20% 100V
2779 2020 552 96683 220nF 10% 50V
2780 2020 552 96683 220nF 10% 50V
2781 2020 552 96683 220nF 10% 50V
2783 4822 124 41751 47µF 20% 50V
2785 4822 124 12379 220µF 25V
2786 2238 586 15641 22nF 10% 50V 0603
2786 4822 124 12379 220µF 25V
2788 4822 124 40255 100µF 20% 63V
2789 2020 552 96683 220nF 10% 50V
2790 4822 124 40255 100µF 20% 63V

f

3100 4822 051 30101 100Ω 5% 0.062W
3101 4822 053 20475 4.7MΩ 5% 0.25W
3102 2312 915 11002 1kΩ 1% 0.5W
3103 2312 915 11002 1kΩ 1% 0.5W
3104 4822 051 30479 47Ω 5% 0.062W
3105 4822 051 30221 220Ω 5% 0.062W
3106 4822 051 30391 390Ω 5% 0.062W
3107 4822 051 30391 390Ω 5% 0.062W
3108 4822 053 10478 4.7Ω 5% 1W
3109 4822 051 30391 390Ω 5% 0.062W
3110 4822 051 30391 390Ω 5% 0.062W
3111 4822 053 10152 1.5kΩ 5% 1W
3112 4822 051 30391 390Ω 5% 0.062W
3113 9965 000 23109 22Ω 5% 0603
3114 4822 051 30221 220Ω 5% 0.062W
3117 4822 051 30479 47Ω 5% 0.062W
3122 4822 051 30471 47Ω 5% 0.062W
3123 4822 051 30109 10Ω 5% 0.062W
3124 4822 051 30339 33Ω 5% 0.062W
3125 4822 117 12971 15Ω 5% 0603 0.62W
3126 4822 051 30103 10kΩ 5% 0.062W
3127 4822 051 30562 5.6kΩ 5% 0.063W 0603
3128 4822 117 13608 4.7Ω 5% 0603 0.62W
3132 4822 051 30333 33kΩ 5% 0.062W
3134 4822 051 30102 1kΩ 5% 0.062W
3135 4822 051 30331 330Ω 5% 0.062W
3138 4822 051 30105 1MΩ 5% 0.062W
3140 4822 051 30223 22kΩ 5% 0.062W
3141 4822 051 30471 47Ω 5% 0.062W
3142 4822 051 30123 12kΩ 5% 0.1W
3145 4822 051 30472 4.7Ω 5% 0.062W
3146 4822 051 30479 47Ω 5% 0.062W
3147 4822 051 30223 22kΩ 5% 0.062W
3148 4822 051 30479 47Ω 5% 0.062W
3149 4822 051 30103 10kΩ 5% 0.062W
3150 4822 051 30101 100Ω 5% 0.062W
3152 4822 051 30102 1kΩ 5% 0.062W
3153 4822 051 30223 22kΩ 5% 0.062W
3155 4822 050 21003 10kΩ 1% 0.6W
3156 4822 051 30102 1kΩ 5% 0.062W
3157 4822 051 30223 22kΩ 5% 0.062W
3158 4822 051 30479 47Ω 5% 0.062W
3159 4822 051 30479 47Ω 5% 0.062W
3160 4822 051 30102 1kΩ 5% 0.062W
3161 4822 051 30123 12kΩ 5% 0.1W
3171 4822 051 30101 100Ω 5% 0.062W
3172 4822 051 30333 33kΩ 5% 0.062W
3175 4822 051 30103 10kΩ 5% 0.062W
3176 4822 051 30103 10kΩ 5% 0.062W
3509 4822 053 10222 2.2kΩ 5% 1W
3511 4822 051 30683 68kΩ 5% 0.062W
3512 4822 051 30471 47Ω 5% 0.062W
3513 4822 051 30333 33kΩ 5% 0.062W
3515 4822 117 13632 100kΩ 1% 0603 0.62W
3516 4822 051 30472 4.7Ω 5% 0.062W
3517 4822 051 30223 22kΩ 5% 0.062W
3528 4822 051 30472 4.7Ω 5% 0.062W
3529 4822 051 30101 100Ω 5% 0.062W
3530 4822 051 30223 22kΩ 5% 0.062W
3531 4822 051 30153 15kΩ 5% 0.062W
3532 4822 051 30472 4.7Ω 5% 0.062W
3533 4822 051 30152 1.5Ω 5% 0.062W
3534 4822 051 30103 10kΩ 5% 0.062W
3535 4822 051 30222 2.2kΩ 5% 0.062W
3536 4822 051 30103 10kΩ 5% 0.062W

3538 4822 051 30101 100Ω 5% 0.062W
3539 4822 051 30471 47Ω 5% 0.062W
3540 4822 051 30222 2.2kΩ 5% 0.062W
3541 4822 051 30222 2.2kΩ 5% 0.062W
3542 4822 051 30103 10kΩ 5% 0.062W
3544 4822 051 30221 220Ω 5% 0.062W
3560 4822 051 30682 6.8Ω 5% 0.062W
3561 4822 051 30392 3.9Ω 5% 0.063W 0603
3562 4822 117 13608 4.7Ω 5% 0603 0.62W
3701 4822 051 30103 10kΩ 5% 0.062W
3702 4822 051 30682 6.8Ω 5% 0.062W
3703 4822 051 30333 33kΩ 5% 0.062W
3704 4822 117 10833 10kΩ 1% 0.1W
3705 4822 051 20828 8.2Ω 5% 0.1W
3706 4822 051 30472 4.7Ω 5% 0.062W
3707 4822 051 30683 68kΩ 5% 0.062W
3708 4822 051 30563 56kΩ 5% 0.062W
3709 4822 117 11503 220Ω 1% 0.1W
3710 4822 051 30223 22kΩ 5% 0.062W
3711 4822 050 21204 120kΩ 1% 0.6W
3712 4822 051 30103 10kΩ 5% 0.062W
3713 2312 915 11202 1.2kΩ 1% 0.5W
3714 4822 117 12925 47kΩ 1% 0.063W 0603
3715 4822 117 12925 47kΩ 1% 0.063W 0603
3716 4822 117 12925 47kΩ 1% 0.063W 0603
3717 4822 117 13632 100kΩ 1% 0603 0.62W
3718 4822 117 13632 100kΩ 1% 0603 0.62W
3721 4822 051 30472 4.7Ω 5% 0.062W
3722 4822 051 30683 68kΩ 5% 0.062W
3723 4822 051 30563 56kΩ 5% 0.062W
3724 4822 117 11503 220Ω 1% 0.1W
3725 4822 051 30223 22kΩ 5% 0.062W
3726 4822 117 11503 220Ω 1% 0.1W
3727 4822 117 11503 220Ω 1% 0.1W
3743 4822 117 11449 2.2kΩ 5% 0.1W 0805
3746 4822 051 30223 22kΩ 5% 0.062W
3747 4822 050 24703 47kΩ 1% 0.6W
3747 4822 117 12925 47kΩ 1% 0.063W 0603
3748 4822 051 30471 47Ω 5% 0.062W
3750 4822 117 11449 2.2kΩ 5% 0.1W 0805
3756 4822 117 11449 2.2kΩ 5% 0.1W 0805
3757 4822 117 11449 2.2kΩ 5% 0.1W 0805
3759 4822 051 30332 3.3Ω 5% 0.062W
3760 4822 051 30332 3.3Ω 5% 0.062W
3761 4822 051 10102 1kΩ 2% 0.25W
3761 4822 051 20109 10Ω 5% 0.1W
3762 4822 051 30222 2.2kΩ 5% 0.062W
3763 4822 051 30222 2.2kΩ 5% 0.062W
3764 4822 051 10102 1kΩ 2% 0.25W
3764 4822 051 20109 10Ω 5% 0.1W
3765 4822 051 30103 10kΩ 5% 0.062W
3765 4822 117 13632 100kΩ 1% 0603 0.62W
3766 4822 051 30103 10kΩ 5% 0.062W
3766 4822 117 13632 100kΩ 1% 0603 0.62W
3767 4822 051 30103 10kΩ 5% 0.062W
3767 4822 117 13632 100kΩ 1% 0603 0.62W
3768 4822 051 30103 10kΩ 5% 0.062W
3768 4822 117 13632 100kΩ 1% 0603 0.62W
3790 4822 051 30222 2.2kΩ 5% 0.062W
3790 4822 051 30682 6.8Ω 5% 0.062W
3791 4822 051 30222 2.2kΩ 5% 0.062W
3791 4822 051 30682 6.8Ω 5% 0.062W
3792 4822 051 30153 15kΩ 5% 0.062W
3792 4822 051 30183 18kΩ 5% 0.062W
3792 4822 051 30682 6.8Ω 5% 0.062W
3793 4822 051 30153 15kΩ 5% 0.062W
3793 4822 051 30183 18kΩ 5% 0.062W
3793 4822 051 30682 6.8Ω 5% 0.062W
3798 4822 051 30153 15kΩ 5% 0.062W
3999 4822 051 30472 4.7Ω 5% 0.062W
9020 4822 051 30008 Jumper 0603
9717 4822 051 30008 Jumper 0603
9737 4822 051 30008 Jumper 0603

b

5102 4822 526 10704 Bead 50 Ω at 100MHz
5103 4822 526 10704 Bead 50 Ω at 100MHz
5104 4822 157 11411 Bead 80Ω at 100MHz
5105 4822 157 11716 Bead 30Ω at 100MHz
5106 3198 018 31090 10µH 10% 0805
5108 4822 526 10704 Bead 50 Ω at 100MHz
5110 4822 157 71736 10µH 5%
5500

h 3104 308 21181 Transf. BS25320-00
h 8204 000 76901 Transformer BS25320-00

5500
5504 2422 536 00776 33µH 10%
5505 4822 157 11411 Bead 80Ω at 100MHz
5506 4822 157 11411 Bead 80Ω at 100MHz
5507 2422 536 00433 15µH 10%
5701 2422 536 00385 68µH 10%
5702 2422 536 00385 68µH 10%
5703 4822 157 11716 Bead 30Ω at 100MHz
5705 4822 157 11716 Bead 30Ω at 100MHz

5707 4822 157 11411 Bead 80Ω at 100MHz
5708 4822 157 11411 Bead 80Ω at 100MHz
5711 4822 157 11411 Bead 80Ω at 100MHz
5712 4822 157 11411 Bead 80Ω at 100MHz
5730 2422 549 00112 Line filt. 50V 3A
5731 2422 549 00112 Line filt. 50V 3A

d

6103 4822 130 10871 SBYV27-200
6104 9340 548 69115 PDZ27B
6105 4822 130 11522 UDZ15B
6106 9340 548 66115 PDZ20B
6108 4822 130 80622 BAT54
6114 4822 130 10871 SBYV27-200
6115 4822 130 80622 BAT54
6116 3198 020 55680 BZX384-C5V6
6120 4822 130 11397 BAS316
6121 4822 130 11397 BAS316
6122 9322 129 34685 BZM55-C3V9
6130 9340 548 61115 PDZ12B
6132 4822 130 11416 PDZ6.8B
6133 4822 130 11397 BAS316
6134 4822 130 11397 BAS316
6140 4822 130 41487 BYV95C
6142 4822 130 80622 BAT54
6144 4822 130 11397 BAS316
6147 9322 200 23685 SML4736
6148 4822 130 11397 BAS316
6149 3198 020 55680 BZX384-C5V6
6150 9340 292 50135 BZG03-C200
6151 9340 548 71115 PDZ33B
6153 9340 292 50135 BZG03-C200
6156 4822 130 11397 BAS316
6504 9340 418 70133 BYV27-600
6505 9322 161 78682 SB360L-7024
6511 9340 548 61115 PDZ12B
6531 4822 130 11522 UDZ15B
6532 4822 130 11397 BAS316
6540 4822 130 80622 BAT54
6562 9340 548 67115 PDZ22B
6701 4822 130 11397 BAS316
6702 4822 130 11551 UDZS10B
6703 4822 130 11551 UDZS10B

Spare Parts List

EN 89LC4.6L 10.

ce

7100 3198 010 42320 BC857BW
7101 9340 219 30115 BC817-25W
7102 9322 160 34687 FQPF3N60
7102 9322 194 27687 STP3NK60ZFP
7105 3198 010 42320 BC857BW
7131 9340 557 69127 PHX9NQ20T
7140 3198 010 42310 BC847BW

h 9322 149 04682 TCET1102

7150

h 9322 149 04682 TCET1102

7501
7505 3198 010 42320 BC857BW
7506 3198 010 42310 BC847BW
7507 3198 010 42310 BC847BW
7508 3198 010 42310 BC847BW
7509 3198 010 42310 BC847BW
7511 9337 331 10215 BST82
7512 9340 422 80115 PMSTA42
7531 9340 436 50115 BSP030
7532 3198 010 42310 BC847BW
7560 9340 219 30115 BC817-25W
7700 9322 163 86682 TDA7490L
7701 3198 010 42310 BC847BW
7703 3198 010 42310 BC847BW
7704 3198 010 42310 BC847BW
7705 3198 010 42310 BC847BW
7706 3198 010 42320 BC857BW
7707 3198 010 42310 BC847BW
7708 3198 010 42310 BC847BW
7709 3198 010 42310 BC847BW
7710 3198 010 42310 BC847BW
7711 3198 010 42310 BC847BW

EN 90 LC4.6L11.

11. Revision List

Manual xxxx xxx xxxx.0

• First release.

Revision List
