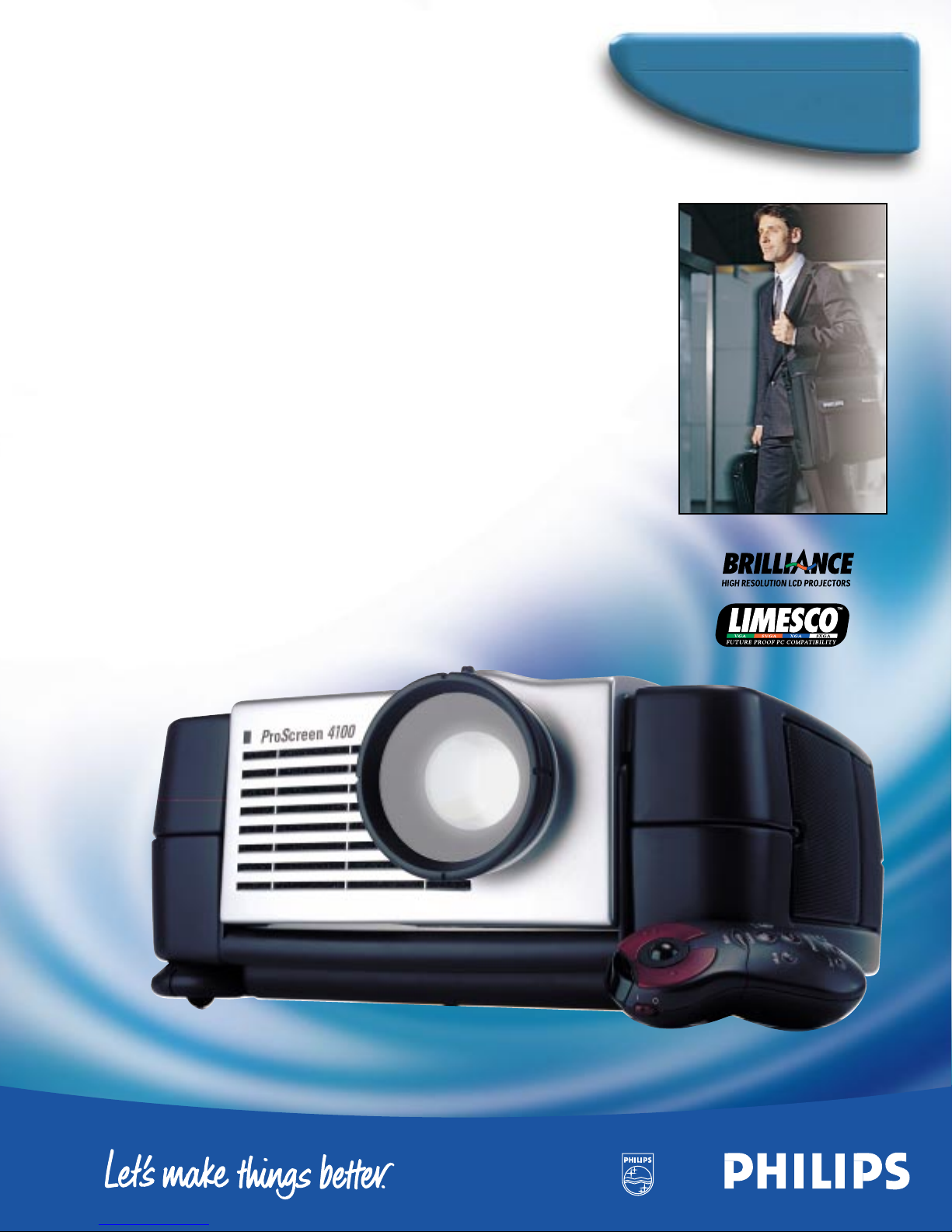

ProScreen™4100
•
Philips LIMESCOTM: unique and future-proof
PC
and MAC compatibility (SXGA, XGA,
SVGA and VGA)
•
Unique UHP lamp offering highest average
brightness (300 ANSI lumens) and longest lamp
life:
up to 4000 hours
• Perfect picture quality in video and data
with true SVGA LCD panels
• Cost effective performance
•
Intuitive controls put you confidently in control
• Manual keystone correction
• True portability: only 17.5 lbs.
• Ceiling and wall mountable
• Reliability, robust design and worldwide
professional service
Portable Multimedia Projector
LC4100G
®
Page 2
Portable Multimedia Projector
LC4100G
For further information: Philips Creative Display Solutions,
1-800-504-9978 or visit http://www.philipslcd.com.
Brilliance & ProScreen are registered trademarks of Philips Electronics N.V. Design and
specifications subject to change without notice. Printed in the United States.
The Philips ProScreen™4100 multimedia projector is an
advanced SVGA LCD projector with the versatility to
make
light work of the most demanding presentation situation. Offering full interactive capability from any video
or computer source, it combines ease of use and reliability
with crisp, brilliant picture quality for a perfect presen-
tation
every time. The ProScreen 4100 gives you
high
edge-to-edge perceived picture brightness and color
accuracy that remain constant, thanks to the Philips
UHP (Ultra High Performance) lamp.
Special features
• Philips LIMESCO
TM
(LIne MEmory Scan COnverter) inside for
full automatic Multi Scan data input handling, VGA (640 x 480)
up to SXGA (1280 x 1024) resolutions without information loss.
•
UHP lamp; up to 4000 hour lamp life with constant light output
• Full PC control via ergonomic trackball IR Remote Control
supports 360º control of projector
• Intuitive Graphic User Interface offering: Display and Audio
controls, 3 personal preference settings, front/rear screen
projection (horizontal mirror function), table/ceiling setting
(vertical mirror function)
• Fully Plug and Play compatible (VESA standard DDC 1/2B)
• Line doubling technique for perfect video performance
• Built-in loudspeaker for multimedia presentations
• Low fan noise
• Manual keystone correction
Technical specifications
Brightness • 300 ANSI Lumen
Contrast • 150:1
Lamp • UHP 120 W; End user replaceable
• up to 4000 hours
Lens • F 7.5; f= 212 mm
• Throw Distance / Picture size:
1.3m /40”; 5.8m / 200”
• Keystone correction:
10º - 23º (manually adjustable)
LCD • 1x 6.4" Amorphous Active Matrix TFT
• 1,440,000 pixels, RGB stripe
Audio • 6 Watt (built in loudspeaker)
Package • ProScreen 4100
• VGA cable + MAC adapter
• Mouse cable set (for RS232 and ADB)
• Video/audio cable (RCA cable)
• Power cord
• Remote control pouch: RC, disk,
mouse guide + 3x AA batteries
• User guide (in 8 languages)
Versions LC 4100/17 USA version
LC 4100/40 All other countries
Input/Output Capability
INPUT SIGNALS
Video • NTSC-M (3.58), NTSC 4.43; PAL-B/G,
PAL-N, PAL-M; Secam
Data 1 and 2 • PC and MAC compatible, Multi scan, SXGA,
XGA, SVGA, VGA via LIMESCO
full screen S
VGA display; Auto Identification
Hor. scan rate up to 80 kHz;
Vert. refresh rate up to 85 Hz.
Power In • 100 - 127 V / 200 - 240 V (switchable);
50/60 Hz; 180 W
INPUT CONNECTIONS
Video • S-Video (Y/C din); Video (RCA);
Stereo Audio (2x RCA)
Data 1 and 2 • 15 pin mini sub-D; PC Stereo Audio (M3)
Mains • Mains input socket (3 pin)
OUTPUT CONNECTIONS
Audio • Stereo Line output (2x RCA)
DC Out • 12 V DC out for accessories
Data 1 and 2 • Serial mouse (RS232) and ADB
Diagonal Distance Vertical Horizontal
Size (in.) To Screen (ft.) Size (ft.) Size (ft.)
24" 2.6 1.2 1.6
60" 6.4 3 4
96" 10.2 4.8 6.4
120" 12.8 6 8
156" 16.6 7.8 10.4
LCD PROJECTION DISTANCE CHART
Screen Sizes
Distance Diagonal Horizontal Vertical
To Screen (ft.) Size (in.) Size (ft.) Size (ft.)
5 45" 3.1 2.3
8 75" 5.0 3.8
12 112" 7.5 5.6
15 139" 9.4 7.0
20 186" 12.5 9.4
LCD SCREEN SIZE CHART
LC4000/4100
Philips
Creative Display Solutions
Product Product Carton Shipping Country
Dimensions Weight Size Weight Master of
Model # UPC Code W x H x D (in.) (lbs.) (in.) (lbs.) Pack Origin
LC4100G 037849852439 15.75 x 7.25 x 13 17.5 21 x 28.5 x 15 31 1 Austria
Carton Shipping Country
Size Weight Master of
Model # Description UPC Code L x W x H (in.) (lbs.) Pack Origin
LCA11070 Protective soft carrying case 037849858592 19.8 x 16.2 x 6.33 4.2 1 Netherlands
HCASE400 Protective ATA hard carrying037849858615 26 x 13.25 x 19.75 32 1 USA
case with handles & wheels
LCA31030 Replacement bulb 037849858554 5.9 x 5.9 x 6.7 2.2 3 Belgium
LCA22020 Ceiling mount 037849 24.9 x 9.5 x 8.3 22 1 Netherlands
LCA41100 Remote control 037849858561 6.7 x 4.8 x 3.6 .5 1 Netherlands
Screen60 Portable 60" screen 037849853511 60 x 6 x 5.5 12 1 USA
PROSCREEN 4000 AND PROSCREEN 4100
