Philips LC13E Service Manual

Colour Television Chassis

LC13E

Contents Page Contents Page

1 Technical Specifications, Connections,

and Chassis Overview 2 2 Safety Instructions, Warnings, and Notes 5 3 Directions for Use 6 4 Mechanical Instructions 11 5 Service Modes, Error messages,

and Repair Tips 15 6 Block Diagrams, Testpoint Overviews,

and Waveforms

Wiring Diagram 13 & 15 Inch 23

Wiring Diagram 20 Inch 24

Block Diagram (Tuner-IF-Video) 25

Block Diagram (TV Control and Inverter Panel) 26

Testpoint Overview TV Board 27

Block Diagram (Scaler Board) 28

Testpoint Overview Scaler Board 29

I2C-IC’s and Error Codes Overview 30

Powerlines Overview 31 7 Electrical Diagrams and PWB lay-outs Diagram PWB

TV Board: U_Cont (Diagram A1) 32 43-62

TV Board: Mem for 100-pg Txt (Diagram A2) 33 43-62

TV Board: Tuner Function (Diagram A3) 34 43-62

TV Board: IF Video Sync Chr. (Diagram A4) 35 43-62

TV Board: SAW Filter (Diagram A5) 36 43-62

TV Board: Analog Comb Filter (Diagram A6) 37 43-62

TV Board: Audio Delay Line (Diagram A7) 38 43-62

TV Board: Audio Processing (Diagram A8) 39 43-62

TV Board: Audio Ampl. (Diagram A9) 40 43-62

TV Board: Local Supply (Diagram A10) 41 43-62

TV Board: SCART I/O (Diagram A11) 42 43-62

Scaler Board: Power (Diagram C1) 63 68-69

Scaler Board: I/O & Interface (Diagram C2) 64 68-69

Scaler Board: Video Decoder (Diagram C3) 65 68-69

Scaler Board: Output (LVDS) (Diagram C4) 66 68-69

Copyright 2004 Philips Consumer Electronics B.V. Eindhoven, The Netherlands. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.

Scaler Board: Video Converter (Diagram C5) 67 68-69 Top Control (Diagram E) 70 71 Inverter Panel (13”) (Diagram IN1) 72 73 Inverter Panel (15”) (Diagram IN1) 74 76 Inverter Panel (15”) (Diagram IN2) 75 76 Inverter Panel (20”) (Diagram IN1) 77 79 Inverter Panel (20”) (Diagram IN2) 78 79

Front LED Panel (Diagram J) 80 80 8 Alignments 81 9 Circuit Descriptions 85

Abbreviation List 97

IC Data Sheets 99 10 Spare Parts List 100 11 Revision List 105

Published by RB 0461 Service PaCE Printed in the Netherlands Subject to modification EN 3122 785 14031

EN 2 LC13E1.

Technical Specifications, Connections, and Chassis Overview

1. Technical Specifications, Connections, and Chassis Overview

1.1 Technical Specifications

1.1.1 Reception

Tuning system : PLL Colour systems : PAL B/G,

: PAL D/K, : SECAM B/G, : SECAM D/K : SECAM L, : SECAM L1 :

Sound system : 2CS BG,

: NICAM B/G, : NICAM D/K, : NICAM I, : NICAM L,

Built-in radio type : FM Speakers : Full range

: 13”: 2 x 3 W_rms : 15”: 2 x 3 W_rms : 20”: 2 x 5 W_rms

Frequency bands : UVSH IF Freq. : 38.9 MHz Channel selections : 100 channels

: Full cable, UVSH

Aerial input : 75 ohm

: Coax IEC-type

Pixel format : 13”: 640 x 480 (VGA)

: 15”: 1024 x 768 (XGA) : 20”: 640 x 480 (VGA)

Viewing angle : 13”: 120 x 90 degrees

: 15”: 176 x 170

degrees

: 17”: 176 x 170

degrees

1.1.2 Miscellaneous

Mains voltage 13”/15” : External power

Supply

: Input: 100-240 Vac, : 1.5 A : Output: 12V dc, : +/- 0.6 V, 60 W

Mains voltage 20” : External power

Supply

: Input: 100-240 V ac, : 1.5 A : Output: 24V dc, : +/- 1.2 V, 120 W

Mains frequency : 50/60 Hz Operating temperature : + 5 to + 35 deg. C Storage temp. : -20 to 60 deg. C. Maximum humidity : 90% R.H. max

(< 40(ºC)

Power dissipation : 13”: 35 W

: 15”: 50 W : 20”: 60 W

Standby Power dissipation : 1 W Weight : 13”: 4.5 kg

: 15”: 5.0 kg : 20”: 8.5 kg

Dim. 13” model (WxHxD) : 344x322x65 mm Dim. 15” model (WxHxD) : 377x361x70 mm Dim. 20” model (WxHxD) : 477x435x81 mm

1.2 Controls

1.2.1 Front + Top Controls

TOP CONTROLS

FRONT CONTROLS

LED IR

CL 36532073_040.eps

011203

Figure 1-1 Front + Top Controls.

1.3 Connections

1.3.1 Left side Connections A/V

LEFT SIDE CONNECTIONS

HEADPHONE

Video

Audio

CL 36532073_108.eps

Figure 1-2 Left side connections.

Audio - Out

- Headphone,

stereo 32 - 600 ohm/10 mW o

S-VHS - In (Hosiden)

1 - Y Ground H 2 - C Ground H 3 - Y 1 Vpp/75 ohm j 4 - C 0.3 Vpp/75 ohm j

Video - In (Cinch)

- CVBS 1 Vpp/75 ohm jq

Audio - In (Cinch)

- Audio - L 0.5 Vrms/10 kohm jq

- Audio - R 0.5 Vrms/10 kohm jq

1.3.2 Bottom Connections

BOTTOM CONNECTIONS

DC in

CL 36532073_044.eps

Figure 1-3 Bottom Connections

060104

FM ANT

291003

Technical Specifications, Connections, and Chassis Overview

DC - In

- 13”/15”: 12 V_dc/5A/60 W

20”: 24V_dc/5A/60 W jr

Aerial - In (IEC)

- IEC type 75 ohm, coax D

FM Ant (IEC)

- IEC type 75 ohm, coax D

1.3.3 Rear Connections

SCART EXT1 - In/Out (RGB/YUV and CVBS)

121

EN 3LC13E 1.

CL96532137_056.eps

Figure 1-4 Rear connections

1 - Audio - R 0.5 Vrms/1 kohm k 2 - Audio - R 0.5 Vrms/10 kohm j 3 - Audio - L 0.5 Vrms/1 kohm k 4 - Audio Ground H 5 - Blue Ground H 6 - Audio - L 0.5 Vrms/10 kohm j 7 - Blue 0.7 Vpp/75 ohm j 8 - CVBS-status 0 - 1.3 V: INT

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j

9 - Green Ground H 10 - N.C. 11 - Green 0.7 Vpp/75 ohm j 12 - N.C. 13 - Red Ground H 14 - Blanking Ground H 15 - Red 0.7 Vpp/75 ohm j 16 - RGB-status/

FBL 0 - 0.4 V: INT

1 - 3 V: EXT/75 ohm j 17 - Video in/out Ground H 18 - RGB sw. ctrl Ground H 19 - CVBS-out 1 Vpp/75 ohm k 20 - CVBS-in 1 Vpp/75 ohm j 21 - Common Ground H

202

171199

EN 4 LC13E1.

1.4 Chassis Overview

1.4.1 13”/15” model

TOP CONTROL PANEL

Technical Specifications, Connections, and Chassis Overview

LCD PANEL

TO LCD PANEL

INVERTER

PANEL

SCALER

BOARD

FRONT LED

1.4.2 20” model

PANEL

Right

Speaker

1402_8P

ComPair

Figure 1-5 Chassis Overview 13”/15” model

Left

Speaker

TV BOARD

CL 36532073_054.eps

191103

TOP CONTROL PANEL

INVERTER

PANEL

SCALER

BOARD

FRONT LED

PANEL

Right

Speaker

LCD PANEL

TO LCD PANEL

ComPair

Left

Speaker

TV BOARD

CL 36532073_055.eps

191103

Figure 1-6 Chassis Overview 20” model

Safety Instructions, Warnings, and Notes

2. Safety Instructions, Warnings, and Notes

EN 5LC13E 2.

2.1 Safety Instructions

Safety regulations require that during a repair:

• Always connect the set to the mains via an isolation

transformer (≥ 800 VA).

• Replace safety components, indicated by the symbol h,

only by components identical to the original ones.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay, in particular, attention to the following points:

• Route the wire trees and HT cables correctly and fix them

with the mounted cable clamps.

• Check the insulation of the mains lead for external

damage.

• Check the cabinet for defects, to avoid touching of any

inner parts by the customer.

2.2 Warnings

• All ICs and many other semiconductors are susceptible to

electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential. Available ESD protection equipment: – Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable and earth cable) 4822 310 10671.

– Wristband tester 4822 344 13999.

• Be careful during measurements in the high voltage

section (on the inverter panel).

• Never replace modules or other components while the unit

is switched 'on'.

• When you align the set, use plastic rather than metal tools.

This will prevent any short circuits and the danger of a circuit becoming unstable.

2.3 Notes

2.3.1 General

• Clean the LCD display with a slightly humid cloth.

• Measure the direct voltages and oscillograms with regard

to the chassis ground (H), or hot ground (I) as this is called.

• The direct voltages and oscillograms shown in the

diagrams are indicative. Measure them in the Service Default Mode (see section “Service Modes”).

• Where necessary, measure the voltages in the power

supply section both in normal operation (G) and in standby (F). These values are indicated by means of the appropriate symbols.

• The semiconductors indicated in the circuit diagram and in

the parts lists, are interchangeable per position with the semiconductors in the unit, irrespective of the type indication on these semiconductors.

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An 'asterisk' (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed in the Electrical Replacement Parts List. Therefore, always check this list when there is any doubt.

2.3.3 Rework on BGA ICs

General

Although (LF)BGA assembly yields are very high, there may still be a requirement for component rework. By rework, we mean the process of removing the component from the PWB and replacing it with a new component. If an (LF)BGA is removed from a PWB, the solder balls of the component are deformed drastically so the removed (LF) BGA has to be discarded.

Device Removal

As is the case with any component, it is essential when removing an (LF) BGA that the board, tracks, solder lands, or surrounding components are not damaged. To remove an (LF)BGA, the board must be uniformly heated to a temperature close to the reflow soldering temperature. A uniform temperature reduces the chance of warping the PWB. To do this, we recommend that the board is heated until it is certain that all the joints are molten. Then carefully pull the component off the board with a vacuum nozzle. For the appropriate temperature profiles, see the IC data sheet.

Area Preparation

When the component has been removed, the vacant IC area must be cleaned before replacing the (LF)BGA. Removing an IC often leaves varying amounts of solder on the mounting lands. This excessive solder can be removed with either a solder sucker or solder wick. The remaining flux can be removed with a brush and cleaning agent. After the board is properly cleaned and inspected, apply flux on the solder lands and on the connection balls of the (LF) BGA. Note: Do not apply solder paste, as this has shown to result in problems during re-soldering.

Device Replacement

The last step in the repair process is to solder the new component on the board. Ideally, the (LF)BGA should be aligned under a microscope or magnifying glass. If this is not possible, try to align the (LF)BGA with any board markers. To reflow the solder, apply a temperature profile according to the IC data sheet. So as not to damage neighbouring components, it may be necessary to reduce some temperatures and times

2.3.2 Schematic Notes

• All resistor values are in ohms and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 kohm).

• Resistor values with no multiplier may be indicated with either an 'E' or an 'R' (e.g. 220E or 220R indicates 220 ohm).

• All Capacitor values are expressed in Micro-Farads (µ=

-6

x10

), Nano-Farads (n= x10-9), or Pico-Farads (p= x10

-12

EN 6 LC13E3.

”

564

879

[

SMART

SMART RADIO

Remote control keys

List of programmes

To display/ clear the list of programmes.

Use the keys

îÏ

to select a

programme and the key

to display it.

The symbol

is displayed alongside

all programmes which are locked (p.9) or

if they are not locked.

Screen information

To display / remove the programme

number,the name (if it exists), the

time, the sound mode and the time

remaining on the timer. Hold down

for 5 seconds to permanently

display the programme number on

the screen.The volume level and the

smart control adjustments are then

displayed each time they are used.

To call up or exit the menus.

Sleeptimer

To select the length of time before

the set automatically switches to

standby (from 0 to 240 minutes).

Cursor / Format 16:9

These 4 keys are used to navigate

through the menus.The

È¬

keys are used to enlarge or

compress the picture vertically.

Volume

To adjust the sound level.

Mute

To mute or restore the sound.

Select peripherals (p.11)

Press several times to select the

required EXT connector.

Numerical keys

For direct access to programmes.

For a 2 digit programme number,

the 2

digit must be entered

before the dash disappears.

Standby

To set the TV to standby mode.

To switch the TV set on again,

press

Radio / TV mode

To switch the TV set to radio or

TV mode .

Teletext (p. 10)

Teletext keys (p.10)

Smart picture and sound

Used to access a series of

predefined

picture and sound

settings.

The PERSONAL position relates to

settings selected from the menus.

Selecting TV programmes

To move up or down a programme.

The number,(the name) and the

sound

mode are displayed for a few

seconds.

For some TV programmes the title of

the programme appears at the

bottom of the screen.

Previous programme

To access the previously viewed

programme.

Sound mode

Used to force programmes in STEREO

and

NICAM STEREO

MONO

or,

for bilingual programmes, to choose

between

DUAL I

DUAL II

When the sound mode is switched to

MONO, the indication is displayed in red.

Presentation of the LCD Television

Television keys:

• .: to switch the TV on or off.

• - + : to adjust sound level.

• <> : to select programmes.

• MENU: to access or close menus, simultaneously

press the - and + keys. The <> keys can be used to

select an adjustment and the - + keys to make that

adjustment.

Note

: when the CHILD LOCK function is activated the

- + and <> keys are unavailable (refer to FEATURES

menu on page 9).

On-light and infrared sensors.

Rear of set :

The main connections are made at the bottom of the television.

For more details on connections see page 12.

EXT1 socket

Side connections

Adjustable stand.

The stand can be removed and replaced with a

wall mounting kit available as an option (ask your

dealer).

TV and radio aerial sockets

DC supply socket

3. Directions for Use

Directions for Use

Video

Audio

EXT1

FM ANT

DC in

Directions for Use

Quick installation

Sorting programmes

The first time you switch on the television, a

menu appears on the screen.This menu asks

you to choose the language of the menus :

If the menu does not appear, hold down the - and +

keys on the set for 8 seconds to bring it up.

& Use the

îÏ

keys on the remote control to

choose your language then confirm with

é Then select your country using the

îÏ

keys and confirm with

If your country does not appear in the list, select “.. .”

“ Tuning starts automatically.

The operation takes several minutes.

A display shows the search status and the

number of programmes found.When it has

finished the menu disappears.

To exit or interrupt the search, press the

key.

If no programmes are found, refer to the chapter

entitled Tips on p. 12.

‘ If the transmitter or the cable network

broadcasts the automatic sort signal, the

programmes will be correctly numbered.

( If not, the programmes found will be numbered

in descending order starting at 99, 98,97, etc.

Use the SORT menu to renumber them.

Some transmitters or cable networks broadcast

their own sort parameters (region, language, etc.).

Where this is the case, make your choice using the

îÏ

keys and confirm with

& Press the

key.The main menu is displayed.

é Select INSTALL (

), then press

The INSTALL menu appears.

“ Using the

key, select SORT then press

.The SORT menu appears.The FROM

option is activated.

Note:

this menu works as follows:

• Change "FROM" (enter the current programme

number),

• "TO" (enter the new number),

• EXCHANGE numbers" (the operation is carried out).

‘ Select the programme you wish to renumber

using

È¬

keys or

Example: to renumber programme 78 as

2 press

( Select TO (using

key) and enter the new

number with

È¬

keys or

(for the example given, enter

§ Select EXCHANGE (

key) and press

The message EXCHANGED appears, the

exchange takes place. In our example,

programme 78 is renumbered as 2

(and programme 2 as 78).

è Select the option FROM (

key) and repeat

stages ‘ to § as many times as there are

programmes to renumber.

! To exit from the menus, press

• PICTURE

• SOUND

• FEATURES

• INSTALL

INSTALL

• LANGUAGE

• COUNTRY

• AUTO STORE

• MANUAL STORE

• SORT

• NAME

FROMTOEXCHANGE

SELECT LANGUAGE

LANGUAGE

•

ENGLISH

DANSK

NEDERLANDS

FINNISH

FRANCAIS

COUNTRY

AUSTRIA

BELGIUM

SWITZERLAND

GERMANY

DENMARK

& Positioning the television set

Place your TV on a solid stable surface. To avoid

danger do not expose the TV to water, or a heat

source (e.g. lamp, candle, radiator). Do not obstruct

the ventilation grid at the rear.

Connecting the aerials

• Connect the

socket situated at the bottom

of the TV to your aerial socket.

• Insert the radio aerial lead supplied into the FM

ANT socket located at the bottom of the TV.

• Arrange the leads by passing them through the

television stand.

“

Power supply connections

The TV works with a DC supply (the voltage is

indicated on the label). Only use the AC-DC

adaptor supplied with the TV.

• Connect the DC plug of the adaptor to the TV DC

socket. Leave a space round the adaptor for

ventilation.

• Insert the adaptor power lead and insert the mains

plug into the wall socket.

For connecting other appliances see page p.12.

‘

Remote control

Insert the two R6-type batteries supplied, making

sure they are the right way round.

The batteries supplied with the appliance do not

contain mercury or nickel cadmium so as to protect

the environment. Please do not discard your used

batteries, but use the recycling methods available

(consult your distributor).

(

Switching on

To switch on the set, press the on/off key.

A green indicator comes on and the screen lights

up. Go straight to the Quick Installation chapter on

page 5. If the TV remains in standby mode (red

indicator), press the P

key on the remote

control.

The indicator will flash when you use the remote control.

Installing your television set

EN 7LC13E 3.

5 cm

FM ANT.

EN 8 LC13E3.

Manual tuning

This menu allows you to store the

programmes one by one.

& Press

é Select INSTALL (

), then press

The INSTALL menu appears.

“ Select MANUAL STORE (

) then press

The menu appears :

‘ Press

to go to the SYSTEM menu.

Use

îÏ

to choose EUROPE (automatic

detection*) or manual detection with WEST

EUR (standard BG reception), EAST EUR

(standard DK reception), UK (standard I

reception) or FRANCE (standard LL').

Then press

to exit from the menu.

* Except for France (standard LL'): select the

option FRANCE.

( Select SEARCH and press

The search begins.As soon as a programme is

found, the search will stop. If you know the

frequency of the programme required,enter

its number directly using the

keys and

go to step è.

If no programme is found, refer to the Tips chapter

on page 12).

§ If reception is un-satisfactory,select FINE

TUNE and hold down

key.

è Select PROG.NO (programme number) and

use the

È¬

keys to enter

the desired number.

! Select STORE and press

.The message

STORED appears.The programme is stored.

ç Repeat steps ( to ! for each programme to

be stored.

To exit: press the

key.

• PICTURE

• SOUND

• FEATURES

• INSTALL

INSTALL

MANUAL STORE

• SYSTEM

• SEARCH

• PROG. NO.

• FINE TUNE

• STORE

EUROPE

WEST EUR

EAST EURUKFRANCE

Using the radio

Choosing radio mode

Press the

key on the remote control to

switch the TV to radio mode.

In radio mode the number and name of the

station (if available), its frequency and the

sound mode are indicated on the screen.

To enter the name of the stations use the NAME

menu. (p.7)

Selecting programmes

Use the

keys to select the

FM stations (from 1 to 40).

List of radio stations

Press the

key to display / hide the list of

radio stations.Then use the cursor to select a

station.

Using the radio menus

Use the

key to access the specific radio

settings.

Searching radio stations

If you have used the quick installation all the

available FM stations will be stored.To start a

new search use the INSTALL menu :

AUTO STORE (for a complete search) or

MANUAL STORE (for a station by station

search).

The SORT and NAME menus let you classify

or name the radio stations.These menus work

in exactly the same way as the TV menus.

Screen saver

In the FEATURES menu you can activate /

close the screen saver.The time, the frequency

of the station and its name (if available) move

across the screen.

Programme name

You may,if you wish, give a name to the first

40 programmes (from 1 to 40).

& Press

é Select INSTALL (

), then press

The INSTALL menu appears.

“ Press

5 times to select NAME (concealed

at the bottom of the screen), then press

The menu appears :

‘ Select the programme you wish to name using

the keys

Note:

at the time of installation, the programmes

are automatically named when the identification

signal is transmitted.

( Use the keys

È¬

to move within the

name display area (5 characters).

§ Use keys

îÏ

to choose the characters.

è Press

when the name has been entered.

The programme name is stored.

! Repeat steps ‘ to è for each programme to

be named.

ç To exit from the menus, press

INSTALL

• LANGUAGE

• COUNTRY

• AUTO STORE

• MANUAL STORE

• SORT

•

NAME

BBC_1

Choosing a language and country

Automatic tuning

& Press the

key to display the main menu.

é Select INSTALL (

), then press

The INSTALL menu appears.

The LANGUAGE option is activated.

“ Press

to go into the LANGUAGE menu.

‘ Select your language with the

îÏ

keys.

The menus will appear in the chosen language.

( Press

to exit the LANGUAGE menu.

§ Select the option COUNTRY and press

è Select your country with

îÏ

keys.

If your country does not appear in the list, select

OTHER.

! Press

to exit the COUNTRY menu.

ç To exit from the menus, press

This menu allows you to automatically search

for all the programmes available in your region

(or on your cable network).

& First carry out operations & to ! above,then:

é Press

once to select AUTO STORE then

press

.The search begins.

After several minutes, the INSTALL menu

reappears automatically.

“ If the transmitter or the cable network

broadcasts the automatic sort signal, the

programmes will be correctly numbered.

‘ If not, the programmes found will be

numbered in descending order starting at 99,

98, 97,etc.

Use the SORT menu to renumber them.

Some transmitters or cable networks broadcast

their own sort parameters (region, language, etc.).

Where this is the case, make your choice using the

îÏ

keys and confirm with

To exit or interrupt the search, press the

key.

If no picture is found, refer to the chapter entitled

Tips on p. 12.

( To exit from the menus, press

• PICTURE

• SOUND

• FEATURES

• INSTALL

INSTALL

• LANGUAGE

• COUNTRY

• AUTO STORE

• MANUAL STORE

• SORT

•

NAME

ENGLISH

DANSK

NEDERLANDS

INSTALL

• LANGUAGE

• COUNTRY

• AUTO STORE

• MANUAL STORE

• SORT

•

NAME

SEARCHING

PLEASE WAIT

PROG. NO. 2

215.18 MHZ

Directions for Use

Timer function

Locking the set

This menu allows you to use your TV as an

alarm clock.

& Press

é Select

FEATURES

(

) and press

twice.

The

TIMER

menu appears :

“ Press

to enter and exit the sub-menus

and use keys

îÏ

to adjust:

‘

TIME

: enter current time.

Note:

the time is updated automatically each time

the set is switched on using teletext information

taken from programme 1. If programme 1 does

not have teletext, the update will not take place.

(

START TIME

: enter the start time.

STOP TIME

: enter the stop time.

PROG.NO.

: enter the number of the

programme for the wake-up alarm.For models

equipped with a radio, you can select an FM

station by using the

È¬

keys (the

keys are only used to select TV programs).

ACTIVATE

: you can set the alarm to be

activated:

•

ONCE ONLY

for a one-off alarm,

•

DAILY

for a daily alarm or

• OFF to cancel.

ç Press

to set the TV to standby. It will

automatically switch on at the time

programmed. If you leave the TV switched on,

it will only change programme at the time

indicated.

The combination of the CHILD LOCK and TIMER

functions may be used to limit the length of time

your television is in use, for example, by your

children.

You can bar access to certain programmes or

completely lock the set by locking the keys.

Locking programmes

& Press

é Select (

) and press

“ Select

PARENTAL. CONT.

(

) and press

‘ Enter your confidential access code.The first

time, enter the code 0711 then confirm by

re-entering 0711.The menu appears.

( Press

to go into the menu.

§ Use keys

îÏ

to select the required

programme and confirm with

.The symbol

is displayed alongside the programmes or

sockets that have been locked.

è Press

to exit.

To watch a programme which has been locked

you will now need to enter the confidential

code; otherwise the screen will remain blank.

The INSTALL menu access is also locked.

Caution:

in the case of encrypted programmes

which use an external decoder, it is necessar y to

lock the corresponding EXT socket.

To unlock all programmes

Repeat stages & to ‘ above, then select

CLEAR ALL

and press

To change the confidential code

Repeat stages & to ‘ above, then:

( Select

CHANGE CODE

and enter your own

4-digit number.

§ Confirm by entering it again.

Your new code will be stored.

è Press

to exit from the menus.

If you have forgotten your confidential code, enter

the universal code 0711 twice.

Locking the keys

& Press

, select

FEATURES

(

) and press

é Select

CHILD LOCK

(

) and press

to set

the lock to

“ Switch off the set and put the remote control

out of sight.The set cannot be used (it can only

be switched on using the remote control).

‘ To cancel: switch

CHILD LOCK

OFF

• PICTURE

• SOUND

• FEATURES

• INSTALL

FEATURES

TIMER

• TIME

• START TIME

• STOP TIME

• PROG; NO;

• ACTIVATE

10:56

• PICTURE

• SOUND

• FEATURES

• INSTALL

FEATURES

• TIMER

• MODE SELECT

• CHILD LOCK

• PARENTAL CONT

ACCES CODE

- - - -

Adjusting the picture

Adjusting the sound

& Press

then

The


menu appears :

é Use

îÏ

keys to select a setting and

È¬

keys to adjust.

Note:

the menu is a scroll-down menu.

Keep the key

held down to access the

settings hidden at the bottom of the screen.

“ Once the necessary adjustments have been

made, select the option

STORE

and press

to store them.

‘ To exit from the menus, press

Description of the settings:

•

BRIGHTNESS

: alters the brightness of the

image.

•

COLOUR

: alters the colour intensity.

•

CONTRAST

: alters the variation between

light and dark tones.

•

SHARPNESS: alters the crispness of the image.•STORE

: stores the picture settings.

• NR: attenuates picture noise (snow) in

difficult reception conditions.

•

CONTRAST +

:To activate / de-activate the

automatic contrast adjustment system

(the dark areas are made darker whilst

maintaining the detail).

& Press

, select the

SOUND

option (

) and

press

.The

SOUND

menu appears :

é Use

îÏ

keys to select a setting and keys

È¬

to adjust.

“ Once the necessary adjustments have been

made, select the option

STORE

and press

to store them.

‘ To exit from the menus, press

Description of the settings:

•

EQUALIZER

: to adjust the sound tone (from

bass: 120 Hz to treble: 10 kHz).

•

BALANCE

: to balance the sound between the

left and right speakers.

•

DELTA VOLUME

(volume difference):allows you

to compensate for the volume differences

between the different programmes or the

EXT sockets.This setting is available for

programmes 1 - 40 and the EXT sockets.

Use the

keys to compare the level

of different programmes.

•

STORE

: stores the sound settings.

•

AVL

: automatic volume control used to avoid

sudden increases in volume, particularly when

changing programmes or during advertisements.

•

INCR. SURROUND

:To activate / deactivate the

surround sound effect. In stereo, this gives the

impression that the speakers are further apart.

In mono, a stereo spatial effect is simulated.

• PICTURE

• SOUND

• FEATURES

• INSTALL


• BRIGHTNESS

• COLOUR

• CONTRAST

• SHARPNESS

• STORE

• NR

• CONTRAST+

--I------ 39

• PICTURE

• SOUND

• FEATURES

• INSTALL

SOUND

• EQUALIZER

•

BALANCE

• DELTA VOLUME

• STORE

• AVL

• INCR. SURROUND

120 HZ

500 HZ

1500 HZ

5 KHZ

10 KHZ

Feature settings

& Press

, select

FEATURES

(

) and press

.You can adjust:

TIMER

PARENTAL. CONT.

and

CHILD LOCK

see next page

“

MODE SELECT.

: to switch the TV in radio or

TV.

‘ To quit the menus, press

EN 9LC13E 3.

EN 10 LC13E3.

MODE

VCR

DVD

·¢Ê Æ

∫

Ω∆

Make the connections as shown opposite.With the

key,

select

EXT3

For a monophonic device, connect the audio signal to the AUDIO L

input.The sound automatically comes out of the left and right

speakers of the set.

Headphones

When headphones are connected, the sound on the TV set will

be cut.The

keys are used to adjust the volume level.

The headphone impedance must be between 32 and 600 Ohms.

Side connections

Audio

Video

Connecting peripheral equipment

The EXT1 socket has audio, CVBS/RGB inputs and audio, CVBS outputs.

Video recorder (or DVD recorder)

Carry out the connections shown opposite, using a good

quality euroconnector cable.

If your video recorder does not have a euroconnector socket, the

only connection possible is via the aerial cable.You will therefore

need to tune in your video recorder's test signal and assign it

programme number 0 (refer to manual store, p. 7).

To reproduce the video recorder picture,press

Video recorder with decoder

Connect the decoder to the second euroconnector socket of

the video recorder.You will then be able to record scrambled

transmissions.

Video recorder

Satellite receiver, decoder, DVD,games, etc.

Make the connections as shown opposite.

To select connected equipment

Press the

key to select

EXT1

and

EXT3

Most equipment (decoder, video recorder) carries out the switching

itself.

Other equipment

FM ANT

EXT1

VCR

EXT1

Teletext

Press :

You will obtain:

Teletext is an information system broadcast by certain channels which can be consulted like a

newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar

with the transmission language (cable networks, satellite channels, etc.).

Teletext

on/off

Selecting

a page

This is used to call teletext, change to transparent mode and

then exit.The summary appears with a list of items that can be

accessed. Each item has a corresponding 3 digit page number.

If the channel selected does not broadcast teletext, the indication

100 will be displayed and the screen will remain blank (in this

case, exit teletext and select another channel).

Enter the number of the page required using the

@ P #

keys. Example: page 120,enter

120

.The

number is displayed top left,the counter turns and then the

page is displayed.Repeat this operation to view another page .

If the counter continues to search, this means that the page is not

transmitted. Select another number.

Contents

Direct

access to

the items

This returns you to the contents page (usually page 100).

Coloured areas are displayed at the bottom of the screen.

The 4 coloured keys are used to access the items or

corresponding pages.

The coloured areas flash when the item or the page is not yet

available.

Enlarge

a page

This allows you to display the top or bottom part of the

page and then return to normal size.

Stop sub-page

acquisition

Hidden

information

Certain pages contain sub-pages which are automatically

displayed successively.This key is used to stop or resume

sub-page acquisition.The indication

appears top left.

To display or hide the concealed information (games

solutions).

Favourite

pages

Instead of the standard coloured areas displayed at the

bottom of the screen, you can store 4 favourite pages on the

first 40 channels which can then be accessed using the

coloured keys (red, green,yellow, blue).Once set, these

favourite pages will become the default every time tetetext is

selected.

Press the

key to change to favourite pages mode.

Display the teletext page that you want to store.“Press

then the coloured key of your choice.

The page is stored.

‘

Repeat steps

and

“

for the other coloured keys.

(

Now when you consult teletext, your favourite pages

will appear in colour at the bottom of the screen.

To temporaly retrieve the standard items, press

To clear everything, and return the standard items as the

default, press

for 5 seconds.

Directions for Use

ŸÓù

ª-

SMART RADIO SMART

[

123

”

789

4. Mechanical Instructions

Index of this chapter:

1. Service Position

2. Rear Cover Removal

3. I/O Cover Removal

4. LED/Remote Control Board Removal

5. TV Board Removal

6. Scaler Board Removal

7. Inverter Board Removal

8. Top Control Assy Removal

9. LCD Panel Removal

10. Re-assembly

Note: Figures below can deviate from the actual situation, due to different set executions and screen sizes.

4.1 Service Position

First, put the TV in its service position. Therefore, place it upside down on a tabletop, use a protection sheet or a foam cushion. Take care that this is flat and free from obstacles like screws, to prevent damaging the fragile LCD screen. ESD protective service buffers, as shown below, can be used (3122 785 90580).

Mechanical Instructions

EN 11LC13E 4.

CL 36532073_058.eps

011203

CL 36532073_057.eps

Figure 4-1 Service position with ESD protective service buffers

261103

4.2 Rear Cover Removal

1. Use a Torx (T10) screwdriver to remove the rear cover by unscrewing and removing the screws as indicated by the figures: Rear cover removal 13-inch and 20-inch.

2. Make sure all power-, audio-, video-, coax-, cinch- and SCART cables are unplugged.

3. The number of Torx screws to be removed are: six for the 13- and 15-inch version and seven for the 20-inch.

4. Carefully remove the rear cover and store it on a safe place.

Figure 4-2 Rear cover removal 13- and 15-inch

CL 36532073_059.eps

Figure 4-3 Rear cover removal 20-inch

271103

EN 12 LC13E4.

Mechanical Instructions

CL 36532073_060.eps

Figure 4-4 Rear cover removal hidden screw EU version

CL 36532073_061.eps

Figure 4-5 Rear cover removal hidden screws US version

4.3 I/O Cover Removal

261103

CL 36532073_063.eps

Figure 4-7 IO cover side

1. Lift up both tags (securing clips) and at the same time pull it away from the TV board.

4.4 LED/Remote Control Board Removal

1. Unlock the securing clip, which holds the PWB in place, and take out the LED/Remote control PWB.

4.5 TV Board Removal

1. Disconnect all four PWB connectors out of the regarding sockets 1231, 1234, 1732 and 1902.

2. Pull the thin flat cable out of its special shaped connector,

1010.

3. Unscrew and remove the two PWB mounting screws.

4. Take out the TV board in the indicated direction.

271103

CL 36532073_062.eps

261103

Figure 4-6 IO cover bottom

1. Lift up the tag (securing clip) at the right side of the IO cover and at the same time pull it away from the TV board.

CL 36532073_064.eps

271103

Figure 4-8 TV board

Note: Sometimes it is necessary to place the Scaler board in a

service position. In this case, it is necessary to use the specific “Repair kit scaler board” including two extra long cables (order nr. 3122 785 90490).

Mechanical Instructions

EN 13LC13E 4.

LVDS CABLE

Figure 4-9 Service position TV board

4.6 Scaler Board Removal

4.6.1 13 and 20 inch versions

1. Carefully remove the shielding covering the top part of the Scaler board.

2. Carefully disconnect the TTL cable connector in the centre of the board (1501). Take care not to damage the fragile cables.

3. Disconnect the cable connectors at the edge of the board (1342 and 1003).

4. Pull the thin flat cable out of its special shaped connector (1681).

5. Unscrew and remove both PWB mounting screws.

6. Take out the Scaler PWB.

TTL CABLE

CL 36532073_065.eps

271103

CL 36532073_067.eps

271103

Figure 4-11 Scaler PWB

Note: Sometimes it is necessary to place the Scaler board in a

service position. In this case, it is necessary to use the specific “Repair kit scaler board” including two extra long cables (order nr. 3122 785 90490).

CL 36532073_068.eps

271103

Figure 4-10 Scaler PWB

4.6.2 15 inch version

1. Carefully disconnect the LVSD cable connector at the top of the board (1506). Take care not to damage the fragile cables.

2. Disconnect the cable connectors at the edge of the board (1342 and 1003).

3. Pull the thin flat cable out of its special shaped connector (1681).

4. Unscrew and remove both PWB mounting screws.

5. Take out the Scaler PWB.

CL 36532073_066.eps

271103

Figure 4-12 Service position Scaler Board

Important: Video converter chip heat sink.

Figure 4-13 Heat sink removal

CL 36532073_069.eps

181203

EN 14 LC13E4.

Mechanical Instructions

1. Use a pair of pliers to take off the heat sink by means of a twist- and pull movement (see figure), before you de-solder the video converter chip SAA7118 from the board. Store the heat sink on a safe place, adhesive side up!

2. Place the self-adhesive heat sink back in place after the chip exchange action has been finished.

4.7 Inverter Panel Removal

1. Disconnect the 8-pole cable from the PWB.

2. Disconnect at top and bottom side all cable connectors.

3. Use a pair of pliers to bend the metal securing clamp in

such a way that the PWB can be taken out.

4. Remove the Inverter PWB and store it on a safe place.

4.9 LCD Panel Removal

In order to remove the LCD panel make sure that the TV board is removed. See previous paragraph(s).

1. Carefully disconnect the LVDS or TTL cable connector, which is revealed now, from LCD panel (CN1). Take care not to damage the fragile cables.

2. Unscrew and remove all five screws of the panel frame, which secure the frame to the monitor front.

3. Take care that the tape securing the speaker cable assy is removed, or loosened.

4. Remove the LCD panel metal cover frame, the LCD panel can be removed now.

Figure 4-14 Inverter PWB

4.8 Top Control Assy Removal

1. Remove the cable from the Top control assy (1500).

2. Remove both mounting screws that secure the unit to the

monitor frame.

3. Take out the Top control assy.

CL 36532073_070.eps

271103

Figure 4-16 LCD panel frame screws

4.10 Re-Assembly

To re-assemble the whole set, do all processes in reverse order.

Notes:

• Take extra care when reconnecting the inverter PWB backlight connectors (black/white/pink). Connect them properly to avoid “high voltage sparking”.

CL 36532073_072.eps

271103

Figure 4-15 Top control assy

CL 36532073_071.eps

271103

Service Modes, Error Messages, and Repair Tips

5. Service Modes, Error Messages, and Repair Tips

EN 15LC13E 5.

Index of this chapter:

1. Test Points

2. Service Modes

3. Errors

4. The “Blinking LED” Procedure

5. ComPair

6. Trouble Shooting Tips

5.1 Test Points

This chassis is equipped with test points in the service printing. In the schematics test points are identified with a rectangle box around Fxxx or Ixxx. On the PCB, test points are specifically mentioned in the service manual as “half moons” with a dot in the centre.

Measurements are performed under the following conditions:

• Video: colour bar signal.

• Audio: 3kHz left, 1kHz right.

5.2 Service Modes

5.2.1 Limited DST Support

This chassis does still have some limited Dealer Service Tool (DST) support. The set can be put in two service modes via the DST (RC7150, this remote is not available anymore). These are the Service Default Mode (SDM) and the Service Alignment Mode (SAM).

Installation Features Dealer

For easy installation and diagnosis, the DTS can be used. When there is no picture (to access the error code buffer via the OSD), DST can enable the functionality of displaying the contents of the entire error code buffer via the blinking LED procedure.

The dealer can use the RC7150 for programming the TV-set with presets. Ten different program tables can be programmed into the DST via a GFL or MG TV-set (downloading from the GFL or MG to the DST; see GFL or MG service manuals) or by the DST-I. For explanation of the installation features of the DST, the directions for use of the DST are recommended.

5.2.2 Service Default Mode (SDM)

Purpose of SDM:

• To provide a situation with predefined settings to get the same measurements as in this manual.

• To start the “Blinking LED” procedure.

• To have the possibility to override the 5V protection

Activating SDM:

• By transmitting the "DEFAULT" command with the RC7150 Dealer Service Tool (this works both while the set is in normal operation mode or in the SAM).

• Standard RC sequence 0-6-2-5-9-6 followed by pressing the “MENU”-button (this works both while the set is in normal operation mode or in the SAM).

• By shorting pins 5 and 6 of connector 1170 of LED/RC panel. Then apply DC supply from the AC-DC adaptor (not required to remove the metal shielding).

Note: By temporarily shorting pins 5 and 6 of connector 1170 and then applying DC supply from the AC-DC adaptor, the 5V protection is disabled.

Caution: Overriding the 5V protection should only be used for a short period of time. In case of S/W protections (error 4) the set will shutdown after 15 sec.

For recognition, “SDM” is displayed at the upper right corner of the screen.

SDM Menu

SDM

CL 36532073_083.eps

Figure 5-1 SDM Menu

Deactivating SDM:

• Press the “EXIT”-button on the DST, or

• Press 0-0 on the standard RC, or

• Switch the set to Standby (the error buffer is NOT cleared).

Note: When the mains power is switched off while the set is in SDM, the set will switch to SDM immediately when the mains is switched on again.

The SDM sets the following pre-defined conditions:

• PAL/SECAM sets: tuning at 475.25 MHz PAL.

• Volume level is set to 25% (of the maximum volume level).

Other picture and sound settings are set to 50%.

The following functions are switched off in SDM (and after leaving SDM):

• Timer.

• Sleep timer.

The following functions are disabled during SDM (and enabled after leaving SDM)

• Parental lock.

• Blue mute.

• Hospitality Mode.

• No-ident Timer (normally the set is automatically switched

off when no video signal (IDENT) was received for 15 minutes).

All other controls operate normally.

Special Functions SDM

Access to normal user menu

Pressing the “MENU” button on the remote control switches between the SDM and the normal user menus (with the SDM mode still active in the background).

Channel search

Pressing the “P+” button of the remote control will select the next available channel in the preset list.

Type nr, Error buffer, etc

Pressing the “OSD” or “info+” button of the remote control shows/hides the type nr, error buffer, SW ID, Hours and option codes. OSD can be hidden to prevent interference with waveform measurements.

021203

EN 16 LC13E5.

Service Modes, Error Messages, and Repair Tips

Access to SAM

By pressing 0-6-2-5-9-6 “info+” (or OSD) in sequence on the standard RC will switch from SDM to SAM.

5.2.3 Service Alignment Mode (SAM)

Purpose of SAM:

• To do alignments.

• To change option settings.

• To display/clear the error code buffer values.

• To store data in NVM

Note: to store the data in SAM mode main menu.

Activating SAM:

• By transmitting the "ALIGN" command with the RC7150 Dealer Service Tool (this works both while the set is in normal operation mode or in the SDM).

• Standard RC sequence 0-6-2-5-9-6 followed by pressing the “info+”-button (this works both while the set is in normal operation mode or in the SDM).

Deactivating SAM:

• Press the “EXIT”-button on the DST, or

• Press 0-0 on the standard RC, or

• Switch the set to Standby (the error buffer is NOT cleared).

Note: When the AC-DC adaptor power is switched off while the set is in SAM, the set will go back to normal mode of operation when the AC-DC adaptor is switched on again.

In SAM the following information is displayed on the screen:

SAM Menu

TYPE: 17PF9945/012 HRS:0029 SWID: LC03E21-1.11 ERR : 0 0 0 0 0 0 0 OPT : 79 254 14 56 128 000

CLEAR ERRORS OPTIONS TUNER WHITE TONE

Figure 5-2 SAM Menu

• Operation hours timer (hexadecimal).

• Software identification of the main micro controller of TV-

board (LC03BBC-X.YY).

– LC13 is the chassis name for 4 x 3 format LCD-TV. – BBC is 1 letter and 2-digit combination to indicate the

regional software type and the supported languages.

– X = main version number. – YY= subversion number.

• Error buffer (7 errors possible).

• Option bytes (8 codes possible), summary of options are

explained below.

• Sub menus are listed in a scroll-menu.

SAM

CL 36532073_084.eps

021203

Menu items can be selected with the cursor UP/DOWN key. The selected item will be highlighted. When not all menu items fit on the screen, moving the cursor UP/DOWN will display the next/previous menu items. With the cursor LEFT “<” / RIGHT “>” keys, it is possible to:

• Activate the selected menu item (e.g. GEOMETRY).

• Change the value of the selected menu item (e.g.

HOR.SHIFT).

• Activate the selected submenu (e.g. ASBY ON/OFF).

• To return to the main menu / previous menu, press “MENU”

keys on the remote control

Access to Normal User Menu

Pressing the “MENU” button on the remote control switches between the SAM and the normal user menus (with the SAM mode still active in the background). Pressing the “MENU” key in a submenu will go to the previous menu.

Menus and Submenus

CLEAR ERRORS: Erasing the contents of the error buffer. Select the CLEAR ERRORS menu item and press the MENU RIGHT key. The content of the error buffer is cleared.

The functionality of the OPTIONS and ALIGNMENTS (TUNER, WHITE TONE, GEOMETRY, SOUND and SMART SETTING) sub menus are described in chapter 8.

5.2.4 Customer Service Mode (CSM)

This chassis is equipped with the “Customer Service Mode”. CSM is a special service mode that can be activated and deactivated by the customer, upon request of the service technician/dealer during a telephone conversation in order to identify the status of the set. This CSM is a 'read only' mode therefore modifications in this mode are not possible.

Activating Customer Service Mode.

The Customer Service Mode can be switched on:

• By pressing RC button is sequence “1-2-3-6-5-4” or,

• By pressing simultaneously the MUTE button on the

remote control and any key on the TV control buttons (P+, P-, VOL +, VOL -) for at least 4 seconds.

When the CSM is activated:

• Picture and sound settings are set to nominal levels.

• Modes that interfere with the behaviour of the set are

switched off (sleep timer, auto standby, etc.).

• Pressing cursor DOWN “v” on the RC will switch to CSM2 screen if it is in CSM1 screen. Likewise pressing cursor UP “^” will switch to previous CSM1 screen.

• Pressing “P+” or “P-“ on RC will select next available channel to be displayed.

• Pressing channel numeric keys on RC will select the desired channel to be displayed.

Deactivating Customer Service Mode.

The Customer Service Mode will be switched off after: – Pressing any key on the remote control handset (except

numeric keys, “P+”, “P-” and cursor up/down)

– Switching off the TV set with the mains switch.

All settings that were changed during activation of CSM are restored to the initial values.

SAM Menu Control

All Menu items are:

• CLEAR ERRORS

• OPTIONS

• TUNER

• WHITE TONE

• GEOMETRY

• SOUND

• SMART SETTING

Customer Service Mode Information Screen

After activating the Customer Service Mode the following screen will appear.

Service Modes, Error Messages, and Repair Tips

EN 17LC13E 5.

1 TYPE: 17PF9945/012 HRS:0029 CSM1 2 SWID: LC03E21-1.11 3 ERR : 0 0 0 0 0 0 0 4 OPT : 79 254 14 56 128 000 5 6 SYSTEM: WEST EUR 7 NO SIGNAL 8 9 10

11 SOURCE : 5 12 SOUND : MONO 13 VOLUME : 26 14 BALANCE: 1 15 COLOUR : 50

CL 36532073_085.eps

021203

Figure 5-3 CSM 1

The Customer Service Menu (CSM1) shows the following information:

• Line 1: “TYPE: 99XX9999/99XHRS: nnnn”. TYPE: type-

version/model of the set (i.e. 17PF9945/12). HRS: Hexadecimal counter of operating hours. (Standby hours are counted as operating hours).

• Line 2: “SWID: AAAABBC-X.YY”: (Software

identification of the main micro controller on TV-Board) See paragraph “Service Alignment Mode (SAM)”. Details on available software versions can be found in the chapter “Software Survey” of the publication “Product Survey Colour Television”.

• Line 3: “CODES: xx xx xx xx xx xx xx ”. Error code

buffer (see paragraph “Errors”). Displays the last 7 errors of the error code buffer.

• Line 4: “OPT xxx xxx xxx xxx xxx xxx xxx xxx”. Option

bytes. Option bits control the software and hardware functionality of the chassis. An option byte or option number represents 8 of those bits. Each option number is displayed as a decimal number between 0 and 255. The set may not work correctly when an incorrect option code is set. See chapter 8 for more information on correct option settings

• Line 6: “SYSTEM: EUROPE/WEST EUR/EAST EUR/UK/ FRANCE”. Indicates which colour and sound system is

installed for this preset as defined in the Manual INSTALL menu:

– PAL BG – PAL I – PAL DK – SECAM BG – SECAM DK – SECAM LL’

• Line 7: “NO SIGNAL”. Indicates that the set is not

receiving an “ident” signal on the selected source. – No or bad antenna signal; connect a proper antenna

signal

– Antenna not connected; connect the antenna – No channel / preset is stored at this program number;

go to the INSTALL menu and store a proper channel at this program number

– The tuner is faulty (in this case the CODES line will

contain number 13); check the tuner and replace/repair if necessary

Note: On some models, BLUE MUTE is displayed (if the BM option is ON) when no signal is received.

• Line 11: “SOURCE”. Indicates which SOURCE is installed for this preset: EXT1, SVHS2, EXT2, or Tuner.

• Line 12: "SOUND": Indicates which sound mode is installed for this preset: Mono, NICAM, Stereo, L1, L2, SAP, Virtual, or Digital.

• Line 13: "VOLUME”: Value indicates level at entry CSM.

• Line 14: "BALANCE": Value indicates level at entry CSM.

• Line 15: "COLOUR”: Value indicates level at entry CSM.

1 TYPE: 17PF9945/012 HRS:0029 CSM2 2 SWID: LC03E21-1.11 3 ERR : 0 0 0 0 0 0 0 4 OPT : 79 254 14 56 128 000 5 6 BRIGHTNESS: 50 7 CONTRAST : 56 8 HUE : 50 9 10

11 12 13 14 15

Figure 5-4 CSM 2

The next Customer Service Menu (CSM2) shows the following information:

• Line 6: "BRIGHTNESS": Value indicates level at entry

CSM.

• Line 7: "CONTRAST”: Value indicates level at entry CSM.

• Line 8: "HUE”: Value indicates level at entry CSM.

5.3 Errors

5.3.1 Error code buffer

The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, the error is written at the left side and all other errors shift one position to the right.

The error code buffer will be cleared in the following cases:

– By activating the CLEAR ERRORS function in SAM menu. – By transmitting 0-6-2-5-9-9 with the normal RC. – By transmitting the commands “DIAGNOSE 99 OK” with

the DST (RC7150) or with ComPair.

– Automatically reset if its contents has not changed for 50

hours.

By leaving SDM or SAM with the mains switch, the error buffer is not reset.

Examples: ERROR: 0 0 0 0 0 0 0 : No errors detected ERROR: 6 0 0 0 0 0 0 : Error code 6 is the last and only detected error ERROR: 9 6 0 0 0 0 0 : Error code 6 was first detected and error code 9 is the last detected (newest) error

The contents of the error buffer can also be made visible through the “blinking LED” procedure. This is especially useful when there is no picture. See paragraph 5.4 “The blinking LED procedure “.

5.3.2 Error codes

In case of non-intermittent faults, clear the error buffer before starting the repair, to prevent that “old” error codes are present (it is wise to write down the content of the error buffer before you clear it). If possible check the entire content of the error buffers. In some situations an error code is only the result of another error code (and not the actual cause). Note: a fault in the protection detection circuitry can also lead to a protection.

CL 36532073_086.eps

021203

EN 18 LC13E5.

Table 5-1 Error Codes

Error

code

0 No error detected - ---1 Reserved 2 Reserved 3 Reserved 4 5V protection active IC7620 & 1100 I2C devices(MSP34XX & Tuner) A3, A8, A10 5 Reserved 6 General I2C bus error I2C bus s/c or o/c 7 Reserved 8 BOCMA I2C error IC 7301 (IF Video TDA888XX) A4

9 BOCMA 8V supply failure IC 7910 or IC7301(MC34063A or TDA888XX) A4, A10 10 NVM I2C error IC 7066 (NVM M24CXX) A1 11 NVM identification failure IC 7066 (NVM M24CXX) A1 12 uProcessor internal RAM test failure IC 7064 (uP SAA56XX) A1 13 Tuner I2C error 1100 - UR13XX (Tuner) A3 14 Sound processor I2C error IC 7620 (MSP34XX) A8 15 SRAM error IC 7070 (RAM 128 x 8) A2 16 Video Formatter/Scaler I2C error IC 7351 (Farouja_s2300)(Video Converter) C5 17 Multi-Video Decoder I2C error IC 7302 (Video Decoder SAA7118) C3

18* Reserved 19* Reserved 20* Reserved

21 SDRAM protection active IC 7352 (SDRAM 2M x 32) C5

*= Not application

Service Modes, Error Messages, and Repair Tips

Error description Possible defective components Diagram

TV-Board

Errors

• Error 0 = No error

• Error 4 = +5V protection. 5V protection active; set is

switched to protection; error code 4 is placed in the error buffer; the LED will blink 4 times (repeatedly). A 5V failure can be caused by a drop in the 5V supply output, resulting in an undefined behaviour of the set. Therefore, all I2C devices connected to the 5V supply are constantly monitored. When none of these devices responds to the micro controller for a prolonged time, the micro controller assumes that there is a failure in the 5V supply. By starting up the set with the service jumpers shorted, the 5V protection is disabled and it is easier to determine the cause. +5V protection will be activated when these I2C devices fail (no I2C communication):

– Main Tuner 1100 (diagram A3) – ITT sound processor MSP34xx IC-7620 (diagram A8)

Service tips: To isolate the problem area after overriding the +5V protection, determine whether:

1. The +5V source is working properly IC7930 (diagram A10)

2. ITT sound processor circuit is loading the +5V; isolate coil 5620 (diagram A8)

3. The audio delay IC 7601 - IC7605 is loading the +5V source; isolate coil 5601 (diagram A7)

4. Main tuner circuit is loading the +5V source; isolate coil 5122 (diagram A3) Caution: Overriding the 5V protection when there is a 5V failure can increase the temperature in the set and may cause permanent damage to components. Do not override the 5V protection for a prolonged time.

• Error 6 = General I2C error. This will occur in the following

cases:

– SCL or SDA is shorted to ground – SCL is shorted to SDA – SDA or SCL connection at the micro controller is open

circuit.

• Error 8 = BOCMA IC TDA888xx (diagram A4) I2C

communication failure. BOCMA (IC7301 on TV board) is corrupted or the I2C line to the BOCMA is low or no supply voltage present at pin 14 (3V3) or no supply voltage at pin

23.

• Error 9 = BOCMA IC TDA888xx 8V failure (SUP bit). No

supply voltage at pin 53. Check coil 5302.

• Error 10 = NVM I2C error (diagram A1). NVM (EEPROM -

IC7066) does not respond to the micro controller.

• Error 11 = Micro controller / NV Memory identification

error. During the last start-up the NVM and the micro controller did not recognize each other (e.g. one of them was replaced or the NVM memory has been changed/ adapted or lost), therefore the NVM was loaded with default values.

• Error 12 = Microprocessor (Painter - IC 7064) internal

RAM test failure.

• Error 13 =Main Tuner I2C failure UR13xx. Tuner (item

1100, diagram A3) is corrupted or the I2C line to the tuner is low or no supply voltage at pin 3, pin 6 or 7 of the tuner.

• Error 14 =Sound processor I2C error IC7620 (MSP34xx,

diagram A8). Sound controller does not respond to the micro controller.

• Error 15 =SRAM IC CY7C1019 test failure (IC7070,

diagram A2). Note: Only for Europe and AP-PAL execution.

Scaler Board

When the TV detects critical errors from the Scaler board, it will shutdown into protection mode. After a short period of time, the LED will blink according to the respective error codes.

Protection errors:

• Error 16 = Video formatter/converter I2C error IC7351

(GENESIS FLI2300, diagram C5).

• Error 17 = Video decoder I2C error IC7302 (Philips

SAA7118E, diagram C3). Note: BGA IC fixed with a heat sink (see chapter 4 how to remove).

Service Modes, Error Messages, and Repair Tips

EN 19LC13E 5.

5.4 The “Blinking LED” procedure

The contents of the error buffer can also be made visible through the “Blinking LED” procedure. This is especially useful when there is no picture.

When the SDM is entered, the LED will blink the contents of the error-buffer. Error-codes ≥ 10 are shown by a long blink of 750msec, which is an indication of the decimal digit, followed by a pause of 1500msec. followed by n short blinks. When all the error-codes are displayed, the sequence is finished with a LED display of 3 seconds. The sequence starts again.

Example:

Error code position 1 2 3 4 5 Error buffer: 12 9 6 0 0 This gives after activating SDM: 1 long blink of 750msec + pause of 1500msec + 2 short blinks - pause of 3 s - 9 short blinks - pause of 3 s - 6 short blinks - pause of 3 s - long blink of 3 s - etc.

Note: If errors 1, 2 or 4 occur, the LED always blinks the last occurred error, even if the set is not in service mode.

Another method of reading out a single error code is to use a standard RC or a DST.

• Standard RC - Press “0-6-2-5-0-x” in sequence, to read

(blinking LED) out a respective error code in the error buffer, where x = 1, 2, 3, 4, 5, 6, or 7.

• DST: Press “Diagnose” “x” “OK” to read (blinking LED) out

a respective error code in the error buffer, where x = 1, 2, 3, 4, 5, 6, or 7.

• Manually (by asking questions to you): Automatic

diagnosis is only possible if the micro controller of the television is working correctly and only to a certain extend. When this is not the case, ComPair will guide you through the faultfinding tree by asking you questions (e.g. Does the

screen give a picture? Click on the correct answer: YES / NO) and showing you examples (e.g. Measure test-point I7 and click on the correct waveform you see on the oscilloscope). You can answer by clicking on a link (e.g.

text or a waveform picture) that will bring you to the next

step in the faultfinding process. By a combination of automatic diagnostics and an interactive question / answer procedure, ComPair will enable you to find most problems in a fast and effective way.

Beside fault finding, ComPair provides some additional features like:

• Up- or downloading of pre-sets.

• Managing of pre-set lists.

• Emulation of the Dealer Service Tool (DST).

• If both ComPair and SearchMan (Electronic Service

Manual) are installed, all the schematics and the PWBs of

the set are available by clicking on the appropriate

hyperlink.

Example: Measure the DC-voltage on capacitor C2568

(Schematic/Panel) at the Mono-carrier.

– Click on the 'Panel' hyperlink to automatically show the

PWB with a highlighted capacitor C2568.

– Click on the 'Schematic' hyperlink to automatically

show the position of the highlighted capacitor.

5.5.3 How To Connect

5.5 ComPair

5.5.1 Introduction

ComPair (Computer Aided Repair) is a service tool for Philips Consumer Electronics products. ComPair is a further development on the European DST (service remote control), which allows faster and more accurate diagnostics. ComPair has three big advantages: ComPair helps you to quickly get an understanding on how to repair the chassis in a short time by guiding you systematically through the repair procedures. ComPair allows very detailed diagnostics (on I2C level) and is therefore capable of accurately indicating problem areas. You do not have to know anything about I2C commands yourself because ComPair takes care of this. ComPair speeds up the repair time since it can automatically communicate with the chassis (when the microprocessor is working) and all repair information is directly available. When ComPair is installed together with the SearchMan electronic manual of the defective chassis, schematics and PWBs are only a mouse click away.

5.5.2 Specifications

ComPair consists of a Windows based faultfinding program and an interface box between PC and the (defective) product. The ComPair interface box is connected to the PC via a serial or RS232 cable. The ComPair faultfinding program is able to determine the problem of the defective television. ComPair can gather diagnostic information in two ways:

• Automatic (by communication with the television):

ComPair can automatically read out the contents of the entire error buffer. Diagnosis is done on I2C level. ComPair can access the I2C bus of the television. ComPair can send and receive I2C commands to the micro controller of the television. In this way, it is possible for ComPair to communicate (read and write) to devices on the I2C busses of the TV-set.

1. First, install the ComPair Browser software (see the Quick

Reference Card for installation instructions).

2. Connect the RS232 interface cable between a free serial

(COM) port of your PC and the PC connector (marked with

'PC') of the ComPair interface.

3. Connect the mains adapter to the supply connector

(marked with 'POWER 9V DC') of the ComPair interface.

4. Switch the ComPair interface “off”.

5. Switch the television set “off” with the mains switch.

6. Connect the ComPair interface cable between the

connector on the rear side of the ComPair interface

(marked with 'I2C') and the ComPair connector at the rear

side of the TV (situated just below the tuner input, see also

chapter 4).

7. Plug the mains adapter in a mains outlet, and switch the

interface “on”. The green and red LEDs light up together.

The red LED extinguishes after approx. 1 second while the

green LED remains lit.

8. Start the ComPair program and read the 'Introduction'

chapter.

EXTERNAL 2

AUDIO EXTERNAL 1

SERVICE

CONNECTOR

PC VCR I2CPower

9V DC

CL96532156_029.eps

190600

Figure 5-5 ComPair Interface connection

EN 20 LC13E5.

Service Modes, Error Messages, and Repair Tips

5.5.4 How To Order

ComPair order codes (EU/AP/LATAM):

• Starter kit ComPair32/SearchMan32 software and ComPair interface (excl. transformer): 3122 785 90450.

• ComPair interface (excluding transformer): 4822 727

21631.

• Starter kit ComPair32 software (registration version): 3122 785 60040.

• Starter kit SearchMan32 software: 3122 785 60050.

• ComPair32 CD (update): 3122 785 60070 (year 2002,

3122 785 60110 (year 2003).

• SearchMan32 CD (update): 3122 785 60080 (year 2002), 3122 785 60120 (year 2003).

• ComPair interface cable: 3122 785 90004.

• ComPair firmware upgrade IC: 3122 785 90510 (only for

sets with software upgrade facilities).

• Transformer (non-UK): 4822 727 21632.

• Transformer UK: 4822 727 21633.

Note: If you encounter any problems, contact your local support desk.

5.6 Trouble Shooting Tips

5.6.1 Scaler/TV Board Power Supply Problems

In this paragraph some troubleshooting steps for checking the power supply of the Scaler-board and TV-board circuitry are described.

• Measure across pin-1 and pin-4 of connector 1003 (diagram C1). +12V (13” and 15”) or +24V (20”) should be present. If the voltage is not present, probably is caused by:

– AC to DC adaptor is defect. – Short circuit in TV-board (can be isolated by connector

1003).

– Fuse 1002 is open circuit.

• Measure across C2923 (diagram A10). +3V3 should be

present. If not present, probably this is caused by:

– IC7920 is defective. – R3925 is defective. – The power supply circuit (diagram C1) is defective (see

Scaler-board circuit trouble shooting tips).

• Measure across C2913/C2933 (diagram A10). +8V3/+5V4 should be present respectively. If not present, probably this is caused by:

– IC 7910/7930 regulator is defective. – Fuse 1903 is defective. – Switching FET 7900 is defective. – Transistor T7901 is defective.

• Measure across C2007 (diagram C1). +5V should be

present. If not present, probably this is caused by:

– +5V grounded by the load. – Regulator IC 7001 is defective. – Control transistor T7003/7002 is defective. – Scaler power control signal line (POW-CON-SCALER

coming from TV-board) is defective.

• Measure pin-4 or pin-5 of connector 1341 (diagram C5). Pin-4 should be high (+4V7) and pin-5 also should be high (+3V4). If one/both of the voltage is not present, probably this is caused by:

– IC 7351 (Farouja_s2300) is defective. – Inverter board is defective.

5.6.2 General Problems

TV switched “off” or changed channel without any user action

Set switches off after “TV SWITCHING OFF” was displayed. “Auto Standby” switched the set “off” because:

• There was no ident signal for more than 15 minutes.

• There was no remote control signal received or local key

pressed for > 2 hours.

See chapter 8 for a description on the options to enable/disable “Auto Standby”.

5.6.3 Picture problems

Picture too dark or too bright

• Press “Smart Picture” button on the remote control. In case the picture improves, increase / decrease the brightness value or increase / decrease the contrast value. The new “Personal Preference” value is automatically stored after 3 minutes.

• After switching on the Customer Service Mode the picture is OK. Increase / decrease the brightness value or increase / decrease the contrast value. The new “Personal Preference” value is automatically stored after 3 minutes.

Snowy picture

Check the “NOT TUNED” section of the Customer Service Mode screen.

Snowy picture and/or unstable picture

A scrambled or decoded signal is received.

Black and white picture

• Press “Smart Picture” button on the remote control. In case picture improves, increase the colour value. The new “Personal Preference” value is automatically stored after 3 minutes.

• After switching on the Customer Service Mode the picture is OK. Increase the colour value. The new “Personal Preference” value is automatically stored after 3 minutes.

Menu text not sharp enough

• Press “Smart Picture” button on the remote control. In case the picture improves, decrease the contrast value. The new “Personal Preference” value is automatically stored after 3 minutes.

• After switching on the Customer Service Mode the picture is OK. Decrease the contrast value. The new “Personal Preference” value is automatically stored after 3 minutes.

5.6.4 Sound problems

No sound or sound too loud (after channel change / switching on)

After switching on the Customer Service Mode the volume is OK. Increase / decrease the volume level. The new “Personal Preference” value is automatically stored after 3 minutes.

5.6.5 Extra information/tips:

• Complaints that may be caused by an incorrect system setting:

– No colours – Colours not correct – Unstable picture – Noise in picture To change the system setting of a

preset:

1. Press the “MENU” button on the remote control

2. Select the INSTALL sub menu

3. Select the MANUAL STORE sub menu

4. Select and change the SYSTEM setting until

picture and sound are correct

5. Select the STORE menu item

• The Scaler is the driving engine of the LCD panel. When

there is no display and OSD on screen, check whether sound is producible on TV channel. If sound is audible, most likely the defective lies in Scaler board or inverter board.

Service Modes, Error Messages, and Repair Tips

• To know fast whether inverter is functioning, visually check if the backlights are “on” by looking at the back of the LCD panel. Some bright spots can be seen on the side. Other way to tell whether the backlight is working is to switch the set to AV mode. The front of the screen had some kind of “fogged” effect. Note: when one of the backlight connectors has loosened, the inverter circuit will be shut down.

• If the supply to the LCD panel is OK (likewise for backlight supply), but no data signals (example: signals on connector 1506) supplied from Scaler to LCD panel, you will notice that the LCD screen will shown full screen in sequential of BLUE, GREEN, RED, BLANK, dark-GREY, light-GREY and WHITE repeatedly. It means LCD panel is in good condition. The fault lies in the Scaler board

EN 21LC13E 5.

EN 22 LC13E5.

Personal Notes:

Service Modes, Error Messages, and Repair Tips

Block Diagrams, Testpoint Overviews, and Waveforms

6. Block Diagrams, Testpoint Overviews, and Waveforms

Wiring Diagram (13”/15”)

23LC13E 6.

Wiring Diagram 13" / 15"

CN2_3P CN3_3P

BACK

LIGHTS

Inverter Panel

1402_8P

CN1_8P

Top Control Panel

Scaler Board

LCD PANEL

TO LCD PANEL

LVDS CONNECTOR

1506_40P

1902_4P

1500_4P

TV Board

1732_4P

BACK

LIGHTS

CN4_3P CN5_3P

1341_8P

1003_4P

1681_22P

1234_4P

1010_22P

1231_7P

1111_3P

ComPair

1170_7P

Right

Speaker

Front LED Panel

Left

Speaker

CL 36532073_052.eps

111103

Block Diagrams, Testpoint Overviews, and Waveforms

Wiring Diagram 20”

24LC13E 6.

Wiring Diagram 20"

BACK

LIGHTS

Inverter Panel

CN2_2P CN3_5P

Top Control Panel

Scaler Board

1501_40P

1500_4P

LCD PANEL

TO LCD PANEL

LVDS CONNECTOR

TV Board

1902_4P

1732_4P

BACK

LIGHTS

CN4_2P CN5_5P

CN1_8P

1341_8P

1003_4P

1681_22P

1234_4P

1010_22P

1231_7P

1111_3P

ComPair

Right

Speaker

Front LED Panel

1170_7P

Left

Speaker

CL 36532073_053.eps

111103

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram (Tuner-IF-Video)

25LC13E 6.

1100

SDA-0

SCL-0

F107

SIF-FM

SEL-IF-LL_M-TRAP

A11

TER-Out

R-In

G-In

B-In

L-Out

R-Out

SVHS

VIDEO

TUNER

+5V4

SCART IO

6101

-/33

6,7,3

TV + RADIO

FM TUNER

ERR

7130//7131

SCART 1

F108

CVBS-In

FBL-In

Status L-In

R-In

3241

TO/FROM

1003 OF

SCALER

BOARD

7120

+5V4

7452

7 6

VIDEO & QSS IF

1452

F104

1454

7224

STATUS2-SVHS-RR-DET

A10

12-24DC-SUP_1

1902

VIF1

VIF2

AGC

VSIF1

VSIF2

CVBS-SC1_AV1-IN

CVBS_TER_OUT

FBL-SC1-IN R-SC1-IN_V-IN

G-SC1-IN_Y-IN B-SC1-IN_U-IN

LR-SC1_AV1-IN

STATUS1

LR-SC1_AV-OUT

C-SC2-SVHS-IN

Y-CVBS-SC2-AV2-IN

LR-SC2-AV2-IN

LOCAL SUPPLY

STANDBY

3904

7903

VDP - COLOUR PROCESSING

7301-A

Y-CVBS-SC2_AV2-IN

A11

N.C.

A11

N.C.

A4 A4

A8 A1

A1 A1

A5 A1

7900

3900

7901

7904

ERR

QSS Mixer

AM Demod.

EXT. VIDEO SELECT

SEL-MAIN-R1R2

Y-CVBS-FRONT-IN

C-SC2_SVHS-IN

C-FRONT-IN

SEL-MAIN-FRNT-RR

KEYBOARD

PC-TV-LED

STBY-LED

RC5 LIGHT-SENSOR_SDM

391x

1903

3901

POWER-DOWN

A1 A9

3925

7401-A

7910

393x

3921

+8V3A

Sound

Traps

7401-C

+8V3

VCC

7930

VCC

7920

VCC

7401-B

1234

1231

4 6

SDM

S R

OSC

REF

OSC

S R

OSC

1500

REF

1170

1 3

F906

F907

F908

3308

7412-B

7412-A

TOP CONTROL

FRONT

INTERFACE

N.C.

+8V3

2911

- POWER

- CH +

- CH -

- VOL +

- VOL -

REC.

6177

5911

2913

2931

2921

7302

7303

+3V5 +3V5

6175

RED GREEN

6910

+8V3

6930

5931

+5V4

2933

6920

5921

+3V5

7175

N.C.

(SCART)

CVBS_TER_OUT

F622

MAIN-CBVS-EXT-IN

MAIN-C-EXT-IN

A11

SIF-TV

HISTOGRAM (OPTIONAL)

14 19 18

7173

AUDIO PROCESSING

SIF-TV 50

SIF-FM 52

LR-SC1_AV1-IN

LR-SC2_AV2-IN

LR-CL_VL-OUT

LR-SC2-OUT

SEL-MAIN-R1R2 LR-SC1_AV-OUT

F622

N.C.

PC-HDAUDIO-LR

A11

N.C.

A11 A11 A11 A11

7403

HISTOGRAM

+8V3A

7601/2 7603

MAIN-CBVS-EXT-IN

MAIN-C-EXT-IN

CVBS-SC2_MON-OUT

FBL-SC1-IN R-SC1-IN_V-IN G-SC1-IN_Y-IN B-SC1-IN_U-IN

F470

F472

7 2 3

F471

R-TXT-OSD G-TXT-OSD B-TXT-OSD

FBL-TXT-OSD

AUDIO DELAY (80ms)

8-BIT COUNTERS

11,13

7620

DEMODULATOR

44,45

41,42

38,39

36,35

VDP - COLOUR PROCESSING

7301-B

7330

Y-MAIN U-MAIN

V-MAIN

Y-HISTOGRAM U-HISTOGRAM V-HISTOGRAM

32KX8

STATIC

RAM

A13

SCL-0

I2C

INTERF

IDENT

D/A

44 41 42 43

40 45

MATRIX

INTER-

39 47 48

35 36 37

F603

SDA-0

I2S_CLOCK

I2S_DATA_OUT

DSP

ERR

INPUT SWITCH

7680

14,15

RGB/

YUV

RGB/

YUV

FACE

SAT.

CTRL

RGB

INPUT

INT

A0----A7

7604

D-LATCH

1,11

I2S_DATA_IN

D/A

2,12

1,13

10,11

F350

COLOUR

DECOD-

MATRIX

OUTPUT

ING

RGB/

YUV

I2C

BUS

CTRL

CAT.

CALIB.

RGB

2924

7605

23 21 20

28,29

25,26

7678/9

33 32 31

4614

D-LATCH

1,11

COMB-ON

AUD_SW AUDIO-L AUDIO-R

7427

Y-IN

C-IN

1330

SCL

SDA

7350

7353

7356

F602

7674/5

ANALOG COMB FILTER

+5V

SYS1

SYS2

CVBS-TXT-CC

CLOCK12MHZ

F352

R-DRIVE

F355

G-DRIVE

F358

B-DRIVE

A9a

SOUND_ENABLE

POWER-DOWN

A10

STAND-BY

OUT_MUTE

SANDCASTLE1

7405

5,6

11 10

7428

AUDIO AMP 2x3W (13" & 15")

HP-SIDE-DET

12-24DC-SUP_1

F735

COMB

FILTER

C-SYNC

H-SYNC

7301-C

V-SYNC

F740

1 2

12 13

+8V3

50/60Hz

7390~1 7383~5

A9b

FOR ITEM 7731 AN5277 IS USED

2750

3750

2751

7731

7732

VCC

VOLSTB

+3V5

3743

2746

C-SYNC GENERATOR

7380~1 7382

2380

LINEDRIVE1

15625

AUDIO AMP 2x5W (20")

2752

7744

F738

2753

3752

F736

CL 36532073_035.eps

1733

1731

1732

F385

(HISTOGRAM)

EXT. SW

LEFT

16 OHM / 3 W

RIGHT

171103

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram (TV Control and Inverter Panel)

26LC13E 6.

! 





&



























''



 







!"%





















  



")



!"







!

$

%""

"



$

%$

$

#!$





















































































'

'





" "

11   11

! # 0

#

*##

-./







 

)



1



))

)





1)

)









! -

1

,















)























!



 "







!



'



&





















"

"

"

"

"

"

"

"













&&





!"#!!





!"







!(



 

!"



 



#















  



"!

"









")

!







"

%"

"









*#  # !





 









*#

 #

! 









































































"##



!"#

!



88 "" 48.4/8>

!

&&"'

!











#

#

1



)

/23  4567,28







)

/23  4567,28











.57897/5: 9/.9;/7 

)



!

""



!







""



1

1









)



























 ! 

!"% '

 ! 

!"% '



 #  + !

#  %

!$ !

"





              





"















"

"



&















"

"

"

"



















ERR

! '8<=



Block Diagrams, Testpoint Overviews, and Waveforms

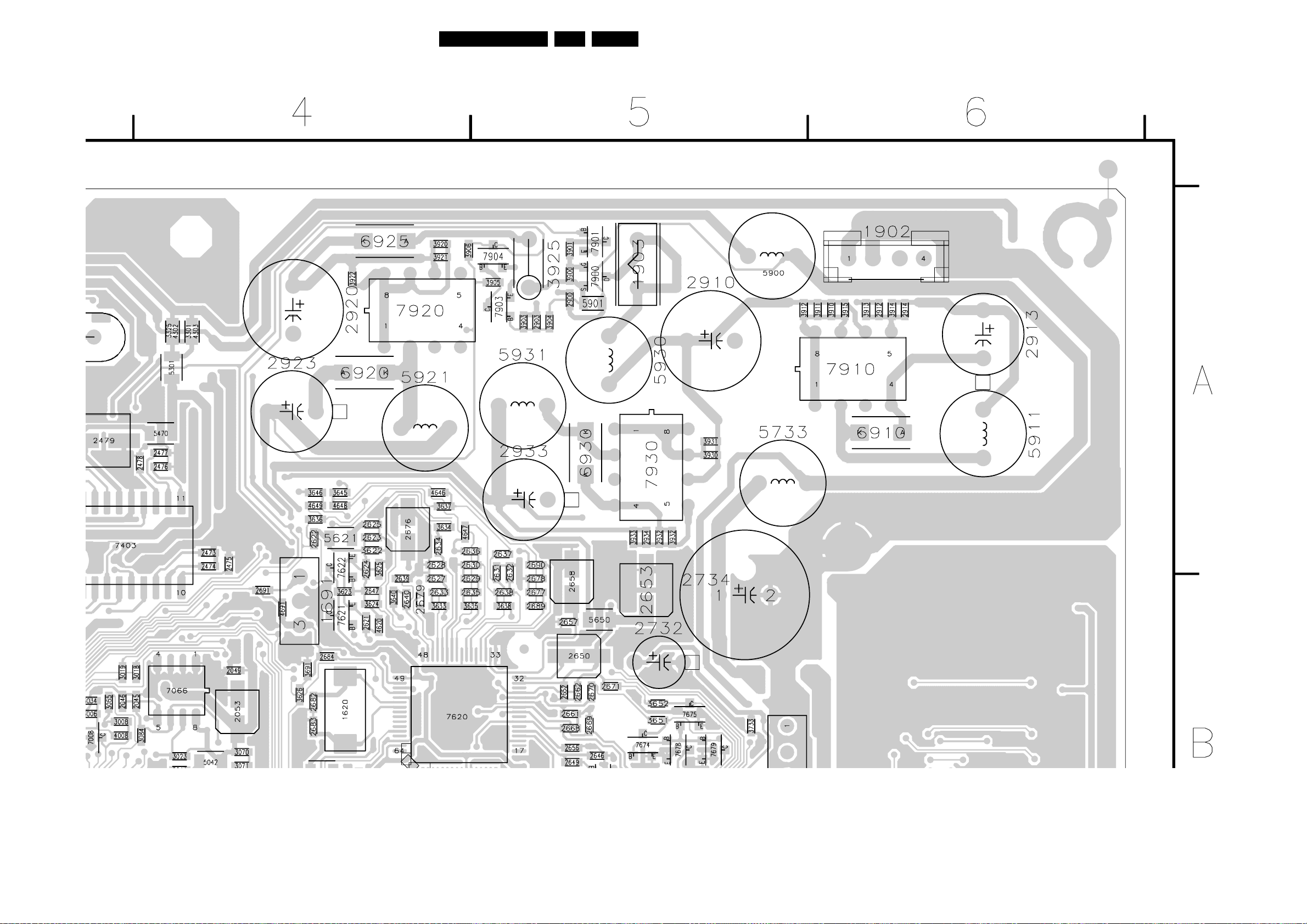

Testpoint Overview TV Board

F002 B3 F003 B4 F004 B4 F006 B3 F007 B3 F008 B4

F010 B3 F011 B3 F012 C4 F013 B4 F014 B4 F015 C4

F022 B3 F025 C4 F032 C4 F044 B3 F045 B3 F046 B3

F054 C3 F066 B4 F068 B3 F070 A4 F071 A4 F072 A4

F073 A4 F074 A4 F075 A4 F076 A3 F077 A4 F080 B3

F085 A3 F101 B6 F102 B5 F103 B5 F104 A5 F105 A6

F106 B6 F107 B6 F108 B6 F109 B6 F201 B6 F202 B6

F203 B6 F204 B6 F205 B6 F206 C6 F207 C6 F208 C6

F210 C6 F211 C5 F212 C5 F213 C5 F214 C5 F215 C5

F216 C5 F217 C4 F218 C6 F219 C4 F221 C5 F222 C4

F223 C4 F224 C5 F225 C3 F226 C3 F227 C4 F228 C4

F230 C5 F231 C4 F234 C5 F235 C5 F236 C6 F237 C5

27LC13E 6.

F238 C6 F301 B4 F302 A5 F321 A4 F337 A4 F338 A4

F339 A4 F340 A4 F341 A4 F342 B4 F345 A4 F346 B4

F349 B4 F350 B4 F351 A4 F352 A4 F355 A4 F358 A4

F385 A5 F413 B4 F426 C5 F427 C5 F428 C5 F429 B5

F430 C5 F431 C5 F432 B4 F470 B4 F471 A4 F472 B4

F473 A4 F474 B4 F476 A4 F477 A4 F478 A4 F479 B4

F480 B4 F601 B1 F602 B1 F603 B1 F610 B1 F612 B1

F613 C1 F620 B2 F621 B3 F622 A3 F626 B3 F640 B3

F645 A3 F646 A3 F650 B2 F655 B2 F656 B2 F676 A3

F731 B1 F732 B2 F735 B2 F736 C2 F737 C2 F738 C2

F739 C2 F740 B2 F743 C3 F745 B1 F755 C3 F759 C2

F900 A1 F901 A2 F902 A1 F903 B2 F906 A1 F907 A2

F908 A3 I346 B4

F044

1V / div DC

5ms / div

F602

2V / div AC

2ms / div

F054

1V / div DC

20µs / div

F603

2V / div AC

2ms / div

F080 = 2V3 DC

F622

100mV / div AC

5µs / div

F104

500mV / div DC

20µs / div

F735

20mV / div AC

1ms / div

F107

1V / div AC

20µs / div

F736

20mV / div AC

1ms / div

F108

1V / div DC

20µs / div

F738

200mV / div DC

20µs / div

F340

1V / div DC

20µs / div

F740

20mV / div AC

1ms / div

F341

1V / div DC

20µs / div

F906 = 8V3 DC F907 = 5V4 DC F908 = 3V5 DC

F342

1V / div DC

20µs / div

F346

1V / div DC

20µs / div

F350

1V / div DC

20µs / div

F352

200mV / div DC

20µs / div

F355

10mV / div AC

1ms / div

F358

200mV / div DC

20µs / div

F385

200mV / div DC

20µs / div

F470

500mV / div DC

20µs / div

F471

500mV / div DC

20µs / div

F472

500mV / div DC

20µs / div

F480

1V / div DC

20µs / div

CL 36532073_009.eps

031203

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram (Scaler Board)

28LC13E 6.

TO/FROM 1010 TV BOARD

12/24V

DC-IN

TO/FROM

1902 OF TV

BOARD

A10

+5V

POWER

1002

3014

(1)

1003

I/O & INTERFACE

VS-OSD

HS-OSD

AV-CVBS

B-Pb

G-Y

R-Pr

PC-HDAUDIO-L

PC-HDAUDIO-R

STAND-BY

PC-VSYNC

PC-HSYNC

SDA-1

RESET

SCL-1

STAND-BY

3001

5010

+5V

5011

(2)

3015

(1) = FOR 13"/15" ONLY (2) = FOR 20 " ONLY

PANEL-PWR-CTL

F689

F690

(C-SYNC)

F692

F693

F694

PC-SYNC

3005

7002

(1)

(2)

F691

N.C.

C3 C5

7001

VIN

ON|OFF

7003

7011(OPTIONAL)

(1)

5013

7005

3016

7004

2305

2308

2315

OUT

5015

(2)

3009/10

2029

5014

7302

N10

(2)

7010

VCC

VIDEO DECODER

1301

Sync

AI12

AI32

AI22

AI42

VXDD

Analog Input

Power

Ctrl

VDDE

Video Proc

VDDI

7301

3 2,4

ADJ

5001

6002

2007

(supply for LCD panel)

PAN-VCC

12V

S R

OSC

REF

Decoder O/P

+3V3

OUT

P10 N9

IIC Reg Map

YCBCR

VDDA

F304

7009

ERR

2015

7006

ONLY FOR 20"

2025

5025

2026

SDA-1

SCL-1

XPDO

XPD7

X-PORT

XCLK

12-24DC-SUP

F012

F009

F013

2006

6025

12V

XRV

XRH

+3V3

+1V8

VIDEO CONVERTER

DA-DATA 0....7

DA-FID

DA-HSYNC

DA-CLK

DA-VSYNC

N.C.

7351 FAROUJA-S2300

PORT

206

208

195

8 BIT YCrCb INPUT

207

INPUT PROC

AUTO SYNC

AUTO ADJ

PORT

24 BIT YCrCb INPUT

+3V3

OUTPUT (LVDS)

LVDS-OUT (15")

7501

TXOUT0-

TXOUT0+

TXOUT1-

TXOUT1+

TXOUT2-

TXOUT2+

TXOUT3-

TXOUT3+

TTL PARALLEL-TO-LVDS

TXCLKOUT-

TXCLKOUT+

VCC

PLLVCC

40 39

LVDSVCC

F535

PAN-VCC

34 44

+3LVDS+3V3

+3PLL

FSHFCLK

FHSYNC

FVSYNC

R-V-OUT (0-7)

G-Y-OUT (0-7)

B-U-OUT (0-7)

PDE

CLK GEN

PLLs

ERR

De-interlace

FRC

SDRAM

Interface

O/P Proc

Sync Gen

DACs

Horizontal

and

Vertical

Enhancers

Horizontal

and Vertical Scalers

B-U-OUT (0-7)

(NOT USED)

SOFT-RESET

191

192

2358 2356

SDA-1

SCL-1

FHSYNC

FVSYNC

FDE

FSHFCLK

4391

4392

4393

1351

PC-SYNC

R-V-OUT (0-7)R-V-OUT (0-7)

G-Y-OUT (0-7)G-Y-OUT (0-7)

B-U-OUT (0-7)

FHSYNC

FVSYNC

FDE

FSHFCLK

3511

TTL-OUT (13" & 20")

PLL

PWRDWN

1,9,26

F529

13M5

DATA 0...31

ADDR 0...10

PANEL-PWR-CTL

BACK-LIGHT-EN

PAN_VCC

5504

7352

CLK & CONTROL

TIMING

REG

VDD/VDDQ

SDRAM 2M x 32

ERR

+5V

3342

3344

3343

1341

TO CN1

INVERTER

PANEL

12-24DC-SUP

1506 2 4

10 12

18 20

26 28

LCD

PANEL 15"

34 36 40

1501

LCD

PANEL 13" & 20"

CL 36532073_036.eps

111103

Block Diagrams, Testpoint Overviews, and Waveforms

Testpoint Overview Scaler Board

F009 A4 F010 A1 F011 A4 F012 A4 F013 A3 F020 A5

F021 A5 F022 A5 F023 A2 F024 A3 F304 A3 F341 A3

F342 A3 F343 A3 F345 A3 F347 A1 F348 A1 F349 A1

F378 A1 F379 A1 F380 A1 F381 A1 F382 A1 F383 A1

F384 A1 F385 A1 F386 A1 F387 A1 F388 A1 F390 A1

F391 A1 F392 A1 F393 A1 F394 A1 F395 A1 F396 A1

F397 A1 F398 A1 F399 A1 F504 A1 F521 A1 F524 A1

F525 A1 F526 A1 F527 A1 F528 A1 F529 A1 F530 A1

F531 A1 F532 A1 F533 A1 F534 A1 F535 A1 F536 A1

F537 A1 F538 A1 F539 A1 F540 A1 F541 A1 F542 A1

F683 A4 F686 A3 F687 A3 F688 A3 F689 A3 F690 A4

29LC13E 6.

F691 A3 F692 A3 F693 A3 F694 A3 I001 A5 I002 A5

I003 A5 I004 A4 I005 A5 I006 A5 I007 A5 I008 A4

I014 A3 I015 A4 I017 A4 I018 A4 I019 A4 I025 A4

I026 A4 I301 A3 I302 A3 I303 A4 I305 A3 I306 A3

I307 A3 I308 A3 I309 A3 I310 A3 I311 A3 I313 A3

I314 A3 I315 A3 I316 A3 I317 A4 I319 A3 I320 A3

I321 A3 I322 A3 I323 A3 I324 A4 I325 A4 I326 A4

I327 A4 I331 A4 I332 A3 I333 A3 I334 A4 I335 A3

I344 A2 I345 A2 I346 A2 I347 A2 I348 A2 I349 A2

I350 A2 I351 A1 I352 A2 I353 A1 I355 A3 I357 A2

I358 A2 I359 A2 I361 A2 I362 A2 I363 A2 I364 A2

I365 A2 I371 A1 I373 A1 I374 A1 I375 A1 I377 A1

I681 A4 I682 A4 I684 A3 I685 A3

3139 123 5694.1

F009 = 3V3 DC F011 = 12V DC F012 = 5V DC F013 = 1V8 DC

F304 = 3V3 DC

F529

500mV / div DC

10µs / div

F530

500mV / div DC

10µs / div

F531

F532 F533

500mV / div DC

10µs / div

500mV / div DC

10µs / div

F534

500mV / div DC

10µs / div

F535

500mV / div DC

10µs / div

F536

500mV / div DC

10µs / div

F537 = 3V3 DC

F538 = 3V2 DC

F539 = 3V DC

F541

500mV / div DC

10µs / div

F542

500mV / div DC

10µs / div

F689

1V / div DC

5ms / div

F690

1V / div DC

20µs / div

F691

200mV / div DC

20µs / div

F692

200mV / div DC

10µs / div

F693

200mV / div DC

10µs / div

F694

200mV / div DC

10µs / div

I327

1V / div DC

2µs / div

CL 36532073_025.eps

171103

Block Diagrams, Testpoint Overviews, and Waveforms

I2C-IC’s and Error Codes Overview

IIC

7064

SAA5667

U-CONT

ERR

+3V5

3085

3017

SDA-NVM

SCL-NVM

7066

M24C32

(NVM)

EEPROM

3018

3019

+3V5

3048

+3V5

3064 3065

3086 3084

ERR

10,11

3047

SDA-0

SCL-0

SDA-1

SCL-1

TUNER

3101

1100

TUNER

UR1316

ERR

1010

1681

3100

CONNECTOR

FOR SERVICE

(REACHABLE VIA

HOLE IN REAR

3682

3681

1111

COMPAIR

COVER)

VIDEO

DECODER

30LC13E 6.

IF-VIDEO

3332

TDA8885

BOCMA

VIDEO PROC.

7301

ERR

3331

VIDEO CONVERTER

AUDIO

PROCESSING

3620

3621

7620

MSP34xx

AUDIO

DECODER

ERR

Error codes

Error code

0 No error detected  ---- 1 Reserved 2 Reserved 3 Reserved 4 5V protection active IC7620 & 1100 I2C devices

5 Reserved 6 General I2C bus error I2C bus s/c or o/c 7 Reserved 8 BOCMA I2C error IC 7301

9 BOCMA 8V supply failure IC 7910 or IC7301

10 NVM I2C error IC 7066 (NVM M24CXX) A1 11 NVM identification failure IC 7066 (NVM M24CXX) A1 12 uProcessor internal RAM

13 Tuner I2C error 1100  UR13XX (Tuner) A3 14 Sound processor I2C error IC 7620 (MSP34XX) A8 15 SRAM error IC 7070 (RAM 128 x 8) A2 16 Video Formatter/Scaler

17 Multi-Video Decoder I2C

18* Reserved 19* Reserved 20* Reserved 21 SDRAM protection active IC 7352 (SDRAM 2M x 32) C5

*= Not application

Error description Possible defective

test failure

I2C error

error

components

(MSP34XX & Tuner)

(IF Video TDA888XX)

(MC34063A or TDA888XX)

IC 7064 (uP SAA56XX) A1

IC 7351 (Farouja_s2300) (Video Converter) IC 7302 (Video Decoder SAA7118)

Diagram

A3, A8, A10

A4, A10

SRAM

(NOT FOR NAFTA)

CY7C1019CV33

7070

SRAM

ERR

3327

P10 N9

7302

SAA7118E

VIDEO

DECODER

ERR

3328

3356

46 45

7351

FAROUJAS2300

VIDEO

CONVERTER

ERR

3354

7352

K4S643232E

-TC50 SDRAM 2M x 32

ERR

CL 36532073_039.eps

171103

+ 75 hidden pages
