Philips JetSet Control HP4881, JetSet Control HP4880, JetSet Control HP4804 User Manual
JetSet Control
HP4881, HP4880, HP4804
2 3 4 5
6 7 8 9
10 11 12 13
14 15 16 17
18
D
G
A
F
B
C
E
H
1
ENGLISH
Introduction
The Philips JetSet Control has been specially designed to meet your
personal needs, giving you frizz-free, beautiful and shiny hair.
This hairdryer offers you a variety of heat and speed settings. In addition,
this hairdryer has a Jet position for an ultra-strong airow and a Set
position for a cool shot. This gives you optimal styling freedom and
optimal control over your hairstyle.
You can visit our website at www.philips.com/beauty for more
information about this product or any other Philips beauty product.

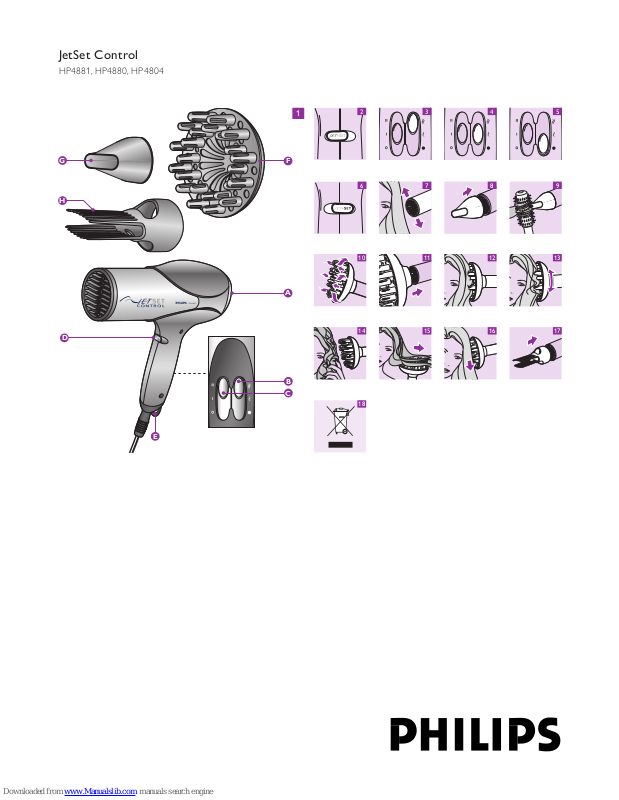

General Description (Fig. 1)
A Air inlet grille
B Temperature slide switch
C Airow slide switch
D JetSET switch
E Hanging loop
F Volume diffuser (HP4881 only)
G Concentrator
H Styling comb (HP4804 only)
Important
Read these instructions for use carefully before using the appliance and
save them for future reference.
Check if the voltage indicated on the appliance corresponds to the
local mains voltage before you connect the appliance.
Check the condition of the mains cord regularly. Do not use the
appliance if the plug, the cord or the appliance itself is damaged.
If the mains cord is damaged, it must be replaced by Philips, a
service centre authorised by Philips or similarly qualied persons
in order to avoid a hazard.
Keep this appliance away from water! Do not use this product
near or over water contained in baths, washbasins, sinks etc.
When used in a bathroom, unplug the appliance after use since
the proximity of water presents a risk, even when the hairdryer is
switched off.
For additional protection, we advise you to install a residual
current device (RCD) with a rated residual operating current not
exceeding 30mA in the electrical circuit supplying the bathroom.
Ask your installer for advice.
Keep the appliance out of the reach of children.
Never block the air grilles.
If the appliance overheats, it will switch off automatically. Unplug
the appliance and let it cool down for a few minutes. Before you
switch the appliance on again, check the grilles to make sure they
are not blocked by uff, hair, etc.
Always switch the appliance off before putting it down, even if it is
only for a moment.
Always unplug the appliance after use.
Do not wind the mains cord round the appliance.
You may notice a characteristic odour when using this hairdryer.
This is caused by the ions that are generated and it is not harmful
to the human body.
Do not probe the ion generator with metal objects.
Noiselevel: Lc= 84 dB(A)
Using the appliance
Drying
1 Put the plug in the wall socket.
2 Switch the appliance on by selecting the desired airow setting:
Set the slide switch to airow setting II for ultra-quick drying.
Set the slide switch to airow setting I for drying short hair or styling
your hair.
You can also use the Jet position of the JetSet switch for an extra-
powerful airow. (Fig. 2)
3 Set the temperature slide switch to the Quick-Dry, Caring or
Fixation setting.
The Quick-Dry setting 6
The Quick-Dry setting enables you to dry shower-wet hair very
quickly. (Fig. 3)
It is recommended to use the Quick-Dry setting only on shower-wet
hair and to select the Caring setting when the hair is almost dry in order
to reduce the risk of overdrying.
,
,
,
,
,
,
,
,
,
,
,
,
,
,
-
-
,
,
The Caring setting 5
The Caring setting gently dries the hair at a caring temperature.
(Fig. 4)
The Fixation setting 4
The Fixation setting xes the style you have created. (Fig. 5)
For long-lasting styling results, set the switch to the Fixation setting and
direct the cool airow at your hair to x your style.
You can also use the Set position of the JetSet switch to x your
style. (Fig. 6)
4 Dry your hair by making brushing movements with the hairdryer
at a small distance from the hair. (Fig. 7)
Attachments
Concentrator
The concentrator enables you to direct the airow straight at the brush
or comb with which you are styling your hair.
1 Connect the concentrator by simply snapping it onto the
appliance. Disconnect it by pulling it off. (Fig. 8)
2 Switch the appliance on by setting the airow slide to position I or
II.
3 While you are drying your hair with the concentrator, you can use
a brush or comb to style your hair. (Fig. 9)
Volume diffuser (HP4881 only)
The volume diffuser has been specially developed to gently dry both
straight and curly or wavy hair.
The volume diffuser emits a gentle airow and allows you to give
your style volume and bounce. (Fig. 10)
1 Connect the diffuser by simply snapping it onto the appliance and
align the arrows on the diffuser and the barrel. Disconnect it by
pulling it off. (Fig. 11)
To add volume at the roots, insert the pins into your hair in such a
way that they touch your scalp. (Fig. 12)
2 Make rotating movements with the appliance to distribute the
warm air evenly through your hair. (Fig. 13)
Curly or wavy hair
When you are styling curly or wavy hair, hold the diffuser at a
distance of 10-15 cm from your head to let the hair dry gradually.
(Fig. 14)
In the meantime you can style your hair with your free hand or with
a comb.
You can also scrunch locks of hair in your hand to model the curls
and waves while drying. This will prevent the curls from sagging or
becoming frizzy.
Long hair
To dry long hair, you can spread out locks of hair on top of the
diffuser. (Fig. 15)
Alternatively, you can comb the hair downwards with the pins of
the diffuser while drying. (Fig. 16)
Styling comb (HP4804 only)
The styling comb has been specially designed to lift, straighten and
smooth curly Afro hair while drying.
Connect the styling comb by simply snapping it onto the appliance.
Disconnect it by pulling it off. (Fig. 17)
Cleaning
Always unplug the appliance before cleaning it.
Never rinse the appliance with water.
Open the inlet grille to remove hairs and dust.
Clean the appliance with a dry cloth.
Clean the attachments with a moist cloth or by rinsing them under
the tap.
Remove the attachments from the appliance before cleaning them.
Storage
Always unplug the appliance before storing it.
Put the appliance in a safe place and let it cool down.
Do not wind the mains cord round the appliance.
,
,
,
,
,
,
-
-
,
,
,
,
,
,
,
,
4222 002 60223
2/7
The appliance can be stored by hanging it from its hanging loop.
Environment
Do not throw the appliance away with the normal household
waste at the end of its life, but hand it in at an ofcial collection
point for recycling. By doing this you will help to preserve the
environment. (Fig. 18)
Guarantee & service
If you need information or if you have a problem, please visit the Philips
website at www.philips.com or contact the Philips Customer Care
Centre in your country (you will nd its phone number in the worldwide
guarantee leaet). If there is no Customer Care Centre in your country,
turn to your local Philips dealer or contact the Service Depar tment of
Philips Domestic Appliances and Personal Care BV.
Troubleshooting
If problems should arise with your hairdryer and you are unable to solve
them by means of the troubleshooting guide below, please contact the
nearest Philips service centre or the Philips Customer Care Centre in
your country.
Problem Solution
The appliance does
not work at all.
Perhaps the socket to which the appliance has been
connected is not live:
Make sure the socket is live.
The appliance may have overheated and switched itself
off:
Unplug the appliance and let it cool down for a few
minutes. Before you switch the appliance on again, check
the grilles to make sure they are not blocked by uff,
hair, etc.
The appliance may not be suitable for the voltage to
which it has been connected:
Make sure that the voltage indicated on the type plate of
the appliance corresponds to the local mains voltage.
The mains cord of the appliance may be damaged:
If the mains cord is damaged, it must be replaced by
Philips, a service centre authorised by Philips or similarly
qualied persons in order to avoid a hazard.
,
,
4222 002 60223
3/7
