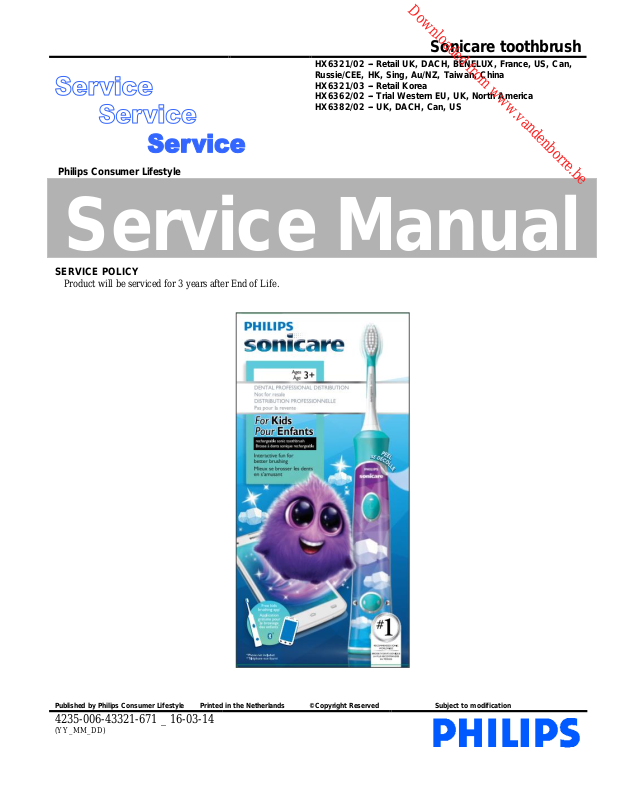

PHILIPS HX6321 User Manual [fr]

Sonicare toothbrush

HX6321/02 --- Retail UK, DACH, BENELUX, France, US, Can,
Russie/CEE, HK, Sing, Au/NZ, Taiwan, China
HX6321/03 --- Retail Korea
HX6362/02 --- Trial Western EU, UK, North America

HX6382/02 --- UK, DACH, Can, US

4235-006-43321-671 _ 16-03-14

(YY_MM_DD)

Philips Consumer Lifestyle

Service Manual

SERVICE POLICY

Product will be serviced for 3 years after End of Life.

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright Reserved Subject to modification

HX6321, HX6362,
HX6392, HX6340 (Handle)

4235-060-43321-671 _ 16-03-14

(YY_MM_DD)

2-2

SERVICE MANUAL - ORLANDO / SONICARE FOR KIDS

Sonicare for Kids (HX6321, HX6362, HX6392)

Pos Service Code Description Comments

4235 010 18932 SONICARE 4 KIDS TRAVEL CHARGER - US, CANADA

4235 010 18942 SONICARE 4 KIDS TRAVEL CHARGER - EU

4235 010 18952 SONICARE 4 KIDS TRAVEL CHARGER - UK

4235 090 03971 SONICARE 4 KIDS TRAVEL CHARGER - JPN YOSHIDA

4235 090 03961 SONICARE 4 KIDS TRAVEL CHARGER - JPN KOIZUMI

4235 090 02561 SONICARE 4 KIDS TRAVEL CHARGER - TAIWAN

4235 090 06881 SONICARE 4 KIDS TRAVEL CHARGER - KOREA

4235 090 04331 SONICARE 4 KIDS TRAVEL CHARGER - CHINA

4235 090 06891 SONICARE 4 KIDS TRAVEL CHARGER - SING, PHIL,HK, MALAY

8816 042 33020 BRUSH HEAD, SUPER FRESH AQUA MINI - EU

8816 032 35710 BRUSH HEAD, SUPER FRESH AQUA MINI - CHINA

8816 032 35660 BRUSH HEAD, SUPER FRESH AQUA MINI - TAIWAN

8816 032 35530 BRUSH HEAD, SUPER FRESH AQUA MINI - AUSTRALIA/NEW ZEALAND

8816 032 94540 BRUSH HEAD, SUPER FRESH AQUA MINI - US

8816 032 94520 BRUSH HEAD, SUPER FRESH AQUA MINI - CANADA

4235 021 00701 BONUS STICKERS - NA, EU

4235 090 06871 BONUS STICKERS - ALL OF ASIA

4235 021 00691 DECO LABEL - NA, EU

4235 090 06861 DECO LABEL - ALL OF ASIA

5 4235 010 21722 DECO PANEL - NA, EU

4235 090 05071 DECO PANEL - ALL OF ASIA

4235 090 06501 HANDLE ONLY (+DECO) HX6340 - NORTH AMERICA

4235 090 06581 HANDLE ONLY (+DECO) HX6340 - EU

4235 090 06591 HANDLE ONLY (+DECO) HX6340 - CHINA

4235 090 06901 HANDLE ONLY (+DECO) HX6340 - JAPAN

4235 090 07401 HANDLE ONLY (+DECO) HX6340 - KOREA

4235 090 06601 HANDLE ONLY (+DECO) HX6340 - ROA

Available as a Service part. Warranty

claims should be routed to Call Centers.

2

6

Not available as a Service Part. Only

available as a warranty. Handle warranty

claims must be routed to Call Centers for

replacement.

4

3

1

PARTS LIST AND EXPLODED VIEW
