Page 1

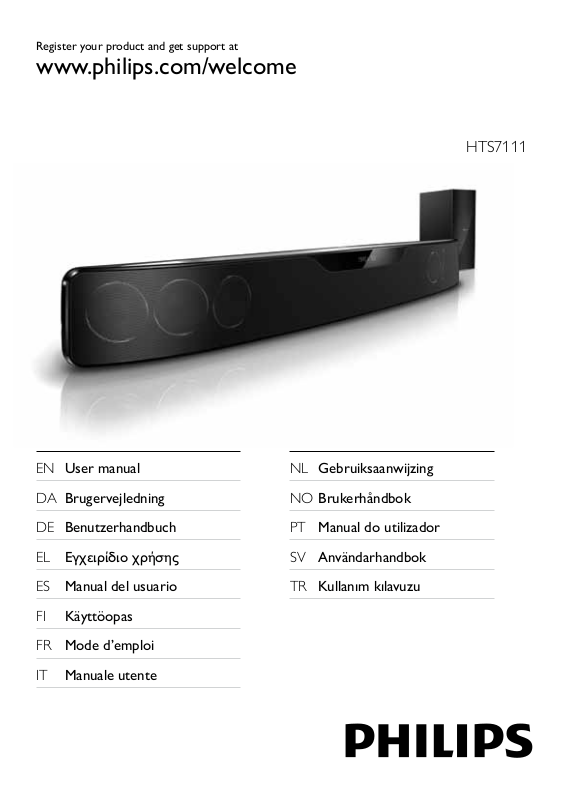

www.philips.com/welcome

HTS7111

EN User manual

DA Brugervejledning

DE Benutzerhandbuch

EL Εγχειρίδιο χρήσης

ES Manual del usuario

FI Käyttöopas

FR Mode d’emploi

IT Manuale utente

NL Gebruiksaanwijzing

NO Brukerhåndbok

PT Manual do utilizador

SV Användarhandbok

TR Kullanım kılavuzu

Page 2

Page 3

Contents

1 Help and support 4

Tutorials 4 FAQs 4 Contact Philips 4

8 Wall mount and stand 19

Wall mount 19 Stand for SoundBar and TV - STS1100/

STS1300

9 Product specications 20

English

2 Notice 4

Compliance 4 Mains fuse 4 Trademarks 5

3 Important 5

Safety 5 Care for your product 6 Care of the environment 6

4 Your SoundBar 7

Main unit 7 Remote control 7

5 Connect your SoundBar 9

Subwoofer 9 Connectors 9 Connect to TV 10 Connect to other devices through HDMI 11 Connect audio from TV and other devices 12 Listen to a connected device 13

6 Use your SoundBar 14

Choose your sound 14 MP3 player 15 iPod or iPhone 15 EasyLink 16

10 Troubleshooting 21

7 Change settings 18

Setup menu options and settings 18 Apply factory settings 19

Page 4

1 Help and support

2 Notice

Watch video tutorials and nd answers to many

frequently answered questions (FAQs) on your product at www.philips.com.

Tutorials

To set up your SoundBar and get additional information, refer to the video tutorials at w ww. philips.com/support.

FAQs

If you have a problem, refer to the frequently asked questions (FAQs) for this SoundBar at www.philips.com/support.

If you still need help, contact Philips Consumer Care in your country.

Warning

Do not attempt to repair your SoundBar

•

yourself. This may cause severe injur y, irreparable damage to your SoundBar, or void your warranty.

Contact Philips

This section contains the legal and trademark notices.

Compliance

This product is in compliance with the essential requirements and other relevant provisions of Directives 2006/95/EC (Low Voltage), 2004/108/ EC (EMC).

Mains fuse

This information applies only to products with a UK mains plug.

This product is tted with an approved molded

plug. If you replace the fuse, use one with:

• the ratings shown on the plug,

• a BS 1362 approval, and

• the ASTA approval mark.

Contact your dealer if you are not sure about what type of fuse to use.

Caution: To conform with the EMC directive (2004/108/EC), do not detach the plug from the power cord.

If you contact Philips, you will be asked for the model and serial number of your product. The model number and serial number are on the back or bottom of your product. Note the numbers before you call Philips:

Model No. __________________________ Serial No. ___________________________

Page 5

Trademarks

3 Important

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks & DTS Digital Surround and the DTS logos are trademark s of DTS, Inc. Product includes sof tware. Reserved.

DTS, Inc. All Rights

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo, and High-Denition

Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC in the United States and other countries.

Read and understand all instructions before you use your SoundBar. If damage is caused by failure to follow instructions, the warranty does not apply.

Safety

Risk of electric shock or re!

• Never expose the product and accessories

to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer Care to have the product checked before use.

• Never place the product and accessories

near naked ames or other heat sources,

including direct sunlight.

• Never insert objects into the ventilation

slots or other openings on the product.

• Where the mains plug or an appliance

coupler is used as the disconnect device, the disconnect device shall remain readily operable.

• Disconnect the product from the power

outlet before lightning storms.

• When you disconnect the power cord,

always pull the plug, never the cable.

Risk of short circuit or re!

• Before you connect the product to the

power outlet, ensure that the power voltage matches the value printed on the back or bottom of the product. Never connect the product to the power outlet if the voltage is different.

Risk of injury or damage to the SoundBar!

• For wall-mountable products, use only the

supplied wall mount bracket. Secure the wall mount to a wall that can suppor t the combined weight of the product and the wall mount. Koninklijke Philips Electronics N.V. bears no responsibility for improper wall mounting that results in accident, injury or damage.

• Never place the product or any objects

on power cords or on other electrical equipment.

English

Page 6

• If the product is transpor ted in

temperatures below 5°C, unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet.

• Parts of this product can be made of

glass. Handle with care to avoid injur y and damage.

Risk of overheating!

• Never install this product in a conned

space. Always leave a space of at least four inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.

Risk of contamination!

• Do not mix batteries (old and new or

carbon and alkaline, etc.).

• Remove batteries if they are exhausted or

if the remote control is not to be used for a long time.

• Batteries contain chemical substances, they

should be disposed of properly.

Risk of swallowing batteries!

• The product/remote control may contain a

coin type battery, which can be swallowed. Keep the battery out of reach of children at all times!

Care for your product

Use only microber cloth to clean the product.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/ EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC , which cannot be disposed with normal household waste.

Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Page 7

4 Your SoundBar

1 2 3

Remote control

Congratulations on your purchase, and welcome

to Philips! To fully benet from the support that

Philips offers, register your SoundBar at www. philips.com/welcome.

Main unit

a SOURCE

Select an audio source for the SoundBar.

b (Standby-On)

• Switch the SoundBar on or to standby.

• When the SoundBar is in standby, the

standby indicator turns red.

c +/- (Volume)

Increase or decrease volume.

d Display panel

English

a (Standby-On)

• Switch the SoundBar on or to standby.

• When EasyLink is enabled, press

and hold for at least three seconds to switch all connected HDMI CEC compliant devices to standby.

Page 8

b HDMI SOURCE

Switch your audio source to the HDMI connection.

c DOCK for iPod

Switch to Philips dock for iPod or iPhone.

d Navigation buttons ( / / / )

Navigate menus.

e OK

Conrm an entry or selection.

f SOUND SETTINGS

Access or exit sound options.

g Dock for iPod/iPhone buttons

• (Stop)/EXIT: Stop play for iPod or

iPhone, or exit the SoundBar setup menu.

• / (Previous/Next): Skip to the

previous or next track or le. Press and

hold to search backwards or for wards.

• (Play/Pause): Start, pause, or

resume play. Press and hold to switch off the iPod or iPhone.

• Navigation button ( ): Return to the

previous menu on the iPod or iPhone, or return to the previous SoundBar menu.

h (Mute)

Mute or restore volume.

i +/- (Volume)

Increase or decrease volume.

j TREBLE +/-

Increase or decrease treble.

k BASS +/-

Increase or decrease bass.

l AMBISOUND

Select an Ambisound, auto or stereo mode.

m SETUP

Access the setup menu.

n AUDIO SOURCE

• OPTI IN: Switch your audio source to

the optical connection.

• COA X IN: Switch your audio source

to the coaxial connection.

• AUX: Switch your audio source to the

AUX connection.

• MUSIC iLINK: Switch your audio

source to the MUSIC iLINK connection.

EasyLink controls

With Easylink, you can control your SoundBar, TV and the connected devices with the standby button on your SoundBar remote control.

• (Standby-On): Press and hold to switch

your SoundBar, TV, and the connected devices to standby.

Page 9

MUSIC

iLINK

AC MAINS~

5 Connect your

SoundBar

This section helps you connect your SoundBar to a TV and other devices.

For information about the basic connections of your SoundBar and accessories, see the quick start guide. For a comprehensive interactive guide, see www.connectivityguide.philips.com.

Note

For identication and supply ratings, refer to

•

the type plate at the back or bottom of the product.

• Before you make or change any connections,

make sure that all devices are disconnec ted from the power outlet .

Connect

Connect your subwoofer to your SoundBar as described in the quick star t guide.

English

Setup

Set up your subwoofer through the setup menu.

1 Press SETUP repeatedly to select SUBW

VOL on the display panel (see ‘Setup menu

options and settings’ on page 18).

2 Press OK. 3 Press the Navigation buttons ( / ) to

change the volume.

4 Press OK to conrm. 5 Press EXIT to exit the menu.

Connectors

Subwoofer

Follow the steps below to position, connect, and set up your subwoofer.

Position

Place the subwoofer at least one meter (three feet) away from either to the left or right of your SoundBar, and ten centimeter away from the wall.

For best results, place your subwoofer as shown below.

Connect other devices to your SoundBar.

Side left

MUSIC iLINK

Audio input from an MP3 player.

Rear left

AC MAINS~

Connect to the power supply.

Page 10

Rear center

HDMI OUT (ARC) TO TV

HDMI IN

(WHITE)

(RED)

AUDIO IN-AUX

DOCK for iPod

COAXIAL

OPTICAL

DIGITAL IN

(WHITE)

(RED)

AUDIO IN-AUX

SUBWOOFER (6Ω)

a HDMI IN 1/2

Connect to the HDMI output on the audio devices.

b TO TV-HDMI OUT (ARC)

Connect to the HDMI input on the TV.

c DOCK for iPod

Connect to a Philips dock for iPod or iPhone.(Model: Philips DCK3060).

d AUDIO IN-AUX

Connect to an analog audio output on the TV or an analog device.

e DIGITAL IN-OPTICAL

Connect to an optical audio output on the TV or a digital device.

f DIGITAL IN-COAXIAL

Connect to a coaxial audio output on the TV or a digital device.

Connect to TV

Connect your SoundBar to a TV. You can listen to audio from TV programs through your SoundBar. Use the best quality connection available on your SoundBar and TV.

Option 1: Connect to TV through HDMI (ARC)

Your SoundBar supports HDMI version 1.4

- Audio Return Channel (ARC). If your TV is HDMI ARC compliant, connect your SoundBar to the TV through the HDMI ARC connection.

With HDMI ARC, you do not need an additional audio cable to play audio from TV through your So und Bar.

1 Using a High Speed HDMI cable, connect

the HDMI OUT (ARC) connector on your SoundBar to the HDMI ARC connector on th e T V.

The HDMI ARC connector on the TV might be labeled HDMI IN or HDMI. For details on TV connectors, see the TV user manual.

Rear right

SUBWOOFER

Connect to the supplied subwoofer.

2 On your TV, turn on HDMI-CEC. For

details, see the TV user manual.

» The audio from the TV is automatically

played on your Soundbar.

3 If audio from the TV does not play

automatically, select the correct video input on the TV.

Page 11

Option 2: Connect to TV through an

analog audio cable

If your TV does not have HDMI connectors, connect your SoundBar to the TV through an analog audio cable connection.

1 Using an analog cable, connect AUX

connectors on your SoundBar to the audio connectors on the TV.

2 Select the correct video input on your TV. 3 Press SOURCE on the SoundBar repeatedly

to select the correc t audio input (see ‘Listen to a connected device’ on page 13).

Connect to other devices through HDMI

Connect digital devices directly to your SoundBar through an HDMI connection. Digital devices can include a Blu-ray player, set-top box, games console, or camcorder.

1 Using a High Speed HDMI cable, connect

the HDMI OUT connector on your digital device to the HDMI IN connector on your So und Bar.

English

2 Using another High Speed HDMI cable,

connect the HDMI OUT (ARC) connector on your SoundBar to the HDMI IN or

HDMI ARC connector on the TV.

3 On the connected devices, turn on HDMI-

CEC. For details, see the user manual of the devices.

4 Select the correct video input on the TV. 5 Select the correct HDMI input on your

SoundBar (see ‘Set up audio for connected devices’ on page 13).

Note

If you connect the HDMI OUT (ARC)

•

connector on your SoundBar to an HDMI ARC compliant TV, you can either choose to select the audio to output through your SoundBar or through the T V. For details about mapping the TV audio, see the TV user manual.

Page 12

VCR

Connect audio from TV and

other devices

Play audio from TV or other devices through your SoundBar.

Use the best quality connection available on other devices.

Note

The audio connections in this user manual are

•

only recommendations. You can use other connections too.

• When your SoundBar and TV are connected

through HDMI ARC , an audio connection is not required.

Option 1: Connect audio through a digital optical cable

Best quality audio

Using an optical cable, connect the OPTICAL connector on your SoundBar to the OPTICAL OUT connector on the device.

The digital optical connector might be labeled

SPDIF, SPDIF OUT, or OPTICAL.

Option 2: Connect audio through a digital coaxial cable

Good quality audio

Using a coaxial cable, connect the COAXIAL connector on your SoundBar to the COAXIAL/ DIGITAL OUT connector on the device.

The digital coaxial connector might be labeled

DIGITAL AUDIO OUT.

Tip

To play video from the device, connect the

•

device to the TV through a video connection.

Option 3: Connect audio through analog audio cables

Basic quality audio

Using an analog cable, connect the AUX connectors on your SoundBar to the audio connectors on the device.

Tip

To play video from the device, connect the

•

device to the TV through a video connection.

Page 13

Set up audio for connected devices

When you connect a device to your SoundBar, check the audio settings.

1 On your TV and other devices, turn on

HDMI-CEC. For details, see the user manual of the TV and the other device.

2 Select ‘Amplier’ from the TV speakers

menu. For details, see the TV user manual.

3 On your SoundBar, turn on System Audio

Control, and then map the audio of the connected device to the correct connectors on your SoundBar (see ‘Play audio from SoundBar’ on page 17).

If the connected device is not HDMI-CEC compliant, press the source button on the main unit or remote control to select the correct audio input on your SoundBar (see ‘Listen to a connected device’ on page 13).

Listen to a connected device

Before you can listen to a connected device, select the source for the device.

Main unit

Press SOURCE on the SoundBar to cycle through and select one of the following audio sources on the display panel:

HDMI ARC (if avaliable) > HDMI IN1 > HDMI IN2 > MUSIC I-LINK > IPOD > AUX > OPTI IN > COAX IN

Remote control

Press AUDIO SOURCE or HDMI SOURCE on the remote control to cycle through and select an audio source, as shown in the following table.

Source button Display text Audio

AUDIO SOURCE OPTI IN Optical

AUDIO SOURCE COAX IN Coaxial

AUDIO SOURCE AUX AUX input AUDIO SOURCE MUSIC

I-LINK

HDMI SOURCE HDMI ARC (if

available)

HDMI SOURCE HDMI IN1 or

HDMI IN2

source

input

MP3 input

HDMI ARC output

HDMI input

English

Note

HDMI ARC can only be selected if you

•

connect your SoundBar to the HDMI ARC compliant TV through HDMI ARC (see ‘Option 1: Connect to TV through HDMI (ARC)’ on page 10).

Page 14

6 Use your SoundBar

This section helps you use the SoundBar to play audio from connected devices.

Before you start

• Make the necessary connections described

in the quick start guide and the user manual.

• Switch the SoundBar to the correct source

for other devices.

Choose your sound

This section helps you choose the ideal sound for your video or music.

Sound options and settings

Sound option

MODE AUTO

AUTO VOL

NIGHT ON

AUD SYNC

1 Press SOUND SETTINGS repeatedly to

2 Select a setting, and then press OK. 3 Press the Navigation buttons ( / ) to

4 Press EXIT to exit.

If you do not press a button within ten seconds, the menu exits automatically.

Setting for the option

MOVIE MUSIC ORIGINAL NEWS GAMING ON OFF

OFF 0 MS, 10 MS, 20 MS, ..., 180 MS,

190 MS, 200 MS

access the sound options on the display panel (see ‘Sound options and settings’ on page 14).

select an option.

Sound mode

Select predened sound modes to suit your

video or music.

1 Press SOUND SETTINGS repeatedly to

select MODE on the display panel (see ‘Sound options and settings’ on page 14).

2 Select a mode, and then press OK. 3 Press the Navigation buttons ( / ) to

select a setting:

• AUTO: Select either MOVIE or

MUSIC automatically depend on the

sound stream.

• MOVIE: Enjoy a cinematic audio

experience, specially enhanced for movies.

• MUSIC: Recreate the original recording

environment of your music, in the studio or at a concert.

• ORIGINAL: Experience the original

sound of your movies and music, without added sound effects.

• NEWS: Hear every word with

optimized speech and clear vocals.

• GAMING: Enjoy thrilling arcade

sounds, ideal for action-packed video games or loud par ties.

Auto volume

Turn the auto volume on to keep the volume constant when you switch to a different source.

1 Press SOUND SETTINGS repeatedly to

select AUTO VOL on the display panel (see ‘Sound options and settings’ on page 14).

2 Press OK. 3 Press the Navigation buttons ( / ) to

select a setting:

• ON: Turn on auto volume.

• OFF: Turn off auto volume.

Page 15

Night mode

For quiet listening, decrease the volume of loud sounds when you play discs. Night mode is only available for Dolby encoded DVD and Blu-ray discs.

1 Press SOUND SETTINGS repeatedly to

select NIGHT on the display panel (see ‘Sound options and settings’ on page 14).

2 Press OK. 3 Press the Navigation buttons ( / ) to

select a setting:

• ON: Turn on night mode.

• OFF: Turn off night mode.

Equalizer

Change the high frequency (treble) and low frequency (bass) settings of the SoundBar.

Press TREBLE +/- or BASS +/- to change the frequency shown on the display panel.

MP3 player

Connect your MP3 player to play your audio les

or music.

What you need

• An MP3 player.

• A 3. 5mm stereo audio cable.

English

Note

If auto volume is set to ON, you cannot enable

•

the night mode.

Synchronize picture and sound

If the audio and video are not synchronized, delay the audio to match the video.

1 Press SOUND SETTINGS repeatedly to

select AUD SYNC on the display panel (see ‘Sound options and settings’ on page 14).

2 Press OK. 3 Within two seconds, press the Navigation

buttons (

shown on the display panel.

/ ) to change the delay

4 Press OK to conrm.

Ambisound

Set up Ambisound to give the best surround sound effect.

Press AMBISOUND repeatedly to select a setting on the display panel:

• AMBISOUND: Surround sound for your

room (see ‘Ambisound’ on page 18).

• STEREO: Two-channel stereo sound. Ideal

for listening to music.

• AUTO: Surround sound based on the audio

stream.

Note

If you play a source with DTS, DT S is displayed

•

on the display panel for two seconds.

• If you play a source with Dolby, DOLBY D is

displayed on the display panel for two seconds.

Play music

1 Connect the MP3 player to the SoundBar as

described in the Quick star t guide.

2 Press AUDIO SOURCE repeatedly to

select MUSIC I-LINK on the display panel.

3 Press the but tons on the MP3 player to

select and play audio les or music.

iPod or iPhone

When you connect a Philips dock for iPod/iPhone, you can use the SoundBar to play music, movies and photos from your iPod or iPhone.

What you need

• A Philips dock (Model: Philips DCK3060).

• A yellow composite cable.

Note

Philips dock for iPod or iPhone is sold

•

separately.

• Charge your iPod or iPhone on the dock while

the SoundBar is in iPod mode.

Dock your iPod or iPhone

1 Move the slide at the bottom of the dock to

STANDARD, and then connect the dock to

th e Soun dBar.

2 Connect the yellow composite cable to the

dock and TV.

3 Switch on the iPod or iPhone, and place it

on the dock.

Page 16

Play music

1 Dock your iPod or iPhone (see ‘Dock your

iPod or iPhone’ on page 15).

2 Press DOCK for iPod.

» IPOD appears on the display panel.

3 Press the play buttons to control play.

Button Action

Navigation buttons (

)

OK Conrm an entry or selection.

/ (Previous/ Next)

(Play/

Pause)

(Stop)/EXIT

Navigation button (

Navigate up and down the menus.

Skip to the previous or next

track or le. Press and hold to

search backwards or forwards. Star t, pause, or resume play.

Press and hold to switch off the iPod or iPhone.

Stop play for iPod or iPhone, or exit the SoundBar setup menu.

Return to the previous menu on

)

the iPod or iPhone, or return to the previous SoundBar menu.

Play video and slideshows

1 On iPod, enable the TV ON setting. On

iPhone, select the TV Out option.

2 Dock your iPod or iPhone (see ‘Dock your

iPod or iPhone’ on page 15).

3 Press DOCK for iPod. 4 Switch the TV to the AV/ VID EO source

(corresponding to the yellow composite cable).

» The TV screen goes blank.

5 Browse on the iPod or iPhone screen to

select videos or photos.

6 Press (Play/Pause) on the SoundBar

remote control to play the videos or photos.

» The picture is displayed on the TV.

EasyLink

The SoundBar supports Philips EasyLink, which uses the HDMI-CEC (Consumer Electronics Control) protocol. EasyLink-compliant devices that are connected through HDMI can be controlled by a single remote control.

Philips does not guarantee 100% interoperability with all HDMI-CEC devices.

What you need

• HDMI-CEC compliant devices.

• An HDMI connection between the

connected devices.

Switch on

1 Switch on the HDMI-CEC operations on

the TV and other connected devices. For information, see the manual of the TV or other devices.

2 Press SETUP repeatedly to select

EASYLINK on the display panel (see ‘Setup

menu options and settings’ on page 18).

3 Press OK. 4 Press the Navigation buttons ( / ) to

select ON.

5 Press OK to conrm.

» The EasyLink is on.

Note

To disable EasyLink, select OFF.

•

• When EasyLink is switched off, the following

options are not available: SYS STBY, AUD CTRL, and TV AUDIO.

Page 17

Control devices

Control the SoundBar and the other connected HDMI-CEC compliant devices with a single remote control.

One-touch standby

When you press and hold the remote control, the SoundBar and all the connected HDMI-CEC devices (that suppor t one-touch standby) switch to the standby mode. If One-touch standby is enabled on your SoundBar, you can switch to standby with the remote control of the TV or other connected HDMI-CEC devices.

System Audio Control

You need to connect a device to the TV and route its audio output from TV to the SoundBar so that the SoundBar can switch to the corresponding audio source automatically. To use one-touch audio, switch on System Audio Control and map connected devices to the audio input connectors of the SoundBar.

TV Audio Mapping

You need to connect a device to the TV and route its audio output from TV to the SoundBar in order to map the device to the audio input connector (see ‘Play audio from SoundBar’ on page 17).

(Standby) on

Play audio from SoundBar

You need to connect an HDMI-CEC device to the TV and route its audio output from TV to the SoundBar in order to map the audio of the connected device to your SoundBar.

1 Press SETUP repeatedly to select AUD

CTRL on the display (see ‘Setup menu

options and settings’ on page 18).

2 Press OK. 3 Press the Navigation buttons ( / ) to

select ON, and then press OK.

• To play the audio from the TV

speakers, select OFF.

4 Press SETUP repeatedly to select TV

AUDIO on the display panel, and then press OK.

5 Press the Navigation buttons ( / ) to

select the audio output for each connected device.

• HDMI ARC: Audio output through the

HDMI ARC connection.

• COA X IN: Audio output through the

coaxial connection.

• OPTI IN: Audio output through the

optical connection.

• AUX: Audio output through the AUX

connection.

6 Press OK to conrm. 7 Press EXIT to exit the menu.

English

One-touch standby

The SoundBar and all connected HDMI-CEC devices can be switched to standby by a remote control.

1 Press SETUP repeatedly to select SYS

STBY on the display panel (see ‘Setup menu

options and settings’ on page 18).

2 Press OK. 3 Press the Navigation buttons ( / ) to

select ON.

4 Press OK to conrm. 5 Press EXIT to exit the menu.

Note

To disable One-touch standby, select OFF.

•

Note

HDMI ARC can only be selected if you

•

connect your SoundBar to the HDMI ARC compliant TV through HDMI ARC connection (see ‘Option 1: Connect to TV through HDMI (ARC)’ on page 10).

Page 18

7 Change settings

This section helps you to change the settings of your SoundBar.

Caution

Most of the settings are already congured

•

with the best value for your SoundBar. Unless you have a reason to change a setting, it is best to leave it at the default value.

Setup menu options and settings

1 Press SETUP repeatedly to cycle through

the options on the display panel (see ‘Setup menu options and settings’ on page 18).

2 Select an option, and then press OK. 3 Press the Navigation buttons ( / ) to

select a setting for the option, and then press OK.

Note

If you do not press a button within ten

•

seconds, the setup menu exits.

• To return to the previous menu, press the

Navigation button ( press EXIT.

). To exit the menu,

Setup menu option

EASYLINK ON

SYS STBY ON

AUD CTRL ON

TV AUDIO HDMI ARC

SUBW VOL +5, +4, +3, ..., 0, ...,

AMBISOUND POSITION IN

DIS P L AY BRIGHT

Setting for the option

OFF

COAX IN OPTI IN AUX

-3, -4, -5

DISTANCE 0M - 2M

DIM 1 DIM 2

Setting for the option

FRONT RIGHT LEFT CORNER

2M - 3M ABOVE

Ambisound

To give the best surround sound effect, select options about your room and the position of the So und Bar.

1 Press SETUP repeatedly to select

AMBISOUND on the display panel (see

‘Setup menu options and settings’ on page

18).

2 Press OK. 3 Set the position of the SoundBar.

A Press the Navigation buttons ( /

) to select POSITION, and then press OK.

B Press the Navigation buttons ( / )

to select IN FRONT, RIGHT, LEFT, or CORNER, and then press OK.

4 Set the distance between your listening

position and the SoundBar.

A Press the Navigation buttons ( /

) to select DISTANCE, and then press OK.

B Press the Navigation buttons ( /

) to select 0M - 2M (from zero to two mete rs), 2M - 3M (from two to three meters), or ABOVE 3M (above three meters), and then press OK.

Page 19

> 25mm

3 - 3.5mm

Display panel

Change the brightness of the SoundBar display panel.

1 Press SETUP repeatedly to select DI S P L AY

on the display panel (see ‘Setup menu options and settings’ on page 18).

2 Press OK. 3 Press the Navigation buttons ( / ) to

select BRIGHT, DIM 1, or DIM 2, and then press OK.

Apply factory settings

You can reset your SoundBar to the default settings programmed at the factory.

In AUX mode, within three seconds, press TREBLE+, VOL-, and BASS+.

» When the factor y settings restore is

complete, the SoundBar automatically switches off and restarts.

8 Wall mount and

stand

English

Before you mount your SoundBar to the wall or onto a single stand, read all safety precautions (see ‘Safety’ on page 5).

If you have any query, contact Philips Consumer Care in your country.

Wall mount

Screw length/diameter

Depend on the type of wall mounting this wall mount bracket, make sure that you use screws of a suitable length and diameter.

Note

Before wall mount, you can remove the three

•

rubber feet at the bot tom of the SoundBar.

• If you remove the rubber feet, you cannot stick

them back on the bottom of the SoundBar.

For information about how to wall your SoundBar, see the wall mount guide.

Page 20

Stand for SoundBar and TV STS1100/STS1300

If you have a Philips TV, you can mount your SoundBar and the TV onto a single stand.

Purchase the STS1100 or STS1300 stand from an authorized Philips dealer.

For instructions on how to install the stand with the SoundBar and Philips TV, see the stand quick start guide.

9 Product

specifications

Note

Specications and design are subject to change

•

without notice.

STS1100:

STS1300:

Amplier

• Total output power:

• Europe and Asia: 300W RMS (30%

THD)

• Latin America: 224W RMS (10% THD)

• Frequency response: 20 Hz-20 kHz / ±3 dB

• Signal-to-noise ratio: > 65 dB (CCIR) /

(A-weighted)

• Input sensitivity:

• AUX: 250 mV

• Music iLink: 50 mV

Audio

• S/PDIF Digital audio input:

• Coaxial: IEC 60958-3

• Optical: TOSLINK

Main unit

• Power supply: 110-240 V~, 50-60 Hz

• Power consumption: 55 W

• Standby power consumption: ≤ 1 W

• Center speaker:

• Speaker impedance: 6 ohm

• Speaker drivers: 2 x 64 mm (2.5”) full

range

• Frequency response: 150 Hz-20 kHz

• Front/Rear speakers:

• Speaker impedance: 3 ohm

• Speaker drivers: 4 x 64 mm (2.5”) full

range

• Frequency response: 150 Hz-20 kHz

• Dimensions (WxHxD): 945 x 108 x 86 mm

• Weight: 3.82 kg

Page 21

Subwoofer

• Output power: 80W RMS (30% THD)

• Impedance: 6 ohm

• Speaker drivers: 165 mm (6.5”) woofer

• Frequency response: 20 Hz-150 Hz

• Dimensions (WxHxD): 192 x 447 x 253

• Weight: 4.4 kg

• Cable length: 3 m

Wall mount

• Dimensions (WxHxD): 80 x 80 x 15 mm

• Weight: 0.08 kg/each

10 Troubleshooting

Warning

Risk of electric shock. Never remove the

•

casing of the product.

To keep the warranty valid, never try to repair the product yourself.

If you have problems using this product, check the following points before you request service. If you still have a problem, register your product and get support at www.philips.com/welcome.

English

Remote control batteries

• 2 x AAA-R03-1.5 V

Main unit

The buttons on the SoundBar do not work.

• Disconnect the SoundBar from the power

supply for a few minutes, then reconnect.

Sound

No sound from SoundBar speakers.

• Connect the audio cable from your

SoundBar to your TV or other devices. However, you do not need a separate audio connection when:

• the SoundBar and T V are connected

through HDMI ARC connection, or

• a device is connected to the HDMI IN

• Set up the audio for the connected device

• Reset your SoundBar to its factor y set tings

• On your SoundBar, press SOURCE

• Make sure that the SoundBar is not muted.

Distorted sound or echo.

• If you play audio from the TV through the

Audio and video are not synchronized.

• 1) Press SOUND SETTINGS repeatedly

connector on your SoundBar.

(see ‘Set up audio for connected devices’ on page 13).

(see ‘Apply factory settings’ on page 19), and then switch it off and switch on again.

repeatedly to select the correct audio input on the display panel.

to select MUTE OFF on the display

Press panel.

SoundBar, make sure that the TV is muted.

to select AUD SYNC on the display panel, and then press OK. 2) Within two seconds, press the Navigation buttons ( to change the delay shown on the display panel. 3) Press OK to conrm.

/ )

Page 22

Play

When you switch on the TV, the SoundBar automatically switches on.

• This behavior is normal when you are using

Philips EasyLink (HDMI-CEC). To make the SoundBar work independently, switch off EasyLink.

EasyLink does not work.

• Make sure that the SoundBar is connected

to a Philips brand EasyLink T V, and the EasyLink option is turned on (see ‘Switch on’ on page 16).

Cannot play video or photos from an iPod or iPhone on the TV.

• Browse and select videos and photos from

the iPod or iPhone screen, and play them on your TV.

• Make sure that the iPod or iPhone software

has not been tampered with or illegally

modied.

Cannot view pictures from an iPod or iPhone on the TV.

• Connect a yellow composite cable to the

iPod dock and the TV.

• Switch the T V to the AV/VIDEO source

(corresponding to the yellow composite cable).

• Press the play button on the iPod or iPhone

to start a slideshow.

• Make sure that the iPod or iPhone software

has not been tampered with or illegally

modied.

Page 23

Philips HTS7111 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
