Page 1

Always there to help you

Question?

Contact

Philips

HTS5543

User manual

Page 2

1 Important 3

Safety 3 Care for your product 4 Care of the environment 4 Help and support 4

2 Your home theater 5

Main unit 5 Connectors 5 Remote control 6

3 Connect and set up 8

Connect speakers 8 Connect to TV 9 Connect audio from TV and other

devices 11 Set up speakers 11 Set up EasyLink (HDMI-CEC control) 12

4 Use your home theater 14

Discs 14

Data les 14

USB storage devices 15 Audio, video, and picture options 16 Radio 17 MP3 player 17

Create MP3 les 18

Karaoke 18 Choose sound 19

7 Productspecications 23

8 Troubleshooting 25

9 Notice 27

10 Index 28

5 Change settings 20

Language settings 20 Picture and video settings 20 Audio settings 20 Parental control settings 21 Display settings 21 Energy saving settings 21 Restore default settings 21

6 Update software 22

Check software version 22 Update software through USB 22

2EN

Page 3

1 Important

Read and understand all instructions before you use your product. If damage is caused by failure to follow instructions, the warranty does not apply.

Safety

Riskofelectricshockorre!

• Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer Care to have the product checked before use.

• Never place the product and accessories near naked ames or other heat sources,

including direct sunlight.

• Never insert objects into the ventilation slots or other openings on the product.

• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

• Disconnect the product from the power outlet before lightning storms.

• When you disconnect the power cord, always pull the plug, never the cable.

Riskofshortcircuitorre!

• Before you connect the product to the power outlet, ensure that the power voltage matches the value printed on the back or bottom of the product. Never connect the product to the power outlet if the voltage is different.

Riskofinjuryordamagetothehometheater!

• For wall-mountable products, use only the supplied wall mount bracket. Secure the wall mount to a wall that can support the combined weight of the product and the wall mount. Koninklijke Philips Electronics N.V. bears no responsibility for improper

wall mounting that results in accident, injury or damage.

• For speakers with stands, use only the supplied stands. Secure the stands to the speakers tightly. Place the assembled stands

on at, level surfaces that can support the

combined weight of the speaker and stand.

• Never place the product or any objects on power cords or on other electrical equipment.

• If the product is transported in temperatures below 5°C, unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet.

• Visible and invisible laser radiation when open. Avoid exposure to beam.

• Do not touch the disc optical lens inside the disc compartment.

• Parts of this product can be made of glass. Handle with care to avoid injury and damage.

Riskofoverheating!

• Never install this product in a conned

space. Always leave a space of at least four inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.

Riskofcontamination!

• Do not mix batteries (old and new or carbon and alkaine, etc.).

• Danger of explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type.

• Remove batteries if they are exhausted or if the remote control is not to be used for a long time.

• Batteries contain chemical substances, they should be disposed of properly.

Riskofswallowingbatteries!

• The product/remote control may contain a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death. Severe internal burns can occur within two hours of ingestion.

3 EN

Page 4

• If you suspect that a battery has been swallowed or placed inside any part of the body, seek immediate medical attention.

• When you change the batteries, always keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery.

• If the battery compar tment cannot be completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer.

Care for your product

• Do not insert any objects other than discs into the disc compartment.

• Do not insert warped or cracked discs into the disc compartment.

• Remove discs from the disc compartment if you are not using the product for an extended period of time.

• Use only microber cloth to clean the

product.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/ EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Help and support

Philips provides extensive online support. Visit our website at www.philips.com/support to:

• download the complete user manual

• print the quick start guide

• watch video tutorials (available only for

selected models)

• nd answers to frequently answered

questions (FAQs)

• email us a question

• chat with our support representative.

Follow the instructions on the website to select your language, and then enter your product model number. Alternatively, you can contact Philips Consumer Care in your country. Before you contact Philips, note down the model number and

serial number of your product. You can nd this

information on the back or bottom of your product.

4EN

Page 5

2 Your home

theater

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product at www.philips.com/welcome.

Main unit

This section includes an overview of the main unit.

a (Standby-On)

Switch the home theater on or to standby.

b (Play/Pause)

Start, pause or resume play.

c (Stop)

• Stop play.

• In radio mode, press and hold to erase

the current preset radio stations.

d SOURCE

Select an audio or video source for the home theater.

e +/-

Increase or decrease volume.

f (Open/Close)

Open or close the disc compartment, or eject the disc.

g Display panel h Disc compartment

Connectors

This section includes an overview of the connectors available on your home theater.

Front connectors

a MUSIC iLINK/MIC

Audio input from an MP3 player or a microphone.

b (USB)

Audio, video or picture input from a USB storage device.

Rear connectors

a AC MAINS

Connect to the power supply.

b SPEAKERS

Connect to the supplied speakers and subwoofer.

c Wireless Rear Audio

Connect to a Philips wireless module. (Model: Philips RWSS5512, sold separately)

5 EN

Page 6

d HDMI OUT (ARC)

Connect to the HDMI input on the TV.

e VIDEO OUT-VIDEO

Connect to the composite video input on the TV.

f ANTENNA FM 75

Signal input from an antenna, cable or satellite.

g AUDIO IN-AUX 1/AUX 2

Connect to an analog audio output on the TV or an analog device.

h DIGITAL IN-OPTICAL

Connect to an optical audio output on the TV or a digital device.

i DIGITAL IN-COAXIAL

Connect to a coaxial audio output on the TV or a digital device.

Remote control

This section includes an overview of the remote control.

a (Standby-On)

• Switch the home theater on or to standby.

• When EasyLink is enabled, press and hold for at least three seconds to switch all connected HDMI CEC compliant devices to standby.

b (Open/Close)

Open or close the disc compartment, or eject the disc.

6EN

Page 7

c Source buttons

• DISC: Switch to disc source.Access or exit the disc menu when you play a disc.

• AUDIO SOURCE: Select an audio input source.

• RADIO: Switch to FM radio.

• USB: Switch to USB storage device.

d Navigation buttons

• Navigate menus.

• In video mode, press left or right to

fast backward or fast forward; press up or down to slow backward or slow forward.

• In radio mode, press left or right to search a radio station; press up or

down to ne tune a radio frequency.

e OK

Conrm an entry or selection.

f BACK

Return to a previous menu screen.

g / (Previous/Next)

• Skip to the previous or next track, chapter or le.

• In radio mode, select a preset radio

station.

h (Mute)

Mute or restore volume.

i VOL +/-

Increase or decrease volume.

j SOUND

Select a sound mode.

k Numeric buttons

Select an item to play.

l CREATE MP3/ZOOM

• Access the create MP3 menu.

• Zoom into a video scene or picture.

Press the Navigation buttons (left/ right) to select a zoom factor.

m KARAOKE

Access or exit the karaoke options.

n MIC VOL +/-

Increase or decrease the microphone volume.

o VOCAL

Turn the vocals on or off.

p SUBTITLE

Select subtitle language for video.

q AUDIO SYNC

• Select an audio language or channel.

• Press and hold to access audio delay

setting, and then press the +/- or Navigation buttons to delay the audio

to match the video.

r SURR

Select surround sound or stereo sound.

s (Stop)

• Stop play.

• In radio mode, press and hold to erase

the current preset radio stations.

t (Play/Pause)

Start, pause or resume play.

u INFO

Access more play options while playing a disc or a USB storage device.

v SETUP

Access or exit the setup menu.

w REPEAT/PROGRAM

• Select or turn off repeat mode.

• In radio mode, press once to access

program mode, and press again to store the radio station.

• In radio mode, press and hold for three seconds to reinstall the radio stations.

7 EN

Page 8

3 Connect and set

This section helps you connect your home theater to a TV and other devices, and then set it up. For information about the basic connections of your home theater and accessories, see the quick start guide. For a comprehensive interactive guide, visit www.connectivityguide. philips.com.

Note

• For identication and supply ratings, see the type plate

at the back or bottom of the product.

• Before you make or change any connections, make sure

that all devices are disconnected from the power outlet.

Note

• Surround sound depends on factors such as room

shape and size, type of wall and ceiling, windows and

reective surfaces, and speaker acoustics. Experiment with the speaker positions to nd the optimum setting

for you.

Connect speakers

The speaker cables are color-coded for easy connection. To connect a speaker to your home theater, match the color on the speaker cable to the color on the connector.

Speaker position plays a critical role in setting up a surround sound effect. For best effect, position all the speakers towards the seating position and place them close to your ear level (seated).

Follow these general guidelines for speakers placement.

1 Seating position:

This is the center of your listening area.

2 FRONT CENTER (front center) speaker :

Place the center speaker directly in front of the seating position, either above or below your TV.

3 FRONT LEFT (front left) and FRONT

RIGHT (front right) speakers:

Place the left and right speakers in the front, and at equal distance from the center speaker. Make sure that the left, right, and the center speakers are at equal distance from your seating position.

4 REAR LEFT (rear left) and REAR RIGHT

(rear right) speakers: Place the rear surround speakers to the left and right side of your seating position, either in line with it or slightly behind it.

5 SUBWOOFER (subwoofer):

8EN

Page 9

Place the subwoofer at least one meter to the left or right of the TV. Leave about 10-centimeter clearance from the wall.

Make your rear speakers wireless

Connect the rear speakers to your home theater wirelessly using a wireless module accessory. For details, see the wireless module user manual.

What you need

• A Philips wireless module. (Model: Philips RWSS5512, sold separately)

1 Connect the wireless transmitter to the

Wireless Rear Audio connector on your

home theater.

2 Connect the rear speakers to the wireless

receiver.

3 Connect the wireless receiver to the

power supply.

Connect to TV

Connect your home theater to a TV to watch videos. You can listen to the TV audio through your home theater speakers. Use the best quality connection available on your home theater and TV.

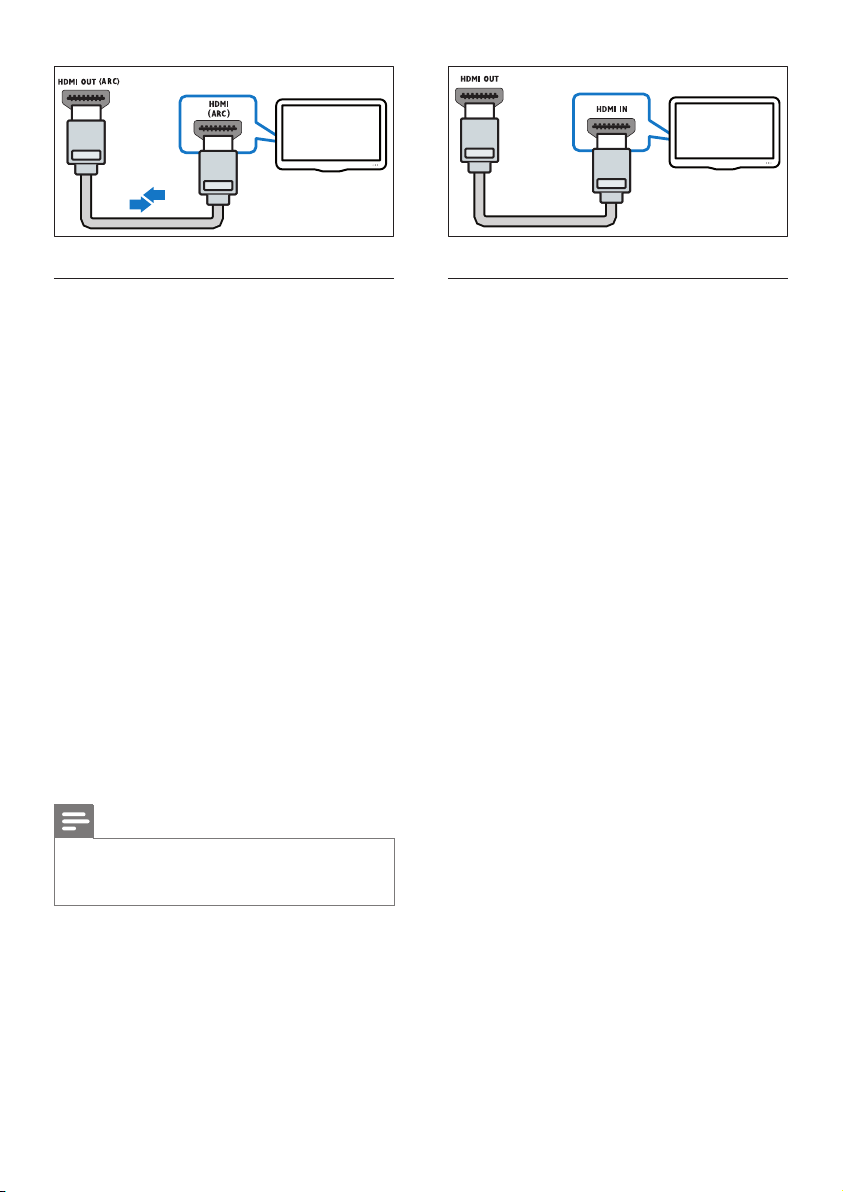

Option 1: Connect to TV through HDMI (ARC)

Best quality video

Your home theater supports HDMI version

1.4 - Audio Return Channel (ARC). If your TV is HDMI ARC compliant, you can hear the TV audio through your home theater by using a single HDMI cable.

1 Using a High Speed HDMI cable, connect

the HDMI OUT (ARC) connector on your home theater to the HDMI ARC connector on the TV.

• The HDMI ARC connector on the TV might be labeled differently. For details, see the TV user manual.

2 On your TV, turn on HDMI-CEC

operations. For details, see the TV user manual.

• If you cannot hear the TV audio through your home theater, set up the audio manually (see 'Set up the audio' on page

13).

9 EN

Page 10

Option 2: Connect to TV through standard HDMI

Best quality video

If your TV is not HDMI ARC compliant, connect your home theater to the TV through a standard HDMI connection.

1 Using a High Speed HDMI cable, connect

the HDMI OUT (ARC) connector on your home theater to the HDMI connector on the TV.

2 Connect an audio cable to hear the TV

audio through your home theater (see 'Connect audio from TV and other devices' on page 11).

3 On your TV, turn on HDMI-CEC

operations. For details, see the TV user manual.

• If you cannot hear the TV audio through your home theater, set up the audio manually (see 'Set up the audio' on page

13).

Note

• If your TV has a DVI connector, you can use an HDMI/

DVI adapter to connect to TV. However, some of the features may not be available.

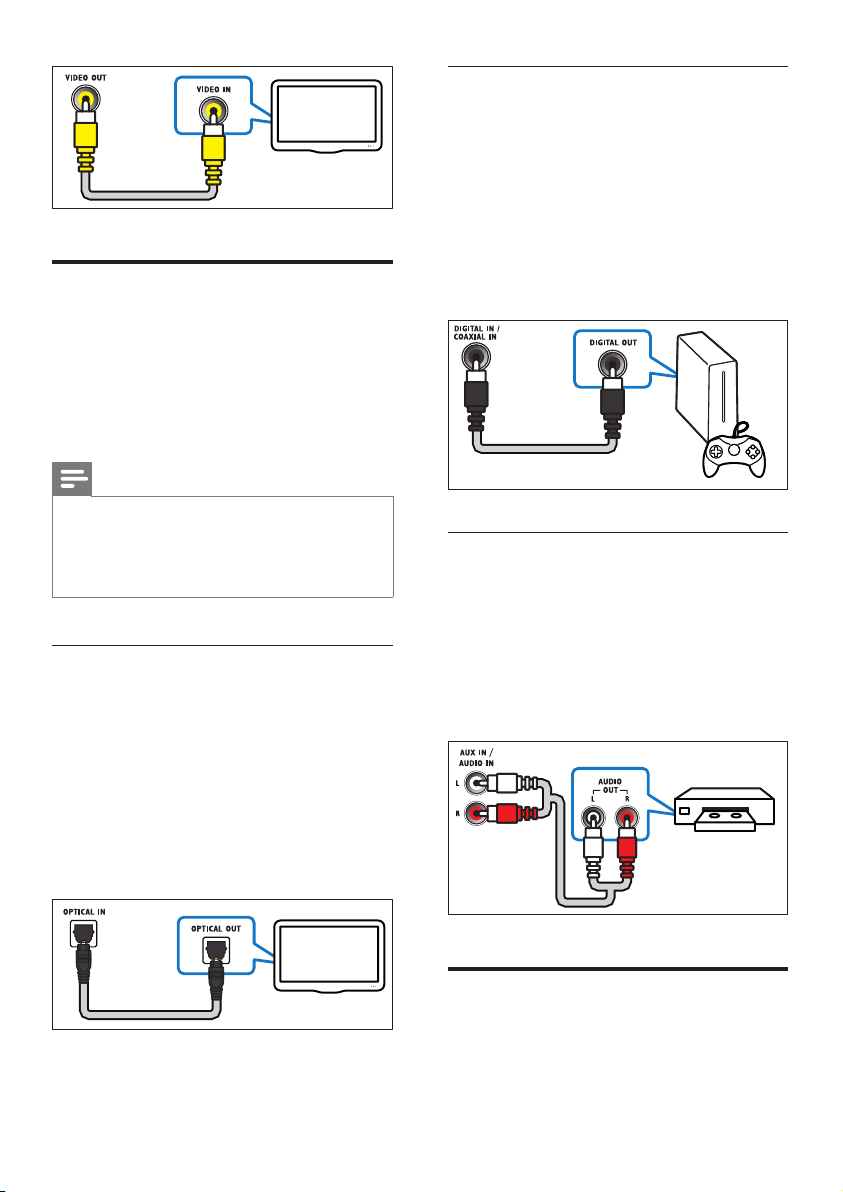

Option 3: Connect to the TV through composite video

Basic quality video

If your TV does not have HDMI connectors, use a composite video connection. A composite

connection does not support high-denition

video.

1 Using a composite video cable, connect the

VIDEO connector on your home theater to the VIDEO IN connector on the TV.

• The composite video connector might be labeled AV IN, COMPOSITE, or

BASEBAND.

2 Connect an audio cable to hear the TV

audio through your home theater (see 'Connect audio from TV and other devices' on page 11).

3 When you watch TV programs, press

SOURCE on your home theater

repeatedly to select the correct audio input.

4 When you watch videos, switch your TV to

the correct video input. For details, see the TV user manual.

10EN

Page 11

Connect audio from TV and other devices

Play audio from TV or other devices through your home theater speakers. Use the best quality connection available on your TV, home theater, and other devices.

Option 2: Connect audio through a digital coaxial cable

Good quality audio

1 Using a coaxial cable, connect the

COAXIAL connector on your home

theater to the COAXIAL/DIGITAL OUT connector on the TV or other device.

• The digital coaxial connector might be labeled DIGITAL AUDIO OUT.

Note

• The audio connections in this user manual are only

recommendations. You can use other connections too.

• When your home theater and TV are connected

through HDMI ARC, an audio connection is not required.

Option 1: Connect audio through a digital optical cable

Best quality audio

1 Using an optical cable, connect the

OPTICAL connector on your home

theater to the OPTICAL OUT connector on the TV or other device.

• The digital optical connector might be labeled SPDIF or SPDIF OUT.

Option 3: Connect audio through analog audio cables

Basic quality audio

1 Using an analog cable, connect the AUX

connectors on your home theater to the AUDIO OUT connectors on the TV or other device.

VCR

Set up speakers

Set up the speakers manually to experience customized surround sound.

Before you start

11 EN

Page 12

Make the necessary connections described in the quick start guide, and then switch the TV to the correct source for your home theater.

1 Press SETUP on your home theater

remote control.

2 Select [Audio Setup] and then press OK. 3 Press the Navigation buttons and OK to

select and change:

• [Speakers Volume]: Set the volume level of each speaker.

• [Speakers Delay]: Set the delay time for speakers which are placed closer to the seating position in order to obtain equal audio transmission from all the speakers.

Set up EasyLink (HDMI-CEC control)

This home theater supports Philips EasyLink, which uses the HDMI-CEC (Consumer Electronics Control) protocol. EasyLinkcompliant devices that are connected through HDMI can be controlled by a single remote control.

Note

• Depending on the manufacturer, HDMI-CEC is known

by many names. For information on your device, see the user manual of the device.

• Philips does not guarantee 100% interoperability with

all HDMI-CEC devices.

Before you start

• Connect your home theater to the HDMICEC compliant device through HDMI connection.

• Make the necessary connections described in the quick start guide, and then switch the TV to the correct source for your home theater.

Enable EasyLink

1 Press SETUP. 2 Select [Video Setup] and then press OK. 3 Select [HDMI Setup] > [EasyLink Setup]

> [EasyLink] > [On].

4 On your TV and other connected devices,

turn on HDMI-CEC control. For details, see the user manual of the TV or other devices.

• On your TV, set the audio output to 'Amplier' (instead of TV speakers).

For details, see the TV user manual.

EasyLink controls

With EasyLink, you can control your home theater, TV, and other connected HDMI-CEC compliant devices with a single remote control.

• [One Touch Play] (One-touch play): When a video disc is in the disc compartment, press and then play a disc.

• [One Touch Standby] (One-touch standby): If one-touch standby is enabled, your home theater can switch to standby with the remote control of the TV or other HDMICEC devices.

• [System Audio Control] (System audio control): If system audio control is enabled, the audio of the connected device is output through your home theater speakers automatically when you play the device.

• [Audio Input Mapping] (Audio input mapping): If system audio control does not work, map the connected device to the correct audio input connector on your home theater (see 'Set up the audio' on page 13).

• To change the EasyLink control settings, press

SETUP, select [Video Setup] > [HDMI Setup] > [EasyLink Setup].

to wake up the TV from standby,

Note

12EN

Page 13

Set up the audio

If you cannot hear the audio output of a connected device through your home theater speakers, check that you have enabled Easylink on all the devices (see 'Enable EasyLink' on page 12). Then, set up the EasyLink audio control.

1 Press SETUP. 2 Select [Video Setup] and then press OK. 3 Select [HDMI Setup] > [EasyLink Setup]

> [System Audio Control] > [On].

• To play the audio from the TV speakers, select [Off], and then skip the following steps.

4 Select [EasyLink Setup] > [Audio Input

Mapping].

5 Follow the onscreen instructions to map

the connected device to the audio inputs on your home theater.

• If you connect your home theater to the TV through an HDMI ARC connection, make sure that the TV audio is mapped to the ARC input on your home theater.

13 EN

Page 14

4 Use your home

theater

This section helps you use the home theater to play media from a wide range of sources.

Before you start

• Make the necessary connections described in the quick start guide and the user manual.

• Switch the TV to the correct source for your home theater (for example, HDMI, AV IN).

Discs

(Play/

Pause)

/ Skip to the previous or next

SUBTITLE Select subtitle language for video. DISC Access or exit the disc menu. AUDIO

SYNC ZOOM Zoom into a video scene or

REPEAT Select or turn off repeat mode.

INFO Access the advanced options

Start, pause or resume play.

Stop play.

track, chapter or le.

Select an audio language or channel.

picture.

when you play your audio, video,

or media les (see 'Audio, video,

and picture options' on page

16).

Your home theater can play DVDs, VCDs, and CDs. It can also play discs that you’ve made at home, such as CD-R discs of photos and music.

1 Insert a disc into the home theater. 2 If the disc does not play automatically, press

DISC.

3 Use the remote control to control play.

Play buttons

Button Action Navigation

buttons

OK Conrm an entry or selection.

Navigate menus. Up/Down:

• Video: Slow forward or slow backward (VCD/SVCD can only slow forward).

• Picture: Rotate the picture clockwise or counter-clockwise.

Left/Right:

• Video: Fast backward or fast forward. Press repeatedly to change the search speed.

• Picture: Flip the picture vertically or horizontally.

Synchronize picture and sound

If the audio and video are not synchronized, delay the audio to match the video.

1 While playing video, press and hold

AUDIO SYNC.

» Audio sync menu is displayed.

2 Press the +/- or Navigation buttons to

synchronize the audio with the video, and then press OK.

Note

• Picture and sound can be synchronized through the

setup menu of your home theater, press select [Audio Setup] > [Audio Sync].

SETUP,

Datales

Your home theater can play pictures, audio and

video les contained in a disc or a USB storage device. Before you play a le, check that the le

format is supported by your home theater (see 'File formats' on page 23).

14EN

Page 15

1 Play the les from a disc or USB storage

device.

2 To stop play, press .

• To resume the video from where you stopped, press

Note

• To play DivX DRM protected les, connect your home

theater to a TV through an HDMI cable.

Subtitles

If your video has subtitles in multiple languages, select a subtitle language.

Note

• Make sure that the subtitle le has the exact same

name as the video le. For example, if the video le is named 'movie.avi', name the subtitle le as 'movie.srt'

or 'movie.sub'.

• Your home theater suppor ts the following le formats:

.srt, .sub, .txt, .ssa, .ass, smi, and .sami. If the subtitles do not appear correctly, change the character set.

1 While playing video, press SUBTITLE to

select a language.

2 For DivX video, if the subtitles do not

appear correctly, continue the following steps to change the character set.

3 Press SETUP. 4 Select [Preference Setup] and then press

OK.

5 Select [DivX Subtitle] and then select a

character set that supports the subtitle.

Character Set Language [Standard] English, Albanian, Danish,

Dutch, Finnish, French, Gaelic, German, Italian, Kurdish (Latin), Norwegian, Portuguese, Spanish, Swedish and Turkish

[Central Europe] Albanian, Croat, Czech,

Dutch, English, German, Hungarian, Irish, Polish, Romanian, Slovak, Slovene and Sorbian

[Cyrillic] Bulgarian, Belorussian,

English, Macedonian, Moldavian, Russian, Serbian and Ukrainian

[Greek] Greek [Hebrew] Hebrew [Chinese(Simp)] Simplied Chinese

VOD code for DivX

Before you purchase DivX videos and play them on your home theater, register the home theater on www.divx.com using the DivX VOD code.

1 Press SETUP. 2 Select [General Setup] and then press OK. 3 Select [DivX(R) VOD Code] and then

press OK.

4 Press OK again.

» The DivX VOD registration code for

your home theater is displayed.

USB storage devices

Enjoy pictures, audio, and video stored on a USB storage device such as an MP4 player or digital camera.

What you need

• A USB storage device that is formatted for FAT le system, and complies with the

Mass Storage Class.

15 EN

Page 16

Note

• If you use a USB extension cable, USB HUB or USB

multi-reader, the USB storage device may not be recognized.

• You can connect to a digital camera if they can play the

les without using a special computer program.

1 Connect a USB storage device to the

(USB) connector on your home theater.

2 Press USB.

» A content browser is displayed.

3 Select a le and then press OK. 4 Use the play buttons to control play (see

'Play buttons' on page 14).

Audio, video, and picture options

Use advanced features when you play pictures,

audio and video les from a disc or a USB

storage device.

Audio options

For CDDA:

1 Press INFO repeatedly to cycle through

the following options:

• Show the current track information and time.

• Disc Go To: Enter the disc time to skip to a specic part of the disc.

• Track Go To: Enter the track time to skip to a specic part of the track.

• Select Track: Select a specic track.

For MP3:

1 Press INFO to display the remaining

time of the current track.

2 Press INFO again to enter track time

mode, and then press the Numeric buttons to input the track time.

» The video options menu is displayed.

Depending on the video source, some options are not available.

2 Press the Navigation buttons and OK to

select and change:

• [Title]: Select a specic title.

• [Chapter]: Select a specic chapter.

• [Track]: Select a specic track (for

VCD/SVCD only).

• [Audio]: Select audio language for video.

• [Subtitle]: Select subtitle language for video.

• [Angle]: Select video scenes recorded in different camera angels.

• [TT Time]: Skip to a specic part of

the video by entering the title time.

• [Ch Time]: Skip to a specic part of

the video by entering the chapter time.

• [Disc Time]: Skip to a specic part of

the video by entering the disc time (for VCD/SVCD only).

• [Track Time]: Skip to a specic part of

the video by entering the track time (for VCD/SVCD only).

• [Preview]: Select a content preview for disc.

• [Repeat]: Select a repeat mode.

• [Time Disp.]: Select the information of

time display.

Picture options

1 Press INFO to access picture preview

mode.

» 12 thumbnail pictures are displayed.

2 Press / to go to previous or next

preview page.

3 Press the Navigation buttons and OK to

select a picture.

Video options

1 Press INFO.

16EN

Page 17

Musical slideshow

If the picture and audio les are from the same

disc or USB storage device, you can create a musical slideshow.

1 Select an audio track and then press OK. 2 Press BACK and then go to the picture

folder.

3 Select a picture and then press OK to

start the slideshow.

4 Press to stop slideshow. 5 Press again to stop music.

Radio

Listen to FM radio on your home theater, and store up to 40 radio stations.

Button Action Numeric

buttons,

Navigation buttons

PROGRAM Manual: Press once to access

Select a preset radio station.

Left/Right: Search for a radio station. Up/Down: Fine tune a radio frequency.

Press to stop the installation of radio stations. Press and hold to erase the preset radio station.

program mode, and press again to store the radio station. Automatic: Press and hold for three seconds to reinstall the radio stations.

Note

• AM and digital radio are not supported.

• If no stereo signal is detected, or if fewer than ve

stations are found, you are prompted to install the radio stations again.

1 Connect the FM antenna to the

ANTENNA FM on your home theater.

• For the best reception, place the antenna away from the TV or other sources of radiation.

2 Press RADIO.

» If you have already installed the radio

stations, the last channel that you listened to is played.

» If you have not installed any radio

stations, the message AUTO INSTALL...PRESS PLAY appears on the display panel. press

3 Use the remote control to listen or to

change radio stations.

Tuning grid

In some countries, you can toggle the FM tuning grid between 50 kHz and 100 kHz. Switching the tuning grid erases all preset radio stations.

1 Press RADIO. 2 Press . 3 Press and hold (Play/Pause) to toggle

between 50 kHz or 100 kHz.

MP3 player

Connect a MP3 player to play audio les.

What you need

• An MP3 player.

• A 3.5mm stereo audio cable.

1 Using the 3.5mm stereo audio cable,

connect the MP3 player to the MUSIC iLINK connector on your home theater.

2 Press SOURCE repeatedly until MUSIC

I-LINK appears on the display panel.

17 EN

Page 18

3 Press the buttons on the MP3 player to

select and play audio les.

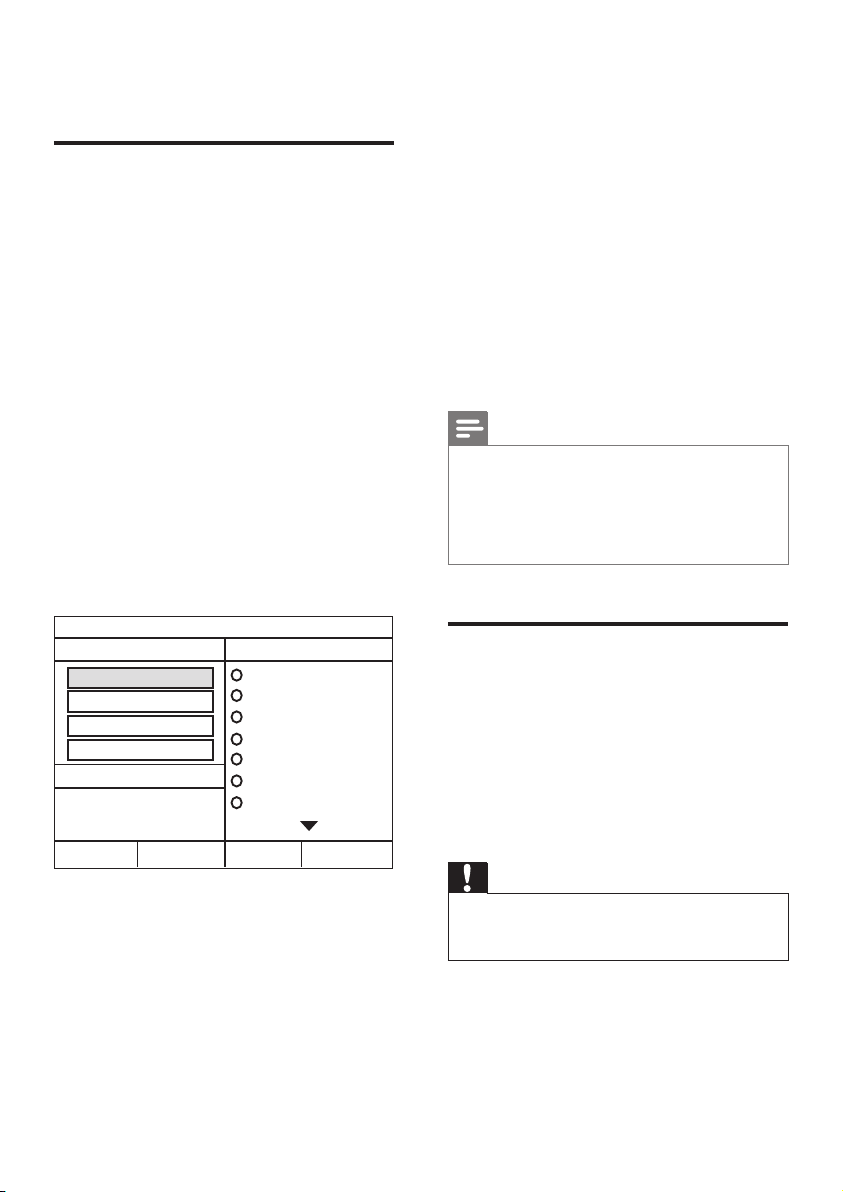

CreateMP3les

Use your home theater to convert audio CDs

into MP3 les.

What you need

• An audio disc.

• A USB storage device.

1 Connect a USB storage device to your

home theater.

2 Play your audio CD (CDDA). 3 Press CREATE MP3.

» A conrmation message is displayed.

4 Select [Yes], and then press OK.

» The create MP3 screen is displayed.

The right panel contains MP3 settings and the left panel shows the audio tracks.

CREATE MP3

OPTIONS

Speed Normal

Bitrate 128kbps

CRT ID3 Yes

Device USB1

SUMMARY

Select Track 0

Time 00:00

Start Exit

TRACK

Track01 04:14

Track02 04:17

Track03 03:58

Track04 04:51

Track05 03:53

Track06 04:09

Track07 04:38

Select All

Deselect All

5 Press the Navigation buttons and OK to

select and change:

• [Speed]: Select the write-to-le speed.

• [Bitrate]: Select the conversion quality.

• [CRT ID3]: Copy the tracks

information when converting to MP3

les.

• [Device]: Select the USB storage

device which you use to store the MP3

les.

6 Navigate to the right panel, select the

audio tracks and press OK.

• To select all tracks, navigate to [Select All], and then press OK.

7 Select [Start] and then press OK to start

the MP3 conversion.

» A new folder which contains the MP3

les is created in the USB storage

device.

• To exit the menu, select [Exit], and then press OK.

Note

• Do not remove the USB and press any buttons when

the conversion is in progress.

• DTS CDs and copy-protected CDs cannot be

converted.

• Write-protected or password-protected USB storage

device cannot be used to store MP3 les.

Karaoke

Available only in selected model and region

Play a Karaoke disc on your home theater and sing along with the music.

What you need

• A Karaoke microphone.

• Karaoke discs.

Caution

• To prevent loud feedback or unexpected noise, turn

the microphone volume to the minimum before you connect the microphone to your home theater.

1 Connect a karaoke microphone to the

MIC connector on your home theater.

2 Switch your TV to the correct source for

your home theater.

18EN

Page 19

3 Play a karaoke disc. 4 Press VOCAL to turn off the vocals and

sing through the microphone.

5 Press MIC VOL +/- to change the

microphone volume.

6 For more karaoke setup, press KARAOKE.

» A Karaoke setup page is displayed.

7 Press the Navigation buttons and OK to

select and change the settings.

• [Mic]: Turn the microphone on or off.

• [Echo Level]: Change the echo level.

• [Key]: Change the pitch to match your

voice.

• [Score]: Set the karaoke scoring.

Choose sound

This section helps you choose the ideal sound for your video or music.

Sound mode

Select predened sound modes to suit your

video or music.

1 Press SOUND repeatedly to select a

sound mode.

• MOVIE: Enjoy a cinematic audio experience, specially enhanced for movies.

• MUSIC: Recreate the original recording environment of your music, in the studio or at a concert.

• ORIGINAL: Experience the original sound of your movies and music, without added sound effects.

• NEWS: Hear every word with optimized speech and clear vocals.

• GAMING: Enjoy thrilling arcade sounds, ideal for action-packed video games or loud parties.

Surround sound mode

Experience an immersive audio experience with surround sound modes.

1 Press SURR repeatedly to select a

surround mode.

• 5CH STEREO: Enhanced stereo sound. Ideal for party music.

• MULTI-CH/DOLBY PLII: Tr aditional

5.1 channel for a more relaxing cinematic experience.

• STEREO: Two-channel stereo sound. Ideal for listening to music.

Note

• If the audio source is a 2.1 channel. multi-channel mode

will output 5-channel stereo sound.

19 EN

Page 20

5 Change settings

Picture and video settings

The home theater settings are already

congured for optimal performance. Unless

you have a reason to change a setting, we recommend that you keep the default setting.

Note

• You cannot change a setting that is grayed out.

• To return to the previous menu, press BAC K. To

exit the menu, press

SETUP.

Language settings

Onscreen display language

1 Press SETUP. 2 Select [General Setup] and then press OK.

• [OSD Language]: Select a display language for menu.

Disc language

1 Press SETUP. 2 Select [Preference Setup] and then press

OK.

• [Audio]: Select an audio language for discs.

• [Subtitle]: Select a subtitle language for discs.

• [Disc Menu]: Select a menu language for discs.

Note

• If your preferred disc language is not available, select

[Others] from the list, and enter the 4-digit language code found at the end of this user manual.

• If you select a language that is not available on a disc,

the home theater uses the default language of the disc.

1 Press SETUP. 2 Select [Video Setup] and then press OK.

• [TV System]: Select a video format supported by the TV.

• [TV Display]: Select a picture format to t the TV screen.

• [HDMI Setup]: [Wide Screen Format]:

For 16:9 wide screen TV display setting. [HDMI Video]: Select the resolution of the video signal being output from the HDMI OUT.

• [Picture Settings]: Select color settings for the video display on TV.

• [HD JPEG]: Enable or disable high denition picture display.

Note

• If you change a setting, make sure that the TV suppor ts

the new setting.

Audio settings

1 Press SETUP. 2 Select [Audio Setup] and then press OK.

• [HDMI Audio]: HDMI audio is automatically down-mixed to two channel for TV speakers. If you do not want to output audio through your TV, disable the HDMI audio.

• [Night Mode]: Select quiet or full dynamic sound. Night mode decreases the volume of loud sounds and increases volume of sounds such as speech. Applicable to Dolby Digital encoded DVD discs only.

20EN

Page 21

Parental control settings

Energy saving settings

Password and Ratings

1 Press SETUP. 2 Select [Preference Setup] and then press

OK.

• [Password]: Set or change your password for parental control access. If you do not have a password or have forgotten your password, enter 0000.

• [Parental]: Enable maturity-based restricted access for playback of DVDvideo that are recorded with ratings. To play discs irrespective of the rating, select [8 Adult].

Lock disc

1 Press SETUP. 2 Select [General Setup] and then press OK.

• [Disc Lock]: Lock the disc to restrict play. You can lock up to 20 discs on your home theater.

Note

• To play a locked disc, follow the onscreen instructions

to enter the password, and then press OK.

1 Press SETUP. 2 Select [General Setup] and then press OK.

• [Screen Saver]: Switch the home theater to screen saver mode after 10 minutes of no activity.

• [Auto Standby]: Switch the home theater to standby mode after 30 minutes of no activity when in disc or USB mode.

• [Sleep Timer]: Switch the home theater to standby mode after the elapsed time.

• [Display Dim]: Set the brightness of the home theater front panel display.

Restore default settings

1 Press SETUP. 2 Select [Preference Setup] > [Default], and

then press OK.

3 Select [Reset] and then press OK to

conrm.

» Your home theater is reset to its

default settings, except for parental control setting.

Display settings

1 Press SETUP. 2 Select [Preference Setup] and then press

OK.

• [PBC]: Enable or disable the content menu navigation of VCD and SVCD discs with Play Back Control feature.

• [MP3/JPEG Display]: Select the content display for MP3/JPEG les.

21 EN

Page 22

6 Update software

Philips continually tries to improve its products. To get the best features and support, update your home theater with the latest software.

Compare the version of your current software with the latest version on www.philips.com/ support. If the current version is lower than the latest version available on the Philips support website, upgrade your home theater with the latest software.

Caution

• Do not install a lower version of software than the

current version installed on your product. Philips is not liable for problems caused due to software downgrade.

Step 1: Download the latest software

1 Connect a USB ash drive to your

computer.

2 In your web browser, go to www.philips.

com/support.

3 At the Philips Support website, nd your

product and locate the Software and drivers.

» The software update is available as a

zip le.

4 Save the zip le in the root directory of

your USB ash drive.

5 Use the archive utility to extract the

software update le in the root directory.

6 Disconnect the USB ash drive from your

computer.

Step 2: Update the software

Check software version

Check the version of the current software installed on your home theater.

1 Press SETUP. 2 Select [Preference Setup] and then press

OK.

3 Select [Version Info.] and then press OK.

» The software version is displayed.

Update software through USB

What you need

• A USB ash drive that is FAT-formatted,

with at least 75MB of memory. Do not use a USB hard drive.

• A computer with Internet access.

• An archive utility that supports the ZIP le

format.

Caution

• Do not switch off the home theater or remove the

USB ash drive during the update.

1 Connect the USB ash drive containing the

downloaded le to your home theater.

• Make sure that the disc compartment

is closed and there is no disc inside.

2 Switch your TV to the correct source for

your home theater.

3 Follow the onscreen instructions to

conrm the update.

» Once complete, the home theater

automatically switches off and restarts. If it does not, disconnect the power cord for a few seconds and then reconnect it.

22EN

Page 23

7 Product

• Video: .avi, .divx, .mpg, .mpeg,

• Picture: .jpg, .jpeg

specifications

Note

• Specications and design are subject to change without

notice.

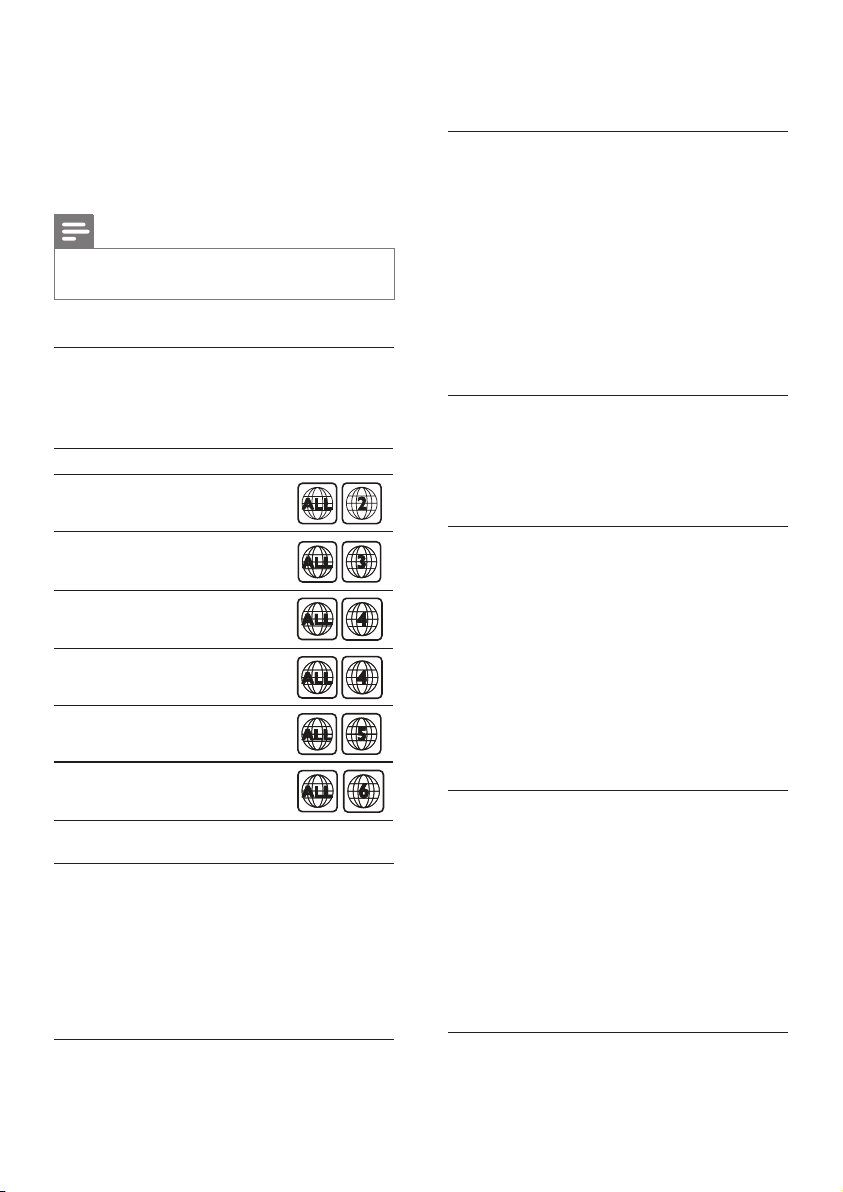

Region codes

The type plate on the back or bottom of the home theater shows which regions it supports.

Country

DVD

Europe, United Kingdom

Asia Pacific, Taiwan, Korea

Latin America

Australia, New Zealand

Russia, India

China

Media formats

• DVD-Video, DVD+R/+RW, DVD-R/-RW, DVD+R/-R DL, CD-R/CD-RW, Audio CD,

Video CD/SVCD, Picture les, MP3 media,

WMA media, DivX media, USB storage device

Amplier

• Total output power: 1000W RMS (+/-

0.5dB, 30% THD)

• Frequency response: 20 Hz-20 kHz / ±3 dB

• Signal-to-noise ratio: > 65 dB (CCIR) / (A-weighted)

• Input sensitivity:

• AUX1/AUX2: 1 V

• Music iLink: 350 mV

Video

• Signal system: PAL / NTSC

• HDMI output: 480i/576i, 480p/576p, 720p,

1080i, 1080p

Audio

• S/PDIF Digital audio input:

• Coaxial: IEC 60958-3

• Optical: TOSLINK

• Sampling frequency:

• MP3: 32 kHz, 44.1 kHz, 48 kHz

• WMA: 44.1 kHz, 48 kHz

• Constant bit rate:

• MP3: 32 kbps - 320 kbps

• WMA: 48 kbps - 192 kbps

Radio

• Tuning range:

• Europe/Russia/China: FM 87.5-108

MHz (50 kHz)

• Asia Pacic/Latin America: FM 87.5-108

MHz (50/100 kHz)

• Signal-to-noise ratio: FM 50 dB

• Frequency response: FM 180 Hz-12.5 kHz

/ ±3 dB

File formats

• Audio: .mp3, .wma

23 EN

USB

• Compatibility: Hi-Speed USB (2.0)

Page 24

• Class support: USB Mass Storage Class

(MSC)

• File system: FAT16, FAT32

Main unit

• Power supply:

• Europe/China/Russia/India: 220-240V~,

50 Hz

• Latin America/Asia Pacic:

110-127V/220-240V~, 50-60 Hz

• Power consumption: 105 W

• Standby power consumption: ≤ 0.5 W

• Dimensions (WxHxD):

435 x 56 x 344 mm

• Weight: 3.0kg

Subwoofer

• Impedance: 4 ohm

• Speaker drivers: 203 mm (8") woofer

• Dimensions (WxHxD):

178 x 303 x 343 mm

• Weight: 4.08 kg

Speakers

Center speaker:

• Speaker impedance: 4 ohm

• Speaker drivers: 1 x 76.2 mm (3") woofer

• Dimensions (WxHxD):

223 x 101.5 x 93.5 mm

• Weight: 0.6 kg

Front/Rear speaker:

• Speaker impedance: 4 ohm

• Speaker drivers: 1 x 76.2 mm (3") woofer

• Dimensions (WxHxD):

• Speakers: 90 x 185 x 105.5 mm

• Tall speakers: 247 x 1091 x 242 mm

• Weight:

• Speakers: 0.54 kg/each

• Tall speakers: 2.19 kg/each

Laser

• Type: Semiconductor laser GaAIAs (CD)

• Wave length: 645 - 665 nm (DVD), 770 -

800 nm (CD)

• Output power: 6 mW (DVD), 7 mW (VCD/CD)

• Beam divergence: 60 degrees.

Remote control batteries

• 2 x AAA-R03-1.5 V

24EN

Page 25

8 Troubleshooting

Warning

• Risk of electric shock. Never remove the casing of the

product.

Discdoesnotplayhigh-denitionvideo.

• Make sure that the disc contains high- denition video.

• Make sure that the TV suppor ts high- denition video.

• Use an HDMI cable to connect to the TV.

Sound

To keep the warranty valid, never try to repair the product yourself. If you have problems using this product, check the following points before you request service. If you still have a problem, get support at www. philips.com/support.

Main unit

The buttons on the home theater do not work.

• Disconnect the home theater from the power supply for a few minutes, then reconnect.


No picture.

• Make sure that the TV is switched to the correct source for the home theater.

• If this happens when you change the TV system, press compartment, and then 439 on the remote control to restore the default TV system.

No picture on a TV connected through HDMI.

• Make sure that the HDMI cable is not faulty. If it is faulty, replace it with a new cable.

• If this happens when you change the HDMI video resolution, press the disc compartment, and then 304 on the remote control to restore the default setting.

• Wait for 10 seconds for auto recovery, or change the HDMI video setting.

to open the disc

to open

No sound from home theater speakers.

• Connect the audio cable from your home theater to your TV or other devices (see 'Connect audio from TV and other devices' on page 11).

• Set up the audio for the connected device (for HDMI connection only) (see 'Set up the audio' on page 13).

• Reset your home theater to its factory settings (see 'Restore default settings' on page 21), then switch it off and switch on again.

• On your home theater, press SOURCE repeatedly to select the correct audio input.

Distorted sound or echo.

• If you play audio from the TV through the home theater, make sure that the TV is muted.

Audio and video are not synchronized.

• 1) Press and hold AUDIO SYNC. 2) Press the +/- or Navigation buttons within 5 seconds to synchronize the audio with the video.

Play

Cannot play a disc.

• Clean the disc.

• Make sure that the home theater supports

the type of disc (see 'Media formats' on page 23).

• Make sure that the home theater supports the region code of the disc.

• If the disc is a DVD±RW or DVD±R disc, make sure that it is nalized.

25 EN

Page 26

CannotplayaDivXle.

• Make sure that the DivX le is encoded according to the 'Home Theater Prole'

with the DivX encoder.

• Make sure that the DivX le is complete.

DivX subtitles do not display correctly.

• Make sure that the subtitle le name is the same as the movie le name (see

'Subtitles' on page 15).

• Select the correct character set (see 'Subtitles' on page 15).

Cannot read the contents of a USB storage device.

• Make sure that the format of the USB storage device is compatible with the home theater.

• Make sure that the le system on the USB

storage device is supported by the home theater.

'No entry' or 'x' sign appears on the TV.

• The operation is not possible.

EasyLink does not work.

• Make sure that the home theater is connected to a Philips brand EasyLink TV, and the EasyLink option is turned on (see 'Set up EasyLink (HDMI-CEC control)' on page 12).

When you switch on the TV, the home theater automatically switches on.

• This behavior is normal when you are using Philips EasyLink (HDMI-CEC). To make the home theater work independently, switch off EasyLink.

26EN

Page 27

9 Notice

This section contains the legal and trademark notices.

Copyright

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Trademarks

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Corporation or its subsidiaries and are used under license. DivX Ultra with advanced features and premium content. ABOUT DIVX VIDEO: DivX format created by DivX, LLC, a subsidiary

of Rovi Corporation. This is an ofcial DivX Certied

divx.com for more information and software

tools to convert your les into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This

DivX Certied

in order to play purchased DivX Video-onDemand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

Certied to play DivX video

is a digital video

device that plays DivX video. Visit

device must be registered

HDMI, and HDMI logo, and High-Denition

Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC in the United States and other countries.

CLASS 1

LASER PRODUCT

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. Product includes software.

DivX , DivX Ultra , DivX Certied and associated logos are trademarks of Rovi

27 EN

Page 28

10 Index

audio from TV and other devices 11 audio input mapping 12 audio language for discs 20 audio options 16 auto standby 21

Easylink (HDMI-CEC) 12 Easylink audio setup 13 Easylink controls 12

HDMI ARC 9 HDMI video 20 HDMI-CEC 12

batteries 24

change password 21 character set 15 check current version 22 connect analog audio cable 11 connect coaxial audio cable 11 connect coaxial audio cable 11 connect composite video cable 10 connect FM antenna 5, 17 connect HDMI cable 9, 10 connect home theater 8 connect optical audio cable 11 connect speakers 8 connect to TV 9 connectors 5 consumer support 4 control play buttons 14 create MP3 18

disc menu 20 discs 14 display brightness 21 display menu for MP3/JPEG 21 display menu for VCD/SVCD 21 disposal 4 DivX 15, 23 DivX subtitles 15

karaoke 18

language settings 20 lock disc 21

main unit overview 5 menu language for discs 20 MP3 player 17 musical slideshow 17

night mode 20

one-touch play 12 one-touch standby 12 onscreen menu language 20

parental control 21 parental ratings 21 password 21 PBC (play back control) 21 picture options 16 picture settings 20 product serial number 4 program radio stations 17

28EN

Page 29

radio 17 recycling 4 remote control overview 6 repeat mode 14 restore default settings 21 rotate pictures 14

screen saver 21 setup menu 20 sleep timer 21 slideshow 17 sound mode 19 speakers placement 8 speakers setup 11

specications 23

subtitle language for discs 20

supportedleformat 23

supported media formats 23 surround sound 19 synchronize picture and sound 14 system audio control 12

time search 16 titles 16 trademarks 27 troubleshooting 25 tuning grid 17

update software 22 USB storage device 15

video options 16 video resolution 20 VOD code for DivX 15

wireless rear audio 9

29 EN

Page 30

HTS5543_68_UM_V1.0

Philips HTS5543 68 User Manual

Contents

1 Important

Safety

Care for your product

Care of the environment

Help and support

Main unit

Connectors

Remote control

Connect speakers

Connect to TV

Connect audio from TV and other devices

Set up speakers

Set up EasyLink (HDMI-CEC control)

Discs

USB storage devices

Audio, video, and picture options

Radio

MP3 player

Karaoke

Choose sound

5 Change settings

Picture and video settings

Language settings

Audio settings

Parental control settings

Energy saving settings

Restore default settings

Display settings

6 Update software

Check software version

Update software through USB

8 Troubleshooting

9 Notice

Copyright

Trademarks

10 Index
