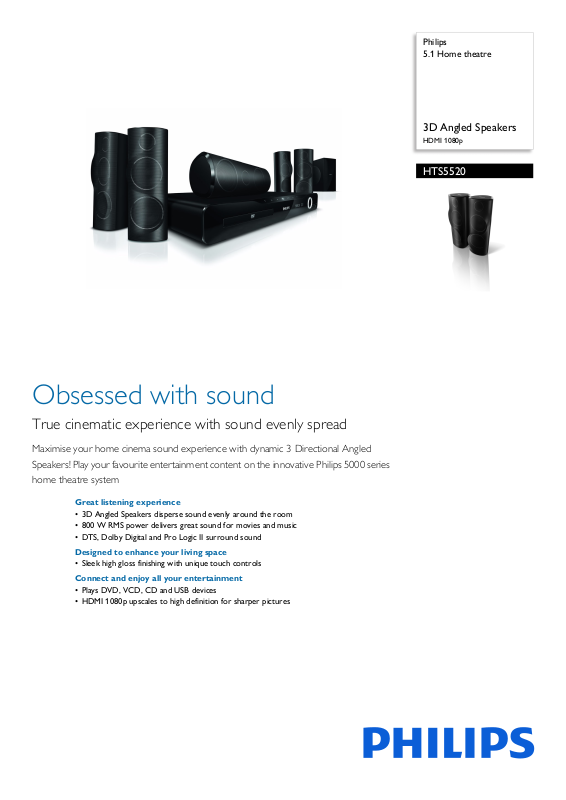

Page 1
Philips
5.1 Home theatre
3D Angled Speakers
HDMI 1080p
HTS5520
Obsessed with sound
True cinematic experience with sound evenly spread
Maximise your home cinema sound experience with dynamic 3 Directional Angled
Speakers! Play your favourite entertainment content on the innovative Philips 5000 series
home theatre system
Great listening experience
• 3D Angled Speakers disperse sound evenly around the room
• 800 W RMS power delivers great sound for movies and music
• DTS, Dolby Digital and Pro Logic II surround sound
Designed to enhance your living space
• Sleek high gloss finishing with unique touch controls
Connect and enjoy all your entertainment
• Plays DVD, VCD, CD and USB devices
• HDMI 1080p upscales to high definition for sharper pictures
Page 2
HTS5520/12
5.1 Home theatre
800
3D Angled Speakers HDMI 1080p
Highlights
3D Angled speakers
DTS, DolbyDigital, ProLogic II
HDMI 1080p
3D Angled Speakers feature angled drivers to
deliver sound not only towards the front but
also to the sides, creating a wider sweet spot
so you can enjoy more immersive and
cinematic surround sound.
800 W RMS power
800 W RMS power delivers great sound for
movies and music
A built-in DTS and Dolby Digital decoder
eliminates the need for an external decoder by
processing all six channels of audio information
to provide a surround sound experience and
an astoundingly natural sense of ambience and
dynamic realism. Dolby Pro Logic II provides
five channels of surround processing from any
stereo source.
Sleek high gloss finishing
Sleek high gloss finishing with unique touch
controls
HDMI 1080p upscaling delivers images that are
crystal clear. Movies in standard definition can
now be enjoyed in true high definition
resolution - ensuring more details and more
true-to-life pictures. Progressive Scan
(represented by "p" in "1080p") eliminates the
line structure prevalent on TV screens, again
ensuring relentlessly sharp images. To top it
off, HDMI makes a direct digital connection
that can carry uncompressed digital HD video
as well as digital multi-channel audio, without
conversions to analogue - delivering perfect
picture and sound quality, completely free
from noise.
Plays it all
Play virtually any disc and any media devices
you want - whether they are DVDs, VCDs,
CDs or USB devices. Experience the
unbeatable convenience of great playability,
and the luxury of sharing media files on your
TV or home theatre system.
Page 3
HTS5520/12
5.1 Home theatre
3D Angled Speakers HDMI 1080p
Specifications
Accessories
• Compatible accessories: STS1300 Floor stand
• Included accessories: Batteries for remote control,
FM antenna, HDMI cable, Power cord, Quick start
guide, Remote Control, User Manual, World Wide
Warranty leaflet
Audio Playback
• Compression format: MP3, WMA
• MP3 bit rates: 32 - 320 kbps
Still Picture Playback
• Compression format: JPEG, JPEG HD
• Picture Enhancement: Rotate, Slideshow with
music playback, Zoom
Video Playback
• Compression formats: DivX Ultra, MPEG1,
MPEG2, MPEG4, WMV SD, XviD
• Video disc playback system: NTSC, PAL
Optical Playback Media
• Playable Discs: CD, CDDA, CD-R/CD-RW, DVD,
DVD +R/+RW, DVD -R/-RW, SVCD, VCD
File Format
• Audio: mp3, wma
• Picture: JPEG, JPG
• Video: asf, avi, DivX, mpeg, mpg, wmv
Connectivity
• Front/Side connections: MP3 Link, USB
• Rear Connections: AUX IN 1, Composite video
(CVBS) output, Digital coaxial in, Easy-Fit Speaker
Connectors, FM Antenna Socket, HDMI 1.3
output, Scart
Dimensions
• Main Unit (W x H x D): 435 x 58 x 358 mm
• Main Unit Weight: 3.56 kg
• Centre Speaker (W x H x D): 280 x 95 x 92 mm
• Centre Speaker Weight: 1.4 kg
• Centre Speaker cable length: 2 m
• Front Speaker (W x H x D): 100 x 279.3 x 103 mm
• Front Speaker Weight: 1 kg
• Front Speaker cable length: 4 m
• Rear Speaker (W x H x D): 100 x 279.3 x 103 mm
• Rear Speaker Weight: 1 kg
• Rear Speaker cable length: 10 m
• Subwoofer (W x H x D): 122.6 x 307 x 369 mm
• Subwoofer Weight: 3.76 kg
• Subwoofer cable length: 4 m
• Packaging (W x H x D): 390 x 395 x 565 mm
• Weight incl. Packaging: 15.6 kg
Loudspeakers
• Loudspeaker types: 1 x Centre speaker, 4 x
Satellite speakers
• Centre speaker drivers: 2 x 3" full range woofers
• Centre speaker freq. range: 150–20k Hz
• Centre speaker impedance: 3 ohm
• Drivers per Satellite speaker: 2 x 3" Full range
woofers
• Satellite speaker freq range: 150–20k Hz
• Satellite speaker impedance: 8 ohm
• Subwoofer type: Passive
• Subwoofer driver: 1 x 6.5" woofer
• Subwoofer freq range: 20–150 Hz
• Subwoofer impedance: 8 ohm
Picture/Display
• Picture enhancement: High Def (720p, 1080i,
1080p), Progressive scan, Video upscaling
Power
• Power consumption: 150 W
• Power supply: 220-240 V, 50 Hz
• Standby power consumption: < 0.9 W
Sound
• Equalizer settings: Action, Classic, Concert,
Drama, Jazz, Rock, Sports
• Frequency response: 20-20 k Hz
• Signal to noise ratio: > 65 dB
• Sound Enhancement: Dolby Digital Prologic II,
Night Mode
• Sound System: Dolby Digital 5.1, DTS 96/24, DTS
Digital Surround, Stereo
• Total Power RMS @ 30% THD: 800 W
Tuner/Reception/Transmission
• RDS: Station Name
•Tuner Bands: FM
• Number of Pre-set Channels: 40
•
Issue date 2016-12-14
Version: 12.3.10
12 NC: 8670 000 59901
EAN: 87 12581 52505 7
© 2016 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
