Contents

8 Product speci cations 14

1 Notice 2

2 2 2

9 Troubleshooting 16

10 Index 17

2 Important 3

Safety 3 Product care Disposal of your old product and batteries

4 4

3 Your home theater 5

Main unit 5 Remote control

4 Connect your home theater 7

Connectors 7 Connect to the TV Connect audio from TV or other devices

7 8

English

5 Use your home theater 8

Before you start 8 Choose your sound Play a disc Play from a USB storage device More play features for disc or USB Play from radio Play audio from TV or other devices Create MP3 audio  les

9 10 10 10 11 11

6 Change settings 12

Access the setup menu 12 Change general settings Change audio settings Change video settings Change preference settings

12 12 13 13

7 Update software 14

Check software version 14 Update software from a CD-R or USB

Page 4

1 Notice

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Recording and playback of material may require consent. See Copyright Act 1956 and The Performers Protection Acts 1958 to 1972.

Compliance

This product is in compliance with the essential requirements and other relevant provisions of Directives 2006/95/EC (Low Voltage), 2004/108/ EC (EMC).

Mains fuse (UK only)

Trademarks

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

DivX ® , DivX Certi ed ® and associated logos are registered trademarks of DivX, Inc. and are used under license.

DivX Ultra advanced features and premium content.

ABOUT DIVX VIDEO: DivX format created by DivX, Inc. This is an of cial DivX Certi ed device that plays DivX video. Visit www.divx.com for more information and software tools to convert your  les into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certi ed order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

Certi ed to play DivX ® video with

is a digital video

device must be registered in

This product is  tted with an approved moulded plug. Should it become necessary to replace the mains fuse, this must be replaced with a fuse of the same value as indicated on the plug (example 10A).

1 Remove fuse cover and fuse. 2 The replacement fuse must comply with BS

1362 and have the ASTA approval mark. If the fuse is lost, contact your dealer in order to verify the correct type.

3 Re t the fuse cover.

Note

To conform with the EMC directive • (2004/108/EC), the mains plug on this product must not be detached from the mains cord.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/ or other countries.

HDMI, and HDMI logo and High-De nition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

Page 5

The USB-IF Logos are trademarks of Universal Serial Bus Implementers Forum, inc.

2 Important

Read and understand all instructions before you use your home theater. If damage is caused by failure to follow instructions, the warranty does not apply.

English

CLASS 1

LASER PRODUCT

Safety

Risk of electric shock or  re!

Never expose the product and accessories • to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer Care to have the product checked before use.

Never place the product and accessories • near naked  ames or other heat sources, including direct sunlight.

Never insert objects into the ventilation • slots or other openings on the product.

Where the mains plug or an appliance • coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Disconnect the product from the power • outlet before lightning storms.

When you disconnect the power cord, • always pull the plug, never the cable.

Risk of short circuit or  re!

Before you connect the product to the • power outlet, ensure that the power voltage matches the value printed on the back or bottom of the product. Never connect the product to the power outlet if the voltage is different.

Risk of injury or damage to the home theater!

For wall-mountable products, use only the • supplied wall mount bracket. Secure the wall mount to a wall that can support the combined weight of the product and the wall mount. Koninklijke Philips Electronics N.V. bears no responsibility for improper wall mounting that results in accident, injury or damage.

For speakers with stands, use only the • supplied stands. Secure the stands to the speakers tightly. Place the assembled stands on  at, level surfaces that can support the combined weight of the speaker and stand.

Page 6

Never place the product or any objects • on power cords or on other electrical equipment.

If the product is transported in • temperatures below 5°C, unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet.

Visible and invisible laser radiation when • open. Avoid exposure to beam.

Do not touch the disc optical lens inside the • disc compartment.

Risk of overheating!

Never install this product in a con ned • space. Always leave a space of at least four inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.

Risk of contamination!

Do not mix batteries (old and new or • carbon and alkaline, etc.).

Remove batteries if they are exhausted or • if the remote control is not to be used for a long time.

Batteries contain chemical substances, they • should be disposed of properly.

Disposal of your old product and batteries

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/ EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Product care

Do not insert any objects other than discs • into the disc compartment.

Do not insert warped or cracked discs into • the disc compartment.

Remove discs from the disc compartment • if you are not using the product for an extended period of time.

Only use micro ber cloth to clean the • product.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.

Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Page 7

3 Your home theater

Congratulations on your purchase, and welcome to Philips! To fully bene t from the support that Philips offers, register your home theater at www.philips.com/welcome.

Remote control

English

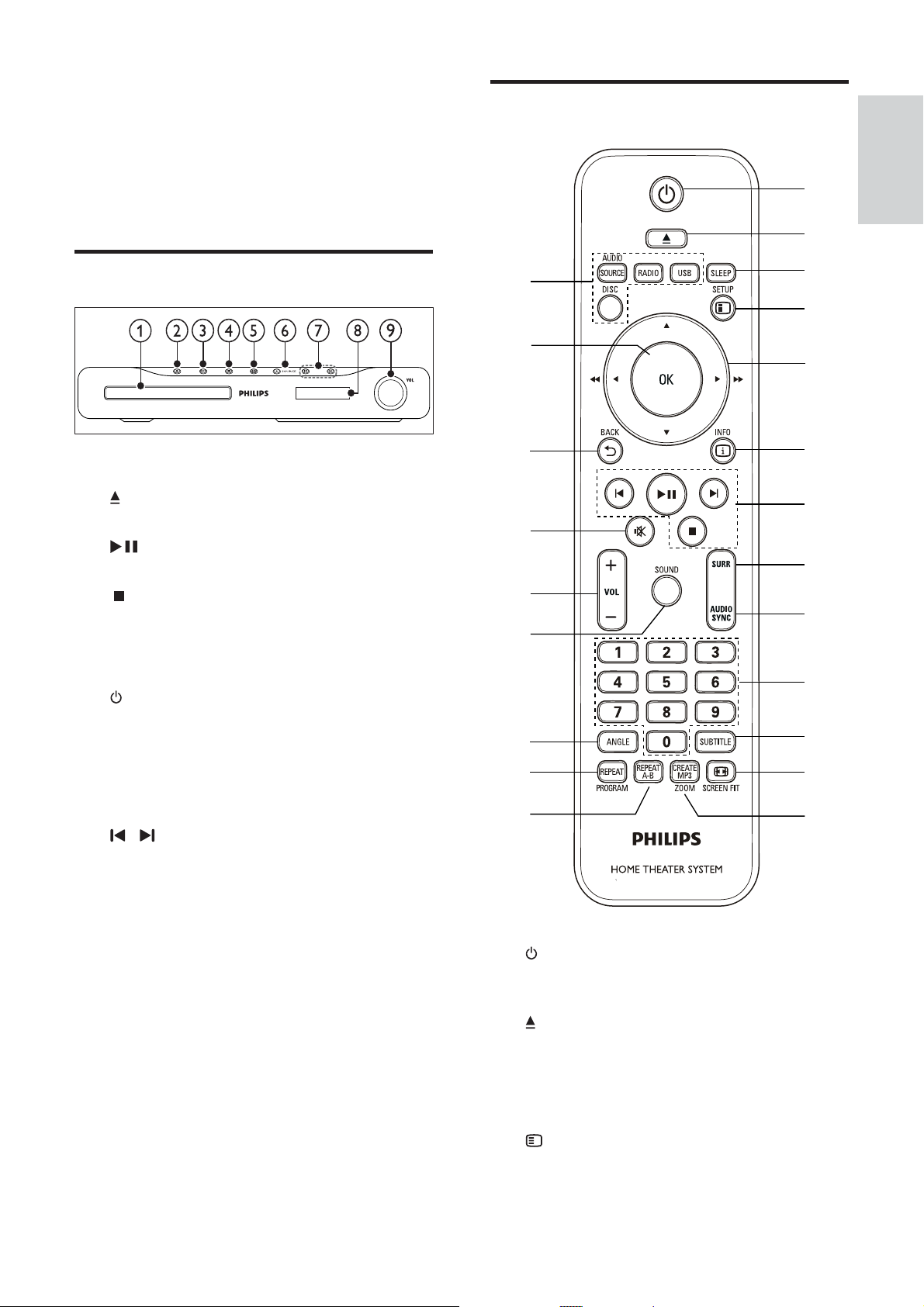

Main unit

a Disc compartment b ( Open/Close )

Opens or closes the disc compartment.

c ( Play/Pause )

Starts, pauses or resumes play.

d ( Stop )

Stops play.

•

In radio mode, erases the current • preset radio station.

e ( Standby-On )

Switches the home theater on or to standby.

f SOURCE

Selects an audio/video source for the home theater.

g /

Skips to the previous or next track,

•

chapter or  le.

•

In radio mode, selects a preset radio station.

r q

p o

c d

k l

h Display panel i Volume control wheel

a ( Standby-On )

Switches the home theater on or to standby.

b OPEN/CLOSE

Opens or closes the disc compartment.

c SLEEP

Switches the home theater to standby after the preset time selected.

d SETUP

Accesses or exits the setup menu.

Page 8

e ( Navigation buttons )

Navigate menus.

•

In video mode, press left or right to • fast backward or fast forward.

In radio mode, press left or right to

•

search a radio station; press up or down to  ne tune a radio frequency.

f INFO

Displays information about what is playing.

g Playback buttons

Control playback.

h SURR ( Surround Sound )

Switches to surround sound or stereo sound.

i AUDIO SYNC

Selects an audio language or channel.

•

Press and hold to synchronize audio • with video. Use with +/- .

j Numeric buttons

Selects an item to play.

u OK

Con rms an entry or selection.

v Source buttons

• AUDIO SOURCE : Selects an audio

input source.

• RADIO : Switches to FM radio.

• USB : Switches to USB storage device.

• DISC : Switches to disc source.

k SUBTITLE

Selects subtitle language for video.

l SCREEN FIT

Fits the picture format to the TV screen.

m CREATE MP3 / ZOOM

•

Accesses the menu to create MP3. Zooms into a video scene or picture.•

REPEAT A-B

Marks two points within a chapter or track for repeat play, or turns off repeat mode.

o REPEAT / PROGRAM

Selects a repeat or shuf e mode.

•

In radio mode, programs radio stations.•

ANGLE

Displays options for different camera angles.

q SOUND

Selects a sound mode.

r VOL +/-

Increases or decreases volume.

s ( Mute )

Mutes or restores volume.

t BACK

Returns to a previous menu screen.

Page 9

4 Connect your home

d HDMI OUT

Connects to the HDMI input on the TV.

theater

This section helps you connect your home theater to a TV and other devices. The basic connections of the home theater with its accessories are provided in the Quick Start. For a comprehensive interactive guide, see www.connectivityguide. philips.com.

Note

Refer to the type plate at the back or bottom • of the product for identi cation and supply ratings. Before you make or change any connections,

•

ensure that all devices are disconnected from the power outlet.

Connectors

Side connectors

e VIDEO OUT

Connects to the composite video input on the TV.

f AUDIO IN-AUX

Connects to the analog audio output on the TV or an analog device.

g FM ANTENNA

Connects the FM antenna for radio reception.

Connect to the TV

Connect your home theater directly to a TV through one of the following connectors (from highest to basic quality video):

a HDMI b SCART c Composite video

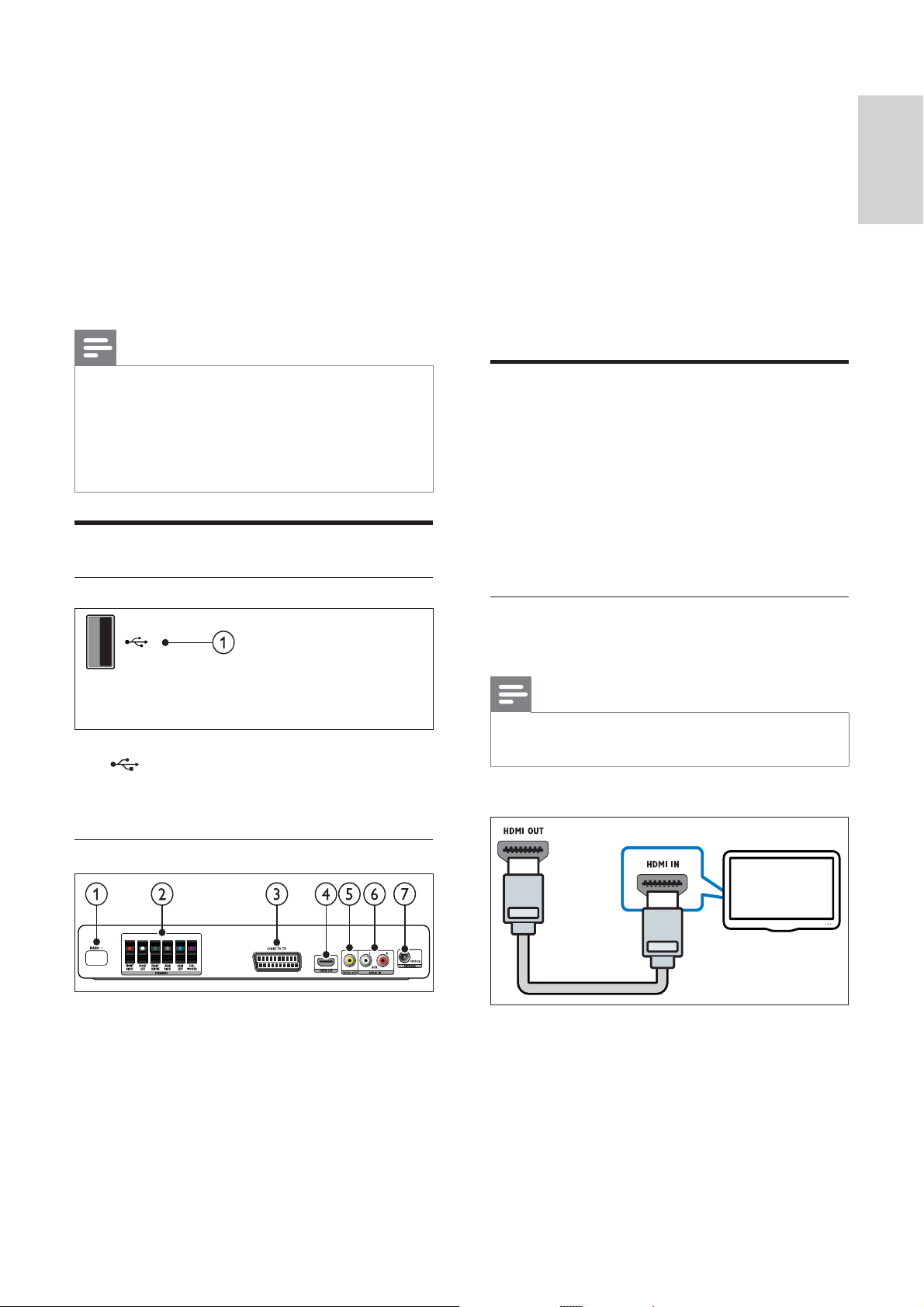

Option 1: Connect to the TV through HDMI

English

a ( USB )

Audio, video or picture input from a USB storage device.

Back connectors

a AC MAINS~

Connects to the power supply.

b SPEAKERS

Connects to the supplied speakers and subwoofer.

Note

If the HDTV has a DVI connector, connect • using an HDMI/DVI adapter.

(Cable not supplied)

c SCART TO TV

Connects to the scar t input on the TV.

Page 10

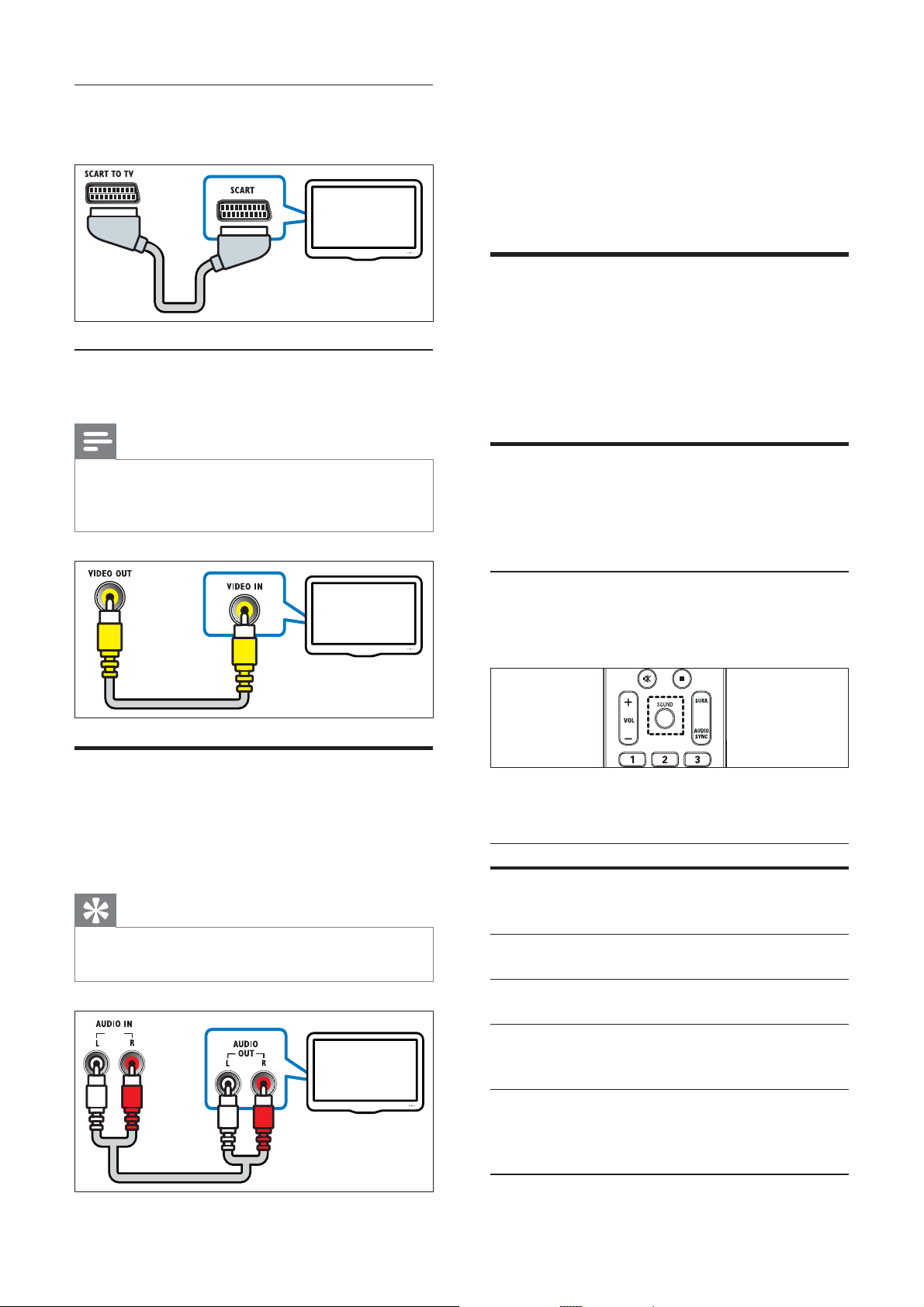

Option 2: Connect to the TV through Scart

(Cable not supplied)

5 Use your home

theater

Option 3: Connect to the TV through composite video (CVBS)

Note

The composite video cable or connector might • be labeled AV IN , VIDEO IN , COMPOSITE or BASEBAND .

This section helps you use the home theater to play media from a wide range of sources.

Before you start

Check that you:

Make the necessary connections and complete • the setup as described in the Quick Star t.

Switch the TV to the correct source for the • home theater.

Choose your sound

This section helps you choose the ideal sound for your video or music.

Change sound mode

Select prede ned sound modes to suit your video or music.

Connect audio from TV or other devices

Use your home theater to play audio from the TV or other device such as a cable box.

Tip

Press • AUDIO SOURCE to select the audio output of your connection.

Press SOUND repeatedly to cycle through the available sound modes.

Sound mode Description

ACTION / ROCK

DRAMA / JAZZ

CONCERT / CLASSIC

SPORTS Moderate mid-range and surround

NIGHT Dynamically controlled sound

Enhanced low and high-range. Ideal for action movies and rock or pop music.

Clear mid and high-range. Ideal for drama movies and jazz music.

Neutral sound. Ideal for live concerts and classical music.

effects for clear vocals and the atmosphere of a live sport venue.

mode suitable for watching movies at night or for nonintrusive background music.

Page 11

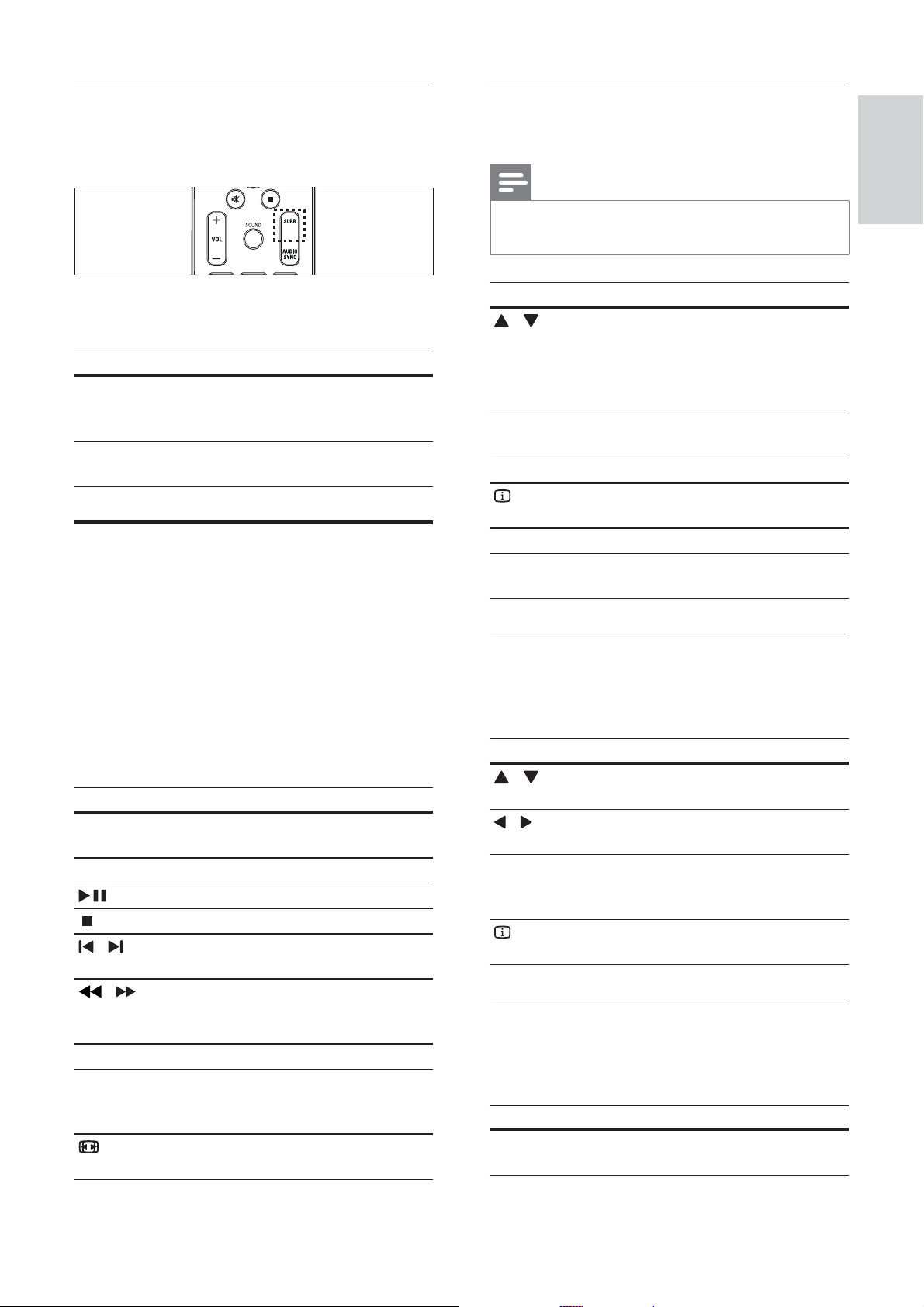

Change surround sound mode

Use video options

Experience an immersive audio experience with surround sound modes.

Press SURR repeatedly to cycle through the available surround modes.

Option Description

MULTICHANNEL

STEREO Two-channel stereo sound. Ideal

Play a disc

The home theater can play a wide variety of discs, including video, audio and mixed media (for example, a CD-R that contains JPEG pictures and MP3 music).

1 Insert a disc into the home theater. 2 Press DISC .

The disc plays or the disc main menu » appears.

3 Press the following buttons to control play:

Button Action

Navigation buttons

OK Con rms an entry or selection.

ZOOM Zooms into a video scene or picture. REPEAT A-B Marks two points within a

SCREEN

FIT

Immersive multi-channel sound for an enhanced movie experience.

for listening to music.

Navigate menus.

Starts, pauses or resumes play. Stops play. Skips to the previous or next

track, chapter or  le. Fast backwards or fast forwards.

Press repeatedly to change the search speed.

chapter or track for repeat play, or turns off repeat mode.

Fits the picture format to the TV screen.

Access several useful features while viewing video.

Note

Available video options depend on the video • source.

Button Action

AUDIO

SYNC

SUBTITLE Selects subtitle language for video.

INFO

REPEAT Repeats a chapter or title. ANGLE Displays options for different

Searches slow-backward or slow-forward. Press repeatedly to change the search speed. For VCD/SVCD, slow-backward search is not available.

Selects an audio language or channel.

Displays information about what is playing.

camera angles.

Use picture options

Access several useful features while viewing pictures.

Button Action

REPEAT Repeats a single  le in the folder or

INFO

Rotates the picture counterclockwise or clockwise.

Skips to the previous or next picture.

repeats the entire folder. Shuf es  les in a folder.

Displays photo albums in a thumbnail overview.

Use audio options

Access several useful features while audio is played.

Button Action

REPEAT Repeats a track, the entire disc

or shuf e tracks.

English

Page 12

Play from a USB storage device

The home theater is  tted with a USB connector that allows you to view pictures, listen to music or watch movies stored on a USB storage device.

1 Connect the USB storage device to the

home theater.

2 Press USB .

A content browser appears. »

3 Select a  le, then press OK . 4 Press the playback buttons to control play

(see ‘Play a disc’ on page 9 ) .

Note

If the USB storage device does not  t into the • connector, use a USB extension cable. The home theater does not suppor t digital

•

cameras that need a computer program to display photos. The USB storage device must be FAT or DOS-

•

formatted, and Mass Storage Class compliant.

More play features for disc or USB

Quick skip play to a speci c time

Quick skip to a speci c part of a video by entering the time of a scene.

1 During video play, press INFO . 2 Press the Navigation buttons and OK to

select:

• [TT Time] : Title time.

• [Ch Time] : Chapter time.

• [Disc Time] : Disc time.

• [Track Time] : Track time.

3 Enter the time of the scene, then press OK .

Play from radio

The home theater can store up to 40 radio stations.

1 Check that the FM antenna is connected. 2 Press RADIO .

“ » AUTO INSTALL...PRESS PLAY ’ appears on the display panel if you have not installed any radio stations. Press

3 Press the following buttons to control play:

Several advanced features are available for video or picture playback from a disc or USB storage device.

Play a musical slideshow

Play music and pictures simultaneously to create a musical slideshow. The  les must be stored on the same disc or USB storage device.

1 Select a music track, then press OK . 2 Press BACK and go to the picture folder. 3 Select a picture, then press OK to start

slideshow.

4 Press to stop slideshow. 5 Press again to stop music.

Synchronize audio with video

If the audio and video are not synchronized, you can delay the audio to match the video.

1 Press and hold AUDIO SYNC until the audio

sync message appears on the display panel.

2 Press +/- within  ve seconds to sync the

audio with your video.

Button Action

PROGRAM Manual: Press once to access

Note

AM and digital radio are not suppor ted. • If no stereo signal is detected, or if fewer than •  ve stations are found, you are prompted to install the radio stations again.

•

For the best reception, place the antenna away from the TV or other sources of radiation.

Selects a preset radio station. Searches for a radio station. Fine tunes a radio frequency. Press and hold to erase the

preset radio station. Press to stop the installation of radio stations.

program mode, and press again to store the radio station. Automatic: Press and hold for  ve seconds to reinstall radio stations.

Page 13

Play audio from TV or other devices

Press AUDIO SOURCE repeatedly to select the audio output of the connected device .

Create MP3 audio  les

Use the home theater to convert audio CDs into MP3 audio  les.

1 Insert an audio CD (CDDA/HDCD) into

the home theater.

2 Connect a USB storage device to the home

theater.

3 When audio is played, press CREATE MP3 . 4 Select [Yes] and press OK to con rm.

CREATE MP3

OPTIONS

Speed Normal

Bitrate 128kbps

CRT ID3 Yes

Device USB1

SUMMARY

Select Track 0

Time 00:00

TRACK

Track01 04:14

Track02 04:17

Track03 03:58

Track04 04:51

Track05 03:53

Track06 04:09

Track07 04:38

8 Select [Start] in the menu to convert, then

press OK .

A new folder is created in the USB » storage device to store all the new MP3 audio  les.

To exit the menu, select

• [Exit] and

press OK .

Note

During the conversion process, do not press • any buttons.

•

DTS CDs and copy-protected CDs cannot be conver ted. Write-protected or password-protected USB

•

storage device cannot be used to store MP3  les.

English

Start Exit

Select All

Deselect All

5 Select the settings in the [OPTIONS] panel,

then press OK .

• [Speed] : Selects the write-to- le

speed.

• [Bitrate] : Selects the conversion

quality.

• [CRT ID3] : Copies information on the

tracks in the MP3  les.

• [Device] : Selects the USB device

which you use to store the MP3  les.

6 Press to access the [TRACK] panel. 7 Select an audio track, then press OK .

• [Select All] : Selects all tracks.

• Deselect all ] : De-selects all tracks.

[

Page 14

6 Change settings

Change general settings

This section helps you to change the settings of your home theater.

Caution

Most of the settings are already con gured • with the best value for the home theater. Unless you have a speci c reason to change a setting, it is best to leave it at the default value.

Access the setup menu

1 Press SETUP .

The following menu appears. »

Symbol Description

[General Setup]

[Audio Setup]

[Video Setup]

[Preference Setup]

1 Press SETUP . 2 Select [General Setup] , then press OK . 3 Select and adjust the following settings:

• [Disc Lock] : Restricts play to disc.

Password (PIN code) is required to unlock the disc before play.

• [Display Dim] : Changes the brightness

of the display panel.

• [OSD Language] : Selects the on-

screen display menu language.

• [Screen Saver] : Enables or disables

screen saver mode. If enabled, the screen enters idle mode after 10 minutes of inactivity (for example, in pause or stop mode).

• [Sleep Timer] : Sets a sleep timer to

switch the home theater to standby after a speci c time.

• [Auto Standby] : Enables or disables

auto standby. If enabled, the home theater switches to standby after 30 minutes of inactivity (for example, in pause or stop mode).

• [DivX® VOD Code] : Displays the

DivX VOD registration code for the home theater.

4 Press OK to con rm your choice.

2 Select a setup menu, then press OK .

See the following sections for information about how to change the settings of your home theater.

3 Press BACK to return to the previous

menu, or press

Note

You cannot change a setting that is grayed out. •

SETUP to exit.

Note

Before you purchase DivX videos and play • them on the home theater, register the home theater on www.divx.com using the DivX VOD code.

Change audio settings

1 Press SETUP . 2 Select [Audio Setup] , then press OK . 3 Select and adjust the following settings:

• [Speakers Volume] : Sets the volume

of each speaker to obtain the ideal audio balance.

• [Speakers Delay] : Sets the delay time

for center and rear speakers to obtain an equal audio transmission from all the speakers.

Page 15

• [HDMI Audio] : Enables or disables HDMI audio output for the TV.

• [Audio Sync] : Sets a delay for audio

output when you play a video disc.

4 Press OK to con rm your choice.

Note

For settings related to HDMI, the TV must be • connected through HDMI.

Change video settings

1 Press SETUP . 2 Select [Video Setup] , then press OK . 3 Select and adjust the following settings:

• [TV System] : Selects a TV system that

is compatible with the TV.

• [TV Display] : Selects a picture display

format to  t the TV screen.

• [Picture Settings] : Selects a

prede ned color setting.

• [HDMI Setup] : Selects HDMI video

resolution and the wide screen display format for the TV. The Wide Screen Display option is only available for 16:9 wide screen TV display setting.

• [HD JPEG] : Enables or disables display

of high de nition JPEG images.

4 Press OK to con rm your choice.

Note

The best setting is automatically selected for • the TV. If you need to change the setting, ensure that the TV supports the new setting. Some video settings depend on the video

•

source, ensure that the disc and the TV support the setting or feature. For settings related to HDMI, the TV must be

•

connected through HDMI.

Change preference settings

1 Press SETUP . 2 Select [Preference Setup] , then press OK . 3 Select and adjust the following settings:

• [Audio] : Selects audio language for

video.

• [Subtitle] : Selects subtitle language for

video.

• [Disc Menu] : Selects menu language

for video disc.

• [Parental] : Restricts access to discs

that are recorded with ratings. To play all discs irrespective of the rating, select level ‘8’.

• [PBC] : Displays or skips the content

menu for VCD and SVCD discs.

• [MP3/JPEG Display] : Displays the

MP3/JPEG folders or all the  les.

• [Password] : Sets or changes a PIN

code to play a restricted disc. Enter ‘ 0000 ’ if you do not have a PIN or if you have forgotten your PIN.

• [DivX Subtitle] : Selects a character

set that suppor ts the DivX subtitle.

• [Version Info.] : Displays the software

version for the home theater.

• [Default] : Resets the home theater to

the default settings programmed at the factory.

4 Press OK to con rm your choice.

Note

If your preferred disc language is not available, • you can select [Other] from the list and enter the 4-digit language code which can be found at the back of this manual. If you select a language that is not available

•

on a disc, the home theater uses the default language of the disc. You cannot reset disc lock, password (PIN

•

code) and parental control settings to their default values.

English

Page 16

7 Update software

To check for new updates, compare the current software version of your home theater with the latest software version (if available) on the Philips web site.

8 Product specifications

Note

Speci cation and design are subject to change • without notice.

Check software version

1 Press SETUP . 2 Select [Preference Setup] > [Version Info.] ,

then press OK .

The software version is displayed. »

Update software from a CD-R or USB

1 Check for the latest software version on

www.philips.com/support.

•

Search for your model and click on ‘software&drivers’.

2 Download the software onto a CD-R or

USB storage device.

3 Inser t the CD-R or connect the USB

storage device to the home theater.

4 Follow the instructions on the TV to

con rm the update.

When complete, the home theater » automatically switches off and on again.

If not, disconnect the power cord for a

•

few seconds and then reconnect it.

Caution

Do not turn off the power or remove the • CD-R or USB storage device when the software update is in progress because you might damage the home theater.

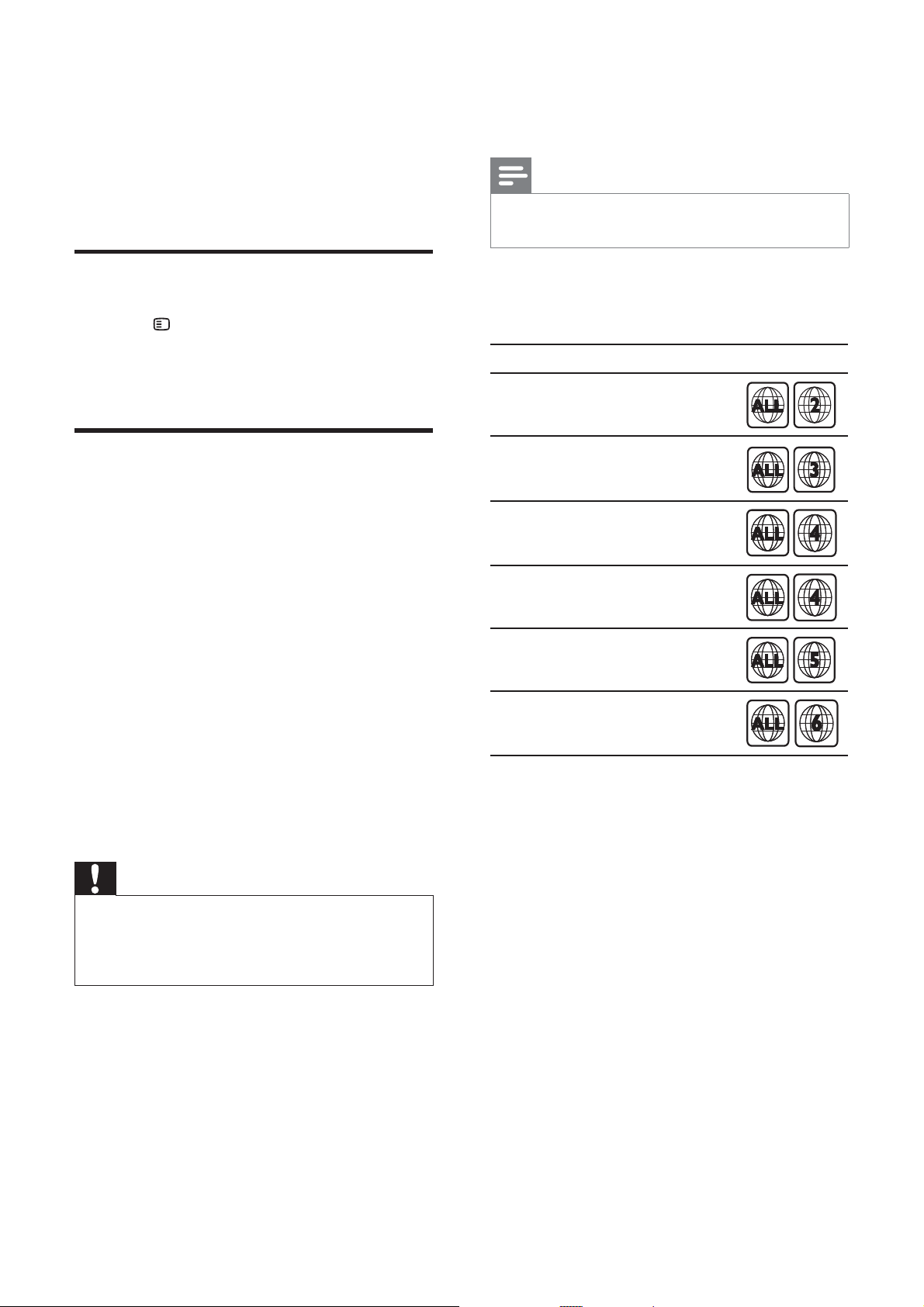

Region code The type plate on the back or bottom of the

home theater shows which regions it supports

Country

Europe, United Kingdom

Asia Pacific, Taiwan, Korea

Latin America

Australia, New Zealand

Russia, India

China

DVD

Playback media DVD-Video, DVD+R/+RW, DVD-R/-RW, DVD+R DL,

CD-R/CD-RW, Audio CD, Video CD/SVCD, Picture CD, MP3-CD, WMA-CD, DivX-CD, USB storage device

File Format

Audio: .mp3, .wma • Video: .divx, .divx ultra, .mpeg, .mpg, .wmv •

(simple pro le) Picture: .jpeg, .jpg •

Ampli er

Total output power: •

HTS3510: 300 W RMS (30% THD)

•

HTS3520: 600 W RMS (30% THD)•

Frequency response: 20 Hz-20 kHz / ±3dB • Signal-to-noise ratio: > 65 dB (CCIR) / •

(A-weighted) Input sensitivity: •

•

AUX: 2 V

Page 17

Video

Signal system: PAL / NTSC • HDMI output: 480i/576i, 480p/576p, 720p, •

1080i, 1080p

Audio

Sampling frequency: •

•

MP3: 32 kHz, 44.1 kHz, 48 kHz WMA: 44.1 kHz, 48 kHz•

Constant bit rate: •

•

MP3: 112 kbps - 320 kbps WMA: 48 kbps - 192 kbps•

Radio

Tuning range: FM 87.5-108 MHz (50 kHz) • Signal-to-noise ratio: FM 50 dB • Frequency response: FM 180 Hz-10 kHz / •

±6dB

USB

Compatibility: Hi-Speed USB (2.0) • Class support: UMS (USB Mass Storage •

Class) File system: FAT12, FAT16, FAT32 • Maximum memory support: < 160GB •

Main Unit

Power supply: 220-240V; ~50 Hz • Power consumption: 100 W • Standby power consumption:  0.9 W • Dimensions (WxHxD): 360 x 58 x 320 •

(mm) Weight: 2.84 kg •

Subwoofer

Impedance: 8 ohm • Speaker drivers: 165 mm (6.5”) woofer • Frequency response: 20 Hz-150 kHz • Dimensions (WxHxD): 120 x 307 x 369 •

(mm) Weight: 3.84 kg • Cable length: 4.3 m •

Speakers

System: full range satellite • Speaker impedance: 8 ohm (center), 4 ohm •

(Front/Rear) Speaker drivers: 3” full range • Frequency response: 150 Hz-20 kHz • Dimensions (WxHxD): •

HTS3510: 96 x 162 x 96 (mm) HTS3520:

•

Center: 160.9 x 95 x 92 (mm) Front/Rear: 95 x 160.9 x 87 (mm)•

Weight: •

HTS3510: 0.68 kg HTS3520:

•

Center: 0.77 kg Front/Rear: 0.56 kg/each•

Cable length: •

Center: 3 m

•

Front: 4 m• Rear: 10 m•

Laser speci cation

Type: Semiconductor laser GaAIAs (CD) • Wave length: 645 - 665 nm (DVD), 770 - •

800 nm (CD) Output power: 6 mW (DVD), 7 mW •

(VCD/CD) Beam divergence: 60 degrees. •

English

Page 18

9 Troubleshooting

Warning

Risk of electric shock. Never remove the • casing of the product.

To keep the warranty valid, never try to repair the product yourself.

If you have problems using this product, check the following points before you request service. If you still have a problem, register your product and get support at www.philips.com/welcome.

If you contact Philips, you will be asked for the model and serial number of your product. The model number and serial number are on the back or bottom of your product. Write the numbers here:

Model No. __________________________ Serial No. ___________________________

No sound on HDMI connection.

You might not hear any sound if the • connected device is not HDCP (Highbandwidth Digital Content Protection) compliant or only DVI compatible. Use an analog or digital audio connection.

Ensure that the •[HDMI Audio] is enabled .

No sound from TV program.

Connect an audio cable from the audio input • on the home theater to the audio output on the TV, then press AUDIO SOURCE repeatedly to select the correct audio source.

Distorted sound or echo.

Ensure that the TV volume is muted or set • to minimum if you are playing audio through the home theater.

Audio and video are not synchronized.

1) Press and hold •AUDIO SYNC . 2) Press +/- within  ve seconds.

Play

Main unit

The buttons on this home theater do not work.

Disconnect the home theater from the • power outlet for a few minutes, then reconnect.


No picture.

Ensure that the TV is switched to the • correct source for this home theater.

If this happens when you change the TV • system, switch to its default mode: 1) Press

. 2) Press . 3) Press SUBTITLE .

No picture on HDMI connection.

Check if the HDMI cable is faulty. Replace • with a new HDMI cable.

If this happens when you change the HDMI • video resolution, switch to its default mode:

1) Press

. 2) Press . 3) Press ZOOM .

Sound

No sound.

Ensure that the audio cables are connected • and select the correct input source (for example, AUDIO SOURCE ) for the device you want to play.

Disc cannot be played.

Clean the disc. • Ensure that the home theater supports the •

disc (see ‘Product speci cations’ on page 14 ) . Ensure that the home theater supports the •

region code of the DVD. For DVD±RW or DVD±R, ensure that the •

disc is  nalized.

DivX video  les cannot be played.

Ensure that the DivX  le is encoded • according to the ‘Home Theater Pro le’ with the DivX encoder.

Ensure that the DivX video  le is complete. •

DivX subtitles do not display correctly.

Ensure that the subtitle  le name is the • same as the movie  le name.

Select the correct character set: 1) Press •

SETUP . 2) Select [Preference Setup] .

3) Select [DivX Subtitle] . 4) Select a supported character set. 5) Press OK .

The contents of a USB storage device cannot be read.

Ensure that the format of the USB storage • device is compatible with the home theater (see ‘Product speci cations’ on page 14 ) .

Ensure that the USB storage device • is formatted with a  le system that is supported by the home theater (note that NTFS is not supported).

‘No entry’ or ‘x’ sign appears on the TV.

The operation is not possible. •

Page 19

10 Index

ampli er 14 audio

connection 8 language 13 , 9 settings 12 synchronize with video 10

care 4 change settings 12 connect

audio from TV 8 , 11 guide 7 other devices 8 TV 7

connectors 7 contact us 16

disc

play 9 suppor ted discs 14

disposal of your product 4 DivX

subtitle 13

 le formats 14

language

audio 13 disc menu 13 on-screen display 12 subtitle 13

MP3

create MP3  les 11

password 13 picture

options 9 slide show 10 , 9 thumbnail overview 9 troubleshooting 16

play

disc 9 options 9 radio 10 troubleshooting 16 USB storage device 10

product care 4 product speci cations 14

radio

play 10 program 10 tune 10

recycle 4 region code 14 remote control 5 repeat 9 rotate pictures 9

safety 3 settings

audio 12 general 12 parental control 13 preferences 13 restore factory settings 13 video 13

slideshow

play musical slideshow 10

software

update 14 version 14

sound

mode 8 surround 9 troubleshooting 16

subtitle

language 9

English

overview

connectors 7 main unit 5 remote control 5

Page 20

time search video 10 troubleshooting 16 TV

audio from TV 8 , 11 connect 7

USB

play 10 software update 14

video

options 9 settings 13 synchronize with audio 10
