Trademarks

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. Product includes software.

DTS, Inc. All Rights

Reserved.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

DivX ® , DivX Certi ed ® and associated logos are registered trademarks of DivX, Inc. and are used under license.

DivX Ultra

Cer ti ed to play DivX ® video with

advanced features and premium content. ABOUT DIVX VIDEO: DivX

is a digital video format created by DivX, Inc. This is an of cial DivX Cer ti ed device that plays DivX video. Visit www.divx.com for more information and software tools to conver t your  les into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certi ed

device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/ or other countries.

1 Notice

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Recording and playback of material may require consent. See Copyright Act 1956 and The Performers Protection Acts 1958 to 1972.

Compliance

This product is in compliance with the essential requirements and other relevant provisions of Directives 2006/95/EC (Low Voltage), 2004/108/ EC (EMC).

Mains fuse (UK only)

This product is  tted with an approved moulded plug. Should it become necessary to replace the mains fuse, this must be replaced with a fuse of the same value as indicated on the plug (example 10A).

1 Remove fuse cover and fuse. 2 The replacement fuse must comply with BS

1362 and have the ASTA approval mark. If the fuse is lost, contact your dealer in order to verify the correct type.

3 Re t the fuse cover.

Note

To conform with the EMC directive • (2004/108/EC), the mains plug on this product must not be detached from the mains cord.

Page 5

2 Important

Read and understand all instructions before you use your home theater. If damage is caused by failure to follow instructions, the warranty does not apply.

Safety

Risk of electric shock or  re!

Never expose the product and accessories • to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer Care to have the product checked before use.

Never place the product and accessories • near naked  ames or other heat sources, including direct sunlight.

Never insert objects into the ventilation • slots or other openings on the product.

Where the mains plug or an appliance • coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Disconnect the product from the power • outlet before lightning storms.

When you disconnect the power cord, • always pull the plug, never the cable.

Risk of short circuit or  re!

Before you connect the product to the • power outlet, ensure that the power voltage matches the value printed on the back or bottom of the product. Never connect the product to the power outlet if the voltage is different.

Risk of injury or damage to the home theater!

For wall-mountable products, use only the • supplied wall mount bracket. Secure the wall mount to a wall that can support the combined weight of the product and the wall mount. Koninklijke Philips Electronics N.V. bears no responsibility for improper wall mounting that results in accident, injury or damage.

For speakers with stands, use only the • supplied stands. Secure the stands to the speakers tightly. Place the assembled stands on  at, level surfaces that can support the combined weight of the speaker and stand.

HDMI, and HDMI logo and High-De nition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

The USB-IF Logos are trademarks of Universal Serial Bus Implementers Forum, inc.

CLASS 1

LASER PRODUCT

English

Page 6

Disposal of your old product and batteries

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/ EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.

Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Never place the product or any objects • on power cords or on other electrical equipment.

If the product is transported in • temperatures below 5°C, unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet.

Visible and invisible laser radiation when • open. Avoid exposure to beam.

Do not touch the disc optical lens inside the • disc compartment.

Risk of overheating!

Never install this product in a con ned • space. Always leave a space of at least four inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.

Risk of contamination!

Do not mix batteries (old and new or • carbon and alkaline, etc.).

Remove batteries if they are exhausted or • if the remote control is not to be used for a long time.

Batteries contain chemical substances, they • should be disposed of properly.

Product care

Do not insert any objects other than discs • into the disc compar tment.

Do not inser t warped or cracked discs into • the disc compartment.

Remove discs from the disc compar tment • if you are not using the product for an extended period of time.

Only use micro ber cloth to clean the • product.

Page 7

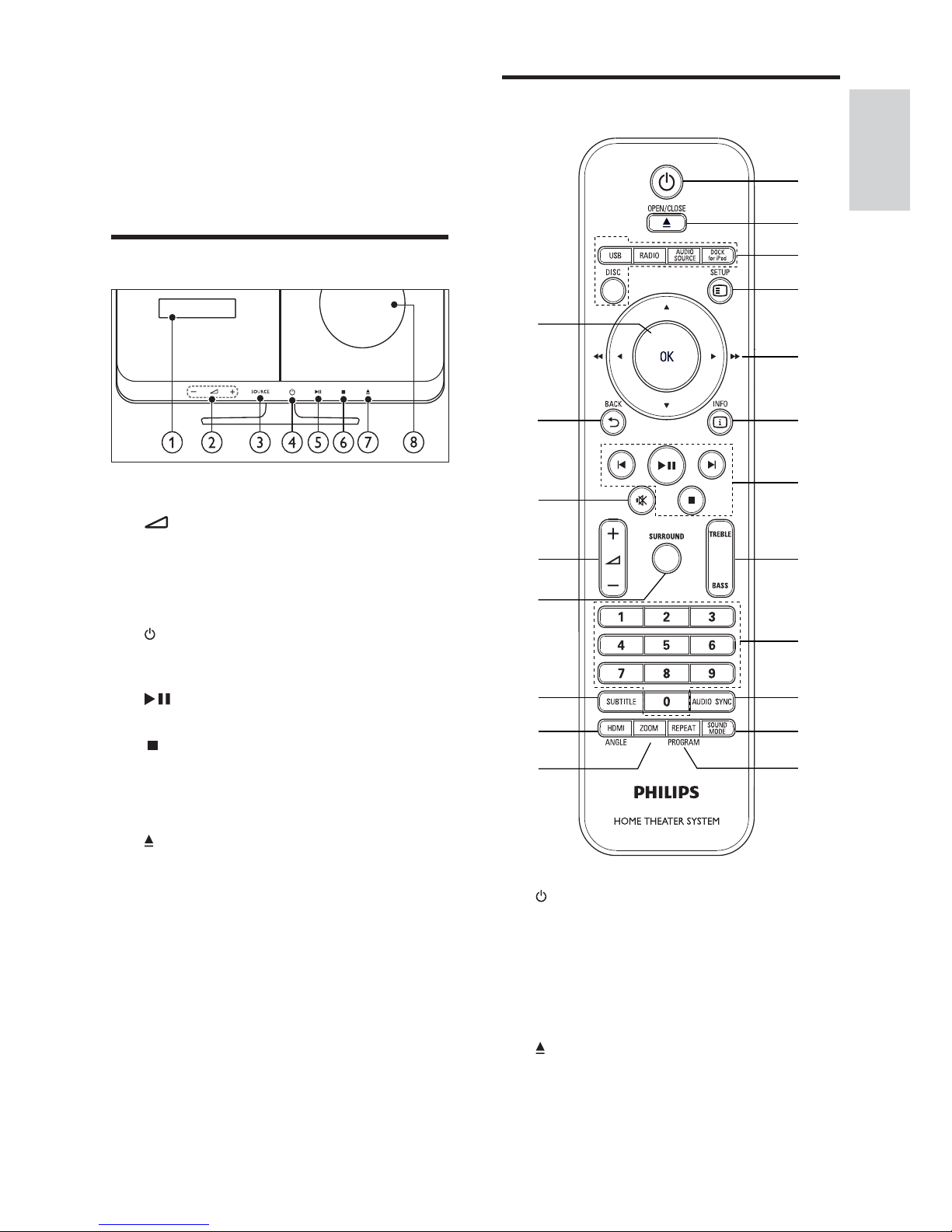

Remote control

a ( Standby-On )

Switches the home theater on or to

•

standby. When EasyLink is enabled, press

•

and hold for at least three seconds to switch all connected HDMI CEC compliant devices to standby.

b OPEN/CLOSE

Opens or closes the disc compartment.

b c d

j k

3 Your home theater

Congratulations on your purchase, and welcome to Philips! To fully bene t from the support that Philips offers, register your home theater at www.philips.com/welcome.

Main unit

a Display panel b +/-

Increases or decreases volume.

c SOURCE

Selects an audio/video source for the home theater.

d ( Standby-On )

Switches the home theater on or to standby.

e ( Play/Pause )

Starts, pauses or resumes play.

f ( Stop )

Stops play.

•

In radio mode, erases the current • preset radio station.

g ( Open/Close )

Opens or closes the disc compartment.

h Disc compartment

English

Page 8

p SURROUND

Switches to surround sound or stereo sound.

q +/-

Increases or decreases volume.

r ( Mute )

Mutes or restores volume.

s BACK

Returns to a previous menu screen.

t OK

Con rms an entry or selection.

c Source buttons

• DISC : Switches to disc source.

• USB : Switches to USB storage device.

• RADIO : Switches to FM radio.

• AUDIO SOURCE : Selects an audio

input source.

• DOCK for iPod : Switches to Philips

Dock for iPod/iPhone.

d SETUP

Accesses or exits the setup menu.

e ( Navigation buttons )

Navigate menus.

•

In video mode, press left or right to • fast backward or fast forward.

In radio mode, press left or right to

•

search a radio station; press up or down to  ne tune a radio frequency.

f INFO

Displays information about what is playing.

g Playback buttons

Control playback.

h TREBLE / BASS

Changes treble or bass. Use with +/- .

i Numeric buttons

Selects an item to play.

j AUDIO SYNC

Selects an audio language or channel.

•

Press and hold to synchronize audio • with video. Use with +/- .

k SOUND MODE

Selects a sound mode.

l REPEAT / PROGRAM

Selects a repeat or shuf e mode.

•

In radio mode, programs radio stations.•

ZOOM

Zooms into a video scene or picture.

n HDMI / ANGLE

Selects video resolution of HDMI

•

output from the home theater. Press and hold to select options for

•

different camera angles.

o SUBTITLE

Selects subtitle language for video.

Page 9

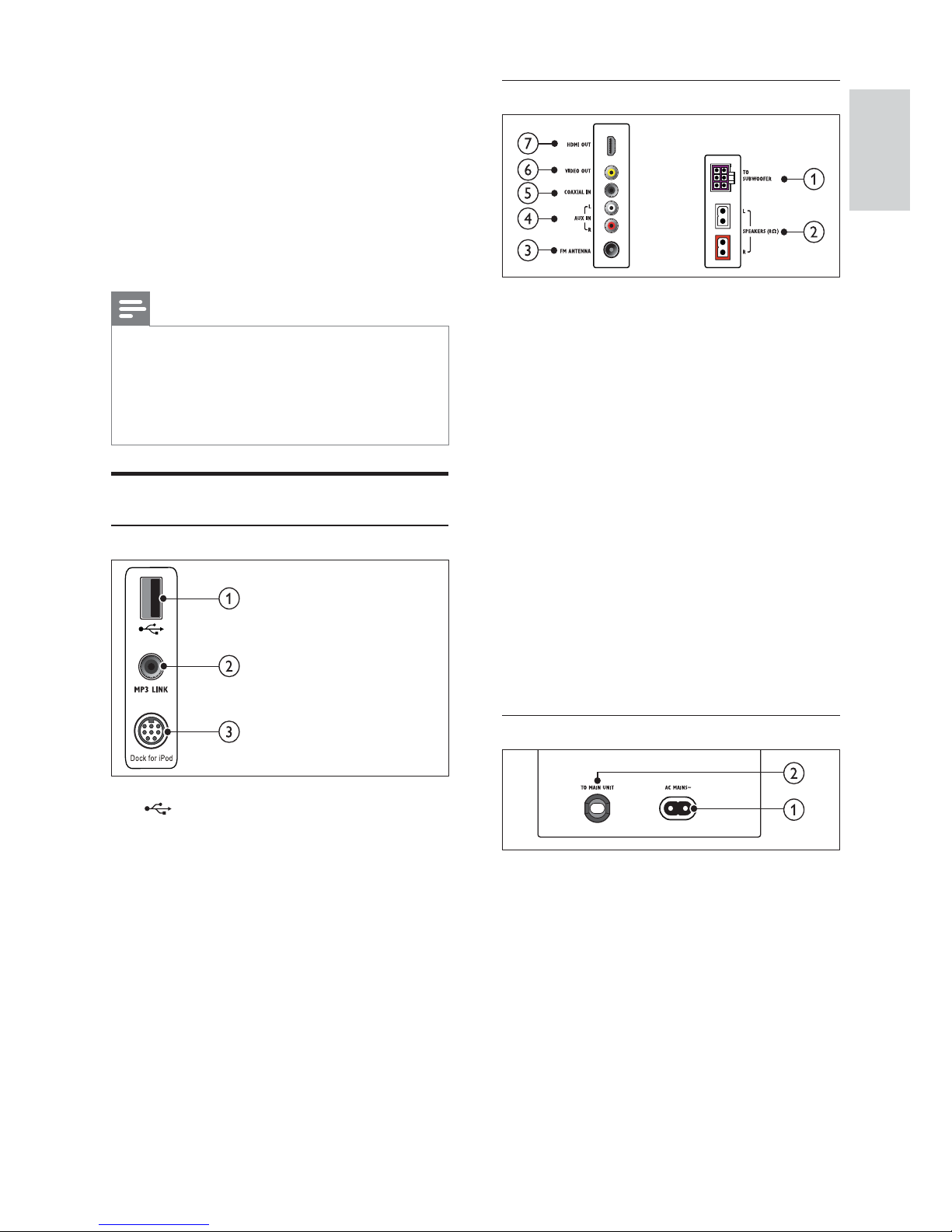

Back connectors

a TO SUBWOOFER

Connects to the supplied subwoofer.

b SPEAKERS

Connects to the supplied speakers.

c FM ANTENNA

Connects the FM antenna for radio reception.

d AUX IN

Connects to the analog audio output on the TV or an analog device.

e COAXIAL IN

Connects to the coaxial audio output on the TV or a digital device.

f VIDEO OUT

Connects to the composite video input on the TV.

g HDMI OUT

Connects to the HDMI input on the TV.

Subwoofer connectors

a AC MAINS~

Connects to the power supply.

b TO MAIN UNIT

Connect to the TO SUBWOOFER connector on the main unit.

4 Connect your home

theater

This section helps you connect your home theater to a TV and other devices. The basic connections of the home theater with its accessories are provided in the Quick Start. For a comprehensive interactive guide, see www.connectivityguide.philips.com.

Note

Refer to the type plate at the back or bottom • of the product for identi cation and supply ratings. Before you make or change any connections,

•

ensure that all devices are disconnected from the power outlet.

Connectors

Side connectors

a ( USB )

Audio, video or picture input from a USB storage device.

b MP3 LINK

Audio input from an MP3 player.

c Dock for iPod

Connects to a Philips Dock for iPod/iPhone. (Model: Philips DCK3060, sold separately.)

English

Page 10

Option 3: Connect to the TV through composite video (CVBS)

Note

The composite video cable or connector might • be labeled AV IN , VIDEO IN , COMPOSITE or BASEBAND .

Connect audio from TV or other devices

Use your home theater to play audio from the TV or other devices such as a cable box.

Tip

Press • AUDIO SOURCE repeatedly to select the audio output of your connection.

Option 1: Connect audio through analog audio cables

(Cable not supplied)

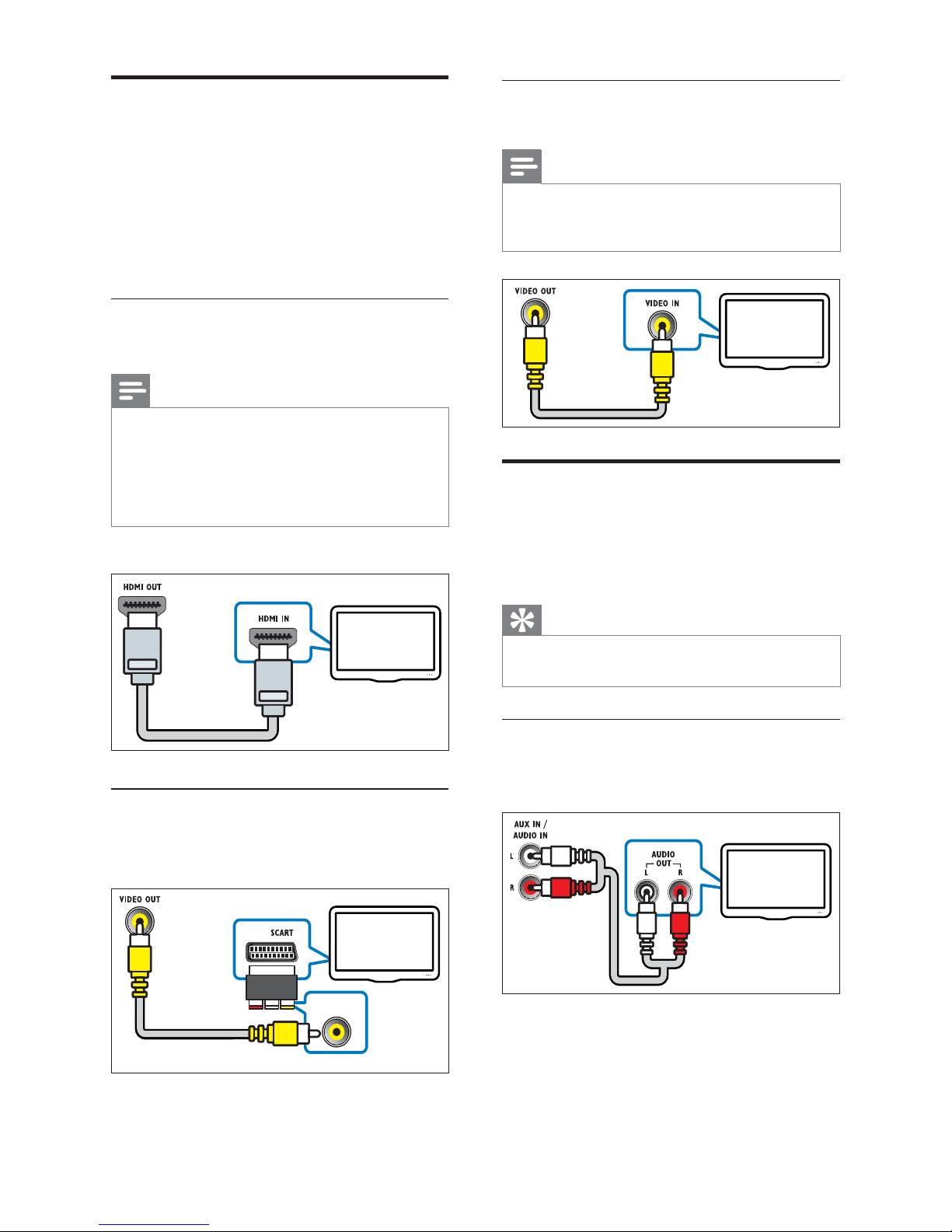

Connect to the TV

Connect your home theater directly to a TV through one of the following connectors (from highest to basic quality video):

a HDMI b SCART c Composite video

Option 1: Connect to the TV through HDMI

Note

If the HDTV has a DVI connector, connect • using an HDMI/DVI adapter. If the TV supports EasyLink HDMI CEC,

•

control the home theater and TV with one remote control (see ‘Use Philips EasyLink’ on page 13 ) .

(Cable not supplied)

Option 2: Connect to the TV through Scart

Use the supplied scart adapter.

Page 11

5 Use your home

theater

This section helps you use the home theater to play media from a wide range of sources.

Before you start

Check that you:

Make the necessary connections and • complete the setup as described in the Quick Start.

Switch the TV to the correct source for the • home theater.

Choose your sound

This section helps you choose the ideal sound for your video or music.

Change sound mode

Select prede ned sound modes to suit your video or music.

Press SOUND MODE repeatedly to cycle through the available sound modes.

Sound mode Description

ACTION / ROCK

Enhanced low and high-range. Ideal for action movies and rock or pop music.

DRAMA / JAZZ

Clear mid and high-range. Ideal for drama movies and jazz music.

CONCERT / CLASSIC

Neutral sound. Ideal for live concer ts and classical music.

SPORTS Moderate mid-range and

surround effects for clear vocals and the atmosphere of a live sport venue.

NIGHT Dynamically controlled sound

mode suitable for watching movies at night or for nonintrusive background music.

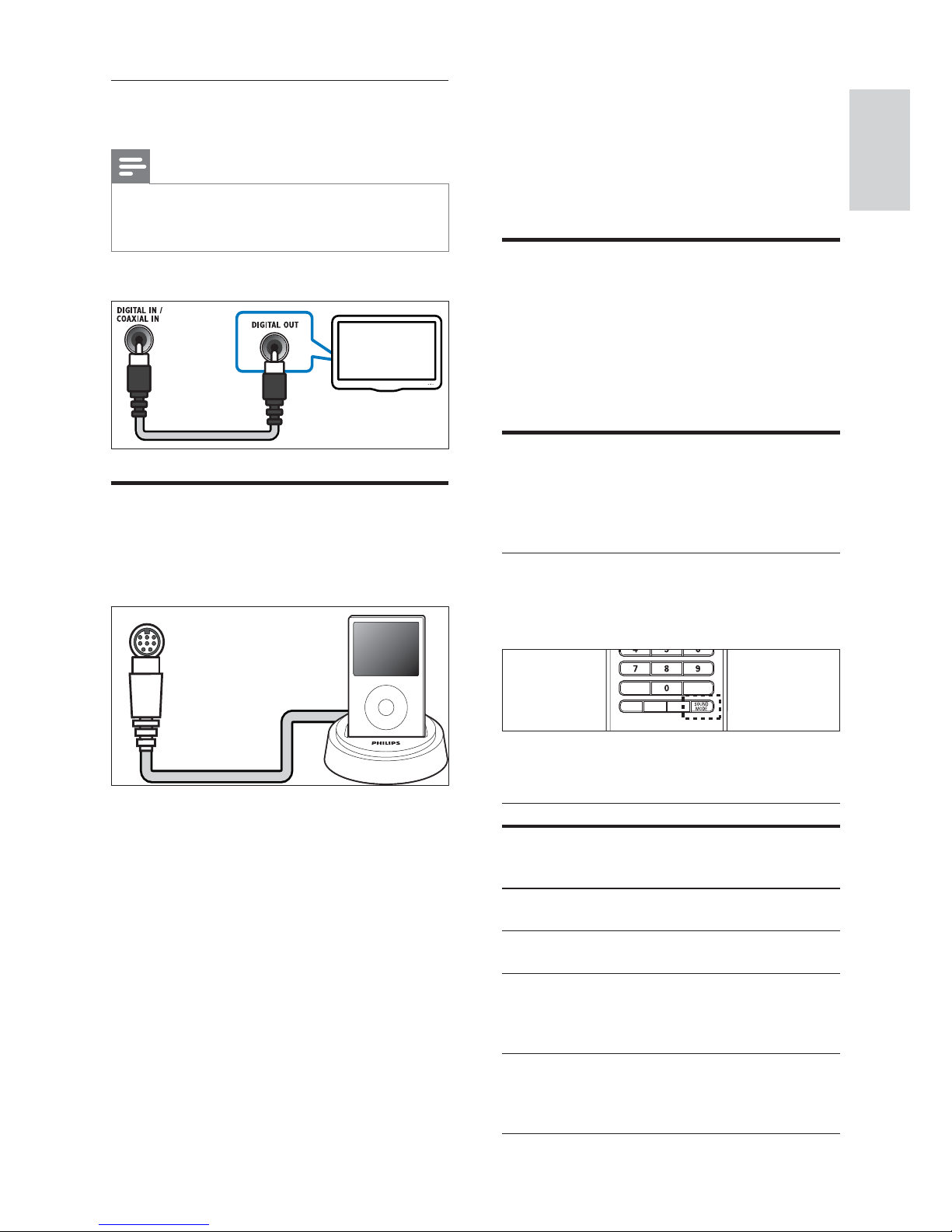

Option 2: Connect audio through coaxial cable

Note

The digital coaxial cable or connector might be • labeled COAXIAL/DIGITAL OUT or SPDIF OUT .

(Cable not supplied)

Connect a Philips Dock for iPod/iPhone

(Philips Dock for iPod/iPhone not supplied)

DOCK for iPod

English

Page 12

Play a disc

The home theater can play a wide variety of discs, including video, audio and mixed media (for example, a CD-R that contains JPEG pictures and MP3 music).

1 Inser t a disc into the home theater. 2 Press DISC .

The disc plays or the disc main menu » appears.

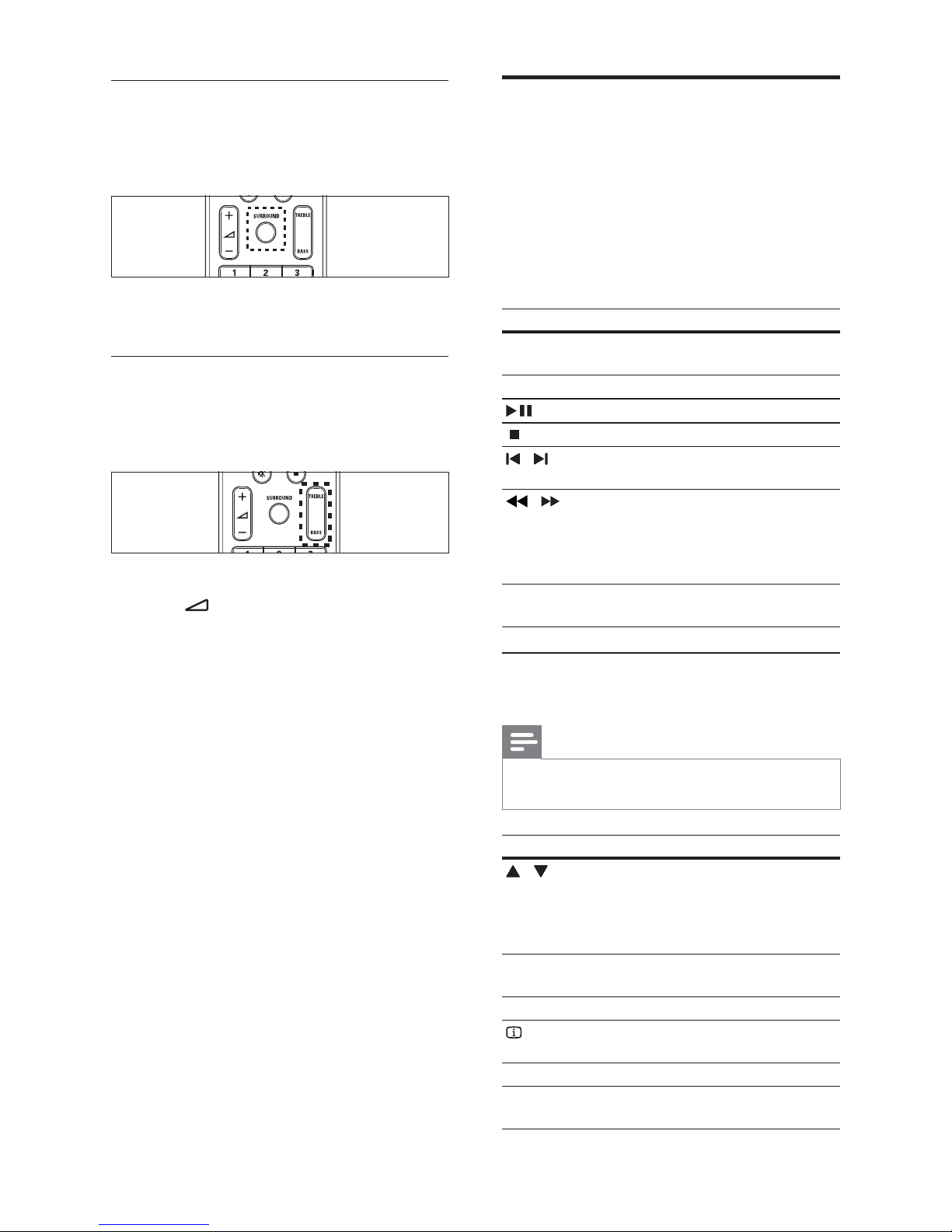

3 Press the following buttons to control play:

Button Action

Navigation buttons

Navigate menus.

OK Con rms an entry or selection.

Starts, pauses or resumes play. Stops play.

Skips to the previous or next track, chapter or  le.

Fast backwards or fast forwards. Press repeatedly to change the search speed. In pause mode, steps forward by one frame.

ZOOM Zooms into a video scene or

picture.

Use video options

Access several useful features while viewing video.

Note

• Available video options depend on the video source.

Button Action

Searches slow-backward or slow-forward. Press repeatedly to change the search speed. For VCD/SVCD, slow-backward search is not available.

AUDIO

SYNC

Selects an audio language or channel.

SUBTITLE Selects subtitle language for video.

INFO

Displays information about what

is playing. REPEAT Repeats a chapter or title. ANGLE Displays options for different

camera angles.

Change virtual surround mode

DVS (Dolby Virtual Speaker) technology creates a highly compelling 5.1-channel listening experience from as few as two speakers.

Press SURROUND to switch on or off virtual surround sound.

Change treble or bass

Change the high frequency (treble) or low frequency (bass) settings of the home theater to suit your video or music.

1 Press TREBLE or BASS . 2 Press +/- within  ve seconds to increase

or decrease treble or bass.

Page 13

More play features for disc or USB

Several advanced features are available for video or picture playback from a disc or USB storage device.

Play a musical slideshow

Play music and pictures simultaneously to create a musical slideshow. The  les must be stored on the same disc or USB storage device.

1 Select a music track, then press OK . 2 Press BACK and go to the picture

folder.

3 Select a picture, then press OK to start

slideshow.

4 Press to stop slideshow. 5 Press again to stop music.

Synchronize audio with video

If the audio and video are not synchronized, you can delay the audio to match the video.

1 Press and hold AUDIO SYNC until the

audio sync message appears on the display panel.

2 Press +/- within  ve seconds to sync the

audio with your video.

Quick skip play to a speci c time

Quick skip to a speci c part of a video by entering the time of a scene.

1 During video play, press INFO . 2 Press the Navigation buttons and OK to

select:

• [TT Time] : Title time.

• [Ch Time] : Chapter time.

• [Disc Time] : Disc time.

• [Track Time] : Track time.

3 Enter the time of the scene, then press OK .

Use picture options

Access several useful features while viewing pictures.

Button Action

Rotates the picture counterclockwise or clockwise.

Skips to the previous or next picture.

REPEAT Repeats a single  le in the folder or

repeats the entire folder. Shuf es  les in a folder.

INFO

Displays photo albums in a thumbnail overview.

Use audio options

Access several useful features while audio is played.

Button Action

REPEAT Repeats a track, the entire disc

or shuf e tracks.

Play from a USB storage device

The home theater is  tted with a USB connector that allows you to view pictures, listen to music or watch movies stored on a USB storage device.

1 Connect the USB storage device to the

home theater.

2 Press USB .

A content browser appears. »

3 Select a  le, then press OK . 4 Press the playback buttons to control play

(see ‘Play a disc’ on page 10 ) .

Note

If the USB storage device does not  t into the • connector, use a USB extension cable. The home theater does not support digital

•

cameras that need a computer program to display photos. The USB storage device must be FAT or DOS-

•

formatted, and Mass Storage Class compliant.

English

Page 14

Play audio from TV or other devices

Press AUDIO SOURCE repeatedly to select the audio output of the connected device .

Play from an MP3 player

Connect and play audio  les from an MP3 player or other external audio devices.

1 Connect the MP3 player to the home theater. 2 Press AUDIO SOURCE repeatedly until

‘ MP3 LINK ’ appears on the display panel.

3 Press the buttons on the MP3 player to

select and play audio  les.

Play from an iPod or iPhone

By connecting and installing a Philips Dock for iPod/ iPhone, you can use the home theater to play music, movies and photos from your iPod or iPhone.

Note

Philips Dock for iPod/iPhone is sold separately. • You can charge your iPod/iPhone on the dock • while the home theater is in iPod mode.

Dock your iPod or iPhone

1 Connect the dock to the home theater and

connect the yellow composite cable from the dock to the TV. For more information, see the Quick Start provided with the dock.

2 Switch on the iPod or iPhone and place it in

the dock.

Listen to music

1 Dock your iPod or iPhone (see ‘Dock your

iPod or iPhone’ on page 12 ) .

2 Press DOCK for iPod on the home theater

remote control.

3 Browse on the iPod or iPhone screen to

select track.

4 Press OK to play the track.

Repeat play a speci c section

Select sections of audio or video for repeat playback.

1 During playback, press INFO . 2 Select [Repeat] > [Repeat AB] in the menu. 3 Press OK to mark the star t point. 4 Press OK again to mark the end point.

Repeat play starts. »

To cancel repeat A-B, press

• INFO ,

select [Repeat] > [Off] , then press OK .

Note

Repeat play is only possible within a track /chapter. •

Play from radio

The home theater can store up to 40 radio stations.

1 Check that the FM antenna is connected. 2 Press RADIO .

“ » AUTO INSTALL...PRESS PLAY ’ appears on the display panel if you have not installed any radio stations. Press

3 Press the following buttons to control play:

Button Action

Selects a preset radio station.

Searches for a radio station. Fine tunes a radio frequency. Press and hold to erase the

preset radio station. Press to stop the installation of radio stations.

PROGRAM Manual: Press once to access

program mode, and press again to store the radio station. Automatic: Press and hold for  ve seconds to reinstall radio stations.

Note

AM and digital radio are not supported. • If no stereo signal is detected, or if fewer than •  ve stations are found, you are prompted to install the radio stations again. For the best reception, place the antenna away

•

from the TV or other sources of radiation.

Page 15

Use Philips EasyLink

The home theater supports Philips EasyLink, which uses the HDMI CEC (Consumer Electronics Control) protocol. EasyLink-compliant devices that are connected through HDMI connectors can be controlled by a single remote control.

Note

Philips does not guarantee 100% • interoperability with all HDMI CEC devices.

1 Switch on the HDMI CEC operations on

the TV and other connected devices. See the manual of the TV or other devices for details.

2 Press SETUP . 3 Select [General Setup] , then press OK . 4 Select [EasyLink Setup] , then press OK . 5 Select and adjust the following settings:

• [EasyLink] : Enables or disables

EasyLink.

• [One Touch Play] : Enables or disables

One Touch Play. If enabled, you can use the remote

control to star t disc play in the home theater and the TV switches automatically to the correct channel.

• [One Touch Standby] : Enables or

disables One Touch Standby. If enabled, the home theater can

be switched off to standby by a remote control from the TV or other connected HDMI CEC devices.

• [System Audio Control] :Enables or

disables System audio control. If enabled, follow the instructions on

the TV to map the connected devices correctly to the audio connectors of the home theater. The home theater switches automatically to the audio source of the connected device.

• [Audio Input Mapping] : Updates audio

input mapping if there are new devices connected.

6 Press OK to con rm your choice.

Note

The connected devices must be connected • through HDMI and switched on.

Watch video or view slideshows

Note

On iPod, enable the TV ON setting. • On iPhone, select the TV Out option. •

1 Dock your iPod or iPhone (see ‘Dock your

iPod or iPhone’ on page 12 ) .

2 Press DOCK for iPod on the home theater

remote control.

3 Switch the TV to the AV/ VIDEO source

(corresponding to the yellow composite cable).

The TV screen goes blank. »

4 Browse on the iPod or iPhone screen to

select videos or photos.

5 Press OK on the home theater remote

control or PLAY on the iPod/iPhone to play the video or photos.

The picture is displayed on the TV. »

English

Page 16

Change general settings

1 Press SETUP . 2 Select [General Setup] , then press OK . 3 Select and adjust the following settings:

• [EasyLink Setup] : Sets up EasyLink to

enjoy easy controls of all the HDMI CEC compliant devices using a single remote control (see ‘Use Philips EasyLink’ on page 13 ) .

• [Disc Lock] : Restricts play to disc.

Password (PIN code) is required to unlock the disc before play.

• [Display Dim] : Changes the brightness

of the display panel.

• [OSD Language] : Selects the on-

screen display menu language.

• [Screen Saver] : Enables or disables

screen saver mode. If enabled, the screen enters idle mode after 10 minutes of inactivity (for example, in pause or stop mode).

• [Sleep Timer] : Sets a sleep timer to

switch the home theater to standby after a speci c time.

• [DivX® VOD Code] : Displays the

DivX VOD registration code for the home theater.

4 Press OK to con rm your choice.

Note

Before you purchase DivX videos and play them • on the home theater, register the home theater on www.divx.com using the DivX VOD code.

Change audio settings

1 Press SETUP . 2 Select [Audio Setup] , then press OK . 3 Select and adjust the following settings:

• [HDMI Audio] : Enables or disables

HDMI audio output for the TV.

4 Press OK to con rm your choice.

Note

For settings related to HDMI, the TV must be • connected through HDMI.

6 Change settings

This section helps you to change the settings of your home theater.

Caution

Most of the settings are already con gured • with the best value for the home theater. Unless you have a speci c reason to change a setting, it is best to leave it at the default value.

Access the setup menu

1 Press SETUP .

The following menu appears. »

Symbol Description

[General Setup]

[Audio Setup]

[Video Setup]

[Preference Setup]

2 Select a setup menu, then press OK .

See the following sections for information about how to change the settings of your home theater.

3 Press BACK to return to the previous

menu, or press

SETUP to exit.

Note

You cannot change a setting that is grayed out. •

Page 17

Change preference settings

1 Press SETUP . 2 Select [Preference Setup] , then press OK . 3 Select and adjust the following settings:

• [Audio] : Selects audio language for

video.

• [Subtitle] : Selects subtitle language for

video.

• [Disc Menu] : Selects menu language

for video disc.

• [Parental] : Restricts access to discs

that are recorded with ratings. To play all discs irrespective of the rating, select level ‘8’.

• [PBC] : Displays or skips the content

menu for VCD and SVCD discs.

• [MP3/JPEG Display] : Displays the

MP3/JPEG folders or all the  les.

• [Password] : Sets or changes a PIN

code to play a restricted disc. Enter ‘ 0000 ’ if you do not have a PIN or if you have forgotten your PIN.

• [DivX Subtitle] : Selects a character

set that supports the DivX subtitle.

• [Version Info.] : Displays the software

version for the home theater.

• [Default] : Resets the home theater to

the default settings programmed at the factory.

4 Press OK to con rm your choice.

Note

If your preferred disc language is not available, • you can select [Other] from the list and enter the 4-digit language code which can be found at the back of this manual. If you select a language that is not available

•

on a disc, the home theater uses the default language of the disc. You cannot reset disc lock, password (PIN

•

code) and parental control settings to their default values.

Change video settings

1 Press SETUP . 2 Select [Video Setup] , then press OK . 3 Select and adjust the following settings:

• [TV System] : Selects a TV system that

is compatible with the TV.

• [TV Display] : Selects a picture display

format to  t the TV screen.

• [Picture Settings] : Selects a

prede ned color setting.

• [HDMI Setup] : Selects HDMI video

resolution and the wide screen display format for the TV. The Wide Screen Display option is only available for 16:9 wide screen TV display setting.

4 Press OK to con rm your choice.

Note

The best setting is automatically selected for • the TV. If you need to change the setting, ensure that the TV supports the new setting. For settings related to HDMI, the TV must be

•

connected through HDMI. Some video settings depend on the video

•

source, ensure that the disc and the TV support the setting or feature.

English

Page 18

8 Product specifications

Note

Speci cation and design are subject to change • without notice.

Region code The type plate on the back or bottom of the

home theater shows which regions it supports

Playback media DVD-Video, DVD+R/+RW, DVD-R/-RW, DVD+R

DL, CD-R/CD-RW, Audio CD, Video CD/SVCD, Picture CD, MP3-CD, WMA-CD, DivX-CD, USB storage device

File Format

Audio: .mp3, .wma • Video: .divx, .divx ultra, .mpeg, .mpg, .wmv •

(simple pro le) Picture: .jpeg, .jpg •

Ampli er

Total output power: 350 W RMS • Frequency response: 20 Hz-20 kHz / ±3dB • Signal-to-noise ratio: > 65 dB (CCIR) / •

(A-weighted) Input sensitivity: •

AUX: 2 V

•

MP3 LINK: 1 V•

Country

DVD

Europe, United Kingdom

Latin America

Australia, New Zealand

Russia, India

China

Asia Pacific, Taiwan, Korea

7 Update software

To check for new updates, compare the current software version of your home theater with the latest software version (if available) on the Philips web site.

Check software version

1 Press SETUP . 2 Select [Preference Setup] > [Version Info.] ,

then press OK .

The software version is displayed. »

Update software from a CD-R or USB

1 Check for the latest software version on

www.philips.com/support.

Search for your model and click on

•

‘software&drivers’.

2 Download the software onto a CD-R or

USB storage device.

3 Insert the CD-R or connect the USB

storage device to the home theater.

4 Follow the instructions on the TV to

con rm the update.

When complete, the home theater » automatically switches off and on again.

If not, disconnect the power cord for a

•

few seconds and then reconnect it.

Caution

Do not turn off the power or remove the • CD-R or USB storage device when the software update is in progress because you might damage the home theater.

Page 19

Laser speci cation

Type: Semiconductor laser GaAIAs (CD) • Wave length: 645 - 665 nm (DVD), 770 - •

800 nm (CD) Output power: 6 mW (DVD), 7 mW •

(VCD/CD) Beam divergence: 60 degrees. •

Video

Signal system: PAL / NTSC • HDMI output: 480i/576i, 480p/576p, 720p, •

1080i, 1080p

Audio

S/PDIF Digital audio input: •

Coaxial: IEC 60958-3

•

Sampling frequency: •

MP3: 32 kHz, 44.1 kHz, 48 kHz

•

WMA: 44.1 kHz, 48 kHz•

Constant bit rate: •

MP3: 112 kbps - 320 kbps

•

WMA: 48 kbps - 192 kbps•

Radio

Tuning range: FM 87.5-108 MHz (50 kHz) • Signal-to-noise ratio: FM 50 dB • Frequency response: FM 180 Hz-10 kHz / •

±6dB

USB

Compatibility: Hi-Speed USB (2.0) • Class support: UMS (USB Mass Storage •

Class) File system: FAT12, FAT16, FAT32 • Maximum memory support: < 160GB •

Main Unit

Dimensions (WxHxD): 360 x 190 x 65 (mm) • Weight: 2.2 kg •

Powerbox (Subwoofer)

Power supply: 220-240 V; ~50 Hz • Power consumption: 40 W • Standby power consumption:  0.3 W • System: Bass Re ex System • Impedance: 8 ohm • Frequency response: 35 Hz-200 Hz • Dimensions (WxHxD): 182 x 300 x 345 (mm) • Weight: 5.5 kg • Cable length: 5 m •

Speakers

System: full range satellite • Impedance: 8 ohm • Speaker drivers: 2 x 3” woofer + 2” tweeter • Frequency response: 150 Hz-20 kHz • Dimensions (WxHxD): 112 x 309.5 x 112 (mm) • Weight: 1 kg/each • Cable length: 2 m •

English

Page 20

No sound on HDMI connection.

You might not hear any sound if the • connected device is not HDCP (Highbandwidth Digital Content Protection) compliant or only DVI compatible. Use an analog or digital audio connection.

Ensure that the •[HDMI Audio] is enabled .

No sound from TV program.

Connect an audio cable from the audio • input on the home theater to the audio output on the TV, then press AUDIO SOURCE repeatedly to select the correct audio source.

Distorted sound or echo.

Ensure that the TV volume is muted or set • to minimum if you are playing audio through the home theater.

Audio and video are not synchronized.

1) Press and hold •AUDIO SYNC . 2) Press +/- within  ve seconds.

Play

Disc cannot be played.

Clean the disc. • Ensure that the home theater suppor ts the •

disc (see ‘Product speci cations’ on page 16 ) . Ensure that the home theater suppor ts the •

region code of the DVD. For DVD±RW or DVD±R , ensure that the •

disc is  nalized.

DivX video  les cannot be played.

Ensure that the DivX  le is encoded • according to the ‘Home Theater Pro le’ with the DivX encoder.

Ensure that the DivX video  le is complete. •

DivX subtitles do not display correctly.

Ensure that the subtitle  le name is the • same as the movie  le name.

Select the correct character set: 1) Press •

SETUP . 2) Select [Preference Setup] .

3) Select [DivX Subtitle] . 4) Select a supported character set. 5) Press OK .

The contents of a USB storage device cannot be read.

Ensure that the format of the USB storage • device is compatible with the home theater (see ‘Product speci cations’ on page 16 ) .

Ensure that the USB storage device • is formatted with a  le system that is supported by the home theater (note that NTFS is not supported).

9 Troubleshooting

Warning

Risk of electric shock. Never remove the • casing of the product.

To keep the warranty valid, never try to repair the product yourself.

If you have problems using this product, check the following points before you request service. If you still have a problem, register your product and get support at www.philips.com/welcome.

If you contact Philips, you will be asked for the model and serial number of your product. The model number and serial number are on the back or bottom of your product. Write the numbers here:

Model No. __________________________ Serial No. ___________________________

Main unit

The buttons on this home theater do not work.

Disconnect the home theater from the • power outlet for a few minutes, then reconnect.


No picture.

Ensure that the TV is switched to the • correct source for this home theater.

If this happens when you change the TV • system, switch to its default mode: 1) Press

. 2) Press . 3) Press SUBTITLE .

No picture on HDMI connection.

Check if the HDMI cable is faulty. Replace • with a new HDMI cable.

If this happens when you change the HDMI • video resolution, press HDMI repeatedly until picture appears.

Sound

No sound.

Ensure that the audio cables are connected • and select the correct input source (for example, AUDIO SOURCE ) for the device you want to play.

Page 21

10 Index

ampli er 16 audio

connection 8 language 15 , 10 settings 14 synchronize with video 11

audio input mapping 13

care 4 change settings 14 connect

audio from TV 8 , 12 guide 7 other devices 8 TV 8

connectors 7 contact us 18

disc

play 10 supported discs 16

disposal of your product 4 DivX

registration code 14 subtitle 15

EasyLink

settings 13

 le formats 16

HDMI CEC (see Easylink) 13

iPod

connect 9 play 12

‘No entry’ or ‘x’ sign appears on the TV.

The operation is not possible. •

EasyLink feature does not work.

Ensure that the home theater is connected • to a Philips brand EasyLink TV and that EasyLink is on .

I do not want my home theater to be switched on when I switch on my TV.

This is the correct behavior for Philips • EasyLink (HDMI-CEC). To make the home theater work independently, switch off EasyLink .

English

Page 22

safety 3 settings

audio 14 general 14 parental control 15 preferences 15 restore factory settings 15

slideshow

play musical slideshow 11

software

update 16 version 16

sound

mode 9 treble and bass 10 troubleshooting 18

subtitle

language 10

system audio control 13

time search video 11 troubleshooting 18 TV

audio from TV 8 , 12 connect 8

USB

play 11 software update 16

video

options 10 settings 15 synchronize with audio 11

video on demand (VOD) 14

language

audio 15 disc menu 15 on-screen display 14 subtitle 15

MP3

play 12

one-touch play 13 one-touch standby 13 overview

connectors 7 main unit 5 remote control 5

password 15 picture

options 11 slide show 11 , 11 thumbnail overview 11 troubleshooting 18

play

disc 10 MP3 player 12 options 10 radio 12 troubleshooting 18 USB storage device 11

product care 4 product speci cations 16

radio

play 12 program 12 tune 12

recycle 4 region code 16 remote control 5 repeat 10 , 12 rotate pictures 11
