Philips HTS3155 User Manual

DVD HOME THEATRE SYSTEM

User Manual 6 Manual del Usuario 52 Manual do Usuário 98

HTS3152 HTS3155

1_hts3152_55_eng2.indd 11_hts3152_55_eng2.indd 1 2007-04-26 6:20:01 PM2007-04-26 6:20:01 PM

México

Es necesario que lea cuidadosamente su instructivo de manejo.

Descriptión: Sistema receptor/reproductor de DVD Modelo: HTS3152 / HTS3155 Alimentacón: 110-127 V / 220-240 V~

50-60 Hz switchable

Consumo: 60 W Importador: Philips Mexicana, S.A. de C.V. Domicilio: Av. La Palma No. 6,

Col. San Fernando, La Herradura Huixquilucan, Edo de Mexico C.P. 52784, Mexico

Localidad y Tel.: Tel. 52 69 90 00 Exportador: Philips Electronics HK, Ltd. País de Origen: China

No de Serie:

LEA CUICADOSAMENTE ESTE INSTRUCTIVO

ANTES DE USAR SU APARATO.

AVISO IMPORTANTE

Philips Mexicana, S.A. de C.V. no se hace responsable por daños o desperfectos causados por: – Maltrato, descuido o mal uso, presencia de insectos o roedores (cucarachas, ratones etc.). – Cuando el aparato no haya sido operarado de acuerdo con el instructivo del uso, fuera de los valores nominales y tolerancias de las tensiones (voltaje), frecuencia (ciclaje) de alimentación elétrica y las características que deben renuir las instalaciones auxiliares. – Por fenómenos naturales tales como: temblores, inundaciones, incendios, descargas electricas, rayos etc. o delitos causados por terceros (choques asaltos, riñas, etc.).

LASER

Type Semiconductor laser GaAIAs Wave length 650 - 660 nm (DVD) 784 - 796 nm (CD) Output Power 7 mW (DVD) 10 mW (VCD/CD) Beam divergence 60 degrees

‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.’

Manufactured under license from Dolby Laboratories, Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license from one or more of the following DTS, Inc. U.S. Pat. No’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 and other U.S. and world-wide patents issued and pending. ”DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc. Copyright 1996, 2002-2006, DTS, Inc. All Rights Reserved.

DivX Ultra Certi ed products: “DivX, DivX Ultra Certi ed, and associated logos are trademarks of DivX, Inc. and are used under license.

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

ATTENTION!

For Customer Use:

Read carefully the information located at the bottom or rear of your DVD Home Theater System and enter below the Serial No. Retain this information for future reference.

Model No. HTS3152 / HTS3155

Serial No. _______________

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reserve engineering or disassembly is prohibited.

Language Code

“Evite o uso prolongado do aparelho com volume superior a 85 decibéis pois isto poderá prejudicar a sua audição.”

Nível de Exemplos Decibéis

30 Biblioteca silenciosa, sussurros leves 40 Sala de estar, refrigerador, quarto longe do trânsito 50 Trânsito leve, conversação normal, escritório silencioso 60 Ar condicionado a uma distância de 6 m, máquina de costura 70 Aspirador de pó, secador de cabelo, restaurante ruidoso 80 Tráfego médio de cidade, coletor de lixo, alarme de despertador a uma distância de 60 cm

OS RUÍDOS ABAIXO PODEM SER PERIGOSOS EM CASO DE EXPOSIÇÃO CONSTANTE

90 Metrô, motocicleta, tráfego de caminhão, cortador de grama 100 Caminhão de lixo, serra elétrica, furadeira pneumática 120 Show de banda de rock em frente às caixas acústicas, trovão 140 Tiro de arma de fogo, avião a jato 180 Lançamento de foguete

Index

English ------------------------------------ 6

EnglishEspañolB.Português

Español ---------------------------------- 52

B. Português ---------------------------- 98

Table of contents

English

General

General Information ........................................................................................................ 8

Setup precautions .................................................................................................................................................8

Accessories supplied ...........................................................................................................................................8

Cleaning discs ........................................................................................................................................................8

About recycling .....................................................................................................................................................8

Product Overview

Main Unit ...........................................................................................................................9

Remote Control .........................................................................................................10-12

Using the remote control ................................................................................................................................12

Connections

Basic Connections .....................................................................................................13-16

Step 1: Placing the speakers .............................................................................................................................13

Step 2: Connecting to TV ................................................................................................................................14

Option 1: Using the Video socket .........................................................................................................14

Option 2: Connecting to a Progressive Scan TV or component video input ............................14

Step 3: Connecting speakers and subwoofer .............................................................................................15

Step 4: Connecting the FM and AM/MW antennas ..................................................................................16

Step 5: Connecting the power cord ..............................................................................................................16

Optional Connections .................................................................................................... 17

Connecting audio from TV .............................................................................................................................17

Connecting to cable box/satellite receiver and recorder/VCR ............................................................17

Basic Setup

Getting Started ..........................................................................................................18-22

Finding the correct viewing channel .............................................................................................................18

Switching to different play source .................................................................................................................18

Setting language preferences ...........................................................................................................................19

On-screen display (OSD) language ........................................................................................................19

Audio, Subtitle and Menu language for DVD playback ...............................................................19-20

Setting the TV Display ..................................................................................................................................... 20

Setting up Progressive Scan feature ..............................................................................................................21

Setting the speakers’ channels ....................................................................................................................... 22

Disc Playback

Disc Operations .........................................................................................................23-31

Playable discs .......................................................................................................................................................23

Playing a disc ........................................................................................................................................................23

Basic playback controls .....................................................................................................................................24

Selecting various repeat/shuf e functions ...................................................................................................24

Programming disc tracks ................................................................................................................................. 25

Other playback features for video discs (DVD/ VCD/SVCD) ......................................................... 25-28

Using the Disc Menu ................................................................................................................................. 25

Viewing playback information ..................................................................................................................26

Zooming in/out ............................................................................................................................................26

Changing subtitle language .......................................................................................................................26

Switching camera angles ............................................................................................................................26

Changing sound track language ...............................................................................................................27

Setting the delay times for audio playback ...........................................................................................27

Playback Control (VCD only) ..................................................................................................................27

Preview function (VCD/SVCD only) .................................................................................................... 28

Table of contents

Playing a MP3/ WMA disc ................................................................................................................................29

Playing a JPEG image  le (slide show) .......................................................................................................... 30

Preview function ......................................................................................................................................... 30

Zoom picture .............................................................................................................................................. 30

Rotating/ ipping the picture ...................................................................................................................30

Playing MP3/WMA music and JPEG pictures simultaneously ................................................................31

Playing a DivX disc .............................................................................................................................................31

Playback other supported devices

Playback - USB Device ................................................................................................... 32

Playing from USB  ash drive or USB memory card reader....................................................................32

Playback - Other Audio Player ..................................................................................... 33

Playing from other portable audio player ....................................................................................................33

Setup Options

Setup Menu Options ................................................................................................. 34-39

Accessing the setup menu ............................................................................................................................... 34

General Setup Page ............................................................................................................................................35

Audio Setup Page ................................................................................................................................................36

Video Setup Page ................................................................................................................................................37

Preference Page ........................................................................................................................................... 38-39

Radio Tuning

Radio Operations ...................................................................................................... 40-41

Tuning to radio stations ................................................................................................................................... 40

Changing tuning grid ......................................................................................................................................... 40

Presetting radio stations ..........................................................................................................................40-41

Using auto install ........................................................................................................................................ 40

Using automatic preset ..............................................................................................................................41

Using manual preset ...................................................................................................................................41

Selecting a preset radio station ......................................................................................................................41

Deleting a preset radio station .......................................................................................................................41

English

Others

Sound and Volume Controls .........................................................................................42

Volume control ...................................................................................................................................................42

Selecting surround sound .................................................................................................................................42

Selecting digital sound effects .........................................................................................................................42

Other Features................................................................................................................43

Installing the latest software ...........................................................................................................................43

Setting the Sleep timer .....................................................................................................................................43

Troublesho oting ........................................................................................................ 44- 46

Frequently Asked Questions (USB) ............................................................................. 47

Glossary...................................................................................................................... 48-49

Speci cations ..................................................................................................................50

General Information

English

WARNING! This unit does not contain any userserviceable parts. Please leave all maintenance work to quali ed personnel.

Setup precautions

Finding a suitable location

– Place this unit on a  at, hard and stable surface. Never place the unit on a carpet. – Never place this unit on top of other equipment that might heat it up (e.g., receiver or ampli er). – Never put anything under this unit

(e.g., CDs, magazines). – Install this unit near the AC outlet where the AC power plug can be easily reached.

Space for ventilation

– Place this unit in a location with adequate ventilation to prevent internal heat build up. Allow at least 10 cm (4”) clearance from the rear and the top of this unit and 5cm (2”) from the left and right to prevent overheating.

Accessories supplied

– 1 subwoofer – 2 front speakers – 2 rear speakers – 1 centre speaker – 1 remote control with batteries – 1 composite video cable (yellow) – 1 FM wire antenna – 1 AM/MW loop antenna – 1 MP3 LINE-IN cable (for connecting portable audio player) – 1 Round-to-Flat pin adaptor (for

Latam region only - /55 version)

– Quick Start Guide

Cleaning discs

To clean a disc, use a micro  bre cleaning cloth and wipe the disc from the centre to the edge in a straight line.

CAUTION!

Never use solvents e.g. benzene, thinner, commercially available cleaners, or antistatic sprays intended for discs.

Avoid high temperature, moisture, water and dust

– This unit must not be exposed to

dripping or splashing. – Never place any object or items that can damage this unit (e.g., liquid  lled objects, lighted candles).

About recycling

These operating instructions have been printed on non-polluting paper. The electronic equipment contains a large number of materials that can be recycled. If you are disposing of an old machine, please take it to a recycling centre. Please observe the local regulations regarding disposal of packaging materials, exhausted batteries and old equipment.

Main Unit

English

a STANDBY-ON

– Turns on this unit or turns off to normal

standby mode.

b Disc Tray

c OPEN/CLOSE ç

– Opens/closes the disc tray.

d Display panel

e PLAY/ PAUSE u

– DISC: starts/pauses playback. – RADIO: starts auto radio installation for

 rst time setup.

f SOURCE

– Selects the relevant active source mode:

DISC, FM, AM/MW, TV, AUX, MP3 LINE-IN.

g SURROUND

– Selects multi-channel surround or stereo

mode.

h STOP

– Exits an operation. – DISC: stops playback. – RADIO: press and hold this button to

erase the current preset radio station.

8 9 10 11



i VOL

– Adjusts the volume level.

j USB socket

– Input for USB  ash drive or USB memory

card reader.

k MP3 LINE-IN socket

– Phono input for connecting to the

headphone out socket on your portable audio player.

Remote Control

English

SLEEP

c OPEN/CLOSE ç

– Opens/closes the disc tray.

d PROGRAM

– DISC: starts programming. – RADIO: press and hold this button to

start automatic/ manual preset programming.

e SLEEP

– Sets the sleep timer function.

f SETUP

– Enters or exits the system setup menu.

g DISPLAY

– Displays the current status or disc

information.

– Selects a different viewing angle of a DVD

movie (if available).

h PLAY/PAUSE u

– DISC: starts/pauses playback. – RADIO: starts auto radio installation for

 rst time setup.

i STOP x

– Exits an operation. – DISC: stops playback. – RADIO: press and hold this button to

erase the current preset radio station.

a 2

– Turns on this unit or turns off to normal

standby mode.

b Source buttons

– DISC/USB: toggles between DISC or

USB mode.

RADIO: toggles between FM and AM/

MW band.

TV: switches to TV mode. The sound

from the TV will output through the connected speaker system.

AUX/DI: switches to the external device

that is connected to the AUDIO IN-AUX socket.

MP3 LINE-IN: switches to audio device

that is connected to the MP3 LINE-IN socket.

j TV VOL +/-

– Adjusts the volume of the TV (for Philips

TVs or compatible brands only).

k AUDIO SYNC

– Sets the audio output delay times if the

video playback is slower than the audio output.

l REPEAT

– Selects various repeat or shuf e modes;

turns off repeat or shuf e mode.

m ZOOM

– Zoom in or out the picture on the TV.

n DISC MENU

– For DVD, enters or exits disc contents

menu.

– For VCD/SVCD, enters digest menu.

Remote Control (continued)

English

o OK

– Con rms an entry or selection.

p v V b B

– DISC: selects movement direction in the

menu.

– DISC: press left or right for fast forward

and backward search.

– RADIO: press up or down to tune the

radio frequency.

– RADIO: press left or right to start auto

search.

q TITLE 

– For DVD, go back to the previous menu. – For VCD version 2.0 only; During playback, display the disc title

menu or return to the main menu.

r PREVí / NEXT ë

– DISC: skips to the previous or next title/

chapter/track.

– RADIO: selects a preset radio station.

s MUTE %

– Mutes or restores the volume.

t VOL +/-

– Adjusts the volume level.

u SURROUND

– Selects multi-channel surround or stereo mode.

SLEEP

x SUBTITLE

– Selects a DVD subtitle language.

y AUDIO

– DISC: selects an audio language/channel.

v Numeric keypad 0-9

– Enters a track/title number of the disc. – Enters a number of a preset radio station.

w SOUND

– Selects a prede ned sound effect.

Remote Control (continued)

English

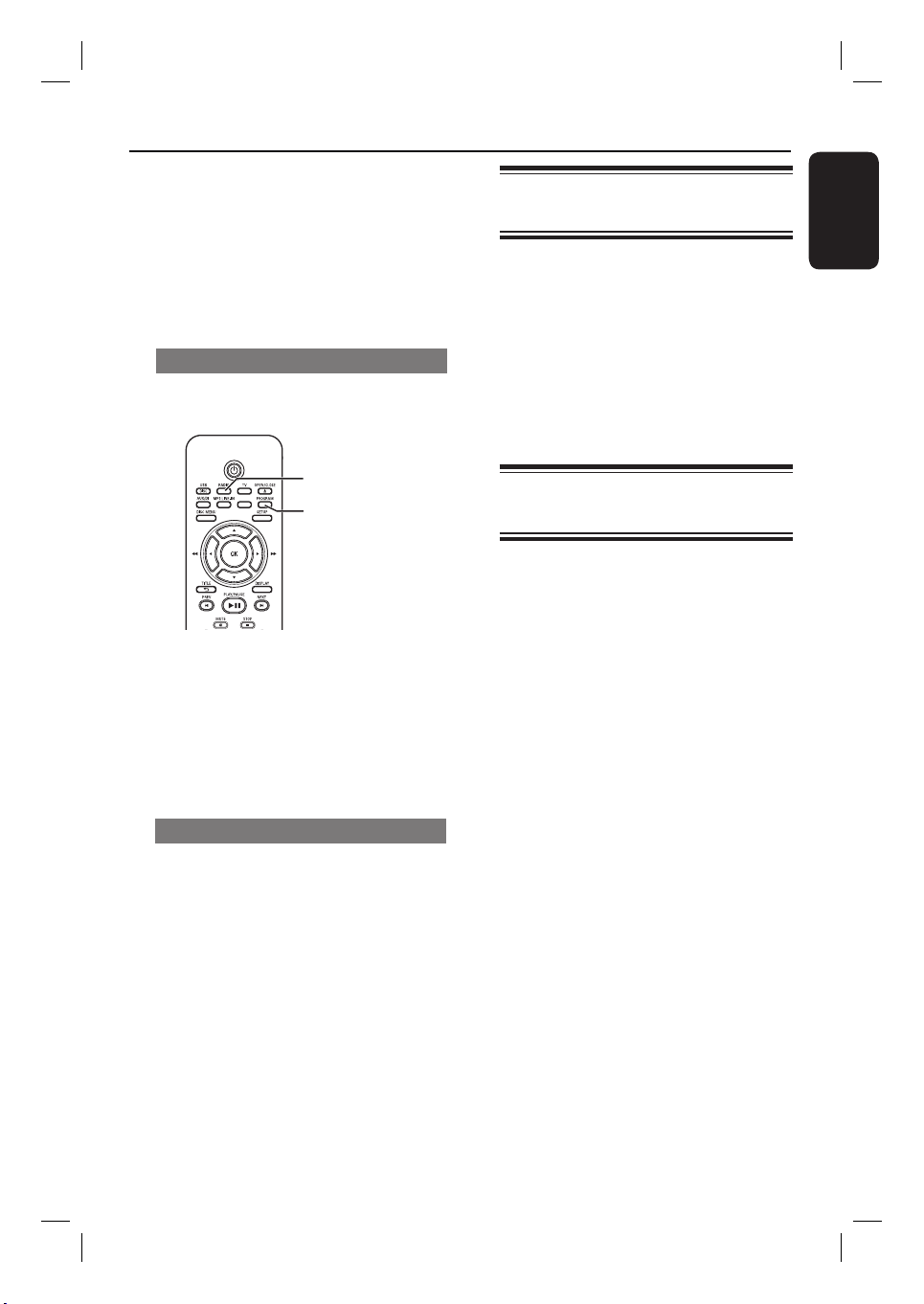

Using the remote control

A Open the battery compartment.

B Insert two batteries type R03 or AAA,

following the indications (+-) inside the compartment.

C Close the cover.

D Point the remote control directly at the

remote sensor (iR) on the front panel.

E Select the source you wish to control by

pressing the DISC/USB, RADIO, TV, AUX/DI or MP3 LINE-IN button on the remote control.

F Then select the desired function (for

example í, ë).

CAUTION! – Remove batteries if they are exhausted or if the remote control is not to be used for a long time. – Never mix batteries (old and new or carbon and alkaline, etc). – Batteries contain chemical substances, they should be disposed of properly.

REAR LEFT

Basic Connections

English

FRONT

LEFT

FRONT RIGHT

REAR RIGHT

Step 1: Placing the speakers

The Philips Home Theatre System is simple to install. However, proper system placement is critical to ensure an optimum sound experience.

A Place the front left and right speakers at

equal distances from the TV and at an angle of approximately 45 degrees from the listening position.

B Place the centre speaker above the TV or

the main unit such that the centre channel’s sound is localised.

C Place the rear speakers at normal

listening ear level facing each other or hang on the wall.

D Place the subwoofer at the corner of the

room. Otherwise, keep it at least one metre away from the TV.

SUBWOOFER

Helpful Hints: – The placement diagram shown here is only a guideline that provides great system performance. You may  nd other placement choices that are more suitable for your room layout that provide the sound experience you enjoy. – To avoid magnetic interference, never position the front speakers too close to your TV. – The rear speakers are labelled as REAR LEFT or REAR RIGHT. – The front speakers are labelled as FRONT LEFT or FRONT RIGHT. – For speaker setting, see ‘Getting Started Setting the speakers’ channel’.

Basic Connections (continued)

English

Option 1

SPEAKERS

Step 2: Connecting to TV

This connection enables you to view the video playback from this unit. You only need to choose one of the options below to make the video connection. – For a standard TV, follow option 1. – For a progressive scan TV, follow option 2.

Helpful Hint: – It is important to connect this unit directly to the TV in order to enjoy optimum video quality.

Option 2

AM/ MW

Option 1: Using the Video socket

Connect a composite video cable



(supplied) from the CVBS socket on the main unit to the video input socket (or labelled as A/V In, Video In, Composite or Baseband) on the TV.

Option 2: Connecting to a Progressive Scan TV or component video input

The progressive scan video quality is only available when using Y Pb Pr connection and a progressive scan TV is required. It provides superior picture quality when watching DVD movies.

A Connect the component video cables

(red/ blue/green - not supplied) from the Y Pb Pr sockets on the main unit to the corresponding component video input sockets (or labelled as Y Pb/Cb Pr/Cr or YUV) on the TV.

B If your TV accepts progressive signals,

proceed to chapter ‘Getting Started Setting up Progressive Scan feature’ for detailed progressive feature setup.

Basic Connections (continued)

FRONT LEFTFRONT RIGHT

FRONT CENTRE

English

SUBWOOFER

REAR

LEFT

SPEAKERS

REAR

RIGHT

AM/ MW

Step 3: Connecting speakers

and subwoofer

Connect all the speakers and subwoofer



to the matching sockets at the rear of the main unit, Make sure that the colours of the plugs and sockets are matched.

Helpful Hint: – To prevent unwanted noise, never place the speakers too close to the main unit, subwoofer, AC power adapter, TV or any other radiation sources.

Basic Connections (continued)

English

 x the claw into the slot

AM/MW antenna

AM/ MW

Step 4: Connecting the

FM and AM/MW antennas

A Connect the supplied AM/MW loop

antenna to the AM/MW socket. Place the AM/MW loop antenna on a shelf, or attach it to a stand or wall.

B Connect the supplied FM antenna to the

FM 75 Ω socket. Extend the FM antenna and  x its ends to the wall.

antenna

SPEAKERS

AM/ MW

Step 5: Connecting the

power cord

Notes:

– For power supply rating, refer to the rear or bottom of the main unit. – Turning off to standby mode does not disconnect the unit from mains.

A When completing all the connections, set

the voltage selector to the local power line voltage.

For better FM stereo reception, connect an external FM antenna (not supplied).

Helpful Hints: – Adjust the position of the antennas for optimal reception. – Position the antennas as far away as possible from your TV, VCR or other radiation source to prevent any unwanted interference.

B Connect the AC power cord to the

power outlet.

 The standby LED on the main unit

lights up.

Helpful Hint: – Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

+ 35 hidden pages
