Philips HTS3090 55 User Manual

DVD HOME THEATRE SYSTEM
User Manual 6
Manual del usuario 46
Manual do Usuário 86
HTS3090
English
México
Es necesario que lea cuidadosamente su instructivo de manejo.
Descriptión: Reproductor de Disco de Video Digital Modelo: HTS3090 Alimentacón: 120~127V/220~240V; 50~60Hz Consumo: 50W Importador: Philips Mexicana, S.A. de C.V. Domicilio: Av. La Palma No. 6,
Col. San Fernando, La Herradura Huixquilucan, Edo de Mexico C.P. 52784, Mexico
Localidad y Tel.: Tel. 52 69 90 00 Exportador: Philips Electronics HK, Ltd. País de Origen: China
No de Serie:
LEA CUICADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
AVISO IMPORTANTE
Philips Mexicana, S.A. de C.V. no se hace
responsable por daños o desperfectos causados por:
2
LASER
Type Semiconductor laser GaAIAs Wave length 650 - 660 nm (DVD) 784 - 796 nm (CD) Output Power 7 mW (DVD) 10 mW (VCD/CD) Beam divergence 60 degrees
‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY C AUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.’
Manufactured under license from Dolby Laboratories, “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.
DivX, DivX Certi ed, and associated logos are trademarks of DivX, Inc. and are used under license.
English
CAUTION
Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.
ATTENTION!
For Customer Use:
Read carefully the information located at the bottom or rear of your DVD Home Theatre System and enter below the Serial No. Retain this information for future reference.
Model No. HTS3090
Serial No. _______________
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Microvision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
3
Language Code
English
4
Index
English ------------------------------------ 6
Español ---------------------------------- 46
B. Português ---------------------------- 86
English
EspañolB.Português
5
Table of contents
English
General
General Information ........................................................................................................ 8
Setup precautions .................................................................................................................................................8
Accessories supplied ........................................................................................................................................... 8
Cleaning discs ........................................................................................................................................................ 8
About recycling .....................................................................................................................................................8
Product Overview
Main Unit ...........................................................................................................................9
Remote Control .........................................................................................................10-12
Using the remote control ................................................................................................................................12
Connections
Basic Connections .....................................................................................................13-17
Step 1 : Placing the speakers ...........................................................................................................................13
Step 2 : Connecting to the speakers and subwoofer ...............................................................................14

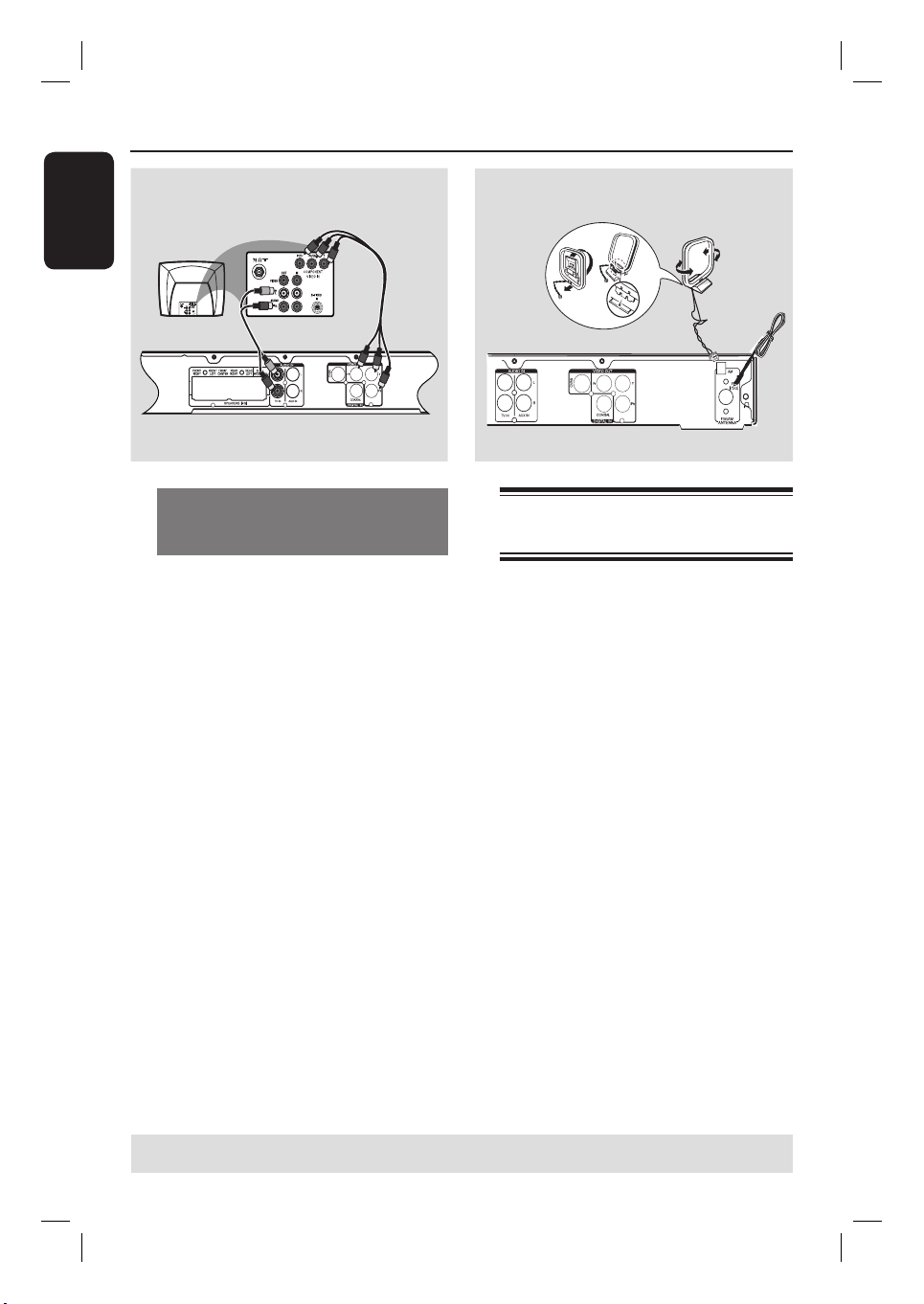

Step 3 : Connecting to TV ...............................................................................................................................15
Option 1: Using composite video jack (CVBS) .................................................................................15

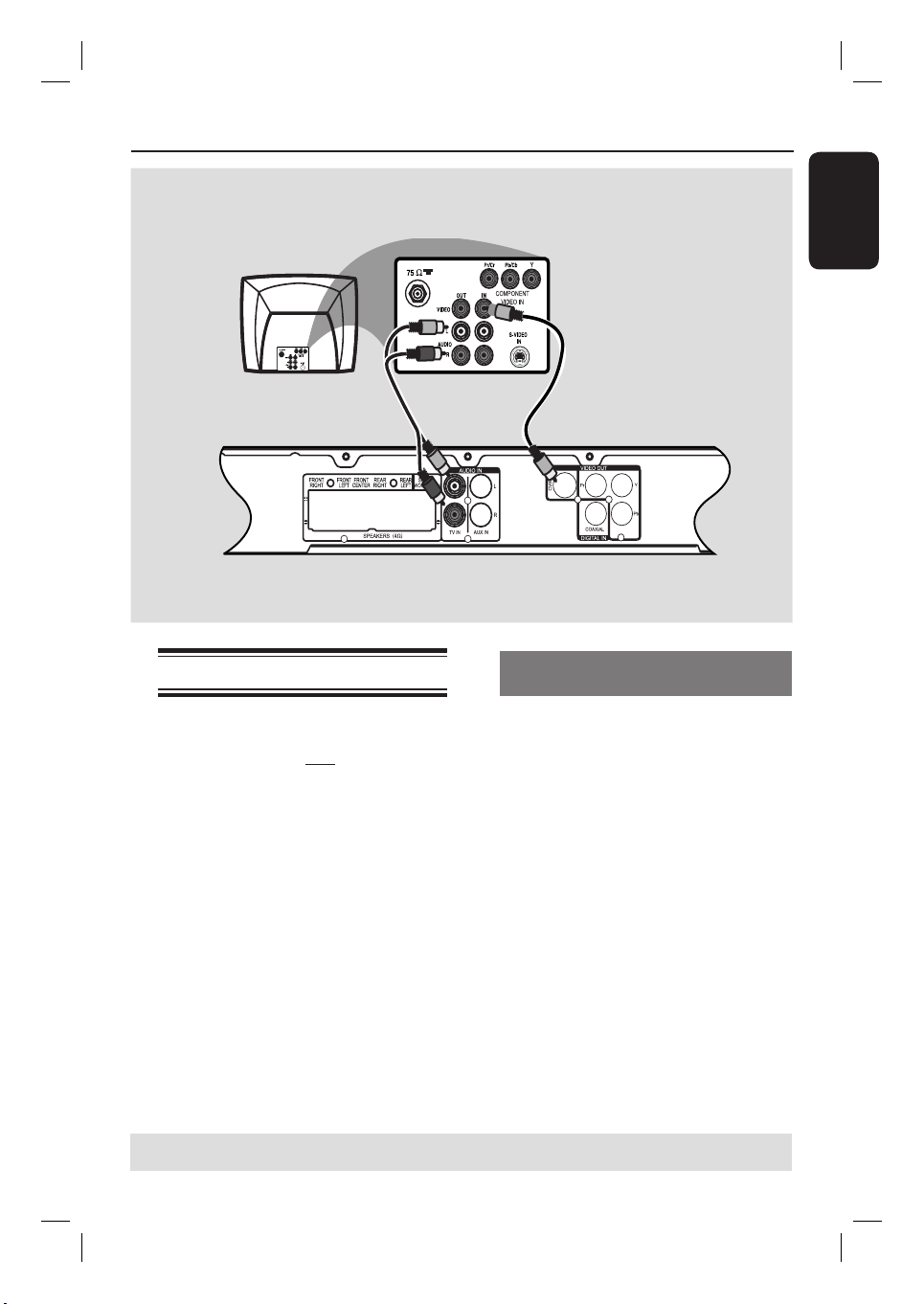

Option 2: Connecting to a Progressive Scan TV or component video input ............................16
Step 4 : Connecting the FM/AM antennas ..................................................................................................16

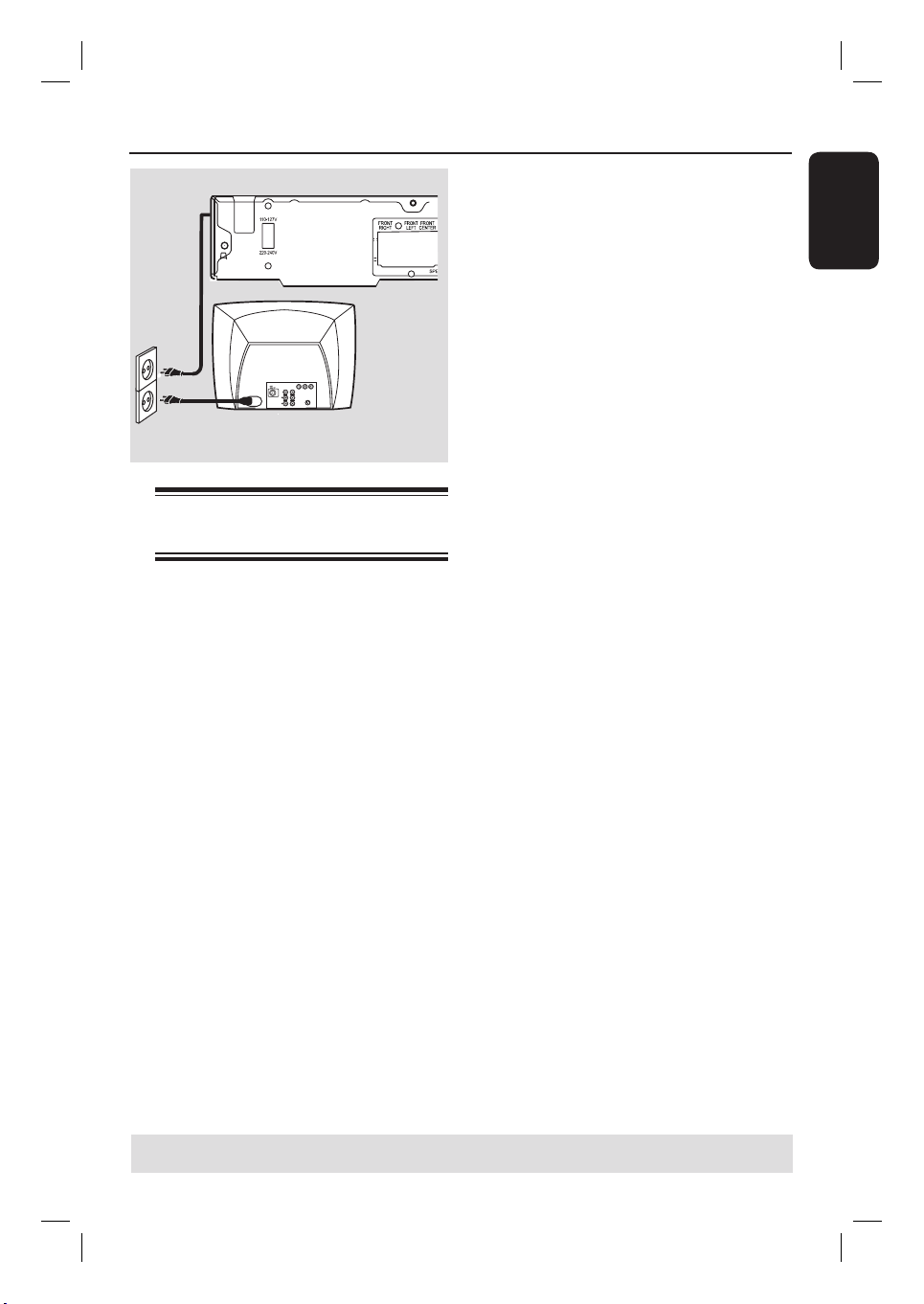

Step 5 : Connecting the power cord ............................................................................................................17

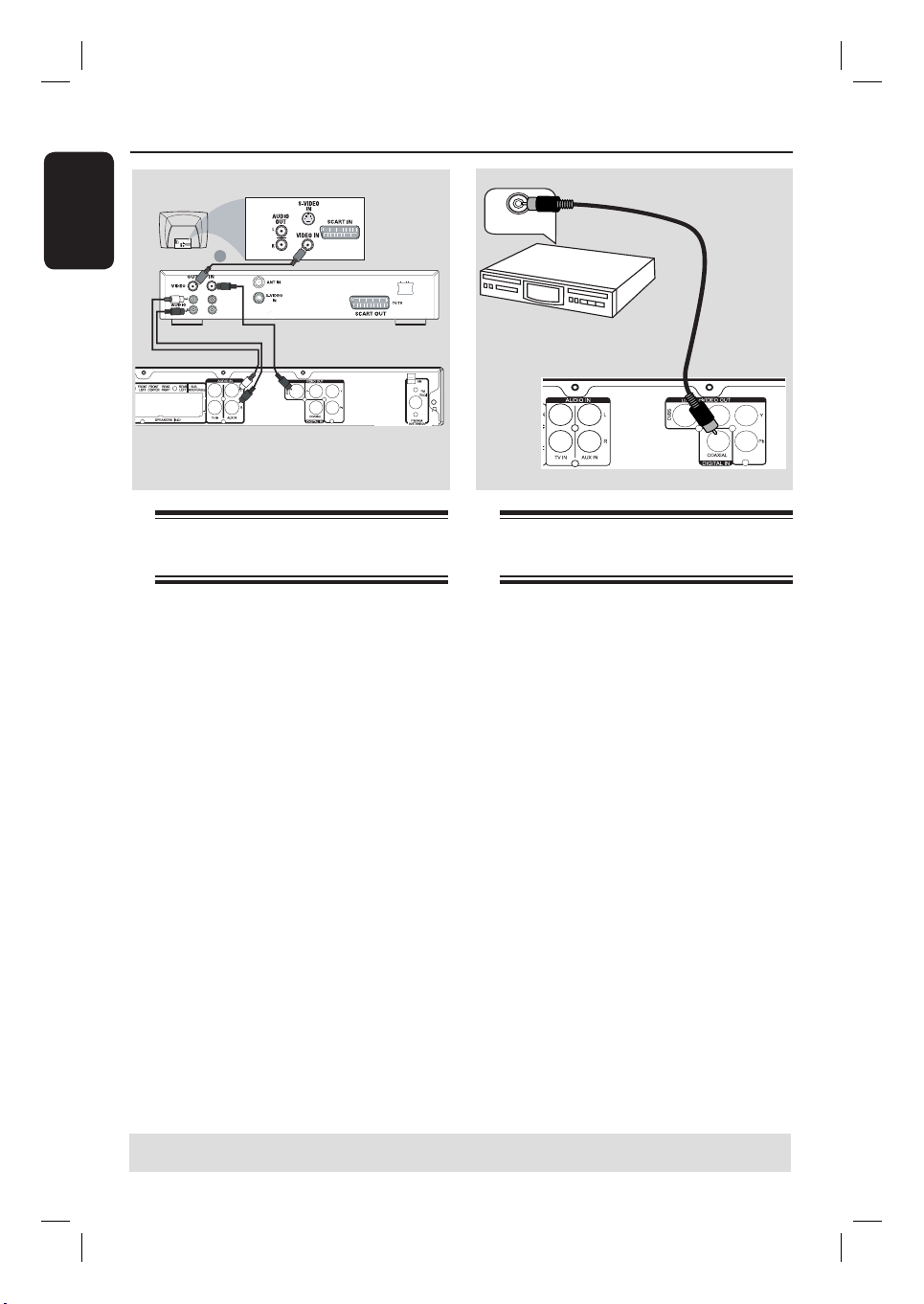

Optional Connections .................................................................................................... 18
Connecting audio from an analog audio/video device .............................................................................18
Connecting digital audio equipment .............................................................................................................18
Basic Setup

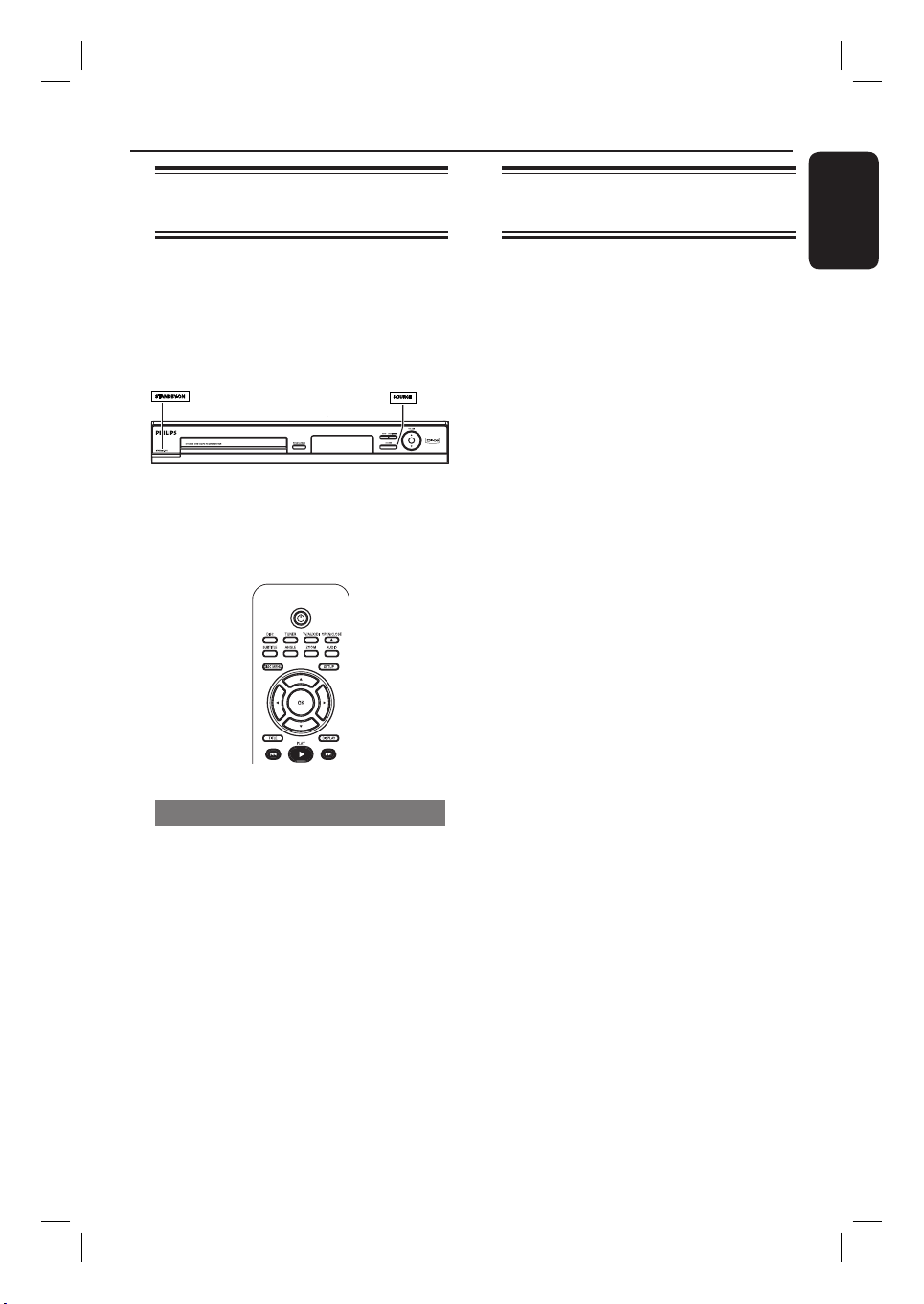

Getting Started .........................................................................................................19-24
Step 1: Turning on the DVD system .............................................................................................................19
Turning off to standby mode ....................................................................................................................19
Step 2: Finding the correct viewing channel ...............................................................................................19

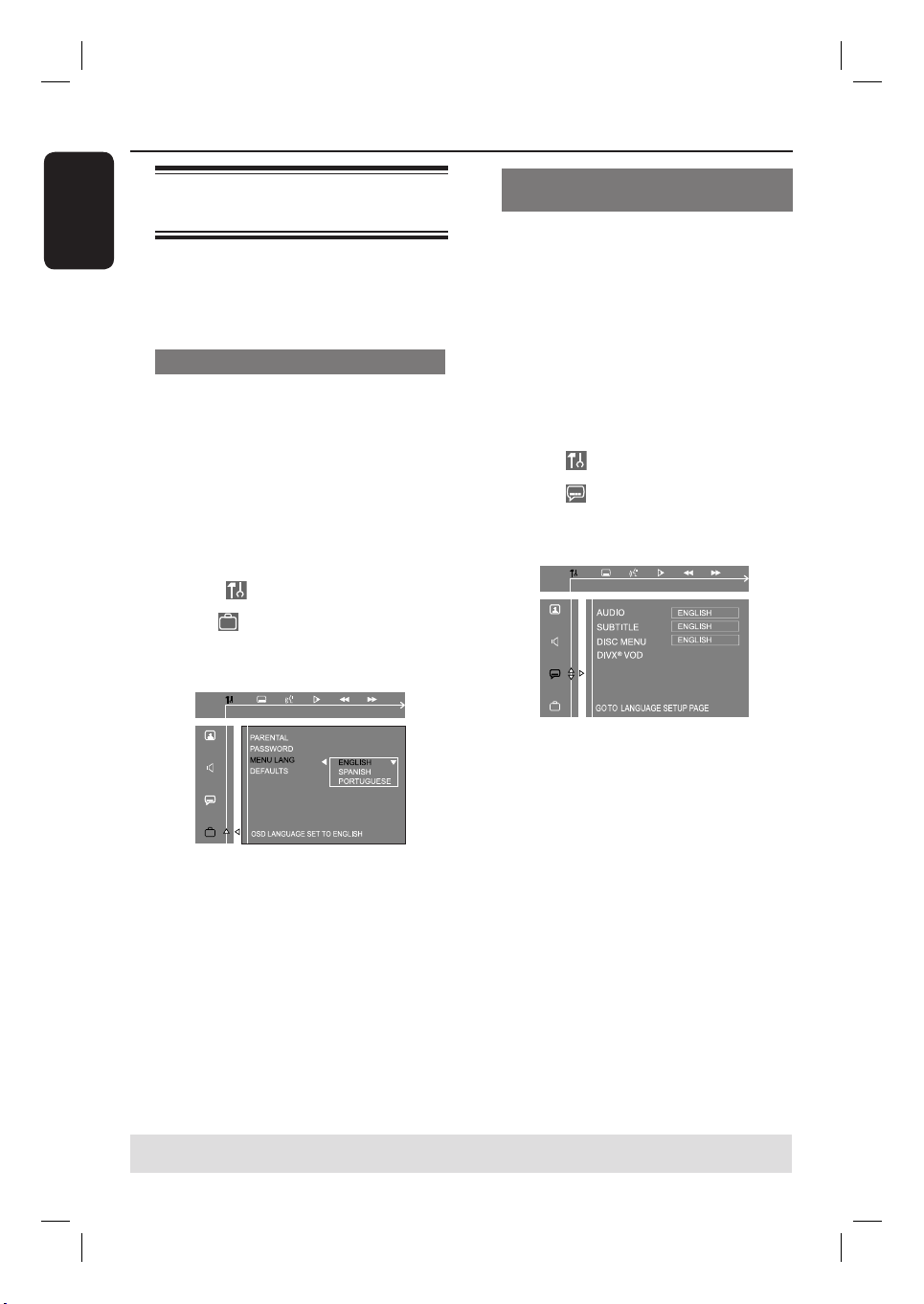

Step 3: Setting language preferences ........................................................................................................... 20
On-screen display (OSD) language ....................................................................................................... 20
Audio, Subtitle and Menu language for DVD playback .............................................................. 20-21
Step 4: Setting the TV .......................................................................................................................................21

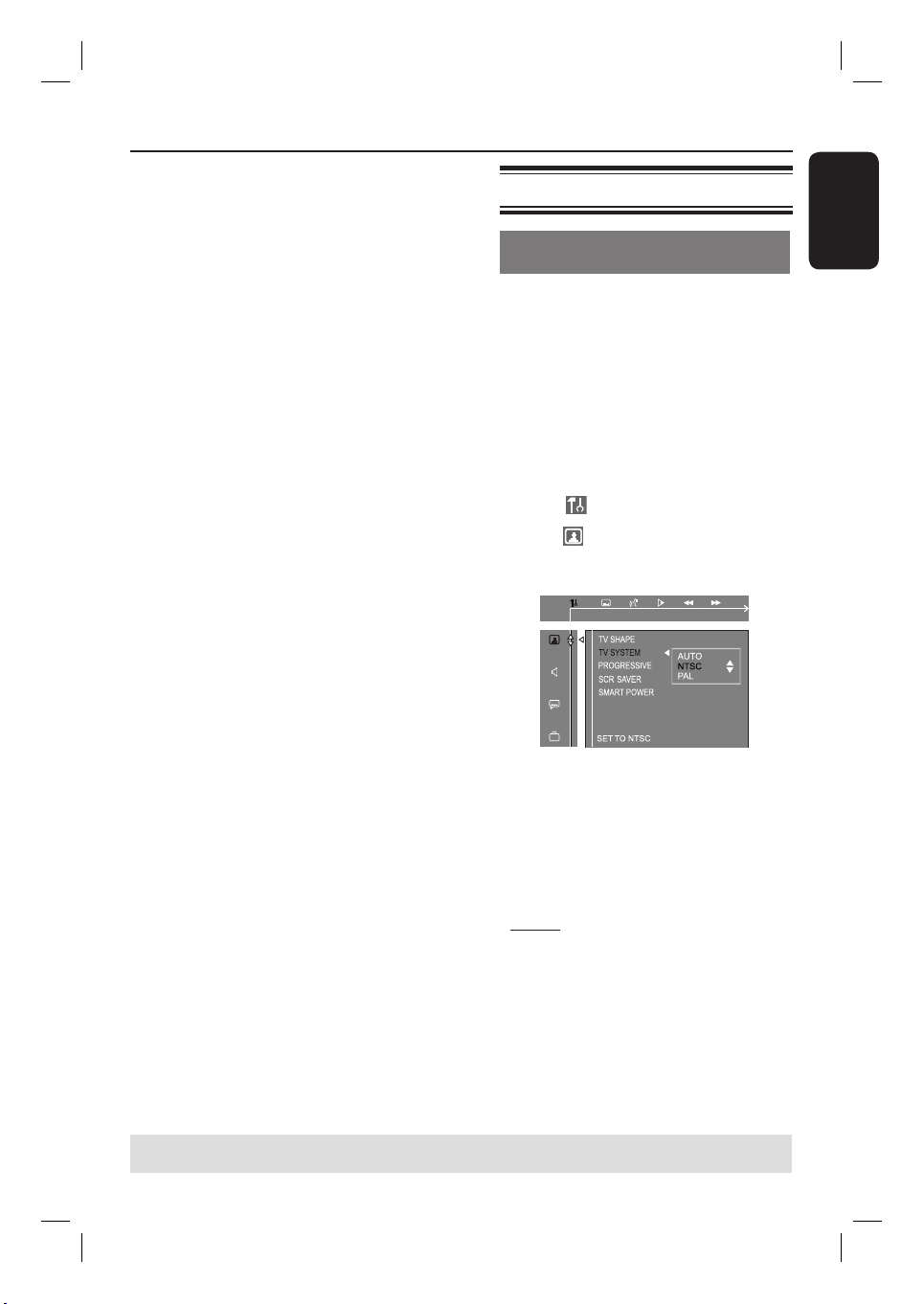

Selecting the matching color system ..............................................................................................21-22

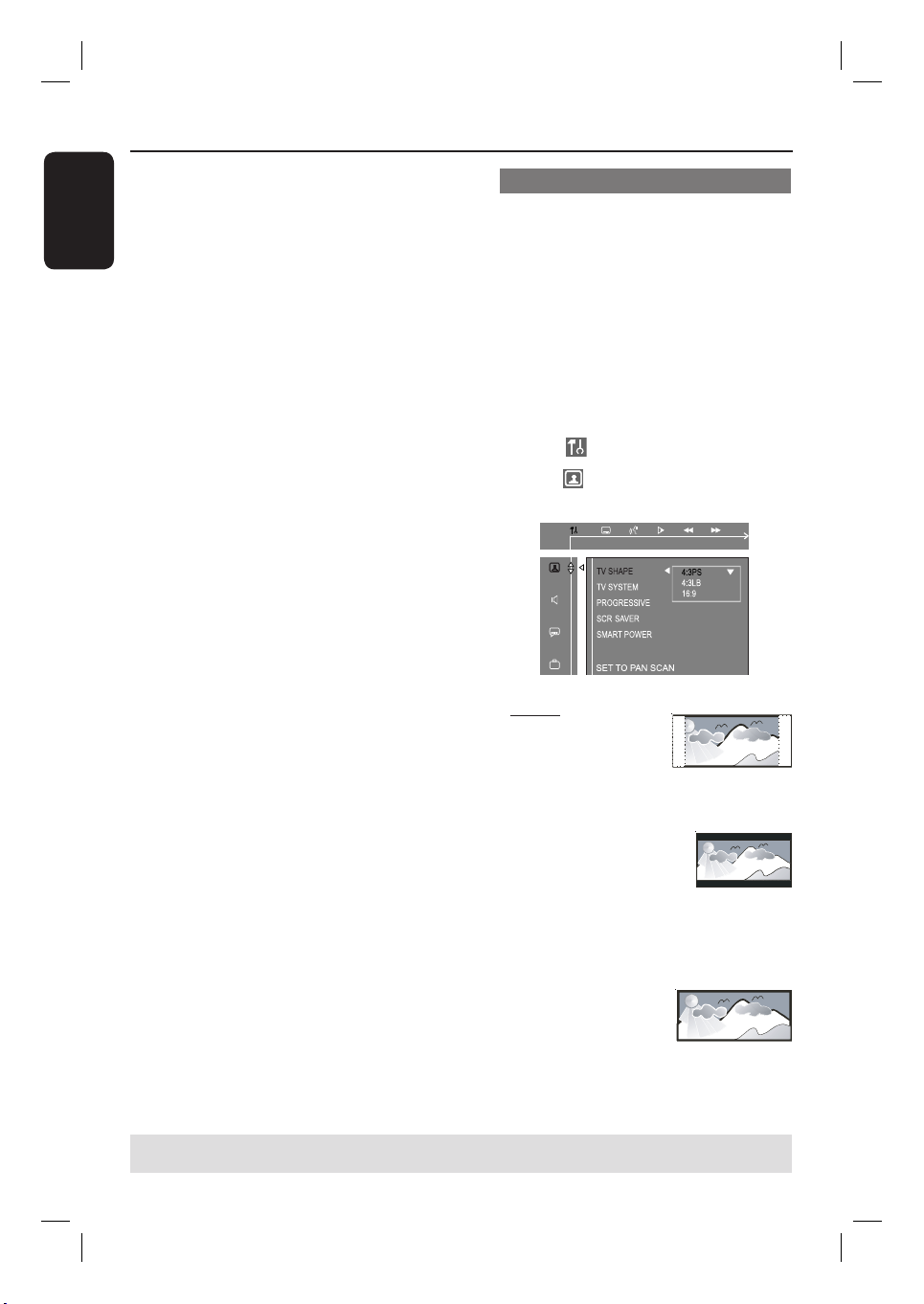

Setting the TV Display .............................................................................................................................. 22

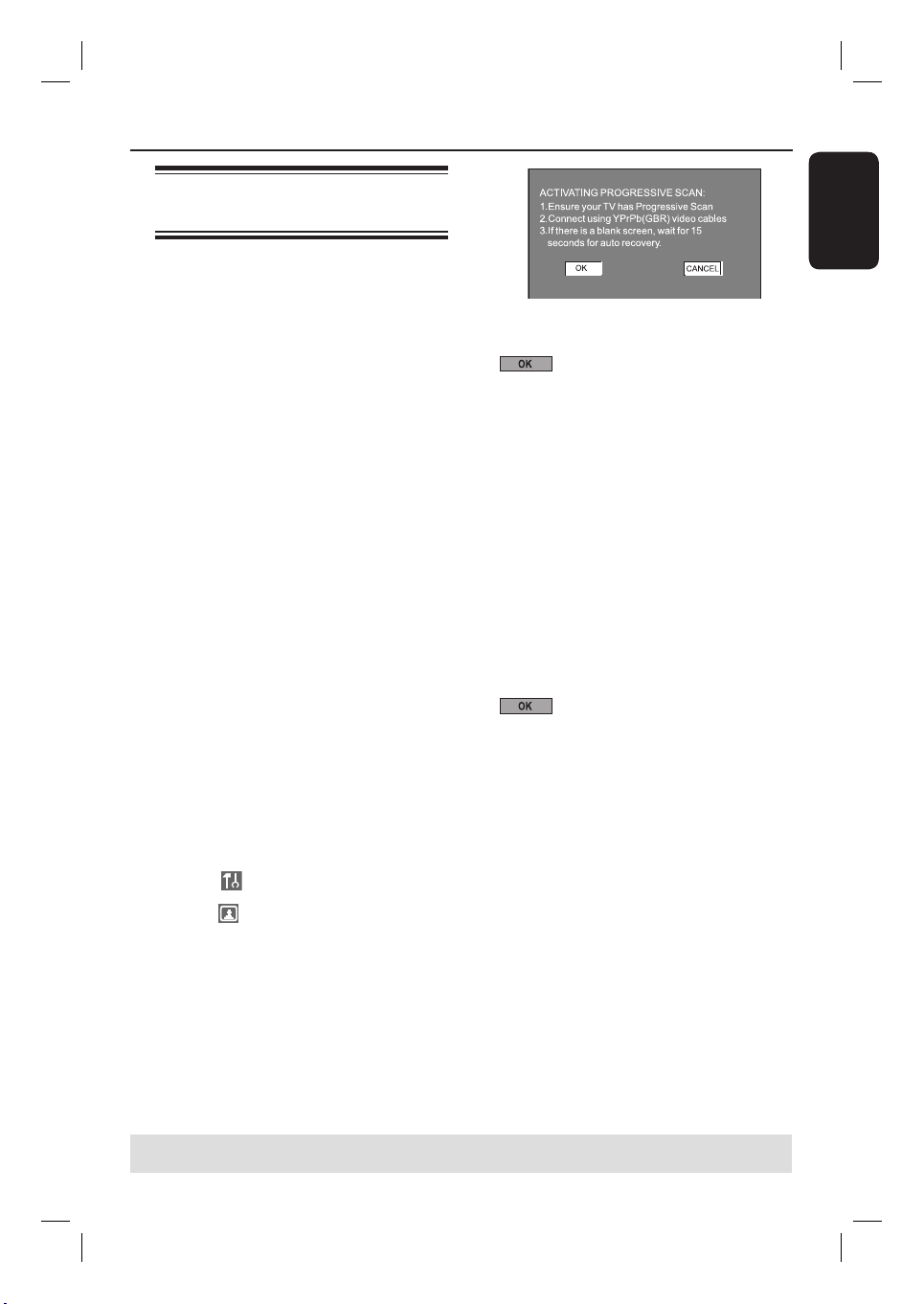

Step 5: Setting up progressive scan feature ............................................................................................... 23

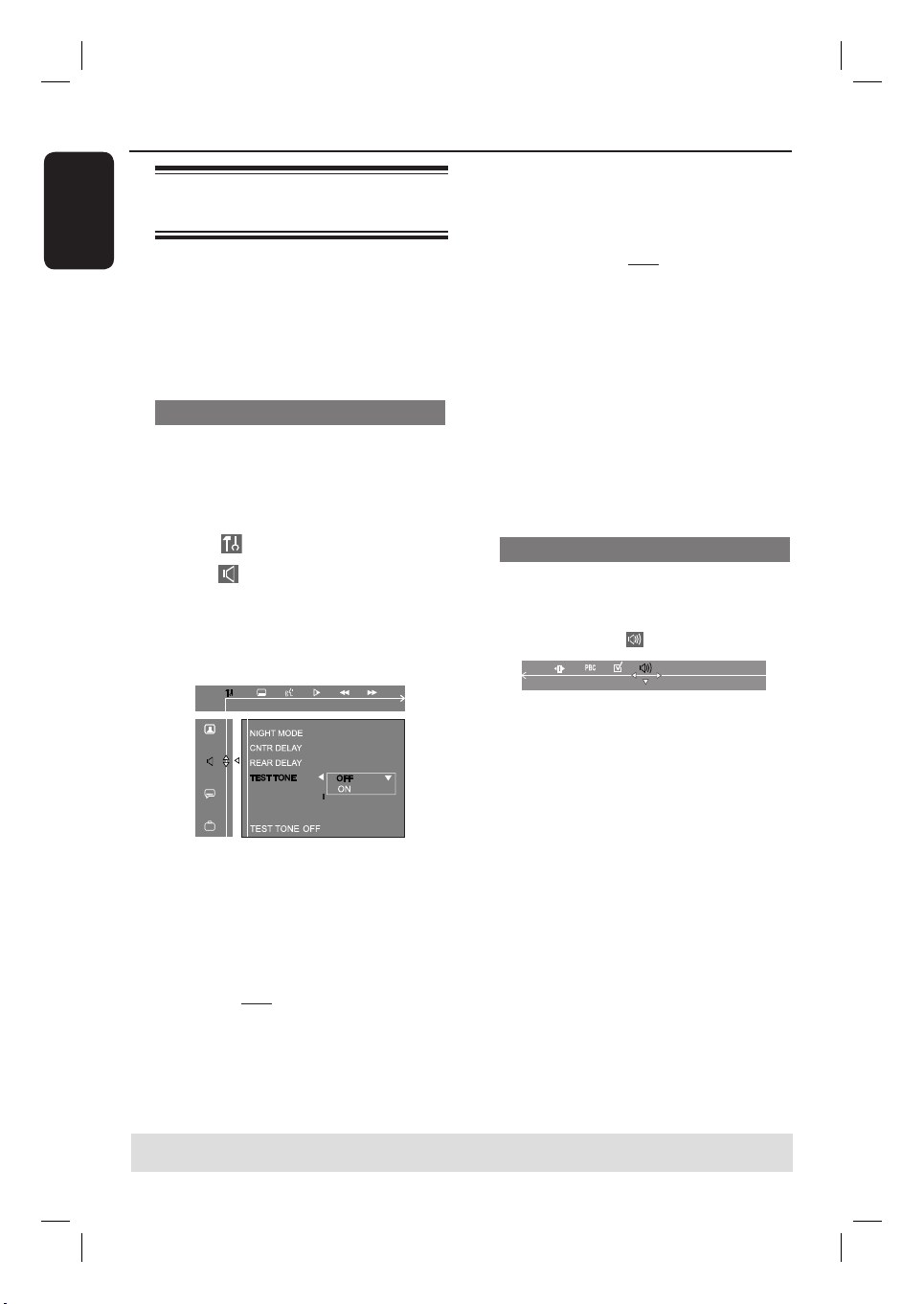

Step 6: Setting the speakers’ channels .........................................................................................................24
Speakers delay time ....................................................................................................................................24
Speakers volume output level ..................................................................................................................24
Disc Playback
Disc Operations ........................................................................................................ 25-30

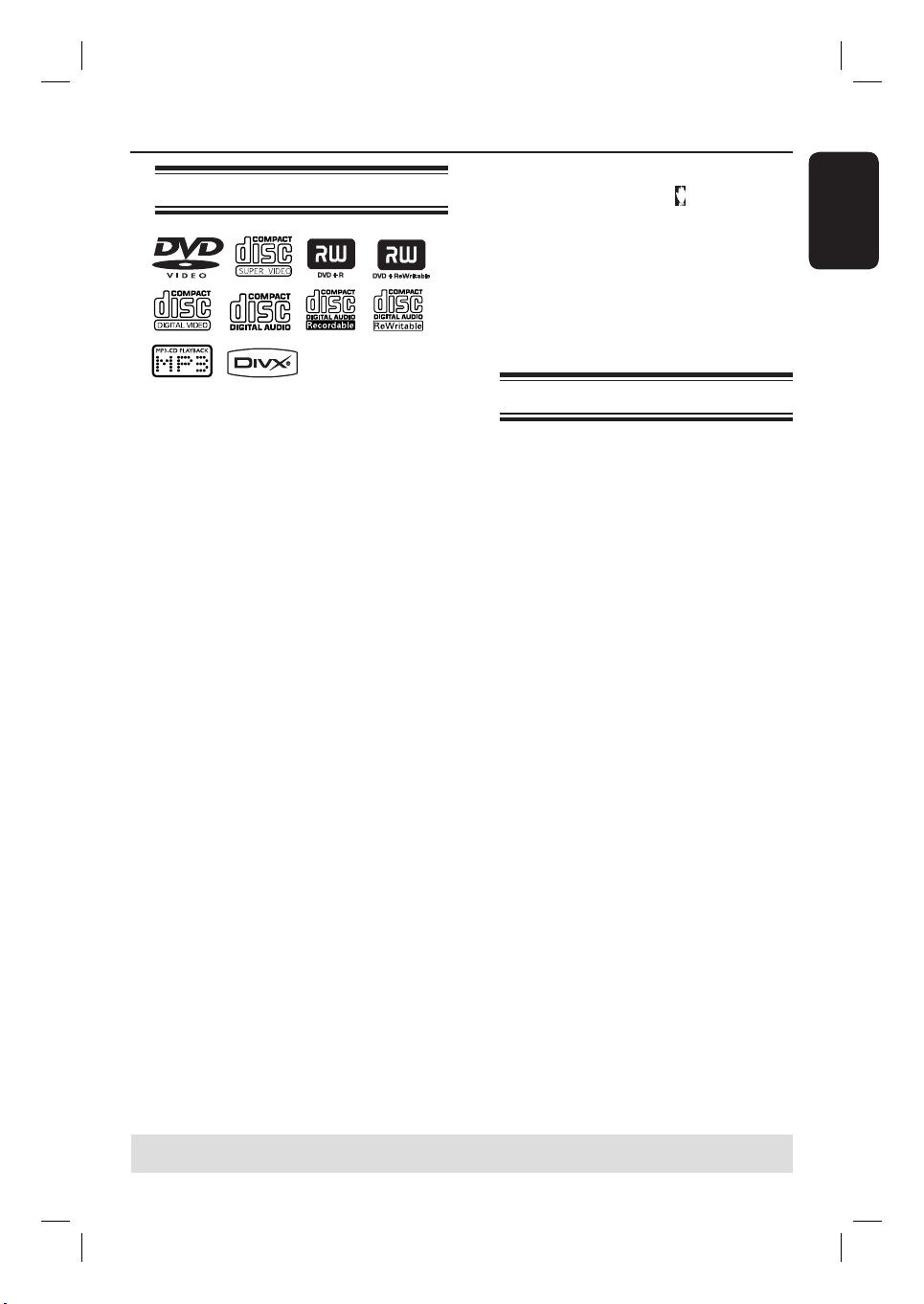

Playable discs ...................................................................................................................................................... 25
Playing a disc ....................................................................................................................................................... 25
Basic playback controls .................................................................................................................................... 26
Selecting various repeat functions ................................................................................................................ 26
Repeating play mode ................................................................................................................................. 26
Repeating a selection within a chapter/track ..................................................................................... 26
Programming disc tracks ..................................................................................................................................27
6
Table of contents
Other playback features ..................................................................................................................................27
Using the Disc Menu ..................................................................................................................................27
Using the Title Menu ................................................................................................................................. 28

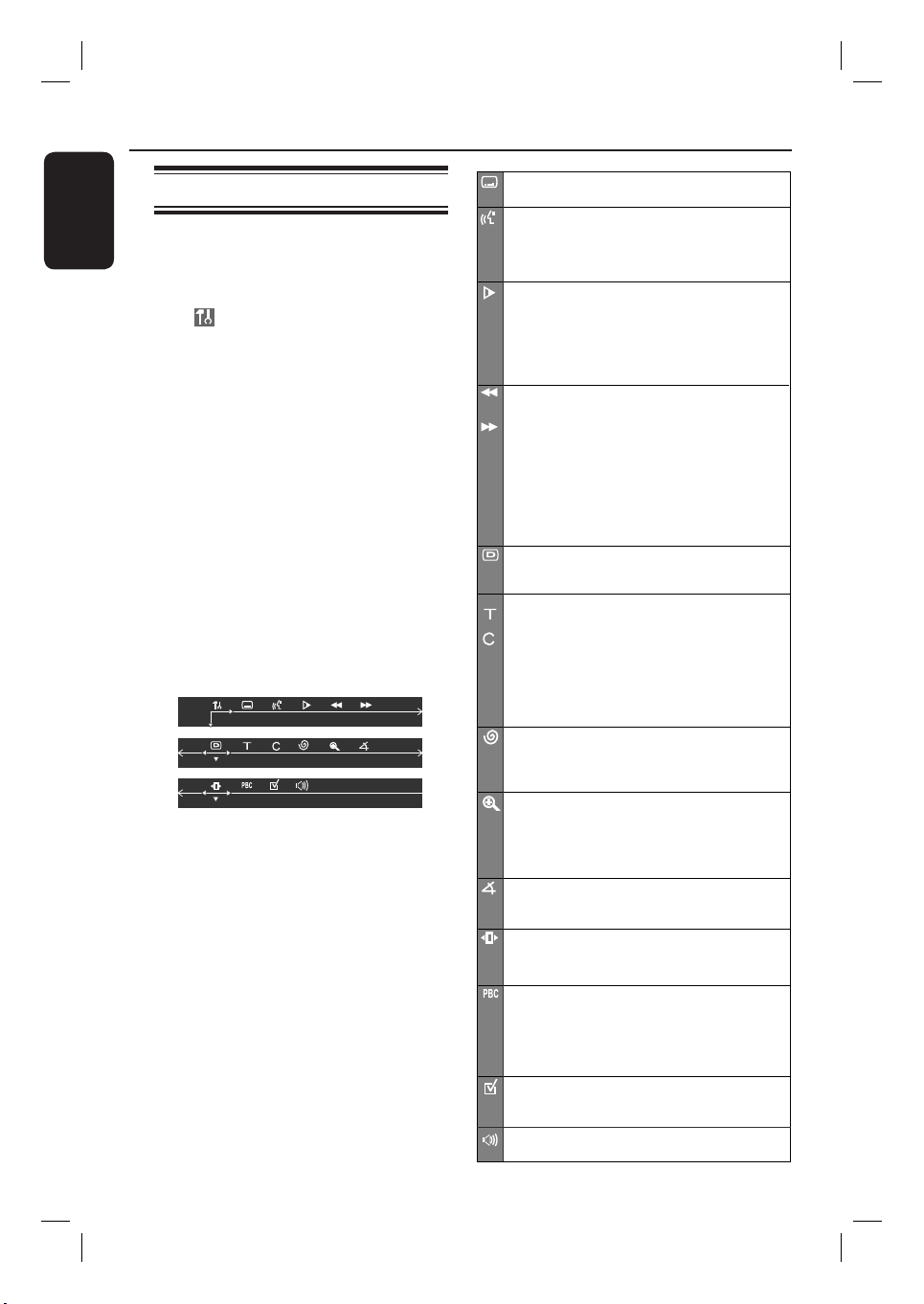

Viewing playback information ................................................................................................................. 28
Resuming playback from the last stopped point ............................................................................... 28
Zooming in ................................................................................................................................................... 28
Changing subtitle language (DVD only) ............................................................................................... 28
Changing sound track language ...............................................................................................................29
Switching camera angles ...........................................................................................................................29

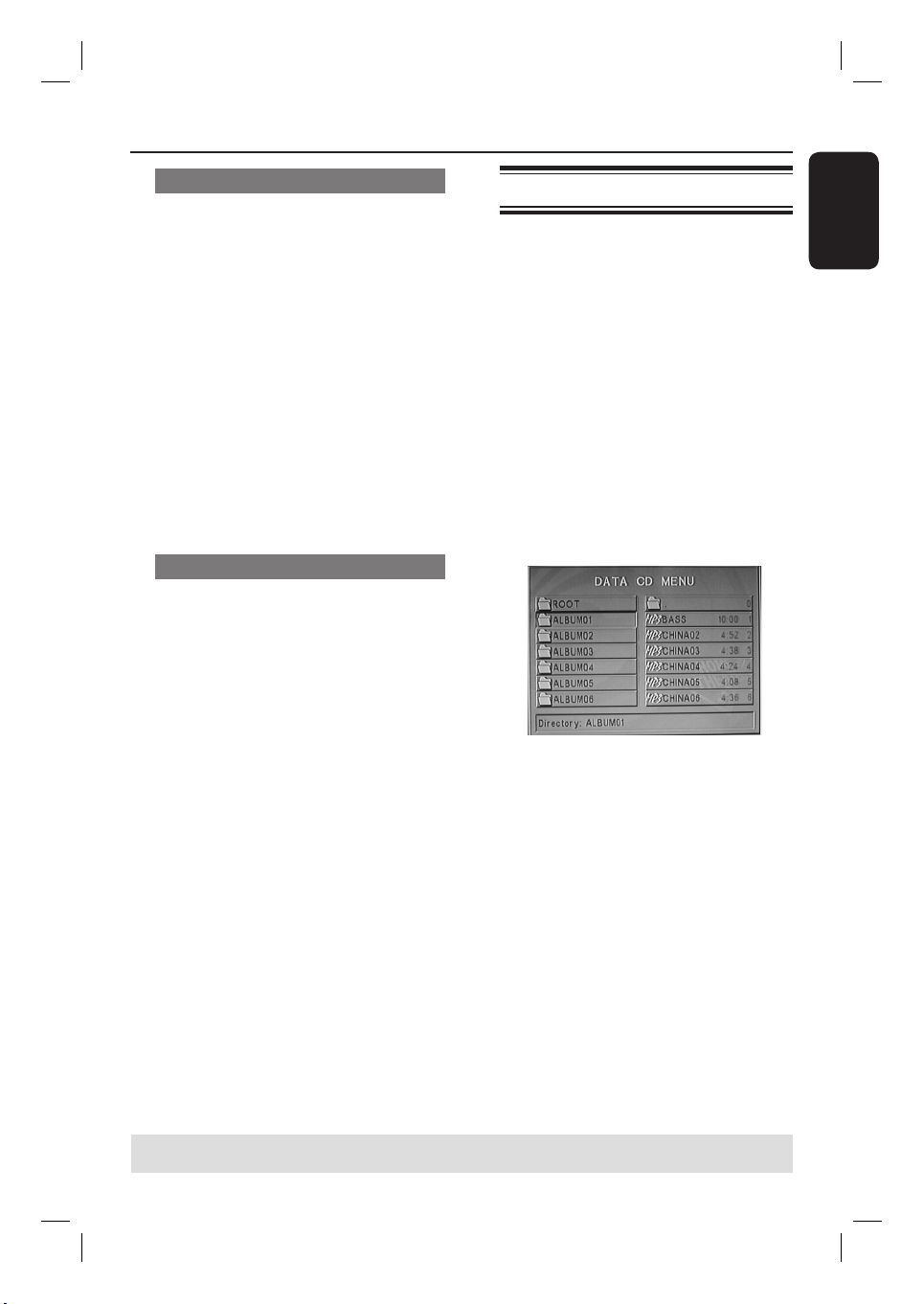

Playing a MP3/ JPEG disc .......................................................................................................................... 29-30
Zoom picture .............................................................................................................................................. 30
Rotating/ ipping the picture .................................................................................................................. 30
Playing MP3 music and JPEG pictures simultaneously ........................................................................... 30

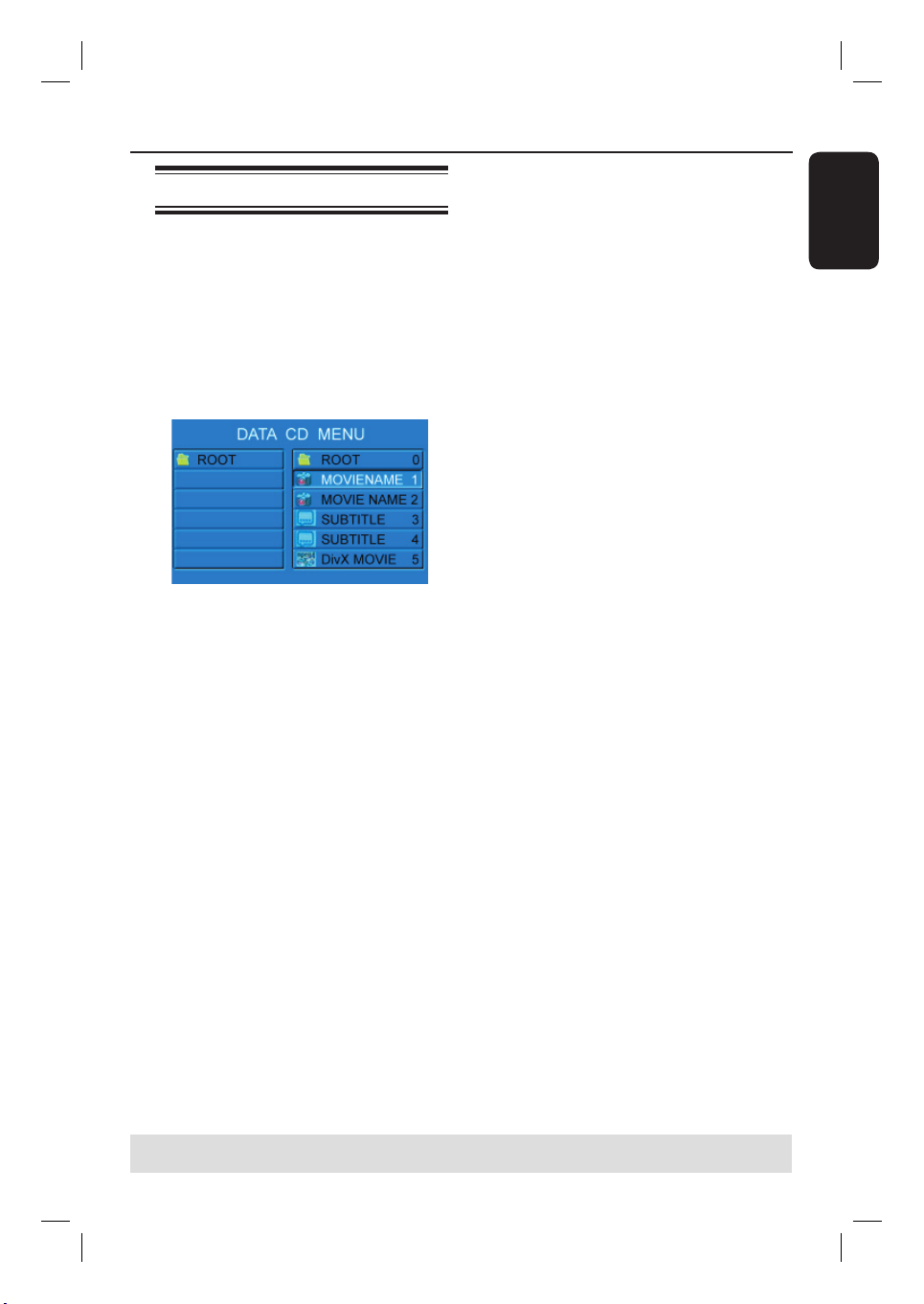

Playing a DivX disc ............................................................................................................................................. 31
Setup Options

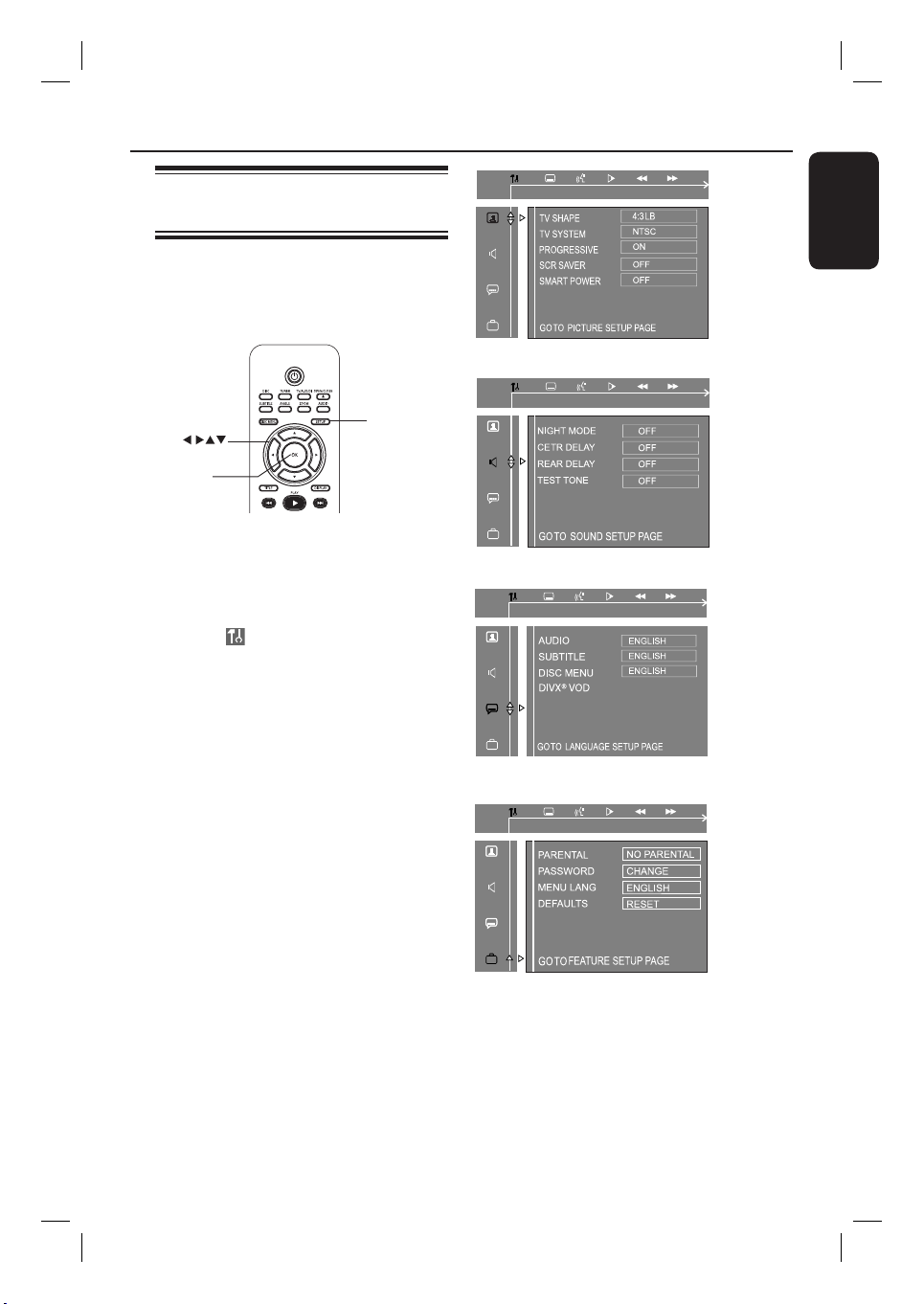

DVD Setup Menu Options ....................................................................................... 32-36
Using the menu bar ............................................................................................................................................32
Accessing the DVD setup menu .....................................................................................................................33

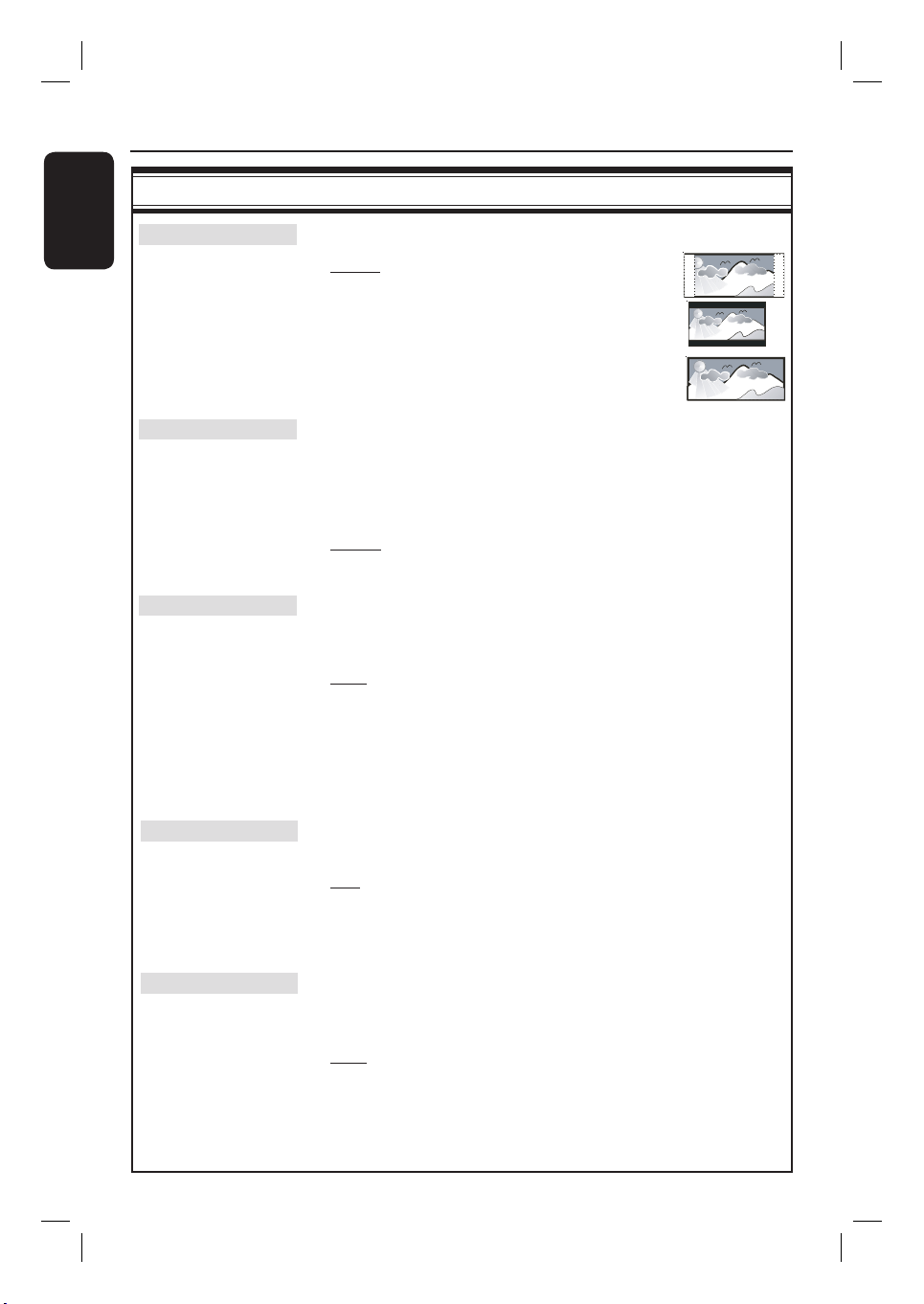

picture setup page ............................................................................................................................................. 34
Sound setup page ............................................................................................................................................... 35
Language setup page ......................................................................................................................................... 35

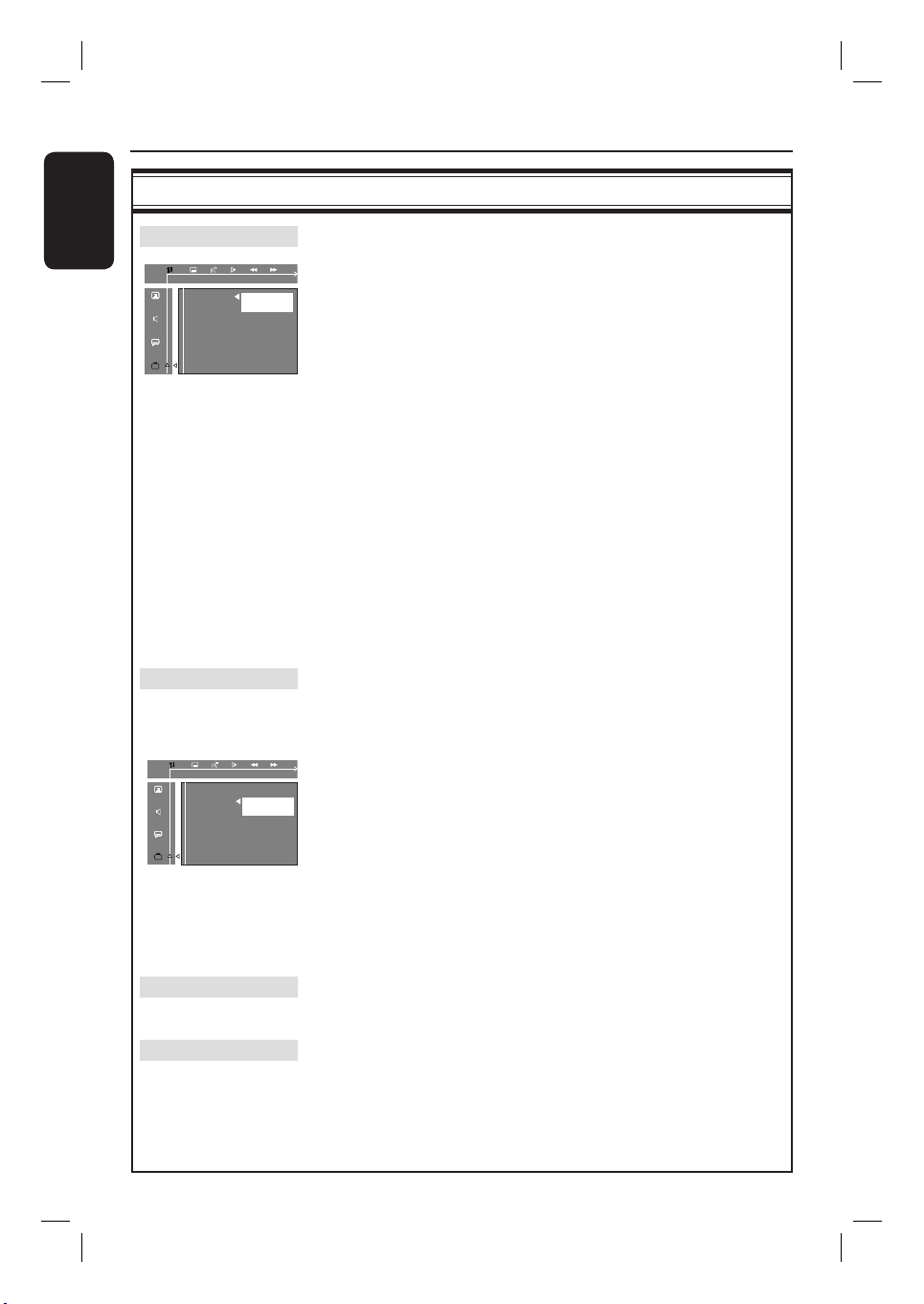

Feature setup page ............................................................................................................................................ 36
Radio Tuning

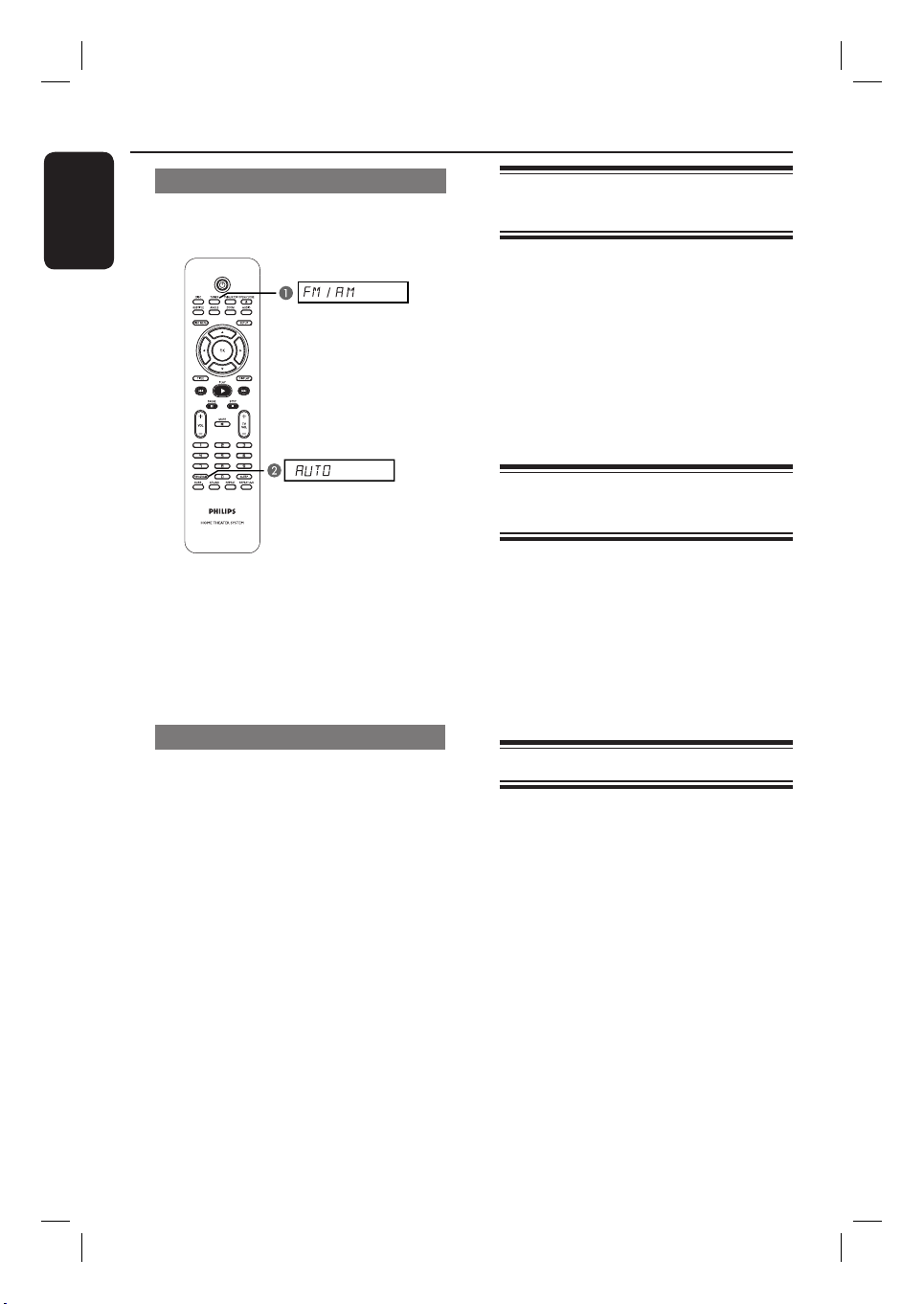

Tuner Operations ......................................................................................................37-38
Tuning to radio stations ....................................................................................................................................37
Preset ting radio stations ..................................................................................................................................37

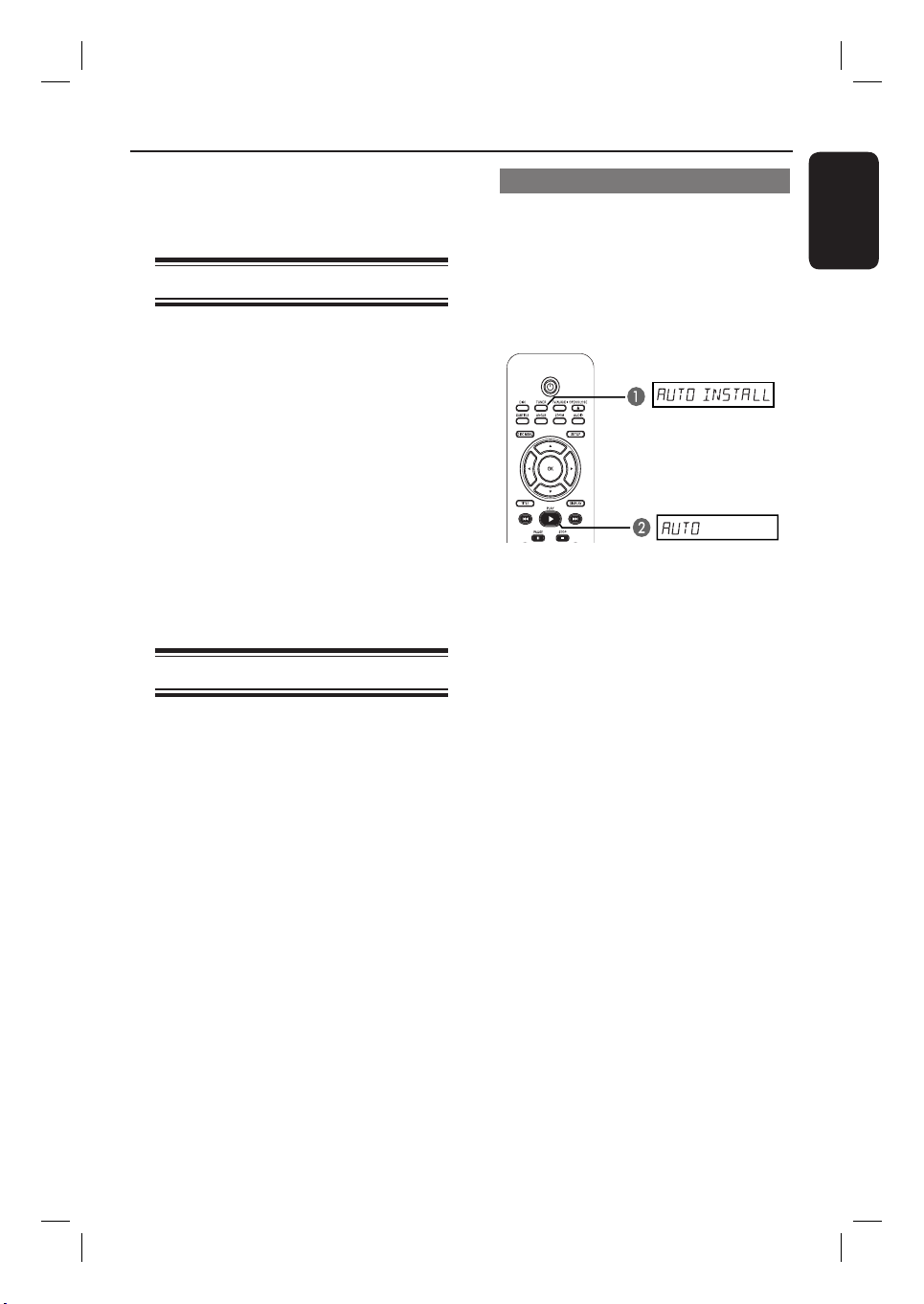

Using auto install .........................................................................................................................................37
Using automatic preset ............................................................................................................................. 38
Using manual preset .................................................................................................................................. 38
Selecting a preset radio station ..................................................................................................................... 38
Deleting a preset radio station ...................................................................................................................... 38
Changing tuning grid ........................................................................................................................................ 38
English
Others

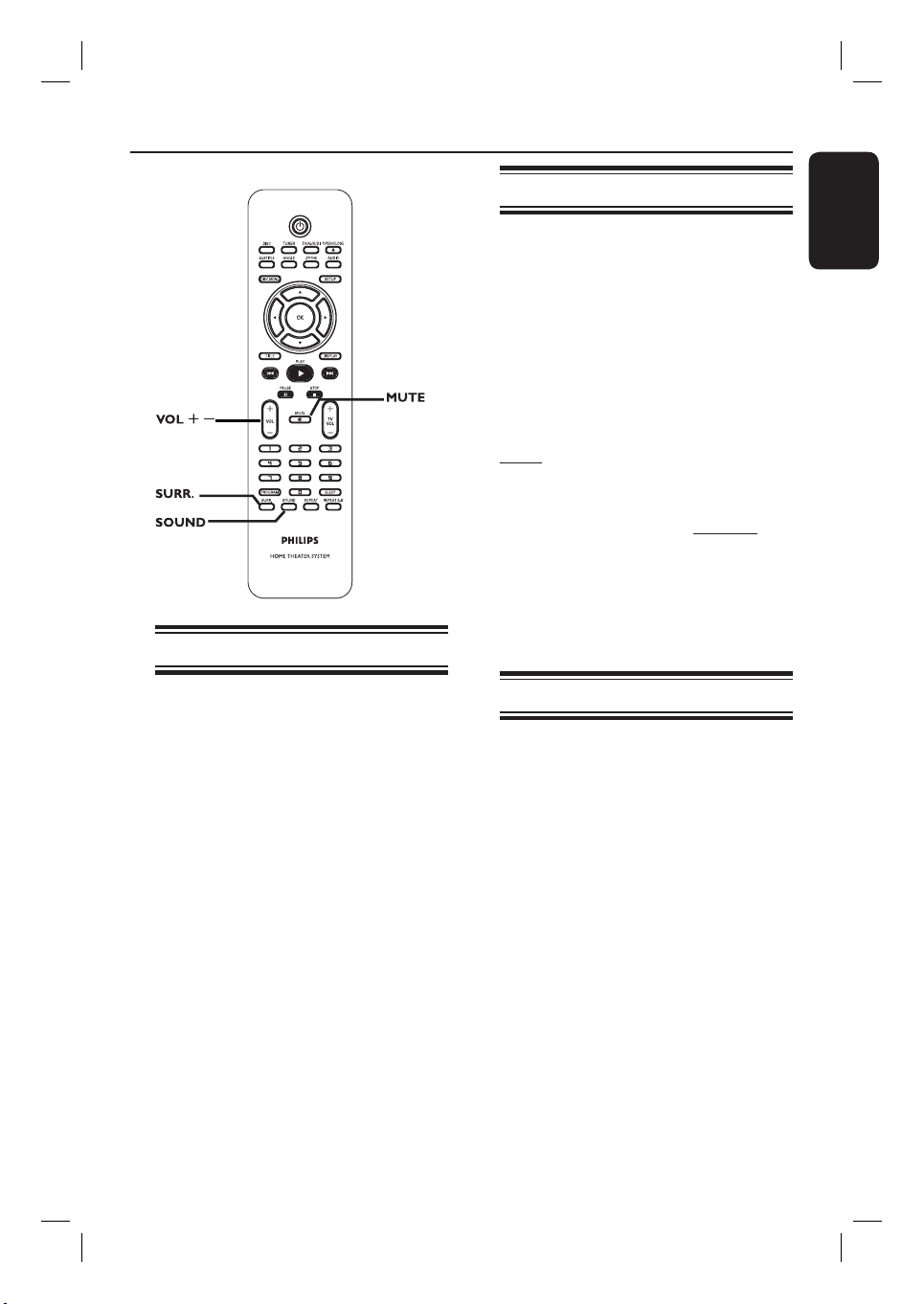

Sound and Volume Controls ......................................................................................... 39
Selecting surround sound .................................................................................................................................39
Selecting digital sound effects .........................................................................................................................39
Volume control ...................................................................................................................................................39
Other Features ...............................................................................................................40
Controlling ‘PHILIPS’ TV with the remote control ................................................................................. 40
Dimming systems’s display screen ................................................................................................................ 40
Setting the sleep timer ..................................................................................................................................... 40
Speci cations ..................................................................................................................41
Troublesho oting ........................................................................................................ 42- 43
Glossary ........................................................................................................................... 44
7
General Information
English
CAUTION! The machine does not contain any user-serviceable parts. Please leave all maintenance work to quali ed personnel.
Setup precautions
Finding a suitable location
– Place the set on a  at, hard and stable surface. Do not place the set on a carpet. – Do not position the set on top of other equipment that might heat it up (e.g., receiver or ampli er). – Do not put anything under the set (e.g., CDs, magazines). – Install this unit near the AC outlet where the AC power plug can be easily reached.
Space for ventilation
– Place the apparatus in a location with adequate ventilation to prevent internal heat build up. Allow at least 10 cm (4”) clearance from the rear and the top of the set and 5cm (2”) from the left and right to prevent overheating.
5cm (2")
10cm (4")
10cm (4")
Accessories supplied
– 1 passive subwoofer – 4 satellite speakers – 1 center speaker – 1 remote control with batteries – 1 video cable – 1 audio cable – 1 FM wire antenna – 1 AM loop antenna – Quick Start Guide – 1 adaptor
Cleaning discs
Some problems occur (frozen picture, sound disruptions, picture distortions) because the disc inside the unit is dirty. To avoid these problems, discs should be cleaned on a regular basis.
To clean a disc, use a micro  ber cleaning cloth and wipe the disc from the center to the edge in a straight line.
CAUTION!
Do not use solvents such as benzene, thinner, commercially available cleaners, or anti-static sprays intended for discs.
5cm (2")
Avoid high temperature, moisture, water and dust
– Apparatus must not be exposed to dripping or splashing. – Do not place any object or items that can damage the apparatus (e.g., liquid  lled objects, lighted candles).
8
About recycling
These operating instructions have been printed on non-polluting paper. The electronic equipment contains a large number of materials that can be recycled. If you are disposing of an old machine, please take it to a recycling center. Please observe the local regulations regarding disposal of packaging materials, exhausted batteries and old equipment.
Main Unit
English
1
2
a STANDBY ON 2
– Turns on the system or turns off to
standby mode.
b Disc tray
c OPEN/CLOSE ç
– Opens/ closes the disc tray.
d System display panel
e Ç (STOP)
– Exits an operation. – DISC: stops playback or clears programmed
track.
– TUNER: erases the current preset radio
station.
f SOURCE
– Selects the relevant active source mode:
DISC, TUNER (FM/AM), TV, AUX or DI.
3
4 5
7 8
6
g u (PLAY/PAUSE)
– DISC: starts/pauses playback. – TUNER: starts auto tuner installation for
 rst time setup.
h VOL
– Adjusts the volume level.
9
Remote Control
English
10
11
12
13
14

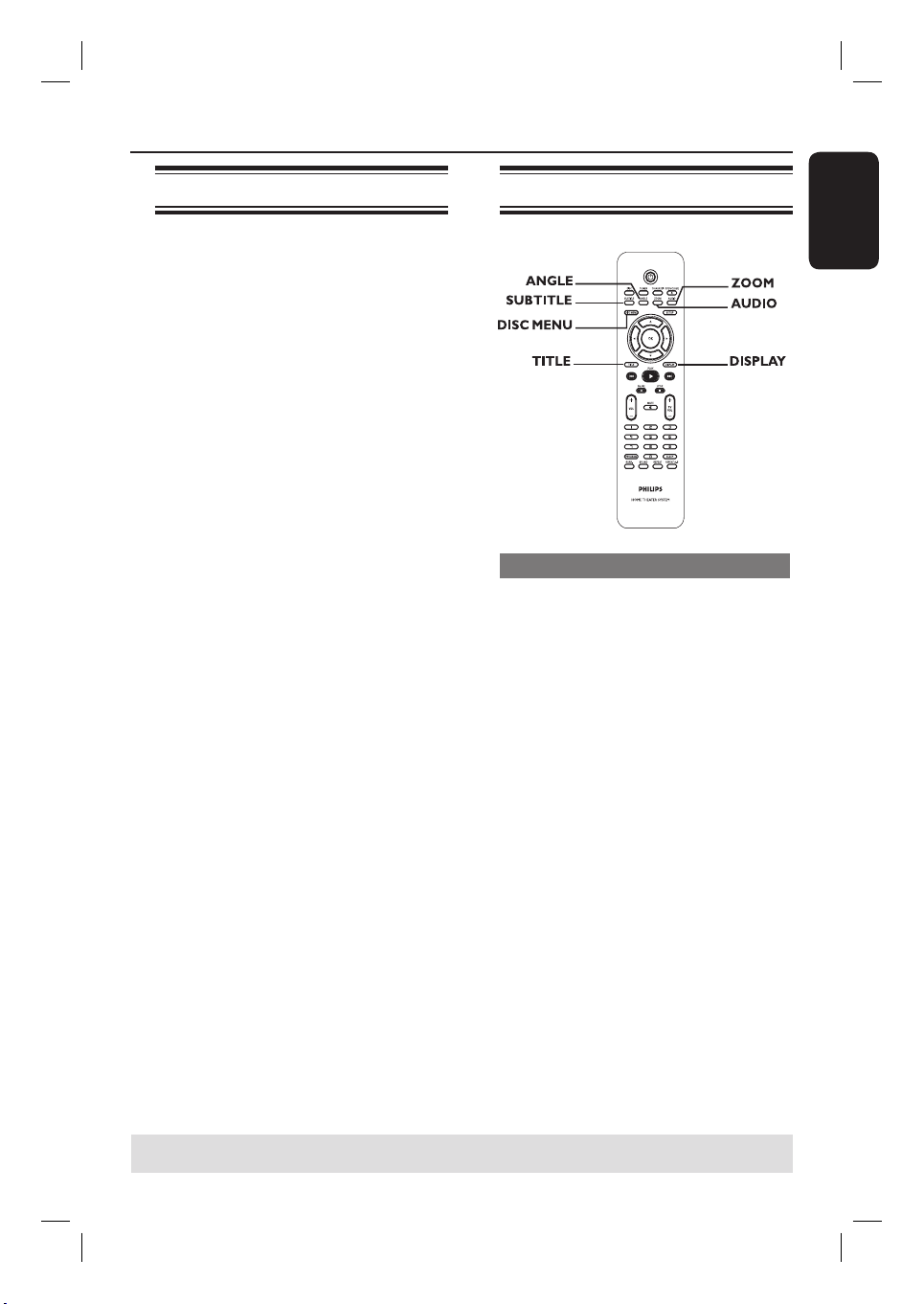

c SUBTITLE
– Selects a DVD subtitle language.
1
2
3 4 5
d ANGLE
– Selects a DVD disc camera angle (if
available).
e DISC MENU
– For DVD, enters or exits disc contents
menu.
– For VCD(2.0), enters digest menu.
f TITLE
– Access the title menu (if there is one).
6 7
8
9
g N
– DISC: starts playback.
h STOP Ç
– Exits an operation. – DISC: stops playback or clears
programed track.
– TUNER: erases the current preset radio
station.
i X
– DISC: pauses playback.
j VOLUME +-
– Adjusts the volume level.
a STANDBY ON 2
– Turns on the system or turns off to
standby mode.
b Source buttons
– DISC: switches to DISC mode. TUNER: toggles between FM and AM
band.
TV/AUX/DI: switches to TV or the
external device which is connected to this system. In TV mode, the sound from the TV will output through the connected speaker system.
10
k MUTE
– Mutes or restores the volume.
l SLEEP
– Sets the sleep timer function.
m SURR.
– Selects multi-channel surround or stereo mode.
n SOUND
– Selects a prede ned sound effect.
o OPEN/CLOSE ç
– Opens or closes the disc tray.
Remote Control (continued)
p AUDIO
– Selects an audio language (DVD) or an audio channel (VCD).
q ZOOM
– Enlarges a picture on the TV screen.
r SETUP
– Enters or exits the system setup menu.
s
– DISC: selects movement direction in the
menu.
– TUNER: press left or right to select a
preset radio station.
t OK
– Con rms a selection.
u DISPLAY
– Displays the current status or disc
information.
v ./ >
– DISC: direct access the previous/next
chapter or track. – DISC: fast backward and forward search. – TUNER: selects a preset radio station.
English
15
16 17
18
19
20
21
22
23
24
25
26
27
w TV VOLUME +-
– Adjusts TV volume (Philips TV only).
x Numeric Keypad (0-9)
– Enters a track/title number of the disc. – Enters a number of a preset radio station.
y PROGRAM
– DISC: starts programming. – TUNER: hold down this button to start
automatic/ manual preset programming.
z REPEAT A-B
– Repeats a speci c section on a disc.
wj REPEAT
– Selects various repeat modes; turns off
repeat mode.
11
Remote Control (continued)
English
Using the remote control
A Open the battery compartment.
B Insert two batteries type R03 or AAA,
following the indications (+-) inside
the compartment.
C Close the cover.
D Point the remote control directly at the
remote sensor (iR) on the front panel.
CAUTION! – Remove batteries if they are exhausted or if the remote control is not to be used for a long time. – Do not mix batteries (old and new or carbon and alkaline, etc.). – Batteries contain chemical substances, so they should be disposed of properly.
E Select the source you wish to control by
pressing the DISC, TUNER button on
the remote control.
F Then select the desired function (for
example ./ >).
12
Basic Connections
2
English
1
3
4
Step 1: Placing the speakers
This Home Theater System is simple to
install. However, proper system
placement is critical to ensure an
optimum sound experience.
A Place the front left and right speakers at
equal distances from the TV and at an
angle of approximately 45 degrees from
the listening position.
B Place the center speaker above the TV or
the DVD system so that the center
channel’s sound is localized.
C Place the rear speakers at normal
listening ear level facing each other or
hang on the wall.
D Place the subwoofer at the corner of the
room. Keep at least one meter away
from the TV.
1
3
Helpful Hints: – The placement diagram shown here is only a guideline that will provide great system performance. You may  nd other placement choices that are more suitable for your room layout and provide the sound experience you enjoy. – To avoid magnetic interference, do not position the front speakers too close to your TV. – The rear speakers are labeled as REAR LEFT or REAR RIGHT. – The front speakers are labeled as FRONT LEFT or FRONT RIGHT.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
13
Basic Connections (continued)
English
FRONT
RIGHT
REAR
RIGHT
FRONT
LEFT
Step 2: Connecting the
speakers and subwoofer
CENTER
SUBWOOFER
REAR
LEFT
Connect all the speakers and subwoofer
to the speaker jacks at the rear of the
DVD system. Make sure that the colors
of the plugs and jacks are matched.
Helpful Hint:
– To prevent unwanted noise, do not place
the rear speakers too close to the DVD
system, AC power adapter, TV or any other
radiation sources.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
14
Loading...
+ 31 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
